好利来保险丝1A 250V规格书

合集下载

T3.15AL250V(大威)

Page:3 OF 3
2．原材料规格：
NO. 1 2 3 4
部件铜帽玻璃管可熔体尾线
材
料
黄铜(镀镍）
玻璃
合金纤维绕丝
黄铜(镀锡）
3．尺寸与结构 3.1 主体尺寸如图所示：(单位：MM)
3.2 玻璃管玻璃管无破裂、缺损或污染现象，且须透明易辨其内部的可熔体。
3.3 铜帽铜帽应焊接牢固，以保证在未损坏熔断体时，铜帽不能被卸脱。铜帽表面镀层应结实不易脱落，在每个端帽应能经受专用的设备外加的轴向拉力 3N，保持 1MIN 铜帽不脱落
6、产品标志 6.1 保险丝上的标记应易于看清。 6.2 每个保险丝应标有下列标记：
1）产品认证标记: ○大 CCC
2）额定电流； 3.15A 3）额定电压； 250V 6.3 小包塑料袋装，袋里的标签应包括：型号、额定电压、额定电流、特性符号、环保标签； 7、包装要求产品的包装应能达到防潮、抗振的作用；以防止在运输或贮存过程中产品受潮或损坏。
3.4 焊点焊接铜帽端时，管内和铜帽外表面不能有残留的助焊剂及焊锡等异物。
4．机械特性保险丝应能承受下列三项试验：
4.1 扭力试验：固定保险丝的一端铜帽，然后在另一端铜帽上顺时针和逆时针方向上顺序施加 20N.mm 力矩，两端铜帽不应松动，玻璃管也不应破碎。
4.2 拉力试验：固定保险丝的一端铜帽，然后在另一端铜帽上，沿水平轴方向施加 3N 的拉力，两端铜帽不应松动且玻璃管不应破碎。
供应商：
东莞市大威五金电子有限公司
SUPPLIER： DONG GUANG DAWEI METAL ELECTRONICS CO.,LTD
地址:
东莞市常平镇金美金兴工业区
ADDRESS:JINGMEI ADMINISTRATIVE ZONE,CHANGPING,DONGGUAN,GUANGDONG PROVINCE

T1AL250V(大威)

4.3 管子强度试验：两端铜帽固定好后，在玻璃管的中心位置施加 15N 的压力，玻璃管不应破碎。
5、电气特性 5.1 测试条件全部测试条件都应在环境温度 24˚C+/-3˚C 条件下进行，在此期间温度变化不允许达到 +5˚C 和到极限范围。 5.2 负载能力测试当保险丝通以 100%倍额定电流的条件下进行测试时，在 4 小时内电路不应断开，保险丝不被电流熔化，管壳不破裂。

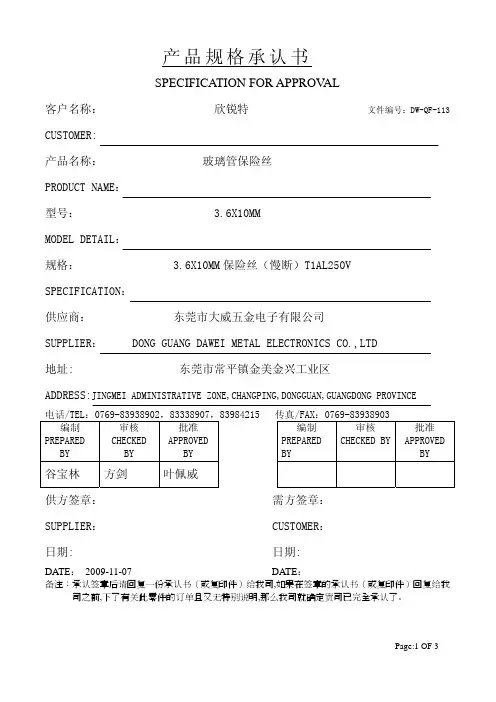

产品规格承认书
客户名称：

SPECIFICATION FOR APPROVAL
欣锐特
文件编号：DW-QF-113
CUSTOMER:
产品名称：
玻璃管保险丝
PRODUCT NAME：
型号：
3.6X10MM
MODEL DETAIL：
规格：
3.6X10MM 保险丝（慢断）T1AL250V
SPECIFICATION：
SUPPLIER：
CUSTOMER：
日期:
日期:
DATE： 2009-11-07
DATE：
备注：承认签章后请回复一份承认书（或复印件）给我司,如果在签章的承认书（或复印件）回复给我
司之前,下了有关此零件的订单且又无特别说明,那么我司就确定贵司已完全承认了。
Page:1 OF 3
1．适应范围
本规格书适用于公司按 ○大 CCC 安全标准认证的小型保险丝管。
2．原材料规格：
NO. 1 2 3 4
部件铜帽玻璃管可熔体尾线
材
料
黄铜(镀镍）
玻璃
合金纤维绕丝
黄铜(镀锡）
3．尺寸与结构 3.1 主体尺寸如图所示：(单位：MM)
3.2 玻璃管玻璃管无破裂、缺损或污染现象，且须透明易辨其内部的可熔体。

保险丝250V,1A

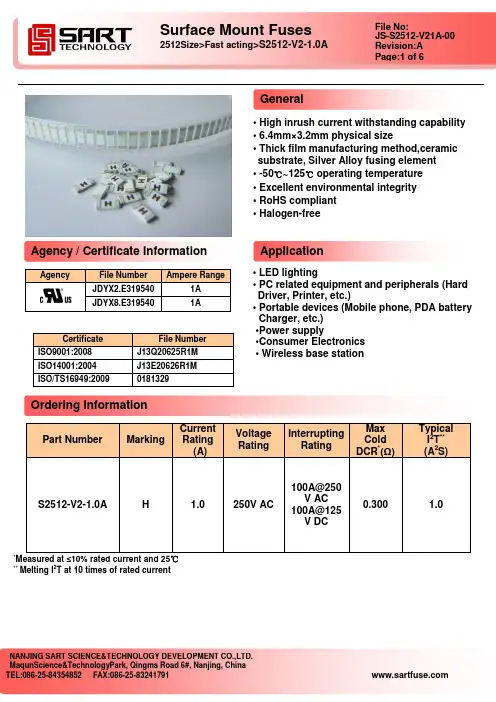

• High inrush current withstanding capability • 6.4mm×3.2mm physical size• Thick film manufacturing method,ceramic substrate, Silver Alloy fusing element• -50℃~125℃ operating temperature• Excellent environmental integrity• RoHS compliant• Halogen-free• LED lighting• PC related equipment and peripherals (HardDriver, Printer, etc.)• Portable devices (Mobile phone, PDA batteryCharger, etc.)•Power supply•Consumer Electronics• Wireless base station*Measured at ≤10% rated current and 25℃** Melting I2T at 10 times of rated currentAgency File Number Ampere RangeJDYX2.E319540 1AJDYX8.E319540 1ACertificate File NumberISO9001:2008 J13Q20625R1MISO14001:2004 J13E20626R1MISO/TS16949:2009 0181329Part Number MarkingCurrentRating(A)VoltageRatingInterruptingRatingMaxColdDCR*(Ω)TypicalI2T**(A2S) S2512-V2-1.0A H 1.0 250V AC100A@250V AC100A@125V DC0.300 1.0GeneralApplicationAgency / Certificate InformationOrdering InformationCataloS 2512- V2-1.0AShape & Dimensions: (mm)L(mm) W(mm) T(mm) B(mm) A(mm)6.40±0.20 3.25±0.20 0.55±0.20 0.85±0.20 0.30±0.20Components MaterialSubstrateCeramicTerminations Silver over-plated with nickel and tin (100%) ElementSilver AlloyDimensions A(mm) B(mm) C(mm) D(mm)Spec4.50±0.50 8.50±0.50 3.50±0.50 2.00±0.50Catalog SymbolDimensionsRecommended Land PatternsMaterialsBADC“1.0A” Ampere Rating: 1A“V2” V = fast acting, 2=250V ac“2512” Size Number: 2512=6.4mm×3.2mm physical size “S” Symbol of SARTTime Current Curve:• The current carrying capacity will be affected by ambient temperature which was showed in the figure.•This current derating curve is for fusing characteristics.Example,Work Temp:80℃,Temp derating factor = 91% I actual = I normal / 0.91Time Current CurveTemperature Derating CurveAmpere Rating % of CurrentRatingOpening Time 1A 100% >4 hours 1A 350%≤10secI 2T vs Time CurveElectrical Characteristics Temperature in degrees ℃T e m p d e r a t i n g f a c t o r %0.00010.0010.010.11101000.11101001000T i m e (s e c o n d s )Current (Amperes)Time Current Curves0.010.111010010000.00010.011100I 2T (A 2S )Time (Seconds)I 2T vs.Time CurveReliability Test:***Fuse mounted on board with 1-oz Cu traceItemTest condition/ Methods Performance Standard Voltage Drop100% In; Temperature in fuse wasstabilizedIndividual values deviate from mean value:<15% IEC 60127-1Time/Current100% InNo Fusing;4hours Min.Refer to SARTSpec 350% In*** Within 10sec1000% In***>10msEndurance Test 100% In, 1h on,15min off, 100 cycles;followed by 1h at 125%In│△R │<10% Legible appearanceIEC 60127-1 Temperature Rise 100%In │△T │<75℃UL248-14 Interrupting Ability100A@250V AC 100A@125V DCWithout permanent arcing, ignition and bursting offuse linkUL248-14 Solderability 240℃±5℃,3sec±0.5sec95% coverage Min. IEC60127-4 IEC60068-2-20 MIL-STD-202 Resistance to Soldering 260℃±5℃,10sec±0.5sec│△R│<10% Legible appearanceMIL-STD-202 IEC60127-4 Bending Test Distance between holding points ：90mm; Bending ：1mm ; time:10sec│△R │<10%No mechanical damages IEC 60127-4 High Temperature Operating Life 70℃±2℃, 96hours, at 60% In│△R │<10%; no fusingMIL-STD-202 M1243.ethod108 Low Temperature Storage-55℃±2℃, 96hours │△R │<10%IEC60068-2-1High Temperature Storage 125℃±2℃, 96hours │△R │<10% IEC60068-2-2 Humidity(steady state) 40℃±2℃, 90%～95%RH, 1000 hours │△R │<10% MIL-STD-202Method 103 Salt Spray 5% salt solution ，48hoursexposure │△R│<10% Legible appearance MIL-STD-202 Method 101 Thermal Shock5 cycles between -55℃/+125℃, 60 minutes ;each extreme│△R│<10%No mechanical damagesIEC 60068-2-14Reliability Test1. Infrared Reflow: Temperature ：260℃ Time ：5secMax.Recommend Reflow profile2.Wave soldering3.Hand Soldering Reservoir Temperature ：260℃ Temperature ：350℃ Time in Reservoir ：10secMax. Time ：5secMax.1.Embossed Tape DimensionsProfile Feature Pb-Free Assembly AverageRamp-Up Rate(Ts max to Tp) 3℃/s Max. PreheatTemperature Min(Ts min ) Temperature Max(Ts max ) Time(Ts min toTs max )150℃ 200℃60sec~120sec Peak Temperature(Tp) 260℃ Time within 5℃ of actual Peak Temperature(Tp) 5sec Melting tin time(T L ) 20sec~30sec Ramp-Down Rate6℃/s Max. Time 25℃ to Peak Temperature8 minutes Max.TypeA(mm)B(mm)E(mm)F(mm)W(mm)P0(mm)P1(mm)P2(mm)D0(mm)T(mm)2512 3.40±0.10 6.73±0.10 1.75±0.10 5.50±0.10 12.00±0.10 4.00±0.10 4.00±0.10 2.00±0.05 1.50+0.10/-0 0.81±0.10Recommended Solder CurvePackagingTop TapeResistorEmbossed Tape2.Reel DimensionsTypeA(mm) N(mm) C(mm) D(mm) B(mm) G(mm) T(mm)2512178.00±2.00 57.00±0.20 13.00±0.50 21.00±0.50 2.00±0.50 13.00±0.50 15.50±1.50● The ambient temperature shall between 5℃~30℃.● The relative humidity recommended for storage is between 25%~60%.● Sealed plastic bags with desiccant shall be used to reduce the oxidation of thetermination and shall only be opened prior to use. The products shall not be stored in areas where harmful gases containing sulfur or chlorine are present.Packaging styleTape and ReelType 2512 Quantity(PCS ）4000StorageNumber of Package。

5×20 陶瓷管保险丝

证书编号
3. 结构及尺寸（单位：mm）
4. 原材料明细
产品规格书型号：5*20 陶瓷
版本号码文件编号页码
A/3 LF/C-WF-005-28 第 2 页,共 3 页
编号
○1 ○2 ○3
零件名称铜帽陶瓷管熔丝
材质镀镍黃铜
陶瓷抗氧化特殊合金线
5. 标示 5.1 保险丝上需有下列标示: 1) 制造工厂的标识： 2) 特性符号： 3) 额定电流：1A/2A/3A/5A/7A/10A 4) 额定电压：250V
保险丝承受分断能力：10000A 250V AC / 100A 250V AC 分断能力测试后测得保险丝的绝缘阻抗值大于 0.2ΜΩ。
8.4 温度上升试验：
通 1.0 倍额定电流 15 分钟，然后每隔 15 分钟增加 0.1 倍额定电流。测得熔断体断开时任何部位的温升不得超过 70℃，周围环境温度为 25±5℃。
供货商： SUPPLIER：
地址： ADDRESS：
编制
PREPARED BY
审核
CHECKED BY
批准
APPROVED BY
编制
审核
批准
PREPARED BY CHECKED BY APPROVED BY
供方签章： SUPPLIER：
日期： 2017-1-19 DATE：2017-1-19
需方签章： CUSTOMER：
日期： DATE：
产品规格书型号：5*20 陶瓷
版本号码文件编号页码
1. 适用范围本产品适用于各种电子机器内的电路中起过电流保护作用.
2. 相关标准及认证 2.1 执行标准：UL248-1/UL248-14 2.2 认证

雅宝温度保险丝系列产品规格书

● ● ● ● ●●●
尺寸：(mm)
a 9.0±0.5
b 38±3
(P-F 系列)
c
d
Φ0.54±0.05 Φ2.5±0.1
e 3.3 or below
型号
A0-3A-F A1-3A-F A2-3A-F A3-3A-F A4-3A-F A5-3A-F A7-3A-F A8-3A-F
额定动作温度
84℃ 102℃ 115℃ 125℃ 130℃ 135℃ 138℃ 150℃
保持温度
45℃ 51℃ 58℃ 66℃ 71℃ 79℃ 84℃ 92℃ 94℃ 104℃ 114℃ 127℃ 144℃ 159℃ 170℃ 191℃ 200℃ 200℃
AUPO BF 系列
极限温度
额定电流
150℃
10A
150℃
10A
150℃
10A
150℃
10A
150℃
10A
150℃
10A
150℃
保持温度
76℃ 85℃ 97℃ 102℃ 105℃ 108℃ 120℃
A-1A-F 系列
极限温度
额定电流
额定电压
180℃ 180℃ 180℃ 180℃ 180℃ 180℃ 180℃
1A 250Vac 1A 250Vac 1A 250Vac 1A 250Vac 1A 250Vac 1A 250Vac 1A 250Vac
实测动作温度
82±2℃ 112±3℃ 120±3℃ 126±2℃ 131±3℃ 135±2℃ 145±3℃
保持温度
55℃ 75℃ 85℃ 90℃ 90℃ 95℃ 105℃
P-3A-F 系列
极限温度

BK250系列正温度系数电源数据表说明书

DATA SHEETPOSITIVE TEMPERATURE COEFFICIENTAC/DC POWER SUPPLYBK250 seriesRoHS compliant & Halogen freet s p e c i f i c a t i o n – O c t o b e r 06, 2020 V .1Positive Temperature Coefficient (PTC) Data SheetDescriptionThe 250V series provides radial resettable overcurrent protection with holding current from 0.03A to 2.0A. Thisseries is suitable for applications with higher working voltage up to 250V.Features■ Radial leaded devices. ■ Over-current protection■ High voltage surge capabilities■ Flame retardant epoxy polymer insulating material meets UL94 V-0 requirement. ■ Available in lead-free version.■ Meets MSL level 1, per J-STD-020 ■ Operating Temperature: -40℃~+85℃Applications■ IT equipment■ Access network equipment ■ Central office equipment■ ISDN and xDSL equipments ■ Phone set and fax machine ■ LAN/WAN and VOIP cardsPart Number Code and MakingBK 250Lead Shape Z =Straight I =Inner O=OuterY=Front and Rear Curved Holding Current Rating Voltage Rating Brand BK--Body Shape S =Square D =CircularVoltage RatingHolding Current Rating Dimensions (Unit: mm)SZEDYDZ SY SIElectrical Characteristics·I H = Hold current: maximum current device will pass without tripping in 25℃still air.·I T = Trip current: minimum current at which the device will trip in 25℃still air.·V MAX = Maximum voltage device can withstand without damage at rated current.·I MAX = Maximum fault current device can withstand without damage at rated voltage. ·R MAX = Maximum resistance of device in initial (un-soldered) state.·R MIN = Minimum resistance of device in initial (un-soldered) state.·Pd typ. = Typical power dissipation from device when in the tripped state at 25℃still air.Polymeric PTC Selecting Guide■Determine the following operating parameters for the circuits:·Normal operating current (I hold) ·Maximum interrupt current (I max)·Maximum circuit voltage (V max) ·Normal operating temperature surrounding device (min℃/max℃)■Select the device from factor and dimension suitable for the application■Compare the maximum rating for V max and I max of the PPTC device with the circuit in application and make sure the circuit’s requirement does not exceed the device rating.■Check that PPTC device’s trip time (time-to-trip) will protect the circuit.■Verify that the circuit operating temperature is within the PPTC devi ce’s normal operating temperature range.■Verify that performance and suitability of the chosen PPTC device in the application.■Mechanical Stress·PPTC devices will undergo a thermal expansion during fault condition. If PPTC devices are installed or placed in an application where the space between PPTC devices and the surrounding materials (e.g., covering materials, packaging materials, encapsulate materials and the like) is insufficient, it will cause an inhibiting effect upon the thermal expansion. Pressing, twisting, bending and other kinds of mechanical stress will also adversely affect the performance of the PPTC devices, and shall not be used or applied. ■Chemical Pollutants·Silicone-based oils, oils, solvents, gels, electrolytes, fuels, acids, and the like will adversely affect the properties of PPTC devices, and shall not be used or applied.■Electronic and Thermal Effect·PPTC devices are secondary protection devices and are used solely for sporadic, accidental over-current or over-temperature error condition, and shall NOT be used if or when constant or repeated fault conditions (such fault conditions may be caused by, among others, incorrect pin-connection of a connector) or over-extensive trip events may occur.·PPTC devices are different from fuses and, when a fault condition occurs, will go into high-resistance state and do not open circuit, in which case the voltage at such PPTC devices may reach a hazardous level.·Operation over the maximum rating or other forms of improper use may cause failure, arcing, flame and/or other damage to the PPTC devices.·Conductive material contamination, such as metal particle, may induce shortage, flame or arcing.·Due to the inductance, the operation circuits may generate a circuit voltage (Ldi/dt) above the rated voltage of PPTC devices, which shall not be used under such circumstances.■General·Customers shall evaluate and test the properties of PPTC devices independently to verify and ensure that their ind ividual applications will be met.·The performance of PPTC devices will be adversely affected if they are improperly used under electronic, thermal and/or mechanical procedures and/or conditions non-conformant to those recommended by manufacturer.·Customers shall be responsible for determining whether it is necessary to have back-up, failsafe and/or fool-proof protection To avoid or minimize damage that may result from extra-ordinary, irregular function or failure of PPTC devices.·Any and all responsibilities and liabilities are disclaimed if any item under this notice of warning is not complied with.Thermal Derating Curve-40.000.0040.0080.000.0050.00100.00150.00200.00Device Ambient Temperature (℃)P e r c e n t a g e o f R a t e d C u r r e n tThermal Derating Chart – I H (A)Test Procedures and RequirementTypical Time-to-Trip Charts @25℃00.010.11101000Fault Current (A)T i m e t o T r i p (s )AB C D E F A=BK250-030B=BK250-040C=BK250-060D=BK250-080E=BK250-090F=BK250-110G=BK250-120H=BK250-145I=BK250-180J=BK250-200K=BK250-250L=BK250-400N=BK250-600M=BK250-6001000.20.40.60.81.01.21.41.61.82.02.22.42.62.83.0G H I J L MK N0.1101000.11101001000Fault Current (A)T i m e t o T r i p (s )A B CA-BK250-1000B-BK250-1500C-BK250-20001Storage Recommendations■ Storage Temperature: -10℃~+40℃ ■ Relative Humidity: ≤80%RH■ Keep away from corrosive atmosphere and sunlight. ■ Period of Storage: 1 year.Wave Soldering Recommendation Parameters5050150Time (s)T e m p e r a t u r e (℃)100150200100200300250。

(参考资料)好利来保险丝1A 250V规格书

Hollyland (China) Electronics本规格书适用于本公司生产并获得CQC 、UR/CUR 、SEMKO 、PSE 、VDE 、BSI 、KC 认证的5ET RoHS 系列HOLLY 商标的超小型保险丝。

This specification defines the technical requirements of sub-miniature fuse type 5ET RoHS series with HOLLY ® 产品部件号为： brand, which are approved by CQC, UR/CUR, SEMKO, PSE, VDE 、BSI and KTL.型号额定电流额定电压 Construction of part no: type rated current rated voltage 5ET 0100 H A型号规格：型号特性符号额定电流 MODEL DETAIL: 额定电压 Type Characteristic Symbol Rated Current 例如/ Example: Rated Voltage 5ET T 2 A *特性符号/ Characteristic Symbol: T – 慢断型/ Time-Lag.250V2. 相关标准及认证情况/ APPLICABLE STANDARDS & APPROVED DETAILS 2.1 5ET RoHS 系列产品适用的相关标准是 IEC 60127和GB 9364。

Applicable standards for 5ET RoHS series are IEC 60127 and GB 9364.Hollyland (China) Electronics3. 公司地址/ ADDRESS中国福建省厦门市湖里区枋湖路9-19号NO. 9-19, FANGHU ROAD, HULI, XIAMEN, FUJIAN, CHINA.4. 构造图/ CONSTRUCTION FIG . & DIMENSION4.2 方形塑料帽/ Square THERMOPLASTIC CAP 方形塑料帽无破裂、缺损或污染等现象。

保险丝SET Series SMD fuse(50mA-7A 250V) 2015-06-01 updated version

3. 产品标示 / Product Marking 保险丝上需有下列标示 / The fuses shall have the following markings 示例 Example:
1A
制造厂商标识/REOMAX Trade Mark:
注意 / Note：
额定电流/Rated Current (A): A 或 or mA
2.3 目录编号 Catalogue No.，● 已认证 Approved / ○ 认证中 Pending
目录编号 Catalog
No.
额定电流 Ampere Rating
额定电压 Voltage Rating
SET0050 50mA
分断能力 Breaking Capacity
冷阻值 Nominal Cold
• Notebook PC • Portable Devices • Cooling fan system • White goods • Industrial equipment
• Battery devices • Power supply • Storage system • Game console • Medical equipment
*
*
●
●
SET0200 200mA
*
*
●
●
SET0250 250mA
0.860
0.144
●
●
SET0300 300mA
0.620
0.162
●
●
SET0315 315mA
0.550
0.189
●
●
SET0375 375mA
0.470
0.220
