Neway超低温阀门介绍

合集下载

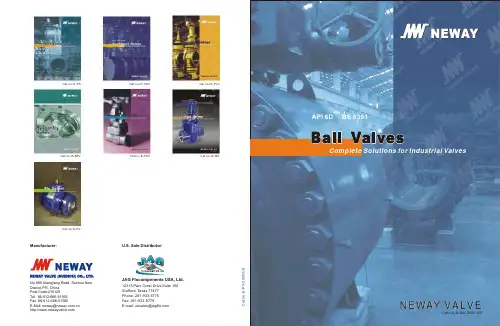

纽威阀门样本 Neway Valves

纽威阀门样本 Neway Valves

Cat.no.:E-BFVCat.no.:E-PVCat.no.:E-CSV Cat.no.:E-PS Cat.no.:E-FSVCat.no.:E-PLVNo.999 Xiangjiang Road, Suzhou New District,P .R. China Post Code:215129Tel: 86-512-666-51365Fax: 86-512-666-51360E-Mail: neway@ C a t .n o .:E -P V -2005-U S12315 Parc Crest Drive Suite 190Stafford, T exas 77477Phone: 281-933-5775Fax: 281-933-5779JAG Flocomponents USA, Ltd.U.S. Sole Distributor:Manufacturer:Cat.no.:E-MVN the safety and protection ofe w a y r e c o g n i z e s t h eimportance of valve quality for personnel health and property. It is our quality commitment to focus our resources to provide our customers with first class products at a competitive price, that are designed, manufactured, inspected and tested in accordance with our customers, specifications and that comply with all international standards.With respect to the facts that the current industrial standards do not always take into consideration the likelihood and consequences of possible deterioration in service, related to specific service fluids or the external environment in which they operate. Our customers are requested to keep an open line of communication withNEWAY technical research center utilizes the most advanced computertechnology to improve the existing products and develop the new lines, this includes a highly educated and trained engineering team and a comprehensive internal computer network which links the entire operations of design, manufacturing and administration.NEWAY design philosophy is to develop a safety and cost-efficient valve, we introduced the latest AUTO CAD and I-DEAS software for all our new product design research which include the advanced finite element analysis to virtually verify the new design prior to production, this has resulted in dramatically reducing the new product design time and ensure a safety and cost efficient final product.NEWAY technical personnel are always ready to offer on line or on site technical training and support for all of its distributors, agents and end users.Fire safe is standard design of all NEWAY ball valve.Technical InnovationAPI 6D API 607API 6FA BS 5351BS 6755ANSI B16.34ANSI B16.10ANSI B16.5MSS SP-25MSS SP-55 NACE Std MR0175SHELL MESCAPI 598 Fire Safe Test CertificateTest FacilityTest ChartCNC LatheThe latest computer technology are also widely applied in NEWAY for valve manufacturing, this include a large number of numeric control machines (Machining center, CNC horizontal and vertical lathe, CNC drilling machine) and ERP management system which significantly improve our machining quality and process control. NEWAY also employes a number of conventional lathe with capacity up to machine 48ball valve.NEWAY manufacturing philosophy is to ensure stable quality and just in time delivery.4.2M Lathe CNC Lathe Automatic welding MachineMachining CenterCNC DrillingNEWAY developed an extensive and advanced inspection and test facilities to control the quality from rough castings or forgings to final products. These facilities enable us to do Radio graphic test, Ultra-sonic test, Dye-penetrate test, Magnetic test, Positive Material Identifier (PMI), Impact test, T ensile test, Hardness test, Fire safe test, Cryogenic test, Vacuum test, Low fugitive emission test and Hydro-static test.NEWAY Quality Assurance is dedicated to the pursuit of a zero defect valve, and this has resulted in the company having more quality qualifications and end user approval than most of our competitors. NEWAY is certified by ISO 9001 (certificate under DNV) and API 6D (registered no. 6D-0285) and our off-shore platform valves are type approved by ABS. Moreover, NEWAY is the first valve manufacturer in China to be certified to CE/PED (category IV, mode B+D, certificate under B.V.), All of NEWAY soft seated ball valves are fire safe tested and certified by Lloyd s Register.Part number identificationControlled Stem & Stuffing Box FinishFor the elimination of air pollution, it is essential to control the fugitive emissions leakage of various chemicals from valves in your chemical plant. NEWAY low emissions ball valves installed with our emissions defense packing have been designed and tested to m e e t t h e 100 P P M m a x i m u m e m i s s i o n l e v e l (acceptance test per Shell SPE 77/312). This is NEWAYstandard specification for all series BA, B and BB flanged floating ball valve.The stem surface finish is controlled between Weather proofbelleville-spring washerLow Emission packingFire Safe Seat SealingAdditionally, the fire safe metal seat can prevent the line pressure erosion on soft seat and minimize soft seat creep deformation. All NEWAY floating valves fire safe is designed and test certified in accordance with API 607.When static are generated and concentrated on the ball, the spring-loaded pins installed on ball, stem are provided to ensure electrical continuity throughout the valve.Anti-Static DeviceStem lower end is integral T shaped designed to be blow-out proof. It is internally inserted and functions as the backseat for assured stem sealing at all pressuresBlow-out Proof StemBefore FireBodyStemPacking ClosureBall StemPackingBallSeatBodyPackingStemAnti-Static DeviceClosureBodyBallGasketClosureWhen non-metal sealing material are decomposed or deteriorated by a plant fire, the upstream line pressure pull the ball into contact with the metal seat lip beneath the soft seat to shut off the line fluid to minimize the internal leakage.Design Feature:Live Loaded Gland FlangeLow Emission PackingLive loading is designed to provide gland load retention, compensating for expected in-service consolidation of the packing. A set of Belleville-Spring Washers are used on each gland stud to help exert a continuous compressive force on the gland follower flange and therefore reduce fugitive emissions from the stem packing. NEWAY standard Belleville-Spring Washers are protected by a weatherproof cap to keep them free from environmental contamination, resulting in a longstable life.The packing set is a combination of parallel and vertical layer sealing elements, which are made of expanding graphite in die-formed rings and have features of heat resistance, less stress relaxation and low creep. With this special structure, it allows for a low-friction on rotary & rising stem valves, therefore providing the stabilized seal performance for long cycle life.For medium and low temperature service, the standard V shape PTFE packing rings are installed for lowemission control.Floating Ball Valve Design FeatureLow Emission Control2963161861171514128137541110Series FE1 Ball ValveRegular port, uni-body, end entry designBlow-out Proof StemInternally inserted and functions as the backseat for assured stem sealing at all pressuresMetal-to-Metal Sealing When non-meatl sealing is deteriorated by fire,ball floats to shut off the line fruidEmission-free Graphite primary gasketIndex noPart123456789Index no PartBody Closure BallGland Flange Lever Seat Ring Stem Gland Gasket101112131415161718Grounding Washer Packing Set Stop Plate Thrust Washer Retainer Washer Bolt Rotaining SpringSeries FE1 Ball ValveSeries FE1 Ball ValveRegular port,uni-body,cast steel,end entry designClass 150LBWeight KgW mmH mmL mmD mmd mmSizeinDimensionsWW DLdHWDLddHGear Operator1 / 22 3101 / 23 / 411-1/222-1/23468101 / 23 / 49.512.71930385164761141441879.512.712.71925.43851647610215220325412.719108117127165178191203229267292330140152545964901021121211662082463035459120140140160265265265300400 300 * 400 *120140 1.72.72.985.008.7112.416.6624.38541011502.83.61638111071817962416135151412Series FB2 Ball Valveavailable in size from to 12 full port or witnessed and certified by Lloyd s Register.Double "D" Stem HeadProvides mounting of the lever handle alwaysin parallel to the flow passage Blow-out Proof Stem Internally inserted and functions as the backseat for assured stem sealing at all pressuresEmission-free Graphite primary gasket Metal-to-Metal SealingWhen non-meatl sealing isdeteriorated by fire,ball floats to shut off the line fruid easily for installation of gear, motor or pneumatic actuator 123456789Body Closure Ball Yoke Gland Flange Seat Ring Stem Gland Gasket 101112131415161718Grounding Washer Packing Set Thrust Washer Stud Nut Bolt Bolt Spring Steel BallSeries FB2 material specifications Series FB2 Ball Valve Two-piece,split body,cast steel,side entry design Full Port Size in D mm L mm H mm W mm Weight Kg Reduced Port Size in D mm L mm H mm W mm Weight Kg d mm 150L B Gear Operator Dimensions W H D L Full Port WH d D L Reduced Port W 123456789101112131415161718No. Part Standard Stainless Steel Sour Service Low TemperatureServiceASTM A352-LCB ASTM A352-LCB ASTM A182-F316ASTM A216-WCB ASTM A216-WCB PTFE ASTM A182-F316ASTM A182-F316316SS + Graphite Graphite PTFE PTFE ASTM A320-L7M ASTM A194-7M ASTM A320-L7M ASTM A320-L7M S.S.S.S.ASTM A216-WCB ASTM A216-WCB ASTM A105/ENP ASTM A216-WCB ASTM A216-WCB PTFE ASTM A182-F6a ASTM A276-420316SS + Graphite Graphite PTFE PTFE ASTM A193-B7M ASTM A194-2HM ASTM A193-B7M ASTM A193-B7M S.S.S.S.ASTM A351-CF8M ASTM A351-CF8M ASTM A182-F316ASTM A351-CF8M ASTM A351-CF8M PTFE ASTM A182-F316ASTM A182-F316316SS + Graphite Graphite PTFE PTFE ASTM A193-B8ASTM A194-8ASTM A193-B8ASTM A193-B8S.S.S.S.ASTM A216-WCB ASTM A216-WCB ASTM A105/ENP ASTM A216-WCB ASTM A216-WCB PTFE ASTM A182-F6a ASTM A276-420316SS + Graphite Graphite PTFE PTFE ASTM A193-B7ASTM A194-2H ASTM A193-B7ASTM A193-B7S.S.S.S.Body Closure Ball Yoke Gland Flange Seat Ring Stem Gland Gasket Grounding Washer Packing Set Thrust Washer Stud Nut Bolt Bolt Spring Steel Ball 1 / 23 / 411-1/222-1/23456810121 / 2131925385164761021251522032543051310811712716517819120322935639445753361014059637697107142152178252272342345479591301301602302304004007001100 300 * 300 * 400 * 600 *1303/4*1/2*3/43/4*1/2*3/41*3/4*11-1/2*1-1/22*1-1/2*22-1/2*2*2-1/23*2-1/2*34*3*46*4*68*6*810*8*1012*10*121.782.003.517.2311.0515.022.036.058.0110.0195.0309.0346.02.29131925385164761021522032541319253851647610215220325430519117127165178190203229394457530610152828510011512015316219129034044282130130160230230400400460 300 * 300 * 400 *130 3.04.57.09.515.016.029.548.0123.0212.0230.03.5Series FB2 Ball Valve122019178111354197161021181631415296Blow-out Proof Stem Internally insertedand functions as the backseat for assured stem sealing at all pressuresSeries FB2 Ball Valve Two-piece, split body, forged steel, side entry design This series ball valves are featured with two-piece bolted with flanged end body and floating ball. Body and closure are fully forged steel made which eliminate the inevitable casting defects and is ideal for high pressure service. FB2 series ball valves are available in size from 1 /2 to 4 and offers ANSI class rating 600 to 2500, all meet the fire safe requirements of BS 6755 and API 607. Blowout-proof stem, anti-static device and locking device are standard design, low emission packing with live loaded gland flange design can be available upon request. Manual handle operation is basic standard, but fully machined mounting pad can also easily install with gear, motor or pneumatic operator.ANSI Class 150 to 300 and Three-piece design can be supplied upon request.Double "D" Stem HeadProvides mounting of the lever handle always in parallel to the flow passageSecure LIne Flow Equipped with an integral locking device to secure the line flow Spring-loaded pins installed on ball, stem is provided to ensure electrical continuity throughout the valve Bolted Body/AdapterFlanged body and flanged adapter secured with cap screws to maintain seal integrity Metal-to-Metal SealingWhen non-meatl sealing is deteriorated by fire,ball floats to shut off the line fruid Index no Part 1234567891011Body Closure Ball Lever Lever Sleeve Seat Ring Stem Gland Gasket Steel Ball Packing Set Index no Part 12131415161718192021Stop Plate Thrust Washer Stud NutSpringSpring Washer Stop Pin Nut WasherLocking Plate Series FB2 Ball ValveThis is a typical Series FB2 floating ball valve illustrated cross-section drawing which is only fordemonstrating of basic design features. The actual product design may be slightly different from this sample drawing due to its size and pressure class.Series FB2 material specifications Series FB2 Ball Valve 123456789101112131415161718192021No. Part Standard Stainless Steel Sour Service Low TemperatureServiceBody Closure Ball Lever Lever Sleeve Seat Ring Stem Gland Gasket Steel Ball Packing Set Stop Plate Thrust Washer Stud Nut Spring Spring Washer Stop Pin Nut Washer Locking Plate ASTM A105ASTM A105ASTM A105/ENP Carbon Steel Polyethylene PTFE ASTM A182-F6a ASTM A276-420Graphite S.S.PTFE Carbon Steel PTFE ASTM A193-B7M ASTM A194-2HM S.S.Alloy Steel Carbon Steel Carbon Steel Carbon Steel Carbon Steel ASTM A350-LF2ASTM A350-LF2ASTM A182-F316Carbon Steel Polyethylene PTFE ASTM A182-F316ASTM A182-F316316 + Graphite S.S.PTFE S.S.PTFE ASTM A320-L7M ASTM A194-7M S.S.Alloy Steel S.S.S.S.S.S.S.S.ASTM A182-F316ASTM A182-F316ASTM A182-F316Carbon Steel Polyethylene PTFE ASTM A182-F316ASTM A182-F316Graphite S.S.PTFE S.S.PTFE ASTM A193-B8ASTM A194-8S.S.Alloy Steel S.S.S.S.S.S.S.S.ASTM A105ASTM A105ASTM A105/ENP Carbon Steel Polyethylene PTFE ASTM A182-F6a ASTM A276-420Graphite S.S.PTFE Carbon Steel PTFE ASTM A193-B7ASTM A194-2H S.S.Alloy Steel Carbon Steel Carbon Steel Carbon Steel Carbon Steel Two-piece,split body,forged steel,side entry design L W H D H Dd WL Dimensions Full Port Size in D mm L mm H mm W mm Weight Kg Reduced Port Size in D mm L mm H mm W mm Weight Kg d mm 600L B B Full Port Reduced Port 3/4*1/2*3/4713131921622970831401707.510.01/2*1/4*1/21 / 23 / 41319216229831121701708.511.01 / 23 / 411-1/2234131925385176102165191216241292356432668890120135180224160170170280300450500 3.55.16.513.229.034.0135.53/4*1/2*3/41*3/4*11-1/2*1*1-1/22*1-1/2*23*2*3713192538517613192538517610216519121624129235643243668890120135180130160170170280300450 2.93.85.310.61342.081.51/2*1/4*1/24*3*4Series FB2 Ball ValveSeries FB2 Ball Valve Series BC Ball Valve Two-piece,split body,forged steel,side entry designL W HD WLHDd DimensionsFull Port Size in D mm L mm H mm W mm Weight Kg Reduced PortSizein D mm L mm H mm W mm WeightKgd mm150LBFull Port Reduced Port1 / 23 / 411-1/22313192538517621622925430536847083112123143177200230230300400450700 6.811.016.032.664.090.0713264751708.01/2*1/4*1/21 / 213264882309.03/4*1/2*3/41*3/4*11-1/2*1*1-1/22*1-1/2*23*2*37131925385113192538517621622925430536847070831121231431771702302303004004507.510.015.028.041.082.01/2*1/4*1/2NEWAY trunnion mounted ball valve contains 3 main series: TB2 series for cast steel two-piece design, TB3 series for forged steel three-piece design and TTE series for top entry uni-body design, all designed conform to API 6D and fire safe test are satisfied to BS 6755 and API 6FA. They are available in size from 2to 48Wide range of body and trim material is available for service00temperature from -46C to 200C and pressure rating from ANSI class 150 to 1500 or for sour service to NACE Mr0175.For 6 inch and larger NEWAY Trunnion mounted ball valveswill be installed with a sealant injection fittings on both stemand seats. When the sealing materials (seat sealing or stemo-ring) are damaged or decomposed by fire or otheraccidental causes, leakage from the seat and stem can beprevented by injection of sealant into these fittings. Fitting isalso internally installed a second check valve to providesbackup sealing. Emergency sealant injection system Cavity Pressure ReliefEach ball seats shut off the line fluid independently on the upstream and downstream side, allowing double block o p e r a t i o n. W h e n t h e p r e s s u r e i s simultaneously applied to both sides of the ball in closed position, the valve bore and the body cavity will be isolated from each other, and the residue within the body cavity can be released through the drain plug.Double block and bleed Top flange Injection Closure Gland Body Ball SeatThe stem is made separately from the ball; The lover end of the stem is designed with an integral collar to be blowout-proof.Antistatic device is a standard feature of NEWAY ball valve . A spring-loaded pin assures the electrical continuity, between ball ,stem and body, so as to avoid sparks during turning of the stem to open and close the valve, which could be dangerous in caseof hazardous area installation.Super Fire safe designExternal leakage preventionLeakage from the valve stem area isprevented by double sealing with 2 O-rings and gland gasket. Leakagethrough the valve body joint is alsoblocked by double sealing with O-ringand body gasket. After a fire hasdeteriorated O-rings, gland gasket,body gasket and stem firesafe packingare the measure that prevents externalfluid leakage. When non-metal materials such as O-ring, seat insert and spacer aredecomposed or deteriorated by fire, theedge of the metal seat preloaded by theBall to shut off the line fluid to minimize internal leakage through the valve bore. Also the fire safe flexible graphite seat packing will be compressed by the seat spring to prevent fluid leakage Internal leakage preventionAnti Blow-out Stem Anti-static Device Top Flange Stem Stem fire safe packingGland O-ring Gland gasket Body Ball Anti-static spring Grounding plunger Drain plug Body Upstream seat Body cavity Closed ball Vent valve Downstream seat Body cavity Total spring force (Fs)Cavity pressure (Pc)Fig b. P*D1>FsP=Pc-Pl Cavity pressure (Pc)Total spring force (Fs)Fig a. P*D1<Fs P=Pc-Pl Stem Top Flange Gland Body Closure O-ring Ball Gland gasket Body gasket Stem firesafe packing Trunnion Mounted Ball ValveDesign FeatureTrunnion Mounted Ball Valve Design FeatureH L Dd W H L D d d mm L mm H mm W mm D mm L mm H mm W mm d mm 517610215220325430533738743843848976102152203254305337387438489540591203229394457533610686762864914101610671651932313293933934414815986436437082304004004601000*500*500*500*500*500*500*500304790161268467560766902113013001520234681012141618202224517610215220325430533738743848954059125121616523018178203229394457533610686762864914101610671651932313293934014414815986437087988632304004601000*500*500*500*500*500*500*500*500*500173350931662734755707789351190134615795176283165230383*2*34*3*46*4*68*6*810*8*1012*10*1214*12*1416*14*1618*16*1820*18*2022*20*2224*20*243*2*3WD mm L mm H mm W mm D mm L mm H mm W mm d mm 51761021522032543053373874384897610215220325430533738743848959135643255966078783888999110921194139717624727636336342654859864874081040075010001500*500*500*500*500*500*500*5004170122255440662010601440186024003240 600L B 234681012141618202451761021522032543053373874384895912351763683811922794601000529729235643559660787838889991109211941397217624727636336342654859864874081092040075010001500*500*500*500*500*500*500*500*500275080251.835060082011301550210028003626517676102381457192279460100083103--------------3*2*34*3*46*4*68*6*810*8*1012*10*1214*12*1416*14*1618*16*1820*18*2024*20*243*2*34*3*4W HL D d L H D d WTwo-piece,split body,cast steel,side entry design Full PortSizeinWeight Kg Reduced Port Size in Weight Kg DimensionsGear Operator Series TB2 Ball Valve Series TB2 Ball ValveTow-piece,split body,cast steel,side entry design Gear OperatorFull Port Size in Weight Kg Reduced Port Size in Weight Kg Dimensions 150L BWDdHWDdHLL22328201315652919810383733341426161127918363538724251221173231302230311Series TB3 Ball ValveIndex noPart12345678910111213141516171819Body Closure BallSeat Assembly( )Seat Insert Seat Ring StemTrunnion Alignment Pin ShimTrunnion Support Gasket Body Gasket Spacer GasketFiresafe Gasket Gland Cap Top Flange Thrust Washer BearingIndex noPartSeat Follower Vent Valve Drain Seat Spring Grounding Spring Grounding Plunger O-Ring O-Ring O-Ring Series TB3 Ball ValveD mmL mmH1mm2346810121416182022242651761021522032543053373884384895405916351782032293944575346106867628649149911067114320030031533540542746550662266673083389590011012616516520022026229334192435480518535265285285*300*300*300*500*600*600*600*600*600*800*80021.1132.0992190345495577859114414401918235228033200W mmH2mmSize inD mmL mmH1mmW mm3*2*34*3*46*4*68*6*810*8*1012*10*1214*12*1416*14*1618*16*1820*18*2022*18*2224*20*2426*22*2628*24*28d mm517610215220325430533738743843848954059176102152203254305337387438489540591635686203229394457534610686762864914991106711431245200300315335405427465506622666666730833895110126165170200220262293341392392435480518265285285*300*300*300*500*600*600*600*600*600*600*80026.4540102225373509730790109511522343206022152700H2mmWH 1H 2DdWLSeries TB3 Ball ValveSeries TB3 material specifications 123456789101112131415161718192021222324252627No. Part Standard Stainless Steel Sour Service Body Closure BallSeat Assembly Seat Insert Seat Ring Stem Trunnion Alignment Pin ShimTrunnion Support Gasket Body Gasket Spacer Gasket Firesafe Gasket Gland Cap Top Flange Thrust Washer Bearing Seat Follower Vent Valve Drain Seat Spring Grounding Spring Grounding Plunger O-Ring O-Ring ASTM A105ASTM A105ASTM A105/ENPAssembled By No.5&625% Glass-filled PTFE ASTM A105/ENP ASTM A105/ENP ASTM A182-F316ASTM A182-F316ASTM A216-WCB/ENP 316SS + Graphite 316SS + Graphite PTFE316SS + Graphite 316SS + Graphite ASTM A105ASTM A105316 + PTFE + MoS2316 + PTFE + MoS2ASTM A105/ENP Assembly S.S.Inconel X-750S.S.ASTM A182-F316NBR NBR ASTM A182-F316ASTM A182-F316ASTM A182-F316Assembled By No.5&625% Glass-filled PTFE ASTM A182-F316ASTM A182-F316ASTM A182-F316ASTM A182-F316ASTM A351-CF8M 316SS + Graphite 316SS + Graphite PTFE316SS + Graphite 316SS + Graphite ASTM A182-F316ASTM A182-F316316 + PTFE + MoS2316 + PTFE + MoS2ASTM A182-F316Assembly S.S.Inconel X-750S.S.ASTM A182-F316NBR NBR ASTM A105ASTM A105ASTM A105/ENPAssembled By No.5&625% Glass-filled PTFE ASTM A105/ENP ASTM A105/ENP ASTM A182-F316ASTM A182-F316ASTM A216-WCB/ENP 316SS + Graphite 316SS + Graphite PTFE316SS + Graphite 316SS + Graphite ASTM A105ASTM A105316 + PTFE + MoS2316 + PTFE + MoS2ASTM A105/ENP Assembly S.S.Inconel X-750S.S.ASTM A182-F316NBR NBR ASTM A350-LF2ASTM A350-LF2ASTM A350-LF2/ENPAssembled By No.5&625% Glass-filled PTFE ASTM A350-LF2/ENPASTM A350-LF2/ENP ASTM A182-F316ASTM A182-F316ASTM A352-LCB/ENP316SS + Graphite 316SS + Graphite PTFE316SS + Graphite 316SS + Graphite ASTM A350-LF2ASTM A350-LF2316 + PTFE + MoS2316 + PTFE + MoS2ASTM A350-LF2/ENP Assembly S.S.Inconel X-750S.S.ASTM A182-F316NBR NBR Low TemperatureServiceDimensionsClass 150LB Full PortSize inWeight KgClass 150LB Reduced portWeight KgGear OperatorThree-piece,split body,forged steel,side entry designD mmL mmH1mm234681012141618202224285176102152203254305337388438489540591686292356432559660787838889991109211941295139715492063153303454154274655196386837488549179581131291691481852262693003504024464925315564007501000*300*300*500*600*600*600*600*600*800*800*8003363.5117273.54527366251230153521352640337049206060W mmH2mmD mmL mmH1mmW mm3*2*34*3*46*4*68*6*810*8*1012*10*1214*12*1416*14*1618*16*1820*18*2022*18*2224*20*2428*24*3030*24*28d mm5176102152203254305337387438438489591591761021522032543053373874384895405916867373564325596607878388899911092119412951397164916512063153303454154274655196386836837489179171131291691481852262693003504024021165315314007501000*300*300*500*600*800*800*600*600*600*600*60046.59917630453690210901310164022702430344042504730H2mmH 1H 2LH 1H 2LD dWKgD mmL mmH1mm2346810121416182022242851761021522032543053373884384895405916862162833054045025696487628399169911093 11431347206315330345415427465519638683748854917958113129169148185226269300350402446492531556265400750*300*300*400*500*600*600*600*600*600*800*800311121137651775890013501715209022202890457545.68W mmH2mmD mmL mmH1mmW mm3*2*34*3*46*4*68*6*810*8*1012*10*1214*12*1416*14*1618*16*1820*18*2022*18*2224*20*2428*24*2830*24*30d mm5176102152203254305337387438438489591591761021522032543053373874384895405916867372833054045025696487628399199911093114313471397206315330345415427465519638683683748917917113129169148185226269300350402402446531531265400750*300*300*500*600*600*600*600*600*600*800*8003655103222381619830970153018302010222032003200H2mmWH 1H 2DdWLH 1H 2Series TB3 Ball ValveDimensionsClass 300LB Full PortSize inWeight KgClass 300LB Reduced PortSize inWeight Kg Gear OperatorDimensionsClass 600LB Full PortSize inWeight KgClass 600 LB Reduced PortSize inGear OperatorThree-piece,split body,forged steel,side entry designThree-piece,split body,forged steel,side entry design Series TB3 Ball ValveWLH 1H 2DdH 1H 2LDdW337302332322330174140826273181665562573325371412213813212810223534362843299391525Series TTE Ball Valve Series TTE Ball ValveWH 1H 2LDd H 1H 2DmmL mm2346810121416182024385176102152203254305337388438489591H2mmW mm701101101751952802853203404104455106404004007501000*300*300*500*600*600*600*600*600*600303880150248438601625123015352135264039602412923564325596607878388899911092119413971-1/2209195240280305400435440505590700775840H1mmD mmL mm2*1-1/2*23*2*34*3*46*4*68*6*810*8*1012*10*1214*12*1416*14*1618*16*1820*18*2024*20*24d mm3851761021522032543053373874384895176102152203254305337387438489591292356432559660787838889991109211941397H2mmW mm701101101751952802853203404104455104004007501000*300*300*500*600*600*600*600*60040549921230451090210901310164024303440209195240280305400435440505590700775H1mm12345678910111213141516171819202122232425262728293031No. Part Standard Stainless Steel Sour Service Body Closure BallSeat Assembly Seat Insert Seat Ring Spring Seat Stem Shim Gasket Gasket Gasket Gland Cap Top Flange Thrust Washer Shim Bearing Bearing Vent V alve DrainRetainer Ring Retainer Ring Retainer Ring Retainer Ring Seat Spring Grounding Spring Grounding Plunger O-Ring O-Ring O-Ring O-Ring ASTM A216-WCB ASTM A105ASTM A105/ENPAssembled By No.5&6Nylon 1010 + 5% MoS2ASTM A105/ENP ASTM A105/ENP ASTM A105/ENP ASTM A182-F316316SS + Graphite 316SS + Graphite 316SS + Graphite ASTM A105ASTM A105316 + PTFE + MoS2316 + PTFE + MoS2316 + PTFE + MoS2316 + PTFE + MoS2Assembly S.S.PTFE PTFE PTFE PTFEInconel X-750S.S.ASTM A182-F316NBR NBR NBR NBR ASTM A351-CF8M ASTM A182-F316ASTM A182-F316Assembled By No.5&6Nylon 1010 + 5% MoS2ASTM A182-F316ASTM A182-F316ASTM A182-F316ASTM A182-F316316SS + Graphite 316SS + Graphite 316SS + Graphite ASTM A182-F316ASTM A182-F316316 + PTFE + MoS2316 + PTFE + MoS2316 + PTFE + MoS2316 + PTFE + MoS2Assembly S.S.PTFE PTFE PTFE PTFEInconel X-750S.S.ASTM A182-F316NBR NBR NBR NBR ASTM A216-WCB ASTM A105ASTM A105/ENPAssembled By No.5&6Nylon 1010 + 5% MoS2ASTM A105/ENP ASTM A105/ENP ASTM A105/ENP ASTM A182-F316316SS + Graphite 316SS + Graphite 316SS + Graphite ASTM A105ASTM A105316 + PTFE + MoS2316 + PTFE + MoS2316 + PTFE + MoS2316 + PTFE + MoS2Assembly S.S.PTFE PTFE PTFE PTFEInconel X-750S.S.ASTM A182-F316NBR NBR NBR NBR ASTM A352-LCB ASTM A350-LF2ASTM A350-LF2/ENPAssembled By No.5&6Nylon 1010 + 5% MoS2ASTM A350-LF2/ENP ASTM A350-LF2/ENP ASTM A350-LF2/ENP ASTM A182-F316316SS + Graphite 316SS + Graphite 316SS + Graphite ASTM A350-LF2ASTM A350-LF2316 + PTFE + MoS2316 + PTFE + MoS2316 + PTFE + MoS2316 + PTFE + MoS2Assembly S.S.PTFE PTFE PTFE PTFEInconel X-750S.S.ASTM A182-F316NBR NBR NBR NBR Low TemperatureServiceSeries TTE material specifications Top entry, trun nion mounted designDimensionsGear OperatorClass 600LB Full PortSize inWeight KgClass 600LB Reduced PortSize inWeight KgSeries TTE Ball ValveSeries TTE Ball Valve。

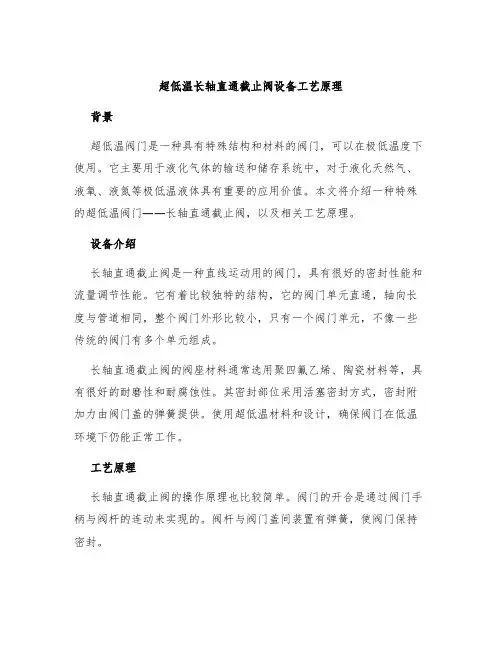

超低温长轴直通截止阀设备工艺原理

超低温长轴直通截止阀设备工艺原理

超低温长轴直通截止阀设备工艺原理背景超低温阀门是一种具有特殊结构和材料的阀门,可以在极低温度下使用。

它主要用于液化气体的输送和储存系统中,对于液化天然气、液氧、液氮等极低温液体具有重要的应用价值。

本文将介绍一种特殊的超低温阀门——长轴直通截止阀,以及相关工艺原理。

设备介绍长轴直通截止阀是一种直线运动用的阀门,具有很好的密封性能和流量调节性能。

它有着比较独特的结构,它的阀门单元直通,轴向长度与管道相同,整个阀门外形比较小,只有一个阀门单元,不像一些传统的阀门有多个单元组成。

长轴直通截止阀的阀座材料通常选用聚四氟乙烯、陶瓷材料等,具有很好的耐磨性和耐腐蚀性。

其密封部位采用活塞密封方式,密封附加力由阀门盖的弹簧提供。

使用超低温材料和设计,确保阀门在低温环境下仍能正常工作。

工艺原理长轴直通截止阀的操作原理也比较简单。

阀门的开合是通过阀门手柄与阀杆的连动来实现的。

阀杆与阀门盖间装置有弹簧,使阀门保持密封。

阀门开启时,阀门手柄旋转,阀杆与阀门盖松开,阀门单元内的介质可以通过直通由管道的一侧流进另一侧的管道中。

阀门关闭时,阀门手柄倒转,阀杆与阀门盖再次紧密贴合,形成阀门密封。

超低温阀门需要注意的一个关键问题就是温度的控制。

在阀门操作过程中,阀门及阀门周围的环境需要保持极低温度。

为了实现这一点,我们需要经过严格的阀门选型和介质控制,同时安装阀门的场所也需要在设计时特别考虑,选用合适的超低温隔热材料同时与周围环境隔离。

应用场景长轴直通截止阀被广泛应用于液化天然气、液化石油气等超低温液体的输送和储存系统中。

其主要起到截止、流量调节、反流防止等作用。

同时,长轴直通截止阀由于其简单的结构设计和材质特性,也可以应用于其他一些需要在低温环境下操作的领域中。

总结超低温长轴直通截止阀是一种在低温环境中使用的特殊阀门,具有很好的密封性能和流量调节性能。

它的阀门单元直通,轴向长度与管道相同,适合于超低温液体的输送和储存系统中。

我们需要对阀门进行严格的选型和介质控制,同时必须确保阀门及周围环境经过严格的温度控制。

2024年超低温阀门市场发展现状

2024年超低温阀门市场发展现状

2024年超低温阀门市场发展现状1. 背景介绍超低温阀门是指在极低温条件下使用的阀门,其工作温度通常低于-100°C。

这种阀门具有耐低温、密封性好、耐腐蚀等特点,广泛应用于液化天然气(LNG)、液化石油气(LPG)、超低温制冷、液氮等领域。

2. 市场规模与前景超低温阀门市场近年来呈现快速增长的趋势。

随着LNG、LPG等行业的发展,对超低温阀门的需求也在逐年增加。

根据市场研究机构的数据,2019年全球超低温阀门市场规模达到XX亿元人民币,预计到2025年将达到XX亿元人民币,年复合增长率为XX%。

3. 市场竞争格局目前,全球超低温阀门市场竞争比较激烈,主要厂商包括XXXX、YYYY、ZZZZ等知名企业。

这些企业在超低温阀门的研发、生产和销售方面具有较强的实力和优势。

同时,一些新兴企业也在积极进军这一领域,竞争格局逐渐趋于激烈。

4. 市场驱动因素超低温阀门市场的快速发展离不开以下几个驱动因素:4.1 LNG行业的快速增长LNG作为清洁能源的代表,得到了广泛推广和应用。

LNG行业的快速增长推动了超低温阀门市场的发展。

4.2 超低温制冷技术的进步随着超低温制冷技术的不断进步和成熟,超低温阀门作为核心部件受到了更多的关注和需求。

4.3 环境保护政策的推进环境保护政策的推进使得清洁能源的需求增加,LNG等行业需要更多超低温阀门来保证生产的安全和可持续性。

5. 市场挑战与机遇超低温阀门市场面临一些挑战,包括技术难题、产品质量要求高、市场竞争激烈等。

但同时也带来了一些机遇,比如市场需求增加、技术创新推动行业发展等。

6. 发展趋势与建议超低温阀门市场的发展将呈现以下趋势:6.1 技术创新驱动发展超低温阀门市场需要不断进行技术创新,提高产品的性能和品质,以满足用户的需求。

6.2 产品多样化和差异化随着市场竞争的加剧,超低温阀门企业应该注重产品的多样化和差异化,满足不同客户的需求。

6.3 加强市场营销和服务超低温阀门企业应该加强市场营销和售后服务,提升品牌形象和用户满意度,增强市场竞争力。

2024年超低温阀门市场规模分析

2024年超低温阀门市场规模分析

2024年超低温阀门市场规模分析1. 引言超低温阀门是一种广泛应用于液化天然气、液氧和液氮等超低温介质管道系统中的关键设备。

随着液化气体的需求不断增加,超低温阀门市场也呈现出快速增长的趋势。

本文将对超低温阀门市场规模进行分析。

2. 超低温阀门市场概述超低温阀门市场是指在液化天然气、液氧和液氮等超低温条件下使用的阀门产品的市场。

随着全球能源需求的不断增长,超低温阀门市场也得到了快速发展。

超低温阀门具有良好的密封性能和低温耐受能力,能够有效控制超低温介质在管道系统中的流动。

3. 2024年超低温阀门市场规模分析超低温阀门市场的规模可以从多个方面进行分析。

下面将从产品类型、应用领域和地区维度来对市场规模进行分析。

3.1 产品类型分析超低温阀门市场涵盖了多种产品类型,主要包括球阀、闸阀、蝶阀和截止阀等。

其中,球阀是目前市场上应用最广泛的超低温阀门产品,其具有结构简单、密封性好等优点。

3.2 应用领域分析超低温阀门广泛应用于液化天然气储运、液氧和液氮工业等领域。

随着全球液化天然气需求的增加,液化天然气储运领域对超低温阀门的需求也在不断增加。

3.3 地区维度分析超低温阀门市场的规模在全球范围内呈现出不均衡的分布。

目前,北美地区是超低温阀门市场的主要消费地区,其次是欧洲和亚太地区。

随着全球液化天然气市场的发展,亚太地区的市场规模也在逐渐扩大。

4. 超低温阀门市场发展趋势分析超低温阀门市场未来的发展趋势主要包括以下几个方面:•技术创新:随着超低温阀门市场的不断发展,技术创新将成为市场竞争的关键因素。

新材料、新工艺的应用将进一步提升超低温阀门的性能和可靠性。

•智能化发展:随着物联网和人工智能等技术的快速发展,超低温阀门也将向智能化方向发展。

智能超低温阀门将能够实现远程控制和自动化运行,提高生产效率和安全性。

•环保节能:超低温阀门市场也将受到环保节能要求的影响。

未来,新型超低温阀门将更加注重节能和减排,以满足可持续发展的需求。

超低温阀门

超低温阀门
超低温阀门
G lo b a l S u p p lie r f o r Va l ve S o lu t io n s
1.低温阀门制造范围
温度范围:-46 ~ -196 ℃。 口径范围: 球 阀:1/2”~8” 压力范围: 球 阀:150LB~900LB
闸 阀:1/2”~14”
截止阀:1/2”~8“ 止回阀:1/2”~8“
闸 阀:150LB~900LB
截止阀:150LB~900LB 止回阀:150LB~900LB
G lo b a l S u p p lie r f o r Va l ve S o lu t io n s
2.超低温闸阀结构
G lo b a l S u p p lie r f o r Va l ve S o lu t io n s
8.
9. 10.
固定球阀门设计为DBB结构,能够实现两个阀单独密封以及中腔压力的泄放。
防火设计满足API 607标准,防静电设计满足BS 5351标准。 软阀座采用低温稳定性能良好的PCTFE材料,采用过盈压入工艺来保证阀门在超低温下的 密封性能。也方便阀门更换受损的软阀座。
G lo b a l S u p p lie r f o r Va l ve S o lu t io n s
G lo b a l S u p p lie r f o r Va l ve S o lu t io n s
4.超低温常规阀制造工艺过程
16、试验: 由于低温试验介质为气体、压力高,试验具有危险性,一定要按规定执行。特别是端盖 螺栓必须按规定数量拧紧,试验气体应排放至相应的空罐或室外。 常温试验 试验介质:氮气100% 壳体试验:将阀门处于半开状态,关闭出口处小阀门,用氮气加压至规定压力,保 持规定时间, 查看压力表没有变化,用肥皂水检查阀体、阀盖表面、法兰联接部位、填料等处 应无可见 泄露。上密封试验:将阀门处于全开状态,即阀杆达到上密封位置,加压至规定 压力,松开 活结螺栓,保持规定时间,用肥皂水检查填料处,应无可见泄露,高、低压密封试 验:用规力矩拧紧活结螺栓,用规定力矩关闭阀门,打开出口处小阀门,加压至 规定压力,保持规定 时间,用肥皂水检查出口处,不得有泄露。 低温试验 船用阀门应做低温试验。对于其它用途的阀门,只是在用户提出要求的时候才进低温试验。 试验介质:氦气按照超低温阀门的试验规程进行。 17、包装: 试验后阀门应在室温环境下进行自然升温至室温。阀门升温至常温后,去掉端盖,吹干 阀门 表面及内腔的凝结水,保持阀门干燥,封闭两端。 闸阀、截止阀应将阀门处于关紧状 态, 止回阀应用干净的泡沫垫保护密封面,通道内应摆放适当的吸湿剂,吸湿剂应连接在一 起 以方便取出。泡沫垫及吸湿剂等非阀门零件应挂有明显标识表示在阀门安装前将这些零 G lo b a l S u p p lie r f o r Va l ve S o lu t io n s 件

科技成果——超低温阀门

科技成果——超低温阀门

科技成果——超低温阀门技术领域高端装备技术开发单位中国船舶重工集团公司第七一一研究所技术概述技术开发单位成功研发了手动截止阀、气动截止阀、单向阀、溢流阀等超低温阀门,所研制阀门密封性能好,可实现“零泄漏”,具有可靠性高、使用安全、寿命长等优点,并经过密封试验、耐久性试验及冲击试验验证。

低温截止阀采用波纹管密封方式,并进行波纹管防扭转及疲劳设计,满足阀门疲劳寿命要求;通过设置导向机构及阀芯自适应设计,实现阀门多次启闭过程中阀杆和阀座密封面间的精确配合;密封垫片材料经过性能筛选试验,从强度、压缩率和回弹率、蠕变松弛率等多角度满足低温工况下的密封要求。

单向阀和溢流阀均为弹簧直接载荷式的阀门,通过弹簧导向及限位机构设计,有效改善弹簧力在密封面上的应力分布,并能够防止特殊情况下弹簧的超载工作;低温单向阀采用超薄金属垫片刀口密封的可拆卸结构,既减小了阀门外漏率,又提高了阀门维修性。

技术指标公称压力:PN2.5-PN63;公称尺寸:DN6-DN100;适用温度:-196℃到50℃;适用介质:液氧、液氮、LNG等低温介质,易燃、易爆、有毒介质;内漏性能:≤25mbar•L/s×DN(He);耐久性:循环启闭≥5000次;抗冲击性能:20g。

手动截止阀、单向阀、溢流阀技术特点密封性能好,可实现“零泄漏”,与国外同类产品相比内漏性能提升80%。

先进程度国内先进技术状态小批量生产、工程应用阶段适用范围适用于对密封性能要求苛刻的场合,例如液氧、液氮、LNG等低温介质,易燃、易爆、有毒介质及其他对外漏安全性有特殊要求的场合。

专利状态均已授权专利4项。

合作方式(1)合作开发。

与其他单位合作进行低温阀产品的营销,建立稳定的销售渠道,提升产品的市场份额,共享产品的有关权益。

与其他单位合作进行低温阀产品的生产,完善生产设施建设,扩大生产规模,以年产值7000万元为目标,预期资金需求1000万元,实施周期2年。

(2)技术服务。

超低温球阀的结构设计特点及应用

超低温球阀的结构设计特点及应用1.材质选择。

超低温球阀的材质选择至关重要,需要选择耐低温性能好的材质,常见的有不锈钢、镍合金等。

这些材料能够保持较低的强度和塑性温度,不易变脆,保证了球阀在低温环境下的可靠性能。

2.密封结构。

超低温球阀的密封结构设计需要考虑低温环境下材料的收缩和变形情况,采用特殊的密封材料和结构设计,确保了球阀的良好密封性能。

常见的密封结构包括金属密封结构、填料密封结构以及可靠的阀杆密封装置等。

3.抗冷凝设计。

超低温球阀在工作过程中,会因为介质的冷凝而导致结冰,进而影响阀门的开闭。

因此,超低温球阀的结构中通常会增加抗冷凝设计措施,如采用内加热装置、直通式设计、直通式排空装置等,防止冷凝水的产生。

4.耐振动设计。

由于工作介质的特殊性,超低温球阀通常用于液化天然气、液化石油气等场景,存在较大的振动和冲击负荷。

因此,超低温球阀的结构设计需要考虑到振动和冲击的因素,采用合适的结构和工艺措施,提高其耐振动性能。

1.液化天然气系统。

液化天然气的储存和输送过程中,通常需要使用超低温球阀进行流体的控制。

超低温球阀能够在极低温条件下保持良好的工作性能,保障了液化天然气系统的安全和稳定运行。

2.低温制冷系统。

低温制冷系统中,超低温球阀常用于冷冻液、液氮等介质的流体控制。

其特殊的结构和设计确保了球阀在低温环境下的可靠性和密封性能。

3.航空航天。

航空航天领域通常需要超低温球阀进行液体氢、液氮等低温液体的流体控制。

超低温球阀能够满足航空航天领域对阀门的高要求,确保系统的安全和稳定运行。

4.石油化工。

石油化工生产过程中,涉及到一些低温液体的流动控制,如液化石油气、甲烷等。

超低温球阀在石油化工行业的应用十分广泛,能够满足特殊的工作环境和介质要求。

总之,超低温球阀的结构设计特点主要包括材质选择、密封结构、抗冷凝设计和耐振动设计等,其应用领域广泛涉及液化天然气系统、低温制冷系统、航空航天和石油化工等行业。

该球阀的特殊设计和材料选择保证了其在极低温环境下的可靠性能和安全性能。

2024年超低温阀门市场分析现状

2024年超低温阀门市场分析现状引言超低温阀门是一种在极端低温环境下使用的阀门,广泛应用于液化天然气(LNG)、液化石油气(LPG)、液态氧、液氮和液氢等工业领域。

随着全球能源需求的增长和对清洁能源的需求,超低温阀门市场正迅速发展。

本文将对超低温阀门市场的现状进行分析。

市场规模超低温阀门市场规模正在不断扩大。

据市场研究机构的数据显示,2019年全球超低温阀门市场规模达到XX亿美元,预计到2025年将增长到XX亿美元。

市场增长的主要驱动因素包括能源需求的增长、工业领域对超低温阀门的需求以及环保政策的推动。

市场驱动因素1.能源需求增长:全球能源需求不断增长,特别是对清洁能源的需求。

超低温阀门在液化天然气和其他清洁能源的生产、储存和输送过程中起着重要作用,因此对超低温阀门的需求也在增加。

2.工业领域需求:超低温阀门在石油化工、医药、航天航空等工业领域得到广泛应用。

随着工业生产规模的扩大和技术的进步,超低温阀门的需求也在增加。

3.环保政策推动:全球各国对环境保护的重视程度日益增加,对清洁能源的需求也在不断提升。

超低温阀门作为清洁能源产业链中的重要组成部分,受到环保政策的推动,市场需求也在增加。

市场竞争格局全球超低温阀门市场竞争激烈,市场上存在着许多国内外知名企业。

主要竞争商家包括ABC公司、XYZ公司、123公司等。

这些企业通过产品创新、品质优势、技术支持和市场拓展等方式来获得竞争优势。

市场前景和发展趋势未来几年,超低温阀门市场有望继续保持快速增长。

以下是市场的一些发展趋势:1.新兴市场增长:亚洲和中东地区的经济增长和工业化进程加快,对超低温阀门的需求将持续增加。

2.技术创新:随着科技的进步,超低温阀门的设计和制造技术将不断改进。

新材料和新工艺的应用将提高超低温阀门的耐用性和性能。

3.清洁能源的发展:全球对清洁能源的需求将继续增长,这将驱动超低温阀门市场的增长。

同时,环保政策的进一步制定和执行将进一步促进市场发展。

超低温阀门现场试压问题

超低温阀门现场试压问题(最新版)目录一、超低温阀门概述二、现场试压的必要性三、现场试压存在的问题四、解决方案及建议正文一、超低温阀门概述超低温阀门是指适用于介质温度低于 -150℃的阀门,包括低温球阀、低温闸阀、低温截止阀、低温安全阀、低温止回阀等。

这些阀门主要应用于三十万吨乙烯、液化天然气等化工装置上。

为了减少冷损,超低温阀门通常采用长颈结构、真空夹套等设计。

二、现场试压的必要性现场试压是阀门安装过程中非常重要的一个环节,其主要目的是检验阀门的密封性能。

在超低温阀门安装过程中,现场试压尤为重要,因为阀门在超低温环境下使用时,密封性能直接影响到化工装置的安全和稳定运行。

三、现场试压存在的问题在超低温阀门的现场试压过程中,存在以下问题:1.试压介质的选择:由于超低温阀门的密封性能试验需要在极低温度下进行,因此选择合适的试压介质十分重要。

目前,常用的试压介质有液氮、液氢等,但这些介质在运输、储存和使用过程中存在安全隐患,且成本较高。

2.试压设备的选型:在超低温环境下,普通试压设备可能无法正常工作,需要选用适应低温环境的试压设备。

然而,目前市场上的低温试压设备较少,且价格较高,这给现场试压带来了一定的困难。

3.试压操作的安全性:在超低温环境下进行试压操作,需要采取严格的安全措施,以防止操作人员冻伤等意外事故的发生。

此外,试压后的阀门需要进行恢复操作,以避免阀门在低温环境下长时间暴露导致的损伤。

四、解决方案及建议针对以上问题,提出以下解决方案及建议:1.试压介质的选择:可以考虑使用低温液体二氧化碳作为试压介质,它具有成本低、安全性高等优点。

同时,应加强对试压介质的储存和使用管理,确保安全。

2.试压设备的选型:应选择适应低温环境的试压设备,例如采用低温电磁阀、低温压力表等。

此外,可以考虑研发具有低温试压功能的集成设备,以降低成本。

3.试压操作的安全性:在试压过程中,操作人员应穿戴保暖衣物,并采取必要的防护措施。

2024年超低温阀门市场前景分析

2024年超低温阀门市场前景分析1. 引言超低温阀门是指在极低温环境下运行的阀门,通常在液化天然气(LNG)、液氮、液氧等超低温介质的输送和储存中起到关键作用。

随着世界范围内对清洁能源的需求增加,超低温阀门市场备受关注。

本文旨在分析超低温阀门市场的前景,以及市场的驱动因素和挑战。

2. 超低温阀门市场的发展趋势2.1 市场规模与增长率超低温阀门市场规模近年来呈现稳步增长的趋势。

根据市场研究数据,2019年全球超低温阀门市场规模约为XX亿美元,预计到2025年将达到XX亿美元。

市场增长率预计将保持在XX%左右。

2.2 技术创新与产品升级随着超低温阀门市场的竞争加剧,技术创新和产品升级将成为企业获取竞争优势的重要手段。

企业应该加大研发投入,提高产品的抗低温性能和密封性能,以满足市场需求。

2.3 区域市场的差异化特点不同地区在超低温阀门市场上存在差异化的特点。

目前,北美地区是超低温阀门市场的主要消费地区,亚太地区在市场规模上也有较大影响力。

随着亚太地区清洁能源的需求增加,该地区的市场份额有望进一步扩大。

3. 超低温阀门市场的驱动因素3.1 清洁能源的需求增加超低温阀门在清洁能源领域的应用需求不断增加,尤其是在液化天然气领域。

全球范围内对清洁能源的需求增加将推动超低温阀门市场的发展。

3.2 政府政策的支持各国政府对清洁能源的支持政策也是推动超低温阀门市场发展的重要因素。

政府通过补贴和优惠政策鼓励企业投资于清洁能源领域,从而促进超低温阀门市场的增长。

3.3 基础设施建设的推进随着清洁能源基础设施建设的推进,超低温阀门的需求将进一步增加。

例如,液化天然气接收站和储存设施的建设将为超低温阀门市场提供更多机会。

4. 超低温阀门市场的挑战4.1 技术难题超低温环境对阀门的可靠性和密封性能提出了更高的要求,这对阀门制造商来说是一项技术挑战。

研发和生产高性能的超低温阀门需要投入大量资金和人力资源。

4.2 市场竞争的加剧超低温阀门市场竞争激烈,企业面临来自国内外制造商的竞争压力。

  1. 1、下载文档前请自行甄别文档内容的完整性,平台不提供额外的编辑、内容补充、找答案等附加服务。
  2. 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
  3. 3、如文档侵犯您的权益,请联系客服反馈,我们会尽快为您处理(人工客服工作时间:9:00-18:30)。

Completed Solution for Engineering Valves
概述
• 纽威目前可以Βιβλιοθήκη 供满足 LNG行业要求的闸阀、截止阀、 止回阀、球阀(浮动及固定式) 和蝶阀。
低温阀门的其他应用: • 液态乙烷(Ethane):-89℃ • 液态乙烯(Ethylene):-104 ℃ • 液态甲烷(Methane):-162 ℃ • 液氧(Oxygen):-183 ℃ • 液氮(Nitrogen):-196 ℃
5、阀门异常升压的预防
低温阀门关闭后,阀门中腔内会残留一些液体,随着时间的 增加,这些残留液体会逐渐的吸收环境热量,回升至常温并重新 汽化。汽化后,其体积会急剧膨胀,可以增加600倍之多,因此 会在中腔产生很高的压力。如果设计时没有采取合理的预防措施, 可能会使阀体阀盖变形,甚至有爆炸的危险,因此低温阀门的设 计必须有预防异常升压现象产生的机构。
低温闸阀采用闸板开泄放孔形式。
Completed Solution for Engineering Valves
设计特点
低温浮动球阀采用球体开孔形式来保证。
在球体上靠近阀门上游的位置钻一个合理尺寸的泄压 孔,保持上游和中腔的连通,提供阀体中腔过压保护功能。
低温浮动球阀球体开孔泄压。
Completed Solution for Engineering Valves
口径范围:1/2”~48”
压力范围:150LB~2500LB 连接方式:法兰、对接焊、
螺纹、RTJ
Completed Solution for Engineering Valves
典型结构及原理
超低温截止阀 :
口径范围:1/2”~30”
压力范围:150LB~1500LB 连接方式:法兰、对接焊
、螺纹、RTJ
设计特点
低温固定球阀防止中腔异常升压的措施:
1、固定球阀本身的阀座自泄压功能(DBB):
当腔体中腔超压时,可自动将多余压力释放到阀门的上游或下游侧(客 户可指定),确保阀门及系统的安全性。
低温固定球阀阀座自泄压功能。
Completed Solution for Engineering Valves
Completed Solution for Engineering Valves
设计特点
4、碟簧螺母结构:
填料压紧采用碟 簧螺母压紧结构,防 止长时间工作后填料 的松弛。
碟形螺母压紧结构, 有效保证填料的密封。
Completed Solution for Engineering Valves
设计特点
阀体和阀盖连接部位采用Lipseal和石墨缠绕垫片的双道密封结构, 阀杆密封部位也采用Lipseal和石墨填料组双道密封结构,从而保证无外 泄漏,密封更可靠。当火灾发生时, Lipseal熔化失效,此时中腔石墨缠 绕垫和阀杆石墨填料组起主要密封作用,防止发生外漏。
Completed Solution for Engineering Valves
设计特点
9、防静电设计(仅针对球阀)。
通过防静电弹簧和接地塞的有效作用,使球、阀杆与阀体之间 相接触,形成导通电路,可将阀门在启闭时产生的电荷转移,从而 避免管路系统的静电积累、增加系统的安全性。
Completed Solution for Engineering Valves
设计特点
10、防火设计(仅针对球阀)。 防止外漏:
滴水板
固定式滴水板
高效灵活滴水板结构(专利)
Completed Solution for Engineering Valves
设计特点
7、座圈及密封面要求(仅针对GGC阀)
超低温闸阀采用焊圈结构; 超低温截止阀采用本体座圈; 密封面采用双面钴基形式,以提高阀门密封面的硬度,防止开关 擦伤并提高使用寿命。
设计特点
11、低泄漏的控制。 1、双道密封; 2、高质量垫片; 3、高质量填料; 4、高等级的紧固件选用。
Completed Solution for Engineering Valves
设计特点
12、Lipseal超低温密封环(仅针对超低温固定球阀):
阀座处的密封采用低温密封性能稳定的弹性密封环,保证阀门的低温密封性能。 低压时:弹簧力把PTFE夹套撑挤贴向密封面,实现有效密封。 高压时:系统压力把PTFE夹套撑开,实现自密封,压力越大,密封越好。
设计特点
低温固定球阀防止中腔异常升压的措施:
2、DPE结构:阀门进口或出口端与中腔始终连通,保证中腔压力与 阀门进口或出口端压力相同,阀门一端即可实现双向密封。
低温固定球阀DPE结构。
Completed Solution for Engineering Valves
设计特点
6、滴水板(隔热板)
低温阀门提供一个滴水板。这个滴水板可以避免冷凝水汽流 入隔热区域,同时其能更有效的保证填料的工作环境,从而避免了 不良影响。
设计特点
10、防火设计(仅针对球阀)。
防止内漏:
当火灾发生时,非金属密封环以及Lipseal熔化失效,则二道防火密 封的固定器金属密封唇在弹簧预紧力作用下将固定器推向球体接触而阻 断管线流体,另外,防火石墨圈被压缩而密封,最大程度减小阀门通道 中的内漏。
Completed Solution for Engineering Valves
Completed Solution for Engineering Valves
设计、制造、检验标准
• 设计和制造标准
BS6364 ASME B16.34 SHELL SPE 77/200 SHELL SPE 77/209 JB/T 7749 低温用阀门 法兰端、螺纹端和焊接端阀门 工作温度在-50℃以下的阀门 工作温度在-50℃~0℃的阀门 低温阀门技术条件
典型结构及原理
NEWAY超低温阀门产品
• 超低温闸阀(GATE)
• 超低温截止阀(GLOBE)
• 超低温止回阀(CHECK) • 超低温球阀(BALL) • 超低温蝶阀(BUTTERFLY)
Completed Solution for Engineering Valves
典型结构及原理
超低温闸阀 :
Completed Solution for Engineering Valves
设计特点
2、填料函下部采用焊接形式
焊接形式可以很好的保证密封,减 少外漏点,提高密封效果。
Completed Solution for Engineering Valves
设计特点
3、阀杆导向结构
超低温闸阀及截止阀阀盖底部装有导向套,以提高阀杆刚性,使 阀杆精确定位。采用PCTFE(三氟氯乙烯)轴承和轴承座结构。 超低温球阀在阀杆头部部位采用PCTFE(三氟氯乙烯)或者 F316+PTFE轴承对阀杆进行导向定位,降低操作扭矩。
Completed Solution for Engineering Valves
设计特点
结构设计
1、阀盖加长和上密封上移结构 在低温状态下,随着时间的增加, 填料的弹性会逐渐的变小,因此防渗 漏的性能逐渐下降,由于渗漏易造成 填料与阀杆配合处结冰,影响阀杆的 正常操作,同时由于阀杆的运动容易 将填料划伤,造成大漏。因此,低温 阀门必须采用阀盖加长结构形式,抬 高填料函的位置,以使填料在0℃以 上的环境中工作。 客户无特殊要求时,纽威根据 SHELL SPE 77/200 、 SHELL SPE 77/209 、BS6364设计阀盖加长尺寸; 客户有需要时,阀盖加长高度也可按 照客户要求设计。 • 超低温闸阀及截止阀上密封上移是为 了防止阀门全开时,加长部分异常升 压,结构独特,国际领先。
Welcome!
NEWAY超低温阀门介绍
2011-02-20
苏州纽威阀门股份有限公司
Completed Solution for Engineering Valves
目录
概述 设计、制造、检验标准
典型结构及原理
设计特点
有限元技术在超低温阀门设计中的应用
生产保证及质量控制 超低温阀门试验 NEWAY低温阀门的市场供货情况
Completed Solution for Engineering Valves
概述
• 天然气作为新时期的清 洁能源,有着对环境污染小 等诸多优良特性,人们一直 期望着它能在现实中得到充 分应用。为了便于运输和储 存,基本上都是采用把天然 气液化的方法。液化天然气 (LNG)是在-162℃的超低 温下进行冷却,并除去硫等 杂质,以液化的状态进行输 送,供煤气、电力等公司作 为工业燃料使用。由于天然 气的液化点很低,达-162℃, 因此在整个天然气的转换系 统中,必须有合适的阀门与 之相对应,低温阀门就是基 于这种情况进行开发的。
压力范围:150LB~2500LB 连接方式:法兰、对接焊、螺纹 、RTJ
进口密封环
Elgiloy+PTFE Completed Solution for Engineering Valves
典型结构及原理
超低温侧装式蝶阀 :
口径范围: 8”~36” 压力范围:150LB~300LB
Completed Solution for Engineering Valves
设计、制造、检验标准
试验相关规范:
低温用阀门试验程序 低泄漏产品试验程序(ISO15848-2) 低泄漏产品试验(SHELL MESC SPE 77312)-MESC 11.0 „„
相关说明书:
超低温闸阀使用说明书 超低温截止阀使用说明书 超低温固定球阀安装、操作和维护说明书 „„
Completed Solution for Engineering Valves
设计、制造、检验标准
NEWAY设计和制造规范
相关文档
