北京现代悦动保养-30页文档资料
北京现代维修保养手册
维修保养2008-06-02 21:06北京现代汽车华德特约销售服务店,是经北京现代汽车有限公司授权,珠海地区唯一的北京现代汽车4S特约销售服务店。
是集韩国现代汽车销售、维修、配件销售和汽车技术培训四位一体的专业化企业。
公司地处珠海市香洲区，占地7489.33平米。
公司交通便利，拥有现代化厂房，环境优雅。
本公司的核心经营理念为：“顾客满意为我们的最高宗旨”。
以一流的质量，合理的价格，周到的服务，完善的管理体系服务于现代汽车用户。
使代表最高设计理念及制造水平的现代汽车品牌在本企业得到与其品牌相符合的全面服务。
保修规定1．整车保修1）保修期普通顾客自用车为：自购车之日起24个月或6万公里。
用于出租公司运营的车辆为：自购车之日起12个月或10万公里。
以上两项指标以先到者为准。
2）保修规定的适用范围由北京现代汽车有限公司生产或供应的用于汽车上的零部件，被发现有材料或制造上的缺陷。
2．零件保修在保修期内的车辆，其零件的保修期与整车保修期相同。
超过保修期的车辆，更换零件的保修期为自更换之日起12个月内。
在零件保修期内因零件本身存在质量缺陷造成不能正常使用的给予免费更换。
保修更换下的零件归北京现代汽车有限公司所有。
3．本保修规定只与车辆有关，不因车辆易主而终止。
4．本条例解释权归北京现代汽车有限公司所有。
二、强制保养有关强制保养的规定1、行驶里程及时间要求：5000公里/6个月2、强制保养的项目：北京现代汽车有限公司5000公里首次保养检查项目区分检查项目检查事项1 检查各种油机油更换机油（SH级）与机油滤芯制动液检查，必要时添加.变速箱油检查，必要时添加.动力转向油检查，必要时添加.2 检查发动机各种传感器等检查是否正常工作，必要时更换皮带检查，必要时调整火花塞检查3 检查冷却系统软管及连接部位检查是否漏水，必要时拧紧或更换冷却液箱检查冷却液液面，必要时添加4 检查制动系统制动管路及软管包括ABS系统检查是否漏油，有无磨损制动分泵检查是否正常工作，有无磨损制动钳及制动衬片检查厚度和差异驻车制动器检查是否正常工作，必要时调整5 检查LPG系统仅限LPG车辆 LPG钢瓶检查液化气加气状态，计量器是否正常各种阀，连接部位检查液化气是否泄露，必要时采取措施6 转向/悬挂装置相关配件检查有无磨损及有无异常噪音7 轮胎轮胎（包括备胎）检查轮胎有无磨损以及轮胎气压8 其他电子装置（包括各种灯具、仪表）是否正常工作，有效附加装置（操作开关、空调等）是否正常工作，有效电瓶是否正常工作，有效三、保修范围由北京现代生产、供应的车辆和零部件，在正常使用、保养条件下发现有材料或制造工艺缺陷的。
现代汽车日常保养指导手册培训课件PPT文档87页
36、如果我们国家的法律中只有某种 神灵， 而不是 殚精竭 虑将神 灵揉进 宪法， 总体上 来说， 法律就 会更好 。—— 马克·吐 温 37、纲纪废弃之日，便是暴政兴起之 时。— —威·皮 物特
38、若是没有公众舆论的支持，法律 是丝毫 没有力 量的。 ——菲 力普斯 39、一个判例造出另一个判例，它们 迅速累 聚，进 而变成 法律。 ——朱 尼厄斯
40、人类法律，事物有规律，这是不 容忽视 的。— —爱献 生
41、学问是异常珍贵的东西，从任何源泉吸 收都不可耻。——阿卜·日·法拉兹
42、只有在人群中间，才能认识自 己。——德国
43、重复别人所说的话，只需要教育； 而要挑战别人所说的话，则需要头脑。—— 玛丽·佩蒂博恩·普尔
44、卓越的人一大优点是：在不利与艰 难的遭遇里百折不饶。——贝多芬
45、自己的饭量自己知道。
北京现代汽车每次保养的内容和建议
公里数5000公里10000公里15000公里1、常规检查1、常规检查1、常规检查2、更换机油和机滤2、更换机油和机滤2、更换机油和机滤3、更换空滤（发动机）4、清洗节气门和怠速电机5、四轮换位建议在3500公里左右去做，以后每隔4999公里或半年保养一次1、在第四项可以在15000公里或20000公里的时候做在天冷前做比较好；2、第五项可以做也可以不做服务内容20000公里25000公里30000公里35000公里1、常规检查1、常规检查1、常规检查1、常规检查2、更换机油和机滤2、更换机油和机滤2、更换机油和机滤2、更换机油和机滤3、更换空滤（发动机）3、更换空滤（发动机）4、更换汽油滤4、更换汽油滤5、清洗节气门和怠速电机5、清洗节气门和怠速电机6、燃油系统深化保养6、润滑系统深化保养7、润滑系统深化保养7、空调系统杀菌除臭8、更换空调滤芯8、清洗CD机磁头9、清洗空调风道9、四轮换位10、四轮定位10、四轮定位11、四轮换位1、在第六项和第七项不用做，等4万公里后再考虑；2、第八项可以自己去汽配城买。
可以节省100元；3、第九项可以不做；4、第十项轮胎不啃胎根本不要做，就是要做，也可以去我们换胎的轮胎店做，便宜很多；5、第十一项可以做也可以不做1、在第六项、第七项和第八项不用做；2、第九项和第十项参考前面建议40000公里1、常规检查2、更换机油和机滤3、更换空滤（发动机）4、更换油箱炭罐滤清器5、更换汽油滤6、清洗节气门和怠速电机7、燃油系统深化保养8、润滑系统深化保养9、更换自动变速箱油10、自动变速箱深化保养11、更换空调滤芯12、清洗空调风道13、四轮定位14、四轮换位15、更换后刹车片1、在第四项、第七项、第八项和第十二项不用做；2、第十项、第十三项和第十四项选择；3、第十五项根据刹车片情况。
北京现代汽车保养周期表(Word)
换机油机滤空滤，手动变速箱油，刹车油、离合油、自动变速箱油（自动档）、后桥油（途胜四驱）、碳罐、碳罐滤芯、火花塞及分缸线， 换正时皮带（4年 6万）或（2年 8万），清洗进气道，清洗发动机润滑系统，四轮换位并动平衡，检查轮胎，检查氧传感器
备注：
以上检查项目，必要时更换
四轮定位检测调整（视况） 雨刷片建议两年更换一次
5.5万KM
换机油机滤空滤
6万KM
换机油三滤、转向油、防冻液、正时皮带（4年 6万）或（2年 8万）、汽油泵过滤器，清洗节气门怠速阀、清洗进气道、清洗三元系统，四轮换位并动平衡，检查驱动轴防尘套、检查空调滤芯、检查轮胎
6.5万KM
换机油机滤空滤
7万KM
换机油机滤空滤，正时皮带（途胜）
7.5万KM
换机油机滤空滤，清洗喷油咀，清洗节气门及怠速阀 检查驱动轴防尘套，检查空调滤芯
北京现代保养周期表
洁空气滤芯
1万KM
换机油机滤空滤
1.5万KM
换机油机滤空滤，清洗节气门及怠速阀 检查驱动轴防尘套，检查空调滤芯
2万KM
换机油机滤空滤，清洗进气道，四轮换位并动平衡，检查轮胎
2.5万KM
换机油机油空滤，清洗喷油咀
3万KM
换机油三滤，清洗节气门及怠速阀 检查驱动轴及防尘套，检查空调滤芯
空气净化器滤芯每一年检查一次（视况更换）
北京现代车型可长途免费检测
全车油液更换周期为相关公里数或两年以先到者为准
（注：文件素材和资料部分来自网络，供参考。请预览后才下载，期待你的好评与关注。）
3.5万KM
换机油机滤空滤，检查四轮刹车片
4万KM
换机油机滤空滤、刹车油、离合油、自动变速箱油（自动档）、分动箱油（途胜四驱）、碳罐、碳罐滤芯、火花塞及分缸线，清洗进气道，四轮换位并动平衡，检查轮胎
现代汽车保养手册说明书
All information in this Owner’s Manual is current at the time of publication.However, HYUNDAI Auto Canada Corp. reserves the right to make changes at any time so that our policy of continual product improvement may be carried out.This manual applies to all HYUNDAI models and includes descriptions and explanations of optional as well as standard equipment. As a result, you may find material in this manual that does not apply to your specific vehicle.ÃTrademarks and tradenames owned in Canada by HYUNDAI Auto Canada Corp. which carries on business as HYUNDAI Auto Canada.OWNER’S MANUALOperation Maintenance SpecificationsIntroductionF2F3Introduction........................................................................................................1-2Hyundai Auto Canada ........................................................................................1-2Guide to Hyundai Genuine Parts ......................................................................1-3How to Use This Manual ....................................................................................1-4Safety Messages ................................................................................................1-4Fuel Requirements .............................................................................................1-5Vehicle Modifications ........................................................................................1-7Vehicle Break-In Process ...................................................................................1-7Vehicle Data Collection and Event Data Recorders ........................................1-81. Foreword1Foreword1-2INTRODUCTIONCongratulations, and thank you for choosing HYUNDAI. We are pleased to welcome you to the growing number of discerning people who drive HYUNDAIs. We are very proud of the advanced engineering and high-quality construction of each HYUNDAI we build.Your Owner’s Manual will introduce you to the features and operation of your new HYUNDAI. To become familiar with your new HYUNDAI, so that you can fully enjoy it, read this Owner’s Manual carefully before driving your new vehicle.This manual contains important safety information and instructions intended to familiarize you with your vehicle’s controls and safety features so you can safely operate your vehicle.This manual also contains information on maintenance designed to enhance safe operation of the vehicle. It is recommended that all service and maintenance on your car be performed by an authorized HYUNDAI dealer. HYUNDAI dealers are preparedto provide high-quality service, maintenance and any other assistance that may be required.This Owner’s Manual should be considered a permanent part of your vehicle, and should be kept in the vehicle so you can refer to it at any time. The manual should stay with the vehicle if you sell it to provide the next owner with important operating, safety and maintenance information.HYUNDAI AUTO CANADACAUTIONSevere engine and transmission damage may result from the use of poor quality fuels and lubricants that do not meet HYUNDAI specifications. You must always use high quality fuels and lubricants that meet the specifications listed on Page 2-11 in the Vehicle Specifications section of the Owner’s Manual.Copyright 2019 HYUNDAI Auto Canada Corp. All rights reserved. No part of this publication may be reproduced, stored in any retrieval system or transmitted in any form or by any means without prior written permission of HYUNDAI Auto Canada Corp. All trademarks and tradenames owned in Canada by HYUNDAI Auto Canada Corp.011-31. What are HYUNDAI Genuine Parts?HYUNDAI Genuine Parts are the same parts used by HYUNDAI Motor Company to manufacture vehicles. They are designed and tested for the optimum safety, performance, andreliability for our customers. 2. What are HYUNDAI Genuine Parts?HYUNDAI Genuine Parts are engineered and built to meet rigid manufacturing requirements. Damage caused by using imitation, counterfeit or used salvage parts is not covered under the HYUNDAI New Vehicle Limited Warranty or any other HYUNDAI warranty.In addition, any damage to or failure of HYUNDAI Genuine Parts caused by the installation or failure of an imitation, counterfeit or used salvage part is not covered by any HYUNDAIWarranty.3. How can you tell if you are purchasing HYUNDAI Genuine Parts?Look for the HYUNDAI Genuine Parts Logo on the package (see below).HYUNDAI Genuine Parts exported are packaged with labels written only in English.HYUNDAI Genuine Parts are only sold through authorized HYUNDAIDealerships.GUIDE TO HYUNDAI GENUINE PARTSForeword1-4We want to help you get the greatest possible driving pleasure from your vehicle. Your Owner’s Manual can assist you in many ways. To gain an overview of the contents of your Owner’s Manual, use the Table of Contents in the front of the manual. The first page of each Chapter includes a detailed Table of Contents of the topics in that Chapter.To quickly locate information about your vehicle, use the Index in the back of the manual. It is an alphabetical list of what is in this manual and the page number where it can be found.For your convenience, we have incorporated tabs on the right-hand page edges. These tabs are coded with the Chapter titles to assist you with navigating through the manual.Your safety, and the safety of others, is very important. This Owner’s Manual provides you with many safety precautions and operating procedures. This information alerts you to potential hazards that may hurt you or others, as well as damage to your vehicle.Safety messages found on vehicle labels and in this manual describe these hazards and what to do to avoid or reduce the risks.Warnings and instructions contained in this manual are for your safety. Failure to follow safety warnings and instructions can lead to serious injury or death.HOW TO USE THIS MANUAL SAFETY MESSAGES011-5Your new vehicle is designed to obtain maximum performance with UNLEADED FUEL, as well as minimize exhaust emissions and spark plug fouling.Your new vehicle is designed to use only unleaded fuel having an octane number ((R+M)/2) of 87 (Research Octane Number 91) or higher. (Do not use methanol blended fuels)To prevent damage to the engine and engine components, never add any fuel system cleaning agents to the fuel tank other than what has been specified.Consult an authorized HYUNDAI dealer for additional information. WARNING • Do not “top off” after the nozzle automatically shuts off when refueling.• Always check that the fuel cap is installed securely to prevent fuel spillage in the event of an accident.FUEL REQUIREMENTS Throughout this manual DANGER, WARNING, CAUTION, NOTICE and the SAFETY ALERT SYMBOL will be used.This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol precedes the signal words DANGER, WARNING and CAUTION.DANGERDANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.WARNINGWARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.CAUTIONCAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.NOTICE indicates a situation which, if not avoided, could result in vehicle damage.Foreword1-6Gasoline containing alcohol or methanolGasohol, a mixture of gasoline andethanol (also known as grain alcohol) are being marketed along with or instead of leaded or unleaded gasoline. Forexample, “E15” is a gasohol comprised of 15% ethanol and 85% gasoline.Do not use gasohol containing more than 15% ethanol, and do not use gasoline or gasohol containing any methanol. Either of these fuels may cause drivability problems and damage to the fuel system, engine control system and emission control system.Discontinue using gasohol of any kind if drivability problems occur.“E85” fuel is an alternative fuelcomprised of 85 percent ethanol and 15 percent gasoline, and is manufactured exclusively for use in Flexible Fuel Vehicles. “E85” is not compatible with your vehicle. Use of “E85” may result in poor engine performance and damage to your vehicle’s engine and fuel system. HYUNDAI recommends that customers do not use fuel with an ethanol content exceeding 15 percent.To prevent damage to your vehicle’s engine and fuel system:• Never use gasohol which contains methanol.• Never use gasohol containing more than 15% ethanol.• Never use leaded fuel or leaded gasohol.• Never use “E85” fuel.Your New Vehicle Limited Warranty does not cover damage to the fuel system or any performance problems caused by the use of “E85” fuel.Using Fuel Additives (except Detergent Fuel Additives)Using fuel additives such as: -Silicone fuel additive-Ferrocene (iron-based) fuel additive -Other metallic-based fuel additives may result in cylinder misfire, poor acceleration, engine stalling, damage to the catalyst, or abnormal corrosion, and may cause damage to the engine resulting in a reduction in the overall life of the powertrain.-The Malfunction Indicator Lamp (MIL) may illuminate.Damage to the fuel system orperformance problem caused by the use of these fuels or fuel additives may not be covered by your New Vehicle Limited Warranty.Gasoline containing MMTSome gasoline contains harmfulmanganese-based fuel additives such as MMT (Methylcyclopentadienyl Manganese Tricarbonyl).HYUNDAI does not recommend the use of gasoline containing MMT.This type of fuel can reduce vehicle performance and affect your emission control system.The malfunction indicator lamp on the cluster may come on.011-7Detergent Fuel AdditivesHYUNDAI recommends that you use good quality gasolines treated with detergent additives such as TOP TIER Detergent Gasoline, which help prevent deposit formation in the engine. These gasolines will help the engine run cleaner and enhance performance of the Emission Control System. For more information on TOP TIER DetergentGasoline, please go to the website ().For customers who do not use TOP Tier Detergent Gasoline regularly, and have problems starting or the engine does not run smoothly, detergent-based fuel additives that you can purchaseseparately may be added to the gasoline. If TOP TIER Detergent Gasoline is not available, one bottle of additive added to the fuel tank according to the maintenance schedule is recommended (refer to the Maintenance Schedule in chapter 8).Additives are available from yourauthorized HYUNDAI dealer along with information on how to use them. Do not mix other additives.Operation in foreign countriesIf you are going to drive your vehicle in another country, be sure to:• Observe all regulations regarding registration and insurance.• Determine that acceptable fuel is available.• This vehicle should not be modified. Modification of your vehicle could affect its performance, safety or durability and may even violate governmental safety and emissions regulations.In addition, damage or performance problems resulting from anymodification may not be covered under warranty.• If you use unauthorized electronic devices, it may cause the vehicle to operate abnormally, wire damage, battery discharge and fire. For your safety, do not use unauthorized electronic devices.VEHICLE BREAK-IN PROCESSBy following a few simple precautions for the first 1,000 km (600 miles) you may add to the performance, economy and life of your vehicle.• Do not race the engine.• While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000 rpm and 4,000 rpm.• Do not maintain a single speed for long periods of time, either fast or slow. Varying engine speed is needed to properly break-in the engine.• Avoid hard stops, except inemergencies, to allow the brakes to seat properly.VEHICLE MODIFICATIONSForeword1-8VEHICLE DATA COLLECTION AND EVENT DATA RECORDERSThis vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed torecord data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:• How various systems in your vehicle were operating;• Whether or not the driver andpassenger safety belts were buckled/fastened;• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,• How fast the vehicle was traveling.These data can help provide a better understanding of the circumstances in which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.。

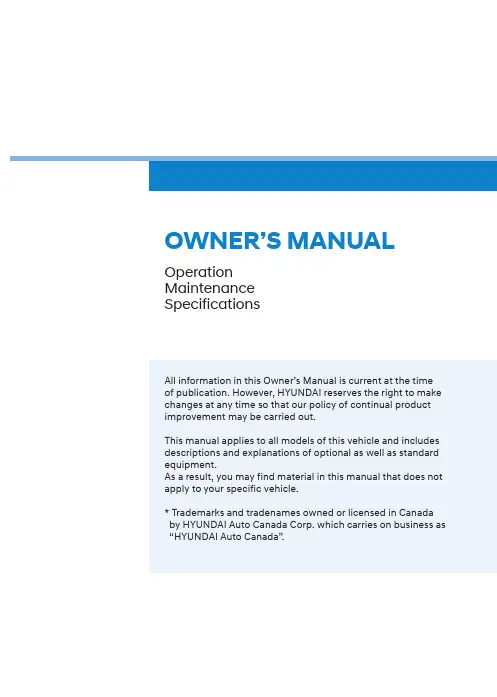

现代汽车保养手册说明书
All information in this Owner’s Manual is current at the time of publication. However, HYUNDAI reserves the right to make changes at any time so that our policy of continual product improvement may be carried out.This manual applies to all models of this vehicle and includes descriptions and explanations of optional as well as standard equipment.As a result, you may find material in this manual that does not apply to your specific vehicle.* T rademarks and tradenames owned or licensed in Canada by HYUNDAI Auto Canada Corp. which carries on business as “HYUNDAI Auto Canada”.OWNER’S MANUALOperation Maintenance SpecificationsIntroductionF2F3Introduction1-2FOREWORDCongratulations, and thank you for choosing HYUNDAI. We are pleased to welcome you to the growing number of discerning people who drive HYUNDAI. We are very proud of the advanced engineering and high-quality construction of each HYUNDAI we build.Your Owner’s Manual will introduce you to the features and operation of your new HYUNDAI. To become familiar with your new HYUNDAI, so that you can fully enjoy it, read this Owner’s Manual carefully before driving your new vehicle.This manual contains important safety information and instructions intended to familiarize you with your vehicle’s controls and safety features so you can safely operate your vehicle.This manual also contains information on maintenance designed to enhance safe operation of the vehicle. It is recommended that all service and maintenance on your car be performed by an authorized HYUNDAI dealer. An authorized HYUNDAI dealer are prepared to provide high-quality service, maintenance and any other assistance that may be required.This Owner’s Manual should be considered a permanent part of your vehicle, and should be kept in the vehicle so you can refer to it at any time. The manual should stay with the vehicle if you sell it to provide the next owner with important operating, safety and maintenance information.HYUNDAI AUTO CANADACAUTIONSevere engine and transmission damage may result from the use of poor quality fuels and lubricants that do not meet HYUNDAI specifications. You must always use high quality fuels and lubricants that meet the specifications listed on Page 2-14 in the Vehicle Specifications section of the Owner’s Manual.Copyright 2021 HYUNDAI Auto Canada Corp. All rights reserved. No part of this publication may be reproduced, stored in any retrieval system or transmitted in any form or by any means without the prior written permission of HYUNDAI Auto Canada Corp. All trademarks and tradenames owned in Canada by HYUNDAI Auto Canada Corp.011-3GUIDE TO HYUNDAI GENUINE PARTS1. What are HYUNDAI Genuine Parts?HYUNDAI Genuine Parts are the same parts used by HYUNDAI Motor Company to manufacture vehicles. They are designed and tested for the optimum safety, performance, andreliability for our customers. 2. Why Hyundai Genuine Parts?HYUNDAI Genuine Parts are engineered and built to meet rigid manufacturing requirements. Damage caused by using imitation, counterfeit or used salvage parts is not covered under the HYUNDAI New Vehicle Limited Warranty or any other HYUNDAI warranty.In addition, any damage to or failure of HYUNDAI Genuine Parts caused by the installation or failure of an imitation, counterfeit or used salvage part is not covered by any HYUNDAIWarranty.3. How can you tell if you are purchasing HYUNDAI Genuine Parts?Look for the HYUNDAI Genuine Parts Logo on the package (see below).HYUNDAI Genuine Parts exported are packaged with labels written only in English.HYUNDAI Genuine Parts are only sold through authorized HYUNDAIDealerships.Introduction1-4We want to help you get the greatest possible driving pleasure from your vehicle. Your Owner’s Manual can assist you in many ways. To gain an overview of the contents of your Owner’s Manual, use the Table of Contents in the front of the manual. The first page of each Chapter includes a detailed Table of Contents of the topics in that Chapter.To quickly locate information about your vehicle, use the Index in the back of the manual. It is an alphabetical list of what is in this manual and the page number where it can be found.For your convenience, we have incorporated tabs on the right-hand page edges. These tabs are coded with the Chapter titles to assist you with navigating through the manual.SAFETY MESSAGESYour safety, and the safety of others, is very important. This Owner’s Manual provides you with many safety precautions and operating procedures. This information alerts you to potential hazards that may hurt you or others, as well as damage to your vehicle.Safety messages found on vehicle labels and in this manual describe these hazards and what to do to avoid or reduce the risks.Warnings and instructions contained in this manual are for your safety. Failure to follow safety warnings and instructions can lead to serious injury or death.Throughout this manual DANGER, WARNING, CAUTION, NOTICE and the SAFETY ALERT SYMBOL will be used.This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol precedes the signal words DANGER, WARNING and CAUTION.DANGERDANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNINGWARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.NOTICE indicates a situation which, if not avoided, could result in vehicle damage.HOW TO USE THIS MANUAL011-5Gasoline engine UnleadedYour new vehicle is designed to use only unleaded fuel having an octane number ((R+M)/2) of 87 (Research Octane Number 91) or higher. (Do not use methanol blended fuels.)Your new vehicle is designed to obtain maximum performance with UNLEADED FUEL, as well as minimize exhaust emissions and spark plug fouling.To prevent damage to the engine and engine components, never add any fuel system cleaning agents to the fuel tank other than what has been specified.Consult an authorized HYUNDAI dealer for additional information.WARNINGś Do not “top off” after the nozzle automatically shuts off when refueling.ś Always check that the fuel cap is installed securely to prevent fuel spillage in the event of an accident.Gasoline containing alcohol and methanolGasohol, a mixture of gasoline and ethanol (also known as grain alcohol) are being marketed along with or instead of leaded or unleaded gasoline. For example, “E15” is a gasohol comprised of 15% ethanol and 85% gasoline.Do not use gasohol containing more than 15% ethanol, and do not use gasoline or gasohol containing any methanol. Either of these fuels may cause drivability problems and damage to the fuel system, engine control system and emission control system.Discontinue using gasohol of any kind if drivability problems occur.“E85” fuel is an alternative fuel comprised of 85 percent ethanol and 15 percent gasoline, and is manufactured exclusively for use in Flexible Fuel Vehicles. “E85” is not compatible with your vehicle. Use of “E85” may result in poor engine performance and damage to your vehicle’s engine and fuel system. HYUNDAI recommends that customers do not use fuel with an ethanol content exceeding 15 percent.To prevent damage to your vehicle’s engine and fuel system:ś Never use gasohol which contains methanol.ś Never use gasohol containing more than 15% ethanol.ś Never use leaded fuel or leaded gasohol.ś Never use “E85” fuel.Your New Vehicle Limited Warranty does not cover damage to the fuel system or any performance problems caused by the use of “E85” fuel.FUEL REQUIREMENTSIntroduction 1-6Using Fuel Additives (except Detergent Fuel Additives)Using fuel additives such as:-Silicone fuel additive-Ferrocene (iron-based) fuel additive-Other metallic-based fuel additivesMay result in cylinder misfire, poor acceleration, engine stalling, damage to the catalyst, or abnormal corrosion, and may cause damage to the engine resulting in a reduction in the overall life of the powertrain.-The Malfunction Indicator Lamp (MIL) may illuminate.Damage to the fuel system or performance problem caused by the use of these fuels may not be covered by your New Vehicle Limited Warranty.Gasoline containing MMTSome gasoline contains harmful manganese-based fuel additives such as MMT (Methylcyclopentadienyl Manganese Tricarbonyl).HYUNDAI does not recommend the use of gasoline containing MMT.This type of fuel can reduce vehicle performance and affect your emission control system.The malfunction indicator lamp on the cluster may come on.Detergent Fuel AdditivesHYUNDAI recommends that you use good quality gasolines treated with detergent additives such as TOP TIER Detergent Gasoline, which help prevent deposit formation in the engine. These gasolines will help the engine run cleaner and enhance performance of the Emission Control System. For more information on TOP TIER Detergent Gasoline, please go to the website (www. ).For customers who do not use TOP Tier Detergent Gasoline regularly, and have problems starting or the engine does not run smoothly, detergent-based fuel additives that you can purchase separately may be added to the gasoline. If TOP TIER Detergent Gasoline is not available, one bottle of additive added to the fuel tank according to the maintenance schedule is recommended (refer to the Maintenance Schedule in chapter 9).Additives are available from your authorized HYUNDAI dealer along with information on how to use them. Do not mix other additives.Operation in foreign countriesIf you are going to drive your vehicle in another country, be sure to:ś Observe all regulations regarding registration and insurance.ś Determine that acceptable fuel is available.011-7VEHICLE MODIFICATIONSś This vehicle should not be modified. Modification of your vehicle could affect its performance, safety or durability and may even violate governmental safety and emissions regulations.In addition, damage or performance problems resulting from any modification may not be covered under warranty.ś If you use unauthorized electronic devices, it may cause the vehicle to operate abnormally, wire damage, battery discharge and fire. For your safety, we recommend that you do not use unauthorized electronic devices.9(+,&/( %5($.ǘ,1 352&(66By following a few simple precautions for the first 1,000km (600 miles) you may add to the performance, economy and life of your vehicle.ś Do not race the engine.ś While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000 rpm and 4,000 rpm.ś Do not maintain a single speed for long periods of time, either fast or slow. Varying engine speed is needed to properly break-in the engine.ś Avoid hard stops, except in emergencies, to allow the brakes to seat properly.ś Fuel economy and engine performance may vary depending on vehicle break-in process and be stabilized after 6,000 km (4,000 miles). New engines may consume more oil during the vehicle break-in period.ś Do not tow a trailer during the first 2,000km (1,200 miles) of operation.Introduction1-8VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less.The EDR in this vehicle is designed to record such data as:ś How various systems in your vehicle were operating;ś Whether or not the driver and passenger safety belts were buckled/fastened;ś How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,ś How fast the vehicle was traveling.These data can help provide a better understanding of the circumstances in which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.。
悦动保养手册
5000KM 换机油机滤（首保）清洁空气滤芯（建议车主3000KM 做首保）建议自己买机油不要用免费的1万KM 换机油机滤空滤1.5万KM 换机油机滤空滤，清洗节气门及怠速阀检查驱动轴防尘套，检查空调滤芯2万KM 换机油机滤空滤，清洗进气道，四轮换位并动平衡，检查轮胎2.5万KM 换机油机油空滤，清洗喷油咀3万KM 换机油三滤，清洗节气门及怠速阀检查驱动轴及防尘套，检查空调滤芯3.5万KM 换机油机滤空滤，检查四轮刹车片4万KM 换机油机滤空滤、刹车油、离合油、自动变速箱油（自动档）、分动箱油（途胜四驱）、碳罐、碳罐滤芯、火花塞及分缸线，清洗进气道，四轮换位并动平衡，检查轮胎4.5万KM 换机油机滤空滤，清洗节气门及怠速阀检查驱动轴防尘套，检查空调滤芯5万KM 换机油机滤空滤，清洗喷油咀，清洗发动机润滑系统（五万KM清洗以后每三万KM清洗一次）5.5万KM 换机油机滤空滤6万KM 换机油三滤、转向油、防冻液、正时皮带（4年6万）或（2年8万）、汽油泵过滤器，清洗节气门怠速阀、清洗进气道、清洗三元系统，四轮换位并动平衡，检查驱动轴防尘套、检查空调滤芯、检查轮胎6.5万KM 换机油机滤空滤7万KM 换机油机滤空滤，正时皮带（途胜）7.5万KM 换机油机滤空滤，清洗喷油咀，清洗节气门及怠速阀检查驱动轴防尘套，检查空调滤芯8万KM 换机油机滤空滤，手动变速箱油，刹车油、离合油、自动变速箱油（自动档）、后桥油（途胜四驱）、碳罐、碳罐滤芯、火花塞及分缸线，换正时皮带（4年6万）或（2年8万），清洗进气道，清洗发动机润滑系统，四轮换位并动平衡，检查轮胎，检查氧传感器备注：以上检查项目，必要时更换四轮定位检测调整（视况）雨刷片建议两年更换一次空气净化器滤芯每一年检查一次（视况更换）北京现代车型可长途免费检测全车油液更换周期为相关公里数或两年以先到者为准。
悦动使用手册说明书电子版
悦动使用手册说明书电子版一、前言欢迎您选择悦动汽车，为了让您更好地了解和使用您的爱车，我们精心编写了这本使用手册。
在使用车辆之前，请您务必仔细阅读本手册，它将为您提供有关车辆操作、维护和安全方面的重要信息。
二、车辆概述（一）外观悦动的外观设计时尚流畅，车身线条简洁大方。
车头部分，犀利的大灯与进气格栅相得益彰，营造出一种动感的氛围。
车身侧面，线条流畅，凸显出车辆的优雅气质。
车尾部分，独特的尾灯设计增加了车辆的辨识度。
（二）内饰车内采用了高品质的材料，提供了舒适的驾乘环境。
座椅柔软舒适，具有良好的支撑性。
仪表盘设计简洁明了，各种信息一目了然。
中控台布局合理，操作方便。
（三）动力系统悦动搭载了高性能的发动机，动力充沛，同时具有良好的燃油经济性。
三、驾驶操作（一）启动车辆1、确保车辆处于停车挡（P 挡）。
2、插入钥匙并将其转动至“ON”位置，让车辆进行自检。
3、踩下制动踏板，然后将钥匙继续转动至“START”位置，启动发动机。
（二）挡位操作1、 P 挡：停车挡，用于车辆停放时。
2、 R 挡：倒车挡，在车辆后退时使用。
3、 N 挡：空挡，一般用于短暂停车，如等红灯时。
4、 D 挡：前进挡，正常行驶时使用。
5、 S 挡：运动挡，可提供更强劲的动力输出。
（三）制动与加速1、制动踏板用于减速和停车，轻踩制动踏板逐渐减速，重踩则紧急停车。
2、加速踏板用于控制车辆的速度，缓慢踩下加速踏板可平稳加速。
（四）转向操作转动方向盘来控制车辆的行驶方向，注意转向时要适度，避免过度转向。
四、仪表与指示灯（一）速度表显示车辆当前的行驶速度。
（二）转速表反映发动机的转速情况。
（三）燃油表指示燃油的剩余量。
（四）水温表显示发动机冷却液的温度。
（五）指示灯1、发动机故障指示灯：如果该灯亮起，表示发动机可能存在故障。
2、制动系统指示灯：亮起时可能表示制动系统存在问题。
3、安全带未系指示灯：提醒驾乘人员系好安全带。
五、安全系统（一）安全气囊车辆配备了多个安全气囊，在发生碰撞时提供保护。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
北京现代悦动保养1、防冻液的更换周期为两年，更换防冻液前别忘清洗发动机冷却系统。
2、发现电极接线处有绿色氧化物，一定要用开水冲掉。
3、轮胎花纹深度不足1.6mm时，要更换新轮胎。
修补过的轮胎要换到后轮，而且修补超过3次的轮胎应更换掉。
北京现代悦动保养及价格全面解析北京现代新伊兰特悦动与同级别车型的质保期限相同，都是2年6万公里，以先到为准。
首次保养建议在5000公里左右或半年左右时间在4S 店做（以先到为准），接下来的保养则同样按照5000公里左右或半年左右时间的周期来做，同样是以先到为准。
这样算下来，伊兰特悦动10万公里自然保养次数将达到20次，次数较为频繁。
新伊兰特悦动首次保养需要更换机油、机滤和空滤，首次保免费。
在做完首次保养后，车主需要在10000公里的时候及时去4S店做保养，此次保养项目与首保相同，但车主需要花费250元。
悦动每5000公里都需要更换机油、机滤和空滤。
新伊兰特悦动在20000公里时需要在首保的基础上，还需清洗节气门和进气道，此时车主需要花费450元。
在30000公里时除了换首保的项目以外，气滤也要更换，喷油嘴也需要清洗，共计花费598元。
40000公里时伊兰特悦动在首保基础上，还要更换价值212元火花塞。
新伊兰特悦动以后的保养则依然以40000公里为周期，接下来需要保养的项目也与之前相同。
由此可以计算出新伊兰特悦动40000公里时，保养共计花费了2760元。
因此伊兰特悦动10万公里时(包括首次保养公里数5000公里)，保养总共费用高达6470元。
相对部分经济型轿车来讲，伊兰特悦动的保养周期略短，所以整体保养成本会有所增加，在同级别车型中花费的费用较高。
1-4年：青少年期一辆车在使用的头两年是生命的巅峰期，只要进行常规保养，基本上不会有什么问题，但两年以上的车子就要开始更换一些最易损耗的部件了。
刹车皮：车子使用两三年就需要更换新的刹车皮。
当一辆车子送去维修时，首先要检查它的刹车皮，因为刹车皮是驾驶安全的首道防线。
根据经验，刹车皮大概在两年左右就会磨尽了，当然，准确的使用期得视驾驶者的习惯而定。
如果你是那种喜欢踩很多油，然后在关键时候猛力踩刹车的人，刹车皮的磨损肯定会比较厉害，寿命也就比较短。
燃油泵：车子开到两年多的时候，燃油泵也差不多该清洗或更换了。
减振器：车子到了三四年的时候，跑起来可能没有新车那么平稳，遇到这种情况，应该检查车子的减振器。
减振器的作用是为了减少车子的振动，它是悬挂系统的一部分，如果减振器的弹簧不再有弹性，在高速行驶时就会抖动得很厉害，下雨天更是特别危险。
4-7年：中年期这时的车子就像“人到中年”，很多东西都松了，包括车内的各种橡胶管，车盖底下的问题等。
不少车主往往在车开到四五年的时候开始换车，也有一些二手车买主喜欢买这个车龄的车子。
正时皮带：开了4年左右的车子要注意正时皮带是不是该换了，一般车子在行驶了7万到10万公里的时候，就应该送去换正时皮带，如果不及时更换，车子行驶到半途时如果正时皮带突然断裂，要付出的维修费至少数百元。
橡胶管：这个车龄的车子如保养不好，漏黑油、漏水的问题就会出现。
这是很自然的，橡胶管用旧了，总会出现老化问题。
假如车主对车保养得好，老化的问题会比较迟一点出现。
水缸：5年左右的车子，水缸可能被里面的化学物腐蚀，有些车子的水缸开始漏水，水缸当然就需要更换了。
定期给车子更换机油、过滤器等等，花点小钱，可以省下大钱，驾驶时也更有保障。
7-10年：老年期由于汽车寿命的限定，在我国，汽车一般到了10年就该退休了，如果保养得当，爱车还能健康地如期完成使命。
但车子到了7年以后，就逐步进入老年期，到了这把“年纪”，那些在第三年和第四年更换的小零件，差不多该再换一次了，比如说减振器。
除此之外，大部分自动变速的车子也应该在这个时候维修自动变速箱。
自动变速箱的保养：使用自动变速汽车的车主，自动排挡车的变速箱构造比较复杂，也比较精密，在驾驶自动变速的车子时，要想在寿命期内行驶自如，保持良好状态，车主就必须多用心，让不同排挡交替使用，该做的保养一定不能省。
这样可以延长自动变速箱的使用期。
自动变速箱是根据车速和踩油门的力度调整档位的，踩油门力度适中情况下，车速到20、40、60公里/小时的时候变速箱会自动换档，深踩油门急加速情况下变速箱还可能自动降档，通常踩油门力度适中、路况也较好的时候到达上述车速的时候发动机转速会在2500转左右。
如果让发动机转速保持在2000转提速，感觉变速箱自动换档的时候车子最温柔，基本感觉不到顿挫感，再低的转速容易产生积炭，对发动机保养不利。
所以个人感觉自动档车子提速的时候让发动机转速保持在2000转-2500转之间较好。
自动档车子省油的一个小窍门就是车速提升到换档临界速度的时候缓一脚油，等换档之后再给油，别死踩着油门不松，那样会延迟换档时间，用的时间长了，变速箱会记忆你的驾车习惯，提高换档临界速度。
4S店的试驾车经常有3档速度到80、转速3000了还不升档的情况，就是开车的人都习惯死踩着油门不松，行车电脑学会了坏习惯。
悦动1.6 GLS MT用户手册（车辆驾驶操作---自动变速器）自动变速器换档时踩下制动踏板可以自由移动变速杆自动变速器操作高效自动变速器有4个前进档和1个倒档。
按照变速杆的位置，可以自动换档。
所有的正常前进驾驶都在“D(前进)”位置进行。
要把变速杆从“P(驻车)”位置移动到其它位置，必须踩下制动踏板。
参考：新车前几次换档，或拆装了蓄电池，可能发生换档冲击现象，这是正常现象，不是故障。
TCM(变速器控制模块)控制数次换档后此现象会消失。
为了平稳驾驶，从“N(空档)”位置移动到前进档或倒车档时应踩下制动踏板。
!警告一自动变速器.当把变速杆移动到“D(前进)”或“R(倒档)”位置前一定要检查车辆附近的人群情况，尤其是儿童。
.离开驾驶席座椅前，一定要确认变速杆在“P(驻车)”位置；然后完全设置驻车制动并停止发动机。
如果不遵守这些预防措施，可能会发生车辆意外或突然移动。
!注意：.为了避免损坏变速器，在踩下制动踏板，变速杆置于“R(倒车)”位置或其它前进档位置的状态下，不要进行发动机加速操作。
.车辆停在上坡路上时，不要使用发动机动力来固定车辆。
请使用制动器或驻车制动器。
.发动机以大于怠速的速度运转时，不要把变速杆从“N(空档)”或“P(驻车)”位置移动到“D(前进)”或“R(倒车)”位置。
变速杆位置当点火开关转到“ON”位置时仪表盘上的指示灯显示变速杆位置。
P(驻车)变速杆移动到“P(驻车)”位置前一定要完全停止车辆。
在此位置变速器锁止，并阻止前轮旋转。
!警告：.如果车辆行驶时把变速杆移动到“P(驻车)”位置，会造成驱动轮抱死从而导致车辆失控。
.不要用变速杆的“P(驻车)”位置来代替驻车制动器，一定要确认变速杆在“P(驻车)”位置并完全设置驻车制动器。
.离开驾驶席座椅前，一定要确定变速杆在P(驻车)位置。
完全设置驻车制动器，停止发动机并随身携带钥匙。
如果不遵守这些预防措施，可能会发生车辆意外或突然移动。
.禁止把孩子单独留在车内。
!注意：如果在车辆行驶中把变速杆移动到“P(驻车)”位置会损坏变速器。
R(倒档)使用此位置来倒车。
!注意：变速杆移动到“R(倒车)”位置或退出前，车辆必须完全停下来；在车辆行驶中把变速杆移动到“R”位置会损坏变速器，本章中解释的“摇动车辆”除外。
N(空档)变速杆在此位置时，车轮及变速器都处于自由状态。
车辆在稍微有坡度的斜坡上时会自由滑下，除非踩下制动踏板或设置驻车制动器。
D(前进)变速杆在此位置为一般的前进驾驶位置，变速器自动在4个前进档位问顺序换档，提供最省油且最强的动力。
超车或爬坡时为了获得额外动力，请完全踩下加速踏板。
完全踩下加速踏板时，变速器会自动降档到下一较低档位。
参考：变速杆移动到“D(前进)”位置前一定要完全停车。
3(三档)用于在拖吊挂车爬坡或下坡时利用发动机制动。
变速杆在“3”位置时，自动在1、2和3档之间换档，这表示不执行超速档4档操作。
但在车速超过一定界限时换档到4档，以免发动机超速运转。
返回正常驾驶状态时移动变速杆到“D”位置。
2(二档)用于光滑路面、爬坡或利用发动机制动下坡时。
变速杆在“2”位置时，自动在1、2档之间换档。
这表示不执行高速档3档和4档换档。
但在车速超过一定界限时执行高速档3档换档，以免发动机超速运转。
返回正常驾驶状态时移动变速杆到“D”位置。
L(低速档)用于极陡坡面的上坡行驶或下陡坡时利用发动机制动时。
当变速杆移动到“L”位置时，变速器暂时保持在2档直到车速降到1档车速为止。
在“L”位置车速不要超过50km／h(30mph)。
变速杆在“L”位置时，只能1档行驶。
但在车速超过一定界限时换档到2档。
如果车速继续增加，变速器换档到3档，以免发动机超速运转。
参考.为了确保平稳和安全操作，从“N(看空档)”位置或“P(驻车)”位置移动到前进档或“R(倒档)”位置时踩下制动踏板。
0完全踩下制动踏板以便将变速杆从“P(驻车)”位置移动到其它位置。
o变速杆从“R”、“N”、“D”、“3”、“2”“L”位置移动到“P”位置时，必须完全停止车辆，踩下制动踏板，以免变速器损坏。
!注意.只能在车辆完全停止时变速杆移动到“R”位置和“P”位置。
.在踩下制动踏板，变速杆在倒档或任意前进档位置时，不要进行发动机加速操作。
.从“P”或“N”位置移动到“R”、“D”、“3”、“2”或“L”位置时一定要踩下制动踏板。
.定期检查自动变速器油位，按需要添加自动变速器油。
参考定期保养表中油液推荐内容。
换档锁止系统为了确保您的安全，在变速器系统有换档锁止系统。
除非踩下制动踏板，否则该系统会阻止变速杆移出“P(驻车)”位置。
要把变速杆移出“P(驻车)”位置：1．踩住制动踏板。
2．起动发动机或将点火开关转至“ON”位置。
3．移动变速杆。
如果在变速杆移动到“P(驻车)”位置的情况下重复踩下和释放制动踏板，在变速杆附近会听到“卡嗒”声，这是正常现象。
!警告：将变速杆移出“P(驻车)”位置到另一位置前一定要完全踩下制动踏板，以免车辆不慎移动伤及车内及周围人。
外观的保养外观的一般注意事项当要使用任何化学清洁剂或亮光剂进行清洁时，务必遵守标签上的规定，这非常重要。
请先阅读标签上的所有警告和注意事项。
漆面保养清洗为了有助于保护车辆漆面免于生锈和变质，应彻底清洗且至少应每个月用温水或冷水清洗一次车辆。
如果您进行了野外驾驶，则应该在每次野外驾驶后清洗车辆。
尤其应注意彻底清除所有盐分、污物、泥土或其它异物的累积物，并确定所有车门下方边缘的排水孔与摇臂板保持干净清洁。
若未立刻去除昆虫、焦油、树汁、鸟粪、工业污染物及相似沉淀物，会损坏车辆漆面。
即使立刻用清水清洗也可能无法完全清除附着物，因此可使用不伤漆面的温和肥皂水清洗。
