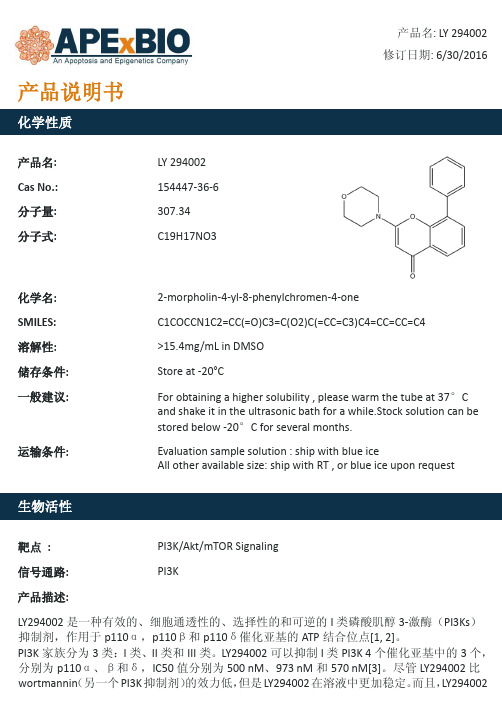

LY 294002_PI3K抑制剂_154447-36-6_Apexbio
参考文献: [1] Hu L, Zaloudek C, Mills G B, et al. In vivo and in vitro ovarian carcinoma growth inhibition by a phosphatidylinositol 3-kinase inhibitor (LY294002). Clinical Cancer Research, 2000, 6(3): 880-886.
参考文献: [1]Maira et al. (2009). PI3K inhibitors for cancer treatment: where do we stand?. doi:10.1042/BST0370265. [2]Vlahos CJ. , et al. (1994). A Specific Inhibitor of Phosphatidylinositol 3-Kinase, 2-(4-Morpholinyl)-8-phenyl-4H-l-benzopyran-4-one (LY294002). Journal of Biological Chemistry 269 (7): 5241–5248. [3]Chaussade C, et al. Evidence for functional redundancy of class IA PI3K isoforms in insulin signalling. Biochem J, 2007, 404(3), 449-58. [4]Hu L, et al. In vivo and in vitro ovarian carcinoma growth inhibition by a phosphatidylinositol 3-kinase inhibitor (LY294002). Clin Cancer Res, 2000, 6(3), 880-6. [5]Blommaart EF. , et al., (1997). The phosphatidylinositol 3-kinase inhibitors wortmannin and LY294002 inhibit autophagy in isolated rat hepatocytes. Eur. J. Biochem. 243: 240–246. [6]Dittmann, A. , et al. (2013). The Commonly Used PI3-Kinase Probe LY294002 is an Inhibitor of BET Bromodomains. ACS Chemical Biology: 131210150813004.
去垢剂
在生物学或生物化学实验室使用的去污剂都是作用比较温和的表面活性剂（=表面活性成分），是用来破坏细胞膜（裂解细胞）以释放细胞内的可溶性物质。
它们可以破坏蛋白质-蛋白质、蛋白质-脂质、脂质-脂质之间的连接，使蛋白质发生结构上的变性，防止蛋白质结晶，另外在免疫学实验中还可避免非特异性吸附。
去污剂根据其特性可以分为好几类，因此科学研究中去污剂的选择很关键，取决于后续研究的具体内容。
实际应用中有众多不同的去污剂可以选择。
为了某些特殊的应用，新的去污剂被不断开发出来[]。
在这篇综述中，对一些最常用的去污剂的特点和应用进行了论述。
去污剂是由一个疏水尾端基团和一个极性亲水头端基团组成的有机化合物（图一A）。
在一定的温度条件下，以特定浓度溶解于水时，去污剂分子会形成胶束，疏水基团部分位于胶束内部，而极性亲水基团则在其外部（图一B）。
因此，胶束的疏水中心会结合到蛋白的疏水区域。
一个胶束中，去污剂分子的聚集数目，是用来评价膜蛋白溶解度的一个重要参数[]。
去污剂分子疏水区域的长度和其疏水性成正比，且去污剂的疏水区域非常恒定，而极性头端亲水基团是可变的，可据其特点，把去污剂分为三类：离子型（阴离子或阳离子型），两性离子型和非离子型（见表一）。
在特定的温度下，表面活性剂分子缔合形成胶束的最低浓度，称之为临界胶束浓度（CMC）。
当去污剂低于临界胶束浓度时，只有单体存在；当高于临界胶束浓度时，胶束、单体以及其余不溶于水的非胶束相共存。
同样，胶束形成的最低温度称为临界胶束温度（CMT）。
因此，温度和浓度是去污剂两相分离和溶解性的重要参数。
一般来说，低亲脂或憎油的去污剂的临界胶束浓度会较高。
种类化合物离子去污剂十二烷基硫酸钠（SDS），脱氧胆酸钠，胆酸钠，肌氨酸非离子去污剂tritonX-100，十二烷基麦芽糖苷，洋地黄皂苷，tween20，tween80两性离子去污剂CHAPS离液剂尿素表一：去污剂的分类。
离子去污剂离子去污剂是由一个亲水链和一个阳离子或阴离子的极性头端基团组成。
噬菌体基因敲除
噬菌体侵染分支杆菌基因敲除实验实验材料与试剂7H9、7H10 培养基、Top Agar 、牛血清白蛋白（BSA）、潮霉素、胰蛋白胨、酵母提取物、琼脂粉、Tris、SDS、卡那霉素、西班牙琼脂糖（Biowest）、Glodview DNA 染料Van91I、AlwNI、PflMI、PacI、Tween-80、T4 DNA 连接酶、EcoRI、HindⅢ、BamHI、TransTaq HiFi DNA 酶（含dNTPS）、Trans2K Plus DNA Marker、λDNA/Hind ⅢDNA Marker、DNA Marker Ⅲ、普通质粒小提试剂盒、琼脂糖凝胶DNA 回收试剂盒、冰醋酸、氯仿、无水乙醇、甘油、乙二胺四乙酸（EDTA）、CaCl2、MgCl2、HCl、NaCl、葡萄糖、异丙醇。
主要试剂配置方法：①ADS：50g BSA，20g 葡萄糖，8.5g NaCl 定容到1L 蒸馏水中，用0.22μm Millipore 滤膜过滤后，放于4℃冰箱备用。
②7H9 液体培养基：4.7g 7H9 溶于900ml 蒸馏水中，混匀，加入10ml 50%（质量体积比）甘油，120℃高压灭菌20min，冷却后加入100mlADS，放于4℃冰箱备用。
使用时每40ml 7H9 培养基需加入100μl 20% Tween-80。
③7H10 固体培养基：19g 7H10 溶于900ml 蒸馏水中，混匀，加入10ml 50%（质量体积比）甘油，120℃高压灭菌20min，冷却后加入100mlADS，到平板。
④Top Agar：0.4g 7H9，0.75g agar 溶于100ml 蒸馏水中，120℃高压灭菌20min，冷却后加入1ml 20%葡萄糖（0.22μm Millipore 滤膜过滤），备用。
⑤MP buffer：pH 7.6 Tris-Cl 50mM，Nacl 150mM，MgCl2 10mM，CaCl2 2mM。
DIBAL-H选择还原酯基而不影响苄溴
1250J.Med.Chem.2010,53,1250–1260DOI:10.1021/jm901530bSynthesis and Structure-Activity Relationships of Azamacrocyclic C-X-C Chemokine Receptor4 Antagonists:Analogues Containing a Single Azamacrocyclic Ring are Potent Inhibitors of T-Cell Tropic(X4)HIV-1ReplicationGary J.Bridger,*,†Renato T.Skerlj,†,)Pedro E.Hernandez-Abad,‡David E.Bogucki,†Zhongren Wang,†Yuanxi Zhou,†Susan Nan,†Eva M.Boehringer,†Trevor Wilson,†Jason Crawford,†Markus Metz,†,)Sigrid Hatse,§Katrien Princen,§Erik De Clercq,§and Dominique Schols§†AnorMED Inc.now Genzyme Corporation,500Kendall Street,Cambridge,Massachusetts02142,‡Johnson Matthey Pharmaceutical Research,1401King Road,West Chester,Pennsylvania19380,and§Rega Institute for Medical Research,Katholieke Universiteit Leuven, Minderbroedersstraat10,B-3000Leuven,Belgium.)Genzyme Corp.,153Second Avenue,Waltham,Massachusetts02451.Received October15,2009Bis-tetraazamacrocycles such as the bicyclam AMD3100(1)are a class of potent and selective anti-HIV-1agents that inhibit virus replication by binding to the chemokine receptor CXCR4,the coreceptor for entryof X4viruses.By sequential replacement and/or deletion of the amino groups within the azamacrocyclic ringsystems,we have determined the minimum structural features required for potent antiviral activity in thisclass of compounds.All eight amino groups are not required for activity,the critical amino groups on a perring basis are nonidentical,and the overall charge at physiological pH can be reduced without compromisingpotency.This approach led to the identification of several single ring azamacrocyclic analogues such asAMD3465(3d),36,and40,which exhibit EC50’s against the cytopathic effects of HIV-1of9.0,1.0,and4.0nM,respectively,antiviral potencies that are comparable to1(EC50against HIV-1of4.0nM).Moreimportantly,however,the key structural elements of1required for antiviral activity may facilitate the designof nonmacrocyclic CXCR4antagonists suitable for HIV treatment via oral administration.IntroductionThe development of antiviral agents that inhibit alternative targets in the HIV a-replicative cycle remains an important goal in order to alleviate the side effects of currently approved agents or to overcome the problem of drug resistance.In this regard,we have focused on the development of compounds that inhibit CXCR4,the coreceptor used by T-tropic(T-cell tropic)viruses for fusion and entry of HIV into target cells of the immune system.The corresponding chemokine receptor CCR5is used by M-tropic(macrophage tropic)viruses and has been associated with the early stages of infection and replication in HIV-positive patients.1,2The transition from M-tropic to T-tropic(or dual/mixed-tropic)virus during the course of HIV infection in approximately50%of patients is associated with a faster CD4þT-cell decline and a more rapid disease progression.3-5Recently,we reported the results of clinical trials with our prototype CXCR4antagonist AMD31006-8(1)and an orally bioavailable CXCR4antagonist,(S)-N0-(1H-benzimidazol-2-ylmethyl)-N0-(5,6,7,8-tetrahydroquinolin-8-yl)butane-1,4-dia-mine(AMD070).9-11When administered to HIV positive patients whose virus was confirmed to use CXCR4for viral entry,both agents were able to suppress the replication of CXCR4and dual-tropic strains of HIV.Similarly,the CCR5 antagonist Maraviroc suppresses replication of HIV-1that exclusively uses CCR5for entry12and was recently approved by the FDA for combined antiretroviral therapy in treatment-experienced patients.13A combination of CCR5and CXCR4 antagonists for treatment of dual/mixed-tropic HIV infection is therefore highly desirable.Beyond its use as a coreceptor for HIV,the CXCR4 chemokine receptor has a more fundamental role in the trafficking of white blood cells,which broadly express CXCR4.14,15A member of the superfamily of G-protein coupled receptors,the interaction of CXCR4and its ligand, stromal cell-derived factor-1(SDF-1),plays a central role in the homing and retention of cells within the bone marrow microenvironment.16Consistent with these observations,ad-ministration of1to healthy volunteers caused a dose-depen-dent leukocytosis6,7that in subsequent studies was shown to include the mobilization of CD34þstem and progenitor cells suitable for hematopoietic stem cell transplantation.17-20The ability of analogues of1to mobilize progenitors correlated with their in vitro capacity to inhibit SDF-1binding to CXCR4.21Because of the need for parenteral administration, 1was developed in combination with granulocyte colony-stimulating factor(G-CSF)to mobilize hematopoietic stem cells to the peripheral blood for collection and subsequent autologous transplantation in patients with non-Hodgkin’s lymphoma(NHL)and multiple myeloma(MM).22-25Plerix-afor(1)was approved by the FDA in December2008.We have previously reported the structure-activity rela-tionships of anti-HIV bis-azamacrocycles and their transition*To whom correspondence should be addressed.Phone:617-429-7994.Fax:617-768-9809.E-mail:gary.bridger@.Ad-dress:Gary J.Bridger,Genzyme Corporation,55Cambridge Parkway,Cambridge MA02142.a Abbreviations:HIV,Human Immunodeficiency Virus;CXCR4,C-X-C chemokine receptor4;CCR5,C-C-R chemokine receptor5./jmc Published on Web12/31/2009r2009American Chemical SocietyArticle Journal of Medicinal Chemistry,2010,Vol.53,No.31251 metal complexes in detail.26-28Because of the commonstructural features between a doubly protonated cyclam(1,4,8,11-tetraazacyclotetradecane)ring present in1(at phy-siological pH)and a kinetically labile transition metal com-plex of cyclam with an overall charge ofþ2,we proposed thatboth structural motifs may bind to the CXCR4receptorthrough interactions with amino acid residues containingcarboxylate groups.29We have subsequently shown via direc-ted mutagenesis of the aspartate and glutamic acid residues inCXCR4that binding of1and related analogues to the seventransmembrane,G-protein coupled receptor is highly depen-dent upon the amino acids Asp171and Asp262,located intransmembrane region(TM)-IV and TM-VI at each end ofthe main ligand binding crevice of the receptor.30-35Mutationof either aspartic acid to aspargine significantly reduced theability of1to inhibit binding of radiolabeled stromal cellderived factor-1R(125I-Met-SDF-1R).More importantly,however,U87cells stably transfected with CD4and themutant coreceptors CXCR4[D171N]and CXCR4[D262N]were less effective at supporting infection of the CXCR4-usingHIV-1strain NL4.3compared to the wild-type receptor andthe double mutant CXCR4[D171N,D262N]completely failedas a coreceptor for HIV infection.31Correspondingly,theability of1to inhibit HIV-1infection via CXCR4[D171N]andCXCR4[D262N]was also diminished,thereby confirmingthat1binds in a region of the receptor that is critical for X4HIV-1coreceptor function.We have also reported that binding of the bis-Zn,Ni,andCu complexes of1were also dependent upon D171and D262of the receptor.36In a similar manner to1,the transitionmetal complexes were found to be less effective inhibitors of125I-Met-SDF-1R binding to the mutant receptors CXCR4-[D171N]and CXCR4[D262N]compared to the wild-typereceptor.Incorporation of Zn,Ni,or Cu into the cyclam ringsof1increased the affinity to the wild-type CXCR4receptor,but the enhancement was selectively eliminated by substitu-tion of Asp262.Supporting physiochemical evidence for theinteraction of acetate(carboxylates)with metal complexes ofazamacrocycles,including1,has been recently reported.37,38In the current study,we determine the minimum struc-tural features of1required for potent antiviral activity, leading to the identification of the single azamacrocyclic ring analogue AMD346532,33,39,40(3d)and ultimately the design of nonmacrocyclic,orally biovailable CXCR4an-tagonists.11,41,42Given the growing body of evidence that the CXCR4/SDF-1interaction is involved in regulating several human malignancies,43-45CXCR4antagonists may have additional therapeutic applications in addition to HIV treatment.ChemistryAnalogues containing a single1,4,8,11-tetraazacyclotetra-decane(cyclam)ring were prepared by modifications to previously published routes26,29as shown in Scheme1.Reac-tion of the selectively protected tris-diethylphosphoramidate (Dep)cyclam ring(2a)with R,R-dibromo-p-xylene in aceto-nitrile containing potassium carbonate gave the desired bro-momethyl intermediate(2b).Reaction of the bromide with an excess of the requisite amine,followed by deprotection of the Dep-groups with a saturated solution of hydrogen bromide in acetic acid at room temperature.gave analogues3a-i as the corresponding hydrobromide salts.To prepare analogues of3d in which the cyclam ring was replaced by a series of14-membered azamacrocyclic rings,we prepared a series of selectively protected macrocyclic ring systems containing a single(unprotected)secondary amine. This approach ensures the regiochemical outcome of the reaction with a benzylic halide during final construction (as shown in Scheme6).The syntheses of appropriate pre-cursors are shown in Schemes2-5.To incorporate fluorine groups at the desired position in the macrocyclic ring,suitably fluorinated bis-electrophiles were prepared,starting from 4-oxo-heptanedioic acid diethyl ester(4)and heptane-1,4,7-triol(8)as depicted in Scheme2.Reaction of the ketone(4) with neat(diethylamino)-sulfur trifluoride46,47(DAST)at room temperature for12days gave the corresponding di-fluoro-intermediate(5)in43%yield.Reduction of the ester groups with LAH(to give the diol6),followed by derivatiza-tion with toluenesulfonyl chloride,gave the bis-electrophile (7)required for the impending macrocyclization reaction.The corresponding monofluorinated intermediate was prepared in a similar manner.Protection of the primary alcohols in8as the acetyl group using acetic anhydride gave the secondary alcohol9,which was rapidly(and virtually quantitatively) converted to the fluorinated intermediate(10)with DAST (2.0equiv)in dichloromethane.Removal of the acetyl pro-tecting groups with saturated ammonia in methanol,followed by reaction of the diol(11)with p-toluenesulfonyl chloride, Scheme1aa Reagents:(a)R,R0-dibromo-p-xylene,K2CO3,CH3CN,reflux;(b)amine,K2CO3,CH3CN,reflux;(c)HBr,acetic acid,room temp. Scheme2aa Reagents:(a)Et2NSF3(neat),room temp;(b)LAH,Et2O;(c)Ts-Cl,Et3N,CH2Cl2;(d)acetic anhydride,pyridine;(e)Et2NSF3, CH2Cl2,-78°C,then room temp;(f)NH3/MeOH,room temp;(g)Ts-Cl,Et3N,CH2Cl2.1252Journal of Medicinal Chemistry,2010,Vol.53,No.3Bridger et al.gave the desired bis-electrophile 12containing a single fluorine group.The selectively protected azamacrocyclic rings were pre-pared via directed combinatorial macrocyclization of bis-2-nitrobenzenesulfonamides 48(Ns)(15a -c ,16a -c ,18)with bis-electrophiles (7,12,17)using previously optimized condi-tions 28(Scheme 3).To incorporate a phenyl or heterocyclic ring into the macrocycle,the corresponding bis-2-nitrobenze-nesulfonamide (15a -c )was prepared from the bis-aminoethyl intermediates 28(13a -c )by reaction with nosyl chloride (Et 3N,CH 2Cl 2).Similarly,16a ,b were obtained by reac-tion of commercially available intermediates 14a ,b with nosyl chloride or in the case of 16c (X=S)by reduction of 3,30-thiodipropionitrile with BH 33Me 2S and reaction of the intermediate diamine (14c )with nosyl chloride to give 16c .Macrocyclization was accomplished by dropwise addition of a DMF solution of the bis-electrophile to a DMF solution of the bis-2-nitrobenzenesulfonamide containing Cs 2CO 3maintained at a temperature of 80°C.Standard workup,followed by purification of the crude product by column chromatography on silica gel,gave the desired macrocycles 19a -c ,20a -c ,and 21a ,b in yields of 19-55%.Reaction of theintermediates from above with HBr/acetic acid at room temperature gave 22a -c ,23a -c ,and 24a ,b ,respectively.Because of synthetic convenience,we also prepared the selectively protected “isomers”of 22a ,b and 23a in which the alternative secondary amine was available for the alkylation reaction.We reasoned that reaction of 19a ,b and 20a with approximately 1equiv of thiophenol 49(our reagent of choice for nosyl deprotections)may allow pseudoselective deprotec-tion of a single nosyl group,leaving the Dep group intact.After some optimization,we found that reaction of 19a ,b and 20a with 0.8equiv of thiophenol and potassium carbonate in DMF (or acetonitrile)gave the precursors 25and 26a ,b in manageable,albeit modest yields (20-50%)following col-umn purification on silica gel (Scheme 4).Finally,the inter-mediates 27a ,b and 28(Scheme 5)were synthesized as recently described by palladium(0)catalyzed coupling of organozinc iodide reagents with bromopyridines.50Having completed the series of selectively protected aza-macrocycles,we proceeded to completion of the desired analogues by straightforward installation of the right-hand portion containing the aminomethyl pyridine moiety.As shown in Scheme 6,this was accomplished in all cases by direct alkylation of the available secondary amine of the macrocycle with the benzylic chlorides 34a ,b .Intermediate 34a was prepared in four steps from 4-bromomethyl benzoic acid methyl ester (29)and 2-aminomethylpyridine (31):con-version of 31to the 2-nitrobenzenesulfonamide 32,followed by alkylation with the benzyl bromide 30(obtained by reduc-tion of 29with DIBAL-H)gave the desired alcohol 33.As previously reported,28reaction of benzylic alcohols such as 33with methanesulfonyl chloride gave the chloride 34a rather than the corresponding mesylate,presumably via in situ nucleophilic substitution of the initially formed mesylate with chloride.Intermediate 34b (Scheme 6)containing a Dep-protecting group was prepared by an alternative synthesisScheme 3aaReagents:(a)Ns-Cl,Et 3N,CH 2Cl 2;(b)Cs 2CO 3,DMF,80°C;(c)HBr(g),AcOH,room temp.Scheme4Scheme5Article Journal of Medicinal Chemistry,2010,Vol.53,No.31253(procedures in Supporting Information).Alkylation of the available secondary amine of the macrocycles with 34a (or 34b )in CH 3CN in the presence of K 2CO 3gave the penultimate intermediates 35a -n .Deprotection of the nosyl groups with thiophenol and K 2CO 3in DMF gave the free base of the desired analogues,which in the vast majority of cases were converted to the corresponding hydrobromide salts.For analogues derived from the macrocyclic precursors 25and 26a ,b ,the intermediates isolated prior to the deprotection also contained a residual Dep group in addition to nosyl groups.For compound 45,we found that conversion to the hydro-bromide salt using a saturated solution of HBr in acetic acid resulted in concomitant deprotection of the remaining Dep group to obtain compound 45.For compounds 44and 46,the residual Dep group was removed prior to nosyl deprotection and salt formation.The thioether analogue 41a was also used to prepare the corresponding sulfoxide and sulfone analogues for antiviral evaluation as shown in Scheme 7.Initially,we globally protected the amino groups of 41a with Boc and subjected this intermediate to oxidation with oxone in MeOH 51at -10°C to give a mixture of the sulfoxide and sulfone that were separated by column chromatography on silica gel.However,while deprotection of the Boc groups with simulta-neous conversion to the hydrobromide salt proceeded without incident for the sulfone (to give 41c ),we found that deprotec-tion of the corresponding sulfoxide led to substantial reduc-tion and hence recovery of the starting analogue 41a .To overcome this problem,the sulfoxide was synthesized by direct oxidation of 41a with 1equiv of oxone in MeOH to give 41b in a 21%isolated yield and was subsequently tested as the free base in antiviral assays.Finally,we prepared a short series of analogues containing a carbon atom in place of a tertiary nitrogen group at the ring junction.To economize on the number of synthetic steps,weelected to synthesize the dimesylate 54(Scheme 8),an inter-mediate that could be commonly used for the synthesis of multiple analogues via macrocylization with the bis-2-nitro-benzenesulfonamide precursors already in our possession (namely 15a ,16a ,b from Scheme 3).Intermediate 54was prepared from the commercially available starting material bromo-p -tolunitrile via a double one-carbon homologation of the malonate 51,followed by derivatization to gave the requisite bis-methanesulfonate 54.Macrocyclizations of 54with bis-sulfonamides 15a and 16a ,b were performed as described above.Deprotection of the nosyl groups followed by conversion to the corresponding hydrobromide salts gave analogues 56and 58a ,b .DiscussionHaving previously established the optimum ring size and distance between the amines of both aliphatic andScheme 6a aReagents:(a)DIBAL-H,CH 2Cl 2;(b)Ns-Cl,Et 3N,CH 2Cl 2;(c)K 2CO 3,CH 3CN,60°C;(d)Ms-Cl,Et 3N,CH 2Cl 2;(e)K 2CO 3,CH 3CN,80°C;(f)R =Ns:thiophenol,K 2CO 3,DMF,or R =Dep:HBr(g),AcOH,room temp.Scheme 7aaReagents:(a)oxone,MeOH,-10°C;(b)(Boc)2O,THF;(c)HBr(g),AcOH,room temp.Scheme 8aaReagents:(a)NaH,R -bromo-tolunitrile,THF;(b)LiAlH 4,THF;(c)Ns-Cl,Et 3N,CH 2Cl 2;(d)2-picolyl chloride,Et 3N,K 2CO 3,KBr,CH 3CN,reflux;(e)Ms-Cl,Et 3N,CH 2Cl 2;(f)cetyltrimethyammonium bromide,NaCN,benzene,H 2O,reflux;(g)conc HCl/AcOH (4:1),reflux;(h)BH 3.Me 2S,THF;(i)Ms-Cl,Et 3N,CH 2Cl 2;(j)Cs 2CO 3,DMF,80°C;(k)thiophenol,K 2CO 3,CH 3CN (or DMF),40°C.1254Journal of Medicinal Chemistry,2010,Vol.53,No.3Bridger et al.pyridine-fused bis-tetraazamacrocycles required for potent X4anti-HIV activity,we designed a series of compounds to address the question of structural redundancy.The prototype bis-macrocycle 1has a center of symmetry and contains eight amino groups,of which four are positively charged at phy-siological pH.In the current study,we aimed to answer two specific questions:(1)Are all four positive charges required for potent anti-HIV activity?(2)On a per ring basis,what are the minimum structural requirements for activity?Assuming that the structural requirements are not iden-tical for both rings of 1,we reasoned that the simplest replacement for a single tetraaza-macrocyclic ring would be a pseudo diamine-segment,representing the first two amino groups of the macrocyclic ring from the point of attachment at the benzylic position.A judicious choice of “diamine”would also reduce the overall charge to þ1.Having previously established that the optimum distance between the first two amino groups was a two-carbon unit,we prepared a series of aminomethyl-substituted analogues in which the second amino group was a substituent upon an aromatic ring or part of a heterocyclic ring.In either case,the second p K a would be sufficiently low to prevent a second protonation at physiological pH.The compounds were tested for their ability to inhibit replication of HIV-1III B in MT-4cells,a strain of HIV-1that uses exclusively CXCR4for fusion and viral entry into target cells.The results are shown in Table 1.Compared to 1,the introduction of a benzylamine group (3a )in place of the azamacrocyclic ring substantially reduced anti-HIV potency,although the compound remained active at submicromolar concentrations.The concentration of 3a re-quired to inhibit HIV-1replication by 50%(the EC 50)was 0.49μM,which was approximately 100-fold higher than the 50%inhibitory concentration of 1.Aromatic amino groups at the 2-position (3b )or 4-position (3c )did not affect antiviral potency.Both 3b ,c exhibited comparable EC 50’s to the un-substituted benzyl group (3a ).However,we observed a sub-stantial increase in anti-HIV potency when the benzyl group was replaced by a pyridyl group (3d ).Compound 3d exhibited a 50%inhibitory concentration of 0.009μM,which was only ca.2-fold higher than the EC 50of 1.Furthermore,the 50%cytotoxic concentration (CC 50)of compound 3d in MT-4cells was greater than 112μM.Thus 3d exhibits a selectivity index of greater than 12000.The positional specificity of the pyridine-N in 3d was also examined.Replacement of the 2-pyridyl group with the 3-pyridyl (3e )or 4-pyridyl (3f )group had a detrimental effect on anti-HIV potency.For example,the EC 50’s of analogues 3e ,f were approximately 3orders of magnitude higher than the concentration of 3d required to inhibit HIV-1replication by 50%(the EC 50’s of 3e and 3f were 8.470and 9.977μM,respectively).Methylation of the amine in 3d (to give 3g )or extension of the connectivity to an aminoethyl pyridine group (to give 3h )also adversely affected the anti-HIV potency.Finally,we replaced the pyridine moiety with a comparable heterocycle of lower p K a than pyridine,namely the pyrazine group (3i ).Perhaps not surprisingly,the antiviral potency of analogue 3i was approximately comparable to the benzyl analogue 3a ,which did not contain a vicinal heterocycle nitrogen atom.With the optimized “right-hand”replacement for the aza-macrocycle ring of 1fixed as the 2-aminomethyl pyridine group,we then turned our attention to the “left-hand”ring.Needless to say,the mandatory synthesis of the symmetrical analogue in which both rings were replaced by a 2-amino-methyl pyridine group turned out to be a predictably fruitless exercise (EC 50was >250μM,data not shown).We therefore focused on systematically replacing individual amine groups of the left ring.As shown in Table 2,we first prepared an analogue in which the [14]aneN 4(cyclam)ring had been replaced by the optimized and equally suitable,py[iso -14]-aneN 4ring (to give compound 36).Consistent with the structure -activity relationship of py[iso -14]aneN 4bis-azama-crocycles,compound 36proved to be a potent inhibitor of HIV-1replication,exhibiting an EC 50of 0.001μM,that is,around 9-fold and 4-fold lower,respectively,than the con-centration of 3d or 1required to inhibit viral replication by 50%.Although the pyridine-N of the macrocyclic ring in 36was previously found to be critical for high antiviral potency,we reasoned that a precise determination of the pyridine-N contribution to potency could help redesign a less basic pounds 37and 38were then prepared to answer this question.Both analogues 37,containing a phenyl replacement and 38,containing an “exocyclic”pyridine fused group,retained reasonable anti-HIV potency (the EC 50’s of 37and 38were 0.040and 0.104μM,respectively)but were at least 40-to 100-fold less potent than analogue 36.So what role does the pyridine group play?At physiological pH,the overall charge of the py[iso -14]-aneN 4ring in 36is also þ2(in a similar manner to cyclam 52)and the likely protonation sequence is indicated in Figure 1A,based on the sequence reported by Delgado et al.53for similar 14-membered tetraazamacrocyclic rings contain-ing pyridine.Presumably,the secondary amino groups are predominantly protonated and the overall structure is stabi-lized by intramolecular hydrogen bond interactions from the adjacent hydrogen-bond acceptors,the pyridine and tertiary benzylic amine groups (while minimizing the elec-trostatic repulsion of two positive charges in a confined macrocyclic ring).This is confirmed by a conformational analysis of 36on B3LYP/6-31G*level followed by single point energy calculations.In the energetically most stable ring conformation (LMP2/6-311þG*þZPE),the pyridine nitro-gen forms two six-membered intramolecular hydrogen bond interactions with the two adjacent protonated nitrogens as shown in Figure 2.Potential five-membered intramolecular hydrogen bond interactions are formed with the tertiary amine.Table 1.Antiviral Activity of Single RingAzamacrocyclesnR 1R 2HIV-1(III B )EC 50(μM)MT-4cells CC 50(μM)3a 1H Ph0.4911603b 1H 2-amino-Ph 1.825243c 1H 4-amino-Ph 0.7172273d 1H 2-pyridine 0.009>1123e 1H 3-pyridine 8.470373f 1H 4-pyridine 9.977>2793g 1Me 2-pyridine 0.416383h 2H 2-pyridine 49.135>1103I 1H5-Me-pyrazine1.8957810.004>421ArticleJournal of Medicinal Chemistry,2010,Vol.53,No.31255The stabilization provided by this “shared”protonated structure could account for the high basicity of azamacrocyc-lic rings,as suggested by Kimura et al.54It did not seem unreasonable,therefore,that a potential role of the pyridine group is the contribution of a single intramolecular hydrogen-bond,which locks the conformation of the protonated aza-macrocyclic ring in manner that is beneficial to antiviral potency.To test this hypothesis,we prepared a series of analogues (depicted in Figure 1B,data in Table 2)in which the fused aromatic group had been removed and replaced by an aliphatic group,in some cases containing a hydrogen-bondacceptor at the key position “x,”the position occupied by the pyridine nitrogen in compound 36.Consistent with the hydrogen-bonding hypothesis,the alkyl analogue 39exhibited an anti-HIV potency that was compar-able to the phenyl and exocyclic pyridine analogues 37and 38(the EC 50’s of 37and 39,were 0.040and 0.043μM,re-spectively).This result categorically rules out the possibility that the conformational restrictions imposed by the fused aromatic groups in compounds 37,38were even partially responsible for the high potency of 36.However,incorpora-tion of a hydrogen-bond acceptor at position x (Figure 1B)in some cases restored activity comparable to 36.For example,the oxygen analogue 40exhibited an EC 50that was only 4-fold higher than the concentration of 36required to inhibit HIV-1replication by 50%(the EC 50of 40was 0.004μM).The corresponding thioether analogue 41a exhibited an EC 50of 0.013μM,which is approximately 3-fold higher than com-pound 40.Although the antiviral potency of the thioether analogue 41a compared to the ether analogue 41is greater than one would predict from the strength of the hydrogen-bond acceptor acceptor capabilities (thioether groups are considerably weaker H-bond acceptors than the oxygen inTable 2.Antiviral Activity of Single RingAzamacrocyclesFigure 1.Proposed hydrogen-bond structure of protonated aza-macrocycles.1256Journal of Medicinal Chemistry,2010,Vol.53,No.3Bridger et al.40),this result can be reconciled by considering the nature of the H-bond required;a six-membered intramolecular H-bond constrained by the macrocyclic ring (Figure 2).With the thioether compound 41a in hand,we also pre-pared the sulfoxide (41b )and sulfone (41c )analogues by direct oxidation of 41a .We reasoned that the oxygen atoms of the sulfoxide and sulfone are stronger H-bond acceptors than the sulfur atom of 41a and may consequently improve the anti-HIV potency.However,both 41b and 41c were considerably weaker antiviral agents,exhibiting 50%effective concentra-tions for inhibition of HIV-1replication that were at least 79-fold higher than the EC 50of 41a (the EC 50’s of 41b and 41c were 0.485and 11.878μM,respectively).The precise reason for the poor antiviral activity exhibited by analogues 41b ,c was unclear;although the sulfoxide and sulfone are more sterically demanding than the thioether and could induce a ring conformation that is detrimental to antiviral activity,we could not rule out the possibility that the H-bond acceptor oxygen is now “one-bond”outside of the ring,and the intramolecular H-bond itself induces an unfavorable confor-mation (a seven-membered ring H-bond in 41b ,c (Figure 2)compared to a six-membered in 41a ).To complete this series of compounds therefore,we decided to introduce the fluoro and difluoro substituents at position x (Figure 1B).Several reports have demonstrated that the fluoro group can partici-pate as an acceptor for intramolecular H-bonds,particularly within highly constrained ring structures.55-57This is also confirmed by our calculations,as shown in Figure 2.The fluoro (43)and difluoro (42)analogues were also attractive substituents for two other reasons:(1)the substituents would be situated at the fourth carbon from the adjacent amine group,thereby minimizing the affect on p K a ;(2)in a similar manner to the sulfoxide and sulfone,the H-bond acceptor would be one-bond outside of the macrocyclic ring.However in this case,because the fluorine atom in C -F groups is isostructural with hydrogen,a negative effect of the fluoro substituents on antiviral activity can only be attributed to an inappropriately positioned H-bond rather than steric requirements (that is,in the absence of an H-bond,we would expect the fluoro or difluoro analogues to exhibit an EC 50comparable to the methylene analogue 39).In antiviral test-ing,the fluoro (43)and difluoro (42)analogues displayed EC 50’s that were greater than 20-fold higher than the methy-lene analogue 39(the EC 50’s of 39,42,and 43were 0.043,0.920,and 1.239μM,respectively),confirming the negative consequences of an incorrectly positioned hydrogen-bond (Figure 2).Next,we focused on the sequence of aliphatic amine groups in the macrocyclic ring required for potent antiviral activity.By straightforward synthetic manipulation of our collection of ring systems,we prepared the structural isomers of analo-gues 36,37,and 39in which the side-chain (R,in Table 2)was connected to the alternative secondary amine group to give compounds 44,45,and 46.In antiviral testing,analogue 44was substantially less potent than its corresponding regioi-somer 39:the EC 50of 44was 11.131μM,which was approxi-mately 260-fold higher than the EC 50of 39.A similar loss of antiviral potency was observed with the phenyl analogue 46and its isomer 37(the EC 50’s of 46and 37were 14.106and 0.040μM,respectively).Interestingly,the loss of antiviral potency with the pyridine-fused isomer 45compared to 36was significant but not as substantial;the EC 50of 45was 0.063μM,around 60-fold higher than the concentration of 36required to inhibit HIV-1replication by 50%.There was a possibility,therefore,that while the “tri-aza”ring configura-tion required for potent antiviral activity is clearlyrepresentedFigure 2.Lowest energy conformations of compounds 36,40,41c ,and 42.View from top on a plane defined by three nitrogens and X (see Figure 1).Dashed lines indicate hydrogen bond interactions:the hydrogen bond acceptors in 36and 40are in one plane with the three nitrogens.This is not the case for 41c and 42.Bond angles:36:—(N 333H -N þ)=140.5°,122.4°,102.1°,108.4°.40:—(O 333H -N þ)=135.1°,141.5°;—(N 333H -N þ)=104.6°,102.8°.41c :—(O 333H -N þ)=112.8°,112.8°;—(N 333H -N þ)=108.2°,108.0°.42:—(F 333H -N þ)=142.2°,142.2°;—(N 333H -N þ)=114.7°,114.7°.。
8082方法
METHOD 8082POLYCHLORINATED BIPHENYLS (PCBs)BY GAS CHROMATOGRAPHY1.0SCOPE AND APPLICATION1.1Method 8082 is used to determine the concentrations of polychlorinated biphenyls (PCBs) as Aroclors or as individual PCB congeners in extracts from solid and aqueous matrices. Open-tubular, capillary columns are employed with electron capture detectors (ECD) or electrolytic conductivity detectors (ELCD). When compared to packed columns, these fused-silica, open-tubular columns offer improved resolution, better selectivity, increased sensitivity, and faster analysis. The target compounds listed below may be determined by either a single- or dual-column analysis system. The PCB congeners listed below have been tested by this method, and the method may be appropriate for additional congeners.Compound CAS Registry No.IUPAC #Aroclor 101612674-11-2-Aroclor 122111104-28-2-Aroclor 123211141-16-5-Aroclor 124253469-21-9-Aroclor 124812672-29-6-Aroclor 125411097-69-1-Aroclor 126011096-82-5-2-Chlorobiphenyl2051-60-712,3-Dichlorobiphenyl16605-91-752,2',5-Trichlorobiphenyl37680-65-2182,4',5-Trichlorobiphenyl16606-02-3312,2',3,5'-Tetrachlorobiphenyl41464-39-5442,2',5,5'-Tetrachlorobiphenyl35693-99-3522,3',4,4'-Tetrachlorobiphenyl32598-10-0662,2',3,4,5'-Pentachlorobiphenyl38380-02-8872,2',4,5,5'-Pentachlorobiphenyl37680-73-21012,3,3',4',6-Pentachlorobiphenyl38380-03-91102,2',3,4,4',5'-Hexachlorobiphenyl35065-28-21382,2',3,4,5,5'-Hexachlorobiphenyl52712-04-61412,2',3,5,5',6-Hexachlorobiphenyl52663-63-51512,2',4,4',5,5'-Hexachlorobiphenyl35065-27-11532,2',3,3',4,4',5-Heptachlorobiphenyl35065-30-61702,2',3,4,4',5,5'-Heptachlorobiphenyl35065-29-31802,2',3,4,4',5',6-Heptachlorobiphenyl52663-69-11832,2',3,4',5,5',6-Heptachlorobiphenyl52663-68-01872,2',3,3',4,4',5,5',6-Nonachlorobiphenyl40186-72-9206CD-ROM8082 - 1Revision 0December 19961.2Aroclors are multi-component mixtures. When samples contain more than one Aroclor,a higher level of analyst expertise is required to attain acceptable levels of qualitative and quantitative analysis. The same is true of Aroclors that have been subjected to environmental degradation ("weathering") or degradation by treatment technologies. Such weathered multi-component mixtures may have significant differences in peak patterns than those of Aroclor standards.1.3Quantitation of PCBs as Aroclors is appropriate for many regulatory compliance determinations, but is particularly difficult when the Aroclors have been weathered by long exposure in the environment. Therefore, this method provides procedures for the determination of selected individual PCB congeners. The 19 PCB congeners listed above have been tested by this method.1.4The PCB congener approach potentially affords greater quantitative accuracy when PCBs are known to be present. As a result, this method may be used to determine Aroclors, some PCB congeners, or "total PCBs," depending on regulatory requirements and project needs. The congener method is of particular value in determining weathered Aroclors. However, analysts should use caution when using the congener method when regulatory requirements are based on Aroclor concentrations.1.5Compound identification based on single-column analysis should be confirmed on a second column, or should be supported by at least one other qualitative technique. This method describes analytical conditions for a second gas chromatographic column that can be used to confirm the measurements made with the primary column. GC/MS Method 8270 is also recommended as a confirmation technique when sensitivity permits (Sec. 8.0).1.6This method also describes a dual-column option. The option allows a hardware configuration of two analytical columns joined to a single injection port. The option allows one injection to be used for dual-column analysis. Analysts are cautioned that the dual-column option may not be appropriate when the instrument is subject to mechanical stress, many samples are to be run in a short period, or when highly contaminated samples are analyzed.1.7The analyst must select columns, detectors and calibration procedures most appropriate for the specific analytes of interest in a study. Matrix-specific performance data must be established and the stability of the analytical system and instrument calibration must be established for each analytical matrix (e.g., hexane solutions from sample extractions, diluted oil samples, etc.). Example chromatograms and GC conditions are provided as guidance.1.8The MDLs for Aroclors vary in the range of 0.054 to 0.90 µg/L in water and 57 to 70 µg/kg in soils. Estimated quantitation limits may be determined using the data in Table 1.1.9This method is restricted to use by, or under the supervision of, analysts experienced in the use of gas chromatographs (GC) and skilled in the interpretation of gas chromatograms. Each analyst must demonstrate the ability to generate acceptable results with this method.2.0SUMMARY OF METHOD2.1 A measured volume or weight of sample (approximately 1 L for liquids, 2 g to 30 g for solids) is extracted using the appropriate matrix-specific sample extraction technique.2.2Aqueous samples are extracted at neutral pH with methylene chloride using Method 3510 (separatory funnel), Method 3520 (continuous liquid-liquid extractor), or other appropriate technique. CD-ROM8082 - 2Revision 0December 19962.3Solid samples are extracted with hexane-acetone (1:1) or methylene chloride-acetone (1:1) using Method 3540 (Soxhlet), Method 3541 (automated Soxhlet), or other appropriate technique.2.4Extracts for PCB analysis may be subjected to a sulfuric acid/potassium permanganate cleanup (Method 3665) designed specifically for these analytes. This cleanup technique will remove (destroy) many single component organochlorine or organophosphorus pesticides. Therefore, Method 8082 is not applicable to the analysis of those compounds. Instead, use Method 8081.2.5After cleanup, the extract is analyzed by injecting a 2-µL aliquot into a gas chromatograph with a narrow- or wide-bore fused silica capillary column and electron capture detector (GC/ECD).2.6The chromatographic data may be used to determine the seven Aroclors in Sec. 1.1, individual PCB congeners, or total PCBs.3.0INTERFERENCES3.1Refer to Methods 3500 (Sec. 3.0, in particular), 3600, and 8000 for a discussion of interferences.3.2Interferences co-extracted from the samples will vary considerably from matrix to matrix. While general cleanup techniques are referenced or provided as part of this method, unique samples may require additional cleanup approaches to achieve desired degrees of discrimination and quantitation. Sources of interference in this method can be grouped into three broad categories.3.2.1Contaminated solvents, reagents, or sample processing hardware.3.2.2Contaminated GC carrier gas, parts, column surfaces, or detector surfaces.3.2.3Compounds extracted from the sample matrix to which the detector will respond.3.3Interferences by phthalate esters introduced during sample preparation can pose a major problem in PCB determinations.3.3.1Common flexible plastics contain varying amounts of phthalate esters which areeasily extracted or leached from such materials during laboratory operations. Interferences from phthalate esters can best be minimized by avoiding contact with any plastic materials and checking all solvents and reagents for phthalate contamination.3.3.2Exhaustive cleanup of solvents, reagents and glassware may be required toeliminate background phthalate ester contamination.3.3.3These materials can be removed through the use of Method 3665 (sulfuricacid/permanganate cleanup).3.4Cross-contamination of clean glassware routinely occurs when plastics are handled during extraction steps, especially when solvent-wetted surfaces are handled. Glassware must be scrupulously cleaned.Clean all glassware as soon as possible after use by rinsing with the last solvent used. This should be followed by detergent washing with hot water, and rinses with tap water and organic-free CD-ROM8082 - 3Revision 0December 1996CD-ROM 8082 - 4Revision 0December 1996reagent water. Drain the glassware, and dry it in an oven at 130E C for several hours, or rinse with methanol and drain. Store dry glassware in a clean environment. NOTE:Oven-drying of glassware used for PCB analysis can increase contaminationbecause PCBs are readily volatilized in the oven and spread to other glassware.Therefore, exercise caution, and do not dry glassware from samples containinghigh concentrations of PCBs with glassware that may be used for trace analyses.3.5Elemental sulfur (S ) is readily extracted from soil samples and may cause 8chromatographic interferences in the determination of PCBs. Sulfur can be removed through the use of Method 3660.4.0APPARATUS AND MATERIALS4.1Gas chromatograph - An analytical system complete with gas chromatograph suitable for on-column and split-splitless injection and all required accessories including syringes, analytical columns, gases, electron capture detectors (ECD), and recorder/integrator or data system.4.2GC columnsThis method describes procedures for both single-column and dual-column analyses. The single-column approach involves one analysis to determine that a compound is present, followed by a second analysis to confirm the identity of the compound (Sec. 8.4 describes how GC/MS confirmation techniques may be employed). The single-column approach may employ either narrow-bore (# 0.32 mm ID) columns or wide-bore (0.53 mm ID) columns. The dual-column approach involves a single injection that is split between two columns that are mounted in a single gas chromatograph. The dual-column approach employs only wide-bore (0.53 mm ID) columns. A third alternative is to employ dual columns mounted in a single GC, but with each column connected to a separate injector and a separate detector.The columns listed in this section were the columns used to develop the method performance data. Listing these columns in this method is not intended to exclude the use of other columns that may be developed. Laboratories may use other capillary columns provided that they document method performance (e.g., chromatographic resolution, analyte breakdown, and MDLs) that equals or exceeds the performance specified in this method.4.2.1Narrow-bore columns for single-column analysis (use both columns to confirmcompound identifications unless another confirmation technique such as GC/MS is employed).Narrow bore columns should be installed in split/splitless (Grob-type) injectors.4.2.1.130 m x 0.25 or 0.32 mm ID fused silica capillary column chemicallybonded with SE-54 (DB-5 or equivalent), 1 µm film thickness.4.2.1.230 m x 0.25 mm ID fused silica capillary column chemically bonded with35 percent phenyl methylpolysiloxane (DB-608, SPB-608, or equivalent), 2.5 µm coatingthickness, 1 µm film thickness.4.2.2Wide-bore columns for single-column analysis (use two of the three columnslisted to confirm compound identifications unless another confirmation technique such as GC/MS is employed). Wide-bore columns should be installed in 1/4 inch injectors, with deactivated liners designed specifically for use with these columns.4.2.2.130 m x 0.53 mm ID fused silica capillary column chemically bonded with35 percent phenyl methylpolysiloxane (DB-608, SPB-608, RTx-35, or equivalent), 0.5 µmor 0.83 µm film thickness.4.2.2.230 m x 0.53 mm ID fused silica capillary column chemically bonded with14% cyanopropylmethylpolysiloxane (DB-1701, or equivalent), 1.0 µm film thickness.4.2.2.330 m x 0.53 mm ID fused silica capillary column chemically bonded withSE-54 (DB-5, SPB-5, RTx-5, or equivalent), 1.5 µm film thickness.4.2.3Wide-bore columns for dual-column analysis (choose one of the two pairs ofcolumns listed below).4.2.3.1Column pair 130 m x 0.53 mm ID fused silica capillary column chemically bonded with SE-54(DB-5, SPB-5, RTx-5, or equivalent), 1.5 µm film thickness.30 m x 0.53 mm ID fused silica capillary column chemically bonded with 14%cyanopropylmethylpolysiloxane (DB-1701, or equivalent), 1.0 µm film thickness.Column pair 1 is mounted in a press-fit Y-shaped glass 3-way union splitter (J&W Scientific, Catalog No. 705-0733) or a Y-shaped fused-silica connector (Restek, CatalogNo. 20405), or equivalent.4.2.3.2Column pair 230 m x 0.53 mm ID fused silica capillary column chemically bonded with SE-54(DB-5, SPB-5, RTx-5, or equivalent), 0.83 µm film thickness.30 m x 0.53 mm ID fused silica capillary column chemically bonded with 14%cyanopropylmethylpolysiloxane (DB-1701, or equivalent), 1.0 µm film thickness.Column pair 2 is mounted in an 8 in. deactivated glass injection tee (Supelco, Catalog No. 2-3665M), or equivalent.4.3Column rinsing kit - Bonded-phase column rinse kit (J&W Scientific, Catalog No. 430-3000), or equivalent.4.4Volumetric flasks - 10-mL and 25-mL, for preparation of standards.5.0REAGENTS5.1Reagent grade or pesticide grade chemicals shall be used in all tests. Unless otherwise indicated, it is intended that all reagents shall conform to specifications of the Committee on Analytical Reagents of the American Chemical Society, where such specifications are available. Other grades may be used, provided it is first ascertained that the reagent is of sufficiently high purity to permit its use without lessening the accuracy of the determination.NOTE:Store the standard solutions (stock, composite, calibration, internal, and surrogate standards) at 4E C in polytetrafluoroethylene (PTFE)-sealed containers CD-ROM8082 - 5Revision 0December 1996CD-ROM 8082 - 6Revision 0December 1996in the dark. When a lot of standards is prepared, it is recommended that aliquotsof that lot be stored in individual small vials. All stock standard solutions mustbe replaced after one year or sooner if routine QC (Sec. 8.0) indicates a problem.All other standard solutions must be replaced after six months or sooner if routineQC (Sec. 8.0) indicates a problem.5.2Sample extracts prepared by Methods 3510, 3520, 3540, 3541, 3545, or 3550 need to undergo a solvent exchange step prior to analysis. The following solvents are necessary for dilution of sample extracts. All solvent lots should be pesticide quality or equivalent and should be determined to be phthalate-free.5.2.1n-Hexane, C H 6145.2.2Isooctane, (CH )CCH CH(CH )332325.3The following solvents may be necessary for the preparation of standards. All solvent lots must be pesticide quality or equivalent and should be determined to be phthalate-free.5.3.1Acetone, (CH )CO 325.3.2Toluene, C H CH 6535.4Organic-free reagent water - All references to water in this method refer to organic-free reagent water as defined in Chapter One.5.5Stock standard solutions (1000 mg/L) - May be prepared from pure standard materials or can be purchased as certified solutions.5.5.1Prepare stock standard solutions by accurately weighing about 0.0100 g of purecompound. Dissolve the compound in isooctane or hexane and dilute to volume in a 10-mL volumetric flask. If compound purity is 96 percent or greater, the weight may be used without correction to calculate the concentration of the stock standard solution.5.5.2Commercially-prepared stock standard solutions may be used at any concentration if they are certified by the manufacturer or by an independent source.5.6Calibration standards for Aroclors5.6.1 A standard containing a mixture of Aroclor 1016 and Aroclor 1260 will includemany of the peaks represented in the other five Aroclor mixtures. As a result, a multi-point initial calibration employing a mixture of Aroclors 1016 and 1260 at five concentrations should be sufficient to demonstrate the linearity of the detector response without the necessity of performing initial calibrations for each of the seven Aroclors. In addition, such a mixture can be used as a standard to demonstrate that a sample does not contain peaks that represent any one of the Aroclors. This standard can also be used to determine the concentrations of either Aroclor 1016 or Aroclor 1260, should they be present in a sample. Prepare a minimum of five calibration standards containing equal concentrations of both Aroclor 1016 and Aroclor 1260by dilution of the stock standard with isooctane or hexane. The concentrations should correspond to the expected range of concentrations found in real samples and should bracket the linear range of the detector.5.6.2Single standards of each of the other five Aroclors are required to aid the analystin pattern recognition. Assuming that the Aroclor 1016/1260 standards described in Sec. 5.6.1 have been used to demonstrate the linearity of the detector, these single standards of the remaining five Aroclors are also used to determine the calibration factor for each Aroclor.Prepare a standard for each of the other Aroclors. The concentrations should correspond to the mid-point of the linear range of the detector.5.7Calibration standards for PCB congeners5.7.1If results are to be determined for individual PCB congeners, then standards forthe pure congeners must be prepared. The table in Sec. 1.1 lists 19 PCB congeners that have been tested by this method along with the IUPAC numbers designating these congeners. This procedure may be appropriate for other congeners as well.5.7.2Stock standards may be prepared in a fashion similar to that described for theAroclor standards, or may be purchased as commercially-prepared solutions. Stock standards should be used to prepare a minimum of five concentrations by dilution of the stock standard with isooctane or hexane. The concentrations should correspond to the expected range of concentrations found in real samples and should bracket the linear range of the detector.5.8Internal standard5.8.1When PCB congeners are to be determined, the use of an internal standard ishighly recommended. Decachlorobiphenyl may be used as an internal standard, added to each sample extract prior to analysis, and included in each of the initial calibration standards.5.8.2When PCBs are to be determined as Aroclors, an internal standard is not used,and decachlorobiphenyl is employed as a surrogate (see Sec. 5.8).5.9Surrogate standards5.9.1When PCBs are to be determined as Aroclors, decachlorobiphenyl is used as asurrogate, and is added to each sample prior to extraction. Prepare a solution of decachlorobiphenyl at a concentration of 5 mg/L in acetone.5.9.2When PCB congeners are to be determined, decachlorobiphenyl is recommendedfor use as an internal standard, and therefore, cannot also be used as a surrogate. Therefore, tetrachloro-meta-xylene may be used as a surrogate for PCB congener analysis. Prepare a solution of tetrachloro-meta-xylene at a concentration of 5 mg/L in acetone.6.0SAMPLE COLLECTION, PRESERVATION, AND HANDLING6.1See Chapter Four, Organic Analytes for sample collection and preservation instructions.6.2Extracts must be stored under refrigeration in the dark and analyzed within 40 days of extraction.CD-ROM8082 - 7Revision 0December 19967.0PROCEDURE7.1Sample extraction7.1.1Refer to Chapter Two and Method 3500 for guidance in choosing the appropriateextraction procedure. In general, water samples are extracted at a neutral pH with methylene chloride using a separatory funnel (Method 3510) or a continuous liquid-liquid extractor (Method 3520) or other appropriate procedure. Solid samples are extracted with hexane-acetone (1:1) or methylene chloride-acetone (1:1) using one of the Soxhlet extraction (Method 3540 or 3541) procedures, ultrasonic extraction (Method 3550), or other appropriate procedure.NOTE:Use of hexane-acetone generally reduces the amount of interferences that are extracted and improves signal-to-noise.7.1.2Reference materials, field-contaminated samples, or spiked samples should beused to verify the applicability of the selected extraction technique to each new sample type.Such samples should contain or be spiked with the compounds of interest in order to determine the percent recovery and the limit of detection for that sample type (see Chapter One). When other materials are not available and spiked samples are used, they should be spiked with the analytes of interest, either specific Aroclors or PCB congeners. When the presence of specific Aroclors is not anticipated, the Aroclor 1016/1260 mixture may be an appropriate choice for spiking. See Methods 3500 and 8000 for guidance on demonstration of initial method proficiency as well as guidance on matrix spikes for routine sample analysis.7.2Extract cleanupRefer to Methods 3660 and 3665 for information on extract cleanup.7.3GC conditionsThis method allows the analyst to choose between a single-column or a dual-column configuration in the injector port. Either wide- or narrow-bore columns may be used. See Sec.7.7 for information on techniques for making positive identifications of multi-componentanalytes.7.3.1Single-column analysisThis capillary GC/ECD method allows the analyst the option of using 0.25-0.32 mm ID capillary columns (narrow-bore) or 0.53 mm ID capillary columns (wide-bore). The use of narrow-bore (0.25-0.32 mm ID) columns is recommended when the analyst requires greater chromatographic resolution. Use of narrow-bore columns is suitable for relatively clean samples or for extracts that have been prepared with one or more of the clean-up options referenced in the method. Wide-bore columns (0.53 mm ID) are suitable for more complex environmental and waste matrices.7.3.2Dual-column analysisThe dual-column/dual-detector approach involves the use of two 30 m x 0.53 mm ID fused-silica open-tubular columns of different polarities, thus different selectivities towards the target compounds. The columns are connected to an injection tee and ECD detectors. CD-ROM8082 - 8Revision 0December 19967.3.3GC temperature programs and flow rates7.3.3.1Table 2 lists GC operating conditions for the analysis of PCBs asAroclors for single-column analysis, using either narrow-bore or wide-bore capillarycolumns. Table 3 lists GC operating conditions for the dual-column analysis. Use theconditions in these tables as guidance and establish the GC temperature program andflow rate necessary to separate the analytes of interest.7.3.3.2When determining PCBs as congeners, difficulties may be encounteredwith coelution of congener 153 and other sample components. When determining PCBsas Aroclors, chromatographic conditions should be adjusted to give adequate separationof the characteristic peaks in each Aroclor (see Sec. 7.4.6).7.3.3.3Tables 4 and 5 summarize the retention times of up to 73 Aroclor peaksdetermined during dual-column analysis using the operating conditions listed in Table 2.These retention times are provided as guidance as to what may be achieved using theGC columns, temperature programs, and flow rates described in this method. Note thatthe peak numbers used in these tables are not the IUPAC congener numbers, butrepresent the elution order of the peaks on these GC columns.7.3.3.4Once established, the same operating conditions must be used for theanalysis of samples and standards.7.4Calibration7.4.1Prepare calibration standards as described in Sec. 5.0. Refer to Method 8000(Sec. 7.0) for proper calibration techniques for both initial calibration and calibration verification.When PCBs are to be determined as congeners, the use of internal standard calibration is highly recommended. Therefore, the calibration standards must contain the internal standard (see Sec. 5.7) at the same concentration as the sample extracts. When PCBs are to be determined as Aroclors, external standard calibration should be used.NOTE:Because of the sensitivity of the electron capture detector, the injection port and column should always be cleaned prior to performing the initialcalibration.7.4.2When PCBs are to be quantitatively determined as congeners, an initial five-pointcalibration must be performed that includes standards for all the target analytes (congeners).7.4.3When PCBs are to be quantitatively determined as Aroclors, the initial calibrationconsists of two parts, described below.7.4.3.1 As noted in Sec. 5.6.1, a standard containing a mixture of Aroclor 1016and Aroclor 1260 will include many of the peaks represented in the other five Aroclormixtures. Thus, such a standard may be used to demonstrate the linearity of thedetector and that a sample does not contain peaks that represent any one of theAroclors. This standard can also be used to determine the concentrations of eitherAroclor 1016 or Aroclor 1260, should they be present in a sample. Therefore, an initialfive-point calibration is performed using the mixture of Aroclors 1016 and 1260 describedin Sec. 5.6.1.CD-ROM8082 - 9Revision 0December 1996RF 'A s ×C isA is ×C sCD-ROM 8082 - 10Revision 0December 19967.4.3.2Standards of the other five Aroclors are necessary for patternrecognition. These standards are also used to determine a single-point calibration factorfor each Aroclor, assuming that the Aroclor 1016/1260 mixture in Sec. 7.3.4.1 has beenused to describe the detector response. The standards for these five Aroclors shouldbe analyzed before the analysis of any samples, and may be analyzed before or after theanalysis of the five 1016/1260 standards in Sec. 7.3.4.1.7.4.3.3In situations where only a few Aroclors are of interest for a specificproject, the analyst may employ a five-point initial calibration of each of the Aroclors ofinterest (e.g., five standards of Aroclor 1232 if this Aroclor is of concern) and not use the1016/1260 mixture described in Sec. 7.4.3.1 or the pattern recognition standardsdescribed in 7.4.3.2.7.4.4Establish the GC operating conditions appropriate for the configuration (single-column or dual column, Sec. 7.3). Optimize the instrumental conditions for resolution of the target compounds and sensitivity. A final temperature of 240-270E C may be required to elute decachlorobiphenyl. Use of injector pressure programming will improve the chromatography of late eluting peaks.NOTE:Once established, the same operating conditions must be used for bothcalibrations and sample analyses.7.4.5 A 2-µL injection of each calibration standard is recommended. Other injectionvolumes may be employed, provided that the analyst can demonstrate adequate sensitivity for the compounds of interest.7.4.6Record the peak area (or height) for each congener or each characteristic Aroclorpeak to be used for quantitation.7.4.6.1 A minimum of 3 peaks must be chosen for each Aroclor, and preferably5 peaks. The peaks must be characteristic of the Aroclor in question. Choose peaks inthe Aroclor standards that are at least 25% of the height of the largest Aroclor peak. Foreach Aroclor, the set of 3 to 5 peaks should include at least one peak that is unique tothat Aroclor. Use at least five peaks for the Aroclor 1016/1260 mixture, none of whichshould be found in both of these Aroclors.7.4.6.2Late-eluting Aroclor peaks are generally the most stable in theenvironment. Table 6 lists diagnostic peaks in each Aroclor, along with their retentiontimes on two GC columns suitable for single-column analysis. Table 7 lists 13 specificPCB congeners found in Aroclor mixtures. Table 8 lists PCB congeners withcorresponding retention times on a DB-5 wide-bore GC column. Use these tables asguidance in choosing the appropriate peaks.7.4.7When determining PCB congeners by the internal standard procedure, calculatethe response factor (RF) for each congener in the calibration standards relative to the internal standard, decachlorobiphenyl, using the equation that follows.where:。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
产品名: Nullscript 修订日期: 6/30/2016产品说明书
化学性质
产品名:
Nullscript
Cas No.:
300816-11-9 分子量:
298.3 分子式: C16H14N2O4
化学名:
N-hydroxy-1,3-dioxo-1H-benz[de]isoquinoline-2(3H)-butanamide SMILES:
O=C(C1=CC=CC2=CC=CC3=C12)N(CCCC(NO)=O)C3=O 溶解性:
Soluble in DMSO 储存条件:
Store at -20°C 一般建议: For obtaining a higher solubility , please warm the tube at 37°C
and shake it in the ultrasonic bath for a while.Stock solution can be
stored below -20°C for several months.
运输条件:
Evaluation sample solution : ship with blue ice
All other available size: ship with RT , or blue ice upon request
生物活性
靶点 :
DNA Damage/DNA Repair 信号通路:
HDAC 产品描述:
Nullscript is an HDAC inhibitor.
Histone deacetylase inhibitors (HDIs) have been used in psychiatry and neurology as mood stabilizers and anti-epileptics, such as valproic acid. Recently, HDIs are being studied as a
mitigator or treatment for neurodegenerative diseases. Moreover, there has been an effort to develop HDIs for cancer therapy.
In vitro: Nullscript, a close analog of scriptaid, was found to be inactive in transcriptional
facilitation at corresponding concentrations, which confirmed a minimal requirement for the length of the linker chain expected for this class of HDAC inhibitors. In addition, nullscript was not able to induce the p6SBE-luc reporter construct, which was identified from the library using ChemFinder by its structural similarity to scriptaid [1].
In vivo: A standard in vivo model of cardiac I/RWe was utilized to examine the in vivo consequences of HDAC inhibition in the intact heart. Results showed that the treatment with scriptaid led to a nearly identical effect when compared to nullscript, with a 46.8% reduction in infarct size. Such results strongly suggested that in murine models, HDACIs could reverse the induction of ischemia-induced HDAC activity and reduced myocardial infarct size by more than 50% [2].
Clinical trial: So far, no clinical study has been conducted.
参考文献:
[1] G. H. Su, T. A. Sohn, B. Ryu, et al. A novel histone deacetylase inhibitor identified by
high-throughput transcriptional screening of a compound library. Cancer Research 60, 3137-3142 (2000).
[2] Anne Granger et al. Histone deacetylase inhibition reduces myocardial ischemia-reperfusion injury in mice. FASEB J. 2008 Oct; 22(10): 3549–3560.
产品仅用于研究，
不针对患者销售，望谅解。
每个产品具体的储存和使用信息显示在产品说明书中。
ApexBio产品在推荐的条件下是稳定的。
产品会根据不同的推荐温度进行运输。
许多产品短期运输是稳定的，运输温度不同于长期储存的温度。
我们确保我们的产品是在保持试剂质量的条件下运输的。
收到产品后，按照产品说明书上的要求进行储存。
