美国能源之星测试方法及记录表格（2013年标准中文）
美国能源之星测试方法及记录表格（2013年标准中文）此份测试方法指引根据《ENERGY STAR Program Requirements for Water Coolers-Test Method(Rev.Sept-201如有疑问，请参考原版《ENERGY STAR Program Requirements for Water Coolers-Test Method(Rev.Sept-201测试方法指引（第一版1、适用对象：本指引只针对冷热（含冷、温、热）、温冷、单冷型饮水机；POU （管线机）、即热、即冷型饮水2、测试要求：2.1、输入电压：电压(AC)电压误差频率频率误差市场电压(AC)115V ±1.0%60Hz ±1.0%北美、台湾115V 230V ±1.0%50Hz ±1.0%欧、澳、新西兰230V 100V ±1.0%50/60Hz ±1.0%日本100V 2.3、功率计精度：10W~100W 测试范围精确度为0.1W ，＞100W 精确度为1W ，＞1500W 精确度为10W 2.4、测试过程中水温要求：冷水温度不高于50°F （10℃），热水温度不低于165°F （73.9°C ）。
（说明：这个无视产品规格，如果产品规格出水水温要求低于此，必须调整使出水水温达到此要求然后测试2.5、带冰箱机型：冰箱温度不超过7.8℃（说明同2.4）3、试验准备：3.1、机器的摆放：机器离墙的距离最大为6英寸（152.4mm ），墙高至少7英尺（2.1米），机器两侧墙至少3.2、机器装上5加仑水桶，关闭加热开关，（打开制冷开关），通电让机器运行至少12小时至稳态。
4、不出水模式测试：4.1、测试机达到3.2稳态之后，打开加热开关，不出水继续让机器运行24小时。
4.2、24小时测试期的选取：测试期应该从一个加热或制冷循环启动（即压缩机或热罐启动）时算起。
灯泡能源之星标准草稿第二版
温： 2700K 3000K 3500K 4000K/4100K 5000K 6500K
荧光灯按照 ANSI C78.375 方法老化 100 小时后测试 二段调光、三段调光设定在最大功率测试 测试样品数量：10 个，，5 个朝上/5 个朝下，如果厂商规 定了方向，那么所有的灯都按照厂商指定的方向。 结果判定： 所有样品色容差≤7 SDCM
能源之星灯泡 1.0 标准草稿第二版
标准适用范围：
灯泡种类 标准形状的泛光源 非标准形状的泛光源
标准形状的定向灯 非标准形状的定向灯
装饰灯 非标半定向灯
灯泡形状
灯头 E26, E26d, E17, E12 GU24, GU10, GU5.3, GX5.3
A, BT, G, P, PS, S, T,
T/C, 2D
LED 新增 准备用于嵌灯的定向或者近似定向灯泡要求。
中心光强：所有的符合 ANSI 标准的 PAR 灯和 MR 灯（符合 ANSI 所以只会是 LED）
中心光强：
标准 PAR 灯 和低压的 MR16 灯
120V MR16
满足
ENERGY STAR Center Beam Intensity Benchmark Tool
将 Y 面在水平方向旋转 45 度和 90 度重
复前面的测试，也要满足前面的要求
灯泡的光分布需要满足下述要求： 沿着光束的中心轴 2 个正交的平面，用 0.5 度的步进测量光强分布，测试的角 度为从中心最强光强向 2 边光强下降到 45%最大光强形成的夹角。
光分布要求：紧 凑型荧光灯裸灯 和装饰性灯泡免 除
在 0.375X 光束角的 4 个点光强≥最大中 心光强*0.62
能源之星标准
能源之星标准解读目前Kinfine公司要求其产品达到Energy Star要求，全面了解能源之星标准要求，对我们统一认识，明确今后任务，展开商务技术会谈有着重大意义，特对能源之星标准要求做详细翻译供大家参考如下：能源之星标准的框架：能源之星认证对LED产品的要求有两个层次：第一个层次：对所有产品的要求；第二个层次：分为两类1. 非标准产品；在包装和宣传材料商不能宣称相当于现存的多少瓦德标准产品；2. 替换型产品：目标为替换如下四类灯的产品；2.1. 目标为替代ANSI C79.1 2002标准里最顶的A, R, MR, PAR等等；2.2 目标为替代直径按照八分之一英寸计算的产品如A19，MR16, PAR38；2.3 目标为替代某种名义上瓦数的产品；2.4 目标为替代某种发光角度的定向性灯的产品能源之星标准的具体要求：4) 能源之星对所有产品的要求如下：4.1色温范围必须是ANSI C78. 377-2008 标准里所规定的2700K±145, 3000K±175，3500K±245，4000K±275 四个色温范围之一；4.2颜色保持率：色品度在6000小时的测试期间内，在CIE1976 (U’,V’)图内的变化不超过0.0074.3显色性：不低于80，R9必须大于0；4.4可调光性：必须在包装上对是否可调光做明确标识，如果能够调光，制造商必须有一个网页提供调光器的兼容信息；4.5质保期：从采购日起不小于三年；4.6灯头：必须是ANSI C81.61-2007标准里列明的灯头；4.7功率因素：>5W的产品功率因素必须大于等于0.70，<5W的产品功率因素不做要求；4.7.1操作温度：能在-20度，或者更低的温度下工作；4.7.2工作频率：大于等于150Hz；4.7.3电磁干扰：需要符合FCC 47 CFR PAR15标准；4.7.4瞬间保护：电源必须符合IEE C62.41-1991的Class A标准；4.7.5工作电压：AC120V, 240V, 277V 或者是AC或者DC 12V, 24V；5)包装方面的要求；6) 非标产品：在包装和宣传材料商不能宣称相当于现存的多少瓦德标准产品；2.1.1最低效率要求：10W以下必须达到50lm/W，10W以上必须达到55lm/W；2.1.2 最小光通量：200lm；2.1.3 发光强度分布：无特殊要求，需提供goniophotometry报告；2.1.4 光通维持率：25000小时工作后光通维持率不小于70%2.1.5 快速循环压力测试：参照ANSI C78.5 LM-65-01 2, 3, 5, 6条款7) 替代产品：替代产品的要求分为如下三种7A) 全方位灯包括ANSI C79 1-2002标准里的A, BT, P, PS, S, T型产品，要求如下：7A.1 最低效率要求：10W以下必须达到50lm/W，10W以上必须达到55lm/W；7A.2 最小光通量：替换20W 不小于200lm；替换35W 不小于325lm；替换40W 不小于450lm；替换60W 不小于800lm；替换75W 不小于1100lm；替换100W 不小于1600lm；7A.3发光强度分布：参考LM-79-08标准的Section10，产品必须有均匀的光分布，在0~135度内，任何角度的光强与平均光强的差别不能超过20%，至少有5%的光通量分布在135~180度角内等等要求；7A.4 产品最大直径：不超过ANSI C78.20-2003所规定的最大直径；7A.5 产品最大长度：不超过ANSI C78.20-2003所规定的最大直径；7A.6 光通维持率：25000小时工作后光通维持率不小于70%，参考LM-79-08；7A.7 快速循环压力测试：参照ANSI C78.5 LM-65-01 2, 3, 5, 6条款7B)装饰性灯包括ANSI C79 1-2002标准里的B, BA, C, CA, DC, F, G型产品，要求如下：7B.1 最低效率要求：40lm/W；7B.2 最小光通量：替换10W 不小于70lm；替换15W 不小于90lm；替换25W 不小于150lm；替换40W 不小于300lm；替换60W 不小于500lm；7B.3 产品最大直径：不超过ANSI C78.20-2003所规定的最大直径；7B.4 光通维持率：15000小时工作后光通维持率不小于70%，参考LM-79-08；7B.5 快速循环压力测试：参照ANSI C78.5 LM-65-01 2, 3, 5, 6条款7C) 定向性灯包括ANSI C79 1-2002标准里的BR, ER, K MR, PAR, R 等产品，要求如下：7C.1 定向性灯的定义是指80%的光集中在某一个角度内的产品；7C.2 最低效率要求：产品直径在20/8 英寸以上的必须达到40lm/W，产品直径在20/8 英寸以上的必须达到45lm/W，7C.3 颜色保持率：色品度在6000小时的测试期间内，在CIE1976 (U’,V’) 图内的变化不超过0.0077C.4 产品最大直径：不超过ANSI C78.20-2003所规定的最大直径；7C.5 产品最大长度：不超过ANSI C78.20-2003所规定的最大直径；7C.6 最小光输出：等于被替代灯所消耗瓦数*10；7C.7 PAR灯和MR16灯的中心光强要求：能源之星给出了一个网站，上面可以计算要求的最小中心光强；PAR灯：/htmlemail/energystar/dec09/eslntlampcenterbeamtool.zip MR16灯：/htmlemail/energystar/dec09/eslntlampcenterbeamtool.zip 7C.8 光通维持率：25000小时工作后光通维持率不小于70%，参考LM-79-08；7C.9 快速循环压力测试：参照ANSI C78.5 LM-65-01 2, 3, 5, 6条款能源之星关于光通维持率的要求如下：整灯测试6000小时，根据对应的光衰做寿命声明6000小时光通维持率允许-3%公差允许宣称的寿命装饰性灯最低要求86.70% 15000装饰性灯附加标准89.90% 20000非标准灯，全方向型灯最低要求，以及定向型，装饰型灯的选择性标准91.80% 2500093.1%% 3000094.1%% 3500094.8%% 4000095.4%% 45000所有类型灯选择性标准95.8%% 50000如果要宣称更长的寿命时间，按照以下标准：要求的最少测试时间测试完成后要求达到的最低光通维持率允许-3%公差允许宣称的寿命7500 91.20% 300008750 91.50% 3500010000 91.50% 4000012500 91.80% 45000 测试温度：非标准灯以及全方位型灯：10W以下的，测试温度为25度；非标准灯以及全方位型灯：10W以上的，测试温度为45度；装饰类的灯：25度；曾波2011-3-2。
能源之星标准中文版(灯)

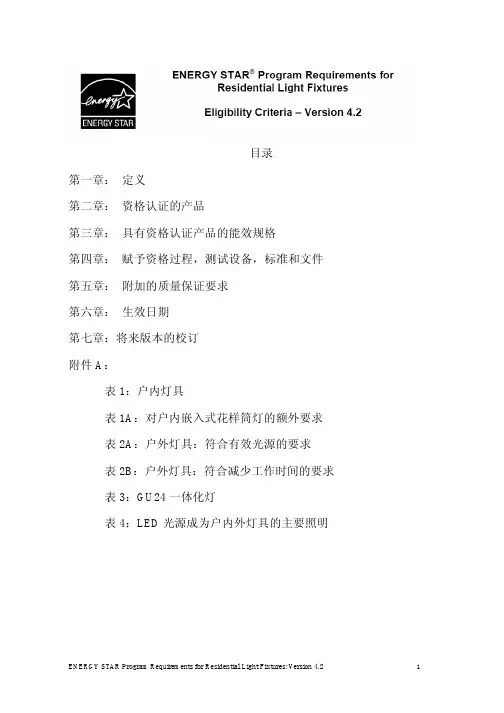

目录第一章：定义第二章：资格认证的产品第三章：具有资格认证产品的能效规格第四章：赋予资格过程，测试设备，标准和文件第五章：附加的质量保证要求第六章：生效日期第七章：将来版本的校订附件A：表1：户内灯具表1A：对户内嵌入式花样筒灯的额外要求表2A：户外灯具：符合有效光源的要求表2B：户外灯具：符合减少工作时间的要求表3：GU24一体化灯表4：LED光源成为户内外灯具的主要照明下面是住宅灯具和替换GU-24一体式灯的能源之星生产规格（4.2版）。
如果制造商想在一种产品上贴能源之星的标贴就必须符合相应的标准。
住宅灯具能源之星的目的是让消费者从传统理念上的白炽灯具转变为高质量的荧光灯具或其他的能效技术，包括针对户外灯具的运动传感器和日光传感器。
1）定义：下面是灯具和其他能源之星相关术语的简要定义：A. ALA：美国照明学会B. ANSI：美国国家标准学会C. APLAC：亚太地区试验室鉴定协会（NALAP MRA签署）。
D.自动日光关闭：一种能在白天自动禁止灯具开关开启的光电装置。
E.镇流器：一种与电子射灯一起使用的装置，用以获得开启和运做时电路的一些基本参数（电压，电流和波形）。
F.镇流器的频率：镇流器使灯泡运做时产生的频率，单位是赫兹（HZ）或千赫兹（KHZ）。
G. CIE：德国国际电工委员会。
H.显色：灯发出的光其光谱特性会使被照射的物体表面呈现一种颜色，叫做显色。
显色指数可用0~100等级表示。
显色指数是有物体在测试光照下的三色光谱值与在参照或标准光照下的三色光谱值相比较而决定的。
检索条目和标准可参照CIE公布的13.3号文件。
I.紧凑型荧光灯：一种附带插座式灯座的单灯座节能荧光灯，包括有多管型，U字型，螺旋型和环形灯管这几个种类。
J.相关色温（CCT）：灯的实际颜色叫色温，是由三色光谱值（颜色坐标系）参照IESNA LM-16标准所决定的。
对于颜色坐标系中靠近黑色的地方使用相关色温，用开氏温标（K）表示。
LED灯泡能源之星标准中文版
最新LED灯泡（一体成型式）能源之星标准标准适用方：各生产商及分销商最新版本修订日期：2010年3月22日标准生效日期：2010年8月31日注：以下内容中“LED灯泡（一体成型式）”简称为：LED灯泡承担的义务以下内容为能源之星合作协议的条款，涉及具有资质的LED灯泡的生产商和分销商能源之星成员必须坚持以下程序要求：●遵守现行能源之星资格标准、性能标准的定义，必须配合能源之星相关部门关于有权按照能源之星标准对产品进行第三方检测，检验合格后方可获准进行公开销售。
●遵守现行能源之星标识指南。
该指南描述了能源之星标志被如何使用。
成员必须遵循哪些准则以及确保所有相关的法定代表人，例如广告代理商、经销商、分销商都必须遵守这些准则。
●成员在申请LED灯泡认证的一年内必须至少有一款产品经检测合格或已经获得能源之星标志使用授权。
一旦上述通过，该成员即被认可。
当成员在做产品认证时，必须符合当时最新的认证标准。
●使用清晰且一一对应的带能源之星LED灯泡的标贴。
主要外包装物正面必须有能源之星证书标志，企业网站、产品目录、用户手册及技术规格参数表必须包含能源之星信息。
●成员必须每半年一次向能源之星组委会提供最新产品样本，并更新产品内容，包含任何产品的修改、检测数据的修改、产品型号或销售代码的变更、以及该产品将在一定时间内逐步终止生产或淘汰。
在此基础上，成员资格才可以被保持。
●如有任何供应商变化，包括新设备、新型号、新包装的信息变更，必须在30天以内以书面或在线等方式，告知具体的变化内容。
●对于每一类产品，必须提供官方认可的检测机构出具的符合能源之星产品性能标准的检测报告。
●每一个分类产品必须提供电子版或者复印件形式的包装样式报告，只有产品性能和包装检测结果均合格，才能进入合格产品目录。
●组委会将任意抽选某一成员的产品进行第三方检测，检测相关费用由成员承担，如成员拒绝接受检测，则其成员资格将被免除。
●每半年提交一次产品出货信息，特别是符合能源之星标准产品出货的总量，信息提交时应写明以下信息：灯头类型ANSI标准外形型号全向灯：A、BT、P、PS、S、T装饰灯：B、BA、C、CA、DC、F、G定向灯：BR、ER、K、MR、PAR、R非标准的：功率数产品编号（如果有）能源之星希望成员能主动提供出货总量信息及其中能源之星产品在总数中所占品种及百分比。
