NC7S14P5X,NC7S14M5,NC7S14M5X,规格书,Datasheet 资料
NC7SP14P5X, 规格书,Datasheet 资料
0.9V to 3.6V 0.0V to 3.6V 0V to VCC 0V to 3.6V
±2.6 mA ± 2.1 mA ± 1.5 mA ± 1 mA ±0.5 mA ±20 µA −40°C to +85°C
DC Electrical Characteristics
Symbol VP Parameter Positive Threshold Voltage VCC (V) 0.90 1.10 1.40 1.65 2.30 3.00 VN Negative Threshold Voltage 0.90 1.10 1.40 1.65 2.30 3.00 VH Hysteresis Voltage 0.90 1.10 1.40 1.65 2.30 3.00 TA = +25°C Min 0.3 0.4 0.5 0.7 1.0 1.5 0.1 0.15 0.2 0.25 0.4 0.6 0.07 0.08 0.09 0.10 0.25 0.60 Max 0.6 1.0 1.2 1.5 1.9 2.6 0.6 0.7 0.8 0.9 1.15 1.5 0.5 0.6 0.8 1.0 1.1 1.8 TA = −40°C to +85°C Min 0.3 0.4 0.5 0.7 1.0 1.5 0.1 0.15 0.2 0.25 0.4 0.6 0.07 0.08 0.09 0.10 0.25 0.60 Max 0.6 1.0 1.2 1.5 1.9 2.6 0.6 0.7 0.8 0.9 1.15 1.5 0.5 0.6 0.8 1.0 1.1 1.8 V V V Units Conditions
AZ DISPLAYS ZEDH 40PIN B系列HDMI板控制板说明书

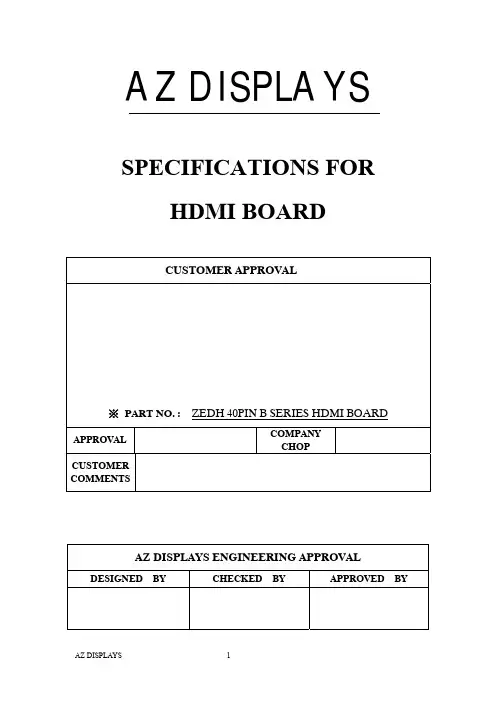

AZ DISPLAYSSPECIFICATIONS FORHDMI BOARDCUSTOMER APPROVAL※ PART NO. :ZEDH 40PIN B SERIES HDMI BOARDAPPROVAL COMPANY CHOPCUSTOMERCOMMENTSAZ DISPLAYS ENGINEERING APPROVAL DESIGNED BY CHECKED BY APPROVED BYTime Version Item Remark 201910 V1.0 First issueA-------------------------------Over View------------------page 4 B--------------------------------Features-------------------page 4 C-------------------------Application diagram------------page 4 D------------------------Power Consumption------------page 5 E-----------------------------Power Input------------------page 5 F----------------------------Outline Drawing--------------page 6 G---------------------------Connector Interface----------page 8 H---------------------------Connector Define-------------page 10 I -----------------------------P/N Description--------------page 12A. Overview:ZEDH 40pin B series HDMI board is a LCD control board designed for digital LCD modules.It uses a highly integrated single chip IC and fewer electronic components, so It has stable working performance and good display effect.B. Features:●Single power supply: +5V.●Working Temperature: 0℃~+ 65 ℃.●Supports panel resolution up to Full-HD(1920*1080).●Supports both internal Backlight drive circuit and external Backlight driveBoard●Supports 1 channel HDMI input , 1 channel VGA input and 1 channelCVBS input with L/R Audio input.●Supports 1 channel USB input,needs a remote to control this function.●Supports 2 Speaker with 2 watts of power .●Supports key board and remote.●Supports customized LOGO.C. Application diagram:D. Power ConsumptionCondition Current ConsumptionUnit Min TypMax Vin = 5VAccording to different panelmAE. Outline Drawing● Size: 110.6mm*70.5mm● Thickness: <9mm, including PCB board.Product Photo:F. Connector interface description:Connector Number Connector DescriptionPin NumberDefinition DC-5VPOWER IN15V 2 5V 3 GND 4 GND VGAVGA IN1 RX-SCL2 TX-SDA3 GND4 B 5GND 6 G 7 GND 8 R 9 GND 10 HS 11 VS 12GNDAV+L/RCVBS AND AUDIO IN 1 CVBS2 GND3 L CHANNEL4 GND5 R CHANNEL6 GNDKEY-BOARD KEY BOARDCONNECTER1 5V2 GND3 IR4 GREEN LED5 RED LED6 KEY 27 KEY 1(Reserve)8 GNDCCFL/LED-BL BACKLIGHT CONNECTER 1 12V2 12V3 GND4 PWM5 ON/OFF6 GNDSPEAKER SPEAKER CONNECTER 1 L-2 L+3 R+4 R-USB2.0 USB CONNECTER 1 5V2 D-3 D+4 GNDG. Connector Define:LCD-FPC ---pitch: 0.5mm/40pin1 VCOM Common Voltage2 VDD Power3 VDD Power4 NC Not Connect5 RESET Global Reset6 STB Standby Mode7 GND Ground8 0-Negative LVDS Data Signal9 0+ Positive LVDS Data Signal10 GND Ground11 1-Negative LVDS Data Signal12 1+ Positive LVDS Data Signal13 GND Ground14 2-Negative LVDS Data Signal15 2+ Positive LVDS Data Signal16 GND Ground17 CLK-Negative LVDS Clock Signal18 CLK+ Positive LVDS Clock Signal19 GND Ground20 3-Negative LVDS Data Signal21 3+ Positive LVDS Data Signal22 GND Ground23 NC Not Connect24 NC Not Connect25 GND Ground26 NC Not Connect27 NC Not Connect28 SELB 6/8bit Mode29 AVDD Power30 GND Ground31 LED- LED-32 LED- LED-33 L/R L/R34 U/D U/D35 VGL VGL36 NC Not Connect37 NC Not Connect38 VGH VGH39 LED+ LED+40 LED+ LED+●LVDS1--- pitch: 2.0mm*2*201 GND 21 E-2+2 GND 22 E-2-3 O-0+ 23 CLK+4 O-0- 24 CLK-5 O-1+ 25 E-3+6 O-1- 26 E-3-7 O-2+ 27 NC8 O-2- 28 NC9 CLK+ 29 GND10 CLK- 30 GND11 O-3+ 31 GND12 O-3- 32 GND13 NC 33 +5V14 NC 34 +5V15 GND 35 +5V16 GND 36 +5V17 E-0+ 37 +12V18 E-0- 38 +12V19 E-1+ 39 +12V20 E-1- 40 +12V●LVDS2:--- pitch: 2.0mm*2*151 0- 16 3+2 0+ 17 GND3 1- 18 GND4 1+ 19 GND5 GND 20 GND6 GND 21 GND7 GND 22 GND8 GND 23 GND9 GND 24 GND10 GND 25 +3V311 2- 26 +3V312 2+ 27 +5V13 CLK- 28 +5V14 CLK+ 29 BL-PWM15 3- 30 BL-ENH. REMOTE ( NEC CODE ) AND KEY BOARDREMOTE controller (not offered as standard accessory, could be used to control the USB disk plugged to the USB port, could be used to display image/video stored in USB disk)The all Remote keys could be defined any function you want.KEY BOARD(Standard offer)POWER SOURCE MENU/DOWN MINUS PLUSPOWER : Power on/off.SOURCE : Switch the input source.MENU : OSD on/Page move.MINUS : Minus value and save.Manual Adjust Test Pattern when No SYNC Input at VIDEO Channel PLUS : Plus value and save.AUTO Loop Test Pattern when No SYNC Input at VIDEO Channel NOTE: All Keyboard keys could be defined any function you want.I. P/N DESCIPTIONZEDH0700L61XXXX: LCM seriesXXXX: LCM sizeH: HDMI inputD: Driver boardZE: ZETTLERAvailable P/N:ZEDH0700L61ZEDH0700L61K (LCM will be released on December 2019) ZEDH1010L19。
NCP551SN27T1G、NCP551SN28T1G和NCV551SN36T1G：电路板组件工业有
NCP551SN27T1G NCP551SN28T1G NCV551SN36T1GNCP551, NCV551Voltage Regulator - CMOS,Low Iq, Low-Dropout150 mAThe NCP551 series of fixed output low dropout linear regulators are designed for handheld communication equipment and portable battery powered applications which require low quiescent. The NCP551series features an ultra −low quiescent current of 4.0 m A. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, resistors for setting output voltage, current limit, and temperature limit protection circuits.The NCP551 has been designed to be used with low cost ceramic capacitors and requires a minimum output capacitor of 0.1 m F. The device is housed in the TSOP −5 surface mount package. Standard voltage versions are 1.4, 1.5, 1.8, 2.5, 2.7, 2.8, 2.9, 3.0, 3.1, 3.2, 3.3,3.6, 3.8 and 5.0 V . Other voltages are available in 100 mV steps.Features•Low Quiescent Current of 4.0 m A Typical •Maximum Operating V oltage of 12 V •Low Output V oltage Option•High Accuracy Output V oltage of 2.0%•Industrial Temperature Range of −40°C to 85°C (NCV551, T A = −40°C to +125°C)•NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC −Q100Qualified and PPAP Capable•These Devices are Pb −Free and are RoHS CompliantTypical Applications•Battery Powered Instruments •Hand −Held Instruments •Camcorders and CamerasFigure 1. Representative Block DiagramV inV outEnable OFFON See detailed ordering and shipping information in the package dimensions section on page 11 of this data sheet.ORDERING INFORMATIONTSOP −5(SOT23−5, SC59−5)SN SUFFIX CASE 483PIN CONNECTIONS AND MARKING DIAGRAM13N/CVin 2GND Enable4V out5(Top View)xxxAYW G G xxx = Specific Device Code A = Assembly Location Y = YearW = Work Week G = Pb −Free Package(Note: Microdot may be in either location)PIN FUNCTION DESCRIPTIONPin No.Pin Name Description1V in Positive power supply input voltage.2GND Power supply ground.3Enable This input is used to place the device into low−power standby. When this input is pulled low, thedevice is disabled. If this function is not used, Enable should be connected to V in.4N/C No Internal Connection.5V out Regulated output voltage.MAXIMUM RATINGSRating Symbol Value Unit Input Voltage V in0 to 12V Enable Voltage V EN−0.3 to V in+0.3V Output Voltage V out−0.3 to V in+0.3V Power Dissipation P D Internally Limited W Operating Junction Temperature T J+150°COperating Ambient Temperature NCP551NCV551T A−40 to +85−40 to +125°CStorage Temperature T stg−55 to +150°C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionalityshould not be assumed, damage may occur and reliability may be affected.1.This device series contains ESD protection and exceeds the following tests:Human Body Model 2000 V per MIL−STD−883, Method 3015Machine Model Method 200 VCharge Device Model (CDM) tested C3B per EIA/JESD22−C101.tchup capability (85°C) "100 mA DC with trigger voltage.THERMAL CHARACTERISTICSRating Symbol Test Conditions Typical Value Unit Junction−to−Ambient R q JA 1 oz Copper Thickness, 100 mm2250°C/W PSIJ−Lead 2Y J−L2 1 oz Copper Thickness, 100 mm268°C/W NOTE:Single component mounted on an 80 x 80 x 1.5 mm FR4 PCB with stated copper head spreading area. Using the following boundary conditions as stated in EIA/JESD 51−1, 2, 3, 7, 12.ELECTRICAL CHARACTERISTICS(V in = V out(nom.) + 1.0 V, V EN = V in, C in = 1.0 m F, C out = 1.0 m F, T A = 25°C, unless otherwise noted.)Characteristic Symbol Min Typ Max UnitOutput Voltage (T A = 25°C, I out = 10 mA) 1.4 V1.5 V1.8 V2.5 V2.7 V2.8 V2.9 V3.0 V3.1 V3.2 V3.3 V3.6 V3.8 V5.0 V V out1.3581.4551.7462.4252.6462.7442.8422.9403.0383.1363.2343.5283.7244.901.41.51.82.52.72.82.93.03.13.23.33.63.85.01.4421.5451.8542.5752.7542.8562.9583.0603.1623.2643.3663.6723.8765.10VOutput Voltage (T A = T low to T high, I out = 10 mA) 1.4 V1.5 V1.8 V2.5 V2.7 V2.8 V2.9 V3.0 V3.1 V3.2 V3.3 V3.6 V3.8 V5.0 V V out1.3441.4401.7282.4002.6192.7162.8132.9103.0073.1043.2013.4923.6864.8501.41.51.82.52.72.82.93.03.13.23.33.63.85.01.4561.5601.8722.6002.7812.8842.9873.0903.1933.2963.3993.7083.9145.150VLine Regulation (V in = V out + 1.0 V to 12 V, I out = 10 mA)Reg line−1030mV Load Regulation (I out = 10 mA to 150 mA, V in = V out + 2.0 V)Reg load−4065mVOutput Current (V out = (V out at I out = 100 mA) −3%)1.4 V−2.0 V (V in = 4.0 V)2.1 V−3.0 V (V in = 5.0 V)3.1 V−4.0 V (V in = 6.0 V)4.1 V−5.0 V (V in = 8.0 V)I o(nom.)150150150150−−−−−−−−mADropout Voltage (I out = 10 mA, Measured at V out−3.0%)1.4 V1.5 V, 1.8 V,2.5 V2.7 V, 2.8 V, 2.9 V,3.0 V, 3.1 V, 3.2 V, 3.3 V, 3.6 V, 3.8 V, 5.0 V V in−V out−−−17013040250220150mVQuiescent Current(Enable Input = 0 V)(Enable Input = V in, I out = 1.0 mA to I o(nom.))1.4 V−2.0 V options, V in = 4.0 V2.1 V−3.0 V options, V in = 5.0 V3.1 V−4.0 V options, V in = 6.0 V4.1 V−5.0 V options, V in = 8.0 V I Q−−0.14.01.08.0m AOutput Voltage Temperature Coefficient T c−"100−ppm/°CEnable Input Threshold Voltage(Voltage Increasing, Output Turns On, Logic High) (Voltage Decreasing, Output Turns Off, Logic Low)V th(en)1.3−−−−0.3VELECTRICAL CHARACTERISTICS (continued)(V in = V out(nom.) + 1.0 V, V EN = V in , C in = 1.0 m F, C out = 1.0 m F, T A = 25°C, unless otherwise noted.)Output Short Circuit Current (V out = 0 V)1.4 V −2.0 V (V in = 4.0 V)2.1 V −3.0 V (V in = 5.0 V)3.1 V −4.0 V (V in = 6.0 V)4.1 V −5.0 V (V in = 8.0 V)I out(max)160160160160350350350350600600600600mA3.Maximum package power dissipation limits must be observed.PD +T J(max)*T A R q JA4.Low duty cycle pulse techniques are used during testing to maintain the junction temperature as close to ambient as possible.5.NCP551T low = −40°CT high = +85°C NCV551T low = −40°CT high = +125°C.DEFINITIONSLoad RegulationThe change in output voltage for a change in output current at a constant temperature.Dropout VoltageThe input/output differential at which the regulator output no longer maintains regulation against further reductions in input voltage. Measured when the output drops 3% below its nominal. The junction temperature, load current, and minimum input supply requirements affect the dropout level. Maximum Power DissipationThe maximum total dissipation for which the regulator will operate within its specifications.Quiescent CurrentThe quiescent current is the current which flows through the ground when the LDO operates without a load on its output: internal IC operation, bias, etc. When the LDO becomes loaded, this term is called the Ground current. It is actually the difference between the input current (measured through the LDO input pin) and the output current.Line RegulationThe change in output voltage for a change in input voltage. The measurement is made under conditions of low dissipation or by using pulse technique such that the average chip temperature is not significantly affected.Line Transient ResponseTypical over and undershoot response when input voltage is excited with a given slope.Thermal ProtectionInternal thermal shutdown circuitry is provided to protect the integrated circuit in the event that the maximum junction temperature is exceeded. When activated at typically 160°C, the regulator turns off. This feature is provided to prevent failures from accidental overheating.Maximum Package Power DissipationThe maximum power package dissipation is the power dissipation level at which the junction temperature reaches its maximum operating value, i.e. 125°C. Depending on the ambient power dissipation and thus the maximum available output current.3.25G R O U N D C U R R E N T (m A )3.05Figure 2. Ground Pin Current versusOutput Current 3.35I out , OUTPUT CURRENT (mA)3.33.13.23.15Figure 3. Ground Pin Current versusOutput Current3.35G R O U N D C U R R E N T (m A )3.153.45I out , OUTPUT CURRENT (mA)3.43.23.33.250.50Figure4. Ground Pin Current versusInput Voltage V in , INPUT VOLTAGE (VOLTS)Figure 5. Ground Pin Current versusInput VoltageG R OU N D P I N C U R R E N T (m A )11.522.533.540.50V in , INPUT VOLTAGE (VOLTS)G R OU N D P I N C U R R E N T (m A )11.522.533.5440004−200200−60064200TIME (m s)Figure 6. Line Transient Response Figure 7. Line Transient Response8TIME (m s)−20004006−400−400O U T P U T V O L T A G E D E V I A T I O N (m V )V i n , I N P U T V O L T A G E (V )O U T P U T V O L T A G E D E V I A T I O N (m V )V i n , I N P U T V O L T A G E (V )4−−4200TIME (m s)Figure 8. Line Transient Response Figure 9. Line Transient ResponseTIME (m s)−20004006−−400O U T P U T V O L T A G E D E V I A T I O N (m V )V i n , I N P U T V O L T A G E (V )O U T P U T V O L T A G E D E V I A T I O N (m V )V i n , I N P U T V O L T A G E (V )−600−−4200Figure 10. Line Transient Response Figure 11. Line Transient ResponseTIME (m s)−20004006−−400O U T P U T V O L T A G E D E V I A T I O N (m V )V i n , I N P U T V O L T A G E (V )O U T P U T V O L T A G E D E V I A T I O N (m V )V i n , I N P U T V O L T A G E (V )−600600800TIME (m s)150O U T P U T V O L T A G E D E V I A T I O N (m V )−1000TIME (ms)Figure 12. Load Transient Response ON Figure 13. Load Transient Response OFFTIME (ms)−50000I o u t , O U T P U T C U R R E N T (m A )−O U T P U T V O L T A G E D E V I A T I O N (m V )I o u t , O U T P U T C U R R E N T (m A )Figure 14. Load Transient Response OFF TIME (ms)Figure 15. Load Transient Response ONTIME (ms)150−5005000−−01000O U T P U T V O L T A G E D E V I A T I O N (m V )I o u t , O U T P U T C U R R E N T (m A )O U T P U T V O L T A G E D E V I A T I O N (m V )I o u t , O U T P U T C U R R E N T (m A )12Figure 16. Turn −On Response 3TIME (m s)0132V o u t , O U T P U T V O L T A G E (V )E N A B L E V O L T A G E (V )Figure 17. Turn−On ResponseTIME (m s)V o u t , O U T P U T V O L T A G E (V )E N A B L E V O L T A G E(V )Figure 18. Output Voltage versus Input Voltage Figure 19. Output Voltage versus Input Voltage2V o u t , O U T P U T V O L T A G E (V O L T S )3V in , INPUT VOLTAGE (VOLTS)2.50.51.51V o u t , O U T P U T V O L T A G E (V O L T S )V in , INPUT VOLTAGE (VOLTS)APPLICATIONS INFORMATIONA typical application circuit for the NCP551 series is shown in Figure 20.Input Decoupling (C1)A 0.1 m F capacitor either ceramic or tantalum is recommended and should be connected close to the NCP551package. Higher values and lower ESR will improve the overall line transient response.Output Decoupling (C2)The NCP551 is a stable Regulator and does not require any specific Equivalent Series Resistance (ESR) or a minimum output current. Capacitors exhibiting ESRs ranging from a few m W up to 3.0 W can thus safely be used.The minimum decoupling value is 0.1 m F and can be augmented to fulfill stringent load transient requirements.The regulator accepts ceramic chip capacitors as well as tantalum devices. Larger values improve noise rejection and load regulation transient response.Enable OperationThe enable pin will turn on or off the regulator. These limits of threshold are covered in the electrical specification section of this data sheet. If the enable is not used then the pin should be connected to V in .HintsPlease be sure the V in and GND lines are sufficiently wide.When the impedance of these lines is high, there is a chance to pick up noise or cause the regulator to malfunction.Set external components, especially the output capacitor,as close as possible to the circuit, and make leads as short as possible.ThermalAs power across the NCP551 increases, it might become necessary to provide some thermal relief. The maximum power dissipation supported by the device is dependent upon board design and layout. Mounting pad configuration on the PCB, the board material, and also the ambient temperature effect the rate of temperature rise for the part.This is stating that when the NCP551 has good thermal conductivity through the PCB, the junction temperature will be relatively low with high power dissipation applications.The maximum dissipation the package can handle is given by:PD +T J(max)*T AR q JAIf junction temperature is not allowed above the maximum 125°C, then the NCP551 can dissipate up to 400 mW @ 25°C.The power dissipated by the NCP551 can be calculated from the following equation:P tot +ƪV in *I gnd (I out )ƫ)[V in *V out ]*I outorV inMAX +P tot)V out *I outI GND )I outIf a 150 mA output current is needed then the ground current from the data sheet is 4.0 m A. For an NCP551SN30T1 (3.0 V), the maximum input voltage will then be 5.6 V .Battery or Unregulated VoltageFigure 20. Typical Application CircuitOFFONm FFigure 21. Current Boost RegulatorFigure 22. Current Boost Regulator withShort Circuit LimitFigure 23. Delayed Turn −onFigure 24. Input Voltages Greater than 12 VThe NCP551 series can be current boosted with a PNP transist-or. Resistor R in conjunction with V BE of the PNP determines when the pass transistor begins conducting; this circuit is not short circuit proof. Input/Output differential voltage minimum is increased by V BE of the pass resistor.Short circuit current limit is essentially set by the V BE of Q2 and R1. I SC = ((V BEQ2 − ib * R2) / R1) + I O(max) RegulatorIf a delayed turn −on is needed during power up of several volt-ages then the above schematic can be used. Resistor R, and capacitor C, will delay the turn −on of the bottom regulator.A regulated output can be achieved with input voltages that exceed the 12 V maximum rating of the NCP551 series with the addition of a simple pre −regulator circuit. Care must be taken to prevent Q1 from overheating when the regulated output (V out ) is shorted to GND .ORDERING INFORMATIONDeviceNominalOutput Voltage Marking Package Shipping†NCP551SN15T1G 1.5LAO TSOP−5(Pb−Free)3000 / Tape & Reel NCP551SN18T1G 1.8LAP TSOP−5(Pb−Free)3000 / Tape & Reel NCP551SN25T1G 2.5LAQ TSOP−5(Pb−Free)3000 / Tape & Reel NCP551SN27T1G 2.7LAR TSOP−5(Pb−Free)3000 / Tape & Reel NCP551SN28T1G 2.8LAS TSOP−5(Pb−Free)3000 / Tape & ReelNCP551SN29T1G 2.9LJL TSOP−5(Pb−Free)3000 / Tape & ReelNCP551SN30T1G 3.0LAT TSOP−5(Pb−Free)3000 / Tape & ReelNCP551SN31T1G 3.1LJM TSOP−5(Pb−Free)3000 / Tape & ReelNCP551SN32T1G 3.2LIV TSOP−5(Pb−Free)3000 / Tape & ReelNCP551SN33T1G 3.3LAU TSOP−5(Pb−Free)3000 / Tape & ReelNCP551SN50T1G 5.0LAV TSOP−5(Pb−Free)3000 / Tape & ReelNCV551SN14T1G* 1.4AAT TSOP−5(Pb−Free)3000 / Tape & ReelNCV551SN15T1G* 1.5LFZ TSOP−5(Pb−Free)3000 / Tape & ReelNCV551SN18T1G* 1.8LGA TSOP−5(Pb−Free)3000 / Tape & ReelNCV551SN25T1G* 2.5LGB TSOP−5(Pb−Free)3000 / Tape & ReelNCV551SN27T1G* 2.7LGC TSOP−5(Pb−Free)3000 / Tape & ReelNCV551SN28T1G* 2.8LGD TSOP−5(Pb−Free)3000 / Tape & ReelNCV551SN30T1G* 3.0LGE TSOP−5(Pb−Free)3000 / Tape & ReelNCV551SN31T1G* 3.1LJR TSOP−5(Pb−Free)3000 / Tape & ReelNCV551SN32T1G* 3.2LFR TSOP−5(Pb−Free)3000 / Tape & ReelNCV551SN33T1G* 3.3LGG TSOP−5(Pb−Free)3000 / Tape & ReelNCV551SN36T1G* 3.6AEJ TSOP−5(Pb−Free)3000 / Tape & ReelNCV551SN38T1G* 3.8AD5TSOP−5(Pb−Free)3000 / Tape & ReelNCV551SN50T1G* 5.0LGF TSOP−5(Pb−Free)3000 / Tape & ReelNOTE:Additional voltages in 100 mV steps are available upon request by contacting your ON Semiconductor representative.†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our T ape and Reel Packaging Specific-ations Brochure, BRD8011/D.*NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable.PACKAGE DIMENSIONSTSOP −5SN SUFFIX CASE 483−02ISSUE KNOTES:1.DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.2.CONTROLLING DIMENSION: MILLIMETERS.3.MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH THICKNESS. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL.4.DIMENSIONS A AND B DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR GATE BURRS. MOLDFLASH, PROTRUSIONS, OR GATE BURRS SHALL NOT EXCEED 0.15 PER SIDE. DIMENSION A.5.OPTIONAL CONSTRUCTION: AN ADDITIONAL TRIMMED LEAD IS ALLOWED IN THIS LOCATION.TRIMMED LEAD NOT TO EXTEND MORE THAN 0.2FROM BODY .DIM MIN MAX MILLIMETERS A 3.00 BSC B 1.50 BSC C 0.90 1.10D 0.250.50G 0.95 BSC H 0.010.10J 0.100.26K 0.200.60M 0 10 S2.503.00__ǒmm inchesǓ*For additional information on our Pb −Free strategy and solderingdetails, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.SOLDERING FOOTPRINT*2XDETAIL ZTOP VIEWON Semiconductor and the are registered trademarks of Semiconductor Components Industries, LLC (SCILLC) or its subsidiaries in the United States and/or other countries.SCILLC owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of SCILLC’s product/patent coverage may be accessed at /site/pdf/Patent −Marking.pdf. SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended,or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.PUBLICATION ORDERING INFORMATIONNCP551SN27T1G NCP551SN28T1G NCV551SN36T1G。
silmicro全系列产品介绍资料
VGA矩阵切换器产品介绍:VGA矩阵切换器内部采用高带宽开关芯片,图像清晰无拖影;输入､输出带缓冲设计,增强了抗冲击及输出能力;VGA带音频矩阵切换器,音视频可分别控制,音频输入输出采用了平衡方式,大大提高了抗躁声的能力及传输的距离｡VGA矩阵切换器机箱采用EMI的结构设计,能有效的防止电磁辐射及电磁波的干扰,性能更加稳定｡VGA矩阵切换器内嵌智能控制,采用了独特的处理方式,大大的提高了设备的切换速度;除面板键盘和红外遥控操作外,还提供RS232控制接口,方便用户与各种远端控制设备(如快思聪､AMX､思美特等)配合使用;通过随机提供的软件,可方便设定设备编号,便于多台同型设备共联控制;具备掉电状态保护存储､开机自动恢复记忆的功能｡VGA矩阵切换器该系列产品主要应用于广播电视工程､多媒体会议厅､大屏幕显示工程､电视教学､指挥控制中心等场所｡产品性能:VGA特性增益:0dB带宽:350MHz(-3dB)满载微分相位:0.05º@4.43 MHz微分增益:0.05% @4.43 MHz最大传播延时:5nS(±1nS)切换速度:≤180nSVGA输入信号类型:VGA信号接口:VGA D型15针最小电平:0.5Vp-p最大电平:1.0Vp-p阻抗:75Ω回波损耗:-30dB@5MHzVGA输出信号类型:VGA信号接口:VGA D型15针输出电平:0.7Vp-p阻抗:75Ω回波损耗:-30dB@5MHz直流补偿:最大5mV同步信号特性输入/输出信号类型:TTL输入电平:0V-5Vp-p输出电平:TTL: 5Vp-p输入阻抗:510Ω输出阻抗:75Ω极性:正或负(与输入一致)音频特性增率:0dB频率响应:20 Hz ~ 20 kHz总谐波失真+噪声:0.05% @ 1 kHz (额定电压下)共态抑制比(CMRR):(CMRR)>75dB @: 20 Hz ~ 20 kHz音频输入信号类型:立体声,平衡接口:5PIN接口阻抗:>10KΩ最大电平:+19.5dBu音频输出信号类型:立体声,平衡接口:5PIN接口阻抗:>470Ω最大电平:+21dBu控制类型串行控制接口:RS-232,9-针母D型接口波特率:9600数据位:8位停止位:1,无奇偶校验位串行控制口结构:2=TX,3=RX,5=GND规格电源:100VAC ~ 240VAC, 50/60 Hz, 国际自适应电源功率:≤30W存储环境温度:-20°C ~ +80°C工作环境温度:-10°C ~ +55°C相对湿度:20% ~ 95%平均无故障时间:50,000小时VGA矩阵切换器目录型号说明高度SP0402F2 4进2出VGA矩阵切换器带2路分配1U SP0404 4进4出VGA矩阵切换器1U PA0404 4进4出VGA带音频矩阵切换器,音频双声道非平衡RCA接口1U SP0802F2 8进2出VGA矩阵切换器1U PA0802 8进2出VGA带音频矩阵切换器,音频双声道平衡/非平衡5PIN接口2U SP0804 8进4出VGA矩阵切换器1U PA0804 8进4出VGA带音频矩阵切换器,音频双声道平衡/非平衡5PIN接口2U SP0808 8进8出VGA矩阵切换器2U PA0808 8进8出VGA带音频矩阵切换器,音频双声道平衡/非平衡5PIN接口2U SP0816 8进16出VGA矩阵切换器3U PA0816 8进16出VGA带音频矩阵切换器,音频双声道平衡/非平衡5PIN接口3U SP1604 16进4出VGA矩阵切换器2U PA1604 16进4出VGA带音频矩阵切换器,音频双声道平衡/非平衡5PIN接口3U SP1608 16进8出VGA矩阵切换器2U PA1608 16进8出VGA带音频矩阵切换器,音频双声道平衡/非平衡5PIN接口3U SP1616 16进16出VGA矩阵切换器2U PA1616 16进16出VGA带音频矩阵切换器,音频双声道平衡/非平衡5PIN接口3URGBHV矩阵切换器系列产品介绍:RGBHV矩阵切换器内部采用高带宽开关芯片,图像清晰无拖影;输入､输出带缓冲设计,增强了抗冲击及输出能力;RGBHV带音频矩阵切换器,音视频可分别控制 ,音频输入输出采用了平衡方式,大大提高了抗躁声的能力及传输的距离｡RGBHV矩阵切换器机箱采用EMI的结构设计,能有效的防止电磁辐射及电磁波的干扰,性能更加稳定;RGBHV矩阵切换器内嵌智能控制,采用了独特的处理方式,大大的提高了设备的切换速度;除面板键盘和红外遥控操作外,还提供RS232控制接口,方便用户与各种远端控制设备(如快思聪､AMX､思美特等)配合使用;通过随机提供的软件,可方便设定设备编号,便于多台同型设备共联控制;具备掉电状态保护存储､开机自动恢复记忆的功能｡RGBHV矩阵切换器该系列产品主要应用于广播电视工程､多媒体会议厅､大屏幕显示工程､电视教学､指挥控制中心等场所｡产品性能:RGB特性增益:0dB带宽:350MHz(-3dB)满载微分相位:0.05º@4.43 MHz微分增益:0.05% @4.43 MHz最大传播延时:5nS(±1nS)切换速度:≤180nSRGB输入信号类型:RGBHV､RGBS､RGsB､RsGsBs､YUV信号接口:5BNC最小电平:0.5Vp-p最大电平:1.0Vp-p阻抗:75Ω回波损耗:-30dB@5MHzRGB输出信号类型:RGBHV､RGBS､RGsB､RsGsBs､YUV信号接口:5BNC输出电平:0.7Vp-p阻抗:75Ω回波损耗:-30dB@5MHz直流补偿:最大5mV同步信号特性输入/输出信号类型:TTL输入电平:0V-5Vp-p输出电平:TTL: 5Vp-p输入阻抗:510Ω输出阻抗:75Ω极性:正或负(与输入一致)音频特性增率:0dB频率响应:20 Hz ~ 20 kHz总谐波失真+噪声:0.05% @ 1 kHz (额定电压下)共态抑制比(CMRR):(CMRR)>75dB @: 20 Hz ~ 20 kHz音频输入信号类型:立体声,平衡接口:5PIN接口阻抗:>10KΩ最大电平:+19.5dBu音频输出信号类型:立体声,平衡接口:5PIN接口阻抗:>470Ω最大电平:+21dBu控制类型串行控制接口:RS-232,9-针母D型接口波特率:9600数据位:8位停止位:1,无奇偶校验位串行控制口结构:2=TX,3=RX,5=GND规格电源:100VAC ~ 240VAC, 50/60 Hz, 国际自适应电源功率:≤30W存储环境温度:-20°C ~ +80°C工作环境温度:-10°C ~ +55°C相对湿度:20% ~ 95%平均无故障时间:50,000小时RGBHV矩阵切换器目录型号说明高度SP0404H 4进4出RGB矩阵切换器3U PA0404H 4进4出RGB矩阵切换器,音频双声道平衡/非平衡5PIN接口3U SP0802H 8进2出RGB矩阵切换器3U PA0802H 8进2出RGB矩阵切换器,音频双声道平衡/非平衡5PIN接口3U SP0804H 8进4出RGB矩阵切换器3U PA0804H 8进4出RGB矩阵切换器,音频双声道平衡/非平衡5PIN接口3U SP0808H 8进8出RGB矩阵切换器3U PA0808H 8进8出RGB矩阵切换器,音频双声道平衡/非平衡5PIN接口3U SP0816H 8进16出RGB矩阵切换器6U PA0816H 8进16出RGB矩阵切换器,音频双声道平衡/非平衡5PIN接口6U SP1604H 16进4出RGB矩阵切换器3U PA1604H 16进4出RGB矩阵切换器,音频双声道平衡/非平衡5PIN接口3USP1632H 16进32出RGB矩阵切换器12U PA1632H 16进32出RGB带音频矩阵切换器,音频双声道平衡/非平衡5PIN接口12U SP2408H 24进8出RGB矩阵切换器8U PA2408H 24进8出RGB带音频矩阵切换器,音频双声道平衡/非平衡5PIN接口8U SP2416H 24进16出RGB矩阵切换器8U PA2416H 24进16出RGB带音频矩阵切换器,音频双声道平衡/非平衡5PIN接口8U SP2424H 24进24出RGB矩阵切换器12U PA2424H 24进24出RGB带音频矩阵切换器,音频双声道平衡/非平衡5PIN接口12U SP3208H 32进8出RGB矩阵切换器8U PA3208H 32进8出RGB带音频矩阵切换器,音频双声道平衡/非平衡5PIN接口8U SP3216H 32进16出RGB矩阵切换器8U PA3216H 32进16出RGB带音频矩阵切换器,音频双声道平衡/非平衡5PIN接口8U SP3224H 32进24出RGB矩阵切换器12U PA3224H 32进24出RGB带音频矩阵切换器,音频双声道平衡/非平衡5PIN接口12U SP3232H 32进32出RGB矩阵切换器12U PA3232H 32进32出RGB带音频矩阵切换器,音频双声道平衡/非平衡5PIN接口12U SP4816H 48进16出RGB矩阵切换器5x6U SP4824H 48进24出RGB矩阵切换器5x6U SP4832H 48进32出RGB矩阵切换器5x6U SP4848H 48进48出RGB矩阵切换器5x6U SP6416H 64进16出RGB矩阵切换器5x6U SP6424H 64进24出RGB矩阵切换器5x6U SP6432H 64进32出RGB矩阵切换器5x6U SP6448H 64进48出RGB矩阵切换器5x6U SP6464H 64进64出RGB矩阵切换器5x6U SP9616H 96进16出RGB矩阵切换器5x8U SP9632H 96进32出RGB矩阵切换器5x8U SP9648H 96进48出RGB矩阵切换器5x8U SP9664H 96进64出RGB矩阵切换器5x8U SP9696H 96进96出RGB矩阵切换器5x8U SP12816H 128进16出RGB矩阵切换器5x8U SP12832H 128进32出RGB矩阵切换器5x8U SP12848H 128进48出RGB矩阵切换器5x8U SP12864H 128进64出RGB矩阵切换器5x8U SP128128H 128进128出RGB矩阵切换器5x8UAV矩阵切换器产品介绍:AV矩阵切换器,音视频可分别控制｡此产品是专为视､音频信号的显示切换而设计的高性能智能矩阵开关设备｡输入､输出带缓冲设计,增强了抗冲击及输出能力;音频输入输出采用了平衡方式,大大提高了抗躁声的能力及传输的距离｡AV矩阵切换器机箱采用EMI的结构设计,能有效的防止电磁辐射及电磁波的干扰,性能更加稳定;AV矩阵切换器内嵌智能控制,采用了独特的处理方式,大大的提高了设备的切换速度;除面板控制键盘和红外遥控操作外,还提供RS232控制接口,方便用户与各种远端控制设备(如快思聪､AMX､思美特等)配合使用;通过随机提供的软件,可方便设定设备编号,便于多台同型设备共联控制;具备掉电状态保护存储､开机自动恢复记忆的功能｡该系列产品主要应用于广播电视工程､多媒体会议厅､大屏幕显示工程､电视教学､指挥控制中心等场所｡产品性能:复合视频特性增益:0dB带宽:80MHz(-3dB)满载亮色度干扰:*************微分相位:0.05º@4.43 MHz微分增益:0.05%4.43 MHz最大传播延时:5nS(±1nS)切换速度:≤180Ns复合视频输入信号类型:复合视频信号接口:RCA､BNC接口最小电平:0.5Vp-p最大电平:1.0Vp-p阻抗:75Ω回波损耗:-30dB@5MHz复合视频输出信号类型:复合视频信号接口:RCA､BNC接口输出电平:0.7Vp-p阻抗:75Ω回波损耗:-30dB@5MHz直流补偿最大:5mV音频特性增率:0dB频率响应:20 Hz ~ 20 kHz总谐波失真+噪声:0.05% @ 1 kHz (额定电压下)共态抑制比(CMRR):(CMRR)>75dB @: 20 Hz ~ 20 kHz音频输入信号类型:立体声,平衡/非平衡接口:RCA､5PIN接口阻抗:>10KΩ最大电平:+19.5dBu音频输出信号类型:立体声,平衡/非平衡接口:RCA､5PIN接口阻抗:>470Ω最大电平:+21dBu控制类型串行控制接口:RS-232,9-针母D型接口波特率:9600数据位:8位停止位:1,无奇偶校验位串行控制口结构:2=TX,3=RX,5=GND规格电源:100VAC ~ 240VAC, 50/60 Hz, 国际自适应电源功率:≤30W存储环境温度:-20°C ~ +80°C工作环境温度:-10°C ~ +55°C相对湿度:20% ~ 95%平均无故障时间:50,000小时AV矩阵切换器目录型号说明高度VA0404 4进4出视音频矩阵切换器,音频双声道非平衡,视音频RCA接口1U VA0802 8进2出视音频矩阵切换器,音频双声道非平衡,视音频RCA接口1U VA0804 8进4出视音频矩阵切换器,音频双声道非平衡,视音频RCA接口1U VA1008 10进8出视音频矩阵切换器,音频双声道平衡/非平衡5PIN接口,视频BNC接口2U VA1604 16进4出视音频矩阵切换器,音频双声道平衡/非平衡5PIN接口,视频BNC接口2U VA1608 16进8出视音频矩阵切换器,音频双声道平衡/非平衡5PIN接口,视频BNC接口2U VA1616 16进16出视音频矩阵切换器,音频双声道平衡/非平衡5PIN接口,视频BNC接口2U VA2408 24进8出视音频矩阵切换器,音频双声道平衡/非平衡5PIN接口,视频BNC接口6U VA2416 24进16出视音频矩阵切换器,音频双声道平衡/非平衡5PIN接口,视频BNC接口6U VA2424 24进24出视音频矩阵切换器,音频双声道平衡/非平衡5PIN接口,视频BNC接口8U VA2432 24进32出视音频矩阵切换器,音频双声道平衡/非平衡5PIN接口,视频BNC接口8U VA3208 32进8出视音频矩阵切换器,音频双声道平衡/非平衡5PIN接口,视频BNC接口6U VA3216 32进16出视音频矩阵切换器,音频双声道平衡/非平衡5PIN接口,视频BNC接口6U VA3224 32进24出视音频矩阵切换器,音频双声道平衡/非平衡5PIN接口,视频BNC接口8U VA3232 32进32出视音频矩阵切换器,音频双声道平衡/非平衡5PIN接口,视频BNC接口8U VA4816 48进16出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口8U VA4824 48进24出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口3X6U VA4832 48进32出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口3X6U VA4848 48进48出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口3X6U VA6416 64进16出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口8U VA6424 64进24出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口3X6U VA6432 64进32出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口3X6U VA6448 64进48出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口3X6U VA6464 64进64出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口3X6UVA9632 96进32出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口3X8U VA9648 96进48出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口3X8U VA9664 96进64出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口3X8U VA9696 96进96出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口3X8U VA12848 128进48出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口3X8U VA12864 128进64出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口3X8U VA12896 128进96出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口3X8U VA128128 128进128出视音频矩阵切换器,音频双声道非平衡,视音频BNC接口3X8U视频矩阵切换器产品介绍:视频矩阵切换器是专为视频信号的显示切换而设计的高性能智能矩阵开关设备｡输入､输出带缓冲设计,增强了抗冲击及输出能力;视频矩阵切换器机箱采用EMI的结构设计,能有效的防止电磁辐射及电磁波的干扰,性能更加稳定;视频矩阵切换器内嵌智能控制,采用了独特的处理方式,大大的提高了设备的切换速度;除面板控制键盘和红外遥控操作外,还提供RS232控制接口,方便用户与各种远端控制设备(如快思聪､AMX､思美特等)配合使用;通过随机提供的软件,可方便设定设备编号,便于多台同型设备共联控制;具备掉电状态保护存储､开机自动恢复记忆的功能｡该系列产品主要应用于广播电视工程､多媒体会议厅､大屏幕显示工程､电视教学､指挥控制中心等场所｡产品性能:复合视频特性增益:0dB带宽:80MHz(-3dB)满载亮色度干扰:*************微分相位:0.05º@4.43 MHz微分增益:0.05%4.43 MHz最大传播延时:5nS(±1nS)切换速度:≤180Ns复合视频输入信号类型:复合视频信号接口:BNC最小电平:0.5Vp-p最大电平:1.0Vp-p阻抗:75Ω回波损耗:-30dB@5MHz复合视频输出信号类型:复合视频信号接口:BNC输出电平:0.7Vp-p阻抗:75Ω回波损耗:-30dB@5MHz直流补偿最大:5Mv控制类型串行控制接口:RS-232,9-针母D型接口波特率:9600数据位:8位停止位:1,无奇偶校验位串行控制口结构:2=TX,3=RX,5=GND规格电源:100VAC ~ 240VAC, 50/60 Hz, 国际自适应电源功率:≤30W存储环境温度:-20°C ~ +80°C工作环境温度:-10°C ~ +55°C相对湿度:20% ~ 95%平均无故障时间:50,000小时视频矩阵切换器目录型号说明高度SV0804 8进4出视频矩阵切换器,BNC接口1U SV0808 8进8出视频矩阵切换器,BNC接口1U SV1608 16进8出视频矩阵切换器,BNC接口2U SV1616 16进16出视频矩阵切换器,BNC接口2U SV2416 24进16出视频矩阵切换器,BNC接口2U SV2424 24进24出视频矩阵切换器,BNC接口3U SV3208 32进8出视频矩阵切换器,BNC接口2U SV3216 32进16出视频矩阵切换器,BNC接口2U SV3224 32进24出视频矩阵切换器,BNC接口3U SV3232 32进32出视频矩阵切换器,BNC接口3U SV4816 48进16出视频矩阵切换器,BNC接口3U SV4832 48进32出视频矩阵切换器,BNC接口6U SV4848 48进48出视频矩阵切换器,BNC接口6U SV6416 64进16出视频矩阵切换器,BNC接口3U SV6432 64进32出视频矩阵切换器,BNC接口6U SV6448 64进48出视频矩阵切换器,BNC接口6U SV6464 64进64出视频矩阵切换器,BNC接口6U SV9616 96进16出视频矩阵切换器,BNC接口6U SV9632 96进32出视频矩阵切换器,BNC接口8U SV9648 96进48出视频矩阵切换器,BNC接口8U SV9664 96进64出视频矩阵切换器,BNC接口8U SV9696 96进96出视频矩阵切换器,BNC接口8U SV12816 128进16出视频矩阵切换器,BNC接口6U SV12832 128进32出视频矩阵切换器,BNC接口8U SV12848 128进48出视频矩阵切换器,BNC接口8U SV12864 128进64出视频矩阵切换器,BNC接口8U SV12896 128进96出视频矩阵切换器,BNC接口8U SV128128 128进128出视频矩阵切换器,BNC接口8UYUV矩阵切换器目录型号说明高度YUV0404 4进4出分量视频矩阵切换器,BNC接口2U YUV0804 8进4出分量视频矩阵切换器,BNC接口2U YUV0808 8进8出分量视频矩阵切换器,BNC接口2U YUV3216 32进16出分量视频矩阵切换器,BNC接口6U YUV3232 32进32出分量视频矩阵切换器,BNC接口8U信号分配器系列1. VGA分配器产品介绍VGA分配器是专门为计算机信号的显示分配而设计的高性能设备,采用高带宽专业视频运放芯片,图像清晰无拖影,输出更加稳定可靠｡该系列产品主要应用于广播电视工程､多媒体会议厅､大屏幕显示工程､电视教学､指挥控制中心等场所｡产品性能:VGA特性增益:0dB带宽:350MHz(-3dB)满载微分相位:0.05º@4.43 MHz微分增益:0.05% @4.43 MHz最大传播延时:5nS(±1nS)VGA输入信号类型:VGA信号接口:VGA D型15针最小电平:0.5Vp-p最大电平:1.0Vp-p阻抗:75Ω回波损耗:-30dB@5MHzVGA输出信号类型:VGA信号接口:VGA D型15针输出电平:0.7Vp-p阻抗:75Ω回波损耗:-30dB@5MHz直流补偿:最大5mV同步信号特性输入/输出信号类型:TTL输入电平:0V-5Vp-p输出电平:TTL: 5Vp-p输入阻抗:510Ω输出阻抗:75Ω极性:正或负(与输入一致)阻抗:>10KΩ最大电平:+19.5dBu规格电源:100VAC ~ 240VAC, 50/60 Hz, 国际自适应电源功率:≤30W存储环境温度:-20°C ~ +80°C工作环境温度:-10°C ~ +55°C相对湿度:20% ~ 95%平均无故障时间:50,000小时VGA分配器目录型号说明高度SP0102Z 1进2出VGA分配器非标SP0104Z 1进4出VGA分配器非标SP0108Z 1进8出VGA分配器非标SP0202Z 2进2出VGA切换器,带线控功能非标SP0108 1进8出VGA分配器(机架式) 1U SP0116 1进16出VGA分配器(机架式) 1U SP0124 1进24出VGA分配器(机架式) 2U SP0132 1进32出VGA分配器(机架式) 2U2.AV分配器产品介绍AV分配器是专为视､音频信号的显示分配而设计的高性能设备,采用专业视频运放芯片,图像清晰,输出更加稳定可靠｡该系列产品主要应用于广播电视工程､多媒体会议厅､大屏幕显示工程､电视教学､指挥控制中心等场所｡产品性能:复合视频特性增益:0dB带宽:80MHz(-3dB)满载亮色度干扰:*************微分相位:0.05º@4.43 MHz微分增益:0.05%4.43 MHz最大传播延时:5nS(±1nS)复合视频输入信号类型:复合视频信号接口:RCA接口最小电平:0.5Vp-p最大电平:1.0Vp-p阻抗:75Ω回波损耗:-30dB@5MHz复合视频输出信号类型:复合视频信号接口:RCA接口输出电平:0.7Vp-p阻抗:75Ω回波损耗:-30dB@5MHz直流补偿最大:5mV音频特性增率:0dB频率响应:20 Hz ~ 20 kHz总谐波失真+噪声:0.05% @ 1 kHz (额定电压下)共态抑制比(CMRR):(CMRR)>75dB @: 20 Hz ~ 20 kHz音频输入信号类型:立体声,平衡/非平衡接口:RCA接口阻抗:>10KΩ最大电平:+19.5dBu音频输出信号类型:立体声,平衡/非平衡接口:RCA接口阻抗:>470Ω最大电平:+21dBu规格电源:100VAC ~ 240VAC, 50/60 Hz, 国际自适应电源功率:≤30W存储环境温度:-20°C ~ +80°C工作环境温度:-10°C ~ +55°C相对湿度:20% ~ 95%平均无故障时间:50,000小时AV分配器目录型号说明高度VA0116 1进16出视音频分配器,音频双声道非平衡,视音频RCA接口1U VA2Z0108 两台1进8出视音频分配器组装在1台机箱内,音频双声道非平衡,视音频RCA接口1U3､DVI分配器产品介绍DVI分配器内部采用标准的高速开关芯片,图像清晰无误码;输入端采用了自适应均衡专用芯片,大大提高了输入信号的适应能力;输出带驱动设计,有效增强了输出能力｡该系列产品主要应用于广播电视工程､多媒体会议厅､大屏幕显示工程､电视教学､指挥控制中心等场所｡产品性能技术参数比特率(像素带宽):最大1.65Gb/s,每种基色像素数据位深度:24位DDC信号:TTL输入/输出接口:DVI-I接口输入摆幅:0.5V-1.0Vp-p输出摆幅:0.8Vp-p阻抗:50Ω(非平衡接法),100Ω(平衡接法)最大传播延时:5nS(±1nS)DVI分配器系列目录型号说明高度SD0102 1进2出DVI分配器非标SD0104 1进4出DVI分配器非标SD0401 4路DV1进,1路DVI出1U信号切换器1､VGA切换器产品介绍:VGA切换器采用性能极高的专业切换处理芯片,图像清晰无拖影;输入､输出带缓冲设计,增强了抗冲击及输出能力｡VGA带音频切换器,音视频可分别控制｡VGA切换器机箱采用EMI的结构设计,能有效的防止电磁辐射及电磁波的干扰,性能更加稳定｡VGA切换器内嵌智能控制,采用了独特的处理方式,大大的提高了设备的切换速度;除面板控制键盘和红外遥控操作外,还提供RS232控制接口,方便用户与各种远端控制设备(如快思聪､AMX､思美特等)配合使用｡通过随机提供的软件,可方便设定设备编号,便于多台同型设备共联控制;具备掉电状态保护存储､开机自动恢复记忆的功能｡该系列产品主要应用于广播电视工程､多媒体会议厅､大屏幕显示工程､电视教学､指挥控制中心等场所｡产品性能:VGA特性增益:0dB带宽:350MHz(-3dB)满载微分相位:0.05º@4.43 MHz微分增益:0.05% @4.43 MHz最大传播延时:5nS(±1nS)切换速度:≤180nSVGA输入信号类型:VGA信号接口:VGA D型15针最小电平:0.5Vp-p最大电平:1.0Vp-p阻抗:75Ω回波损耗:-30dB@5MHzVGA输出信号类型:VGA信号接口:VGA D型15针输出电平:0.7Vp-p阻抗:75Ω回波损耗:-30dB@5MHz直流补偿:最大5mV同步信号特性输入/输出信号类型:TTL输入电平:0V-5Vp-p输出电平:TTL: 5Vp-p输入阻抗:510Ω输出阻抗:75Ω极性:正或负(与输入一致)音频特性增率:0dB频率响应:20 Hz ~ 20 kHz总谐波失真+噪声:0.05% @ 1 kHz (额定电压下)共态抑制比(CMRR):(CMRR)>75dB @: 20 Hz ~ 20 kHz音频输入信号类型:立体声,平衡接口:5PIN接口阻抗:>10KΩ最大电平:+19.5dBu音频输出信号类型:立体声,平衡接口:5PIN接口阻抗:>470Ω最大电平:+21dBu控制类型串行控制接口:RS-232,9-针母D型接口波特率:9600数据位:8位停止位:1,无奇偶校验位串行控制口结构:2=TX,3=RX,5=GND规格电源:100VAC ~ 240VAC, 50/60 Hz, 国际自适应电源功率:≤30W存储环境温度:-20°C ~ +80°C工作环境温度:-10°C ~ +55°C相对湿度:20% ~ 95%平均无故障时间:50,000小时VGA切换器目录型号说明高度PA0401 4进1出VGA带音频切换器,音频双声道非平衡RCA接口1USP0801 8路VGA输入,1路VGA输出1UPA0801 8进1出VGA带音频切换器,音频双声道非平衡RCA接口2USP1601 16路VGA输入,1路VGA输出1UPA1601 16进1出VGA带音频切换器,音频双声道非平衡RCA接口2USP2401 24路VGA输入,1路VGA输出2UPA2401 24进1出VGA带音频切换器,音频双声道非平衡RCA接口3USP3201 32路VGA输入,1路VGA输出3U2､AV切换器产品介绍:AV切换器,音视频可分别控制｡此产品是专为视､音频信号的显示切换而设计的高性能智能矩阵开关设备｡输入､输出带缓冲设计,增强了抗冲击及输出能力｡AV切换器机箱采用EMI的结构设计,能有效的防止电磁辐射及电磁波的干扰,性能更加稳定｡AV切换器内嵌智能控制,采用了独特的处理方式,大大的提高了设备的切换速度;除面板控制键盘和红外遥控操作外,还提供RS232控制接口,方便用户与各种远端控制设备(如快思聪､AMX､思美特等)配合使用;通过随机提供的软件,可方便设定设备编号,便于多台同型设备共联控制;具备掉电状态保护存储､开机自动恢复记忆的功能｡该系列产品主要应用于广播电视工程､多媒体会议厅､大屏幕显示工程､电视教学､指挥控制中心等场所｡产品性能:复合视频特性增益:0dB带宽:80MHz(-3dB)满载亮色度干扰:*************微分相位:0.05º@4.43 MHz微分增益:0.05%4.43 MHz最大传播延时:5nS(±1nS)切换速度:≤180Ns复合视频输入信号类型:复合视频信号接口:RCA接口最小电平:0.5Vp-p最大电平:1.0Vp-p阻抗:75Ω回波损耗:-30dB@5MHz复合视频输出信号类型:复合视频信号接口:RCA接口输出电平:0.7Vp-p阻抗:75Ω回波损耗:-30dB@5MHz直流补偿最大:5mV音频特性增率:0dB频率响应:20 Hz ~ 20 kHz总谐波失真+噪声:0.05% @ 1 kHz (额定电压下)共态抑制比(CMRR):(CMRR)>75dB @: 20 Hz ~ 20 kHz音频输入信号类型:立体声,平衡/非平衡接口:RCA接口阻抗:>10KΩ最大电平:+19.5dBu音频输出信号类型:立体声,平衡/非平衡接口:RCA接口阻抗:>470Ω最大电平:+21dBu控制类型串行控制接口:RS-232,9-针母D型接口波特率:9600数据位:8位停止位:1,无奇偶校验位串行控制口结构:2=TX,3=RX,5=GND规格电源:100VAC ~ 240VAC, 50/60 Hz, 国际自适应电源功率:≤30W存储环境温度:-20°C ~ +80°C工作环境温度:-10°C ~ +55°C相对湿度:20% ~ 95%平均无故障时间:50,000小时AV切换器目录型号说明高度VA1601 16进1出视音频矩阵切换器,音频双声道非平衡,视音频RCA接口3UVA2401 24进1出视音频矩阵切换器,音频双声道非平衡,视音频RCA接口3UVA3201 32进1出视音频矩阵切换器,音频双声道非平衡,视音频RCA接口3U3､SD0401DVI切换器产品介绍:SD0401 DVI切换器内部采用标准的高速开关芯片,图像清晰无误码;输入端采用了自适应均衡专用芯片,大大提高了输入信号的适应能力;输出带驱动设计,有效增强了输出能力｡SD0401 DVI切换器机箱采用EMI的结构设计,能有效的防止电磁辐射及电磁波的干扰,性能更加稳定｡SD0401 DVI切换器内嵌智能控制,采用了独特的处理方式,大大的提高了设备的切换速度;除面板控制键盘和红外遥控操作外,还提供RS232控制接口,方便用户与各种远端控制设备(如快思聪､AMX､思美特等)配合使用｡通过随机提供的软件,可方便设定设备编号,便于多台同型设备共联控制;具备掉电状态保护存储､开机自动恢复记忆的功能｡该产品主要应用于广播电视工程､多媒体会议厅､大屏幕显示工程､电视教学､指挥控制中心等场所｡产品性能比特率(像素带宽):最大1.65Gb/s,每种基色像素数据位深度:24位DDC信号:TTL输入输出接口:DVI-I接口输入摆幅:0.5V-1.0Vp-p输出摆幅:0.8Vp-p阻抗:50Ω(非平衡接法),100Ω(平衡接法)最大传播延时:5nS(±1nS)切换速度:≤180Ns控制类型串行控制接口:RS-232,9-针母D型接口波特率:9600数据位:8位停止位:1,无奇偶校验位串行控制口结构:2=TX,3=RX,5=GND规格电源:100VAC ~ 240VAC, 50/60 Hz, 国际自适应电源功率:≤30W存储环境温度:-20°C ~ +80°C工作环境温度:-10°C ~ +55°C相对湿度:20% ~ 95%平均无故障时间:50,000小时VGA视音频混合矩阵产品介绍:VGA视音频混合矩阵是专门针对小型综合应用系统而设计的专业设备｡其内部集成了专业倍线器､高带宽VGA矩阵和立体声音频矩阵｡输入可以是VGA也可以是复合视频,复合视频经内部专业倍线处理后统一为VGA输出｡音视频可分别控制｡输入､输出带缓冲设计,增强了抗冲击及输出能力;音频输入输出采用了平衡方式,大大提高了抗躁声的能力及传输的距离｡VGA视音频混合矩阵机箱采用EMI的结构设计,能有效的防止电磁辐射及电磁波的干扰,性能更加稳定｡VGA视音频混合矩阵内嵌智能控制,采用了独特的处理方式,大大的提高了设备的切换速度;除面板控制键盘和红外遥控操作外,还提供RS232控制接口,方便用户与各种远端控制设备(如快思聪､AMX､思美特等)配合使用;通过随机提供的软件,可方便设定设备编号,便于多台同型设备共联控制;具备掉电状态保护存储､开机自动恢复记忆的功能｡该系列产品主要应用于广播电视工程､多媒体会议厅､大屏幕显示工程､电视教学､指挥控制中心等场所｡产品性能:复合视频特性增益:0dB带宽:80MHz(-3dB)满载亮色度干扰:*************微分相位:0.05º@4.43 MHz微分增益:0.05%4.43 MHz最大传播延时:5nS(±1nS)切换速度:≤180Ns复合视频输入信号类型:复合视频信号接口:RCA接口最小电平:0.5Vp-p最大电平:1.0Vp-p阻抗:75Ω回波损耗:-30dB@5MHz复合视频输出信号类型:复合视频信号接口:RCA接口输出电平:0.7Vp-p阻抗:75Ω回波损耗:-30dB@5MHz直流补偿最大:5mVVGA/RGB特性增益:0dB带宽:350MHz(-3dB)满载微分相位:0.05º@4.43 MHz微分增益:0.05% @4.43 MHz最大传播延时:5nS(±1nS)。

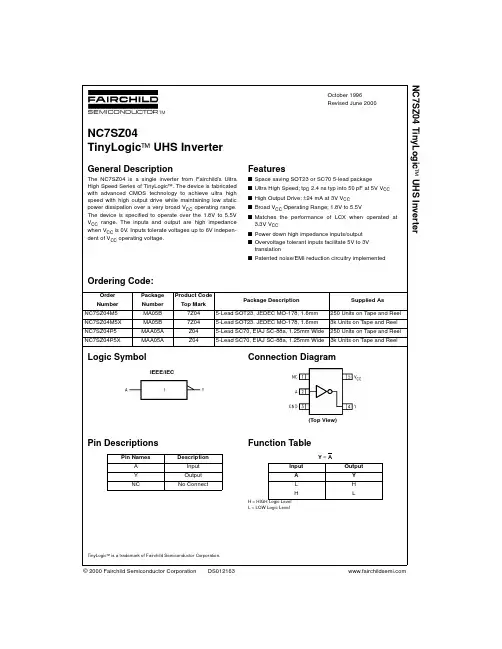

NC7SZ04M5X中文资料
Features
s Space saving SOT23 or SC70 5-lead package s Ultra High Speed; tPD 2.4 ns typ into 50 pF at 5V VCC s High Output Drive; ±24 mA at 3V VCC s Broad VCC Operating Range; 1.8V to 5.5V s Matches the performance of LCX when operated at 3.3V VCC s Power down high impedance inputs/output s Overvoltage tolerant inputs facilitate 5V to 3V translation s Patented noise/EMI reduction circuitry implemented
Logic ol
IEEE/IEC
Connection Diagram
(Top View)
Pin Descriptions
Pin Names A Y NC Description Input Output No Connect
Function Table
Y=A Input A L H
H = HIGH Logic Level L = LOW Logic Level
Note 3: CPD is defined as the value of the internal equivalent capacitance which is derived from dynamic operating current consumption (ICCD) at no output loading and operating at 50% duty cycle. (See Figure 2.) CPD is related to ICCD dynamic operating current by the expression: ICCD = (CPD) (V CC) (fIN) + (ICC static)
NC硬件配置参考
NC V.5X产品IBM硬件配置参考模版目录NC 5.X系统部署图形: (3)NC产品简介 (3)NC 5.X+IBM硬件推荐说明: (4)低端用户配置参考： (5)用户数<100 (5)参考配置1： (5)参考配置2： (6)100<用户数<200 (7)参考配置1 (7)参考配置2 (8)中端应用推荐配置 (9)200<用户数<500 (9)参考配置1 (9)参考配置2 (10)硬件性能参考公式 (11)系统性能服务器的评估方法： (11)具体计算参考公式与案例： (12)网络配置建议 (13)NC 5.X系统部署图形:NC产品简介用友NC（新世纪）管理软件以“协同商务、集中管理”为核心应用理念，包括了财务、供应链、客户关系管理、数据管理中心，电子商务、生产制造、人力资源管理、经营决策支持等产品系列，并提供动态经营模拟、集团财务、集中采购、分销资源计划、项目/作业成本、资金管理、敏捷制造、移动商务等专项解决方案和证券、银行、保险、家电、商业/连锁店、汽车、烟草、医药/食品、服装、公共财政等行业解决方案，以及二次开发环境，是面向大中型企业及组织管理信息化的产品。
同时也是国际领先、国内首发的基于EJB技术体系、B/S结构、XML数据标准和工作流模式，并实现跨平台应用的管理软件。
NC 5.X+IBM硬件推荐说明:NC产品自5.0版本开始OEM IBM WAS（WebSphere Application Server）中间件，为NC在大用户大并发情况下系统的稳定性、可扩展性、可配置性等打下了基础；NC5系列的发版也在IBM实验室及其机器系列上都做过充分测试与验证；加上良好的已使用IBM硬件的NC客户基础，NC 5.X＋IBM硬件是一值得信赖的选择。
NC客户群体具有广泛性：NC客户分布遍及各类行业，现有的近两千家NC 客户群体中，有国家部委机关、有钢铁烟草传媒等行业、有银行证券保险、有超市旅店手机连锁、还有各种类型的企业等等。
ST VNQ05XSP16 数据手册
®VNQ05XSP16QUAD CHANNEL HIGH SIDE SOLID STATE RELAYMarch 20031/17VNQ05XSP16 BLOCK DIAGRAMVNQ05XSP16VNQ05XSP16VNQ05XSP16VNQ05XSP16VNQ05XSP16VNQ05XSP16 Figure 3: WaveformsVNQ05XSP16 APPLICATION SCHEMATICGND PROTECTION NETWORK AGAINST REVERSE BATTERYSolution 1: Resistor in the ground line (R GND only). This can be used with any type of load.The following is an indication on how to dimension the R GND resistor.1) R GND≤ 600mV / (I S(on)max).2) R GND≥ (-V CC) / (-I GND)where -I GND is the DC reverse ground pin current and can be found in the absolute maximum rating section of the device’s datasheet.Power Dissipation in R GND (when V CC<0: during reverse battery situations) is:P D= (-V CC)2/R GNDThis resistor can be shared amongst several different HSD. Please note that the value of this resistor should be calculated with formula (1) where I S(on)max becomes the sum of the maximum on-state currents of the different devices.Please note that if the microprocessor ground is not common with the device ground then the R GND will produce a shift (I S(on)max * R GND) in the input thresholds and the status output values. This shift will vary depending on how many devices are ON in the case of several high side drivers sharing the same R GND.If the calculated power dissipation leads to a large resistor or several devices have to share the same resistor then the ST suggests to utilize Solution 2 (see below).Solution 2: A diode (D GND) in the ground line.A resistor (R GND=1kΩ) should be inserted in parallel to D GND if the device will be driving an inductive load.This small signal diode can be safely shared amongst several different HSD. Also in this case, the presence of the ground network will produce a shift (≅600mV) in the input threshold and the status output values if the microprocessor ground is not common with the device ground. This shift will not vary if more than one HSD shares the same diode/resistor network.LOAD DUMP PROTECTIOND ld is necessary (Voltage Transient Suppressor) if the load dump peak voltage exceeds V CC max DC rating. The same applies if the device will be subject to transients on the V CC line that are greater than the ones shown in the ISO T/R 7637/1 table.µC I/Os PROTECTION:If a ground protection network is used and negative transients are present on the V CC line, the control pins will be pulled negative. ST suggests to insert a resistor (R prot) in line to prevent the µC I/Os pins to latch-up. The value of these resistors is a compromise between the leakage current of µC and the current required by the HSD I/Os (Input levels compatibility) with the latch-up limit of µC I/Os.-V CCpeak/I latchup≤ R prot ≤ (V OHµC-V IH-V GND) / I IHmax For V CCpeak= - 100V and I latchup≥ 20mA; V OHµC≥ 4.5V 5kΩ≤ R prot≤ 65kΩ.Recommended R prot value is 10kΩ.VNQ05XSP1616/17TAPE AND REEL SHIPMENT (suffix “13TR”)TAPE DIMENSIONSAccording to Electronic Industries Association (EIA) Standard 481 rev. A, Feb. 1986All dimensions are in mm.Tape widthW 24Tape Hole Spacing P0 (± 0.1)4Component Spacing P24Hole Diameter D (± 0.1/-0) 1.5Hole Diameter D1 (min) 1.5Hole PositionF (± 0.05)11.5Compartment Depth K (max) 6.5Hole SpacingP1 (± 0.1)2Top cover tapeEndStartNo componentsNo componentsComponents500mm min500mm minEmpty components pockets saled with cover er direction of feedInformation furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may results from its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.The ST logo is a trademark of STMicroelectronics© 2003 STMicroelectronics - Printed in ITALY- All Rights Reserved.STMicroelectronics GROUP OF COMPANIESAustralia - Brazil - Canada - China - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan - Malaysia -Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - U.S.A.。
NC7SZ08P5X,NC7SZ08M5X,NC7SZ08FHX, 规格书,Datasheet 资料
®TinyLogic UHS Two-Input AND GateFeaturesUltra-High Speed: t PD 2.7ns (Typical) into 50pF at 5V V CCHigh Output Drive: ±24mA at 3V V CCBroad V CC Operating Range: 1.65V to 5.5VMatches Performance of LCX Operated at 3.3V V CC Power Down High Impedance Inputs/OutputsOver-Voltage Tolerance inputs facilitate 5V to 3V TranslationProprietary Noise/EMI Reduction CircuitryUltra-Small MicroPak™ PackagesSpace-Saving SOT23 and SC70 Packages DescriptionThe NC7SZ08 is a single two-input AND gate from Fairchild’s Ultra-High Speed (UHS) series of TinyLogic®. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a broad V CC operating range. The devise is specified to operate over the 1.65V to 5.5V V CC operating range. The inputs and output are high impedance when V CC is 0V. Inputs tolerate voltages up to 6V, independent of V CC operating voltage.Ordering InformationPart Number Top Mark Eco Status Package Packing MethodNC7SZ08M5X 7Z08 RoHS 5-Lead SOT23, JEDEC MO-178 1.6mm 3000 Units on Tape & ReelNC7SZ08P5X Z08 RoHS 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3000 Units on Tape & ReelNC7SZ08L6X GG RoHS 6-Lead MicroPak™, 1.00mm Wide 5000 Units on Tape & ReelNC7SZ08FHX GG Green 6-Lead,MicroPak2, 1x1mm Body, .35mm Pitch 5000 Units on Tape & ReelFor Fairchild’s definition of Eco Status, please visit: /company/green/rohs_green.html.NC7SZ08 — TinyLogic ® UHS Two-Input AND GateFigure 1. Logic SymbolPin ConfigurationsFigure 2. SC70 and SOT23 (Top View)Figure 3. MicroPak (Top Through View)Pin DefinitionsPin # SC70 / SOT23Pin # MicroPakNameDescription1 1 A Input2 2 B Input3 3 GND Ground4 4 Y Output56 V CC Supply Voltage5 NC No ConnectFunction TableY=ABInputs OutputNC7SZ08 — TinyLogic ® UHS Two-Input AND GateSymbol Parameter Min. Max. UnitV CC Supply Voltage -0.5 6.0 V V IN DC Input Voltage -0.5 6.0 V V OUT DC Output Voltage -0.56.0 V V IN < -0.5V -50 I IK DC Input Diode Current V IN > 6.0V +20 mAV OUT < -0.5V-50I OK DC Output Diode Current V OUT > 6V, V CC =GND+20 mAI OUT DC Output Current±50 mA I CC or I GND DC V CC or Ground Current±50 mA T STG Storage Temperature Range -65 +150 °C T J Junction Temperature Under Bias+150 °C T LJunction Lead Temperature (Soldering, 10 Seconds)+260°CSOT-23 200SC70-5 150MicroPak-6 130 P DPower Dissipation at +85°CMicroPak2-6 120mWHuman Body Model, JESD22-A114 4000 ESD Charged Device Model, JESD22-C1012000VRecommended Operating ConditionsThe Recommended Operating Conditions table defines the conditions for actual device operation. Recommendedoperating conditions are specified to ensure optimal performance to the datasheet specifications. Fairchild does not recommend exceeding them or designing to Absolute Maximum Ratings.Symbol ParameterConditions Min. Max. UnitSupply Voltage Operating 1.65 5.50 V CCSupply Voltage Data Retention1.50 5.50 V V IN Input Voltage 0 5.5VV OUT Output Voltage0 V CC V T A Operating Temperature-40 +85 °C V CC at 1.8V, 2.5V ± 0.2V 0 20® UHS Two-Input AND Gate1.65 1.55 1.65 1.55 1.80 1.70 1.80 1.702.30 2.20 2.30 2.203.00 2.90 3.00 2.904.50V IN =V IH , I OH =-100µA 4.40 4.504.401.65 I OH =-4mA 1.29 1.52 1.292.30 I OH =-8mA 1.90 2.15 1.903.00 I OH =-16mA 2.50 2.80 2.40 3.00 I OH =-24mA 2.40 2.68 2.30VV OHHIGH LevelOutput Voltage4.50 I OH =-32mA 3.90 4.20 3.801.65 0.00 0.10 0.10 1.80 0.00 0.10 0.102.30 0.00 0.10 0.103.00 0.00 0.10 0.104.50V IN =V IL , I OL =100µA 0.00 0.10 0.10 1.65 I OL =4mA 0.80 0.24 0.24 2.30 I OL =8mA 0.10 0.30 0.30 3.00 I OL =16mA 0.15 0.40 0.40 3.00 I OL =24mA 0.22 0.55 0.55 VV OLLOW LevelOutput Voltage4.50 I OL =32mA0.22 0.55 0.55 I IN Input LeakageCurrent0 to 5.5V IN =5.5V, GND±1±10µAI OFF Power OffLeakage Current0 V IN or V OUT =5.5V 1 10 µAI CCQuiescent SupplyCurrent1.65 to 5.50 V IN =5.5V, GND220µA® UHS Two-Input AND Gate5.00 ± 0.500.5 2.2 4.1 0.5 4.4 3.30 ± 0.30 1.53.3 5.2 1.5 5.55.00 ± 0.50 C L =50pF,R L =500Ω0.8 2.7 4.5 0.84.8C IN Input Capacitance 0.00 4 pF 3.30 20 C PDPower DissipationCapacitance (2)5.0025pF Figure 6Note:2. C PD is defined as the value of the internal equivalent capacitance which is derived from dynamic operatingcurrent consumption (I CCD ) at no output lading and operating at 50% duty cycle. C PD is related to I CCD dynamic operating current by the expression: I CCD =(C PD )(V CC )(f IN )+(I CC static).Notes:3. C L includes load and stray capacitance.4. Input PRR=1.0MHz; t W 500ns.Figure 4. AC Test CircuitFigure 5. AC Waveforms=1.8ns; PRR=10MHz; Duty Cycle=50%.Test Circuit® UHS Two-Input AND Gate132LAND PATTERN RECOMMENDATIONC 0.10C0.20C A B0.60 REF0.550.35SEATING PLANE0.25GAGE PLANE8°0°NOTES: UNLESS OTHEWISE SPECIFIEDA) THIS PACKAGE CONFORMS TO JEDEC MO-178, ISSUE B, VARIATION AA,B) ALL DIMENSIONS ARE IN MILLIMETERS. 1.45 MAX1.300.900.150.051.900.950.500.301.502.600.701.00SEE DETAIL A0.220.08C) MA05Brev5TOP VIEW (0.30)Figure 7. 5-Lead SOT23, JEDEC MO-178 1.6mmPackage drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify or obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specifically the warranty therein, which covers Fairchild products.Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings: /packaging/.Tape and Reel Specifications®UHS Two-Input AND GateFigure 8. 5-Lead, SC70, EIAJ SC-88a, 1.25mm WidePackage drawings are provided as a service to customers considering Fairchild components. Drawings may change in any mannerwithout notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verifyor obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specificallythe warranty therein, which covers Fairchild products.Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings:/packaging/.Tape and Reel Specifications® UHS Two-Input AND Gate2. DIMENSIONS ARE IN MILLIMETERS1. CONFORMS TO JEDEC STANDARD M0-252 VARIATION UAAD MAC06AREVCNotes:3. DRAWING CONFORMS TO ASME Y14.5M-1994TOP VIEWRECOMMENED LAND PATTERNBOTTOM VIEWA0.55MAX0.05C(0.75)(0.52)(0.30)6X 1X6X PIN 1DETAIL A0.075 X 45CHAMFER0.250.150.350.250.400.300.5(0.05) 1.0DETAIL APIN 1 TERMINAL0.400.300.450.350.100.000.10C B A 0.05CC0.05C0.050.005X 5X 6X(0.13)4X6XFigure 9. 6-Lead, MicroPak™, 1.0mm WidePackage drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify or obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specifically the warranty therein, which covers Fairchild products.Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings: /packaging/.®UHS Two-Input AND Gate DETAIL A5XFigure 10. 6-Lead, MicroPak2, 1x1mm Body, .35mm PitchPackage drawings are provided as a service to customers considering Fairchild components. Drawings may change in any mannerwithout notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verifyor obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specificallythe warranty therein, which covers Fairchild products.Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings:/packaging/.NC7SZ08 — TinyLogic ® UHS Two-Input AND Gate。
