最新外文翻译 汽车后桥直焊缝焊接专机设计
外文翻译汽车后桥直焊缝焊接专机设计
本科生毕业设计（论文）外文翻译毕业设计（论文）题目：汽车后桥直缝焊接专机设计
外文题目：SENSITIVITY ANALYSIS FOR REDUCING CRITICAL RESPONSESAT THE AXLE SHAFT OF A LIGHTWEIGHT VEHICLE
译文题目：减轻轻型车后桥共振反应的灵敏度分析
学生姓名：张昊伟
专业：机械设计制造及其自动化
指导教师姓名：王赫莹
评阅日期：
减轻轻型车后桥共振反应的灵敏度分析
摘要−共振反应是经常发生在轻型车的耦合的扭转梁轴（CTBA）上的一种现象。
然而，修改车轴设计是受到很多限制的，但是悬挂系统必须满足汽车转向性能等要求。
传统灵敏度分析不能提供实用的共振行为信息，因为传统分析只分析了标准的车辆车轴。
本文提出了一种新的灵敏度分析，它是在可传递性比率(TRs)的基础上建立的。
这种分析不同于传统分析，车辆车轴以外的其他部件也可以成为被分析对象。
这种新分析方法提出的设计修改在仿真模拟结果表明：汽车后桥的振动大大减少了。
新灵敏度分析方法大大减小了轻型车后桥设计的难度，车辆后桥的共振响应也可以有效地控制。
关键词:共振反应、灵敏度分析、传递函数、设计修改、多体半车模型
1.简介
CTBA是一个创新的悬架模型，它简化了轻型车辆的结构减少了制造成本，并且它同时也保持了所需的模块的功能，比如车辆原地转向。
的主要缺点CTBA 模型会产生共振，驱动轴经常产生噪音。
车轴制动时车轴频繁的发出的200赫兹到400赫兹的噪音。
(图一)。
先前的研究的结构共振CTBA模型只关注粘滑运动时制动盘和垫片。
最近，一些受到中断振动路径启发的改进设计建议被报道。
现在，在汽车工程开发中已经对几种制动性噪声和振动反应提出了方法和对策。
模态参与因子（MPFs）已被广泛使用，它是一个相邻零件耦合引起的灵敏度指标。
该模型的常见例子是耦合问题时的制动系统噪声；此设计方法是基于MPF提出的。
不过,MPF方法不能被用于CTBA引起的共振问题，因为的噪音是不同机制引起的。
关键部位的共振问题可以利用灵敏度分析有效解决。
CTBA的共振模型是经常被用在复杂的结构中如在车辆悬架模块，和敏感度分析中。
这种模型能使我们能够确定对最敏感组件进行修改。
尽管不同的灵敏度分析方法存在，如有限
差分分析，和半解析方法，这些方法需要准确的动态信息,如特征值和特征向量实现。
现有的分析方法的共振行为很难直接应用，因为他们需要精确的系统CTBA模块识别特征值和特征向量。
如果灵敏度分析可以只使用以执行现场响应数据，可以获得的反应准确的灵敏度结果至关重要；此外，大量时间数据将被保存。
图1车辆的制动噪声的分类系统。
本文提出了一种新的基于灵敏度分析传递性比率（TRS）来确定合适的部件，最小的设计变化减少部件车轴轴临界响应。
敏感性分析是通过模拟验证一五自由度（5DOF）振动系统。
本文提出的灵敏度分析应用于轻型车辆CTAB模块。
虽然MPF的方法确定候选部件，对它进行设计修改，但该组件可以不实际的改良。
本文提出的灵敏度分析鉴定为适当的组件改性。
利用多体动力学仿真，我们证实了一个大的振动可以通过一个小的设计修改实现组件来减小。
的灵敏度分析是基于设计最小化原则灵敏度与TR的大小成反比。
可以描述使用一个简单的线性开环系统，它是单自由度振动路径的一部分。
如果一个小的设计改变了在节点2，然后动态系统的相应可以在节点2和3上。
2．灵敏度的应用分析
2.1车辆的测试信号的采集
一辆1000CC500千克的轻型车辆在现场试验进行采集和分析的共振响应信号。
测试车辆和传感器，如图7所示。
记声计被安装在靠近左后轮，与车速表连接到后保险杠。
加速度计被安装在不同的点在CTBA和汽车制动中。
CTAB组成的轴，纵臂，和一个支架中有一个简单的降低制造成本的结构设计。
LMS树状信号采集系统被用来获取传感器的信号。
图7安装在测试车辆的传感器。
图8车辆组件和配置加速度计的安装位置。
据研究CTBA的共振反应发生在低速、高湿度和低温。
因此,汽车测试在以下条件下进行：
(1)制动盘或卡尺装全是湿的；
(2)直到制动模块的温度降低到足够小之前车辆驱动制动不采取任何行动；
此外测试车辆的速度10，20，和30公里/小时和三个刹车动作：没有刹车,缓慢制动和紧急制动。
测试模式表2所示。
表2实验汽车的测试模式
辆测试结果在表3中做了总结。
关键响应信号很明显当车辆速度等于或小于10公里/小时在相反的方向。
汽车不刹车情况下速度保持10公里/小时下的测试环境下，半轴的垂直加速度测量如图9。
表3车辆振动一代测试结果
注：字母“o”和“x”表示发生与否，分别在车轴的共振。
图9汽车在10公里/小时行驶时半轴的垂直加速度(a)有制动(b)没有制动3.2半轴的关键光谱检测使用小波分析
因为在车辆测试获得的传感器信号容易被来自源引擎或地面的噪声污染，信号处理需要过滤噪音。
本次实验中离散小波变换(DWT)是用于检测的主要频率CTBA模块的共振响应的。
DWT的能力是检测隐藏元素在嘈杂的信号，将信号分解为近似值和细节。
在分析原始信号后，原始信号分解成三个层次(D1,D2,和D3)和一个近似(A3)。
并对信号进行了离散分分析和傅里叶变换(DFT)。
原始的频率和D2信号如图10所示。
尽管主要峰值330赫兹可以识别，但另一个190的峰值在利用DWT后才被发现。
图10相关的共振反应频率
（a）没有经过DWT处理的原始信号（b）经过DWT处理后的信号
3.3应用灵敏度的方法和关键反应问题
3.3.1使用MPF的灵敏度分析
频率响应函数的每个节点是通过测试车辆完整行进过程中的震动反应的。
一个脉冲力施加在CTBA(节点1)中并对20个节点的加速度振动轨迹进行测量。
此外对模态参数进行提取，通过执行独立模态分析每个组件的使用动态。
除了CTAB所有的组件有一个低1000赫兹的刚性模式。
特别是，在后桥第三和第五弯曲模式是特别容易响应的主要频率。
计算在各组分接在190和330赫兹的频率后。
结果表明，结果表明，轴造成明显的共振反应。
然而，CTBA的设计不可能改善共振响应，因为修改CTBA对行驶舒适和主要汽车功能有显著的影响。
3.3.2新组件灵敏度分析
先前的研究CTBA的关键行为模块报道，车轴的共振行为不利于系统的稳定，一个相应的的制动噪声传播模块。
考虑到关键反应传输从CTBA制动模块,两个振动路径假设如下：
路径1：轴→纵臂→托架→丁字形板→盘
路径2：轴→纵臂→托架→丁字形板→卡尺
在测量节点在图中,较长节点的路径选择和一个新的振动灵敏度分析进行了190赫兹和330年赫兹频率。
每个组件的计算灵敏度表5所示。
半轴是最节点2关键位置在330赫兹,而落后的节点手臂和支架在190赫兹的最大灵敏度。
不同于CTBA,纵臂和支架是合适的组件进行设计修改。
3.4使用该设计方法进行设计修改
基于灵敏度分析提出的设计修改策略集中在最小的变化的组件如支架和纵臂。
螺栓的数量和支架的大小会改善夹紧刚度和阻尼。
此外,纵臂的厚度的增长会让汽车结构变坚固。
所提出的设计变更进行验证是使用计算机辅助工程（CAE）为基础的参数进行研究的。
MSC Adams是一个多体半车模型。
Adams模型的准确性增强了整合CTBA的灵活方式和制动盘模态分析结果。
半车模型的仿真在进行的5公里/小时的速度没有任何噪音。
在模拟、半轴的反应追踪中显示了加速度的峰值。
设计修改后仿真结果表明，汽车后桥共振水平峰值从190赫兹到330赫兹之间分别减少了63%和63%。
虽然设计修改是专注于改善反应在190赫兹，半轴响应降低明显在190年和330赫兹,因为修改也影响了TR组件在330赫兹。
4结论
新灵敏度分析用可传递性比率(TRs)来识别汽车最敏感组件如支架和手臂，提出了解决汽车后桥共振反应的方法从TR的方法。
在测试中，测试车辆主要的半轴震动频率从190赫兹到330赫兹。
拟议中的使用进行了灵敏度分析响应测量车辆测试期间同时进行MPFs平行分析。
虽然能确定对MPFs提出设计修改但这部分几乎不能被改动。
提出的灵敏度分析确定了两个可修改的组件如支架和纵臂。
设计修改策略是使用半车验证与Adams仿真。
仿真结果表明，汽车后桥共振水平峰值从190赫兹到330赫兹之间分别减少了63%和63%。
因此,
拟议中的灵敏度分析可能成为今后主要的后桥共振分析方法。
声明−这项研究是由SNU-IAMD和韩国教育与人力资源开发项目部支持的。
此外，这项研究由CVT项目资助(批准号知识经济部的10038467)，韩国。

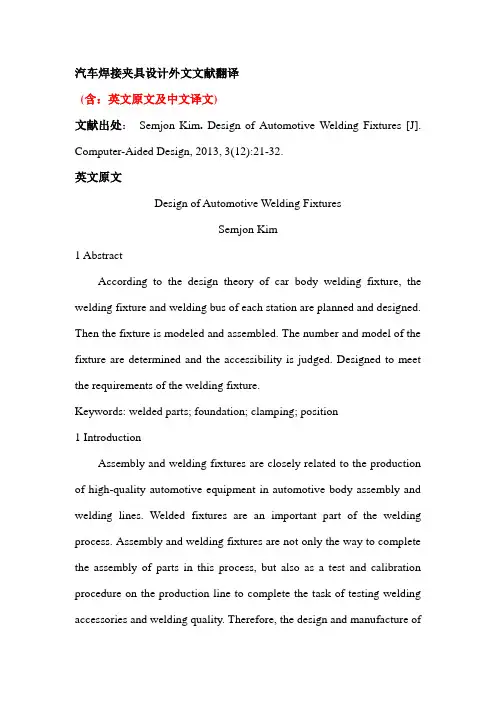

汽车焊接夹具设计外文文献翻译
汽车焊接夹具设计外文文献翻译(含：英文原文及中文译文)文献出处：Semjon Kim.Design of Automotive Welding Fixtures [J]. Computer-Aided Design, 2013, 3(12):21-32.英文原文Design of Automotive Welding FixturesSemjon Kim1 AbstractAccording to the design theory of car body welding fixture, the welding fixture and welding bus of each station are planned and designed. Then the fixture is modeled and assembled. The number and model of the fixture are determined and the accessibility is judged. Designed to meet the requirements of the welding fixture.Keywords: welded parts; foundation; clamping; position1 IntroductionAssembly and welding fixtures are closely related to the production of high-quality automotive equipment in automotive body assembly and welding lines. Welded fixtures are an important part of the welding process. Assembly and welding fixtures are not only the way to complete the assembly of parts in this process, but also as a test and calibration procedure on the production line to complete the task of testing welding accessories and welding quality. Therefore, the design and manufacture ofwelding fixtures directly affect the production capacity and product quality of the automobile in the welding process. Automotive welding fixtures are an important means of ensuring their manufacturing quality and shortening their manufacturing cycle. Therefore, it is indispensable to correctly understand the key points of welding fixture design, improve and increase the design means and design level of welding fixtures, and improve the adjustment and verification level of fixtures. It is also an auto manufacturing company in the fierce competition. The problem that must be solved to survive.The style of the car is different from that of the car. Therefore, the shape of the welding jig is very different. However, the design, manufacture, and adjustment are common and can be used for reference.2. Structural design of welding fixtureThe structure design of the welding fixture ensures that the clip has good operational convenience and reliable positioning of the fixture. Manufacturers of welding fixtures can also easily integrate adjustments to ensure that the surfaces of the various parts of the structure should allow enough room for adjustments to ensure three-dimensional adjustment. Of course, under the premise of ensuring the accuracy of the welding jig, the structure of the welding jig should be as simple as possible. The fixture design is usually the position of all components on the fixture is determined directly based on the design basis, and ultimately ensure thatthe qualified welding fixture structure is manufactured. According to the working height, the height of the fixture bottom plate can be preliminarily determined, that is, the height of the fixture fixing position. The welding fixture design must first consider the clamping method. There are two types, manual and pneumatic. Manual clamping is generally suitable for small parts, external parts, and small batches of workpieces. For large body parts, planning in the production line, automation High-demand welding fixtures should be pneumatically clamped. Automobile production is generally pneumatically clamped, and manual mass clamping can be used as auxiliary clamping. This can reduce costs accordingly. Some manual clamping products already have standard models and quantities, which can be purchased in the market when needed. For some devices, pneumatic clamping is specified, but if pneumatic clamping is used, the workpiece may be damaged. Therefore, it is possible to manually press the place first to provide a pneumatic clamping force to clamp the workpiece. This is manual-pneumatic. . The fixture clamping system is mounted on a large platform, all of which are fixed in this welding position to ensure that the welding conditions should meet the design dimensions of the workpiece coordinate system positioning fixture, which involves the benchmark.3. Benchmarks of assembly and welding fixtures and their chosen support surfaces3.1 Determination of design basisIn order to ensure that the three-dimensional coordinates of the automatic weldment system are consistent, all welding fixtures must have a common reference in the system. The benchmark is the fixture mounting platform. This is the X, Y coordinate, each specific component is fixed at the corresponding position on the platform, and has a corresponding height. Therefore, the Z coordinate should be coordinated, and a three-dimensional XYZ coordinate system is established. In order to facilitate the installation and measurement of the fixture, the mounting platform must have coordinates for reference. There are usually three types. The structure is as follows:3.1.1 Reference hole methodThere are four reference holes in the design of the installation platform, in which the two directions of the center coordinates of each hole and the coordinates of the four holes constitute two mutually perpendicular lines. This is the collection on the XY plane coordinate system. The establishment of this benchmark is relatively simple and easy to process, but the measurements and benchmarks used at the same time are accurate. Any shape is composed of spatial points. All geometric measurements can be attributed to measurements of spatial points. Accurate spatial coordinate acquisition is therefore the basis for assessing any geometric shape. Reference A coordinated direction formed by oneside near two datums.3.1.2 v-type detection methodIn this method, the mounting platform is divided into two 90-degree ranges. The lines of the two axes make up a plane-mounted platform. The plane is perpendicular to the platform. The surface forms of these two axis grooves XY plane coordinate system.3.1.3 Reference block methodReference Using the side block perpendicular to the 3D XYZ coordinate system, the base of a gage and 3 to 4 blocks can be mounted directly on the platform, or a bearing fixing fixture platform can be added, but the height of the reference plane must be used to control the height , must ensure the same direction. When manufacturing, it is more difficult to adjust the previous two methods of the block, but this kind of measurement is extremely convenient, especially using the CMM measurement. This method requires a relatively low surface mount platform for the reference block, so a larger sized mounting platform should use this method.Each fixture must have a fixed coordinate system. In this coordinate system, its supporting base coordinate dimensions should support the workpiece and the coordinates correspond to the same size. So the choice of bearing surface in the whole welding fixture system 3.2When the bearing surface is selected, the angle between the tangentplane and the mounting platform on the fixed surface of the welding test piece shall not be greater than 15 degrees. The inspection surface should be the same as the welded pipe fittings as much as possible for the convenience of flat surface treatment and adjustment. The surface structure of the bearing should be designed so that the module can be easily handled, and this number can be used for the numerical control of the bearing surface of the product. Of course, designing the vehicle body coordinate point is not necessarily suitable for the bearing surface, especially the NC fixture. This requires the support of the fixture to block the access point S, based on which the digital surface is established. This surface should be consistent with the supported surface. So at this time, it is easier and easier to manufacture the base point S, CNC machining, precision machining and assembly and debugging.3.2 Basic requirements for welding fixtureIn the process of automobile assembly and production, there are certain requirements for the fixture. First, according to the design of the automobile and the requirements of the welding process, the shape, size and precision of the fixture have reached the design requirements and technical requirements. This is a link that can not be ignored, and the first consideration in the design of welding fixture is considered. When assembling, the parts or parts of the assembly should be consistent with the position of the design drawings of the car and tighten with the fixture.At the same time, the position should be adjusted to ensure that the position of the assembly parts is clamped accurately so as to avoid the deformation or movement of the parts during the welding. Therefore, this puts forward higher requirements for welding jig. In order to ensure the smooth process of automobile welding and improve the production efficiency and economic benefit, the workers operate conveniently, reduce the strength of the welder's work, ensure the precision of the automobile assembly and improve the quality of the automobile production. Therefore, when the fixture design is designed, the design structure should be relatively simple, it has good operability, it is relatively easy to make and maintain, and the replacement of fixture parts is more convenient when the fixture parts are damaged, and the cost is relatively economical and reasonable. But the welding fixture must meet the construction technology requirements. When the fixture is welded, the structure of the fixture should be open so that the welding equipment is easy to close to the working position, which reduces the labor intensity of the workers and improves the production efficiency.4. Position the workpieceThe general position of the workpiece surface features is determined relative to the hole or the apparent positioning reference surface. It is commonly used as a locating pin assembly. It is divided into two parts: clamping positioning and fixed positioning. Taking into account thewelding position and all welding equipment, it is not possible to influence the removal of the final weld, but also to allow the welding clamp or torch to reach the welding position. For truly influential positioning pins and the like, consider using movable positioning pins. In order to facilitate the entry and exit of parts, telescopic positioning pins are available. The specific structure can be found in the manual. The installation of welding fixtures should be convenient for construction, and there should be enough space for assembly and welding. It must not affect the welding operation and the welder's observation, and it does not hinder the loading and unloading of the weldment. All positioning elements and clamping mechanisms should be kept at a proper distance from the solder joints or be placed under or on the surface of the weldment. The actuator of the clamping mechanism should be able to flex or index. According to the formation principle, the workpiece is clamped and positioned. Then open the fixture to remove the workpiece. Make sure the fixture does not interfere with opening and closing. In order to reduce the auxiliary time for loading and unloading workpieces, the clamping device should use high-efficiency and quick devices and multi-point linkage mechanisms. For thin-plate stampings, the point of application of the clamping force should act on the bearing surface. Only parts that are very rigid can be allowed to act in the plane formed by several bearing points so that the clamping force does not bend the workpiece or deviate from thepositioning reference. In addition, it must be designed so that it does not pinch the hand when the clamping mechanism is clamped to open.5. Work station mobilization of welding partsMost automotive solder fittings are soldered to complete in several processes. Therefore, it needs a transmission device. Usually the workpiece should avoid the interference of the welding fixture before transmission. The first step is to lift the workpiece. This requires the use of an elevator, a crane, a rack and pinion, etc. The racks and gears at this time Structure, their structural processing, connection is not as simple as the completion of the structure of the transmission between the usual connection structure of the station, there are several forms, such as gears, rack drive mechanism, transmission mechanism, rocker mechanism, due to the reciprocating motion, shake The transfer of the arm mechanism to the commissioning is better than the other one, so the common rocker arm transfer mechanism is generally used.6 ConclusionIn recent years, how to correctly and reasonably set the auxiliary positioning support for automotive welding fixtures is an extremely complicated system problem. Although we have accumulated some experience in this area, there is still much to be learned in this field. Learn and research to provide new theoretical support for continuous development and innovation in the field of welding fixture design. Withthe development of the Chinese automotive industry, more and more welding fixtures are needed. Although the principle of the fixture is very simple, the real design and manufacture of a high-quality welding fixture system is an extremely complicated project.中文译文汽车焊接夹具的设计Semjon Kim1摘要依据车体焊装线夹具设计理论, 对各工位焊接夹具及其焊装总线进行规划、设计, 之后进行夹具建模、装配, 插入焊钳确定其数量、型号及判断其可达性,最终设计出符合要求的焊接夹具。
外文翻译 汽车后桥直焊缝焊接专机设计
外文翻译汽车后桥直焊缝焊接专机设计本科生毕业设计（论文）外文翻译毕业设计（论文）题目：汽车后桥直缝焊接专机设计外文题目：SENSITIVITY ANALYSIS FOR REDUCING CRITICAL RESPONSESAT THE AXLE SHAFT OF A LIGHTWEIGHT VEHICLE译文题目：减轻轻型车后桥共振反应的灵敏度分析学生姓名：张昊伟专业：机械设计制造及其自动化指导教师姓名：王赫莹评阅日期：减轻轻型车后桥共振反应的灵敏度分析摘要−共振反应是经常发生在轻型车的耦合的扭转梁轴（CTBA）上的一种现象。
然而，修改车轴设计是受到很多限制的，但是悬挂系统必须满足汽车转向性能等要求。
传统灵敏度分析不能提供实用的共振行为信息，因为传统分析只分析了标准的车辆车轴。
本文提出了一种新的灵敏度分析，它是在可传递性比率(TRs)的基础上建立的。
这种分析不同于传统分析，车辆车轴以外的其他部件也可以成为被分析对象。
这种新分析方法提出的设计修改在仿真模拟结果表明：汽车后桥的振动大大减少了。
新灵敏度分析方法大大减小了轻型车后桥设计的难度，车辆后桥的共振响应也可以有效地控制。
关键词:共振反应、灵敏度分析、传递函数、设计修改、多体半车模型1.简介CTBA是一个创新的悬架模型，它简化了轻型车辆的结构减少了制造成本，并且它同时也保持了所需的模块的功能，比如车辆原地转向。
的主要缺点CTBA 模型会产生共振，驱动轴经常产生噪音。
车轴制动时车轴频繁的发出的200赫兹到400赫兹的噪音。
(图一)。
先前的研究的结构共振CTBA模型只关注粘滑运动时制动盘和垫片。
最近，一些受到中断振动路径启发的改进设计建议被报道。
现在，在汽车工程开发中已经对几种制动性噪声和振动反应提出了方法和对策。
模态参与因子（MPFs）已被广泛使用，它是一个相邻零件耦合引起的灵敏度指标。
该模型的常见例子是耦合问题时的制动系统噪声；此设计方法是基于MPF提出的。
汽车驱动桥设计外文文献翻译、中英文翻译、外文翻译
AppendixChina in the first half of 2008 about 93 million trucks accumulative total sales of cars, vans 61 million vehicles, year-on-year growth of 20.2%, visible light car in commercial car production has a large proportion. And driving axle is very important in the vehicle driving axle is the important car auto bearing assembly, auto frame and integral by suspension of body vertical force, to lead the longitudinal forces, transverse force and torque, and impact load; Driving axle also delivers the transmission, the maximum torque reaction is under.Automobile driving axle structure and design parameters in addition to the reliability of the automobile and durability have important influence on the outside, also for the automobile driving performance such as power, economy, smooth, through sex, mobility Automobile driving axle design involves the mechanical parts and components is widely to these varieties, spare parts, components and assemblies manufacturing also almost want to design to all modern machinery manufacturing process, design a simple structure, reliable operation and low cost, can greatly reduce the drive axle of the total cost of the vehicle production, promote economic development, and car to drive through the car studying and designing practice, can better learning and mastery of the modern car design and mechanical design of the comprehensive knowledge and skills, and the overall thinking and operation skill check, drawing, is the very important link, so ontology of a structure design of fine vans axles has certain Automobile driving axle is one of the main parts car, its basic function is to enlarge the shaft or by the torque transmission spread, then torque distribution to drive wheels, and make about driving wheel has about vehicle movement required differential function; Axles in the end of powertrain system, choose proper Lord slowdown, ensure cars than with sufficient ground clearance is achieved, gear and other transmission job need to ensure smooth are the parameters, and even bear effect on the pavement drive axle and frame or carrying body vertical force, the lead between transverse and longitudinal force and torque force. Driving axle quality, performance will have a direct impact on the vehicle's safety, economy, comfort and reliability. After the car driving axle design can make the students' comprehensive by using their This thesis research aims to overall matching car by driving axle Lord finish design of gear reducer, differential component such as type of design and calculation, and complete checking and comprehensive design single main reducer, then the batch Through the design of the vehicle driving axle should also master the understanding, including each component interaction between the body and the electricalsystem, the influence and cooperate to drive axle of the process and therefore more familiar with vehicle mastery. That in the future the production and living effectly use.附录我国2008年上半年货车累计销售约93万辆，其中轻型货车61万辆，同比增长20.2%，可见轻型汽车在商用汽车生产中占有很大的比重。
驱动桥毕业设计外文翻译
毕业设计/论文外文文献翻译系别自动化系专业班级机械电子工程0603班姓名评分指导教师2010 年4月29日毕业设计/论文外文文献翻译要求：1．外文文献翻译的内容应与毕业设计/论文课题相关。
2．外文文献翻译的字数：非英语专业学生应完成与毕业设计/论文课题内容相关的不少于2000汉字的外文文献翻译任务（其中，汉语言文学专业、艺术类专业不作要求），英语专业学生应完成不少于2000汉字的二外文献翻译任务。
格式按《华中科技大学武昌分校本科毕业设计/论文撰写规范》的要求撰写。
3．外文文献翻译附于开题报告之后：第一部分为译文，第二部分为外文文献原文，译文与原文均需单独编制页码（底端居中）并注明出处。
本附件为封面，封面上不得出现页码。
4．外文文献翻译原文由指导教师指定，同一指导教师指导的学生不得选用相同的外文原文。
驱动桥设计随着汽车对安全、节能、环保的不断重视，汽车后桥作为整车的一个关键部件，其产品的质量对整车的安全使用及整车性能的影响是非常大的，因而对汽车后桥进行有效的优化设计计算是非常必要的。
驱动桥处于动力传动系的末端，其基本功能是增大由传动轴或变速器传来的转矩,并将动力合理地分配给左、右驱动轮，另外还承受作用于路面和车架或车身之间的垂直力力和横向力。
驱动桥一般由主减速器、差速器、车轮传动装置和驱动桥壳等组成。
驱动桥作为汽车四大总成之一，它的性能的好坏直接影响整车性能，而对于载重汽车显得尤为重要。
驱动桥设计应当满足如下基本要求：1、符合现代汽车设计的一般理论。
2、外形尺寸要小，保证有必要的离地间隙。
3、合适的主减速比，以保证汽车的动力性和燃料经济性。
4、在各种转速和载荷下具有高的传动效率。
5、在保证足够的强度、刚度条件下，力求质量小，结构简单，加工工艺性好，制造容易，拆装，调整方便。
6、与悬架导向机构运动协调，对于转向驱动桥，还应与转向机构运动协调。
智能电子技术在汽车上得以推广使得汽车在安全行驶和其它功能更上一层楼。

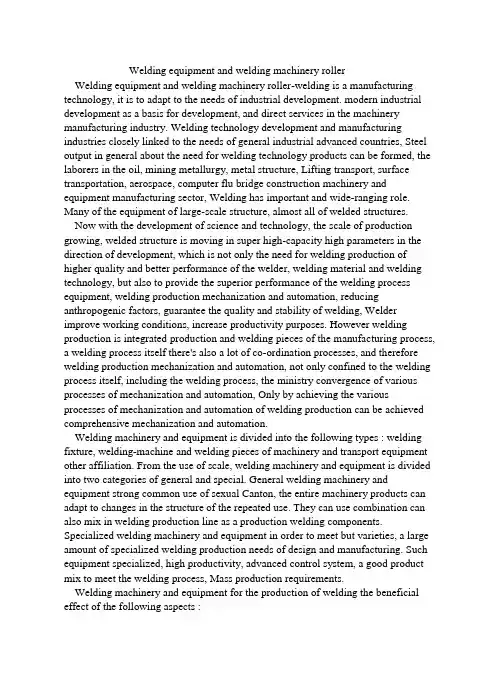

焊接机械装备翻译
Welding equipment and welding machinery rollerWelding equipment and welding machinery roller-welding is a manufacturing technology, it is to adapt to the needs of industrial development. modern industrial development as a basis for development, and direct services in the machinery manufacturing industry. Welding technology development and manufacturing industries closely linked to the needs of general industrial advanced countries, Steel output in general about the need for welding technology products can be formed, the laborers in the oil, mining metallurgy, metal structure, Lifting transport, surface transportation, aerospace, computer flu bridge construction machinery and equipment manufacturing sector, Welding has important and wide-ranging role. Many of the equipment of large-scale structure, almost all of welded structures. Now with the development of science and technology, the scale of production growing, welded structure is moving in super high-capacity high parameters in the direction of development, which is not only the need for welding production of higher quality and better performance of the welder, welding material and welding technology, but also to provide the superior performance of the welding process equipment, welding production mechanization and automation, reducing anthropogenic factors, guarantee the quality and stability of welding, Welder improve working conditions, increase productivity purposes. However welding production is integrated production and welding pieces of the manufacturing process, a welding process itself there's also a lot of co-ordination processes, and therefore welding production mechanization and automation, not only confined to the welding process itself, including the welding process, the ministry convergence of various processes of mechanization and automation, Only by achieving the various processes of mechanization and automation of welding production can be achieved comprehensive mechanization and automation.Welding machinery and equipment is divided into the following types : welding fixture, welding-machine and welding pieces of machinery and transport equipment other affiliation. From the use of scale, welding machinery and equipment is divided into two categories of general and special. General welding machinery and equipment strong common use of sexual Canton, the entire machinery products can adapt to changes in the structure of the repeated use. They can use combination can also mix in welding production line as a production welding components. Specialized welding machinery and equipment in order to meet but varieties, a large amount of specialized welding production needs of design and manufacturing. Such equipment specialized, high productivity, advanced control system, a good product mix to meet the welding process, Mass production requirements.Welding machinery and equipment for the production of welding the beneficial effect of the following aspects :1) using welding fixture. Parts are positioning device positioning, not crossed, we can not accurately measure the location of assembly, thereby ensuring the accuracy of assembly, accelerated the progress of the assembly work.2) As in the welding fixture can be forced to give advance or reinforceanti-distortion, they are able to control or eliminate welding deformation.3) using welding fixture, due to the welding assembly to ensure the accuracy and control of welding deformation, Therefore, to enhance the exchange of welding performance and welding pieces of the tie hole, groove with mechanical elements to be reduced from the first welding processing into first after the welding process, thus avoiding the large welded structure welding process on behalf of difficulties, to shorten the production cycle of welding.4) using welding machine building can be shortened assembly and welding process, welding pieces of anti-change time reduce auxiliary working hours, increased utilization of welding and welding productivity.5) using welding machinery spaces will welding pieces in the most favorable position welding. This is conducive to operate, enabling welding quality assurance, but also intensify the welding process norms, full welding performance.6) Use of chanting positioner to expand the scope of the welding welder.7) using welding machinery and equipment, will enable the manual modification of machinery and the only person in control of the position, factors that reduce the quality of the welding impact, but also lowers the level of manipulating welder requirements.8) Only with mutual welding machinery and equipment to be matched in difficult conditions, environmental hazards, not directly manipulated by artificial occasions welding operations. For example, in the heat, Sham Shui Po, a radioactive environment for the conduct of welding operations, need with the corresponding welding machinery and equipment interfaces can be achieved.9) To Make welding process itself mechanization and automation, or welding production process to achieve comprehensive automation, require welding machinery and equipment support can be achieved. In short, welding machinery and equipment for welding production process enabling role is multifaceted.In a nutshell, is to ensure that the welding quality, and improve welding productivity, improve workers Zuye environment, mechanization and automation of welding production process four aspects. So in the welding shop or at the construction site. Welding machinery and equipment has become welding production process indispensable equipment, which was widely used. Welding is a roller-roller through the initiative and welding pieces of friction, lead welding pieces of rotating machinery modification. Welding roller stand for the main pieces of tube welding and welding assembly. If the right owners, the high roller follower appropriate adjustments will be able to conduct Cone, ranging from sub-diameterrotating assembly and welding. Some non-circular shape welding long pieces, if their card installed in a special card for the ring, Also available on the shelves of welding roller welded assembly work. Roller-welding to the structure and the breakdown is as follows : the first is the long axis of the wheel-F. Roller along with two parallel axes, and the driving device linked to a row to take the initiative wheel, another row of the roller follower. there are two rows of rollers are aware of, mainly for the slender-thin pieces of welding and welding of the group. Some long axis of its F - scroll wheel for a roller-long, has a diameter of 0.3-0.4m, a length of ~ 5m. Shell placed on the axial deformation not apply to thin, small-diameter,multi-cylinder welding pieces of the team up and girth welding. Some long axis of its F - scroll wheel for a long-roller, diameter and a length of ~ 5. Shell placed on deformation not apply to thin, small-diameter, multi-cylinder welding pieces of the team up and girth welding.F-long axis of the wheel are based on users welding pieces of the characteristics of its own design and manufacture, market for the selected few stereotypes products. The second category is modular roller stand, its active wheel racks, roller-follower. Hybrid wheel frame (that is, in a stent with an initiative on the wheel and a roller follower Block) is an independent, using welding pieces under the weight and length of arbitrary composition, its composition ratio is not only a more than one combination.Therefore, it is flexible, the applicability of welded pieces of a strong, which is the most widely used form of the structure. Domestic and foreign manufacturers have their own series of products supply market. If welding thickness and length of the smaller long welded pieces, it is appropriate several mixed-wheel combination, This direction along the length of the cylinder have the initiative wheel drive, welding pieces from slipping and distortions. If welding thickness larger, better rigid tube welding pieces, we would often take the initiative to use the wheel - and-roller follower of the portfolio, Even though the initiative is the roller-cylinder side-driven rotating welding pieces, but due to the welding pieces of rigid, and managed to maintain a uniform speed, not causing distortion. To diameter of the welding of different welding, the welding Roller roller-spacing should be able to adjust. Adjust two ways : one is self-tuning; A non-self-tuning of. Self-tuning based on the diameter of the welding automatically adjust the wheel spacing; Non-self-tuning the mobile scaffold on the wheel on the Block, to adjust the wheel spacing.Non-self-tuning of the roller frame is welded mobile scaffold on the wheel on the Block, to adjust the wheel spacing. The heavy roller stand, and use the shop lifting equipment moved roller Block Sub-conditioning. Roller-right light, the use of manual and electric screw-nut body to Block Mobile scroll continuously. In order to facilitate adjustment wheel the distance between planes to accommodate different length welding pieces of welding assembly, Some roller shelves are also installedmobile or non-motorized travel agencies, along the migration path to adjust the distance between each other. Welding roller-use DC motor-driven, pressure-relief governor. But for the assembly work roller frame is used AC motor-driven, constant speed operation.n recent years, with Crystal Gateway flow control inverter and improve the performance of lower prices, AC motor drive, VVVF welding roller frame is also increasing. MULTI-metal wheel with steel and ductile iron alloy production, the surface hardness of about 50 heat treatment HRC, roller diameter between200-700mm. Foreign welding roller stand many varieties, than the entire series, facing an ~ 1500. apply welding pieces ~ 8m diameter of a standard modular roller frame (two active and two blocks roller follower rollers Block Portfolio) supply all series. Roller its multi-line speed in 6 ~ 90 m / h between non-adjustable level, there is some welding to prevent axial movement functions. China has many manufacturers to produce welding roller stand, the biggest loading capacity has reached 400 t, apply welding pieces of up to 6 m in diameter. Roller line speed over 60m in 6 ~ / h between variable speed. Preventing axial movement of thewheel-welding production already, but need to improve the quality of performance. 1997 China Statistical Yearbook welding, China has 23 auxiliary welding machine manufacturers of various types and specifications of welding roller stand, user needs, should first be selected. Selection, in addition to the wheel frame welding meet welding weight, tube diameter and welding speed requirements, should also enable the wheel-drive torque than welding pieces of the eccentric resistance moment. However, the current domestic and international manufacturers, marking the roller-performance parameters, no such data, so as to enable welding speed stability, avoid skidding or emphasis caused by the switch to the next, the eccentric big moment welding pieces of the roller frame. for torque calibration and the adhesion is very necessary. Another pair of large thin-walled welded pieces of sedative used roller frame, in order to prevent the axial deformation of the cylinder, to choose a number of mixed-wheel combination. Welding pieces of the axial movement of the reasons for and consequences of factors, first of all, issues, Welding wheel-drive Rao welding pieces of its own axis, rotation, often associated with the axial movement, thereby affecting the quality of welding and welding process in a normal way, and will lead to serious disruptions welding process. even welding pieces of equipment such as subversion personal accident. Therefore, some domestic factories often used in welding pieces End stubborn resistance to the mandatory stop welding pieces of axial movement.This approach to small tonnage weldment also effective, But for large tonnage or welding pieces of the implementation of the weld location precision welding shouting demands high speed stability with a very narrow gap welding and welding work stop rigidly applied, will inevitably lead to resistance welding pieces ofrotating increased speed caused instability, have welding defects. can make welding end processing has been a good groove because of the squeezing of damage, sometimes will even take a motor overload burn accidents. In this context, the development of the defense over the axial movement of technology, in the 20th century and the mid-1980s to prevent the introduction of the welding traverse the welding roller stand, Welded to the displacement volume control, to meet a variety of welding methods of welding location accuracy requirements. Ever since the 20th century the late 1980s began this technology, and developed a prototype. 20 early 1990s, domestic individual auxiliary welding factory has been the product on the market, but for the formation of scale. The anti-channeling accuracy and reliability, compared with countries such as Sweden and Italy still lags behind.Then, the occurrence of welding axial movement of the causes and factors of influence of the welding roller stand, When welding pieces and are ideal cylindrical roller and the roller and the pieces are welded cylinders, and the roller axis in the same horizontal plane and parallel to the axis of welding, from the dynamic wheel drive welding pieces role in the welding, and the role of follower roller welding pieces of the force, both circumferential edge. At this time, the welding pieces of Rao's own axis rotation, no axial movement, but when the condition is devastated, For example, manufacture and installation of roller frame error and welding pieces of irregular geometry, make arrangements before and after the existence of differences in elevation, and the wheel axis of the wheel and welding pieces axis is not parallel, resulting in welding pieces of self-respect and initiative roller, Follower roller contact with the welding pieces of the existence of the axial part of the formation when the axial movement of welding conditions, However, the direction of the axial force is not totally consistent.In the production practice, before and after the row height precision roller is easier to control, and after the row spacing larger roller, Therefore welding pieces of the axial forces have little weight, not produce axial movement of the main reasons and the installation of the wheel manufacturing error and welding pieces of geometry from ideal combination of factors such as cylinder role so that the wheel axis with the axis of welding without parallel and the creation of space angle, the wheel has led to the axial force on welding pieces This is the axial movement of the main reasons. Through the analysis of experimental results showed that :1) the wheel axis with the axis welding pieces of the more parallel, formed by the helix angle, the larger the pieces of welding axial displacement of the greater speed.2) axial movement welding speed is proportional to its speed.3) with the same deflection angle to the roller number more and welding pieces of the axial movement speed and faster growth in the non-linear relationship. Welding pieces of the ellipse and welding pieces of the emphasis will enable the welding speed axial movement into cyclical changes.4) the roller axis in the same horizontal plane, the wheel and the wheel spacing between the distance, on the speed of the axial movement will not be affected. 5) Welding weight increase of welded pieces of the axial movement of speed almost no impact. Evidently, the roller axis with the axis of the welding pieces of parallelism should be welding pieces of axial movement of the most important reasons. In the manufacture and use of welding roller stand, attention should be given to achieve the following three points : the wheel axis in the same horizontal plane,and parallel to each other;Roller spacing should be equal;Roller-located with the center line.焊接机械装备和焊接滚轮架焊接是一种制造技术，它是适应工业发展的需要，以现代工业发展为基础发展起来的，并且直接服务于机械制造工业。

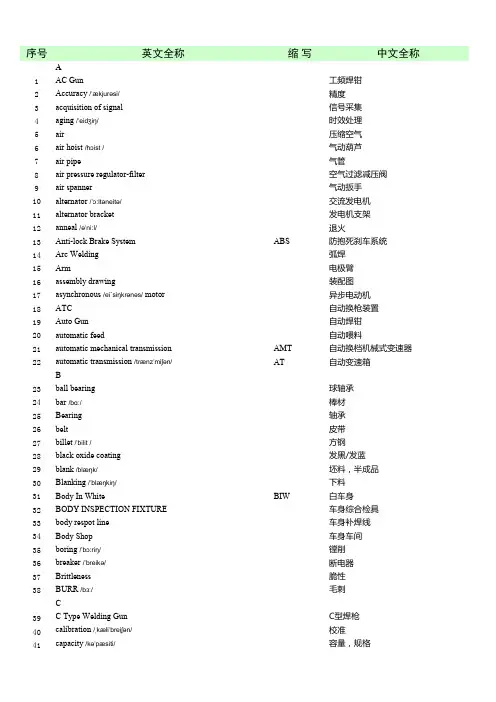

汽车焊装相关英语词汇表(全)
