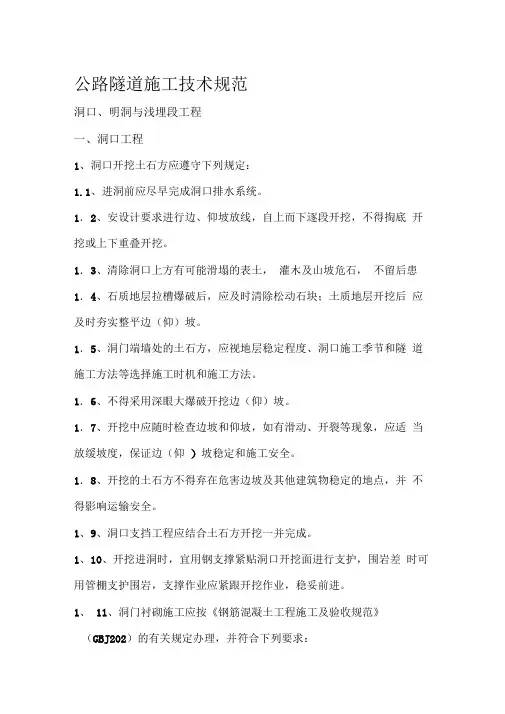

公路隧道施工技术规范洞口、明洞与浅埋段工程一、洞口工程1、洞口开挖土石方应遵守下列规定：1.1、进洞前应尽早完成洞口排水系统。
1．2、安设计要求进行边、仰坡放线，自上而下逐段开挖，不得掏底开挖或上下重叠开挖。
1．3、清除洞口上方有可能滑塌的表土，灌木及山坡危石，不留后患1．4、石质地层拉槽爆破后，应及时清除松动石块；土质地层开挖后应及时夯实整平边（仰）坡。
1．5、洞门端墙处的土石方，应视地层稳定程度、洞口施工季节和隧道施工方法等选择施工时机和施工方法。
1．6、不得采用深眼大爆破开挖边（仰）坡。
1．7、开挖中应随时检查边坡和仰坡，如有滑动、开裂等现象，应适当放缓坡度，保证边（仰）坡稳定和施工安全。
1．8、开挖的土石方不得弃在危害边坡及其他建筑物稳定的地点，并不得影响运输安全。
1、9、洞口支挡工程应结合土石方开挖一并完成。
1、10、开挖进洞时，宜用钢支撑紧贴洞口开挖面进行支护，围岩差时可用管棚支护围岩，支撑作业应紧跟开挖作业，稳妥前进。
1、11、洞门衬砌施工应按《钢筋混凝土工程施工及验收规范》（GBJ202）的有关规定办理，并符合下列要求：（1）土质地基应平整夯实，土质松软时，应加碎石，人工夯实，将基础置于稳固的地基上。
（2）基础处的渣体杂物、风化软层和积水应清除干净。
（3）洞门衬砌拱墙应与洞内相联的拱墙同时施工，连成整体。
如系接唱明洞，则应按设计要求采取加强连接措施，确保与已成的拱墙连接良好。
（4）端墙施工放样时，应保证位置准确和墙面坡度平顺。
（5）灌注砼时应保证模板不移动。
（6）洞门端墙的砌筑与墙背回填两侧同时进行，防止对衬砌边墙产生偏压。
（7）、洞门衬砌完成后，及时处治洞门上方仰坡脚受破坏处，当边（仰）坡地层松软、破碎时，应采取坡面防护措施。
（8）当端墙顶水沟砌筑在填土上时，填土必须夯实。
（9）洞门的排水、截水设施应与洞门工程配合施工，并应与路垫排水系统连通。
二、明洞工程1、明洞衬砌施工可选用下列几种方法：（1）当边坡能稳定时，可采用先墙后拱法；（2）当边坡稳定性差，但拱顶承载力较好，能保证拱圈稳定时，可采用先拱后墙法；（3）半路堑式明洞施工时，可采用墙拱交替法，且宜先做外侧边墙，继做拱圈，再做内侧边墙；。
《隧道工程施工技术规范》JTG TF50-2011
《隧道工程施工技术规范》JTG TF50-
2011
隧道工程施工技术规范（JTG TF50-2011）
引言
本文档是根据《中华人民共和国公路法》及相关法律法规的要
求编制的，为规范隧道工程施工提供技术指导和要求。
施工准备
1. 施工单位应在动工前进行相关准备工作，包括施工人员培训、设备检修和材料准备等。
2. 施工单位应编制详细的施工方案和施工组织设计，确保施工
过程合理有序。
施工工艺
1. 隧道施工应采用适当的工艺方法，包括顶进法、掘进法和盾
构法等。
2. 施工过程中应注重施工质量控制，合理安排施工作业流程，
确保工程质量。
施工安全
1. 施工单位应制定和执行安全生产管理制度，确保施工安全。
2. 施工中应加强现场安全监控，做好防火、防爆等安全工作。
环境保护
1. 施工单位应采取有效的措施，减少施工对环境的影响。
2. 施工过程中应合理使用资源，降低能耗和污染物排放。
施工质量验收
1. 施工完成后，应进行质量验收和评定，并出具相应的验收报告。
2. 施工单位应自觉接受监督检查，保证工程质量合格。
后期维护
1. 隧道工程竣工后，施工单位应建立健全的后期维护管理体系。
2. 定期进行隧道设施的检查和维修，确保隧道的正常运营。
本文档为隧道工程施工提供了详细的技术规范和要求，供相关单位参考和执行。
通过执行本文档的要求，可有效保障隧道工程施工的质量和安全。
公路隧道施工技术规范JTJ

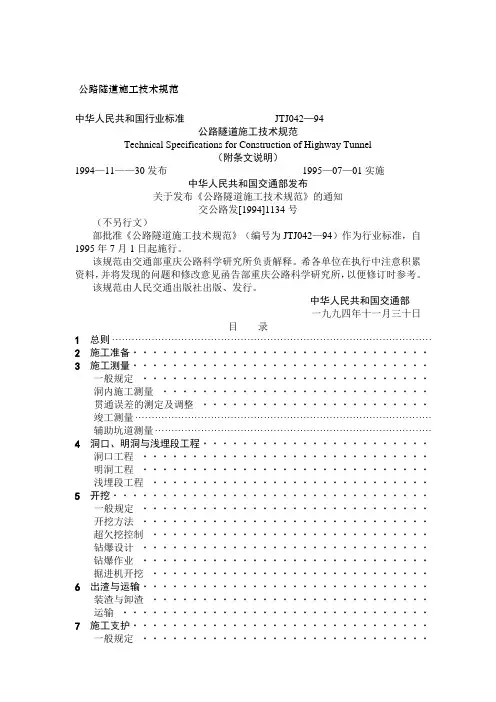

中华人民共和国行业标准 JTJ042—94公路隧道施工技术规范Technical Specifications for Construction of Highway Tunnel（附条文说明）1994—11——30发布 1995—07—01实施中华人民共和国交通部发布关于发布《公路隧道施工技术规范》的通知交公路发[1994]1134号（不另行文）部批准《公路隧道施工技术规范》（编号为JTJ042—94）作为行业标准，自1995年7月1日起施行。
该规范由交通部重庆公路科学研究所负责解释。
希各单位在执行中注意积累资料，并将发现的问题和修改意见函告部重庆公路科学研究所，以便修订时参考。
该规范由人民交通出版社出版、发行。
中华人民共和国交通部一九九四年十一月三十日目录1 总则································2 施工准备······························3 施工测量······························3.1一般规定····························3.2洞内施工测量··························3.3 贯通误差的测定及调整······················3.4竣工测量····························3.5辅助坑道测量··························4洞口、明洞与浅埋段工程·······················4.1洞口工程····························4.2明洞工程····························4.3浅埋段工程···························5 开挖································5.1 一般规定····························5.2 开挖方法····························5.3超欠挖控制···························5.4 钻爆设计····························5.5钻爆作业····························5.6掘进机开挖···························6 出渣与运输·····························6.1 装渣与卸渣···························6.2 运输······························7 施工支护······························7.1一般规定····························7.2锚杆施工····························7.3 喷射混凝土···························7.4 锚喷支护的质量要求·······················7.5 构件支护····························7.6构件支护的架设·························8衬砌································8.1 一般规定····························8.2拱(墙)架与模板·························8.3模筑衬砌····························8.4二次衬砌····························9 监控量测9.1 一般规定····························9.2 量测内容与方法·························9.3 量测数据处理与应用·······················9.4 量测管理····························10防水和排水····························10.1 一般规定···························10.2施工防排水··························10.3结构防排水施工························11 风水电作业和通风防尘·······················11.1供风和供水··························11.2供电与照明··························11.3 通风、防尘、防有害气体····················12辅助坑道·····························12.1一般规定···························12.2余井·····························12.3 坚井·····························12.4 横洞与平行导坑························13辅助施工方法···························13.1适用范围及一般规定······················13.2稳定开挖面的方法·······················13.3 涌水的处理方法························14 特殊地质地段的施工························14.1 一般规定···························14.2 膨胀性围岩··························14.3黄土·····························14.4 溶洞·····························14.5 塌方·····························14.6 流沙·····························14.7 瓦斯地层···························15路基、路面基层与路面·······················15.1一般规定···························15.2路基·····························15.3路面基层···························15.4路面·····························16附属设施工程···························16.1 设备洞、横通道及其它·····················16.2 装饰工程···························16.3营运管理设施·························附录A 开挖方法及开挖、支护顺序图………………………………………………附录B 爆破成缝试验方法……………………………………………………………附录C 锚喷支护施工记录………………………………………………………附录D 锚喷支护的试验和测定方法……………………………………………附录E 量测记录表……………………………………………………………………附录F 施工通风方式…………………………………………………………………附录G 本规范用词说明………………………………………………………………附加说明………………………………………………………………………………附件：公路隧道施工技术规范JTJ042-99条文说明…………………………………编制说明………………………………………………………………………………1总……………………………………………………………………………2 施工准备…………………………………………………………………………3 施工测量…………………………………………………………………………3.1一般规定………………………………………………………………………3.2洞内施工测量…………………………………………………………………3.3贯通误差的测定及调整………………………………………………………3.5辅助坑道测量…………………………………………………………………4 洞口、明洞与浅埋段工程…………………………………………………………4.1洞口工程………………………………………………………………………4.2明洞工程………………………………………………………………………4.3浅埋段工程……………………………………………………………………5 开挖………………………………………………………………………………5.1一般规定………………………………………………………………………5.2开挖方法………………………………………………………………………5.3超欠挖控制……………………………………………………………………5.4钻爆设计………………………………………………………………………5.5钻爆作业………………………………………………………………………5.6掘进机开挖……………………………………………………………………6 出渣与运输………………………………………………………………………6.1 装渣与卸渣……………………………………………………………………6.2 运输……………………………………………………………………………7 施工支护…………………………………………………………………………7.1一般规定………………………………………………………………………7.2锚杆施工………………………………………………………………………7.3喷射混凝土……………………………………………………………………7.4锚喷支护的质量检查…………………………………………………………7.5构件支护………………………………………………………………………7.6构件支护的架设………………………………………………………………8 衬砌………………………………………………………………………………8.1一般规定………………………………………………………………………8.2拱（墙）架与模板………………………………………………………………8.3模筑衬砌………………………………………………………………………8.4二次衬砌………………………………………………………………………9 监控量测…………………………………………………………………………9.1一般规定………………………………………………………………………9.2量测内容与方法………………………………………………………………9.3量测数据处理与应用…………………………………………………………9.4量测管理………………………………………………………………………10 防水和排水………………………………………………………………………10.1一般规定……………………………………………………………………10.2施工防排水…………………………………………………………………10.3结构防排水施工……………………………………………………………11 风水电作业和通风防尘…………………………………………………………11.1供风和供水…………………………………………………………………11.2供电与照明…………………………………………………………………11.3通风、防尘、防有害气体……………………………………………………12 辅助坑道…………………………………………………………………………12.1一般规定……………………………………………………………………12.2斜井…………………………………………………………………………12.3竖井…………………………………………………………………………12.4横洞与平行导坑……………………………………………………………13 辅助施工方法……………………………………………………………………13.1适用范围及一般规定………………………………………………………13.2稳定开挖面的方法…………………………………………………………13.3涌水的处理方法……………………………………………………………14 特殊地质地段的施工……………………………………………………………14.1一般规定……………………………………………………………………14.2膨胀性围岩…………………………………………………………………14.3黄土…………………………………………………………………………14.4溶洞…………………………………………………………………………14.5塌方…………………………………………………………………………14.6流沙…………………………………………………………………………14.7瓦斯地层……………………………………………………………………15 路基、路面基层与路面……………………………………………………………15.1一般规定……………………………………………………………………15.2路基…………………………………………………………………………15.3路面基层……………………………………………………………………15.4路面…………………………………………………………………………16 附属设施工程……………………………………………………………………16.1设备洞、横通道及其他………………………………………………………16.2装饰工程……………………………………………………………………16.3营运管理设施………………………………………………………………1 总则1.0.1为给公路山岭隧道工程的施工和施工管理提供技术依据和行为准则，特制订本规范。
