ATMEL89C52T2的特殊用法
89C52定时器2
定时器T2的功能比T1、T0都强大，但描述它的资料不多，可能是使用得比较少的缘故吧。
它是一个16位的具有自动重装和捕获能力的定时/计数器，它的计数时钟源可以是内部的机器周期，也可以是P1.0输入的外部时钟脉冲。
T2的控制寄存器的功能描述如下：T2CON（T2的控制寄存器）,字节地址0C8H：位地址 0CFH 0CEH 0CDH 0CCH 0CBH 0CAH 0C9H 0C8H符号 TF2 EXF2 RCLK TCLK EXEN2 TR2 C/T2 CP/RT2各位的定义如下：TF2：定时/计数器2溢出标志，T2溢出时置位，并申请中断。
只能用软件清除，但T2作为波特率发生器使用的时候，(即RCLK=1或TCLK=1),T2溢出时不对TF2置位。
EXF2：当EXEN2=1时，且T2EX引脚（P1.0）出现负跳变而造成T2的捕获或重装的时候，EXF2置位并申请中断。
EXF2也是只能通过软件来清除的。
RCLK：串行接收时钟标志，只能通过软件的置位或清除；用来选择T1（RCLK=0）还是T2（RCLK=1）来作为串行接收的波特率产生器TCLK：串行发送时钟标志，只能通过软件的置位或清除；用来选择T1（TCLK=0）还是T2（TCLK=1）来作为串行发送的波特率产生器EXEN2：T2的外部允许标志，只能通过软件的置位或清除；EXEN2=0：禁止外部时钟触发T2；EXEN2=1：当T2未用作串行波特率发生器时，允许外部时钟触发T2，当T2EX引脚输入一个负跳变的时候，将引起T2的捕获或重装，并置位EXF2，申请中断。
TR2：T2的启动控制标志；TR2=0：停止T2；TR2=1：启动T2C/T2：T2的定时方式或计数方式选择位。
只能通过软件的置位或清除；C/T2=0：选择T2为定时器方式；C/T2=1：选择T2为计数器方式，下降沿触发。
CP/RT2：捕获/重装载标志，只能通过软件的置位或清除。
CP/RT2=0时，选择重装载方式，这时若T2溢出（EXEN2=0时）或者T2EX引脚（P1.0）出现负跳变（EXEN2=1时），将会引起T2重装载；CP/RT2=1时，选择捕获方式，这时若T2EX引脚（P1.0）出现负跳变（EXEN2=1时），将会引起T2捕获操作。
AT89S52定时器T2
四.T2CON暫存器：TIMER2的控制暫存器，89S52除了有以上所述的TIMER0與TIMER1外，又多了一個TIMER2。
位址：C8HBitTF2：Timer 2溢位旗號，當Timer 2中斷時，CPU會將此位元設定為1，中斷結束後，CPU並不會將TF2清除為0，須以軟體清除之。
當RCLK=TCLK=1時，TF2不會被設定。
EXF2：Timer 2的外部旗號，當T2EX接腳(P1.1)輸入負緣信號且EXEN2=1，即進入捕入(Capture Mode)或自動載入模式(Auto-Reload Mode)，此時EXF2將被設定為1，並產生Timer 2中斷，而中斷結束後，CPU並不會清除該位元為0，須以軟體清除之。
RCLK：串列埠接收時脈選擇位元，當RCLK=1時，串列埠將以Timer 2溢位脈波做為在Mode 1 或Mode 3模式時的接收時脈信號。
若RCLK=0時，則串列埠將以Timer 1溢位脈波做為接收的時脈信號。
TCLK：串列埠傳送時脈選擇位元，當RCLK=1時，串列埠將以Timer 2溢位脈波做為在Mode 1 或Mode 3模式時的傳送時脈信號。
若RCLK=0時，則串列埠將以Timer 1溢位脈波做為傳送的時脈信號。
EXEN2：Timer 2外部致能控制位元，當EXEN2=1時，若Timer 2未做為串列埠的時脈產生器且T2EX接腳(P1.1)輸入負緣觸發信號，即進入捕入(CaptureMode)或自動載入模式(Auto-Reload Mode)。
當EXEN2=0時，Tmer 2將不處理T2EX的信號。
TR2：Timer 2的啟動位元，TR2=1時啟動Timer 2，TR2=0時Timer 2停止計時。
C/2T：Timer 2計時計數切換開關，C/2T=1時為外部計數功能，以計數T2接腳(P1.0)所輸入的脈波信號。
若C/2T=0時為內部計時功能(OSC/12)。
CP/2RL，=1時，EXEN2=1且T2EX輸入負緣觸發信號，RL：Timer 2工作模式切換位元，當CP/2Timer2將產生捕入的功能，將TH2、TL2的值存入RCAP2H與RCAP2L。
80C52、AT89C52的定时计数器2
∙80C52、AT89C52的定时/计数器2∙作者:佚名发布时间：2009-10-30 阅读次数：543 字体大小: 【小】【中】【大】80C52、AT89C52、80C51FA/FB等单片机增加了一个16位定时/计数器T2，可用于定时或外部事件计数。
它有三种工作方式：16位自动重装初值的定时/计数器、捕捉事件、串行口波特率发生器。
与T2有关的外部引脚是：P1。
0-外部计数脉冲输入端T2，P1。
1-外部控制端T2EX。
8052、AT89C52、80C51FA/FB等单片机增加了一个16位定时/计数器T2，可用于定时或外部事件计数。
它有三种工作方式：16位自动重装初值的定时/计数器、捕捉事件、串行口波特率发生器。
与T2有关的外部引脚是：P1。
0-外部计数脉冲输入端T2，P1。
1-外部控制端T2EX。
1、T2的特殊功能寄存器1）控制寄存器T2CON（C8H）位：TF2 EXF2 RCLK TCLK EXEN2 TR2 C//T2 CP//RL2TF2：T2溢出中断标志，在捕捉方式和自动重装初值方式中计数溢出时置1，对应中断入口002BH，但中断响应后，必须由软件清0。
在串行口波特率发生器方式中TF2不会置1。
EXF2：T2外部中断标志。
当EXEN2=1（T2外部中断允许）时，引脚T2EX（P1。
1）的负跳变使EXF2=1，CPU响应中断，入口地址002BH；EXF2也必须由软件清0。
EXEN2：T2外部中断允许标志。
使EXEN2=1，当T2工作在捕捉方式时，引脚T2EX上出现的负跳变使EXF2=1，申请中断，同时TH2、TL2的当前值自动送入RCAP2H、RCAP2L寄存器；如果T2工作在重载初值方式，那么T2EX的负跳变将RCAP2H和RCAP2L的内容自动装入TH2、TL2，同时EXF2=1，申请中断。
EXEN2=0时，T2EX引脚上的变化对T2工作无影响。
RCLK、TCLK：选择串行口波特率发生器方式。
AT89S52中文手册
主要性能Array l 与MCS-51单片机产品兼容l 8K字节在系统可编程Flash存储器l 1000次擦写周期l 全静态操作：0Hz～33Hzl 三级加密程序存储器l 32个可编程I/O口线l 三个16位定时器/计数器l 八个中断源l 全双工UART串行通道l 低功耗空闲和掉电模式l 掉电后中断可唤醒l 看门狗定时器l 双数据指针l 掉电标识符功能特性描述A T89S52是一种低功耗、高性能CMOS8位微控制器，具有8K在系统可编程Flash存储器。
使用Atmel公司高密度非易失性存储器技术制造，与工业80C51产品指令和引脚完全兼容。
片上Flash允许程序存储器在系统可编程，亦适于常规编程器。
在单芯片上，拥有灵巧的8位CPU和在系统可编程Flash，使得A T89S52为众多嵌入式控制应用系统提供高灵活、超有效的解决方案。
A T89S52具有以下标准功能：8k字节Flash，256字节RAM，32位I/O口线，看门狗定时器，2个数据指针，三个16位定时器/计数器，一个6向量2级中断结构，全双工串行口，片内晶振及时钟电路。
另外，A T89S52可降至0Hz静态逻辑操作，支持2种软件可选择节电模式。
空闲模式下，CPU 停止工作，允许RAM、定时器/计数器、串口、中断继续工作。
掉电保护方式下，RAM内容被保存，振荡器被冻结，单片机一切工作停止，直到下一个中断或硬件复位为止。
引脚结构方框图引脚功能描述VCC : 电源GND:地P0口：P0口是一个8位漏极开路的双向I/O口。
作为输出口，每位能驱动8个TTL逻辑电平。
对P0端口写“1”时，引脚用作高阻抗输入。
当访问外部程序和数据存储器时，P0口也被作为低8位地址/数据复用。
在这种模式下，P0具有内部上拉电阻。
在flash编程时，P0口也用来接收指令字节；在程序校验时，输出指令字节。
程序校验时，需要外部上拉电阻。
P1口：P1口是一个具有内部上拉电阻的8位双向I/O口，p1输出缓冲器能驱动4个TTL逻辑电平。
AT89C52单片机介绍知识讲解
AT89C52单片机介绍在众多的单片机系列中，AT89C52是一种低功耗、高性能CMOS8位微控制器，具有8K在系列可编程Flash存储器。
使用Atmel公司高密度非易失性存储器技术制造，与工业80C51产品指令和引脚完全兼容。
片上Flash允许程序存储器在系统可编程，也适用于常规编程。
在单芯片上，拥有灵巧的8位CPU和在系统可编程Flash，使得AT89C52为众多嵌入式控制应用系统提供高灵活、超高效的解决方案。
AT89C52具有以下标准功能：8K字节Flash，256字节RAM，32位I/O口线，3个16位定时器/计数器，一个响亮2级中断结构，全双工串行口，片内晶振及时钟电路。
另外，AT89C52可降至0HZ静态逻辑操作，支持2种软件可选择节电模式。
空闲模式下，CPU停止工作，允许RAM、定时器/计数器、串口、中断继续工作。
掉电保护方式下，RAM内容被保存，振荡器被冻结，单片机一切工作停止，直到下一个中断或硬件复位为止。
AT89C52单片机为很多嵌入式控制系统提供了一种灵活性高且廉价的方案。
故此选用AT89C52单片机。
1 AT89C52单片机1.1 AT89C52单片机的硬件结构如图3-1所示，为AT89C52的硬件结构图。
AT89C52单片机的内部结构与MCS-51系列单片机的构成基本相同。
CPU是由运算器和控制器所构成的。
运算器主要用来对操作数进行算术、逻辑运算和位操作的。
控制器是单片机的指挥控制部件，主要任务的识别指令，并根据指令的性质控制单片机各功能部件，从而保证单片机各部分能自动而协调地工作。
它的程序存储器为8K字节可重擦写Flash闪速存储器，闪烁存储器允许在线+5V电擦除、电写入或使用编程器对其重复编程。
数据存储器比51系列的单片机相比大了许多为256字节RAM。
AT89C52单片机的指令系统和引脚功能与MCS-51的完全兼容。
图 3-1 单片机89C52结构框图1.2 主要性能参数• 8K字节可重擦写Flash闪速存储器• 1000次可擦写周期•全静态操作：0Hz-24MHz•三级加密程序存储器• 256×8字节内部RAM• 32个可编程I/O口线• 3个16位定时/计数器• 8个中断源•可编程串行UART通道•低功耗空闲和掉电模式图 3-2 AT89C52外部引脚图1.3 AT89C52管脚说明VCC：电源GND：接地P0口：P0口是一个8位漏级开路的双向I/O口。
用AT89C52实现智能型频率计

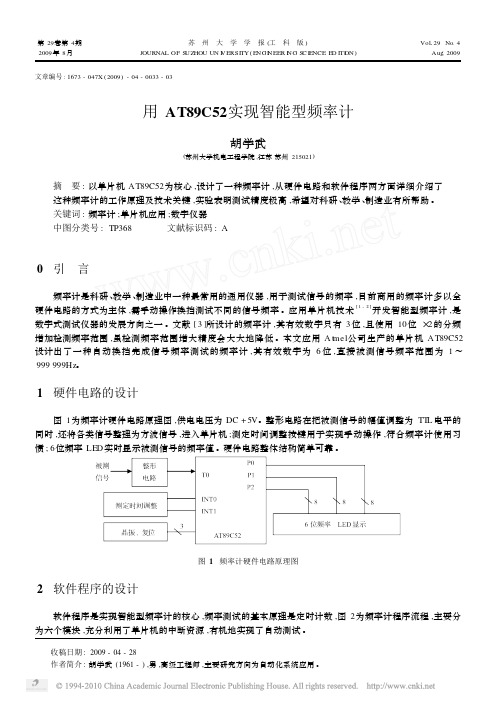

第29卷第4期苏 州 大 学 学 报(工 科 版)Vol 129No .42009年8月JOURNAL OF S UZ HOU UN I V ERSI TY (ENGI N EER I N G SC I ENCE ED I TI O N )Aug .2009收稿日期:2009-04-28作者简介:胡学武(1961-),男,高级工程师,主要研究方向为自动化系统应用。
