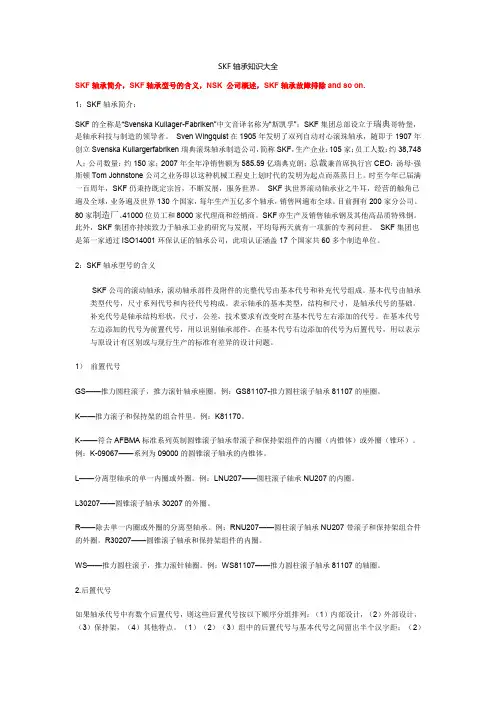

S K F轴承知识大全 The pony was revised in January 2021SKF 轴承知识大全SKF 轴承简介，SKF 轴承型号的含义，NSK 公司概述，SKF 轴承故障排除 and so on.1：SKF 轴承简介：SKF 的全称是“Svenska Kullager-Fabriken”中文音译名称为“斯凯孚”；2：SKF 轴承型号的含义SKF 公司的滚动轴承，滚动轴承部件及附件的完整代号由基本代号和补充代号组成。
基本代号由轴承类型代号，尺寸系列代号和内径代号构成。
表示轴承的基本类型，结构和尺寸，是轴承代号的基础。
补充代号是轴承结构形状，尺寸，公差，技术要求有改变时在基本代号左右添加的代号。
在基本代号左边添加的代号为前置代号，用以识别轴承部件，在基本代号右边添加的代号为后置代号，用以表示与原设计有区别或与现行生产的标准有差异的设计问题。
1）前置代号GS——推力圆柱滚子，推力滚针轴承座圈。
例：GS81107-推力圆柱滚子轴承 81107 的座圈。
K——推力滚子和保持架的组合件里。
例：K81170。
K-——符合 AFBMA 标准系列英制圆锥滚子轴承带滚子和保持架组件的内圈（内锥体）或外圈（锥环）。
例：K-09067——系列为 09000 的圆锥滚子轴承的内锥体。
L——分离型轴承的单一内圈或外圈。
例：LNU207——圆柱滚子轴承 NU207 的内圈。
L30207——圆锥滚子轴承 30207 的外圈。
R——除去单一内圈或外圈的分离型轴承。
例：RNU207——圆柱滚子轴承 NU207 带滚子和保持架组合件的外圈。
R30207——圆锥滚子轴承和保持架组件的内圈。
WS——推力圆柱滚子，推力滚针轴圈。
例：WS81107——推力圆柱滚子轴承 81107 的轴圈。
2.后置代号如果轴承代号中有数个后置代号，则这些后置代号按以下顺序分组排列：（1）内部设计，（2）外部设计，（3）保持架，（4）其他特点。
SKF轴承知识大全
SKF轴承知识大全SKF轴承简介，SKF轴承型号的含义，NSK 公司概述，SKF轴承故障排除and so on.1：SKF轴承简介：SKF的全称是“Svenska Kullager-Fabriken”中文音译名称为“斯凯孚”；SKF集团总部设立于瑞典哥特堡，是轴承科技与制造的领导者。
Sven Wingquist在1905年发明了双列自动对心滚珠轴承，随即于1907年创立Svenska Kullargerfabriken瑞典滚珠轴承制造公司，简称SKF，生产企业：105家；员工人数：约38,748人；公司数量：约150家；2007年全年净销售额为585.59亿瑞典克朗；总裁兼首席执行官CEO：汤母·强斯顿Tom Johnstone公司之业务即以这种机械工程史上划时代的发明为起点而蒸蒸日上。
时至今年已届满一百周年，SKF仍秉持既定宗旨，不断发展，服务世界。
SKF执世界滚动轴承业之牛耳，经营的触角已遍及全球，业务遍及世界130个国家，每年生产五亿多个轴承，销售网遍布全球。
目前拥有200家分公司、80家制造厂、41000位员工和8000家代理商和经销商。
SKF亦生产及销售轴承钢及其他高品质特殊钢。
此外，SKF集团亦持续致力于轴承工业的研究与发展，平均每两天就有一项新的专利问世。
SKF集团也是第一家通过ISO14001环保认证的轴承公司，此项认证涵盖17个国家共60多个制造单位。
2：SKF轴承型号的含义SKF公司的滚动轴承，滚动轴承部件及附件的完整代号由基本代号和补充代号组成。
基本代号由轴承类型代号，尺寸系列代号和内径代号构成。
表示轴承的基本类型，结构和尺寸，是轴承代号的基础。
补充代号是轴承结构形状，尺寸，公差，技术要求有改变时在基本代号左右添加的代号。
在基本代号左边添加的代号为前置代号，用以识别轴承部件，在基本代号右边添加的代号为后置代号，用以表示与原设计有区别或与现行生产的标准有差异的设计问题。
skf轴承基础
滑动而造成轴承的损坏
提高刚性、降低噪声、提高轴引导的精度、补偿在
运行中的磨损、延长工作寿命。
2023年03月
返回
轴承失效缘由统计：
34%2023年03月16% 16%34%
安装不当 污染 润滑不当 疲劳
返回
油加热法的缺点： 1、温度把握不准确； 2、轴承简洁过热； 3、轴承极易被污染； 4、耗时长； 5、影响四周环境。
2023年03月
2、查出轴承径向游隙的削减量； 3、1-2=△； 七、装轴承的程序：
1、生疏图纸； 2、确认方法；
3、清洁轴承的安装现场； 4、领用轴承和工具，清洁； 5、测量轴颈数据〔至少9个点〕； 6、将轴承从盒里取出〔清洁内圈〕；
2023年03月
7、在轴颈上滴几滴清洁的淅油； 8、依据确认的方法安装； 9、测出安装后轴承的相关数据； 10、试转：轴承的惯性越大越好； 11、润滑：淅油润滑
2023年03月
五、轴承安装与拆卸的方法与工具
机械法〔小型〕 液压法〔中、大型〕 加热法〔多数〕
油加热有缺点
类型
大小
圆柱轴
圆锥轴
小型
冷安装（TMFT33） 锁紧螺母
（d<80mm） 拉拔器
冲击
加热器
中型
拉拔器
液压螺母
（80-200mm） 加热器
大型
拉拔器
液压螺母
（d>200mm） 加热器
2023年03月
2023年03月
安装工具:HN、TMFN系列
2023年03月
加热板:
2023年03月
72659c
加热器:
TIH 070m

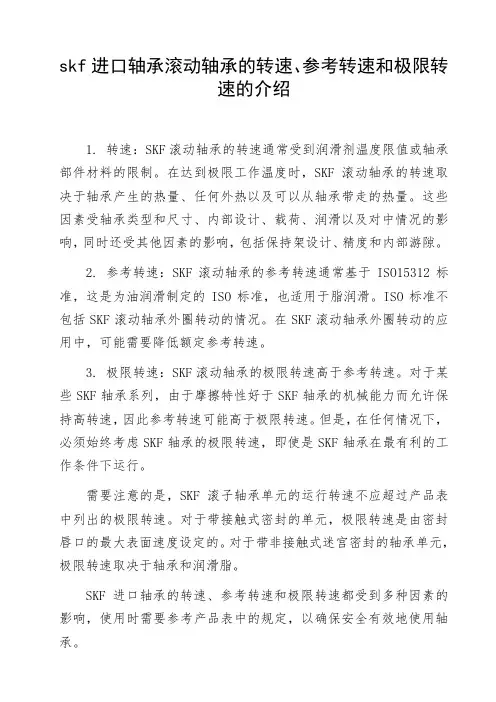

skf进口轴承滚动轴承的转速、参考转速和极限转速的介绍
skf进口轴承滚动轴承的转速、参考转速和极限转
速的介绍
1. 转速：SKF滚动轴承的转速通常受到润滑剂温度限值或轴承部件材料的限制。
在达到极限工作温度时，SKF滚动轴承的转速取决于轴承产生的热量、任何外热以及可以从轴承带走的热量。
这些因素受轴承类型和尺寸、内部设计、载荷、润滑以及对中情况的影响，同时还受其他因素的影响，包括保持架设计、精度和内部游隙。
2. 参考转速：SKF滚动轴承的参考转速通常基于ISO15312标准，这是为油润滑制定的ISO标准，也适用于脂润滑。
ISO标准不包括SKF滚动轴承外圈转动的情况。
在SKF滚动轴承外圈转动的应用中，可能需要降低额定参考转速。
3. 极限转速：SKF滚动轴承的极限转速高于参考转速。
对于某些SKF轴承系列，由于摩擦特性好于SKF轴承的机械能力而允许保持高转速，因此参考转速可能高于极限转速。
但是，在任何情况下，必须始终考虑SKF轴承的极限转速，即使是SKF轴承在最有利的工作条件下运行。
需要注意的是，SKF滚子轴承单元的运行转速不应超过产品表中列出的极限转速。
对于带接触式密封的单元，极限转速是由密封唇口的最大表面速度设定的。
对于带非接触式迷宫密封的轴承单元，极限转速取决于轴承和润滑脂。
SKF进口轴承的转速、参考转速和极限转速都受到多种因素的影响，使用时需要参考产品表中的规定，以确保安全有效地使用轴承。
skf轴承基础知识
年份 1993 1994 2019 2019 2019 2019 2019 —— 2000 2019 2019 2019
年份 年份 1958 1981 1959 1982 1960 1983 1961 1984 1962 1985 1963 1986 1964 1987 1965 1988 1966 1989 1967 1990 1968 1991 1969 1992
年份 2019 2019 2019 2019
字母 N O P R S T U V W X Y Z
青岛嘉瑞
宽度和直径系列的变化
直径系列
宽度系列
高度系列
BEARING BASIC 2019-10-16
青岛嘉瑞
尺寸系列
直径系列
宽度系列
BEARING BASIC 2019-10-16
青岛嘉瑞
轴承补充代号（后缀）：BEA NhomakorabeaING BASIC 2019-10-16
青岛嘉瑞
后缀：密封件和防护罩
Z
2Z
年份 1922 1923 1924 1925 1926 1927 1928 1929 1930 1931 1932 1933
年份 1946 1947 1948 1949 1950 1951 1952 1953 1954 1955 1956 1957
年份 1970 1971 1972 1973 1974 1975 1976 —— 1977 1978 1979 1980
轴承基础知识
一、轴承的功能： 减少摩擦 承受负荷 传动导向
BEARING BASIC 2019-10-16
青岛嘉瑞
远古时代的轴承
BEARING BASIC 2019-10-16
SKF内部轴承基础培训
行业发展趋势分析
智能化发展
随着工业4.0的推进，轴承行业将更加注重 智能化发展，包括智能设计、智能制造、
智能维护等。
绿色环保
环保意识的提高将推动轴承行业向绿色环 保方向发展，如采用环保材料、优化生产
工艺等。
高性能化
06
总结回顾与展望未来发展 趋势
关键知识点总结回顾
轴承基本概念与分类 包括滚动轴承、滑动轴承等，以及各自
的特点和应用范围。
轴承性能参数与选用 讲解了轴承的主要性能参数如载荷、 转速、精度等，以及如何根据实际需
求选用合适的轴承。
轴承材料与制造工艺 介绍了轴承常用材料如钢、陶瓷等， 以及制造工艺如热处理、精密加工等。
采用特殊材料和工艺，可在高温 环境下长期稳定运行，适用于冶 金、陶瓷等高温行业。
密封件
采用优质材料和先进设计，可有 效防止润滑脂泄漏和外部污染物
侵入，提高轴承使用寿命。
03
轴承选型与安装技巧
选型依据及步骤
载荷类型和大小
根据轴承所受载荷的 类型（径向、轴向或 联合载荷）和大小， 选择合适的轴承类型 和尺寸。
SKF超精密轴承技术
通过优化设计和制造工艺，提高轴承的精度和稳定性，满足高端装备 的需求。
SKF环保型轴承技术
采用环保材料和特殊表面处理工艺，降低轴承对环境的影响。
SKF个性化定制服务
根据客户的特殊需求，提供从设计到制造的全方位个性化定制服务。
THANKS
感谢观看
SKF内部轴承基础培训
contents
目录
• 轴承基本概念与原理 • SKF轴承产品介绍 • 轴承选型与安装技巧 • 轴承维护与保养策略 • SKF轴承在各行业应用案例分享 • 总结回顾与展望未来发展趋势
SKF滚动轴承基础知识说明书
Bearing basicsSpecial Notes for iPad UsersFor iPad users, this course plays in the “Articulate mobile player app”, available free from the App store.The app offers a download option for offline learning, but please note that:1. An on-line connection is required to use the links on the “resources” tab2. If you wish to be able to print your course completion certificate then you need to be on-line when you take the end-of-course testTo continue, you can click the Home icon on the screen to return to the Welcome page of the course.WelcomeWelcome to the Basic introduction to rolling bearings course. This course will give you an introduction to SKF bearings and consists of three sections: Functions and parts,Applications and bearing types,and Designations.Module 1: Functions and partsWhy bearings?Bearings are an essential component of almost all machinery. They transmit loads between, support, guide and locate, machine elements that are required to move relative to each other with a minimum of friction, e.g.a rotating or oscillating shaft, pivot or wheel.Friction: Page 1Friction counteracts the movement between two surfaces. It is essential for the success of many operations, such as a car tyre gripping a road. In most machines however, friction is undesirable since it causes power loss, heat generation, wear and noise. SKF bearings help reduce friction.Friction: Page 2The earliest bearings were mostly made of wood and consisted of a shaft rotating in a hole in a housing, or a wheel rotating on a stationary shaft. Because the components were sliding over each other, friction was relatively high and wear rather rapid.This type of bearing is called a plain bearing and, made of modern materials, is still used in some applications today where speeds and loads are relatively low.Friction: Page 3The introduction of rolling elements between the shaft and the housing greatly reduces friction.Friction: Page 4Today, typical SKF rolling bearings combine maximum load capacity with minimum friction, using hardened steel or ceramic rolling elements, hardened steel inner and outer rings and a cage to guide and separate the rolling elements.Loads: Page 1A bearing can be under radial load, perpendicular to the shaft, or under axial load, acting in the direction along the shaft, or a combination of both radial and axial load, a combined load.Loads: Page 2Large bearings support heavier loads than small bearings can support, and roller bearings support heavier loads than ball bearings can support. Raceway contactThe basic difference between ball bearings and roller bearings is in the contacts between the rolling elements and the raceways. Balls have point contact; rollers have linear contact with relatively larger area.Bearing partsA typical rolling bearing consists of an inner ring, an outer ring and rolling elements contained by a cage. The most common type of rolling bearing is the deep groove ball bearing. These bearings can, as shown here, be supplied with integral seals to retain the lubricant and resist the ingress of contamination.Selection factorsThere are many factors, which will affect the choice of a bearing. These are: Available space, load, required service life, misalignment, speed, stiffness, axial displacement and clearance.Selection factors: SpaceSpace can be an important factor in bearing selection. Where radial space is limited a bearing with small diameter rolling elements, such as a needle roller bearing, may be needed.Selection factors: LoadWhen selecting a bearing, it is important to consider the direction of the load, and the amount of load the bearing will have to carry. A bearing can be under radial load, axial load, or a combination of both.Selection factors: Required service lifeThe life of a bearing can be expressed in terms of: the number of revolutions before failure, the number of operating hours before failure, or the distance covered (for cars and trucks). A bearing is considered to have failed when it shows the first sign of fatigue in a rolling element or raceway, or damage to other parts such as the cage or the seals. Service life is the real life that an individual bearing achieves in a particular application before it has to be replaced. It depends on a variety of influencing factors, including lubrication, the degree of contamination, misalignment, proper installation, and environmental conditions.Because service life cannot be calculated or predicted, bearings are selected using calculated rating life. SKF rating life L10m, a reference value calculated according to statistical methods, using modification factors for lubrication conditions and degree of contamination, and applying the same concept of a fatigue load limit as used in ISO 281, to estimate the life, with 90% reliability, that a sufficiently large population of apparently identical bearings might achieve when all are operating in an identical application.Selection factors: MisalignmentWhere a bearing is likely to be subject to angular misalignment, for example the shaft might bend due to operating loads, appropriate bearings need to be selected. Self-aligning bearings can accept a degree of operational misalignment and can also compensate for limited initial alignment errors in mounting.Selection factors: SpeedThe maximum speed that a bearing can be run in an application is limited by the maximum operating temperature for the materials used in its manufacture, or the lubricant. For high-speed applications minimum possible friction is important, so ball bearings are generally used. Selection factors: StiffnessElastic deformation occurs under load. Usually this deformation is very small and can be ignored. However, in some applications, stiffness is an important factor. Roller bearings have higher stiffness than ball bearings due to the larger area of the line contact.Selection factors: Axial displacementSome applications require bearings that allow the shaft to move axially relative to the bearing. This is called axial displacement. Most often, a shaft is supported by a locating bearing and a non-locating bearing. The locating bearing does not allow axial displacement and keeps the shaft in position. The non-locating bearing supports the shaft and allows displacement to prevent the bearings from being stressed. Cylindrical and CARB toroidalroller bearings can accommodate a limited degree of axial internal displacement.Selection factors: ClearanceThe amount of initial internal radial clearance required in a bearing depends mainly on the fits and temperature gradient between the inner and outer rings of the bearing in the particular application. Operational internal radial clearance is almost always less than initial internal clearance. SKF manufactures bearings with the following ranges of radial internal clearances:•C1 radial internal clearance less than C2•C2 radial internal clearance less than Normal•-- Normal radial internal clearance•C3 radial internal clearance greater than Normal•C4 radial internal clearance greater than C3SummaryIn this lesson, you have learnt about the functions of a bearing. These are: reducing friction, transmitting loads, locating and guiding moving parts. You have also been introduced to the different parts of a bearing: outer and inner rings, rolling elements, cage, and seals and their respective functionalities.Finally, you have also explored the different selection factors, which will affect your choice of bearing: available space, load, required service life, misalignment, speed, stiffness, axial displacement and clearance.Module 2: ApplicationsIntroductionIn this section you will be introduced to the most common bearing types offered by SKF.Electrical motors can be found almost anywhere there is mechanical movement.Motor: Page 2In this drawing you can see that the shaft is supported by two different bearings.Motor: Page 3Cylindrical roller bearings are simply bearings with cylindrical rollers. They can usually accommodate heavy radial loads and can operate at relatively high speeds.Motor: Page 4It is now time to choose the right side bearing.Motor: Page 5Deep groove ball bearings have deep uninterrupted raceways and close osculation between balls and raceways. This enables them to take axial loads in both directions.Pump: Page 1A pump is a device for lifting, transferring or moving fluids by suction or pressure from one position to another. This picture shows a medium-duty process pump, which is often used in refineries.Pump: Page 2In this drawing you can see that the shaft, which is running the impeller, is supported by one deep groove ball bearing to the right, and another bearing or bearings to the left.Single row angular contact ball bearings are widely used in medium and heavy-duty centrifugal pumps. They have raceways arranged at an angle to the bearing axis.Pump: Page 4Single row angular contact ball bearings can only take axial load in one direction. Therefore they are nearly always mounted as pairs in back to back or face to face arrangement at either end of a shaft, or as shown here, universally matchable bearings mounted immediately adjacent to each other.Fan: Page 1This is an industrial fan, in which SKF bearings are commonly used. Industrial fans can either be designed for light loads and high speeds, or for heavy loads and moderate speeds.Fan: Page2A fan is designed with two bearings along its shaft, placed between the fan and the motor. Both bearings carry radial loads and the bearing closest to the fan (on the left hand side here) also needs to be a locating bearing, keeping the shaft and the fan in a fixed position.Fan: Page 3Spherical roller bearings have two rows of rollers with a common raceway in the outer ring. The two inner ring raceways are inclined at an angle to the bearing axis.Fan: Page 4Returning to the fan application again, you now know which bearing is suitable as the locating bearing and here you have to make a guess concerning the non-locating bearing.CARB [ka:b] is a single row toroidal roller bearing with long, slightly crowned, rollers and concave raceways in both the inner and outer rings. Fan: Page 6The complete application looks like this with one spherical roller bearing and one CARB toroidal roller bearing.Separator: Page 1Alfa Laval, a Swedish company, has developed a range of machines specifically designed for rigorous oil processing duties. An example of this would be separators.Separator: Page 2The separation process creates imbalance due to the mud, which is distributed unevenly inside the separator and this makes the spindle bend. Separator: Page 3Self-aligning ball bearings have two rows of balls and a common concave sphered raceway in the outer ring. This makes the bearing insensitive to angular misalignments of the shaft relative to the housing. Self-aligning ball bearings accommodate high speeds due to the point contact between balls and raceways.Refiner: Page 1SKF bearings can be used in refiners in the production of mechanical pulp and other high-yield pulps.Refiner: Page 2In the process wood chips are ground at high mechanical pressure between a stationary disc and a rotating disc, which is powered by an electrical motor. The shaft between the motor and the grinding discs is supported by three bearings.Refiner: Page 3The high production capacity of the refiners is directly related to the demands on the bearing arrangement. The bearings have to provide high stability, operate at high speed, carry high thrust loads and handle deflections of the shaft.Refiner: Page 4The spherical roller thrust bearing incorporates a large number of asymmetrical, spherical rollers and has specially designed raceways. The load is transmitted from one raceway to the other at an angle to the bearing axis and the bearing can carry heavy axial load in one direction and some simultaneously applied radial load as well.Refiner: Page 5This is how the spherical roller thrust bearings are situated in the refiner application.Screw conveyor: Page 1Machines used in the agricultural industry often require bearings that can easily be changed and that can handle misalignments.Screw conveyor: Page 2This is a drawing of a screw conveyor attached to an agricultural machine. The bearings are the only contact between the screw conveyor and the machine.Screw conveyor: Page 3A Y-bearing unit consists of two parts: a housing and a bearing. The bearing is based on the deep groove ball bearing and can carry light radial and axial loads. It has a convex-sphered outside diameter, which allows the bearing to take up misalignment between the shaft and housing at the assembly stage. They are available with a wide range of highly effective,integral seals and a range of different methods for easy mounting to the shaft.Screw conveyor: Page 4This is what the Y-bearing unit looks like in the screw conveyor.Front wheel: Page 1SKF bearings are used in front wheels of commercial vehicles. These applications require bearings that can handle very heavy loads.Front wheel: Page 2This drawing shows how a truck front wheel arrangement is designed and where its bearings are situated. The bearings must carry a large part of the weight of the vehicle and the induced forces when driving, which means that they have to handle heavy loads in both radial and axial directions.Front wheel: Page 3Tapered roller bearings have tapered rollers running in tapered inner and outer ring raceways. This design makes them suitable for handling heavy combined loads.A tapered roller bearing can only carry axial loads in one direction and, for this reason, they are generally fitted in pairs.Front wheel: Page 4See how the tapered roller bearings are mounted in the front wheel of a commercial vehicle.SummaryIn this lesson, you have studied the most common SKF bearing types. Now click on each bearing picture to repeat the most important characteristics of each type. If you want to read more about SKF bearings, enter the SKF Interactive Engineering Catalogue on line at .Module 3: DesignationsIntroductionSKF bearing designations describe a bearing’s or component’s type, design, and variants. The designation can be found both on the box and on the bearing itself.Basic designations: Page 1A bearing designation for metric size bearings can either consist of a basic designation alone or a basic designation plus one or more supplementary designations, called prefixes and suffixes.The basic designation identifies the product type and size, while the supplementary designations identify design, special variants and bearing components.Basic designations: Page 2Each SKF bearing of standard metric design is given a basic designation, which normally consists of three, four or five figures.Basic designations: Page 3For example, the basic designation 22206 denotes a spherical roller bearing with the width series 2, diameter series 2 and a bore diameter of 30 mm.Supplementary designations: Page 1The supplementary designations consist of both prefixes and suffixes. Supplementary designations: Page 2Prefixes are used to identify component parts of a bearing and are usually followed by the designation of the complete bearing.Supplementary designations: Page 3Suffixes are used to identify designs, which differ in some way from the original design. The suffixes are divided into four main groups: Internal design, external design, cage design and variants, all of which are added to the basic designation in this order.End of course testNow it’s time to see what you learned.If you pass the test on-line then you’ll be able to print your course completion certificate.。
SKF轴承的基础知识
圆锥滚子轴承设计优势
SKF的优化设计
1
SKF
接触表面的对数形线, 加上最优化的表面精磨, 增加了工作寿命 滚子端面和档边的接触 进行改进大大地减少了 摩擦 横截面的优化利用
2010-11-12 ©SKF Slide 40 [Code] SKF [Organisation]
圆锥滚子轴承
2010-11-12 ©SKF Slide 41 [Code] SKF [Organisation]
轴承命名方法
2010-11-12 ©SKF Slide 4 [Code] SKF [Organisation]
SKF轴承的命名方法
基本代号 表示：
• 产品类别 • 标准设计 • 尺寸
补充代号 表示：
• 结构可选择(各种不同结构） • 轴承的组件 • 特殊轴承类型
2010-11-12 ©SKF Slide 5 [Code] SKF [Organisation]
2010-11-12 ©SKF Slide 35 [Code] SKF [Organisation]
调心球轴承
特点： 可自动调心 承受径向负荷和双向轴向负荷
2010-11-12 ©SKF Slide 36 [Code] SKF [Organisation]
球轴承的特性
深沟球轴承
角接触球轴承
轴承分类-按接触角大小
按轴承接触角来分： 向心轴承(0° ≤ α＜45 °) 推力轴承(45 ° ＜α≤ 90 °)
2010-11-12 ©SKF Slide 26 [Code] SKF [Organisation]
接触角的变化
轴向负荷承载能力取决于接触角的大小
2010-11-12 ©SKF Slide 27 [Code] SKF [Organisation]
skf轴承手册
skf轴承手册
摘要：
1.轴承基本概念
2.skf 轴承的分类与特点
3.skf 轴承的安装与拆卸
4.skf 轴承的保养与维护
5.skf 轴承的故障诊断与处理
6.skf 轴承的选购与应用
正文：
SKF 轴承手册概述了轴承的基本概念、SKF 轴承的分类与特点、安装与拆卸、保养与维护、故障诊断与处理以及选购与应用等方面的内容。
轴承是机械传动系统中的重要部件，主要承受轴向和径向载荷，具有支撑、减小摩擦、延长机械寿命等作用。
SKF 轴承作为全球知名品牌，凭借其优质的品质和广泛的产品系列赢得了市场的认可。
SKF 轴承根据承受载荷的方向和大小可分为向心轴承、推力轴承和径向轴承等，根据轴承的结构特点又可分为球轴承、滚子轴承等。
SKF 轴承具有高承载能力、高速性能和低磨损等优点，广泛应用于各类机械设备中。
在安装与拆卸环节，SKF 轴承需要严格按照操作规程进行，避免因安装不当导致的轴承损坏。
保养与维护方面，SKF 轴承需要定期进行清洗、检查和润滑，以确保其正常工作并延长使用寿命。
在轴承使用过程中，可能会出现故障，如噪音、振动等。
SKF 轴承手册提
供了故障诊断与处理的方法，帮助用户及时发现并解决问题。
在轴承选购与应用环节，SKF 轴承手册提供了详细的选型指导，帮助用户根据实际需求选择合适的轴承。
同时，手册还列举了SKF 轴承在不同行业和设备中的应用案例，为用户提供了实际应用中的参考。
skf轴承基础知识讲解
接触角： a＝0°
Fa ＝ 0
a≠ 0 °
Fa ≠ 0
amax ＝90 ° Fa ＝ Famax
Fr
Fa
2、按照滚动体的形状：
球面滚子
滚珠
(对称形)
球面滚子 (非对称形)
圆柱滚子
滚针
圆锥滚子
滚动轴承类型的选择：
1）可容空间； 2）负荷（径向Fr、轴向Fa、复合载荷Fr+Fa）； 3）对中误差； 4）精度； 5）转速； 6）支撑刚度和安装要求； 7）公差、游隙要求等等。
轴承基础知识
一、轴承的功能： 减少摩擦 承受负荷 传动导向
远古时代的轴承
远古时代轴承的复原图
轴承的工作原理
直尺
铅笔
轴承的工作原理
轴承的变革
1907
1919
1939
1972
1995
1900
1950
2000
轴承负荷
径向负荷
轴向负荷
联合负荷
轴承分类：
滑动轴承：面接触（无数个点的点接触） 适用于极高速、极低速（负荷大） 轴是悬浮的，油压很重要 。
架处于内圈内外径与外圈外内径之间。即保持架“悬 空”， 只接触滚动体。
密封结构：防护罩
非接触式密封 RZ/RSL
接触式密封 RS1/RSH
防护罩
密封件的类型
低摩擦密封件
密封件
-Z和-2Z
-RZ/RSL和-2RZ/2RSL -RS1/RSH和-2RS1/2RSH
污物排除
静音运行
润滑脂保留
速度能力
–差
轴承的精度：滚动轴承是一种精密产品
µ有多大?
普通
精密轴承
高精度轴承
