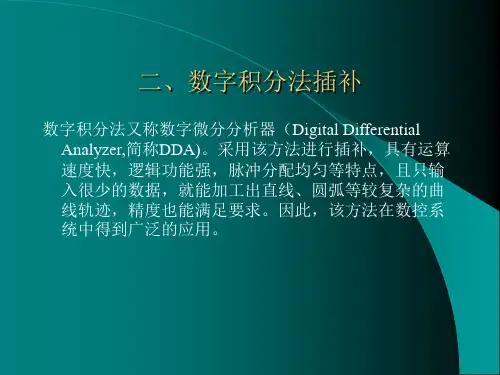

数字积分法插补C语言程序

//该函数在VC++6.0下编译测试通过，可实现直线、圆弧、完整圆的数字积分法插补；并可将插补函数计算出的数//据点写入xxx.txt文件中//若有任何疑问，欢迎邮件联系，***********************#include//版权所有，侵权必究。

转载时请注明来自大连理工机械工程学院Deanjiang#include<math.h>#include<stdlib.h>#include<stdio.h>/********************************************************************//* 函数名: InsertPoint *//* 功能：控制机床各轴进给并将进给结果写入文件中*//* 参数：double x, double y 插补点单位:毫米*//* 说明：与机床硬件关联，每产生一个点调用一次*//********************************************************************/void InsertPoint(double xCur,double yCur){extern FILE *fp;char ch=10;printf("xCur=%f,yCur=%f\n",xCur,yCur);fprintf(fp,"%f,%f",xCur,yCur);fputc(ch,fp);}/********************************************************************//* 函数名: Judge_Quadrant *//* 功能：判断参数坐标的所在象限并返回相应象限值*//* 参数：double x mm*//*double y mm*//********************************************************************/unsigned short Judge_Quadrant(double x, double y){unsigned short nDir;if (x>=0){ //象限判断if (y>=0){nDir=1;return 1;}else{nDir=4;return 4;}}else{if (y>=0){nDir=2;return 2;}else{nDir=3;return 3;}}}/********************************************************************/ /* 函数名: DDA_Line */ /* 功能：数字积分法直线插补*/ /* 参数：double XEnd, double YEnd插补终点mm*//*int step步长mm*//* unsigned short n寄存器位数*//********************************************************************/ void DDA_Line(unsigned short n, int step, double XEnd, double YEnd){long XRes,YRes; //寄存器溢出后余数long xEnd,yEnd; //插补终点值long XCur=0,YCur=0; //当前位置int IPCount=0;//累加值int nQuadrant;//象限int Q; //累加器容量int bInterpXEnable,bInterpYEnable;XRes=YRes=0;bInterpXEnable=bInterpYEnable=0;xEnd=labs(XEnd);yEnd=labs(YEnd);Q=(fabs(YEnd)+fabs(XEnd))/step;nQuadrant=Judge_Quadrant(XEnd,YEnd);//计算插补象限switch(nQuadrant){case 1:while (IPCount<Q){XRes+=xEnd/step;YRes+=yEnd/step;if (XRes>=Q){XRes=XRes%Q;XCur+=step;bInterpXEnable=1;}if (YRes>=Q){YRes=YRes%Q;YCur+=step;bInterpYEnable=1;}if (bInterpXEnable==1||bInterpYEnable==1){InsertPoint(XCur,YCur);bInterpXEnable=bInterpYEnable=0;}IPCount++;}break;case 2:while (IPCount<Q){XRes+=xEnd/step;YRes+=yEnd/step;if (XRes>=Q){XRes=XRes%Q;XCur-=step;bInterpXEnable=1;}if (YRes>=Q){YRes=YRes%Q;YCur+=step;bInterpYEnable=1;}if (bInterpXEnable==1||bInterpYEnable==1){InsertPoint(XCur,YCur);bInterpXEnable=bInterpYEnable=0;}IPCount++;}break;case 3:while (IPCount<Q){XRes+=xEnd/step;YRes+=yEnd/step;if (XRes>=Q){XRes=XRes%Q;XCur-=step;bInterpXEnable=1;}if (YRes>=Q){YRes=YRes%Q;YCur-=step;bInterpYEnable=1;}if (bInterpXEnable==1||bInterpYEnable==1){InsertPoint(XCur,YCur);bInterpXEnable=bInterpYEnable=0;}IPCount++;}break;case 4:while (IPCount<Q){XRes+=xEnd/step;YRes+=yEnd/step;if (XRes>=Q){XRes=XRes%Q;XCur+=step;bInterpXEnable=1;}if (YRes>=Q){YRes=YRes%Q;YCur-=step;bInterpYEnable=1;}if (bInterpXEnable==1||bInterpYEnable==1){InsertPoint(XCur,YCur);bInterpXEnable=bInterpYEnable=0;}IPCount++;}break;}}/********************************************************************//* 函数名: DDA_Line *//* 功能：数字积分法直线插补*//* 参数：double XEnd, double YEnd插补终点mm*//*int step步长mm*//* unsigned short n寄存器位数*//********************************************************************/void DDA_Circle(unsigned short n, int step, double XStart, double YStart, double XEnd, double YEnd, double radius, int bIsCW) {double xCur=XStart,yCur=YStart;long xRes=0,yRes=0;int ndir,Q;int judge=1;int full_circle=0;int xEnable,yEnable;xEnable=yEnable=0;Q=radius;//溢出基值,也可取为pow(2,n)InsertPoint(xCur,yCur);if(XStart==XEnd&YStart==YEnd)full_circle=1;//判断是否要画整圆while(judge==1||full_circle==1)//检测终点{xRes+=fabs(xCur);yRes+=fabs(yCur);if(xRes>=Q&fabs(yCur)<=radius){xRes=xRes%Q;yEnable=1;}if(yRes>=Q&fabs(xCur)<=radius){yRes=yRes%Q;xEnable=1;}if(bIsCW==0)//逆圆插补{ndir=Judge_Quadrant(xCur,yCur);if(yEnable==1)//xRes溢出，y轴进给{switch(ndir){case 1:if(fabs(yCur)<radius) yCur+=step;break;//防止y轴超出半径范围case 2:yCur-=step;break;case 3:if(fabs(yCur)<radius) yCur-=step;break;//防止y轴超出半径范围case 4:yCur+=step;break;}}if(xEnable==1)//yRes溢出，x轴进给{switch(ndir){case 1:xCur-=step;break;case 2:if(fabs(xCur)<radius) xCur-=step;break;//防止x轴超出半径范围case 3:xCur+=step;break;case 4:if(fabs(xCur)<radius) xCur+=step;break;//防止x轴超出半径范围}}}else//顺圆插补{ndir=Judge_Quadrant(xCur,yCur);if(yEnable==1)//xRes溢出，y轴进给{switch(ndir){case 1:yCur-=step;break;case 2:if(fabs(yCur)<radius) yCur+=step;break;//防止y轴超出半径范围case 3:yCur+=step;break;case 4:if(fabs(yCur)<radius) yCur-=step;break;//防止y轴超出半径范围}}if(xEnable==1)//yRes溢出，x轴进给{switch(ndir){case 1:if(fabs(xCur)<radius) xCur+=step;break;//防止x轴超出半径范围case 2:xCur+=step;break;case 3:if(fabs(xCur)<radius) xCur-=step;break;//防止x轴超出半径范围case 4:xCur-=step;break;}}}judge=(fabs(xCur-XEnd)>=step||fabs(yCur-YEnd)>=step);if(xEnable||yEnable)//判断并进行进给运动{InsertPoint(xCur,yCur);xEnable=yEnable=0;full_circle=0;}}}FILE *fp;int main(){char fn[10];printf("please input filename:\n");scanf("%s",fn);if((fp=fopen(fn,"w"))==NULL){printf("can't open file\n");exit(0);}DDA_Circle(4,1,50,0,40,-30,50,1);//输入要插补的圆弧的参数//DDA_Line(4,1,50,-20);//输入要插补的圆弧的参数fclose(fp);return 0;}。
