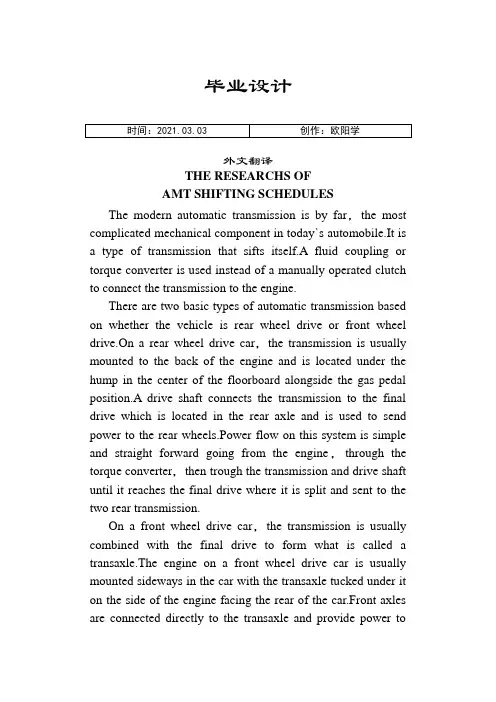

毕业设计外文翻译THE RESEARCHS OFAMT SHIFTING SCHEDULESThe modern automatic transmission is by far，the most complicated mechanical component in today`s automobile.It is a type of transmission that sifts itself.A fluid coupling or torque converter is used instead of a manually operated clutch to connect the transmission to the engine.There are two basic types of automatic transmission based on whether the vehicle is rear wheel drive or front wheel drive.On a rear wheel drive car，the transmission is usually mounted to the back of the engine and is located under the hump in the center of the floorboard alongside the gas pedal position.A drive shaft connects the transmission to the final drive which is located in the rear axle and is used to send power to the rear wheels.Power flow on this system is simple and straight forward going from the engine，through the torque converter，then trough the transmission and drive shaft until it reaches the final drive where it is split and sent to the two rear transmission.On a front wheel drive car，the transmission is usually combined with the final drive to form what is called a transaxle.The engine on a front wheel drive car is usually mounted sideways in the car with the transaxle tucked under it on the side of the engine facing the rear of the car.Front axles are connected directly to the transaxle and provide power tofront wheels.In this example，power floes from the engine，through the torque converter to a larger chain that sends the power through a 180 degree turn to the transmission that is along side the engine.From there，the power is routed through the transmission to the final drive where it is split and sent to the two front wheels through the drive axles.There are a number of other arrangements including front drive vehicles where the engine is mounted front to back instead of sideways and there are other systems that drive all four wheels but the two systems described here are by far the most popular.A much less popular rear and is connected by a drive shaft to the torque converter which is still mounted on the engine.This system is found on the new Corvette and is used in order to balance the weight evenly between the front and rear wheels for improved performance and handling.Another rear drive system mounts everything，the engine，transmission and final drive in the rear.This rear engine arrangement is popular on the Porsche。
自动五速手动变速箱- EASYTRONIC 3.0外文文献翻译、中英文翻译
附录1：外文翻译自动五速手动变速箱- EASYTRONIC 3.0。
The new Opel/Vauxhall公司在2014年秋季推出了自动化五速手动变速箱(MTA) Easytronic 3.0。
该变速器使用电动液压离合器和位移控制，其主要部件主来自手动变速箱(F17-5)。
这个新的变速器新增了停止/启动功能，而他的控制系统是根据安全标准ISO 26262设计的。
DIPL.-ING。
THOMAS ZEMMRICH是德国Adam Opel公司变速器自动化MT系统组长和技术专家。
持续战略2014年秋季，欧宝/沃克斯豪尔公司引进了新一代自动化手动变速器MTA(手动变速器) Easytronic 3.0。
这延续了公司自2001年开始战略，通过这种低成本的变速器有效代替小型车辆的常规自动变速器。
由于传统变速器在传动过程中有扭矩中断会使车辆在驾驶时舒适度不佳。
因此，他们设计了与传统变速箱相比操作操作更简便，燃油经济性更好的，并且带有运动驾驶风格的自动化变速器。
这篇文章介绍了欧宝新推出的MTA 的设计和性能特点。
变速器的设计这款新推出的变速器是在Opel公司五速手动变速箱(F17-5)的基础上开发的，它的扭矩容量为190Nm。
这款变速器用在中小型汽油发动机手动档车型上的排量高达1.4L，用在材油机手动挡车型上的排量为1.3L。
虽然拥有高达200Nm转矩容量的6速变速箱越来越受到欢迎，但是考虑到成本，目前五速版的变速箱任是小型汽车的首选。
这款变速器采用拨叉和同步器进行换档，所选的齿轮组传动比范围为5.53，这对于一个五速变速箱来说是一个相当大的传动比范围。
由于较大的传动比范围，使得一档工作时不需要输入较大的转矩，使驾驶舒适性能得到提高，且在五档工作时不需要发动机输入较高的转速就可以获得较高的驾驶速度，还能够降低噪音，提高燃油经济性。
后者是实现自动手动变速器而不损失任何性能，因为加速度可以通过快速自动降档来实现。
自动变速器中英文对照外文翻译文献
中英文对照外文翻译文献(文档含英文原文和中文翻译)How Automatic Transmissions WorkIf you have ever driven a car with an automatic transmission, then you know that there are two big differences between an automatic transmission and a manual transmission:There is no clutch pedal in an automatic transmission car.There is no gear shift in an automatic transmission car. Once you put the transmission into drive, everything else is automatic.Both the automatic transmission (plus its torque converter) and a manual transmission (with its clutch) accomplish exactly the same thing, but they do it in totally different ways. It turns out that the way an automatic transmission does it is absolutely amazing!In this article, we'll work our way through an automatic transmission. We'll start with the key to the whole system: planetary gear sets. Thenwe'll see how the transmission is put together, learn how the controls work and discuss some of the intricacies involved in controlling a transmission.Some BasicsJust like that of a manual transmission, the automatic transmission's primary job is to allow the engine to operate in its narrow range of speeds while providing a wide range of output speeds.Without a transmission, cars would be limited to one gear ratio, and that ratio would have to be selected to allow the car to travel at the desired top speed. If you wanted a top speed of 80 mph, then the gear ratio would be similar to third gear in most manual transmission cars.You've probably never tried driving a manual transmission car using only third gear. If you did, you'd quickly find out that you had almost no acceleration when starting out, and at high speeds, the engine would be screaming along near the red-line. A car like this would wear out very quickly and would be nearly undrive able.So the transmission uses gears to make more effective use of the engine's torque, and to keep the engine operating at an appropriate speed.The key difference between a manual and an automatic transmission is that the manual transmission locks and unlocks different sets of gears to the output shaft to achieve the various gear ratios, while in an automatic transmission, the same set of gears produces all of the different gear ratios. The planetary gear set is the device that makes this possible in an automatic transmission.GearsThis automatic transmission uses a set of gears, called a compound planetary gear set, that looks like a single planetary gear set butactually behaves like two planetary gear sets combined. It has one ring gear that is always the output of the transmission, but it has two sun gears and two sets of planets.Let's look at some of the parts:First GearIn first gear, the smaller sun gear is driven clockwise by the turbine in the torque converter. The planet carrier tries to spin counterclockwise,but is held still by the one-way clutch (which only allows rotation in the clockwise direction) and the ring gear turns the output. The small gear has 30 teeth and the ring gear has 72, so the gear ratio is:Ratio = -R/S = - 72/30 = -2.4:1So the rotation is negative 2.4:1, which means that the output direction would be opposite the input direction. But the output direction is reallythe same as the input direction -- this is where the trick with the twosets of planets comes in. The first set of planets engages the second set, and the second set turns the ring gear; this combination reverses the direction. You can see that this would also cause the bigger sun gear to spin; but because that clutch is released, the bigger sun gear is free to spin in the opposite direction of the turbineSecond GearThis transmission does something really neat in order to get the ratio needed for second gear. It acts like two planetary gear sets connected to each other with a common planet carrier.The first stage of the planet carrier actually uses the larger sun gearas the ring gear. So the first stage consists of the sun (the smaller sun gear), the planet carrier, and the ring (the larger sun gear).The input is the small sun gear; the ring gear (large sun gear) is held stationary by the band, and the output is the planet carrier. so theformula is:1 + R/S = 1 + 36/30 = 2.2:1The planet carrier turns 2.2 times for each rotation of the small sun gear. At the second stage, the planet carrier acts as the input for the second planetary gear set, the larger sun gear (which is held stationary) acts as the sun, and the ring gear acts as the output, so the gear ratio is:1 / (1 + S/R) = 1 / (1 + 36/72) = 0.67:1To get the overall reduction for second gear, we multiply the first stage by the second, 2.2 x 0.67, to get a 1.47:1 reduction. This may sound wacky, but it works.Third GearMost automatic transmissions have a 1:1 ratio in third gear. You'll remember from the previous section that all we have to do to get a 1:1output is lock together any two of the three parts of the planetary gear. With the arrangement in this gear set it is even easier -- all we have todo is engage the clutches that lock each of the sun gears to the turbine.If both sun gears turn in the same direction, the planet gears lockup because they can only spin in opposite directions. This locks the ring gear to the planets and causes everything to spin as a unit, producing a 1:1 ratio. OverdriveBy definition, an overdrive has a faster output speed than input speed.It's a speed increase. In this transmission, engaging the overdrive accomplishes two things at once. If you read How Torque Converters Work,you learned about lockup torque converters. In order to improve efficiency, some cars have a mechanism that locks up the torque converter so that the output of the engine goes straight to the transmission.In this transmission, when overdrive is engaged, a shaft that is attached to the housing of the torque converter (which is bolted to the flywheel of the engine) is connected by clutch to the planet carrier. The small sungear freewheels, and the larger sun gear is held by the overdrive band. Nothing is connected to the turbine; the only input comes from theconverter housing. Let's go back to our chart again, this time with the planet carrier for input, the sun gear fixed and the ring gear for output.Ratio = 1 / (1 + S/R) = 1 / ( 1 + 36/72) = 0.67:1So the output spins once for every two-thirds of a rotation of the engine. If the engine is turning at 2000 rotations per minute (RPM), the outputspeed is 3000 RPM. This allows cars to drive at freeway speed while the engine speed stays nice and slow.ReverseReverse is very similar to first gear, except that instead of the small sun gear being driven by the torque converter turbine, the bigger sun gear is driven, and the small one freewheels in the opposite direction. The planet carrier is held by the reverse band to the housing. So, according to our equations from the last page, we have:Ratio = -R/S = 72/36 = 2.0:1So the ratio in reverse is a little less than first gear in this transmission. Gear RatiosThis transmission has four forward gears and one reverse gear. Let's summarize the gear ratios, inputs and outputs:Gear Input Output FixedGear Ratio1st 30-tooth sun72-toothringPlanetcarrier2.4:12nd30-tooth sunPlanetcarrier36-toothring2.2:1Planetcarrier72-toothring36-toothsun0.67:1Total 2nd 1.47:13rd30- and 36-tooth suns72-toothring1.0:1OD Planet 72-tooth 36-tooth 0.67:1carrier ring sunRever se 36-tooth sun72-toothringPlanetcarrier-2.0:1Hydraulic SystemThe automatic transmission in your car has to do numerous tasks. You may not realize how many different ways it operates. For instance, here are some of the features of an automatic transmission:If the car is in overdrive (on a four-speed transmission), the transmission will automatically select the gear based on vehicle speed and throttle pedal position.If you accelerate gently, shifts will occur at lower speeds than if you accelerate at full throttle.If you floor the gas pedal, the transmission will downshift to the next lower gear.If you move the shift selector to a lower gear, the transmission will downshift unless the car is going too fast for that gear. If the car is going too fast, it will wait until the car slows down and then downshift.If you put the transmission in second gear, it will never downshift or up shift out of second, even from a complete stop, unless you move the shift lever.You've probably seen something that looks like this before. It isreally the brain of the automatic transmission, managing all of these functions and more. The passageways you can see route fluid to all the different components in the transmission. Passageways molded into the metal are an efficient way to route fluid; without them, many hoses would be needed to connect the various parts of the transmission. First, we'll discuss the key components of the hydraulic system; then we'll see how they work together.The PumpAutomatic transmissions have a neat pump, called a gear pump. The pump is usually located in the cover of the transmission. It draws fluid from a sump in the bottom of the transmission and feeds it to the hydraulic system. It also feeds the transmission cooler and the torque converter.The inner gear of the pump hooks up to the housing of the torque converter, so it spins at the same speed as the engine. The outer gear is turned by the inner gear, and as the gears rotate, fluid is drawn up fromthe sump on one side of the crescent and forced out into the hydraulic system on the other side.The GovernorThe governor is a clever valve that tells the transmission how fast thecar is going. It is connected to the output, so the faster the car moves,the faster the governor spins. Inside the governor is a spring-loaded valve that opens in proportion to how fast the governor is spinning -- the faster the governor spins, the more the valve opens. Fluid from the pump is fed to the governor through the output shaft.The faster the car goes, the more the governor valve opens and the higher the pressure of the fluid it lets through.Valves and ModulatorsThrottle Valve or ModulatorTo shift properly, the automatic transmission has to know how hard the engine is working. There are two different ways that this is done. Somecars have a simple cable linkage connected to a throttle valve in the transmission. The further the gas pedal is pressed, the more pressure isput on the throttle valve. Other cars use a vacuum modulator to apply pressure to the throttle valve. The modulator senses the manifold pressure, which drops when the engine is under a greater load.Manual ValveThe manual valve is what the shift lever hooks up to. Depending on which gear is selected, the manual valve feeds hydraulic circuits that inhibitcertain gears. For instance, if the shift lever is in third gear, it feedsa circuit that prevents overdrive from engaging.Shift ValvesShift valves supply hydraulic pressure to the clutches and bands to engage each gear. The valve body of the transmission contains several shift valves. The shift valve determines when to shift from one gear to the next. For instance, the 1 to 2 shift valve determines when to shift from first to second gear. The shift valve is pressurized with fluid from the governor on one side, and the throttle valve on the other. They are supplied with fluid by the pump, and they route that fluid to one of two circuits to control which gear the car runs in.The shift valve will delay a shift if the car is accelerating quickly. If the car accelerates gently, the shift will occur at a lower speed. Let's discuss what happens when the car accelerates gently.As car speed increases, the pressure from the governor builds. Thisforces the shift valve over until the first gear circuit is closed, and the second gear circuit opens. Since the car is accelerating at light throttle, the throttle valve does not apply much pressure against the shift valve.When the car accelerates quickly, the throttle valve applies morepressure against the shift valve. This means that the pressure from the governor has to be higher (and therefore the vehicle speed has to be faster) before the shift valve moves over far enough to engage second gear.Each shift valve responds to a particular pressure range; so when the car is going faster, the 2-to-3 shift valve will take over, because thepressure from the governor is high enough to trigger that valve.Electronic ControlsElectronically controlled transmissions, which appear on some newer cars, still use hydraulics to actuate the clutches and bands, but each hydraulic circuit is controlled by an electric solenoid. This simplifies the plumbing on the transmission and allows for more advanced control schemes.自动变速器如何工作如果你曾经驾驶过一辆带着自动变速器的车, 那么你就知道自动变速器和手动变速器之间有很大的不同:在一个带着自动变速器的汽车中没有离合器踏板。
外文翻译---自动变速器如何工作
外文翻译How Automatic Transmissions WorkIf you have ever driven a car with an automatic transmission, then you know that there are two big differences between an automatic transmission and a manual transmission:There is no clutch pedal in an automatic transmission car.There is no gear shift in an automatic transmission car. Once you put the transmission into drive, everything else is automatic.Both the automatic transmission (plus its torque converter) and a manual transmission (with its clutch) accomplish exactly the same thing, but they do it in totally different ways. It turns out that the way an automatic transmission does it is absolutely amazing!In this article, we'll work our way through an automatic transmission. We'll start with the key to the whole system: planetary gear sets. Then we'll see how the transmission is put together, learn how the controls work and discuss some of the intricacies involved in controlling a transmission. Some BasicsJust like that of a manual transmission, the automatic transmission's primary job is to allow the engine to operate in its narrow range of speeds while providing a wide range of output speeds.Without a transmission, cars would be limited to one gear ratio, and that ratio would have to be selected to allow the car to travel at the desired top speed. If you wanted a top speed of 80 mph, then the gear ratio would be similar to third gear in most manual transmission cars.You've probably never tried driving a manual transmission car using only third gear. If you did, you'd quickly find out that you had almost no acceleration when starting out, and at high speeds, the engine would be screaming along near the red-line. A car like this would wear out very quickly and would be nearly undrive able.So the transmission uses gears to make more effective use of the engine's torque, and to keep the engine operating at an appropriate speed.The key difference between a manual and an automatic transmission is that the manual transmission locks and unlocks different sets of gears to the output shaft to achieve the various gear ratios, while in an automatic transmission, the same set of gears produces all of the different gear ratios. The planetary gear set is the device that makes this possible in an automatic transmission.GearsThis automatic transmission uses a set of gears, called a compound planetary gear set, that looks like a single planetary gear set but actually behaves like two planetary gear sets combined. It hasone ring gear that is always the output of the transmission, but it has two sun gears and two sets of planets.Let's look at some of the parts:First GearIn first gear, the smaller sun gear is driven clockwise by the turbine in the torque converter. The planet carrier tries to spin counterclockwise, but is held still by the one-way clutch (which only allows rotation in the clockwise direction) and the ring gear turns the output. The small gear has 30 teeth and the ring gear has 72, so the gear ratio is:Ratio = -R/S = - 72/30 = -2.4:1So the rotation is negative 2.4:1, which means that the output direction would be opposite the input direction. But the output direction is really the same as the input direction -- this is where the trick with the two sets of planets comes in. The first set of planets engages the second set, and the second set turns the ring gear; this combination reverses the direction. You can see that this would also cause the bigger sun gear to spin; but because that clutch is released, the bigger sun gear is free to spin in the opposite direction of the turbineSecond GearThis transmission does something really neat in order to get the ratio needed for second gear. It acts like two planetary gear sets connected to each other with a common planet carrier.The first stage of the planet carrier actually uses the larger sun gear as the ring gear. So the first stage consists of the sun (the smaller sun gear), the planet carrier, and the ring (the larger sun gear).The input is the small sun gear; the ring gear (large sun gear) is held stationary by the band, and the output is the planet carrier. so the formula is:1 + R/S = 1 + 36/30 = 2.2:1The planet carrier turns 2.2 times for each rotation of the small sun gear. At the second stage, the planet carrier acts as the input for the second planetary gear set, the larger sun gear (which is held stationary) acts as the sun, and the ring gear acts as the output, so the gear ratio is:1 / (1 + S/R) = 1 / (1 + 36/72) = 0.67:1To get the overall reduction for second gear, we multiply the first stage by the second, 2.2 x 0.67, to get a 1.47:1 reduction. This may sound wacky, but it works.Third GearMost automatic transmissions have a 1:1 ratio in third gear. You'll remember from the previous section that all we have to do to get a 1:1 output is lock together any two of the three parts of the planetary gear. With the arrangement in this gear set it is even easier -- all we have to do is engagethe clutches that lock each of the sun gears to the turbine.If both sun gears turn in the same direction, the planet gears lockup because they can only spin in opposite directions. This locks the ring gear to the planets and causes everything to spin as a unit, producing a 1:1 ratio. OverdriveBy definition, an overdrive has a faster output speed than input speed. It's a speed increase. In this transmission, engaging the overdrive accomplishes two things at once. If you read How Torque Converters Work, you learned about lockup torque converters. In order to improve efficiency, some cars have a mechanism that locks up the torque converter so that the output of the engine goes straight to the transmission.In this transmission, when overdrive is engaged, a shaft that is attached to the housing of the torque converter (which is bolted to the flywheel of the engine) is connected by clutch to the planet carrier. The small sun gear freewheels, and the larger sun gear is held by the overdrive band. Nothing is connected to the turbine; the only input comes from the converter housing. Let's go back to our chart again, this time with the planet carrier for input, the sun gear fixed and the ring gear for output.Ratio = 1 / (1 + S/R) = 1 / ( 1 + 36/72) = 0.67:1So the output spins once for every two-thirds of a rotation of the engine. If the engine is turning at 2000 rotations per minute (RPM), the output speed is 3000 RPM. This allows cars to drive at freeway speed while the engine speed stays nice and slow.ReverseReverse is very similar to first gear, except that instead of the small sun gear being driven by the torque converter turbine, the bigger sun gear is driven, and the small one freewheels in the opposite direction. The planet carrier is held by the reverse band to the housing. So, according to our equations from the last page, we have:Ratio = -R/S = 72/36 = 2.0:1So the ratio in reverse is a little less than first gear in this transmission. Gear RatiosThis transmission has four forward gears and one reverse gear. Let's summarize the gear ratios, inputs and outputs:Hydraulic SystemThe automatic transmission in your car has to do numerous tasks. You may not realize how many different ways it operates. For instance, here are some of the features of an automatic transmission:If the car is in overdrive (on a four-speed transmission), the transmission will automatically select the gear based on vehicle speed and throttle pedal position.If you accelerate gently, shifts will occur at lower speeds than if you accelerate at full throttle. If you floor the gas pedal, the transmission will downshift to the next lower gear.If you move the shift selector to a lower gear, the transmission will downshift unless the car is going too fast for that gear. If the car is going too fast, it will wait until the car slows down and then downshift.If you put the transmission in second gear, it will never downshift or up shift out of second, even from a complete stop, unless you move the shift lever.You've probably seen something that looks like this before. It is really the brain of the automatic transmission, managing all of these functions and more. The passageways you can see route fluid to all the different components in the transmission. Passageways molded into the metal are an efficient way to route fluid; without them, many hoses would be needed to connect the various parts of the transmission. First, we'll discuss the key components of the hydraulic system; then we'll see how they work together.The PumpAutomatic transmissions have a neat pump, called a gear pump. The pump is usually located in the cover of the transmission. It draws fluid from a sump in the bottom of the transmission andfeeds it to the hydraulic system. It also feeds the transmission cooler and the torque converter. The inner gear of the pump hooks up to the housing of the torque converter, so it spins at the same speed as the engine. The outer gear is turned by the inner gear, and as the gears rotate, fluid is drawn up from the sump on one side of the crescent and forced out into the hydraulic system on the other side.The GovernorThe governor is a clever valve that tells the transmission how fast the car is going. It is connected to the output, so the faster the car moves, the faster the governor spins. Inside the governor is a spring-loaded valve that opens in proportion to how fast the governor is spinning -- the faster the governor spins, the more the valve opens. Fluid from the pump is fed to the governor through the output shaft.The faster the car goes, the more the governor valve opens and the higher the pressure of the fluid it lets through.Valves and ModulatorsThrottle Valve or ModulatorTo shift properly, the automatic transmission has to know how hard the engine is working. There are two different ways that this is done. Some cars have a simple cable linkage connected to a throttle valve in the transmission. The further the gas pedal is pressed, the more pressure is put on the throttle valve. Other cars use a vacuum modulator to apply pressure to the throttle valve. The modulator senses the manifold pressure, which drops when the engine is under a greater load. Manual ValveThe manual valve is what the shift lever hooks up to. Depending on which gear is selected, the manual valve feeds hydraulic circuits that inhibit certain gears. For instance, if the shift lever is in third gear, it feeds a circuit that prevents overdrive from engaging.Shift ValvesShift valves supply hydraulic pressure to the clutches and bands to engage each gear. The valve body of the transmission contains several shift valves. The shift valve determines when to shift from one gear to the next. For instance, the 1 to 2 shift valve determines when to shift from first to second gear. The shift valve is pressurized with fluid from the governor on one side, and the throttle valve on the other. They are supplied with fluid by the pump, and they route that fluid to one of two circuits to control which gear the car runs in.The shift valve will delay a shift if the car is accelerating quickly. If the car accelerates gently, the shift will occur at a lower speed. Let's discuss what happens when the car accelerates gently. As car speed increases, the pressure from the governor builds. This forces the shift valve overuntil the first gear circuit is closed, and the second gear circuit opens. Since the car is accelerating at light throttle, the throttle valve does not apply much pressure against the shift valve.When the car accelerates quickly, the throttle valve applies more pressure against the shift valve. This means that the pressure from the governor has to be higher (and therefore the vehicle speed has to be faster) before the shift valve moves over far enough to engage second gear.Each shift valve responds to a particular pressure range; so when the car is going faster, the 2-to-3 shift valve will take over, because the pressure from the governor is high enough to trigger that valve.Electronic ControlsElectronically controlled transmissions, which appear on some newer cars, still use hydraulics to actuate the clutches and bands, but each hydraulic circuit is controlled by an electric solenoid. This simplifies the plumbing on the transmission and allows for more advanced control schemes.自动变速器如何工作如果你曾经驾驶过一辆带着自动变速器的车, 那么你就知道自动变速器和手动变速器之间有很大的不同:在一个带着自动变速器的汽车中没有离合器踏板。
自动变速器发展现状及趋势外文文献翻译、中英文翻译、外文翻译
Current situation and development trend of automatic transmissionFirst, transmission profile1 manual transmission (MT)As we all know, the manual transmission gearbox is one of the most common car, its basic principle is to perform power transmission with a few parallel shafts and several meshing spur or helical gear, namely the input shaft axis and the axis constitute the main gearbox, plus a reverse gear and shaft synchronizer etc.. The working process is as follows: the driver through the drive rod to achieve different gear meshing, and ultimately to achieve different gear ratio gear.2 automatic manual transmission (AMT)Automatic manual transmission (AMT) is actually a machine system to complete the operation of the clutch and select the two movements. The AMT driver is simple, saves the clutch pedal, as long as the driver stepped on the accelerator, the best time selector system will automatically choose to shift, thereby eliminating the engine, clutch and transmission errors, to avoid the wrong bit shift. This is very important for both novice and vehicle reliability. Speed reducer greatly reduces the complexity of driving, so that AMT car driving more simple, worry, and to ensure the lowest power loss. By the selector to complete the driver to step on the clutch shift action, the timing of the shift is more accurate than the driver to complete. Therefore, the background for the growing shortage of energy and the emission of CO2 AMT under increasing pressure, conform to the "energy saving" this door, the best time selector system will automatically choose to shift, thereby eliminating the engine, clutch and transmission errors, to avoid the wrong change gear. This is very important for both novice and vehicle reliability. Speed reducer greatly reduces the complexity of driving, so that AMT car driving more simple, worry, and to ensure the lowest power loss. By the selector to complete the driver to step on the clutch shift action, the timing of the shift is more accurate than the driver to complete. Therefore, the background for the growing shortage of energy and the emission of CO2 AMT under increasing pressure, conform to the "energy saving" this door, the best time selector system will automatically choose to shift, thereby eliminating theengine, clutch and transmission errors, to avoid the wrong change gear. This is very important for both novice and vehicle reliability. Speed reducer greatly reduces the complexity of driving, so that AMT car driving more simple, worry, and to ensure the lowest power loss. By the selector to complete the driver to step on the clutch shift action, the timing of the shift is more accurate than the driver to complete. Therefore, the background for the growing shortage of energy and the emission of CO2 AMT under increasing pressure, conform to the "energy saving" this door, the best time selector system will automatically choose to shift, thereby eliminating the engine, clutch and transmission errors, to avoid the wrong change gear. This is very important for both novice and vehicle reliability. Speed reducer greatly reduces the complexity of driving, so that AMT car driving more simple, worry, and to ensure the lowest power loss. By the selector to complete the driver to step on the clutch shift action, the timing of the shift is more accurate than the driver to complete.3 electronically controlled hydraulic automatic transmission (AT)Electronic control of hydraulic automatic transmission (AT) in recent years, new technologies are constantly in use, it is moving toward multi block, digital control, etc.. Japan's largest automatic transmission manufacturer AISIN AW in 2006, the successful launch of model AA80E 8 speed automatic transmission (see Figure 3), is currently being used in the Lexus LS460 car. This will form a larger total transmission ratio, while the transmission ratio is also closer than the 5 speed transmission. Therefore, the driver can choose the best transmission ratio in almost all driving conditions. Electronic control module can choose more transmission ratio, the transmission ratio depends on the driving conditions, thereby reducing fuel consumption and improve the ride comfort. The optimal matching of engine speed and running state means that the engine improves the power and fuel economy and reduces the running noise.4 continuously variable transmission (CVT)Continuously variable transmission (CVT) is only two groups of removable cone and transmission belt or transmission chain, you can achieve the number of forward gear transmission process. The CVT drive to choose power transmission and the transmission ratio of the transmission chain and the variable cone groove width belt, when cone groove widthchanges, corresponding changes in the driving wheel and the driven wheel drive belt speed contact radius. CVT is a truly stepless, and AT compared with a high operating efficiency, low fuel consumption. Through the application of the market in recent years, the momentum of development is also relatively rapid, currently in our country has been applied to the rapid development of 5 models, more than 6 kinds of. Figure 4 shows the market outlook for the Chinese market in the next few years.At present, the world each big automobile manufacturers in order to improve the competitiveness of their products are vigorously engaged in research and development of CVT, equipped with CVT, TOYOTA, NISSAN car sales are FORD, GM, AUDI and other well-known car brands in the world, CVT's annual production has reached nearly 500 thousand vehicles. It is worth noting that, equipped with CVT car market, from the initial Japan, Europe has penetrated into the North American market, CVT has become the main trend of the development of today's automobile.5 dual clutch transmission (DCT)Dual clutch transmission (DCT) is the first German V olkswagen technology, so in theV olkswagen car system also known as DSG transmission. It can be said to be the world's most advanced, revolutionary transmission system, V olkswagen in 2002 in Wolfsburg, Germany for the first time to show the world the technological innovation. DSG transmission is designed to meet the consumer's desire to drive a sense of movement and fuel-efficient vehicles, for those who love the manual transmission drivers provide a best choice. DSG brings in low fuel consumption and vehicle performance without any loss, also has excellent acceleration and top speed, and the same with the traditional automatic transmission can realize smooth shift without affecting the traction force. Therefore, not only ensures the comfort, but also embodiesDynamic acceleration.Two, the development trend of transmissionAccording to industry estimates, statistical data will be the 2013 European transmission market changes, equipped with a manual transmission car will account for 52%, equippedwith automatic manual transmission will account for 10%, equipped with CVT will account for 2%, equipped with dual clutch transmission will account for 16%, equipped with automatic transmission will account for 20%. But industry experts have pointed out that the prediction was based on the transmission type of the existing new transmission products are constantly in the development process, so in the future transmission car market may also have some changes.1 automatic transmission to multi block developmentWith the automatic transmission car quantity rise, automatic transmission technology has evolved from the past traditional simple 4 speed electronic control (3 solenoid valve) to today's 6, 7, 8 (multi speed solenoid valve control) of the fuzzy control and network control logic. In recent years, the trend of increasing the number of automatic transmission is very obvious, from the traditional 4 speed to the 5, 6, 7, speed. Block number increase means that the total transmission ratio in the range widening, and two adjacent block between the transmission ratio and closer, so the shift time will be in advance, and in the launch to ensure the fuel economy, but also meet the acceleration performance. Now, the world's largest automatic transmission manufacturers have launched more than 5 speed multi speed automatic transmission, such as Z F's 6HP series AISIN; AW company U151/U250E,TF-60SN and TR-60SN; JATCO company's J F506E transmission G M company; T40E,6L50/80E etc..2 mechanical structure gradually simplifiedAlthough the new type of transmission block number in the number, but it does not mean that the transmission of the whole structure and volume become complex and increase, this is because of the combination of mechanical components from a large number of shift actuator control multiple planetary gear to achieve a simple 4 1 variable function, the development of today's 5 shift execution the so-called "Laipeilaijie element control type planetary gear set by logic combination can achieve 6 top 1 down transmission function. The number of parts is reduced by half, and the 6hp series reducer produced by ZF is an example (see Figure 7). At present, the German ZF company and Japan AISIN AW company has successfully pushed the 8 speed automatic transmission, but the gear part is still in use for gear, thus we will find outwhether the traditional Simpson series and Lavinia, or today's Laipeilaijie type planetary gear, are composed of "single planetary gear set single row gear and single row double gear" two forms. To this end, as long as we are familiar with the two kinds of planetary gear transmission on the OK, and when we go to analyze the production of different companies 5, 6, 7, block change.3 electronic control humanizationIn the mechanical and hydraulic aspects seem to be more and more simplified structure, less components, valve number is less, but in the overall control of the electronic control method has become more and more complicated, and requires more precise control, especially in the coordinated torque control, safety control, fuzzy logic control, overlapping shift control others of the more obvious. In order to improve the shift quality, reflect the driving comfort, the engine must realize the torque coordinated control of shift process of automatic transmission, the engine is mainly through the instant change of fuel injection quantity and the ignition delay function to maintain a smooth transition in the shift performance of the shift process of automatic transmission; safety protection control mainly refers to the failure of automatic transmission machinery hydraulic, electronic control, and the fault can be a greater threat to the transmission, in order to protect the transmission from further damage, protected by an automatic transmission through the computer receives the sensor information after the start; fuzzy logic control function, it is a microcomputer to imitate human brain function, can predict to the driver's next move, and finally realize the optimum shift time control and shift point switch Such control. Here we focus on understanding the overlapping shift control, this is because many of the maintenance staff is still relatively vague understanding. The so-called overlapping shift control this new words explanation is that shifting process is actually the process of friction friction element, in the common friction clutch and clutch or clutch and brake in the shift, if the friction torque of replacement process will cause improper timing, sharp fluctuations in output torque. The replacement of the friction torque between the two clutches or between the clutch and the brake, there will always be more or less interruption interval or overlap. Overlapping or excessive overlap, will produce undue shift impact. Overlap is the separation of the clutch to be separated too fast oil separation, to be combinedwith the clutch failed to establish sufficient oil pressure, thus the emergence of the two clutch torque transmission phenomenon. In this time of overlap, the output torque is first decreased too much, and then rise sharply, resulting in a larger torque disturbance. At the same time, the engine speed can not get a smooth transition, the first is due to the reduction of load growth, but also because of the rapid increase in load and speed down. Overlap is too much in the combination of the clutch has been able to transmit a lot of torque, the clutch should be separated from the oil separation is not very good, so there are two agencies working at the same time. In a short period of time, the two gears overlap, so that the engine and the output shaft are subject to braking, so the output shaft has a large torque disturbance. Subsequently, the clutch should be separated so that the transmission4 the number of actuators is increasing, and the type of control is changingYou will find that the automatic transmission actuator solenoid valve number increasing, the switch type solenoid valve is less, while the frequency is too much, the number of mechanical valve and control circuit is also less (more solenoid valve control is to improve the quality of the shift). A slide valve may be based on the conversion of the oil to achieve multi-purpose, a simple solenoid valve will be multi-purpose, it can achieve shift control, but also can take charge of oil pressure control. In the past the traditional type of electronic control automatic transmission, switching circuit is switched by shifting the solenoid valve to control the switching circuit, the circuit is a switching type (for shifting actuator junction without excessive vibration, the buffer control circuit is usually used in throttling and storage device to achieve slow control). The actuator in the 6HP series, the 6 has a pulse width modulation solenoid valve features high flow high frequency, 1 of them (E D S5) is mainly used to complete the system pressure regulating function, the other 1 (E D S6) is used to complete the engine and the transmission gearbox mechanical connection function (T C C) and the remaining 4 solenoid valve (E D S1-A, E D S2-B, E D S3-C, E D S4-E/D) respectively control 5 shift actuators of engagement and separation, that is to say the shift circuit controlled by the switch into the original regulation, thus greatly improve the shift quality. Shift control, but also can undertake the oil pressure control. In the past the traditional type of electronic control automatic transmission, switching circuit is switched by shifting thesolenoid valve to control the switching circuit, the circuit is a switching type (for shifting actuator junction without excessive vibration, the buffer control circuit is usually used in throttling and storage device to achieve slow control). The actuator in the 6HP series, the 6 has a pulse width modulation solenoid valve features high flow high frequency, 1 of them (E D S5) is mainly used to complete the system pressure regulating function, the other 1 (E D S6) is used to complete the engine and the transmission gearbox mechanical connection function (T C C) and the remaining 4 solenoid valve (E D S1-A, E D S2-B, E D S3-C, E D S4-E/D) respectively control 5 shift actuators of engagement and separation, that is to say the shift circuit controlled by the switch into the original regulation, thus greatly improve the shift quality.自动变速器发展现状及趋势一、变速器简介1.手动变速器(MT)大家知道，手动变速器是汽车中最常见的变速器之一，其基本原理是用几根平行轴及若干相啮合的直齿或斜齿齿轮进行动力传递，即由输入轴、轴出轴和中间轴构成变速器的主体，再加上一根倒挡轴及同步器等部件。
变速器汽车车辆外文文献翻译、中英文翻译、外文翻译
