模具设计专业用语
模具专业用语概述
模具专业用语概述模具专业是一个非常重要的工程领域，其中包括了各种各样的技术和专业术语。
这些术语对于模具专业的工程师和技术人员来说是非常重要的，因为他们需要了解这些术语以便在实际工作中更加高效地操作和交流。
下面是对模具专业用语的概述。
一、模具在模具专业中，模具是最基本和关键的术语之一。
模具是制作工业零部件和产品的工具，其作用是将材料通过熔融、塑性变形和冷却过程转化成所需的形状。
模具主要分为压铸模具、注塑模具、吹塑模具、挤出模具、汽车钣金模具等。
二、模具设计模具设计是制作模具的重要步骤。
模具设计包括模具结构设计、模具零部件设计、模具加工工艺设计等。
模具设计需要考虑多方面因素，如材料、加工工艺、成本和生产效率等。
三、加工工艺加工工艺是模具制作过程中非常重要的术语。
加工工艺包括多种不同的工艺，如铣削、车削、磨削、电蚀和电火花加工等。
这些加工工艺对于制作不同类型的模具都有其特定的要求和应用。
四、CAD/CAMCAD是计算机辅助设计的缩写，CAM是计算机辅助制造的缩写。
这两种技术在模具专业中广泛应用。
CAD/CAM系统能够提高模具设计的速度和精度，同时还能自动生成加工程序，实现模具制造的自动化。
五、注塑加工注塑加工是模具制造中一个非常重要的专业领域。
注塑加工是将熔化的塑料注入到模具中，然后冷却和固化以获得所需形状的过程。
注塑加工需要考虑到压力、温度、速度和切换时间等因素。
六、尺寸公差尺寸公差是指模具设计和制作中所需的精度范围。
尺寸公差的大小取决于产品和模具的要求。
尺寸公差是制作高品质模具的关键因素之一，对于各种不同类型的模具都是非常重要的。
七、模具标准在模具制造中，模具标准是必取的。
模具标准可以确保模具设计和制造的质量，同时还能保证制造出的模具与其他企业所制造出的模具兼容。
常用的模具标准有DIN、ISO和ASME 等。
八、模具材料模具材料的选择对于制作模具的性能和寿命有直接影响。
常用的模具材料有钢、铝合金和塑料等。
常用模具术语
常用模具术语出模：啤件在顶出机构的作用下离开模具的过程啤把：出模角度或者出模斜度倒扣：因为侧面角度或凹位而无法垂直出模的位置排模：模具的排期正哥：型腔在上模，型芯在下模的一种模具结构反哥：型心在上模，型腔在下模的一种模具结构分型：把产品分为上下模的过程种针：基准针，配针时以此针为基准放样：胶样的比例放大复样：胶样的复制调面：在雕刻时，调整胶样表面与要加工表面平行的过程摆斜雕刻：在雕刻时，因有些面不易加工，把胶样摆成一定角度的加工方法顶针出柱：用顶针的顶面来封住成型柱的底面，而使柱成型顶针包针：顶针过长或配针不当，而使顶针包在产品内锅柱：柱的前端有一锥型孔，上大下小，起到铆钉的作用。
多用于压铸模镶针出柱：用镶针的顶面来封住成型柱的底面，而使柱成型镶针出孔：用镶针成型孔原身出：用内模加工出要成型的形状来成型的方法大水口：二板模入水水塘：啤件为透明件或要求变形较小的薄壁件入水时，采用在浇口与流道间所加的一段起到缓冲作用的位置方法，这个缓冲位置就是入水水塘磨角尺：用磨床磨直角锣正：用铣床铣平面或直角Fit平面：用打磨机把平面精加工到要求的配合公差范围Fit枕位：用打磨机把枕位精加工到要求的配合公差范围Fit行位：用打磨机把行位精加工到要求的配合公差范围Fit插穿：用打磨机把插穿位精加工到要求的配合公差范围面镶：镶件从内模的上表面镶入一定的深度，不可到底面，下面用螺丝固定通镶：镶件从内模的下面镶入，直达上表面，通过整个内模兜底镶：镶件从内模的下面镶入，直达上表面，通过整个内模，在镶件下面以台阶形式固定侧镶：镶件从侧面镶入，一般多用在行位上奔子孔：胶样上的一个基准孔，所有的位置都要从这个孔取数镗蚀：铜公水平运动加工照数：用中心镜对要加工部位进行坐标值确定打盲孔：用电火花加工盲孔损公：损耗的铜公积碳：EDM加工时产生的碳堆积在零件或铜公上，使被加工的零件的平面凹凸不平粗公：粗加工时使用的铜公，火花间隙一般为单边0.25幼公：精加工时使用的铜公，火花间隙一般为单边0.07暴公：比粗公火花间隙还要大的铜公，用与粗加工立体公：一个整体铜公，形状与整个上模或这个下模相同清角铜公：对有些直角部位，因CNC不能完全加工而留有余量。
模具专业术语
Injection machine 啤机Shot size（weight）实际射胶量injection volume 理论射胶量min mold height 最小容模厚度Max mold height 最大容模厚度Tie bar clearance 拉杆间距Die plate size 模板尺寸Ejector stroke 顶出行程barrel 炮筒，机筒clamp force 锁模力non-return valve 止回阀shear 剪切opening 开模行程Injection pressure 射胶压力back pressure 背压nozzle size 射咀尺寸Cycle time 循环周期down time 停机时间hopper 料筒Mold release 脱模剂lubrication 润滑work horse 主力，主要设备Reserve pressure / packing pressure保压mold trial 试模shot （一）啤Decompress 减压oven 烤炉，烘灶shrinkage rate 收缩率Residence time 滞留时间injection speed 注射速度booster time 增压时间Compression ratio 压缩比mold close time 合模时间Resin 胶料/.Plastification 塑化，增塑viscosity 粘性，粘度contamination 污染，杂物Thermoplastic 热塑性塑料thermosetting plastics 热固性塑料Booster time 增压时间feed 喂料，填充purge 净化Flame retardant 阻燃degradation 降解，软化regrind 再粉碎Water absorption 吸水reinforce 增强，加固specific gravity 比重Elongation 延伸率density 密度melting point 熔点Polystyrene 聚苯乙烯（PS）.m,k.bn 苯乙烯Acrylonitrile 丙烯腈Polypropylene 聚丙烯（PP）Polyethylene 聚乙烯glass fiber 玻纤Condensation 凝固，浓缩crystalline resin 结晶形塑料Mold materials 模具General-purpose steel 多用途钢tool steel 模具钢Free-cutting steel 高速切削钢case hardening steel 表面硬化钢Pre-hardened steel 预硬钢ball and roller bearing steel 滚珠轴承钢Nonferrous steel 非铁合金high speed steel 高速钢cast iron 铸铁Steel specification 钢材规格steel certification 钢材合格证明书Stainless steel 不锈钢nickel 镍chrome 铬aluminum 铝Copper 铜brass 黄铜bronze 青铜titanium 钛Processing 钢材的加工方法Harding / quench 淬火nitride 氮化temper 回火anneal 退火Roll 轧制abrasive 研磨，磨损的finish 精加工，抛光（polish）Case-hardening 表面硬化milling machine 铣（锣）床Lathe车床drill 钻床wire cut 线割NC(numerical control ) 数控材料EDM (Electrical discharge machine) 电火花加工Cut steel 开料Precision ground 精密研磨heat treatment 热处理tap 丝锥，攻牙Texture 蚀纹weld 焊接forge 锻压deformation 变形Spraying 喷涂die-cast 压铸Properties 性能Resistance 电阻，抵抗能力abrasion / wear磨损erode / corrode 腐蚀Toughness 韧性yield strength 屈服强度tensile strength 拉伸强度Fatigue strength 疲劳强度break 断裂stress 应力hardness 硬度Humidity / moisture 潮湿，湿气roughness 粗糙度parameter 参数Thermal conductivity 导热系数manufacture 制造，加工drawback 缺点Ductility 延展性grain 晶粒property 性能，财产brittleness 脆性GD&T （Geometric Dimensions and Tolerance ）形位尺寸公差Flexural strength 挠曲强度impact 冲击conductivity 传导性，导电性Optical 光学的transparent 透明的insulation 绝缘Mechanical 机械的processability 可加工性能timeyield 蠕变Physical 物理的flow rate 流动速率compressive strength 压缩强度Adhesive 粘附的，胶合durability 耐用性Mold design 模具设计Tooling specification 模具规格mould flow 流动模拟sprue nozzle 唧咀孔Clearance 避空，间隙undercut 倒扣flush 插入，埋入legend 图例Groove 凹槽latch 插销class 类型，种类plan 平面图Orifice 孔，口column 柱位boss 凸台standard 标准，规格Rib 骨位tapered interlock 锥形管位块Bubbler 炮隆Bolt 螺钉，销顶identification mark 铭牌P/L strip 锁模片Overflow well / cold-slug well 冷料井V ent 排气pocket 槽Gate location 入水点full line 实线broken line 虚线Retainer 固定，支撑operator 操作者（啤工）receptacle 插座Lifting hole 吊令孔insulation plate 隔热板cavity number 型腔号Bolster 支撑，垫子vent channel 排气槽leak / filter 渗漏Leak test 试运水stamp / engrave 雕刻，印记（打字唛）Clamp slot 码模槽support button / pin 垃圾钉cut steel 开料Lodge 安装，放置inlay 镶嵌，插入cam / lifter 斜顶Stripper推方lifting bar 吊模方sprue 唧咀tolerance 公差Counter bore 沉孔slant 倾斜，斜面conical 圆锥的，圆锥形的Bolt 螺栓manifold 热流道板prototype tooling 原型试验Gusset 角撑reverse mold 倒装模constrain / restrict约束，限制Counter lock 反锁thermocouple 热电偶moldmaker 模具制造商Asset / property number 资产编号tool product destination 模具生产地点Accelerating ejection 加速顶出hydraulic 液压的pneumatic 气动的Trapezoid 梯形的semi-round 半圆形format 格式baffle 隔水片Electrode 电极，铜公spare part 配件gall 磨伤，插伤Cable 电缆，电线plating / coating （电）镀bonding / joint 接头Wall transition 壁厚过渡Product problem 产品问题Troubleshoot 故障处理reduce(add) plastic 减（加）胶Burr/flash披峰Burn mark 烧焦ejector mark 顶针印，顶白black specs 黑点，黑斑Discoloration 混色，污点gloss 光泽jetting/worming 走水纹Sink mark 缩水void / bubble 气泡，夹气distortion 变形Warpage 翘曲short molding / non-fill缺胶，未走齐Weld line / knit line 夹水线discarded as useless 报废Split line 夹线stick in sprue bushing / cavity / core 粘唧咀/前模/后模Break / crack 顶裂brittleness 脆性，易脆Others 其他Invoice 发票，清单vendor(er) 卖方vendee 买方guideline 方针，指导Intricate 复杂的confidential 机密的，不可外泄的proprietary 私有的Authorize 批准，授权recipient 接收者issue ①发布，提供；②问题Approve 确认，赞成requirement 需要，必需物const 常数，常量Regarding 关于，涉及opposite 相反的，对面的latitude 纬度，纵向的V ersion 版本definition 注释，解说transversal 横向的，截线Profile 轮廓，剖面eliminate / cancel 取消allow / permit 允许，许可Respective 各自的，分别的individual 单独的decrease 减少increase 增加Preliminary 初步的approximately 大约，近似estimate / valuate估计，预算Adjust 调整，校准application 应用，申请maintain 维持Accurate / precise 精确的smooth 光滑，顺畅的device 装置，设备Convenient 方便的deadline 截至日期available 有用的，有空的Shift 轮班，换班critical 关键的，临界的exceptional 异常的，优异的Exceed 超过layout 布局，方案loss 损失，消耗install 安装，安置Rotation 旋转item 条款，项目quotation 报价stabilize 稳定Quality 质量quantity 数量couple 连接，接合configuration 构造，外形Illustrate 图解说明simulation 模拟，仿真recommend 推荐使用。

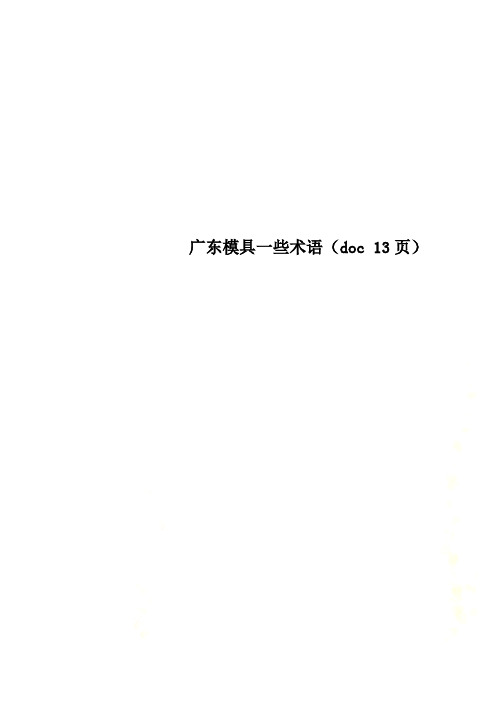

广东模具一些术语(doc 13页)
广东模具一些术语（doc 13页）行位是广东模具术语，也是就是指滑块，用来成型一些产品中不能直接分模的结构以下是一些术语产品类加强筋---加强用的骨位;美工线---上下盖装配的中间的间隙（可有效防上错位）行位>滑块;司筒>套筒入子>镶件（INSERT）入子为台灣叫法;斜顶>斜顶块或斜顶杆KO孔> 顶棍孔;司筒针> 套筒针撑头> 支撑柱(防止B板变形的) ;铲鸡>行位锁紧块治具> 工具(夹具) ；喉咀> 水管头；行位波仔>滑块斜器；中托司>浇口衬套水口板>流道板；细水口板>分流道板勾针>拉料杆；B板>动模板；A板>定模板产品的夹线>分型线；运水>冷却水道；回针>复位顶针；隔热板>热流道模上用的0.01mm=1丝=一条（台湾）,不要误导人家啊，1u=0.001MM吃前模：开模时，产品留在前模顶白：顶出时所需脱模力较大，顶针不够力，使产品局部被顶坏，从产品正面看，有明显的白色或者胶位高出，又叫顶高水口烘印：潜水时入水点在制品外观面上留下的痕迹咬花=蚀纹/喷沙；逃料=偷料；多肉＝多料机械类工具类:扳手=士巴拿（spanner）港资厂术语；合金刀=卡凡刀模具类：前模与后模“复模--第一次合模”=飞模=ＦＩＴ模方铁=模脚；模具抛光=省模；周位=点浇口的凹点孔虎口=模仁上的精定位波珠=行位限位螺珠尼龙扣=一种模具分型开闭器超不碎胶ABS(工程塑料)赛钢POM ；硬胶GPPS不碎硬胶HIPS ；软胶PE尼龙PA ；防弹胶PC百折胶PP ；亚加力PMMA(有机玻璃) ；K料(K胶，学名BS 缩水1.005，是一种透明料)模具類(順德)吊針---三板模前模拉料針撐雞------鎖緊塊(又稱鏟基)彈啤－－－裝彈簧的斜滑塊模具工程类的：钢模：塑胶模；棱线：过渡线。
两曲面渐过渡交线。
电蚀：电解成形：属于电加工类；介子：垫圈。
[整理]模具英语专业术语
![[整理]模具英语专业术语](https://img.taocdn.com/s3/m/f66e4f1e773231126edb6f1aff00bed5b9f373e7.png)
模具（MOULD/MOLD，TOOL）：CAVITY：前模CORE：后模（定模）DIMENSION：寸法GATE：浇口/水口/入水口PIN GATE：点水口/点浇入水SIDE GATE：边水口/侧浇入水/大水口APPERANCE SURFACE：体裁面WARPAGE DIRECTION：变形方向DRAFT ANGEL：脱模斜度PARTING LINE/P。
L：分模线EJECT PIN/E。
P：注塑顶针BLAST/TEXTURE：喷啥，蚀纹MIRROR FINISH：镜面（抛光）处理POLISH：抛光EMD：放电加工WELD：熔接加工（烧焊）LATHE：车床MILLING CUTTER：铣刀MILLING MACHINE：铣床WIRE CUT：线切割CNC：主加工中心POWER DRILL：电钻DRILLING：钻孔FRITING：烧结ANNEALING：淬火注塑术语（INJECTION）SCREW：螺杆WELD LINE：熔接线SINK MARK：缩水DRAG MARK：脱花BURR：批锋FLOW MARK：流纹SHADOW MARK/GLOSS DIFFERENCE：光影SHORT：缺胶INJECTION CYCLE：成型周期注塑英语型厚大小Thick size锁模结构（机绞/直压）Mode locking structure(machine twists/straight pressure)最大开模距离The biggest die sinking is away from动模板最大模具重量Moves the template maximum mold weight哥林柱间距Elder brother forest column spacing顶出形式（电动五点，油压五点，油压十三点）Goes against the form (electrically operated five spots, flowing tubing head pressure five spots, flowing tubing head pressure 13 spots)顶出长度Goes against the length顶棍孔直径Goes against the stick hole diameter顶棍孔中心矩Goes against the stick hole central moment螺杆材质（合金）Screw rod material quality (alloy)螺杆转速Screw rod rotational speed最大射出体积Projects the volume most greatly最大射出量Projects the quantity most greatly射出率Ejection rate每10mm射出量（理论）Each 10mm projects the quantity (theory)射咀直径Shoots ju the diameter射咀R值Shoots ju the R value射咀空径Shoots ju the spatial diameter定位环直径Locating ring diameter溶胶能力Sol ability驱动方式（全自动/全液压）Drive type (completely automatic/entire hydraulic pressure)电压Voltage电热功率Electric heating power电机功率Electrical machinery power作动油量Does moves the oil mass机械尺寸Mechanical size机械重量Mechanical weight最高溶胶温度Highest sol temperature是否带中子Whether to bring the neutron是否带吹气Whether to have the air flus开模行程，open ould stroke定产，order production定产效率，efficiency of order prod uction注胶切换点，glue-injection switching point保压压力1，protective pressure倒索，inverse sling模保护，mould protection关模低压，close mould low pressure炮筒温度，gun barrel temperature回料量，returning amount注射压力，injecting pressure色母配比，raw color ratio mixing配套摸具，matched mold顶针次数，thimble times立式注胶机vertical injector工艺卡，WSP(work specification procedure)工作指导work instr uction注塑机部分英语钣金machine cover / upper cover/ side cover锁模部分clamping unit射胶部分injection unit机架machine frame / base电气系统electric system液压系统hydraulic system机械系统mechanical system机门safety door / fixed door / movable door锁模部分clamping unit电脑控制器computer controller机械安全锁mechanical safety interlock射胶部分injection unit液压系统hydraulic system电箱electrical cabinet / cable机架分体线stand split line机架螺丝孔foundation bolt hole机架machine base / supporting frame理论注射容积theoretical shot volume实际注射量shot weight螺杆直径screw diameter注射压力injection pressure注射速度injection speed注射速率injection rate螺杆长径比screw L/D ratio螺杆行程screw stroke螺杆转速screw speed熔胶能力plasticizing capacity锁模力clamping force开模/锁模行程mold clamping / opening stroke模板尺寸platen size拉杆间距distance between tie bars / rods模板最大距离max. daylight容模量mold thickness (min. & max.)顶出行程hydraulic ejection stroke顶出力hydraulic ejection force顶针数nos. of ejector pin液压系统压力hydraulic system pressure油泵马达pump motor电热量heating capacity温度控制区数nos. of temp control zones射嘴接触力nozzle contact forceInjection 注射Mould closing 关模Cooling time冷却时间Holding time 保压时间Injection start delay 注射延迟Injection alarm time注射报警时间Final cushion minimum value最后段位置Change-over to holding by value切换到锁模Plasticizing end value预塑重终点Hydrarlic change-over pressure holding切换到保压Screwvalue for change-over to holding加料Hydraulic pressure in holding锁模力Filling stage pressure limit充模压力Injection speed注射速度Plasticizing delay预塑延时1st suck-back speed储料一速度1st suck-back pressure储料一压力Screwrotation speed螺杆转速Decompression value at end of injection注射终点Decompression value at end of plasticizing预塑终点Mould close force关模压力Mould closing safety time .. 时间Mould closing pressure .. 压力1st closing safety stage pressure 合模一段压力1st mould closing speed ...成型速度1st stage mould closing safety position.....位置High pressure start position高压锁模位置注塑专业英语Surface Appearance外观Glossiness/gloss finish光洁度Matt finish/matt surface毛面Glass fiber rich surface/glass emergence on the surface 玻纤外露Blooming/surface blooming表面析出White patches on surface表面白斑Silver marks/silver streak银纹Splay mark水纹Flow mark流纹Weld line溶结纹Brittle/brittleness脆Bubbles/trapped gas气泡Void孔Burn marks烧伤FR failed阻燃不合格Flame rating V-2阻燃V-2Poor dispersion分散不好FR/PTFE …agglomerates etc 阻燃剂/PTFE…结块Pellet porous粒子不密/蜜蜂窝Low impact/tensile etc物理性能低High flow/filler content etc流动性/填充…过高Longs/fines/doubles长粒/碎屑/连粒Poor cut粒形不好Bristle/voids表面有小气泡/孔Glass bundles玻纤结团Product was rejected due to 产品不能接受因为…High moisture level高水分Warpage/warped翘曲Shrinkage/shrink收缩Sink marks缩影Short shot/short molding打不满Distortion变形Over dimension尺寸过大Under dimension尺寸过小Flashing飞边Discoloration变色Off color颜色差异Flow rate流动率Viscous粘High flow高流动Low flow低流动Sticky粘Mold release脱模Antioxidant抗氧剂Flame retardant agent阻燃剂Heat stabilizer热稳定剂Chopped glass fiber短切玻纤Roving glass fiber粗纱/长玻纤Glass beads玻璃微珠Milled fiber碾磨纤Molybdenum disulfide/moly/MoS2 二硫化钼Colorant着色剂Pigment颜料Dye染料Accepted product specification接受产品规格Approved our product认可我们的产品Re-set spec重新定标准Add in extra …添加多一点…Reduced … content减少…含量Dropped/reduced … by x％减少…含量…％Confirmed color standard确认颜色标准Approved color standard认可颜色标准Re-confirmed color standard重新确认颜色标准Qualified our product认可我们的产品Undergoing heat aging test在做热老化实验Product is under testing产品在测试当中Received first order接了第一个定单Expected to finish by …预计在…完成Expected order is xMT预计定单量…吨Estimated annual/monthly consumption预计年/月用量--- 详细信息1. 注射模具名称注射模：Injection mould热塑性塑料注射模：Injection mould for thermoplasctics 热固性塑料注射模：Injection mould for thermosets无流道模：Runerless mould热流道模：Hot runner mould绝热流道模：Insulated温流道模：Warm runner mould2. 浇注，排溢，分型浇注系统：Feed system主流道：Sprue分流道：Runner浇口：Gate直接浇口：Direct gate ;Sprue gate环行浇口：Ring gate盘型浇口：Disk gate ;Diaphragm轮辐浇口：Spoke gate :Spider gate点浇口：Pin-point gate侧浇口：Edge gate潜伏浇口：Submarine gate护耳浇口：Tab gate扇型浇口：Fan gate 牛角浇口：Horn gate冷料穴：Cold-slug well浇口套：Sprue bush ;Sprue bushing浇口镶块：Gating insret分流锥：Sprader流道板：Runner plate热流道板：Manifold block;Hot-runner manifold温流道板：Warm runner plate二级喷嘴：Secondary nozzle鱼雷形组合体：Torpedo;T orpedo body assembly管式加热器：Cartridge heater热管：Heat pipe阀式浇口：Valve gate加热腔：Loading chamber柱塞：Force plunger;Pot plungr溢料槽：Flash grorve ;Spew grovve排气槽：Vent分型面：Parting line水平分型面：Horizontal parting half垂直分型面：Vertical parting half3. 成型零件定模：Stationary mould:Fixed half动模；Movable mould ;Moving half上模:Upper mould;Upper half下模：Lower mould :Lower half型腔：Cavity凹模：Impression;Cavity plate镶件：Mould insert活动镶件：Movable insert;Lose detail拼块：Splits凹模拼块：Cavity splits型芯拼块：Core splits型芯：Core侧型芯：Side core:slide core螺纹型芯：Thread plug;Threaded core螺纹型环：Thread ring;Threaded cavity凸模：Punch;Force嵌件：Insert for mould4. 支持与固定零件定模座板：Fixed clamp plate:Top clamping plate;Top plate动模座板：Moving clamp plate :Bottom clamping plate; Bottm plate 上模座板：Upper clamping plate下模座板：Lower clamping plate凹模固定板：Cavity-retaier plate型芯固定板：Core-retaier plate凸模固定板：Punch-retaier pilte模套：Chase ;Bolster;Frame;支撑板：Backing plate垫块：Spacer parallel支架：Ejector housing支撑柱：Support pillar模板：Mould plate5. 抽芯零件斜销：Angle pin; Finger cam滑块：Slide;Cam slide侧型芯滑块：Slide core-slide滑块导板：Slide guide strip锲紧块：Heel block;Wedge block;Locking heel斜槽导板：Finger guide plate弯销：Dog-leg cam斜滑块：Angled-lift splits6. 导向零件导柱：Guide pillar;Guide pin;Leader pin带头导柱：Guide pillar ;Straight leader pin带肩导柱：Guide pillar Shouldered;Shoulder leader pin推板导柱：Ejector guide pillar;Ejeector guide pin导套：Guide bush ;Guide bushing直导套：Guide bush ;Straight ;Straight bushing带头导套：Guide bush ;Shoulder bushing推板导套：Ejector guide bush;Ejector bushing7. 定位和限位零件定位圈：Locating ring锥形定位圈：Mould bases locating elements复位杆：Ejector plate return pin;Push-back pin限位钉：Stop pin;Stop button限位块：Stop block ;Stop pad定距拉杆：Length bolt;Puller bolt定距拉板：Puller plate;Limit plate8. 推出零件推杆：Ejector pin圆柱头推杆：Ejector pin with cytindrical head带肩推杆:Shouldered ejector pin扁推杆:Flar ejector pin推管：Ejector sleeve推块：Ejector pad推件板：Stripper plate推件环：Stripper ring;Stripper dlisk推杆固定板：Ejector retainer plate推板：Ejector plate;Ejection plate连接推杆：Ejector tie rod 拉料杆：Sprue puller钩形垃料杆：Sprue puller ;Z-shaped球头垃料杆：Sprue puller;Ball headed圆锥头垃料杆：Sprue puller;Conical headed分流道垃料杆：Runner puller;Runner lock pin推流道板：Runner stripper plate9. 冷却和加热零件冷却通道：Cooling channel;Cooling line隔板：Baffle加热板：Heating plate隔热板：Thermal insulation board10. 模架模架：Mould base标准模架：Standard mould base11. 塑料成型模具的主要设计要素注射能力：Shot capacity收缩率：Shrinkage注射压力：Injection pressure锁模力：Clamping force ;Locking force成型压力：Moulding pressure模内压力：Internal mould pressure;Cavity pressure 开模力：Mould opening force脱模力：Ejection force抽芯力：Core-pulling force抽芯距：Core-pulling distance闭合高度：Mould shut height最大开距：Maximum daylight;Open daylight投影面积：Projected area脱模斜度：Draft脱模距：Stripper distance。
模具专业术语
模具专业术语——注塑模（锦浩塑胶模具厂）English Training ——Injection Mold 一）模具专业基本用词Professional Terms1．塑料—plastic , resin2．样件—sample3．钢料—steel4．注塑机—injection machine, press5．产品—part, product, moulding6．模具—mold, mould, toolA 简易模（样板模）—prototype moldB 量产用模具—production mold 7．三维造型（数模）—model, 3D data 8．二维产品图—2D part drawing 9．设计—design10．制造—manufacture, build up, construction11．检验—chec k, inspection12．测量—measure, inspection13．修改—change, modify, correction14．工程更改—engineer change15．质量—quality16．数量—quantity17．基准—datum, reference（二）如何解析2D 产品图？How to read 2D part drawing?一．产品几何Geometry1．点—point2．线（边）—line, edge3．面faceA 侧面—sideB 表面—surfaceC 外观面—appearance surface 4．壁厚—wall thickness, stock thickness5．加强筋（骨位）—rib6．孔—hole7．细长的槽—slot8．柱位—boss9．角 — cornerA 圆角 — filletB 倒角 — chamferC 尖角 10．斜度 — a ngle, taper 11. 凹槽 —recess , groove-- •-.分模信息 Splitting 1． 分型线 — parting line (P/L), splitting line2．主分模方向 — main direction, line of draw 3． 浇口设定 — gating三． 产品标识 Part Identification 1． 产品名称 —part name (P/N) 2． 产品编号 +版本号 — part number + revision (Rev.)3．型腔号 — cavity number 4． 材料标记 — material symbol 5． 模具编号 —mold number (no.) 6． 日期印 — dating insert, date code7． 循环印 — cycling code8． 公司标志 — company logo 四． 技术要求 Specification (Special Requirement) 1．项目启动表 Kick-off sheet 1) 项目名称 — program name, project name 2) 产品名称 — part name, product name , part description 3) 产品编号 — part number (P/N) 4) 客户模号 — customer mold no. 5) 项目启动日期 — kick off date , start date6) 项目完成日期 — due date, lead time7) 内模件用钢 — tool steel8) 型腔数量 — number of cavit ies9) 数模文件编号 — data file n o.10)注塑材料 — resin, plastic, raw material 11)收缩率 — shrink , shrinkage, shrink factor 12)注塑机吨位 — molding machine size , injection machine size 13)成型周期 — cycle time 14)型腔光洁度 — cavity polish 15) 型芯光洁度 — core polishsharp corner16) 皮纹(晒纹)—texture, grain17) 拔模斜度—draft angle, removal taper18) 注塑件颜色及光泽—molded color & gloss19) 模具加工地—manufacturing facility20) 热流道供应商—manifold manufacturer, manifold supplier21) 浇口位置—gate location / position22) 浇口类型—gate type23) 产品标识—stamp information, part identification24) 特殊要求—special instructions2．产品质量及外观要求Part Quality & Appearance1) 尺寸及公差Dimension & Tolerance①重要尺寸—critical dimension, important dim., key dim.②理论尺寸—nominal dimension③实际尺寸—actual dimension④公差—tolerance⑤公差带—tolerance range⑥尺寸超差—dimension deviation⑦接受(合格) —accept, OK⑧拒绝(不合格) —reject, refuse, obsolete, NG⑨让步接受—concession, special admit⑩返工—re-work?2) 产品缺陷(较常见) Defects (normal)①缩印—sink mark, shrinkage②飞边—flash, burr③段差—mismatch discrepancy④银丝纹—snake marks, streak⑤弯曲—warpage , distortion⑥打不足(缺料) —short shot⑦熔接线—weld line 3．产品外观Part Appearance ① 产品颜色—part color②产品光泽—gloss③皮纹粒度—grain4．常用词汇、词组及短语Normal Word, Short Sentence1) 单边—per side2) 双边—both sides3) 加入，添加—add, incorporate4) 去除，取消—remove, cancel5) 满足…的要求，符合，与…要求一致一according to, conform to, satisfy, meet6) 要求，需要—require, need, demand7) 确认一be approved, agreed by …8) 允许一permit, allow9) 在…范围之内一within10) 不可以，不允许，禁止一free from, prevent, avoid11) …，除非有另指一… unless otherwise specified12) …或少于一… or less13) 自动化运作一automatic operation14) 未注尺寸(详细形状)见三维造型Non dimensioned contour (detailed shape) see 3D model.15) 分型线上的飞边(披缝)或段差应小于…Burrs and discrepancy on the P/L shall be … or less.五．标题栏Title Block1．产品名称一part name2．图纸编号+ 版本号(索引号)一drawing no. + level (index)3．一般公差[ 的标准] 一general tolerance(三) 如何阅读制模标准？How to read tooling standard?一．模具结构术语Mold Construction TerminologyA. 模架Mold Base1．模架量化特征Measurement Feature①长X 宽X 高一Length X Width X Height②模具推高尺寸(模厚) 一stack height of mould③模具重量一total weight of mould, mould thickness2. 定模底板一front plate, top clamping plate, clamp plate, clamping plate3.定模板—— cavity plate, fixed mould plate, A -plate4.动模板—— core plate, movi ng mould plate, B - plate5.支撑板—support plate, backing plate6.模脚—support blocks, rails, risers, spacer block7.顶杆固定板—retaining plate, ejector retaining plate8.顶板—ejector plate9.动模底板—back plate10.导柱—guide pillar, leader pin, guide pin11.导套—guide bush, leader pin bush12.复位杆—return pin, push-back pin13.弹簧—spring14.撑头—support pillar15.推板导柱、导套—ejection guide pin / bush16.挡钉—stop pin, stop button17.站立脚—standing-off pillars18.标牌—plaque scutcheonB. 成型零部件mouldi ng comp onents19．型芯—core20. 型腔—cavity21. 镶针—core pin22. 镶块—insert, split23. 滑块—slide, sliding split24. 斜顶—lifter, angled-lift splitA 斜顶头—lifter headB 斜顶杆—lifter rod, lifter shaft25. 成型顶杆—moulding face pin, form pinC. 浇注系统Feed System1. 塑料Mouldinga. 主流道—sprueb. 分流道runner①主分流道—main runner ② 二级分流道—branch runner分流道断面形状cross-sectional shape of runner①圆形—full round②半圆形—semicircular③梯形—trapezoidal c．浇口gate常用浇口形式normal gate type :①边缘浇口（J 型浇口）一edge gate , J -gate②侧浇口—side gate③潜伏式浇口一sub-gate, cashew gate, subsurface gate, submarine gate④潜伏式二次浇口（隧道式浇口）一tunnel gate onto feeder post⑤点浇口一pin gate⑥直接浇口（主流道型浇口）一sprue gate, direct gate⑦护耳式浇口一tab gated.模腔一impressione.冷料井一cold slug wellf.热流道一hot runner 模具零件mold componentsa.定位圈一locating ring, location ring, register ringb.浇口套一sprue bushc.挡圈一stop ringd.浇口镶块一gate inserte.热流道板一manifoldf.热嘴一hot dropD. 分型面及其锁紧、排气Parti ng Surface, i nter-locki ng & venting1．分型线一parting line （ P/L ）2. 镶拼线一bodyline, joint line3. 平/ 不平的分型面一flat / non - flat parting surface4. 封胶面一shut off surfaces, seal-off surfaces5. 擦位一shut off6. 碰穿位一kiss-off7. 管位一parting line lock8. 分型面的释放（避空）一relief of parting surface9. 分型面的平衡一balancing of parting surface10. 锁紧角度一locking angle11. 锁紧力一clamping force12. 锁模板一safety strap13．精定位—Interlock, die lock14．困气—air trap15．排气槽—vent, vent slotE. 滑块机构Slide1．驱动Actuation①斜导柱—angled pin, horn pin, cam pin②弹簧—spring③油缸—hydraulic cylinder2. 制动Detention①滑块固定器—slide retainer②弹簧制动器—spring-loaded detention （plunger）③挡钉、挡板—stop pin, stop plate, slide stop3. 导轨—gib, guide strip4. 锁紧块（楔紧块）—heel block, locking heel, wedge block, chase block5. 耐磨片—wear plate, wear strip6. 压板—retainer7. 螺钉—screw8. 定位销—dowelF. 斜顶机构Lifter1. 斜顶头—lifter head2. 斜顶杆—lifter rod, lifter shaft3. 开口销—split pin4. 固定板（压板）—retainer plate5. 耐磨片—wear plate6. 铜导套—bronze bushing7. 衬套—spacer8. 导轨一L -gib9. 滑动块—slideG. 顶出系统Ejection System1．基本词汇Basic Word①顶出行程—ejection stroke②模具开档—daylight③粘模—stick④产品脱模—part is push off from, clear part of mould, separation of part 2．顶板机构Ejector plate assembly①顶板（推板）—ejector plate②顶板固定板—retaining plate③推板导柱—ejector guide pin④推板导套—ejector guide bush⑤撑头—support pillar, pillar support 3．复位机构Return System①复位杆（回程杆）一return pin, push -back pin②挡钉—stop pin, stop button③压簧一compressed spring④碟簧一 a stack of “Belleville ” washers⑤早复位机构一early return system⑥强制复位机构一positive return system 4．顶出方法Ejection Techniques1)顶杆顶出一pin ejection2)顶管顶出一sleeve ejection3)顶块顶出一bar ejection4)扁顶顶出一blade ejection5)顶板顶出一stripper ejection6)油缸顶出一hydraulicejection7)气顶一air ejection8)阀门顶出一valve ejection5．顶出元件Ejection Elements1)拉料杆一sprue puller, sucker pin2)顶杆一ejector pin3)阶梯式顶杆一stepped ejector pin4)顶管一ejection sleeve, sleeve5)扁顶一ejector blade, slabbed off ejector pin6)顶块一stripper bar7)顶环一stripper ring8)推板一stripper plate9)加速顶一accelerated ejection6．顶出辅助机构Supplementary operating system1) 弹簧柱塞器一spring -loaded plunger2) 弹珠定位器—ball catch system3) 插销式锁扣一Latch - lock4) 尼龙拉杆装置一friction puller device 7．电器元件Electric Components1) 压力传感器一pressure transducer2) 限位开关一limit switchF.冷却系统Cooli ng System1．基本词汇Basic Word1 ) 温差一temperature variation2) 水孔(水道) 一waterlines, water-ways, flow-way, channel3) 水路一cooling circuit4) 水路示意图一water schematic, schematic circuit5) 冷却液一coolant, coolant fluid6) 内连接一interconnect7) 外连接一external connection8) 出口、入口一outlet、inlet9) 漏水一water leakage2. 水路分布Circuits1 ) 阶梯式水路一stepped system2) 喷淋一baffled hole system3) 斜孔式水路一angled hole system3. 水路元件Components1 ) 闷头(螺塞、止水栓) 一 (threadless ) brass pressure plug : female plug & male2) 隔水片一baffle3) 密封圈一O - ring4) 快插水路接头一quick disconnect fitting, quick connection adaptor5) 弯头一elbow6) 偶合器(连接器、接头) 一adaptor (including a plug & a socket)7) 橡皮管一rubber hose8) 分水板一water manifoldG. 螺纹、螺纹孔& 螺钉Thread, thread hole & screw1．螺纹—thread2．管螺纹—pipe thread3．螺纹孔—screw hole, tapped hole4．起吊孔—handling hole, jack screw hole, eye bolt hole5．螺钉—screw6．内六角螺钉—socket headed cap screw （）7．沉头螺钉—flat headed cap screw （）8．螺栓—bolt, eye bolt9．螺母—nut10．锁紧螺母—locknut11．螺纹标准Thread Standard①公制标准—Metric②英制标准—Imperial③英制管螺纹标准—British Standard Pipe thread （BSP ）④美制管螺纹标准—NPT⑤美制粗螺纹标准—United Coarse thread （UNC）⑥美制细螺纹标准—United Fine thread （UNF）H. 润滑Lubrication1．润滑槽—grease groove2．加油管—grease line3．油杯—lubrication fittingI．测量仪器Measuring Instrument s1．游标卡尺—vernier caliper2．千分尺—micrometer3．高度规—height gauge4．刻度规—dial gauge5．三坐标测量仪—Coordinate Measure Machine （CMM）6．塞规—pin gauge7．圆角量规—radii gauge8．轮廓投影机—profile projectorJ. 注塑机参数Injection Machi ne Parameter1．注塑机规格参数Injection Machine Specification①锁紧类型clamp typea ．油缸—hydraulicb ．肘杆式—toggle②垂直注塑机导柱间距—tie bar vertical clearance③水平注塑机导柱间距—tie bar horizontal clearance④台板尺寸—platen dim.⑤最小/ 最大模厚—mold height Min. / Max., Min. / Max. mold thickness⑥最小/ 最大注塑机开档—open daylight Min. / Max.⑦锁紧行程—clamp stroke⑧锁紧力—clamping force⑨顶出行程—ejector stroke⑩顶出力—ejector force2．试模工艺参数Moulding Process Parameter, machine setting① 时间Timer （TM ）, seca．注塑（充填）时间—filling time, injection timeb．冷却时间—cooling timec．补缩时间—packing timed．保压时间—holding timee．成型周期—cycle time②速率、速度Velocity, % 、speed, in/seca．注塑（充填）速度—injection speedb．保压速率—hold pressure velocityc．螺杆转速—screw rotation speed③压力Pressure （Prs. ）, psia．注塑压力—injection pressureb．保压压力—hold pressurec．回压（背压）—back pressure④温度Temperature （Temp. ）, F°a．注塑机喷嘴温度—nozzle temp.b．料筒前段、中段、后段温度—barrel front 、middle 、rear temp.c．模温—mould temp.d．料温—purged resin melt temp.e．空射料温—air shot melt temp.。
模具专业英文术语大全
模具专业英文术语大全1. Die - 模具2. Mold - 模具3. Cavity - 型腔4. Core - 芯子5. Ejector pin - 顶杆6. Land - 分型面7. Gate - 浇口8. Filleting - 去毛刺9. Trim - 修整10. Draft - 拔模斜度11. Undercut - 底切12. Flash - 飞边13. Warpage - 翘曲14. Shrinkage - 收缩15. Melt flow rate - 熔融指数16. Injection molding - 注塑成型17. Blow molding - 吹塑成型18. Compression molding - 压缩成型19. Vacuum molding - 真空成型20. Overmolding - 包覆成型21. Co-injection molding - 双色注塑成型22. Gas assist injection molding - 气体辅助注塑成型23. Rotational molding - 旋转成型24. Injection compression molding - 注射压缩成型25. Injection blow molding - 注射吹塑成型26. Injection stretch blow molding - 注射拉伸吹塑成型27. Injection transfer molding - 注射传递成型28. Injection foam molding - 注射发泡成型29. Injection gas assisted rotational molding - 注射气体辅助旋转成型30. Injection compression blow molding - 注射压缩吹塑成型31. Injection stretch blow molding - 注射拉伸吹塑成型32. Injection transfer blow molding - 注射传递吹塑成型33. Injection foam blow molding - 注射发泡吹塑成型34. Injection gas assisted transfer molding - 注射气体辅助传递成型35. Injection compression foam molding - 注射压缩发泡成型36. Injection stretch foam molding - 注射拉伸发泡成型37. Injection transfer foam molding - 注射传递发泡成型38. Injection gas assisted foam blow molding - 注射气体辅助发泡吹塑成型39. Injection compression foam blow molding - 注射压缩发泡吹塑成型40. Injection stretch foam blow molding - 注射拉伸发泡吹塑成型41. Injection transfer foam blow molding - 注射传递发泡吹塑成型42. Injection gas assisted compression molding - 注射气体辅助压缩成型43. Injection gas assisted stretch blow molding - 注射气体辅助拉伸吹塑成型44. Injection gas assisted transfer blow molding - 注射气体辅助传递吹塑成型45. Injection gas assisted foam compression molding - 注射气体辅助发泡压缩成型46. Injection gas assisted foam stretch blow molding - 注射气体辅助发泡拉伸吹塑成型47. Injection gas assisted foam transfer blow molding - 注射气体辅助发泡传递吹塑成型48. Injection gas assisted compression foam molding - 注射气体辅助压缩发泡成型49. Injection gas assisted stretch foam blow molding - 注射气体辅助拉伸发泡吹塑成型50. Injection gas assisted transfer foam blow molding - 注射气体辅助传递发泡吹塑成型51. Mold temperature control system - 模具温度控制系统52. Coolant system - 冷却系统53. Ejector system - 顶出系统54. Feed system - 喂料系统55. Packaging machine - 包装机56. Automated guided vehicle (AGV) - 自动导引车（AGV）57. Robotic arm - 机械臂58. Computer numerical control (CNC) machine - 计算机数控（CNC）机床59. Plastics injection machine - 塑料注塑机60. Plastics extruder - 塑料挤出机61. Plastics blow molding machine - 塑料吹塑机62. Plastics injection compression molding machine -塑料注塑压缩成型机63. Plastics injection stretch blow molding machine - 塑料注塑拉伸吹塑成型机64. Plastics injection transfer molding machine - 塑料注塑传递成型机65. Plastics injection foam molding machine - 塑料注塑发泡成型机66. Plastics injection gas assisted rotational molding machine - 塑料注塑气体辅助旋转成型机67. Plastics injection compression foam molding machine - 塑料注塑压缩发泡成型机68. Plastics injection stretch foam molding machine - 塑料注塑拉伸发泡成型机69. Plastics injection transfer foam molding machine - 塑料注塑传递发泡成型机70. Plastics injection gas assisted foam blow molding machine - 塑料注塑气体辅助发泡吹塑成型机71. Plastics injection compression foam blow molding machine - 塑料注塑压缩发泡吹塑成型机72. Plastics injection stretch foam blow molding machine - 塑料注塑拉伸发泡吹塑成型机73. Plastics injection transfer foam blow moldingmachine - 塑料注塑传递发泡吹塑成型机74. Plastics injection molding machine with movable platen - 带活动模板的塑料注塑机75. Plastics injection molding machine with fixed platen - 带固定模板的塑料注塑机76. Plastics injection molding machine with hot runner system - 带热流道系统的塑料注塑机77. Plastics injection molding machine with cold runner system - 带冷流道系统的塑料注塑机78. Plastics injection molding machine with multi-cavity design - 带多腔设计的塑料注塑机79. Plastics injection molding machine with clamping force control - 带夹紧力控制的塑料注塑机80. Plastics injection molding machine with cycle time reduction - 带循环时间缩短的塑料注塑机81. Plastics injection molding machine with energy saving features - 带节能功能的塑料注塑机82. Plastics injection molding machine with high precision control - 带高精度控制的塑料注塑机83. Plastics injection molding machine with automatic tool changing system - 带自动换模系统的塑料注塑机84. Plastics injection molding machine with roboticautomation - 带机器人自动化的塑料注塑机85. Plastics injection molding machine with quality control system - 带质量管理系统的塑料注塑机86. Plastics injection molding machine with process monitoring system - 带工艺监控系统的塑料注塑机87. Plastics injection molding machine with maintenance reminder system - 带维护提醒系统的塑料注塑机88. Plastics injection molding machine with data logging and analysis - 带数据记录和分析的塑料注塑机89. Plastics injection molding machine with remote control and monitoring - 带远程控制和监控的塑料注塑机90. Plastics injection molding machine with safety features - 带安全功能的塑料注塑机91. Plastics injection molding machine with operator interface - 带操作员界面的塑料注塑机92. Plastics injection molding machine with easy cleaning system - 带易清洁系统的塑料注塑机93. Plastics injection molding machine with quick change tooling - 带快速换模装置的塑料注塑机94. Plastics injection molding machine with low noiseoperation - 带低噪音运行的塑料注塑机95. Plastics injection molding machine with high throughput capacity - 带高产量能力的塑料注塑机96. Plastics injection molding machine with energy recovery system - 带能量回收系统的塑料注塑机97. Plastics injection molding machine with environmental protection features - 带环保功能的塑料注塑机98. Plastics injection molding machine with advanced materials compatibility - 带先进材料兼容性的塑料注塑机99. Plastics injection molding machine with customizable options - 可定制选项的塑料注塑机100. Plastics injection molding machine with reliable performance and durability - 具有可靠性能和耐用性的塑料注塑机。
模具常用术语中英文对照
密封/封料： seal 三、运水：water line 喉塞：line lpug 喉管：tube 塑胶管：plastic tube 快速接头：jiffy quick connector plug/socker 四、模具零件： mold components 三板模：3-plate mold 二板模：2-plate mold 边钉/导边：leader pin/guide pin 边司/导套：bushing/guide bushing 中托司：shoulder guide bushing 中托边 L：guide pin 顶针板：ejector retainner plate 托板： support plate 螺丝： screw 管钉：dowel pin 开模槽：ply bar scot 内模管位：core/cavity in
模具常用术语中英文对照
中文
英文
方铁
Spacer Block
顶针板 Ejector Plate
顶针底板 Ejector Retainer Plate
垫板
Retainer Plate
Core Pin
拉圾钉 Stop Pin
有托顶针 Shoulder Ejector Pin
顶针板导套
Guided Ejection Bushing
水口板导套
Runner Stripper Plate Bushing
定位圈（法兰）
Locating Ring
管钉（定位销）
Dowel Pin
管状管钉 Tubular Dowel
吊环
Safety Holst Ring
日期印 Dating Insert
环保印 Recycling Insert
气顶
模具费英语专业术语
模具费英语专业术语全文共四篇示例，供读者参考第一篇示例：模具是制造工业中常用的一种工具，可以帮助生产各种形状和尺寸的产品。
在模具制造过程中，模具费是一个重要的成本项目，它包括了模具的设计、制造、维护和修理等各个环节的费用。
在模具费这个专业术语中，有许多与模具相关的重要概念和名词，下面我将介绍一些关于模具费的英语专业术语。
我们来看一些关于模具设计和制造的专业术语：1. Mold design：模具设计，包括了模具的整体结构、尺寸、材料选择等方面的设计工作。
2. Mold making：模具制造，指的是按照设计图纸制作模具的过程，通常需要使用数控机床和其他专业设备。
3. Mold cavity：模腔，是指模具内部用于成型产品的空腔部分。
5. Mold material：模具材料，包括了模具制造中所用的各种材料，如钢材、铝合金等。
3. Mold polishing：模具抛光，是指对模具表面进行抛光处理，以提高产品表面的光洁度。
4. Mold lubrication：模具润滑，是指在模具使用过程中定期给模具涂抹润滑剂，以降低摩擦力，延长模具使用寿命。
1. Mold cost estimation：模具费用预估，是指在模具设计阶段对模具制造、维护和修理等各项费用进行预估和计算。
2. Mold cost analysis：模具费用分析，是指对模具费用进行详细的成本分析，确定各个环节的成本构成和成本控制方案。
3. Mold cost reduction：模具费用降低，是指通过优化设计、加强维护等措施降低模具费用，提高生产效率和降低生产成本。
模具费是模具制造过程中一个重要的成本项目，只有合理管理和控制模具费用，才能确保模具的质量和生产效率。
希望通过本文的介绍，您对模具费的英语专业术语有了更深入的了解，对模具制造过程有了更清晰的认识。
如果您有任何关于模具费的问题或疑问，欢迎随时向我们咨询。
谢谢！第二篇示例：模具费英语专业术语模具在制造业中起着至关重要的作用，它是制造各种零部件和产品的关键工具。
模具术语
试模trial mold第一次试模可以说first shot 或者the first trial第一次试模样品the first trial sample模具术语以下是我在网上看到的一些模具术语（中英对照），供大家参考。
一、入水：gate进入位：gate location水口形式：gate type大水口：edge gate细水口：pin-point gate水口大小：gate size转水口：switching runner/gate唧嘴口径：sprue diameter二、流道: runner热流道：hot runner, hot manifold热嘴冷流道: hot sprue/cold runner唧嘴直流: direct sprue gate圆形流道：round(full/half runner流道电脑分析：mold flow analysis流道平衡:runner balance热嘴：hot sprue热流道板：hot manifold发热管：cartridge heater探针: thermocouples插头：connector plug插座：connector socket密封/封料：seal三、运水：water line喉塞：line plug喉管：tube塑胶管：plastic tube快速接头：jiffy quick connector plug/socker四、模具零件：mold components三板模：3-plate mold二板模：2-plate mold边钉/导边：leader pin/guide pin边司/导套：bushing/guide bushing中托司：shoulder guide bushing中托边L：guide pin顶针板：ejector retainner plate托板：support plate螺丝：screw管钉：dowel pin开模槽：ply bar scot内模管位：core/cavity inter-lock顶针：ejector pin司筒：ejector sleeve司筒针：ejector pin推板：stripper plate缩呵：movable core, return core puller 扣机（尼龙拉勾）：nylon latch lock斜顶：lifter模胚（架）：mold base上内模：cavity insert下内模：core insert行位（滑块）：slide镶件：insert压座/斜鸡：wedge耐磨板/油板：wedge wear plate压条：plate撑头: support pillar唧嘴：sprue bushing挡板：stop plate定位圈：locating ring锁扣：latch扣鸡：parting lock set推杆：push bar栓打螺丝：S.H.S.B顶板：eracu retun活动臂：lever arm分流锥：spure sperader水口司:bush垃圾钉：stop pin隔片：buffle弹弓柱：spring rod弹弓:die spring中托司：ejector guide bush中托边：ejector guide pin镶针：pin销子：dowel pin波子弹弓：ball catch模具术语英文同样的模具术语英文,大家顶啊模芯Parting Core局部视图Partial View冷料# Cold Slag线切割Wire E.D.M轮廊Contour螺纹孔Tapping Hole连接件Fittings斜针Angle Pin接合Engage替换镶件Interchangeable Mold Inserts 指定吨位的注塑机Specific Press 水嘴接头Water Fittings螺纹Eyebolt Thread回针Stop Pin二级顶出针Sub-Leaderd Pin镶件Mold Insert加硬Harden唧嘴Sprue设计筒图Design Preliminary名称块表Title Block版本标识Revision Level材料清单Stock List制模Build Mold手动滑块Hand Slide漏水测试Leak Test流道排气Runner Vents抛光Draw Polish侧抽芯Side Action加强筋Reinforcing三角撑Gusset柱子Bossed出模斜度Draft外廊Contour落单会议Kick-Off Meeting装卸孔Handling Hole运输安全带Moldstrap码模槽Clamp Slot撑头Support Pillar螺牙1/2-13 Eye Bolt 1/2-13Tap 导柱位Leader Pin Location耐落胶Teflon Paste偏移量Offset水塞Water Line Plug撬模脚Ppy Slot重新加工Reworked配件Components补偿Compensation平面度Parallel倒角Chamfer模胚Mold Base热嘴Hotnozzle火花机Edm熔接线Weildline压机Press晒纹Texturing梯形Trapezoid凸缘、法兰Flange方铁Spacer Block顶针板Ejector Plate顶针底板Ejector Retainer Plate垫板Retainer Plate后模镶针Core Pin拉圾钉Stop Pin有托顶针Shoulder Ejector Pin顶针板导套Guided Ejection Bushing针板导柱Guided Ejection Leader Pin唧嘴Sprue Bushing三板模延伸式唧嘴Extension Nozzle Bushing水口板导套Runner Stripper Plate Bushing 定位圈（法兰）Locating Ring管钉（定位销）Dowel Pin管状管钉Tubular Dowel吊环Safety Hoist Ring日期印Dating Insert环保印Recycling Insert气顶Air Poppet Valve截水口镶件Runner Shut-Off Insert早回Early Ejector Return加速项Accelerated Ejector客户Client产品名Part Name产品编号Part No缩水Shrinkage版本Rev模胚Mold Base下模镶件Core Block上模镶件Cavity Block小镶件Sub-Insert下模小镶件Core Sub-Insert上模小镶件Cavity Sub-Insert行位Slide行位镶件Slide Insert压条Gib压紧块（铲机）Jaw硬片（摩擦片）Wear Plate水口铁Runner Bar上模水口铁Upper Runner Bar下模水口铁Lower Runner Bar弹簧Spring水口勾针Sprue Puller Pin顶针Ejector Pin撑头Support Pillar直身锁Side Lock斜度锁Interlock锁模板Safety Bar‘O’令（密封圈）O'Ring喉塞Plug隔水片Baffle波子螺丝（行位定位螺丝）Ball-Catch斜顶Lifter控制开关Switch回针Return Pin斜导柱Angle Pin推板Stripper PlateA’板A'PlateB’板B'Plate方铁（垫铁）Spacer Block顶针板Ejector Plate顶针底板Ejector Retainer Plate垫板Retainer Plate垃圾钉Stop Pin有托顶针Shoulder Ejector Pin顶针板导套Guided Ejection Bushing 针板导柱Guided Ejection Leader Pin唧嘴Sprue Bushing三板模延伸式唧嘴Extension Nozzle Bushing水口板导套Runner Stripper Plate Bushing 定位圈（法兰）Locating Ring管钉（定位销）Dowel Pin管状管钉Tubular Dowel吊环Safety Hoist Ring日期印Dating Insert环保印Recycling Insert气顶Air Poppet Valve截水口镶件Runner Shut-Off Insert早回Early Ejector Return加速顶Accelerated Ejector扁顶Blade出模斜波Draft手动滑块模具Hand Slide-In Type Mold 回针板Backup合模Shutoff空隙槽Clearance Slot导柱及导套Leader Pin Bushing水口拉钩Spuer Puller模框镶件Pocket Insert成型热固性塑胶模具Thermoset Mold 三板模3-Plat Mold分型面Parting Line司筒Ejector Sleeve垫圈Washer熔接线（夹水纹）Weldline吸针Sucker Pin回针板Retainer Plate顶出板Knock -Out Plate电动安全开关Electrical-Safety Switch脱开Cut Of Position预先决定Preload缓冲器Bumper衬垫Cushion公差Tolerance突然性动作Slam销针Dowel钩槽Gib精磨Finished通框Through Window粘后模Sticking Core粘水口Sticking Sprue夹水纹Weld Line变形Warpage走水不平均Filling Uneven走不齐Short Shot挂成品Part Hanging漏水Water Leakage刮花（擦伤）Galling漏电Ele Leakage困气Air Trapping温度Temperature注塑模Injection Mold入水Gate试板Sampling压力Pressure倒圆Fillet顶棍Ejector顶白Stress Mark粘前模Sticking Cav名称块表Title Block版本标识Revision Level材料清单Stock List斜导柱（斜边）Angle PinA板 A'plateB板 B'plate倒扣Under-Cut披峰Flash缩水Sink Mark氮化Nitride不规则四边形Trapezoid缩水Shrinkage连续的Consecutive雕刻Engrave出模角Draft分模面Parting Surface擦位Shut-Off(S/0)导套Bushing回针Return Pin加硬Harden唧嘴Sprue设计筒图Design Preliminary丝印Silkprint不干胶Adhesive Sticker导向针Guide Din公差Tolerance线切割Wire-Cut电火花EDM抛光Polishing蚀纹Texture探热针Thermocouple三打螺丝毫（限螺丝）Stripper Bolt盖板Cover Plate齿轮Gear油唧Hydraulic Cylinder司筒Ejector Sleeve导柱Leader Pin冷料# Cold Slag线切割Wire E.D.M.轮廓Contour螺纹孔Tapping Hole连接件Fittings斜针Angle Pin接合Engage替换镶件Interchangeable Mold Inserts 指定吨位的注塑机Specific Press水嘴接头Water Fittings螺纹Eyebolt Thread回针Stop Pin二级顶出针Sub-Leader Pin镶件Mold Insert锁定位Lock楔子(铲鸡) Wedge高产量模量High Volume Running Mold 剖面图Cross Section模具结构Mold Construction模芯Parting Core局部视图Partial View热流道Manifold热嘴Hot Nozzle型腔数Cav. No模号Mold No胶料Material尺寸Dimension重要尺寸Critical Dimension雕刻Engrave托司 EJ.GUIDE PIN注塑模具术语–模具英语compre sion molding压缩成型flash mold溢流式模具plsitive mold挤压式模具split mold分割式模具cavity型控母模core模心公模taper锥拔leather cloak仿皮革shiver饰纹flow mark流痕welding mark溶合痕post screw insert螺纹套筒埋值self tapping screw自攻螺丝striper plate脱料板piston活塞cylinder汽缸套chip细碎物handle mold手持式模具encapsulation molding低压封装成型、射出成型用模具two plate两极式（模具）well type蓄料井insulated runner绝缘浇道方式hot runner热浇道runner plat浇道模块valve gate阀门浇口band heater环带状的电热器spindle阀针spear head刨尖头slag well冷料井cold slag冷料渣air vent排气道welding line熔合痕eject pin顶出针knock pin顶出销return pin回位销反顶针sleave套筒stripper plate脱料板insert core放置入子runner stripper plate浇道脱料板guide pin导销eject rod (bar)（成型机）顶业捧subzero深冷处理three plate三极式模具runner system浇道系统stress crack应力电裂orientation定向sprue gate射料浇口，直浇口nozzle射嘴sprue lock pin料头钩销(拉料杆) slag well冷料井side gate侧浇口edge gate侧缘浇口tab gate搭接浇口film gate薄膜浇口flash gate闸门浇口slit gate缝隙浇口fan gate扇形浇口dish gate因盘形浇口diaphragm gate隔膜浇口ring gate环形浇口subarine gate潜入式浇口tunnel gate隧道式浇口pin gate针点浇口Runner less无浇道(sprue less)无射料管方式long nozzle延长喷嘴方式sprue浇口;溶渣。
