quartus ii 常见的19个错误28个警告

(一) Q uartus警告解析(二)(三) 1.Found clock-sensitive change during active clock edge at time<time> on register"<name>"(四) 原因：vector source file中时钟敏感信号（如：数据，允许端，清零，同步加载等）在时钟的边缘同时变化。

而时钟敏感信号是不能在时钟边沿变化的。

其后果为导致结果不正确。

(五) 措施：编辑vector source file(六)(七) 2.Verilog HDL assignment warning at <location>: truncated with size <number> tomatch size of target (<number>(八) 原因:在HDL设计中对目标的位数进行了设定,如:reg[4:0] a;而默认为32位,将位数裁定到合适的大小(九) 措施:如果结果正确,无须加以修正,如果不想看到这个警告,可以改变设定的位数(十)(十一) 3.All reachable assignments to data_out(10) assign '0', register removed by optimization(十二) 原因:经过综合器优化后，输出端口已经不起作用了(十三)(十四) 4.Following 9 pins have nothing, GND, or VCC driving datain port -changes to this connectivity may change fitting results(十五) 原因:第9脚，空或接地或接上了电源(十六) 措施:有时候定义了输出端口，但输出端直接赋‘0’，便会被接地，赋‘1’接电源。

Quartus常见错误警告分析

Quartus常见错误警告分析Quartus常见错误分析ErrorWarning: VHDL Process Statement warning at random.vhd(18): signal reset is in statement, but is not in sensitivity list----没把singal放到process（）中2 Warning: Found pins ing as undefined clocks and/or memory enablesInfo: Assuming node CLK is an undefined clock-=-----可能是说设计中产生的触发器没有使能端3 Error: VHDL Interface Declaration error in clk_gen.vhd(29): interface object "clk_scan" of mode outcannot be read. Change object mode to buffer or inout.------信号类型设置不对，out当作buffer来定义4 Error: Node instance "clk_gen1" instantiates undefined entity "clk_gen"-------引用的例化元件未定义实体－－entity "clk_gen"5 Warning: Found 2 node(s) in clock paths which may be acting as ripple and/or gated clocks -- node(s)analyzed as buffer(s) resulting in clock skewInfo: Detected ripple clock "clk_gen:clk_gen1|clk_incr" as bufferInfo: Detected ripple clock "clk_gen:clk_gen1|clk_scan" as buffer6 Warning: VHDL Process Statement warning at ledmux.vhd(15): signal or variable "dataout" may not be assigned a new in every possible path through the Process Statement. Signal or variable "dataout" holdsits previous in every path with no new assignment, whichmay create a combinational loop in the currentdesign.7 Warning: VHDL Process Statement warning at divider_10.vhd(17): signal "cnt" is read inside the Process Statement but isn't in the Process Statement's sensivitity list -----缺少敏感信号8 Warning: No clock transition on "counter_bcd7:counter_counter_clk|q_sig[3]" register9 Warning: Reduced register "counter_bcd7:counter_counter_clk|q_sig[3]" with stuck clock port to stuckGND10 Warning: Circuit may not operate. Detected 1 non-operational path(s) clocked by clock "class[1]" withclock skew larger than data delay. See Compilation Report for details.11 Warning: Circuit may not operate. Detected 1 non-operational path(s) clocked by clock "sign" withclock skew larger than data delay. See Compilation Report for details.12 Error: VHDL error at counter_clk.vhd(90): actual port "class" of mode "in" cannot be associated withformal port "class" of mode "out"------两者不能连接起来13 Warning: Ignored node in vector source file. Can't find corresponding node name"class_sig[2]" indesign.------没有编写testbench文件，或者没有编辑输入变量的值testbench里是元件申明和映射14 Error: VHDL Binding Indication error at freqdetect_top.vhd(19): port "class" in design entity does not have std_logic_vector type that is specified for the same generic in the associated component ---在相关的元件里没有当前文件所定义的类型15 Error: VHDL error at tongbu.vhd(16): can't infer register for signal "gate" because signal does nothold its outside clock edge16 Warning: Found clock high time violation at 1000.0 ns on register"|fcounter|lpm_counter:temp_rtl_0|dffs[4]"17 Warning: Compiler packed, optimized or synthesized away node "temp[19]". Ignored vector source filenode.---"temp[19]"被优化掉了18 Warning: Reduced register "gate~reg0" with stuck data_in port to stuck GND19 Warning: Design contains 2 input pin(s) that do not drive logicWarning: No output dependent on input pin "clk"Warning: No output dependent on input pin "sign"------输出信号与输入信号无关，20 Warning: Found clock high time violation at 16625.0 ns on register "|impulcomp|gate1"21 Error: VHDL error at impulcomp.vhd(19): can't implement clock enable condition specified using binaryoperator "or"22 Error: VHDL Association List error at period_counter.vhd(38): actual parameter assigned to formal parameter "alarm", but formal parameter is not declared-------连接表错误，形参"alarm"赋值给实参，形参没定义，可能是形参与实参的位置颠倒了，规定形参在实参之前。

QuartusII警告信息大解

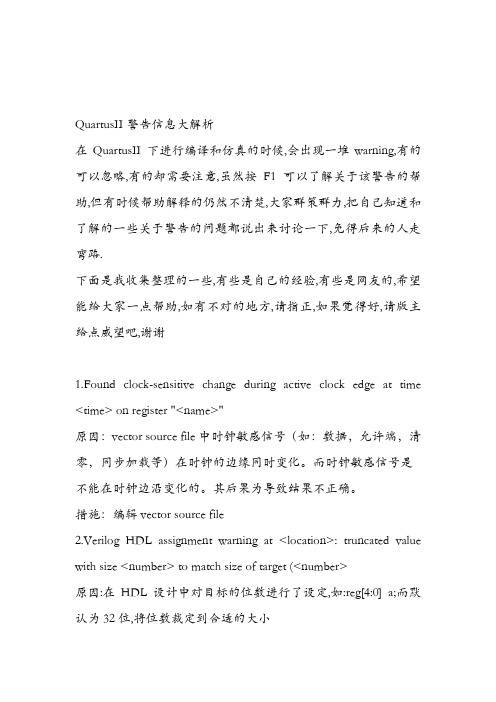

QuartusII警告信息大解析在QuartusII下进行编译和仿真的时候,会出现一堆warning,有的可以忽略,有的却需要注意,虽然按F1可以了解关于该警告的帮助,但有时候帮助解释的仍然不清楚,大家群策群力,把自己知道和了解的一些关于警告的问题都说出来讨论一下,免得后来的人走弯路.下面是我收集整理的一些,有些是自己的经验,有些是网友的,希望能给大家一点帮助,如有不对的地方,请指正,如果觉得好,请版主给点威望吧,谢谢1.Found clock-sensitive change during active clock edge at time <time> on register "<name>"原因：vector source file中时钟敏感信号（如：数据，允许端，清零，同步加载等）在时钟的边缘同时变化。

而时钟敏感信号是不能在时钟边沿变化的。

其后果为导致结果不正确。

措施：编辑vector source file2.Verilog HDL assignment warning at <location>: truncated value with size <number> to match size of target (<number>原因:在HDL设计中对目标的位数进行了设定,如:reg[4:0] a;而默认为32位,将位数裁定到合适的大小措施:如果结果正确,无须加以修正,如果不想看到这个警告,可以改变设定的位数3.All reachable assignments to data_out(10) assign '0', register removed by optimization原因:经过综合器优化后，输出端口已经不起作用了4.Following 9 pins have nothing, GND, or VCC driving datain port -- changes to this connectivity may change fitting results原因:第9脚，空或接地或接上了电源措施:有时候定义了输出端口，但输出端直接赋‘0’，便会被接地，赋‘1’接电源。

Quartus II 中常见Warning 及解决方法(转载)

14.Can't achieve minimum setup and hold requirement <text> along <number> path(s). See Report window for details.
原因：时序分析发现一定数量的路径违背了最小的建立和保持时间，与时钟歪斜有关,一般是由于多时钟引起的
21.Warning:Found xx output pins without output pin load capacitance assignment（网友：gucheng82提供）
原因：没有给输出管教指定负载电容
措施：该功能用于估算TCO和功耗，可以不理会，也可以在Assignment Editor中为相应的输出管脚指定负载电容，以消除警告
措施:如果结果正确,无须加以修正,如果不想看到这个警告,可以改变设定的位数
3.All reachable assignments to data_out(10) assign '0', register removed by optimization
原因:经过综合器优化后，输出端口已经不起作用了
措施:如果clk不是时钟，可以加“not clock”的约束；如果是，可以在clock setting当中加入；在某些对时钟要求不很高的情况下，可以忽略此警告或在这里修改:Assignments>Timing analysis settings...>Individual clocks...>...
和多时钟有关的Multicycle 和Multicycle Hold选项，如hold time为负，可使Multicycle hold的值>multicycle,如设为2和1。

quartus常见警告

1、Warning (10227): Verilog HDL Port Declaration warning at PRESS_MODELE.v(29): data type declaration for "iR" de clares packed dimensions but the port declaration declarati on does not.解释：2、Warning: PLL "DE2_TV:inst1|Sdram_Control_4Port:u6|Sd ram_PLL:sdram_pll1|altpll:altpll_component|pll" output por t clk[0] feeds output pin "DRAM1_CLK" via non-dedicated routing -- jitter performance depends on switching rate of other design elements. Use PLL dedicated clock outputs to ensure jitter performance解释：PLL的输出用在了非专属的PLL_OUT措施：设计电路板的时候最好将PLL_OUT用在相关的时钟信号上，如果没有使用，则这个警告不理会也可。

3、Warning: Using design file cpu.v, which is not specified as a design file for the current project, but contains defini tions for 25 design units and 25 entities in project解释：模块不是在本项目生成的，而是直接copy了别的项目的原理图和源程序生成的，不是用QUARTUS将文件添加进本项目措施：无须理会，不影响使用4、Warning (10240): Verilog HDL Always Construct warning at I2C_V_Config.v(153): inferring latch(es) for variable "L UT_DATA", which holds its previous value in one or more paths through the always construct解释：信号被综合成了latch，锁存器的EN和数据输入端口存在一个竞争的问题措施：将计数器从里面抽出来5、Warning: 12 hierarchies have connectivity warnings - see the Connectivity Checks report folder解释：实例化的时候，有一些端口没用，让没用的端口的位置空着，措施：不用理会6、Warning: Synthesized away the following node(s)解释：以下节点被综合优化掉措施：不用理会7、Warning:Found xx output pins without output pin load c apacitance assignment解释：没有给输出管教指定负载电容措施：该功能用于估算TCO和功耗，可以不理会，也可以在Assignment Edi tor中为相应的输出管脚指定负载电容，以消除警告8、Warning: The following nodes have both tri-state and no n-tri-state drivers解释：该用三态逻辑驱动的信号，被用非三态逻辑驱动了措施：在子信息中定位到警告所在，改用三态逻辑驱动9、Warning: Latch DE2_TV:inst1|I2C_V_Config:I2C_AV_Conf ig|LUT_DATA[8] has unsafe behaviorWarning: Ports D and ENA on the latch are fed by the sam e signal DE2_TV:inst1|I2C_V_Config:I2C_AV_Config|LUT_I NDEX[4]解释：产生了latch措施：用时序代替组合电路，或者是用完备的if/else，和case语句10、Warning: TRI or OPNDRN buffers permanently enabled 解释：输出要加三态控制11、Warning: Output pins are stuck at VCC or GND解释：这几个输出管脚直接接地了措施：如果这符合你的设计要求这种警告可以不管12、Warning (15400): WYSIWYG primitive "DE2_TV:inst1|S dram_Control_4Port:u6|Sdram_WR_FIFO:write_fifo2|dcfifo: dcfifo_component|dcfifo_21m1:auto_generated|altsyncram_ 1l81:fifo_ram|altsyncram_drg1:altsyncram5|ram_block6a15 " has a port clk1 that is stuck at GND解释：这里是采用的SDRAM的读写方式为1入2出的模式，将fifo2的输入信号给接GND了措施：不用理会。

QuartusII有关错误和警告的编译信息总结

在QuartusII下进行编译和仿真的时候,会出现一堆warning,有的可以忽略,有的却需要注意,虽然按F1可以了解关于该警告的帮助,但有时候帮助解释的仍然不清楚,大家群策群力,把自己知道和了解的一些关于警告的问题都说出来讨论一下,免得后来的人走弯路.下面是我收集整理的一些,有些是自己的经验,有些是网友的,希望能给大家一点帮助,如有不对的地方,请指正,如果觉得好,请版主给点威望吧,谢谢1.Found clock-sensitive change during active clock edge at time <time> on register "<name>"原因：vector source file中时钟敏感信号（如：数据，允许端，清零，同步加载等）在时钟的边缘同时变化。

而时钟敏感信号是不能在时钟边沿变化的。

其后果为导致结果不正确。

FPGA警告大全

一个高人写的Quartus警告分析大全Q u a r t u s警告分析！ 1.Found clock-sensitive change during active clock edge at time <time> on register "<name>"原因：vector source file中时钟敏感信号（如：数据，允许端，清零，同步加载等）在时钟的边缘同时变化。

而时钟敏感信号是不能在时钟边沿变化的。

其后果为导致结果不正确。

措施：编辑vector source file2.Verilog HDL assignment warning at <location>: truncatedwith size <number> to match size of target (<number>原因:在HDL设计中对目标的位数进行了设定,如:reg[4:0] a;而默认为32位,将位数裁定到合适的大小措施:如果结果正确,无须加以修正,如果不想看到这个警告,可以改变设定的位数3.All reachable assignments to data_out(10) assign '0', registerremoved by optimization原因:经过综合器优化后，输出端口已经不起作用了4.Following 9 pins have nothing, GND, or VCC driving datain port --changes to this connectivity may change fitting results原因:第9脚，空或接地或接上了电源措施:有时候定义了输出端口，但输出端直接赋…0‟，便会被接地，赋…1‟接电源。

如果你的设计中这些端口就是这样用的，那便可以不理会这些warning5.Found pins ing as undefined clocks and/or memory enables原因:是你作为时钟的PIN没有约束信息。

Quartus错误大全

Quartus常见错误分析1 Warning: VHDL Process Statement warning at random.vhd(18): signal reset is in statement, but is not in sensitivity list----没把singal放到process（）中2 Warning: Found pins ing as undefined clocks and/or memory enables Info: Assuming node CLK is an undefined clock-=-----可能是说设计中产生的触发器没有使能端3 Error: VHDL Interface Declaration error in clk_gen.vhd(29): interface object "clk_scan" of mode out cannot be read. Change object mode to buffer or inout.------信号类型设置不对，out当作buffer来定义4 Error: Node instance "clk_gen1" instantiates undefined entity "clk_gen" -------引用的例化元件未定义实体－－entity "clk_gen"5 Warning: Found 2 node(s) in clock paths which may be acting as ripple and/or gated clocks -- node(s) analyzed as buffer(s) resulting in clock skewInfo: Detected ripple clock "clk_gen:clk_gen1/clk_incr" as buffer Info: Detected ripple clock "clk_gen:clk_gen1/clk_scan" as buffer6 Warning: VHDL Process Statement warning at ledmux.vhd(15): signal or variable "dataout" may not be assigned a new in every possible path through the Process Statement. Signal or variable "dataout" holds its previous in every path with no new assignment, which may create a combinational loop in the current design.7 Warning: VHDL Process Statement warning at divider_10.vhd(17): signal "cnt" is read inside the Process Statement but isn''t in the Process Statement''s sensivitity list-----缺少敏感信号8 Warning: No clock transition on"counter_bcd7:counter_counter_clk/q_sig[3]" register9 Warning: Reduced register "counter_bcd7:counter_counter_clk/q_sig[3]" with stuck clock port to stuck GND10 Warning: Circuit may not operate. Detected 1 non-operational path(s) clocked by clock "class[1]" with clock skew larger than data delay. See Compilation Report for details.11 Warning: Circuit may not operate. Detected 1 non-operational path(s) clocked by clock "sign" with clock skew larger than data delay. See Compilation Report for details.12 Error: VHDL error at counter_clk.vhd(90): actual port "class" of mode "in" cannot be associated with formal port "class" of mode "out"------两者不能连接起来13 Warning: Ignored node in vector source file. Can''t find corresponding node name "class_sig[2]" in design.------没有编写testbench文件，或者没有编辑输入变量的值 testbench里是元件申明和映射14 Error: VHDL Binding Indication error at freqdetect_top.vhd(19): port "class" in design entity does not have std_logic_vector type that is specified for the same generic in the associated component---在相关的元件里没有当前文件所定义的类型15 Error: VHDL error at tongbu.vhd(16): can''t infer register for signal "gate" because signal does not hold its outside clock edge16 Warning: Found clock high time violation at 1000.0 ns on register "/fcounter/lpm_counter:temp_rtl_0/dffs[4]"17 Warning: Compiler packed, optimized or synthesized away node "temp[19]". Ignored vector source file node.---"temp[19]"被优化掉了18 Warning: Reduced register "gate~reg0" with stuck data_in port to stuck GND19 Warning: Design contains 2 input pin(s) that do not drive logic Warning: No output dependent on input pin "clk"Warning: No output dependent on input pin "sign"------输出信号与输入信号无关，20 Warning: Found clock high time violation at 16625.0 ns on register "/impulcomp/gate1"21 Error: VHDL error at impulcomp.vhd(19): can''t implement clock enable condition specified using binary operator "or"22 Error: VHDL Association List error at period_counter.vhd(38): actual parameter assigned to formal parameter "alarm", but formal parameter is not declared-------连接表错误，形参"alarm"赋值给实参，形参没定义，可能是形参与实参的位置颠倒了，规定形参在实参之前。

quarter警告信息

quarter警告信息Quartus警告分析 warning1.Found clock-sensitive change during active clock edge at time on register ""原因:vector source file中时钟敏感信号(如:数据,允许端,清零,同步加载等)在时钟的边缘同时变化.而时钟敏感信号是不能在时钟边沿变化的.其后果为导致结果不正确.措施:编辑vector source file2.Verilog HDL assignment warning at : truncated with size to match size of target (原因:在HDL设计中对目标的位数进行了设定,如:reg[4:0] a;而默认为32位, 将位数裁定到合适的大小措施:如果结果正确,无须加以修正,如果不想看到这个警告,可以改变设定的位数3.All reachable assignments to data_out(10) assign '0', register removed by optimization原因:经过综合器优化后,输出端口已经不起作用了4.Following 9 pins have nothing, GND, or VCC driving datain port -- changes to this connectivity may change fitting results 原因:第9脚,空或接地或接上了电源措施:有时候定义了输出端口,但输出端直接赋‘0’,便会被接地,赋‘1’接电源. 如果你的设计中这些端口就是这样用的,那便可以不理会这些warning5.Found pins ing as undefined clocks and/or memory enables原因:是你作为时钟的PIN没有约束信息.可以对相应的PIN做一下设定就行了. 主要是指你的某些管脚在电路当中起到了时钟管脚的作用,比如flip-flop的clk 管脚,而此管脚没有时钟约束,因此QuartusII把“clk”作为未定义的时钟. 措施:如果clk不是时钟,可以加“not clock”的约束;如果是,可以在clock setting当中加入;在某些对时钟要求不很高的情况下,可以忽略此警告或在这里改:Assignments>Timinganalysissettings...>Individual clocks...>...6.Timing characteristics of device EPM570T144C5 are preliminary原因:因为MAXII 是比較新的元件在 QuartusII 中的時序并不是正式版的,要等 Service Pack措施:只影响 Quartus 的 Waveform7.Warning: Clock latency analysis for PLL offsets is supported for the current device family, but is not enabled措施:将setting中的timing Requirements&Option-->More TimingSetting-->setting-->Enable Clock Latency中的on改成OFF8.Found clock high time violation at 14.8 ns on register"|counter|lpm_counter:count1_rtl_0|dffs[11]"原因:违反了steup/hold时间,应该是后仿真,看看波形设置是否和时钟沿符合steup/hold时间措施:在中间加个寄存器可能可以解决问题9.warning: circuit may not operate.detected 46 non-operational paths clocked by clock clk44 with clock skew larger than data delay原因:时钟抖动大于数据延时,当时钟很快,而if等类的层次过多就会出现这种问题,但这个问题多是在器件的最高频率中才会出现措施:setting-->timing Requirements&Options-->Default required fmax 改小一些,如改到50MHZ10.Design contains input pin(s) that do not drive logic原因:输入引脚没有驱动逻辑(驱动其他引脚),所有的输入引脚需要有输入逻辑措施:如果这种情况是故意的,无须理会,如果非故意,输入逻辑驱动.11.Warning:Found clock high time violation at 8.9ns on node 'TEST3.CLK' 原因:FF中输入的PLS的保持时间过短措施:在FF中设置较高的时钟频率12.Warning: Found 10 node(s) in clock paths which may be acting as ripple and/or gated clocks -- node(s) analyzed as buffer(s) resulting in clock skew原因:如果你用的 CPLD 只有一组全局时钟时,用全局时钟分频产生的另一个时钟在布线中当作信号处理,不能保证低的时钟歪斜(SKEW).会造成在这个时钟上工作的时序电路不可靠,甚至每次布线产生的问题都不一样.措施:如果用有两组以上全局时钟的 FPGA 芯片,可以把第二个全局时钟作为另一个时钟用,可以解决这个问题.13.Critical Warning: Timing requirements were not met. See Report window for details.原因:时序要求未满足,措施:双击Compilation Report-->Time Analyzer-->红色部分(如clock setup:'clk'等)-->左键单击list path,查看fmax的SLACK REPORT再根据提示解决,有可能是程序的算法问题14.Can't achieve minimum setup and hold requirement along path(s). See Report window for details.原因:时序分析发现一定数量的路径违背了最小的建立和保持时间,与时钟歪斜有关,一般是由于多时钟引起的措施:利用Compilation Report-->Time Analyzer-->红色部分(如clock hold:'clk'等),在slack中观察是hold time为负值还是setup time 为负值, 然后在:Assignment-->AssignmentEditor-->To中增加时钟名(fromnode finder),Assignment Name中增加和多时钟有关的Multicycle 和Multicycle Hold选项,如hold time为负,可使Multicycle hold的值>multicycle,如设为2和1.15: Can't analyze file -- file E://quartusii/*/*.v is missing原因:试图编译一个不存在的文件,该文件可能被改名或者删除了措施:不管他,没什么影响16.Warning: Can't find signal in vector source file for input pin whole|clk10m原因:因为你的波形仿真文件( vector source file )中并没有把所有的输入信号(input pin)加进去,对于每一个输入都需要有激励源的17.Error: Can't name logic scfifo0 of instance "inst" has same name as current design file原因:模块的名字和project的名字重名了措施:把两个名字之一改一下,一般改模块的名字18.Warning: Using design file lpm_fifo0.v, which is not specified as a design file for the current project, but contains definitions for 1 design units and 1 entities in project Info: Found entity 1: lpm_fifo0原因:模块不是在本项目生成的,而是直接copy了别的项目的原理图和源程序而生成的,而不是用QUARTUS将文件添加进本项目措施:无须理会,不影响使用19.Timing characteristics of device are preliminary原因:目前版本的QuartusII只对该器件提供初步的时序特征分析措施:如果坚持用目前的器件,无须理会该警告.关于进一步的时序特征分析会在后续版本的Quartus得到完善.20.Timing Analysis does not support the analysis of latches as synchronous elements for the currently selected device family 原因:用analyze_latches_as_synchronous_elements setting可以让 Quaruts II来分析同步锁存,但目前的器件不支持这个特性措施:无须理会.时序分析可能将锁存器分析成回路.但并不一定分析正确.其后果可能会导致显示提醒用户:改变设计来消除锁存器21.Warning:Found xx output pins without output pin load capacitance assignment(网友:gucheng82提供)原因:没有给输出管教指定负载电容措施:该功能用于估算TCO和功耗,可以不理会,也可以在Assignment Editor 中为相应的输出管脚指定负载电容,以消除警告22.Warning: Found 6 node(s) in clock paths which may be acting as ripple and/or gated clocks -- node(s) analyzed as buffer(s) resulting in clock skew原因:使用了行波时钟或门控时钟,把触发器的输出当时钟用就会报行波时钟, 将组合逻辑的输出当时钟用就会报门控时钟措施:不要把触发器的输出当时钟,不要将组合逻辑的输出当时钟,如果本身如此设计,则无须理会该警告23.Warning (10268): Verilog HDL information at lcd7106.v(63): Always Construct contains both blocking and non-blocking assignments原因: 一个always模块中同时有阻塞和非阻塞的赋值在QuartusII下进行编译和仿真的时候,会出现一堆warning,有的可以忽略,有的却需要注意,虽然按F1可以了解关于该警告的帮助,但有时候帮助解释的仍然不清楚,大家群策群力,把自己知道和了解的一些关于警告的问题都说出来讨论一下,免得后来的人走弯路.下面是我收集整理的一些,有些是自己的经验,有些是网友的,希望能给大家一点帮助,如有不对的地方,请指正,如果觉得好,请版主给点威望吧,谢谢1.Found clock-sensitive change during active clock edge at time on register ""原因：vector source file中时钟敏感信号（如：数据，允许端，清零，同步加载等）在时钟的边缘同时变化。

quartus ii 中常见warning 及解决方法(转载)(Quartus II中常见警告及解决方法(转载))

quartus ii 中常见warning 及解决方法(转载)（Quartus II中常见警告及解决方法（转载））Support original! I reprinted, you can download free1.Found clock-sensitive, change, during, active, clock, edge, at, time, <time>, on, register, <name>"Reason: vector, source, file, clock sensitive signals (such as data, allowing, clearing, synchronization, loading, etc.) change simultaneously on the edge of the clock. A clock sensitive signal cannot change at the edge of the clock. The consequence is that the result is incorrect.Measures: edit vector source file2.Verilog, HDL, assignment, warning, at, <location>: truncated, value, with, size, <number>, to, match,, size, of, target (<number>Reason: in HDL design, the number of targets is set, such as: reg[4:0] a, and default to 32 bits, the number of digits to the right sizeMeasure: if the result is correct, it needs no correction. If you don't want to see this warning, you can change the number of settings3.All, reachable, assignments, to, data_out (10), assign,'0', register, removed, by, optimizationReason: after the optimizer has been optimized, the output port is no longer functional4.Following 9, pins, have, nothing, GND, or, VCC, driving, datain, port - changes, to, this,, connectivity, may, change, results, fittingReason: ninth feet, empty or grounded or connected to the power supplyMeasures: sometimes the output port is defined, but the output is directly assigned to '0', which will be grounded and assigned '1' to the power supply. If these ports are used in your design, you can ignore these warning5.Found, pins, functioning, as, undefined, clocks, and/or, memory, enablesReason: you have no constraint information as the PIN of the clock. You can set the settings for the corresponding PIN. Mainly refers to some of your pin in the circuit played a role in the clock tube, such as the flip-flop CLK pin, and this pin has no clock constraint, so QuartusII CLK as undefined clock.Measures: if CLK is not a clock, can add "not clock" constraint; if it is, can be added in clock setting; in some of the clock requirements are not very high, you can ignore this warning or modified here: Assignments>Timing analysis settings... Individual clocks > >.....6.Timing, characteristics, of, device, EPM570T144C5, are,preliminaryReason: because MAXII is a relatively new component, the timing in QuartusII is not a formal version. Wait for Service PackMeasure: only affects Quartus's Waveform7.Warning:, Clock, latency, analysis, for, offsets, is, supported, for, the, current, device, family, but, is, PLL, not, enabledMeasure: change the on in setting, Requirements&Option-->More, Timing, Setting-->setting-->Enable, Clock, Latency, timing to OFF8.Found, clock, high, time, violation, at,, NS, on, register, |counter|lpm_counter:count1_rtl_0|dffs[11]"Reason: violated the steup/hold time, should be after the simulation, to see whether the waveform settings and the clock edge in line with steup/hold timeMeasure: adding a register in the middle can solve the problem9.warning:, circuit, may, not, operate.detected,non-operational,, paths, clocked, by, clock, clk44, with, clock,, skew, larger, delay, than, dataReason: clock jitter is greater than data delay, when the clock is very fast, and if and other classes of excessive levels of this problem will occur, but this problem is mostly in thedevice's highest frequency will appear措施：设置-->选项-->需要定时要求和改小一些违约，如改到50mhz10。
