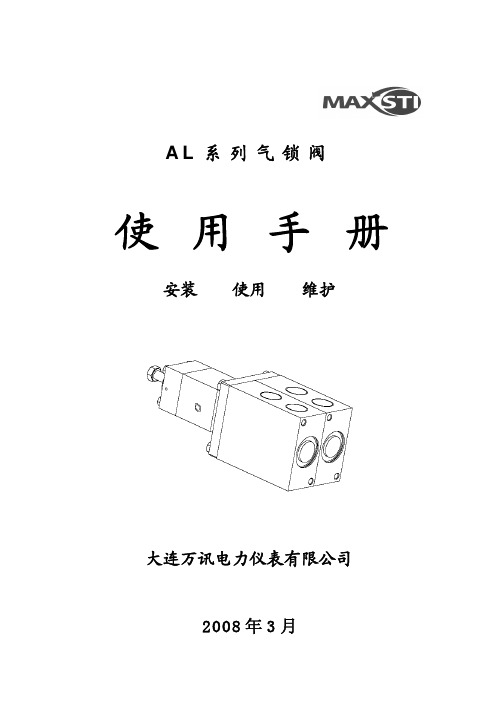

AL系列气锁阀
在气动执行器上装一个气锁阀，无论何时当空气压力下降到低
于操作安全点时，它们将执行器与控制装置（定位器，电气分配器
等）隔离，保证执行器的特殊安全位置。
气锁装置主要由一个带设定值校正和大约20千帕差压的气动
压力开关所组成，操作一个或多个三通同步换向器( 取决于所需要
的功能 )。
当空气压力在设定值周围摆动时，差压避免了连续的不
合适的换向。
空气压力下降到设定值,开关装置立即动作，在空气压力逐渐下
降到设定值的情况下也是如此。
原理：
气锁装置压力开关对于操作设定可在20～93千帕
以内进行调节；要增加设定压力，你可以以顺时针方
向转动调整螺钉（1）。
当先导压力超过设定值时，活塞（8）抬起，克服
弹簧负载（5）。
相同的压力通过阀门（9）的中心孔，
并通过风道（23），它立即操作开关组合件。
此时，管
道U和S联通，而管道E关闭。
当先导压力下降到低于设定值时，由弹簧（5）推
动的活塞（8）使阀门（9）的中心孔关闭；通过向下
移动阀门（9），以前流过风道（23）的压缩空气放空
到大气。
开关组合件立即复位。
开关反向使管道U连
接到E并关闭S。
连接口由字母E－S－U标记。
备注:为了避免对执行器紧急动作时间的延迟，
压力开关应安装在靠近开关组处，并与小容量的管子
( 6 毫米)相连接。
