煤气炉操作规程
煤气炉操作规程煤气炉是一种常见的烹饪设备，被广泛应用于家庭和商业厨房。
然而，由于其使用气体作为燃料，使用不当可能会导致安全事故。
为了确保用户能够正确使用煤气炉并避免潜在的危险，以下是一份煤气炉操作规程，详细说明了正确和安全的使用方法。
一、煤气炉的安装：1. 在安装煤气炉之前，请确保选择一个稳定的台面或炉灶架来支撑炉具。
2. 确保煤气管道与煤气炉连接时紧固，并使用管道胶带或橡胶垫垫住连接处，确保无漏气现象。
3. 安装完毕后，进行测试，打开煤气阀门，使用肥皂水涂抹连接处以检查是否有气泡产生。
如发现气泡，请及时修复。
二、煤气炉的使用：1. 打开煤气阀门前，请确保所有可燃物品（如纸张、塑料）不接近炉具，并确保周围空气流通。
2. 打开煤气阀门时，请使用专业打火机或火柴，以免发生引燃失败和意外。
3. 在点燃煤气炉后，请观察火焰的颜色，确保其呈蓝色且较为均匀。
如发现火焰呈黄色或不稳定，请及时停止使用，并检查煤气管道是否有问题。
4. 使用煤气炉时，请将炉具置于合适的炉架上，确保其稳定。
避免使用过高的火焰，以免引发火灾或食物烧焦。
5. 当你需要离开厨房或停止使用煤气炉时，务必关掉煤气阀门，并等待炉具冷却后再擦拭或进行其他操作。
三、煤气炉的维护：1. 每次使用煤气炉之前，请仔细清洁炉具和炉架，以确保其表面无油脂残留和杂物。
2. 定期检查和更换煤气管道，并确保其连接牢固。
如发现管道老化、腐蚀或有其他问题，请及时更换。
3. 定期检查和清洁煤气炉的烟道，并确保通风良好，以免引发一氧化碳中毒等危险。
4. 如发现煤气炉有异常情况（如异味、漏气等），请停止使用，并及时找专业人员进行检修。
四、煤气炉的应急措施：1. 如果发生煤气泄漏，请立即关闭煤气阀门，打开门窗通风，并迅速撤离事故现场。
2. 如发现煤气炉着火，请立即关闭煤气阀门，并用灭火器或湿毛巾扑灭火焰。
切勿用水扑灭火焰，以免引发火灾扩大。
3. 如果发生严重事故，请立即拨打紧急电话寻求帮助，并按照救援人员的指示进行相应操作。
Winthrop 864HH 家用气炉火器产品说明书

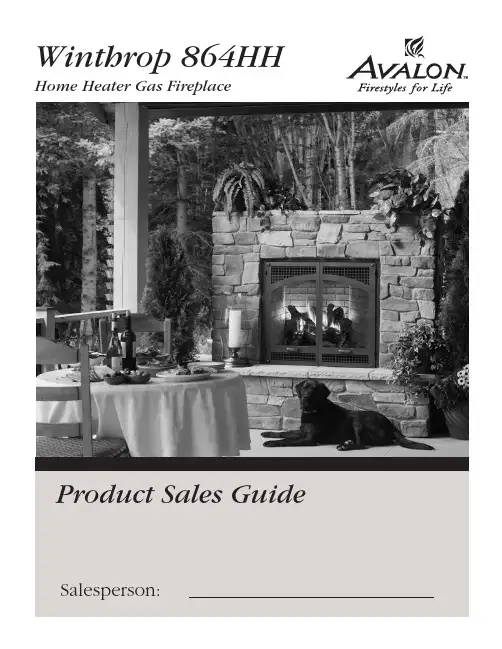

Winthrop 864HHHome Heater Gas FireplaceMORE HEAT:The 864HH or Home Heater expands the 864TRV line with an exciting new fireplace that offers more heat for colder climates and larger spaces. We call it the Home Heater because it heats up to 2,250 square feet and also has the BTUs to directly send heat up to TWO additional heat zones in the home with the Optional Power Heat Duct Kits.The 864HH offers higher efficiency, higher BTUs and has a heavier gauge steel firebox.MORE TECHNOLOGY:The 864HH also includes a new style of our award-winning Ember-Fyre™ burner technology. This upgraded burner has been improved by an enhanced aesthetic with crisper coal bed details and hand painted logs. It also features a more consistent flame performance.In addition the 864HH features 5 mm silica coated ceramic glass. The silica coating prevents sulfur oxidation on the glass to help it stay cleaner longer and make it easier to clean. Travis Industries uses ceramic glass for strength and durability. The HH also REQUIRES (but does not include) a ceramic fireback and the 180 CFM convection fan is standard.SAME GREAT OPTIONS:Like the best-selling864TRV, the 864HH offers a huge view of the fire, incredible heating efficiency, wall thermostat and remote control operation, and a wide range of beautiful, custom high-end faces, liners and andirons to choose from. The fireplace starts with the basic grill set and can be finished from there or with the homeowner’s choice of upgrade face.SAME EASY INSTALLATION:By requiring the ceramic fireback on the 864HH we are able to insulate the firebox and direct more heat out through the glass. This allows us to use the same framing and clearances as the 864TRV. The 864HH includes a 1 1/2” non-conductive facing strip, and no additional Durarock or cement board are required.Building on the success of the 864TRV, the 864HH gives homeowners a fireplace with more heat and an upgraded fire with the same popular faces, liners and options.FOR YOU:The 864HH offers you a heavier built fireplace with more heat and the award-winning Ember-Fyre burner performance. With all the same great faces and options as the 864TRV, you only have one new stock keeping unit! The unit uses all the same popular accessories including accent light, andirons, remotes and power heat duct kits without increasing inventory SKUs, and ships standard with 5mm silica coated ceramic glass and a 180 CFM convection fan.FOR THE CONSUMER:The same great 864 square inch viewing area with more heat and an upgraded flame. Your customers still get the same great selection of upgrade faces and options, but this fireplace will heat their entire home (up to 2,250 sq. ft.). It's perfect for colder climates, and the heat won't overwhelm them. This fireplace can be enjoyed for longer periods of time.The heat is consistent, radiant, convective and gentle and is designed to heat an entire home but not overheat the room it’s installed in, thus extending the burning and enjoyment time of the fire.For a nice sales flow we highly recommend you have a minimum of two units on the floor.One burn 864HH Ember-Fyre unit fully dressed with all the options to include an upgrade face,accent light, remote control and one display model shown with basic grill package.Don ’t forget to burn an 864TRV unit to show off the two stage burner and other face options.If you can show the consumer and the builder they have the option to customize their fireplace and their cost, you increase your chance for sales over your competitors.Point out glass sizeMore viewing area, less black frame. 1-3” more glass in both directions than competitive models.Mention advantages of silica-coated ceramic glass. The coating helps keep it clean longer and it is more durable to high heat and thermal shock than tempered or “Borofloat ” glass.Point out Ember-Fyre BurnerThe most realistic flame and fire, there are no tubes or metal pan to detract from realism.The new Ember-Fyre burner is made from improved, denser ceramic material with more detail and consistency than ever before for an even more realistic wood-like flame.Demonstrate the Heat Capacity and Standard Twin 90 CFM Convection Fans (180 Total CFM)The 864HH is designed for gentle, even heating of your home. The fireplace is designed to gradually bring the temperature up in the home without over heating the room. You will get a constant, even heat that maintains the comfort level in the room which allows you to enjoy the fire longer.Demonstrate Accent LightDemonstrate the rheostat control and the way it highlights the log set and brick liner with fire on or off.Have a remote control hooked up and operatingPoint out the easy operation from any location in the room, chair or bed.Point out detail of logsBeautiful detail of logs add to realism of fire and the fireplace.Talk about customized lookYou can customize face, liner, accent lighting etc. right down to placement of 3 of the twigs.Home Heater Gas FireplaceHome Heater Gas FireplaceBoth fireplaces offer a huge view of the fire, incredible heating efficiency, wall thermostat and remote control operation, and a wide range of beautiful, custom high-end faces, liners and andirons to choose from. Each starts off with the basic grill set and can be finished from there with the homeowner’s choice of upgrade face. The basic grill set is a finished installation - no upgrade face is required.Both also feature the same fast and easy installation and venting for builders with identical framing dimensions.864TRVPerfect for warmer climates, smaller spaces, or a beautiful, decorative fire anytime all year long. Features a wide turn down range for more heat flexibility and viewing options. Can be vented to oneadditional room.5,200 – 31,000 BTUs (LP)6,700 – 31,000 BTUs (NG)Heating Capacity 1,400 square feetTempered Glass with removable screen Optional thermostatically controlled variable speed180 CFM convection fanFirebacks optional4 Piece Ceramic Log Set2 stage valve with pan burner with independentcontrols. Wide turn down range & 2 burnersUnit Dimensions:38 3/8” High x 19 3/4” Deep x 41” WideNo facing strip requiredMantel clearance:8” mantel = 8” clearance above face12” mantel =12” clearance above faceFraming dimensions:38 1/2” H x 41 1/4” W x 20” DSame standardized framing used by competitivefireplaces864HHOffers more heat for colder climates and heats larger spaces. Can be vented to two additional rooms to be a complete Home Heater. Includes award-winning Ember-Fyre burner. Features a gentle, consistent heat without overheating.23,000 – 40,000 BTUs (NG)23,000 – 39,000 BTUs (LP))Heating Capacity 2,250 square feet5 mm Silica Coated Ceramic Glass Standard thermostatically controlled variable speed180 CFM convection fanRequires fireback to complete installation (allows for close clearances - same as 864TRV)9 Piece Heavy-Duty Ceramic Log SetNew Ember-Fyre burner with high definition castash bed detailUnit Dimensions:38 3/8” High x 19 3/4” Deep x 41” WideNon-conductive facing strip factory installedMantel clearance:8” mantel = 12” clearance above face12” mantel =16” clearance above faceFraming dimensions:38 1/2” H x 41 1/4” W x 20” DSame standardized framing used by competitivefireplacesHome Heater Gas Fireplace864TRVTop or rear vent option8” x 6 5/8”6 5/8” x 4” chimney reducer approved for topvent installationStandard safety shut-off valve and flex pipe18 gauge steel firebox constructionStandard 5/8” heavy steel grateOption of basic grill starter faceMultiple Upgrade Face OptionsOptional Accent Light KitStandard Wall SwitchOptional Wall ThermostatOptional Remote ControlThree Andiron OptionsOptional power heat duct adds heat directly to one additional heat zone. Does not operate off a thermodisc. The power heat duct operates ONLY via the wall mount rheostat. The power heat duct on the 864TRV does NOT require the optional fan.864HHTop or rear vent option8” x 6 5/8”6 5/8” x 4” chimney reducer approved for topvent installation- RECOMMENDED Standard safety shut-off valve and flex pipe16 gauge steel firebox constructionStandard 5/8” heavy steel grateOption of basic grill starter faceMultiple Upgrade Face OptionsOptional Accent Light KitStandard Wall SwitchOptional Wall ThermostatOptional Remote ControlThree Andiron OptionsOptional power heat duct adds heat directly to two additional heat zones.Fan o perates off a thermodisc.Winthrop 864HHWinthrop 864HHHome Heater Gas Fireplace Standard 8 Simpson Current Pipe and 6 5/8reducer optionEasy, inexpensive rear vent package available and pipe can be reduced to 6 5/8” in top vent configuration for less expensive installation. Same vent as used on 864TRV.Easy to Adjust Air Shutter 2 external air adjustments for dialing in a great fire with less labor time.Easy air and exhaustadjustments on restrictor Keyhole slots added for quick adjustments for any vent configuration – improves look of fire, quicker install time.Wall Switch Standard The convenience of an on/off switch located on the wall at no additional cost.Elevated 5/8 solid steel grateDurable fire grate adds beauty and realism to the look of the fire.Valve Centered Easy access for servicing fan.Black Valve Cover Cleaner look with control cover open or closed.Fan Snap disc mounts into fireboxQuicker response to heat-up of unit with more direct contact. Also less cycling of fan.1 1/2 Strip non-combustible supplied Ships with unit for easier, less expensive installation of fireplace. No cement board required under fireplace.Only 2 non-combustible facing required above fireplaceYou cannot cleanly seam between the 1 1/2” ceramic strip and sheet rock, we recommend a min. of 2” non-combustible facing above (and sides to balance the look) the unit in tile, marble or stone to finish off the installation. 2” bull-nose tile will also work to frame the face outside the box.Framing dimensions same as the 864TRVThe 864HH shares the same framing dimensions as the 864TRV. The framing dimensions are equal to all the leading competitive models, so builders will have no problem adapting this fireplace to the existing building plans.The 864HH also requires a minimum enclosure height requirement of 49”.Mantle ClearancesTighter clearances to mantle allows for a traditional fireplace look. No out-of-scale mantle restrictions.Graduated mantle clearance up to 12” total mantle depth.Winthrop 864HHHome Heater Gas Fireplace Andiron Options3 distinctly different options to customize the fireplace and add to the realism of the fire.Optional Accent Lighting with Rheostat Control Adjustable light adds glow to the firebox when fire is burning and adds drama to the firebox even when the fire is out.1 or2 Power Heat Duct Kit optionCustomer can direct heat to one or two other rooms in the house up to 20 feet away.The power heat duct installation on the Winthrop 864HH does not operate off a thermodisc. The power heat duct operates ONLY via the wall mount rheostat. The power heat duct on the 864’s do NOT require the optional fan.Wall Thermostat optionWall mounted operation for automatically controlling room temperature.Remote Control Thermostat option Operation of the fire from the convenience of a chair or bed.Rear Vent Kit optionInexpensive kit makes for easy rear vent installation.Face & Grill OptionsChoice of basic grill kit or one of three upgrade faces -Victorian Lace black painted, Victorian Lace black nickel plated with nickel accents or the powder coated Bungalow face with full double doors.Grills and upgrade faces feature screens to help hide the gas valve and controls from sight,Fireback - Required on all 864HH fireplacesBy making the fireback required we are able to keep the clearances and framing exactly the same as the 864TRV.Very realistic, Herringbone or River Rock looks to complement any face and decor.Standard Shut-off ValveA shut-off valve and 12” piece of flex line are provided with unit. Reduces installation cost and time for your installers.864H o m e H e a t e r S p e c i f i c a t i o n s225 l b s .W e i g h tS K U sH e a t i n g C a p a c i t y B T U R a n g eV e n t S i z eG l a s s S i z e G l a s s T y p e L o g1 B o d yU p t o 2,250 S q . F t .23,000 t o 40,000 (N G )8” a n d 6 5/8” T o p V e n t O p t i o n s36” x 24” = 864 S q . I n .S i l i c a C o a t e d C e r a m i c9 P i e c e C e r a m i cK o z y H e a t 942216 l b s .1 B o d yN o t A d v e r t i s e d29,000 t o 39,0008”35” x 21” = 735 S q . I n .B o r o f l o a t (L e s s d u r a b l e t h e n c e r a m i c )8 P i e c eM e n d o t a D X V 45H e a t & G l o 6000 G L X N o t A d v e r t i s e d 4 B o d i e sN o t A d v e r t i s e d18,700 t o 40,00036” x 24” = 864 S q . I n .C e r a m i c7 P i e c e C e r a m i c205 l b s .1 B o d yN o t A d v e r t i s e d7,500 t o 45,0008”N o t A d v e r t i s e dN o t A d v e r t i s e d8 P i e c eW i n t h r o p 864H HH o m e H e a t e r G a s F i r e p l a c e8” a n d 6 5/8” T o p V e n t O p t i o n sV e n t L o c a t i o nR e a r a n d T o p45 D e g r e eR e a r a n d T o pT o p O n l yE m b e r -F y r eB u r n e rT u b e B u r n e r3 L e v e l M y s t i f i r e3 L e v e l T u b e , 2 S t a g eG a sS h i p s N G a n d I n c l u d e s L P C o n v e r s i o n K i tS h i p s N G a n d I n c l u d e s L P C o n v e r s i o n K i tS e p a r a t e N G a n d L P B o d i e s S h i p s N G a n d I n c l u d e s L P C o n v e r s i o n K i tS p e c i f i c a t i o n sW a l l S w i t c hF r a m i n g D i m e n s i o n sB l o w e rF a c e O p t i o n sF i r e b a c k sA c c e n t L i g h tH e a t D u c t S t a n d a r d 38 1/2” H x 41 1/4” W x 20”S t a n d a r d - R h e o s t a t ,T h e r m o s t a t i c 180 C F M w /o f f o p t i o nR e q u i r e d C h o i c e o f H e r r i n g b o n e o r R i v e r R o c k O p t i o n a l - R h e o s t a t O p t i o n a l - u p t o 2O p t i o n a l40 1/4” H x 42 1/2” W x 21” DS t a n d a r d , N o O p t i o n sN o t A v a i l a b l eO p t i o n a l - u p t o 2S t a n d a r d 38 1/2” H x 42” W x 22” D 4 P i e c e 2 c o l o r s S t a n d a r d . O r d e r e d a s S e p a r a t e B o d i e s S t a n d a r d - R h e o s t a tO p t i o n a l S t a n d a r d38 1/8” H x 41” W x 20” D S h o w n i n p i c t u r e s , b u t n o t s p e c i f i e dN o t A v a i l a b l eO p t i o n a l - u p t o 2W i n t h r o p 864H HH o m e H e a t e r G a s F i r e p l a c e864H o m e H e a t e rK o z y H e a t 942M e n d o t a D X V 45H e a t & G l o 6000 G L X S t a n d a r d 160 C F M w /o f f o p t i o nS t a n d a r d , C F M N o t P u b l i s h e d .M u s t b e o n w h e n o p e r a t i n gO p t i o n a l , 2 - 110 C F MB a s i c G r i l l o r 3 U p g r a d e F a c e s :B u n g a l o w a n d V i c t o r i a n L a c e B ;l a c k a n d B l a c k N i c k e l P l a t e d6 F a c e s , 3 F i n i s h e s5 F a c e s , 4 F i n i s h e s17 F a c e /F i n i s h p o s s i b i l i t i e sH e a r t h R e q u i r e m e n tN o n eN o n e14” N o n c o m b u s t i b l e 0” i f r a i s e d 6”N o n e。
煤气炉说明书

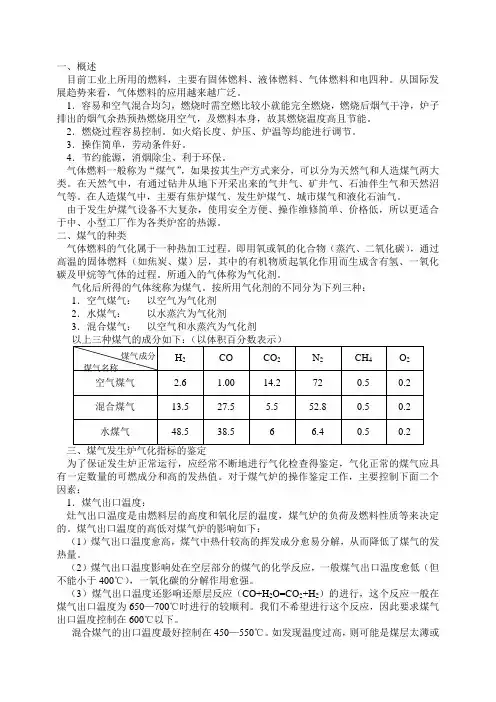

一、概述目前工业上所用的燃料，主要有固体燃料、液体燃料、气体燃料和电四种。
从国际发展趋势来看，气体燃料的应用越来越广泛。
1．容易和空气混合均匀，燃烧时需空燃比较小就能完全燃烧，燃烧后烟气干净，炉子排出的烟气余热预热燃烧用空气，及燃料本身，故其燃烧温度高且节能。
2．燃烧过程容易控制。
如火焰长度、炉压、炉温等均能进行调节。
3．操作简单，劳动条件好。
4．节约能源，消烟除尘、利于环保。
气体燃料一般称为“煤气”，如果按其生产方式来分，可以分为天然气和人造煤气两大类。
在天然气中，有通过钻井从地下开采出来的气井气、矿井气、石油伴生气和天然沼气等。
在人造煤气中，主要有焦炉煤气、发生炉煤气、城市煤气和液化石油气。
由于发生炉煤气设备不大复杂，使用安全方便、操作维修简单、价格低，所以更适合于中、小型工厂作为各类炉窑的热源。
二、煤气的种类气体燃料的气化属于一种热加工过程。
即用氧或氧的化合物（蒸汽、二氧化碳），通过高温的固体燃料（如焦炭、煤）层，其中的有机物质起氧化作用而生成含有氢、一氧化碳及甲烷等气体的过程。
所通入的气体称为气化剂。
气化后所得的气体统称为煤气。
按所用气化剂的不同分为下列三种：1．空气煤气：以空气为气化剂2．水煤气：以水蒸汽为气化剂3．混合煤气：以空气和水蒸汽为气化剂为了保证发生炉正常运行，应经常不断地进行气化检查得鉴定，气化正常的煤气应具有一定数量的可燃成分和高的发热值。
对于煤气炉的操作鉴定工作，主要控制下面二个因素：1．煤气出口温度：灶气出口温度是由燃料层的高度和氧化层的温度，煤气炉的负荷及燃料性质等来决定的。
煤气出口温度的高低对煤气炉的影响如下：（1）煤气出口温度愈高，煤气中热什较高的挥发成分愈易分解，从而降低了煤气的发热量。
（2）煤气出口温度影响处在空层部分的煤气的化学反应，一般煤气出口温度愈低（但不能小于400℃），一氧化碳的分解作用愈强。
（3）煤气出口温度还影响还原层反应（CO+H2O=CO2+H2）的进行，这个反应一般在煤气出口温度为650—700℃时进行的较顺利。
锅炉用builtin灶具操作引导书说明书

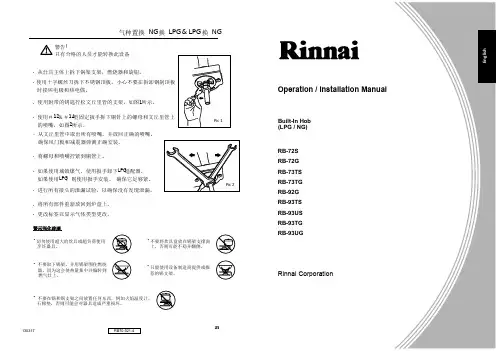

Operation / Installation ManualBuilt-In Hob (LPG / NG)RB-72S RB-72G RB-73TS RB-73TG RB-92G RB-93TS RB-93US RB-93TG RB-93UGRinnai CorporationE n g l i s h252741警告!只有合格的人员才能转换此设备. 从灶具主体上拆下锅架支架，燃烧器和旋钮。
