地埋式一体化生活污水处理装置的应用

浅议地埋式一体化装置在生活污水处理中的应用内容提要：鲁山爆破器材公司采用了地埋式一体化装置技术，治理生活污水，污水经调节池调节后通过潜污泵送至地埋式一体化生活污水处理装置进行处理，处理后使污水达到国家《污水综合排放标准》（GB8978-1996）和《生活杂用水水质标准》CJ/T48-1999中的要求，之后用泵抽至地面的蓄水池，用于厂区绿化、锅炉除尘器补水、道路洒水，没有废水外排。

关键词：地埋式一体化装置生活污水处理应用中平能化集团爆破器材公司，是国家定点爆破器材生产企业，由于原来厂址塌陷，故要求将该公司整体搬迁。

搬迁之后生活污水规模约为99m³/d，其主要来源为职工食堂、卫生间、浴室和办公生活等废水。

污水中含有泥沙、油脂、皂）、化学需液、食物屑、病菌等杂物，体现在水质指标上，即生化需氧量（BOD5氧量（COD）、悬浮物（SS）含量高，氮、磷含量高，富营养化。

若不经处理，直接排入水体和土壤，将使水体和土壤中有机物浓度过高，而使水体和土壤富营养化，因此要对该污水进行治理。

1．地埋式一体化处理装置工艺流程及工艺优点1.1工艺流程地埋式一体化生活污水处理设备是以A/O生化工艺为主，集生物降解污水沉降、氧化消毒等工艺于一体的生活污水处理装置。

本装置采用生化法原理处理生活污水，利用污水中自有的微生物菌，经过一定培养使之迅速繁殖成为具有一定活性的好氧菌，好氧菌通过吸附污水中的有机物及空气和水中的氧，进行生物氧化、分解，一部分生成二氧化碳、水和无机物，另一部分则生成新的具有一定活性的生物膜，继续进行降解污水中的污染物。

污水经过格栅依次进入A池和O 池。

在O池内，好氧菌附着在填料表面上生长，并形成生物膜，在充氧的条件下，污水以一定的流速流过填料与生物膜接触，使污水中的有机物得到降解，同时生物膜中的好氧菌得到进一步繁殖，经过好氧处理后的污水进入沉淀池进行沉淀，澄清水经过消毒，将达标的处理水排至蓄水池。

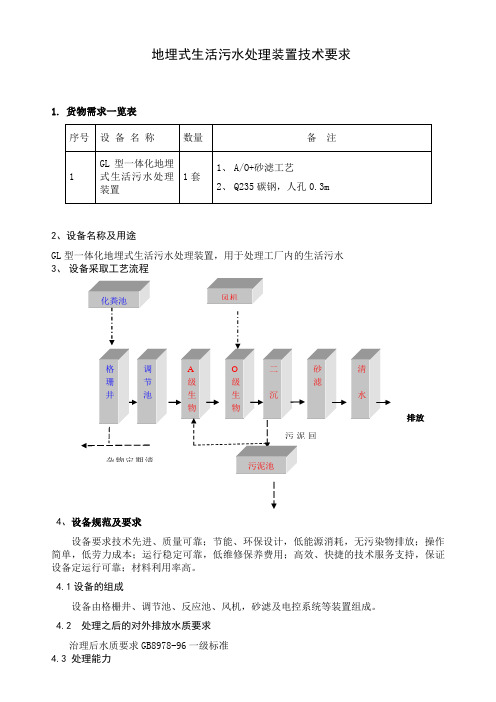

其工艺流程图如下：此装置共有七部份组成：（1）初沉池；（2）A级生化池；（3）O级生化池；（4）二沉池；（5）消毒池、消毒装置；（6）污泥池；（7）风机房组成。

具体解析如下：（1）初沉池：初沉池为竖流式沉淀池，污水在沉淀池的上升流速为0.3～0.4毫米/秒，沉淀下来的污泥提升至污泥池。

（2）A级生化池：缺氧池为脱氮处理而设置，池内设置YDT型立体弹性填料，作为反硝化细菌的载体，硝化液中回硝态氨和亚酸态氧在反硝化细菌的作用下，还原成氮气，达到脱氮的目的，缺氧池有效停留时间为2.5～3.5h，溶解氧控制在≤0.5mg/L。

（3）O级生化池：污水自流至接触池进行生化处理，接触池分为三级，停留时间为8h，（加强型设备接触氧化时间可达8～12h）填料为新颖弹性填料，易结膜，不堵塞，接触氧化池气水比在15：1左右。

（4）二沉池：生化后的污水流到二沉池，二沉池为竖流式沉淀，表面负荷为＜1.0m3/m2.h，排泥提升至污泥池。

（5）消毒池、消毒装置：消毒池按规范：“TJ14-74”标准为不小于30分钟，若是医院污水，消毒池可增加停留时间至1～1.5h。

消毒采用固体氯片接触溶解的消毒方式，消毒装置能根据出水量的大小不继改变加药量，达到多出水多加药，少出水少加药的目的，需要其它消毒装置可另行配制。

（6）污泥池：初沉池、二沉池的所有污泥均用空气提至WSZ-A的污泥池内进行好氧消化。

污泥池的清液回流至热交换氧化池内进行再处理。

消化后剩余污泥很少，一般1-2年清理一次。

清理方法采用吸粪车从污泥池的检查孔伸入污泥底部，进行抽吸外运即可。

（7）风机房、风机：设备风机设在消毒的上方，进口采用双层隔音，进风口有消声器、风机过滤器，因此运行时无噪音。

风机采用二台转式风机，能自动交替运行。

单台风机运行寿命30000小时左右。

1.2 A/O工艺优点1.2.1节省能源消耗：生物硝化、脱销所需的氧量，主要包括消化过程、内源呼吸和降解有机物时的需氧量。

A/O工艺在脱销的同时降解有机物，使需氧量大大减少，是节能型的生物处理系统。

1.2.2污泥沉降性能好：为了维护较高的消化率，反应停留时间比普通活性污泥法长，会发生微生物内源呼吸，污泥增长率低，剩余污泥量少，消化过程高，沉降性能好。

-N可产生1.2.3节省水处理药剂：在A/O工艺中，脱销过程脱除1mg/l的NO3-N需消耗7.141mg/l的碱度，整个3.75mg/l的碱度，硝化过程硝化1mg/l的NH4系统的碱度可以互相弥补，不必加碱中和，原污水中的有机物作为脱销时的氢供给体，不用外加碳源。

1.2.4缺氧池在前，污水中的有机碳被反硝化菌所利用，可减轻其后好氧池的有机负荷。

同时缺氧池中进行的反硝化反应产生的碱度可以补偿好氧池中进行硝化反应对碱度的需求。

1.2.5A/O工艺的好氧池在缺氧池之后，可以使反硝化残留的有机污染物得到进一步去除，提高出水水质。

2．地埋式一体化处理装置工业性使用效果2.1占地面积小：设备采用一体化设计，将工艺过程简化到一池，仅为传统处理方法占地面积的1/4-1/5。

2.2安装简便：完全地埋安装，配套管网少，设备上面的地表可作为绿化或其他用地，不需建房及采暖、保温。

2.3运行费用低：采用智能一体化成熟工艺、高效的水泵和风机。

运行费用仅为电机能耗，水处理成本低。

2.4建设投资少：该一体化生活污水处理专用设备工艺成熟、可靠，流程简单，配套设施少。

2.5整个设备处理系统配有自动电器控制系统和设备故障报警系统，运行安全可靠，平时不需要专人管理，只需要适时的对设备进行维护和保养。

2.6出水水质好：出水清澈透明，能达到国家《污水综合排放标准》（GB8978-1996）《生活杂用水水质标准》CJ/T48-1999中的要求。

具体如下表：污水进水水质、排放标准及回用水标准3．结束语爆破器材公司使用地埋式一体化装置对该厂区生活污水进行处理，使出水水质达到了国家标准的要求。

总之，地埋式一体化装置占地面积小、投资省、噪音低、处理效率高。

为以后小型的生活污水处理提供了一条新的途径。
