无锡工赢产品规格书SKD500T
MQ4035门机技术规格书
MQ4035门机技术规格书S.1.0 供货范围40t-35m门座式起重机1台（供电电压AC380V）, 能使用吊钩、抓斗、集装箱自动吊具作业，本合同为交钥匙工程，包括：1、门座式起重机1台（配一套40吨吊钩、一套集装箱自动吊具），包括起重机的设计、制造、运输、安装、现场油漆修补、调试和试车验收；2、锚定装置、顶升装置、防风系缆装置的基础金属结构件；3、相应备品和配件，随机工具和附件，随机资料、竣工图纸、试车用品及相应的技术服务。
S.2.0 起重机概述该起重机为安装轨道上，水平变幅式，能正、反旋转360°，吊钩、抓斗、集装箱自动吊具三用（暂不配抓斗），四连杆起重臂系统的门座式起重机（以下简称门机），具有起升、变幅、旋转、行走四大机构，主要用于件杂货、散货、集装箱自动吊具的装卸船作业。
旋转支承装置为三排滚柱回转轴承。
S.3.0 标准和规范门机的设计、制造、安装和调试、试车，均应符合以下标准和规范的最新版本。
（1）《起重机设计规范》（GB3811-83）（2）《起重机安全规范》（GB6067-85）（3）《起重机试验规范与规程》（GB5905）（4）《电气装置工程施工及验收规范》（GBJ232-85）（5）《港口门座起重机基本系数系列》（JT/T81-94）（6）《港口起重机风载荷规范》（JT/T90-94）（7）《港口门座起重机技术条件》（JT5017-86）（8）《港口门座起重机试验方法》（JT/T99-94）（9）《港口装卸机械司机室》（JT5020-86）（10）《国际电工标准》（IEC）门机的设计和制造均做到：技术先进、结构合理、经济耐用、安全可靠和维修方便。
S.4.0 设计条件和工作状态分类（1）门机的设计可靠、稳定，并符合如下设计自然条件●设计风速工作时：20米/秒非工作时：55米/秒●气温：-11.3℃~40℃●湿度：100%●地震：6度●作业班制：3班（每班8小时）（2）门机按下列标准设计和制造●起重机的工作级别利用级别 U7载荷状态 Q3-重分类级别 A8S.5.0 主要设计参数：（1）额定起重量集装箱吊具下： 30.5T（含吊具自重）吊钩下：44T抓斗：25T（含抓斗自重）（2）适应船型：50000DWT船，主尺度为：230*32*17.5*12.7米（型长*型宽*型深*满载吃水）（2）起升高度：吊钩轨上30米，轨下15米抓斗轨上22米，轨下15米（4）幅度： 10.5-35米（5）工作速度●起升速度： 45米/分——―吊钩、吊具工况60米/分——抓斗工况●旋转速度：1.2转/分●变幅速度：45米/分●行走速度：26米/分（6）轨距：10.5米（7）基距：14米（8）最大轮压：250KN（9）最大腿压：2000KN（10）轨道型号：QU100（11）轨道长度：约350米（12）起重机最大尾部旋转半径：9米（13）门架下部的净空高度：不小于6米（14）采用电缆卷筒供电。
MD500-57X7技术规格书
MD500-57X7技术规格书技术规格书一、基本要求：1、物资名称：主排水泵房设备2、数量：3套二、工程概况、使用条件及基础数据1、工程概况本矿井口标高为：+1170 m(绝对标高)，井下主排水泵房水平标高为：900 m(绝对标高)。
井下主排水泵房需安装3台MD500-57×7矿用排水泵。
（其中正常涌水时，1台工作，1台备用，1台检修）,配10kV，900kW,1480r/min防爆电动机。
敷设φ219mm无缝钢管2趟, 敷设φ324mm无缝钢管1趟，φ324mm无缝钢管工作，φ219mm 两趟备用，将井下涌水经管子道、行人井敷设的管路排至地面井下水处理站。
水泵房环形管路是φ324mm无缝钢管。
管路长度约900m。
2、环境条件：水质：中性，水容重：1050kg/m33、应提出所供设备对环境、温度、湿度（长时间、短时间）以及灰尘、通风、防静电等特殊要求。
三、规范及标准：设备的设计和制造应符合国家及部颁有关标准。
投标商所提供的设备及功能应满足国家《煤矿安全规程》的有关规定。
四、技术要求：（一）水泵1、主水泵运行性能：流量Q(m3/h)：500总扬程H(m)：399必需汽蚀余量NPSHR(m): 不大于4.4转速r/min: 1480效率：80%2、该排水系统采用真空泵组抽空吸水系统。
3、结构特征：要求泵效率高，汽蚀性能好，选材优良，运行平稳可靠。
1）水泵制造厂家的投标书应附水泵特性曲线。
2）水泵为卧式结构。
3）水泵的轴承为SKF滚动轴承。
5）水泵及电机底座（包括地脚螺栓），由供货厂家配套。
水泵厂家需协调好与电机厂家的联轴器的相关尺寸。
6）水泵噪声、震动符合国家标准。
7）设备的制造设计应符合国家的有关标准。
并具有防爆合格证；煤矿安全标志；产品合格证及相关证件。
8）水泵厂家必须保证新管道时工况点处水泵电机功率有10%以上的富裕量，以保证在各种运转情况下能可靠工作。
（二）主电机10kV，800kW,转速1480r/min YB2系列防爆电动机，冷却方式：自扇冷。
TD500使用说明书(校正)
1使用说明书2信道可编程温度控制器非常感谢您购买（株）韩荣电子有限公司的产品。
请阅读使用说明书后按照说明使用。
为方便于今后使用本产品，请务必保管好此说明书。
声明此使用说明书受版权保护，并拥有与此相关的所有权利。
在未得到（株）韩荣电子有限公司的事前书面承认时，不允许对此文件的任何部分进行复印、再生、改造或翻译成其它语言。
此使用说明书的内容以“现状”被提供后，可能会在没有事前通知的情况下进行变更。
关于此说明书，除了对此产品的默认保障或特定目的外，（株）韩荣电子有限公司不作任何保障。
包含在此产品中的程序受版权保护。
在未得到（株）韩荣电子有限公司的事前书面承认时，禁止对此程序进行再生、改造、翻译。
使用于此文件及产品上的其它所有品名是该所有者的称号、服务标记、商标或注册商标。
(株)韩荣电子有限公司本社地址402-205仁川广域市南区朱安洞1381-3TEL：（032）867-0941（代表电话）FAX：（032）868-5899目录1.使用之前 1.1 产品的确认 51.2 安全注意事项 62.安装方法 2.1 安装场所及注意事项 72.2 安装方法 82.3 型号名称 92.4 外形/面板加工尺寸及接线图 92.5 接线方法 113.操作及设定 3.1 初始画面 153.2 基本输入方法 153.3 运转画面各部分名称 173.4 定值控制运转 263.5 程序控制运转 273.6 曲线图显示及设定 303.7 故障及各种事件明细 314.画面构成 4.1 运转画面 324.2 设定画面 345.功能设定 5.1 运转设定 355.2 时间/预约设定 365.3 程序设定 366.系统设定 6.1 传感器输入设定 406.2 控制/传送输出设定 416.3 内部信号设定 426.4 警报设定 436.5 PID设定 436.6 接点输入(D.I)构成设定 456.7 接点输出(D.O)构成设定 466.8 通信设定 486.9 其它设定 487.式样 7.1 输入式样 497.2 输出式样 497.3 功能式样 507.4 通信式样 517.5 电源式样 517.6 动作环境 527.7 输送/保管条件 52非常感谢您购买（株）韩荣电子有限公司的恒温、恒湿程序控制器（型号:TD500）。
SC500操作手册说明书
11/2014 Revised 07/2017(C)9099974000DeutschFrançaisEnglishNederlands9087400020, 9087401020, 9087402020See previous manual for the models no.:9087350020, 9087351020, 9087355020INSTRUCTIONS FOR USE ENGLISH9099974000 - SC500111/2014revised 07/2017TABLE OF CONTENTSINTRODUCTION (2)MANUAL PURPOSE AND CONTENTS ..........................................................................................................................................2TARGET ...........................................................................................................................................................................................2HOW TO KEEP THIS MANUAL .......................................................................................................................................................2DECLARATION OF CONFORMITY ................................................................................................................................................2IDENTIFICATION DATA ...................................................................................................................................................................2OTHER REFERENCE MANUALS ...................................................................................................................................................2SPARE PARTS AND MAINTENANCE .............................................................................................................................................2CHANGES AND IMPROVEMENTS ................................................................................................................................................2OPERATION CAPABILITIES ...........................................................................................................................................................3CONVENTIONS (3)UNPACKING/DELIVERY .................................................................................................................................................3SAFETY (3)VISIBLE SYMBOLS ON THE MACHINE .........................................................................................................................................3SYMBOLS THAT APPEAR ON THIS MANUAL ...............................................................................................................................4GENERAL INSTRUCTIONS (4)MACHINE DESCRIPTION (6)MACHINE STRUCTURE .................................................................................................................................................................6CONTROL PANEL ...........................................................................................................................................................................8ACCESSORIES/OPTIONS .. (9)TECHNICAL DATA (9)WIRING DIAGRAM (10)USE/OPERATION (11)MAGNETIC SMART KEY ...............................................................................................................................................................11BATTERY CHECK/SETTING ON A NEW MACHINE .....................................................................................................................11BATTERY INSTALLATION ..............................................................................................................................................................11BEFORE MACHINE START-UP ....................................................................................................................................................12MACHINE START AND STOP .......................................................................................................................................................14MACHINE OPERATION (SCRUBBING/DRYING) .........................................................................................................................15TANK EMPTYING ..........................................................................................................................................................................17AFTER USING THE MACHINE .....................................................................................................................................................17MACHINE LONG INACTIVITY (17)MAINTENANCE (18)SCHEDULED MAINTENANCE TABLE .........................................................................................................................................18BATTERY CHARGING ..................................................................................................................................................................19SUPERVISOR KEY (yellow) ..........................................................................................................................................................20SQUEEGEE CLEANING ...............................................................................................................................................................22SQUEEGEE BLADE CHECK AND REPLACEMENT ....................................................................................................................22CLEANING THE BRUSH ...............................................................................................................................................................23RECOVERY TANK CLEANING .....................................................................................................................................................23SOLUTION FILTER CLEANING ....................................................................................................................................................24MACHINE TRACKING ADJUSTMENT ..........................................................................................................................................24DETERGENT TANK CLEANING ...................................................................................................................................................25DRAINING THE ECOFLEX SYSTEM............................................................................................................................................26FUSE CHECK/REPLACEMENT . (26)TROUBLESHOOTING ...................................................................................................................................................27SCRAPPING (28)ENGLISH INSTRUCTIONS FOR USE 2SC500 - 909997400011/2014revised 07/2017INSTRUCTIONS FOR USE ENGLISH9099974000 - SC500311/2014revised 07/2017ENGLISH INSTRUCTIONS FOR USE 4SC500 - 909997400011/2014revised 07/2017INSTRUCTIONS FOR USE ENGLISH9099974000 - SC500511/2014revised 07/2017ENGLISH INSTRUCTIONS FOR USE 6SC500 - 909997400011/2014revised 07/2017INSTRUCTIONS FOR USE ENGLISHrevised 07/2017ENGLISH INSTRUCTIONS FOR USE 8SC500 - 909997400011/2014revised 07/2017LMK50INSTRUCTIONS FOR USE ENGLISH9099974000 - SC500911/2014revised 07/2017ACCESSORIES/OPTIONSIn addition to the standard components, the machine can be equipped with the following accessories/options, according to the machine specific use:–GEL batteries–Electronic battery charger –Brushes of different materials–Pads of different materials–Splash guard–Natural rubber squeegee blades –EcoFlex–USB portFor further information concerning the optional accessories, contact an authorised Retailer.TECHNICAL DATAModelNilfisk SC500 53 BNilfisk SC500 53R BSolution tank capacity 45 litres Recovery tank capacity 45 litresMachine length1,277 mm1,302 mm Machine width with squeegee 720 mmMachine width without squeegee 532 mm538 mmMachine height 1,063 mm Cleaning width 530 mm Driving wheel diameter200 mm Driving wheel specific pressure on the floor 0.7 N/mm 2Rear wheel diameter80 mm Rear wheel specific pressure on the floor 2.1 N/mm 2Brush/pad diameter530/508 mmBrush pressure with extra pressure function turned off 15 kg 22 kg Brush pressure with extra pressure function turned on 30 kg 30 kgSolution flow values0.75 cl/m / 1.5 cl/m 3.0 cl/m / 2.8 l/min0.38 cl/m / 0.75 cl/m 1.5 cl/m / 2.8 l/minEcoFlex system detergent percentage0.25 % ÷ 3 %Sound pressure level at workstation (ISO 11201, ISO 4871, EN 60335-2-72) (LpA)63 ± 3 dB(A)65 ± 3 dB(A)Sound pressure level at workstation in silent mode (LpA)60 ± 3 dB(A)61 ± 3 dB(A)Machine sound power level (ISO 3744, ISO 4871, EN 60335-2-72) (LwA)81 dB(A)83 dB(A)Vibration level at the operator’s arms (ISO 5349-1, EN 60335-2-72)< 2.5 m/s 2Maximum gradient when working 2 %Drive system motor power 200 W Drive speed (variable)0 - 5 km/h Vacuum system motor power 280 W Vacuum system circuit capacity 760 mm H 2OBrush motor power 450 W 670 W Brush rotation speed 155 rpm-Total absorbed power (*)500 W IP protection class X4Protection class (electric)III (I for the battery charger)Battery compartment size 350x350x260 mmSystem voltage 24 V Standard batteries (2)12 V 105 AhC5Battery charger 24 V 13 A Work autonomy (*)3.5 hourWeight without batteries and with empty tanks 83 kg85 kg (full package)88 kg Gross vehicle weight (GVW)207 kg210 kg Shipping weight114 kg192 kg (full package)119 kg(*) Values reflect standard operating conditions (EN 60335-2-72)icon (50), wait until the brush is lowered onto the floor.0,75 cl/m OFF 1,5 cl/m3,0 cl/m2,8 l/min0,38 cl/m0,75 cl/m1,5 cl/mOFFFigure 7Press the EcoFlex push-button (46) when stronger washing power is needed temporarily.With the EcoFlex system activated (LED flashing), increased solution flow, activation of the extra pressure of the brush and an increase in the solution detergent concentration (level 2 if the level was set to 1 - level 1 if the level was set to 0) is obtained. Press the EcoFlex push-button (46) again, to restore the original settings (LED on).If the push-button (46) is not pressed again, the original settings are restored automatically after 60 seconds.All of the above solution flow and detergent concentration values are factory settings.To change these settings, see the Supervisor key paragraph in Maintenance chapter.Press and hold the One-Touch push-button (43) for more than 1 second. The extra pressure function activation is shown by LED which turns from green to red, and by the iconTo return to normal pressure, press and hold the One-Touch push-button (43) for more than 1 second.appears on the display (50), contact an authorised Nilfisk Service Centre for scheduled maintenance.FFigure 8Figure 9 Figure 10 Figure 11DETERGENT TANK CLEANING(For machines with EcoFlex system)Clean the detergent tank (25) as follows.1. Drive the machine to the appointed disposal area.2. Ensure that the machine is off and the user key (51) has been removed.3. Lift the cover (34) and check that the recovery tank (33) is empty; if not, empty it using the drain hose (12).4. Close the cover (19).5. Grasp the handle (16) and carefully lift the tank (33).6. Unscrew the cap (A, Fig. 15) from the detergent tank (B).7. Remove the tank.8. Rinse and wash out the tank with clean water in the appointed disposal area.9. Replace the detergent tank (B) as shown in the figure, then refit the plug (A).10. When the detergent tank has been drained, it may be necessary to drain the EcoFlex system too (see procedure in followingsection).ABFigure 15P100853SCRAPPINGHave the machine scrapped by a qualified scrapper.Before scrapping the machine, remove and separate the following materials, which must be disposed of properly according to the Law in force:–Batteries–Brushes–Plastic hoses and components–Electrical and electronic components (*)(*) Refer to the nearest Nilfisk Center especially when scrapping electrical and electronic components.Machine material composition and recyclabilitySC500 weight percentageType RecyclablepercentageAluminium100 %7 %Electric motors - various29 %29 %Ferrous materials100 % 2 %Wiring harness80 % 2 %Liquids100 %0 %Plastic - non-recyclable material0 % 2 %Plastic - recyclable material100 %7 %Polyethylene92 %48 %Rubber20 % 2 %。
Thermostat TC500A商品说明书
PRODUCT DATATC500A Commercial ThermostatCONNECTED DEVICE FOR COMMERCIAL BUILDINGSAPPLICATIONTC500A-N/TC500A-W Thermostat is an advanced,configurable, connected device for commercial buildings. It controls and monitors Rooftop Unit, Heat Pump equipment, and their configurations. This devicecommunicates over Wi-Fi, Bluetooth, Sylk, and easily integrates with the building automation system.The built-in intelligent control algorithms of the device help to achieve the perfect balance between Energy Efficiency and Comfort. The device is packaged withnumerous presets suitable for most commercial building requirements that enable the easy and quick initial setup.The firmware of the device can be upgraded via Wi-Fi network. The device has four universal terminals and a pair of Sylk terminals to connect with sensors or other accessories. It also has a built-in temperature sensor, humidity sensor, and proximity sensor.Users can connect to the thermostat via Wi-Fi with the Honeywell Connect Me app. The Honeywell Connect Me app gives authorized users access to the Honeywell TC500 Thermostats in their commercial buildings. They can remotely monitor sites, schedules, settings, and override controls. Users can add and configure devices, manage users and more – all from a mobile device.FEATURES•Easily customizable and intuitive user interface.•Multiple, configurable, levels of user privilege access for features such as Occupancy set points, Date/Time, Schedules, Calendars of special events, remote and local Manual Override, remote and local Occupancy Override, Choice of language and units, and screen lockouts to prevent unauthorized settings changes.•Advanced commercial control algorithms such as auto changeover, pre-occupancy purge, power-up disable time, freeze protection, demand limit controls, and same reliable optimized recovery methods established over decades of use.•Settings to switch Fahrenheit to Celsius and vice-versa.•Heat set points are limited automatically between 40°F to 90°F and cool set points are limited automatically between 50°F to 99°F•Auto display goes into sleep mode when there is no user action.• A LED indicator to show the operational status of the thermostat when the display goes to sleep mode.•Real-Time Clock time keeping accuracy with 72 hour retention during power loss.•Thermostat can be configured via HMI or BACnet IP.•BACnet settings can be configured via HMI.Equipment Control Features•5H/3C Heat Pump, 3H/3C Conventional and modulating heat system•Constant speed Fan, 2-speed Fan, and Variable Speed Fan•Packaged Economizer Enable Output•Multiple Dehumidification and Humidification options •Service mode to manually command the outputs to test the operation of the mechanical equipment•Auto mode to switch between heating and cooling according to the current space temperature•Staging control, PID Tuning, CPH, OAT Lockout, DAT Lockout, Modulating control•Demand Limit Control to save energy •System Switch Options •Smoke MonitorTC500A COMMERCIAL THERMOSTAT31-00398M-02 | Rev. 04-212TECHNICAL SPECIFICATIONSPower CharacteristicsDisplayIO CharacteristicsOperating EnvironmentTable 1. Power CharacteristicsPower SupplyRated voltage: 24VAC 50/60Hz,Working voltage range: 20-30VAC, UL listedclass-2 transformer or IEC 61558 listed transformer.Power Consumption (Display ON)Max. 8.5VA @ 24VAC (355mA @ 24VAC)Min. Load 4VA (all DOs OFF, No Sylk sensor)Max. Load96VA (all DOs ON)Table 2. DisplayDisplay Type 24 BPP TFT display with CTPResolutions 480x480 pixel Active Display Area 4” diagonally BacklightLCD (Dimmable)Table 3. IO CharacteristicsUIO x 2•Resistive Temperature Sensor Input—10K NTC type II, C7021 series —10K NTC type III,C7023 series —20K NTC, TR21 and C7041series.•Temperature Accuracy—±0.5°C (±1°F) at 10 – 32°C (50– 90°F)—±1.1°C (±2°F) at -1.1 – 50°C(30 – 122°F)•Voltage Input, SELV—0-10V, ±5% of full scale •Digital Input—Dry contact closure—Open circuit (≥ 100Kohms)—Closed circuit (≤100ohms)•Voltage Output—0-10V, ±3% of full scale @2KohmsUI x 2•Resistive Temperature Sensor Input—10K NTC type II, C7021 series —10K NTC type III,C7023 series —20K NTC, TR21 and C7041series•Temperature Accuracy—±0.5°C (±1°F) at 10 – 32°C (50– 90°F)—±1.1°C (±2°F) at -1.1 – 50°C(30 – 122°F)•Voltage Input, SELV—0-10V, ±5% of full scale •Digital Input—Dry contact closure—Open circuit (≥ 100Kohms)—Closed circuit (≤100ohms)DO (G,Y1,Y2,Y3,W1,W2,W3)•Relay Output— 1 Amps Max. at 24VAC DO (AUX)•Relay Dry Contact— 1 Amps Max. at 24VAC/DCTable 4. Operating EnvironmentAmbient Operating Temperature 32 to 122 °F (0 to +50°C)Ambient Operating Humidity 10 to 90% relative humidity (non-condensing)StorageTemperature -40 to 150 °F(-40 to 65.5°C)Protection ClassIP20Table 3. IO Characteristics (Continued)TC500A COMMERCIAL THERMOSTAT331-00398M-02 | Rev. 04-21CompliancesCommunication TechnologiesElectrical CharacteristicsSupported Sensors and FunctionsTable 5. CompliancesCertificates CE, FCC, ICES, UL/cUL, RoHs, REACH, California, Title 24, and Prop65.StandardsEN 60730-1, EN 60730-2-9, EN 301489-1, EN 301489-17, EN 300328, EN 301893, EN 62479, UL60730-1, UL60730-2-9, Title 47 part 15 subpart B, Title 47 part 15 subpart C, RSS 210, ICES-003Table 6. Communication TechnologiesBACnet IP Over Wi-FiWi-Fi802.11 b/g/nSupported security levels WPA,WPA3_WAP2_AES, WAP2_FBT_ENT, WPA2, WPA_ENT,WPA2_FBT, and WPA2_ENTBluetoothBLE 4.2 with 1 Mbps Classic Bluetooth with max. 3 Mbps Sylk TMHoneywell Sylk TMTable 7. Electrical CharacteristicsRated Impulse Voltage 500 VConstruction of Control Independently Mounted Control Operation Method Type 1 Action Pollution Degree 2Purpose of ControlOperating ControlTable 8. Supported Sensors and Functions Sensors Options Part Numbers Occupancy SensorDirect(Normally Open)Reverse (Normally Closed)Dry contactoccupancy sensorDirty Filter SensorDirect(Normally Open)Reverse (Normally Closed)DPS200, DPS400, DPS1000(Dry contact differentialpressure switch)Proof Of Air Flow SensorDirect(Normally Open)Reverse (Normally Closed)DPS200, DPS400, DPS1000(Dry contact airflow switch)Shutdown SensorDirect(Normally Open)Reverse (Normally Closed)Dry contactshutdown switchMixed Air Temperature Sensor NTC 20K, Type II NTC 10K, Type II SylkC7250C7021C7400S Outdoor Air Temperature Sensor NTC 20K, Type II NTC 10K, Type II Sylk C7250A C7021C7400S Return Air Temperature Sensor SylkC7400SDischarge Air Temperature Sensor NTC 20K, Type II NTC 10K, Type II SylkC7041C7021C7400SSpaceTemperature Sensors NTC 20K, Type II SylkTR21TR40/TR75 (max 4), TR120 (max 1)Fan Current Sensor Max Amps 0~<+Inf AmpsComing soonCO2 sensor (analog)0-10 VDC or Sylk Sylk C7232TR40-CO2, TR42-CO2Proof of waterflowDigital InputDry contactwaterflow switchTC500A COMMERCIAL THERMOSTAT31-00398M-02 | Rev. 04-214Terminal IdentificationFig. 1. TerminalsThermostat VariantsAccessoriesTable 9. Terminal IdentificationTerminalLabelConnection24VACR24VAC power from heating transformerC24VAC common (Neutral). For 2 transformer systems, use common wire from cooling transformerUIO11Universal input/output COM CommonUIO22Universal input/output COM Common UI11Universal input COM Common UI22Universal input COMCommonSylk (S-BUS)Sylk bus, master, power output Sylk bus, master, power outputRS485+BACnet Communications (coming soon)_BACnet Communications (coming soon)R-RCJumper between R and RC for single transformer system24VACRC 24VAC power from cooling transformer G FanY1Relay output, Compressor contactor (stage1)Y2Relay output, Compressor contactor (stage2)Y3Relay output, Compressorcontactor (stage3)/Configurable OutputW1Relay output, Heat (stage1)W2Relay output, Heat (stage2)W3Relay output, heat(stage3)/Configurable Output AuxRelay dry contact, Aux-1Relay dry contact, Aux-2Table 10. Thermostat Part NumbersTC500A-NThermostat with North American Wi-Fi conformanceTC500A-W (coming soon)Thermostat with outside of North American Wi-Fi conformanceTable 11. Accessories Part NumbersDecoplate-N TC500 deco plate for NA junction boxes Decoplate-WTC500 deco plate for Globe junction boxesTable 9. Terminal Identification TerminalLabel ConnectionTC500A COMMERCIAL THERMOSTAT531-00398M-02 | Rev. 04-21Terminal AssignmentsNOTE:*Marked sensors are supported in the future.Table 12. Terminal AssignmentsType Terminal LabelTerminal Assignments(Default & Optional Assignments)DEFAULTINPUTSOUTPUTSDigital OutputsDO1G Supply Fan High Speed FanDO2W1Heat Stage 1DO3W2Heat Stage 2DO4W3 / AuxHeat Stage 3Reversing Valve OB, Low Speed Fan,Occupancy, Simple Dehum, and Humidification.DO5Y1Cool Stage 1DO6Y2Cool Stage 2DO7Y3 / AuxCool Stage 3Economizer (Enable), Low Speed Fan,Occupancy, Simple Dehum, and Humidification.DO8(Dry Contact, 2 terminals)AuxEconomizer (Enable), Occupancy,Simple Dehum, Low Speed Fan, and Humidification.Universal InputsUI1(2 terminals)UI1NA Occupancy Sensor,Dirty Filter,Proof of Airflow,Shutdown Sensor,Mixed Air Sensor,Outdoor Air Sensor,Discharge Air Sensor,CO2 Sensor,Proof of Waterflow,Space Temp Sensor,*Filter Pressure sensor,*Compressor Current Sensor,*Fan Current Sensor,*Compressor Discharge, *Temperature sensor UI2(2 terminals)UI2NA Universal Inputs/ OutputsUIO1(2 terminals)UIO1NA Multi-Speed Fan (UIO1) Outdoor Air Damper UIO2(2 terminals)UIO2NAModulating Heat (UIO2) Outdoor Air DamperPowerRR 24v Power C C CommonRCRC 24v Power / Cooling Sylk Bus1S-BusSylk connection2TC500A COMMERCIAL THERMOSTAT31-00398M-02 | Rev. 04-216DIMENSIONS3 - 1/4” (82.75mm)TC500A COMMERCIAL THERMOSTAT731-00398M-02 | Rev. 04-21GENERAL SAFETY INFORMATION•When performing any work (installation, mounting, start-up), all manufacturer instructions and in particular the mounting Instructions guide (31-00399M) and the user guide (31-00400M) are to be observed.•TC500A-N/TC500A-W Thermostat may be installed and mounted only by authorized and trained personnel.•Rules regarding electrostatic discharge should be followed.•If TC500A-N/TC500A-W Thermostat is modified in any way, except by the manufacturer, all warranties concerning operation and safety are invalidated.•Make sure that the local standards and regulations are observed at all times.•Use only accessory equipment which comes from or has been approved by Honeywell.•It is recommended that devices be kept at roomtemperature for at least 24 hours before applying power. This is to allow any condensation resulting from low shipping/storage temperatures to evaporate.•Investigated according to United States Standard UL-60730-1, and UL60730-2-9.•Investigated according to Canadian National Standard(s) C22.2, No. 205-M1983 (CNL-listed).•Do not open TC500A-N/TC500A-W Thermostat, as it contains no user-serviceable parts inside!•CE declarations according to LVD Directive 2014/35/EU and EMC Directive 2014/30/EU.•Product standards are EN 60730-1 and EN 60730-2-9.•TC500A-N/TC500A-W Thermostat is Class B digital apparatus and complies with Canadian ICES-003.•This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.•Caution: Changes or modifications to this unit not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.•This device contains licence-exempttransmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:1.This device may not cause interference.2.This device must accept any interference, includinginterference that may cause undesired operation of the device.•L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:1.L’appareil ne doit pas produire de brouillage;2.L’appareil doit accepter tout brouillage radioélec -trique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.•This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipmentand receiver.—Connect the equipment into an outlet on a circuitdifferent from that to which the receiver is con -nected.—Consult the dealer or an experienced radio/TV tech -nician for help.•To satisfy FCC&IC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device andpersons during device operation. To ensure compliance, operations at closer than this distance is not recommended.•Les antennes installées doivent être situées de facon à ce que la population ne puisse y être exposée à une distance de moin de 20 cm. Installer les antennes de facon à ce que le personnel ne puisse approcher à 20 cm ou moins de la position centrale de l’ antenne. Region Selection (for Wi-Fi 2.4G device)•Limited by local law regulations, version for North America does not have region selection option.Safety Information as per EN60730-1TC500A-N/TC500A-W Thermostat is intended for residential, commercial environments.TC500A-N/TC500A-W Thermostat is an independently mounted electronic control system with fixed wiring.TC500A-N/TC500A-W Thermostat is used for the purpose of building HVAC control and is suitable for use only in non-safety controls for installation on or in appliances.NoteAll images used in this document are for illustrative purposes only and may not match the actual product.TC500A COMMERCIAL THERMOSTAT® U.S. Registered Trademark© 2021 Honeywell International Inc.31-00398M-02 | Rev. 04-21Honeywell Building TechnologiesHoneywell715 Peachtree Street NE Atlanta, GA 。

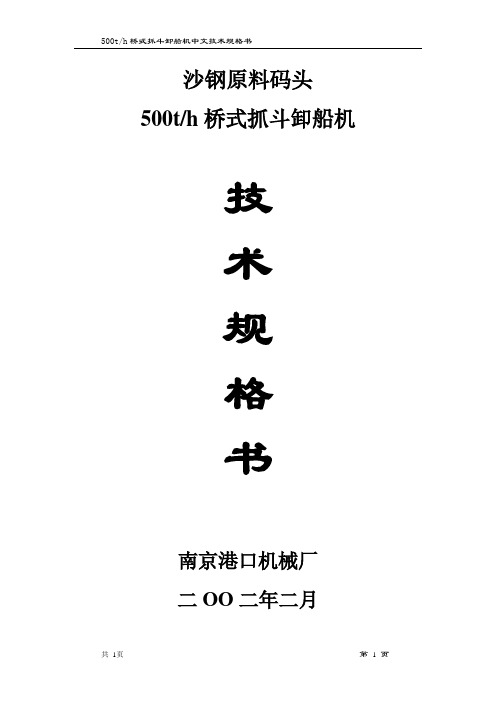

沙钢原料码头500吨卸船机技术规格书剖析
沙钢原料码头500t/h桥式抓斗卸船机技术规格书南京港口机械厂二OO二年二月目录1. 总则 (4)2. 使用概况 (4)3. 作业现场的设计条件和自然条件 (5)４. 标准规范 (6)５. 卸船机和机构的工作级别 (8)６．主要技术参数 (8)７．总体设计 (9)８．钢结构 (10)9. 机构10. 供电与照明 (26)11. 控制与通信 (28)12. 环境保护 (30)13. 油漆 (31)14. 备品和配件 (32)15. 随机工具及附件 (32)16. 铭牌标志 (32)17. 设备安装 (32)18. 现场调试、试车和验收 (33)19 专用工具和备品备件 (37)20. 供货范围 (38)21. 随机资料 (38)22. 使用说明书和司机操作规程 (38)23. 竣工资料 (39)24. 设计审查与监造 (40)25. 技术培训 (41)26. 交货地点和时间 (41)27. 附表 (41)1. 总则1.1本规范书用于沙钢集团原料码头卸船机。
其提出了设备的功能设计、结构、性能、安装和试验等方面的技术要求。
1.2本规范书提出了卸船机相应的技术要求，并引述有关标准规范的条文，我方将提供符合规范书和有关工业标准的优质产品。
2. 使用概况2台25t-31m桥式卸船机安装在码头面:：长221m，宽22m平台上，轨长206m，能适应５吨级散货船的卸料作业。
该机应具有技术先进、使用可靠、稳定性好、生产率高的特点。
该机应由：牵引小车、抓斗、机房、电气控制系统自行式司机室、俯仰机构、小车运行机构、起升开闭机构、防尘装置、接料斗、维修起重机、顶轨锚定装置、防风系缆、大车运行机构、动力电缆卷筒、防落回收档板、除尘系统、超负荷限制器、航空信号灯、测风仪、避雷、防火装置、前桥变幅角度指示仪、各种安全保护措施和报警指示装置等。
该卸船机选用机房下置四卷筒牵桥式抓斗，抓斗的开闭起升、小车的行走均由固定机房内的各种机构完成。
汇川技术inovance MD500 T13系列高性能矢量变频器 产品彩页说明书
工业自动化 | 电梯 | 新能源汽车 | 工业机器人 | 轨道交通MD500是汇川技术汇集了矢量变频技术的高性能变矢量技术，可轻松驱动感应电动机。
500-630kW的柜机变频器，对于石油化工、天然气、以快速高效交付，接线即用，可靠稳定。
继承MD500系列一贯的高性能、高品质、高功率密度性设计，给用户带来简单易用的体验。
凭借高性能的电流医药、供热、陶瓷等行业，可易用性、可维护性、创新Contents目录产品优势技术参数外形尺寸技术规范选配件端子接线图公司介绍03050506080910性能卓越满配版：MD500 T13配置丰富，可以选配 空开、熔丝、交流输入电抗器、EMI滤波器、直流电抗器、交流输出电抗器，在配电、EMC、谐波方案上，可以灵活选择。
灵活配置标准机柜式变频，做到“即插即用”：易于安装，易于接线，易于调试，轻松驱动。
使用简单紧凑的尺寸标准版：MD500 T13是单机大功率机柜式产品，800mm 标准机柜，标配空开、输出电抗器，结构紧凑，体积小，防护等级高。
标配直流电抗器，THDi≤40%方案；选配交流输入电抗器， THDi≤30%方案；标配机柜满足C3；选配增加EMC滤波器，满足C2。
方便的谐波、EMC方案输出电抗器保险丝输入电抗器断路器C2滤波器MD500柜机其他柜机安装体积减少40%03/04稳定可靠汇川高性能变频器平台，对电机的过载、过流、过温、短路提供可靠保护，让电机运行更顺畅、更安全。
完善的电机保护汽车级散热方案MD500 T13机柜采用创新型散热方案，借用汽车行业成熟稳定的散热系统，内部集成液冷散热系统和风冷换热器，整个散热系统效率更高、更稳定，让变频器像汽车般稳定、可靠运行。
满足包括欧洲，北美，印度等在内的380-480V三相电网需求。
符合国际标准的宽电压设计的设备出口认证要求。
欧盟CE认证北美cULus认证注：部分机型UL认证还在进行中。
05/0607/08注[1]：MD38IO2、MD38IO3、MD38PC1、MD38TX1、MD38CAN1、MD38CAN2、MD38DP2、MD500-PN1、MD500-ECAT与机器标配的MD38IO1冲突。
杨州阳杰电子科技有限公司 S25VB 型号 Bridge 矩形器产品说明书
S25VB10 THRU S25VB120Bridge RectifiersFeatures● UL recognition file number E230084 ● High-Reliability ● Heat Resistance ● Low IR● Solder dip 275 °C max. 7 s, per JESD 22-B106Typical ApplicationsGeneral purpose use in AC/DC bridge full wave rectification for power supply, home appliances, office equipment, industrial automation applications. Mechanical Data ●P ackage : S25VBMolding compound meets UL 94 V-0 flammability rating,RoHS- compliant●Terminals : Tin plated leads, solderable per J-STD-002 and JESD22-B102■Maximum Ratings (T a =25℃ Unless otherwise specified ）PARAMETERSYMBOL UNITS25VB10S25VB20S25VB40S25VB60S25VB80 S25VB100S25VB120Device marking codeS25VB10S25VB20S25VB40S25VB60S25VB80 S25VB100S25VB120Repetitive Peak Reverse Voltage V RRM V 100 200 400 600 800 1000 1200 Average Rectified Output Current@60Hz sine wave, R-load, With heatsink Tc=85℃I OA25Surge(Non-repetitive)Forward Current @60H Z Half- sine Wave, 1 cycle, T a =25℃I FSM A 400 Current Squared Time @1ms ≤t<8.3ms Tj=25℃, Rating of per diode I 2t A 2S 660 Storage Temperature T stg ℃ -55~+150 Junction T emperatureT j℃-55 ~+150Dielectric Strength, Terminals to case ，AC 1 minute V disKV2.5Mounting TorqueTORkg·cm 10■Electrical Characteristics （T a =25℃ Unless otherwise specified ）PARAMETERSYMBOL UNIT TESTCONDITIONS S25VB10S25VB20S25VB40S25VB60 S25VB80 S25VB100S25VB120Maximum instantaneous forward voltage drop per diodeV FM VI FM =12.5A1.05 Maximum DC reverse current at rated DC blocking voltage per diodeI RRMμA V RM =V RRM10■Thermal Characteristics （T a =25℃ Unless otherwise specified ）PARAMETERSYMBOL UNIT S25VB10S25VB20S25VB40S25VB60S25VB80S25VB100S25VB120Thermal Between junction and R COMPLIANTRoHS~+-~+~~‐■Ordering Information (Example)PREFEREDP/N PACKAGE CODEUNIT WEIGHT(g)MINIMUM PACKAGE(pcs)INNER BOX QUANTITY(pcs)OUTER CARTON QUANTITY(pcs)DELIVERY MODES25VB10~S25VB120A1 Approximate 205050500Paper Box■ Characteristics (Typical)A v e r a g e R e c t i f i e d O u t p u t C u r r e n t (A )FIG1:Io-Tc CurveCase Temperature(°C)501001501025102050100150300450P e a k F o r w a r d S u r g e C u r r en t (A )Number of CyclesFIG2:Surge Forward Current Capability0.1FIG3:Instantaneous Forward VoltageI n s t a n t a n e o u s F o r w a r d C u r r e n t (A )Instantaneous Forward Voltage (V)0.51.0100.220605.0020*********0.1110100Percent Rated Peak Reverse Voltage(%)FIG4:Typical Reverse CharacteristicsI n s t a n t a n e o u s R e v e r s e C u r r e n t (u A )■Outline DimensionsS25VBDim Min MaxA 31.1 32.1B 31.1 32.1C 17.6 18.6D 13.7 14.7E 15.8 16.8F 15.8 16.8G 0.75 0.85H 9.5 10.5I / 25 J 6.2 6.4DisclaimerThe information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise.The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale.This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// , or consult your nearest Yangjie’s sales office for further assistance.。
润金科技 KH 系列平板式数控切割机使用说明书
润金科技平板式数控切割机使用说明书User Manual宁波市鄞州润金机电科技有限公司前言感谢您选择本公司KH系列产品，您能成为我们的客户是我们莫大的荣幸。
您购买的平板式数控切割机为宁波市鄞州润金机电科技有限公司自主研发生产，该设备主要应用于服装、制鞋、箱包、手袋、广告及电子等行业自动化生产和打样。
本说明书包含了安装步骤、基础操作、安全注意事项、简单故障排除等方面的内容，方便您更快更好的了解和使用本设备。
在您第一次使用设备前请您仔细阅本说明书，充分了解它的性能，以便能正确和安全地使用本设备。
请妥善保管此书，以便更好的操作本设备。
温馨提示：1、本说明书是由宁波市鄞州润金机电科技有限公司编辑，以下简称润金科技。
2、润金科技对说明书不做担保，紧供客户对本设备操作的了解和疑问的解答。
3、说明书内容如与所购润金平板式数控切割机有出入，润金科技保留最终解释权。
4、这本说明书适用于KH1512，KH1509，KH1209，KH0906机型,在查阅过程中如遇到与机器不符之处，请以机器为准。
5、如果您在使用润金科技平板式数控切割机过程中有任何疑问，请拨打本公司24小时免费服务热线电话：4006809891目录1切割机安装操作---------------------------------------------------------------------------------------------------4 1-1切割机搬运注意事项---------------------------------------------------------------------------------------------------------------------4 1-2切割机放置环境要求----------------------------------------------------------------------------------------------------------------------------------4 1-3切割机的开箱检查项目------------------------------------------------------------------------------------------------------------------4 1-4切割机外型结构说明----------------------------------------------------------------------------------------------------------------------------------5 1-5切割机装配流程---------------------------------------------------------------------------------------------------------------------------6 1-5-1切割机装配流程平台安装----------------------------------------------------------------------------------------------------------------------7 1-5-2操作平台说明-------------------------------------------------------------------------------------------------------------------------------------7 1-5-3机箱连线板接口说明----------------------------------------------------------------------------------------------------------------------------7 1-6基本线路连接及注意事项-----------------------------------------------------------------------------------------------------------------------------8 1-7安装刀套、笔套------------------------------------------------------------------------------------------------------------------------------------------8 1-7-1切割刀的安装--------------------------------------------------------------------------------------------------------------------------------------8 1-7-2绘图笔的安装------------------------------------------------------------------------------------------------------------------------------------8 2切割机的操作和设置---------------------------------------------------------------------------------------------10 2-1切割机的开机，关机操作说明---------------------------------------------------------------------------------------------------------------------10 2-2操作界面使用说明-----------------------------------------------------------------------------------------------------------------------10 2-3切割机基本操作-------------------------------------------------------------------------------------------------------------------------11 2-3-1工具设置--------------------------------------------------------------------------------------------------------------------------------------------11 2-3-2测试笔画及刀切割功能说明--------------------------------------------------------------------------------------------------------12 2-4操作界面各功能键说明----------------------------------------------------------------------------------------------------------------------------132-4-1使用说明--------------------------------------------------------------------------------------------------------------------------13 2-4-2使用说明--------------------------------------------------------------------------------------------------------------------------14 2-4-3使用说明--------------------------------------------------------------------------------------------------------------------------14 2-4-4使用说明-------------------------------------------------------------------------------------------------------------------------15 2-4-5使用说明--------------------------------------------------------------------------------------------------------------------------152-4-5-1使用说明---------------------------------------------------------------------------------------------------------------152-4-5-2使用说明---------------------------------------------------------------------------------------------------------------16 3切割机基本保养说明--------------------------------------------------------------------------------------------17-4切割机常见问题以及排除方法说明--------------------------------------------------------------------------------------181切割机安装1-1切割机搬运注意事项1-1-1、外包装我们统一采用国际标准的木材装箱包装。
500kW柴油发电机组技术规格书
XX 工程场站设备技术规格书柴油发电机组1. 概述1.1 范围本技术规格书设备主要用于XXX。
本规定包括了采购者（买方）对柴油发电机组的设计、材料、制造、检验、试验、包装和文件的最低要求。
1.2 定义本技术规格书用到的名称定义如下：项目：XXXXXXX业主：XXXX 设计：XXXXXXX 供货商：是指按照本技术规格书的要求为业主设计、制造、提供成套设备的公司或厂家。
分包商：负责设计和制造分包合同所规定设备的公司或厂家。
成套设备：供货商供货范围内的完整的设备。
技术规格书：业主和设计提供的完整的技术规定，包括所附的数据单和附图等。
1.3 供货商责任（卖方）柴油发电机组的设计、材料、制造、检验及测试应为供货商特定的排他性责任, 供货商应遵守本询价书中包括的所有文件要求和良好的工程惯例。
供货商不应使用假设代替买方未提供的信息，供货商应从买方获得必要的信息。
供货商因缺少信息而提出的索赔是不能被接受的。
对于与本询价书要求不同，但实质上可为买方节约资金的设备或附件，供货商可作为一项选择内容将其列出。
这类选择内容应在供货商报价中单独列出且单独报价。
柴油发电机组应是符合本询价书要求的供货商的标准设计，并采用高质量的材料和一流的制作工艺。
附件应为能从市场上买得到的标准配件。
为了满足规定的条件和要求，在任何情况下，与本询价书所要求的内容保持一致而无偏差提出并不意味着免除供货商在该询价书范围之外所应承担的责任。
供货商应该在整个工作范围内执行基于ISO 9001:2000 标准（或与之相当的标准）的质量管理体系。
供货商应允许买方或者其授权代表对供货商的工厂进行访问、检查、监督。
供货商应该向买方证明其安全管理系统和环保管理系统符合相关法律。
1.4 标准规范供货商有责任确保所提供的柴油发电机组符合相关的中国国家标准和IEC 标准，这些标准包括——但不局限于GB1278、6 GB767、6 GB/T14598、GB50058-2014、GB4208-2008、GB755-2008、GB1971-2006、GB10068-2008、GB10069.3-2008 、GB14711-2013、GB4942.1-2006、GB/T997-2008、GB9486-1988、GB14097-1999、GB14050-2008、BS5000、IEC60034、IEC60072、IEC 60529 等。
