附录一 外文资料翻译 罗马尼亚过去30年污水处理的演变过程： 案例研究勒姆尼库沃尔恰 L.波特尔 摘要 -- 罗马尼亚的污水处理工艺，在过去30年的演变：案例研究勒姆尼库沃尔恰。大多数站在国家层面的水文领域研究都是关于地表水的话题，这些研究分析了水文、水文特征和某些集水区的水的质量。 本文的目的不仅仅介绍城市水文学的相对较新的领域，更准确的说应是城市污水处理工艺。这项研究是基于在2010年上半年从勒姆尼库沃尔恰污水处理厂和一些相关的污水水质指标和治理过程中的意见以及2005年和2011年之间分析得出来的。该研究显示，在罗马尼亚的城市污水处理过程的效率推出的2000年后，新的处理工艺和技术的重要性。 关键词：污水处理厂，主要处理，二级处理，三级处理，效率。 1.介绍 城市污水代表的是一个城市的范围内生活用水，工业用水和雨水，并由运输和疏散出来的城市的污水管网收集的混合物，如果城市污水排放到地表水没有适当的处理，它会成为环境污染的一个重要因素。
城市污水处理的专门设施即污水处理厂，只设在城市和城镇的集中式污水
处理系统。这些污水处理厂的运行原理并没有在过去三十年的变化，目的是为了满足对废水排放到环境中的要求。 一个符合有关地表水和地下水的保护条例的污水处理厂，包括两个不同的技术流，即水流量和污泥流。本研究只考虑了水流，它是一个在过去的三十年已经知道的最显著的进化。对于国家层面来说，到2000年为止，这种以目的来指导的变化可分为两个时期。在过去的十年间，来自罗马尼亚的污水处理过程中经历了与欧洲的立法在水领域遵守的必要性支持的一个重要演变，主要是1991年5月的理事会条例91/271 / EEC关于城市垃圾,水的处理,并在1998年2月由欧盟委员会修改为条例98/15 / EC，在国家立法中政府决议并通过。关于对废水排放到水生环境的条件的规则批准，由政府补充和修订。 所提到的演变决定着在罗马尼亚区域废水显著的改善情况。然而，该国未能达到前两个中期期限的理事会条例271/91/ EEC的实施。 该国的污水管网在2010年12月31日报告管总长是22,196.34公里，连接这个网络之中的人口比例为54.28％，43个超过2000居民的城区的管网连接区域人口超过95％。在同一天，420座污水处理厂投入运作，连接到它们的人口占全国总人口的43.24％，这些污水处理厂中，32个已经连接超过这个居民城区人口的95%。然而，三分之二以上的总产生的废水并没有在被排放到环境中之前作适当的处理。通过比较，从而得知勒姆尼库沃尔恰下水道网络在2010年12月31日的长度是146.3公里以及连接到该网络的人口的百分比为75％。
2.在2000年以前的一段时期内
在2000年之前建成的污水处理厂有通常是由两个处理阶段，即一级和二级
处理工艺流程。一级处理（或机械处理）从水中清除大型的漂浮物，倾析杂质和那些被漂浮或可以处于浮动状态进行运输的物质。在此阶段，应先进行预处理，这个操作是从水中移除某些物质（沙，脂肪），以防破坏二级处理的装置；二级处理（或生物处理）需保证污水溶解度，除去不能在一级处理过程中胶体分散的有机杂质。这些杂质是通过微生物在无害降解产物的培养和在一个新的细胞块进行转换的。通常，微生物的这种培养物分散在处理装置的反应体积，该过程被称为具有活性污泥的生物处理。 这样的技术流从勒姆尼库沃尔恰废水处理厂取代旧的（2009年12月）开始就定义了废水处理。在这段时间内，该污水处理厂在1989年进行了单独的重要调整过程,它的处理能力增加了一倍，达到了1020升/秒。在机械处理的过程中最重要的组成部分（图1）由两个特殊密集屏幕组成用于从水中去除直径大于2厘米的杂质：包括3个沙砾去除通道，一个除脂通道和两个初级沉淀池，能够除去杂质并且每个都能够容纳3000立方米。生物处理过程（图1）的最重要的组件是两个表面 -曝气池，其提供了在工艺流程中微生物使用必要的氧气，每个曝气池都有3000立方米，两个二级沉淀池再除去降解产物和由微生物产生的细胞残留物，每个二沉池的体积达1500立方米。 图1。勒姆尼库沃尔恰在一九八九年 至2009年期间，污水处理厂工艺流程图
3.2000年之后的时期内 一种新的、更高效的污水处理厂的模式，即在水领域符合欧洲法规，BAS在过去十年被罗马尼亚引入。新的污水处理厂是由欧洲资助的，这些项目通常把现有的污水处理厂的升级，而不是建立新的处理厂。该模型保持原有的一级和二级处理，并具有一些改进，主要是辅助特有的早先类型污水站处理的过程，加入三级处理过程，这个处理过程也称为化学或高级处理过程。新过程中从水移除营养物质（化合物氮和磷），并减少微生物的数量。 氮的去除是通过两个独立的过程完成的，即硝化和反硝化。第一个是在需氧过程，第二个要求缺氧条件。它们常常由专门的细菌通过活性污泥法中的水引入。在二次处理用曝气池 - 无论硝化和反硝化可以在表面内完成。磷的去除，通常使用的铁或铝的盐化学沉淀来实现的。在消毒过程中大部分微生物是通过用氯、臭氧或紫外线除去的。 图2。从勒姆尼库沃尔恰污水处理厂开始， 到2010年所述初级处理阶段过程流程图 这样的处理厂规模从2008年至2009年间在勒姆尼库沃尔恰实施的，它开始于2010年1月1日，并从现有设施升级为一个更有效地发挥作用的设施。代表项目“整修勒姆尼库沃尔恰的实施结果"其中就涉及了1082万欧元投资的污水处理厂。这一数额的51.49％，是由欧盟提供的ISPA基金以及另外的48.51％是由欧洲投资银行的贷款。 从勒姆尼库沃尔恰新的污水处理厂1550升/秒的处理能力，其初级处理阶段较旧的污水站（图2）具有重要差异。沙子和油脂的去除由单一结构制成的充气室完成，由于它们的低效率，在初沉池阶段就去除。在下大雨的情况下，这就超过了处理厂的容量水的量，这些水就会被存储在两个8800立方米的总容量池中。如果水量满出后，这些未经任何处理的水就直接排入奥尔特河中。当在污水站中废水的流量低于预定值，在两个容器中累积的水就会被适当的处理。 新的污水处理厂的二级处理阶段(图3)与旧的没有明显区别，唯一区别就是较大的表面 - 曝气池，其每个曝气池容量为11400立方米；并且更重要的是，四种终沉池每个容量都为13000立方米，它又能够同时满足沉淀池的功能，是在旧处理厂的情况下发展的新类型。 目前三级处理阶段是氮和磷的去除（图3）表示。 图3。二级和三级处理工艺流程图 勒姆尼库沃尔恰污水处理厂2010年开始沿用 该除氮的一部分是在富含氧气的上表面 - 曝气池（硝化部分）进行，而另一个是由在其下表面 - 曝气池（反硝化部分）进行；其中，所述溶解的氧被生物体完全使用。除磷是通过化学沉淀进行的，使用氯化铁的盐溶液（FeCl3)一般是用40％氯化铁的浓度，经营污水处理厂的公司希望通过专门的除磷菌提高这个阶段包括水和氯消毒和增加养分去除过程的效率（勒姆尼库沃尔恰增加脱氮除磷工艺的效率，Ediţia revãzutã 03,2009）。
4.处理过程的效率 比较在本文所提出的两个污水处理厂的类型的效率，最好的方式是分析在特定所监视水质指标以及预定时间段的变化，这些都是从污水处理厂里并在化学实验室通过一定的方法所决定的。本研究采用的11项指标的年平均值来自未经处理的水和充分处理的。通过特性的两种类型的水的值之间的差获得每个指标的整体效率。2005年和2009年期间代表勒姆尼库沃尔恰老污水处理厂，而2010年和2011年期间则代表一个新的处理厂。在下面的段落和图像所使用的缩写为：COD - 铬（使用重铬酸钾化学需氧量），COD - 锰（用高锰酸钾化学需氧量）和生化需氧量（生化需氧量）。 新的污水处理厂模式引入技术和设备使得在处理过程显著整体改善，事实可在2010年9项指标值的降低与2009所显示的比较（图4，图5）看出。最重要的差异是化学需氧量的绝对值的发现 - 因为其数值大，通常表征这些指标是铬、锰和COD。在2010年唯一偏高的参数是氯化物和过滤残余物，这一事实表明在这些方向上的新的处理效率已在下降。 两个污水处理厂模式之间的差异更加明显，如果我们分析2005年和2011（图6，图7）之间效率的演变，除氯化物和过滤残余物外，2010年和2011年所有其他指标的效率大幅增加。在一些情况下，这两种类型的处理厂（即间2009和2011）之间的差异是非常高，例如洗涤剂达到70％和铵和硫化物达到约60％，而在其他情况下的值是低得多的（几乎7％pH值），甚至为负（约4％氯化物和过滤残余物）。然而在旧处理厂的情况下，对于大多数指标效率都不超过60％，这种情况在新的处理厂的情况下完全相反，具有高于80％的值，甚至部分指标达到90％。2011年的效率与2010年相比，大多数的指标更高，尽管在第一种情况下，绝对值一般较大，但由于增加了水在处理厂记录的数字。
图4.完全处理水的监测参数（I） 图5.完全处理水的监测参数(II) 图6.处理过程被监控有关参数的总体效率（Ⅰ）图7.处理过程被监控有关参数的总体效率（II） 两个污水处理厂类型的初级处理阶段之间的一个重要区别是有无初级沉
淀池的工艺流程。这一措施可从2005和2009（图8）之间它们的效率转变得到论证。事实表明这些值在所考虑的期间内正连续不断地下降，以至于在2009年降至低于15％。这一下降趋势使可持续旧处理站的整体效率得到增长，尽管二级处理阶段在大多数情况下提高了分析周期值。
图。8污水处理厂的处理阶段的效率 5.结论 罗马尼亚在过去三十年污水处理过程中的演变，实质上也表明地表水和地下水的保护正变得尤为重要。在2000年之后，这种演变的关键时刻通过在水领域中以欧洲法令的国家立法的转换被代表。这一事实决定的许多现有的机械–生物
给水排水专业英语翻译
《给水排水专业英语》译文：（第一课）给水工程我们知道，水的供应对生命的生存至关重要。
人类需要喝水，动物需要喝水，植物也需要喝水。
社会的基本功能需要水：公共卫生设施的冲洗，工业生产过程耗水，电能生产过程的冷却用水。
在这里，我们从两方面讨论水的供给：）1、地下水供给2、地表水供给地下水是通过打井而得到的重要直接供水水源，也是一种重要的间接供水水源，因为地表溪流（或小河）会经常得到地下水的补给。
在靠近地表的通气层中，土壤孔隙内同时包含着空气和水。
这一地层，其厚度在沼泽地可能为零，在山区则可能厚达数百英尺，蕴涵三种类型的水分。
重力水，是在暴雨过后进入较大的土壤孔隙中的水。
毛细水是在毛细作用下进入较小的土壤孔隙中的水，它能够被植物吸收。
吸湿水是在不是最干燥的气候条件下由于分子间引力而被土壤稳定下来的水。
地表通气层的湿气是不能通过凿井方式作为供水水源的。
位于通气层以下的饱和层，土壤孔隙中充满着水，这就是我们通常所说的地下水。
包含大量地下水的地层称为含水层。
通气层和含水层之间的水面称为地下水位或浅层地下水面，地下水静压力与大气压力相等。
含水层可延伸相当深度）, but because the weight of overburden material generally closes pore spaces（但因为地层负荷过重会压缩（封闭、关闭）土壤孔隙，深度超过600m，即2000英寸，就基本找不到地下水了。
能够含水层中自由流出的水量称为单位产水量。
The flow of water out of a soil can be illustrated using Figure 1（土壤中水流如图1所示）. The flow rate must be proportional to the area through which flow occurs times the velocity（流量与流水面积成比例，流经该土壤面积的流量等于面积与速率成的乘积）, orQ=AvWhere（此式中）Q=flow rate , in m3/sec（流量，单位为m3/s）【cubic meter per second】A=area of porous material through which flow occurs, in m2（渗透性土壤的流水断面，单位为m2）v=superficial velocity, in m/sec（表观流速（表面流速），单位为m/s）表观流速当然不是水在土壤中流动的真实速度，因为土壤固体颗粒所占据的体积大大地降低了水流通过的空间。
给排水英文翻译

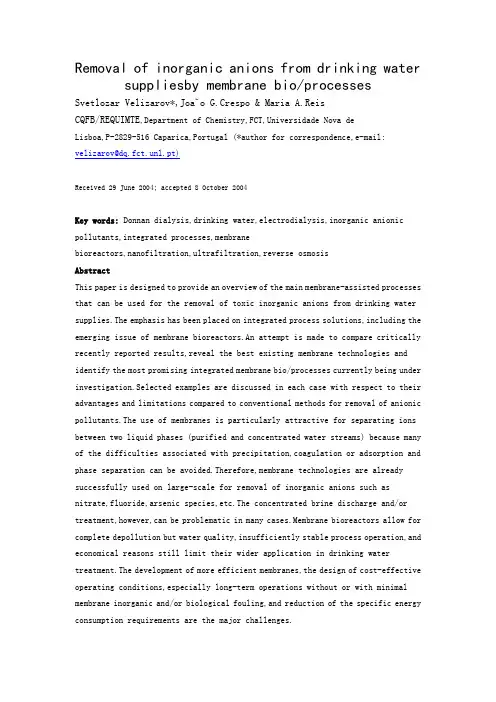

Removal of inorganic anions from drinking water suppliesby membrane bio/processesSvetlozar Velizarov*,Joa˜o G.Crespo & Maria A.ReisCQFB/REQUIMTE,Department of Chemistry,FCT,Universidade Nova deLisboa,P-2829-516 Caparica,Portugal (*author for correspondence,e-mail: velizarov@dq.fct.unl.pt)Received 29 June 2004; accepted 8 October 2004Key words: Donnan dialysis,drinking water,electrodialysis,inorganic anionic pollutants,integrated processes,membranebioreactors,nanofiltration,ultrafiltration,reverse osmosisAbstractThis paper is designed to provide an overview of the main membrane-assisted processes that can be used for the removal of toxic inorganic anions from drinking water supplies.The emphasis has been placed on integrated process solutions,including the emerging issue of membrane bioreactors.An attempt is made to compare critically recently reported results,reveal the best existing membrane technologies and identify the most promising integrated membrane bio/processes currently being under investigation.Selected examples are discussed in each case with respect to their advantages and limitations compared to conventional methods for removal of anionic pollutants.The use of membranes is particularly attractive for separating ions between two liquid phases (purified and concentrated water streams) because many of the difficulties associated with precipitation,coagulation or adsorption and phase separation can be avoided.Therefore,membrane technologies are already successfully used on large-scale for removal of inorganic anions such as nitrate,fluoride,arsenic species,etc.The concentrated brine discharge and/or treatment,however,can be problematic in many cases.Membrane bioreactors allow for complete depollution but water quality,insufficiently stable process operation,and economical reasons still limit their wider application in drinking water treatment.The development of more efficient membranes,the design of cost-effective operating conditions,especially long-term operations without or with minimal membrane inorganic and/or biological fouling,and reduction of the specific energy consumption requirements are the major challenges.Abbreviations: D – dialysis; DD – Donnan dialysis; DMB – dialysis membrane bioreactor; ED – electrodialysis;IEMB – ion exchange membrane bioreactor; MCL – maximum contaminant level; MF – microfiltration;NF – nanofiltration; RO –reverse osmosis; TOC – total organic carbon; UF – ultrafiltration; USEPA –United States Environmental Protection Agency; WHO – World Health Organization1.IntroductionA number of inorganic anions have been found in potentially harmful concentrations in numerous drinking water sources (DeZuane 1997; Smith et al.2002; Petrovic′ et al.2003).The maximum allowed concentrations of these compounds are generally set by the drinking water quality regulatory standards in the relatively low lg/l)1–mg/l)1 range; therefore,the majority of them can be referred to as micropollutants.The internationally accepted standards and guidelines,regarding the maximum allowed levels of these compounds,are proposed by the World Health Organization (WHO).In addition,the European Union and the US Environmental Protection Agency have issued similar health and environmental standards and a considerable number of regulatory methods have been published worldwide for the analysis of inorganic anions in drinking water (US EPA 1998; Jackson 2001).Table 1 lists the current status for potentially toxic inorganic anions along with some information about the main sources of pollution and the potential healthrisks,associated with their ingestion in drinking water Since there are usually no organoleptic changes in drinking water that can be attributed to the presence of toxic inorganic anions in trace levels,it is rather possible that some of them may remain undetected,thus increasing the possible health risks.An example of such recently found compound is perchlorate,an important ingredient of solid rocket propellants,which may interfere with the ability of the thyroid gland to utilize iodine in hormones production (Richardson 2003; Min etal.2004).Since perchlorate is a serious problem in some US regions,a provisional drinking water goal of 1 lg/l has been suggested (US EPA 2002).A number of inorganic anionic contaminants can be present at the same time in rather different levels (e.g.nitrate and perchlorate),thusleading to the emerging issue of their control and simultaneous removal from drinking water supplies.Finally,water of defined ion composition is required in the manufacturing of a number of foodproducts,pharmaceuticals and in the fresh water fisheries and sea aquariums.Several common treatment technologies are nowadays used for removal of inorganic contaminants from water rge-scale plants usually apply coagulation with aluminium or iron salts followed by filtration but a number of anions (e.g.nitrate) have very little tendency to coordinate with metal ions and low potential for co-precipitation (Duan & Gregory 2003).Smallscale treatment facilities often use ion exchange and/or adsorption due to their ease of handling and compactness;however,regeneration and additional costs,associated with the disposal of the regenerants used,represent serious problems.Moreover,release of undesirable organics (such asstyrene,divinylbenzene,trimethylamine,etc.) from some synthetic resins to the treated water still hinders a larger application of ion exchange for drinking water production (Kapoor & Viraraghavan1997).Membrane separation processes such as reverse osmosis(RO),nanofiltration (NF),ultrafiltration(UF),microfiltration (MF),dialysis (D),Donnan dialysis (DD) and electrodialysis (ED),if properly selected,offer the advantage of producing high quality drinking water.In many cases,one membrane process can be integrated with another to produce water of even higher quality.In these processes,the membrane can be viewed as a barrier between contaminated and purified water streams.The separation of the two streams often allows for operation with no or minimal chemical water pre-treatment,which otherwise can form deleterious by-products (Bergman 1995; Jacangelo et al.1997).However,in physical membrane processes,inorganic anions are not destroyed but normally concentrated and the concentrate disposal can be costly and difficult to permit in many cases; therefore,post-treatment of the concentrate stream or hybrid membrane-assisted technologies capable of converting anionic contaminants to harmless products are highly desirable.Chemical,electrochemical or biochemical treatment processes are able to deal efficiently with anions (Daub et al.1999; Carraro et al.2000;Centi & Perathoner 2003).Among them,biological reduction is especially appropriate since it offers selective removal of the target anion from water due to anoxic bacteria,which under appropriate conditions (pH,oxidation–reduction potential,temperature,etc.) can use anions as electron acceptors and organic (heterotrophic microorganisms) or inorganic (autotrophic microogranisms) compounds as electron donors for their growth.However,the main concern of using bioprocesses is the risk of secondary water pollution by cells,incompletely degraded nutrients and metabolic by-products,which can promote microbial growth in water distribution systems,thus requiring extensive post-treatment in order to produce safe and biologically stable water.These problems can be overcome,or at least reduced,by introducing a membrane unit as a pre- or posttreatment stage in the water production process.When membrane(s) are integrated with an appropriate bioprocess in a single process,the configuration is generally referred to as ‘‘membrane bioreactor’’.In this paper,discussion on useful applications of membrane processes for removal of inorganic anionic contaminants from drinking water,with a special emphasis on the emerging issue of membrane bioreactors,is presented.Since it is rather difficult to select which membrane applications might be referred as specifically anion removal ones (other water constituents are often also removed),the authors’ opinion,in some instances might be subjective.In most cases,only recentexamples are referred to since the articles selected often familiarize the interested reader with the general history of a specific problem.Where it is appropriate,the discussion starts with a given membrane separation used as a single process and then moves on to its integration in membrane bioprocesses.An attempt is made to identify the advantages,limitations and future research needs in each case.Some of the processes discussed at the present time could be considered still far from practical implementation,but nevertheless,they might provide useful information,on which future developments could be based.2.Pressure-driven membrane processes and membrane bioreactorsPressure-driven membrane processes use pressure difference between the water to be treated and a permeate side as the driving force to transport water across the membrane.These membrane processes include RO,NF,UF and MF.The operating trans-membrane pressure ranges vary significantly but are usually: 20–100 bar for RO,5–20 bar for NF,2–5 bar for UF,and 0.1–2 bar for MF.It has to be mentioned that while MF and UF membranes have well-defined porous structure,for RO and NF membranes the term ‘‘pores’’may be better associated with the intramolecular voids within the polymeric matrix. Another possible classification can be based on the molecular mass of the solute to be separated by a given membrane process that is usually of up to 100 Da (RO),100–500 Da (NF) and 500– 10,0000 Da (UF).Obviously,UF and MF are not suitable for the direct removal of inorganic anions from solution; however they can be implemented in hybrid processes,which produce larger aggregates (subsequently filtered) (Han et al.2002; Yoon et al.2003) or in bioprocesses with the purpose to retain microbial cells,using anions as electron acceptors.On the other hand, RO and NF can be used for removal of inorganic anions as single processes.The advantages and limitations of each process will be discussed in the following sections.2.1.Reverse osmosisReverse osmosis is a well-established technology used for many years in water desalination.Reverse osmosis membranes areasymmetric,i.e.,consist of a thin polymer (nowadays,mostly polyamide) layer combined with a porous support to guarantee the membrane mechanical stability.The RO membranes discriminate on the basis of molecular size and due to the dense properties of the separating layer very high (often close to 100%) retention of low-molecular mass compounds and ions (total desalination) can be achieved.Moreover, the process can be easily automated and controlled.The treated water stream,however,may lack the right balance of minerals and has unpleasing taste because of the retention of all ions (Nicoll 2001).Another disadvantage of RO is the high energy consumptionneeded to maintain the required pressure difference.Reverse osmosis membranes are very sensitive to polarization phenomena (ions accumulation) at the membrane surface contacting the concentrate (retentate) side.In addition,the solubility products of some salts in the retentate can be exceeded,forming precipitates(mineral fouling) besides possible biological fouling due to natural organic matter and microogranisms present.The presence of non-toxic components,such as hardness (Ca2+,Mg2+) 2-anions,can interfere with the separation of toxic anionic species and SO4due to problems that these components may cause with water recovery and ionic strength (osmotic pressure) (Ritchie & Bhattacharyya 2002). Therefore,the contaminated water usually requires pre-treatment (other membrane processes like MF and/or UF are nowadays more and more used) before entering the RO modules.Concerning the RO applications in the case of toxic inorganic anions,few studies have been recently performed mostly aiming at the removal of arsenic species and nitrate (Table 2).Brandhuber and Amy (1998) showed that if the main arsenic species are present as As(III) only RO membranes would be effective.In a pilot-scale study,removal efficiencies between 96–99% for As(V) and 46–84% for As (III) have been reported (Ning 2002).Pre-oxidation of As(III) to As(V) could guarantee better removal.It was demonstrated that RO could be effectively applied for removal of nitrate along with water desalination in a rural area (Schoeman &Steyn 2003).The nitrate removal efficiency was close to 98% and,although the total dissolved solids (TDS) in the treated water stream were strongly reduced (from 1292 mg/l in the source water to 24 mg/l in the RO permeate),the authors suggested that the water could be used directly for potable purposes.Preliminary estimates showed that for an approximately 2 m3/h output plant,the capital and operating cost were about USD 29,900 and 0.50/m3,respectively.It can be concluded that RO is a highly efficient process for removal of inorganic anions from drinking water,which guarantees a secure detoxification of the water supply.However,total desalination is undesired due to possible corrosive problems if water hardness is reduced to very low levels.Water with hardness values under 50 mg/l is expectedto be corrosive (lead,copper,iron,zinc,etc.) (DeZuane1997).Therefore,modifications, allowing for selective toxic anions removal along with a sufficient retention of water salinity are required.2.2.NanofiltrationNanofiltration (NF) uses membranes,which can provide selective desalination,and is usually applied to separate multi-valent ions from monovalent ones; however,it is also possible to achieve a certain separation of ions of the same valence by selecting the proper membrane and operating conditions (Lhassani et al.2001).NF membranes are sometimes designated as ‘‘loose’’ RO membranes (Ho & Sirkar 1992),since they provide higher water fluxes at lower trans-membrane pressures.These membranes are usually asymmetric and negatively charged at neutral and alkaline drinking water pH.Therefore,separation of anions is based not only on different rates of their diffusion through the membrane (at low pressure),convection (at high pressure),but also on repulsion (Donnan exclusion) between anions in solution and the surface groups,which is obviously higher for multi-valent anions (Levenstein et al.1996).The advantage of introducing this additional mechanism of ion exclusion (in addition to the size-based exclusion) is that high ion separation degrees (ion rejections) similar to those in RO can be achieved but at higher water fluxes through the membrane.On the other hand,the NF process is much more sensitive than RO to the ionic strength and pH of source water.The membrane surface charge is mainly due to anion adsorption from water rather than to fixed charged groups (as in the case of ion exchange membranes), therefore it depends strongly on bulk anion concentration (Hagmeyer & Gimbel 1998).Furthermore,it changes from negative to zero net charge at the membrane isoelectric point and then to positive at lower pH values (usually <4) due to cation adsorption.This pH dependence can strongly affect the target anion separation. Therefore,the selection of adequate operating conditions is more critical for NF applications. Despite these challenges,a number of studies dealing with the removal of toxic anions from drinking water have been performed (Table 2) and most of them have showed promising results.Experiments with groundwater,to which arsenate As(V) and arseniteAs(III) were added,were performed by Urase et al.(1998),who showed that the As(V) rejection between 90 and 97% from the negatively charged NF membrane used was almost not influenced by water pH; however,the As(III) rejection increased with pH,being 50% at pH 3 and 89% at pH 10.At pH 10,most of arsenite is in a mono-valent anion form,while at low pH the neutral form dominates because the pKa value of arsenite is 9.1.For the same reasons,As(III) was not effectively removed in two other studies (Vrijenhoek & Waypa 2000; Sato et al.2002) while As (V) removal reached 90 and 95%,respectively.It was found that the rejection of As(III) decreased with increasing bulk concentration,an effect that was attributed to its enhanced diffusion and convection through the membrane under such conditions (Vrijenhoek & Waypa 2000).Fluoride removal by NF has also been tested for model water (Lhassani et al.2001) and contaminated groundwater (Cohen & Conrad 1998). In a model study,NF showed potential to selectively separate the following single halide salts: NaF,NaCl,NaI,LiF and LiCl (Diawara et al. 2003).The fluoride selectivity was higher at low fluxes,where the chemical parameters (e.g. hydration energy,partition coefficient) are predominant and larger ions were less retained. Therefore,fluoride,with a hydration energy higher than those of chloride and iodide,was better retained despite the fact that it is the smallest anion.Nitrate removal from drinking water by NF has been the subject of several studies (Table 2). A reasonably high nitrate rejection of 76% was observed by Van der Bruggen et al.(2001),who also performed preliminary cost analysis,showing that for a water treatment capacity of 2000 m3/h the operating cost would be approximately 0.13/m3.However,the hardness rejection was very high,up to 95%,therefore the treated water should be re-mineralised to obtain a hardness of approximately 2 mmol/l.It was suggested that the development of new membranes with the same rejection for neutral molecules but with lower rejection for charged compounds would allow to obtain a permeate with hardness ready for distribution. Nanofiltration is rapidly becoming more and more attractive alternative to the traditional RO water treatment.To a great extent,this is due to the introduction of highly efficient NF membranes and moduleconfigurations,which allow lower investment and operatingcosts.Nowadays,the world’s largest NF plant treating surface water (from the river Oise) is located in France and comprises over 9000 Filmtec NF200 membrane modules able to produce 140,000 m3 of drinking water per day (Nicoll 2001).2.3.Pressure-driven membrane bioreactorsThe concept of integration of biological treatment (aerobic or anoxic) of polluted water with its filtration across a porous membrane,driven by a pressure difference was first applied for the separation of activated sludge by an UF membrane and its recycling to the aeration tank (Smith et al. 1969),and since that time has been exploited extensively in urban and industrial wastewater treatment (Bouillot et al.1990; Brindle & Stephenson 1996; Gander et al.2000; Ben Aim & Semmens 2002; Cicek 2003; Wintgens et al.2003). The polluted water and microbial culture are in the direct contact,while the product water is ‘‘forced’’ through the membrane due to pressure difference (Figure 1).The main advantage is the possibility of achieving high biomass concentrations within the bioreactor; therefore,the plant size can be reduced.As a result of membrane separation,the biomass retention time is independent from the hydraulic retention time,thus allowing slowgrowing microorganisms to be maintained in the bioreactor.This feature is of particular importance for toxic compounds and/or micropollutants, which usually need long periods for their complete biological degradation/transformation to harmless products.Previous articles dealing with pressuredriven membrane bioreactors categorized such systems in terms of the manner in which the membrane module is integrated (e.g.an external membrane module,or membranes directly immersed in the culture medium,a configuration known as an ‘‘submerged membrane bioreactor’’). The latter configuration appears to be less energy consuming and less detrimental for the biomass (Ben Aim & Semmens 2002).Following the successful application of pressure-driven membrane bioreactors in wastewater treatment,the first attempts to extend this approach to the production of drinking water were done in the 1990s (Table 3).Chang et al.(1993) studied denitrification of tap water supplementedwith nitrate salts,which was continuously pumped to an agitated anoxic bioreactor coupled to an external hollow fibre UF membrane (a nominal porosity of 0.01 lm) module,through which the culture medium was recycled.The carbon and phosphorus needed for bacterial growth were provided by ethanol and phosphoric acid,respectively. Efficient denitrification (NO3) and NO2) concentration bellow the respective MCLs) was achieved at a maximum permeate flow rate of more than 100 l/(m2 h) and nitrate removal rate of 11 g/(m2 h).The most serious detected problem was related to the strong decrease of water filtration rate from 120 to 45 l/(m2 h) after 10 days of operation because of membranefouling.Therefore, a backwashing procedure (for 12 seconds every 12 min) had to be implemented,thus increasing the process complexity and energy demands. Furthermore,a secondary pollution of the treated water by 1.5–2.1 mg C/l (as total organic carbon) was found.While this TOC level was much lower than the one in the bioreactor (40–50 mg/l),it was still high enough to promote secondary microbial growth in the distribution systems.Using the same concept but with a plane UF membrane module (cut-off diameter of 200 kDa), Delanghe et al.(1994) also obtained a highly efficient denitrification of tap water,supplemented with nitrate salts,and reached a maximum permeate flow rate of about 21 l/(m2 h) and nitrate removal rate of 3 g/(m2 h).They dealt with the fouling problem by washing weekly the membranes with 3% NaClO solution pumped through the modules.However,the TOC concentrations in the treated water varied between 5–10 mg C/l. Since no ethanol was found,this TOC increase was attributed to low-molecular mass organic compounds, lower than the membrane cut-off diameter. The authors concluded that whatever its origin,this TOC level made the water unsuitable for drinking and needs further treatment.Barreiros et al.(1998),using acetate as the carbon source and electron donor,succeeded to denitrify efficiently naturally contaminated groundwater.They used a hollow fibre polysulfone UF membrane module with a cut-off of 500 kDa and obtained reasonably high water permeate flow rate of about 30 l/(m2 h) at a nitrate removal rate of 4.5 g/(m2 h).TOC values of 1.5–2.0 mg C/l were determined in the treated water,which were similarto those measured by Chang et al.(1993).The dosage of electron donor to the contaminated water has to be carefully controlled in response to the electron acceptor (anion) concentration. On-line monitoring of the target anion concentration in the feed water and adding the carbon source as a function of that concentration by means of an adaptive control system could solve this problem.Such control is important since electron donor limitation would lead to incomplete anion reduction,while overdosing could promote microbial growth in water distribution systems.However,the capability of a pressure-driven membrane bioreactor to provide TOC free water would be still questionable because of possible transport through the membrane of low-molecular organic compounds (other that the carbon source) as noted by Delanghe et al. (1994).Recently,the removal of nitrate from synthetic feed water using a sulfur-based autotrophic denitrification in a pressure-driven membrane bioreactor utilizing a rotating UF membrane disks with a cut-off of 750 kDa was tested (Kimura et al. 2002).While the obtained water permeate flow rate of about 20 l/(m2 h) is within the expected range,this study is interesting due to the use of membranes directly immersed in the bioreactor. Membrane fouling was not severe and cleaning by increasing the disk rotation velocity from 200 to 400 rpm for 15 min every 3 days allowed for a stable process operation for more than 3 months. However,assimilable organic carbon was still detected in the treated water.Fluorescence spectroscopy data showed differences between feed water and filtrate,however,the authors could not identify or characterize the organic matter from the contour plots obtained.Besides their direct application for drinking water production,as discussed above,pressuredriven membrane bioreactors have been occasionally used to treat concentrated water streams, obtained after applying other processes.An advantage of such ‘‘associations’’ is that biological treatment can be applied to solutions whose compositions and temperature can be controlled and is independent of possible changes in the characteristics of water to be treated.Forexample,nitrate-containing brine,obtained after an electrodialysistreatment of groundwater,contaminated by agricultural and farm activities,was studied (Wisniewski et al.2002).A ceramic membrane with an average pore size of 0.05 lm,periodically regenerated by chemical means,was used. An almost total removal of nitrates (99%) was achieved by the mixed culture despite the presence of other ions in relatively high concentrations.The drinking water quality is determined by the process used (electrodialysis in the case studied).Overall,in pressure-driven membrane bioreactors, fouling was found to affect the process performance either due to the deposit of a layer at the membrane surface and/or by partial or complete blockage of the pores.However,fairly efficient solutions (e.g.,periodic membrane backwashing) can be implemented so that relatively high amounts of water may be treated per unit area of membrane.With the reduction of the price of commercial membranes,the process energy consumption is usually the most important economic factor.A general limitation of the pressure-driven membrane bioreactors studied until now is the treated water quality.While contamination of water with microbial cells and biopolymers can be avoided,the retention of ions and low molecular mass compounds (such as some metabolicby-products) by porous membranes is generally insufficient to meet the stringent drinking water criteria; therefore either process modifications or water post-treatment are necessary.3.Dialytic membrane bio/processesDialysis uses a semi-permeable membrane to separatecompounds due to their different rates ofdiffusion in the membrane.Since the dialysis processdriving force is the chemical potential difference(in opposition to pressure difference for RO,NF,UF and MF),one of the main differencesbetween pressure-driven membrane processes anddialyitic processes is that the solvent (water) passesthrough the membrane with more or less selectivesolutes (ions) retention in pressure-drivenprocesses,while the solutes pass through themembrane with more or less selective transfer in dialysis.In practice,dialysis is used for separationof compounds,which differ significantly in size inorder to guarantee a large difference in diffusion rates; the classical example is hemodialysis (artificial kidney) for purifying human blood byremoving small solutes such as urea,chloride,etc.,while retaining large proteins and other componentsin the blood.Therefore,the ability of dialysisto discriminate between different ions in water is limited.Furthermore,the flux of a given compound depends on its concentration gradientthrough the membrane,thus dialysis is characterizedby considerably lower flux rates in comparisonto pressure-driven membrane separations.Therefore,despite its great pharmaceuticalimportance,dialyisis has not been applied as asingle process in drinking water treatment.On theother hand,attempts have been made to separateanaerobic mixed microbial culture from water tobe treated using microporous hydrophobic membranes, based on a dialysis mode of operation,aconfiguration,which might be designated as adialysis membrane bioreactor.Besides the chemical potential (instead of pressure) difference usedas the driving force,another important difference between this type of bioreactor and the pressuredriven membrane bioreactor is that the water to betreated and the microbial culture are separated bythe membrane in different compartments(Figure 1).3.1.Dialysis membrane bioreactorsNitrate removal was studied in a system,in whichmodel water and denitrifying microorganisms were。
