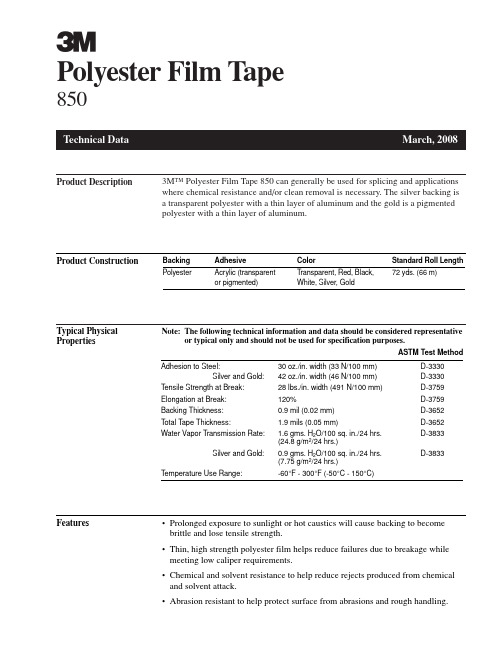

3M850
3Polyester Film T ape850Product Description3M™Polyester Film Tape 850 can generally be used for splicing and applications where chemical resistance and/or clean removal is necessary. The silver backing is a transparent polyester with a thin layer of aluminum and the gold is a pigmented polyester with a thin layer of aluminum.ASTM Test MethodAdhesion to Steel:30 oz./in. width (33 N/100 mm)D-3330Silver and Gold:42 oz./in. width (46 N/100 mm)D-3330T ensile Strength at Break:28 lbs./in. width (491 N/100 mm)D-3759Elongation at Break:120%D-3759Backing Thickness:0.9 mil (0.02 mm)D-3652T otal T ape Thickness:1.9 mils (0.05 mm)D-3652Water Vapor T ransmission Rate:1.6 gms. H 2O/100 sq. in./24 hrs.D-3833(24.8 g/m 2/24 hrs.)Silver and Gold:0.9 gms. H 2O/100 sq. in./24 hrs.D-3833(7.75 g/m 2/24 hrs.)T emperature Use Range:-60°F - 300°F (-50°C - 150°C)Product ConstructionBacking Adhesive ColorStandard Roll Length PolyesterAcrylic (transparent T ransparent, Red, Black,72 yds. (66 m)or pigmented)White, Silver, GoldFeatures•Prolonged exposure to sunlight or hot caustics will cause backing to become brittle and lose tensile strength.•Thin, high strength polyester film helps reduce failures due to breakage while meeting low caliper requirements.•Chemical and solvent resistance to help reduce rejects produced from chemical and solvent attack.•Abrasion resistant to help protect surface from abrasions and rough handling.Typical Physical PropertiesNote:The following technical information and data should be considered representativeor typical only and should not be used for specification purposes.3M ™Polyester Film Tape850Shelf LifeTo obtain best performance, use this product within 18 months from date of manufacture.All statements, technical information and recommendations contained in this document are based upon tests or experience that 3M believes are reliable. However, many factors beyond 3M’s control can affect the use and performance of a 3M product in a particular application, including the conditions underwhich the product is used and the time and environmental conditions in which the product is expected to perform. Since these factors are uniquely within the user’s knowledge and control, it is essential that the user evaluate the 3M product to determine whether it is fit for a particular purpose and suitable for the user’s method of application.Product UseUnless stated otherwise in 3M’s product literature, packaging inserts or product packaging for individual products, 3M warrants that each 3M product meets the applicable specifications at the time 3M ships the product. Individual products may have additional or different warranties as stated on product literature,package inserts or product packages. 3M MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED,INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANT ABILITY OR FITNESS FOR A P ARTICULAR PURPOSE OR ANY IMPLIED WARRANTY ARISING OUT OF A COURSE OF DEALING, CUSTOM OR USAGE OF TRADE. User is responsible for determining whether the 3M product is fit for a particular purpose and suitable for user’s application. If the 3M product is defective within the warranty period, your exclusive remedy and 3M’s and seller’s sole obligation will be, at 3M’s option, to replace the product or refund the purchase price.Warranty and Limited RemedyExcept where prohibited by law, 3M and seller will not be liable for any loss or damage arising from the 3M product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability.Limitation of LiabilityThis Industrial Adhesives and T apes Division product was manufactured under a 3M quality system registered to ISO9001:2000 standards.3M is a trademark of 3M Company.Printed in U.S.A.©3M 200870-0707-7643-3(3/08)Recycled Paper 40% pre-consumer 10% post-consumer3Industrial Adhesives and Tapes Division3M Center, Building 21-1W-10, 900 Bush Avenue St. Paul, MN 55144-1000800-362-3550 • 877-369-2923 (fax)/industrialApplication IdeasTransparent, Red, Black, White:•Splicing and web defect marking.•Sealing, labeling and protecting.•Positive film striping (transparent).•Decorative edging.•Tape hinge.Silver and Gold:•Post splicing movie film.•Deflect flagging where reflective sensing is required.•Decorative striping and die cutting.•Decorative edging.StorageStore under normal conditions of 60°to 80°F (16°to 27°C) and 40 to 50% R.H. in the original carton.。
感压胶与3M胶系-1
Adh Thk 2 mils 2 mils 1 mil
Liner 62# DK 58# PCK 55# DK
100MP (600) - VHBTM Acrylic
Highest performing adhesive Slightly higher temp resistance than #100 Outstanding temp performance (260oC) Tremendous shear strength Products
850 830
#800 #700
R-40 R-70
740 770
#400 A-40
420 430
820
810
A-30
#600 A-10
SF
#500
550
Plus #2000MP Optically Clear
Adhesive type and the related
Adhesive type 100MP 100 200MP 8008PT series 350 9888T series 300LSE 300MP 300 2mil ATT product 9460 966 467MP 9482PC 9671LE 6032PC 9471 temp. resis. 260 230 203 149 177 120 149 121 121
300MP - Hi-Strength Acrylic
Non fibered version of #300 Excellent bond to LSE plastics Excellent shear holding, Temperature 121oC Higher temperature performance Products No. Adh Thk Liner 964 13 mils 86# PCK 9770 2 mils 58# PCK 9774 4 mils 58# PCK 9690 2.25-0.5-2.25 86# PCK
3M双面胶型号及特点介绍
3M双面胶带3M胶带型号列表3M VHB 胶带主要3M双面胶产品列表:产品型号/ 产品名称/ 标准规格/ 一般用途3M 9495LE 300LSE 双面胶带 , 难粘表面之塑料、金属、泡绵等3M 9690 300MP 双面胶带 , 适用手机电话等便携电子产品透明窗粘结3M 9495MP 200MP双面胶带 , 适用手机电话等便携电子产品透明窗粘结3M 9492MP 200MP双面胶带 , 适用手机电话等便携电子产品透明窗粘结3M 9009 300 双面胶带 , 难粘表面之塑料、金属、泡绵等3M 9019 300 双面胶带 , 难粘表面之塑料、金属、泡绵等3M 966 100MP 双面胶带 , 耐260度高温（FPC适用）3M 9079 3M耐高温双面胶带, 耐260度高温（FPC适用）9461P 100MP 双面胶带 , 耐260度高温（FPC适用）3M 9485PC 350 双面胶带 , 耐260度高温（FPC适用）3M 9482PC 350双面胶带 , 耐260度高温（FPC适用）3M 9460PC VHB 双面胶 , 0.05MM厚纯胶膜耐高温,FPC用3M 9469PC VHB 双面胶 , 0.13MM厚纯胶膜耐高温,FPC用3M 9473PC VHB 双面胶 , 0.25MM厚纯胶膜耐高温,FPC用3M 8142 光学透明双面胶带 , 0.13MM厚适用于触摸屏等需光透明之场合3M 467MP 468 双面胶带 , 一般工业用途3M 8008 8018 8608 988T 52330 55256 , 一般工业用途之双面胶带3M 7952MP 200MP 双面胶带 , 双面离型纸之467MP胶带3M 7945MP 200MP 双面胶带 , 薄膜开关，电路间片(含PET)3M 7956MP 200MP 双面胶带 , 薄膜开关，电路间片(含PET)3M 7957MP 200MP 双面胶带 , 薄膜开关，电路间片(含PET)3M 7959MP 200MP 双面胶带 , 薄膜开关，电路间片(含PET)3M 7961MP 200MP 双面胶带 , 薄膜开关，电路间片(含PET)3M 7993MP 200MP PET单面胶带 , 适用手机电话等便携电子产品按键3M 7997MP 200MP PET单面胶带 , 适用手机电话等便携电子产品按键3M 9672LE 300LSE 双面胶带 , 无基材胶膜，适用于难粘表面,3M 9075 丙烯酸系算面胶 , 无纺布基材3M 6408 丙烯酸系算面胶 , 无纺布基材,纸基,3M 9448 橡胶系双面胶 , 无纺布双面胶3M 9080 丙烯酸系双面胶 , 无纺布双面胶3M 4930 VHB, 0.4MM厚特强粘性泡绵双面胶3M 4920 VHB ,0.4MM厚特强粘性泡绵双面胶3M 4615 丙烯酸泡绵双面胶 , 0.4MM厚高柔性,3M 4945 VHB 双面胶 , 1.10MM厚特强粘泡绵双面胶带3M 4941 VHB 双面胶 , 1.10MM厚特强粘泡绵双面胶带3M 4611 VHB 双面胶 , 1.10MM厚特强粘泡绵双面胶带3M 5413 Kapton 胶带 , PCB波峰焊保护用, made in USA;3M 7413 Polyimide 胶带 , PCB波峰焊保护用,made in China;8402 PET胶带 600MMX33M PCB波峰焊保护用;8952,8951,851,850,853 PET胶带,3M 471 pvc胶带 , 标示胶带多种颜色3M 5702 , , 黄黑相间标示胶带3M 5453 PTFE 胶带 12"X60YD heat seal tape3M 5421 5423 5425 UHMW-PE 1"X18YD 抗磨降低摩擦胶带3M 425 铝箔胶带 1"X60YD 一般性用途3M 9703 自粘导电双面胶带 12"X36YD EL片、薄膜开关FPC等用3M 9713 热压导电双面胶带 12"X36YD EL片、薄膜开关FPC等用3M 331T 蓝色保护胶带 1.2MX100M PCB电镀保护胶带，不锈钢表2K10,3K04,332,保护膜;3M 2142 美纹纸遮蔽胶带 400mmX 50m PCB过锡炉（波峰焊）等遮蔽场合使用3M 244 美纹纸遮蔽胶带 400mmX 50m PCB过锡炉（波峰焊）等遮蔽场合使用8152,8902, PCB电镀绿胶带 1000MMX50M PCB电镀等遮蔽场合使用3M 610,600 测试胶带 1 "X36YD3M 616 遮光胶带 1"X36YD3M 810 隐形胶带 3/4"X36YD 一般性用途3M 811 半透明胶带 1/2"X36YD 一般性用途3M 665,666 双面胶带 1"X25YD 一面低粘性其他型号总览3M 胶带:410,415,444,465,467MP,468MP,469,665,666,920XL,924,926,927,950,966,969,471,500,610,810,600,#588,583,615,615S, 3M 脚垫,粘扣:SJ3562,SJ3527,SJ3440,SJ3441,sJ3540,3541,SJ3550,3551, SJ5302,5312,SJ5816,SJ5608,3M 双面泡绵胶带:4004,4008,4016,4026,4032,CP66,4052,4085,4416,4432,1600T;3M VHB胶带:4905,4910,4920,4921,4926,4929,4930,4932,4936,4941,4914,4945,4949,4950,4951,4952,4955,4959,4962,4965,4974,4951,4210,5392,4604,4608,4615,4630,4609,4627,5925,4008,4032,4026,4016,5952,4952,4979,4993,5408,5552,7303,7951MP,7953MP,7979,3M 双面胶带:9045MP,9056,9057,9059,9185MP,9415,9420,9425,9429,9449,9458,9459W,F9460PC,9461,9462,9465,9469,9471,55235,55230,6408,9472,9473,9482,9485PC,9490LE,9495MP,9495B,9495LE,9500PC,9505,9552,9589,9665,9667,300LSE,9671LE,9672LE,9690,9690B,9692,9695,9703,9713,9731,9752,9755,9820,9828,9885,9890,9925XL,8008,8018,8004,988T,55230,55231,55256m55257, 55280,55258,cip66,cip60,cip-47,cip-36,cip-01,cip-02, #9795，#9795B，966, #ST416,9079,#9609,#7303,#7816,7818,#7881,3M 标签材料:#7811,7812,7603,#3921,#77,1280,#851,#850,616,910,920, 402,8401,332T,5419,SuZhouDaTong,7413,8141,8142,9448,9448B,55230,55256,8008,8018,8608,988T,9080,9075,9070,6408;3M 汽车胶带:4229P,4211,4210,4211,4215,4016,4615,4611,4609,5314,4124,CP5008,cp5012,4218,GT6008,4229p,3M 铝箔胶带:425,427,#471,5702,#5421,5423,#5425,#5491, #5490,5480,5481,8952,#1020,#1115,#1040, 411,3M 保护膜:2124C,2104C,#3K04,2K10,332, 331T,336,361,375,371,373,401,411,415,420,3M 水溶性胶带:900,#9069,#9996,#913,#906,9974,9979,900B,906,#9996,#9979, #SJ3526,3527,SJ3551,3550,3M 封箱带:301,309,#371,#375,#373,3M 纸胶带:#232,#2307,2308,2309,200,2214, 244,2444,#2364,#6969,Kapton高温胶带:7413T,7413D,5413,7419,5419,2132,92,42,40实用3M 纤维胶带:#8898,#898,893,89152517,336,8952,8402,950,8902,367FR, 369FR,3M 电气绝缘胶带:5,10,#11,27,40,42,#69,#60,#92,1350,1554,61,62,12,40,42,54,56,74,1298,1318,79,90,94,44,46,1276,1312,1339, 1170,1181,1194,1245,1345,1190,AL-35FR,77,23,2228,2517,2157,13,24,70,130C,2220,2229,2166,1500,1600,1712,1700,1750, 33+,35,88,22,66R,2000,22, #610,#600,810,811,#8915,#5413,#5451,3M 柔印胶带:1015,1020,1120,1115,1040,1614,1640,1815,1820M,1915,1920M,1181,1190,1205,1245,1170,1281,1285,1290,1318,1345,1350, 200,2214,244,213,2310,214,232,2307,2308,2309,243J,217,236,241, 2517,250,3M 胶水:DP100,DP420,190,2216,2214,125DP,DP190,CA40H,TE230,TE100,200,LC1110,2000NF,1357,5,10,4693,826,2262,4475,847,1300,4799,560, 847,2214,3M 喷胶:77,90,75,polygun-TC,3762,3749,3779,3747,3764,3748,695,620,70,23,13,24,2220,2157,2228,2229,1500,1600,1750,1712,22,33+,35,88,2000,3M 研磨:7447,7440,7448,96,8440,5010,5020,509,8698,86,261U,734,241Q,161X,268L,372L,6450J,3M砂纸::263X,264,265,461X,468L,861X,261X,6001J,661X,200A,251U,261U,321A,361F,401Q,461F,577F,237AA,241D,307EA,577F,777F,248D,281W,431Q,983C,011K,211Q,216U,235U,236U,255P,734,415U,PN82482,PN05941,241D,GJRA46,6050,610, 2214,740,741,745,746,718,718A,709,701,702,963,963E,等3M 口罩:#8210,N95,8246,8247; 9001,9002,3M 防毒面具:6000,6200, 6001,6003,6057, ,3200, 6800,7800,3M 耳塞:1100,1110, 1270.1260, 14253M 安全防护眼镜:1621,1711,1722,文档。
3M Scotch 27 Glass Cloth Electrical Tape 说明书
4. SpecificationsScotch™ 27 tape is a glass cloth electrical tape with a rubber thermosetting adhesive. The tape shall be white and 7 mils (0,177 mm) thick. The tape shall be coated on one side with pressure-sensitive adhesive which shall not require heat, moisture, or other preparation prior to or subsequent to application. The adhesive coating shall be smooth and uniform and be free of lumps and bare spots. There shall be no separator between adjacent layers of the roll. The tape shall be UL Recognized under UL Standard 510. The tape shall perform at a temperature of 130°C without loss of physical or electrical properties.Engineering/ArchitectureAll splices for 600-volt wire rated at 266°F (130°C) shall be insulated with a minimum of two half-lapped layers of Scotch 27 Glass Cloth Electrical Tape.5. Shelf LifeScotch 27 Glass Cloth Electrical Tape has a 3-year shelf life from date of manufacture when stored under the following recommended storage conditions. Store behind present stock in a clean dry place at a temperature of 70°F and 40-50% relative humidity. Good stock rotation is recommended.6. AvailabilityScotch 27 glass cloth electrical tape is available from your local authorized 3M electrical distributor in the following sizes:1/2 in x 66 ft. (12,7 mm x 10 m)3/4 in x 66 ft. (19 mm x 10 m)Other lengths and widths are available by special request.3M and Scotch are trademarks of 3M. Important Notice:All statements, technical information, and recommendations related to Seller’s products are based on information believed to be reliable, but the accuracy or completeness thereof is not guaranteed. Before utilizing the product, the user should determine the suitability of the product for its intended use. The user assumes all risks and liability whatsoever in connection with such use.Any statements or recommendations of the Seller which are not contained in the Seller’s current publications shall have no force or effect unless contained in an agreement signed by an authorize office of Seller. The statements contained herein are made in lieu of all warranties, expressed or implied,including but not limited to the implied warranties of merchantability and fitness for a particular purpose which warranties are hereby expressly disclaimed. SELLER SHALL NOT BE LIABLE TO THE USER OR ANY OTHER PERSON UNDER ANY LEGAL THEORY, INCLUDING BUT NOT LIMITED TO NEGLIGENCE OR STRICT LIABILITY, FOR ANY INJURY OR FOR ANY DIRECT, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES SUSTAINED OR INCURRED BY REASON OF THE USE OF ANY OF THESELLER’S PRODUCTS.。
3M600测试胶带
Scotch®Transparent Film T ape600Product Description Scotch®Tape 600 is a transparent film tape that is excellent for various packagingapplications. It has a pressure sensitive acrylic adhesive system which is long agingand highly transparent, so it has stain and sunlight resistance which makes it anexcellent choice for use on fabrics. Recommended for gift-wrapping, combining,attaching, light duty carton sealing and miscellaneous store use.Typical Physical Properties Note:The following technical information and data should be considered representative or typical only, and should not be used for specification purposes.ASTM Test Method Adhesion to Steel:40 oz./in. width (44 N/100 mm)D-3330 Machine Direction T ensile Strength:28 lbs./in. width (490 N/100 mm)D-3759 Elongation at Break:45%D-3759T ape Thickness -Backing: 1.5 mil (0.038 mm)D-3652T otal: 2.3 mil (0.058 mm)D-3652Construction Backing Adhesive Colors3M™UPVC Film Pressure sensitive acrylic T ransparent3Features•Easy-release treated.•Meets CID A-A-113 Type 1 Class A.•Moisture and chemical resistance.•Roll stability.•Long aging.•Controlled, smooth unwind.•Unaffected by changing atmospheric conditions and resistant to many acids,alkalies and solvents.•Has good edge tear and breakage resistance.•Easy to read through.•Excellent holding and good dispensing properties.•Does not yellow on fabrics.Scotch ®Transparent Film Tape600Storage ConditionsStorage of Scotch ®Tape 600 at 70°F (21°C) and 40-50% relative humidity is recommended.Application TechniquesAn extensive line of manual, semi-automatic and automatic equipment is available to facilitate application of Scotch ®Tape 600.Standard Widths:3/8 in., 1/2 in., 3/4 in., 1 in., 11/2in., 2 in.Available by Special Order:Custom widths and lengths available on request,subject to minimum order requirements.Core Size (ID): 3 in.Lengths:72 yds.Available SizesScotch is a registered trademark of 3M Company.3M is a trademark of 3M Company.Printed in U.S.A.©3M 200970-0710-0229-2(9/09)Recycled Paper 40% pre-consumer 10% post-consumer3Industrial Adhesives and Tapes Division 3M Center, Building 225-3S-06St. Paul, MN 55144-1000800-362-3550 • 877-369-2923 (Fax)/industrialShelf LifeTo obtain best performance, use this product within 18 months from date of manufacture.The technical information, recommendations and other statements contained in this document are based upon tests or experience that 3M believes are reliable, but the accuracy or completeness of such information is not guaranteed.Technical InformationUnless an additional warranty is specifically stated on the applicable 3M product packaging or product literature, 3M warrants that each 3M product meets the applicable 3M product specification at the time 3M ships the product. 3M MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY IMPLIED WARRANTY OR CONDITION ARISING OUT OF A COURSE OF DEALING, CUSTOM OR USAGE OF TRADE. If the 3M product does not conform to this warranty, then the sole and exclusive remedy is, at 3M ’s option, replacement of the 3M product or refund of the purchase price.Warranty,Limited Remedy, and DisclaimerExcept where prohibited by law, 3M will not be liable for any loss or damage arising from the 3M product,whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted,including warranty, contract, negligence or strict liability.Limitation of LiabilityThis Industrial Adhesives and T apes Division product was manufactured under a 3M quality system registered to ISO9001:2000 standards.Many factors beyond 3M ’s control and uniquely within user ’s knowledge and control can affect the use and performance of a 3M product in a particular application. Given the variety of factors that can affect the use and performance of a 3M product, user is solely responsible for evaluating the 3M product and determining whether it is fit for a particular purpose and suitable for user ’s method of application.Product Use。
3M 电子切割使用说明书
FAQ E-CutRelease A, September 2013 Electronic Cutting with 3M Graphic Films1.What is Electronic Cutting Electronic cutting is a term used to describe the cutting of adhesivebacked film bycomputerdriven knives. The process of electronically cutting graphics is referred to asComputer Aided Signmaking, or CAS. The device that performs the cutting operation may bereferred to as either a plotter or a cutter. In this document, we will use the term “cutter” torefer to all types of plotters and cutters.Electronic cutters are also used to cut other materials such fabric or cardboard. In addition,the cutting blades can be switched to pens for drawing designs on paper or film.es for Cut Graphics Electronicallycut graphics are used in a variety of ways and markets: fleet vehicles, windows,awnings, signs, and even stencils.3.Types of Cutters There are three distinctive types of cutters, each of which is discussed in this document:∙Sprocket fed/pin fed∙Friction fed∙FlatbedA.Cutting Speed The type of cutter determines cutting speed and its ability to process the information beingsent to it.B.Sprocket Fed or Pin FedCuttersDescription∙Cutters accept 15 or 30 inches material widths.∙Both edges of the film are punched with a hole pattern that match pins on the drivewheels of the cutter. These wheels traverse the film through the cutter.Cutting Action∙The film moves back and forth.∙The knife head moves side to side.∙The knife blade changes direction.Advantages∙Convenient size for smaller shops.∙Accurate tracking.∙Speed.Disadvantages∙Films must have holes punched to use this cutter.∙Limited widths.Manufacturers∙ADSI Allen Datagraph Systems, Inc.∙Gerber Scientific, Inc.C.Friction Fed CutterDescription∙Cutters accept 4 to 60 inch material widths.∙Uses a two wheel drive system to move unpunched film. The bottom wheel is usuallyknurled and acts as a drive wheel. The top wheel is usually rubber. The film is driven bybeing pinched between the wheels.Cutting Action∙The film moves back and forth.∙The knife head moves side to side.∙The knife blade changes direction.Advantages∙Can handle a variety of film widths.∙Does not require punched film, but can use punched film.Disadvantages∙Film can slip, resulting in inaccurate cuts or inability to make long or numerous cuts accurately.Manufacturers∙ADSI Allen Datagraph Systems, Inc.∙Gerber Scientific, Inc.∙Graphtec America, Inc.∙Roland DGA Corporation∙Summa, Inc.D.Flatbed CuttersDescription∙Flatbed cutters have long been the standard of electronic cutting, especially in Europe.They evolved from garment and box cutters.∙Sizes range from 2 feet x 3 feet to 8 feet x 10 feet.∙The cutter uses vacuum to hold the film in place during cutting.Cutting Action∙The knife head moves back and forth across the web.∙The knife blade changes direction.Advantages∙Most accurate cutting since the film does not move.∙Does not require punched film, but can use punched film.∙Decreases the amount of overlaps on large graphics.∙On large graphics film can be advanced automatically after the current panel has beencut.Disadvantages∙Requires a large work area.∙Expensive compared to other types of cutters.Manufacturers∙ARISTO Cutting Solutions∙Graphtec America, Inc.∙Zund4.Types of Cutting Heads There are two standard types of cutting heads used in Computer Aided Signmaking. They areeasily distinguished by their cutting methods.TangentialA tangential cutter head uses a servomotor. This type of head moves the cutting blade aroundthe pattern using a drop, cutlift, turn method each time the design changes direction. Theonly exceptions are the letter O and the numeral 0, which are cut in one continuousmovement. As an example, the blade cuts, lifts and turns 12 times to cut the letter H inHelvetica type face.Following / TracingA following or tracing cutter head uses bearings that allow the blade to swivel in a holder.With this type of mechanism, the blade drops into the first position and traces around thedesign without lifting until it has returned to the original starting position.5.Types of Knife Blades There are several types of knife blades ranging from dual edge 40 degree blades for cuttingstandard electronicallycuttable film to a single edge 60 degree blade for finer detail cuttingas well as cutting thicker materials. Refer to the instruction manual for each cutter todetermine the types of blades that can be used and the required pressures.Gerber Gerber Gerber Tracing/Following Flat Bed Flat Bed6.3M Films Designed forElectronic Cutting Technically, all films from Commercial Graphics can be electronically cut. However, each film has different minimum cutting heights, minimum stroke widths and ease of weeding. See the table on page 5 for additional details.The following films are our most popular for electronic cutting. For complete details on these films, refer to the 3M Product Bulletins at .∙3M™ Scotchcal™ Graphic Film Series 50∙3M™ Controltac™ Graphic Film Series 180∙3M™ Controltac™ Graphic Film with Comply™ Adhesive Series 180C∙3M™ Scotchlite™ Reflective Graphic Film Series 680∙3M™ Scotchcal™ Translucent Graphic Film Series 3630∙3M™ Envision™ Translucent Film Series 3730∙3M™ Scotchlite™ Reflective Graphic Film 5100∙3M™ Scotchlite™ Removable Reflective Graphic Film Series 5100R∙3M™ Scotchcal™ ElectroCut™ Graphic Film Series 7125∙3M™ Scotchcal™ ElectroCut™ Graphic Film Series 7725∙3M™ Scotchcal™ ElectroCut™ Graphic Film Series 7725SE-400∙3M also manufactures several films that are designed for Gerber Scientific Products and are sold exclusively by authorized Gerber distributors. Contact Gerber at1-800-222-7446 or visit their website at to find a distributor near you.A.Liners Films designed for electronic cutting are available on a 78 pound kraft paper, a 94 poundpolycoated paper or a synthetic liner, depending on the film series.B.Cutting Specifications The 3M Product Bulletin for each film specifies the minimum cutting heights and strokewidths. These dimensions are based on upper case Helvetica medium letters.When using other fonts, the operator is responsible for testing and determining acceptableminimum dimensions.The proper cutting depth should result in the liner being lightly scored. The purpose of scoringthe liner is to ensure that the blade has cut completely through the adhesive. Too deep a cutcan cause liner splitting, increased knife wear and material lifting during cutting. Too light acut can cause incomplete cutting of the film and adhesive, which can cause difficulty inweeding.C.Weeding Weeding is the removal of unwanted film.Before weeding, inspect each element (letters, numerals, etc.) to determine which side hasthe most open cuts, and start weeding from the side. This reduces unnecessary waste.For example, most letters have open areas on the right side, so weed from right to left.Conversely, most numerals have open areas on the left side, so weed from left to right.3EOpen cuts of numerals are generally on the left. WEED LEFT TO RIGHT Open cuts of letters are generally on the right'WEED RIGHT TO LEFTD.Electronicallycut GraphicsRequire an Application Tape Electronicallycut graphics always require an application tape after cutting. The application tape protects the graphic during storage, transport and application. It also allows you to apply the graphics in one piece. Because application tape has a lower adhesion to the film than the film has to the substrate, the tape can be removed after the graphics are applied without altering the registration.Refer to 3M Product & Instruction Bulletin 4.3 for the correct application tape for your specific graphic construction.E.Films Recommended forElectronic Cutting ∙All films listed have a paper liner unless otherwise noted. Minimum cutting heights are based on upper case Helvetica medium font.∙All other fonts and designs must be tested by the cutter operator to determine minimum performance characteristics.∙Refer to Instruction Bulletin 4.1 for additional cutting information.3M Film Number Appearance Liner*No. ofColors**Type of Cutter MinimumCutting Heights Sprocket/Pin FedFrictionFedFlatbedSeries 50Opaque, removable P28u u u3/8” (0.9 cm) Series 180Opaque P44u u u3” (7.5 cm) Series 180C Opaque P50u u u3” (7.5 cm) Series 680Reflective P12u u1” (2.5 cm) Series 3630Translucent S57u u1” (2.5 cm) Series 3730Translucent S20u u1” (2.5 cm) Series 5100Reflective P15u u u1” (2.5 cm) Series 5100R Reflective, removable P15u u u1” (2.5 cm) Series 7125Opaque P60u u3/8” (0.9 cm) Series 7725Opaque S68u u1/4” (0.6 cm) Series 7725SE-400Fluorescent Opaque P6u u1/2” (1.3 cm) * P = Paper liner; S = Synthetic liner (transparent)** Visit the On-line Catalog at for the most current colors.7.Films with Synthetic Liners Films that feature a synthetic liner offer important advantages in production environmentswhere size, accuracy and speed count.yflat This liner does not absorb moisture so it stays flat when it’s on a flatbed cutter and it staysflat when it has an application tape and is stacked. The layflat feature helps avoid completecutthrough of the liner which prevents knife and bed damage. On friction feed cutters, thereis no liner growth due to moisture absorption, which helps prevent tracking problems on longjobs. The layflat feature also helps ensure that the graphics don’t pop off the liner duringstorage.B.Excellent Cutting The unique properties of the synthetic liner allow cutting heights as small as ¼ inch (0.6 cm)or even smaller with the proper adjustment of the cutter. This allows for a greater variety ofgraphics. In addition, a synthetic liner won’t split as a paper liner does if the cut depth is toodeep.C.Faster Weeding Speed Weeding is faster due to how the adhesive sticks to the liner. It is less likely that letters will liftaway during weeding, so more graphics can be weeded more quickly.D.Water Resistance If a paper liner gets wet during a wet application, the liner splits and it is difficult to remove itcleanly. Water may also damage the graphic. A synthetic liner does not absorb water.E.Multi-Color Assembly Synthetic liners are transparent, making it easier to register graphics on jobs requiringmultiple colors. The applicator can clearly see each color when overlaying them, providing100% confidence in the graphic. Another advantage of the multicolor lay up is that the entiregraphic can be assembled on a single piece of liner with a single sheet of application tape,which saves material cost and application labor.F.Anti-Static Properties The synthetic liner has a builtin antistatic treatment that helps protect nearby electroniccircuitry from the risk of static discharge. Static discharge can cause cutters to shut down inthe middle of a cut, damaging the cutter and the graphic. This antistatic feature also helpsprotect users from shocks when performing the weeding operation.8.TroubleshootingProblem Cause SolutionFilm won’t track on friction fed cutter.Friction feed system is dirty or out oftolerance.Clean all rollers and feed mechanisms; adjust spring tension on pinch rollers.Contact manufacturer.Sensors don’t recognize a black film.The sensors on most cutters read off of lightreflected from the liner. When all the light isabsorbed, the machine indicates that there isno film loaded. This usually happens withblack film because the light shines throughthe liner and is absorbed by the black film,indicating an empty cutter.Block the sensors with white tape or paper. Turn off the sensors and put the machine in manual mode (if available).Poor cutting and weeding.Poor cutting and weeding is rarely a filmproblem. It is usually the result of poor cutsand nonclosure of corners, which indicates acutter or knife problem.Ensure that the cutting pattern is accurate. Check the blades.Adjust the knife.Adjust the cutter.Contact the manufacturer, providing samples for evaluation.Graphics remain on liner when removing application ing the incorrect application tape.Incorrectly removing the application tape.Use a higher tack tape.Wipe with Isopropyl Alcohol.Use heat over application tape.Application tape won’t stick to liner.Not using the correct 3M application tape.Refer to the base film Product Bulletin or 3MProduct & Instruction Bulletin 4.3 for thecorrect application tape for the graphic.Static problem.The liner of film series 7725 has a builtinantistat so this problem is unlikely.Send in a sample to Technical Service for evaluation.Environmental concerns.Some users think plastic is lessenvironmentally friendly than paper.This film takes the same landfill space as a paper product, and it uses 20% recycled material in its manufacture.Problems with kiss cutting or die cutting.Dull dies.Improper press adjustment.Sharpen the dies.Adjust the heat and pressure on the press.Application bubbles.Application technique.Small bubbles disappear over time.Consider using a film with Comply adhesive. Can’t tear liner.Not intended for tearing.Cut the liner with a knife or scissors.Liner takes too much room in trash.Not preparing for disposal Roll up the liner before disposal.Difficulty weeding small graphics due to liner.This film uses a synthetic liner that does slidemore than paper.Tape down one edge of the graphic.Try weeding the graphic while it is on thevacuum table, if available.Logo on liner is visible.Only visible before and during application.The logo will disappear after application.9.Sales and Technical Service We would be happy discuss your electronic cutting needs and recommend the right film foryour environment. Please contact your 3M sales representative or call us at1-800-328-3908.10.Disclaimer The information contained and techniques described herein are believed to be reliable, but3M makes no warranties, express or implied, including but not limited to any implied warrantyof merchantability or fitness for a particular purpose.The 3M Commercial Graphics Warranty Brochure, along with the applicable film ProductBulletins, provide the details to any warranty offered for the 3M graphics products describedin this bulletin.3M does not endorse any particular cutter type or manufacturer. The user is responsible forensuring the cutter meets all of its intended performance requirements.11.Limitation of Liability Except where prohibited by law, 3M SHALL NOT UNDER ANY CIRCUMSTANCES BE LIABLETO PURCHASER OR USER FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, ORCONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, LABOR, NON-3M MATERIALCHARGES, LOSS OF PROFITS, REVENUE, BUSINESS, OPPORTUNITY, OR GOODWILL)RESULTING FROM OR IN ANY WAY RELATED TO SELLER'S PRODUCTS, SERVICES OR THISBULLETIN. This limitation of liability applies regardless of the legal or equitable theory underwhich such losses or damages are sought including breach of contract, breach of warranty,negligence, strict liability, or any other legal or equitable theory.3M, Comply, Controltac, Envision, ElectroCut, Scotchcal and Scotchlite are trademarks of 3M Company.All other trademarks are the property of their respective owners.Commercial Graphics3M Center, Building 220-12E-04St. Paul, MN 55144 USAGeneral & Technical1-800-328-3908Fax 1-651-736-42333M CanadaPO Box 5757London, OntarioCanada N6A 4T1General 1-800-265-1840Fax 519-452-62453M México S.A. de C.V.Av. Santa Fe No. 55Col. Santa Fe, Del. Alvaro ObregónMéxico D.F. 01210General 5255-5270-0400Fax 5255-5270-22773M Puerto Rico, Inc.350 Chardon AvenueSuite 1100San Juan, PR 00918General 787-620-3000Fax 787-620-3018 E3M 2013. All rights reserved.。
3M610胶带技术资料
Cellophane Film Tape610Technical InformationScotch® Cellophane Film Tape 610 is a high-performance, transparent cellophane film tape featuring a high-tack adhesive system. This tape offers excellent adhesion, dispensing and handling properties.Product Features*Cellophane Film*Rubber Resin AdhesiveProduct Advantages*Temperature Resistant*Handling Properties*Good Initial Bond*Adhesion*High TackProduct Benefits*Dimensionally Stable on the Application Up to 300°F (140°C)*Easily Dispensed, Eliminates Frustration*Excellent Holding Properties for Customer Satisfaction*Controlled Unwind for Reliable Hand Dispensing*Immediate Adhesion to a Variety of SubstratesManufacturing ConsistencyState of the art processes for film making, adhesive coating and pressure sensitive tape converting lead to the most consistent and reliable product available in the market today. Special Note:3M is aware that Scotch® Cellophane Film Tape 610 has been used by some customers to test the level of adhesion of coatings to various substrates. 3M does not recommend thisprocedure, due to variability in pressure-sensitive film tapes, which are inherent in theirmanufacture. This slight and reasonable variability is acceptable for ordinary applications,but in our opinion, could render test data based on these characteristics invalid.Scotch® Cellophane Film Tape610ConstructionBacking:CellophaneAdhesive:Pressure Sensitive Rubber ResinColors:TransparentTypical Physical Properties(Not recommended for specification purposes)ASTM Test Method Adhesion to Steel:43 oz/inch width (47 N/100 mm width)D-3330Transverse Tensile Strength:23 lb/inch width (402 N/100 mm width)D-3759Elongation at Break:15 %D-3759Tape ThicknessBacking: 1.43 mil (0.036 mm)D-3652 Total: 2.3 mil (0.058 mm)D-3652 Available Widths Available Lengths Standard widths:1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2"72 yards, boxed onlyAvailable by Special Order:Custom widths and lengths available on request,subject to minimum order requirementsCore Size (ID):3"Technical Data: All physical properties, statements and recommendations are based either on tests we believe to be reliable or our experience, but they are not guaranteed. 3M recommends each user determine the suitability of the product for the intended use.Warranty and Limited Remedy: THE FOLLOWING WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND ANY IMPLIED WARRANTY ARISING OUT OF A COURSE OF DEALING, CUSTOM OR USAGE OF TRADE:3M warrants its tapes will be free from defects in material and manufacture. If a tape is proved to be defective, then the exclusive remedy, and 3M’s and seller’s sole obligation shall be, at 3M's option, to replace the quantity of the tape which is proved to be defective or to refund the purchase price.Limitation of Liability: Except where prohibited by law, 3M will not be liable for any loss or damage arising from this 3M product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including but not limited to warranty, contract, negligence or strict liability.The foregoing Warranty and Limited Remedy and Limitation of Liability may be changed only by a written agreement signed by authorized officers of 3M and seller.Packaging Systems Division3M Center, Building 230-1E-04Printed in U.S.A.St. Paul, MN 55144-1000 USA© 3M 20001- 800-722-5463。
3M胶带=3M双面胶带选型
3M胶带＝3M双面胶带＝3M单面胶带上海常祥实业有限公司是3M顶级合作伙伴，同时代理3M第一，二，六，七组的各种产品，包括各种单双面胶带，胶粘剂，各种光学薄膜等。
上海常祥实业是集研发、生产、服务为一体的企业集团，公司定位为PV太阳能电池组件，TP触摸屏，汽车电子，汽车组装，LCM，LED发光二极管，PCB，FPC，光通讯器件，电子标签，电子纸，智能卡封装，EL冷光片，无源器件，封装测试，SMT表面贴装，摄像头，手机组装，电脑装配，DVD，数码产品，半导体芯片，传感器，电气绝缘，汽车电子，医疗器械等行业的高端客户提供整合解决方案和服务。
公司在全球拥有141家世界500强客户。
为了更好的为尊崇的您提供优质服务，公司在上海、深圳、东莞、广州、北京、成都、西安、厦门、武汉、苏州等地设有分支机构。
上海常祥实业代理的3M胶带种类包括：0、3M光学胶OCA：8142ACL、8212、8141、8161、8185、8187、9483、8172、8195、8197、X10771、3M异方性导电膜ACF：9703、9705、9706、7303、5303、7393、7379、7371、7376、7378、8794、5363、7313、7396、5552R2、3M导电胶带：7761、7763、7765、7769、7805、7810、9725、9740、9764、9830、9780、9719、9712、9713、9708、9709、9709S、9709SL3、3M热熔胶膜:3M615,3M615S,3M615ST,3M406,3M583,3M688,3M690,3M690T,3MAF-111,3MAF-434、3M导热胶带:3M8805;3M8810;3M8815;3M88203M8940,3M89435、3M导热垫片:3M5516,3M5591,3M5591S,3M5592S,3M5595S,3M5589H,3M5590H6、3M导热垫片:3M9889FR,3M9894FR,3M9879Fr7、3M硅胶和亚克力双面胶带：9731，9731B，9731RW一面是硅胶,一面是亚克力胶8、3M遇水指示标签\质保和安全胶带：3M5557,3M5557NP,3M5558,3M55599、3M金属箔胶带：300PL,508SN10、3M接地散热粘结薄膜：737311、3M导电铜箔胶带：3M1181，1182，1183，1194，1188，1189，1245，1345，2245，3245,CU-10S，CU-35C12、3M导电铝箔胶带：3M1120,1170，1172，1178，1179，1267，AL-25BT，AL-50BT，AL-25DC，CEA-1,CEA-2,AL-40BLK13、3M电磁吸波材料：3M AB2000，AB5000，AB6000，AB700014、3MHigh-u磁场屏蔽片：138015、3M导电丙烯酸衬垫：7805，7806，7810，7850，7830，7830N，eCAP7830，eCAP7830N16、3M铜镍导电布：CN319017、3M抗撕裂导电胶带：2191FR18、3M铜镍导电布胶带：CN3190,CN4190,CN449019、3M导电金织物胶带：AU219020、3M导电银织物胶带：AG230021、3M金属箔胶带：AL-35FR,AL-36FR,AL-36NC,CEAP-1,AL-37BLK,AL-40BLK22、3M铜镍导电布胶带：CEF-1,CEF-2,CEF-3,CEF-6,CEF-823、3M导电泡棉：FOF系列，形状有：矩形,D型,C型,L型,P型等24、3M电磁屏蔽套管：3MDS-5,DS-7,DS-10,DS-14,FS-30-FS-3725、3M玻璃布电气绝缘胶带：CIG－126、3M防静电胶带：4027、3M聚酯薄膜胶带：＃5、＃5K、＃54、＃56、＃57、＃74、＃75、＃1350F－1、＃1350F－2、＃1350T－1、＃1351－1、＃1351－2、＃1388、129828、3M醋酸布绝缘胶带：3M11#、3M28#、3M1554#、3M1554K、155829、3M环氧薄膜胶带：3M#1、Super10、Super2030、3M聚酰亚胺薄膜胶带：＃92、＃1205、＃1206、＃98C－1、＃98C－2、＃98C－1231、3M附膜铝箔胶带：CEAP－132、3M双面胶带（两面相同胶粘剂）：3M4801，3M9009，3M9019，3M9077，3M9475LE，3M9492MP，3M9495LE，3M9495MP，3M9609，3M55230，3M55231，3M55232，3M55235，3M55256，3M55257，3M55258，3M55261，3M55262，3M Y9448，3M9495le，3m9690，3m9009，3m9019，3m9079，3m9461p，3m9485pc，3m9482pc，3m9460pc vhb，3m9469pc vhb，3m9473pc vhb33、3M双面胶带(两面不同粘剂)：3M9731，3M4377-50，3M4377-85，3M9415PC，3M9425HT，3M942534、3M无基材纯胶膜：3M467MP，3M468MP，3M966，3M7955MP，3M9079，3M9082，3M9085，3M9458，3M9471LE，3M9472LE，3M9482PC，3M9485PC，3M9671LE，3M9672LE，3M F9460，3M F9469，3M F9473，3M983235、3M医用胶带：单面薄膜胶带、双面胶带和转移胶带、无纺布和织造布胶带、水胶体胶带、泡沫胶带36、3M双面丙烯酸泡棉胶带：Y-4615/Y-4609/4618/462237、3M电信电气绝缘胶带：3m80T,3m88T,3m电缆芯线绑扎膜,3m油灰胶带,3m DR胶带38、3M PolymaskTM保护胶带：3112/4178/511239、3M金属箔胶带：261/271/281/291/300PL/1115/1120/143640、3M高温屏蔽胶带:3M851,3M1278,3M1279,3M5413,3M7414,3M5414,3M5419,3M5433,3M7413T/7413TL，3M7419,3M7413,3M7413D/7413DL,3M7412C,3M851ST,3M852ST,3M853Y,3M7411B41、3M标签：7815/7816/7847/7613/7868/793042、3M水溶性胶带：906B/910/917B/9952/9969/997443、3M柔印贴版胶带：1015/1020/1115/1915/192044、3M扣件：SJ-3526，SJ-3527，SJ-3571，SJ-3572，SJ-3541，SJ-3542，SJ-3550，SJ-3551，SJ-3552，SJ-356045、3M高分子材料表面滑爽胶带：5451/5480/5490/5491/549846、3MPET线路板电镀保护胶带：331T/335/336/850/851/85347、3M波峰焊保护胶带：7413T,5413,5419,741348、3M玻璃布胶带：361，36749、3M遮蔽胶带：200，232，244，2308，2310，2364，269350、3M纤维胶带：8915，893451、3M薄膜开关胶带：7991,7992P,7993,7994,7995,799752、3M铝箔胶带、铅箔胶带、抗腐蚀胶带胶带：420，421，425，427，431，1446，155053、3M地面标识胶带/警示胶带：永久性标志胶带：471，5700，5702；临时性标志胶带：766；76754、3M超洁净极低释气单面胶带：极低释气性6670、极低释气烯6690、极低释气性6692、聚乙烯8333、极低释气性高剪切强度聚乙烯8439、极低释气性高剪切强度聚乙烯8439FL55、3M超洁净薄性胶带：3M501FL，502FL，504FL56、3M洁净标签材料：3M5770（NF），5771，5775，5776NF57、3M阻尼聚合物：3M110P02，110P05，112P02，112P0558、3M遮光胶带，3M黑白双面胶带55200H、55201H、6006H、6008H、9582H、9583H、4012-30、4012-50、4012-60、4019-50、4019-60、4019-85、4003C、4003T、4040、4007、4037，用于液晶显示器及背光模组3M遮光胶带，3M黑色双面胶带9004、9622、9632、936BK、9313B、9005、4362S、4363S、4364S59、3M双面聚氨酯泡棉胶带：4016，4026，403260、3M双面聚乙烯泡棉胶带：4462，4466，4492，449661、3M双面聚氯乙烯泡棉胶带：4408，4416，443262、3M双面氯丁泡棉胶带：4962，4965，499263、3M双面无纺布胶带：9448，908064、3M电工胶带：1500,1700,171265、3M双面胶带：415，444，9495，950，9500，9690，973166、3M丙烯酸减震泡棉：3M5060-02，3M5060-03，3M5060-05，3M5060S-02，3M5060SR-03，3M5060SR-0567、3M双面导热胶带：9882，9885，989068、3M波峰焊保护胶带：3m5413kapton，3m7413polyimide，3m8201kapton，3m8130kapton，3m2142，3m24469、3M特氟龙胶带：355,850B,5423,8915,9381L,7993mp,7997mp,ptfe5480,5481,5490,5491,5451,545370、3M无纺布丙烯酸胶带：3m9075，3m6408，3m9080，3m9448橡胶系双面胶71、3M保护胶带；3M331t蓝色保护胶带3m8152电镀绿色保护胶带72、3M测试胶带：3M610,3M600透明胶带；3m810半透明胶带73、3M双面绵纸胶带55230、55230H、55231、55235、5523674、3M双面PET胶带55256、55257、55258、55260、55261、55262、917875、3M乙烯胶带：471，472，474，477，4731，764，76576、3M电镀胶带：470，484，49577、3M聚乙烯胶带：480，481，481178、3M防黏贴表面和隔离纸拼接胶带：8901，8905，8402，8911，8952，8952L，895379、3M胶片拼接胶带：8421，8422，8429，844580、3M电路板制造胶带：851，1728，1280，1285，129081、3M铝箔/加强型胶带：363，1430，363382、3M减振箔：434，435，436，2552；83、3M阴极防护产品-锌水凝胶：472784、3M结构胶带：9244，9245，924685、3M热粘胶带：4237，5403，5404，5406，4233，5408，4974，498186、3M泡棉胶带：4004，4008，4016，4032，4052，4056，4085，4408，4416，4432，4921，4462，4466，4492，4496，4965，4992，4658F等87、3M防滑胶带，防滑贴，防滑垫：610黑色,620透明,630黄色,510黑色,530黄色,370灰色,310黑色,220透明,280白色88、3MVHB胶带：此系列产品可以广泛用于金属，塑料，玻璃，陶瓷等多种材料的架构粘结，如电子产品塑料部件的固定，夹层玻璃等。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
Technical Information
Scotch brand No. 838
TM
SCOTCH BRAND NO. 838 “TEDLAR” PLASTIC FILM TAPE
DESCRIPTION: A “Tedlar” tape with an acrylic adhesive developed for weather-resistant
applications.
CONSTRUCTION:
Backing:“Tedlar”
Adhesive:Acrylic
Color:White
Standard Roll Length:72 yards (66 m)
IMPORTANT:
Because of the variables involved in the applications, 3M cannot assume any liability as far as the performance of the tape is concerned. The customer should determine the suitability of the product for his intended use.
TYPICAL PHYSICAL PROPERTIES:Not Recommended for Specification Purposes
ASTM METHOD Adhesion to Steel:42 oz./in. width (46 N/100mm)D-3330
Tensile Strength at Break:24 lbs./in. width (420 N/ 100mm)D-3759
Elongation at Break:194%D-3759
Total Tape Thickness: 3.4 mils D-3652
Temperature Use Range:-98 to 225 (-72 to 107 )
GENERAL INFORMATION:
1.No. 838 film tape has good aging properties because it contains no plasticizers. It also
remains tough and flexible over a broad temperature range.
2.The unusual properties of “Tedlar” include excellent resistance to weathering, outstanding
mechanical properties and inertness towards a wide variety of chemicals, solvents and
staining agents.
3.“Tedlar” film tape is strong, flexible and fatigue resistant.
POSSIBLE USES:Outdoor seals of building panels and similar severe exposure application.
Hinge and seal on shower doors.
Scotch brand No. 838
TM
“Tedlar” Plastic Film Tape.
page 2 of 2 FEATURES ADVANTAGES BENEFITS
“Tedlar” backing Conformable Ease of application
Weather resistant Permanent seal
Abrasion resistant
Acrylic adhesive Long aging Reduces replacement costs
Important Notice: All statements, technical information and recommendations herein are based on tests and data we believe to reliable, But the accuracy or completeness thereof is not guaranteed, and the following is made in lieu of all warranties. expressed or implied, including the implied warranties of merchantability and fitness for purpose. Seller’s and manufacturer’s only obligation shall be to replace such quantity of the product proved to be defective.
Before using, user shall determine the suitability of the product for its intended use, and user assumes all risk and liability whatsoever in connection therewith.
NEITHER SELLER NOR MANUFACTURER SHALL BE LIABLE EITHER IN TORT OR IN CONTRACT FOR ANY LOSS OR DAMAGE, DIRECT,
INCIDENTAL, OR CONSEQUENTIAL, ARISING OUT OF THE USE OF OR THE INABILITY TO USE THE PRODUCT. No statement or recommendation not contained herein shall have any force of effect unless in an agreement signed by officers of seller and manufacturer.
70-0703-2483-8 “Scotch” is a trademark of 3M 3M 1989 Litho in USA with 3M offset plates, film and proofing systems.
3M Industrial Tape Array Division
3M Center Bldg. 220-8E-04
St. Paul. NM 55411-1000。
