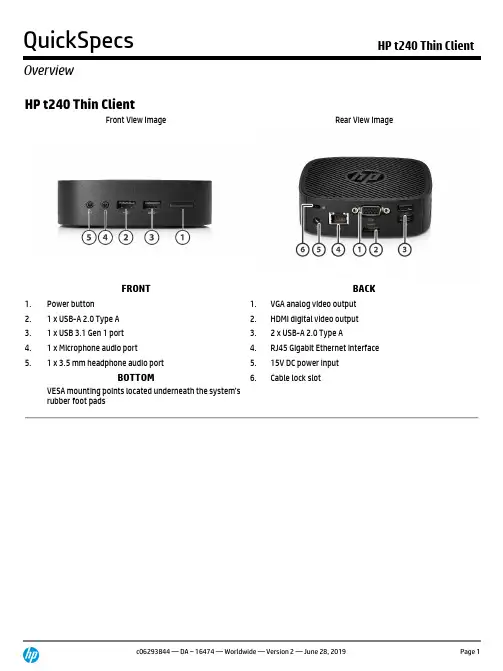

HP t240 Thin Client 产品说明书

HP t240 Thin ClientFront View Image Rear View ImageFRONT BACK1. Power button 1. VGA analog video output2. 1 x USB-A 2.0 Type A 2. HDMI digital video output3. 1 x USB 3.1 Gen 1 port 3. 2 x USB-A 2.0 Type A4. 1 x Microphone audio port 4. RJ45 Gigabit Ethernet interface5. 1 x 3.5 mm headphone audio port 5. 15V DC power inputBOTTOM 6. Cable lock slotVESA mounting points located underneath the system’srubber foot padsAT A GLANCE•Intel® Atom® Processor x5-Z8350; 1.44 – 1.92 GHz quad-core processor•Embedded DDR3L single-channel SDRAM system memoryo HP ThinPro models configured with 2 GB•Embedded Multi Media Cardo HP ThinPro models configured with 8 GB• 1 x VGA, 1 x HDMI 1.4b video outputs supporting up to (1920 x 1080) resolutions.•Gigabit Ethernet (GbE) network connection supported via an integrated Realtek GbE NIC module and presented with an RJ45 connector on the rear I/O panel•Optional Wi-Fi® including antennas integrated internally in the chassis1.•USB ports located on the front and back panels, including one USB-A 3.1 Gen 1 Type A port and three USB 2.0 Type A ports • 3.5 mm headphone audio port on front panel that will support a headphone or an external speaker system• 3.5 mm microphone audio port on front panel that will support a microphone•Integrated VESA 75:100 mounting system; the four threaded holes are conveniently located under the unit’s rubber foot pads•The security features include a system UEFI designed to address NIST SP 800-147 guidelines and cable lock slot•ENERGY STAR® certified.•Post-consumer recycled plastics content greater than 25% total unit plastics (by weight)•Low halogen2material content1 Wireless access point and Internet access is required; availability of public wireless access points is limited2 This product is low halogen except for power cords, cables and peripherals; service parts obtained aftermarket may not be low halogen WarrantyHP Customer Support: limited three-year hardware limited warranty in most regions; HP Care Packs are optional extended service contracts that go beyond your standard limited warranties; for more details visit /go/cpcOPERATING SYSTEMSHP ThinPro, including HP Smart Zero Core (Not default setting and customer need to configure)GRAPHICSNumber of displays supported: One or two displays.NOTE: a maximum of two displays are supported.Video outputs: 1 x HDMI port 1 x VGA portNOTE:Dual displays are supported using the following video output combinations:•HDMI + VGAVideo Resolution Support MatrixMEMORYType: Single channel DDR3L SDRAM (Soldered down)Data Transfer Rate (speed): up to 1,600 MT/sPeak Transfer Rate (bandwith): 12,800 MB/sNumber of slots: 0 slots; memory is embeddedMemory Capacity: 2 GB on ThinPro modelsReserved for graphics: Max 2 GBNOTE:The system’s Graphics Processing Unit (GPU) uses part of total system memory. System memory dedicated to graphics performance is not available for use by other programsUEFI (Unified Extensible Firmware Interface)•UEFI Specification Revision: 2.3.1•Meets requirements for Common Criteria, an independent third-party certification of trustworthiness•Meets requirements for FIPS 140-2, a standard for cryptographic integrity•Designed to address NIST SP800-147 guidelinesSTORAGEType: eMMc 4.51Number of sockets: 0 slots; flash storage is embeddedStorage Capacity: 8 GB on HP ThinPro modelsINPUT/OUTPUTUSB ports: 1 x USB 3.1 Gen 1 Type A front port and 1 x USB 2.0 Type A front port2 x USB 2.0 Type A rear portsVideo outputs*: 1 x VGA1 x HDMI 1.4bOther: 1 x RJ45 GbE interface1 x 3.5mm headphone port 1 x 3.5 mm microphone portNOTE: 2 video outputs can be used simultaneouslyAUDIO/VIDEOAudio: 3.5 mm headphone audio port supporting headphones or and external speaker 3.5 mm microphone audio port on front panel that will support a microphone Audio CODECs include MP3, HEAAC, WMA 7/8/9Includes hardware acceleration supportVideo: MPEG-4 part 4 (HP.263)MPEG-4 part 10 (H.264), Advanced Video Coding (AVC) WMV 7/8/9VC1Includes hardware acceleration supportHARDWARE SECURITY•Security lock support (slim cable lock sold separately) NETWORKINGWired networks: Realtek Gigabit Ethernet (GbE) Wake on LANPXE (UEFI only)TCP/IP with DNS DHCPWireless networks: AzureWave CM 276NF( Dual band 802.11 a/b/g/n/ac wireless) NGFF moduleNOTE: Wireless access point and Internet access required. Availability of public wireless access point may be limited. Wireless features, performance and support may vary depending on environmental variables such as placement, settings and firmware of the access point. Contact your wireless vendor for support.WEIGHTS & DIMENSIONSW x D x H 110 x 110 x 30 mmVolume 0.3literSystem Weight 276 g (0.61 lb.)Shipping Weight 1690 g (3.73 lb.)NOTE: All measurements are approximate; the addition of optional modules will increase the weightPOWER SUPPLY15W external power adapterWorldwide auto-sensing 100-240 VAC, 50-60 HzEnergy saving automatic power-downSurge tolerantAGENCY COMPLIANCEEnvironmental Stewardship: ENERGY STAR®, EPEAT®, ROHS, ERP, CECP, HP GSE, etc. Product Safety: IEC60950-1, EN60950-1, UL60950-1 GS, BIS & CCC) Electromagnetic Compliance (EMC): FCC, EN55032 Class B, EN55024 & FCCENVIRONMENTALOperating Temperature Range: 50° to 104° F (10° to 40° C)Non-operating Temperature Range: -22° to 140° F (-30° to 60° C)Humidity: Condensing: 20% to 80% Non-condensing: 10% to 90%NOTE: Specifications are at sea level with altitude derating of 1° C/300m (1.8° F/1000ft) to a maximum of 3 Km (10,000 ft), with no direct, sustained sunlight. Upper limit may be limited by the type and number of options installed.Eco-Label Certifications & declarations This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:•ENERGY STAR®•EPEAT® Silver registered in the United States. See for registration status in your country.•IT ECO declarationEnergy Consumption(in accordance with US ENERGY STAR®115 V ac, 60 Hz 230 V ac, 50 Hz 100 V ac, 50 Hztest method)Normal Operation (Short idle) 2.90 W 3.00 W 2.90 W Normal Operation (Long idle) 2.40 W 2.60 W 2.40 WSleep 2.40 W 2.50 W 2.30 WOff 0.30 W 0.30 W 0.30 WHeat Dissipation* 115 V ac, 60 Hz 230 V ac, 50 Hz 100 V ac, 50 Hz Normal Operation (Short idle) 10 BTU/hr 10 BTU/hr 10 BTU/hr Normal Operation (Long idle) 8 BTU/hr 9 BTU/hr 8 BTU/hrSleep 8 BTU/hr 9 BTU/hr 8 BTU/hrOff 1 BTU/hr 1 BTU/hr 1 BTU/hrNOTE:Heat dissipation is calculated based on the measured watts, assuming the servicelevel is attained for one hour.Additional Information •This product is in compliance with the Restrictions of Hazardous Substances(RoHS) directive -2011/65/EC.•This HP product is designed to comply with the Waste Electrical and ElectronicEquipment (WEEE) Directive – 2002/96/EC.•This product is in compliance with California Proposition 65 (State of California;Safe Drinking Water and Toxic Enforcement Act of 1986).•This product is in compliance with the IEEE 1680 (EPEAT®) standard at the Silverlevel, see •Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and ISO1043.•This product contains 1.75 % post-consumer recycled plastic (by wt.)•This product is 91.4 % recycle-able when properly disposed of at end of life.Packaging Materials External: PAPER/Paperboard 427 gInternal: PLASTIC/Polyethylene high density - HDPE 2 gPLASTIC/LDPE 16 gRoHS Compliance HP Inc. is committed to compliance with all applicable environmental laws andregulations, including the European Union Restriction of Hazardous Substances (RoHS)Directive. HP’s goal is to exceed compliance obligations by meeting the requirements ofthe RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances will bevirtually eliminated (virtually = to levels below legal limits) for all HP electronic productssubject to the RoHS Directive, except where it is widely recognized that there is notechnically feasible alternative (as indicated by an exemption under the EU RoHSDirective).Material Usage This product does not contain any of the following substances in excess of regulatorylimits (refer to the HP General Specification for the Environment at/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html):•Asbestos•Certain Azo Colorants•Certain Brominated Flame Retardants – may not be used as flame retardants inplastics•Cadmium•Chlorinated Hydrocarbons•Chlorinated Paraffins•Formaldehyde•Halogenated Diphenyl Methanes•Lead carbonates and sulfates•Lead and Lead compounds•Mercuric Oxide Batteries•Nickel – finishes must not be used on the external surface designed to befrequently handled or carried by the user.•Ozone Depleting Substances•Polybrominated Biphenyls (PBBs)•Polybrominated Biphenyl Ethers (PBBEs)•Polybrominated Biphenyl Oxides (PBBOs)•Polychlorinated Biphenyl (PCB)•Polychlorinated Terphenyls (PCT)•Polyvinyl Chloride (PVC) – except for wires and cables, and certain retailpackaging has been voluntarily removed from most applications.•Radioactive Substances•Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)Packaging HP follows these guidelines to decrease the environmental impact of product packaging:•Eliminate the use of heavy metals such as lead, chromium, mercury andcadmium in packaging materials.•Eliminate the use of ozone-depleting substances (ODS) in packaging materials.•Design packaging materials for ease of disassembly.•Maximize the use of post-consumer recycled content materials in packagingmaterials.•Use readily recyclable packaging materials such as paper and corrugatedmaterials.•Reduce size and weight of packages to improve transportation fuel efficiency.•Plastic packaging materials are marked according to ISO 11469 and DIN 6120standards.End-of-life Management and Recycling HP Inc. offers end-of-life HP product return and recycling programs in many geographicareas. To recycle your product, please go to: /go/reuse-recycle orcontact your nearest HP sales office. Products returned to HP will be recycled, recoveredor disposed of in a responsible manner.The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatmentinformation for each product type for use by treatment facilities. This information(product disassembly instructions) is posted on the HP Inc. web site at:/go/recyclers. These instructions may be used by recyclers and otherWEEE treatment facilities as well as HP OEM customers who integrate and re-sell HPequipment.Technical specificationsHP, Inc. Corporate EnvironmentalFor more information about HP’s commitment to the environment:InformationGlobal Citizenship Report/hpinfo/globalcitizenship/gcreport/index.htmlEco-label certifications/hpinfo/globalcitizenship/environment/productdesign/ecolabels.htmlISO 14001 certificates:/V2/GetDocument.aspx?docname=c04755842and/hpinfo/globalcitizenship/environment/pdf/cert.pdfSummary of Changes© 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express limited warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. AMD and Radeon are trademarks of Advanced Micro Devices, Inc. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. Amazon Web Services, the “Powered by Amazon Web Services” logo, and Amazon WorkSpaces are trademark s of , Inc. or its affiliates in the United States and/or other countries. Bluetooth® is a trademark owned by its proprietor and used by HP Inc. under license. ENERGY STAR is a registered trademark owned by the U.S. Environmental Protection Agency. Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Intel® is a trademark of Intel Corporation in the U.S and other countries. VMware Horizon and VMware Horizon View are registered trademarks or trademarks of VMware, Inc. in the United States and/or other jurisdictions. Citrix and Citrix Workspace are trademarks of Citrix Systems, Inc. and/or one more of its subsidiaries, and may be registered in the United States Patent and Trademark Office and in other countries.。

ThinkcentreM2600c瘦客户机WES7操作系统的使用手册

WES7用户手册注释、警示及警告本出版物中的信息如有更改，恕不另行通知。

1目录简介 (4)什么是Windows Embedded Standard 7 (WES7)? (4)WES7特点 (4)首次启动向导 (5)了解您的瘦客户端 (6)用户和组 (6)创建新用户帐户 (7)FBWF/EWF Manager的配置和使用 (8)使用瘦客户端 (13)自定义您的瘦客户端 (13)瘦客户端选项 (14)LTM系统信息 (14)2网络 (16)设置静态/动态IP (16)OS构建的日期和LTM代理 (18)验证OS生成日期 (18)验证LTM代理版本和状态 (18)31简介什么是Windows Embedded Standard 7 (WES7)?Windows Embedded Standard7（WES7）是一个完全组件化的操作系统，这是Windows Embedded Standard的继任者。

它提供了完整的Windows 7界面并可用于嵌入式系统。

WES7特点∙多媒体网页浏览-WES7使用了Internet Explorer8中改进的导航，支持CSS样式、RSS feeds，及 Windows媒体播放器，来管理数字音乐，照片和视频库。

WES7还配备了微软的Silverlight，使您的瘦客户端能够运行交互式应用程序，支持DirectX 113D和全彩色视频，支持数字和模拟电视，让您高清体验喜爱的节目或视频。

∙现代网络-WES7采用了业界最好协议PCoIP的托管服务器，和Citrix、 VMware等虚拟化软件平台有着良好的兼容性。

WES7也使用802.11，IEEE 802.1X和WPA2用于无线连接，支持USB 2.0和Internet连接共享和保护，支持即插即用。

∙第三方客户端-联想瘦客户端还包含常用的客户端服务器应用程序如Citrix联机插件和VMware View。

8860简易操作手册

8860简易操作手册
一、连接并打开电源，包括存储设备，输入设备，连接线。

二、必要时进行系统复位，若重复上次的测试，则不建议复位。

复位的步骤如下图：、
三、通道的设置
回到设置界面可以按“SET”键。

1，打开需要使用的通道，关闭不需要使用的通道。

2，对每个通道的具体信息进行设置。

3，对每个通道进行触发的设置。

4，分页显示：如果需要同时监测多个通道时可以分页演示，设置页面和显示页面如下。

4，电流测试和差分探头使用方法。

测试电流和使用差分探头时，需打开换算功能。

5，保存
选择保存路迳和保存类型四、波形查看。

惠普瘦客户机ThinClient产品与使用介绍

惠普瘦客户机主要适用范围有哪些？
垂直解决方案
行业解决方案/目标客户
惠普远程解决方案 DSO
精简PC解决方案
无盘站解决方案
终端服务解决方案
远程办公VDI解决方案
远程研发VDI虚拟化解决方案
远程设计工作站+RGS解决方案
银行，零售，教育，医疗，制造业，物流，营业厅（政府，电信，电力）…
证券营业厅，学校图书馆，酒店数码e 房
性 (非本地驻留功能) • HP Sygate 安全代理保护系统免于病毒，蠕虫和特
洛伊木马的攻击 • EWF增强的写保护工具 • USB 安全分区保证数据资产安全， • 线缆锁保证物理资产安全
2019年8月24日星
6
期六
HP瘦客户机设计的初衷就是要比传统的台式机安全
主要功能2－管理方便
免费管理工具HP Device manager和 HP Thinstate
其它应用程序:
IE 7, Media Player 11, TeemTalk 7 HP Remote Graphics Software HP Universal Print Driver (available from hp)
管理： HP Easy Tools, HP Device Manager and HP Client Automation
• 传统PC在电源、硬盘、风扇故障率非常高。
2019年8月24日星 10 期六
放心使用，每年2/10000的故障率
重要特性2：节能环保
——瘦客户机与传统PC 耗电量和电费的比较
每天开机8小时，每年260个工作日计算
工业用电- 度（元/千瓦小时）= 瘦客户机
￥1.10 传统台式机

戴尔 Latitude 5280 移动瘦客户端快速入门指南说明书

1Connect the power adapterNetzadapter anschließenBranchez l’adaptateur secteur Sluit de netadapter aanAnslut nätadaptern2Turn on your mobile thin clientMobile Thin Client einschaltenMettez le client léger mobile sous tension Schakel uw mobile thin client inSlå på din bärbara tunna klientProduct support and manuals Produktsupport und Handbücher Support produits et manuelsProductondersteuning en handleidingen Produktsupport och handböcker/wyse/support /wyse/downloadsContact DellKontaktaufnahme mit Dell | Contacter Dell Contact opnemen met Dell | Kontakta Dell /contactdellRegulatory and safetySicherheitshinweise und Zulassungsinformationen Réglementations et sécuritéRegelgeving en veiligheid | Reglering och säkerhet /regulatory_complianceRegulatory modelMuster-Modellnummer | Modèle réglementaire Beschreven model: | Regleringsmodell P72SRegulatory typeMuster-Typnummer | T ype réglementaire Beschreven type: | RegleringstypP72S001Client device modelClient-Gerätemodell | Modèle du périphérique client Model clientapparaat | KlientenhetsmodellDell Latitude 5280 Mobile TC© 2017 Dell Inc. or its subsidiaries.2017-06FeaturesFunktionen | Caractéristiques | Kenmerken | Funktioner1. Infrared (IR) camera (optional)2. Infrared emitter (optional)3. Camera status light (optional)4. Camera (optional)5. uSIM card slot (optional)6. microSD card reader7. Dual array microphones8. Power button9. Nobel Wedge lock slot10. Network port11. VGA port12. USB 3.0 port with PowerShare13. Headset/Microphone port14. Touch Fingerpint reader (optional)15. Battery charge status light16. Speakers17. T ouchpad18. Smart card reader (optional)19. USB 3.0 port20. HDMI port21. DisplayPort over USB T ype-C22. Power connector port23. Service tag label1. Caméra infrarouge (IR) (en option)2. Émetteur infrarouge (en option)3. Voyant d’état de la webcam(en option)4. Webcam (en option)5. Logement de carte uSIM (en option)6. Lecteur de carte microSD7. Deux microphones8. Bouton d’alimentation9. Emplacement pour verrou de sécuritéNoble10. Port réseau11. Port VGA12. Port USB 3.0 avec PowerShare13. Port casque/microphone14. Lecteur d’empreintes digitales(en option)15. Voyant de niveau de charge de labatterie16. Haut-parleurs17. Pavé tactile18. Lecteur de carte à puce (en option)19. Port USB 3.020. Port HDMI21. DisplayPort avec USB T ype-C22. Port du connecteur d’alimentation23. Étiquette du numéro de service1. Infrarotkamera (optional)2. Infrarotsender (optional)3. Kamerastatusanzeige (optional)4. Kamera (optional)5. USIM-Kartensteckplatz (optional)6. microSD-Kartenleser7. Dual-Array-Mikrofone8. Betriebsschalter9. Steckplatz für Nobel Wedge-Schloss10. Netzwerkanschluss11. VGA-Anschluss12. USB 3.0-Anschluss mit PowerShare13. Headset-/Mikrofonanschluss14. Fingerabdruckleser mit T ouch-Funktion(optional)15. Akkuladeanzeige16. Lautsprecher17. Touchpad18. Smart Card-Leser (optional)19. USB 3.0-Anschluss20. HDMI-Anschluss21. DisplayPort über USB T yp-C22. Netzanschluss-Port23. Service-Tag-Etikett1. Infraroodcamera (optioneel)2. Infraroodzender (optioneel)3. Camera-statuslampje (optioneel)4. Camera (optioneel)5. uSIM-kaartsleuf (optioneel)6. microSD-kaartlezer7. Dual array-microfoons8. Aan-uitknop9. Sleuf voor Nobel Wedge-slot10. Netwerkpoort11. VGA-poort12. USB 3.0-poort met PowerShare13. Headset/microfoon-poort14. Vingerafdruklezer (optioneel)15. Lampje voor batterijladingsstatus16. Luidsprekers17. Toetsenblok18. Smart card-lezer (optioneel)19. USB 3.0-poort20. HDMI-poort21. DisplayPort via USB Type-C22. Netconnectorpoort23. Servicetaglabel1. Infraröd (IR) kamera (tillval)2. Infraröd sändare (tillval)3. Kamerastatuslampa (tillval)4. Kamera (tillval)5. uSIM-kortplats (tillval)6. microSD-kortläsare7. Dubbla matrismikrofoner8. Strömbrytare9. Nobel Wedge-låsfack10. Nätverksport11. VGA-port12. USB 3.0-port med PowerShare13. Headset-/mikrofonport14. Fingertrycksavläsare (tillval)15. Statusindikatorlampa förbatteriladdning16. Högtalare17. Pekskiva18. Smartkortläsare (tillval)19. USB 3.0-port20. HDMI-port21. DisplayPort via USB Type-C22. Port för nätanslutning23. Etikett med servicenummer。

thinclient方案

HP瘦客户机解决方案案例参考某金属制品有限公司目录总则 (3)第一章瘦客户机模式与PC组网模式的比较 (4)1.1安全性高 (4)1.2管理性好 (4)1.3维护性好 (4)1.4使用简单 (4)1.5扩充规模简单 (4)1.6节约建设投资 (5)第二章庆琏公司方案设计 (5)2.1方案设计原则 (5)2.2用户需求分析 (6)2.3具体解决方案 (6)2.4 HP ProLiant DL385产品介绍 (10)2.5 DFTraid 5012G4R (11)磁盘阵列 (11)概述： (11)主要特性及优点： (11)2.6 HP T5720A产品介绍 (15)2.7 HP T5520产品介绍 (16)第三章使用HP瘦客户机解决方案客户收益 (18)3.1较传统PC更低的总体拥有成本（图一和图二） (18)3.2良好的数据安全性 (19)3.3集中便捷管理的客户端 (20)第四章HP瘦客户机的优势 (21)4.1先进的软件平台 (21)4.2一流的硬件设计 (21)4.3业内的广泛支持 (22)4.3长期稳定的支持 (22)第五章售后服务、技术支持、软件升级的保障 (23)5.1服务项目介绍 (23)5.2 技术服务中心................................................................................................ 错误！未定义书签。

5.3售后服务承诺................................................................................................. 错误！未定义书签。

第六章报价................................................................................................................. 错误！未定义书签。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

Thin client T680简易使用手册
云终端---颠覆IT产业格局的网络计算机
软件安装在服务器上，大大节省IT购置成本
终端免维护，无需担心病毒侵入
数据集中存储，无需担心私密数据的外泄
绿色环保、云终端只有5W功耗、低热量、超静音，精巧美观。

一、云终端简介
1、功能简介
Thin client T680是一种精巧别致的网络计算设备，又名云终端。

它既
可以作为迷你PC单独运行，进行网页浏览，文档编阅，影音播放，又可以通过RDP远端协议架构共享计算网络，以创新的成本优势开展业务运营网。

Thin client的价格仅相当于传统个人PC 的
10%-20%，并且采用软硬件一体化设计，即利于维护又方便管理。

服务端采用Multi User 技术，可实现主机资源的共享，使用完整的桌面终端服务而无需Windows 许可证。

服务端统一管理，升级维护工作都在服务端进行，真正做到终端接近“零”维护。

小巧机身、无需风扇散热、无噪音干扰、5W的超低功耗、低辐射、绿色健康环保！Mini station全面支持Windows 2000/XP/VISTA/7/2008整
个Windows家族操作系统作为服务端使用，从而避免了传统的终端服务只能用Windows 2000/2003服务器操作系统的应用瓶颈。

2、接口展示
3、产品拓扑图
二、服务器端部分设置说明
1、设置服务器静态IP 地址与子网掩码
所有的windows操作系统安装服务软件作为服务器时，请务必先设置好服务器的静态IP地址
方法：桌面右击网上邻居—属性——右击本地连接——属性——双击Internet协议（TCP/IP）——设置IP 地址与子
网掩码
2、确定服务器操作系统版本
在设置好IP 地址之后，我们确定当前服务器操作系统的版本，此版本与第三步服务器软件安装时菜单中的系统版本一
定要一致，
方法一：右击我的电脑——属性，看到系统属性，方法二：点击开始——运行——输入：winver
3、服务器软件安装
打开光盘找到安装盘见安装即可。

（默认C盘，软件安装前，请关掉杀毒软件和防火墙）
云终端快速新建用户和远程监控1桌面点云终端T680软件Nettc
2点
添加
用户
3，输入你想建的用户和密码，例如你带5台终端就选择1—5
4，远程监控终端T680，只能一台一台监控，输入终端ip地址点ok 就可以看到
三、终端部分设置说明
3.1 启动前的准备
为了使用云终端，您还需要准备一些外围设备。

首先您需要准备视频输出设备，您可以选择具有VGA 接口的多种输出设备，包括显示器，投影仪以及部分型号的液晶电视等。

终端主要的功能是网络终端的功能，因此网络连接是十分重要的。

您需要准备好网络接口。

请准备好畅通的网络接口。

为了能够对云终端进行操作，您还需要准备输入设备，具有USB 接口的键盘和鼠标是最基础的设备。

云终端有耳机与麦克风接口，您可以准备耳机和麦克风，来使用云终端的语音功能。

如果需要使用打印机，请选择云终端支持的、具有USB 接口的打印机。

具体云终端支持的打印机列表，请参阅附录。

云终端支持使用具有USB 接口的移动硬盘以及U 盘。

并能够识
别FAT32 格式的分区。

做好了以上准备，您就可以开始体验云终端了。

3.2 安装云终端
3.2.1 安装前准备
在准备好所有外围设备后，您需要确认产品部件是否完整。

确认好后，即可开始安装。

安装步骤如下：
1. 连接显示器：将显示器的信号线接入到云终端的VGA 接口。

2. 连接网线：将普通10～100M 网线接入云终端的网线口。

3. 连接鼠标键盘：将USB 鼠标键盘的USB 线接入到云终端USB 接口。

4. 连接耳机麦克风：将耳机麦克风分别接入到云终端的对应接口上，注意耳机接口是绿色，麦克风接口是红色。

5. 接通电源：接通云终端电源，接通显示器电源，按下云终端电源按钮，系统即可正常启动。

单击进入
单击
单击进入
可设置自动获取IP地址，或者指定IP地址，固态IP环境请务必指定IP;此界面加载了ping 主机IP 功能，检测网络环境.
单击进入
可以升级开机画面和系统
单击进入
默认密码是空密码，为了方便管理，管理员可以设置密码单击进入
单击桌面模式
有线云终端自动连接设置
开机---进入开机界面--- -----
---单击
--- （输入用户名和密码、勾
选“记住密码”--- （勾选）---连接到主机后—再重启终端自动执行连接主机。

无线云终端自动连接设置
进入本地模式--- （设置好无线网络）---双击
--- ----单击
进入---
（延迟20秒）---连接主机后—重启。

此手册位最新系统使用说明，使用过程中有不恰当或者缺失的地方，请致电供应商或者深圳市中网联讯科技有限公司，谢谢！。
