muRata电感命名规则
muRata电感命名规则
还是先举个例子吧，让大家先有个直观的了解：
LQG15HS1N2S02D：这是0402封装的1.2nH电感，精度误差±0.3nH。
LQG15HS是0402封装的一个电感系列；
1N2表示1.2nH；
S表示精度误差±0.3nH；
0表示特征是“标准型”，LQG15HS系列的这个数值都是0；
2表示电极是锡；
D表示包装是纸带 (?180mm卷盘)
详细的说明如下：
6，电感值
由3位字母数字表示。
单位为微亨(μH)。
第1位和第2位数字为有效数字，第3位数字表示有效数字后的0的个数。
有小数点时以大写字母"R"表示。
此时，所有数字均为有效数字。
如果电感值小于0.1μH，则电感值以两个数字和大写字母"N"的组合来表示，电感
w结构值单位使用纳亨(nH)。
大写字母"N"表示单位"nH"，同时含有1个小数点。
在这种情况时所有数字均为有效数字。
*1：不包括LQM21N系列*2：不包括LQH32系列9，电极
*1不包括LQH43C/LQH66S
*2仅限LQM21D(22 - 47μH)/LQM21F(4.7 - 47μH)/LQM21N(2.7 - 4.7μH)。
*3仅限LQM21D(1.0 - 10μH)/LQM21F(1.0 - 2.2μH)/LQM21N(0.1 - 2.2μH)。
*4不包括LQP15T。
国内外常用电子元器件型号命名规则比如：电阻器,电容器
(5)日本松下旗下三洋电机(Panasonic)
(6)韩国三星(SAMSUNG)
(7)美国基美(KEMET)
(8)英国Syfer
(9)中国台湾国巨(YAGEO)
(10)中国台湾华新科技(WALSIN)
3.电感器
4.变压器
5.二极管
6.三极管
7.发光二极管
8.扬声器
9.电声器件
10晶闸管
11.继电器
国外：
1.国际电子联合会半导体器件命名法
国际电子联合会晶体管型号命名法的特点：
1)这种命名法被欧洲许多国家采用。因此，凡型号以两个字母开头，并且第一个字母是A，B，C，D或R的晶体管，大都是欧洲制造的产品，或是按欧洲某一厂家专利生产的产品。
2)第一个字母表示材料（A表示锗管，B表示硅管），但不表示极性（NPN型或PNP型）。
3)第二个字母表示器件的类别和主要特点。如C表示低频小功率管，D表示低频大功率管，F表示高频小功率管，L表示高频大功率管等等。若记住了这些字母的意义，不查手册也可以判断出类别。例如，BL49型，一见便知是硅大功率专用三极管。
4)第三部分表示登记顺序号。三位数字者为通用品；一个字母加两位数字者为专用品，顺序号相邻的两个型号的特性可能相差很大。例如，AC184为PNP型，而AC185则为NPN型。
8)日本通常把Pcm≥1W的管子，称做大功率管。
5)第四部分字母表示同一型号的某一参数（如hFE或NF）进行分档。
6)型号中的符号均不反映器件的极性（指NPN或PNP）。极性的确定需查阅手册或测量。
2.美国半导体器件型号命名法
美国晶体管或其它半导体器件的型号命名法较混乱。这里介绍的是美国晶体管标准型号命名法，即美国电子工业协会（EIA）规定的晶体管分立器件型号的命名法。如下表：
Murata中文电容编码规则
7U
U2J EIA 25°C 25 to 125°C *5 –750±120ppm/°C –55 to 125°C 8.78 5.04 6.04 3.47 3.84 2.21
9C
CGJ *2
20°C
20 to 85°C
0±30ppm/°C
–55 to 85°C 0.54 –0.23 0.33 –0.14 0.22 –0.09
3
4
GR
7
J
High effective capacitance & High allowable ripple current 高效电容&高可容许纹波电流 For Ethernet LAN & primary-secondary coupling of DC-DC converters 用于以太局域网&直流-直流变换器的主次结构耦合 Product limited to camera flash units 产品仅限于相机的闪光灯 Soft termination type 软终端类型
芯片尺寸（LXW）（ 除了ZRA） 3Chip Dimensions (LxW) (Except ZRA) 尺寸（LXW）
尺寸（LXW）（ 只用于ZRA） 3Dimensions (LxW) (ZRA Only)
代码 Code 01
Dimensions (LxW) 0.25x0.125mm
EIA 008004
Product ID
Code 代码
Series 系列
2 GA
3
Products based on the Electrical Appliance and Material Safety Law of Japan产品基于日本电气设备和材料安全法律 Safety standard certified type 安全标准认证的类型
【电容的型号命名规则】murata电容命名规则
【电容的型号命名规则】murata电容命名规则电容的型号命名：1、各国电容器的型号命名很不统一，国产电容器的命名由四部分组成：第一部分：用字母表示名称，电容器为C。
第二部分：用字母表示材料。
第三部分：用数字表示分类。
第四部分：用数字表示序号。
2、电容的标志方法：(1)直标法：用字母和数字把型号、规格直接标在外壳上。
(2)文字符号法：用数字、文字符号有规律的组合来表示容量。
文字符号表示其电容量的单位：P、N、u、m、F等。
和电阻的表示方法相同。
标称允许偏差也和电阻的表示方法相同。
小于10pF的电容，其允许偏差用字母代替：B——±0.1pF，C——±0.2pF，D——±0.5pF，F——±1pF。
(3)色标法：和电阻的表示方法相同，单位一般为pF。
小型电解电容器的耐压也有用色标法的，位置靠近正极引出线的根部，所表示的意义如下表所示：颜色黑棕红橙黄绿蓝紫灰耐压 4V 6.3V 10V 16V 25V 32V 40V 50V 63V (4)进口电容器的标志方法：进口电容器一般有6项组成。
第一项：用字母表示类别：第二项：用两位数字表示其外形、结构、封装方式、引线开始及与轴的关系。
第三项：温度补偿型电容器的温度特性，有用字母的，也有用颜色的，其意义如下表所示：序号字母颜色温度系数允许偏差字母颜色温度系数允许偏差 1 A 金+100 R 黄 -220 2 B 灰 +30 S 绿 -330 3 C 黑 0 T 蓝 -470 4 G ±30 U 紫 -750 5 H 棕 -30 ±60 V -1000 6 J ±120 W -1500 7 K ±250 X -2200 8 L 红 -80 ±500 Y -3300 9 M ±1000 Z -4700 10 N ±2500 SL +350~-1000 11 P 橙 -150 YN -800~-5800 备注：温度系数的单位10e -6/℃；允许偏差是 % 。

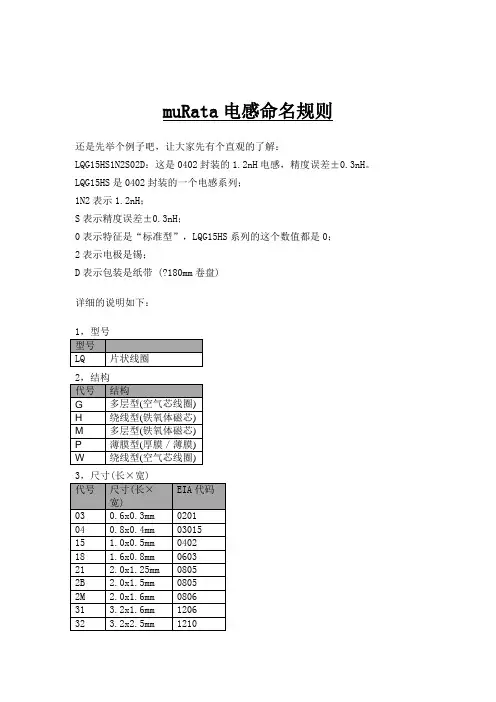

(完整版)muRata电感命名规则
muRata电感命名规则
还是先举个例子吧，让大家先有个直观的了解：
LQG15HS1N2S02D：这是0402封装的1.2nH电感，精度误差±0.3nH。
LQG15HS是0402封装的一个电感系列；
1N2表示1.2nH；
S表示精度误差±0.3nH；
0表示特征是“标准型”，LQG15HS系列的这个数值都是0；
2表示电极是锡；
D表示包装是纸带 (?180mm卷盘)
详细的说明如下：
6，电感值
由3位字母数字表示。
单位为微亨(μH)。
第1位和第2位数字为有效数字，第3位数字表示有效数字后的0的个数。
有小数点时以大写字母"R"表示。
此时，所有数字均为有效数字。
如果电感值小于0.1μH，则电感值以两个数字和大写字母"N"的组合来表示，电感
w结构值单位使用纳亨(nH)。
大写字母"N"表示单位"nH"，同时含有1个小数点。
在这种情况时所有数字均为有效数字。
*1：不包括LQM21N系列*2：不包括LQH32系列9，电极
*1不包括LQH43C/LQH66S
*2仅限LQM21D(22 - 47μH)/LQM21F(4.7 - 47μH)/LQM21N(2.7 - 4.7μH)。
*3仅限LQM21D(1.0 - 10μH)/LQM21F(1.0 - 2.2μH)/LQM21N(0.1 - 2.2μH)。
*4不包括LQP15T。
陶瓷贴片电容丶贴片电感丶片式磁珠命名规则与基本知识
陶瓷贴片电容、贴片电感.片式磁珠muRuta村田命名规则与基本知识一、村田陶瓷贴片电容知识M名衣示法如卜：片状独们盹瓷电容器GRM 15.3R7K 225KE15D•GRM—农示儀锡电极：卄通貼片期瓷12容•常用的村｝ 11容就是GRM艸通贴片海瓷电容与GNM卄通贴片搏容：•18——衣示尺寸（长*宽）:1.6*0.8mm即内通用尺对衣示是（K*审）1.6*0.8mm （单位为mm：c词阿卜通用尺、J A示是用英寸0603 （单位为inch；，卜J E询常用代码仃03、15、18、21、31、32、42、43、55〕；，II 体的对应值如卜I03-...0.6*0.3mm- (0201)15——1.0*0.5mm~-040218-...1.6*0.8mm- (0603)21-—2.0# 1.25mm——080531一“3.2* 1.6mm—120632-—3.2* 1.5mm一・121042一.5*2.0mm——180843 …45*3・2mm•—181255—5.7 拿5・0mm——2220•8——衣示用度（T：: 0.8mm常用厚度村田代码仃5、6、8、9、B、C、E：'h貝㈱对应值如卜：5-…0.5mm 6-…0.6mm 8-…0.8mm 9-…0.9mm B-…1.25mm C-…1.6mm E -—2.5mm•R7——农示材质：X7R常用材质村t：代码有5C、R6、R7、F5等,R体的对应值如卜：5C--COG/NPO/CHR6——X5RR7——X7RF5・——Y5V5C I仆温度是・55度一+125必温度系敌是0+・30ppm/gR6 I作泪度是・55度一H85度，SH度系数是+-15%:R7 1作温度是・55度一H25度,温度系数好+15%:F5 I作fiU是・30度—85度.温度系数是+22 -82%lOOpfW卜小容fi*L般采比5C材頂，100PF—luf人一般采用R7材质，luf以上一股采用R6材质,櫛S®求不禹的般采用F5材质。
村田Murata LQ系列电感命名方式
B C D G H J K S W iFeatures Code Features Standard Type High-Q/ Low DC Resistance
Series LQG/LQP/LQW/LQH*1 LQW15A/18A/2BH
rApplications and Characteristics Code H M T A H H tCategory Code N S Category Standard Type Series LQG LQP LQW LQH Applications and Characteristics Multilayer Air-core Inductor (Coil) Film Type Film Type (Low DC Resistance Type) High Q Type (UHF-SHF) High Q Type (VHF-UHF) for High-frequency Resonant Circuit
RF Inductor Part Numbering
(Part Number)
LQ q
G w
15 e
H
N
1N0 y
S
0
2
D
yInductance Expressed by three-digit alphanumerics. The unit is micro-henry (µH). The first and second figures are significant digits, and the third figure expresses the number of zeros which follow the two figures. If there is a decimal point, it is expressed by the capital letter "R". In this case, all figures are significant digits. If inductance is less than 0.1µH, the inductance code is expressed by a combination of two figures and the capital letter "N", and the unit of inductance is nano-henry (nH). The capital letter "N" indicates the unit of "nH", and also expresses a decimal point. In this case, all figures are significant digits. uInductance Tolerance Code Inductance Tolerance ±0.1nH ±0.2nH ±0.5nH ±2% ±3% ±5% ±10% ±0.3nH ±0.05nH
村田电容命名规则
村田电容命名规则村田电容型号命名规则muRata村田制作所是电子元器件制造商。
主要制作贴片电容，电感，滤波器等产品，村田制作所的客户分布在PC、手机、汽车电子等领域。
智成电子村田一级代理商详细讲解村田电容型号的命名规则方法。
例如：贴片电容GRM32ER61A107ME20L（1210 X5R 10V 100UF 20%),下面我们把它分解开。
一、GR表示型号:村田贴片电容包含GC,GJ,GM,GQ,GR,KR,LL等二、M表示系列:村田贴片电容包含H,M,A,D,3,J,L三、32表示电容尺寸：村田贴片电容的尺寸包括0201-0402-0603-1206-1210-1812-2220（32是指尺寸长和宽3.2MM*2.5MM，就是我们熟知的1210电容）。
四、E表示厚度2.5MM，村田贴片电容常用的厚度5=0.5mm 6=0.6mm 8=0.8mm 9=0.9mm B=1.25mm C=1.6mm E=2.5mm五、R6代表材质X5R，村田贴片电容的材质常用材质村田代码有5C，R6，R7，F5等，具体的对应值如下：5C=COG/NPO/CH R6=X5R R7=X7R F5=Y5V5C工作温度是-55度+125度，温度系数是0+-30ppm/度；R6工作温度是-55度+85度，温度系数是+-15%；R7工作温度是-55度+125度，温度系数是+-15%；F5工作温度是-30度+85度。
温度系数是+22,-82%六、1A代表电压10V,村田贴片电容常用电压有0J，1A，1C，1E，1H等，对应值如下：0J=6.3V 1A=10V 1C=16V 1E=25V 1H=50V七、107代表容量100UF八、M代表精度+-20%,常用档位有B、C、D、J、K、M、Z,具体对应值如下:B=+-0.1pFC=+-0.25pF D=+-0.5pF J=+-5% K=+-10% M=+-20% Z=+80,-20%九、E20是村田内部代码，不重要。
muRata电感命名规则(可编辑修改word版)
m u R a t a电感命名规则
还是先举个例子吧，让大家先有个直观的了解： LQG15HS1N2S02D：这是 0402 封装的 1.2nH 电感，精度误差±0.3nH。
LQG15HS 是0402
封装的一个电感系列；
1N2 表示 1.2nH；
S 表示精度误差±0.3nH；
0 表示特征是“标准型”，LQG15HS 系列的这个数值都是 0；
2 表示电极是锡；
D 表示包装是纸带 (?180mm 卷盘)
详细的说明如下：
6，电感值
由 3 位字母数字表示。
单位为微亨(μH)。
第 1 位和第 2 位数字为有效数字，第 3 位数字表示有效数字后的 0 的个数。
有小数点时以大写字母"R"表示。
此时，所有数字均为有效数字。
如果电感值小于0.1μH，则电感值以两个数字和大写字母"N"的组合来表示，电感
w 结构值单位使用纳亨(nH)。
大写字母"N"表示单位"nH"，同时含有 1 个小数点。
在这种情况时所有数字均为有效数字。
*1：不包括 LQM21N 系列
*2：不包括 LQH32 系列
9，电极
*1 不包括 LQH43C/LQH66S
*2 仅限 LQM21D(22 - 47μH)/LQM21F(4.7 - 47μH)/LQM21N(2.7 - 4.7μH)。
*3 仅限LQM21D(1.0 - 10μH)/LQM21F(1.0 - 2.2μH)/LQM21N(0.1 - 2.2μH)。
*4 不包括 LQP15T。
美国电子公司(Murata)电感产品说明书
Dimensions: [mm]Scale - 2:1Scale - 2:17447480151744748015174474801517447480151T e m p e r a t u r eT T T 7447480151Further informationComponent Libraries:Altium_WE-TI (22d)Downloads_CADENCE_WE-TI (22a)CadStar_WE-TI (19b)Eagle_WE-TI (19c)Download_IGS_WE-TI_1014PSpice_WE-TI (23a)Download_STP_WE-TI-1014Spectre_WE-TI (23a)Free Sample Order:Order free samples of this article directly here!Tutorials:■Single Coil Inductors (PDF)REDEXPERT:Calculate losses for 7447480151 in REDEXPERTWürth Elektronik eiSos GmbH & Co. KGEMC & Inductive SolutionsMax-Eyth-Str. 174638 WaldenburgGermanyCHECKED REVISION DATE (YYYY-MM-DD)GENERAL TOLERANCE PROJECTIONMETHODTRi004.0002023-12-14DIN ISO 2768-1mDESCRIPTIONWE-TI Radial Leaded Wire WoundInductor ORDER CODE7447480151SIZE/TYPE BUSINESS UNIT STATUS PAGED RA FTCautions and Warnings:The following conditions apply to all goods within the product series of WE-TI of Würth Elektronik eiSos GmbH & Co. KG:General:•This electronic component was designed and manufactured for use in general electronic equipment.•Würth Elektronik must be asked for written approval (following the PPAP procedure) before incorporating the components into any equipment in fields such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network, etc. where higher safety and reliability are especially required and/or if there is the possibility of direct damage or human injury.•Electronic components that will be used in safety-critical or high-reliability applications, should be pre-evaluated by the customer. •The component is designed and manufactured to be used within the datasheet specified values. If the usage and operation conditions specified in the datasheet are not met, the wire insulation may be damaged or dissolved.•Do not drop or impact the components, the component may be damaged.•Würth Elektronik products are qualified according to international standards, which are listed in each product reliability report. Würth Elektronik does not warrant any customer qualified product characteristics beyond Würth Elektroniks’ specifications, for its validity and sustainability over time.•The customer is responsible for the functionality of their own products. All technical specifications for standard products also apply to customer specific products.Product specific:Soldering:•The solder profile must comply with the technical product specifications. All other profiles will void the warranty.•All other soldering methods are at the customers’ own risk.Cleaning and Washing:•Washing agents used during the production to clean the customer application might damage or change the characteristics of the wire insulation, marking or plating. Washing agents may have a negative effect on the long-term functionality of the product. Potting:•If the product is potted in the costumer application, the potting material might shrink or expand during and after hardening. Shrinking could lead to an incomplete seal, allowing contaminants into the core. Expansion could damage the components. We recommend a manual inspection after potting to avoid these effects. Storage Conditions:• A storage of Würth Elektronik products for longer than 12 months is not recommended. Within other effects, the terminals may suffer degradation, resulting in bad solderability. Therefore, all products shall be used within the period of 12 months based on the day of shipment.•Do not expose the components to direct sunlight.•The storage conditions in the original packaging are defined according to DIN EN 61760-2.•The storage conditions stated in the original packaging apply to the storage time and not to the transportation time of the components. Packaging:•The packaging specifications apply only to purchase orders comprising whole packaging units. If the ordered quantity exceeds or is lower than the specified packaging unit, packaging in accordance with the packaging specifications cannot be ensured. Handling:•Violation of the technical product specifications such as exceeding the nominal rated current will void the warranty.•Applying currents with audio-frequency signals might result in audible noise due to the magnetostrictive material properties. •Due to heavy weight of the components, strong forces and high accelerations might have the effect to damage the electrical connection or to harm the circuit board and will void the warranty.•Please be aware that products provided in bulk packaging may get bent and might lead to derivations from the mechanical manufacturing tolerances mentioned in our datasheet, which is not considered to be a material defect.•The temperature rise of the component must be taken into consideration. The operating temperature is comprised of ambient temperature and temperature rise of the component.The operating temperature of the component shall not exceed the maximum temperature specified.These cautions and warnings comply with the state of the scientific and technical knowledge and are believed to be accurate and reliable.However, no responsibility is assumed for inaccuracies or incompleteness.Würth Elektronik eiSos GmbH & Co. KGEMC & Inductive SolutionsMax-Eyth-Str. 174638 WaldenburgGermanyCHECKED REVISION DATE (YYYY-MM-DD)GENERAL TOLERANCE PROJECTIONMETHODTRi004.0002023-12-14DIN ISO 2768-1mDESCRIPTIONWE-TI Radial Leaded Wire WoundInductor ORDER CODE7447480151SIZE/TYPE BUSINESS UNIT STATUS PAGE D RA FTImportant NotesThe following conditions apply to all goods within the product range of Würth Elektronik eiSos GmbH & Co. KG:1. General Customer ResponsibilitySome goods within the product range of Würth Elektronik eiSos GmbH & Co. KG contain statements regarding general suitability for certain application areas. These statements about suitability are based on our knowledge and experience of typical requirements concerning the areas, serve as general guidance and cannot be estimated as binding statements about the suitability for a customer application. The responsibility for the applicability and use in a particular customer design is always solely within the authority of the customer. Due to this fact it is up to the customer to evaluate, where appropriate to investigate and decide whether the device with the specific product characteristics described in the product specification is valid and suitable for the respective customer application or not.2. Customer Responsibility related to Specific, in particular Safety-Relevant ApplicationsIt has to be clearly pointed out that the possibility of a malfunction of electronic components or failure before the end of the usual lifetime cannot be completely eliminated in the current state of the art, even if the products are operated within the range of the specifications.In certain customer applications requiring a very high level of safety and especially in customer applications in which the malfunction or failure of an electronic component could endanger human life or health it must be ensured by most advanced technological aid of suitable design of the customer application that no injury or damage is caused to third parties in the event of malfunction or failure of an electronic component. Therefore, customer is cautioned to verify that data sheets are current before placing orders. The current data sheets can be downloaded at .3. Best Care and AttentionAny product-specific notes, cautions and warnings must be strictly observed. Any disregard will result in the loss of warranty.4. Customer Support for Product SpecificationsSome products within the product range may contain substances which are subject to restrictions in certain jurisdictions in order to serve specific technical requirements. Necessary information is available on request. In this case the field sales engineer or the internal sales person in charge should be contacted who will be happy to support in this matter.5. Product R&DDue to constant product improvement product specifications may change from time to time. As a standard reporting procedure of the Product Change Notification (PCN) according to the JEDEC-Standard inform about minor and major changes. In case of further queries regarding the PCN, the field sales engineer or the internal sales person in charge should be contacted. The basic responsibility of the customer as per Section 1 and 2 remains unaffected.6. Product Life CycleDue to technical progress and economical evaluation we also reserve the right to discontinue production and delivery of products. As a standard reporting procedure of the Product Termination Notification (PTN) according to the JEDEC-Standard we will inform at an early stage about inevitable product discontinuance. According to this we cannot guarantee that all products within our product range will always be available. Therefore it needs to be verified with the field sales engineer or the internal sales person in charge about the current product availability expectancy before or when the product for application design-in disposal is considered. The approach named above does not apply in the case of individual agreements deviating from the foregoing for customer-specific products.7. Property RightsAll the rights for contractual products produced by Würth Elektronik eiSos GmbH & Co. KG on the basis of ideas, development contracts as well as models or templates that are subject to copyright, patent or commercial protection supplied to the customer will remain with Würth Elektronik eiSos GmbH & Co. KG. Würth Elektronik eiSos GmbH & Co. KG does not warrant or represent that any license, either expressed or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination, application, or process in which Würth Elektronik eiSos GmbH & Co. KG components or services are used.8. General Terms and ConditionsUnless otherwise agreed in individual contracts, all orders are subject to the current version of the “General Terms and Conditions of Würth Elektronik eiSos Group”, last version available at .Würth Elektronik eiSos GmbH & Co. KGEMC & Inductive SolutionsMax-Eyth-Str. 174638 WaldenburgGermanyCHECKED REVISION DATE (YYYY-MM-DD)GENERAL TOLERANCE PROJECTIONMETHODTRi004.0002023-12-14DIN ISO 2768-1mDESCRIPTIONWE-TI Radial Leaded Wire WoundInductor ORDER CODE7447480151SIZE/TYPE BUSINESS UNIT STATUS PAGE D RA FT。
murata电容命名规则
murata电容命名规则【提纲】一、Murata电容简介Murata电容，源自日本，是全球领先的陶瓷电容器制造商。
凭借其精湛的工艺技术和严格的品质控制，Murata电容在电子元器件领域享有盛誉。
其产品广泛应用于消费电子、通讯、汽车电子、工业控制等领域。
【提纲】二、Murata电容命名规则详解1.命名格式Murata电容的命名格式为：品牌名（Murata）+ 容量（单位：pF）+ 工作电压（单位：V）+ 封装尺寸（如有）+ 型号（如有）。
2.参数含义- 容量：表示电容器存储电荷的能力，单位为皮法（pF）。
- 工作电压：表示电容器能承受的电压范围，单位为伏特（V）。
- 封装尺寸：表示电容器的物理尺寸，如0805、1206等。
- 型号：表示电容器的系列和特殊性能，如LR系列、HS系列等。
3.常用型号举例例如：Murata LR101C106M500J、Murata HS1612B104K500T等。
【提纲】三、如何选择合适的Murata电容1.容量选择：根据电路设计需求，选择适当容值的电容器。
一般来说，容量越大，电容器的储能能力越强，但体积也越大。
2.工作电压选择：根据电路的工作电压，选择合适的工作电压范围的电容器。
工作电压过高可能导致电容器损坏，过低则可能影响其储能效果。
3.封装尺寸选择：根据电路板的空间大小和安装方式，选择合适的封装尺寸。
常见的封装尺寸有0805、1206、1812等。
4.品质因数选择：品质因数（Q）是衡量电容器性能的重要指标，较高品质因数的电容器具有更好的稳定性、较低的损耗和更小的噪声。
根据电路对性能的要求，选择合适品质因数的电容器。
【提纲】四、应用领域及注意事项1.应用领域：Murata电容广泛应用于各类电子产品，如手机、平板、笔记本等，以及通讯、汽车电子、工业控制等领域。
2.注意事项：- 在高温、潮湿环境下，注意选择耐高温、防潮性能好的电容器。
- 电容器在使用过程中，注意电压、电流等参数的匹配，避免过载使用。
