pET-3a(+)大肠杆菌表达载体说明
pet32a载体上的his蛋白表达条件
pet32a载体上的his蛋白表达条件Pet32a是一种常用的表达载体，用于大肠杆菌中His标签蛋白的高效表达。
His标签是由6个连续的组氨酸残基组成，可以用于方便高效地纯化目标蛋白。
在Pet32a载体中，目标蛋白与截短的Thrombin酶N端连接，形成His-Thrombin蛋白复合体。
这样的连接允许在表达后使用Thrombin 酶进行His标签的切割，得到纯化的目标蛋白。
Pet32a载体的启动子为T7启动子，它能够高效地驱动目标蛋白的表达。
在进行表达之前，需要将目标基因克隆到Pet32a载体中，并利用限制酶切和连接酶进行连接。
连通区域包括5'顺序为T7启动子和截短的Thrombin酶，以及3'顺序为截断的Thrombin裂解位点和聚合酶终止剂。
在大肠杆菌中进行Pet32a载体的转化后，通过大量培养和诱导表达来实现目标蛋白的高效表达。
常用的培养基为LB培养基，可以添加适当的抗生素进行筛选。
常用的抗生素有氨苄青霉素（Ampicillin）和卡那霉素（Kanamycin）。
表达时间和诱导条件是Pet32a载体上的His蛋白表达的关键。
通常情况下，在细胞密度达到指定浓度时，使用异丙硫醇（IPTG）来诱导表达。
IPTG能够拮抗大肠杆菌的阻遏基因，并诱导目标蛋白的高效表达。
常见的IPTG最终浓度为0.1-1 mM，孵育时间为3-24小时。
表达温度一般为37°C，并通过调整培养温度和表达时间来优化表达条件。
在大肠杆菌中进行表达后，目标蛋白一般以包涵体形式表达。
包涵体需要经过裂解和纯化步骤来获得目标蛋白的纯化产物。
对Pet32a载体上His蛋白表达的纯化，一般是通过亲和层析柱进行His标签蛋白的选择性吸附和洗脱。
常见的亲和层析柱包括镍柱、铜柱和锌柱等。
纯化过程还包括目标蛋白的洗脱和去除His-Thrombin蛋白复合体的步骤。
洗脱常用的缓冲液是Imidazole缓冲液，通过改变Imidazole 浓度来实现蛋白洗脱。
pET-20b(+)载体说明
pET-20b(+)pET20b载体基本信息别名: pET20b, pet 20b质粒类型: 大肠杆菌蛋白表达表达水平: 高克隆方法: 多克隆位点，限制性内切酶载体大小: 3716bp5' 测序引物: T75' 测序引物序列: 5'-TAATACGACTCACTATAGGG-3'载体标签: N-pelB信号肽, C-His载体抗性: Ampicillin备注: Hosts: E.coli. Related vectors: pBR322. 稳定性: 瞬时表达Transient组成型: 组成型Constitutive病毒/非病毒: 非病毒pET20b载体质粒图谱和多克隆位点信息pET20b载体简介The pET-20b(+) vector (Cat. No. 69739-3) carries an N-terminal pelB signal sequence for potential periplasmic localization, plus optional C-terminal His•Tag® sequence. Unique sites are shown on the circle map. Note that the sequence is numbered by the pBR322 convention, so the T7 expression region is reversed on the circular map. The cloning/expression region of the coding strand transcribed by T7 RNA polymerase is shown below. The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand. Therefore, single-stranded sequencing should be performed using the T7 terminator primer (Cat. No. 69337-3).pET20b载体序列ORIGIN1 ATCCGGATAT AGTTCCTCCT TTCAGCAAAA AACCCCTCAA GACCCGTTTA GAGGCCCCAA61 GGGGTTATGC TAGTTATTGC TCAGCGGTGG CAGCAGCCAA CTCAGCTTCC TTTCGGGCTT121 TGTTAGCAGC CGGATCTCAG TGGTGGTGGT GGTGGTGCTC GAGTGCGGCC GCAAGCTTGT181 CGACGGAGCT CGAATTCGGA TCCGAATTAA TTCCGATATC CATGGCCATC GCCGGCTGGG241 CAGCGAGGAG CAGCAGACCA GCAGCAGCGG TCGGCAGCAG GTATTTCATA TGTATATCTC301 CTTCTTAAAG TTAAACAAAA TTATTTCTAG AGGGAAACCG TTGTGGTCTC CCTATAGTGA361 GTCGTATTAA TTTCGCGGGA TCGAGATCTC GGGCAGCGTT GGGTCCTGGC CACGGGTGCG421 CATGATCGTG CTCCTGTCGT TGAGGACCCG GCTAGGCTGG CGGGGTTGCC TTACTGGTTA481 GCAGAATGAA TCACCGATAC GCGAGCGAAC GTGAAGCGAC TGCTGCTGCA AAACGTCTGC541 GACCTGAGCA ACAACATGAA TGGTCTTCGG TTTCCGTGTT TCGTAAAGTC TGGAAACGCG 601 GAAGTCAGCG CCCTGCACCA TTATGTTCCG GATCTGCATC GCAGGATGCT GCTGGCTACC 661 CTGTGGAACA CCTACATCTG TATTAACGAA GCGCTGGCAT TGACCCTGAG TGATTTTTCT 721 CTGGTCCCGC CGCATCCATA CCGCCAGTTG TTTACCCTCA CAACGTTCCA GTAACCGGGC 781 ATGTTCATCA TCAGTAACCC GTATCGTGAG CATCCTCTCT CGTTTCATCG GTATCATTAC 841 CCCCATGAAC AGAAATCCCC CTTACACGGA GGCATCAGTG ACCAAACAGG AAAAAACCGC 901 CCTTAACATG GCCCGCTTTA TCAGAAGCCA GACATTAACG CTTCTGGAGA AACTCAACGA 961 GCTGGACGCG GATGAACAGG CAGACATCTG TGAATCGCTT CACGACCACG CTGATGAGCT 1021 TTACCGCAGC TGCCTCGCGC GTTTCGGTGA TGACGGTGAA AACCTCTGAC ACATGCAGCT 1081 CCCGGAGACG GTCACAGCTT GTCTGTAAGC GGATGCCGGG AGCAGACAAG CCCGTCAGGG 1141 CGCGTCAGCG GGTGTTGGCG GGTGTCGGGG CGCAGCCATG ACCCAGTCAC GTAGCGATAG 1201 CGGAGTGTAT ACTGGCTTAA CTATGCGGCA TCAGAGCAGA TTGTACTGAG AGTGCACCAT 1261 ATATGCGGTG TGAAATACCG CACAGATGCG TAAGGAGAAA ATACCGCATC AGGCGCTCTT 1321 CCGCTTCCTC GCTCACTGAC TCGCTGCGCT CGGTCGTTCG GCTGCGGCGA GCGGTATCAG 1381 CTCACTCAAA GGCGGTAATA CGGTTATCCA CAGAATCAGG GGATAACGCA GGAAAGAACA 1441 TGTGAGCAAA AGGCCAGCAA AAGGCCAGGA ACCGTAAAAA GGCCGCGTTG CTGGCGTTTT 1501 TCCATAGGCT CCGCCCCCCT GACGAGCATC ACAAAAATCG ACGCTCAAGT CAGAGGTGGC 1561 GAAACCCGAC AGGACTATAA AGATACCAGG CGTTTCCCCC TGGAAGCTCC CTCGTGCGCT 1621 CTCCTGTTCC GACCCTGCCG CTTACCGGAT ACCTGTCCGC CTTTCTCCCT TCGGGAAGCG 1681 TGGCGCTTTC TCATAGCTCA CGCTGTAGGT ATCTCAGTTC GGTGTAGGTC GTTCGCTCCA 1741 AGCTGGGCTG TGTGCACGAA CCCCCCGTTC AGCCCGACCG CTGCGCCTTA TCCGGTAACT 1801 ATCGTCTTGA GTCCAACCCG GTAAGACACG ACTTATCGCC ACTGGCAGCA GCCACTGGTA 1861 ACAGGATTAG CAGAGCGAGG TATGTAGGCG GTGCTACAGA GTTCTTGAAG TGGTGGCCTA 1921 ACTACGGCTA CACTAGAAGG ACAGTATTTG GTATCTGCGC TCTGCTGAAG CCAGTTACCT 1981 TCGGAAAAAG AGTTGGTAGC TCTTGATCCG GCAAACAAAC CACCGCTGGT AGCGGTGGTT 2041 TTTTTGTTTG CAAGCAGCAG ATTACGCGCA GAAAAAAAGG ATCTCAAGAA GATCCTTTGA 2101 TCTTTTCTAC GGGGTCTGAC GCTCAGTGGA ACGAAAACTC ACGTTAAGGG ATTTTGGTCA 2161 TGAGATTATC AAAAAGGATC TTCACCTAGA TCCTTTTAAA TTAAAAATGA AGTTTTAAAT 2221 CAATCTAAAG TATATATGAG TAAACTTGGT CTGACAGTTA CCAATGCTTA ATCAGTGAGG 2281 CACCTATCTC AGCGATCTGT CTATTTCGTT CATCCATAGT TGCCTGACTC CCCGTCGTGT 2341 AGATAACTAC GATACGGGAG GGCTTACCAT CTGGCCCCAG TGCTGCAATG ATACCGCGAG 2401 ACCCACGCTC ACCGGCTCCA GATTTATCAG CAATAAACCA GCCAGCCGGA AGGGCCGAGC 2461 GCAGAAGTGG TCCTGCAACT TTATCCGCCT CCATCCAGTC TATTAATTGT TGCCGGGAAG 2521 CTAGAGTAAG TAGTTCGCCA GTTAATAGTT TGCGCAACGT TGTTGCCATT GCTGCAGGCA 2581 TCGTGGTGTC ACGCTCGTCG TTTGGTATGG CTTCATTCAG CTCCGGTTCC CAACGATCAA 2641 GGCGAGTTAC ATGATCCCCC ATGTTGTGCA AAAAAGCGGT TAGCTCCTTC GGTCCTCCGA 2701 TCGTTGTCAG AAGTAAGTTG GCCGCAGTGT TATCACTCAT GGTTATGGCA GCACTGCATA 2761 ATTCTCTTAC TGTCATGCCA TCCGTAAGAT GCTTTTCTGT GACTGGTGAG TACTCAACCA 2821 AGTCATTCTG AGAATAGTGT ATGCGGCGAC CGAGTTGCTC TTGCCCGGCG TCAATACGGG 2881 ATAATACCGC GCCACATAGC AGAACTTTAA AAGTGCTCAT CATTGGAAAA CGTTCTTCGG 2941 GGCGAAAACT CTCAAGGATC TTACCGCTGT TGAGATCCAG TTCGATGTAA CCCACTCGTG 3001 CACCCAACTG ATCTTCAGCA TCTTTTACTT TCACCAGCGT TTCTGGGTGA GCAAAAACAG 3061 GAAGGCAAAA TGCCGCAAAA AAGGGAATAA GGGCGACACG GAAATGTTGA ATACTCATAC 3121 TCTTCCTTTT TCAATATTAT TGAAGCATTT ATCAGGGTTA TTGTCTCATG AGCGGATACA3181 TATTTGAATG TATTTAGAAA AATAAACAAA TAGGGGTTCC GCGCACATTT CCCCGAAAAG 3241 TGCCACCTGA AATTGTAAAC GTTAATATTT TGTTAAAATT CGCGTTAAAT TTTTGTTAAA 3301 TCAGCTCATT TTTTAACCAA TAGGCCGAAA TCGGCAAAAT CCCTTATAAA TCAAAAGAAT 3361 AGACCGAGAT AGGGTTGAGT GTTGTTCCAG TTTGGAACAA GAGTCCACTA TTAAAGAACG 3421 TGGACTCCAA CGTCAAAGGG CGAAAAACCG TCTATCAGGG CGATGGCCCA CTACGTGAAC 3481 CATCACCCTA ATCAAGTTTT TTGGGGTCGA GGTGCCGTAA AGCACTAAAT CGGAACCCTA 3541 AAGGGAGCCC CCGATTTAGA GCTTGACGGG GAAAGCCGGC GAACGTGGCG AGAAAGGAAG 3601 GGAAGAAAGC GAAAGGAGCG GGCGCTAGGG CGCTGGCAAG TGTAGCGGTC ACGCTGCGCG 3661 TAACCACCAC ACCCGCCGCG CTTAATGCGC CGCTACAGGG CGCGTCCCAT TCGCCA//其他大肠杆菌表达载体：pBV221 ptdTomato pET-52b(+) pAmCyanpDsRed-Express2 pBV220 pCold-GST pColdS-SUMOpCold TF pCold IV pCold III pCold IIpCold I pE-SUMO pCold-ProS2 pBAD102/D-TOPOpBAD202/D-TOPO pACYC184 pBAD/Thio-TOPO pBad/Myc-His CpBad/Myc-His B pBad/Myc-His A pBad/His C pBad/His BpBad/His A pBAD-TOPO pET-23b(+) pET-23a(+)pET-23c(+) pET-23(+) pET-12b(+) pET-12c(+)pET-12a(+) pET-11b(+) pET-11a(+) pET-11c(+)pBad24 pQE-82L pQE-81L pQE-80LpQE-32 pQE-9 pQE-16 pQE-31pQE-60 pQE-70 pQE-40 pET-51b(+)pET-50b(+) pET-49b(+) pET-48b(+) pET-47b(+)pET-26b(+) pET-32a(+) pET-21b(+) pET-22b(+)pET-14b pET-16b pET-15b pET-19bpET-20b(+) pET-21d(+) pET-21c(+) pET-21b(+)pET-21a(+) pET-24a(+) pET-24d(+) pET-25b(+)pET-27b(+) pET-28a(+) pET-30a(+) pET-42a(+)pET-43.1c(+) pET-43.1b(+) pET-43.1a(+) pET-44a(+)pET-44c(+) pET-46 EK/LIC pET-37b(+) pTrcHis2 CpTrcHis2 B pTrcHis2 A pET303/CT-His pET302/NT-HispRSET-CFP pRSET-EmGFP pRSET-BFP pGFPuvpET300/NT-DEST pET301/CT-DEST pGEM-T pBad43pGEX-4T-3 pGEX-5X-2 pBlueScript SK(+) pG-Tf2pG-KJE8 pGro7 pET-SUMO pSE380pET-17b pET102/D-TOPO pCDFDuet-1 pMAL-p5xpTf16 pET-28c(+) pBluescript II SK(+) pET-30b(+)pSUMO pProEXHTc pProEXHTb pProEXHTapKD3 pKD13 pKD46 pTYB1pTYB2 pTWIN2 pBluescript II KS(-) pTYB12pMAL-p5e pACYCDuet-1 pEGM-11ZF(+) pEGM-7ZF(+)PinPoint Xa-3 PinPoint Xa-2 PinPoint Xa-1 pSP73pSP64 pTWIN1 pTYB11 pTXB1pET-5b(+) pBad/gIII C pBad/gIII B pBad/gIII A pET-5a(+) pMal-p4X pMal-p2G pkk223-3pkk232-8 pCYB1 pEZZ18 pBAD18pMAL-c5x pMal-p2E pMal-p2X pET-44 EK/LIC pET-43.1 EK/LIC pET-41 EK/LIC pMal-c4X pTrcHis BpET-31b(+) pET-3b(+) pET-41a(+) pGEX-3XpGEX-4T-2 pETDuet-1 pGEX-4T-1 pTrc99apET-28b(+) pET-His pALEXa,b,c pACYC177pBR322 pKD4 pKD20 pMXB10pEcoli-6xHN-GFPuv pKJE7 pRSET B pGEX-KGpGEX-2T pRSFDuet-1 pCOLADuet-1 pTrcHis C pTrcHis A pET-41b(+) pET-42b(+) pET-3a(+) pGEX-6P-3 pGEX-6P-2 pGEX-6P-1 pGEX-5X-3 pGEX-5X-1 pGEX-2TK pRSET A pMal-c2GpMal-c2E pMal-c2X pRSET C pQE-30pET-45b(+) pET-44b(+) pET-42c(+) pET-41c(+) pET-40b(+) pET-33b(+) pET-39b(+) pET-32 EK/LIC pET-32 Xa/LIC pET-32c(+) pET-32b(+) pET-30 Xa/LIC pET-30 EK/LIC pET-30c(+) pET-29c(+) pET-29b(+) pET-29a(+) pET-24c(+) pET-24b(+) pET-24(+)pET-23d(+) pET-11d(+) pBad33。
pBad gIII C大肠杆菌表达载体说明
pBad/gIII C编号 名称北京华越洋VECT-‐430 pBad/gIII CpBadgIII C载体基本信息载体名称: pBad/gIII C， pBadgIII C, p BadgIIIC. p Bad/gIIIC 质粒类型: 大肠杆菌蛋白表达载体表达水平: 高启动子: araBad克隆方法: 多克隆位点，限制性内切酶载体大小: 4149 b p5' 测序引物及序列: pBAD-‐F: A TGCCATAGCATTTTTATCC3' 测序引物及序列: pBAD-‐R: g atttaatctgtatcagg载体标签: N-‐GIII s ignal, C-‐His, C-‐Myc载体抗性: 氨苄备注: -‐-‐稳定性: 瞬时表达 Transient组成型: 诱导表达病毒/非病毒: 非病毒pBadgIII C载体质粒图谱和多克隆位点信息pBadgIII C载体简介pBAD/gIII载体质粒是衍生于pBR322载体。
载体设计用来在大肠杆菌中进行可调节分泌性表达和纯化重组目的蛋白。
使用基因III信号序列来定位重组蛋白，使其分泌到大肠杆菌周质腔中。
使用大肠杆菌araBAD启动子（pBAD）增强了大肠杆菌重组蛋白可溶性表达的水平。
载体上的调节蛋白AraC能够调控pBad启动子。
pBadgIII C载体序列 AAGAAACCAATTGTCCATATTGCATCAGACATTGCCGTCACTGCGTCTTTTACTGGCTCTTCTCGCTAACCA AACCGGTAACCCCGCTTATTAAAAGCATTCTGTAACAAAGCGGGACCAAAGCCATGACAAAAACGCGTAACA AAAGTGTCTATAATCACGGCAGAAAAGTCCACATTGATTATTTGCACGGCGTCACACTTTGCTATGCCATAG CATTTTTATCCATAAGATTAGCGGATCCTACCTGACGCTTTTTATCGCAACTCTCTACTGTTTCTCCATACC CGTTTTTTGGGCTAACAGGAGGAATTAACCATGAAAAAACTGCTGTTCGCGATTCCGCTGGTGGTGCCGTTC TATAGCCATAGCACCATGGCGGCCGCTCGAGATCTGCAGCTGGTACCATATGGGAATTCGAAGCTTTCTAGA ACAAAAACTCATCTCAGAAGAGGATCTGAATAGCGCCGTCGACCATCATCATCATCATCATTGAGTTTAAAC GGTCTCCAGCTTGGCTGTTTTGGCGGATGAGAGAAGATTTTCAGCCTGATACAGATTAAATCAGAACGCAGA AGCGGTCTGATAAAACAGAATTTGCCTGGCGGCAGTAGCGCGGTGGTCCCACCTGACCCCATGCCGAACTCA GAAGTGAAACGCCGTAGCGCCGATGGTAGTGTGGGGTCTCCCCATGCGAGAGTAGGGAACTGCCAGGCATCA AATAAAACGAAAGGCTCAGTCGAAAGACTGGGCCTTTCGTTTTATCTGTTGTTTGTCGGTGAACGCTCTCCT GAGTAGGACAAATCCGCCGGGAGCGGATTTGAACGTTGCGAAGCAACGGCCCGGAGGGTGGCGGGCAGGACG CCCGCCATAAACTGCCAGGCATCAAATTAAGCAGAAGGCCATCCTGACGGATGGCCTTTTTGCGTTTCTACA AACTCTTTTTGTTTATTTTTCTAAATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATG CTTCAATAATATTGAAAAAGGAAGAGTATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGT TTTCCAATGATGAGCACTTTTAAAGTTCTGCTATGTGGCGCGGTATTATCCCGTGTTGACGCCGGGCAAGAG CAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTT ACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTA CTTCTGACAACGATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGC CTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCA ATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGAC TGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGAT AAATCTGGAGCCGGTGAGCGTGGGTCTCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGT ATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGT GCCTCACTGATTAAGCATTGGTAACTGTCAGACCAAGTTTACTCATATATACTTTAGATTGATTTAAAACTT CATTTTTAATTTAAAAGGATCTAGGTGAAGATCCTTTTTGATAATCTCATGACCAAAATCCCTTAACGTGAG TTTTCGTTCCACTGAGCGTCAGACCCCGTAGAAAAGATCAAAGGATCTTCTTGAGATCCTTTTTTTCTGCGC GTAATCTGCTGCTTGCAAACAAAAAAACCACCGCTACCAGCGGTGGTTTGTTTGCCGGATCAAGAGCTACCA ACTCTTTTTCCGAAGGTAACTGGCTTCAGCAGAGCGCAGATACCAAATACTGTCCTTCTAGTGTAGCCGTAG TTAGGCCACCACTTCAAGAACTCTGTAGCACCGCCTACATACCTCGCTCTGCTAATCCTGTTACCAGTGGCT GCTGCCAGTGGCGATAAGTCGTGTCTTACCGGGTTGGACTCAAGACGATAGTTACCGGATAAGGCGCAGCGG TCGGGCTGAACGGGGGGTTCGTGCACACAGCCCAGCTTGGAGCGAACGACCTACACCGAACTGAGATACCTA CAGCGTGAGCTATGAGAAAGCGCCACGCTTCCCGAAGGGAGAAAGGCGGACAGGTATCCGGTAAGCGGCAGG GTCGGAACAGGAGAGCGCACGAGGGAGCTTCCAGGGGGAAACGCCTGGTATCTTTATAGTCCTGTCGGGTTT CGCCACCTCTGACTTGAGCGTCGATTTTTGTGATGCTCGTCAGGGGGGCGGAGCCTATGGAAAAACGCCAGC AACGCGGCCTTTTTACGGTTCCTGGCCTTTTGCTGGCCTTTTGCTCACATGTTCTTTCCTGCGTTATCCCCT GATTCTGTGGATAACCGTATTACCGCCTTTGAGTGAGCTGATACCGCTCGCCGCAGCCGAACGACCGAGCGC AGCGAGTCAGTGAGCGAGGAAGCGGAAGAGCGCCTGATGCGGTATTTTCTCCTTACGCATCTGTGCGGTATT TCACACCGCATATGGTGCACTCTCAGTACAATCTGCTCTGATGCCGCATAGTTAAGCCAGTATACACTCCGC TATCGCTACGTGACTGGGTCATGGCTGCGCCCCGACACCCGCCAACACCCGCTGACGCGCCCTGACGGGCTT GTCTGCTCCCGGCATCCGCTTACAGACAAGCTGTGACCGTCTCCGGGAGCTGCATGTGTCAGAGGTTTTCAC CGTCATCACCGAAACGCGCGAGGCAGCAGATCAATTCGCGCGCGAAGGCGAAGCGGCATGCATAATGTGCCT GTCAAATGGACGAAGCAGGGATTCTGCAAACCCTATGCTACTCCGTCAAGCCGTCAATTGTCTGATTCGTTA CCAATTATGACAACTTGACGGCTACATCATTCACTTTTTCTTCACAACCGGCACGGAACTCGCTCGGGCTGG CCCCGGTGCATTTTTTAAATACCCGCGAGAAATAGAGTTGATCGTCAAAACCAACATTGCGACCGACGGTGG CGATAGGCATCCGGGTGGTGCTCAAAAGCAGCTTCGCCTGGCTGATACGTTGGTCCTCGCGCCAGCTTAAGA CGCTAATCCCTAACTGCTGGCGGAAAAGATGTGACAGACGCGACGGCGACAAGCAAACATGCTGTGCGACGC TGGCGATATCAAAATTGCTGTCTGCCAGGTGATCGCTGATGTACTGACAAGCCTCGCGTACCCGATTATCCA TCGGTGGATGGAGCGACTCGTTAATCGCTTCCATGCGCCGCAGTAACAATTGCTCAAGCAGATTTATCGCCA GCAGCTCCGAATAGCGCCCTTCCCCTTGCCCGGCGTTAATGATTTGCCCAAACAGGTCGCTGAAATGCGGCT GGTGCGCTTCATCCGGGCGAAAGAACCCCGTATTGGCAAATATTGACGGCCAGTTAAGCCATTCATGCCAGT AGGCGCGCGGACGAAAGTAAACCCACTGGTGATACCATTCGCGAGCCTCCGGATGACGACCGTAGTGATGAA TCTCTCCTGGCGGGAACAGCAAAATATCACCCGGTCGGCAAACAAATTCTCGTCCCTGATTTTTCACCACCC CCTGACCGCGAATGGTGAGATTGAGAATATAACCTTTCATTCCCAGCGGTCGGTCGATAAAAAAATCGAGAT AACCGTTGGCCTCAATCGGCGTTAAACCCGCCACCAGATGGGCATTAAACGAGTATCCCGGCAGCAGGGGAT CATTTTGCGCTTCAGCCATACTTTTCATACTCCCGCCATTCAGAG其他大肠杆菌表达载体：pBV221 ptdTomato pET-‐52b(+) pAmCyan pDsRed-‐Express2 pBV220 pCold-‐GST pColdS-‐SUMO pCold T F pCold I V pCold I II pCold I IpCold I pE-‐SUMO pCold-‐ProS2 pBAD102/D-‐TOPO pBAD202/D-‐TOPO pACYC184 pBAD/Thio-‐TOPO pBad/Myc-‐His C pBad/Myc-‐His B pBad/Myc-‐His A pBad/His C pBad/His B pBad/His A pBAD-‐TOPO pET-‐23b(+) pET-‐23a(+)pET-‐23c(+) pET-‐23(+) pET-‐12b(+) pET-‐12c(+)pET-‐12a(+) pET-‐11b(+) pET-‐11a(+) pET-‐11c(+) pBad24 pQE-‐82L pQE-‐81L pQE-‐80LpQE-‐32 pQE-‐9 pQE-‐16 pQE-‐31pQE-‐60 pQE-‐70 pQE-‐40 pET-‐51b(+)pET-‐50b(+) pET-‐49b(+) pET-‐48b(+) pET-‐47b(+)pET-‐26b(+) pET-‐32a(+) pET-‐21b(+) pET-‐22b(+)pET-‐14b pET-‐16b pET-‐15b pET-‐19bpET-‐20b(+) pET-‐21d(+) pET-‐21c(+) pET-‐21b(+)pET-‐21a(+) pET-‐24a(+) pET-‐24d(+) pET-‐25b(+)pET-‐27b(+) pET-‐28a(+) pET-‐30a(+) pET-‐42a(+)pET-‐43.1c(+) pET-‐43.1b(+) pET-‐43.1a(+) pET-‐44a(+)pET-‐44c(+) pET-‐46 E K/LIC pET-‐37b(+) pTrcHis2 C pTrcHis2 B pTrcHis2 A pET303/CT-‐His pET302/NT-‐His pRSET-‐CFP pRSET-‐EmGFP pRSET-‐BFP pGFPuvpET300/NT-‐DEST pET301/CT-‐DEST pGEM-‐T pBad43pGEX-‐4T-‐3 pGEX-‐5X-‐2 pBlueScript S K(+) pG-‐Tf2pG-‐KJE8 pGro7 pET-‐SUMO pSE380pET-‐17b pET102/D-‐TOPO pCDFDuet-‐1 pMAL-‐p5xpTf16 pET-‐28c(+) pBluescript I I S K(+) pET-‐30b(+) pSUMO pProEX H Tc pProEX H Tb pProEX H Ta pKD3 pKD13 pKD46 pTYB1pTYB2 pTWIN2 pBluescript I I K S(-‐) pTYB12pMAL-‐p5e pACYCDuet-‐1 pEGM-‐11ZF(+) pEGM-‐7ZF(+) PinPoint X a-‐3 PinPoint X a-‐2 PinPoint X a-‐1 pSP73pSP64 pTWIN1 pTYB11 pTXB1pET-‐5b(+) pBad/gIII C pBad/gIII B pBad/gIII ApET-‐5a(+) pMal-‐p4X pMal-‐p2G pkk223-‐3pkk232-‐8 pCYB1 pEZZ18 pBAD18pMAL-‐c5x pMal-‐p2E pMal-‐p2X pET-‐44 E K/LIC pET-‐43.1 E K/LIC pET-‐41 E K/LIC pMal-‐c4X pTrcHis BpET-‐31b(+) pET-‐3b(+) pET-‐41a(+) pGEX-‐3XpGEX-‐4T-‐2 pETDuet-‐1 pGEX-‐4T-‐1 pTrc99apET-‐28b(+) pET-‐His pALEX a,b,c pACYC177pBR322 pKD4 pKD20 pMXB10pEcoli-‐6xHN-‐GFPuv pKJE7 pRSET B pGEX-‐KGpGEX-‐2T pRSFDuet-‐1 pCOLADuet-‐1 pTrcHis C pTrcHis A pET-‐41b(+) pET-‐42b(+) pET-‐3a(+) pGEX-‐6P-‐3 pGEX-‐6P-‐2 pGEX-‐6P-‐1 pGEX-‐5X-‐3 pGEX-‐5X-‐1 pGEX-‐2TK pRSET A pMal-‐c2G pMal-‐c2E pMal-‐c2X pRSET C pQE-‐30pET-‐45b(+) pET-‐44b(+) pET-‐42c(+) pET-‐41c(+) pET-‐40b(+) pET-‐33b(+) pET-‐39b(+) pET-‐32 E K/LIC pET-‐32 X a/LIC pET-‐32c(+) pET-‐32b(+) pET-‐30 X a/LIC pET-‐30 E K/LIC pET-‐30c(+) pET-‐29c(+) pET-‐29b(+) pET-‐29a(+) pET-‐24c(+) pET-‐24b(+) pET-‐24(+) pET-‐23d(+) pET-‐11d(+) pBad33。

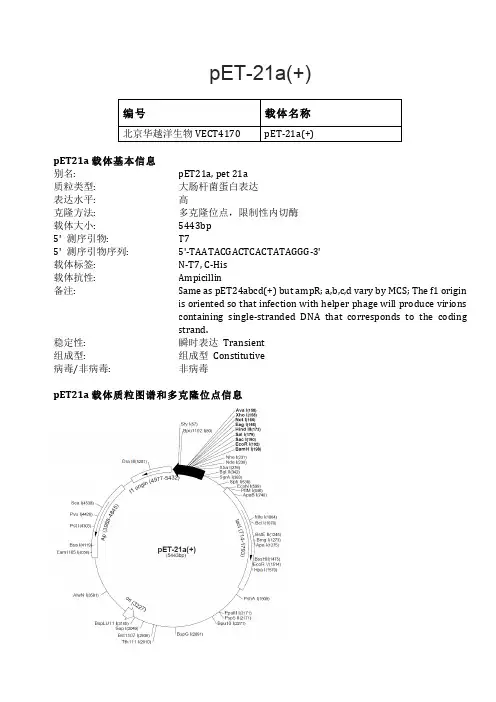

pET-21a(+)大肠杆菌表达载体说明
pET-21a(+)编号 载体名称北京华越洋生物VECT4170 pET-‐21a(+)pET21a载体基本信息别名: pET21a, p et 21a质粒类型: 大肠杆菌蛋白表达表达水平: 高克隆方法: 多克隆位点，限制性内切酶载体大小: 5443bp5' 测序引物: T75' 测序引物序列: 5'-‐TAATACGACTCACTATAGGG-‐3'载体标签: N-‐T7, C-‐His载体抗性: Ampicillin备注: Same a s p ET24abcd(+) b ut a mpR; a,b,c,d v ary b y M CS; T he f1 o riginis o riented s o t hat i nfection w ith h elper p hage w ill p roduce v irionscontaining single-‐stranded DNA that corresponds to the codingstrand.稳定性: 瞬时表达 Transient组成型: 组成型 Constitutive病毒/非病毒: 非病毒pET21a载体质粒图谱和多克隆位点信息pET21a载体简介The pET-‐21a-‐d(+) vectors carry an N-‐terminal T7•Tag® sequence plus an optional C-‐terminal His•Tag® sequence. These vectors differ from pET-‐24a-‐d(+) only by their selectable marker (ampicillin vs. kanamycin resistance). Unique sites are shown on the circle map. Note that the sequence i s n umbered b y t he p BR322 c onvention, s o t he T7 e xpression r egion i s r eversed o n t he circular map. The cloning/expression region of the coding strand transcribed by T7 RNApolymerase is shown below. The f1 origin is oriented so that infection with helper phage willproduce virions containing single-‐stranded DNA that corresponds to the coding strand. Therefore, s ingle-‐stranded s equencing s hould b e p erformed u sing t he T7 t erminator p rimer.pET21a载体序列ORIGIN1 ATCCGGATAT AGTTCCTCCT TTCAGCAAAA AACCCCTCAA GACCCGTTTA GAGGCCCCAA61 GGGGTTATGC TAGTTATTGC TCAGCGGTGG CAGCAGCCAA CTCAGCTTCC TTTCGGGCTT121 TGTTAGCAGC CGGATCTCAG TGGTGGTGGT GGTGGTGCTC GAGTGCGGCC GCAAGCTTGT181 CGACGGAGCT CGAATTCGGA TCCGCGACCC ATTTGCTGTC CACCAGTCAT GCTAGCCATA241 TGTATATCTC CTTCTTAAAG TTAAACAAAA TTATTTCTAG AGGGGAATTG TTATCCGCTC301 ACAATTCCCC TATAGTGAGT CGTATTAATT TCGCGGGATC GAGATCTCGA TCCTCTACGC361 CGGACGCATC GTGGCCGGCA TCACCGGCGC CACAGGTGCG GTTGCTGGCG CCTATATCGC421 CGACATCACC GATGGGGAAG ATCGGGCTCG CCACTTCGGG CTCATGAGCG CTTGTTTCGG481 CGTGGGTATG GTGGCAGGCC CCGTGGCCGG GGGACTGTTG GGCGCCATCT CCTTGCATGC541 ACCATTCCTT GCGGCGGCGG TGCTCAACGG CCTCAACCTA CTACTGGGCT GCTTCCTAAT601 GCAGGAGTCG CATAAGGGAG AGCGTCGAGA TCCCGGACAC CATCGAATGG CGCAAAACCT661 TTCGCGGTAT GGCATGATAG CGCCCGGAAG AGAGTCAATT CAGGGTGGTG AATGTGAAAC721 CAGTAACGTT ATACGATGTC GCAGAGTATG CCGGTGTCTC TTATCAGACC GTTTCCCGCG781 TGGTGAACCA GGCCAGCCAC GTTTCTGCGA AAACGCGGGA AAAAGTGGAA GCGGCGATGG841 CGGAGCTGAA TTACATTCCC AACCGCGTGG CACAACAACT GGCGGGCAAA CAGTCGTTGC901 TGATTGGCGT TGCCACCTCC AGTCTGGCCC TGCACGCGCC GTCGCAAATT GTCGCGGCGA961 TTAAATCTCG CGCCGATCAA CTGGGTGCCA GCGTGGTGGT GTCGATGGTA GAACGAAGCG1021 GCGTCGAAGC CTGTAAAGCG GCGGTGCACA ATCTTCTCGC GCAACGCGTC AGTGGGCTGA1081 TCATTAACTA TCCGCTGGAT GACCAGGATG CCATTGCTGT GGAAGCTGCC TGCACTAATG1141 TTCCGGCGTT ATTTCTTGAT GTCTCTGACC AGACACCCAT CAACAGTATT ATTTTCTCCC1201 ATGAAGACGG TACGCGACTG GGCGTGGAGC ATCTGGTCGC ATTGGGTCAC CAGCAAATCG1261 CGCTGTTAGC GGGCCCATTA AGTTCTGTCT CGGCGCGTCT GCGTCTGGCT GGCTGGCATA1321 AATATCTCAC TCGCAATCAA ATTCAGCCGA TAGCGGAACG GGAAGGCGAC TGGAGTGCCA1381 TGTCCGGTTT TCAACAAACC ATGCAAATGC TGAATGAGGG CATCGTTCCC ACTGCGATGC1441 TGGTTGCCAA CGATCAGATG GCGCTGGGCG CAATGCGCGC CATTACCGAG TCCGGGCTGC1501 GCGTTGGTGC GGATATCTCG GTAGTGGGAT ACGACGATAC CGAAGACAGC TCATGTTATA1561 TCCCGCCGTT AACCACCATC AAACAGGATT TTCGCCTGCT GGGGCAAACC AGCGTGGACC1621 GCTTGCTGCA ACTCTCTCAG GGCCAGGCGG TGAAGGGCAA TCAGCTGTTG CCCGTCTCAC1681 TGGTGAAAAG AAAAACCACC CTGGCGCCCA ATACGCAAAC CGCCTCTCCC CGCGCGTTGG1741 CCGATTCATT AATGCAGCTG GCACGACAGG TTTCCCGACT GGAAAGCGGG CAGTGAGCGC1801 AACGCAATTA ATGTAAGTTA GCTCACTCAT TAGGCACCGG GATCTCGACC GATGCCCTTG1861 AGAGCCTTCA ACCCAGTCAG CTCCTTCCGG TGGGCGCGGG GCATGACTAT CGTCGCCGCA1921 CTTATGACTG TCTTCTTTAT CATGCAACTC GTAGGACAGG TGCCGGCAGC GCTCTGGGTC1981 ATTTTCGGCG AGGACCGCTT TCGCTGGAGC GCGACGATGA TCGGCCTGTC GCTTGCGGTA2041 TTCGGAATCT TGCACGCCCT CGCTCAAGCC TTCGTCACTG GTCCCGCCAC CAAACGTTTC2101 GGCGAGAAGC AGGCCATTAT CGCCGGCATG GCGGCCCCAC GGGTGCGCAT GATCGTGCTC2161 CTGTCGTTGA GGACCCGGCT AGGCTGGCGG GGTTGCCTTA CTGGTTAGCA GAATGAATCA2221 CCGATACGCG AGCGAACGTG AAGCGACTGC TGCTGCAAAA CGTCTGCGAC CTGAGCAACA2281 ACATGAATGG TCTTCGGTTT CCGTGTTTCG TAAAGTCTGG AAACGCGGAA GTCAGCGCCC2341 TGCACCATTA TGTTCCGGAT CTGCATCGCA GGATGCTGCT GGCTACCCTG TGGAACACCT 2401 ACATCTGTAT TAACGAAGCG CTGGCATTGA CCCTGAGTGA TTTTTCTCTG GTCCCGCCGC 2461 ATCCATACCG CCAGTTGTTT ACCCTCACAA CGTTCCAGTA ACCGGGCATG TTCATCATCA 2521 GTAACCCGTA TCGTGAGCAT CCTCTCTCGT TTCATCGGTA TCATTACCCC CATGAACAGA 2581 AATCCCCCTT ACACGGAGGC ATCAGTGACC AAACAGGAAA AAACCGCCCT TAACATGGCC 2641 CGCTTTATCA GAAGCCAGAC ATTAACGCTT CTGGAGAAAC TCAACGAGCT GGACGCGGAT 2701 GAACAGGCAG ACATCTGTGA ATCGCTTCAC GACCACGCTG ATGAGCTTTA CCGCAGCTGC 2761 CTCGCGCGTT TCGGTGATGA CGGTGAAAAC CTCTGACACA TGCAGCTCCC GGAGACGGTC 2821 ACAGCTTGTC TGTAAGCGGA TGCCGGGAGC AGACAAGCCC GTCAGGGCGC GTCAGCGGGT 2881 GTTGGCGGGT GTCGGGGCGC AGCCATGACC CAGTCACGTA GCGATAGCGG AGTGTATACT 2941 GGCTTAACTA TGCGGCATCA GAGCAGATTG TACTGAGAGT GCACCATATA TGCGGTGTGA 3001 AATACCGCAC AGATGCGTAA GGAGAAAATA CCGCATCAGG CGCTCTTCCG CTTCCTCGCT 3061 CACTGACTCG CTGCGCTCGG TCGTTCGGCT GCGGCGAGCG GTATCAGCTC ACTCAAAGGC 3121 GGTAATACGG TTATCCACAG AATCAGGGGA TAACGCAGGA AAGAACATGT GAGCAAAAGG 3181 CCAGCAAAAG GCCAGGAACC GTAAAAAGGC CGCGTTGCTG GCGTTTTTCC ATAGGCTCCG 3241 CCCCCCTGAC GAGCATCACA AAAATCGACG CTCAAGTCAG AGGTGGCGAA ACCCGACAGG 3301 ACTATAAAGA TACCAGGCGT TTCCCCCTGG AAGCTCCCTC GTGCGCTCTC CTGTTCCGAC 3361 CCTGCCGCTT ACCGGATACC TGTCCGCCTT TCTCCCTTCG GGAAGCGTGG CGCTTTCTCA 3421 TAGCTCACGC TGTAGGTATC TCAGTTCGGT GTAGGTCGTT CGCTCCAAGC TGGGCTGTGT 3481 GCACGAACCC CCCGTTCAGC CCGACCGCTG CGCCTTATCC GGTAACTATC GTCTTGAGTC 3541 CAACCCGGTA AGACACGACT TATCGCCACT GGCAGCAGCC ACTGGTAACA GGATTAGCAG 3601 AGCGAGGTAT GTAGGCGGTG CTACAGAGTT CTTGAAGTGG TGGCCTAACT ACGGCTACAC 3661 TAGAAGGACA GTATTTGGTA TCTGCGCTCT GCTGAAGCCA GTTACCTTCG GAAAAAGAGT 3721 TGGTAGCTCT TGATCCGGCA AACAAACCAC CGCTGGTAGC GGTGGTTTTT TTGTTTGCAA 3781 GCAGCAGATT ACGCGCAGAA AAAAAGGATC TCAAGAAGAT CCTTTGATCT TTTCTACGGG 3841 GTCTGACGCT CAGTGGAACG AAAACTCACG TTAAGGGATT TTGGTCATGA GATTATCAAA 3901 AAGGATCTTC ACCTAGATCC TTTTAAATTA AAAATGAAGT TTTAAATCAA TCTAAAGTAT 3961 ATATGAGTAA ACTTGGTCTG ACAGTTACCA ATGCTTAATC AGTGAGGCAC CTATCTCAGC 4021 GATCTGTCTA TTTCGTTCAT CCATAGTTGC CTGACTCCCC GTCGTGTAGA TAACTACGAT 4081 ACGGGAGGGC TTACCATCTG GCCCCAGTGC TGCAATGATA CCGCGAGACC CACGCTCACC 4141 GGCTCCAGAT TTATCAGCAA TAAACCAGCC AGCCGGAAGG GCCGAGCGCA GAAGTGGTCC 4201 TGCAACTTTA TCCGCCTCCA TCCAGTCTAT TAATTGTTGC CGGGAAGCTA GAGTAAGTAG 4261 TTCGCCAGTT AATAGTTTGC GCAACGTTGT TGCCATTGCT GCAGGCATCG TGGTGTCACG 4321 CTCGTCGTTT GGTATGGCTT CATTCAGCTC CGGTTCCCAA CGATCAAGGC GAGTTACATG 4381 ATCCCCCATG TTGTGCAAAA AAGCGGTTAG CTCCTTCGGT CCTCCGATCG TTGTCAGAAG 4441 TAAGTTGGCC GCAGTGTTAT CACTCATGGT TATGGCAGCA CTGCATAATT CTCTTACTGT 4501 CATGCCATCC GTAAGATGCT TTTCTGTGAC TGGTGAGTAC TCAACCAAGT CATTCTGAGA 4561 ATAGTGTATG CGGCGACCGA GTTGCTCTTG CCCGGCGTCA ATACGGGATA ATACCGCGCC 4621 ACATAGCAGA ACTTTAAAAG TGCTCATCAT TGGAAAACGT TCTTCGGGGC GAAAACTCTC 4681 AAGGATCTTA CCGCTGTTGA GATCCAGTTC GATGTAACCC ACTCGTGCAC CCAACTGATC 4741 TTCAGCATCT TTTACTTTCA CCAGCGTTTC TGGGTGAGCA AAAACAGGAA GGCAAAATGC 4801 CGCAAAAAAG GGAATAAGGG CGACACGGAA ATGTTGAATA CTCATACTCT TCCTTTTTCA 4861 ATATTATTGA AGCATTTATC AGGGTTATTG TCTCATGAGC GGATACATAT TTGAATGTAT 4921 TTAGAAAAAT AAACAAATAG GGGTTCCGCG CACATTTCCC CGAAAAGTGC CACCTGAAAT4981 TGTAAACGTT AATATTTTGT TAAAATTCGC GTTAAATTTT TGTTAAATCA GCTCATTTTT 5041 TAACCAATAG GCCGAAATCG GCAAAATCCC TTATAAATCA AAAGAATAGA CCGAGATAGG 5101 GTTGAGTGTT GTTCCAGTTT GGAACAAGAG TCCACTATTA AAGAACGTGG ACTCCAACGT 5161 CAAAGGGCGA AAAACCGTCT ATCAGGGCGA TGGCCCACTA CGTGAACCAT CACCCTAATC 5221 AAGTTTTTTG GGGTCGAGGT GCCGTAAAGC ACTAAATCGG AACCCTAAAG GGAGCCCCCG 5281 ATTTAGAGCT TGACGGGGAA AGCCGGCGAA CGTGGCGAGA AAGGAAGGGA AGAAAGCGAA 5341 AGGAGCGGGC GCTAGGGCGC TGGCAAGTGT AGCGGTCACG CTGCGCGTAA CCACCACACC 5401 CGCCGCGCTT AATGCGCCGC TACAGGGCGC GTCCCATTCG CCA//其他大肠杆菌表达载体：pBV221 ptdTomato pET-52b(+) pAmCyan pDsRed-Express2 pBV220 pCold-GST pColdS-SUMO pCold TF pCold IV pCold III pCold IIpCold I pE-SUMO pCold-ProS2 pBAD102/D-TOPO pBAD202/D-TOPO pACYC184 pBAD/Thio-TOPO pBad/Myc-His C pBad/Myc-His B pBad/Myc-His A pBad/His C pBad/His B pBad/His A pBAD-TOPO pET-23b(+) pET-23a(+)pET-23c(+) pET-23(+) pET-12b(+) pET-12c(+)pET-12a(+) pET-11b(+) pET-11a(+) pET-11c(+) pBad24 pQE-82L pQE-81L pQE-80LpQE-32 pQE-9 pQE-16 pQE-31pQE-60 pQE-70 pQE-40 pET-51b(+)pET-50b(+) pET-49b(+) pET-48b(+) pET-47b(+)pET-26b(+) pET-32a(+) pET-21b(+) pET-22b(+)pET-14b pET-16b pET-15b pET-19bpET-20b(+) pET-21d(+) pET-21c(+) pET-21b(+)pET-21a(+) pET-24a(+) pET-24d(+) pET-25b(+)pET-27b(+) pET-28a(+) pET-30a(+) pET-42a(+)pET-43.1c(+) pET-43.1b(+) pET-43.1a(+) pET-44a(+)pET-44c(+) pET-46 EK/LIC pET-37b(+) pTrcHis2 C pTrcHis2 B pTrcHis2 A pET303/CT-His pET302/NT-His pRSET-CFP pRSET-EmGFP pRSET-BFP pGFPuvpET300/NT-DEST pET301/CT-DEST pGEM-T pBad43pGEX-4T-3 pGEX-5X-2 pBlueScript SK(+) pG-Tf2pG-KJE8 pGro7 pET-SUMO pSE380pET-17b pET102/D-TOPO pCDFDuet-1 pMAL-p5xpTf16 pET-28c(+) pBluescript II SK(+) pET-30b(+) pSUMO pProEX HTc pProEX HTb pProEX HTa pKD3 pKD13 pKD46 pTYB1pTYB2 pTWIN2 pBluescript II KS(-) pTYB12pMAL-p5e pACYCDuet-1 pEGM-11ZF(+) pEGM-7ZF(+) PinPoint Xa-3 PinPoint Xa-2 PinPoint Xa-1 pSP73pSP64 pTWIN1 pTYB11 pTXB1pET-5b(+) pBad/gIII C pBad/gIII B pBad/gIII A pET-5a(+) pMal-p4X pMal-p2G pkk223-3pkk232-8 pCYB1 pEZZ18 pBAD18pMAL-c5x pMal-p2E pMal-p2X pET-44 EK/LIC pET-43.1 EK/LIC pET-41 EK/LIC pMal-c4X pTrcHis BpET-31b(+) pET-3b(+) pET-41a(+) pGEX-3XpGEX-4T-2 pETDuet-1 pGEX-4T-1 pTrc99apET-28b(+) pET-His pALEX a,b,c pACYC177pBR322 pKD4 pKD20 pMXB10pEcoli-6xHN-GFPuv pKJE7 pRSET B pGEX-KGpGEX-2T pRSFDuet-1 pCOLADuet-1 pTrcHis C pTrcHis A pET-41b(+) pET-42b(+) pET-3a(+) pGEX-6P-3 pGEX-6P-2 pGEX-6P-1 pGEX-5X-3 pGEX-5X-1 pGEX-2TK pRSET A pMal-c2GpMal-c2E pMal-c2X pRSET C pQE-30pET-45b(+) pET-44b(+) pET-42c(+) pET-41c(+) pET-40b(+) pET-33b(+) pET-39b(+) pET-32 EK/LIC pET-32 Xa/LIC pET-32c(+) pET-32b(+) pET-30 Xa/LIC pET-30 EK/LIC pET-30c(+) pET-29c(+) pET-29b(+) pET-29a(+) pET-24c(+) pET-24b(+) pET-24(+)pET-23d(+) pET-11d(+) pBad33。
pSUMO大肠杆菌表达载体说明
pSUMO编号 载体名称北京华越洋生物VECT4280 pSUMOpSUMO载体基本信息载体名称: pSUMO质粒类型: 大肠杆菌基因表达高拷贝/低拷贝: 高拷贝启动子: T7克隆方法: 多克隆位点，限制性内切酶载体大小: 5598 b p5' 测序引物及序列: T7: 5'-‐TAATACGACTCACTATAGGG-‐3'3' 测序引物及序列: T7t: 5'-‐GCTAGTTATTGCTCAGCGG-‐3'载体标签: N-‐His; N-‐SUMO载体抗性: 卡那霉素备注: -‐-‐稳定性: 瞬时表达组成型/诱导型: 诱导型病毒/非病毒: 非病毒pSUMO载体质粒图谱和多克隆位点信息其他大肠杆菌表达载体：pBV221 ptdTomato pET-52b(+) pAmCyanpDsRed-Express2 pBV220 pCold-GST pColdS-SUMOpCold TF pCold IV pCold III pCold IIpCold I pE-SUMO pCold-ProS2 pBAD102/D-TOPOpBAD202/D-TOPO pACYC184 pBAD/Thio-TOPO pBad/Myc-His CpBad/Myc-His B pBad/Myc-His A pBad/His C pBad/His BpBad/His A pBAD-TOPO pET-23b(+) pET-23a(+)pET-23c(+) pET-23(+) pET-12b(+) pET-12c(+)pET-12a(+) pET-11b(+) pET-11a(+) pET-11c(+)pBad24 pQE-82L pQE-81L pQE-80LpQE-32 pQE-9 pQE-16 pQE-31pQE-60 pQE-70 pQE-40 pET-51b(+)pET-50b(+) pET-49b(+) pET-48b(+) pET-47b(+)pET-26b(+) pET-32a(+) pET-21b(+) pET-22b(+)pET-14b pET-16b pET-15b pET-19bpET-20b(+) pET-21d(+) pET-21c(+) pET-21b(+)pET-21a(+) pET-24a(+) pET-24d(+) pET-25b(+)pET-27b(+) pET-28a(+) pET-30a(+) pET-42a(+) pET-43.1c(+) pET-43.1b(+) pET-43.1a(+) pET-44a(+) pET-44c(+) pET-46 EK/LIC pET-37b(+) pTrcHis2 C pTrcHis2 B pTrcHis2 A pET303/CT-His pET302/NT-His pRSET-CFP pRSET-EmGFP pRSET-BFP pGFPuvpET300/NT-DEST pET301/CT-DEST pGEM-T pBad43pGEX-4T-3 pGEX-5X-2 pBlueScript SK(+) pG-Tf2pG-KJE8 pGro7 pET-SUMO pSE380pET-17b pET102/D-TOPO pCDFDuet-1 pMAL-p5xpTf16 pET-28c(+) pBluescript II SK(+) pET-30b(+) pSUMO pProEX HTc pProEX HTb pProEX HTa pKD3 pKD13 pKD46 pTYB1pTYB2 pTWIN2 pBluescript II KS(-) pTYB12pMAL-p5e pACYCDuet-1 pEGM-11ZF(+) pEGM-7ZF(+) PinPoint Xa-3 PinPoint Xa-2 PinPoint Xa-1 pSP73pSP64 pTWIN1 pTYB11 pTXB1pET-5b(+) pBad/gIII C pBad/gIII B pBad/gIII A pET-5a(+) pMal-p4X pMal-p2G pkk223-3pkk232-8 pCYB1 pEZZ18 pBAD18pMAL-c5x pMal-p2E pMal-p2X pET-44 EK/LIC pET-43.1 EK/LIC pET-41 EK/LIC pMal-c4X pTrcHis BpET-31b(+) pET-3b(+) pET-41a(+) pGEX-3XpGEX-4T-2 pETDuet-1 pGEX-4T-1 pTrc99apET-28b(+) pET-His pALEX a,b,c pACYC177pBR322 pKD4 pKD20 pMXB10pEcoli-6xHN-GFPuv pKJE7 pRSET B pGEX-KGpGEX-2T pRSFDuet-1 pCOLADuet-1 pTrcHis C pTrcHis A pET-41b(+) pET-42b(+) pET-3a(+) pGEX-6P-3 pGEX-6P-2 pGEX-6P-1 pGEX-5X-3 pGEX-5X-1 pGEX-2TK pRSET A pMal-c2GpMal-c2E pMal-c2X pRSET C pQE-30pET-45b(+) pET-44b(+) pET-42c(+) pET-41c(+) pET-40b(+) pET-33b(+) pET-39b(+) pET-32 EK/LIC pET-32 Xa/LIC pET-32c(+) pET-32b(+) pET-30 Xa/LIC pET-30 EK/LIC pET-30c(+) pET-29c(+) pET-29b(+) pET-29a(+) pET-24c(+) pET-24b(+) pET-24(+)pET-23d(+) pET-11d(+) pBad33。
pBV220大肠杆菌表达载体说明
pBV220⼤肠杆菌表达载体说明pBV220编号名称北京华越洋VECT--‐110 pBV220pBV220载体基本信息载体名称: pBV220质粒类型: 原核表达载体，温控型表达载体，热诱导表达载体⾼拷贝/低拷贝: ⾼拷贝启动⼦: pR/pL克隆⽅法: 多克隆位点，限制性内切酶载体⼤⼩: 3666 b p5' 测序引物及序列: pBV220--‐F: 5?′--‐AAGAAGGGCAGCATTCAAAG--‐3‘3' 测序引物及序列: pBV220--‐R: 5?′--‐CTGCGTTCTGATTTAATCTG--‐3‘载体标签: --‐--‐载体抗性: 氨苄筛选标记: --‐--‐备注: pBV220质粒的SD sequence（⽤于结合原核⽣物核糖体的序列）后紧跟多克隆酶切位点，便于插⼊带起始ATG的外源基因，可表达⾮融合蛋⽩。
载体含有强的转录终⽌⼦可防⽌出现"通读"现象，有利于质粒--‐宿主系统的稳定。
载体pBV220为3.7Kb，有利于增加其拷贝数及容量。
pBV220含有PL启动⼦和编码对该启动⼦具有抑制作⽤⽽⼜对温度敏感的cI蛋⽩基因cIts857调控基因cI，因此可⽤温度对插⼊其中的外源基因的转录进⾏调控。
温控型原核表达载体，⾼拷贝数，⼤容量，强启动⼦，强转录终⽌⼦，可在任何受体菌中诱导表达。
pBV220载体是λPL/PR--‐cI857温度敏感系统表达载体，能够在42 表达⾮融合的⽬的蛋⽩。
在利⽤pBV220载体进⾏质粒构建的时候，需要加⼊ATG起始密码⼦。
PBV220质粒属于温度诱导表达型，培养温度为30 ，诱导温度为42 。
稳定性: 诱导表达组成型: ⾮组成型病毒/⾮病毒: ⾮病毒pBV220载体质粒图谱和多克隆位点信息Ampr, 氨苄抗性基因;ori, 质粒复制起点;cIts857, lambda 噬菌体表达抑制基因，但是在热诱导条件下能够表达⽬的基因; PRPL, 来⾃于lambda 噬菌体的串联的PR和PL启动⼦，保证基因的⾼⽔平表达; SD, Shine-Dalgarno序列;rrnB, 核糖体rrnB基因，是基因转录终⽌信号;pBV220载体简介pBV220载体是我国预防医学科学院病毒研究所⾃⾏构建的⼤肠杆菌温控表达载体,⽬前仍在⼴泛使⽤.pBV220载体序列ORIGIN1 GAATTCCCGG GGATCCGTCG ACCTGCAGCC AAGCTTCTGT TTTGGCTTAT GAGAGAAGAT 61 TTTCAGCCTG ATACAGATTA AATCAGAACG CAGAAGCGGT CTGATAAAAC AGAATTTGCC 121 TCCCGGCAGT AGCGCGGTGG TCCCACCTGA CCCCATGCCG AACTCAGAAG TGAAACGCCG 181 TAGCGCCGAT GGTAGTGTGG GGTCTCCCCA TGCGAGAGTA GCCAACTGCC AGGCATCAAA 241 TAAAACGAAA GGCTCAGTCG AAAGACTGGG CCTTTCGTTT TATCTGTTGT TTGTCGGTGA 301 ACGCTCTCCT GAGTAGGACA AATCCGCCGG GAGCGGATTT GAACGTTGCG AAGCAACGGC 361 CCGGAGGGTG GCGGGCAGGA CGCCCGCCAT AAACTGCCAG GCATCAAAGG AATCAGAAGG 421 CCATCCTGAC GGATGGCCTT TTTGCGTTTC TACAAACTCT TTGTTTATTT TTCTAAATAC 481 ATTCAAATAT GTATCCGCTC ATGAGACAAT AACCCTGATA AATGCTTCAA TAATATTGAA 541 AAAGGAAGAG TATGAGTATT CAACATTTCC GTGTCGCCCT TATTCCCTTT TTTGCGGCAT 601 TTTGCCTTCC TGTTTTTGCT CACCCAGAAA CGCTGGTGAA AGTAAAAGAT GCTGAAGATC 661 AGTTGGGTGC ACGAGTGGGT TACATCGAAC TGGATCTCAA CAGCGGTAAG ATCCTTGAGA 721 GTTTTCGCCC CGAAGAACGT TTTCCAATGA TGAGCACTTT TAAAGTTCTG CTATGTGGCG 781 CGGTATTATC CCGTGTTGAC GCCGGGCAAG AGCAACTCGG TCGCCGCATA CACTATTCTC 841 AGAATGACTT GGTTGAGTAC TCACCAGTCA CAGAAAAGCA TCTTACGGAT GGCATGACAG 901 TAAGAGAATT ATGCAGTGCT GCCATAACCA TGAGTGATAA CACTGCGGCC AACTTACTTC 961 TGACAACGAT CGGGAGGACCGAAGGAGCTA ACCGCTTTTT TGCACAACAT GGGGGATCAT 1021 GTAACTCGCC TTGATCGTTG GGAACCGGAT CTGAATGAAG CCATACCAAA CGACGAGCGT 1081 GACACCACGA TGCCTGTAGC AATGGCAACA ACGTTGCGCA AACTATTAAC TGGCGAACTA 1141 CTTACTCTAG CTTCCCGGCA ACAATTAATA GACTGGATGG AGGCGGATAA AGTTGCAGGA 1201 CCACTTCTGC GCTCGGCCCT TCCGGCTGGC TGGTTTATTG CTGATAAATC TGGAGCCGGT 1261 GAGCGTGGGT CTCGCGGTAT CATTGCAGCA CTGGGGCCAG ATGGTAAGCC CTCCCGTATC 1321 GTAGTTATCT ACACGACGGG GAGTCAGGCA ACTATGGATG AACGAAATAG ACAGATCGCT 1381 GAGATAGGTG CCTCACTGAT TAAGCATTGG TAACTGTCAG ACCAAGTTTA CTCATATATA 1441 CTTTAGATTG ATTTAAAACT TCATTTTTAA TTTAAAAGGA TCTAGGTGAA GATCCTTTTT 1501 GATAATCTCA TGACCAAAAT CCCTTAACGT GAGTTTTCGT TCCACTGAGC GTCAGACCCC 1561 GTAGAAAAGA TCAAAGGATC TTCTTGAGAT CCTTTTTTTC TGCGCGTAAT CTGCTGCTTG 1621 CAAACAAAAA AACCACCGCT ACCAGCGGTG GTTTGTTTGC CGGATCAAGA GCTACCAACT 1681 CTTTTTCCGA AGGTAACTGG CTTCAGCAGA GCGCAGATAC CAAATACTGT CCTTCTAGTG 1741 TAGCCGTAGT TAGGCCACCA CTTCAAGAAC TCTGTAGCAC CGCCTACATA CCTCGCTCTG 1801 CTAATCCTGT TACCAGTGGC TGCTGCCAGT GGCGATAAGT CGTGTCTTAC CGGGTTGGAC 1861 TCAAGACGAT AGTTACCGGA TAAGGCGCAG CGGTCGGGCT GAACGGGGGG TTCGTGCACA 1921 CAGCCCAGCT TGGAGCGAAC GACCTACACC GAACTGAGAT ACCTACAGCG TGAGCATTGA 1981 GAAAGCGCCA CGCTTCCCGA AGGGAGAAAG GCGGACAGGT ATCCGGTAAG CGGCAGGGTC 2041 GGAACAGGAG AGCGCACGAG GGAGCTTCCA GGGGGAAACG CCTGGTATCT TTATAGTCCT 2101 GTCGGGTTTC GCCAACCTCT GACTTGAGCG TCGATTTTGT GATGCTCGTC AGGGGGGCGG 2161 AGCCTATGGA AAAACGCCAG CAACGCGGCC TTTTTACGGT TCCTGGCCTT TTGCTGGCCT 2221 TTTGCTCACA TGTTCTTTCC TGCGTTATCC CCTGATTCTG TGGATAACCG TATTACCGCC 2281 TTTGAGTGAG CTGATACCGC TCGCCGCAGC CGAACGACCG AGCGCAGCGA GTCAGTGAGC 2341 GAGGAAGCGG AAGAGCGCCC TTATCTTTCC CTTTATTTTT GCTGCGGTAA GTCGCATAAA 2401 AACCATTCTT其他⼤肠杆菌表达载体：pBV221 ptdTomato pET--‐52b(+) pAmCyan pDsRed--‐Express2 pBV220 pCold--‐GST pColdS--‐SUMO pCold T F pCold I V pCold I II pCold I IpCold I pE--‐SUMO pCold--‐ProS2 pBAD102/D--‐TOPO pBAD202/D--‐TOPO pACYC184 pBAD/Thio--‐TOPO pBad/Myc--‐His C pBad/Myc--‐His B pBad/Myc--‐His A pBad/His C pBad/His B pBad/His A pBAD--‐TOPO pET--‐23b(+) pET--‐23a(+) pET--‐23c(+) pET--‐23(+) pET--‐12b(+) pET--‐12c(+)pET--‐12a(+) pET--‐11b(+) pET--‐11a(+) pET--‐11c(+) pBad24 pQE--‐82L pQE--‐81L pQE--‐80LpQE--‐32 pQE--‐9 pQE--‐16 pQE--‐31pQE--‐60 pQE--‐70 pQE--‐40 pET--‐51b(+)pET--‐50b(+) pET--‐49b(+) pET--‐48b(+) pET--‐47b(+)pET--‐26b(+) pET--‐32a(+) pET--‐21b(+) pET--‐22b(+)pET--‐14b pET--‐16b pET--‐15b pET--‐19bpET--‐20b(+) pET--‐21d(+) pET--‐21c(+) pET--‐21b(+)pET--‐21a(+) pET--‐24a(+) pET--‐24d(+) pET--‐25b(+)pET--‐27b(+) pET--‐28a(+) pET--‐30a(+) pET--‐42a(+)pET--‐43.1c(+) pET--‐43.1b(+) pET--‐43.1a(+) pET--‐44a(+)pET--‐44c(+) pET--‐46 E K/LIC pET--‐37b(+) pTrcHis2 C pTrcHis2 B pTrcHis2 A pET303/CT--‐His pET302/NT--‐His pRSET--‐CFP pRSET--‐EmGFP pRSET--‐BFP pGFPuvpET300/NT--‐DEST pET301/CT--‐DEST pGEM--‐T pBad43pGEX--‐4T--‐3 pGEX--‐5X--‐2 pBlueScript S K(+) pG--‐Tf2pG--‐KJE8 pGro7 pET--‐SUMO pSE380pET--‐17b pET102/D--‐TOPO pCDFDuet--‐1 pMAL--‐p5xpTf16 pET--‐28c(+) pBluescript I I S K(+) pET--‐30b(+) pSUMO pProEX H Tc pProEX H Tb pProEX H Ta pKD3 pKD13 pKD46 pTYB1pTYB2 pTWIN2 pBluescript I I K S(--‐) pTYB12pMAL--‐p5e pACYCDuet--‐1 pEGM--‐11ZF(+) pEGM--‐7ZF(+) PinPoint X a--‐3 PinPoint X a--‐2 PinPoint X a--‐1 pSP73 pSP64 pTWIN1 pTYB11 pTXB1pET--‐5b(+) pBad/gIII C pBad/gIII B pBad/gIII ApET--‐5a(+) pMal--‐p4X pMal--‐p2G pkk223--‐3pkk232--‐8 pCYB1 pEZZ18 pBAD18pMAL--‐c5x pMal--‐p2E pMal--‐p2X pET--‐44 E K/LIC pET--‐43.1 E K/LIC pET--‐41 E K/LIC pMal--‐c4X pTrcHis BpET--‐31b(+) pET--‐3b(+) pET--‐41a(+) pGEX--‐3XpGEX--‐4T--‐2 pETDuet--‐1 pGEX--‐4T--‐1 pTrc99apET--‐28b(+) pET--‐His pALEX a,b,c pACYC177pBR322 pKD4 pKD20 pMXB10pEcoli--‐6xHN--‐GFPuv pKJE7 pRSET B pGEX--‐KGpGEX--‐2T pRSFDuet--‐1 pCOLADuet--‐1 pTrcHis C pTrcHis A pET--‐41b(+) pET--‐42b(+) pET--‐3a(+) pGEX--‐6P--‐3 pGEX--‐6P--‐2 pGEX--‐6P--‐1 pGEX--‐5X--‐3 pGEX--‐5X--‐1 pGEX--‐2TK pRSET A pMal--‐c2G pMal--‐c2E pMal--‐c2X pRSET C pQE--‐30pET--‐45b(+) pET--‐44b(+) pET--‐42c(+) pET--‐41c(+) pET--‐40b(+) pET--‐33b(+) pET--‐39b(+) pET--‐32 E K/LIC pET--‐32 X a/LIC pET--‐32c(+) pET--‐32b(+) pET--‐30 X a/LIC pET--‐30 E K/LIC pET--‐30c(+) pET--‐29c(+) pET--‐29b(+) pET--‐29a(+) pET--‐24c(+) pET--‐24b(+) pET--‐24(+) pET--‐23d(+) pET--‐11d(+) pBad33。
pET-32c(+)大肠杆菌表达载体说明
pET-32c(+)编号 名称北京华越洋VECT-‐600 pET-‐32c(+)pET32c载体基本信息别名: pET32c, p et 32c质粒类型: 大肠杆菌蛋白表达表达水平: 高克隆方法: 多克隆位点，限制性内切酶载体大小: 5901bp5' 测序引物: T75' 测序引物序列: 5'-‐TAATACGACTCACTATAGGG-‐3'载体标签: thioredoxin (N端); H is (中间和C端) 载体抗性: Ampicillin备注: Production o f s oluble, a ctive t arget p roteins; N-‐term t hrombin c leavage s ite; Nterm e nterokinase c leavage s ite; a,b,c v ary b y M CS稳定性: 瞬时表达 Transient 组成型: 组成型 Constitutive 病毒/非病毒: 非病毒pET32c载体质粒图谱和多克隆位点信息pET32c载体简介The pET-‐32 series is designed for cloning and high-‐level expression of peptide sequences fused with t he 109aa T rx•Tag™ thioredoxin p rotein (1). C loning s ites a re a vailable f or p roducing f usion proteins a lso c ontaining c leavable H is•Tag® a nd S•Tag™ sequences f or d etection a nd p urification. Unique sites are shown on the circle map. Note that the sequence is numbered by the pBR322 convention, so the T7 expression region is reversed on the circle map. The cloning/expression region of the coding strand transcribed by T7 RNA polymerase is shown below. The f1 origin is oriented s o t hat i nfection w ith h elper p hage w ill p roduce v irions c ontaining s ingle-‐stranded D NA that corresponds to the coding strand. Therefore, single-‐stranded sequencing should be performed u sing t he T7 t erminator p rimer.pET32c载体序列ORIGIN1 ATCCGGATAT AGTTCCTCCT TTCAGCAAAA AACCCCTCAA GACCCGTTTA GAGGCCCCAA 61 GGGGTTATGC TAGTTATTGC TCAGCGGTGG CAGCAGCCAA CTCAGCTTCC TTTCGGGCTT 121 TGTTAGCAGC CGGATCTCAG TGGTGGTGGT GGTGGTGCTC GAGTGCGGCC GCAAGCTTGT 181 CGACGGAGCT CGAATTCGGA TCCACAGATA TCCCATGGCC TTGTCGTCGT CGTCGGTACC 241 CAGATCTGGG CTGTCCATGT GCTGGCGTTC GAATTTAGCA GCAGCGGTTT CTTTCATACC 301 AGAACCGCGT GGCACCAGAC CAGAAGAATG ATGATGATGA TGGTGCATAT GGCCAGAACC 361 AGAACCGGCC AGGTTAGCGT CGAGGAACTC TTTCAACTGA CCTTTAGACA GTGCACCCAC 421 TTTGGTTGCC GCCACTTCAC CGTTTTTGAA CAGCAGCAGA GTCGGGATAC CACGGATGCC481 ATATTTCGGC GCAGTGCCAG GGTTTTGATC GATGTTCAGT TTTGCAACGG TCAGTTTGCC541 CTGATATTCG TCAGCGATTT CATCCAGAAT CGGGGCGATC ATTTTGCACG GACCGCACCA 601 CTCTGCCCAG AAATCGACGA GGATCGCCCC GTCCGCTTTG AGTACATCCG TGTCAAAACT 661 GTCGTCAGTC AGGTGAATAA TTTTATCGCT CATATGTATA TCTCCTTCTT AAAGTTAAAC 721 AAAATTATTT CTAGAGGGGA ATTGTTATCC GCTCACAATT CCCCTATAGT GAGTCGTATT 781 AATTTCGCGG GATCGAGATC GATCTCGATC CTCTACGCCG GACGCATCGT GGCCGGCATC 841 ACCGGCGCCA CAGGTGCGGT TGCTGGCGCC TATATCGCCG ACATCACCGA TGGGGAAGAT 901 CGGGCTCGCC ACTTCGGGCT CATGAGCGCT TGTTTCGGCG TGGGTATGGT GGCAGGCCCC 961 GTGGCCGGGG GACTGTTGGG CGCCATCTCC TTGCATGCAC CATTCCTTGC GGCGGCGGTG 1021 CTCAACGGCC TCAACCTACT ACTGGGCTGC TTCCTAATGC AGGAGTCGCA TAAGGGAGAG 1081 CGTCGAGATC CCGGACACCA TCGAATGGCG CAAAACCTTT CGCGGTATGG CATGATAGCG 1141 CCCGGAAGAG AGTCAATTCA GGGTGGTGAA TGTGAAACCA GTAACGTTAT ACGATGTCGC 1201 AGAGTATGCC GGTGTCTCTT ATCAGACCGT TTCCCGCGTG GTGAACCAGG CCAGCCACGT 1261 TTCTGCGAAA ACGCGGGAAA AAGTGGAAGC GGCGATGGCG GAGCTGAATT ACATTCCCAA 1321 CCGCGTGGCA CAACAACTGG CGGGCAAACA GTCGTTGCTG ATTGGCGTTG CCACCTCCAG 1381 TCTGGCCCTG CACGCGCCGT CGCAAATTGT CGCGGCGATT AAATCTCGCG CCGATCAACT 1441 GGGTGCCAGC GTGGTGGTGT CGATGGTAGA ACGAAGCGGC GTCGAAGCCT GTAAAGCGGC 1501 GGTGCACAAT CTTCTCGCGC AACGCGTCAG TGGGCTGATC ATTAACTATC CGCTGGATGA 1561 CCAGGATGCC ATTGCTGTGG AAGCTGCCTG CACTAATGTT CCGGCGTTAT TTCTTGATGT 1621 CTCTGACCAG ACACCCATCA ACAGTATTAT TTTCTCCCAT GAAGACGGTA CGCGACTGGG 1681 CGTGGAGCAT CTGGTCGCAT TGGGTCACCA GCAAATCGCG CTGTTAGCGG GCCCATTAAG 1741 TTCTGTCTCG GCGCGTCTGC GTCTGGCTGG CTGGCATAAA TATCTCACTC GCAATCAAAT 1801 TCAGCCGATA GCGGAACGGG AAGGCGACTG GAGTGCCATG TCCGGTTTTC AACAAACCAT 1861 GCAAATGCTG AATGAGGGCA TCGTTCCCAC TGCGATGCTG GTTGCCAACG ATCAGATGGC 1921 GCTGGGCGCA ATGCGCGCCA TTACCGAGTC CGGGCTGCGC GTTGGTGCGG ACATCTCGGT 1981 AGTGGGATAC GACGATACCG AAGACAGCTC ATGTTATATC CCGCCGTTAA CCACCATCAA 2041 ACAGGATTTT CGCCTGCTGG GGCAAACCAG CGTGGACCGC TTGCTGCAAC TCTCTCAGGG 2101 CCAGGCGGTG AAGGGCAATC AGCTGTTGCC CGTCTCACTG GTGAAAAGAA AAACCACCCT 2161 GGCGCCCAAT ACGCAAACCG CCTCTCCCCG CGCGTTGGCC GATTCATTAA TGCAGCTGGC 2221 ACGACAGGTT TCCCGACTGG AAAGCGGGCA GTGAGCGCAA CGCAATTAAT GTAAGTTAGC 2281 TCACTCATTA GGCACCGGGA TCTCGACCGA TGCCCTTGAG AGCCTTCAAC CCAGTCAGCT 2341 CCTTCCGGTG GGCGCGGGGC ATGACTATCG TCGCCGCACT TATGACTGTC TTCTTTATCA 2401 TGCAACTCGT AGGACAGGTG CCGGCAGCGC TCTGGGTCAT TTTCGGCGAG GACCGCTTTC 2461 GCTGGAGCGC GACGATGATC GGCCTGTCGC TTGCGGTATT CGGAATCTTG CACGCCCTCG 2521 CTCAAGCCTT CGTCACTGGT CCCGCCACCA AACGTTTCGG CGAGAAGCAG GCCATTATCG 2581 CCGGCATGGC GGCCCCACGG GTGCGCATGA TCGTGCTCCT GTCGTTGAGG ACCCGGCTAG 2641 GCTGGCGGGG TTGCCTTACT GGTTAGCAGA ATGAATCACC GATACGCGAG CGAACGTGAA 2701 GCGACTGCTG CTGCAAAACG TCTGCGACCT GAGCAACAAC ATGAATGGTC TTCGGTTTCC 2761 GTGTTTCGTA AAGTCTGGAA ACGCGGAAGT CAGCGCCCTG CACCATTATG TTCCGGATCT 2821 GCATCGCAGG ATGCTGCTGG CTACCCTGTG GAACACCTAC ATCTGTATTA ACGAAGCGCT 2881 GGCATTGACC CTGAGTGATT TTTCTCTGGT CCCGCCGCAT CCATACCGCC AGTTGTTTAC 2941 CCTCACAACG TTCCAGTAAC CGGGCATGTT CATCATCAGT AACCCGTATC GTGAGCATCC 3001 TCTCTCGTTT CATCGGTATC ATTACCCCCA TGAACAGAAA TCCCCCTTAC ACGGAGGCAT 3061 CAGTGACCAA ACAGGAAAAA ACCGCCCTTA ACATGGCCCG CTTTATCAGA AGCCAGACAT 3121 TAACGCTTCT GGAGAAACTC AACGAGCTGG ACGCGGATGA ACAGGCAGAC ATCTGTGAAT3181 CGCTTCACGA CCACGCTGAT GAGCTTTACC GCAGCTGCCT CGCGCGTTTC GGTGATGACG 3241 GTGAAAACCT CTGACACATG CAGCTCCCGG AGACGGTCAC AGCTTGTCTG TAAGCGGATG 3301 CCGGGAGCAG ACAAGCCCGT CAGGGCGCGT CAGCGGGTGT TGGCGGGTGT CGGGGCGCAG 3361 CCATGACCCA GTCACGTAGC GATAGCGGAG TGTATACTGG CTTAACTATG CGGCATCAGA 3421 GCAGATTGTA CTGAGAGTGC ACCATATATG CGGTGTGAAA TACCGCACAG ATGCGTAAGG 3481 AGAAAATACC GCATCAGGCG CTCTTCCGCT TCCTCGCTCA CTGACTCGCT GCGCTCGGTC 3541 GTTCGGCTGC GGCGAGCGGT ATCAGCTCAC TCAAAGGCGG TAATACGGTT ATCCACAGAA 3601 TCAGGGGATA ACGCAGGAAA GAACATGTGA GCAAAAGGCC AGCAAAAGGC CAGGAACCGT 3661 AAAAAGGCCG CGTTGCTGGC GTTTTTCCAT AGGCTCCGCC CCCCTGACGA GCATCACAAA 3721 AATCGACGCT CAAGTCAGAG GTGGCGAAAC CCGACAGGAC TATAAAGATA CCAGGCGTTT 3781 CCCCCTGGAA GCTCCCTCGT GCGCTCTCCT GTTCCGACCC TGCCGCTTAC CGGATACCTG 3841 TCCGCCTTTC TCCCTTCGGG AAGCGTGGCG CTTTCTCATA GCTCACGCTG TAGGTATCTC 3901 AGTTCGGTGT AGGTCGTTCG CTCCAAGCTG GGCTGTGTGC ACGAACCCCC CGTTCAGCCC 3961 GACCGCTGCG CCTTATCCGG TAACTATCGT CTTGAGTCCA ACCCGGTAAG ACACGACTTA 4021 TCGCCACTGG CAGCAGCCAC TGGTAACAGG ATTAGCAGAG CGAGGTATGT AGGCGGTGCT 4081 ACAGAGTTCT TGAAGTGGTG GCCTAACTAC GGCTACACTA GAAGGACAGT ATTTGGTATC 4141 TGCGCTCTGC TGAAGCCAGT TACCTTCGGA AAAAGAGTTG GTAGCTCTTG ATCCGGCAAA 4201 CAAACCACCG CTGGTAGCGG TGGTTTTTTT GTTTGCAAGC AGCAGATTAC GCGCAGAAAA 4261 AAAGGATCTC AAGAAGATCC TTTGATCTTT TCTACGGGGT CTGACGCTCA GTGGAACGAA 4321 AACTCACGTT AAGGGATTTT GGTCATGAGA TTATCAAAAA GGATCTTCAC CTAGATCCTT 4381 TTAAATTAAA AATGAAGTTT TAAATCAATC TAAAGTATAT ATGAGTAAAC TTGGTCTGAC 4441 AGTTACCAAT GCTTAATCAG TGAGGCACCT ATCTCAGCGA TCTGTCTATT TCGTTCATCC 4501 ATAGTTGCCT GACTCCCCGT CGTGTAGATA ACTACGATAC GGGAGGGCTT ACCATCTGGC 4561 CCCAGTGCTG CAATGATACC GCGAGACCCA CGCTCACCGG CTCCAGATTT ATCAGCAATA 4621 AACCAGCCAG CCGGAAGGGC CGAGCGCAGA AGTGGTCCTG CAACTTTATC CGCCTCCATC 4681 CAGTCTATTA ATTGTTGCCG GGAAGCTAGA GTAAGTAGTT CGCCAGTTAA TAGTTTGCGC 4741 AACGTTGTTG CCATTGCTGC AGGCATCGTG GTGTCACGCT CGTCGTTTGG TATGGCTTCA 4801 TTCAGCTCCG GTTCCCAACG ATCAAGGCGA GTTACATGAT CCCCCATGTT GTGCAAAAAA 4861 GCGGTTAGCT CCTTCGGTCC TCCGATCGTT GTCAGAAGTA AGTTGGCCGC AGTGTTATCA 4921 CTCATGGTTA TGGCAGCACT GCATAATTCT CTTACTGTCA TGCCATCCGT AAGATGCTTT 4981 TCTGTGACTG GTGAGTACTC AACCAAGTCA TTCTGAGAAT AGTGTATGCG GCGACCGAGT 5041 TGCTCTTGCC CGGCGTCAAT ACGGGATAAT ACCGCGCCAC ATAGCAGAAC TTTAAAAGTG 5101 CTCATCATTG GAAAACGTTC TTCGGGGCGA AAACTCTCAA GGATCTTACC GCTGTTGAGA 5161 TCCAGTTCGA TGTAACCCAC TCGTGCACCC AACTGATCTT CAGCATCTTT TACTTTCACC 5221 AGCGTTTCTG GGTGAGCAAA AACAGGAAGG CAAAATGCCG CAAAAAAGGG AATAAGGGCG 5281 ACACGGAAAT GTTGAATACT CATACTCTTC CTTTTTCAAT ATTATTGAAG CATTTATCAG 5341 GGTTATTGTC TCATGAGCGG ATACATATTT GAATGTATTT AGAAAAATAA ACAAATAGGG 5401 GTTCCGCGCA CATTTCCCCG AAAAGTGCCA CCTGAAATTG TAAACGTTAA TATTTTGTTA 5461 AAATTCGCGT TAAATTTTTG TTAAATCAGC TCATTTTTTA ACCAATAGGC CGAAATCGGC 5521 AAAATCCCTT ATAAATCAAA AGAATAGACC GAGATAGGGT TGAGTGTTGT TCCAGTTTGG 5581 AACAAGAGTC CACTATTAAA GAACGTGGAC TCCAACGTCA AAGGGCGAAA AACCGTCTAT 5641 CAGGGCGATG GCCCACTACG TGAACCATCA CCCTAATCAA GTTTTTTGGG GTCGAGGTGC 5701 CGTAAAGCAC TAAATCGGAA CCCTAAAGGG AGCCCCCGAT TTAGAGCTTG ACGGGGAAAG 5761 CCGGCGAACG TGGCGAGAAA GGAAGGGAAG AAAGCGAAAG GAGCGGGCGC TAGGGCGCTG5821 GCAAGTGTAG CGGTCACGCT GCGCGTAACC ACCACACCCG CCGCGCTTAA TGCGCCGCTA 5881 CAGGGCGCGT CCCATTCGCC A//其他大肠杆菌表达载体：pBV221 ptdTomato pET-‐52b(+) pAmCyanpDsRed-‐Express2 pBV220 pCold-‐GST pColdS-‐SUMOpCold T F pCold I V pCold I II pCold I IpCold I pE-‐SUMO pCold-‐ProS2 pBAD102/D-‐TOPOpBAD202/D-‐TOPO pACYC184 pBAD/Thio-‐TOPO pBad/Myc-‐His CpBad/Myc-‐His B pBad/Myc-‐His A pBad/His C pBad/His BpBad/His A pBAD-‐TOPO pET-‐23b(+) pET-‐23a(+)pET-‐23c(+) pET-‐23(+) pET-‐12b(+) pET-‐12c(+)pET-‐12a(+) pET-‐11b(+) pET-‐11a(+) pET-‐11c(+)pBad24 pQE-‐82L pQE-‐81L pQE-‐80LpQE-‐32 pQE-‐9 pQE-‐16 pQE-‐31pQE-‐60 pQE-‐70 pQE-‐40 pET-‐51b(+)pET-‐50b(+) pET-‐49b(+) pET-‐48b(+) pET-‐47b(+)pET-‐26b(+) pET-‐32a(+) pET-‐21b(+) pET-‐22b(+)pET-‐14b pET-‐16b pET-‐15b pET-‐19bpET-‐20b(+) pET-‐21d(+) pET-‐21c(+) pET-‐21b(+)pET-‐21a(+) pET-‐24a(+) pET-‐24d(+) pET-‐25b(+)pET-‐27b(+) pET-‐28a(+) pET-‐30a(+) pET-‐42a(+)pET-‐43.1c(+) pET-‐43.1b(+) pET-‐43.1a(+) pET-‐44a(+)pET-‐44c(+) pET-‐46 E K/LIC pET-‐37b(+) pTrcHis2 CpTrcHis2 B pTrcHis2 A pET303/CT-‐His pET302/NT-‐HispRSET-‐CFP pRSET-‐EmGFP pRSET-‐BFP pGFPuvpET300/NT-‐DEST pET301/CT-‐DEST pGEM-‐T pBad43pGEX-‐4T-‐3 pGEX-‐5X-‐2 pBlueScript S K(+) pG-‐Tf2pG-‐KJE8 pGro7 pET-‐SUMO pSE380pET-‐17b pET102/D-‐TOPO pCDFDuet-‐1 pMAL-‐p5xpTf16 pET-‐28c(+) pBluescript I I S K(+) pET-‐30b(+)pSUMO pProEX H Tc pProEX H Tb pProEX H TapKD3 pKD13 pKD46 pTYB1pTYB2 pTWIN2 pBluescript I I K S(-‐) pTYB12pMAL-‐p5e pACYCDuet-‐1 pEGM-‐11ZF(+) pEGM-‐7ZF(+)PinPoint X a-‐3 PinPoint X a-‐2 PinPoint X a-‐1 pSP73pSP64 pTWIN1 pTYB11 pTXB1pET-‐5b(+) pBad/gIII C pBad/gIII B pBad/gIII ApET-‐5a(+) pMal-‐p4X pMal-‐p2G pkk223-‐3pkk232-‐8 pCYB1 pEZZ18 pBAD18pMAL-‐c5x pMal-‐p2E pMal-‐p2X pET-‐44 E K/LICpET-‐43.1 E K/LIC pET-‐41 E K/LIC pMal-‐c4X pTrcHis BpET-‐31b(+) pET-‐3b(+) pET-‐41a(+) pGEX-‐3XpGEX-‐4T-‐2 pETDuet-‐1 pGEX-‐4T-‐1 pTrc99a pET-‐28b(+) pET-‐His pALEX a,b,c pACYC177 pBR322 pKD4 pKD20 pMXB10 pEcoli-‐6xHN-‐GFPuv pKJE7 pRSET B pGEX-‐KG pGEX-‐2T pRSFDuet-‐1 pCOLADuet-‐1 pTrcHis C pTrcHis A pET-‐41b(+) pET-‐42b(+) pET-‐3a(+) pGEX-‐6P-‐3 pGEX-‐6P-‐2 pGEX-‐6P-‐1 pGEX-‐5X-‐3 pGEX-‐5X-‐1 pGEX-‐2TK pRSET A pMal-‐c2G pMal-‐c2E pMal-‐c2X pRSET C pQE-‐30pET-‐45b(+) pET-‐44b(+) pET-‐42c(+) pET-‐41c(+) pET-‐40b(+) pET-‐33b(+) pET-‐39b(+) pET-‐32 E K/LIC pET-‐32 X a/LIC pET-‐32c(+) pET-‐32b(+) pET-‐30 X a/LIC pET-‐30 E K/LIC pET-‐30c(+) pET-‐29c(+) pET-‐29b(+) pET-‐29a(+) pET-‐24c(+) pET-‐24b(+) pET-‐24(+) pET-‐23d(+) pET-‐11d(+) pBad33。
pET-GST使用说明
pET-GST pET-GST pET系列表达载体基本信息：启动子: T7/lac复制子: ColE1 ori，F1 ori终止子: T7 terminator质粒分类: 大肠杆菌载体；PET系列表达质粒质粒大小: 3.7kb质粒标签: N-GST,C-6×His，N-P3C原核抗性: 氨苄青霉素Amp克隆菌株: DH5α培养条件: 37℃，有氧，LB表达宿主: BL21(DE3)诱导方式: IPTG或乳糖及其类似物5'测序引物: T7:TAATACGACTCACTATAGGG3'测序引物: T7-ter:TGCTAGTTATTGCTCAGCGG pET-GST载体质粒图谱和多克隆位点信息：pET-GST载体简介：pET—GST表达载体采用T7启动子和GST融合表达，同时选用人鼻病毒14亚型3C蛋白酶专一性切割位点。
此外，C端还添加了6个His，便于采用chelating sepharose亲和层析。
本载体表达的融合蛋白可采用吸附GST的亲和层析和6个His的chelating sepharose双重亲和层析，极大地方便了下游纯化。
GST融合表达背景文献在medline里极为丰富，有数百个基因采用GST融合表达成功。
pET-GST载体序列pET-GST其他相关pET系列表达载体：pProEX HTC pET-24pProEX HTA pET-23dpMBP-P pET-23cpMBP-C pET-23bpLLP-STII/Plpp-STII pET-23pETM-30 pET22b-EBFPpET303/CT-His pET22b-EGFPpET302/NT-His pET-22bpET-52b pET-21dpET-51b pET-21bpET-50b pET-21apET-48b pET-21pET-47b pET-20bpET-44c pET-19bpET-44b pET-17bpET-44a 非空（BamHI-XhoI）pET-14bpET-43.1c pET-12cpET-43.1b pET-12bpET-43.1a pET-12apET-42c pET-11dpET-42b pET-11cpET-42a pET-11bpET-41c pET-5apET-41b pET-5bpET-41a pET-3dpET-39b pET-3cpET-37b pET-3bpET-35b pET-3apET-33b pTrc-CKSpET-32c pLpp-OmpApET-32b pET28a-OFPpET-32a pET28a-ECFPpET30a-EcoRV pET28a-EBFPpET-30c pProEX HTBpET-30b pET-TrxpET28a-SUMO pETM-11pET28a-EYFP pET-HispET28a-DsRed2 pET-GSTpET28a-EGFP pET-DsbApET-29c pETBlue-2pET-29b pET-40bpET-29a pET-31bpET-28c pET-30apET-28b pET28a-mCherry pET-28a pET-25bpET-27b pET-24apET-26b pET-23apET-24d pET-15bpET-24c pET-21cpET-24b pET-16bpET-11a。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
pET-3a(+)编号 载体名称北京华越洋生物VECT5510 pET-‐3a(+)pet3a载体基本信息别名: pET3a, p et 3a质粒类型: 大肠杆菌蛋白表达表达水平: 高克隆方法: 多克隆位点，限制性内切酶载体大小: 4640bp5' 测序引物: T75' 测序引物序列: 5'-‐TAATACGACTCACTATAGGG-‐3'载体标签: N-‐T7载体抗性: Ampicillin备注: Same a s p ET9 b ut a mpR; a,b,c,d v ary b y M CS.稳定性: 瞬时表达 Transient组成型: 组成型 Constitutive病毒/非病毒: 非病毒pet3a载体质粒图谱和多克隆位点信息pet3a载体简介The maps for pET-‐3b, pET-‐3c and pET-‐3d are the same as pET-‐3a (shown) with the following exceptions: pET-‐3b is a 4639bp plasmid; subtract 1bp from each site beyond BamH I a t 510. p ET-‐3c i s a 4638bp p lasmid;subtract 2bp f rom e ach s ite b eyond B amH I a t 510. pET-‐3d is a 4637bp plasmid; the BamH I site is in the same reading frame as in pET-‐3c. An Nco I site is substituted for the Nde I site with a net 1bp deletion at position 550 o f p ET-‐3c. A s a r esult, N co I c uts p ET-‐3d a t 546. F or t he r est o f t he s ites,subtract 3bp from each site beyond position 551 in pET-‐3a. Nde I does not cut pET-‐3d. The pET-‐3a-‐d vectors carry an N-‐terminal T7•Tag® sequence and BamH I cloning site. These vectors are the precursors to many pET family vectors; the pET-‐23a-‐d(+) series corresponds to pET-‐3a-‐d but incorporates several additional features. Unique sites are shown on the circle map.Note that the sequence is numbered by the pBR322 convention, so the T7 expression region is reversed on the circular map. The cloning/expression region of thecoding s trand t ranscribed b y T7 R NA p olymerase i s s hown a bove.pet3a载体序列ORIGIN1 TTCTCATGTT TGACAGCTTA TCATCGATAA GCTTTAATGC GGTAGTTTAT CACAGTTAAA 61 TTGCTAACGC AGTCAGGCAC CGTGTATGAA ATCTAACAAT GCGCTCATCG TCATCCTCGG 121 CACCGTCACC CTGGATGCTG TAGGCATAGG CTTGGTTATG CCGGTACTGC CGGGCCTCTT 181 GCGGGATATC GTCCATTCCG ACAGCATCGC CAGTCACTAT GGCGTGCTGC TAGCGCTATA 241 TGCGTTGATG CAATTTCTAT GCGCACCCGT TCTCGGAGCA CTGTCCGACC GCTTTGGCCG 301 CCGCCCAGTC CTGCTCGCTT CGCTACTTGG AGCCACTATC GACTACGCGA TCATGGCGAC 361 CACACCCGTC CTGTGGATAT CCGGATATAG TTCCTCCTTT CAGCAAAAAA CCCCTCAAGA 421 CCCGTTTAGA GGCCCCAAGG GGTTATGCTA GTTATTGCTC AGCGGTGGCA GCAGCCAACT 481 CAGCTTCCTT TCGGGCTTTG TTAGCAGCCG GATCCGCGAC CCATTTGCTG TCCACCAGTC 541 ATGCTAGCCA TATGTATATC TCCTTCTTAA AGTTAAACAA AATTATTTCT AGAGGGAAAC 601 CGTTGTGGTC TCCCTATAGT GAGTCGTATT AATTTCGCGG GATCGAGATC TCGATCCTCT 661 ACGCCGGACG CATCGTGGCC GGCATCACCG GCGCCACAGG TGCGGTTGCT GGCGCCTATA 721 TCGCCGACAT CACCGATGGG GAAGATCGGG CTCGCCACTT CGGGCTCATG AGCGCTTGTT 781 TCGGCGTGGG TATGGTGGCA GGCCCCGTGG CCGGGGGACT GTTGGGCGCC ATCTCCTTGC 841 ATGCACCATT CCTTGCGGCG GCGGTGCTCA ACGGCCTCAA CCTACTACTG GGCTGCTTCC 901 TAATGCAGGA GTCGCATAAG GGAGAGCGTC GACCGATGCC CTTGAGAGCC TTCAACCCAG 961 TCAGCTCCTT CCGGTGGGCG CGGGGCATGA CTATCGTCGC CGCACTTATG ACTGTCTTCT 1021 TTATCATGCA ACTCGTAGGA CAGGTGCCGG CAGCGCTCTG GGTCATTTTC GGCGAGGACC 1081 GCTTTCGCTG GAGCGCGACG ATGATCGGCC TGTCGCTTGC GGTATTCGGA ATCTTGCACG 1141 CCCTCGCTCA AGCCTTCGTC ACTGGTCCCG CCACCAAACG TTTCGGCGAG AAGCAGGCCA 1201 TTATCGCCGG CATGGCGGCC GACGCGCTGG GCTACGTCTT GCTGGCGTTC GCGACGCGAG 1261 GCTGGATGGC CTTCCCCATT ATGATTCTTC TCGCTTCCGG CGGCATCGGG ATGCCCGCGT 1321 TGCAGGCCAT GCTGTCCAGG CAGGTAGATG ACGACCATCA GGGACAGCTT CAAGGATCGC 1381 TCGCGGCTCT TACCAGCCTA ACTTCGATCA CTGGACCGCT GATCGTCACG GCGATTTATG 1441 CCGCCTCGGC GAGCACATGG AACGGGTTGG CATGGATTGT AGGCGCCGCC CTATACCTTG 1501 TCTGCCTCCC CGCGTTGCGT CGCGGTGCAT GGAGCCGGGC CACCTCGACC TGAATGGAAG 1561 CCGGCGGCAC CTCGCTAACG GATTCACCAC TCCAAGAATT GGAGCCAATC AATTCTTGCG 1621 GAGAACTGTG AATGCGCAAA CCAACCCTTG GCAGAACATA TCCATCGCGT CCGCCATCTC 1681 CAGCAGCCGC ACGCGGCGCA TCTCGGGCAG CGTTGGGTCC TGGCCACGGG TGCGCATGAT 1741 CGTGCTCCTG TCGTTGAGGA CCCGGCTAGG CTGGCGGGGT TGCCTTACTG GTTAGCAGAA 1801 TGAATCACCG ATACGCGAGC GAACGTGAAG CGACTGCTGC TGCAAAACGT CTGCGACCTG 1861 AGCAACAACA TGAATGGTCT TCGGTTTCCG TGTTTCGTAA AGTCTGGAAA CGCGGAAGTC 1921 AGCGCCCTGC ACCATTATGT TCCGGATCTG CATCGCAGGA TGCTGCTGGC TACCCTGTGG 1981 AACACCTACA TCTGTATTAA CGAAGCGCTG GCATTGACCC TGAGTGATTT TTCTCTGGTC 2041 CCGCCGCATC CATACCGCCA GTTGTTTACC CTCACAACGT TCCAGTAACC GGGCATGTTC 2101 ATCATCAGTA ACCCGTATCG TGAGCATCCT CTCTCGTTTC ATCGGTATCA TTACCCCCAT 2161 GAACAGAAAT CCCCCTTACA CGGAGGCATC AGTGACCAAA CAGGAAAAAA CCGCCCTTAA 2221 CATGGCCCGC TTTATCAGAA GCCAGACATT AACGCTTCTG GAGAAACTCA ACGAGCTGGA 2281 CGCGGATGAA CAGGCAGACA TCTGTGAATC GCTTCACGAC CACGCTGATG AGCTTTACCG 2341 CAGCTGCCTC GCGCGTTTCG GTGATGACGG TGAAAACCTC TGACACATGC AGCTCCCGGA 2401 GACGGTCACA GCTTGTCTGT AAGCGGATGC CGGGAGCAGA CAAGCCCGTC AGGGCGCGTC2461 AGCGGGTGTT GGCGGGTGTC GGGGCGCAGC CATGACCCAG TCACGTAGCG ATAGCGGAGT 2521 GTATACTGGC TTAACTATGC GGCATCAGAG CAGATTGTAC TGAGAGTGCA CCATATATGC 2581 GGTGTGAAAT ACCGCACAGA TGCGTAAGGA GAAAATACCG CATCAGGCGC TCTTCCGCTT 2641 CCTCGCTCAC TGACTCGCTG CGCTCGGTCG TTCGGCTGCG GCGAGCGGTA TCAGCTCACT 2701 CAAAGGCGGT AATACGGTTA TCCACAGAAT CAGGGGATAA CGCAGGAAAG AACATGTGAG 2761 CAAAAGGCCA GCAAAAGGCC AGGAACCGTA AAAAGGCCGC GTTGCTGGCG TTTTTCCATA 2821 GGCTCCGCCC CCCTGACGAG CATCACAAAA ATCGACGCTC AAGTCAGAGG TGGCGAAACC 2881 CGACAGGACT ATAAAGATAC CAGGCGTTTC CCCCTGGAAG CTCCCTCGTG CGCTCTCCTG 2941 TTCCGACCCT GCCGCTTACC GGATACCTGT CCGCCTTTCT CCCTTCGGGA AGCGTGGCGC 3001 TTTCTCATAG CTCACGCTGT AGGTATCTCA GTTCGGTGTA GGTCGTTCGC TCCAAGCTGG 3061 GCTGTGTGCA CGAACCCCCC GTTCAGCCCG ACCGCTGCGC CTTATCCGGT AACTATCGTC 3121 TTGAGTCCAA CCCGGTAAGA CACGACTTAT CGCCACTGGC AGCAGCCACT GGTAACAGGA 3181 TTAGCAGAGC GAGGTATGTA GGCGGTGCTA CAGAGTTCTT GAAGTGGTGG CCTAACTACG 3241 GCTACACTAG AAGGACAGTA TTTGGTATCT GCGCTCTGCT GAAGCCAGTT ACCTTCGGAA 3301 AAAGAGTTGG TAGCTCTTGA TCCGGCAAAC AAACCACCGC TGGTAGCGGT GGTTTTTTTG 3361 TTTGCAAGCA GCAGATTACG CGCAGAAAAA AAGGATCTCA AGAAGATCCT TTGATCTTTT 3421 CTACGGGGTC TGACGCTCAG TGGAACGAAA ACTCACGTTA AGGGATTTTG GTCATGAGAT 3481 TATCAAAAAG GATCTTCACC TAGATCCTTT TAAATTAAAA ATGAAGTTTT AAATCAATCT 3541 AAAGTATATA TGAGTAAACT TGGTCTGACA GTTACCAATG CTTAATCAGT GAGGCACCTA 3601 TCTCAGCGAT CTGTCTATTT CGTTCATCCA TAGTTGCCTG ACTCCCCGTC GTGTAGATAA 3661 CTACGATACG GGAGGGCTTA CCATCTGGCC CCAGTGCTGC AATGATACCG CGAGACCCAC 3721 GCTCACCGGC TCCAGATTTA TCAGCAATAA ACCAGCCAGC CGGAAGGGCC GAGCGCAGAA 3781 GTGGTCCTGC AACTTTATCC GCCTCCATCC AGTCTATTAA TTGTTGCCGG GAAGCTAGAG 3841 TAAGTAGTTC GCCAGTTAAT AGTTTGCGCA ACGTTGTTGC CATTGCTGCA GGCATCGTGG 3901 TGTCACGCTC GTCGTTTGGT ATGGCTTCAT TCAGCTCCGG TTCCCAACGA TCAAGGCGAG 3961 TTACATGATC CCCCATGTTG TGCAAAAAAG CGGTTAGCTC CTTCGGTCCT CCGATCGTTG 4021 TCAGAAGTAA GTTGGCCGCA GTGTTATCAC TCATGGTTAT GGCAGCACTG CATAATTCTC 4081 TTACTGTCAT GCCATCCGTA AGATGCTTTT CTGTGACTGG TGAGTACTCA ACCAAGTCAT 4141 TCTGAGAATA GTGTATGCGG CGACCGAGTT GCTCTTGCCC GGCGTCAACA CGGGATAATA 4201 CCGCGCCACA TAGCAGAACT TTAAAAGTGC TCATCATTGG AAAACGTTCT TCGGGGCGAA 4261 AACTCTCAAG GATCTTACCG CTGTTGAGAT CCAGTTCGAT GTAACCCACT CGTGCACCCA 4321 ACTGATCTTC AGCATCTTTT ACTTTCACCA GCGTTTCTGG GTGAGCAAAA ACAGGAAGGC 4381 AAAATGCCGC AAAAAAGGGA ATAAGGGCGA CACGGAAATG TTGAATACTC ATACTCTTCC 4441 TTTTTCAATA TTATTGAAGC ATTTATCAGG GTTATTGTCT CATGAGCGGA TACATATTTG 4501 AATGTATTTA GAAAAATAAA CAAATAGGGG TTCCGCGCAC ATTTCCCCGA AAAGTGCCAC 4561 CTGACGTCTA AGAAACCATT ATTATCATGA CATTAACCTA TAAAAATAGG CGTATCACGA 4621 GGCCCTTTCG TCTTCAAGAA//其他大肠杆菌表达载体：pBV221 ptdTomato pET-52b(+) pAmCyanpDsRed-Express2 pBV220 pCold-GST pColdS-SUMOpCold TF pCold IV pCold III pCold IIpCold I pE-SUMO pCold-ProS2 pBAD102/D-TOPO pBAD202/D-TOPO pACYC184 pBAD/Thio-TOPO pBad/Myc-His C pBad/Myc-His B pBad/Myc-His A pBad/His C pBad/His B pBad/His A pBAD-TOPO pET-23b(+) pET-23a(+)pET-23c(+) pET-23(+) pET-12b(+) pET-12c(+)pET-12a(+) pET-11b(+) pET-11a(+) pET-11c(+) pBad24 pQE-82L pQE-81L pQE-80LpQE-32 pQE-9 pQE-16 pQE-31pQE-60 pQE-70 pQE-40 pET-51b(+)pET-50b(+) pET-49b(+) pET-48b(+) pET-47b(+)pET-26b(+) pET-32a(+) pET-21b(+) pET-22b(+)pET-14b pET-16b pET-15b pET-19bpET-20b(+) pET-21d(+) pET-21c(+) pET-21b(+)pET-21a(+) pET-24a(+) pET-24d(+) pET-25b(+)pET-27b(+) pET-28a(+) pET-30a(+) pET-42a(+)pET-43.1c(+) pET-43.1b(+) pET-43.1a(+) pET-44a(+)pET-44c(+) pET-46 EK/LIC pET-37b(+) pTrcHis2 C pTrcHis2 B pTrcHis2 A pET303/CT-His pET302/NT-His pRSET-CFP pRSET-EmGFP pRSET-BFP pGFPuvpET300/NT-DEST pET301/CT-DEST pGEM-T pBad43pGEX-4T-3 pGEX-5X-2 pBlueScript SK(+) pG-Tf2pG-KJE8 pGro7 pET-SUMO pSE380pET-17b pET102/D-TOPO pCDFDuet-1 pMAL-p5xpTf16 pET-28c(+) pBluescript II SK(+) pET-30b(+) pSUMO pProEX HTc pProEX HTb pProEX HTa pKD3 pKD13 pKD46 pTYB1pTYB2 pTWIN2 pBluescript II KS(-) pTYB12pMAL-p5e pACYCDuet-1 pEGM-11ZF(+) pEGM-7ZF(+) PinPoint Xa-3 PinPoint Xa-2 PinPoint Xa-1 pSP73pSP64 pTWIN1 pTYB11 pTXB1pET-5b(+) pBad/gIII C pBad/gIII B pBad/gIII A pET-5a(+) pMal-p4X pMal-p2G pkk223-3pkk232-8 pCYB1 pEZZ18 pBAD18pMAL-c5x pMal-p2E pMal-p2X pET-44 EK/LIC pET-43.1 EK/LIC pET-41 EK/LIC pMal-c4X pTrcHis BpET-31b(+) pET-3b(+) pET-41a(+) pGEX-3XpGEX-4T-2 pETDuet-1 pGEX-4T-1 pTrc99apET-28b(+) pET-His pALEX a,b,c pACYC177pBR322 pKD4 pKD20 pMXB10pEcoli-6xHN-GFPuv pKJE7 pRSET B pGEX-KGpGEX-2T pRSFDuet-1 pCOLADuet-1 pTrcHis C pTrcHis A pET-41b(+) pET-42b(+) pET-3a(+) pGEX-6P-3 pGEX-6P-2 pGEX-6P-1 pGEX-5X-3 pGEX-5X-1 pGEX-2TK pRSET A pMal-c2GpMal-c2E pMal-c2X pRSET C pQE-30pET-45b(+) pET-44b(+) pET-42c(+) pET-41c(+) pET-40b(+) pET-33b(+) pET-39b(+) pET-32 EK/LIC pET-32 Xa/LIC pET-32c(+) pET-32b(+) pET-30 Xa/LIC pET-30 EK/LIC pET-30c(+) pET-29c(+) pET-29b(+) pET-29a(+) pET-24c(+) pET-24b(+) pET-24(+)pET-23d(+) pET-11d(+) pBad33。
