how does a marine diesel engine workPPT演示课件

如果我们把吸气和压缩，排气和膨胀冲程连接起来，那么四冲程柴油机将变为两冲程柴油机，如图所示：
Fuel injector
Piston
Cylinder
Exhaust port
Scavenge port
Scavenge Compression
(a)
(b)
Connecting rod
Crank 曲柄
Injection (c)
燃油的燃烧给充气增加了更多的热量，从而导致它膨胀，并且迫使发动机活塞对曲轴做功，曲轴反过来驱动船舶螺旋桨。
燃油喷射器
Inlet
Fuel valve
injector
Exhaust
valve排气阀
进气阀
Combustion chamber
Piston ring Piston
Piston pin活塞销
两次喷射之间的运转被称为一个工作循环，这是由固定顺序的活动组成的。
This cycle may be achieved either in four strokes(冲程、行程) or two.
这个循环可以由两冲程或四冲程来实现。
In a four-stroke diesel engine, the cycle requires four separate strokes of the piston, i.e. suction( 吸气 ), compression(压缩), expansion(膨胀) and exhaust(排气).
2001-03-20
suction
Jimei university
piston
top dead center/centre
inlet port

船舶柴油机技术发展现状与趋势探索

内燃机与配件0引言船舶用柴油发动机是船舶承载最重要的动力源。

伴随着新的排放规定的实施和石油资源的削减。

作为船舶最大的排放能源消耗机器，为了满足节能削减排放的需要，技术开发和新能源的开发利用对策是必需的。

船舶用柴油发动机核心关键部件的研发技术、高品质燃料技术、高效废气净化技术、可再生能源技术的应用等，可为满足海洋运输的高效、节能和减排的需要作出巨大贡献。

1国内船舶柴油机技术分析①工业基础经过多年的努力，我国船用柴油机的开发从无到有，迄今已取得了丰硕的成果，除此之外国家还建立了船用柴油机研究机构和相应企业。

最近几年，大多数已被列为国家高新技术项目，所以，我国柴油机的生产及自主研发、制造水平得到了的大大提高[1]。

②在引进新的技术和改革开放之前，我国引进了多种船用柴油机，通过引进外国先进技术，培养高水平技术人才，目前，已经取得一些科研成就，同时也具备了和世界发达国家竞争力的能力，如今与国外的先进技术相比，我国与发达国家之间船用柴油机的制造技术差距越来越小。

2船舶柴油机技术的发展现状船舶用柴油发动机是船舶用辅助装置的核心，是中国造船产业可持续健康发展不可缺少的组成部分。

近年来，随着世界造船中心向亚洲转移，中国船舶用柴油发动机产业迅速发展。

通过引进国外先进技术，形成了中高速船舶用柴油发动机可设计、制造、开发的产品群，部分产品达到国际先进水平。

甚至为中国船舶用柴油发动机产业的发展奠定了坚实的基础。

但是，中国的船舶用柴油机的开发，现在的综合开发的条件无法满足，产品设计、研究开发、生产技术等领域，国内的柴油机制造企业与国际先进企业之间的差距还有很大。

目前，国内柴油机在中国造船业的匹配率还不到40%，远远落后于与制造业相关的其他产业。

船舶用柴油发动机已经成为影响中国造船行业进一步发展的瓶颈。

在国际上，欧洲造船业中低速船舶用柴油发动机依然被发达国家垄断，manb&w 、WNS 等知名企业的市场份额超过70%[2]。

Lesson2HowDoesaMarineDieselEngineWork剖析

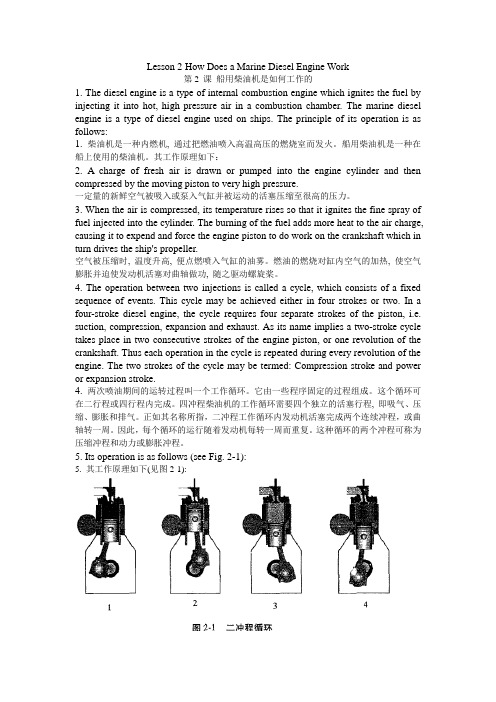

Lesson 2 How Does a Marine Diesel Engine Work第2 课船用柴油机是如何工作的1. The diesel engine is a type of internal combustion engine which ignites the fuel by injecting it into hot, high pressure air in a combustion chamber. The marine diesel engine is a type of diesel engine used on ships. The principle of its operation is as follows:1. 柴油机是一种内燃机, 通过把燃油喷入高温高压的燃烧室而发火。

船用柴油机是一种在船上使用的柴油机。

其工作原理如下：2. A charge of fresh air is drawn or pumped into the engine cylinder and then compressed by the moving piston to very high pressure.一定量的新鲜空气被吸入或泵入气缸并被运动的活塞压缩至很高的压力。

3. When the air is compressed, its temperature rises so that it ignites the fine spray of fuel injected into the cylinder. The burning of the fuel adds more heat to the air charge, causing it to expend and force the engine piston to do work on the crankshaft which in turn drives the ship's propeller.空气被压缩时, 温度升高, 便点燃喷入气缸的油雾。
