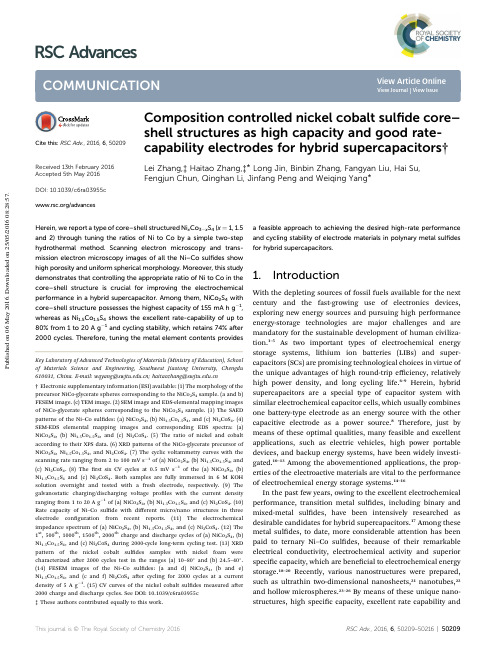

Composition controlled nickel cobalt sulﬁde core– shell structures as high capacity and good ratecapability electrodes for hybrid supercapacitors†
Published on 06 May 2016. Downloaded on 25/05/2016 08:28:57.
DOI: 10.1039/c6ra03955c /advt a type of core–shell structured NixCo3ÀxS4 (x ¼ 1, 1.5 and 2) through tuning the ratios of Ni to Co by a simple two-step hydrothermal method. Scanning electron microscopy and transmission electron microscopy images of all the Ni–Co sulﬁdes show high porosity and uniform spherical morphology. Moreover, this study demonstrates that controlling the appropriate ratio of Ni to Co in the core–shell structure is crucial for improving the electrochemical performance in a hybrid supercapacitor. Among them, NiCo2S4 with core–shell structure possesses the highest capacity of 155 mA h gÀ1, whereas as Ni1.5Co1.5S4 shows the excellent rate-capability of up to 80% from 1 to 20 A gÀ1 and cycling stability, which retains 74% after 2000 cycles. Therefore, tuning the metal element contents provides

2014-ACS Appl. Mater. Interfaces-酚变醌

© 2014 American Chemical Society
■
mesoporous carbon,16 graphene,2 and carbon nanoﬁber (CNF),17 have been widely employed as the immobilization materials of enzymes in biosensors, which can be attributed to their large speciﬁc surface area, excellent conductivity, and satisfactory biocompatibility. Among these materials, CNF possesses much larger functionalized surface area compared to that of CNT and is more suitable for immobilization and stability of enzyme. It has been proven that CNF is an outstanding matrix for the development of biosensors, which is far superior to the carbon nanotube.17 Notably, the CNF possesses a history of more than a century; the carbon ﬁlaments discovered in 1889 may be the earliest CNF.18 After more than a century of development, various methods used for CNF preparation have been developed, such as arc-discharge,19 laser ablation,20 chemical vapor deposition (CVD) methods,21 and others. Electrospinning, known as a facile and convenient process technique, produces nanoﬁbers or microﬁbers with diﬀerent diameters using a variety of polymers. Carbonization of electrospun polyacrylonitrile nanoﬁbers can be employed to fabricate CNF.22 In addition, to our best knowledge, CNF from CVD usually contains some impurities, e.g., metal catalyst and graphite particle, which requires a further complicated

(2014)Xianhua Hou, Xiaoli Zou et al. RSC ADV.

RSC Advances
PAPER Surfactant CTAB-assisted synthesis of Li1.13[Ni0.233Mn0.534Co0.233]0.87O2 with festoon-like hierarchical architectures as cathode materials for Li-ion batteries with outstandinguction
The introduction of non-aqueous rechargeable lithium-ion batteries in the 1990s for electric vehicles (EV), plug-in hybrid vehicles (PHEVs) and power portable electronic devices bring about a revolution in battery technology and a remarkable transformation from the relatively low-voltage, low-capacity and water-based systems such as nickel–cadmium1,2 and nickel– metal hydride batteries3,4 because of their relatively high energy density and design exibility. The electrochemical performances of the Li-ion batteries mainly depend on the cathode materials, the anode materials and the electrolyte. While the anode materials have the characteristics of the specic capacity much higher than the cathode material, such as siliconbased,5–7 tin-based,8,9 lithium transition metal oxides10,11 and metal-oxides.12–14 So it has become very important to improve the capability of cathode material, and further to improve the capacity of lithium ion secondary batteries.

最新JCR分区表

刊名简称刊名全称ISSN PLOS PATHOG PLoS Pathogens1553-7366 REV MED VIROL REVIEWS IN MEDICAL VIROLOGY1052-9276 ADV VIRUS RES ADVANCES IN VIRUS RESEARCH0065-3527 AIDS AIDS0269-9370 ANTIVIR THER ANTIVIRAL THERAPY1359-6535 J VIROL JOURNAL OF VIROLOGY0022-538X RETROVIROLOGY Retrovirology 1742-4690 ANTIVIR RES ANTIVIRAL RESEARCH0166-3542 INFLUENZA OTHER RESP Influenza and Other Respiratory Viruses1750-2640 INT J MED MICROBIOL INTERNATIONAL JOURNAL OF MEDICAL MICROBIOLOGY1438-4221 J CLIN VIROL JOURNAL OF CLINICAL VIROLOGY1386-6532 J GEN VIROL JOURNAL OF GENERAL VIROLOGY0022-1317 J MED VIROL JOURNAL OF MEDICAL VIROLOGY0146-6615 J VIRAL HEPATITIS JOURNAL OF VIRAL HEPATITIS1352-0504 MICROBES INFECT MICROBES AND INFECTION1286-4579 VIROLOGY VIROLOGY0042-6822 ACTA VIROL ACTA VIROLOGICA0001-723X AIDS RES HUM RETROV AIDS RESEARCH AND HUMAN RETROVIRUSES0889-2229 ARCH VIROL ARCHIVES OF VIROLOGY0304-8608 CURR HIV RES CURRENT HIV RESEARCH1570-162X FOOD ENVIRON VIROL Food and Environmental Virology1867-0334 FUTURE VIROL Future Virology1746-0794 INDIAN J VIROL Indian Journal of Virology 0970-2822 INTERVIROLOGY INTERVIROLOGY0300-5526 J NEUROVIROL JOURNAL OF NEUROVIROLOGY1355-0284 J VIROL METHODS JOURNAL OF VIROLOGICAL METHODS0166-0934 S AFR J HIV MED SOUTHERN AFRICAN JOURNAL OF HIV MEDICINE1608-9693 VIRAL IMMUNOL VIRAL IMMUNOLOGY0882-8245 VIROL J Virology Journal1743-422X VIROLOGIE VIROLOGIE1267-8694 VIRUS GENES VIRUS GENES0920-8569 VIRUS RES VIRUS RESEARCH0168-1702 VIRUSES-BASEL Viruses-Basel1999-4915 ACTA NEUROPATHOL ACTA NEUROPATHOLOGICA0001-6322 AM J PATHOL AMERICAN JOURNAL OF PATHOLOGY0002-9440 ANNU REV PATHOL-MECH Annual Review of Pathology-Mechanisms of Disease1553-4006 J PATHOL JOURNAL OF PATHOLOGY0022-3417 AM J SURG PATHOL AMERICAN JOURNAL OF SURGICAL PATHOLOGY0147-5185 BRAIN PATHOL BRAIN PATHOLOGY1015-6305 DIS MODEL MECH Disease Models & Mechanisms1754-8403 EXPERT REV MOL DIAGN EXPERT REVIEW OF MOLECULAR DIAGNOSTICS1473-7159 HISTOPATHOLOGY HISTOPATHOLOGY0309-0167 J MOL DIAGN JOURNAL OF MOLECULAR DIAGNOSTICS1525-1578 J NEUROPATH EXP NEUR JOURNAL OF NEUROPATHOLOGY AND EXPERIMENTAL NEURO0022-3069 LAB INVEST LABORATORY INVESTIGATION0023-6837 MODERN PATHOL MODERN PATHOLOGY0893-3952 NEUROPATH APPL NEURO NEUROPATHOLOGY AND APPLIED NEUROBIOLOGY0305-1846 SEMIN IMMUNOPATHOL Seminars in Immunopathology1863-2297 ADV ANAT PATHOL ADVANCES IN ANATOMIC PATHOLOGY1072-4109 ALZ DIS ASSOC DIS ALZHEIMER DISEASE & ASSOCIATED DISORDERS0893-0341 AM J CLIN PATHOL AMERICAN JOURNAL OF CLINICAL PATHOLOGY0002-9173ANAL CELL PATHOL Analytical Cellular Pathology-Cellular Oncology2210-7177 ARCH PATHOL LAB MED ARCHIVES OF PATHOLOGY & LABORATORY MEDICINE0003-9985 CANCER CYTOPATHOL CANCER CYTOPATHOLOGY1934-662X CYTOM PART B-CLIN CY CYTOMETRY PART B-CLINICAL CYTOMETRY1552-4949 DIS MARKERS DISEASE MARKERS0278-0240 EXP MOL PATHOL EXPERIMENTAL AND MOLECULAR PATHOLOGY0014-4800 HISTOL HISTOPATHOL HISTOLOGY AND HISTOPATHOLOGY0213-3911 HUM PATHOL HUMAN PATHOLOGY0046-8177 INT J EXP PATHOL INTERNATIONAL JOURNAL OF EXPERIMENTAL PATHOLOGY0959-9673 INT J IMMUNOPATH PH INTERNATIONAL JOURNAL OF IMMUNOPATHOLOGY AND PHA0394-6320 J CLIN PATHOL JOURNAL OF CLINICAL PATHOLOGY0021-9746 PATHOBIOLOGY PATHOBIOLOGY1015-2008 PATHOLOGY PATHOLOGY0031-3025 TISSUE ANTIGENS TISSUE ANTIGENS0001-2815 TOXICOL PATHOL TOXICOLOGIC PATHOLOGY0192-6233 VIRCHOWS ARCH VIRCHOWS ARCHIV-AN INTERNATIONAL JOURNAL OF PATH0945-6317 ACTA CYTOL ACTA CYTOLOGICA0001-5547 AM J FOREN MED PATH AMERICAN JOURNAL OF FORENSIC MEDICINE AND PATHOL0195-7910 ANN DIAGN PATHOL Annals of Diagnostic Pathology 1092-9134 ANN PATHOL ANNALES DE PATHOLOGIE0242-6498 APMIS APMIS0903-4641 APPL IMMUNOHISTO M M APPLIED IMMUNOHISTOCHEMISTRY & MOLECULAR MORPHOL1062-3345 BRAIN TUMOR PATHOL Brain Tumor Pathology1433-7398 CARDIOVASC PATHOL CARDIOVASCULAR PATHOLOGY1054-8807 CLIN NEUROPATHOL CLINICAL NEUROPATHOLOGY0722-5091 CYTOPATHOLOGY CYTOPATHOLOGY0956-5507 DIAGN CYTOPATHOL DIAGNOSTIC CYTOPATHOLOGY8755-1039 DIAGN MOL PATHOL DIAGNOSTIC MOLECULAR PATHOLOGY1052-9551 DIAGN PATHOL Diagnostic Pathology1746-1596 ENDOCR PATHOL ENDOCRINE PATHOLOGY1046-3976 EXP TOXICOL PATHOL EXPERIMENTAL AND TOXICOLOGIC PATHOLOGY0940-2993 FETAL PEDIATR PATHOL Fetal and Pediatric Pathology1551-3815 FOLIA NEUROPATHOL FOLIA NEUROPATHOLOGICA1641-4640 FORENSIC SCI MED PAT Forensic Science Medicine and Pathology1547-769X INDIAN J PATHOL MICR Indian Journal of Pathology and Microbiology0377-4929 INT J GYNECOL PATHOL INTERNATIONAL JOURNAL OF GYNECOLOGICAL PATHOLOGY0277-1691 INT J SURG PATHOL INTERNATIONAL JOURNAL OF SURGICAL PATHOLOGY1066-8969 J COMP PATHOL JOURNAL OF COMPARATIVE PATHOLOGY0021-9975 J CUTAN PATHOL JOURNAL OF CUTANEOUS PATHOLOGY0303-6987 J ORAL PATHOL MED JOURNAL OF ORAL PATHOLOGY & MEDICINE0904-2512 J TOXICOL PATHOL Journal of Toxicologic Pathology0914-9198 KOREAN J PATHOL Korean Journal of Pathology1738-1843 LEPROSY REV LEPROSY REVIEW0305-7518 MED MOL MORPHOL Medical Molecular Morphology1860-1480 MED NUCL Medecine Nucleaire-Imagerie Fonctionnelle et Met0928-1258 NEUROPATHOLOGY NEUROPATHOLOGY0919-6544 PATHOL BIOL PATHOLOGIE BIOLOGIE0369-8114 PATHOL INT PATHOLOGY INTERNATIONAL1320-5463 PATHOL ONCOL RES PATHOLOGY & ONCOLOGY RESEARCH1219-4956 PATHOL RES PRACT PATHOLOGY RESEARCH AND PRACTICE0344-0338 PATHOLOGE PATHOLOGE0172-8113 PEDIATR DEVEL PATHOL PEDIATRIC AND DEVELOPMENTAL PATHOLOGY1093-5266POL J PATHOL POLISH JOURNAL OF PATHOLOGY1233-9687 SCI JUSTICE SCIENCE & JUSTICE1355-0306 SEMIN DIAGN PATHOL SEMINARS IN DIAGNOSTIC PATHOLOGY0740-2570 ULTRASTRUCT PATHOL ULTRASTRUCTURAL PATHOLOGY0191-3123 VET PATHOL VETERINARY PATHOLOGY0300-9858 POLYM TEST POLYMER TESTING0142-9418 PROG CRYST GROWTH CH PROGRESS IN CRYSTAL GROWTH AND CHARACTERIZATION 0960-8974 EXP MECH EXPERIMENTAL MECHANICS0014-4851 MATER CHARACT MATERIALS CHARACTERIZATION1044-5803 NANOSC MICROSC THERM Nanoscale and Microscale Thermophysical Engineer1556-7265 NDT&E INT NDT & E INTERNATIONAL0963-8695 ENG FAIL ANAL ENGINEERING FAILURE ANALYSIS1350-6307 J NONDESTRUCT EVAL JOURNAL OF NONDESTRUCTIVE EVALUATION0195-9298 J SANDW STRUCT MATER JOURNAL OF SANDWICH STRUCTURES & MATERIALS1099-6362 J STRAIN ANAL ENG JOURNAL OF STRAIN ANALYSIS FOR ENGINEERING DESIG0309-3247 MECH ADV MATER STRUC MECHANICS OF ADVANCED MATERIALS AND STRUCTURES1537-6494 MECH TIME-DEPEND MAT MECHANICS OF TIME-DEPENDENT MATERIALS1385-2000 RES NONDESTRUCT EVAL RESEARCH IN NONDESTRUCTIVE EVALUATION0934-9847 STRAIN STRAIN0039-2103 ADV STEEL CONSTR Advanced Steel Construction1816-112X ARCH MECH ARCHIVES OF MECHANICS0373-2029 BETON- STAHLBETONBAU Beton- und Stahlbetonbau0005-9900 COMPUT CONCRETE Computers and Concrete 1598-8198 EXP TECHNIQUES EXPERIMENTAL TECHNIQUES0732-8818 INSIGHT INSIGHT1354-2575 J TEST EVAL JOURNAL OF TESTING AND EVALUATION0090-3973 MATER EVAL MATERIALS EVALUATION0025-5327 MATER PERFORMANCE MATERIALS PERFORMANCE0094-1492 MATER TEST Materials Testing-Materials and Components Techn0025-5300 NONDESTRUCT TEST EVA Nondestructive Testing and Evaluation1058-9759 PART PART SYST CHAR PARTICLE & PARTICLE SYSTEMS CHARACTERIZATION0934-0866 POLYM POLYM COMPOS POLYMERS & POLYMER COMPOSITES0967-3911 POWDER DIFFR POWDER DIFFRACTION0885-7156 QIRT J QIRT Journal1768-6733 RUSS J NONDESTRUCT+RUSSIAN JOURNAL OF NONDESTRUCTIVE TESTING1061-8309 STRENGTH MATER+STRENGTH OF MATERIALS0039-2316 DYES PIGMENTS DYES AND PIGMENTS0143-7208 CELLULOSE CELLULOSE0969-0239 COLOR TECHNOL COLORATION TECHNOLOGY1472-3581 TEXT RES J TEXTILE RESEARCH JOURNAL0040-5175 FIBER POLYM FIBERS AND POLYMERS1229-9197 IND TEXTILA Industria Textila 1222-5347 J AM LEATHER CHEM AS JOURNAL OF THE AMERICAN LEATHER CHEMISTS ASSOCIA0002-9726 J ENG FIBER FABR Journal of Engineered Fibers and Fabrics 1558-9250 J IND TEXT Journal of Industrial Textiles1528-0837 WOOD FIBER SCI WOOD AND FIBER SCIENCE0735-6161 AATCC REV AATCC REVIEW1532-8813 FIBRE CHEM+FIBRE CHEMISTRY0015-0541 FIBRES TEXT EAST EUR FIBRES & TEXTILES IN EASTERN EUROPE1230-3666 INT J CLOTH SCI TECH International Journal of Clothing Science and Te0955-6222 J NAT FIBERS Journal of Natural Fibers1544-0478 J SOC LEATH TECH CH JOURNAL OF THE SOCIETY OF LEATHER TECHNOLOGISTS 0144-0322J TEXT I JOURNAL OF THE TEXTILE INSTITUTE0040-5000 J VINYL ADDIT TECHN JOURNAL OF VINYL & ADDITIVE TECHNOLOGY1083-5601 SEN-I GAKKAISHI SEN-I GAKKAISHI0037-9875 TEKST KONFEKSIYON Tekstil ve Konfeksiyon 1300-3356 TEKSTIL TEKSTIL0492-5882 COMPOS SCI TECHNOL COMPOSITES SCIENCE AND TECHNOLOGY0266-3538 COMPOS PART A-APPL S COMPOSITES PART A-APPLIED SCIENCE AND MANUFACTUR1359-835X COMPOS PART B-ENG COMPOSITES PART B-ENGINEERING1359-8368 COMPOS STRUCT COMPOSITE STRUCTURES0263-8223 APPL COMPOS MATER APPLIED COMPOSITE MATERIALS0929-189X CEMENT CONCRETE COMP CEMENT & CONCRETE COMPOSITES0958-9465 J COMPOS CONSTR JOURNAL OF COMPOSITES FOR CONSTRUCTION1090-0268 J COMPOS MATER JOURNAL OF COMPOSITE MATERIALS0021-9983 J SANDW STRUCT MATER JOURNAL OF SANDWICH STRUCTURES & MATERIALS1099-6362 MECH ADV MATER STRUC MECHANICS OF ADVANCED MATERIALS AND STRUCTURES1537-6494 POLYM COMPOSITE POLYMER COMPOSITES0272-8397 ADV COMPOS LETT ADVANCED COMPOSITES LETTERS0963-6935 ADV COMPOS MATER ADVANCED COMPOSITE MATERIALS0924-3046 BETON- STAHLBETONBAU Beton- und Stahlbetonbau0005-9900 CEM WAPNO BETON Cement Wapno Beton1425-8129 COMPOS INTERFACE COMPOSITE INTERFACES0927-6440 J REINF PLAST COMP JOURNAL OF REINFORCED PLASTICS AND COMPOSITES0731-6844 J THERMOPLAST COMPOS JOURNAL OF THERMOPLASTIC COMPOSITE MATERIALS0892-7057 MECH COMPOS MATER MECHANICS OF COMPOSITE MATERIALS0191-5665 PLAST RUBBER COMPOS PLASTICS RUBBER AND COMPOSITES1465-8011 POLYM POLYM COMPOS POLYMERS & POLYMER COMPOSITES0967-3911 PROG RUBBER PLAST RE Progress in Rubber Plastics and Recycling Techno1477-7606 SCI ENG COMPOS MATER SCIENCE AND ENGINEERING OF COMPOSITE MATERIALS0334-181X STEEL COMPOS STRUCT STEEL AND COMPOSITE STRUCTURES1229-9367 J EUR CERAM SOC JOURNAL OF THE EUROPEAN CERAMIC SOCIETY0955-2219 CERAM INT CERAMICS INTERNATIONAL0272-8842 INT J APPL CERAM TEC International Journal of Applied Ceramic Technol1546-542X J AM CERAM SOC JOURNAL OF THE AMERICAN CERAMIC SOCIETY0002-7820 ADV APPL CERAM Advances in Applied Ceramics1743-6753 J CERAM SOC JPN JOURNAL OF THE CERAMIC SOCIETY OF JAPAN1882-0743 J ELECTROCERAM JOURNAL OF ELECTROCERAMICS1385-3449 J NON-CRYST SOLIDS JOURNAL OF NON-CRYSTALLINE SOLIDS0022-3093 J SOL-GEL SCI TECHN JOURNAL OF SOL-GEL SCIENCE AND TECHNOLOGY0928-0707 AM CERAM SOC BULL AMERICAN CERAMIC SOCIETY BULLETIN0002-7812 BOL SOC ESP CERAM V BOLETIN DE LA SOCIEDAD ESPANOLA DE CERAMICA Y VI0366-3175 CERAM-SILIKATY CERAMICS-SILIKATY0862-5468 CFI-CERAM FORUM INT CFI-CERAMIC FORUM INTERNATIONAL0173-9913 GLASS CERAM+GLASS AND CERAMICS0361-7610 GLASS PHYS CHEM+GLASS PHYSICS AND CHEMISTRY1087-6596 GLASS TECHNOL-PART A GLASS TECHNOLOGY1753-3546 IND CERAM INDUSTRIAL CERAMICS1121-7588 J CERAM PROCESS RES JOURNAL OF CERAMIC PROCESSING RESEARCH1229-9162 J INORG MATER JOURNAL OF INORGANIC MATERIALS1000-324X MATER WORLD MATERIALS WORLD0967-8638 PHYS CHEM GLASSES-B Physics and Chemistry of Glasses-European Journa1753-3562 POWDER METALL MET C+POWDER METALLURGY AND METAL CERAMICS1068-1302 REFRACT IND CERAM+REFRACTORIES AND INDUSTRIAL CERAMICS1083-4877SCI SINTER SCIENCE OF SINTERING0350-820X T INDIAN CERAM SOC Transactions of the Indian Ceramic Society 0371-750X J ELECTROCHEM SOC JOURNAL OF THE ELECTROCHEMICAL SOCIETY0013-4651 CHEM VAPOR DEPOS CHEMICAL VAPOR DEPOSITION0948-1907 SURF COAT TECH SURFACE & COATINGS TECHNOLOGY0257-8972 THIN SOLID FILMS THIN SOLID FILMS0040-6090 APPL SURF SCI APPLIED SURFACE SCIENCE0169-4332 J THERM SPRAY TECHN JOURNAL OF THERMAL SPRAY TECHNOLOGY1059-9630 J VAC SCI TECHNOL A JOURNAL OF VACUUM SCIENCE & TECHNOLOGY A-VACUUM 0734-2101 PROG ORG COAT PROGRESS IN ORGANIC COATINGS0300-9440 CORROS REV CORROSION REVIEWS0334-6005 INT J SURF SCI ENG International Journal of Surface Science and Eng1749-785X J COAT TECHNOL RES Journal of Coatings Technology and Research1547-0091 J PLAST FILM SHEET JOURNAL OF PLASTIC FILM & SHEETING8756-0879 JCT COATINGSTECH JCT COATINGSTECH1547-0083 KORROZ FIGY Korrozios Figyelo0133-2546 PIGM RESIN TECHNOL Pigment & Resin Technology0369-9420 SURF COAT INT SURFACE COATINGS INTERNATIONAL1754-0925 SURF ENG SURFACE ENGINEERING0267-0844 T I MET FINISH TRANSACTIONS OF THE INSTITUTE OF METAL FINISHING0020-2967 BIOMATERIALS BIOMATERIALS0142-9612 ACTA BIOMATER Acta Biomaterialia1742-7061 EUR CELLS MATER EUROPEAN CELLS & MATERIALS1473-2262 J MECH BEHAV BIOMED Journal of the Mechanical Behavior of Biomedical1751-6161 MACROMOL BIOSCI MACROMOLECULAR BIOSCIENCE1616-5187 BIOINTERPHASES Biointerphases 1559-4106 COLLOID SURFACE B COLLOIDS AND SURFACES B-BIOINTERFACES0927-7765 DENT MATER DENTAL MATERIALS0109-5641 J BIOACT COMPAT POL JOURNAL OF BIOACTIVE AND COMPATIBLE POLYMERS0883-9115 J BIOMAT SCI-POLYM E JOURNAL OF BIOMATERIALS SCIENCE-POLYMER EDITION0920-5063 J BIOMED MATER RES A JOURNAL OF BIOMEDICAL MATERIALS RESEARCH PART A1549-3296 J BIOMED MATER RES B JOURNAL OF BIOMEDICAL MATERIALS RESEARCH PART B-1552-4973 ARTIF CELL BLOOD SUB ARTIFICIAL CELLS BLOOD SUBSTITUTES AND IMMOBILIZ1073-1199 BIOFABRICATION Biofabrication1758-5082 BIOINSPIR BIOMIM Bioinspiration & Biomimetics1748-3182 BIOMED MATER Biomedical Materials1748-6041 BIO-MED MATER ENG BIO-MEDICAL MATERIALS AND ENGINEERING0959-2989 CELL POLYM CELLULAR POLYMERS0262-4893 DENT MATER J DENTAL MATERIALS JOURNAL0287-4547 J APPL BIOMATER BIOM Journal of Applied Biomaterials & Biomechanics1722-6899 J BIOBASED MATER BIO Journal of Biobased Materials and Bioenergy1556-6560 J BIOMATER APPL JOURNAL OF BIOMATERIALS APPLICATIONS0885-3282 J BIONIC ENG Journal of Bionic Engineering1672-6529 J MATER SCI-MATER M JOURNAL OF MATERIALS SCIENCE-MATERIALS IN MEDICI0957-4530 MAT SCI ENG C-MATER Materials Science & Engineering C-Materials for 0928-4931 BIORESOURCES BioResources1930-2126 CELLULOSE CELLULOSE0969-0239 HOLZFORSCHUNG HOLZFORSCHUNG0018-3830 WOOD SCI TECHNOL WOOD SCIENCE AND TECHNOLOGY0043-7719 EUR J WOOD WOOD PROD European Journal of Wood and Wood Products0018-3768 J WOOD CHEM TECHNOL JOURNAL OF WOOD CHEMISTRY AND TECHNOLOGY0277-3813 J WOOD SCI JOURNAL OF WOOD SCIENCE1435-0211NORD PULP PAP RES J NORDIC PULP & PAPER RESEARCH JOURNAL0283-2631 TAPPI J TAPPI JOURNAL0734-1415 WOOD FIBER SCI WOOD AND FIBER SCIENCE0735-6161 APPITA J APPITA JOURNAL1038-6807 CELL CHEM TECHNOL CELLULOSE CHEMISTRY AND TECHNOLOGY0576-9787 DREWNO Drewno1644-3985 DRVNA IND Drvna Industrija0012-6772 FOREST PROD J FOREST PRODUCTS JOURNAL0015-7473 J PULP PAP SCI JOURNAL OF PULP AND PAPER SCIENCE0826-6220 MADERAS-CIENC TECNOL Maderas-Ciencia y Tecnologia 0717-3644 MOKUZAI GAKKAISHI MOKUZAI GAKKAISHI0021-4795 PAP PUU-PAP TIM PAPERI JA PUU-PAPER AND TIMBER0031-1243 PULP PAP-CANADA PULP & PAPER-CANADA0316-4004 WOCHENBL PAPIERFABR WOCHENBLATT FUR PAPIERFABRIKATION0043-7131 WOOD RES-SLOVAKIA WOOD RESEARCH1336-4561 ACS NANO ACS Nano 1936-0851 ADV FUNCT MATER ADVANCED FUNCTIONAL MATERIALS1616-301X ADV MATER ADVANCED MATERIALS0935-9648 ANNU REV MATER RES ANNUAL REVIEW OF MATERIALS RESEARCH1531-7331 MAT SCI ENG R MATERIALS SCIENCE & ENGINEERING R-REPORTS0927-796X MATER TODAY Materials Today1369-7021 NANO LETT NANO LETTERS1530-6984 NANO TODAY Nano Today1748-0132 NAT MATER NATURE MATERIALS1476-1122 NAT NANOTECHNOL Nature Nanotechnology1748-3387 PROG MATER SCI PROGRESS IN MATERIALS SCIENCE0079-6425 ACTA MATER ACTA MATERIALIA1359-6454 CARBON CARBON0008-6223 CHEM MATER CHEMISTRY OF MATERIALS0897-4756 CRIT REV SOLID STATE CRITICAL REVIEWS IN SOLID STATE AND MATERIALS SC1040-8436 CRYST GROWTH DES CRYSTAL GROWTH & DESIGN1528-7483 CURR OPIN SOLID ST M CURRENT OPINION IN SOLID STATE & MATERIALS SCIEN1359-0286 EXP MECH EXPERIMENTAL MECHANICS0014-4851 INT J PLASTICITY INTERNATIONAL JOURNAL OF PLASTICITY0749-6419 INT MATER REV INTERNATIONAL MATERIALS REVIEWS0950-6608 J MATER CHEM JOURNAL OF MATERIALS CHEMISTRY0959-9428 J MECH PHYS SOLIDS JOURNAL OF THE MECHANICS AND PHYSICS OF SOLIDS0022-5096 J PHYS CHEM C Journal of Physical Chemistry C1932-7447 LANGMUIR LANGMUIR0743-7463 MICROSC MICROANAL MICROSCOPY AND MICROANALYSIS1431-9276 MRS BULL MRS BULLETIN0883-7694 NANO RES Nano Research1998-0124 NANOSCALE Nanoscale2040-3364 NANOTECHNOLOGY NANOTECHNOLOGY0957-4484 ORG ELECTRON ORGANIC ELECTRONICS1566-1199 PLASMONICS Plasmonics 1557-1955 SMALL SMALL1613-6810 SOFT MATTER Soft Matter1744-683X SOL ENERG MAT SOL C SOLAR ENERGY MATERIALS AND SOLAR CELLS0927-0248 THIN SOLID FILMS THIN SOLID FILMS0040-6090 ACS APPL MATER INTER ACS Applied Materials & Interfaces1944-8244 ADV ENG MATER ADVANCED ENGINEERING MATERIALS1438-1656APPL PHYS A-MATER APPLIED PHYSICS A-MATERIALS SCIENCE & PROCESSING0947-8396 CEMENT CONCRETE RES CEMENT AND CONCRETE RESEARCH0008-8846 CMC-COMPUT MATER CON CMC-Computers Materials & Continua1546-2218 COMP MATER SCI COMPUTATIONAL MATERIALS SCIENCE0927-0256 CORROS SCI CORROSION SCIENCE0010-938X CURR APPL PHYS CURRENT APPLIED PHYSICS1567-1739 CURR NANOSCI Current Nanoscience1573-4137 DIAM RELAT MATER DIAMOND AND RELATED MATERIALS0925-9635 DIG J NANOMATER BIOS Digest Journal of Nanomaterials and Biostructure1842-3582 ELECTROCHEM SOLID ST ELECTROCHEMICAL AND SOLID STATE LETTERS1099-0062 EUR PHYS J E EUROPEAN PHYSICAL JOURNAL E1292-8941 FUNCT MATER LETT Functional Materials Letters1793-6047 GOLD BULL GOLD BULLETIN0017-1557 IEEE T NANOTECHNOL IEEE TRANSACTIONS ON NANOTECHNOLOGY1536-125X INT J ADHES ADHES INTERNATIONAL JOURNAL OF ADHESION AND ADHESIVES0143-7496 INT J DAMAGE MECH INTERNATIONAL JOURNAL OF DAMAGE MECHANICS1056-7895 INT J FATIGUE INTERNATIONAL JOURNAL OF FATIGUE0142-1123 INTERMETALLICS INTERMETALLICS0966-9795 J ALLOY COMPD JOURNAL OF ALLOYS AND COMPOUNDS0925-8388 J MATER RES JOURNAL OF MATERIALS RESEARCH0884-2914 J MATER SCI JOURNAL OF MATERIALS SCIENCE0022-2461 J MICROMECH MICROENG JOURNAL OF MICROMECHANICS AND MICROENGINEERING0960-1317 J NANOPART RES JOURNAL OF NANOPARTICLE RESEARCH1388-0764 J NANOSCI NANOTECHNO JOURNAL OF NANOSCIENCE AND NANOTECHNOLOGY1533-4880 J NON-CRYST SOLIDS JOURNAL OF NON-CRYSTALLINE SOLIDS0022-3093 J NUCL MATER JOURNAL OF NUCLEAR MATERIALS0022-3115 MACROMOL MATER ENG MACROMOLECULAR MATERIALS AND ENGINEERING1438-7492 MAT SCI ENG A-STRUCT MATERIALS SCIENCE AND ENGINEERING A-STRUCTURAL M0921-5093 MATER CHEM PHYS MATERIALS CHEMISTRY AND PHYSICS0254-0584 MATER LETT MATERIALS LETTERS0167-577X MATER RES BULL MATERIALS RESEARCH BULLETIN0025-5408 MATER SCI ENG B-ADV Materials Science and Engineering B-Advanced Fun0921-5107 MECH ADV MATER STRUC MECHANICS OF ADVANCED MATERIALS AND STRUCTURES1537-6494 MECH MATER MECHANICS OF MATERIALS0167-6636 METALL MATER TRANS A METALLURGICAL AND MATERIALS TRANSACTIONS A-PHYSI1073-5623 MICROPOR MESOPOR MAT MICROPOROUS AND MESOPOROUS MATERIALS1387-1811 NANOSCALE RES LETT Nanoscale Research Letters1931-7573 OPT MATER OPTICAL MATERIALS0925-3467 PHOTONIC NANOSTRUCT Photonics and Nanostructures-Fundamentals and Ap1569-4410 PHYS CHEM MINER PHYSICS AND CHEMISTRY OF MINERALS0342-1791 PHYS STATUS SOLIDI-R Physica Status Solidi-Rapid Research Letters1862-6254 SCI ADV MATER Science of Advanced Materials1947-2935 SCI TECHNOL ADV MAT SCIENCE AND TECHNOLOGY OF ADVANCED MATERIALS1468-6996 SCRIPTA MATER SCRIPTA MATERIALIA1359-6462 SMART MATER STRUCT SMART MATERIALS & STRUCTURES0964-1726 SOFT MATER SOFT MATERIALS1539-445X SYNTHETIC MET SYNTHETIC METALS0379-6779 WEAR WEAR0043-1648 ACI MATER J ACI MATERIALS JOURNAL0889-325X ACI STRUCT J ACI STRUCTURAL JOURNAL0889-3241 ACTA MECH SOLIDA SIN ACTA MECHANICA SOLIDA SINICA0894-9166 ADV CEM RES ADVANCES IN CEMENT RESEARCH0951-7197ADV MATER PROCESS ADVANCED MATERIALS & PROCESSES0882-7958 ANN CHIM-SCI MAT ANNALES DE CHIMIE-SCIENCE DES MATERIAUX0151-9107 ARCH CIV MECH ENG Archives of Civil and Mechanical Engineering1644-9665 ATOMIZATION SPRAY ATOMIZATION AND SPRAYS1044-5110 B MATER SCI BULLETIN OF MATERIALS SCIENCE0250-4707 CHALCOGENIDE LETT Chalcogenide Letters1584-8663 CIRCUIT WORLD CIRCUIT WORLD0305-6120 COMBUST EXPLO SHOCK+COMBUSTION EXPLOSION AND SHOCK WAVES0010-5082 CONSTR BUILD MATER CONSTRUCTION AND BUILDING MATERIALS0950-0618 CORROS ENG SCI TECHN CORROSION ENGINEERING SCIENCE AND TECHNOLOGY1478-422X CORROSION CORROSION0010-9312 ELECTRON MATER LETT Electronic Materials Letters1738-8090 FATIGUE FRACT ENG M FATIGUE & FRACTURE OF ENGINEERING MATERIALS & ST8756-758X FERROELECTRICS FERROELECTRICS0015-0193 FIBRE CHEM+FIBRE CHEMISTRY0015-0541 FIRE MATER FIRE AND MATERIALS0308-0501 FIRE SAFETY J FIRE SAFETY JOURNAL0379-7112 FIRE TECHNOL FIRE TECHNOLOGY0015-2684 FULLER NANOTUB CAR N FULLERENES NANOTUBES AND CARBON NANOSTRUCTURES1536-383X GEOSYNTH INT GEOSYNTHETICS INTERNATIONAL1072-6349 GRANUL MATTER GRANULAR MATTER1434-5021 HIGH TEMP MAT PR-ISR HIGH TEMPERATURE MATERIALS AND PROCESSES0334-6455 HIGH TEMP MATER P-US HIGH TEMPERATURE MATERIAL PROCESSES1093-3611 IEEE T ADV PACKAGING IEEE TRANSACTIONS ON ADVANCED PACKAGING1521-3323 IEEE T COMPON PACK T IEEE TRANSACTIONS ON COMPONENTS AND PACKAGING TE1521-3331 INDIAN J ENG MATER S INDIAN JOURNAL OF ENGINEERING AND MATERIALS SCIE0971-4588 INFORM MIDEM INFORMACIJE MIDEM-JOURNAL OF MICROELECTRONICS EL0352-9045 INORG MATER+INORGANIC MATERIALS0020-1685 INT J FRACTURE INTERNATIONAL JOURNAL OF FRACTURE0376-9429 INT J MATER PROD TEC INTERNATIONAL JOURNAL OF MATERIALS & PRODUCT TEC0268-1900 INT J MIN MET MATER International Journal of Minerals Metallurgy and1674-4799 INT J NANOTECHNOL International Journal of Nanotechnology1475-7435 INT J NUMER ANAL MET INTERNATIONAL JOURNAL FOR NUMERICAL AND ANALYTIC0363-9061 INT J REFRACT MET H INTERNATIONAL JOURNAL OF REFRACTORY METALS & HAR0263-4368 INT J SURF SCI ENG International Journal of Surface Science and Eng1749-785X J ADHES SCI TECHNOL JOURNAL OF ADHESION SCIENCE AND TECHNOLOGY0169-4243 J ADHESION JOURNAL OF ADHESION0021-8464 J ADV CONCR TECHNOL Journal of Advanced Concrete Technology 1346-8014 J ADV MATER-COVINA JOURNAL OF ADVANCED MATERIALS1070-9789 J COMPUT THEOR NANOS Journal of Computational and Theoretical Nanosci1546-1955 J CULT HERIT JOURNAL OF CULTURAL HERITAGE1296-2074 J ELASTICITY JOURNAL OF ELASTICITY0374-3535 J ELASTOM PLAST JOURNAL OF ELASTOMERS AND PLASTICS0095-2443 J ELECTRON MATER JOURNAL OF ELECTRONIC MATERIALS0361-5235 J ENERG MATER Journal of Energetic Materials 0737-0652 J ENG MATER-T ASME JOURNAL OF ENGINEERING MATERIALS AND TECHNOLOGY-0094-4289 J EXP NANOSCI Journal of Experimental Nanoscience1745-8080 J FIRE PROT ENG Journal of Fire Protection Engineering1042-3915 J FIRE SCI JOURNAL OF FIRE SCIENCES0734-9041 J FRICT WEAR+Journal of Friction and Wear1068-3666 J INTEL MAT SYST STR JOURNAL OF INTELLIGENT MATERIAL SYSTEMS AND STRU1045-389X J LASER MICRO NANOEN Journal of Laser Micro Nanoengineering1880-0688J MAGN MAGN MATER JOURNAL OF MAGNETISM AND MAGNETIC MATERIALS0304-8853 J MATER CIVIL ENG JOURNAL OF MATERIALS IN CIVIL ENGINEERING0899-1561 J MATER ENG PERFORM JOURNAL OF MATERIALS ENGINEERING AND PERFORMANCE1059-9495 J MATER PROCESS TECH JOURNAL OF MATERIALS PROCESSING TECHNOLOGY0924-0136 J MATER SCI TECHNOL JOURNAL OF MATERIALS SCIENCE & TECHNOLOGY1005-0302 J MATER SCI-MATER EL JOURNAL OF MATERIALS SCIENCE-MATERIALS IN ELECTR0957-4522 J MECH MATER STRUCT Journal of Mechanics of Materials and Structures1559-3959 J MICRO-NANOLITH MEM Journal of Micro-Nanolithography MEMS and MOEMS1932-5150 J NANO RES-SW Journal of Nano Research1662-5250 J NANOMATER Journal of Nanomaterials1687-4110 J NEW MAT ELECTR SYS JOURNAL OF NEW MATERIALS FOR ELECTROCHEMICAL SYS1480-2422 J OPTOELECTRON ADV M JOURNAL OF OPTOELECTRONICS AND ADVANCED MATERIAL1454-4164 J OVONIC RES Journal of Ovonic Research1584-9953 J PHASE EQUILIB DIFF JOURNAL OF PHASE EQUILIBRIA AND DIFFUSION1547-7037 J PHYS CHEM LETT Journal of Physical Chemistry Letters1948-7185 J POROUS MAT JOURNAL OF POROUS MATERIALS1380-2224 J SOC INF DISPLAY Journal of the Society for Information Display1071-0922 J SUPERHARD MATER+Journal of Superhard Materials 1063-4576 J WUHAN UNIV TECHNOL JOURNAL OF WUHAN UNIVERSITY OF TECHNOLOGY-MATERI1000-2413 JOM-US JOM-JOURNAL OF THE MINERALS METALS & MATERIALS S1047-4838 KONA POWDER PART J KONA Powder and Particle Journal0288-4534 KOREAN J MET MATER Korean Journal of Metals and Materials1738-8228 KOVOVE MATER KOVOVE MATERIALY-METALLIC MATERIALS0023-432X LASER ENG LASERS IN ENGINEERING0898-1507 MACH SCI TECHNOL MACHINING SCIENCE AND TECHNOLOGY1091-0344 MAG CONCRETE RES MAGAZINE OF CONCRETE RESEARCH0024-9831 MAT SCI SEMICON PROC MATERIALS SCIENCE IN SEMICONDUCTOR PROCESSING1369-8001 MATER CONSTRUCC MATERIALES DE CONSTRUCCION0465-2746 MATER CORROS MATERIALS AND CORROSION-WERKSTOFFE UND KORROSION0947-5117 MATER DESIGN MATERIALS & DESIGN0261-3069 MATER HIGH TEMP MATERIALS AT HIGH TEMPERATURES0960-3409 MATER MANUF PROCESS MATERIALS AND MANUFACTURING PROCESSES1042-6914 MATER RES INNOV MATERIALS RESEARCH INNOVATIONS1432-8917 MATER RES-IBERO-AM J Materials Research-Ibero-american Journal of Mat1516-1439 MATER SCI TECH-LOND MATERIALS SCIENCE AND TECHNOLOGY0267-0836 MATER SCI+MATERIALS SCIENCE1068-820X MATER SCI-MEDZG Materials Science-Medziagotyra 1392-1320 MATER SCI-POLAND MATERIALS SCIENCE-POLAND0137-1339 MATER STRUCT MATERIALS AND STRUCTURES1359-5997 MATER TECHNOL MATERIALS TECHNOLOGY1066-7857 MATER TEHNOL Materiali in Tehnologije 1580-2949 MATER TRANS MATERIALS TRANSACTIONS1345-9678 MATER WORLD MATERIALS WORLD0967-8638 MATERIA-BRAZIL Materia-Rio de Janeiro1517-7076 MATERIALWISS WERKST MATERIALWISSENSCHAFT UND WERKSTOFFTECHNIK0933-5137 MATH MECH SOLIDS MATHEMATICS AND MECHANICS OF SOLIDS1081-2865 MET MATER INT METALS AND MATERIALS INTERNATIONAL1598-9623 METALL MATER TRANS B METALLURGICAL AND MATERIALS TRANSACTIONS B-PROCE1073-5615 METALLOFIZ NOV TEKH+METALLOFIZIKA I NOVEISHIE TEKHNOLOGII1024-1809 MICRO NANO LETT Micro & Nano Letters1750-0443 MICROELECTRON INT MICROELECTRONICS INTERNATIONAL1356-5362 MICROSYST TECHNOL MICROSYSTEM TECHNOLOGIES0946-7076MODEL SIMUL MATER SC MODELLING AND SIMULATION IN MATERIALS SCIENCE AN0965-0393 NANO NANO1793-2920 NEW CARBON MATER NEW CARBON MATERIALS1007-8827 OPTOELECTRON ADV MAT Optoelectronics and Advanced Materials-Rapid Com1842-6573 P I MECH ENG L-J MAT PROCEEDINGS OF THE INSTITUTION OF MECHANICAL ENG1464-4207 PARTICUOLOGY Particuology1674-2001 PHILOS MAG PHILOSOPHICAL MAGAZINE1478-6435 PHYS STATUS SOLIDI A PHYSICA STATUS SOLIDI A-APPLICATIONS AND MATERIA1862-6300 PLAST ENG PLASTICS ENGINEERING0091-9578 PROG NAT SCI PROGRESS IN NATURAL SCIENCE1002-0071 RAPID PROTOTYPING J RAPID PROTOTYPING JOURNAL1355-2546 RARE METAL MAT ENG RARE METAL MATERIALS AND ENGINEERING1002-185X RARE METALS RARE METALS1001-0521 RECENT PAT NANOTECH Recent Patents on Nanotechnology1872-2105 REV ADV MATER SCI REVIEWS ON ADVANCED MATERIALS SCIENCE1606-5131 REV ROM MATER Revista Romana de Materiale-Romanian Journal of 1583-3186 ROAD MATER PAVEMENT Road Materials and Pavement Design1468-0629 SAMPE J SAMPE JOURNAL0091-1062 SCI CHINA TECHNOL SC Science China-Technological Sciences1674-7321 SCI MODEL SIMUL Scientific Modeling and Simulations1874-8554 SCI TECHNOL ENERG MA Science and Technology of Energetic Materials 1347-9466 SCI TECHNOL WELD JOI SCIENCE AND TECHNOLOGY OF WELDING AND JOINING1362-1718 SEMICOND SCI TECH SEMICONDUCTOR SCIENCE AND TECHNOLOGY0268-1242 SENSOR MATER SENSORS AND MATERIALS0914-4935 SOLDER SURF MT TECH SOLDERING & SURFACE MOUNT TECHNOLOGY0954-0911 T FAMENA Transactions of FAMENA 1333-1124 VACUUM VACUUM0042-207X ZKG INT ZKG INTERNATIONAL0949-0205 SIAM J IMAGING SCI SIAM Journal on Imaging Sciences1936-4954 IEEE T MED IMAGING IEEE TRANSACTIONS ON MEDICAL IMAGING0278-0062 REMOTE SENS ENVIRON REMOTE SENSING OF ENVIRONMENT0034-4257 INT J REMOTE SENS INTERNATIONAL JOURNAL OF REMOTE SENSING0143-1161 ISPRS J PHOTOGRAMM ISPRS JOURNAL OF PHOTOGRAMMETRY AND REMOTE SENSI0924-2716 PHOTOGRAMM ENG REM S PHOTOGRAMMETRIC ENGINEERING AND REMOTE SENSING0099-1112 PHOTOGRAMM REC PHOTOGRAMMETRIC RECORD0031-868X EURASIP J IMAGE VIDE EURASIP Journal on Image and Video Processing1687-5176 IEEE J-STARS IEEE Journal of Selected Topics in Applied Earth1939-1404 IMAGING SCI J IMAGING SCIENCE JOURNAL1368-2199 INT J IMAG SYST TECH INTERNATIONAL JOURNAL OF IMAGING SYSTEMS AND TEC0899-9457 J APPL REMOTE SENS Journal of Applied Remote Sensing1931-3195 J ELECTRON IMAGING JOURNAL OF ELECTRONIC IMAGING1017-9909 J IMAGING SCI TECHN JOURNAL OF IMAGING SCIENCE AND TECHNOLOGY1062-3701 J REAL-TIME IMAGE PR Journal of Real-Time Image Processing1861-8200 PHOTOGRAMM FERNERKUN Photogrammetrie Fernerkundung Geoinformation1432-8364 RIV ITAL TELERILEVAM Rivista Italiana di Telerilevamento1129-8596 SIGNAL IMAGE VIDEO P Signal Image and Video Processing1863-1703 SMPTE MOTION IMAG J SMPTE MOTION IMAGING JOURNAL0036-1682 ANN FAM MED ANNALS OF FAMILY MEDICINE1544-1709 BRIT J GEN PRACT BRITISH JOURNAL OF GENERAL PRACTICE0960-1643 J AM BOARD FAM MED Journal of the American Board of Family Medicine1557-2625 SCAND J PRIM HEALTH SCANDINAVIAN JOURNAL OF PRIMARY HEALTH CARE0281-3432 AM FAM PHYSICIAN AMERICAN FAMILY PHYSICIAN0002-838X。

ASTM A1059-A1059M - 08

Designation:A1059/A1059M−08Standard Speciﬁcation forZinc Alloy Thermo-Diffusion Coatings(TDC)on Steel Fasteners,Hardware,and Other Products1This standard is issued under theﬁxed designation A1059/A1059M;the number immediately following the designation indicates the year of original adoption or,in the case of revision,the year of last revision.A number in parentheses indicates the year of last reapproval.A superscript epsilon(´)indicates an editorial change since the last revision or reapproval.1.Scope1.1This speciﬁcation covers the general requirements for protective zinc coatings(hereinafter referred to as the coatings) to be applied by the thermo-diffusion coating(TDC)method, to various products made of carbon steel,including low and high tensile parts as well as of wrought iron,sintered iron steel-powder and various steel and stainless alloys.TDC is carried out by immersing the parts in a zinc alloy powder at elevated temperature for a period of time,causing a metallur-gical diffusion process of zinc and iron.Further processing may be added,such as,passivation,topcoat application,paint application,etc.1.2This speciﬁcation is applicable to orders in either inch-pound units(as A1059)or in SI units(as A1059M). Inch-pound units and SI units are not necessarily exact equivalents.Within the text of this speciﬁcation and where appropriate,SI units are shown in brackets.Each system shall be used independently of the other without combining values in any way.In the case of orders in SI units,all testing and inspection shall be done using the metric equivalent of the test or inspection method as appropriate.In the case of orders in inch-pound units,such shall be stated to the applicator when the order is placed.1.3This standard does not purport to address all of the safety concerns,if any,associated with its use.It is the responsibility of the user of this standard to establish appro-priate safety and health practices and determine the applica-bility of regulatory limitations prior to use.2.Referenced Documents2.1ASTM Standards:2A90/A90M Test Method for Weight[Mass]of Coating on Iron and Steel Articles with Zinc or Zinc-Alloy CoatingsA385Practice for Providing High-Quality Zinc Coatings (Hot-Dip)A700Practices for Packaging,Marking,and Loading Meth-ods for Steel Products for ShipmentA902Terminology Relating to Metallic Coated Steel Prod-uctsB487Test Method for Measurement of Metal and Oxide Coating Thickness by Microscopical Examination of Cross SectionD521Test Methods for Chemical Analysis of Zinc Dust (Metallic Zinc Powder)D6386Practice for Preparation of Zinc(Hot-Dip Galva-nized)Coated Iron and Steel Product and Hardware Surfaces for PaintingE376Practice for Measuring Coating Thickness by Magnetic-Field or Eddy-Current(Electromagnetic)Test-ing MethodsF1789Terminology for F16Mechanical FastenersF2329Speciﬁcation for Zinc Coating,Hot-Dip,Require-ments for Application to Carbon and Alloy Steel Bolts, Screws,Washers,Nuts,and Special Threaded Fasteners F2674Speciﬁcation for Zinc Coating,Hot-Dip,Require-ments for Application to Carbon and Alloy Steel Bolts, Screws,Washers,Nuts,and Special Threaded Fasteners [Metric]3.Terminology3.1The following terms and deﬁnitions are speciﬁc to this speciﬁcation.Terminology A902contains other terms and deﬁnitions relating to metallic-coated steel products.Terminol-ogy F1789contains other terms and deﬁnitions relating to mechanical fasteners.3.2Deﬁnitions of Terms Speciﬁc to This Standard:3.2.1thermo-diffusion coating—a process where the steel product is heated in close contact with zinc powder or zinc mixture.3.2.2thermo-diffusion coating—a coating made by thermo-diffusion coating process,consisting of zinc/iron alloys.3.2.3zinc powder—the coating material used to provide corrosion protection to steel.1This speciﬁcation is under the jurisdiction of ASTM Committee A05onMetallic-Coated Iron and Steel Products and is the direct responsibility ofSubcommittee A05.13on Structural Shapes and Hardware Speciﬁcations.Current edition approved Nov.15,2008.Published December2008.DOI:10.1520/A1059_A1059M-08.2For referenced ASTM standards,visit the ASTM website,,orcontact ASTM Customer Service at service@.For Annual Book of ASTMStandards volume information,refer to the standard’s Document Summary page onthe ASTM website.Copyright©ASTM International,100Barr Harbor Drive,PO Box C700,West Conshohocken,PA19428-2959.United States3.2.4zinc mixture—a combination of zinc powder and other metallic materials to be used as a coating material in the TDC process.4.Ordering Information4.1Orders for coatings provided under this speciﬁcation shall include the following:4.1.1Quantity(number of pieces to be coated)and total weight.4.1.2Description(type and size of products)and weight.4.1.3ASTM speciﬁcation designation and year of issue.4.1.4Material identiﬁcation(see5.1)and surface condition or contamination.4.1.5Sampling plan,if different from Section8.4.1.6Special test requirements,if different from Section9 (see9.1).4.1.7Special requirements(special stacking,heavier coat-ing weight,etc.).4.1.8Tagging or piece identiﬁcation method.4.2Additional Information—Additional information may be required in certain circumstances.In these cases the purchaser will furnish the applicator with the following additional infor-mation:4.2.1Any likely effects on the metallurgical properties of the base material caused by processing temperatures of up to 1092°F[500°C].4.2.2Determination of areas considered as signiﬁcant sur-faces.This should be done by drawings or by providing samples with suitable markings.4.2.3Any critical thickness tolerances,such as when bolts and nuts are used.This should be done on the product’s drawing or on the purchase order.4.2.4Any special pre-treatment requirements or the exis-tence of other materials,lubricants,stripping materials,pre-existing corrosion,etc.4.2.5Whether quality certiﬁcate is required or not.5.Materials and Manufacture5.1Requirements to design of the products to be coated with zinc are detailed in Practice A385.The following provi-sions are necessary to produce a high quality coating.5.1.1The products to be coated with zinc include parts and assemblies of various sizes:presswork,forged,cast,machined products(nuts,washers,bolts,nails,chains,small round billets,blanks for plumbingﬁxtures,etc.).When coating is applied to long-length parts(pipes,rods),the appropriate production equipment is required.5.1.2The products shall have neither pockets nor closed cavities.All cavities shall be available for applying the coating of diffusion mixture.Should it be impossible to apply the coating to individual portions of surface of the article,the documents shall specify if the coating is allowed to be absent in these cavities.5.1.3The fasteners to be coated with zinc shall meet the requirements of standards in force,for the fasteners,and accompanied with certiﬁcates from manufacturers.5.1.4The products(parts)containing soft solder or resins can not be coated with zinc.5.1.5For Fasteners—The maximum deviations of threads prior to application of the coating shall comply with the standards for threads.An additional gap for the coating for external and internal threads separately or for both threads at the same time,is to be provided,if the coating with increased thickness is to be applied.Requirements for fasteners to be thermal diffusion coated with zinc are found in Speciﬁcations F2329and F2674.5.2Requirements for material and surface of substrate: 5.2.1This is applied to products of standard-quality carbon steel,high-quality structural carbon and low-carbon steel,as well as low-alloyed steel,stainless steels,pig iron and copper.5.2.2The following defects are not allowed on the surfaces of the parts:5.2.2.1Rolled-in scale,burrs;5.2.2.2Separation into layers and cracks including those arising from pickling,polishing and other treatment;5.2.2.3Corrosion damages,pores,and holes.5.2.3The surfaces of cast and forged products shall be free of blow and shrink holes,slag,andﬂux contamination.5.2.4The surfaces of the parts of hot-rolled metal shall be cleaned from scale,pickling sludge,products of corrosion of the base metal,and other contamination.5.2.5After machining,the surfaces of the parts shall be free of visible layer of grease,emulsion,metallic chips,burrs,dust and products of corrosion,and implantation of foreign metal particles.5.2.6Sharp corners and edges of the products except for those required for technological reasons shall be machined to a radius of at least0.001in.[0.3mm].5.2.7After heat treatment,the surfaces of the parts shall be free of blow holes,corrosion centers,separation into layers, and buckling.5.2.8Welds,soldered and brazed joints on the parts shall be scraped bright and continuous over the whole perimeter.5.2.9Prior to applying the coating,the surface of the part shall be degreased(chemically or thermally),cleaned by pickling or abrasive blasting.5.2.10The degree of cleanness of the surface shall be in accordance with Practice D6386.5.2.11The term for storage of the parts with the surface prepared for coating with zinc shall not exceed24hours under conditions excluding the precipitation of a condensate.5.2.12For applying coatings,the zinc powder with humid-ity of not more than1.5%in accordance with Test Methods D521shall be used.6.Chemical Composition6.1The method described results in the formation of iron-zinc compound layers known as Gamma(Solid Zn ions inside Fe substrate),Delta(Fe11Zn40),and Zeta(FeZn7),excluding the external Eta layer of pure free zinc.6.2The zinc mixture used in the thermo-diffusion coating process shall contain a mass fraction not less than94%of metallic zinc and total impurities(other than Zinc oxide)of not more than2%massfraction.6.3It should be noted that there is evidence this coating is subject to premature red staining in atmospheric and acceler-ated test environments;however,this staining has been found not to be associated with corrosion of the substrate steel,but rather superﬁcial oxidation of the zinc/iron ions present on the surface.7.Workmanship,Finish,and Appearance7.1Appearance of the coating:7.1.1The coating shall be ﬂat gray,smooth,and reasonably uniform.Smoothness of surface is a relative term.Minor roughness that does not interfere with the intended use of the part,or roughness that is related to the as-received (un-coated)surface condition of the part,shall not be grounds for rejection.7.1.2The coating shall be free of swellings,blow holes,cuts,ﬂaking,and embedded quartz sand.7.1.3The presence of dark gray spots (variation in the color of the coating without variation in its thickness)not more than 5%of the total surface of the product is allowed on the coating.7.1.4The presence of surface scratches,marks from contact of the part with one another,contact with measuring tools,etc.,without damage to the coating,which would cause exposure of the base metal,is allowed.7.1.5The presence of residual process mixture on the surface of the part is not allowed.7.1.6The thickness of the coating depending on the condi-tions of operations of the product shall be speciﬁed in the standards of speciﬁcation for the product in accordance with Table 1.8.Sampling8.1Test specimens shall be selected randomly from each inspection lot.8.2The method of selection and sample size shall be agreed upon between the applicator and the purchaser.Otherwise,the sample size selected from each lot shall be as follows:Batch Size (Pieces)Sample Size 1to 3All 4to 5003501to 120051201to 320083201to 1000013Above 10000209.Number of Tests and Retests9.1The zinc coating applied shall be tested for appearance and thickness.9.2Each lot of parts coated with zinc shall be presented for testing.A lot shall be considered as a group of articles of the same type and size coated with zinc within the same production cycle.9.3Approximately 10%of articles per lot and each article in case of single-unit production shall be examined for appear-ance.9.4At least three articles per lot shall be tested for thickness of the coating.9.5When using the metallographic (arbitration)method,it is allowed to test the coating thickness on one part per lot.9.6The coating thickness shall be tested prior to the additional treatment of the coating (applying preservation lubricants,etc.).This measurement shall be taken on a non-threaded section of the part.9.7The coating thickness on the threaded portion of a bolt shall not be tested but shall be ensured by the correctness of the coating application technology.When developing the coating process it is recommended to take into account the ISO requirements for threaded fasteners.9.8The checked thickness of the coating shall be accepted as an arithmetical mean of the measured values.9.9Should the results of the measuring of the test control be unsatisfactory,the test shall be repeated on double quantity of parts.10.Specimen Preparation10.1Specimens for testing should not go through any cleaning process and should be tested as is after the ﬁnal coating process (including passivation and or other top coats).11.Test Methods11.1Coating appearance check:The coating appearance shall be checked visually with an unaided eye from the distance of 10in.[25cm]from the surface.The luminance shall be at least 300Lx.11.2Coating thickness testing:TABLE 1Thickness or Weight [Mass]of Zinc Coating for Various Coating ClassesCoating Class Weight [Mass]of Coating,oz/ft 2(g/m 2)of Surface,Minimum Coating Thickness,mils (µm),Minimum 130 3.02(922) 5.14(130)110 2.50(765) 4.33(110)90 2.05(627) 3.54(90)80 1.82(557) 3.15(80)70 1.59(487) 2.76(70)65 1.48(453) 2.56(65)55 1.25(383) 2.17(55)50 1.14(348) 1.97(50)45 1.02(313) 1.77(45)400.91(278) 1.57(40)250.57(174)0.98(25)120.27(84)0.47(12)11.2.1Magnetic Method:11.2.1.1The method is based on the registration of variation in the magnetic resistance depending on the coating thickness in accordance with Practice E376.The magnetic thickness gauges shall be used as measuring instruments.11.2.1.2The arithmetic mean of at least three measured values at edges and center of the surface of one article to be controlled shall be considered as the result of the coating thickness measurement.11.2.2Metallographic Method(Arbitration)—The method is based on the measurement of the coating thickness on the cross-section metallographic specimen using metallographic microscopes of various types in accordance with Test Method B487.The specimen shall be cut from a coated article.The thickness of the zinc coating shall be measured on the specimen at least atﬁve point located at equal distances within a linear area with the length of about0.4in.[1cm].The arithmetic mean of all measured values shall be considered as the result.11.2.3Gravimetric Method—The gravimetric method shall be used for determining the mean thickness of the coating.The method consists of weighing the representative specimens before and after applying the coating and then before and removing the coating in accordance with Test Method A90/ A90M.12.Certiﬁcation12.1When speciﬁed in the purchase order or contract,the purchaser shall be furnished certiﬁcation that samples repre-senting each inspection lot have been either tested or inspected as directed by this speciﬁcation and the requirements have been met.When speciﬁed in the purchase order or contract,a report of the test results shall be furnished.13.Packaging and Package Marking13.1Unless speciﬁed otherwise by the customer in the purchase order,the coated products shall be packaged,trans-ported and stored in accordance with Practices A700.14.Keywords14.1coatings,zinc;fasteners,zinc coated;iron products, zinc coated;steel hardware,zinc coated;steel products,metal-lic coated;zinc coatings,steel productsAPPENDIX(Nonmandatory Information)X1.COATING CHARACTERISTICSX1.1The thermo diffusion zinc coating is anodic in relation to ferrous metals and provides for electrochemical protection of steel against corrosion.X1.2Thermo diffusion results in a hard surface,usually exceeding35Rockwell C,depending on coating parameters.X1.3Thermo diffusion does not create hydrogen embrittle-mentX1.4Due to some porosity on the surface of the coating, thermo diffusion coated parts have excellent bonding charac-teristics with various topcoats and paint system.X1.5The thermo-diffusion zinc coating is obtained by heating the parts in a container with the diffusion mixture consisting of zinc powder and some alloying elements.The working temperatures of applying the coating normally range between710°F to1092°F[320°C to500°C].X1.6Since the coating application process has a sufficiently long duration,the thermo diffusion coating with zinc can be used for parts made of materials that do not change their properties at these temperatures.X1.7The coating obtained shall follow exactly the contours of the article,its thickness shall be very uniform over the whole surface of the part including complex-shaped articles(threaded connections,etc.).X1.8When applying the coating,the part shall be placed in a container.Since the size of the parts is restricted by the size of the container,the appropriate size container must be used. X1.9The coating has strong adhesion to base metal due to mutual diffusion of zinc and iron.Zinc penetrates the base metal to about1⁄3of the coating thickness.X1.10The coating consists mainly of the iron-zinc d1-phase containing4to10%of iron.X1.11Due to the presence of iron in the coating,red stains or brown spots may appear on the surface of the coated article under the inﬂuence of increased humidity or condensate.It is caused by the release of iron ions from the coating.These ions are washed away easily by waterX1.12Should it be impossible to distinguish the corrosion products of the coating and that of base metal,the presence of the coating shall be checked by metallographic method and mass losstesting.ASTM International takes no position respecting the validity of any patent rights asserted in connection with any item mentioned in this ers of this standard are expressly advised that determination of the validity of any such patent rights,and the risk of infringement of such rights,are entirely their own responsibility.This standard is subject to revision at any time by the responsible technical committee and must be reviewed everyﬁve years and if not revised,either reapproved or withdrawn.Your comments are invited either for revision of this standard or for additional standards and should be addressed to ASTM International Headquarters.Your comments will receive careful consideration at a meeting of the responsible technical committee,which you may attend.If you feel that your comments have not received a fair hearing you should make your views known to the ASTM Committee on Standards,at the address shown below.This standard is copyrighted by ASTM International,100Barr Harbor Drive,PO Box C700,West Conshohocken,PA19428-2959, United States.Individual reprints(single or multiple copies)of this standard may be obtained by contacting ASTM at the above address or at610-832-9585(phone),610-832-9555(fax),or service@(e-mail);or through the ASTM website ().Permission rights to photocopy the standard may also be secured from the ASTM website(/ COPYRIGHT/).。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

International Journal of Minerals, Metallurgy and Materials Volume 18, Number 3, June 2011, Page 377 DOI: 10.1007/s12613-011-0450-9

Corresponding author: Li-qun Zhu E-mail: zhulq@buaa.edu.cn © University of Science and Technology Beijing and Springer-Verlag Berlin Heidelberg 2011

Electrochemical behavior of different shelled microcapsule composite copper coatings

Xiu-qing Xu, Yan-hong Guo, Wei-ping Li, and Li-qun Zhu School of Materials Science and Engineering, Beihang University, Beijing 100191, China (Received: 12 May 2010; revised: 17 June 2010; accepted: 6 July 2010)

Abstract: Copper/liquid microcapsule composite coatings with polyvinyl alcohol (PVA), gelatin or methyl cellulose (MC) as shell materials were prepared by electrodeposition. The influence of shell materials on the corrosion resistance of the composite coatings in 0.1 M H2SO4

was investigated by means of electrochemical techniques, scanning electron microscopy (SEM), and energy dispersion spectrometry (EDS).

The results show that the participation of microcapsules can enhance the corrosion resistance of the composite coatings compared with the traditional copper layer. Based on the analysis of electrochemical test results, the release ways of microcapsules were deduced. Gelatin and MC as the shell materials of microcapsules are easy to release quickly in the composite coating. On the contrary, the releasing speed of PVA microcapsules is relatively slow due to their characteristics.

Keywords: composite coatings; shell materials; copper; microcapsules; electrochemical properties; corrosion resistance; electrodeposition

[This work was financially supported by the National Natural Science Foundation of China (No. 50771010).]

1. Introduction Composite coatings obtained by electrolytic co-deposi-tion have been developed rapidly and play an important role in the research field of material science because of their spe-cial properties about physics, chemistry, biology, and ma-chining, etc. [1-4]. Solid particles that can be incorporated into the composite plating coating are almost unlimited, such as SiC, Al2O3, BC, and ZnO2 [5-8]. Very little informa-tion about the electrolytic co-deposition of metals and microcapsules containing liquid active agents has been pub-lished. The unique advantage of this composite coating is that the release of microcapsules could partially repair and protect the surface of the coating when the surface is locally damaged. Available researches are limited to the preparation process of microcapsules and the performance of the com-posite coating [9-11]. Further research such as the influence of core and shell materials on the performance of composite coatings has been seldom discussed.

In our previous works [12-15], various liquid microcap-sules were prepared using the phase separation in an aque-ous solution method. Also, successful co-deposition of liq-uid microcapsules with nickel and copper were reported, where excellent properties of composite coatings were ex-hibited. It was proved that under appropriate conditions, the core materials can be released [16-17]. The main influenc-ing factors of the release process of microcapsules include the properties of core and shell materials, the size of micro-capsules, and external environment factors, etc. [18-20]. Meanwhile, it also have been found that three main shell materials of microcapsules including polyvinyl alcohol (PVA), gelatin, and methyl cellulose (MC) had different tensile strength, toughness, and permeability, which could affect the release of microcapsules and the properties of the composite coating. In this paper, the influence of shell mate-rials on the release behavior of microcapsules and the corro-sion behavior of composite coatings was discussed. It is beneficial for the application of the composite coating with 378 Int. J. Miner. Metall. Mater., Vol.18, No.3, Jun 2011 functional properties we want. 2. Experimental 2.1. Materials All commercial chemicals were employed without fur-ther pre-treatment in this research. PVA, gelatin, and MC, purchased from Beijing Yili Fine Chemicals Co. Ltd., were used as the shell materials of liquid microcapsules. Hydro-phobic agent was used as the core material of the microcap-sule. Span-80 and anhydrous alcohol were used as the dis-persant and flocculant in the preparation course of micro-capsules, respectively.

2.2. Preparation of liquid microcapsules The liquid microcapsule which is suitable for electro-chemical co-deposition was prepared by means of phase separation in an aqueous solution method. The preparation process is briefly described as follows. The core material (1 mL hydrophobic agent) was added dropwise to a beaker containing 20 mL shell material solution while stirring (1000 r/min) at room temperature. After 5 min, minor Span-80 was added into the emulsion with constant stirring
