Honeywell传感器图片：产品名称：Honeywell AWM5000流量传感器产品型号：AWM5000系列产品品牌：美国Honeywell流量传感器所属分类：气体质量流量传感器Honeywell AWM5000流量传感器以N2、CO2、Ar进行的激光校准接口：传感器有各种流量接口可选安装：Honeywell AWM5000流量传感器采用远程安装产品特性描述：Honeywell AWM5000流量传感器能承受50psi的共模压力，包含放大、线性修正、温度补偿和气体标定，Honeywell AWM5000流量传感器系列为文丘里流量管型外壳，可以测量最高至20升/分的流量，传感器最大压降2.25″水柱的气流，微桥芯片直接与气流接触，大大减少了由于通气孔或旁路堵塞引起的误差。
Honeywell传感器Honeywell压力传感器DC002NDR4 DC002NDC4 DC001NDC4 163PC01D48 164PC01D76 163PC01D75164PC01D37 163PC01D36 162PC01D 162PC01G 161PC01D 143PC05D 142PC30A HoneywellHoneywell传感器磁阻传感器HMC1053 HMC1052/HMC1052L HMC1051Z HMC1022 HMC1021S HMC1002 HMC1001 HoneywellHoneywell传感器流量传感器AWM72P01 AWM43600V AWM43300VH AWM43300V AWM42150VH AWM5104VN AWM5103VN AWM5102VN AWM5101VN AWM3303V AWM3300V AWM3201CR AWM3200V Honeywell Honeywell传感器电流传感器CSNK591-003 CSNK591-002 CSNK591-001 CSNK591 CSNJ481-007 CSNJ481-004 CSNJ481-002 CSNJ481-001 CSNJ481 CSNR161 CSNF161 CSNP661 CSNE151-100 HoneywellHoneywell传感器光电液位传感器 (load cells)LRNV31S41 LRNR31N01 LRNH31S41 LLN865172-4 LLN8651721 LL101101 LL105000 LL103101 LL102101 LLE205000 LLE102000 LLE101000 HoneywellHoneywell传感器红外传感器SME2470-001 SMD2440-002 SEP8736-003 SEP8706-003 SEP8705-003 SEP8506-003 SEP8505-003 HoneywellHoneywell传感器霍尔传感器SR17C-J6 SR16C-N SR13R-A1 SR13C-A1 SS94A1 SS495A1 SS495A SS496B SS49E SS49 SS526DT SS51T SS566AT SS561AT SS543AT SS541AT SS513AT Honeywell Honeywell传感器湿度传感器HIH-3602-C HIH-3602-L-CP HIH3610-004 HIH3610-003 HIH3610-002 Honeywell Honeywell传感器微差压传感器XCX30DNC XCX004DNC XCX01DNH DC001NDR5~DC030NDR5 DC010NDC4 Honeywell Honeywell传感器温度传感器HEL-777-A-U-1 HEL-776-A-U-1 HEL-776-A-T-1 HEL-717-U-0-12-C1HEL-717-U-0-12-00 HEL-717-T-0-12-C1 HEL-717-T-0-12-00HEL-716-U-0-12-C1 HEL-716-U-0-12-00 HEL-716-T-0-12-C1HEL-716-T-0-12-00 HEL-712-U-0-12-C1 HEL-712-U-0-12-00HEL-712-T-0-12-C1 HEL-712-T-0-12-00 HEL-711-U-0-12-C1HEL-711-U-0-12-00 HEL-711-T-0-12-C1 HEL-711-T-0-12-00HEL-707-U-0-12-C1 HEL-707-T-0-12-C1 HEL-707-T-0-12-00HEL-705-U-0-12-C1 HEL-705-U-0-12-00 HEL-705-T-0-12-C1HEL-705-T-0-12-00 HEL-700-U-0-B HEL-700-U-0-A HEL-700-T-0-BHEL-700-T-0-AHoneywell传感器Honeywell压力传感器DC002NDR4 DC002NDC4 DC001NDC4 163PC01D48 164PC01D76 163PC01D75164PC01D37 163PC01D36 162PC01D 162PC01G 161PC01D 143PC05D 142PC30A 142PC15A 142PC30D 142PC15D 142PC05D 142PC02D 142PC01D 142PC30G 142PC15G 142PC05G 142PC02G 142PC01G 141PC15G 141PC05G 141PC01G 40pc standard 26pc SMT 26PC standard 24pc SMT 24PC standard FSL05N2C FSG15N1A HPB（气压计）PPT-R PPT HoneywellHoneywell传感器磁阻传感器HMC1053 HMC1052/HMC1052L HMC1051Z HMC1022 HMC1021S HMC1002 HMC1001 HoneywellHoneywell传感器流量传感器AWM72P01 AWM43600V AWM43300VH AWM43300V AWM42150VH AWM5104VN AWM5103VN AWM5102VN AWM5101VN AWM3303V AWM3300V AWM3201CR AWM3200V AWM3150V AWM3100V AWM2300V AWM2200V AWM2100V CSNL181 HoneywellHoneywell传感器电流传感器CSNK591-003 CSNK591-002 CSNK591-001 CSNK591 CSNJ481-007 CSNJ481-004 CSNJ481-002 CSNJ481-001 CSNJ481 CSNR161 CSNF161 CSNP661 CSNE151-100 CSLH3A45 CSLA2GG CSLA2GF CSLA2GE CSLA2GD CSLA2EN CSLA2EL CSLA2EJ CSLA2DK CSLA2DJ CSLA2DH CSLA2DG CSLA2DE CSLA2CF CSLA2CE CSLA2CD CSLA1GF CSLA1GE CSLA1GD CSLA1EL CSLA1EK CSLA1EJ CSLA1DK CSLA1DJ CSLA1DG CSLA1DE CSLA1CH CSLA1CF CSLA1CE CSLA1CD HoneywellHoneywell传感器光电液位传感器LRNV31S41 LRNR31N01 LRNH31S41 LLN865172-4 LLN8651721 LL101101 LL105000LL103101 LL102101 LLE205000 LLE102000 LLE101000 HoneywellHoneywell传感器红外传感器SME2470-001 SMD2440-002 SEP8736-003 SEP8706-003 SEP8705-003 SEP8506-003 SEP8505-003 SE5470-004 SE5470-003 SE5455-003 SE3470-003 SE2470-002SE2460-003 SE1470-003L SE1470-003 SE1450-004L SE1450-003L SDP8614-301 SDP8604-301 SDP8406-003 SDP8405-003 SDP8371-001 SDP8276-001 SDP8106-001 SDP8105-001 SDP8004-301 SD5600-001 SD5491-004 SD5443-003 SD2440-004 SD2440-003 SD1440-004L SD1440-003L SPX1189-003 SPX1189-002 HOA6983-T55 HOA6981-T55 HOA6971-N55 HOA6961-T51 HOA1877-002 HOA1406-001 HOA1404-001 HOA0963-T51 HOA0963-N51 ]HOA0902-012 HOA0901-012 HOA0890-L51HOA0870-N51 HOA0865-T51 HOA0860-T55 HOA0860-T51 HOA0860-N51 HOA0860-L51 HOA0709-011 HOA0708-001 HLC2705-001 HLC2701-001 HLC1397-032 HLC1395-002 HoneywellHoneywell传感器技术参数以《OIML60号国际建议》92年版为基础，最新具体变化可查看《JJG669—Honeywell广州南创传感器事业部检定规程》。

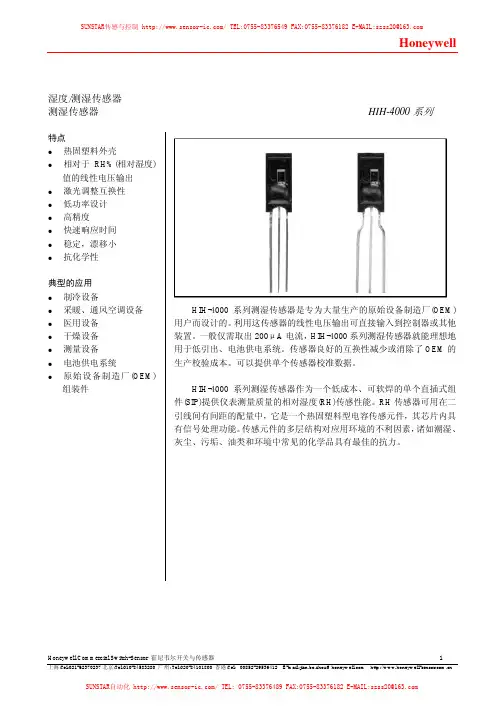

Honeywell HIH-4000 系列 湿度 测湿传感器 说明书
湿度/测湿传感器测湿传感器HIH-4000系列特点热固塑料外壳相对于RH%(相对湿度)值的线性电压输出激光调整互换性低功率设计高精度快速响应时间稳定，漂移小抗化学性典型的应用制冷设备采暖、通风空调设备医用设备干燥设备测量设备电池供电系统原始设备制造厂(OEM)组装件HIH-4000系列测湿传感器是专为大量生产的原始设备制造厂(OEM)用户而设计的。
利用这传感器的线性电压输出可直接输入到控制器或其他装置。
一般仅需取出200μA电流，HIH-4000系列测湿传感器就能理想地用于低引出、电池供电系统。
传感器良好的互换性减少或消除了OEM的生产校验成本。
可以提供单个传感器校准数据。
HIH-4000系列测湿传感器作为一个低成本、可软焊的单个直插式组件(SIP)提供仪表测量质量的相对湿度(RH)传感性能。
RH传感器可用在二引线间有间距的配量中，它是一个热固塑料型电容传感元件，其芯片内具有信号处理功能。
传感元件的多层结构对应用环境的不利因素，诸如潮湿、灰尘、污垢、油类和环境中常见的化学品具有最佳的抗力。
表1：性能规格在5.0 VDC供电电压和25°C时，除非另有规定%RH性能规格包括试验系统测量误差(±0.5%的典型值)参数最小值典型值最大值单位互换性(最佳配合直线)%RH0至60%RH-5 5%RH60%至100%-8 8互换性(二阶曲线)%RH±3.5%RH*精度(最佳配合直线)±3.5%RH**精度电压输出(二阶曲线)±2.5%RH 滞后性 3%RH重复精度±0.5整定时间70mSSec响应时间l/e指在缓慢流动的空气中15***稳定性(在1年内50%RH 的条件下)%RH±1.2****稳定性(50%RH条件下 ) %RH供电要求TBDVDC5.8供电电压 4μA供电电流500电压输出(一阶配合) V输出=V供电(0.0062(传感器RH)+0.16)电压输出(二阶曲线配合) V输出= 0.00003 (传感器RH)2 + 0.0281 (传感器RH) +0.820，在25°C时的典型数据温度补偿V输出=(0.0305+0.000044T-0.0000011T2) (传感器RH)+ (0.9237-0.0041T+0.000040T2)T=温度单位为°C工作温度-40 见图1 85 °C°F-40 185工作湿度 0见图1 100 %RH储存温度°C-40 125°F-40 257储存湿度见图2 %RH* 仅对HIH-400-003和-004型号而言。
Honeywell 开关型霍尔位置传感器SS400 系列 开关型 说明书
特点：●3.8-30VDC 供电 ● 数字电流沉输出 ● 3针一列PCB 引脚● 方块霍尔设计消除了机械压力效应 ● 磁特性温度补偿● 可定制特殊的动作/释放点 ● 双极，单极，锁存型●很高的输出电流能力——最大绝对电流50mA ● 动点/释放点对称于零点高斯（双极锁存） ● 工作温度范围-40～150℃ ● 封装材料：Plaskon 3300H● 表面封装型号：SS400-S （切短或整形的引脚）SS400 内含整个温度范围的热平衡集成电路，负的温度补偿特性能与低成本磁钢负温度系数为最佳匹配带宽间隙调整提供了SS400 在3.8～30VDC 电源电压范围内特别稳定的工作特性。
SS400能连续输出20mA 电流，最大绝对电流为50mA.SS411A 双极3.8-3010mA 电流沉.40V 20mA 10µA.05µs 典型值1.5µs 最大值.15µs 典型值1.5µs 最大值G 70-701565-651560-601560-601265-651270-7010mT 7.0-7.01.56.5-6.51.56.0-6.01.56.0-6.01.26.5-6.51.27.0-7.01.0注：当锁存型突然掉电后，其输出在上电后可能改变状态，在足够强的磁场中，传感器的输出由所在磁场决定。
上升(10-90%)下降(90-10%)最大动作点最小释放点最小回差最大动作点最小释放点最小回差最大动作点最小释放点最小回差最大动作点最小释放点最小回差最大动作点最小释放点最小回差最大动作点最小释放点最小回差选型指南型号磁场类型供电电压（VDC ）供电电流（最大值)输出类型输出电压（最大值）输出电流（最大值）*输出漏电流（最大值）输出开关时间Vcc=12V ，RL=1.6K C=20pF 磁特性-40℃0℃25℃85℃125℃150℃SS413A 双极3.8-3010mA 电流沉.40V 20mA 10µA.05µs 典型值1.5µs 最大值.15µs 典型值1.5µs 最大值SS441A 单极3.8-3010mA 电流沉.40V 20mA 10µA.05µs 典型值1.5µs 最大值.15µs 典型值1.5µs 最大值SS443A 单极3.8-3010mA 电流沉.40V 20mA 10µA.05µs 典型值1.5µs 最大值.15µs 典型值1.5µs 最大值SS449A 单极3.8-3010mA 电流沉.40V 20mA 10µA.05µs 典型值1.5µs 最大值.15µs 典型值1.5µs 最大值SS461A 锁存3.8-3010mA 电流沉.40V 20mA 10µA.05µs 典型值1.5µs 最大值.15µs 典型值1.5µs 最大值SS466A 锁存3.8-3010mA 电流沉.40V 20mA 10µA.05µs 典型值1.5µs 最大值.15µs 典型值1.5µs 最大值G 140-14020140-14020140-14020140-14020140-14020140-14020mT 14.0-14.02.014.014.02.014.0-14.02.014.0-14.02.014.0-14.02.014.0-14.02.0G 1352015117201811520201201515123158125105mT 13.52.01.511.72.01.811.52.02.012.01.51.512.31.50.812.51.00.5G 21580251908025180752518070151906010200555mT 21.58.02.519.58.02.518.07.52.5187.01.519.06.01.020.05.50.5G 435210304002303039023530400215304102003042018530mT 43.521.03.040.023.03.039.023.53.040.021.53.041.020.03.042.018.53.0G 110-1105090-905085-855085-8550100-10050110-11050mT 11.0-11.05.09.0-9.05.08.5-8.55.08.5-8.55.010.0-10.05.011.0-11.05.0G 200-200200185-185200180-180200180-180190180-180160185-185140mT 20.0-20.020.018.5-18.520.018.018.020.018.0-18.019.018.0-18.016.018.5-18.514.0注：可订购安装在线带和卷带上的SS400，引脚上间距0.1”, 每个卷带3000个SS400传感器。
Honeywell_传感器_技术参数 2
目录：水系统传感器 (2)水流开关WFS-1001-H (2)液位开关MAC-3-5M (2)水管式压差传感器P7620C (3)水管式压力传感器P7620A (4)流量变送器8550+2517 (5)VF20T浸入式温度传感器 (5)风系统传感器 (7)DPS系列气流压差开关 (7)DPTM系列压差变送器 (7)风管式温度传感器LF20 (8)风管式温度传感器LF20-C (9)室外温度传感器T7416A1022 (9)室内温度传感器T7412A1000 (9)室内温度传感器CTR21 (10)风管式温湿度传感器H7050B1018 (10)风管式温湿度变送器H7050B1117 (11)室内温湿度变送器H7030A1000 (12)室内温湿度传感变送器H7012B1023 (12)室内温湿度传感器CTR21-H (13)风管式温湿度传感器H7015B1020 (14)室外温湿度传感变送器H7508A1042 (14)CDS2000 系列二氧化碳传感器 (15)C7110C1001(替换已停产的AQS51) 系列二氧化碳传感器 (15)AQS71-KAM(替换已停产的AQS51-KAM) 系列二氧化碳传感器 (16)GD250W3E 系列一氧化碳传感器 (17)C7110A1005系列房间空气质量传感器 (17)L4064K1006B 高温断路开关，手动复位 (18)T6950A1000 低温短路开关，手动复位 (18)数字化挂墙模块T7560 温度传感器 (19)数字化挂墙模块T7460 温度传感器 (19)水系统传感器水流开关 WFS-1001-H应用∙ WFS 水流开关具有SPDT 输出，性能优异，高精度可靠性，可安装在水管和对铜无腐蚀性液体中，当液体流量达到整定速率时，可不到整定点，其一个回路关闭，另一个回路打开，典型应用于连锁作用或断流保护的场所。
∙ WFS 系列开关仅用0℃以上液体介质，它亦可于高盐或氯气的液体，但是非易燃介质。

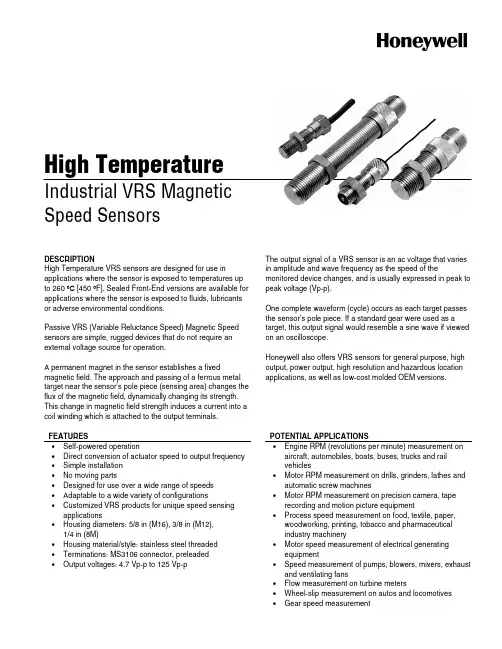

Honeywell VRS高温工业速度传感器说明书
High TemperatureIndustrial VRS Magnetic Speed SensorsDESCRIPTIONHigh Temperature VRS sensors are designed for use inapplications where the sensor is exposed to temperatures up to 260 ºC [450 ºF]. Sealed Front-End versions are available for applications where the sensor is exposed to fluids, lubricants or adverse environmental conditions.Passive VRS (Variable Reluctance Speed) Magnetic Speed sensors are simple, rugged devices that do not require an external voltage source for operation.A permanent magnet in the sensor establishes a fixedmagnetic field. The approach and passing of a ferrous metal target near the sensor’s pole piece (sensing area) changes the flux of the magnetic field, dynamically changing its strength. This change in magnetic field strength induces a current into a coil winding which is attached to the output terminals.The output signal of a VRS sensor is an ac voltage that varies in amplitude and wave frequency as the speed of themonitored device changes, and is usually expressed in peak to peak voltage (Vp-p).One complete waveform (cycle) occurs as each target passes the sensor’s pole piece. If a standard gear were used as a target, this output signal would resemble a sine wave if viewed on an oscilloscope.Honeywell also offers VRS sensors for general purpose, high output, power output, high resolution and hazardous location applications, as well as low-cost molded OEM versions.FEATURES• Self-powered operation• Direct conversion of actuator speed to output frequency • Simple installation • No moving parts• Designed for use over a wide range of speeds • Adaptable to a wide variety of configurations• Customized VRS products for unique speed sensingapplications• Housing diameters: 5/8 in (M16), 3/8 in (M12),1/4 in (8M)• Housing material/style: stainless steel threaded • Terminations: MS3106 connector, preleaded • Output voltages: 4.7 Vp-p to 125 Vp-pPOTENTIAL APPLICATIONS• Engine RPM (revolutions per minute) measurement onaircraft, automobiles, boats, buses, trucks and rail vehicles• Motor RPM measurement on drills, grinders, lathes andautomatic screw machines• Motor RPM measurement on precision camera, taperecording and motion picture equipment• Process speed measurement on food, textile, paper,woodworking, printing, tobacco and pharmaceutical industry machinery• Motor speed measurement of electrical generatingequipment• Speed measurement of pumps, blowers, mixers, exhaustand ventilating fans• Flow measurement on turbine meters• Wheel-slip measurement on autos and locomotives • Gear speed measurementHigh Temperature2 /sensing5/8 INCH (M16*) SENSORS (All dimensions for reference only. mm/[in]) *Contact Honeywell for availability of metric mounting thread versions.LOW RESISTANCE COILS FOR HIGH FREQUENCY APPLICATIONS General SpecificationsTest Condition SpecificationsParameter Characteristic Parameter Characteristic Parameter Characteristic Min. output voltage 25 Vp-p Inductance 30 mH max. Surface speed 25 m/s[1000 in/s]Coil resistance 65 Ohm typ. Gear pitch range 24 DP (module 1.06) or coarser Gear 20 DP(module 1.27)Pole piece diameter 2,69 mm [0.106 in] Optimum actuator 20 DP (module 1.27) Air gap 0,127 mm[0.005 in]Min. surface speed0,50 m/s [20 in/s] typ. Max. operating frequency50 kHz typ. Operating temp. range-55 ºC to 230 ºC [-67 ºF to 450 ºF] Vibration N/A Mounting thread 5/8-18 UNF-2ATerminationMS3106 connectorLoadresistance100 kOhmHIGH RESISTANCE COILS FOR MAXIMUM OUTPUT VOLTAGE APPLICATIONS General SpecificationsTest Condition SpecificationsParameter Characteristic Parameter Characteristic Parameter Characteristic Min. output voltage 125 Vp-p Inductance 450 mH max. Surface speed 25 m/s[1000 in/s]Coil resistance 1055 Ohm typ. Gear pitch range 24 DP (module 1.06) or coarser Gear 20 DP(module 1.27)Pole piece diameter 2,69 mm [0.106 in] Optimum actuator 20 DP (module 1.27) Air gap 0,127 mm [0.005 in] Min. surface speed 0,25 m/s [10 in/s] typ. Max. operating frequency 15 kHz typ. Operating temp. range-55 ºC to 230 ºC [-67 ºF to 450 ºF] Vibration N/A Mounting thread 5/8-18 UNF-2ATerminationMS3106 connectorLoad resistance100 kOhmIndustrial VRS Magnetic Speed SensorsHoneywell Sensing and Control 35/8 INCH (M16*) SENSORS CONTINUED (All dimensions for reference only. mm/[in]) *Contact Honeywell for availability of metric mounting thread versions.NOMINAL RESISTANCE COILS FOR LOW IMPEDANCE LOAD APPLICATIONS General SpecificationsTest Condition SpecificationsParameter Characteristic Parameter Characteristic Parameter Characteristic Min. output voltage 45 Vp-p Inductance 85 mH max. Surface speed 25 m/s[1000 in/s]Coil resistance 141 Ohm typ. Gear pitch range 12 DP (module 2.11) or coarser Gear 8 DP(module 3.17)Pole piece diameter 4,75 mm [0.187 in] Optimum actuator 8 DP (module 3.17) Air gap 0,127 mm [0.005 in]Min. surface speed 0,38 m/s [15 in/s] typ. Max. operating frequency 40 kHz typ. Operating temp.range-55 ºC to 230 ºC [-67 ºF to 450 ºF] Vibration N/A Mounting Thread 5/8-18 UNF-2ATerminationMS3106 ConnectorLoadresistance1.25 kOhmHigh Temperature4 /sensing5/8 INCH SEALED FRONT-END SENSORS (All dimensions for reference only. mm/[in]) (No metric available.)NOMINAL RESISTANCE COILS FOR LOW IMPEDANCE LOADS APPLICATIONS General SpecificationsTest Condition SpecificationsParameter Characteristic Parameter Characteristic Parameter Characteristic Min. output voltage60 Vp-p Inductance 85 mH max. Surface speed 25 m/s[1000 in/s]Coil resistance 120 Ohm to 162 Ohm Gear pitch range 12 DP (module 2.11) or coarser Gear 8 DP(module 3.17)Pole piece diameter 4,39 mm [0.173 in] Optimum actuator 8 DP (module 3.17) Air gap 0,127 mm[0.005 in]Min. surface speed0,38 m/s [15 in/s] typ. Max. operating frequency40 kHz typ. Operating temp. range-54 ºC to 220 ºC [-65 ºF to 428 ºF] Vibration N/AMounting Thread 5/8-18 UNF-2ATerminationMS3106 connectorLoadresistance 1.25 kOhmIndustrial VRS Magnetic Speed SensorsHoneywell Sensing and Control 53/8 INCH (M12*) SENSORS (All dimensions for reference only. mm/[in]) *Contact Honeywell for availability of metric mounting thread versions.General SpecificationsTest Condition SpecificationsParameter Characteristic Parameter Characteristic Parameter Characteristic Min. output voltage15 Vp-p Inductance 31 mH max. Surface speed 25 m/s[1000 in/s]Coil resistance 110 Ohm max. Gear pitch range 26 DP (module 0.98) or coarser Gear 20 DP(module 1.27)Pole piece diameter 2,36 mm [0.093 in] Optimum actuator 24 DP (module 1.06) ferrous metal gear Air gap 0,127 mm[0.005 in]Min. surface speed0,75 m/s [20 in/s] typ. Max. operating frequency50 kHz typ. Operating temp. range-40 ºC to 205 ºC [-40 ºF to 400 ºF] Vibration N/A Mounting thread 3/8-24 UNF-2ATermination24 AWG Teflon-insulated leadsLoadresistance 100 kOhmHigh Temperature6 /sensing1/4 INCH (M8*) MINIATURE SENSORS (All dimensions for reference only. mm/[in]) *Contact Honeywell for availability of metric mounting thread versions.General SpecificationsTest Condition Specifications Parameter Characteristic Parameter Characteristic Parameter CharacteristicMin. output voltage 4.7 Vp-p Inductance 13 mH max.Surface speed 25 m/s[1000 in/s]Coil resistance 137 Ohm max. Gear pitch range36 DP (module 0.70) or coarserGear 20 DP(module 1.27) Pole piece diameter 1 mm [0.040 in] Optimum actuator 28 DP (Module 0.90)ferrous metal gear Air gap 0,127 mm [0.005 in] Min. surface speed0,89 m/s [35 in/s] typ. Max. operating frequency70 kHz typ.Operating temp. range-40 ºC to 230 ºC [-40 ºF to 450 ºF] Vibration Mil-Std 202F Method 204DMounting thread 1/4-40 UNS-2ATermination30 AWG Teflon-Insulated LeadsLoadresistance100 kOhmIndustrial VRS Magnetic Speed SensorsHoneywell Sensing and Control 71/4 INCH SEALED FRONT-END SENSORS (All dimensions for reference only. mm/[in]) (No metric available.)General SpecificationsTest Condition SpecificationsParameter Characteristic Parameter Characteristic Parameter Characteristic Min. output voltage 5.2 Vp-p Inductance 85 mH max. Surface speed 25 m/s[1000 in/s]Coil resistance 20 Ohm to 45 Ohm Gear pitch range 36 DP (module 0.70) or coarser Gear 20 DP(module 1.27)Pole piece diameter 1 mm [0.040 in] Optimum actuator 28 DP (module 0.90) ferrous metal gear Air gap 0,127 mm [0.005 in]Min. surface speed 0,89 m/s [35 in/s] typ. Max. operating frequency 70 kHz typ. Operating temp.range-73 ºC to 230 ºC [-100 ºF to 450 ºF] Vibration Mil-Std 202F Method 204DMounting Thread 1/4-40 UNS-2ATermination 28 AWG Teflon-insulated leadsLoadresistance 100 kOhmAutomation and Control Solutions Sensing and Control Honeywell1985 Douglas Drive North Minneapolis, MN 55422 /sensing 005877-1-EN IL50 GLO Printed in USAMarch 2007Copyright © 2007 Honeywell International Inc. All rights reserved.WARNINGPERSONAL INJURYDO NOT USE these products as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.Failure to comply with these instructions could result in death or serious injury.WARRANTY/REMEDYHoneywell warrants goods of its manufacture as being free of defective materials and faulty workmanship. Honeywell’s standard product warranty applies unless agreed to otherwise by Honeywell in writing; please refer to your orderacknowledgement or consult your local sales office for specific warranty details. If warranted goods are returned to Honeywell during the period of coverage, Honeywell will repair or replace, at its option, without charge those items it finds defective. The foregoing is buyer’s sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. In noevent shall Honeywell be liable for consequential, special, or indirect damages.While we provide application assistance personally, through our literature and the Honeywell web site, it is up to the customer to determine the suitability of the product in the application.Specifications may change without notice. The information we supply is believed to be accurate and reliable as of this printing. However, we assume no responsibility for its use.WARNINGMISUSE OF DOCUMENTATION• The information presented in this product sheet is forreference only. Do not use this document as a product installation guide.• Complete installation, operation, and maintenanceinformation is provided in the instructions supplied with each product.Failure to comply with these instructions could result in death or serious injury.SALES AND SERVICEHoneywell serves its customers through a worldwide network of sales offices, representatives and distributors. For application assistance, current specifications, pricing or name of the nearest Authorized Distributor, contact your local sales office or:E-mail:*********************Internet: /sensing Phone and Fax:Asia Pacific +65 6355-2828 +65 6445-3033 Fax Europe +44 (0) 1698 481481+44 (0) 1698 481676 FaxLatin America +1-305-805-8188+1-305-883-8257 Fax USA/Canada +1-800-537-6945+1-815-235-6847 +1-815-235-6545 Fax。
Honeywell SmartLine压力传感器选择指南说明书
I Connected IndustriaISMARTLINE PRESSURE SELECTION GUIDELINESRedefining Smart.SmartLine Pressure TransmittersHoneywell’s SmartLine® pressure measurement system sets the standard with its industry-leading total performance, even in harsh process environments. With the best control system integration and unique features such as modularity, a graphics display and universal terminals, SmartLine offers the lowest total cost of ownership.Leading PerformanceSmartLine provides better performance with industry leading accuracy, response time and stability. When combined with Honeywell’s proven static pressure and temperature compensation, the unbeatable total performance is better than 0.12% of span under actual process conditions.Lowest Total Cost of Ownership• H oneywell’s unique approach to modularity helps reduce maintenance costs and make repairs safer and faster. With the ability to repair the transmitter in place, the need to break a process line connection is avoided, even in an intrinsically safe environment. And with no need to stock complete units, inventory costs are lower.• A n advanced graphics display and three button external configuration option provide capabilities for field operators to more efficiently perform tasks,solve problems and avoid errors with no need for a handheld device. The display shows rich graphics, bar graphs, trends and messages from the control room.• W ith SmartLine’s universal terminals, wiring can be reversed without damaging or affecting the normal operation of the transmitter. This avoids costly rework on large installations where multiple contractors may use different wiring standards and eliminates return trips to re-wire “incorrectly wired” devices.SmartLine Connection Advantage• T ransmitter Messaging allows the operator to send and display custom messages to the display so field operators can quickly identify the right transmitter and task.•M aintenance Mode Indication displays a message on the display that the transmitter and/or the loop is in a mode suitable for maintenance. • U nique Tamper Reporting notifies the control room that an attempt to change a write-protected configuration has been made or that the write protection has been switched off.•F ield Device Manager (FDM) is Honeywell’s centralized asset management system for smart field device configuration and maintenance. When SmartLine data is integrated into FDM, users can create hierarchical screen displays for quick and easy views of device health from areas of the plant or process.• W ith comprehensive testing, Honeywell provides trouble-free integration for faster startups and reliability. The tests even include other suppliers’ configuration tools.ST800ST700SMV800 Performance CharacteristicsAccuracy • U p to 0.0375% span standard• 0.025% span optional highaccuracy • B asic: up to 0.065% of span• S tandard: up to 0.05% of span•P V1 DP – up to 0.04% of span• P V2 SP – up to 0.0375% of span• P V3 PT – 0.2 °C RTD – Pt 100• P V4 – mass flow accuracyup to 0.6%Stability• U p to 0.01% per year for ten years• B asic: up to 0.025% per year for5 years• S tandard: up to 0.02% per yearfor 5 years• U p to 0.0625% of URL per yearResponse Time• A s fast as 80 ms• A s fast as 100 ms•A s fast as 144 ms for DP (PV1) Total Performance• U p to 0.12%• U p to 0.2%• M ass flow performance is up to 0.6% Turndown Ratios up to 400:1• T urndown ratios up to 400:1• T urndown ratios up to 100:1• T urndown ratios up to 400:1 Compound Characterized Ranges• Y es• Y es• Y esTemperature & Static PressureCompensated• Y es• Y es• Y esProduct Features & OptionsMeasured Parameters• D ifferential pressure staticpressure • D ifferential pressure staticpressure• D ifferential pressure, staticpressure, process temperatureCaluclated Parameters• V olume flow• V olume flow• V olume flow, mass flow Support for Flow Algorithms• N A• N A• A SME MFC-3M, ISO5167, Gost8.586, AGA3, ASME MFC 14MSupport for Flow Elements• N A• N A• O rifice, Venturi, Flow Nozzle,Pitotube, IFO, Standard V cone,Wafer cone, WedgeHART® 7, DE & F OUNDATION™Fieldbus Communication Protocols• Y es• Y es• D E, HART 7Universal Terminals• Y es• S tandard: Yes• Y esModular Design Components• S imple faster repairs with lessdowntime • S imple faster repairs withless downtime• S imple faster repairs withless downtimeSmartLine Connection Advantage with Experion®• T ransmitter Messaging*• M aintenance Mode Indication• T amper Alerts*• F DM Plant Area Views• C omprehensive Experionintegration testing• T amper Alerts* (Standard only)• F DM Plant Area Views• T ransmitter Messaging*• M aintenance Mode Indication• T amper Alerts*• F DM Plant Area Views• C omprehensive Experionintegration testingSIL 2 Certified/SIL 3Capable Standard• Y es• Y es• N o Certified for Dual Seal Compliance• Y es• Y es• Y esComprehensive & AdvancedDiagnostics• Y es• Y es• Y esUser Interface Options• O ptional basic alphanumeric display• O ptional advanced graphics display• M ultiple PV display screens includingbar graph and trend displays• C omprehensive diagnostic messages• S upports transmitter messagingand maintenance mode indication• C omprehensive EDDs & DTMsfor remote configuration• O ptional external 3-buttonprogramming capability • S T700 Basic: supports Standarddisplay with internal and/orexternal 2-button configurationST700 Standard: supportsStandard display with internal2-button configuration / Basicdisplay with external three buttonconfiguration• Diagnostic notifications•C omprehensive EDDs & DTMsfor remote configuration• O ptional external two (Basic)or three (Standard) buttonprograming capability• N A•O ptional advanced graphics display• M ultiple PV display screens includingbar graph and trend displays• C omprehensive diagnostic messages• S upports transmitter messagingand maintenance mode indication• C omprehensive EDDs & DTMs forremote configuration• O ptional external 3-buttonlimited programming capOptional Extended Warranties• 1, 2, 3, 4 and 15 year warranties• 1, 2, 3 and 4 year warranties• 1, 2, 3, 4 and 15 year warranties *Also compatible with other HART 7 enabled hostsStandard, basic or advanced digital display as determined by the application requirementsUniversal or traditional wiring terminal boards with standard or lightning-protected optionsIt takes only a matter of minutes to replace the electronics, even in the field under power with no re-calibration required. This avoids the time-consuming procedure of removing a sensor from a pipeline or network, particularly in highly critical processes.Best of all, Honeywell’s unique modularity reduces inventory requirements and lowers overall operating costs.LOWER YOUR TOTAL COST OF OWNERSHIPWith Plug-In Modules, Users Can Easily Add or UpgradeAll SmartLine Pressure Transmitters are modular in design, making it easy to replace hardware, add indicators, change electronic modules or even meter bodies without affecting overall performance or impinging on approval body certifications.Flexible ConfigurationIn addition to configuring with any hand-helddevice or through asset management DTMs, users can configure the transmitters through externally accessible buttons, even in an intrinsically safe, Class I, Div. 1 environment.Now, whether on the bench or in the field, configure, change tag information, change languages and even more without needing a handheld device.SMARTLINE PRESSURE SELECTION GUIDEModel Types, Ranges and SpansModelUpper Range Lower Range Max. SpanUnitsStandard Accuracy % of Span Turndown CapabilityTwo- or three-button external configurationField-exchangeable communication modules to deploy HART , Honeywell Digital Enhanced (DE) or FOUNDATION Fieldbus communicationAdvanced Graphics LCD Display• U p to eight separate screens with three formats to meet unique display requirements: process variable, bar graph and trend• F ull library of engineering units with the ability to add custom units• Configurable screen rotation timing • Supports multiple languages • Two diagnostic indications• 90-degree position adjustments to facilitate all installation positions.For more informationTo learn more about Honeywell’s SmartLine Pressure Transmitters, visit /smartlineor contact your Honeywell account manager. Honeywell Process Solutions512 Virginia DriveFort Washington, PA 19034 USAHoneywell House, Arlington Business Park Bracknell, Berkshire, England RG12 1EB17 Changi Business Park Central 1 Singapore 486073 SmartLine® and Experion® are registered trademarks of Honeywell International Inc. HART® is a registered trademark andF OUNDATION™ Fieldbus is a trademark of the FieldComm Group.PO-16-01-ENG | 11/16©2016 Honeywell International Inc.。
Honeywell 模拟霍尔位置传感器 SS94A系列 模拟输出 说明书
Honeywell/Commercial Switch&Sensor 霍尼韦尔商业开关与传感器上海：Tel:021-******** 北京：Tel:010-******** 深圳：Tel:0755-******** 广州：Tel:020-******** e-mail:jian.bo.zhou@ /sensing模拟霍尔位置传感器*-40°C-125°C**包括负载，典型在25°C /最大在-40°C 下***@Vs=5VDC 只限于SS94A1B @Vs=8VDC 适用其它型号+曲线始末端点直线法++陶瓷背面镀银与引脚电气连接规定用2.2K Ω电阻，除非另外标注零点电压（0高斯时电压）和灵敏度与供电电压线性比率变化特点：●单个电流沉或电流源输出 ● 提高的温度稳定性 ● 三针一列PCB 引脚● 激光修正的薄膜和厚膜电阻，减少了灵敏度变化，并带温度补偿 ● 敏感磁场强度±100到±2500高斯性能：SS9系列利用新的霍尔集成电路芯片。
提高了温度稳定度和性能。
经激光修正的陶瓷基底上的厚膜电阻及集成电路上的薄膜电阻，减少了传感器的零点和灵敏度的温飘，使得每一个器件有相同的灵敏度。
安装尺寸（仅供参考）SS94A 选型指南规格主要特点供电电压（VDC ）*供电电流（mA 最大值）**输出电流（mA ）电源沉或源反应时间（µsec.）磁特性***满量程*测量磁场范围（guass ）*灵敏度（mV/guass@25℃）线性度(%量程)输出Vout(0高斯@25℃)***温度误差（所有%S 以25℃值为基准）*零点（%/℃）灵敏度（%/℃）SS94A1通用6.6—12.613(典型值)30(最大值)1(最大值)3(典型值).625Vs -500-+5005.0±.1-0.8(典型值)-1.5(最大值)4.00±0.04V± .02± .02SS94A1B 5VDC 工作4.5—8.08(典型值)17.5(最大值)1(最大值)3(典型值).375Vs -500-+5001.875±1.00-0.8(典型值)-1.5(最大值)2.50±0.05V± .025± .025SS94A1E 低漂移6.6—12.613(典型值)30(最大值)1(最大值)3(典型值).625Vs -500-+5005.0±.1-0.8(典型值)-1.5(最大值)4.00±0.04V± .01± .02SS94A1F 高灵敏度6.6—12.613(典型值)30(最大值)1(最大值)3(典型值).625Vs -100-+100 25.0±.5-0.8(典型值)-1.5(最大值)4.00±0.08V± 1.0± .02-.055SS94A2噪声屏蔽++6.6—12.613(典型值)30(最大值)1(最大值)3(典型值).625Vs -500-+5005.0±0.1-0.8(典型值)-1.5(最大值)4.00±0.04V± .02± .02SS94A2C 噪声屏蔽++6.6—12.613(典型值)30(最大值)1(最大值)3(典型值).625Vs -1000-+10002.50±0.05-0.8(典型值)-1.5(最大值)4.00±0.04V± .0125± .02SS94A2D 噪声屏蔽++6.6—12.613(典型值)30(最大值)1(最大值)3(典型值).625Vs -2500-+25001.00±0.02-0.8(典型值)-1.5(最大值)4.00±0.04V± .007± .02应用考虑：输出电压被嵌在高端电压，嵌位电位可低至9V ，输出不会超过此嵌位电压而不管磁场强度和供电电压大小。
Honeywell HIH-4602-A C 系列湿度传感器 说明书
5
HIH-4602-A/C 系列
图 7. 典型应用电路
最小负载
供电电压 输出电压
订货指南
型号 HIH-4602-A HIH-4602-C
描述 单片集成电路湿度传感器，带热敏电阻，TO-5外壳 单片集成电路湿度传感器，带RTD铂电阻，TO-5外壳
4
图 5. HIH-4602-A/C 系列安装尺寸（仅供参考。mm[in]） HIH-4602-A/C
湿度传感器
1. 外壳接地 2. Vdc 输出 3. (-)电源或接地
4. (+)Vdc 电源 5., 6. HIH-4602-A 热敏电阻用于温度补偿 5., 6. HIH-4602-C RTD 用于温度补偿
Honeywell Sensing and Control 霍尼韦尔 传感与控制
上海 Tel: 021-62370237 北京 Tel: 010-84583280 广州 Tel: 020-84101800 香港 Tel：00852-29536412
2008 年 11 月
6
HIH-4602-A/C 系列
湿度传感器
说明
HIH-4602-A/C 系列相对湿度（RH）传感器带有防水烧结 的不锈钢滤网的 TO-5 外壳，感应相对湿度和温度。
该 RH 传感器为内置信号处理单元的经激光修正的热固聚 合物电容式感应元件。
HIH-4602-A/C 是温度传感器和 RH 传感器组合非常适合测 试露点或其它绝对湿气。
图 6. RH 传感器结构示意 传感器结构由一个阻止污垢，灰尘，油类和其他危害物质的聚合物层保护的平面电容组成。
污垢，灰尘或油类不会 影响传感器
热固聚合物 多孔铂 基座（硅） 金属基板
Honeywell ASG压力传感器 说明书
先进的硅结构的压力传感器，集中了硅结构传感技术，温度补偿，校正，于—体，且低成本的封装。
XSX系列不带温度补偿， XSC系列带温度补偿，它们的设计，成本低，尺寸小，适合于OEM应用。
供电电压零点输入阻抗输出阻抗工作温度储存温度安全压力破坏压力最小值3.0-1205.0---25-403X5X典型值12.0--3.0--------最大值16.0+120----+85+125----最小值3.0-1.05.0---25-403X5X典型值12.0--3.0--------最大值16.0+1.0----+85+125----单位VDCmvOhmOhm℃℃量程量程XSXL和XSX XSCL和XSCXSX/XSC绝压(12VDC+/-0.01供电@25℃)满量程压力(PSI)５ 15 30 60 100 150 300最小值270405405454504450324XSX满量程输出(mv)典型值420630630634708630612最大值540810810813912810900最小值5785858595----XSC满量程输出(mv)典型值60609090100----最大值63959595105----XSXL/XSX和XSCL/XSC表压和差压输出(12VDC+/-0.01供电@25℃) (P2-P1)满量程压力(PSI)4英寸水柱10英寸水柱 15153060100150300最小值502296270405406454504450324XSXL/XSX满量程输出(mv)典型值6842180420630630634708630612最大值8662204540810810813912810900最小值231917578585859585--XSCL/XSC满量程输出(mv)典型值2520186090909010090--最大值2721196395959510595--PIN定义：1.-V供电 2.+输出信号 3.＋V供电4.－输出信号 P1口：干燥空气 P2口：与尼龙外壳，硅兼容的介质XSXL/XSX和XSCL/XSC系列选型指南系列XSX---不补偿，不校正, mVXSC---补偿且校正, mV压力测量L---低压力(英寸水)无字母---压力(PSI)压力范围4英寸水柱，10英寸水柱01，05，15，30，60，100，150PSI 压力类型G---表压D---差压A---绝压≥5PSI精度选项C---经济型导气选项F---轴向T---径向FS---轴向偏置XSX L G F C04硅结构压力传感器未温度补偿已温度补偿：安装尺寸 (mm/in):XSXL/XSX AND XSCL/XSC SeriesEQUIVAlENT CIRCUITPlN DESOGNATIONS1．- V 电源电压2．+输出信号3． + V 电源电压4．- 输出信号XSCL/XSC Differential PortXSXL, XSXXSCL, XSC SeriesXSC Ceramic without PortXSC Ceramic with Port(F)。
Honeywell HumidIcon数字湿度温度传感器操作指南说明书
Technical NoteSPI Communication with the Honeywell HumidIcon™ Digital Humidity/Temperature SensorsSensing and Control1.0 IntroductionThe Serial Peripheral Interface (SPI) is a simple bus system for synchronous serial communication between one Master and one or more Slaves. It operates in either full-duplex mode or half-duplex mode, allowing simultaneous communication in both directions, or in one direction only. The Master device initiates an information transfer on the bus and generates clock and control signals. Slave devices are controlled by the Master through individual Slave select lines and are active only when selected.Honeywell HumidIcon ™ digital humidity sensors with SPI output operate in half-duplex mode only, with data transfer from the Slave to the Master. Three data lines are required for data transmission:Slave Select (SS)Signal Clock (SCLK)Master-In-Slave Out (MISO)All three of these bus lines are unidirectional. SS and SCLK are controlled by the Master while MISO is controlled by the Slave (see Figure 1).2.0 Data Transfer with SPI Output Humidity SensorsHoneywell’s digital output humidity sensors are design ed to work as Slaves and will therefore only respond when the SS line is asserted. Once the SS line is asserted, the sensor will begin sending data once a clock is received. By default, Honeywell digital humidity sensors are configured to change data on the MISO line with the falling edge of SCLK. This means the Master device should sample MISO on the rising (opposite edge) of SCLK.Honeywell digital humidity sensors can handle high and low SCLK polarity without configuration change. Please contact Honeywell Customer Service with questions regarding SCLK polarity and sampling MISO.Figure 2 shows an example of a 1 byte data transfer from the Slave to the Master. In this example, the data 101 (01100101 binary, or 65 hex) would be read.Figure 2. Example of a 1 Byte SPI Data Transfer with aOnce the clocking begins, Honeywell digital humidity sensors are designed to output up to four bytes of data, depending on the sensor options and the needs of the application. In all cases, the first two data bytes are the compensated humidity output, along with sensor status bits. The third and fourth bytes are for optional compensated temperature output. 2.1 Making a Measurement RequestBy default, the digital output humidity sensor performs humidity measurement and temperature measurement conversions whenever it receives a measurement request (MR) command; otherwise, the sensor is always powered down. The results are stored after each measurement in output registers to be read using a data fetch (DF) command.Detecting whether data is ready to be fetched can be handled by testing the status bits in the fetched data. Refer to Section 2.5 for details of the status bits.SPI Communication with the Honeywell HumidIcon™ Digital Humidity/Temperature Sensors2 Honeywell Sensing and Control2.2 Humidity and Temperature Measurement Request To wake up the humidity sensor and complete a measurement cycle, an MR command is used. The complete measurement cycle performs a humidity measurement and a temperature measurement and stores the results. As shown in Figure 3, an MR command is a read of eight or more bits, ignoring the data that is returned.A DF (Data Fetch) command must be completed before sending another measurement request command to start a new measurement cycle.2.3 Humidity Data FetchTo receive a compensated humidity reading, the Master generates the necessary clock signal after activating thesensor with the Slave select line. The sensor will transmit up to four bytes of data: the first two bytes contain the compensated humidity output, and the second two bytes contain the compensated temperature output.If only the compensated humidity value is required, the Master can terminate communication by stopping the clock and deactivating the slave select line after the second byte. An example of the communication is shown in Figure 4.2.4 Humidity and Temperature Data FetchThe optional corrected temperature data is read out with 14 bitresolution. By reading out the third and fourth bytes of data from the sensor, the complete 14 bit optional compensated temperature value can be read, as shown in Figure 5.When reading the full 14 bit resolution temperature output, the two least significant bits of the fourth data byte are “Do Not Care” and should be ignored.Figure 5. SPI Humidity and Temperature Data FetchPacket = [ {S(1:0),C(13:8)}, {C(7:0)}, {T(13:6)},{T(5:0),xx} ]Where:S(1:0) = Status bits of packetC(13:8) = Upper six bits of 14-bit humidity data C(7:0) = Lower eight bits of 14-bit humidity data T(13:6) = Corrected temperature dataT(5:0),xx = Remaining bits of corrected temperature data forfull 14-bit resolutionHiZ = High impedance 2.5 Status BitsHoneywell digital output humidity sensors offer status bits to ensure robust system operation in critical applications. The sensor status is indicated by the first two most significant bits of data byte 1 (See Table 1).Note 1: Command Mode is used for programming the sensor. This mode should not be seen during normal operationWhen the status bits read “01”, “s tale” data is indicated. This means that the data in the output buffer of the sensor has already been fetched by the Master, and has not yet beenupdated with the new data from the current measurement cycle. This can happen when the Master polls the data quicker than the sensor can update the output buffer.SPI Communication with the Honeywell HumidIcon™ Digital Humidity/Temperature SensorsHoneywell Sensing and Control 33.0 Measurement CycleFigure 6 shows the measurement cycle for the humidity sensor. The measurement cycle time is typically 36.65 ms fortemperature and humidity readings. It is recommended that the user wait until the measurement cycle has completed rather than polling for data to reduce current consumption and noise.Figure 6. Measurement Cycle for Humidity and4.0 Calculation of the Humidity Value from the Digital OutputFor Honeywell humidity sensors, the output of the device is simply a 14 bit number representing between 0 %RH and 100 %RH (see Equation 1):0 %RH = 0 counts100 %RH = 214- 2 counts5.0 Calculation of Optional Temperature from the Digital OutputFor Honeywell Humidity Sensors with the optionalcompensated temperature output, the output of the device is simply a 14 bit number representing between -40 ºC and 125 ºC (see Equation 2):-40 ºC = 0 counts125 ºC = 214– 2 counts6.0 Timing and Level Parameters (See Figure7.)SPI Communication with the Honeywell HumidIcon™ Digital Humidity/Temperature SensorsSensing and ControlHoneywell1985 Douglas Drive NorthGolden Valley, MN 55422 /sensing 009071-1-ENJuly 2012Copyright © 2012 Honeywell International Inc. All rights reserved.WARRANTY/REMEDYHoneywell warrants goods of its manufacture as being free of defective materials and faulty workmanship. Honeywell’s standard product warranty applies unless agreed to otherwise by Honeywell in writing; please refer to your order acknowledgement or consult your local sales office for specific warranty details. If warranted goods are returned to Honeywell during the period of coverage, Honeywell will repair or replace, at its option, without charge those items it finds defective. The foregoin g is buyer’s sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. In no event shall Honeywell be liable for consequential, special, or indirect damages.While we provide application assistance personally, through our literature and the Honeywell web site, it is up to the customer to determine the suitability of the product in the application.Specifications may change without notice. The information we supply is believed to be accurate and reliable as of this printing. However, we assume no responsibility for its use. SALES AND SERVICEHoneywell serves its customers through a worldwide network of sales offices, representatives and distributors. For application assistance, current specifications, pricing or name of the nearest Authorized Distributor, contact your local sales office or:E-mail:*********************Internet: /sensingPhone and Fax:Asia Pacific +65 6355-2828+65 6445-3033 FaxEurope +44 (0) 1698 481481+44 (0) 1698 481676 FaxLatin America +1-305-805-8188+1-305-883-8257 FaxUSA/Canada +1-800-537-6945+1-815-235-6847+1-815-235-6545 Fax。
Honeywell HMC HMR 系列磁阻传感器 说明书
磁阻敏感元件Honeywell在磁阻敏感元件(图3)，由长而薄的玻莫合金(一种铁镍合金)薄膜制成。
利用标准的半导体工艺，将薄膜附着硅片上。
四个磁阻组成惠斯通电桥。
同时在硅平面上制作了两个电流带，一个用来置位或复位输出的极性、另一个用来产生一个偏置磁场以补偿环境磁场。
Honeywell提供了在场地磁场范围内非常灵敏的磁阻传感器。
可测量几十微高斯的磁场，这是霍尔元件所不能做到的。
由于它的体积小，全固态，在某些场合下可以取代磁通门传感器。
Honeywell磁阻传感器家族包括：HMC1001/2-一轴或二轴基本传感器芯片，用于低成本场合HMC1021/2/3-一轴，二轴或三轴基本传感器芯片，更宽的磁场范围，成本更低HMC1501/12-基本线位移/角位移和旋转位移传感器HCM2003-三轴磁传感器模块，放大的模拟输出HMR2300-智能数字磁场计，高性能，便于使用HMR3000-数字罗盘模块特性·带微处理器的智能传感器·低成本，使用方便-一插即用·量程：±2Gauss，分辨率67μGauss·采样速度可选：10～157采样点/秒·三轴数字量输出：BCD码，ASCⅡ码或二进制码·9600或19.6K波特率可选择·符合RS-485标准，总线上连接多个单元·符合RS-232标准进行单点读数应用·航空用和船用罗盘·车辆遥感检测(侧滚/俯仰/偏航) ·过程控制·实验室仪器·异常检测·交通车辆检测·保安系统概述霍尼韦尔公司生产的三轴智能数字磁场计(HMR)可检测磁场的强度和方向，并与计算机直接通讯，输出X、Y、Z三个轴的分量。
用三个独立的桥路定向检测磁场的X、Y、Z轴的分量，电桥输出端相应电压的变化通过一个16位AD转换器转换为数字量。
可输入命令组态数据采样速率、输出格式、平均读数和零点偏移(见表1)。
