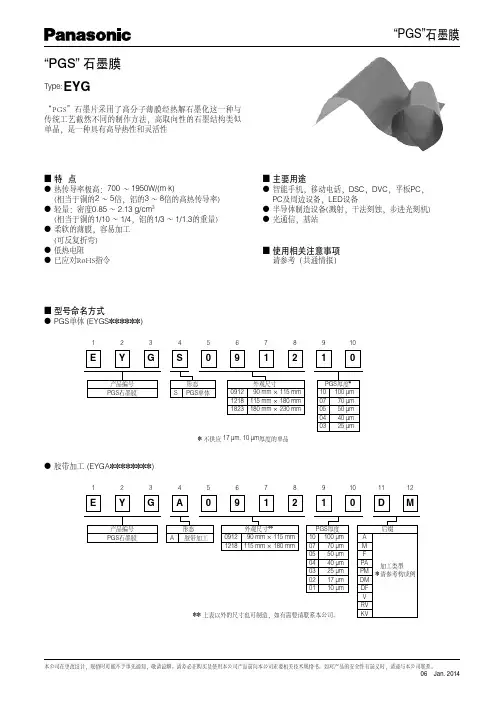

PGS石墨膜PGS石墨膜

100 μm 0.10±0.03 mm
0.85 g/cm3 700 W/(m·K) 10000 S/cm
20.0 MPa 9.3×10-7 1/K 3.2×10-5 1/K
70 μm
50 μm
0.07±0.015 mm
0.050±0 .015 mm
1.21 g/cm3
1.70 g/cm3
1000 W/(m·K)
110 μm EYGA091205PM
90 μm EYGA091204PM
80 μm EYGA091203PM
65 μm EYGA091202PM
57 μm EYGA091201PM
50 μm
丙烯酸双面胶带
10 μm
剥离纸
◎产品表面，粘合面均具有绝缘性
◎耐电压 ◎PET胶带：1 kV
双面胶带：1 kV
76 μm EYGA091205F
56 μm EYGA091204F
46 μm EYGA091203F
31 μm EYGA091202F
23 μm EYGA091201F
16 μm
A–PA 型标准PET胶带 30 μm 绝缘双面胶带 30 μm
PGS 石墨膜片
PET胶带 30 μm
双面层压加工型（绝缘＋粘合）
A–KV 型高耐热聚酰亚胺胶带30 μm 高耐热绝缘双面胶带 18 μm
PGS 石墨膜片
高耐热聚酰亚胺胶带 30 μm
结构目的特长
丙烯酸高耐
耐热双面胶带 18 μm
剥离纸
◎单面粘贴高耐热绝缘双面胶带 ◎耐电压 ◎双面胶带：2 kV
耐热温度
标准尺寸
最大尺寸
100
标准型号

瑞丰RF-RUS150TS-BD产品规格书说明书

and reliability.如产品需要用在有特殊质量要求及可靠性要求的地方，请提前咨询瑞丰的销售人员以取得相关信息。

disassemble and analyzein written form.在取得瑞丰的同意前，客户不应该对产品进行拆解分析，如发现失效产品，请直接书面通知瑞丰。

Features 特征Extremelywide viewing angle.发光角度大Suitable for all SMT assembly and solder process.适用于所有的SMT 组装和焊接工艺 Moisture sensitivity level:Level 3.防潮等级Level 3 Package:4000pcs/reel.包装每卷4000pcs RoHS compliant.满足RoHS 要求Description 描述The Colour LED which was fabricated by using a red chip 该产品为红光LED ，是由红光芯片封装形成Applications 应用Optical indicator.光学指示Switch and Symbol,Display.开关和标识、显示器等 General use.其他应用RF-RUS150TS-BDPackage Dimension外观尺寸NOTES:1.All dimensions units are millimeters.(所有尺寸标注单位为毫米)2.All dimensions tolerances are 0.2mm unless otherwise noted.(除特别标注外，所有尺寸公差为±0.2毫米)Electrical/Optical Characteristics at Ts=25°C电性与光学特性Absolute Maximum Ratings at Ts=25°C绝对最大值Typical optical characteristics curves典型光学特性曲线Packaging Specifications包装规格⏹Tape Dimensions载带尺寸⏹Note:Thetolerances unless mentioned±0.1mm.Unit:mm注：未注公差为±0.1毫米，尺寸单位：毫米。

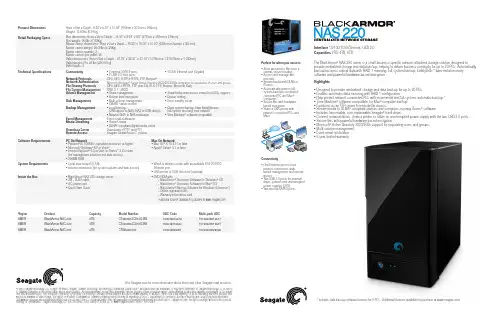

黑脉黑Armor NAS 220 小型企业级网络附属存储设备说明书

The BlackArmor® NAS 220 server is a small-business-specific network attached storage solution designed toprovide centralized storage and data backup, helping to deliver business continuity for up to 20 PCs. Automaticallybackup business-critical data with RAID 1 mirroring, full-system backup, SafetyDrill+™ bare metal recoverysoftware and powerful hardware-based encryption.Highlights• Designed to provide centralized storage and data backup for up to 20 PCs.• Enables automatic data mirroring with RAID 1 configuration.• Help protect network connected PCs with incremental and full-system, automatic backup.*• Time Machine® software compatible, for Mac® computer backup• Functions as an FTP server for remote file access.• Stream media to DLNA® compliant devices and computers running iTunes® software.• Includes two reliable, user-replaceable Seagate® hard drives.• Connect external drives, share a printer or utilize an uninterrupted power supply with the two USB 2.0 ports.• Secure files with powerful hardware-based encryption.• Microsoft® Active Directory 2003/2008 support for populating users and groups.• Multi-volume management.• Event email notification.• 3-year limited warranty.© 2010 Seagate Technology LLC. All rights reserved. Seagate, Seagate Technology, the Wave logo, Barracuda, Global Access and BlackArmor are trademarks or registered trademarks of Seagate Technology LLC or one ofits affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners. When referring to hard drive capacity, one terabyte, or TB, equalsone thousand billion bytes. Your computer’s operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions andwill not be available for data storage. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for more information,visit ) and controlled for import and use outside of the U.S. Actual data rates may vary depending on operating environment and other factors. Seagate reserves the right to change, without notice, productofferings or specifications. Seagate Technology LLC, 920 Disc Drive, Scotts Valley CA 95066 U.S.A. DS1691.3-1010 AMERVisit for more information about these and other Seagate retail products.Perfect for when you need to:• S tore and access files from acentral, secure location.• A ccess and manage filesremotely.• S tream media with DLNA oriTunes®.• A utomatically perform full-system backups on networkconnected PC and Mac®computers.*• S ecure files with hardware-based encryption.• S hare a USB printer withnetwork connected PCs andMacs.Interface 10/100/1000 Ethernet, USB 2.0Capacities2TB, 4TB, 6TBSoftware Requirements PC On Network• Pentium® III, 500MHz equivalent processor or higher• Microsoft Windows® XP or Vista®• I nternet Explorer® 6.0 or later, or Firefox™ 2.X or later(for management interface and web access)• 256MB RAMMac On Network• Mac OS® X 10.4.11 or later• Apple® Safari® 3.1 or laterSystem Requirements• Local area network (LAN)• Internet connection (for system updates and web access)• W ired or wireless router with an available 10/100/1000Ethernet port• USB printer or USB disk drive (optional)Inside the Box • BlackArmor NAS 220 storage server• 2M – RJ45 cable• AC power cord• Quick Start Guide• DVD-ROM with– BlackArmor® Discovery Software for Windows® OS– BlackArmor® Discovery Software for Mac® OS– BlackArmor® Backup Software for Windows (5 licenses*)– Online registration link– Warranty information card*Additional licenses available for purchase at Connectivity• O ne Ethernet port for localnetwork connection, web-based management and remoteaccess.• T wo USB 2.0 ports for externaldrives, printers and uninterruptedpower supplies (UPS).• Two internal SATA II ports.* Includes data backup software licenses for 5 PCs. Additional licenses available for purchase at .Product Dimensions Horiz x Vert x Depth - 6.30”x 8.15” x 10.59” (160mm x 207mm x 269mm)Weight: 13.60lbs (6.16kg)Retail Packaging Specs Box dimensions: Horiz x Vert x Depth – 14.37” x 9.29” x 9.5” (277mm x 156mm x 279mm)Box weight: 16.6lbs (7.62Kg)Master carton dimensions: Horiz x Vert x Depth – 19.33” x 15.00” x 10.20” (322mm x 288mm x 301mm)Master carton weight: 36.05lbs (8.39Kg)Master carton quantity: 2Master cartons per pallet: 36Pallet dimensions: Horiz x Vert x Depth – 47.25” x 39.37” x 47.10” (1,016mm x 1,219.20mm x 1,030mm)Pallet weight: 718.85 lbs (326.06 kg)Pallet layers: 3Technical Specifications ConnectivityNetwork ProtocolsNetwork AuthenticationFile Sharing ProtocolsFile System ManagementVolume ManagementDisk ManagementBackup ManagementEvent ManagementMedia StreamingDownload ServerRemote Access• 2 internal SATA II ports• 2 USB 2.0 host portsCIFS, NFS, HTTP, HTTPS, FTP, Bonjour®RAID 0, 1, JBOD• Share management• Volume level encryption• Multi-volume management• SMART status monitor• L ocal backup(USB device to NAS, NAS to USB device)• Network NAS to NAS replicationEvent email notification• iTunes® server• DLNA® compliant digital media serverDownloader (HTTP and FTP)Seagate Global Access™ service• 1 RJ45 Ethernet port (Gigabit)• Share/folder-level access control list (ACL) support• Quotas setting• Drive standby mode• C lient system backup, Bare MetalRestore(full-system recovery) over network• Time Machine® software compatibleMicrosoft Windows® Server Active Directory 2000/2003/2008 integration for population of users and groups.CIFS, NFS, HTTPS, FTP over SSL/TLS, FTP, Bonjour, Microsoft RallyExpansionThe two rear-mounted USB 2.0 ports allow you to connectexternal USB hard drives for additional storage, easily share a USB printer with your network connected computers or connect an uninterrupted power supply (UPS) to safeguard from power failure.Business-grade ProtectionSoftware plays an important role in achieving business continuity and with the BlackArmor storage server, you can expect nothing less than business-grade protection. To help protect your critical data, our software package provides automatic, incremental and full-system backup. In the event of PC hardware failure, you can utilize the SafetyDrill+™ bare metal restore software feature to recover your entire system, including the operating system, programs and settings. The included software also allows you to secure your files with powerful hardware-based encryption. Furthermore, the two internal drives can be configured to RAID 1, which automatically mirrors your data.You’re in ControlIn addition to the included software, the web-based management interface and BlackArmor ® Discovery Tool are also straightforward to use. The BlackArmor Discovery Tool allows you to get up and running quickly by displaying all of the BlackArmor NAS products connected to your network. From the Discovery Tool, with a single click, you can view or map shared volumes to your computer, access the web-based management interface or back up the PC you are working from. The BlackArmor NAS 220 storage server can also be managed remotely with DDNS, which can be configured from the web-based management interface or back up the PC you are working from. Mac ® computers can be backed up by using Time Machine ® software, which offers full-system, incremental backup over the network.The BlackArmor ® NAS 220 storage server can also function as an FTP server, allowing remote access to files. Using the web-basedmanagement interface, you can designate user access manually or integrate with Microsoft ® Active Directory to populate users and groups..Moreover, the BlackArmor NAS 220 storage server can stream media files to DLNA ® compliant devices or computers running iTunes ® software, allowing you to centralize media in your office and display content simultaneously on multiple devices.Designed to provide centralized storage and data backup.Performance that Keeps Pace with Your Business The BlackArmor ® NAS 220 storage server makes no compromises when it comes to hardware, with Seagate ® Barracuda ® drives, 800 MHZ processor, 128 MB RAM and Gigabit Ethernet port, you will experience incredible performance – including read speeds of up to 70 MB/s in RAID 1 configuration*.The BlackArmor NAS 220 storage server includes two energy efficient, reliable Seagate hard drives, which are user-replaceable, allowing you to upgrade to larger capacity drives as your business grows.* Read performance obtained with CrystalDiskMark 3.0 on a Windows ® 7 x64 system.。

碳膜电阻规格书(47R 1W)

SHEN ZHEN PAK HENG ELECTRONICS CO.,LTD目录1、承认页 (1)2、品名标识、特点、结构图 (2)3、电力特性、性能 (3)4、电阻器特性…………………………………………………………………………… 4~55、电阻器尺寸图 (6)6、包装方式 (7)7、色码 (8)1碳膜固定电阻器 CR (1W)CARBON FILM FIXED RESISTOR STANDARD TYPE CR (1W)品名（PART NUMBER ）依据其种类，分别注明额定功率、容许差率、公称电阻值和形状。

ACCORDING TO THE TYPES OF RESISTORS, THE POWER RATED, RESISTANCE TOLERANCE, RESISTANCE VALUE, SHAPES. 例(e.g)：CR 1W J(±5%) 47R T种类TYPE 额定功率RATED POWER 容许差TOLERANCE 公称值RESISTANCE 形状FORMING● 特点 ◎ 高品质。

◎ 符合JIS 6402 之各项准则。

◎ ±5%之标准误差。

◎ 散装,带状及各种成型剪脚供应。

◎ 可制作极高阻抗。

A) EPOXY RESIN(INSULATIVE LACQUER, SOLVENT-PROOF). PAINT COLOR STANDARD TYPE IS GROUND YELLOW.B) COLOR CODE (PER MIL & EIA STANDARDS PERMANENT).C) CARBON FILM (HIGH STABILITY). D) CERAMIC CORE(HIGH CONDUCTIVITY). E) END CAP(HIGH RELIABILITY FITTING BY ORIGINAL CAP-PRESSING METHOD). F) TIN COPPER WIRE （CONTAINED 99%COPPER ）.性能 CHARACTERISTICS项目 CHARACTERISTICS规格值 SPECIFICATIONS 测试方法 TEST METHODSJIS 5202温度系数 TEMPERATURE COEFFICIENT -1000PPM/℃≤α≤+350PPM/℃5.2短时间过负荷 SHORT TIME OVERLOAD △R≤±(1%R 0+0.05Ω) 5.5 条件A 断续过负荷 PULSE OVERLOAD△R≤±(2%R 0+0.05Ω) 5.8 焊接耐热性 RESISTANCE TO SOLDERING HEAT △R≤±(1%R 0+0.05Ω) 6.4温度循环 TEMPERATURE CYCLING △R≤±(1%R 0+0.05Ω) 7.4 -55℃/85℃ 耐湿负荷寿命LOAD LIFE IN HUMIDITY △R≤±(5%R 0+0.1Ω) 7.9 耐温负荷寿命 LOAD LIFE△R≤±(5%R 0+0.1Ω)7.10负载轻减曲线 POWER DERATING CURVE0 20 4060 80 100 120 -60 -40 -20 020406080100120140160180200220240周围温度(℃) AMBIENT TEMPERATURE(℃)额定电力比 %% O F R A T E D P O W E R -55℃70℃125℃RESISTORS CHARACTERISTIC 电阻器特性RESISTORS CHARACTERISTIC 电阻器特性RESISTOR DIMENSIONS电阻器尺寸图T TAPE型尺寸(T TAPE DIMENSIONS)1 位于胶带内导线长度. 1 LEAD DIMENSIONS INCLUDED IN TAPE.2 突出于胶带外缘导线. 2 LEAD DIMENSIONS OUT OF TYPE.3 涂漆于导线长度. 3 LEAD PAINT DIMENSION4 A 带与B 带位置之差异. 4 DIFFERENCE OF A & B5 电阻中心点位置误差. 5 DIFFERENCE FROM RESISTOR CENTER.6 两端导线L1-L2,最高不可超过1.0MM. 6 |L1-L2|＜1.07 每50个电阻间距排列于胶带上之长度为 7 CUMULATIVE ERROR IS 250±2MM BY250MM±2MM 50 PITCH.8每100个电阻于胶带打孔做记号. 8 PIN-HOLES EVERY 100PCS.品名PART NO. 标准包装PACKING带状尺寸(LEAD TAPING DIMENSION MM)L±0.5 D±0.5 d±0.05p±0.3 W1±1 W2±11W 1000 11 4.5 0.78 5.0 71 83Max1.0PACKING 包装方式COLOR CODE色码STANDARD DECADE VALUES 标准阻抗值E24E48E96E192 E24 E48 E96E1925%2%1%0.5%, 0.1% 5% 2% 1%0.5%, 0.1%100100100 300 316 324320101 324102102 330 328100104 332 332332105105105 336106 340340107107 344109 348 348348110110110110 360 352111 357357113113 361114 365 365365115115115 370117 374374118118 379120120 383 383383121121121 390 388123 392392124124 397126 402 402402127127127 407129 412412130130130 417132 430 422 422422133133133 427135 432432137137 437138 442 442442140140140 448142 453453143143 459145 464 464464147147147 470 470149 475475150150150 481152 487 487487154154154 493156 499499158158 505160160 510 511 511511162162162 517164 523523165165 530167 536 536536169169169 542172 549549174174 556176 560 562 562562178178178 569180180 576576182182 583184 590 590590187187187 597189 604604191191 612193 620 619 619619196196196 626198 634634200200200 642203 649 649649205205205 657208 665665210210 673213 680 681 681681215215215 690220218 698698221221 706223 715 715715226226226 723229 732732232232 741234 750 750 750750237237237 759240240 768768243243 777246 787 787787249249249 796252 806806255255 820 816258 825 825825261261261 835264 845845270267267 856271 866 866866274274274 876277 887887280280 898284 910 909 909909287287287 920291 931931294294 942300298 953 953953301301301 965305 976976309309 988312 316316316。

瑞丰RF-AURK14TS -ED(WE)产品规格书说明书

Date :日期:1-8th Floor, Building #1,10th Industrial Zone, Tian Liao Community, Gong Ming Area, Guang Ming栋一至八楼Web/网址:Features特征 PLCC-2 Package. 垂直型表贴封装 Extremely wide viewing angle. 发光角度大Suitable for all SMT assembly and solder process. 适用于所有的SMT 组装和焊接工艺 Available on tape and reel. 适用于载带及卷轴 Moisture sensitivity level: 3. 防潮等级:3 Package:3000pcs/reel. 包装:3000颗/卷 RoHS compliant. RoHS 认证 Description 描述 The Orange source color devices are made with AlGaInP on Substrate Light Emitting Diode橙光LED 由AlGaInP 四种元素芯片激发而成 Applications 应用 Optical indicator. 光学指示 Indoor display. 室内显示Landscape lighting,lamp belt. 景观照明,灯带等General suitable applications.其他适合的应用 RF-201709070127Package Dimension 封装尺寸外形尺寸:2.0*1.4*1.3mmNOTES:备注1.All dimensions units are mm. (所有尺寸标注单位为毫米)2.All dimensions tolerances are 0.2mm unless otherwise noted. (除特别标注外,所有尺寸允许公差为±0.2毫米)Electrical / Optical Characteristics at Ts=25°C 电性与光学特性 Absolute Maximum Ratings at Ts=25°C 绝对最大值 Item 项目Symbol 符号test condition 测试条件Value unit 单位 Min. Max. Typ.Forward VoltageRank B1 VfIF=20mA1.8 1.92.1V RankB2 1.9 2.0 V Rank C12.0 2.1 V Rank C2 2.1 2.2 V Rank D1 2.2 2.3 V Rank D2 2.32.4 V Dominant wavelengthRank E00wld IF=20mA600 605 602.5 nm Rank F00 605 610 nm Luminous intensityRank H20 IVIF=20mA180 230 265 mcd Rank I10230 280 mcd Rank I20 280 350 mcd Rank J10350 430 mcd Reverse Current IR VR=5V --- 10 --- uAViewing Angle 2Θ1/2 IF=20mA --- --- 120 Deg Thermal resistanceRth(j-s)IF=20mA------290 ℃/WParameter (参数) Symbol (符号)Rating (值)Units (单位)Power Dissipation (功耗) Pd 48 mW Forward Current (正向电流) IF 20 mA Peak Forward Current (峰值电流) IFP 100 mA Reverse Voltage (反向电压) VR 5 V Electrostatic Discharge(HBM)(静电) ESD 2000 V Operating Temperature (操作温度) Topr -40 ~ +85 ℃ Storage Temperature (储存温度) Tstg -40 ~ +100℃ junction temperature (结温) Tj90℃Note: 1. 1/10 Duty cycle, 0.1ms pulse width. 脉宽0.1ms,周期1/10.2. The above forward voltage measurement allowance tolerance is 0.1V. 以上所示电压测量误差0.1V.3. The above wavelength measurement allowance tolerance is ±1nm. 以上所示波长测量误差±1nm.4. the above luminous flux measurement allowance tolerance ±10%. 上述光通量的测试允许公差为±10%.5. Care is to be taken that power dissipation does not exceed the absolute maximum rating of the product. 使用功率不能超过规定的最大值.6. All measurements were made under the standardized environment of us. 所有测试都是基于我们现有的标准测试平台.7.When the LEDs are in operation the maximum current should be decided after measuring the package temperature,junction temperature should not exceed the maximum rate.LED使用的最大电流需要根据散热条件确定,结温不能超过最大值Handling Precautions 使用注意事项1>.LED operating environment and sulfur element composition cannot be over 100PPM in the LED mating usage material. This is provided for informational purposes only and is not a warranty or endorsement.LED工作环境及与LED适配的材料中，硫元素及化合物成份不可超过100PPM，单一的溴元素含量要求小于900PPM，单一氯元素含量要求小于900PPM，溴元素与氯元素总含量必须小于1500PPM（检测含量为与LED直接接触面上元素含量）。

欧特本187411商品说明书

Eaton 187411Eaton Moeller series xEffect - FRCmM Type F RCCB. Residual current circuit breaker (RCCB), 80A, 4p, 30mA, type G/FGeneral specificationsEaton Moeller series xEffect - FRCmM Type F RCCB187411FRCMM-80/4/003-G/F401508182469480 mm 76 mm 70 mm 0.386 kg RoHS conformIEC/EN 62423 EN45545-2 IEC 61373 IEC/EN 61008Product NameCatalog Number Model CodeEANProduct Length/Depth Product Height Product Width Product Weight Compliances CertificationsFour-pole10 ms delayed80 A10 kA with back-up fuse 30 mAPulse-current sensitive3 kA (8/20 μs) surge-proof 240 V AC / 415 V AC240 V440 V4 kV0.03 A0.03 A50 Hz / 60 Hz80 A (max. admissible back-up fuse)Other800 A80 A gG/gL10 kA3 kA184 V AC - 440 V AC2Frequency mix (10 Hz, 50 Hz, 1000 Hz) enhanced sensitivity 4000 operationsApplicationNumber of polesTripping timeAmperage RatingRated short-circuit strength Fault current rating Sensitivity typeImpulse withstand current Type Voltage rating (IEC/EN 60947-2)Rated operational voltage (Ue) - maxRated insulation voltage (Ui)Rated impulse withstand voltage (Uimp) Rated fault current - minRated fault current - maxFrequency ratingShort-circuit ratingLeakage current typeRated residual making and breaking capacity Admissible back-up fuse overload - max Rated short-time withstand current (Icw) Surge current capacityTest circuit rangePollution degreeRadiation resistanceLifespan, electricalSwitchgear for industrial and advanced commercial applicationsxEffect - Switchgear for industrial and advanced commercial applicationsCurrent test marks as per inscriptionMaximum operating temperature is 75 °C: Starting at 40 °C, the max. permissible continuous current decreases by 1.2% for every 1 °C45 mm470 mm (4 SU)70.5 mmDIN railQuick attachment with 2 latch positions for DIN-rail IEC/EN 60715As requiredIP20, IP40 with suitable enclosureIP20White / blueTwin-purpose terminals1.5 mm² - 35 mm²1.5 mm²35 mm²16 mm² (2x)1.5 mm²16 mm²M5 (with cross-recessed screw as defined in EN ISO 4757-Z2, PZ2)80 A4.7 W18.8 W0 W0 W-25 °C40 °CMeets the product standard's requirements.Meets the product standard's requirements.Meets the product standard's requirements.Meets the product standard's requirements.Meets the product standard's requirements.Does not apply, since the entire switchgear needs to be evaluated.Does not apply, since the entire switchgear needs to be evaluated.FrameWidth in number of modular spacingsBuilt-in width (number of units)Built-in depthMounting MethodMounting positionDegree of protectionStatus indicationTerminals (top and bottom)Terminal capacity (solid wire)Connectable conductor cross section (solid-core) - min Connectable conductor cross section (solid-core) - max Terminal capacity (stranded cable)Connectable conductor cross section (multi-wired) - min Connectable conductor cross section (multi-wired) - max Terminal capacity (cable)Rated operational current for specified heat dissipation (In) Heat dissipation per pole, current-dependentEquipment heat dissipation, current-dependentStatic heat dissipation, non-current-dependentHeat dissipation capacityAmbient operating temperature - minAmbient operating temperature - max10.2.2 Corrosion resistance10.2.3.1 Verification of thermal stability of enclosures10.2.3.2 Verification of resistance of insulating materials to normal heat10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects10.2.4 Resistance to ultra-violet (UV) radiation10.2.5 Lifting10.2.6 Mechanical impact10.2.7 InscriptionsFinger and hand touch safe, DGUV VS3, EN 502742 Nm - 2.4 NmRed / green0.8 mm - 2 mm20000 operations-35 °C60 °C25-55 °C / 90-95% relative humidity according to IEC 60068-2Meets the product standard's requirements.Does not apply, since the entire switchgear needs to be evaluated.Meets the product standard's requirements.Does not apply, since the entire switchgear needs to be evaluated.Does not apply, since the entire switchgear needs to be evaluated.Is the panel builder's responsibility.Is the panel builder's responsibility.Is the panel builder's responsibility.Is the panel builder's responsibility.Is the panel builder's responsibility.The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.Is the panel builder's responsibility. The specifications for the switchgear must be observed.Is the panel builder's responsibility. The specifications for the switchgear must be observed.The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.Terminal protectionTightening torqueContact position indicator colorBusbar material thicknessLifespan, mechanicalPermitted storage and transport temperature - min Permitted storage and transport temperature - max Climatic proofing 10.3 Degree of protection of assemblies10.4 Clearances and creepage distances10.5 Protection against electric shock10.6 Incorporation of switching devices and components 10.7 Internal electrical circuits and connections10.8 Connections for external conductors10.9.2 Power-frequency electric strength10.9.3 Impulse withstand voltage10.9.4 Testing of enclosures made of insulating material 10.10 Temperature rise10.11 Short-circuit rating10.12 Electromagnetic compatibility10.13 Mechanical functionFeatures Application notesEaton Corporation plc Eaton House30 Pembroke Road Dublin 4, Ireland © 2023 Eaton. All rights reserved. Eaton is a registered trademark.All other trademarks areproperty of their respectiveowners./socialmediaAdditional equipment possible Residual current circuit breakerInterlocking deviceShort-time delayed trippingType G/F (�VE E 8601) Residual current circuit breakers FRCmM eaton-rcd-application-guide-br019003en-en-us.pdfeaton-pdd-railrolling-stock-brochure-br011002en-en-us.pdf eaton-xeffect-frcmm-rccb-catalog-ca003018en-en-us.pdf DA-DC-03_FRCmMas_frcmmeaton-circuit-breaker-xeffect-frcmm-na-rccb-dimensions.epseaton-187407-drawing.dwgeaton-187407-3d-model.stpeaton-xeffect-frcmm-rccb-wiring-diagram-002.jpgFitted with: Functions Special featuresUsed with Brochures Catalogues Certification reports DrawingsmCAD model Wiring diagramsFRCmMResidual current circuit breakersType G/F (ÖVE E 8601)。

daramichp隔膜参数

daramichp隔膜参数下载提示：该文档是本店铺精心编制而成的，希望大家下载后，能够帮助大家解决实际问题。

文档下载后可定制修改，请根据实际需要进行调整和使用，谢谢!本店铺为大家提供各种类型的实用资料，如教育随笔、日记赏析、句子摘抄、古诗大全、经典美文、话题作文、工作总结、词语解析、文案摘录、其他资料等等，想了解不同资料格式和写法，敬请关注!Download tips: This document is carefully compiled by this editor. I hope that after you download it, it can help you solve practical problems. The document can be customized and modified after downloading, please adjust and use it according to actual needs, thank you! In addition, this shop provides you with various types of practical materials, such as educational essays, diary appreciation, sentence excerpts, ancient poems, classic articles, topic composition, work summary, word parsing, copy excerpts, other materials and so on, want to know different data formats and writing methods, please pay attention!Daramichp隔膜参数：优化您的隔膜选择引言在工业和制造业领域，隔膜在许多应用中扮演着关键角色。

黑金CM-BF537E硬件用户手册说明书

Maximum Power at Minimum SizeHardware User ManualCM-BF537E V1.1 (V1.2)Maximum Power at Minimum SizeContactBluetechnix Mechatronische Systeme GmbHWaidhausenstr. 3/19A-1140 ViennaAUSTRIA/EUROPE*********************Document No.: 100-1221-1.1Version 8Date: 2007-09-11Maximum Power at Minimum SizeTable of Contents1Introduction (1)1.1Overview (1)1.2Benefits (2)1.3Applications (2)2Specification (3)2.1Functional Specification (3)2.2Boot Mode (3)2.3Memory MAP (4)2.4Electrical Specification (4)2.4.1Supply Voltage (4)2.4.2Supply Voltage Ripple (4)2.4.3External Oscillator Frequency (4)2.4.4Real Time Clock Crystal (4)2.4.5Supply Current (4)2.5Environmental Specification (4)2.5.1Temperature (4)2.5.2Humidity (5)3CM-BF537E (Connector Version) (6)3.1Mechanical Outline (6)3.2Footprint - Connector Version (7)3.3Top Mounted Components (8)3.4Schematic Symbol (Signals of P1 and P2) (9)3.5Connectors Pin Assignment (10)3.5.1Connector P1 – (1-60) (10)3.5.2Connector P2 – (61-120) (11)3.5.3Pin out Description (12)3.6RJ45 schematic (12)4Test Points (14)4.1Footprint – Test Points (14)5Software Support (15)5.1BLACKSheep (15)5.2uClinux (15)6Application Examples (16)Maximum Power at Minimum Size 6.1Sample Schematic (16)6.2Stand-alone Ethernet based MPEG Webcam (17)6.3Design Services (18)7Known Bugs (19)8Product Changes (20)9Document Revision History (21)A List of Figures and Tables (22)Edition 2007-02© Bluetechnix Mechatronische Systeme GmbH 2007All Rights Reserved.The information herein is given to describe certain components and shall not be considered as a guarantee of characteristics.Terms of delivery and rights of technical change reserved.We hereby disclaim any warranties, including but not limited to warranties of non-infringement, regarding circuits, descriptions and charts stated herein.Bluetechnix makes and you receive no warranties or conditions, express, implied, statutory or in any communication with you. Bluetechnix specifically disclaims any implied warranty of merchantability or fitness for a particular purpose.Bluetechnix takes no liability for any damages and errors causing of the usage of this board. The user of this board is responsible by himself for the functionality of his application. He is allowed to use the board only if he has the qualification. More information is found in the General Terms and Conditions (AGB).InformationFor further information on technology, delivery terms and conditions and prices please contact Bluetechnix ().WarningsDue to technical requirements components may contain dangerous substances.BLACKFIN ProductsCore Modules:CM-BF533: Blackfin Processor Module powered by Analog Devices single coreADSP-BF533 processor; up to 600MHz, 32MB RAM, 2MB Flash,120 pin expansion connector and a size of 36.5x31.5mmCM-BF537E: Blackfin Processor Module powered by Analog Devices single coreADSP-BF537 processor; up to 600MHz, 32MB RAM, 4MB Flash,integrated TP10/100 Ethernet physical transceiver, 120 pin expansionconnector and a size of 36.5x31.5mmCM-BF537U: Blackfin Processor Module powered by Analog Devices single coreADSP-BF537 processor; up to 600MHz, 32MB RAM, 4MB Flash,integrated USB 2.0 Device, 120 pin expansion connector and a size of36.5x31.5mmTCM-BF537: Blackfin Processor Module powered by Analog Devices single coreADSP-BF537 processor; up to 500MHz, 32MB RAM, 8MB Flash,28x28mm, 120 pin expansion connector, Ball Grid Array or BorderPads for reflow soldering, industrial temperature range -40°C to+85°C.CM-BF561: Blackfin Processor Module powered by Analog Devices dual coreADSP-BF561 processor; up to 2x 600MHz, 64MB RAM, 8MBFlash, 120 pin expansion connector and a size of 36.5x31.5mmCM-BF527: From Q1 '08 a new Blackfin Processor Module powered by AnalogDevices single core ADSP-BF527 processor will be available; keyfeatures are USB OTG 2.0 and Ethernet. 2x120pin expansionconnectors are backwards compatible to other Core Modules.CM-BF548: From Q1 '08 a new Blackfin Processor Module powered by AnalogDevices single core ADSP-BF548 processor will be available; keyfeatures are 64MB DDR SD-RAM 2x100pin expansion connectors.Development Boards:EVAL-BF5xx: Low cost Blackfin processor Evaluation Board with one socket forany Bluetechnix Blackfin Core Module. Additional periphery isavailable, such as a SD-Card.DEV-BF5xxDA-Lite: Get ready to program and debug Bluetechnix Core Modules with thistiny development platform including a USB Based Debug Agent. TheDEV-BF5xxDA-Lite is a low cost starter development systemincluding VDSP++ Evaluation Software License.DEV-BF5xx-FPGA: Backfin Development Board with two sockets for any combination ofBlackfin Core Modules. Additional periphery is available, such asSD-Card, Ethernet, USB host, multi-port JTAG including a USBbased Debug Agent, connector for a LCD-TFT Display and connectorfor a digital camera system. A large on-board SPARTAN-3 FPGAand Soft IPs make this board the most flexible Blackfin developmentplatforms ever developed.Available Q3 '07EXT-Boards: The following Extender Boards are available: EXT-BF5xx-Audio,EXT-BF5xx-Video, EXT-BF5xx-Camera, EXT-BF5xx-Exp, *EXT-BF5xx-LVDS, *EXT-BF5xx-ETH-USB, *EXT-BF5xx-AD/DA.Additional boards based on customer request*Available Q3 '07Software Support:BLACKSheep: The BLACKSheep VDK is a multithreaded framework for theAnalog Devices Blackfin processor family that includes driversupport for a variety of hardware extensions. It is based on the real-time VDK kernel included within the VDSP++ developmentenvironment.LabVIEW: LabVIEW embedded support for the CM-BF537E, CM-BF537U andTCM-BF537 Core Modules based on the BLACKSheep VDK driverFramework.uClinux: All the Core Modules are supported by uClinux. The required bootloader and uClinux can be downloaded at .BLACKFIN Design ServiceBased on over three years Blackfin experience Bluetechnix offers development assistance as well as custom design services and software development.1 IntroductionThe CM-BF537E is a tiny, high performance and low power DSP/RISC Core Module incorporating Analog Devices Blackfin family of processors. The special feature of this module is the on-board 10/100Mbit Ethernet interface which includes the physical transceiver chip. The module allows easy integration into high demanding very space and power limited applications.1.1 OverviewThe Core Module CM-BF537E consists of the following components:Figure 1-1: Main components of the CM-BF537E Core Module▪Analog Devices Blackfin Processor BF537o Supported Chips :▪ADSP-BF537SBBC1500 (-40°-85°C) Option upon request▪ADSP-BF537SKBC1600 (0°-70°C) Standard Mount▪32 MB SDRAMo SDRAM Clock up to 133MHzo MT48LC16M16A2BG-7 (16Mx16, 256Mbit at 3.3 V)▪ 4 MB of Addressable Flasho ITLRC28F320J3C110 (2Mx16 32Mbit at 3.3 V; all 4 MByte addressable)o Additional flash memory can be connected through the expansion board as parallel flash using asynchronous chip select lines or as a SPI flash.Maximum Power at Minimum Size ▪Low Voltage Reset Circuito Resets module if power supply goes below 2.93 V for at least 140 ms▪Dynamic Core Voltage Controlo Allows to adjust core voltage by setting software registers at the Blackfin processoro Core voltage range: 0.8 – 1.32V▪Expansion Connector Ao Data Buso Address Buso Control Signalso Power Supplyo Ethernet Pins▪Expansion Connector Bo SPORT0o JTAGo UART0/UART1o CANo TWI (I2C compatible)o SPIo PPI (Parallel Port Interface)o GPIO’s1.2 Benefits▪The CM-BF537E is very compact and measures only 36.5x31.5mm▪Allows quick prototyping of product that comes very close to the final design▪Reduces development costs, faster time to market▪Very cost effective for small and medium volumes1.3 Applications▪Generic high performance signal processor module▪Internet Connected Embedded System▪High performance web camera▪Robotics: Tiny processor module for mobile robotsMaximum Power at Minimum Size 2 Specification2.1 Functional SpecificationFigure 2-1: Detailed Block DiagramFigure 2-1 shows a detailed block diagram of the CM-BF537E module. Beside the SDRAM control pins the CM-BF537E has all other pins of the Blackfin processor at its two main 60 pin connectors.A special feature of the CM-BF537E Core Module is the on-board physical Ethernet transceiver from Micrel (KSZ8721BL).Dynamic voltage control allows reducing power consumption to a minimum adjusting the core voltage and the clock frequency dynamically in accordance to the required processing power. A low voltage reset circuit guarantees a power on reset and resets the system when the input voltage drops below 2.93V.2.2 Boot ModeBy default the boot mode = 000 (BMODE2 = low, BMODE1 = low, BMODE0 = low). All BMODE pins have internal pull down resistors.Connect BMODE0 to Vcc and leave BMODE1, BMODE2 pins open for boot mode 001 equals to 8 or 16 bit PROM/FLASH boot mode, this is the default boot mode of the Blacksheep software. See Blackfin Datasheets or Eval/DevBoard manuals for more details.Maximum Power at Minimum Size 2.3 Memory MAPTable 2-1: Memory Map2.4 Electrical Specification2.4.1 Supply Voltage▪ 3.3V DC +/-10%2.4.2 Supply Voltage Ripple▪100mV peak to peak 0-20 MHz2.4.3 External Oscillator Frequency▪25 MHz2.4.4 Real Time Clock Crystal▪32.768kHz2.4.5 Supply Current▪Maximumcurrent:**********▪Typical operating conditions:o Processor running at 600MHz, Core Voltage 1.2V, SDRAM 20% bandwidth utilizationat130MHz;Ethernetidle:**********o Processor running at 300MHz, Core Voltage 0.8V SDRAM 20% bandwidth utilizationat130MHz;Ethernetidle:**********o Processor running at 600MHz, Core Voltage 1.2V, SDRAM 20% bandwidth utilization at 130MHz, Ethernet TX/RX active: 250mA2.5 Environmental Specification2.5.1 Temperature▪Operating at full 600MHz: 0 to + 70° CMaximum Power at Minimum Size 2.5.2 HumidityOperating: 10% to 90% (non condensing)3 CM-BF537E (Connector Version)3.1 Mechanical OutlineTOP VIEWAll dimensions are given in millimeters!P336.59.2529.056.8526.7528.0531.522.450.60.35Ø0.652.551.77.759.053.45P1P2Figure 3-1: Mechanical outline and Bottom Connectors (top view)The mechanical outline represents a top view of the connectors placed at the bottom of the core board.The module is shiped with two 60pin connectors.1Figure 3-2: Side View with Connector mountedThe total minimum mounting height including receptacle at the motherboard is 6.1mm.3.2 Footprint - Connector VersionIf the connector version (2x Hirose 0.6mm pitch) is used, the footprint for the baseboard may look as shown in Figure 3-3.For the baseboard the following connectors have to be used.Table 3-1: Baseboard connector typesThe Connectors on the CM-BF537E are of the following type:Table 3-2: Module connector types36.526.7531.57.756.85Figure 3-3: Connector footprint for the Core Module (top view)3.3 Top Mounted ComponentsFigure 3-4: Core Module (component side)NOTE: R16 is standard mount, hence PF4 is used as upper 2MB chip select for the flash, PF4 is not on the connector. If R15 is mounted instead, then PF4 is GPIO on PIN 7.3.4 Schematic Symbol (Signals of P1 and P2)SPORT0PPIUARTsSPIJTAGDataBusAddr.BusControlSignalsEthernet CANTWISPORT1PowerFigure 3-5: Schematic Symbol of ModuleNote: For compatibility, 3 pins appear twice at the connector: CLK_out, PF5 and PPISy13.5 Connectors Pin Assignment3.5.1 Connector P1 – (1-60)Table 3-3: Connector P1 pin assignment* Pin 7 (PF4) is by default internally connected to the address A21 of the flash memory (for addressing the upper 2MB of the 4MB Flash). If PF4 is needed and 2 MB flash are sufficient move resistor R16 to the position of R15 as shown in Figure 3-4.Hint: Pin 8 and 53 as well as pin 20 and 21 are identical.Maximum Power at Minimum Size 3.5.2 Connector P2 – (61-120)Table 3-4: Connector P2 pin assignmentMaximum Power at Minimum Size 3.5.3 Pin out DescriptionAll pin names except those in Table 2-5 of the connectors are processor pins and correspond closely to the names found in the Blackfin BF537 datasheet from Analog Devices.Table 3-5: Pin description of all non Processor Pins on the CM-BF537EAll other pins are connected directly to the ADSP-BF537 processor.3.6 RJ45 schematicMaximum Power at Minimum Size Figure 3-6: Schematic for RJ45 ConnectionTable 3-6: Parts List RJ454 Test Points4.1 Footprint – Test Points9.859.251.25.057.4510.751.7524.0526.4529.7520.751233031322960596162909192119120Ø0.6531.536.5Figure 4-1: Test Points of the Core Module (top view)5 Software Support5.1 BLACKSheepThe Core Module is delivered with a pre-flashed basic version of the BLACKSheep VDK multithreaded framework. It contains a boot-loader for flashing the Core Module via the serial port.The BLACKSheep for the CM-BF537E contains also a web server. By typing http://192.168.0.10 you can see a standard web page installed on the Core Module.Please mind the software development documents.5.2 uClinuxThe Core Module is supported by the open source platform at . Since the Core Modules are pre-flashed with BLACKSheep you have to flash uBoot first. For flashing the uBoot you can use the BLACKSheep boot-loader.6 Application Examples6.1 Sample SchematicIn this minimum configuration the CM-BF537E is used as a high performance network connected processor module.Figure 6-1: Configuration with Ethernet and JTAG ConnectorMaximum Power at Minimum SizeTable 6-1: Bill of Material of Sample Schematic6.2 Stand-alone Ethernet based MPEG WebcamThe CM-BF537E module can be used as a stand-alone module for a camera system requiring only power supply and the direct attachment of a compatible video camera. A camera kit including drivers can be purchased form Bluetechnix: KIT-CAM-OV (O.Nr 100-9901)Figure 6-2: Stand-alone Ethernet based MPEG WebcamMaximum Power at Minimum SizeTable 6-2: Bill of Material of a Stand-alone Ethernet based MPEG Webcam6.3 Design ServicesBluetechnix offers custom design services and software development.7 Known BugsTable 7-1: Known Bugs8 Product ChangesTable 8-1: Product Changes9 Document Revision HistoryTable 9-1: Revision HistoryA List of Figures and TablesFiguresFigure 1-1: Main components of the CM-BF537E Core Module (1)Figure 2-1: Detailed Block Diagram (3)Figure 3-1: Mechanical outline and Bottom Connectors (top view) (6)Figure 3-2: Side View with Connector mounted (6)Figure 3-3: Connector footprint for the Core Module (top view) (7)Figure 3-4: Core Module (component side) (8)Figure 3-5: Schematic Symbol of Module (9)Figure 3-6: Schematic for RJ45 Connection (13)Figure 4-1: Test Points of the Core Module (top view) (14)Figure 6-1: Configuration with Ethernet and JTAG Connector (16)Figure 6-2: Stand-alone Ethernet based MPEG Webcam (17)TablesTable 2-1: Memory Map (4)Table 3-1: Baseboard connector types (7)Table 3-2: Module connector types (7)Table 3-3: Connector P1 pin assignment (10)Table 3-4: Connector P2 pin assignment (11)Table 3-5: Pin description of all non Processor Pins on the CM-BF537E (12)Table 3-6: Parts List RJ45 (13)Table 6-1: Bill of Material of Sample Schematic (17)Table 6-2: Bill of Material of a Stand-alone Ethernet based MPEG Webcam (18)Table 7-1: Known Bugs (19)Table 8-1: Product Changes (20)Table 9-1: Revision History (21)。

波士顿家用电器-HEI8046U黑色氟氟金属黑色版和HEI8056U黑色氟氟金属黑色版的产品说明书

Electric
Dimensions & Weight
ቤተ መጻሕፍቲ ባይዱ
Overall appliance dimensions (HxWxD)
36 1/2"–38" x 31 1/2" x 28 7/8"
Required cutout size (HxWxD)
35 1/2"–37" x 30" x 25"
Adjustable range height 1 1/2"
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
HEZ390210 8" AutoChef® pan
for 6" element
HEZ390220 9" AutoChef® pan
for 7" element
HEZ390230 10" AutoChef® pan for 8" and 9" elements
Accessories: To purchase Bosch accessories, cleaners & parts please visit /us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

SPECIFICATION FOR
ALUMINUM LAMINATED FILM FOR USE IN LITHIUM ION BATTERY (LIB) CASING PRODUCED BY SHOWA DENKO PACKAGING Co., Ltd.(Herein after referred to as SHOWA)
1 DESIGNATION AND MODEL
ALUMINUM LAMINATED FILM FOR USE IN LITHIUM ION BATTERY CASING
2 MATERIAL & COMPOSITION
1)Composition from Outside to Inside:
Matte coat:1-3g/m2
Polyamid:0.012mm(±0.0012mm)
Black printing:2-3g/m2
Adhesive:4-5g/m2
Aluminum foil:0.030mm(±0.003mm)
Adhesive:2-3g/m2
Polypropylene:0.025mm(±0.0025mm)
2)Material Standard or Specification (Chemical Composition)
Matte resin:Special grade
Polyamid(ONY):JIS Z1714
Black ink:Carbon Black
Adhesive:Special polyester-polyurethane
Aluminum foil:JIS H4160（A8079､A8021）
Adhesive:Special adhesive
Polypropylene(CPP):General type
3 STANDARD COIL DIMENSIONS AND FINISH
1)Thickness:ｘ=0.076mm±0.007mm
2)Width:80mm～480mm Tolerance±0.5 mm
3)Length:250meters –0 , +2m
(minimum odd coil: 100 meters)
4)Splices:Four or less per standard coil (One per odd coil)
5)Core: Paper core with inside diameter of 3 inches, generally used in
Converted Aluminum Foil
4 QUALITY AND INSPECTION
Shipping Inspection is performed as to the following, and such SHOWA’s inspection is final.
1)Surface quality:Matte finish
2)Pinholes:Subject to the applicable aluminum foil standard
3)Impurity:1mm or less in diameter
4)Fish eye:2mm or less in diameter(clear),1mm or less in diameter(coloured)
5 PACKAGING
Each coil is wrapped in a polyethylene bag. Coils are packed in cardboard cases for export.
・EX. 1 coil (Length:500m or Width:150mm) ・EX.2 colls （Length :250m and Width:140mm ）
6 MARKINGS
SHOWA ’s label
- Product designation - Lot size
- Shipping volume
- Production lot number Production lot number
…) 18:2018…)
- production date - Supplier - Barcode
7 INSPECTION CERTIFICATES
SHOWA provides customers with the following inspection certificate for each Lot. (1) Laminate strength:
ONY/Al more than 2N/15mm Al/CPP more than 5N/15mm (2) Heat seal strength:
More than 29.4N/15mm wide at 200℃ x 0.2MPa x2 sec on heatsealing equipment (3) Gloss
GU 2.0±1.5 (4) Appearance
Within the sample of the limit
Square Pads
Square Pads Square Pads
Square Pads
Products
Product
Polyethylene bag
Cushion film
Hanging core
Cushion sheet
(Between coils)
Cardboard case
Cardboard case
Hanging core Cushion film
Polyethylene bag
8 SPECIAL NOTES
(1) Non-conforming Lot founded at the customer incoming inspection should not be
returned to SHOWA until SHOWA agrees to.
(2)Coils shall be stored or kept at all times, even in and during transportation, in a
refrigeration room or container where temperature is controlled at 40℃or below.
(3)SHOWA guarantees the quality of this product whithin 1 year after leaving our plant.
9APPENDIX
(1)Please read SDS before using the Product.
(2)The Product shall be used for LIB casing purposes only.It is up to SHOWA DENKO
PACKAGING CO.,Ltd. to judge Product’s fitness for applications.
(3)SHOWA’s responsibility regarding the quality of Product shall be limited to meeting
specification in Article 3 and 4. In case of a need to revise any provision herein, or any
dispute arising as to items not herein stipulated, SHOWA shall settle the issue through
consultation in good faith.
(4)It is SHOWA DENKO PACKAGING Co.,Ltd.’s responsibility to judge compliance of SHOWA
DENKO PACKAGING Co.,Ltd. ’s own product, in which Product is used, with laws and
regulations of Japan and foreign countries. Application to government agencies for
relevant permission or approval shall be filed, and other procedures shall be followed
by SHOWA DENKO PACKAGING Co.,Ltd..
SIGNATURE
Date.
SHOWA DENKO PACKAGING Co., Ltd.
Date.
＊ATTENTION:
If we don't have the reply from you within 3 months after you receive the specification, We will assume that it has your approval.。
