双插板阀说明书

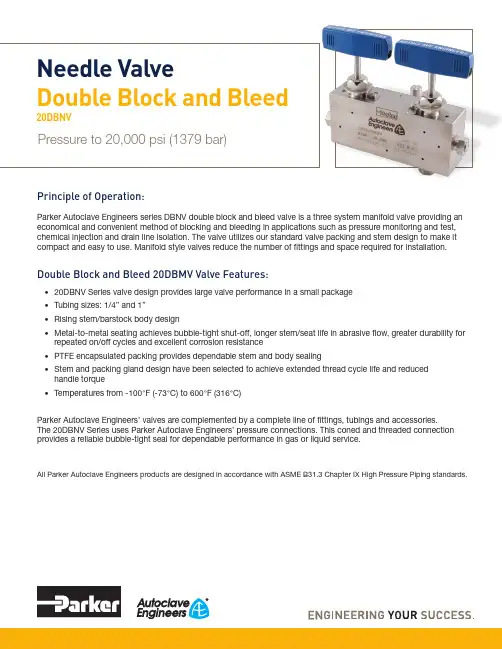

Parker Autoclave Engineers DBNV双块排气双阀门系列说明说明书
Principle of Operation:Parker Autoclave Engineers series DBNV double block and bleed valve is a three system manifold valve providing an economical and convenient method of blocking and bleeding in applications such as pressure monitoring and test, chemical injection and drain line isolation. The valve utilizes our standard valve packing and stem design to make it compact and easy to use. Manifold style valves reduce the number of fittings and space required for installation.Double Block and Bleed 20DBMV Valve Features:• 20DBNV Series valve design provides large valve performance in a small package • Tubing sizes: 1/4” and 1”• Rising stem/barstock body design• Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance• PTFE encapsulated packing provides dependable stem and body sealing• Stem and packing gland design have been selected to achieve extended thread cycle life and reduced handle torque• Temperatures from -100°F (-73°C) to 600°F (316°C)Parker Autoclave Engineers’ valves are complemented by a complete line of fittings, tubings and accessories. The 20DBNV Series uses Parker Autoclave Engineers’ pressure connections. This coned and threaded connection provides a reliable bubble-tight seal for dependable performance in gas or liquid service.All Parker Autoclave Engineers products are designed in accordance with ASME B31.3 Chapter IX High Pressure Piping standards.Needle ValveDouble Block and Bleed20DBNVPressure to 20,000 psi (1379 bar)Double Block & Bleed 20DBNV Series:Pressures to 20,000 psi (1379 bar)TubeOutside DiameterSize (inches)1/43/89/169/16NotesB Standard valve with cryogenic trim materials and PTFE packing to -100°F (-73°C)For additional valve options, contact your Sales Representative.Note: Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.2Needle Valves: Double Block and Bleed 20DBNV Series 02-9259BE 03183Needle Valves: Double Block and Bleed 20DBNV Series 02-9259BE 0318Ordering Guide:For complete information on available end connections, see end connections options below. 20DBNV valves are urnished complete with tube connections.Connection Options:MAWP: Maximum Allowable Working Pressure4Needle Valves: Double Block and Bleed 20DBNV Series 02-9259BE 0318Material of Construction:Basic Repair Kits for 316 SS Material:Consult your Parker Autoclave Engineers representative for other kit numbers, body part numbers, and pricing. Visit for product Operation manuals.Double Block and Bleed 20DBNV Series Dimensions:G - Packing Gland mounting hole drill size • G1 - Bracket mounting hole size • H* - Dimension is with stem in closed positionPanel mounting drill size: 0.22” all valves • All dimensions for reference only and subject to change • For prompt service, Parker Autoclave stocks select products. Consult factory.For complete information on available options, contact your Sales representative. 20DBNV Series valves are furnished with connection components unless otherwise specified.5Needle Valves: Double Block and Bleed 20DBNV Series 02-9259BE 03186Needle Valves: Double Block and Bleed 20DBNV Series 02-9259BE 0318Electric Valve Actuators :Remotely controlling process flow at high pressure enhances safety and low-ers labor costs. Parker Autoclave Engineers developed a flow control valve available in several models including weatherproof and explosionproof options.The Electrically Actuated Shut-off/Flow Regulating Actuator (FRC Series) is available for most of our Needle Valves through 9/16” tubing size and up to 60,000 psi maximum pressure. They are available in all body patterns except 3-Way / 2-Stem Manifold, and can withstand wide process temperature ranges.Please consult the appropriate needle valve brochure for information on valve options, ratings, flow coefficient, body dimensions, and other specifications.Pneumatic Valve Actuators :The need to control process and vent valves from a remote location makes air operated valves a vital component to many processing operations. All Parker Autoclave Engineers’ valves are available with piston type actuators. Five sizes of air actuators (light, mini-light, medium, heavy duty or extra heavy, single and double stage) are offered to meet the service require-ments of Parker Autoclave Engineers’ Low, Medium and High Pressure needle valves. Both air-to-open (normally closed) and air-to-close (normally open) designs are included in the product line. Optional air to open AND close actuators available upon request. Please see our Pneumatic ValveActuator Brochure to help size the proper actuator for your application.both control and shut-off. While it is not as precise as the control associated with the MicroMetering stem, especially with smaller flows, it does offer substantially better control than the Vee stem.increase service life.7Needle Valves: Double Block and Bleed 20DBNV Series 02-9259BE 0318High/Low Temperature Extension:Not typically needed for 10V/SW Series valves as temperature range does not exceed the barriers below, but option is shown for consideration.-HT High Temperature (over 800°F (427°C))-LTLow Temperature (under -100°F (-73°C))ES Stem Extender:Stem extenders are offered for High and Low temperature operation or to extend through panel or barricade.To order valve with Stem Extender, add “ES-” and length (6”, 12”, 18”, 24”) to beginning of valve part number e.g. ES12-20SM6071. Other lengths to special order.To order Stem Extender only, provide valve model prefix e.g. ES12-20SM6. Handle not included – use same provided with original valve.Needle Valve Clam Shell Handle Lockout:(order separately using part numbers shown below, padlock not included)Clam Shell Handle locks are provided to lockout valves in open or closed position preventing unauthorized personnel from actuating valve during shutdown or emergency situations.This clamshell design is available in four (4) sizes dependent on handle length:P/N AE004855 – 1" to 2.5" handle length P/N 90088 – 2.5" to 5.0" handle length P/N 90194 – 6.5" to 10" handle lengthP/N AE004350 – 8" to 13" handle length! CAUTION !Do not mix or interchange component parts or tubing with those of other manufacturers. Doing so is unsafe and will void warranty.Parker Autoclave Engineers Valves, Fittings, and Tools are not designed to interface with common commercial instrument tubing and are designed to only connect with tubing manufactured toParker Autoclave Engineers AES specifications. Failure to do so is unsafe and will void warranty.Offer of SaleThe items described in this document are available for sale by Parker Hannifin Corporation, its subsidiaries or its authorized distributors. Any sale contract entered by Parker will begoverned by the provisions stated in Parker's standard terms and conditions of sale (copy available upon request).©2018 Parker Hannifin Corporation | Autoclave Engineers is a registered trademark of the Parker Hannifin Corporation Literature #: 02-9259BE March 2018Parker WorldwideAE – UAE, Dubai Tel: +971 4 8875600********************AR – Argentina, Buenos Aires Tel: +54 3327 44 4129******************AT – Austria, Wiener Neustadt Tel: +43 (0)2622 23501-0*************************AT – Eastern Europe, Wiener NeustadtTel: +43 (0)2622 23501 970****************************AU – Australia, Dandenong Tel: +61 (0)3 9768 5555******************************AZ – Azerbaijan, Baku Tel: +994 50 2233 458****************************BE/LX – Belgium, Nivelles Tel: +32 (0)67 280 900*************************BR – Brazil, Sao Jose dos Campos Tel: +55 12 4009 3504******************BY – Belarus, Minsk Tel: +375 17 209 9399*************************CA – Canada, Grimsby, Ontario Tel +1 905-945-2274*********************CH – Switzerland, Etoy Tel: +41 (0) 21 821 02 30*****************************CL – Chile, Santiago Tel: +56 (0) 2 2303 9640******************CN – China, Shanghai Tel: +86 21 2899 5000*****************************CZ – Czech Republic, Klecany Tel: +420 284 083 111*******************************DE – Germany, Kaarst Tel: +49 (0)2131 4016 0*************************DK – Denmark, Ballerup Tel: +45 43 56 04 00*************************ES – Spain, Madrid Tel: +34 902 33 00 01***********************FI – Finland, VantaaTel: +358 (0)20 753 2500*************************FR – France, Contamine s/Arve Tel: +33 (0)4 50 25 80 25************************GR – Greece, Athens Tel: +30 210 933 6450************************HU – Hungary, Budapest Tel: +36 1 220 4155*************************ID – Indonesia, Tangerang Tel: +62 (0)21 7588 1906********************IE – Ireland, DublinTel: +353 (0)1 466 6370*************************IN – India, MumbaiTel: +91 22 6513 7081-85IT – Italy, Corsico (Ml)Tel: +39 02 45 19 21***********************JP – Japan, Tokyo Tel: +(81) 3 6408 3900******************KR – South Korea, Seoul Tel: +82 2 559 0400*******************KZ – Kazakhstan, Almaty Tel: +7 7272 505 800****************************LV – Latvia, Riga Tel: +371 6 745 2601************************MX – Mexico, Toluca Tel: +52 722 275 4200*******************MY – Malaysia, Selangor Tel: +603 784 90 800*******************NL – The Netherlands, Oldenzaal Tel: +31 (0)541 585 000********************NO – Norway, Stavanger Tel: +47 (0)51 826 300************************NZ – New Zealand, Mt Wellington Tel: +64 9 574 1744PL – Poland, Warsaw Tel: +48 (0)22 573 24 00************************PT – Portugal, Leca da Palmeira Tel: +351 22 999 7360**************************RO – Romania, Bucharest Tel: +40 21 252 1382*************************RU – Russia, Moscow Tel: +7 495 645-2156************************SE – Sweden, Spånga Tel: +46 (0)8 59 79 50 00************************SG – Singapore,Tel: +65 6887 6300*******************SK – Slovakia, Banská Bystrica Tel: +421 484 162 252**************************SL – Slovenia, Novo Mesto Tel: +386 7 337 6650**************************TH – Thailand, Bangkok Tel: +66 2 186 7000*********************TR – Turkey, Istanbul Tel: +90 216 4997081************************TW – Taiwan, Taipei Tel: +886 2 2298 8987*************************UA – Ukraine, Kiev Tel: +380 44 494 2731*************************UK – United Kingdom, Warwick Tel: +44 (0)1926 317878********************USA – IPD, Huntsville Tel: +1 256 881 2040*****************USA – Autoclave Engineers, Erie Tel: +1 814 860 5700*******************VN – Vietnam, Hochi Minh City Tel: +84 (0)8337 546 51**********************ZA – South Africa, Kempton Park Tel: +27 (0)11 961 0700*****************************ISO-9001 CertifiedInstrumentation Products Division Autoclave Engineers Operation 8325 Hessinger Drive Erie, PA 16509-4679Tel: 814 860 5700Fax: 814 860 /ipdusInstrumentation Products Division Autoclave Engineers Operation, Houston15340 Vantage Parkway, East Houston, TX 77032Tel: 281 987 3828Fax: 281 987 2318Parker Hannifin Manufacturing Ltd.Instrumentation Products Division, EuropeRiverside RoadPottington Business ParkBarnstaple, UK, EX31 1NP , UK Tel: 44 1271 313131Fax: 44 1271 373636WARNINGFAILURE, IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS AND/OR SYSTEMS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH,PERSONAL INJURY AND PROPERTY DAMAGE.This document and other information from Parker Hannifin Corporation, its subsidiaries and authorized distributors provide product and/or system options for further investigation by users having technical expertise. It is important that you analyze all aspects of your application and review the information concerning the product or system in the current product catalog. Due to the variety of operating conditions and applications for these products or systems, the user, through its own analysis and testing, is solely responsible for making the final selection of the products and systems and assuring that all performance, safety and warning requirements of the application are met. The prod-ucts described herein, including without limitation, product features, specifications, designs, availability and pricing, are subject to change by Parker Hannifin Corporation and its subsidiaries at any time without notice.Needle Valves: Double Block and Bleed 20DBNV Series 02-9259BE 0318。
DUNGS双阀值说明书
1 (6)P r i n t e d i n G e r m a n y • E d i t i o n 11.13 • N r . 218 375Double solenoid valve Rp 3/8 - Rp 2nominal diameters DMV-D/11DMV-DLE/117.30T echnical descriptionThe DUNGS double solenoid valve DMV integrates two solenoid valves in one compact fitting.- Automatic shut-off valves as per DIN EN 161 Class A Group 2- T wo A valves in one housing - Double seat valves - High flow rates- Max. operating pressure up to 500 mbar (50 kPa)- Fast closing- Fast opening (DMV-D/11) or slow open -ing (DMV-DLE/11) with adjustable fast stroke for start gas volume - Adjustable main volume - DC solenoid- Mountable closed position signal con -tact- Threaded flange- Compact, light-weightApplicationDouble solenoid valves are used where two single valve were mounted previously. In connection with DUNGS gas regulators and additional components, a wide variety of regulating tasks can be performed.It does not contain any non-ferrous metals, suitable for gases of up to max. 0.1 vol.% H 2S, dry. Suitable for gases of families 1, 2, 3 and other neutral gaseous media.ApprovalsEC type test approval as per EC Gas Ap -pliance Directive:DMV-...503-525/11 CE-0085 AN 2801Other models available with approval for the North American market: U L , FM, CSA as well as approvals in other important gasconsuming countries.SpecificationsNominal diameters Flange with pipe thread as per ISO 7-1Max. operating pressure Solenoid valve V1 Solenoid valve V2 Closing timeOpening timeFast strokeMain volume restrictor Materials of gas conveying parts Ambient temperature Installation positionDirt trapMeasuring gas connectionIgnition gas connection Burner pressure monitor p Br Voltage/frequencyRating / power consumption Degree of protection Switch-on duration Electrical connection Radio interference Closed position signal contact DMV 503 DMV 507 DMV 512, 520 DMV 525Rp 3/8,Rp 1/2 Rp 1/2,Rp 3/4,Rp 1 Rp 1,Rp 1 1/4,Rp 1 1/2,Rp 2 Rp 2and their combinations500 mbar (50 kPa)Automatic shut-off valve as per EN 161: Class A, Group 2Automatic shut-off valve as per EN 161: Class A, Group 2< 1 sDMV-D…/11: < 1 sDMV-DLE…/11: approx. 20 s at room temperature +20 °C and without fast stroke AdjustableDMV-D.../11 and DMV-DLE adjustable at V1, DMV-503/11 at V2 Housing: aluminium, steel, no non-ferrous metalsSeals at valve seat: NBR basis, suitable for gases as per G260/l-15 °C to +60 °CSolenoid vertically upright to lying horizontallySieve installed. T o protect the complete gas train we recommend you to install an upstream gas filter (refer to Datasheet 11.02)G 1/8 DIN ISO 228 on both sides upstream of V1, between V1 and V2, down-stream of V2 at input and output flanges.Pressure switch can be mounted to input and output flanges. By mounting a pressure switch, measuring/ignition gas connection can be partly excluded.G 1/2 ignition gas flange as per ISO 228, possible on both sides between V1 and V2 Connection downstream of V2GW...A2 pressure switch can be mounted to the adapter laterally and to the flange50 - 60 Hz, 220 V - 240 V AC, -15 % +10 %, further voltages on requestOther preferred voltages: 50 - 60 Hz, 110 V - 120 V AC, 24 V - 28 V DCat 230 V AC, +20 °C: refer to type overviewIP 54100 %Plug connection as per DIN EN 175301-803, PG* 11 cable gland on request (* = heavy-gauge conduit thread)Degree of interference NType K01/1 (DIN tested), can be mounted to V1 and V2, DMV-503/11 only to V22 (6)c♦ = standard (♦) = on request-- = not possibleFlow losses in (m3/h) air when in-Gas pressure regulator, type FRIThe DMV-507-520/11 double solenoid valve is already prepared for connection with the gas pressure regulator, type FRI.../6 at the factory.The pressure regulator can be installed upstream or downstream of the double solenoid valve depending on the task.FRI.../6 mounting set to DMV.../11Order No. 219 967FRI 705 - 707/6 to DMV 507/11Order No. 219 968FRI 710-712/6 to DMV 512/11-520/11Information on system accessoriesVPS 504 valve proving systemPressure regulator with integrated FRI gas filterPressure limiter ÜB, NB...A2 for multiple actuatorsCompact pressure switch for mul-tiple actuators GW…A5K01/1 closed position signal con-tact to monitor closed position of valvesIf a system accessory isadded, it may not be possibleto mount further devices.5 (6)6 (6)We reserve the right to make any changes in the interest of technical progress.Double solenoid valve Flow diagram Rp 3/8 - Rp 2nominal diameters DMV-D/11DMV-DLE/11Head Offices and FactoryKarl Dungs GmbH & Co. KG Siemensstraße 6-10D-73660 Urbach, Germany T elephone +49 (0)7181-804-0Fax +49 (0)7181-804-166Postal addressKarl Dungs GmbH & Co. KG Postfach 12 29D-73602 Schorndorf, Germany ********************Internet 。
FESTO 双位置双向阀门 VUVB-L-B42-ZD-Q8-2AC1 产品说明书
solenoid valve VUVB-L-B42-ZD-Q8-2AC1
Part number: 537561
With solenoid coil and manual override, without plug socket. This type is suitable for vacuum.
Data sheet
01/04/2016 – Subject to change – Festo AG & Co. KG
Value 4/2 bistable electrical 20 mm 800 l/min -0.9 ... 8 bar Piston slide IP65 7 mm not throttleable soft Any detenting Pushing Piloted external non reversible 2 ... 8 bar 20 ms 110 V AC: 50/60 Hz, pick-up power 3.1 VA, holding power 2.2 VA 2.5 kV 3 +/- 10 % Compressed air in accordance with ISO8573-1:2010 [7:4:4] Lubricated operation possible (subsequently required for further operation) to EU directive low-voltage devices 1 -20 ... 40 °C -5 ... 50 °C -5 ... 50 °C 2 Nm 3 Nm 240 g Plug to EN 175301-803 Design C with through hole M5 Non-ducted QS-8 QS-8 G1/4 QS-8
插板阀说明书
插板闸门浙江永嘉双金自控阀门厂插板闸门一、概述：插板（螺旋）闸门用于建材、冶金、矿山、电力、化工、玻璃、轻工、粮食等行业的库顶、库底及进出口等。
是控制流量变化较大，启动频繁，切断迅速的理想设备。
二、结构特点：结构简单、操作灵活、重量轻、无卡阻、切断快，特别适用于各类无粘度的固体、粉料及小于Φ 10mm 的颗粒料，晶粒料的输送及流量调节，安装不受角度限制，操作方便，能随时调节开度。
该阀门有手轮和链轮操纵两种操作形式， I 型为手轮， II 为链轮。
单向和双向两种结构形式， LZD 为单向、 LZS 为双向。
三、工作原理：主要由框架、闸板、丝杆、螺母等零件构成，用手转动手轮使丝杆带着丝杆螺母和闸板沿水平方向往复运动，达到闸门的启闭目的。
四、主要零件材料及连接尺寸：类A B C×C H L n-d 重量 单2 2296×296 820 100 8-Φ12 62 2 3346×346 930 100 8-Φ14 70.5 3 3396×396 1050 100 8-Φ14 81 4 4496×496 140 100 12-Φ14 114 4 5556×556 1450 120 12-Φ18 130 5 5606×606 1610 120 16-Φ18 147 双6 6706×706 1830 120 16-Φ18 169 77820×820 2130 140 20-Φ18 236五、使用说明：1.本阀可水平安装或垂直安装，安装时两法兰连接中间必须加密封垫片，然后锁紧螺栓。
2.操作时手轮顺时针旋转为阀关，反之为开，不得在手轮上再增加辅助杠杆。
3.若长期存放应使设备处于关闭状态，各传动部位应加润滑油，不允许露天存放或堆置。
4.电动装置可根据客户要求配型，（电压、电流、调节型、开关型、力矩等）。
双层气动插板阀使用说明书
双层气动插板阀使用说明书
概述
双层气动插板阀是根据蘑菇头式、锥形阀等结构的卸灰阀所存在的“体积大、泄漏率高、阀头易磨损以及卡料、心机易烧毁、在工业生产流程中无法进人自动控制”等缺陷而研制的一种结构简单、设计新颖的更新换代之产品。
可广泛应用于冶金、矿山、建材、电力、化丁等工业生产流程需要远程控制或现场控制卸灰的过程中。
特点
1、使用气缸驱动可实现远距离控制、中央调度室监控和微机控制；
2、通电后，自动完成上、下阀之间互相交替工作，确保正压或负压卸料的工况下不会泄压，至设定的卸料量后自动停止，双阀全部关闭；
3、卸料途中遇到卡料现象时，可自动处理故障；
4、泄漏率低，泄漏率≤0．05％；
5、采用气源作动力源，过载自动卸荷，白锁性好，不漏油，运行平稳；能耗低；
6、采用插板结构卡料现象比其它结构卸灰阀的频率低且不易磨损。
工作原理
本阀为双层气动插板式的卸料装置，接通电源后，上阀气缸自动打开闸板，停留数秒卸料，然后关闭上阀闸板，后转入下阀工作，下阀气缸打开闸板后，停留数秒卸料，然后关闭下阀闸板，转入上阀工作。
如此交替工作，至设定的卸灰量后，自动停止全过程工作。
全程通过PLC自动控制。
上、下阀打开时间，卸灰周期都可以通过触摸屏进行调节。
层气动插板排灰阀选型规格及技术参数
备注：1、用户如需表中未列出的特殊要求，可按用户要求设计制造；。

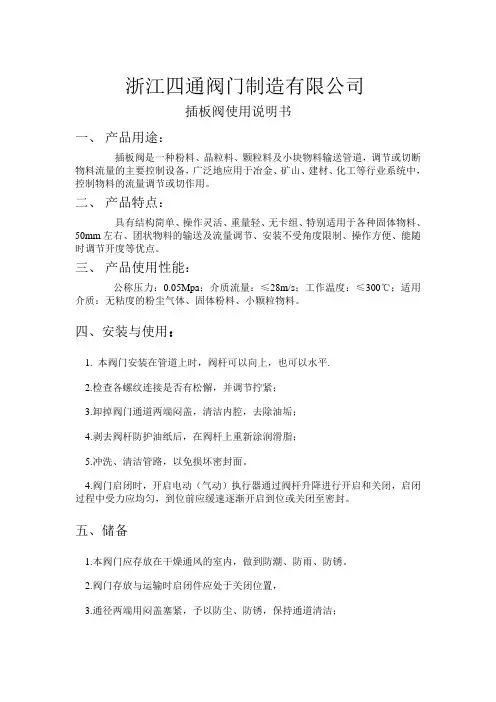

插板阀说明书
浙江四通阀门制造有限公司
插板阀使用说明书
一、产品用途：
插板阀是一种粉料、晶粒料、颗粒料及小块物料输送管道，调节或切断物料流量的主要控制设备，广泛地应用于冶金、矿山、建材、化工等行业系统中，控制物料的流量调节或切作用。
二、产品特点：
具有结构简单、操作灵活、重量轻、无卡组、特别适用于各种固体物料、50mm左右、团状物料的输送及流量调节、安装不受角度限制、操作方便、能随时调节开度等优点。
三、产品使用性能：
公称压力：0.05Mpa；介质流量：≤28m/s；工作温度：≤300℃；适用介质：无粘度的粉尘气体、固体粉料、小颗粒物料。
四、安装与使用：
1. 本阀门安装在管道上时，阀杆可以向上，也可以水平.
2.检查各螺纹连接是否有松懈，并调节拧紧；
3.卸掉阀门通道两端闷盖，清洁内腔，去除油垢；
4.剥去阀杆防护油纸后，在阀杆上重新涂润滑脂；
5.冲洗、清洁管路，以免损坏密封面。
4.阀门启闭时，开启电动（气动）执行器通过阀杆升降进行开启和关闭，启闭过程中受力应均匀，到位前应缓速逐渐开启到位或关闭至密封。
五、储备
1.本阀门应存放在干燥通风的室内，做到防潮、防雨、防锈。
2.阀门存放与运输时启闭件应处于关闭位置，
3.通径两端用闷盖塞紧，予以防尘、防锈，保持通道清洁；
4.长久放置时应定期检查。
对阀杆表面、两通道、密封面、两端法兰上的污垢和锈迹进行检查后，重新涂刷防锈油及予以防护。
六、结构图
六、可能发生的故障和消除方法：。
FESTO双阀环节螺纹双柄双行阀门说明书
Twin cylinders DPZC/DPZCJTwin cylinders DPZC/DPZCJ Key featuresVariantsDPZC-…-S2DPZCJMounting optionsHorizontal mounting from above Horizontal mounting frombelowSide mounting frombelowStroke precision adjustment•The screw allows adjustment of thestandard strokes within a range of10mm.Flexible cushioningbufferScrew-U-Type discontinuedAvailable up until2010Subject to change–2010/02 2 Internet:/catalogue/...2010/02–Subject to change 3Internet:/catalogue/...Twin cylinders DPZC/DPZCJProduct range overview-U-Type discontinuedAvailable up until 2010Twin cylinders DPZC/DPZCJPeripheralsoverviewAccessoriesBrief description Page/Internet 1Proximity sensorSME/SMT-10Can be integrated in the cylinder profile barrel222One-way flow control valveGRLAFor speed regulation223Push-in fittingQSFor connecting compressed air tubing with standard O.D.to CETOP RP54P quick star–Centring sleeveZBH 6pieces included in scope of delivery22-U-Type discontinuedAvailable up until2010Subject to change–2010/02 4 Internet:/catalogue/...2010/02–Subject to change 5Internet:/catalogue/...Twin cylinders DPZC/DPZCJType codesDPZC—10—40—P—A—GF—S2TypeDouble-acting DPZC Twin cylinder with one yoke plateDPZCJ Twin cylinder with through piston rods and two yoke plates Piston ∅[mm]Stroke [mm]Cushioning PFlexible cushioning rings/plates at both endsPosition sensing A For proximity sensingGuide GF Plain-bearing guideKF Recirculating ball bearing guide Variant S2Through piston rods-U-Type discontinuedAvailable up until 2010Subject to change –2010/026 Internet:/catalogue/...Twin cylinders DPZCTechnical data Function-N-Diameter 6,10,16mm -T-Stroke length 10…100mm-W-VariantsS2DPZC-…DPZC-…-S2General technical data Piston ∅61016Pneumatic connection M3M3M5Operating medium Filtered compressed air,lubricated or unlubricated Operating pressure [bar]GF 2.5…10 1.5…101…10p g p []KF2...10 1.5...101 (10)Constructional design Parallel piston rodsg Parallel piston rods with yokeCushioning Flexible cushioning rings/plates at both ends Position sensing For proximity sensing Type of mounting Via through-holes yp gVia female thread Mounting positionAnyProtection against torsion/guide Parallel piston rods/with plain-bearing or ball bearing guideAmbient conditions VariantPlain-bearing guide GFRecirculating ball bearing guide KF Ambient temperature 1)[°C]–5…+60Corrosion resistance class CRC2)2–ATEXSpecified types 1)Note operating range of proximity sensors2)Corrosion resistance class 2according to Festo standard 940070Components requiring moderate corrosion resistance.Externally visible parts with primarily decorative surface requirements which are in direct contact with a surrounding industrial atmosphere or media such as cooling or lubricating agentsSpeeds [m/s]with maximum stroke length Piston ∅61016Maximum speed 0.5 1.0 1.0Minimum speed0.050.050.05-U-Type discontinuedAvailable up until 20102010/02–Subject to change 7Internet:/catalogue/...Twin cylinders DPZCTechnical dataForces [N]and impact energy [J]Piston ∅61016Theoretical force at 6bar,advancing 3494241Theoretical force at 6bar,retracting 1960181Max.impact energy at the end positions 0.010.080.16v perm.=2x E perm.m dead +m loadᎩm load =2x E perm.v 2−m deadMaximum permissible load:Permissible impact velocity:v perm.Permissible impact velocity E perm.Max.impact energy m dead Moving load (drive)m loadMoving work load-H-NoteThese specifications represent the maximum values which can be re-ached.Note the maximum permitted impact energy.Maximum permissible load m as a function of the impact speed v Plain-bearing guide GFRecirculating ball bearing guideKFm [g ]v[m/s]m [g ]v [m/s]Through piston rod with plain-bearing guide GF Through piston rod with recirculating ball bearing guideKFm [g ]v [m/s]m [g ]v [m/s]-U-Type discontinuedAvailable up until 2010Subject to change –2010/028 Internet:/catalogue/...Twin cylinders DPZCTechnical data Weights Piston ∅6mm Piston ∅10mm Piston ∅16mm Stroke [mm]Piston rods at one end Through piston rods Piston rods at one end Through piston rods Piston rods at one end Through piston rods Product weight [g]1075901201602303202010513016021029041030140170200260350500401702102403204205805020025028037048067080––––670930100––––8001100Moving load [g]10374659821271772039486387135185304150659114319340435272961502005045547610015820880––––182216100––––198224Safety distances Cylinder to cylinderSafety distance X must be main-tained when positioning cylinders together in series,as the stray fields of the switching magnets can result in faulty switching.1Slot 12Slot 2Piston ∅6101661016Min.safety distance X SME-10…162015162416y [mm]SMT-10…59681214-U-Type discontinuedAvailable up until 20102010/02–Subject to change 9Internet:/catalogue/...Twin cylinders DPZCTechnical data Materials Sectional viewTwin cylinder Plain-bearing guide GF Recirculating ball bearing guide KF 1Housing Wrought aluminium alloy Wrought aluminium alloy 2Yoke plate Tool steelTool steel3Plug cap Wrought aluminium alloy Wrought aluminium alloy 4Piston rod High-alloy stainless steel Case-hardened steel–Seals Polyurethane,nitrile rubber Polyurethane,nitrile rubber Note on materialFree of copper,PTFE and siliconeFree of copper,PTFE and siliconeMaximum effective load F [N]Plain-bearing guide GF and recirculating ball bearing guide KFPiston rods at one end Piston ∅XS Stroke [mm][mm][mm]1020304050801006GF0 1.9 1.6 1.35 1.2 1.1––KF 1.9 1.5 1.3 1.10.95––10GF 0 4.5 3.9 3.4 3.0 2.7––KF 5.2 4.3 3.7 3.3 2.9––C t f it f ff ti l d16GF 08.17.1 6.3 5.6 5.1 4.0 3.51Centre of gravity of effective load KF8.57.26.35.65.03.83.3Through piston rodsPiston ∅XS Stroke [mm][mm][mm]1020304050801006GF0 2.7 2.7 2.65 2.65 2.6––KF 2.7 2.6 2.55 2.5 2.5––10GF 0 6.7 6.7 6.7 6.6 6.6––KF 9.29.08.88.78.6––16GF 014.814.714.614.514.414.314.2KF15.615.214.914.714.514.114.0-U-Type discontinuedAvailable up until 2010Twin cylinders DPZCTechnical dataPermissible torque load M[Nm]Plain-bearing guide GF and recirculating ball bearing guide KFPiston rods at one endPiston∅Stroke[mm][mm]1020304050801006GF0.0150.0130.0110.0090.008––KF0.0150.0120.0100.0090.008––10GF0.0450.0390.0340.0300.027––KF0.0520.0430.0370.0320.029––16GF0.1010.0880.0780.0700.0640.0500.043KF0.1060.0900.0790.0700.0630.0480.041Through piston rodsPiston∅Stroke[mm][mm]1020304050801006GF0.0210.0210.0210.0210.021––KF0.0220.0210.0200.0200.020––10GF0.0670.0670.0670.0660.066––KF0.0920.0900.0880.0870.086––16GF0.1850.1830.1820.1810.1810.1780.177KF0.1950.1900.1860.1830.1810.1760.175Torsional backlash pPlain-bearing guide GF and recirculating ball bearing guide KF+ρ–ρPiston∅61016In retracted stateTorsional backlash[°]GF0.070.050.05[]KF0.090.080.06In advanced state with maximum strokeTorsional backlash[°]GF0.400.300.30[]KF0.700.500.50Deflection of piston rod Graphs 11f=f1+f2f=Total deflection of piston rodf1=Deflection due to bearing backlashf2=Deflection due to lateral force-U-Type discontinuedAvailable up until2010Subject to change–2010/02 10 Internet:/catalogue/...Technical dataDeflection f1due to bearing backlash as a function of the stroke l Plain-bearing guide GFRecirculating ball bearing guide KFl [mm]f 1[m m ]f 1[m m ]l [mm]Through piston rod with plain-bearing guide GFThrough piston rod with recirculating ball bearing guide KFl [mm]f 1[m m ]l [mm]f 1[m m ]Deflection f2due to lateral force Fq as a function of the stroke Piston ∅6mmPiston ∅10mmf 2[m m ]Fq [N]Fq [N]f 2[m m ]Piston ∅16mmf 2[m m ]Fq [N]110mm stroke 220mm stroke 330mm stroke 440mm stroke 550mm stroke 680mm stroke 7100mm strokeTechnical dataTechnical data∅B1B2B3B4±0.1B5B6D1∅D2∅H7D3∅H7D4∅D5∅D6∅H7[mm]GF KF63537162818.554h84h6556 3.37 10444620352356h86h6758 4.27 165658254529 5.58h88h6758 4.27∅D7D8EE H1H2H3H4L9L10L11L12±0.1L13±0.1L14±0.1[mm]6M4M3M31614 3.588.5823.51320–10M5M4M31614 3.589.5829222012 16M5M5M52119 5.516101034.5222012∅L15L16±0.1L17T1T2T3T4T5T6T7ß1ß2[mm]6– 6.532 1.30.74 1.3 4.5 3.4 1.6 5.5 5.5 10201236 1.60.54 1.3 5.5 4.5 1.687 16201240 1.60.55 1.36 4.5 1.698∅Stroke L1L2L3L4L51)±0.1L61)±0.1L71)±0.1[mm][mm]BasicversionS2BasicversionS2BasicversionS2BasicversionS2BasicversionS2610738856.571.549.24826.5–40–––20839866.581.559.25836.54040–––309310876.591.569.26846.54040–––4010311886.5101.579.27856.54040–––5011312896.5111.589.28866.54040–80–101081100.563.58355.55427.5–––––2091110.573.59365.56437.5–––––30101120.583.510375.57447.54040–––40111130.593.511385.58457.54040–––50121140.5103.512395.59467.54040–80–161090118.57098.561.56427–––60–20100128.580108.571.574374040–––30110138.590118.581.584474040–80–40120148.5100128.591.594574040–80–50130158.5110138.5101.51046740406080–80160188.5140168.5131.51349740408080–100180208.5160188.5151.5154117404080801201)Tolerance between centring holes±0.02mmTechnical dataTechnical dataFunction-N-Diameter6,10,16mm-T-Stroke length10…100mmGeneral technical dataPiston∅61016Pneumatic connection M3M3M5Operating medium Filtered compressed air,lubricated or unlubricatedp g p[]Operating pressure[bar]GF 2.5...10 1.5...101 (10)KF2...10 1.5...101 (10)gConstructional design Parallel piston rodsParallel piston rods with yokeCushioning Flexible cushioning rings/plates at both endsPosition sensing For proximity sensingyp gType of mounting Via through-holesVia female threadMounting position AnyProtection against torsion/guide Parallel piston rods/with plain-bearing or ball bearing guideAmbient conditionsVariant Plain-bearing guide GF Recirculating ball bearing guide KFAmbient temperature1)[°C]–5…+60Corrosion resistance class CRC2)2–ATEX Specified types 1)Note operating range of proximity sensors2)Corrosion resistance class2according to Festo standard940070Components requiring moderate corrosion resistance.Externally visible parts with primarily decorative surface requirements which are in direct contact with a surrounding industrial atmosphere or media such as cooling or lubricating agentsSpeeds[m/s]with maximum stroke lengthPiston∅61016Maximum speed0.50.80.8Minimum speed0.050.050.05Forces[N]Piston∅610161960181Theoretical force at6bar,advancingand retractingTechnical data Impact energy [J]Piston ∅61016Max.impact energy at the end positions 0.0160.080.16v perm.=2x E perm.m dead +m loadᎩm load =2x E perm.v 2−m deadMaximum permissible load:Permissible impact velocity:v perm.Permissible impact velocity E perm.Max.impact energy m dead Moving load (drive)m loadMoving work load-H-NoteThese specifications represent the maximum values which can be re-ached.Note the maximum permitted impact energy.Maximum permissible load m as a function of the impact speed v Plain-bearing guide GFRecirculating ball bearing guide KFm [g ]v [m/s]m [g ]v [m/s]Weights Stroke Piston ∅6mm Piston ∅10mm Piston ∅16mm[mm]Product weight [g]101302104102017026050030210310580402503606705029041076080––1020100––1200Moving load [g]10871282562091136272309514528840991543045010316332080––367100––398Technical dataSafety distancesCylinder to cylinderSafety distance X must be main-tained when positioning cylinderstogether in series,as the stray fieldsof the switching magnets can resultin faulty switching.1Slot12Slot2Piston∅6101661016 yMin.safety distance X SME-10 (162015162416)[mm]SMT-10 (59681214)MaterialsSectional viewTwin cylinder Plain-bearing guide GF Recirculating ball bearing guide KF1Housing Wrought aluminium alloy Wrought aluminium alloy2Yoke plate Tool steel Tool steel3Plug cap Wrought aluminium alloy Wrought aluminium alloy4Piston rod High-alloy stainless steel Case-hardened steel–Seals Polyurethane,nitrile rubber Polyurethane,nitrile rubberNote on material Free of copper,PTFE and silicone Free of copper,PTFE and siliconeTechnical dataMaximum effective load F[N]Plain-bearing guide GF and recirculating ball bearing guide KFPiston∅XS Stroke[mm][mm][mm]1020304050801006GF0 2.7 2.7 2.65 2.65 2.6––KF 2.7 2.6 2.55 2.5 2.5––10GF0 6.7 6.7 6.7 6.6 6.6––KF9.29.08.88.78.6––16GF014.814.714.614.514.414.314.2 1Centre of gravityof effective load KF15.615.214.914.714.514.114.0Permissible torque load M[Nm]Plain-bearing guide GF and recirculating ball bearing guide KFPiston∅Stroke[mm][mm]1020304050801006GF0.0210.0210.0210.0210.021––KF0.0220.0210.0200.0200.020––10GF0.0670.0670.0670.0660.066––KF0.0920.0900.0880.0870.086––16GF0.1850.1830.1820.1810.1810.1780.177KF0.1950.1900.1860.1830.1810.1760.175Torsional backlash pPlain-bearing guide GF and recirculating ball bearing guide KF+ρ–ρPiston∅61016In retracted state[]Torsional backlash[°]GF0.070.050.05KF0.090.080.06In advanced state with maximum stroke[]Torsional backlash[°]GF0.250.200.20KF0.300.250.20Technical data Deflection of pistonrodf =f1+f2f =Total deflection of piston rodf1=Deflection due to bearing backlash f2=Deflection due to lateral forceDeflection f1due to bearing backlash as a function of the stroke l Plain-bearing guide GFRecirculating ball bearing guide KFl [mm]f 1[m m ]l [mm]f 1[m m ]Deflection f2due to lateral force Fq as a function of the stroke Piston ∅6mmPiston ∅10mmf 2[m m ]Fq [N]Fq [N]f 2[m m ]Piston ∅16mmf 2[m m ]Fq [N]110mm stroke 220mm stroke 330mm stroke 440mm stroke 550mm stroke 680mm stroke 7100mm strokeTechnical data∅Stroke D9L1L2L8L10L18L19ß3ß4[mm][mm]6108871.518.5209881.528.53010891.538.540118101.548.550128111.558.51010M8x1100.58319.5815371020110.59329.530120.510339.540130.511349.550140.512359.51610118.598.52020128.5108.53030138.5118.54040M10x1148.5128.5501022101350158.5138.5603380188.5168.590100208.5188.51102010/02–Subject to change 21Internet:/catalogue/...Twin cylinders DPZCJTechnical data-U-Type discontinuedAvailable up until 2010Subject to change –2010/0222 Internet:/catalogue/...Twin cylinders DPZC/DPZCJAccessories1)Packaging unit quantity-U-Type discontinuedAvailable up until 2010。
电源双锁连接器 (Power Double Lock Connectors)说明书
177908-1177914-1177915-1179463-1179465-1 177915-1179595-1179595-1177917-1177906-6The power double lock connectors are available in wire-to-wire (including free-hanging and panel mount) and wire-to-board configurations. This connector system consists of plug and cap housings for wire termination, optional double lock plates, crimp contacts and PC board pin headers, and is available in a contact centerline spacing of 3.96 mm for wire-to-wire and centerline spacing of 3.96 mm, 6.5 mm, and 13.00 mm for wire-to-board. The power double lock connector system accepts 26-16 AWG wire with insulation diameters up to 3.1 mm and is rated up to 14 Amps per line.POWER DOUBLE LOCK (PDL) CONNECTORSQuick Reference GuideFEATURES & BENEFITS• Discrete wire interconnect available in 1-12 position wire-to-board and wire-to-wire• Multiple colors available for ease of connector identification during assembly and maintenance • Audible click when contact is fully inserted into the housing• Polarizing ribs on plug housing allows for proper mating • Board-mounted headers are compatible with resin or conformal coatings — No drain holes•Solder tail kink along with the polarization peg (boss) feature, secures the header on the board during the solder process• UL recognized, CSA certified, and VDE approved •TPA and GWT availablePRODUCT APPLICATIONS• Household appliances • Gaming • Vending• Garage door openers • Security systems • Industrial controls • HVAC system controls • Fan modules • Business equipment •Small UAVCONTACTS * Part Number suffix -2 represents high contact pressure typePLUG HOUSINGS**2.Available in Type II lock, see catalog 82181 for details.3. Available in Type B lock, see catalog 82181 for details.4.Color Key Code: -1 Natural, -2 Red, -4 Yellow, -6 Blue, -9 Black**GWT version products are also available, please contact our sales representatives for more informationQuick Reference GuideThe PDL contacts are phosphor bronze with pre-tin plating and designed without lances to prevent entanglement of contacts with one another. The receptacle contact gets loaded into the plug housings and the tab contact gets loaded into cap housings.The semi-inner locking system of the PDL design helps eliminate unmating by external force and the audible click helps indicate the connector system is fully latched. The smooth compact design prevents snagging when mated.CAP HOUSINGS**HEADERS**GWT version products are also available, please contact our sales representatives for more informationQuick Reference GuideA double lock plate is available for both plug and cap housings to ensure positive loading and to help prevent contact back-out.The PDL headers offer a kink in the solder tail along with the kink in the mounting boss which secures the header on theboard firmly while soldering. Board mounted headers are compatible with resin or conformal coatings (no drain holes).Positive mounting achieved with Double Lock Mechanism:1. Contact is partially-mounted.2. Double Lock Plate is set.3. Contact is fully pushed in asDouble Lock Plate is pressed.TE Connectivity, TE Connectivity (logo) and Every Connection Counts are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners.The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TEConnectivity makes no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE Connectivity‘s Standard T erms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application.© 2016 TE Connectivity Ltd. family of companies All Rights Reserved.1773458-5 APP 08/16 OriginalQuick Reference GuideDESIGN-IN QUESTIONS1.What are the current and voltage requirements for your application?The power double lock connector system has a maximum current rating of 14 Amps per line (based on initial t-rise vs. current testing using 16 AWG in a 2 position connector) and is rated for 300 Volts AC/DC wire-to-wire and 50 Volts AC/DC wire-to-board.2.What are the wire type and size requirements?The power double lock connector system is approved for use with 26-16 AWG wire with an insulation range between 1.3 mm and 3.1 mm.3.What are the number of positions and available space?The power double lock connector system is available in select positions (1-12) on four contact centerline spacings; 3.96 mm, 6.5 mm, 7.92 mm and 13.0 mm. Theoverall mated length of the free-hanging system is 38.7 mm and the maximum height of the wire-to-board system is 25.5 mm.4. What are the operating temperature requirements?The power double lock connector system has a maximum operating temperature of 105°C. For more information regarding operating temperatures refer to Product Specification 108-5410.5.Is contact back-out a concern?Do you need confirmation that the contacts are seated? The power double lock connector system offers an optional double lock plate. The purpose of the double lock plate is two-fold: 1) allows contacts to be fully seated in the housing and 2) it helps prevent the possibility of contact disengagement when wires are exposed to external pressure.TE Connectivity T echnical Support CenterUSA: +1 (800) 522-6752Canada: +1 (905) 475-6222Mexico: +52 (0) 55-1106-0800Latin/S. America +54 (0) 11-4733-2200Germany: +49 (0) 6251-133-1999UK: +44 (0) 800-267666France: +33 (0) 1-3420-8686Netherlands: +31 (0) 73-6246-999China:+86 (0) 400-820-60156.Do you need to differentiate this connector from other connectors in the application?The power double lock connector system offers multiple options of colored housings for ease of connector identification during manufacturing and assembly.7.What is the benefit of choosing a header with a polarization peg (boss)?The power double lock connector system offers headers with or withoutpolarization pegs. The purpose of this feature is to polarize the headers to the PCB so the header can not be placed on the PCB in the wrong orientation. For more information regarding PCB layout please refer to the header product drawing.8.What is the benefit of choosing a high force contact?The power double lock connector system offers high force contacts for use in applications where vibration is prominent. It is important to note that the high force contacts increase the amount of mating force. Refer to Product Specification 108-5410 for more information.9.What is the benefit of choosing Lock Type II or Lock Type B (non-standard) latch?• Lock Type II is offered on the 3.96 mm plugs allowing for easier unmating (more finger room to depress the latch).•Lock Type B is offered on the 6.5 mm plugs providing a slightly lower profile and can be used when the application will not have to be unmated often.177915-2177908-1177914-1177915-1179463-1179465-1 177915-1179595-1179595-1177917-1177906-6。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
目录
一、适用范围 (1)
二、特点 (1)
三、主要技术参数 (1)
四、安装、使用要点 (1)
五、常见故障及排除方法 (2)
六、安装尺寸及外形图 (2)
双阀板闸阀采用双阀板，密封副采用硬质合金等耐磨材料，具有较好的机械性能和耐磨性能，解决了密封面因物料冲刷而易被冲蚀、寿命不高的问题，因而具有更长的使用寿命,能为用户带来理想的使用效果和经济效益，有利于设备检修和运行调节，从而使整体运行的安全性、经济性明显提高。
一、适用范围
用于热电厂干灰系统仓泵进出料阀，也可用于矿山、造纸、化工等各类有磨损的干粉尘、水、蒸汽等介质的管道上作启闭之用。
二、特点
1、料口全流通无阻挡物，有吹堵装置，卡灰、积灰现象少。
2、耐磨性好，使用寿命长。
3、可任意位置、角度安装。
4、结构紧凑、安装方便。
5、密封填料自调整装置。
三、主要技术参数
公称压力：1.0MPa 介质温度：≤200℃
强度试验：1.5MPa 密封试验：1.1MPa
四、安装、使用要点
1、安装前应仔细阅读本说明书，并核对阀门型号、通径及技术参数。
2、严禁装上阀门后施焊法兰。
管道自先预留的阀门安装距离应适当，法兰两边
加垫片。
3、两管道中心与阀门通径中心应保持同轴，法兰面应平整，不允许法兰面有较
大的偏斜，以保证阀门的夹紧和正常工作。
拧紧螺栓应做到均匀对称。
五、常见故障及排除方法
六、安装尺寸及外形图。
