DIN 6916_1989-10 Scheiben rund

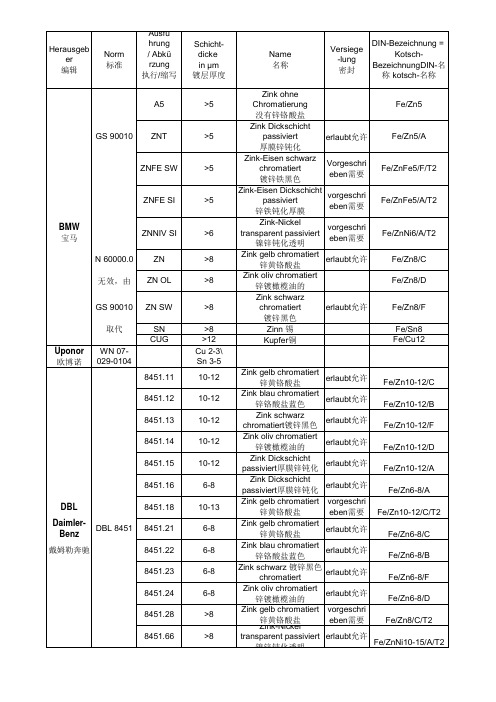

德国表面处理汇总
Fe/Zn5
erlaubt允许 Vorgeschri eben需要 vorgeschri eben需要 vorgeschri eben需要 erlaubt允许
Fe/Zn5/A
Fe/ZnFe5/F/T2
Fe/ZnFe5/A/T2
Fe/ZnNi6/A/T2 Fe/Zn8/C Fe/Zn8/D
erlaubt允许
>8
WSFM1P89-A1 M1P89-A1 Ford WSFM1P89-A1 M1P89-A1 WSFM1P89-A2 M1P89-A2 WSFM1P89-A2 M1P89-A2 A1 A2 A3 A4 A5
>5
>5
福特
>8
>8 15-25 15-25 15-25 15-25 15-25
A6 GME General Motors / Opel 通用汽车 /欧宝 00252 Zink 锌
>5
ZNNIV SI ZN ZN OL ZN SW SN CUG
>6 >8 >8 >8 >8 >12 Cu 2-3\ Sn 3-5 10-12 10-12 10-12 10-12 10-12 6-8 10-13 6-8 6-8 6-8 6-8 >8 >8
Zink ohne Chromatierung 没有锌铬酸盐 Zink Dickschicht passiviert 厚膜锌钝化 Zink-Eisen schwarz chromatiert 镀锌铁黑色 Zink-Eisen Dickschicht passiviert 锌铁钝化厚膜 Zink-Nickel transparent passiviert 镍锌钝化透明 Zink gelb chromatiert 锌黄铬酸盐 Zink oliv chromatiert 锌镀橄榄油的 Zink schwarz chromatiert 镀锌黑色 Zinn 锡 Kupfer铜
