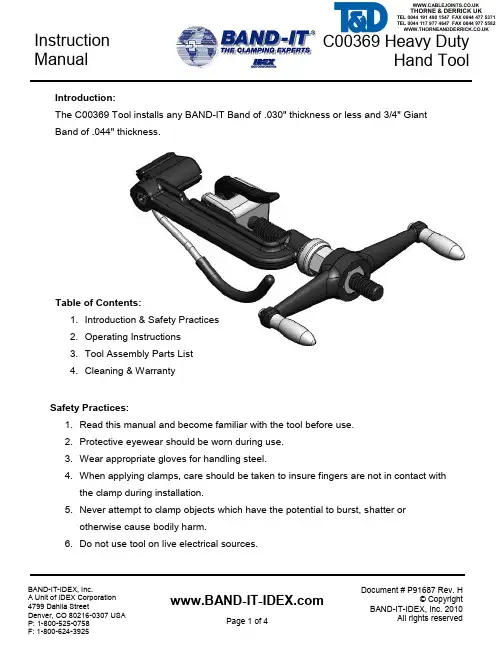

C00369手动-Band-It-IDEX工具使用说明说明书

C00369 Heavy DutyHand Tool InstructionManualSafety Practices:1. Read this manual and become familiar with the tool before use.2. Protective eyewear should be worn during use.3. Wear appropriate gloves for handling steel.4. When applying clamps, care should be taken to insure fingers are not in contact withthe clamp during installation.5. Never attempt to clamp objects which have the potential to burst, shatter orotherwise cause bodily harm.6. Do not use tool on live electrical sources.Introduction:The C00369 Tool installs any BAND-IT Band of .030" thickness or less and 3/4" GiantBand of .044" thickness.Table of Contents:1. Introduction & Safety Practices2. Operating Instructions3. Tool Assembly Parts List4. Cleaning & WarrantyTHORNE&DERRICK UKTEL00441914901547FAX00444775371TEL00441179774647FAX00449775582C00369 Heavy DutyHand ToolOperatingInstructions1. Slide buckle on band as shown.Bring tip of band around workpieceand again through buckle.Note: Band may be used from bulk rollas this completely eliminates waste ofband.2. Insert band around workpieceagain and through buckle. Doublewrapping develops much more radialcompression than single wrapping.Bend end of band under buckle.3. Place band in opening of tool noseand Gripper Block. Move into slot asfar as possible, to avoid buckle slidinginto Tool Nose. Tighten band clamp byturning the Tension Handle clockwisewhile holding Band Gripper tight againstband. NOTE: The spring load of theband gripper is not intended to secureand prevent the band from slippingduring tension process.4. Place finger on BAND-IT Band atbuckle bridge while tensioning. Whenyou observe the band stops movingthrough the buckle, maximum pressureis being exerted around the workpiece.Stop turning handle.5. Roll tool over buckle, backing offwith Tension Handle 1 - 1½ turnsthroughout entire rolling operation.Failure to back off tension with tensionhandle throughout roll-over may resultin breaking the band. There is no lossof tension as band released is used upin this process.6. Rotate Cutting Handle forward to cutthe band. When applying Giant Bandclamps, prior to cutting off clamp,release Band Gripper and push ToolNose away from buckle approx. ¼”.7. Remove tool, holdingstub of band down.8. Hammer down buckle earsto complete BAND-IT clamp.Tool NoseGripper BlockBand GripperC00369 Heavy DutyHand Tool1. To assist in removing threaded parts,apply heat to soften locking compound.2. When connecting item 13 (Set Screw) to item 14 (Cutter Bar), clean threads (male and female) of foreign matter, then apply one drop of medium strength locking compound (Loctite 242 or equiv.) onto male thread and connect parts together.3. Kit # C01899 contains one each Band Gripper, one Gripper Spring and one Pin. Replace all parts as a set to maximize tool performance. Periodic cleaning of band gripper teeth will improve tool performance.3410211121415 15679813Tool Assembly Parts ListC00369 Heavy DutyHand ToolCleaning &Warranty1. To remove Gripper, alignGripper Pin holewith notch tool frame. Using a punch and hammer, punch Pin out Slide Block.2. Using a wire brush, clean all foreign matter from teeth.3. To replace Pin, Gripper Spring must be seated Tension Screw hole. Align Gripper hole with Slide Block hole and insert Pin using hammer.NOTE : Periodically apply food-grade white lubricant or equivalent to Tension Screw thread (item 10 on page 3) to prevent excessive wear.If tool fails to securely grip tail of clamp, follow Gripper cleaning instructions above.THORNE &DERRICK UKTEL 00441914901547FAX 00444775371TEL 00441179774647FAX 。

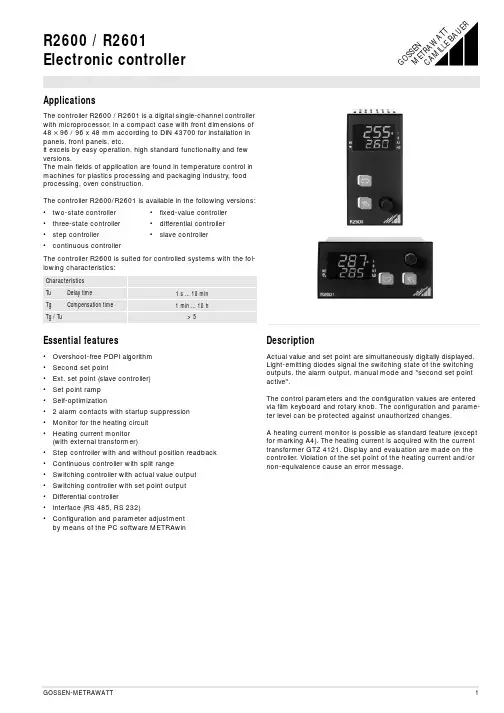

GOSSEN-METRAWATT 1 R2600 R2601 电子控制器说明书

GOSSEN-METRAWATT1R2600 / R2601Electronic controllerC A M I L L E B A U E RM E T R A W A T T GO S S EN ApplicationsThe controller R2600 / R2601 is a digital single-channel controller with microprocessor, in a compact case with front dimensions of 48×96 / 96x 48 mm according to DIN 43700 for installation in panels, front panels, etc.It excels by easy operation, high standard functionality and few versions.The main fields of application are found in temperature control in machines for plastics processing and packaging industry, food processing, oven construction.The controller R2600/R2601 is available in the following versions:The controller R2600 is suited for controlled systems with the fol-lowing characteristics:•two-state controller •three-state controller •step controller•continuous controller•fixed-value controller •differential controller •slave controllerCharacteristics Tu Delay time 1 s ... 10 min Tg Compensation time1 min ... 10 hTg / Tu> 5Essential features•Overshoot-free PDPI algorithm •Second set point•Ext. set point (slave controller)•Set point ramp •Self-optimization• 2 alarm contacts with startup suppression •Monitor for the heating circuit •Heating current monitor (with external transformer)•Step controller with and without position readback •Continuous controller with split range•Switching controller with actual value output •Switching controller with set point output •Differential controller•Interface (RS 485, RS 232)•Configuration and parameter adjustment by means of the PC software METRAwinDescriptionActual value and set point are simultaneously digitally displayed. Light-emitting diodes signal the switching state of the switching outputs, the alarm output, manual mode and "second set point active".The control parameters and the configuration values are entered via film keyboard and rotary knob. The configuration and parame-ter level can be protected against unauthorized changes.A heating current monitor is possible as standard feature (except for marking A4). The heating current is acquired with the current transformer GTZ 4121. Display and evaluation are made on the controller. Violation of the set point of the heating current and/or non-equivalence cause an error message.2GOSSEN-METRAWATTR2600 / R2601Electronic controllerFigure 1, Block circuit diagramHI HzI II A1W2R2601InputPosition readback (A1, A2 and A3)Signal input X1Binary input for Limit contactRelay outputsTransistorized outputsContinuous output (A3)Power supplyHeating current monitor second set point (A4)Optoelectric isolationProcessor,data and program memorySignal input X2 /ext. set point (B3, B4, B5)A2RS 232RS 485InterfaceBinary input 2Signal inputsSignal inputTransformer resolution 14 bits Measuring ranges See order code Scanning cycle0.5sOffset compensationPossible by parameter entryApplied rules and standardsVDE 0411-1 / DIN IEC 1010-1 / DIN EN 61010-1Safety requirements for electrical equipment for measurement, control and laboratory useDIN EN 50081-2Electromagnetic compatibility; generic emission standard DIN EN 50082-2Electromagnetic compatibility; generic immunity standard DIN VDE 0106-1Electrical safetyVDI / VDE 3540 Sheet 2Climatic classes for equipment and accessoriesEN 60529Degrees of protection provided by enclosuresDIN 3440Temperature controller and temperature limiting installations for heat generating systems CSA Approval applied for ULApproval applied forConfiguration of sensor inputsMarking Sensor Selectable via keyboardB1, B3, B4Thermocouple Pt 100°C / °F configurableSee order code for measuring rangesand markings B2, B5DC voltage DC currentdead / live zero, 10V / 20mA Display range scalable ThermocoupleOverload, continuous AC sinusoidal 50Hz / 3 V DC 1V Input resistance > 50k ΩCold junction Compensation circuit built inError messageIn the case of sensor breakage, wrong polarity (monitor for heating circuit) or temperature beyond measuring rangeR2600 / R2601 Electronic controllerBinary input for second set pointThe second set point is activated via potential-free contact or potential-free electronic switch (optocoupler, etc.).Open-circuit voltage approx. 5VShort circuit current approx. 1mADisplayControlled variableDisplay range4-digit, digitalHeight of numerals10mmMaster variable, heating current or manipulated variable Display range4-digit, digitalHeight of numerals7.5mmStatus and switching outputs2+ 4 LED Operation•Two keys for function selection•Sinkable rotary knob for setting of valuesSet pointsControl actionSelf-optimization"On key stroke" from any operating state.Action on and manual change of the con-trol parameters is possible.Resistance thermometer Pt 100Two-wire connection Three-wire connectionLead resistance 0 ... 30Ω can be balanced(with shorted sensor "on keystroke“)0 ... 30Ω compensatedOverload, continuous AC sinusoidal 50Hz / 3VDC 1VMeasuring current approx.0.2mAError message In the case of breakage or short circuit of the sensor ortemperature beyond measuring rangeDC voltage, DC currentDC voltage DC currentMeasuring range 0/2 (10V)configurable0/4 ... 20mAconfigurableOverload, continuous100V60mA DC Input resistance / load>150kΩ55ΩError message With input variable beyondmeasuring rangeWith input variable beyondmeasuring rangeHeating current monitor input (for version A1, A2 and A3)Meas. range curr. transformer input GTZ 4121 000 R... AC 0 ... 40 A Measuring range heating current monitor input DC 0 ... 10 VPosition readback input (for version A4)Potentiometer nominal values0.1 ... 1.0kΩMeasuring current< 1.5mASecond set pointActive Voltage drop across contact< 2V Inactive Residual current across contact< 0.02mA Controlled variableMarking Measuring range Display resolutionB1, B3, B4All 1 °C /°FB2, B50 / 2 (10V)0 / 4... 20mAScalable –1999 ... +9999 digit1 digitPosition readbackMeasuring range Display resolutionScalable 0 ... 100% 1 %Heating currentMeasuring range Display resolutionScalable 0 ... 100,0A0.1 ASet point limitation Upper and lower setting limit parameterizableSecond set point Activated via external contact,value parameterizable on controllerRamp function(separate for riseand fall)Presetting of a gradual temperature change, in degrees per min.Activated when:– the auxiliary voltage is switched on– the actual set point is changed– the second set point is activated– changing from manual to automatic modeExternal set point With marking B4 and B5 parametrizableConfigurable controller typesTwo-state PDPI contr.For heatingTwo-state PDPI contr.For coolingThree-state PDPI contr.Three-state PDPI contr.For water coolingContinuous controllerContinuous controller With split rangeStep controller With and without position readbackLimit monitor Two-state / three-state controller without time action PositionerFor each of these controller types, there is the function differential controller and slave controller in addition to the fixed-value controllerGOSSEN-METRAWATT34GOSSEN-METRAWATTR2600 / R2601Electronic controllerOutputsControl outputsFunctions Switching output I (heat)Switching output II (cool)Output cycle Parameterizable on the range 0.5 ... 600 s Output type Relay or transistorized output (selectable via DIP switch)Relay outputPotential-free normally-open contact (NOC)Switching capacity AC/DC 250 V , 2 A, 500 VA / 50 WLifespan> 2•105 switching cycles under nom. load Interf. protectionExt. RC elem. (100 Ω -47 nF) has to be conncted to contactorTransistorized output Suitable for commercially available solidstate relays (SSR)Overload limit Short circuit, interruption continuousContinuous controllerFunctions Alternatively configurable;regulation ratio Heat or Cool,controlled variable or set point Output varialeAlternativeCurrent 0/4 - 20 mA, at < 450 Ω burden Voltage 0/2 - 10 V , at > 550 Ω load Transf. resolution10 bitsAlarm outputNumber 2 (A1, A2)FunctionsAlternatively configurable low, high, low + high relative / asolute NOC / NCCStartup suppression on/offContact typePotential-free normally-open contact (NOC)Switching capacity AC/DC 250 V , 2 A, 500 VA / 50 W Lifespan > 2•105 switching cycles under nom. load Interf. protection Ext. RC elem. (100 Ω - 47 nF) has to beconected to contactorHeating current monitorHeating current monitor Integrated Acquisition of the heating current Via ext. current transformer Z 4121(Scaling required for other external cur-rent transformers)Technical data See data sheet Z4121Entry of the nominal value of the heating current "on key stroke"Heating circuit monitorWithout external transformer, without additional parameters Configurable Heating circuit monitor active / inactive Error message at100% switched-on heater without rising temperature that is, withshorted thermocouple heater stoppedsensor not in the heating circuitAuxiliary voltageData interfaceSetting ranges of the control parametersDisplay MeaningSetting range Pb I Proportional band switching output I 0.1 ... 999.9%Pb II Proportional band switching output II (for three-state controller)0.1 ... 999.9%dbnd Deadband (for three-state controller and step controller)0 ... MBU 1)1)MBU = range spantu Delay time of the controlled system 0 ... 9999s tcOutput cycle time0.5 ... 600sSwitching state Open-circuit voltageOutput current Active (load ≤ 800 Ω)< DC 15V 10 ... 15mA Inactive< DC 15V< 0.1mAError message at –Non-equivalence–Negative deviation from the current set point Positioning signal `off' + heating curr. `on'Positioning signal `on' + heating curr. `off'Negative deviation from the set point of the heating current by more than 20 % with posi-tioning signal `on'SignallingError message hard-wired to alarm output 1Nom. valueNominal range of use Power consumptionVoltageFrequency AC 110V AC 230V AC 24V AC 95V ... 121V AC 196V ... 253V AC 20V ... 26V 48Hz ... 62HzMaximum 10VATypically 6W DC 24VDC 20V (30V)–Type (pluggable)RS 232RS 485Max. number of devices 132 parallel on busNumber of leads 3Transmission speed 9600 baudsNumber of data bits 8Number of stop bits 1Operating mode half duplex Protocolaccording to DIN 19244GOSSEN-METRAWATT5R2600 / R2601Electronic controllerAccuracyReference conditionsInfluence variables and variationsElectrical safetyRadio interference suppression acc. to DIN EN 50081-2Measuring procedures EN 50011Limit class BImmunity to interference acc. to DIN EN 50082-2Climatic suitabilityMechanical configurationFigure 2, Case dimensions and panel cutoutInput controlled variable Typical error limit referred to MBU 1)1)MBU = Range spanResolution referredto MBUThermocoupleGeneral except type B Type B > 600°C < 0.7%< 0.7%<0.02%<0.05%Resistance thermometer < 0.7%<0.02%DC voltage, DC current< 0.5%<0.02%Error limitCold junction± 2 KError limit referred to measured valueOffset error Input heating current 5%± 0.1%Position reedback5%± 1ΩError limit referred to final valueResolution Continuous output < 1.5%0.1%Reference variable Reference condition Ambient temperature Tref 23°C ± 2K Cold junction temperature Tver 23°C ± 2KAuxiliary voltageNom. value ± 1%, for AC 50Hz ± 1% sinusoidal permissible common mode voltage to the electri-cally connected inputs 0V DC / AC Warm-up time10 min (inputs within the meas. range)Influence variable Nominal range of use Maximum variation Ambient temperature Tu 0°C ... +50°C ±0,05% MBU / K Cold junction temperature Tver 0°C ... +50°C 0.1K (Tver – Tref) / K Lead resistanceThermocouple Pt 100two-wire Pt 100three-wire RL = 0 ... 200Ω RL = 0 ... 30Ω RL = 0 ... 30Ω 0.1% MBU / 10Ω3K /Ω (can be balanced)0,1% MBU / 10ΩWarm-up effect≤5min± 1%Protection class II, panel meter in the sense of DIN EN 61010-1 subclause 6.5.4Degree of pollution 1, acc. to DIN EN 61010-1 subcl. 3.7.3.1 and/or IEC 664Overvoltage category II, according to DIN EN 61010 appendix J and/or IEC 664Operating voltage300V according to DIN EN 61010Type of test Specifications Test severity level Criterium ESD EN 61000-4-24kV Contact discharge 8kV Air pathB B E-field ENV 5014010V/m 80-1000MHzA Burst IEC 801-42kV On all connection leadsB HFENV 5014110V0.15-80MHz all connectorsAClimatic suitability with ref. to VDI/VDE 35403z / 0 / 50Relative humidity, annual average, no dewing 75%Ambient temperatureNominal range of use Function range Storage range0°C ... + 50°C 0°C ... + 50°C –25°C ... + 70°CDesign typePanel case of UL-VO listed plastic according to DIN 43700, side-by-side mounting possible without intermediate bars, except when using the accessory seal for bezel/panel (intermediate bar ≥10mm)Instrument module Can be withdrawn without toolsMounting positionFront vertical to maximum 45° declined to the rear Protection typeIP 54for the front (with gasket and pressed rotary knob)IP 20for the caseIP 20for the connectorsWeight approx. 0.5kg6GOSSEN-METRAWATTR2600 / R2601Electronic controllerConnection elementsScrew terminals suitable for stranded wire 2.5mm 2 and/or twin-wire multi-core cable ends for 2×1.0mm 2Electrical connectionFigure 3, Location of the connection contacts123456789101112131415161718192021222324252627282930123456789101112131415161718192021222324252627282930R2600R2601GOSSEN-METRAWATT 7R2600 / R2601Electronic controllerOrder codeThe following applies to determination of the order code:Only one marking of like capital letters may be chosen.If the capital letter of the marking is followed by zero numerals only, this marking may be omitted in the order code.See last page for accessories and ordering example.DESCRIPTION MARKING Electronic controllerwith self-optimization, second set point, 2 limit relays, front dimensions 48 x 96 mm R2600Electronic controllerwith self-optimization, second set point, 2 limit relays, front dimensions 96 x 48 mm R2601Controller versionTwo-state controller with heating current monitorRelay output and transistorized output A1Three-state controller with heating current monitor / step controller2 relay outputs and 2 transistorized outputs A2Contin. controller / three-state controller with heating curr. monitor / step controller Contin. output and 2 transist. and 2 relay outputsA3Step controller with position readback / three-state controller 2 relay outputs and 2 transistorized outputsA4Measuring ranges Signal inputThermocouple, configurableType J, L –18 ...850 °C /0 ...1562 °F ––––––––––––––––––––––––––––––––––––––––––––Type K –18 ...1200 °C /0 ...2192 °F ––––––––––––––––––––––––––––––––––––––––––––Type S, R –18 ...1770 °C /0 ...3218 °F ––––––––––––––––––––––––––––––––––––––––––––Type B 0 ...1820 °C /32 ...3308 °F (precision specified from 600°C)––––––––––––––––––––––––––––––––––––––––––––Type N –18 ...1300 °C /0 ...2372 °F Signal inputResistance thermometer Pt 100– 100 ...500 °C /–148 ...932 °F – 100.0 ...500.0 °C /–148.0 ...932.0 °F B1Signal inputStandard signal, configurable0 / 2 ... 10 V or 0 / 4 ... 20 mAB2Common configuration of both signal inputs is possible; same as B1 for differential controller B3First signal input configurable as B1 and second signal input configurable as B2 for slave controller B4Both signal inputs configurable as B2 for differential controller / slave controller B5Auxiliary voltage AC 230V AC 110V AC 24V DC 24V C1C2C3C4Data interfaceWithoutRS 232 / RS 485 internal plug change possible F0F1ConfigurationStandard settingSetting according to customer's specifications K0K9Customer-specific front film On requestNote: A copy of multi-lingual operating instructions with information on startup and operation is part of the supplyC1 → C2, and/or C2 → C1 internal plug-change possibleGOSSEN-METRAWATT GMBH 90327 Nuremberg, GermanyCompany address:Thomas-Mann-Straße 16-2090471 Nuremberg, Germany Telefon +49 911 8602-0Telefax +49 911 8602-669Printed in Germany • Subject to change without notice • 2/12.97 Ordering no. 3-348-797-03R2600 / R2601Electronic controllerC A M I L L E B A U ERM E T R A W A T T GO S S E N Example for orderingAccessoriesScope of delivery•Controller • 2 fasteners• 1 seal for front panel•Multi-lingual operating instructions•Multi-lingual operating instructions for data interface (only with F1)DESCRIPTION (clear text) MARKING Electronic controller Front dimensions 48 x 96mmR2600Controller version Three-state controller with heating current monitor, 2 limit relays, 2 relay outputs and 2 transistorized outputs A2Measuring range Thermocouple B1Auxiliary voltage AC 230VC1Data interface RS 232 / RS 485 internal plug-change possible F1PresettingStandard settingK0DESCRIPTIONIDENT NUMBERCurrent transformer for mounting to top-hat rail for acquisition of the heating current With 3 inputs (1 three-phase consumer or 3 AC consumers)GTZ 4121 000 R0001With 4 inputs(1 three-phase consumer + 1 AC consumer or 4 AC consumers)GTZ 4121 000 R0002Solid state load relays for mounting to top-hat rail, for connection to transistorized outputs280 V, 10 A GTZ 4102 001 R0001280 V, 25 A GTZ 4102 001 R0002280 V, 45 A ––––––––GTZ 4102 001 R0003480 V, 10 A GTZ 4102 002 R0001480 V, 25 A GTZ 4102 002 R0002480 V, 40 A–––––––––––––––––––––––––––––––––––––––––––––––GTZ 4102 002 R0003Heat sink Length 80 mm GTZ 4102 003 R0001for mounting to top-hat rail 160 mmGTZ 4102 003 R0002160 mm–––––––––––––––––––––––––––––––––––––––––––––––GTZ 4102 003 R0003Protecting cover (contact protection)GTZ 4102 004 R0001。

HP PageWide Pro MFP 477系列用户指南说明书

User GuideCopyright and License© 2016 Copyright HP Development Company, L.P.All rights reserved. Reproduction, adaptation, or translation of this material is prohibited without prior written permission of HP, except as allowed under copyright laws.The information contained in this document is subject to change without notice.The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.Edition 1, 2/2016Trademark CreditsAdobe®, Acrobat®, and PostScript® are trademarks of Adobe Systems Incorporated. Intel® Core™ is a trademark of Intel Corporation in the U.S. and other countries.Java™ is a US trademark of Sun Microsystems, Inc.Microsoft®, Windows®, Windows® XP, and Windows Vista® are U.S. registered trademarks of Microsoft Corporation.UNIX® is a registered trademark of The Open Group.ENERGY STAR and the ENERGY STAR mark are registered trademarks owned by the U.S. Environmental Protection Agency.Table of contents1 Product basics (1)Product features (2)Environmental features (3)Accessibility features (3)Product views (4)Front left view (4)Front right view (5)Back view (5)Cartridge door view (6)Power on and off (7)Turn the product on (7)Manage power (7)Turn the product off (8)Use the control panel (9)Control panel buttons (9)Control panel home screen (10)Control panel dashboard (11)Control panel application folders (11)Control panel shortcuts (12)Help features (12)Printer information (13)Help animations (13)Quiet Mode (14)To turn Quiet Mode on or off from the control panel (14)To turn Quiet Mode on or off from the EWS (14)2 Connect the product (15)Connect the product to a computer or a network (16)To connect the product using a USB cable (16)To connect the product to a network (17)Supported network protocols (17)Connect the product using a wired network (17)ENWW iiiConnect the product using a wireless network (wireless models only) (17)To connect the product to a wireless network using the Wireless SetupWizard (18)To connect the product to a wireless network using WPS (18)To connect the product to a wireless network manually (19)Use Wi-Fi Direct to connect a computer or device to the product (20)To turn on Wi-Fi Direct (20)To print from a wireless-capable mobile device (20)To print from a wireless-capable computer (Windows) (20)To print from a wireless-capable computer (OS X) (20)Install HP printer software for a wireless product already on the network (22)Open the printer software (Windows) (22)Manage network settings (22)View or change network settings (22)Set or change the product password (23)Manually configure TCP/IP parameters from the control panel (23)Link speed and duplex settings (23)3 Printer management and services (25)HP Embedded Web Server (26)About the EWS (26)About cookies (26)Open the EWS (27)Features (27)Home tab (27)Scan tab (28)Fax tab (29)Web Services tab (29)Network tab (29)Tools tab (29)Settings tab (30)Web Services (31)What are Web Services? (31)HP ePrint (31)Print apps (31)Set Up Web Services (31)Use Web Services (32)HP ePrint (32)Print apps (33)Remove Web Services (34)HP Web Jetadmin software (34)iv ENWWProduct security features (34)Security statements (35)Firewall (35)Security settings (36)Firmware updates (36)HP Printer Assistant in the printer software (Windows) (36)Open the HP Printer Assistant (36)Features (36)Connected tab (37)Print, Scan & Fax tab (37)Shop tab (37)Help tab (38)Tools tab (38)Estimated Levels tab (38)HP Utility (OS X) (38)AirPrint™ (OS X) (38)4 Paper and print media (39)Understand paper use (40)Supported media sizes (41)Supported paper and print media sizes (41)Supported envelope sizes (42)Supported card and label sizes (42)Supported photo media sizes (42)Supported paper types and tray capacity (43)Tray 1 (multipurpose) on left side of the product (43)Tray 2 (default tray) and Tray 3 (accessory tray) (44)Configure trays (44)Load media (45)Load Tray 1 (45)Load Tray 2 (46)Load optional Tray 3 (48)Load envelopes (49)Load letterhead or preprinted forms (51)Load the automatic document feeder (52)Load the scanner (53)Tips for selecting and using paper (55)5 Cartridges (56)HP PageWide cartridges (57)HP policy on non-HP cartridges (57)ENWW vManage cartridges (57)Store cartridges (58)Print with General Office mode (58)Print when a cartridge is at estimated end of life (58)Check the estimated cartridge levels (58)Order cartridges (59)Recycle cartridges (60)Replace cartridges (60)Tips for working with cartridges (62)6 Print (63)Print from a computer (64)To print from a computer (Windows) (64)To print from a computer (OS X) (65)To set up printing shortcuts (Windows) (66)To set up printing presets (OS X) (66)To adjust or manage colors (67)Choose a preset color theme for a print job (67)Adjust the color options for a print job manually (67)Match colors to your computer screen (68)Control access to color printing (69)Print from the control panel (69)Print using job storage (69)To enable job storage (69)Disable or enable job storage (Windows) (69)Disable or enable job storage (OS X) (69)To apply job storage to one or all print jobs (70)Apply job storage to one or all print jobs (Windows) (70)Apply job storage to one or all print jobs (OS X) (71)To print a job stored on the printer (71)To delete a job stored on the printer (71)Print from a USB device (72)Print with NFC (72)Print with HP ePrint (72)Print off site by sending an email with the HP ePrint app (32)Print from an on-site computer or mobile device (73)Print with AirPrint (OS X) (73)Tips for print success (74)Cartridge tips (74)Paper loading tips (74)vi ENWW7 Copy and scan (76)Copy (77)Copy settings (77)Adjust lightness or darkness for copies (77)Select a paper tray and paper size for copies (77)Reduce or enlarge a copy (77)Load and copy identification cards (78)Copy photos (79)Load and copy mixed-size originals (80)Copy on both sides automatically (80)Cancel a copy job (80)Scan (81)Scan to a USB drive (81)Scan to a computer (81)To set up scan to computer (81)Set up scanning to a computer (Windows) (82)Set up scanning to a computer (OS X) (82)To scan to a computer from the control panel (82)Scan to email (82)To set up scan to email (82)To scan a document or photo to email (83)Scan a document or photo to email from the control panel (83)Scan a document or photo to email from the printer software (83)To change account settings (83)Scan to a network folder (83)To set up scan to a network folder (84)Set up scan to a network folder in the EWS (84)Set up scan to a network folder in the HP Printer Assistant (84)To scan to a network folder (84)Scan to a network folder from the control panel (84)Scan to a network folder from the printer software (84)Scan to SharePoint (85)To set up scan to SharePoint (85)To scan to SharePoint (85)Scan using HP scanning software (85)Scan using other software (86)To scan from a TWAIN-compliant program (86)To scan from a WIA-compliant program (86)ENWW viiGuidelines for scanning documents as editable text (87)To scan a document to editable text (Windows) (88)To scan documents as editable text (OS X) (89)Tips for copy and scan success (90)8 Fax (91)Set up fax (92)Connect fax to a telephone line (92)Configure fax settings (92)To configure fax settings from the control panel (92)To configure fax settings using the HP Digital Fax Setup Wizard (Windows) (93)Set up HP Digital Fax (93)HP Digital Fax requirements (93)To set up HP Digital Fax (94)Set up HP Digital Fax (Windows) (94)Set up HP Digital Fax (OS X) (94)Set up HP Digital Fax in the EWS (94)To modify HP Digital Fax settings (94)Modify HP Digital Fax settings (Windows) (94)Modify HP Digital Fax settings (OS X) (94)Modify HP Digital Fax settings in the EWS (94)To turn off HP Digital Fax (95)Fax programs, systems, and software (95)Supported fax programs (95)Supported phone services - analog (95)Alternate phone services - digital (95)DSL (95)PBX (95)ISDN (96)VoIP (96)Set fax settings (96)Send-fax settings (96)Set pauses or flash hooks (96)Set a dialing prefix (97)Set tone-dialing or pulse-dialing (97)Set autoredial and the time between redials (97)Set the light/dark setting (98)Set the default resolution (98)Use cover-page templates (99)viii ENWWSet fax forwarding (99)Block or unblock fax numbers (100)Set the number of rings-to-answer (100)Set distinctive ring (101)Use autoreduction for incoming faxes (102)Set the fax sounds volume (102)Set stamp-received faxes (102)Send a fax (102)Send a fax from the control panel (103)Use speed dials and group-dial entries (103)Send a standard fax from the computer (103)Send a fax from the software (104)Send a fax using monitor dialing (105)Send a fax using printer memory (105)Receive a fax (106)Receive a fax manually (106)Fax memory (107)Reprint a fax (107)Delete faxes from memory (107)Use the phone book (107)Create and edit individual speed-dial entries (108)Create and edit group-dial entries (108)Delete speed-dial entries (108)Use reports (108)Print fax confirmation reports (109)Print fax error reports (110)Print and view the fax log (110)Clear the fax log (110)Print the details of the last fax transaction (111)Print a Caller ID Report (111)View the Call History (111)9 Solve problems (112)Problem-solving checklist (113)Check that the product power is on (113)Check the control panel for error messages (113)Test print functionality (113)Test copy functionality (114)Test the fax-sending functionality (114)Test the fax-receiving functionality (114)ENWW ixTry sending a print job from a computer (114)Test the plug-and-print USB functionality (114)Factors that affect product performance (114)Information pages (115)Factory-set defaults (116)Cleaning routines (116)Clean the printhead (117)Clean the scanner glass strip and platen (117)Clean the document feeder pick rollers and separation pad (118)Clean the touch screen (118)Jams and paper-feed issues (119)The product does not pick up paper (119)The product picks up multiple sheets of paper (119)Prevent paper jams (119)Clear jams (120)Jam locations (120)Clear jams from the document feeder (121)Clear jams in Tray 1 (multipurpose tray) (122)Clear jams in Tray 2 (122)Clear jams in optional Tray 3 (123)Clear jams in the left door (124)Clear jams in the output bin (125)Clear jams in the duplexer (126)Cartridge issues (127)Refilled or remanufactured cartridges (127)Interpret control panel messages for cartridges (127)Cartridge Depleted (127)Cartridge Low (128)Cartridge Very Low (128)Counterfeit or used [color] cartridge installed (128)Do not use SETUP cartridges (128)Genuine HP cartridge installed (128)Incompatible [color] (129)Incompatible cartridges (129)Install [color] cartridge (129)Non-HP cartridges installed (129)Printer Failure (130)Problem with Print System (130)Problem with Printer Preparation (130)Problem with SETUP cartridges (130)Use SETUP cartridges (130)x ENWWUsed [color] installed (131)Printing issues (131)The product does not print (131)The product prints slowly (132)Plug-and-print USB issues (132)The Memory Device Options menu does not open when you insert the USBaccessory (132)The file does not print from the USB storage device (132)The file that you want to print is not listed in the Memory Device Options menu (133)Improve print quality (133)Check for genuine HP cartridges (133)Use paper that meets HP specifications (133)Use the correct paper type setting in the printer driver (134)Change the paper type and size setting (Windows) (134)Change the paper type and size setting (OS X) (134)Use the printer driver that best meets your printing needs (134)Align the printhead (135)Print a print-quality report (135)Scan issues (135)Fax issues (136)Fax troubleshooting checklist (136)Change error correction and fax speed (137)Set the fax-error-correction mode (137)Change the fax speed (137)Fax logs and reports (137)Print individual fax reports (137)Set the fax error report (138)Fax error messages (138)Communication error. (138)Document feeder door is open. Canceled fax. (139)Fax is busy. Canceled send. (139)Fax is busy. Redial pending. (139)Fax receive error. (140)Fax Send error. (140)Fax storage is full. Canceling the fax receive. (141)Fax storage is full. Canceling the fax send. (141)No dial tone. (141)No fax answer. Canceled send. (142)No fax answer. Redial pending. (142)No fax detected. (142)Solve problems sending faxes (143)ENWW xiAn error message displays on the control panel (143)Document feeder paper jam (143)Scanner error (143)The control panel displays a Ready message with no attempt to send the fax. (143)The control panel displays the message "Receiving Page 1" and does not progressbeyond that message (144)Faxes can be received, but not sent (144)Unable to use fax functions from the control panel (144)Unable to use speed dials (144)Unable to use group dials (144)Receive a recorded error message from the phone company when trying to senda fax (145)Unable to send a fax when a phone is connected to the product (145)Solve problems receiving faxes (145)An error message displays on the control panel (145)The fax does not respond (145)Voice mail is available on the fax line (145)The product is connected to a DSL phone service (146)The product uses a fax over IP or VoIP phone service (146)Sender receives a busy signal (146)A handset is connected to the product (146)A phone line splitter is being used (146)Cannot send or receive a fax on a PBX line (146)Solve general fax problems (146)Faxes are sending slowly (146)Fax quality is poor (147)Fax cuts off or prints on two pages (147)Connectivity issues (147)Solve USB direct-connect problems (147)Solve network problems (148)Poor physical connection (148)The computer is using the incorrect IP address for the product (148)The computer is unable to communicate with the product (148)The product is using incorrect link and duplex settings for the network (149)New software programs might be causing compatibility problems (149)The computer or workstation might be set up incorrectly (149)The product is disabled, or other network settings are incorrect (149)Wireless network issues (149)Wireless connectivity checklist (149)The product does not print, and the computer has a third-party firewall installed (150)The wireless connection does not work after moving the wireless router or product (150)xii ENWWCannot connect more computers to the wireless product (150)The wireless product loses communication when connected to a VPN (151)The network does not appear in the wireless networks list (151)The wireless network is not functioning (151)Product software issues (Windows) (151)Product software issues (OS X) (153)The printer driver is not listed in the Print & Scan list (153)The product name does not appear in the product list in the Print & Scan list (153)The printer driver does not automatically set up the selected product in the Print & Scan list (153)A print job was not sent to the product that you wanted (153)When connected with a USB cable, the product does not appear in the Print & Scan list afterthe driver is selected. (153)You are using a generic printer driver when using a USB connection (154)10 Service and support (155)Customer support (156)HP limited warranty statement (157)UK, Ireland, and Malta (158)Austria, Belgium, Germany, and Luxemburg (158)Belgium, France, and Luxemburg (159)Italy (160)Spain (160)Denmark (161)Norway (161)Sweden (161)Portugal (162)Greece and Cyprus (162)Hungary (162)Czech Republic (163)Slovakia (163)Poland (163)Bulgaria (164)Romania (164)Belgium and the Netherlands (164)Finland (165)Slovenia (165)Croatia (165)Latvia (165)Lithuania (166)Estonia (166)Russia (166)ENWW xiiiAppendix A Technical information (167)Product specifications (168)Print specifications (168)Physical specifications (168)Power consumption and electrical specifications (168)Acoustic emission specifications (168)Environmental specifications (168)Environmental product stewardship program (170)Protecting the environment (171)Ozone production (171)Power consumption (171)European Union Commission Regulation 1275/2008 (171)Paper (171)HP PageWide printing supplies (171)Plastics (171)Electronic hardware recycling (172)Material restrictions (172)General battery information (172)Battery disposal in Taiwan (172)California Perchlorate Material Notice (172)EU Battery Directive (172)Battery notice for Brazil (173)Chemical substances (173)EPEAT (173)Disposal of waste equipment by users (173)Toxic and hazardous substance table (China) (174)Restriction on hazardous substances statement (Turkey) (174)Restriction on hazardous substances statement (Ukraine) (174)Restriction of hazardous substance statement (India) (174)China energy label for printer, fax, and copier (175)China SEPA Eco Label user information (175)Regulatory information (176)Regulatory notices (176)Regulatory model identification number (176)FCC statement (176)VCCI statement (Japan) (177)Power cord instructions (177)Power cord statement (Japan) (177)EMC statement (Korea) (177)Visual display workplaces statement for Germany (177)European Union Regulatory Notice (178)xiv ENWWEuropean Union Regulatory Notice (178)Wireless models only (178)Models with fax capability only (178)Additional statements for telecom (fax) products (179)New Zealand telecom statements (179)Additional FCC statement for telecom products (US) (179)Industry Canada CS-03 requirements (180)Notice to users of the Canadian telephone network (181)Australia wired fax statement (181)Notice to users of the German telephone network (181)Additional statements for wireless products (182)Exposure to radio frequency radiation (182)Notice to users in Brazil (182)Canadian statements (182)Japan statement (183)Notice to users in Korea (183)Taiwan statement (183)Mexico statement (183)Index (184)ENWW xvxvi ENWW1Product basics●Product features●Product views●Power on and off●Use the control panel●Quiet ModeENWW1Product featuresPageWide Pro MFP 477dnD3Q19A, D3Q19B, D3Q19C,D3Q19D Tray capacity (75 GSM or 20–lb Bond paper)●Tray 1: 50 sheets ●Tray 2: 500 sheets ●Optional Tray 3: 500 sheets ●Automatic Document Feeder(ADF): 50 sheets●Standard output bin: 300sheetsPrint ●Simplex speeds up to 40 pagesper minute (ppm) for both color and black with Professional quality●Duplex speeds up to 21 ppmfor both color and black with Professional quality●Up to 55 ppm in General Officemode●Walkup Plug-and-Print USBDevice port●Walkup printing of MS Officedocuments Copy ●Simplex speeds up to 40 ppm in black and color ●Single-pass, two-sided copying for speeds up to 26 ppm in black and color ●50-sheet ADF supports page sizes up to 356 mm (14.0 in) in length and 216 mm (8.5 in) in width Scan●Duplex speeds up to 26 ppm for both color and black ●Scan to walkup USB device, email address, network folder, or SharePoint site ●Glass supports page sizes up to 356 mm (14.0 in) in length and up to 216 mm (8.5 in) in width ●HP software enables scanning a document to a file that can be edited ●Compatible with TWAIN, WIA, and WS-Scan programs Fax●Fax to email address ornetwork folder●Fax from walkup control panelor from program on connected computer●Fax archive, fax log, junk-faxblocking, non-volatile fax memory, fax redirect featureConnectivity ●802.3 LAN (10/100) Ethernet port ●Host USB Type A and Type B ports (back)●USB 2.0 Device port (front)PageWide Pro MFP 477dw D3Q20A, D3Q20B, D3Q20C, D3Q20D Has the same features as the PageWide Pro MFP 477dn, and includes the following:●Embedded wireless capability ●802.11n 5GHz dual bandsupport●HP ePrint—send documents tothe product email address for printing●HP Wireless Direct support ●NFC-enabled (Near FieldCommunications); walkup printing from smart phones and tablets●Scan to smart phone 2Chapter 1 Product basics ENWWEnvironmental featuresFeature Environmental benefitDuplex printing Automatic duplex printing is available on all models of HP PageWide Pro MFP477dn/dw series. Duplex printing saves the environment and saves you money.Print multiple pages per sheet Save paper by printing two or more pages of a document side-by-side on onesheet of paper. Access this feature through the printer driver.Copies multiple pages per sheet Save paper by copying two pages of an original document side-by-side on onesheet of paper.Recycling Reduce waste by using recycled paper.Recycle cartridges by using the HP Planet Partners return process.Energy savings Sleep modes and timer options enable this product to quickly go into reducedpower states when not printing, thus saving energy. Accessibility featuresThe product includes several features that aid users with limited vision, hearing, dexterity or strength.●Online user guide that is compatible with text screen-readers.●Cartridges can be installed and removed using one hand.●All doors and covers can be opened using one hand.ENWW Product features3Product views●Front left view●Front right view●Back view●Cartridge door viewFront left viewLabel Description1USB device connection port2Cartridge door3Tray 1 extension4Tray 15Power button6Tray 2–main paper tray7Control panel8Scanner glass4Chapter 1 Product basics ENWWFront right viewLabel Description1Automatic document feeder (ADF) cover2Main output door3ADF paper guides4ADF loading area5ADF output bin6ADF output bin stop7Main output bin stop8Main output binBack viewLabel Description1Ethernet connection port2Fax connection ports3USB Type A and USB Type B ports4Power cord connectionENWW Product views5Label Description5Left door6DuplexerCartridge door viewLabel Description1Cartridge slots2Product serial number and product number3Cartridge part numbers6Chapter 1 Product basics ENWWPower on and offNOTICE:To prevent damage to the product, use only the power cord that is provided with the product.●Turn the product on●Manage power●Turn the product offTurn the product on1.Connect the power cord that is provided with the product to the connection port on the back of theproduct.2.Connect the power cord to a wall outlet with an adequate voltage rating.NOTE:Make sure that your power source is adequate for the product voltage rating. The product useseither 100-240 Vac or 200-240 Vac and 50/60 Hz.3.Press and release the power button on the front of the product.Manage powerHP PageWide Pro MFP 477dn/dw series printers include power-management features that can help reducepower consumption and save energy.●Sleep Mode puts the product in a reduced power-consumption state if it has been idle for a specificlength of time. You can set the length of time before the product enters Sleep Mode from the controlpanel.●Schedule On/Off enables you to turn the product on or off automatically at days and time that you setfrom the control panel. For example, you can set the product to turn off at 6 p.m. on Monday throughFriday.Set the Sleep Mode time1.Open the control panel dashboard (swipe the dashboard tab at the top of any screen downward, ortouch the dashboard area on the home screen).2.On the control panel dashboard, touch .ENWW Power on and off73.Touch Power Management, and then touch Sleep Mode.4.Select one of the time-interval options.The product switches into a reduced power-consumption state when it has been idle for the amount of timethat you select.Schedule the product to turn on or off1.Open the control panel dashboard (swipe the dashboard tab at the top of any screen downward, ortouch the dashboard area on the home screen).2.On the control panel dashboard, touch .3.Touch Power Management, and then touch Schedule Printer On/Off.4.Turn the Schedule On or Schedule Off option on.5.Select the Schedule On or Schedule Off options at the bottom of the screen, and then select the day andtime that you want to schedule.The product switches on or off at the time you select on the day you select.NOTE:The product cannot receive faxes when it is turned off. Faxes sent during a scheduled off interval willprint when the product is turned on.Turn the product offNOTICE:Do not turn off the product if a cartridge is missing. Damage to the product can result.▲Press and release the power button on the front of the product to turn off your HP PageWide Pro MFP 477dn/dw series printer.A warning message appears on the control panel if you attempt to turn the product off when one ormore cartridges are missing.NOTICE:To prevent print-quality problems, turn off the product by using the power button on the frontonly. Do not unplug the product, turn off the powerstrip, or use any other method.8Chapter 1 Product basics ENWWUse the control panel●Control panel buttons●Control panel home screen●Control panel dashboard●Control panel application folders●Control panel shortcuts●Help featuresNOTE:The small text on the control panel is not designed for prolonged viewing.Control panel buttonsButtons and indicator lights on the control panel of HP PageWide Pro MFP 477dn/dw series printers appear litwhen their function is available, and are darkened if their function is not available.1Home button.Touch to view the control panel home screen.2Wireless network indicator.Solid blue when the product is connected to a wireless network. Blinks when the product is searching for awireless connection. Off when the product is connected to a wired network or by a USB cable.3NFC (Near Field Communications) indicator.The product can be enabled for walkup printing from tablets and smart phones.4Back or Cancel button.Touch to return to the previous screen, or to cancel the current process.5Help button.Touch to view the Help menu options.ENWW Use the control panel9。

FormatterPopAI Philips 50端升狗4K UHD Ambilight LED T

Philips Performance Series 4K UHD LED Android TV126 cm (50") Ambilight TV Major HDR formats supportedP5 Perfect Picture Engine Android TV/AI voice control50PUS8505Performance Series: the one to watch 4K UHD LED Android TVThis is the one you are looking for. Superb picture quality. Elegant design. Great sound. AI voice control. Ambilight for an immersive experience like no other. Everything you need to enjoy movie night, sports or a weekend gaming marathonAndroid TV-content at your command•Android TV. Simply smart.•Voice control. Google Assistant built-in. Works with Alexa.•DTS Play-Fi. Multi-room audio.Slim TV. Beautiful light.•Silver metal bezel. Central swivel stand.•Philips 4K UHD TV. Vibrant HDR picture.•The magic of Ambilight. Only from Philips.Smooth motion. Real colour. Incredible depth.•Philips P5 Engine. Whatever the source, always perfection.•HDR10+ supported. See more of what the director intended.•Dolby Vision and Dolby Atmos. Cinematic vision and sound.•Well-balanced audio. Crisp, clear dialogue. Punchy effects.Ambilight 3 sidedWith Philips Ambilight, every moment feels closer. Intelligent LEDs around the edge of the TV respond to the on-screen action and emit an immersive glow that's simply captivating. Experience it once and wonder how you enjoyed TV without it.Dolby Vision and Dolby AtmosSupport for Dolby's premium sound and video formats means the HDR content you watch will look—and sound—gloriously real.Whether it's the latest streaming series or a Blu-Ray disc set, you'll enjoy contrast, brightness and colour that reflect the director's original intentions. And hearspacious sound with clarity, detail and depth.Android TV.Make your Philips Android TV your own. If it's all about Amazon and YouTube this week andRakuten TV and Netflix next week - no problem. A clear, intuitive interface lets you put the content you love front and centre. Easily pick up where you left off in the latest series, or check out the new movie releases.P5 Perfect Picture EngineThe Philips P5 engine delivers a picture as brilliant as the content you love. Details have noticeably more depth. Colours are vivid, while skin tones look natural. Contrast is so crisp you'll feel every detail. Motion is perfectly smooth.4K UHD HDRYour Philips 4K UHD TV is compatible with all major HDR formats, including HDR10+ and Dolby Vision. Whether it's a must-watch series or the latest video game, shadows will be deeper. Bright surfaces will shine. Colours will be truer.DesignPlacing your TV in a corner or in an awkward position? The central swivel stand ensures that you'll always be able to angle the screen just so. However you place the television, the silver bezel adds a sophisticated touch.Voice assistantControl your Philips Android TV with your voice. Want to play a game, watch Netflix or find content and apps in the Google Play store? Just tell your TV. You can even command all Google Assistant-compatible smart home devices, like dimming the lights and setting the thermostat on movie night. Without leaving the sofa. The days of searching for the TV remote are over. Now you can use your voice to control your Philips smart TV via Alexa-enabled devices, like Amazon Echo. Turn your TV on, change the channel, switch to your gaming console and more with Alexa.DTS Play-FiWith DTS Play-Fi on your Philips TV you can connect to compatible speakers in any room. Got wireless speakers in the kitchen? Listen to the film while you make a snack, or keep up with the sports commentary while you geteveryone a drink.Ambilight•Ambilight Features: Built-in Ambilight+hue, Ambilight Music, Game Mode, Wall colour adaptive, Lounge mode, AmbiWakeup, AmbiSleep •Ambilight Version: 3 sidedPicture/Display•Aspect ratio: 16:9•Diagonal screen size (inch): 50 inch •Diagonal screen size (metric): 126 cm •Display: 4K Ultra HD LED •Panel resolution: 3840 x 2160•Picture engine: P5 Perfect Picture Engine•Picture enhancement: Ultra Resolution, DolbyVision, HDR10+, 2100 PPI•Diagonal screen size (inch): 50 inchSupported Display Resolution•Computer inputs on all HDMI: HDR supported,HDR10/HLG, up to 4K UHD3840 x 2160 @60 Hz•Video inputs on all HDMI: up to 4K UHD 3840 x2160 @60 Hz, HDR supported, HDR10/HLG(Hybrid Log Gamma), HDR10+/Dolby VisionTuner/Reception/Transmission•Digital TV: DVB-T/T2/T2-HD/C/S/S2•Video Playback: PAL, SECAM•MPEG Support: MPEG2, MPEG4•TV Programme guide*: 8-day ElectronicProgramme Guide•Signal strength indicationIssue date 2023-08-21 Version: 12.2.1EAN: 87 18863 02296 2© 2023 Koninklijke Philips N.V.All Rights reserved.Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.•Teletext: 1000 page Hypertext•HEVC supportAndroid TV•OS: Android TV™ 9 (Pie)•Pre-installed apps: Google Play Movies*, Google Play Music*, Google Search, YouTube, Netflix, Amazon instant video, BBC iPlayer•Memory size (Flash): 16 GB*Smart TV Features•User Interaction: SimplyShare•Interactive TV:HbbTV•Programme: Pause TV, USB recording*•Ease of Installation: Auto detect Philips devices, Device connection wizard, Network installation wizard, Settings assistant wizard•Ease of Use: One-stop smart menu button, On-screen user manual•Firmware upgradeable: Firmware auto upgrade wizard, Firmware upgradeable via USB, Online firmware upgrade•Screen Format Adjustments: Basic - Fill Screen, Fit to screen, Advance - Shift, Zoom, stretch, Wide screen•Remote Control: with Voice•Voice assistant*: Google Assistant built in, RC with Mic., Works with AlexaMultimedia Applications•Video Playback Formats: Containers: AVI, MKV, H264/MPEG-4 AVC, MPEG-1, MPEG-2, MPEG-4, WMV9/VC1, VP9, HEVC (H.265)•Music Playback Formats: AAC, MP3, WAV, WMA (v2 up to v9.2), WMA-PRO (v9 and v10)•Subtitles Formats Support: .SRT, .SUB, .TXT, .SMI •Picture Playback Formats: JPEG, BMP, GIF, PNG, 360 photo, HEIFProcessing•Processing Power: Quad CoreSound•Output power (RMS): 20 W•Speaker configuration: 2 x 10 W full-range speaker •Sound Enhancement: Dolby Atmos®, Clear Dialogue, A.I. Sound, 5 Band Equalizer, Auto Volume Leveller, Bass Enhancement, Night mode Connectivity•Number of HDMI connections: 4•HDMI features: 4K, Audio Return Channel •EasyLink (HDMI-CEC): Remote control pass-through, System audio control, System standby, One touch play•Number of USBs: 2•Wireless connection: Bluetooth 4.2, Wi-Fi 802.11ac, 2 x 2, Dual band •Other connections: Satellite Connector, CommonInterface Plus (CI+), Digital audio out (optical),Ethernet-LAN RJ-45, Headphone out, Serviceconnector•HDCP 2.3: Yes on all HDMIEU Energy card•EPREL registration numbers: 357085•Diagonal screen size (inch): 50•Diagonal screen size (metric): 128•Energy class for SDR: G•On mode power demand for SDR: 85 kWh/1000h•Energy class for HDR: G•On mode power demand for HDR: 166 kWh/1000h•Off mode power consumption: n.a.•Networked standby mode: <2.0 W•Panel technology used: LED LCDPower•Mains power: AC 220 - 240 V 50/60 Hz•Ambient temperature: 5°C to 35°C•Standby power consumption: <0.3 W•Power Saving Features: Auto switch-off timer,Light sensor, Picture mute (for radio), Eco mode•Off mode power consumption: N/A•Presence of lead: Yes*•Mercury content: 0 mgAccessories•Included accessories: Remote Control, Quick startguide, Legal and safety brochure, Power cord,Tabletop stand•Included batteries: 2 x AAA BatteriesDesign•Colours of TV: Light-silver metal bezel•Stand design: Light-silver central arch base, Swivel+/- 15 degreeDimensions•Set Width: 1119.8 mm•Set Height: 650.0 mm•Set Depth: 77.7 mm•Product weight: 13.9 kg•Set width (with stand): 1119.8 mm•Set height (with stand): 720.2 mm•Set depth (with stand): 253.6 mm•Product weight (+stand): 16.9 kg•Box width: 1240.0 mm•Box height: 785.0 mm•Box depth: 160.0 mm•Weight incl. Packaging: 20.3 kg•Stand width: 750.0 mm•Stand height: 70.2 mm•Stand depth: 253.6 mm•Wall-mount compatible: 300 x 200 mm*EPG and actual visibility (up to 8 days) is country- and operator-dependent.*Android App offerings vary per country. For more details please visityour local Google Play Store.**Memory size (Flash): 16 GB (the actual available disk space maydiffer depending on e.g. (pre-)installed apps, installed operatingsystem etc.)*Energy consumption in kWh per year based on the powerconsumption of the television operating 4 hours per day for 365days. The actual energy consumption will depend on how thetelevision is used.*The TV supports DVB reception for 'Free to air' broadcast. SpecificDVB operators may not be supported. An up to date list can befound in the FAQ section of the Philips support website. For someoperators Conditional Access and subscription are required.Contact your operator for more information.*Philips TV Remote app and related functionalities vary per TV model,operator and country, as well as smart device model and OS. Formore details please visit: /TVRemoteapp.*Smart TV app availability varies per TV model and country. For moredetails please visit: /smarttv.*USB recording for digital channels only, recordings may be limited bybroadcast copy protection (CI+). Country and channel restrictionsmay apply.*Please note that your Amazon Apps may not always be available inyour country. (Currently Amazon apps works only in the UK,Germany and Austria)*This television contains lead only in certain parts or componentswhere no technology alternatives exist in accordance with existingexemption clauses under the RoHS Directive.。

蓝牙音频开发包Winbond W681360编解码器板用户手册说明书

Bluetooth Audio Development Pack Winbond W681360 Codec BoardUser GuidePart Number ACC-005The information contained in this document is subject to change without notice. EZURiO Ltd makes no warranty of any kind with regard to this material including, but not limited to, the implied warranties of merchant ability and fitness for a particular purpose. EZURiO Ltd shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.© Copyright 2006 EZURiO Limited. All rights reserved.No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of EZURiO.Other product or company names used in this publication are for identification purposes only and may be trademarks of their respective owners.Bluetooth® Development KitWinbond Audio Codec BoardPart Number: ACC-0051.General DescriptionThe EZURiO Winbond Codec Evaluation Board plugs into the EZURiO Developers kit and allows you to rapidly test and evaluate Bluetooth audio applications using the EZURiO Bluetooth Intelligent Serial Module to implement the wireless link.The ACC-005 evaluation board is based on the Winbond W681360 codec - a 3V, single channel, 13 bit linear voice-band codec, which is pin compatible to the Motorola MC145483. The codec is used to digitise incoming audio from the microphone into PCM data and convert the PCM digital audio output of the Bluetooth chip into an analogue signal for the headphones. The codec board has a microphone input and headphone output which are compatible with standard PC headsets.The W681630 codec has several features such as power down mode and high pass filter disable (to allow frequencies down to DC to be used). The ACC-005 codec evaluation board provides options to allow these features to be tested.The W681360 incorporates a feature that allows the volume of the codec output to be digitally controlled via 3 bits of the PCM data stream. The BISM II provides an AT command (ATS589) that allows you to control the volume of the codec.This document provides you with information to prototype and evaluate your own audio application. Once you have tried out your application, you will be able to design your own audio solution based around the Winbond codec and the EZURiO Bluetooth Intelligent Serial module.Bluetooth is a trademark owned by Bluetooth SIG, Inc., USA and licensed to EZURIO Ltd.2.OverviewThe codec board is powered by an on-board 3.3V regulator to reduce noise to a minimum. The PCM control signals for the codec go directly to the Bluetooth module on the motherboard via the 10-way connector, as do the 3 push button switches. This allows the switches to be used with an external program that implements the upper portion of headset or Handsfree profile.The microphone input, designed to interface to PC compatible headsets, has a fixed gain of 16 set by external components to the codec (the amplifier itself is part of the codec). Part of the microphone signal is mixed into the headphone output signal via VR2. This feature is known as “sidetone” and allows the user to hear their own voice when speaking. It is commonly used in telephony applications to give the user the necessary audio feedback that their ears expect.The audio output gain is by default fixed at 1. By fitting VR1, the audio gain can be made adjustable.The 120mW stereo output amplifier U3 ensures that the codec board can drive standard 32Ωstereo headphones while keeping total harmonic distortion down to 0.1%.Component PlacementNote that not allcomponents are fitted –non-fitted components areshown without pads. Referto Section 7 for details ofcomponent fitment andspecification.3.Codec Board Quick Start Guide3.1 Getting StartedThe codec board is supplied with a right angle, 10 way connector that can be used to connect it to the main developers kit. If required, this should be soldered to the main board. Alternatively other connectors or ribbon cables can be used.3.2 Equipment Required (not supplied)•Headsets (with microphone) (Standard PC headsets are fine)•EZURiO Wireless Developers Kit•BISM II Bluetooth module (Firmware release V9_20_22 onwards supports audio volume control)Normally two sets of development kit are required to test both ends of an audio link. If an application is being developed with an existing endpoint, such as a mobile phone or headset, only one set may be needed.3.3 Motherboard Jumper SettingsBefore using the codec board, there is a jumper setting on the motherboard that needs to be checked. This is CB1, next to the USB adaptor, which must be removed. If fitted it will short out the PCM output from the codec and prevent it operating. CB1 is only relevant for the WLAN 802.11 data module.3.4 Procedure:1)Plug the BISM II into the socket on the Dev Kit, connect to a PC serial port and power up.See the dev kit manual for different power supply options.2)Check that AT commands are working using EZURiO terminal. (Refer to blu2i Quick StartGuide if needed)3)Run the “ATI3” command to find out the firmware release number. If it is less thanV9_20_22, contact EZURiO to get a firmware upgrade for the BISM II. (Note: older versions of firmware will work, but audio output will be at half the full volume and the ats589=7 command will not be recognised)4)Power down, plug the codec board into the dev kit and power up. Check that ATcommands are working.Configure the Slave unit as follows:AT&F* Restore system defaultsATZ Reset the unit= 4 Makeconnectable and discoverableATS512ATS0=1 Answer after 1 ringATS531=1 Keep AT command mode going after a connection isestablishedATS589=7 Set Max. Volume level (requires firmware V9_20_22)AT&W Save the above settingsATZ Reset the unit.5) Find out the Bluetooth address of the Slave Unit by typing ATI4<return>6) Configure the Master Unit as follows:AT&F* Restore System DefaultsATZ Reset the unitATS531= 1 Keep the AT commands going after a connection isestablishedATS589=7 Set volume to maximumAT&W Save to flashATZ Reset the unit.ATD008098nnnnnn Connect to the slave (substitute your slave’s Bluetoothaddress that you found in step 5 for nnnnnn)AT+BTA1 Establish an audio link – displays AUDIO ON on both sides.(Alternatively AT+BTA7 can be used and the units willnegotiate the best link type.)An Audio link is now established between the two units.AT=BTA0 will turn off the audio link (but still leave the units connected).To change volume use ATS589. ATS589=0 gives minimum, ATS589=7 gives maximum. 4.Bluetooth SCO Links – A Primer4.1 Normal SCOBluetooth uses a Synchronous Connection-Orientated link (SCO) for audio. All this means is that for an audio link, the bandwidth needed to maintain the data rates required by the audio link is pre-allocated between the master and slave. This ensures audio data is always transmitted at the required data rate, and takes priority over the transmission of digital data.The Bluetooth specification for SCO is such that there is no re-transmission if data is corrupted or lost. This explains the crackling and popping that occurs when you get to the limits of radio range.The actual data rate over the air is 64 kbits/sec. There are 1600 timeslots available per second and when a master transmits a SCO packet in one timeslot, the slave replies with its SCO packet in the next. The SCO packet size is fixed at 240 bits (30 bytes). This means when a SCO link is established using the HV3 packet type, two out of every 6 timeslots are used up by the SCO link. This means there is enough bandwidth to have up to three SCO links active between a master and slave at the same time. In this scenario, there are no spare timeslots for other data.There are 3 main types of SCO packets, HV1, HV2 and HV3 (High Quality Voice). As mentioned earlier, the HV3 packet type has a 1 to 1 mapping between incoming audio data and the data transmitted over the air. There is no error correction possible with HV3.With HV1, each bit is transmitted 3 times and a simple voting algorithm is used at the other end to correct for any bit errors. This means that only 10 bytes of actual audio data can be transmitted in a SCO packet. To maintain the 64 kbits/sec data rate, all 6 timeslots have to be used for the SCO link, leaving no bandwidth available for data.With HV2, an FEC algorithm is used to correct for 1 bit errors. This increases the data packet size by 50%. This means that only 20 bytes of actual audio data can be transmitted in a SCO packet. To maintain the 64 kbits/sec data rate, 4 out of every 6 timeslots are used for the SCO link.AT+BTA1 enables HV3AT+BTA2 enables HV2AT+BTA4 enables HV1AT+BTA7 allows the link manager to negotiate which packet type to use, the default is HV14.2 Enhanced SCOEnhanced SCO or eSCO was implemented as part of the 1.2 Bluetooth Core Specification Release. The main driving factor was to improve audio quality. This has been achieved by: 1)including a CRC as part of the audio data packet to allow error detection and a re-transmission request. 2)allowing higher data rates by using packets that span more than 1 timeslot 3) allowing asymmetric links to allow high quality audio to be streamed in one direction.eSCO offers significantly better audio quality, but has to be configured at both ends of the link before a unit is enabled to accept incoming connections or enquiries.To try out eSCO, add the ATS584=1 command to the commands listed in the quick start section immediately after the AT&F* and ATZ commands.Both ends of the link must be configured for eSCO for the audio link to be established. If one end is set to eSCO and the other to SCO, you will get an “AUDIO FAIL” when the AT+BTA1 command is issued.The following are the packet types associated with the AT+BTA commands for eSCO.AT+BTA1 – EV3 packet. Up to 30 bytes + CRC. Uses up 1 timeslotAT+BTA2 – EV4 packet. Up to 120 bytes + CRC + 2/3 FEC. Up to 3 timeslotsAT+BTA4 – EV5 packet. Up to 180 bytes + CRC. Up to 3 timeslots. Currently Unsupported4.3 SCO / eSCO Transport DelaysThe following delays have been measured between incoming audio and audio output at the other end of a Bluetooth link.Normal SCO: AT+BTA1 7.84 ms AT+BTA2 9.24 ms AT+BTA4 10.8 msEnhanced SCO AT+BTA1 12.1 ms AT+BTA2 33.4 ms AT+BTA4 41.2 msAs can be seen, the additional error correction of eSCO comes with a transport delay penalty. This is because a buffer is needed to ensure that there is still data to output while waiting for a corrupted data packet to be re-transmitted.For AT+BTA1 and normal SCO, the data is transmitted once every 6 timeslots so the transport delay is expected to be 6/1600 = 3.75ms. When doing loop-round testing with the codec, i.e. with no transport delay, it was found that from input to output, the codec added ~1ms of delay at 1kHz and 1.5ms at lower frequencies.4.4 PCM TimingThe codec samples at 8 kHz. The default mode of operation of the codec is 16 bit Receive Gain Adjust Mode. In this mode, in every 8 kHz cycle, 16 bits of data is clocked into the codec. The first 13 bits are PCM audio data, the last 3 bits are volume data. Of the last three bits, 000 equates to maximum volume (ATS589=7), 111 equates to minimum volume (Ats589=0).At maximum volume, the output signal matches the amplitude of the input signal at the other end of the Bluetooth link. It is more appropriate to think of this feature as being an attenuation control.The clock rate used for sampling is 250kHz (4µs). 16 clock cycles takes 64µs. 8kHz equates to 125µs.The same timing is used for all packet types in both SCO and eSCO modes.5.Frequency Response5.1 Codec Frequency ResponseThe codec frequency response can be measured by connecting PCM_IN from the codec to PCM_OUT to the codec (PCM_OUT from J1, the 10 way connector has to be disconnected). A 1kΩ pull down resistor is needed on PCM_OUT to ensure maximum volume setting.The following graph shows the measured frequency response. For this test, R32, the side-tone resistor was removed to prevent audio feedback.A 1V peak to peak sine wave was injected into the microphone circuit and its amplitude measured at TP5, A0, the input to the codec. The output from the codec was measured on TP6, PA0+.The chart below shows the codec frequency response with the High Pass Filter Enable (HB – Pin 16) pin set high and set low.As can be seen from the chart, the codec frequency response is flat between 300 and 3,300 Hz. With the high pass filter on, the 3dB points are at 150Hz and 3,600 Hz respectively. With the high pass filter off, the 3dB point goes down to approximately 15Hz.5.2 Bluetooth Link Frequency ResponseThe Codec 13bit linear data is coded within the Bluetooth chip using CVSD (Continuous Variable Slope Decode) encoding for transport over the Bluetooth link. CVSD is essentially a form of Adaptive Differential PCM (ADPCM) and is well suited for voice transmission. It is forgiving of individual bit corruption as each bit only implements an up or a down shift relative to the previous level (corruption of the MSB of a 13 bit sample would create a much larger error term than is possible with ADPCM). A draw back of ADPCM is that it cannot track large delta changes in signal quickly enough. For voice, this does not present a problem.The chart below shows the frequency response of the Bluetooth link at different levels of input sine wave.As can be seen, the frequency response can only be considered to be flat when the input voltage level is less than a 0.3V peak to peak sine wave.6.Circuit DescriptionThis section describes the individual parts of the circuit and give design information aboutthe components, to allow you to adapt the circuitry of the codec board for your own implementation.6.1 Audio AmplifierThe Winbond codec is capable of driving a 32Ω load directly if the gain of the output amplifier is reduced by a factor of 4. This is done by Setting R1 to 39kΩ.Of the stereo headsets tested, it was found that 32Ω was a common impedance for each earpiece. For a stereo headset where two speakers are being driven in parallel this would be equivalent to driving a 16Ω load. This is out of the codec’s specification so a small headphone amplifier, U3, has been used on the evaluation board. This is not required if the impedance of the earpiece is equal or greater than 32Ω.The large 100 μF decoupling capacitors have been used so that the codec could be tested in its “high pass filter mode disabled” configuration. If you do not require a frequency response to go down below 300 Hz, then these capacitors can be reduced to small values. The main design consideration is the impedance should not be significant compared to the impedance of the headphone selected at frequencies of interest.E.g. if using a 32Ω headphone and expecting a 3dB point at 300 Hz, then the decoupling capacitor impedance could be 32Ω at 300Hz i.e. 10 μF. This requires a much smaller footprint than the 100μF used in the reference design.6.2 Driving the Headset Directly from the CodecThis will achieve the most cost effective design but care must be taken to ensure that the 32Ω specification of load is met by selecting an appropriate headset.Remove R10, R13 and R12. Fit R11, R9, R38 as zero ohm links. Fit 39kΩ in place of R1 to reduce the gain by 4.In-house testing showed that with a 32Ω load and with R1 set to 39kΩ, that there was some distortion at zero cross-over but that it was not easily perceptible.Even though the output signal level had been reduced by a factor of 4, on the headsets tested, the volume levels sounded loud enough for most applications. It is important to check this with the target headset for your application.6.3 Microphone CircuitThe microphone circuit is designed for an electret microphone (which is commonly used in PC applications). Typically this would be powered by 5V via a 2.2kΩ series resistor. In the reference design, it is powered by 3.3V to ensure a clean supply regardless of the power supply used to power the Dev kit. This reduces the sensitivity of the microphone - you should test your application with the microphone and voltage you intend to use in order to determine your component values.The gain of the microphone is set by R22 and R24, with gain being equal to R22/R24. The current values are 62K and 3.9K, giving a gain of approximately 16. When changing to a different gain, R27 and R25 should be set to the new values as well. This ensures that the load seen by common mode noise on the microphone is identical and prevents it from being amplified.R31 is a no fit resistor. It’s purpose is to facilitate test modes where a user wants to loop audio output directly back to the audio input to conduct an over the air audio test.6.4 SidetoneWhen we talk, we hear our own voice, which is part of normal speech perception. If our ears are covered by headphones, we do not hear our voice, which is perceived as abnormal. (Try covering your ears while talking to notice the difference).To compensate for the loss in feedback to the ear when it is covered with a headphone, most telephony systems inject some of the microphone signal back into the audio output path so that the person perceives their own speech as normal. This feature is commonly referred to as sidetone.Variable resistor VR2 allows you to control the amount of sidetone that is fed back to the audio output so that the user perceives their speech as normal.If the headset design does not totally cover the ear, then the sideband circuitry can be omitted.6.5 Power DownFor battery powered audio applications, the power down feature of the codec allows you to turn it off and save power when it is not being used. This feature can be tested by fitting R7 with a 0Ωlink and controlling the PUI input of the codec via MPIO_5.For AT commands, MPIO_5 translates to GPIO 7.The put GPIO 7 into output mode, use “ats610=$040”To turn the codec on, use “ats627=1”To turn the codec off, use “ats627=0”6.6 Alternative PCM_CLKSome applications require that the PCM Clock is driven by external circuitry. This requires the PCM Interface provided by the BISM to be put in Slave mode and a clock is supplied by the external circuitry on MPIO_7.Contact Ezurio for further details if this is a requirement.6.7 SwitchesThe switches S1, S2 and S3 have no defined function. They are there to assist you to prototype your audio application. e.g. If your application requires a button to be pressed for the user to answer an incoming connection, you can prototype that function using one of the switches provided.ATS620 allows you to read the status of the GPIO ports.No switches pressed: ATS620? => $0028S1 pressed (GPIO 9) ATS620? => $0128S2 pressed (GPIO 7) ATS620? => $0068S3 pressed (GPIO 8) ATS620? => $00A86.8 High Pass Filter EnableThe W681360 can have its High Pass filter enabled or disabled, depending on the state of the HB pin (Pin 16). This is pulled high or low by R3 or R4 (Default). See section 5.1 for more details.6.9 GPIO to MPIO MappingAT commands use GPIO numbers to represent I/O lines. These GPIO numbers map to physical signals drawn on the schematics as MPIO lines. Some of the GPIO/MPIO lines are used when providing a full RS232 interface.The following tables gives the mapping between GPIO, MPIO and RS232 signals.DCD MPIO_3RI MPIO_2DTR MPIO_9DSR MPIO_8GPIO_1 MPIO_0GPIO_2 MPIO_1GPIO_3 MPIO_9GPIO_4 MPIO_10GPIO_5 MPIO_11GPIO_6 MPIO_4GPIO_7 MPIO_5GPIO_8 MPIO_6GPIO_9 MPIO_7Note: For the BISM PA (Class 1 design), MPIO_0 and MPIO_1 are used to control the RF switch so are not available to the AT Command Set.7. Bill of MaterialsNot all components are fitted, as some provide alternative functionality or implement non-standard options.Refer to the previous sections and the schematic for information on the component function. Components marked in blue are not fitted.Reference Part ToleranceDescription Manufacture r Part No / FootprintC1,C7100nF20%Ceramic Capacitor0805 C2,C3,C6 10uF '+80/-20% Tantalum Capacitor TANA C4,C5,C810nF20%Ceramic Capacitor0805C9,C10 100uF 20% Electrolytic Capacitor Panasonic EEE0JA101SP C11,C12,C17,C18 2.2uF '+80/-20% Ceramic Capacitor 0805 C13 22uF '+80/-20% Ceramic Capacitor 1210 C14 100nF '+80/-20% Ceramic Capacitor 0805 C15,C19 100pF 20% Ceramic Capacitor 0805 C161.0uF'+80/-20%Ceramic Capacitor0805D1,D2,D3,D4,D5,D6,D7,D8 BAT54S Dual Schottky Diode BAT54S Zetex BAT54S J1 10 Way 0.1" R/A PCB Socket Harwin M20-7891046 J2,J3 3.5mm 3way Audio Jack Skt Schurter 4832.232L110uHThin Film Inductor1210 R1,R2,R5,R35,R36,R37 10K 1% Thick Film Resistor 0805 R3,R7,R8,R9,R11,R34,R38 0R Not Fitted 5% Thick Film Resistor 0805 R4,R6,R10,R12,R13,R330R5%Thick Film Resistor0805 R14,R28,R29,R30 1K 5% Thick Film Resistor 0805 R152K2 Not Fitted 5% Thick Film Resistor 0805 R16,R17,R18,R19,R24,R25 3.9K 1% Thick Film Resistor 0805 R26,R20 1.5K 5% Thick Film Resistor 0805 R23,R21 200K 5% Thick Film Resistor 0805 R27,R22 62K1% Thick Film Resistor 0805 R31 62K Not Fitted 1% Thick Film Resistor 0805 R32 75K5% Thick Film Resistor0805 S1,S2,S3OMRON/B3S-1000Push Button Switch SPNO SMD Omron B3S-1000U1 AME8800AEFT 3.3V Low Drop Out Regulator300mA AME AME8800AEFT U2 W681360RG W681360RG CODEC Winbond W681360RG U3 LM4908MM Dual Headphone Amplifier Nat. Semi. LM4909MMVR1 20K Not Fitted 20% 20K Trimmer Vishay TS53YL 20K 20% TR VR250K20%50K TrimmerVishayTS53YL 50K 20% TR8. References1. Winbond W681360 Data Sheet – /PDF/Sheet/W681360.pdf2. ACC-005 Schematic – ERBLU49-002A1-029.DisclaimersEZURIO’S WIRELESS PRODUCTS ARE NOT AUTHORISED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE MANAGING DIRECTOR OF EZURIO LTD.The definitions used herein are:a) Life support devices or systems are devices which (1) are intended for surgical implant into the body, or (2) support or sustain life and whose failure to perform when properly used in accordance with the instructions for use provided in the labelling can reasonably be expected to result in a significant injury to the user.b) A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.EZURiO does not assume responsibility for use of any of the circuitry described, no circuit patent licenses are implied and EZURiO reserves the right at any time to change without notice said circuitry and specifications.9.1 Data Sheet StatusThis data sheet contains preliminary data for use with Engineering Samples. Supplementary data will be published at a later date. EZURiO Ltd reserve the right to change the specification without prior notice in order to improve the design and supply the best possible product.Please check with EZURiO Ltd for the most recent data before initiating orcompleting a design. Designers should check the production status of any engineering firmware used during development before it is deployed.。

SOP酸性气制硫酸工艺简介

Finn tube heat exchanger 翅片换热器
Glass tube heat exchangers 玻璃管换热器
Honeycomb Catalyst 蜂巢催化剂
HEATING AND COOLING加热和冷却
Heating, cooling and heat transfer systems have been the basis for P&P form the beginning, and heat recovery systems give P&P plants a big advantage to our competitors on the market. PP以加热、冷却和热传递系统起家，热回收系统是PP公司在众多市场竞争对手中的一个巨大优势。
Tendering 投标 Approvals 批准 Measuring测量 Engineering工程设计 Documentation文件 Construction 建设 Supervising 监管 Planning 计划 Software 软件 Start up开车 Service 服务
Maintenance维护
PLANT TECHNOLOGY装置技术
P&P is busy in Green Technology, heat transfer systems, cooling technology and waste air treatment systems. PP致力于绿色技术、热转换系统、冷却技术和废弃处理系统。 We are very proud to provide the proof that P&P plants have the best available technologies and the highest efficiency for energy consumption and return of investment. In most of the cases our clients earn money by our technologies without producing waste or useless by-products. 我们很自豪的提供关于最佳技术和最高效能源消耗利用和投资回报的业绩证明。大多数项目中，业主在不产生废弃物和无用的附加产品的情况下，通过我们的技术取得了经济效益。 Following systems give you an overview: 系统列举如下：

3GPP TS 36.331 V13.2.0 (2016-06)

3GPP TS 36.331 V13.2.0 (2016-06)Technical Specification3rd Generation Partnership Project;Technical Specification Group Radio Access Network;Evolved Universal Terrestrial Radio Access (E-UTRA);Radio Resource Control (RRC);Protocol specification(Release 13)The present document has been developed within the 3rd Generation Partnership Project (3GPP TM) and may be further elaborated for the purposes of 3GPP. The present document has not been subject to any approval process by the 3GPP Organizational Partners and shall not be implemented.This Specification is provided for future development work within 3GPP only. The Organizational Partners accept no liability for any use of this Specification. Specifications and reports for implementation of the 3GPP TM system should be obtained via the 3GPP Organizational Partners' Publications Offices.KeywordsUMTS, radio3GPPPostal address3GPP support office address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16InternetCopyright NotificationNo part may be reproduced except as authorized by written permission.The copyright and the foregoing restriction extend to reproduction in all media.© 2016, 3GPP Organizational Partners (ARIB, ATIS, CCSA, ETSI, TSDSI, TTA, TTC).All rights reserved.UMTS™ is a Trade Mark of ETSI registered for the benefit of its members3GPP™ is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational PartnersLTE™ is a Trade Mark of ETSI currently being registered for the benefit of its Members and of the 3GPP Organizational Partners GSM® and the GSM logo are registered and owned by the GSM AssociationBluetooth® is a Trade Mark of the Bluetooth SIG registered for the benefit of its membersContentsForeword (18)1Scope (19)2References (19)3Definitions, symbols and abbreviations (22)3.1Definitions (22)3.2Abbreviations (24)4General (27)4.1Introduction (27)4.2Architecture (28)4.2.1UE states and state transitions including inter RAT (28)4.2.2Signalling radio bearers (29)4.3Services (30)4.3.1Services provided to upper layers (30)4.3.2Services expected from lower layers (30)4.4Functions (30)5Procedures (32)5.1General (32)5.1.1Introduction (32)5.1.2General requirements (32)5.2System information (33)5.2.1Introduction (33)5.2.1.1General (33)5.2.1.2Scheduling (34)5.2.1.2a Scheduling for NB-IoT (34)5.2.1.3System information validity and notification of changes (35)5.2.1.4Indication of ETWS notification (36)5.2.1.5Indication of CMAS notification (37)5.2.1.6Notification of EAB parameters change (37)5.2.1.7Access Barring parameters change in NB-IoT (37)5.2.2System information acquisition (38)5.2.2.1General (38)5.2.2.2Initiation (38)5.2.2.3System information required by the UE (38)5.2.2.4System information acquisition by the UE (39)5.2.2.5Essential system information missing (42)5.2.2.6Actions upon reception of the MasterInformationBlock message (42)5.2.2.7Actions upon reception of the SystemInformationBlockType1 message (42)5.2.2.8Actions upon reception of SystemInformation messages (44)5.2.2.9Actions upon reception of SystemInformationBlockType2 (44)5.2.2.10Actions upon reception of SystemInformationBlockType3 (45)5.2.2.11Actions upon reception of SystemInformationBlockType4 (45)5.2.2.12Actions upon reception of SystemInformationBlockType5 (45)5.2.2.13Actions upon reception of SystemInformationBlockType6 (45)5.2.2.14Actions upon reception of SystemInformationBlockType7 (45)5.2.2.15Actions upon reception of SystemInformationBlockType8 (45)5.2.2.16Actions upon reception of SystemInformationBlockType9 (46)5.2.2.17Actions upon reception of SystemInformationBlockType10 (46)5.2.2.18Actions upon reception of SystemInformationBlockType11 (46)5.2.2.19Actions upon reception of SystemInformationBlockType12 (47)5.2.2.20Actions upon reception of SystemInformationBlockType13 (48)5.2.2.21Actions upon reception of SystemInformationBlockType14 (48)5.2.2.22Actions upon reception of SystemInformationBlockType15 (48)5.2.2.23Actions upon reception of SystemInformationBlockType16 (48)5.2.2.24Actions upon reception of SystemInformationBlockType17 (48)5.2.2.25Actions upon reception of SystemInformationBlockType18 (48)5.2.2.26Actions upon reception of SystemInformationBlockType19 (49)5.2.3Acquisition of an SI message (49)5.2.3a Acquisition of an SI message by BL UE or UE in CE or a NB-IoT UE (50)5.3Connection control (50)5.3.1Introduction (50)5.3.1.1RRC connection control (50)5.3.1.2Security (52)5.3.1.2a RN security (53)5.3.1.3Connected mode mobility (53)5.3.1.4Connection control in NB-IoT (54)5.3.2Paging (55)5.3.2.1General (55)5.3.2.2Initiation (55)5.3.2.3Reception of the Paging message by the UE (55)5.3.3RRC connection establishment (56)5.3.3.1General (56)5.3.3.1a Conditions for establishing RRC Connection for sidelink communication/ discovery (58)5.3.3.2Initiation (59)5.3.3.3Actions related to transmission of RRCConnectionRequest message (63)5.3.3.3a Actions related to transmission of RRCConnectionResumeRequest message (64)5.3.3.4Reception of the RRCConnectionSetup by the UE (64)5.3.3.4a Reception of the RRCConnectionResume by the UE (66)5.3.3.5Cell re-selection while T300, T302, T303, T305, T306, or T308 is running (68)5.3.3.6T300 expiry (68)5.3.3.7T302, T303, T305, T306, or T308 expiry or stop (69)5.3.3.8Reception of the RRCConnectionReject by the UE (70)5.3.3.9Abortion of RRC connection establishment (71)5.3.3.10Handling of SSAC related parameters (71)5.3.3.11Access barring check (72)5.3.3.12EAB check (73)5.3.3.13Access barring check for ACDC (73)5.3.3.14Access Barring check for NB-IoT (74)5.3.4Initial security activation (75)5.3.4.1General (75)5.3.4.2Initiation (76)5.3.4.3Reception of the SecurityModeCommand by the UE (76)5.3.5RRC connection reconfiguration (77)5.3.5.1General (77)5.3.5.2Initiation (77)5.3.5.3Reception of an RRCConnectionReconfiguration not including the mobilityControlInfo by theUE (77)5.3.5.4Reception of an RRCConnectionReconfiguration including the mobilityControlInfo by the UE(handover) (79)5.3.5.5Reconfiguration failure (83)5.3.5.6T304 expiry (handover failure) (83)5.3.5.7Void (84)5.3.5.7a T307 expiry (SCG change failure) (84)5.3.5.8Radio Configuration involving full configuration option (84)5.3.6Counter check (86)5.3.6.1General (86)5.3.6.2Initiation (86)5.3.6.3Reception of the CounterCheck message by the UE (86)5.3.7RRC connection re-establishment (87)5.3.7.1General (87)5.3.7.2Initiation (87)5.3.7.3Actions following cell selection while T311 is running (88)5.3.7.4Actions related to transmission of RRCConnectionReestablishmentRequest message (89)5.3.7.5Reception of the RRCConnectionReestablishment by the UE (89)5.3.7.6T311 expiry (91)5.3.7.7T301 expiry or selected cell no longer suitable (91)5.3.7.8Reception of RRCConnectionReestablishmentReject by the UE (91)5.3.8RRC connection release (92)5.3.8.1General (92)5.3.8.2Initiation (92)5.3.8.3Reception of the RRCConnectionRelease by the UE (92)5.3.8.4T320 expiry (93)5.3.9RRC connection release requested by upper layers (93)5.3.9.1General (93)5.3.9.2Initiation (93)5.3.10Radio resource configuration (93)5.3.10.0General (93)5.3.10.1SRB addition/ modification (94)5.3.10.2DRB release (95)5.3.10.3DRB addition/ modification (95)5.3.10.3a1DC specific DRB addition or reconfiguration (96)5.3.10.3a2LWA specific DRB addition or reconfiguration (98)5.3.10.3a3LWIP specific DRB addition or reconfiguration (98)5.3.10.3a SCell release (99)5.3.10.3b SCell addition/ modification (99)5.3.10.3c PSCell addition or modification (99)5.3.10.4MAC main reconfiguration (99)5.3.10.5Semi-persistent scheduling reconfiguration (100)5.3.10.6Physical channel reconfiguration (100)5.3.10.7Radio Link Failure Timers and Constants reconfiguration (101)5.3.10.8Time domain measurement resource restriction for serving cell (101)5.3.10.9Other configuration (102)5.3.10.10SCG reconfiguration (103)5.3.10.11SCG dedicated resource configuration (104)5.3.10.12Reconfiguration SCG or split DRB by drb-ToAddModList (105)5.3.10.13Neighbour cell information reconfiguration (105)5.3.10.14Void (105)5.3.10.15Sidelink dedicated configuration (105)5.3.10.16T370 expiry (106)5.3.11Radio link failure related actions (107)5.3.11.1Detection of physical layer problems in RRC_CONNECTED (107)5.3.11.2Recovery of physical layer problems (107)5.3.11.3Detection of radio link failure (107)5.3.12UE actions upon leaving RRC_CONNECTED (109)5.3.13UE actions upon PUCCH/ SRS release request (110)5.3.14Proximity indication (110)5.3.14.1General (110)5.3.14.2Initiation (111)5.3.14.3Actions related to transmission of ProximityIndication message (111)5.3.15Void (111)5.4Inter-RAT mobility (111)5.4.1Introduction (111)5.4.2Handover to E-UTRA (112)5.4.2.1General (112)5.4.2.2Initiation (112)5.4.2.3Reception of the RRCConnectionReconfiguration by the UE (112)5.4.2.4Reconfiguration failure (114)5.4.2.5T304 expiry (handover to E-UTRA failure) (114)5.4.3Mobility from E-UTRA (114)5.4.3.1General (114)5.4.3.2Initiation (115)5.4.3.3Reception of the MobilityFromEUTRACommand by the UE (115)5.4.3.4Successful completion of the mobility from E-UTRA (116)5.4.3.5Mobility from E-UTRA failure (117)5.4.4Handover from E-UTRA preparation request (CDMA2000) (117)5.4.4.1General (117)5.4.4.2Initiation (118)5.4.4.3Reception of the HandoverFromEUTRAPreparationRequest by the UE (118)5.4.5UL handover preparation transfer (CDMA2000) (118)5.4.5.1General (118)5.4.5.2Initiation (118)5.4.5.3Actions related to transmission of the ULHandoverPreparationTransfer message (119)5.4.5.4Failure to deliver the ULHandoverPreparationTransfer message (119)5.4.6Inter-RAT cell change order to E-UTRAN (119)5.4.6.1General (119)5.4.6.2Initiation (119)5.4.6.3UE fails to complete an inter-RAT cell change order (119)5.5Measurements (120)5.5.1Introduction (120)5.5.2Measurement configuration (121)5.5.2.1General (121)5.5.2.2Measurement identity removal (122)5.5.2.2a Measurement identity autonomous removal (122)5.5.2.3Measurement identity addition/ modification (123)5.5.2.4Measurement object removal (124)5.5.2.5Measurement object addition/ modification (124)5.5.2.6Reporting configuration removal (126)5.5.2.7Reporting configuration addition/ modification (127)5.5.2.8Quantity configuration (127)5.5.2.9Measurement gap configuration (127)5.5.2.10Discovery signals measurement timing configuration (128)5.5.2.11RSSI measurement timing configuration (128)5.5.3Performing measurements (128)5.5.3.1General (128)5.5.3.2Layer 3 filtering (131)5.5.4Measurement report triggering (131)5.5.4.1General (131)5.5.4.2Event A1 (Serving becomes better than threshold) (135)5.5.4.3Event A2 (Serving becomes worse than threshold) (136)5.5.4.4Event A3 (Neighbour becomes offset better than PCell/ PSCell) (136)5.5.4.5Event A4 (Neighbour becomes better than threshold) (137)5.5.4.6Event A5 (PCell/ PSCell becomes worse than threshold1 and neighbour becomes better thanthreshold2) (138)5.5.4.6a Event A6 (Neighbour becomes offset better than SCell) (139)5.5.4.7Event B1 (Inter RAT neighbour becomes better than threshold) (139)5.5.4.8Event B2 (PCell becomes worse than threshold1 and inter RAT neighbour becomes better thanthreshold2) (140)5.5.4.9Event C1 (CSI-RS resource becomes better than threshold) (141)5.5.4.10Event C2 (CSI-RS resource becomes offset better than reference CSI-RS resource) (141)5.5.4.11Event W1 (WLAN becomes better than a threshold) (142)5.5.4.12Event W2 (All WLAN inside WLAN mobility set becomes worse than threshold1 and a WLANoutside WLAN mobility set becomes better than threshold2) (142)5.5.4.13Event W3 (All WLAN inside WLAN mobility set becomes worse than a threshold) (143)5.5.5Measurement reporting (144)5.5.6Measurement related actions (148)5.5.6.1Actions upon handover and re-establishment (148)5.5.6.2Speed dependant scaling of measurement related parameters (149)5.5.7Inter-frequency RSTD measurement indication (149)5.5.7.1General (149)5.5.7.2Initiation (150)5.5.7.3Actions related to transmission of InterFreqRSTDMeasurementIndication message (150)5.6Other (150)5.6.0General (150)5.6.1DL information transfer (151)5.6.1.1General (151)5.6.1.2Initiation (151)5.6.1.3Reception of the DLInformationTransfer by the UE (151)5.6.2UL information transfer (151)5.6.2.1General (151)5.6.2.2Initiation (151)5.6.2.3Actions related to transmission of ULInformationTransfer message (152)5.6.2.4Failure to deliver ULInformationTransfer message (152)5.6.3UE capability transfer (152)5.6.3.1General (152)5.6.3.2Initiation (153)5.6.3.3Reception of the UECapabilityEnquiry by the UE (153)5.6.4CSFB to 1x Parameter transfer (157)5.6.4.1General (157)5.6.4.2Initiation (157)5.6.4.3Actions related to transmission of CSFBParametersRequestCDMA2000 message (157)5.6.4.4Reception of the CSFBParametersResponseCDMA2000 message (157)5.6.5UE Information (158)5.6.5.1General (158)5.6.5.2Initiation (158)5.6.5.3Reception of the UEInformationRequest message (158)5.6.6 Logged Measurement Configuration (159)5.6.6.1General (159)5.6.6.2Initiation (160)5.6.6.3Reception of the LoggedMeasurementConfiguration by the UE (160)5.6.6.4T330 expiry (160)5.6.7 Release of Logged Measurement Configuration (160)5.6.7.1General (160)5.6.7.2Initiation (160)5.6.8 Measurements logging (161)5.6.8.1General (161)5.6.8.2Initiation (161)5.6.9In-device coexistence indication (163)5.6.9.1General (163)5.6.9.2Initiation (164)5.6.9.3Actions related to transmission of InDeviceCoexIndication message (164)5.6.10UE Assistance Information (165)5.6.10.1General (165)5.6.10.2Initiation (166)5.6.10.3Actions related to transmission of UEAssistanceInformation message (166)5.6.11 Mobility history information (166)5.6.11.1General (166)5.6.11.2Initiation (166)5.6.12RAN-assisted WLAN interworking (167)5.6.12.1General (167)5.6.12.2Dedicated WLAN offload configuration (167)5.6.12.3WLAN offload RAN evaluation (167)5.6.12.4T350 expiry or stop (167)5.6.12.5Cell selection/ re-selection while T350 is running (168)5.6.13SCG failure information (168)5.6.13.1General (168)5.6.13.2Initiation (168)5.6.13.3Actions related to transmission of SCGFailureInformation message (168)5.6.14LTE-WLAN Aggregation (169)5.6.14.1Introduction (169)5.6.14.2Reception of LWA configuration (169)5.6.14.3Release of LWA configuration (170)5.6.15WLAN connection management (170)5.6.15.1Introduction (170)5.6.15.2WLAN connection status reporting (170)5.6.15.2.1General (170)5.6.15.2.2Initiation (171)5.6.15.2.3Actions related to transmission of WLANConnectionStatusReport message (171)5.6.15.3T351 Expiry (WLAN connection attempt timeout) (171)5.6.15.4WLAN status monitoring (171)5.6.16RAN controlled LTE-WLAN interworking (172)5.6.16.1General (172)5.6.16.2WLAN traffic steering command (172)5.6.17LTE-WLAN aggregation with IPsec tunnel (173)5.6.17.1General (173)5.7Generic error handling (174)5.7.1General (174)5.7.2ASN.1 violation or encoding error (174)5.7.3Field set to a not comprehended value (174)5.7.4Mandatory field missing (174)5.7.5Not comprehended field (176)5.8MBMS (176)5.8.1Introduction (176)5.8.1.1General (176)5.8.1.2Scheduling (176)5.8.1.3MCCH information validity and notification of changes (176)5.8.2MCCH information acquisition (178)5.8.2.1General (178)5.8.2.2Initiation (178)5.8.2.3MCCH information acquisition by the UE (178)5.8.2.4Actions upon reception of the MBSFNAreaConfiguration message (178)5.8.2.5Actions upon reception of the MBMSCountingRequest message (179)5.8.3MBMS PTM radio bearer configuration (179)5.8.3.1General (179)5.8.3.2Initiation (179)5.8.3.3MRB establishment (179)5.8.3.4MRB release (179)5.8.4MBMS Counting Procedure (179)5.8.4.1General (179)5.8.4.2Initiation (180)5.8.4.3Reception of the MBMSCountingRequest message by the UE (180)5.8.5MBMS interest indication (181)5.8.5.1General (181)5.8.5.2Initiation (181)5.8.5.3Determine MBMS frequencies of interest (182)5.8.5.4Actions related to transmission of MBMSInterestIndication message (183)5.8a SC-PTM (183)5.8a.1Introduction (183)5.8a.1.1General (183)5.8a.1.2SC-MCCH scheduling (183)5.8a.1.3SC-MCCH information validity and notification of changes (183)5.8a.1.4Procedures (184)5.8a.2SC-MCCH information acquisition (184)5.8a.2.1General (184)5.8a.2.2Initiation (184)5.8a.2.3SC-MCCH information acquisition by the UE (184)5.8a.2.4Actions upon reception of the SCPTMConfiguration message (185)5.8a.3SC-PTM radio bearer configuration (185)5.8a.3.1General (185)5.8a.3.2Initiation (185)5.8a.3.3SC-MRB establishment (185)5.8a.3.4SC-MRB release (185)5.9RN procedures (186)5.9.1RN reconfiguration (186)5.9.1.1General (186)5.9.1.2Initiation (186)5.9.1.3Reception of the RNReconfiguration by the RN (186)5.10Sidelink (186)5.10.1Introduction (186)5.10.1a Conditions for sidelink communication operation (187)5.10.2Sidelink UE information (188)5.10.2.1General (188)5.10.2.2Initiation (189)5.10.2.3Actions related to transmission of SidelinkUEInformation message (193)5.10.3Sidelink communication monitoring (195)5.10.6Sidelink discovery announcement (198)5.10.6a Sidelink discovery announcement pool selection (201)5.10.6b Sidelink discovery announcement reference carrier selection (201)5.10.7Sidelink synchronisation information transmission (202)5.10.7.1General (202)5.10.7.2Initiation (203)5.10.7.3Transmission of SLSS (204)5.10.7.4Transmission of MasterInformationBlock-SL message (205)5.10.7.5Void (206)5.10.8Sidelink synchronisation reference (206)5.10.8.1General (206)5.10.8.2Selection and reselection of synchronisation reference UE (SyncRef UE) (206)5.10.9Sidelink common control information (207)5.10.9.1General (207)5.10.9.2Actions related to reception of MasterInformationBlock-SL message (207)5.10.10Sidelink relay UE operation (207)5.10.10.1General (207)5.10.10.2AS-conditions for relay related sidelink communication transmission by sidelink relay UE (207)5.10.10.3AS-conditions for relay PS related sidelink discovery transmission by sidelink relay UE (208)5.10.10.4Sidelink relay UE threshold conditions (208)5.10.11Sidelink remote UE operation (208)5.10.11.1General (208)5.10.11.2AS-conditions for relay related sidelink communication transmission by sidelink remote UE (208)5.10.11.3AS-conditions for relay PS related sidelink discovery transmission by sidelink remote UE (209)5.10.11.4Selection and reselection of sidelink relay UE (209)5.10.11.5Sidelink remote UE threshold conditions (210)6Protocol data units, formats and parameters (tabular & ASN.1) (210)6.1General (210)6.2RRC messages (212)6.2.1General message structure (212)–EUTRA-RRC-Definitions (212)–BCCH-BCH-Message (212)–BCCH-DL-SCH-Message (212)–BCCH-DL-SCH-Message-BR (213)–MCCH-Message (213)–PCCH-Message (213)–DL-CCCH-Message (214)–DL-DCCH-Message (214)–UL-CCCH-Message (214)–UL-DCCH-Message (215)–SC-MCCH-Message (215)6.2.2Message definitions (216)–CounterCheck (216)–CounterCheckResponse (217)–CSFBParametersRequestCDMA2000 (217)–CSFBParametersResponseCDMA2000 (218)–DLInformationTransfer (218)–HandoverFromEUTRAPreparationRequest (CDMA2000) (219)–InDeviceCoexIndication (220)–InterFreqRSTDMeasurementIndication (222)–LoggedMeasurementConfiguration (223)–MasterInformationBlock (225)–MBMSCountingRequest (226)–MBMSCountingResponse (226)–MBMSInterestIndication (227)–MBSFNAreaConfiguration (228)–MeasurementReport (228)–MobilityFromEUTRACommand (229)–Paging (232)–ProximityIndication (233)–RNReconfiguration (234)–RNReconfigurationComplete (234)–RRCConnectionReconfiguration (235)–RRCConnectionReconfigurationComplete (240)–RRCConnectionReestablishment (241)–RRCConnectionReestablishmentComplete (241)–RRCConnectionReestablishmentReject (242)–RRCConnectionReestablishmentRequest (243)–RRCConnectionReject (243)–RRCConnectionRelease (244)–RRCConnectionResume (248)–RRCConnectionResumeComplete (249)–RRCConnectionResumeRequest (250)–RRCConnectionRequest (250)–RRCConnectionSetup (251)–RRCConnectionSetupComplete (252)–SCGFailureInformation (253)–SCPTMConfiguration (254)–SecurityModeCommand (255)–SecurityModeComplete (255)–SecurityModeFailure (256)–SidelinkUEInformation (256)–SystemInformation (258)–SystemInformationBlockType1 (259)–UEAssistanceInformation (264)–UECapabilityEnquiry (265)–UECapabilityInformation (266)–UEInformationRequest (267)–UEInformationResponse (267)–ULHandoverPreparationTransfer (CDMA2000) (273)–ULInformationTransfer (274)–WLANConnectionStatusReport (274)6.3RRC information elements (275)6.3.1System information blocks (275)–SystemInformationBlockType2 (275)–SystemInformationBlockType3 (279)–SystemInformationBlockType4 (282)–SystemInformationBlockType5 (283)–SystemInformationBlockType6 (287)–SystemInformationBlockType7 (289)–SystemInformationBlockType8 (290)–SystemInformationBlockType9 (295)–SystemInformationBlockType10 (295)–SystemInformationBlockType11 (296)–SystemInformationBlockType12 (297)–SystemInformationBlockType13 (297)–SystemInformationBlockType14 (298)–SystemInformationBlockType15 (298)–SystemInformationBlockType16 (299)–SystemInformationBlockType17 (300)–SystemInformationBlockType18 (301)–SystemInformationBlockType19 (301)–SystemInformationBlockType20 (304)6.3.2Radio resource control information elements (304)–AntennaInfo (304)–AntennaInfoUL (306)–CQI-ReportConfig (307)–CQI-ReportPeriodicProcExtId (314)–CrossCarrierSchedulingConfig (314)–CSI-IM-Config (315)–CSI-IM-ConfigId (315)–CSI-RS-Config (317)–CSI-RS-ConfigEMIMO (318)–CSI-RS-ConfigNZP (319)–CSI-RS-ConfigNZPId (320)–CSI-RS-ConfigZP (321)–CSI-RS-ConfigZPId (321)–DMRS-Config (321)–DRB-Identity (322)–EPDCCH-Config (322)–EIMTA-MainConfig (324)–LogicalChannelConfig (325)–LWA-Configuration (326)–LWIP-Configuration (326)–RCLWI-Configuration (327)–MAC-MainConfig (327)–P-C-AndCBSR (332)–PDCCH-ConfigSCell (333)–PDCP-Config (334)–PDSCH-Config (337)–PDSCH-RE-MappingQCL-ConfigId (339)–PHICH-Config (339)–PhysicalConfigDedicated (339)–P-Max (344)–PRACH-Config (344)–PresenceAntennaPort1 (346)–PUCCH-Config (347)–PUSCH-Config (351)–RACH-ConfigCommon (355)–RACH-ConfigDedicated (357)–RadioResourceConfigCommon (358)–RadioResourceConfigDedicated (362)–RLC-Config (367)–RLF-TimersAndConstants (369)–RN-SubframeConfig (370)–SchedulingRequestConfig (371)–SoundingRS-UL-Config (372)–SPS-Config (375)–TDD-Config (376)–TimeAlignmentTimer (377)–TPC-PDCCH-Config (377)–TunnelConfigLWIP (378)–UplinkPowerControl (379)–WLAN-Id-List (382)–WLAN-MobilityConfig (382)6.3.3Security control information elements (382)–NextHopChainingCount (382)–SecurityAlgorithmConfig (383)–ShortMAC-I (383)6.3.4Mobility control information elements (383)–AdditionalSpectrumEmission (383)–ARFCN-ValueCDMA2000 (383)–ARFCN-ValueEUTRA (384)–ARFCN-ValueGERAN (384)–ARFCN-ValueUTRA (384)–BandclassCDMA2000 (384)–BandIndicatorGERAN (385)–CarrierFreqCDMA2000 (385)–CarrierFreqGERAN (385)–CellIndexList (387)–CellReselectionPriority (387)–CellSelectionInfoCE (387)–CellReselectionSubPriority (388)–CSFB-RegistrationParam1XRTT (388)–CellGlobalIdEUTRA (389)–CellGlobalIdUTRA (389)–CellGlobalIdGERAN (390)–CellGlobalIdCDMA2000 (390)–CellSelectionInfoNFreq (391)–CSG-Identity (391)–FreqBandIndicator (391)–MobilityControlInfo (391)–MobilityParametersCDMA2000 (1xRTT) (393)–MobilityStateParameters (394)–MultiBandInfoList (394)–NS-PmaxList (394)–PhysCellId (395)–PhysCellIdRange (395)–PhysCellIdRangeUTRA-FDDList (395)–PhysCellIdCDMA2000 (396)–PhysCellIdGERAN (396)–PhysCellIdUTRA-FDD (396)–PhysCellIdUTRA-TDD (396)–PLMN-Identity (397)–PLMN-IdentityList3 (397)–PreRegistrationInfoHRPD (397)–Q-QualMin (398)–Q-RxLevMin (398)–Q-OffsetRange (398)–Q-OffsetRangeInterRAT (399)–ReselectionThreshold (399)–ReselectionThresholdQ (399)–SCellIndex (399)–ServCellIndex (400)–SpeedStateScaleFactors (400)–SystemInfoListGERAN (400)–SystemTimeInfoCDMA2000 (401)–TrackingAreaCode (401)–T-Reselection (402)–T-ReselectionEUTRA-CE (402)6.3.5Measurement information elements (402)–AllowedMeasBandwidth (402)–CSI-RSRP-Range (402)–Hysteresis (402)–LocationInfo (403)–MBSFN-RSRQ-Range (403)–MeasConfig (404)–MeasDS-Config (405)–MeasGapConfig (406)–MeasId (407)–MeasIdToAddModList (407)–MeasObjectCDMA2000 (408)–MeasObjectEUTRA (408)–MeasObjectGERAN (412)–MeasObjectId (412)–MeasObjectToAddModList (412)–MeasObjectUTRA (413)–ReportConfigEUTRA (422)–ReportConfigId (425)–ReportConfigInterRAT (425)–ReportConfigToAddModList (428)–ReportInterval (429)–RSRP-Range (429)–RSRQ-Range (430)–RSRQ-Type (430)–RS-SINR-Range (430)–RSSI-Range-r13 (431)–TimeToTrigger (431)–UL-DelayConfig (431)–WLAN-CarrierInfo (431)–WLAN-RSSI-Range (432)–WLAN-Status (432)6.3.6Other information elements (433)–AbsoluteTimeInfo (433)–AreaConfiguration (433)–C-RNTI (433)–DedicatedInfoCDMA2000 (434)–DedicatedInfoNAS (434)–FilterCoefficient (434)–LoggingDuration (434)–LoggingInterval (435)–MeasSubframePattern (435)–MMEC (435)–NeighCellConfig (435)–OtherConfig (436)–RAND-CDMA2000 (1xRTT) (437)–RAT-Type (437)–ResumeIdentity (437)–RRC-TransactionIdentifier (438)–S-TMSI (438)–TraceReference (438)–UE-CapabilityRAT-ContainerList (438)–UE-EUTRA-Capability (439)–UE-RadioPagingInfo (469)–UE-TimersAndConstants (469)–VisitedCellInfoList (470)–WLAN-OffloadConfig (470)6.3.7MBMS information elements (472)–MBMS-NotificationConfig (472)–MBMS-ServiceList (473)–MBSFN-AreaId (473)–MBSFN-AreaInfoList (473)–MBSFN-SubframeConfig (474)–PMCH-InfoList (475)6.3.7a SC-PTM information elements (476)–SC-MTCH-InfoList (476)–SCPTM-NeighbourCellList (478)6.3.8Sidelink information elements (478)–SL-CommConfig (478)–SL-CommResourcePool (479)–SL-CP-Len (480)–SL-DiscConfig (481)–SL-DiscResourcePool (483)–SL-DiscTxPowerInfo (485)–SL-GapConfig (485)。

惠普彩色打印机HP Color LaserJet Pro M255dw用户手册说明书

Data sheet HP Color LaserJet Pro M255dwExtraordinary wireless printing. Fast, two-sided results.Impress with colour and increase efficiency. Get high-quality colour and fast two-sided print speeds. Save time with Smart Task shortcuts in HP Smart app, and print and scan from your phone. Get seamless connections and strong security solutions.Dynamic security enabled printer. Onlyintended to be used with cartridges using anHP original chip. Cartridges using a non-HPchip may not work, and those that work todaymay not work in the future. Learn more at:/go/learnaboutsuppliesHighlights3-year HP Commercial warranty at no extra cost Up to 21 ppm black and colourSave time with Smart Task shortcuts in HP Smart AppHP Auto-On/Auto-Off TechnologyDual band Wi-Fi®, built-in fast Ethernet, Hi-Speed USBAutomatic two-sided printing6.85 cm colour touchscreenEasy-access USB port250-sheet input tray, 100-sheet output tray Freedom to work anywhere Get easy printing and scanning from your mobile device, with HP Smart – best-in-class mobile print app.Eliminate steps in repetitive tasks with customisable shortcuts, with Smart Tasks in HP Smart app. Scan to the cloud, email, and more – in just a anise documents 50% faster with Smart Tasks – first mobile print app that automates scanning tasks.Get notifications when printing, scanning, or copying from your mobile device, using HP Smart app.Trusted HP quality and performance Get high-quality colour and peak printing performance with Original HP Toner cartridges with JetIntelligence.Speed through multipage documents with automatic two-sided printing.Easily manage tasks at the device with an intuitive touchscreen.Help save energy with HP Auto-On/Auto-Off Technology and this ENERGY STAR® certified colour laser MFP.Strong security, reliable connections Help protect your data. Get strong security with real-time threat detection and softwarevalidation.Get faster , more reliable connections with dual band Wi-Fi®.Easily share resources – access and print with wireless and Ethernet networking.Connect your mobile device directly to your printer – and easily print without accessing anetwork.12972,324526718Product walkaroundHP Color LaserJet Pro M255dw shown1. Automatic two-sided printing2. Easy-access USB port3. Dual band Wi-Fi®, built-in fast Ethernet, Hi-Speed USB4. 21 ppm, A45. Single sheet priority input tray6. 250 sheet input tray7. 6.85 cm colour touchscreen8. HP Auto-On/Auto-Off Technology3,49. HP Smart- best in class mobile print appAccessories, Supplies and SupportSupplies W2210A HP 207A Black Original LaserJet Toner Cartridge (1,350 pages)W2210X HP 207X High Yield Black Original LaserJet Toner Cartridge (3,150 pages)W2211A HP 207A Cyan Original LaserJet Toner Cartridge (1,250 pages)W2211X HP 207X High Yield Cyan Original LaserJet Toner Cartridge (2,450 pages)W2212A HP 207A Yellow Original LaserJet Toner Cartridge (1,250 pages)W2212X HP 207X High Yield Yellow Original LaserJet Toner Cartridge (2,450 pages)W2213A HP 207A Magenta Original LaserJet Toner Cartridge (1,250 pages)W2213X HP 207X High Yield Magenta Original LaserJet Toner Cartridge (2,450 pages)Service and Support UG206E 3 years Standard Exchange for HP Color LaserJet Pro M255 Printer seriesUG086E 3 years Next Business Day exchange for HP Color LaserJet Pro M255 Printer seriesUG289E 3 years Return to Depot for HP Color LaserJet Pro M255 Printer series(UG206E - available in all EMEA countries except ME, Adriatic, Africa, South Africa, Israel, Slovenia, Turkey, UG086E - available in Austria, Belgium,Finland, France, Germany, Ireland, Italy, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, UK, UG289E - available in Adriatic, Africa, EEM,Israel, ME, Moldovia, Romania, South Africa, Slovenia, Turkey)Technical specificationsModel HP Color LaserJet Pro M255dwProduct number7KW64AFunctions PrintControl panel 6.8 cm (2.7 in) colour graphic touchscreen with 3 button at left side (Home, Help, Back)PrintPrint technology LaserPrint speed Black (A4, normal) Up to 21 ppm; Colour (A4, normal): Up to 21 ppm;Black (A4, duplex): Up to 12 ppm; Colour (A4, duplex): Up to 12 ppm;First page out Black (A4, ready): As fast as 10.5 sec; Colour (A4, ready): As fast as 12.2 sec;Black (A4, sleep): As fast as 12.1 sec; Colour (A4, sleep): As fast as 12.4 sec;Print resolution Black (best): Up to 600 x 600 dpi; Colour (best): Up to 600 x 600 dpi;Technology: ImageRET 3600;Monthly duty cycle Up to 40,000 pages A4; Recommended monthly page volume: 150 to 2,500Printer smart software features 6.8 cm (2.7 in) colour touchscreen, Automatic 2-sided printing, Wireless printing, Ethernet networking, Wireless direct printing, HP ePrint, Apple AirPrint™, Mopria-certified, Google Cloud Print, HP Auto-On/Auto-Off technology, HP Smart App, Smart task shortcuts in HP Smart App, HP JetAdvantage Secure PrintStandard print languages HP PCL6; HP PCL5c; HP postscript level 3 emulation; PWG raster; PDF; PCLm; PCLm-S; NativeOffice; URFFonts and typefaces84 scalable TrueType fonts. Additional Font Solutions available at /go/laserjetfontsPrint area Print margins Top: 5 mm, Bottom: 5 mm, Left: 5 mm, Right: 5 mm; Maximum print area : 206 x 346 mmDuplex printing Automatic (standard)Processor speed800 MHzConnectivityStandard Hi-Speed USB 2.0 port; Built-in Fast Ethernet 10/100Base-TX network port; 802.11n 2.4/5GHz wireless; Walkup host USB portWireless Built-in 802.11 b/g/n; Authentication via WEP, WPA/WPA2, or 802.1X; Encryption via AES or TKIP; WPS; Wi-Fi DirectMobile printing capability HP ePrint; Apple AirPrint™; Mobile Apps; Mopria™ Certified; Wi-Fi® Direct printingSupported network protocols TCP/IP, IPv4, IPv6; Print: TCP-IP port 9100 Direct Mode, LPD (raw queue support only), WSD; Discovery: SLP, Bonjour, WS-Discovery; IP Config: IPv4 (BootP, DHCP, AutoIP, Manual), IPv6Network capabilities Yes, via built-in 10/100 Base-TX Ethernet; Authentication via 802.1XMemory Standard: 256 MB DDR, 256 MB NAND Flash; Maximum : 256 MB DDR, 256 MB NAND FlashMedia handlingNumber of paper trays Standard: 2; Maximum: 2Media types Paper (bond, brochure, coloured, glossy, heavy, letterhead, light, photo, plain, preprinted, prepunched, recycled, rough), transparencies, labels, envelopes, cardstockMedia size Custom (metric): 76 x 127 to 216 x 356 mmSupported (metric): Executive (184 x 267 mm); Oficio 8.5x13 (216 x 330 mm); 4 x 6 (102 x 152 mm); 5 x 8 (127 x 203 mm); A4 (210 x 299 mm); A5 (148 x 210 mm); A6 (105 x 148 mm); B5(JIS) (182 x 257 mm); B6(JIS) (128 x 182 mm); 10 x 15cm (100 x 150 mm); Oficio (216 x 340 mm); 16K (195 x 270 mm; 184 x 260 mm; 197 x 273mm); Postcard(JIS) (100 x 147 mm); Double Postcard(JIS) (147 x 200 mm); Envelope #10 (105 x 241 mm); Envelope Monarch (98 x 191 mm); Envelope B5 (176 x 250 mm); Envelope C5 (162 x 229 mm); Envelope DL (110 x 220 mm); A5-R (210 x 148 mm)ModelHP Color LaserJet Pro M255dw Product number7KW64A Media handlingStandard input: 250 sheet input tray Standard output: 100 sheet output bin Media weight60 to 163 g/m² (Uncoated/Matte, recommended), however up to 175 g/m² Postcards and 200 g/m² HP Matte is allowed in the driver; 60 to 163 g/m² (Coated/Glossy,recommended) , however up to 175 g/m² Postcards and 220 g/m² HP Glossy is allowed in the driver.Input capacity Tray 1: 1 sheet all media types Tray 2: 25 mm stack height (75 g/m²)Maximum: Up to 250 sheets (25 mm stack height) in Tray 2Output capacity Standard: Up to 100 sheets (10 mm stack height)Envelopes: 10 mm stack heightTransparencies: 10 mm stack heightMaximum: Up to 100 sheets (10 mm stack height)Compatible operating systems Windows® 10, 8.1, 8, 7: 32/64-bit, 2 GB available hard disk space, Internet connection, USB port, Internet Explorer; Windows Vista®: 32-bit only, 2 GB available harddisk space, Internet connection, USB port, Internet Explorer 8; Windows® XP SP3 or higher: 32-bit only, any Intel® Pentium® II, Celeron® or 233 MHz compatibleprocessor , 850 MB available hard disk space, Internet connection, USB port, Internet Explorer 8; Windows Server support is provided via the command line installer andsupports Win Server 2008 R2 and higher; Apple® macOS Sierra (v10.12), macOS High Sierra (v10.13), macOS Mojave (v10.14), macOS Catalina(v10.15), 200 MBavailable hard disk space, Internet required for download, USB; Linux: for more information see https:///hp-linux-imaging-and-printing; Unix: formore information see .Compatible network operating systems Windows® 10, 8.1, 8, 7: 32/64-bit, 2 GB available hard disk space, Internet connection, USB port, Internet Explorer; Windows Vista®: 32-bit only, 2 GB available harddisk space, Internet connection, USB port, Internet Explorer 8; Windows® XP SP3 or higher: 32-bit only, any Intel® Pentium® II, Celeron® or 233 MHz compatibleprocessor , 850 MB available hard disk space, Internet connection, USB port, Internet Explorer 8; Windows Server support is provided via the command line installer andsupports Win Server 2008 R2 and higher; Apple® macOS Sierra (v10.12), macOS High Sierra (v10.13), macOS Mojave (v10.14), macOS Catalina(v10.15), 200 MBavailable hard disk space, Internet required for download, USB; Linux: for more information see https:///hp-linux-imaging-and-printing; Unix: formore information see .Minimum system requirements Windows: Windows® 10, 8.1, 8, 7: 32/64-bit, 2 GB available hard disk space, Internet connection, USB port, Internet Explorer; Windows Vista®: 32-bit only, 2 GBavailable hard disk space, Internet connection, USB port, Internet Explorer 8; Windows® XP SP3 or higher: 32-bit only, any Intel® Pentium® II, Celeron® or 233 MHzcompatible processor , 850 MB available hard disk space, Internet connection, USB port, Internet Explorer 8; Windows Server support is provided via the command lineinstaller and supports Win Server 2008 R2 and higherMac: Apple® macOS Sierra (v10.12), macOS High Sierra (v10.13), macOS Mojave (v10.14), macOS Catalina(v10.15), 200 MB available hard disk space, Internet requiredfor download, USBSoftware included No CD (Software is not included In-Box); Downloadable Software only from , /laserjet or Security management Embedded Web Server: password-protection, secure browsing via SSL/TLS; Network: enable/disable network ports and features, SNMPv1 community passwordchange; HP ePrint: HTTPS with certificate validation, HTTP Basic Access Authentication; Firewall and ACL; SNMPv3Printer management HP Printer Assistant (UDC); HP Device Toolbox; HP JetAdvantage Security ManagerDimensions and weight Printer dimensions (W x D x H)Minimum 392 x 419 x 247.5 mm;Maximum: 392 x 475x 297 mm;Package dimensions (W x D x H)498 x 298 x 510 mmPrinter weight 14.8 kgPackage weight 17.4 kgOperating environment Temperature: 10 to 32.5°CHumidity: 30 to 70% RHStorage conditions Temperature: -20 to 40°CHumidity: 0 to 95% RHAcoustics Acoustic power emissions: 6.4 B(A) (colour/simplex); 6.3 B(A) (monochrome/simplex); 6.3 B(A) (monochrome/duplex); 6.3 B(A) (colour/duplex)Acoustic pressure emissions: 50 dB(A) (colour/simplex); 50 dB(A) (monochrome/simplex); 50 dB(A) (monochrome/duplex); 50 dB(A) (colour/duplex)Power Requirements: 220 to 240 VAC (+/- 10%), 50 Hz (+/- 3 Hz), 60 Hz (+/- 3 Hz);Consumption: 337 watts (active printing), 7.2 watts (ready), 0.8 watt (sleep), 0.6 watt (Manual-Off), 0.05 (Auto Off/Manual On), 0.6 watt (Auto Off/Wake on LAN);Typical Electricity Consumption (TEC): Energy Star: 0.23 kWh/Week; Blue Angel: 0.606 kWh/Week;Power supply type: Internal (built-in) Power Supply;Energy savings feature technology HP Auto-On/Auto-Off Technology; Instant-on TechnologyCertifications CISPR32:2012 & CISPR32:2015/EN55032:2012 & EN55032:2015+AC:2016 - Class B; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 55024:2010+A1:2015ENERGY STAR® qualified; EPEAT® SilverBlue Angel compliant Yes, Blue Angel DE-UZ 205—only ensured when using Original HP suppliesCountry of origin Made in VietnamWhat's in the box HP Color LaserJet Pro M255dw printer; Introductory HP LaserJet cartridges: 700 colour composite (C/Y/M) page yield and 800 page yield black; Installation guide;Power cord; USB cableWarrantyOne-year unit exchange warranty. Warranty and support options vary by product, country and local legal requirements. Go to /support to learnabout HP award winning service and support options in your region.1234FootnotesWireless operations are compatible with 2.4 GHz and 5.0 GHz operations only. Learn more at /go/mobileprinting. Requires the HP Smart app download. For details on local printing requirements see /go/mobileprinting. Certain features/software are available in English language only.Compared to OEM mobile printing apps for the majority of top-selling inkjet & laser printers & all-in-ones for home & home office, priced less than or equal to €429.99. Market share as reported by IDC CYQ2 2018 Hardcopy Peripherals Tracker. Claim based on research of printer manufacturer’s mobile print apps and Keypoint Intelligence – Buyers Lab hands-on testing and study commissioned by HP. See September 2018 reportat /HPSmartApp.Based on internal HP testing. Average timing estimate based on: 1) downloaded HP Smart app on mobile or desktop device, 2) setting up Smart Tasks shortcut, 3) scanning jobs which have more than 2-3 tasks associated with them (scan to email, save and rename, store to cloud, etc.). Average timing savings comparison based on using printer and desktop scan software to complete similar scanning tasks. Requires the HP Smart app download and supported HP printer. For details on local printing requirements see /go/mobileprinting. Certain features/software are available in English language only.Compared to the majority of competing in-class consumer colour desktop inkjet all-in-ones <€299. Keypoint Intelligence – Buyers Lab 2018 research study commissioned by HP based on research survey of printermanufacturers’ published specifications, sustainability reports and press releases as of 12/15/2018 and not confirmed by lab testing. Market share as reported by IDC CYQ3 2018 Hardcopy Peripherals Tracker , CYQ3 2018 Release.The ability to automate work defined as having the capability to use the OEM mobile print app to create a multistep workflow on mobile device and have a shortcut appear on the app and/or on control panel of printer; and/or use intelligent Optical Character Recognition to name a scanned file based on the first few words of a document. For more details, see /HPOfficeJetPro.HP Auto-On/Auto-Off Technology capabilities subject to printer and settings; may require a firmware upgrade. HP Color LaserJet Pro M255dw is Energy star 3.0 certified. For more information go tohttps:///sites/default/files/FINAL%20Version%203.0%20Imaging%20Equipment%20Specification%20Cover%20Memo.pdf. For EPA buying guidance and specs go tohttps:///products/office_equipment/imaging_equipment. Model M255nw is not eligible for the ES3.0 due to not meeting duplexer requirements.Wireless operations are compatible with 2.4 GHz and 5.0 GHz operations only. Learn more at /go/mobileprinting. Wi-Fi is a registered trademark of Wi-Fi Alliance®. Supports both 5.0 GHz and 2.4 GHz using up to 12 non-overlapping channels vs only 3 non-overlapping channels for 2.4 GHz only. Supports 5.0 GHz band (up to 150 mbps) vs 2.4 GHz band (up to 72.2 mbps).Mobile device needs to be connected to Wi-Fi Direct® signal of a Wi-Fi Direct-supported AiO or printer prior to printing. Details at /go/mobileprinting. Wi-Fi Direct® is a registered trademark of Wi-Fi Alliance®. Register within first 60 days at /eu/3yearwarranty.Technical specifications disclaimersNot supporting Windows® XP (64-bit) and Windows Vista® (64-bit); "Compatible Operating Systems" are not supported with INBOX software, but downloadable from online; Full solution software available only for Windows 7 and newer; Windows Server OS install driver only; Windows RT OS for Tablets (32/64-bit) uses a simplified HP print driver built into the RT OS; Linux systems use in-OS HPLIP software.Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Power consumption values typically based on measurement of 115V device.Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Energy Star value typically based on measurement of 115V device.Introductory cartridges included: 800 page yield black and 700 page yield colour composite (C/Y/M).The product could differ from the images shown. © Copyright 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HPproducts and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HPshall not be liable for technical or editorial errors or omissions contained herein.Published in EMEA 4AA7-6757, January 20201234567891234。

Endrich K-MD2 高端3D雷达传输器产品介绍说明书

K-MD2LoRa TM is a type of wirelesstelecommunication networkdesigned to allow long rangecommunications at a low bitrate among things (connectedobjects), such as sensorsoperated on a battery. AURELS.p.A produce a full line ofRF Transceiver solution onfree-license frequencies868 MHz Band, compliantwith the European Normative,using a Lora RF Chip Set.Radiofrequency device basedon LoRa TM modulation providinglong range communication,high interference immunity,high sensitivity and low powerconsumption.LoRa TM Module with Decoder & EncoderOptional the decoder or encoder products are available asboard. Aurel board, DEC-8LR-4 decoder, allows to control 4different loads. ENC-8LR allows to store up to 48 encoder andcontrol loads up to 5 A in mono and bistable mode. It is idealfor long distance control applications (8 km at sight) such asirrigation systems, alarms, etc. The power supply and controlinputs connections of the radio channel can be available by a5 mm pitch screw-style terminal block.ENC-8LR650201455GLoRa™12 Vdc – 24 Vac868.30 MHz-126 dBm10 mW16 µA (RX PWDN) – 14 mA(RX) – 36 mA (TX) @12 Vdc72 x 68 x 14 mmDEC-8LR-4650201454GLoRa™12 Vdc – 24 Vac868.30 MHz-126 dBm20 mW3.4 mA (RX IDLE) – 11 mA(RX) – 26 mA (TX) @12 Vdc72 x 68 x 17.5 mmXTR-8LR-ENC650201430GLoRa™3 V868.30 MHz-122 dBm10 mW ERP1 µA (PWDN) – 16 mA (RX)– 45 mA (TX)35.5 x 18 x 2.3 mmXTR-8LR-DEC650201431GLoRa™3 V868.30 MHz-126 dBm20 mW1 mA (RX IDLE) – 16 mA (RX)– 45 mA (TX)38.5 x 16 x 3.8 mmLoRa TM Transceiver ModulesHalf-Duplex transceivers for long distance, (up to 12 km)communication with LoRa™ modulation, able to ensure highimmunity level against interferences and a reduced energyconsumption. Working into European bandwidth 869.4 ÷869.65 MHz (100 mW) and 868.0 ÷ 868,6 MHz (25 mW) withlink budget > 156 dBm. The transceiver modules XTR-8LR100and XTR-8LR10 with UART interface and an implementeddata packet addressing technique allows a point-multipointcommunication and 248 byte of max. payload.XTR-8LR100650201364GLORA™3 V869.4 ÷ 869.6 MHz-118 to -145 dBm100 MW MAX17 mA (RX) – 110 mA (TX)37 x 18 x 2.4 mmXTR-8LR10650201415GLoRa™3 V868 ÷ 870 MHz-115 to -137 dBm25 mW17 mA (RX) – 30 mA (TX)33.5 x 15.4 x 2.4 mmXTR-8LR-ENC is a transmitter with encrypted communicationthat combined with the XTR-8LR-DEC is used to activate remoteloads. Two-way communication allows getting acknowledgementof the status of the activated output.XTR-8LR-DEC is a receiver with encrypted communicationand can be combined with the XTR-8LR-ENC or with keyfobXTR-8LR- 4ZN. It’s used to activate remote loads. The modulemakes available four open-collector outputs and two lines ofsetting the output functioning mode, the cyclical receiver modealso allows a consumption < 1 mA, allowing use in batterypowered applications. The output state will be acknowledgedto its transmitter.HAVE ALOOKPLL & VCORAM FPGAA/D23.8-24.8 GHzTxRx1Rx2Rx3FlashDigital I/O – Ethernet– SerialA/DA/DXTR-8LR-USB, a radio-modem with USB interface, used as receiver or concentrator for data from XTR-8LR10 and XTR-8LR100 modules. It can handle addressing data for point-to-multipoint or star networks, main radio parameters might be set up smoothly via command mode procedure, offering the user a variety of solutions and flexibility to the problems encountered in the field.The repeater XTR-8LR-REP allows to enlarge the RF radio coverage between the Aurel XTR-8LR-4ZN keyfob (or XTR-8LR-ENC encoder) and the paired XTR-8LR-DEC decoder. 85 – 264 VAC power supply, IP55 enclosure and integrated antenna. The device embeds a supercapacitor for temporary power supply backup in case the primary power fails.XTR-8LR-4ZN is a keyfob with encrypted communication that combined with the XTR-8LR-DEC is used to activate remote loads. Two-way communication allows getting acknowledgement of the status of the activated output.SOS LONG DISTANCE REMOTE CONTROLDedicated for alarm detecting, alarm signaling, orientation, monitoring, Aurel released an LoraKeyfob, equipped with acceleration sensors, send automatic alarms in case of freefall, absence of mobility or parallel position to the ground. Acoustic signalization of alarm, manual call and cancel buttons.Demo-boards for XTR-8LR100 and XTR-8LR10 are available. These boards allow easily to check functionality, power consumption, commands and performance of radio link. The difference between the two demo boards is on the mounted module, XTR-8LR100 that have modes of operation, normal, Rx cycle, Tx ADC value and XTR-8LR10 that is implemented the normal mode operation.For more details about the operation mode refer to the user manual of the used module. The device is able to work with external power supply or powered by four AA batteries, for tests in stand alone.BlockdiagramXTR-8LR-4ZN 650201429G LoRa™3 V (CR2032 Lithium)868.30 MHz -122 dBm 10 mW ERP2 µA (PWDN) – 16 mA (RX) – 45 mA (TX)72 x 39 x 11 mmXTR-BLR-SOS 650201475G LoRa™3 V (CR2450 Lithium)868.30 MHz -122 dBm 5 mW40 µA (Standby) – 16 mA (RX) – 45 mA (TX)72 x 39 x 11 mmXTR-8LR-USB 650201428G LoRa™5 V by USB 868 ÷ 870 MHz -118 to -145 dBm 100 mW ERP20 mA (RX) – 135 mA (TX)69 x 25 x 13 mmXTR-8LR-REP 650201474G LoRa™220 Vac 868.30 MHz -126 dBm 20 mW 1 W105 x 105 x 55 mmProducts using LoRa TM TransceiverFEATURES• 24 GHz FMCW radar with digital signal processing • Angle of arrival in azimuth / elevation • Serial target list output• Detection distance: 100 m for persons / 200 m for cars • Distance range: 0 to 250 m, 1 m resolution • Speed range: ± 130 km / h, 1 km / h resolution • Angle range: ± 9.1° (elevation) ± 16.4° (azimuth), 0.1° resolution• Compact size: 120 × 72 × 15 mmAPPLICATIONS• Traffic analysis and classification • Intersection management • Security systems• Object speed measurement systems • Measurement and research applications • Industrial sensorsThe K-MD2 is a high-end 3D radar transceiver with three receiving channels and a low phase noise PLL controlled transmitter. The target information from the three receive antennas is digitized and the high speed digital signal processing performs range and doppler FFT’s with an update rate of 20 measurements per second. Using the serial interface, many operating parameters such as frequency, bandwidth and repetition rate can be adjusted. Results are available in target list format as well as in raw range-doppler matrices. Ethernet and a serial communication interfaces are included.HAVE A LOOKSiTime C orporation, a leadingprovider of MEMS timing,announced the Emerald Plat-form™, a revolutionary precisiontiming solution that solvescritical timing challenges for 5Ginfrastructure equipment. Withthe Emerald Platform, operators can deploy 5G equipment inharsh environments and reliably offer mission-critical services.By combining our revolutionary MEMS with programmableanalog, innovative packaging and high-performance algorithms,Sitime have created a solution that is up to 20 times better thanwhat is currently available,” said Rajesh Vashist, CEO of SiTime.SiTime’s Emerald Platform is the first MEMS oven controlledoscillator (OCXO) in the industry. OCXOs offer the pinnacle ofperformance in timing and are critical to the reliable operation ofall communications networks. However, quartz-based OCXOsare extremely sensitive to environmental stressors such asvibration, temperature changes and shock, which can degradenetwork performance, reduce uptime, and impact mission-critical services such as advanced driver assistance systems(ADAS). SiTime’s Emerald OCXOs solve these problems.Solving the usability challenges of Quartz OCXOsBecause of the sensitivity of legacy quartz OCXOs, customershave to take many precautions to ensure reliable operation.A key challenge is the board placement of the OCXO, whichneeds to be located far away from stressors such as heat andairflow-induced thermal shock. This results in increased routingcomplexity and potential signal integrity problems. Designershave also tried using specialized plastic OC XO covers forthermal isolation, which introduces additional manufacturingsteps and production complexity. Emerald MEMS OC XOseliminate all of these problems; they simplify design, reducedevelopment time, accelerate revenue, while improving systemperformance.Flexibility through programmabilityLegacy quartz OCXOs are custom built, from the ground up.There are severe limitations on the availability of features,such as frequencies, output types, operating temperature, andThe demand of multi-touch computers is growing continuously. The interactive mirror is the nextdevelopment for multi-media applications in private and public bathrooms. In hotels, shoppingmalls or similar fields they can be used for special offers or ordering service personnel. Enrichyour customer experience in the most advanced way.The full stack-up of LCD-panel, touch sensor and mirror glass is optically bonded to exclude anyinternal dust or condensation. With its 15.6” Full-HD TFT display and 1.000 nits brightness thereadability is extraordinary. Switched off, the display is hidden behind the one-sided mirror treatedcover lens. 10-finger capacitive multi-touch enables interactive advertising, news ticker, movie andaudio selection or controlling the smart home. The mirror is magic!Inside, a powerful embedded V40 QuadC ore C PU makes this mirror the best solution for anysmart home or IoT application. The Android 6.0 operated system caneasily be extended by any application from the PlayStore for unlimitedfunctionality. This is Faytech’s most cost effective yet powerfulQuadC ore solution for multi-media and interactive bathroomentertainment control. With integrated WiFi and Bluetooth,you can connect your smartphone as well!A surrounding LED bar is integrated in the frame toenlighten the bathroom or fitting room.in-system control. SiTime’s Emerald Platform MEMS OC XOsdo not have these limitations. Using a programmable analogarchitecture, the Emerald OCXO offers any frequency between1 and 220 MHz, ensuring that the customer can select theoptimal frequency for his application. The device also offerstwo output types, LVCMOS and clipped sine-wave, for optimalboard performance. In the near future, the Emerald OCXO willalso offer extended temperature operation (-40 °C to +95 °C,-40 °C to +105 °C) and an I2C serial interface for in-systemprogrammability.Technology Highlights | Emerald Platform SiT5711 &SiT5712 OCXOsAll comparisons are with quartz-based Stratum 3E OCXOs• 10 times better performance in the presence of airflow andthermal shock- ΔF/ΔT dynamic stability: ± 50 ppt / °C typical(ppt = parts per trillion)- Allan deviation (ADEV): 2e-11 under airflow• Unmatched ease-of-use- No restrictions on PCB placement- No mechanical shielding is required for thermal isolation- O n-chip regulators, no need for external LDOsor ferrite beads- Resistant to humidity• S ize: 9 x 7 mm, 75 % smaller. Adapter boards are available tomatch common OCXO footprints• H eight: 6.5 mm, 40 % thinner, eliminates obstruction in achassis-based system• 20 times better vibration resistance, ideal for outdoor polemounted equipment• R esistant to microphonic and/or board bending effects, idealfor large telecom PCBs• S upports -40 °C to +85 °C temperature range today, -40 °Cto +95 °C and -40°C to +105 °C support available in thenear future• T he only programmable OCXO platform, supports anyfrequency up to 220 MHz and LVCMOS / clipped sine-waveoutputs• S emiconductor-level quality and reliability, batch to batchconsistency• No activity dipsFEATURES• Integrated embeddedboard with Android 6.0• Full-HD TFT-display1920 × 1080 dots• Built-in Bluetooth 4.0& WiFi• Optically bondedmirrored screen• Capacitive 10-finger-multi touch panel• Comprehensive IP65protection, includingwater- and dustproof• Surrounding LED-barHAVE ALOOK*******************SALES OFFICES IN EUROPESwitzerland − Novitronic Zurich:T +41/44 306 91 91******************France Paris:T +33/186653215******************Lyon:T +33/186653215*******************Bulgaria Sofia:********************Spain Barcelona:T +34/93 217 31 44*****************Hungary Budapest:T +361/2 97 41 91*******************Austria & Slovenia Brunn am Gebirge:T +43/1 665 25 25*******************Romania Timisoara:******************** Airflow and thermal shock resistant, stratum 3E compliant – best holdover in dynamic conditions, smallest OCXO ** ±6.25 to ±3200 ppm pull range, 5 ppt resolution frequency control, best reliability, 0.1 ppb/g (vibration sensitivity)AVAILABILITY: Samples of the Emerald MEMS OCXO SiT5711/12 are available now for qualified customers. Production quantities will be available in Q2 2019.Contact for information: Mr. Gensler · Phone: +49(0)7452-6007-31 · e-mail: a.gensler @。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

Introduction:
This document is used to introduce Band Setting AT Command – AT@SETBAND. User can use this command to set specific RAT’s band support or disable specific RAT. But, it’s only effective before power cycle device. Once power cycle device, the band setting will be reset to default setting.
User need to execute airplane mode On/Off to enforce the new band setting after executing AT@SETBAND.
Command Format:
Read Command:
AT@SETBAND?
The response message will be format as below.
AT@SETBAN (G,U,L): <GSM band setting>, <UMTS band setting>, <LTE band setting>
<GSM band setting>:
-OFF [All band disabled]
-B850 / B900 / B1800 / B1900
<UMTS band setting>:
-OFF [All band disabled]
-B1 ~ B8
<LTE band setting>:
-OFF [All band disabled]
-B1 ~ B20
Example:
Write Command:
AT@SETBAND=<RAT>, <Band setting>
The response message will be “OK” or “ERROR”
<RAT>
-G / U / L [ G:GSM / U:UMTS / L:LTE ]
<Band setting>
-B0 [Disable all band]
-B850 / B900 / B1800 / B1900 [GSM band setting format]
-B1~B20 [UMTS / LTE band setting format]
Example 1: Set GSM to Band 850 only and UMTS to B1 and B2 only.
Example 2: Set LTE to disable.。
