毕业设计论文外文资料翻译附件1：外文资料翻译译文起重机的工作需要更多的科学技术起重机的出现大大提高了人们的劳动效率，以前需要许多人花长时间才能搬动的大型物件现在用起重机就能轻易达到效果，尤其是在小范围的搬动过程中起重机的作用是相当明显的。
战后的前几年，世界性的工业诞生了，起重机行业几乎完全停止。
然而到这个年代末，起重机的建造变得多元化并传播到世界各地，它的前所未有的蓬勃发展似乎整个工业注入了新能源。
轻型起重机投入到工作地点并准备作为主要机械，因为人们意识到了在工作间不用拆除他们的的优点。
这些新的设计也不再需要其他起重设备协助操纵——相比以前在安装前要进行繁琐的设计。
但是，在这一切之前发生了恐怖的第二次世界大战。
到1940年，欧洲完全陷入了战争中。
到战争结束后的几十年来，欧洲和世界其他地区发生了巨大的政治，经济和社会变化，将影响整个社会结构，包括建造业和起重机行业。
在美国，蒸汽机已开始改为柴油机——到1953年超过百分之五十的机车将使用柴油机。
战争期间，挖掘机，铲运机和起重机的大规模生产在继续。
例如1940年，看到Thew推出新的'Lorain Motocrane'系列。
这其中包括三种起重机，是历史上首次自身安装了底盘的起重机。
最小的MC - 2 ，起重量达7.6吨，MC – 2起重量为9.9吨，MC – 3起重量为13.5吨。
这些起重机许多被用于军队，有的还安装在港口用作港湾式起重机（在MC - 4型）。
当然，这场战争已经削弱了能在起重机行业工作的健壮的男人的数量，并且优秀的起重机司机严重短缺。
在Thew ，一位毕业于美国海军学院的经验丰富的技工A C Burch和L K Jenkins进行了为期两天的起重机业务课程的教授。
这两位绅士好比是我们今天所知的“经营者培训”的创始人。
他们实际上已设计了动力起重机，都深深地了解起重机，并很高兴传授这方面的知识。
当日本国家铁路公司致力于采购一种旨在搬动钢轨扣板的原型机，潮流逆转。
该设备工作极为出色。
iVlasuo Tadano环游日本，用35毫米的电影展示该设备的强大用途。
沿路上，他获取了大量订单。
同时，他好像成为当今市场营销专家所宠爱的公司影像传播的先驱！其他国家也在大力发展起重机。
特别是意大利，逐渐发展成为该行业的创新基地。
1948年Carlo Raimodi在米兰附近的Legnano，首次建造了回转塔式起重机，一种经典的顶端回转起重机。
公司最初成立于1863年，在生产起重机之前，是一间铸造厂并为技工和其他行业生产机械设备。
当时全球建筑业空前繁荣，吸引了专业设备制造商的注意。
其中许多公司在推广起重机后，推出了混凝土搅拌设备。
提供了多种不同组合，例如，Reich， Ibag和Liebherr设计开发了起重机与混凝土搅拌设备一起使用的组合。
桥式起重机小车运行机构设计主要包括起升机构、小车架、小车运行机构、吊具等部分。
其中的小车运行机构主要由减速器、主动轮组、从动轮组、传动轴和一些连接件组成。
桥式起重机是水电站桥式起重机，安装于丰满水电站扩建工程厂房内，用于水轮发电机组及其附属设备的安装和检修工作。
水电站内设备一般都是大中型设备，对桥式起重机的载荷要求较高，所以对减速器性能要求较高。
桥式抓斗起重机是桥架在高架轨道上运行，由起重小车带动抓斗抓取物料的一种桥架型起重机。
桥架沿铺设在两侧高架上的轨道纵向运行，起重小车沿铺设在桥架上的轨道横向运行，构成矩形的工作范围，就可以充分利用桥架下面的空间吊运物料，不受地面设备的阻碍。
桥式抓斗起重机广泛应用于电厂、煤厂等需要散料装卸的场合，由于该设备笨重，运输安装困难，对其产品质量检测一般需要在现场进行。
所以要求控制设备接线方便，体积小便于携带。
又由于使用现场条件不动，还要求检测设备有随机手动控制功能，以保证运行时的安全。
随着对起重运输机械控制要求的不断提高,控制手段也越来越先进。
目前国内的桥式起重机控制系统都需要人在现场进行控制，控制方式都比较落后。
在中小型起重机中, 大都采用控制器直接控制大、小车运行, 主、副钩提升、下降重物及调速。
塔式起重机是建筑施工垂直运输的主要设备，也是衡量一个建筑施工企业装备实力的重要标识，在当今竞争日益激烈的建筑市场，为满足施工需要，很多施工企业都购置了塔式起重机。
随着塔式起重机在施工现场的广泛使用，由塔式起重机引发的伤亡事故也越来越多，给人民的生命财产带来重大损失。
据国内有关部门统计资料表明，塔式起重机的事故率已达2.77%。
其安全问题仍然是建筑施工中的忧患。
松散的培训，测试和监督的要求, 周围的建筑起重机给这些工作的人树立了一种虚假的安全感，在我们的行业。
最近塔式起重机倒塌在一个繁忙的纽约市建筑地盘应敲响警钟，提醒我们问题的存在，并加强我们目前安全的做法。
当谈到安全问题时，训练和测试是关键。
不过，建造业是把不合格人员放在建筑起重机的驾驶位上，甚至没有通过今天的测试。
在许多地方，没有任何经验必须合格的通过标准化的测试。
一周的学习将给予一些人足够的知识足以通过认证考试，然后他们可以跳转到的起重机的驾驶室。
想象一下一个商业航空公司飞行员和一个认证的起重机操作员有相同的训练。
你会如何感觉，下一次你决定要坐飞机？在加利福尼亚州，掌握一对剪刀在头发沙龙比操作有潜在危险的起重机械需要更多的时间训练。
如何，这是否合理？装配工人和发信号的人也需要标准的培训和测试，以确保安全下钩。
雇主通常允许任何工人发信号指挥起重机上工地，尽管最佳做法是需要合格的人这样做。
怎么能允许那么无证和未受过训练的人来代替有工作证或经核证的操作者呢？塔式起重机是特别危险的，尤其是在市区用地变得更加拥挤时。
攀登行动更是一个风险的行动，其灾难性非常高。
然而，大多数塔式起重机攀登员的训练，在一个非传统的方式，通过二手知识已流传一段时间。
问题与这种类型的现成的知识是，多年来，留下来的非常少，但最重要的细节却丢失了。
这种“渗透”的知识，导致操作者只能发展自己的技巧攀登起重机，往往放弃基本的安全，企图以节省时间和能源.在许多情况下没有安全装置或警报来提醒严重的问题的存在。
攀登人员容易遭受到影响安全性至关重要的决策所带来的压力。
攀登时，使用损坏或泄漏的液压系统，没有任何的调整，这并不鲜见。
在黑暗中工作和延长工作时间是时有发生的。
这种攀登方法，其中的每一次攀登都会成为新的冒险，不应该作为规范被采纳。
攀爬架的设计，在制造商之间存在不同，但设计的步骤在原则上是相似的。
攀登过程中是相对比较明了的，配合着的体力劳动和技术程序。
这是并不复杂，它是更多地了解知道正确的序列需要做什么，然后按照下列步骤，一个又一个，确保每一步在做下一步前成功完成。
这是十分重要，每个人都清楚的知道事情进展的怎么样，在每一个阶段存在什么样的危险。
当这些需要得到满足，起重机作业应进行严格按照有关制造商的指示，工程原则和政府的法律。
但业内人士和国会议员，要加强他们的宽松标准，以保障公众利益。
看到自己的家园变成了尘埃和碎片的纽约市居民，会对处理这些问题的方式感到震惊。
这就是为什么业界需要规范的培训，测试和监督，其中包括一个实际的评估能力。
技术人员应该随着实际经验的提升，直接从制造商哪里获得标准训练。
视察员同样也也须有具体的技术培训。
他们应独立于安装和维修的各方面，这由客观决定。
架设的关键人员应该有标准的训练和测试.附件2：外文原文Crane Work Needs More TechniqueThe invention of crane has greatly increased people’s work efficiency .People can use crane to handle with huge articles which used to be taken a long time to do, especially in a small are The bridge type hoist crane is required to handle with huge accessory or huge device.The birth worldwide industry early post-war years, the crane industry came to an aImost complete standstill. By the end of the decade, however, crane construction had diversified and spread around the world and the industry seemed infused with newfound energy that left it flourishing as never before. Lightweight cranes thatarrived on site ready for use came to dominate construction sites as people realised the advantages of not having to dismantle them between jobs. These new designs did away with the need to have other lifting equipment assisting during rigging - a big contrast to the cumbersome rigging of previous designs. But, before all this could happen came the horrors of the Second World War. By 1940 afl of Europe was completely caught up in the conflict. By the time the war ended, Europe and other parts of the world had been subjected to extraordinary political, economic and social changes that would affect the entire fabric of society, including the construction and crane industries, for many decades to come. In the US, steam locomotives were starting to be replaced by diesel - by 1953 more than 50 per cent of all locomotives would be diesel. During the war the mass production of excavators, scrapers and cranes continued. 1940, for example, saw Thew launch the new 'Lorain Motocrane' series. This consisted of three cranes which, for the first time in history, were mounted on chassis built by the crane manufacturer itselfi The smallest crane, the MC-2, could lift 7.6 tonnes, the MC-2 9.9 tonnes and the MC-3 13.5 tonnes. These cranes were delivered to the army by the thousand, and were also mounted on portals for use as harbour cranes (the MC-4 model). The war had, of course, taken its toll on the number of able-bodied men available to work in the craneindustry and there was a serious shortage of good crane drivers. At Thew, newcomers were taught crane operations over a two-day course presented by A.C Burch, an experienced mechanic and graduate of the Naval Academy, and L.K Jenkins. These two gentlemen were probably the originators of 'operator training' as we know it today. As they had actually designed the Motocrane, both knew it inside out and were pleased to pass on this knowledge.When the Japanese National Railways committed itself to buying the prototype of a machine designed to remove railway clips, the tide turned. The machine worked splendidly and iVlasuo Tadano toured Japan showing on 35 millimetre film just what it could do. He collected numerous orders for the machine along the way and at the same time seems to have been an early pioneer of the company videos so beloved by today's marketing professionals!Other countries were also building noteworthy cranes. Italy, in particular, was developing into a source of innovative ideas for the industry.In1948 in Legnano,near Milan,Carlo Raimodi built his first slewing tower crane,a classic top slewer The company was originally established in 1863 as a foundry and had, until making its crane debut, built machines and components for the millwright and other industries. There was now a worldwide boom in construction and this attracted the attention of specialist equipment manufacturers, many of whomfollowed the launch of crane ranges with the introduction of concrete mixing equipment. This combination of equipment was supplied in a variety of forms: Reich, Ibag and Liebherr, for example, supplied cranes and concrete mixing machines designed to be used together. Important slewing tower crane manufacturer.The bridge type hoist crane car consists of protmoted organization，the car frame，the car movement organization，hoisting mechanisms and so on. Its operation structure is composed of reducer，the driving wheel group，the driven wheel group，the transmission shaft and some connect fitting. The core of this structure is the design of the reducer.This bridge type hoist crane is be used to the hydroelectric power station. It is installed in the expanded workshop of Fengman water and electricity station.It is used to installing,examining and repairing the water-turbine generator set and its accessorial equipments.the equipments in the water and electricity station are large or medium-size. These equipments have a high request on the load of bridge type hoist crane , so they also have a high request on the capability of the reducer.Grab bridge bridge crane is running on the elevated track, the car driven by the lifting of materials crawl grab a bridge-crane. Bridge laying on both sides along the elevated track on the vertical run, liftingtrolley along the bridge in laying the track on the horizontal run, a rectangular scope of work, you can make full use of space below the bridge lifting material from Ground equipment hindered. Grab bridge cranes widely used in power plants, Mei Chang, and other needs of bulk material handling of the occasion, because of the heavy equipment, transportation difficulties installation, testing the quality of their products in general need in the field. Therefore, control equipment requirements for wiring, small size and portability. And the use of fixed-site conditions, also called a random testing equipment manual control functions to ensure the safety of operation. With the lifting of the transport requirements of the mechanical control continuously improve, more and more advanced means of control. At present the domestic bridge crane control system requires people at the scene to control, control methods are backward. In small and medium-sized crane, the most direct control over the use of controllers, car running, Lord, vice hook upgrade, dropped weights and speedCrane work needs more technology. Construction of tower cranes are the main vertical transportation equipment and also a measure of construction companies and equipment strength of the important logo, in today's increasingly competitive construction market, to meet the construction needs of many constructioncompanies have bought the tower crane. With the tower crane at the construction site of the widely used by the tower crane accident also caused more and more to people's lives and property brought about great losses. According to national statistics, the departments concerned, the tower crane accident rate reached 2.77 percent. Its security problem is still the urgency of the constructionLoose training, testing and oversight requirements for the people who work around construction cranes have fostered a false sense of security in our industry. The recent deadly tower-crane collapse at a congested New YorkCity building site should be a wake-up call for us to question and step up our current safety practices.Training and testing is king when it comes to safety. But the construction industry is putting unqualified personnel in the seats of construction cranes, even with today's testing. In many places, no experience is necessary after passing a standardized test. One week of study will give some people enough knowledge to pass a certification examination, and then they can jump into the cab of a crane.Imagine that a commercial airline pilot had the same training as a certified crane operator. How would you feel the next time you decided to fly? In California, it takes more hours of training to wield apair of scissors in a hair salon than to operate potentially dangerous lifting machinery. How does this make sense?Riggers and signal persons also need standard training and testing to ensure safety under the hook. Employers usually allow any craft to signal a crane on a jobsite, despite best practices that require only qualified people do so. How is it then that uncertified and untrained people are allowed to signal and rig under the hook of a licensed or certified operator?Tower cranes are particularly risky as urban sites become more congested, and the risk of a catastrophic event is very high during climbing operations. Yet most tower-crane climbing crews are trained in a non-traditional manner, via secondhand knowledge that has been passed down over time. The problem with this type of hand-me-down knowledge is that it changes over the years, leaving out small-but-important details along the way. This "osmosis" of knowledge leads crews to develop their own tricks for climbing cranes, often forsaking basic safety in an attempt to save time and energy.In many cases, there are no safety devices or alarms to warn of a serious problem. Climbing crews are subjected to pressures that affect safety-critical decision-making. It is not uncommon for climbs to continue with damaged or leaking hydraulic systems, out-of-adjustment or jammed guide rollers, often working in the darkand for extended hours. This "MacGyver" method of climbing, where every jump becomes a new adventure, should not be the norm.Climbing-frame designs vary among manufacturers, but the operational steps are similar in principle. The climbing process is relatively straightforward, with a mixture of physical work and technical procedure. It is not complex; it is more about knowing the proper sequence of what needs to be done and then following the steps, one by one, making sure each step has been successfully completed before moving onto the next. It is essential that everyone know exactly what is going on and what the dangers are at every stage.When these needs are satisfied, crane operations should be carried out in strict accordance with the manufacturers' instructions, engineering principals and governmental laws. But industry stakeholders and lawmakers need to step up their lax standards to protect the public. New York City residents, who have seen their homes turned into dust and debris, would be shocked at the way the industry deals with these issues.That's why the industry needs standardized training, testing and oversight for this work, including a practical assessment of competence. Technicians should have model-specific training directly from the manufacturer, along with a level of practical experience.Inspectors, too, should be required to have specific technical training. They should be independent from all aspects of installation and maintenance to allow for objective decisions. Key personnel on erection crews should have standard training and testing.。
数字机起重机提升转换外文文献翻译、中英文翻译、外文翻译
Digital Drive Crane Hoist ConversionWhile working on the bridge of a crane, I remember feeling the intense heat of the speed reduction Resistors. I looked over the prints and tried to figure out how to reduce this energy loss. As I understood, heat is the product of energy lost (R I 2). I was new to crane maintenance in 1990 and, having an electrical/electronic background,Crane panel manufacturers desired a novel method of crane control that combines new technology with some of the oldest. The new crane panel resulted in lower costs, increased productivity and reduced wear on components, as well as energy savings.I believed new technology existed. Several of the newer devices needed alternating current input. SCRs, VFDs and PMWs were becoming common acronyms in newer plants. The possibility of upgrading our pre-existing 250 VDC distribution was cost-prohibitive, Various transistors could run DC, but not at the ampere demands we needed. With crane panel replacement under consideration, we challenged our panel suppliers to develop new crane control technologyDigital Hoist ConversionSeverstal North America Inc. is an integrated steel mill dating back to 1917, when Henry Ford built it to supply his Ford Motor Co. auto manufacturing enterprise. It was operated as Ford Steel Division ur~ti11982, when it became Rouge Steel Co. In 2004, OAt Severstal Steel purchased the assets of Rouge Industries and Rouge Steel.Figure1.A digital drive controller was installed Figure2. Preliminary setup of DDC hoist panel on this 135-ton-capacity slab-handling craneThe market price for steel was flat in the early part of the new millennium, forcingdepartmental groups to look for cost-saving improvements. One improvement was the installation of a new type of digital electronic control panel in 2003. This panel represented the introduction of DC electronic crane control to Rouge Steel and the largest duplex crane hoist controller (dual 200-hp) of its type in North America.The original panels were built on a P&H 135-ton slab-handling crane having standard DC hoisting contactor controls. They were industrial and functional, designed to handle the loads of this crane in 1972. The loads are greater now with heavier slabs, runing the crane at maximum limits and higher production rates. This caused premature equipment failures and production down-time. With three aging cranes in this bay, maintenance costs were rising to new highs. Those involved in maintenance were finding that distributors and manufactures were downsizing or had gone out of business, making replacement parts costly or obsolete. The market drivers of today are forcing the change to newer technologiesFigure3. Digital panel installed on crane trolley deck Figure4.Prewired resistors reduced start-uptimeA novel design approach was asked of the crane panel manufactures. They replied with a proposed partnership and an effort to add some of the newest technology to the oldest methods of crane controls. The result was high-current transistor switching with a 250 VDC input. The design was well-thought-out and included integrating the original motors, limits, switches and wiring. Now speeds are controlled by sending the motors only enough current to safely lift and lower the load. The motors are soft stopped (reverse plugged) before the brakesclose. This saves wear on components, reduces costs and increases productivity. Without the need for reduction resistors, there is no energy wasted, maximizing the energy savings. The panel installation of the SY-4 crane was completed in 2003 and is still running. The results are smoother movements with little energy loss (heat).The new panels were designed for installation on the trolley deck, as opposed to the bridge deck.. This aids in troubleshooting and reduces excessive wiring mainly at the weak point of the cable powertrack.. This allowed the time and ability to perform all setup work during mini-downturns without disabling the original hoist. The original panel was left in place as a backup, as failures could not be predicted. To date, the fail-safe panel has not been required.The panels were pre-wired and pre-tested prior to crane installation, further reducing crane downtime. When the transfer day came, only the master switch, motors and limit leads needed to be rerouted to the new system. On-the-job tuning and monitoring were vital for the first couple of days. It was important to have crane operators involved for that “personal feel”and to obtain their buy-in to the project, to increase awareness and productivity. No-load and full-load current tests were run with great results.An aded benefit to this control is the electrical current savings. Without reductin resistors for speed points, and with the added benefit of power produced when regenerative lowering, this single crane installation saves more than ＄25000 in electricity annually. This can be a very important consideration if substation power is near critical usage levels. The demand this system imposes is much less than a similar contactor system. With energy costs on the rise, this is a concern for every project considered. Figure 5 indicates an example of electrical current savings potential by comparing contactor panel loads(top) to digital drive loads(bottom).How it works in the circuit is not unique. The insulated gate bipolar transistor(IGBT) takes the place of the contactors and acceleration resistors. As the master switch is selected for greater speed, the circuitry triggers the transistor at a frequency(pulse width modulated) that allows current to flow through the IGBT. The current circulates in the standard series armature and series field along with the series brake. The longer the input is turned on, thehigher the output average voltage (Figure 6). The higher the voltage, the higher the horsepower produced. This system can provide high torque with low currents(heat) as the result of motor regenerative properties. High speed with no load can also be accomplished. Much of this could not be achieved with the original panels.Figure5.Example of energy saved during lowering sequence.The difference is noticed when the IGBT is in its off cycle(Figure 7). In this instance, the motor acts as a generator, producing circulating currents through the flyback diode and maintaining self-induced motor currents. This effect reduces ripple and provides current that was not provided by the original power source. The reduction of current loads on system feeders and hardware further adds to the total savings package.The following items are important considerations when determining if this system will work with an application.IGBTs are the newest part of the design that makes this panel work with 250 volts DC. They combine the advantages of the bipolar transistor(high voltage and current) with the advantages of the metal oxide semiconductor field effect transistor(MOSFET)(low power consumtion and high switching). IGBTs are semiconductors that combine a high voltage and high current bipolar junction transistor(BJT) with a low-power and fast-switching MOSFET. Consequently, IGBTs provide faster speeds and better drive and output characteristics than power transistors and offer higher current capabilities than equivalent high-powered transistors.Figure6.Hoist current flow when the IGBT is onFigure7.Hoist continuing motor current flow when the IGBT is off.Heat sinking, including consideration of air temperature and air flow, is essential to the proper operation of any solid-state reply. It is necessary to rovide an effective means of removing heat from the IGBT. The importance of using a proper heat sink cannot be overstressed, since it directly affects the maximum usable load current and maximum allowable ambient temperature. Up to 90 percent of the problems with transistors are directly related to heat. Lack of attention to this detail can result in improper switching(lockup) or even total destruction of the IGBT. If the device ever reaches an internal temperature of 105℃, it will be permanently destroyed. One of the problems encountered at Severstal NA was program temperature cutbacks due to excessive heating. When electrical current cutback does not control the drive, it will stop on software limits. Transistors develop heat as a result of a forward voltage drop through the junction of the IGBT. Beyond this point, heat will cause a reduction(software cutback) of the load current that can be handled. If the demand is too great,the program is designed to shut down.Care must be taken when mounting solid-state relays(SSRs) in a confined area. SSRs should be mounted on individual heat sinks whenever possible. SSRs should never be operated without proper heat sinking or in free air, as they will thermally self-destruct under load. A simple way to monitor temperature is to slip a thermocouple under a mounting screw. If the base temperature does not exceed 45℃, the SSR is operating at its optimal level. Remember that the heatsink removes the heat from the SSR and transfers that heat to the air in the electrical enclosure. In turn, this air must circulate and transfer its heat to the outside ambient. Vents and forced ventilation are good ways to accomplish this. Semiconductor fuses are the only reliable way to protect SSRs. They are also referred to as current-limiting fuses, providing extremely fast opening while restricting let-through current far below the fault current that could destroy the semiconductor. This type of fuse tends to be expensive, but cheap by comparison to the damage that could occur, providing a means of fully protecting SSRs against high current overloads. An RI2fuse rating is useful in aiding in the proper design of SSR fusing. This rating is the benchmark for an SSR's ability to handle a shorted output condition. Devices such as circuit breakers and slow blowfuses cannot react quickly enough to protect the SSR in a shorted condition and are not recommended. Every SSR has an I2rating. The idea is to select a fuse matching the capability of the solid-state relay for the Tsame duration.Figure8.IGBT and components mounted on heat Figure9.External mounted fans removed IGBT heatFigure10. Panel fans removed internal heat buildup Figure11. Semiconductor fuses provide the bestprotection for solid-state relays Motor switching and dynamic loads, such as motors and solenoids, can create special problems for SSPs. High initial surge current is drawn because its star t-up impedance is usually very low. As a motor rotates, it develops a counter electromotive force (CEMF) that resists the flow of currenL This CEMF can also add to the applied line voltage and create over-voltage conditions during turn-off and regenerative times. It should be noted that over-voltage caused by inductive voltage doubling or CEMF from the motor cannot be effectively dealt with by adding voltage-transient suppressors. Suppressors such as metal oxide varistors (MOVs) are typically designed for brief high-voltage spikes and may be destroyed by sustained hlgh-energy conduction. V oltage dump resistors may be needed in extreme cases and should be engineered to meet a system's demand, It is therefore important that SSRa are chosen to withstand the highest expected sustained voltage.Problems encountered while running the200-hp dual drive were few hut worth mentioning. The program allows for setdng many variables (i.e., speed, currents, brake-open voltage). Most of these are detrimental to the drive or motor if set incorrectly. Although staying within the drive specifications is safe, this may not produce the desired actions. Ambient temperatures must also be considered, since most useful application are near higher-temperature areas. Following are several problems(and solutions) observed during installation and trials:Problem 1:The first problem presented itself when applying excessive brake-open curent.The direction contactors were flashed and pitted. Also, the emergency brake contactor appears bluish from high heat. Reducing brake-open current and power-on time to a shorter duration solved the problem.●Problem 2:Hall effect transistors and IGBT were thought to be faulty parts and/or wiring, but this could not be duplicated. Many suspect parts were replaced, but it was determined that internal panel ambient temperature was the problem. This was solved with cooling fans on the doors and on the IGBT cooling fins.●Problem 3:Temperature cutbacks usually led to errors. It was found that a new crane operator did not like operating the hoist at full speed. Longer run time and higher IGBT cycles caused unnecessary heating in panels. Reducing field current settings eased this problem. This increased the lowering speeds but greatly reduced the IGBT voltage drop, in turn reducing its heat dissipation. Cooling fans eliminated the problem.●Problem 4:All power must be disconnected from the line because all lines feed from a common bus capacitive filtering system. This means that the typical way of “pulling motor disconnect and running the controls only”to troubleshoot does not work. The panel diagnostics and troubleshooting information provided is very helpful.●Problem 5:Lack of electronic knowledge by the electricians is a concern. When production downtime is critical, the time to troubleshoot is a high-priced commodity. This ultimately puts pressure on the electricians, causing frustration. The solutions was to ensure that the crew is involved Mth project design and installation. Training is vital. If the maintenance team is nat up to speed with the technology, failure is probable. Two training classes were held for all electrical team members.After one year, the actual materials maintenance and labor savings were calculated, with a payback of 6.2 months. Cost savings and efficiency gains were greater than expected. This led the way to the next drive conversion, which was scheduled for 2006. With a cooperative effort by salespersons, manufacturers, engineers and end-users, Severstal NA vastly improved its ability to compete successfully.AcknowledgmentsThe author would like to acknowledge the efforts of former general supervisor FredSchwartz and the crew at Severstal North America. Without their help, the project may never have gotten this far.References1. Creech, R., 'Energy Savings -- DC Digital and DC Contactor Hoist Control System," Iron ~ Steel Technotogg, May 2005, pp. 225-228.2. /modval/database/contents/reports/igbt.html3. /computing/unix/software/matlab/toolbox/powersys/igbt.html4. /old_pdf/app_ notes/r_ipm.pdf5. /access/helpdesk_r13/help/toolbox/physmod/powersys/igbt.html数字机起重机提升转换虽然工作在桥上的吊车，我记得感觉酷热的速度减少电阻.我看着图纸，并试图弄清楚如何减少这种能源损失.正如我的理解一样，热是产品的能源损失（RI2）。
起重机文献翻译 高考翻译 机械翻译中英对照
起重机文献翻译高考翻译机械翻译国内双钩同步起吊电动葫芦发展综述Development Overview of Domestic Double-hook Synchronous Hoisting Electric Hoist于晓东1吴英年2Y u Xiaodong1Wu Yingnian2摘要：分析了国内生产的几种双钩同步电动葫芦结构与功能，重点介绍了HT型双钩同步电动葫芦的功能特点与应用，指出了产品研制应创新使其具有长远生命力。
Abstract:This paper analyzes the structures and functions of several domestic-made double-hook synchronous hoisting electric hoists, emphasizes the function and characteristics of HI type double-hook synchronous hoisting electric hoist and points out that product development should be innovative as to make long-term vitality.关键词：双钩同步电动葫芦；功能；结构；应用；发展Keywords: double-hook synchronous hoisting electric hoist; function; structure; application; development2.起重机用钢丝绳标准的选择Crane Wire Ropes Standard Selection陈立Chen Li3.斗轮堆取料机在头部激振下的动态响应Dynamic Response of Bucket Wheel Stacker Reclaimer underHead Shock Excitation王俊华张光宇高翔孔涛Wang Junhua Zhang Guangyu Gao Xiang Kong Tao摘要：分析斗轮堆取料机的实际工程特点，对其进行有限元建模并进行模态和谐响应分析，以了解斗轮堆取料机轮斗头部在滚筒或斗轮激振力作用下垂直方向的动态特性。
机床的论文中英文资料外文翻译文献
机床的论文中英文资料外文翻译文献引言机床是制造业中重要的设备，用于加工各种零部件和制造产品。
本文汇总了关于机床的论文中英文资料的外文翻译文献，以供参考和研究使用。
外文翻译文献列表Author: John Smith John SmithYear: 2015 20152. Title: Advanced Techniques for Machine Tool Analysis Title: Advanced Techniques for Machine Tool AnalysisAuthor: Jennifer Lee Jennifer LeeYear: 2016 20163. Title: Intelligent Control Systems for Precision Machining Title: Intelligent Control Systems for Precision MachiningAuthor: David Wang David WangYear: 2018 2018Abstract: This paper focuses on intelligent control systems for precision machining. It discusses the integration of artificial intelligence and control algorithms to enhance the precision and performance of machine tools. The paper presents case studies on the application of intelligent control systems in precision machining processes. This paper focuses on intelligent control systems for precision machining. It discusses the integration of artificial intelligence and control algorithms to enhance the precision and performance of machine tools. The paper presents case studies on the application of intelligent control systems in precision machining processes.4. Title: Advances in Machining Processes for Hard-to-Machine Materials Title: Advances in Machining Processes for Hard-to-Machine MaterialsAuthor: Emily Chen Emily ChenYear: 2019 2019Abstract: This paper reviews recent advances in machining processes for hard-to-machine materials. It discusses the challenges associated with machining materials such as titanium, nickel-basedalloys, and ceramics. The paper highlights the development of new cutting tools, machining strategies, and technologies to improve the machinability of these materials. This paper reviews recent advances in machining processes for hard-to-machine materials. It discusses the challenges associated with machining materials such as titanium, nickel-based alloys, and ceramics. The paper highlights the development of new cutting tools, machining strategies, and technologies to improve the machinability of these materials.5. Title: Optimization of Machining Parameters for Energy Efficiency Title: Optimization of Machining Parameters for Energy EfficiencyAuthor: Michael Liu Michael LiuYear: 2020 2020Abstract: This paper explores the optimization of machining parameters for energy efficiency. It discusses the impact of machining parameters, such as cutting speed, feed rate, and depth of cut, on energy consumption in machining processes. The paper presents optimization techniques and case studies on reducing energy consumption in machining operations. This paper explores theoptimization of machining parameters for energy efficiency. It discusses the impact of machining parameters, such as cutting speed, feed rate, and depth of cut, on energy consumption in machining processes. The paper presents optimization techniques and case studies on reducing energy consumption in machining operations.结论以上是关于机床的论文中英文资料的外文翻译文献，希望对研究和了解机床技术的人员有所帮助。
煤矿井下单轨吊车的选型计算外文文献翻译、中英文翻译、外文翻译
Selection calculation of the monorail hoist in coal mineZHUANG YanAbstract：This paper introduces the applicable conditions and the selection calculation of the monorail hoistbriefly, and pointe out its application characteristics. This provides the reasonable selection of the monorailhoist with the necessary theoretical basis.Keywords：monorail hoist; applicable condition; computing method; characteristicsMonorail crane is used in coal mine, especially in mining area up, down and down the mountain. Auxiliary equipment for transporting materials, equipment and personnel in working face drift. One of the preparations. Monorail crane can be divided into steel wire according to different traction modes. Rope traction and locomotive traction can be divided into two categories, and locomotive traction mode can be divided into two categories. There are two types of locomotive traction: explosion-proof clean diesel locomotive and battery locomotive. General information. The monorail crane trains for material, equipment and personnel transportation are composed of 3. When transporting heavy equipment, only one group consists of two groups. The load-bearing vehicle for lifting the composite beam.1 applicable conditions of monorail crane(1) Monorail crane is hanging on the roadway roof or support to transport negative load. It is not affected by floor deformation (floor heave) and material accumulation in roadway. A reliable hanging bearing device is required. Hanging on arched or trapezoidal steel support. When the support is mounted on the scaffold, itshall be reinforced with braces. When the anchor rod is used for suspension, each hanger shall be used. Two bolts with anchoring force of more than 60 kn shall be used for rail point. Roadway fault. The surface should be greater than or equal to 7 m2.(2) It can be used for horizontal and inclined roadway transportation. For inclined roadway. When transportation, the locomotive traction monorail crane, gradient ≤ 18 degrees, the best use. The slope is less than 12 degrees (the maximum is 40 degrees in foreign countries). Rope traction monorail crane gradient ≤25 ° and 45 ° in foreign countries. The maximum single piece transport mass is 12-15t. The minimum horizontal radius of curvature is 4 M.(3) Locomotive traction monorail crane has the characteristics of mobility and flexibility. Each locomotive can realize the transportation of materials, equipment and personnel in multiple branch roadways. Transportation, can not be reprinted, not limited by the distance. Monorail with rope traction. The crane needs to install a large number of rope pulleys on the curve, and can not enter the branch. The transportation distance is generally 1-2 km, and the maximum is not more than 3 km. Because of luck Long distance, train running resistance, traction rope resistance, track and support. The bearing capacity of the monorail, the guide wire rope and the. The tension of wire rope will tend to be complicated.(4) There is a small amount of pollution and difference in the exhaust gas of diesel monorail crane. Therefore, the use of roadway should have enough air volume to dilute harmful gas. Body, so as to achieve the degree of non-destructive health.(5) The biggest advantage of battery monorail crane is no air pollution. However, limited by the storage capacity of the battery, the battery monorail crane is difficult tooperate. It is suitable for low traction and ventilation. Poor tunnelling for transporting materials and personnel.2 selection calculation of monorail craneThe main content of monorail crane selection calculation includes the selection of monorail crane. The type of winch, the calculation of the actual traction force, the choice of winch or diesel. Calculation of daily transportation capacity of single monorail crane and determination of mining area. Or the number of monorail cranes required by the whole mine.2.1 selection of monorail crane type(1)The necessary known conditions for monorail crane calculation are: ①transportation distance. The results show that: 1) the distance between the running track and the running track; 2) the gradient of the running tunnel; 3) whether the running track has branches; 4) the distance between the running track and the running track. The maximum mass of the single piece to be transported;5）whether to transport personnel.(2)According to the known conditions and the applicability of the above monorail cranes. Around, choose wire rope traction monorail crane or diesel monorail crane (also Explosion proof special type battery monorail crane can be selected.)2.2 calculation of traction and power of monorail craneIn order to calculate the traction force of monorail crane, the monorail cranemust be determined first. The single maximum transportation volume of the vehicle, that is, the production volume served by the monorail crane is calculated. Point to material and equipment requirements. The calculation should be based on the quality of the material. The weight of each transport unit is 3 T, That is: 1) the transportation volume of each container is 2.5 T, and 3.5 t without container t. (2) materials less than 3.1 m in length are transported in containers, and those more than 3.1 m in length are transported in containers .M.General Monorail.Generally, the monorail crane only hangs 3-4 lifting beams at a time, that is to transport one beam. Each train can only transport 3-4 tons of materials, equipment and personnel each time. Transportation unit (or 3-4 people vehicles); transport large equipment such as hydraulic support. When erecting, the monorail crane can only hang one combined lifting beam. Monorail hanging train. The total mass of the vehicle is g, and the payload is Q. according to the above three conditions, the. The maximum value of (Q + G) is taken to calculate the traction force.(1) Calculation of traction forceF＝(Q+G)g /1000η B (µcosα+g sin α)(1)Where: F is the traction force of monorail crane, kn; G is the total mass of monorail Quantity, kg; q is the payload, kg; μ is the ru nning resistance of monorail crane. Coefficient, μ = 0.3; α is roadway dip angle, (°); η B is line efficiency, When the line is a straight line, η B = 0.8, and η b decreases by 0.01 for every 15 ° increase in horizontal curve.The traction force of winch or diesel locomotive is selected according to f value, and the latter needs to be adjusted, Slightly larger than the former.(2) Calculation of motor power. The shaft power n of traction winch can be calculated according to the following formulaN＝F v/η A (2)Where: V is the running speed, v = 2 m / S; η A is the driving device efficiency 75.According to the n value, select the motor capacity n standard, n standard ≥ n.2.3 selection calculation of wire rope for monorail crane with wire rope tractionThe traction winch of monorail crane is hydraulic friction winch with steel wire rope Closed loop.Its transmission principle is friction transmission, and the tension on both sides of the large friction wheel is FY And FL. The relationship between the two can be expressed by Euler's formula, that isF y＝Fl eµα(3)Where: FY Is the tension at the point where the wire rope meets the friction wheel, kn; fl by. Tension at the separation point of wire rope and friction wheel, kn; μ is the tension between wire rope and friction wheel. Friction factor between wheels, μ = 0.1; α is the friction factor of wire rope on friction wheel. The envelop angle is α = 5 and π = 900 degrees.(1) Tension calculation of wire rope at winch separation pointBecause f = FY - FL = fl(E μ α - 1), so the wire rope is in the winch. The minimum tension fl min at the separation point of the friction wheel can be calculated by the following formulaFl min＝F/ (eµα -1)n (4)Where: n is the friction reserve coefficient, n = 1.15-1.2.(2) Calculation of breaking force of wire rope. The breaking force FB of wire rope can be calculated according to the following formulaFB＝Q+G ─── 1 000 g ma sin α 。
起重机中英文对照外文翻译文献
起重机中英⽂对照外⽂翻译⽂献中英⽂对照外⽂翻译(⽂档含英⽂原⽂和中⽂翻译)Control of Tower Cranes WithDouble-Pendulum Payload DynamicsAbstract：The usefulness of cranes is limited because the payload is supported by an overhead suspension cable that allows oscilation to occur during crane motion. Under certain conditions, the payload dynamics may introduce an additional oscillatory mode that creates a double pendulum. This paper presents an analysis of this effect on tower cranes. This paper also reviews a command generation technique to suppress the oscillatory dynamics with robustness to frequency changes. Experimental results are presented to verify that the proposed method can improve the ability of crane operators to drive a double-pendulum tower crane. The performance improvements occurred during both local and teleoperated control.Key words：Crane , input shaping , tower crane oscillation , vibrationI. INTRODUCTIONThe study of crane dynamics and advanced control methods has received significant attention. Cranes can roughly be divided into three categories based upontheir primary dynamic properties and the coordinate system that most naturally describes the location of the suspension cable connection point. The first category, bridge cranes, operate in Cartesian space, as shown in Fig. 1(a). The trolley moves along a bridge, whose motion is perpendicular to that of the trolley. Bridge cranes that can travel on a mobile base are often called gantry cranes. Bridge cranes are common in factories, warehouses, and shipyards.The second major category of cranes is boom cranes, such as the one sketched in Fig. 1(b). Boom cranes are best described in spherical coordinates, where a boom rotates aboutaxes both perpendicular and parallel to the ground. In Fig. 1(b), ψis the rotation aboutthe vertical, Z-axis, and θis the rotation about the horizontal, Y -axis. The payload is supported from a suspension cable at the end of the boom. Boom cranes are often placed on a mobile base that allows them to change their workspace.The third major category of cranes is tower cranes, like the one sketched in Fig. 1(c). These are most naturally described by cylindrical coordinates. A horizontal jib arm rotates around a vertical tower. The payload is supported by a cable from the trolley, which moves radially along the jib arm. Tower cranes are commonly used in the construction of multistory buildings and have the advantage of having a small footprint-to-workspace ratio. Primary disadvantages of tower and boom cranes, from a control design viewpoint, are the nonlinear dynamics due to the rotational nature of the cranes, in addition to the less intuitive natural coordinate systems.A common characteristic among all cranes is that the pay- load is supported via an overhead suspension cable. While this provides the hoisting functionality of the crane, it also presents several challenges, the primary of which is payload oscillation. Motion of the crane will often lead to large payload oscillations. These payload oscillations have many detrimental effects including degrading payload positioning accuracy, increasing task completion time, and decreasing safety. A large research effort has been directed at reducing oscillations. An overview of these efforts in crane control, concentrating mainly on feedback methods, is provided in [1]. Some researchers have proposed smooth commands to reduce excitation of system flexible modes [2]–[5]. Crane control methods based on command shaping are reviewed in [6]. Many researchers have focused on feedback methods, which necessitate the addition necessitate the addition of sensors to the crane and can prove difficult to use in conjunction with human operators. For example, some quayside cranes have been equipped with sophisticated feedback control systems to dampen payload sway. However, the motions induced by the computer control annoyed some of the human operators. As a result, the human operators disabled the feedback controllers. Given that the vast majority of cranes are driven by human operators and will never be equipped with computer-based feedback, feedback methods are not considered in this paper.Input shaping [7], [8] is one control method that dramatically reduces payload oscillation by intelligently shaping the commands generated by human operators [9], [10]. Using rough estimates of system natural frequencies and damping ratios, a series of impulses, called the input shaper, is designed. The convolution of the input shaper and the original command is then used to drive the system. This process is demonstrated with atwo-impulse input shaper and a step command in Fig. 2. Note that the rise time of the command is increased by the duration of the input shaper. This small increase in the rise time isnormally on the order of 0.5–1 periods of the dominant vibration mode.Fig. 1. Sketches of (a) bridge crane, (b) boom crane, (c) and tower crane.Fig. 2. Input-shaping process.Input shaping has been successfully implemented on many vibratory systems including bridge [11]–[13], tower [14]–[16], and boom [17], [18] cranes, coordinate measurement machines[19]–[21], robotic arms [8], [22], [23], demining robots [24], and micro-milling machines [25].Most input-shaping techniques are based upon linear system theory. However, some research efforts have examined the extension of input shaping to nonlinear systems [26], [14]. Input shapers that are effective despite system nonlinearities have been developed. These include input shapers for nonlinear actuator dynamics, friction, and dynamic nonlinearities [14], [27]–[31]. One method of dealing with nonlinearities is the use of adaptive or learning input shapers [32]–[34].Despite these efforts, the simplest and most common way to address system nonlinearities is to utilize a robust input shaper [35]. An input shaper that is more robust to changes in system parameters will generally be more robust to system nonlinearities that manifest themselves as changes in the linearized frequencies. In addition to designing robust shapers, input shapers can also be designed to suppress multiple modes of vibration [36]–[38].In Section II, the mobile tower crane used during experimental tests for this paper is presented. In Section III, planar and 3-D models of a tower crane are examined to highlight important dynamic effects. Section IV presents a method to design multimode input shapers with specified levels of robustness. InSection V, these methods are implemented on a tower crane with double-pendulum payload dynamics. Finally, in Section VI, the effect of the robust shapers on human operator performance is presented for both local and teleoperated control.II. MOBILE TOWER CRANEThe mobile tower crane, shown in Fig. 3, has teleoperation capabilities that allow it to be operated in real-time from anywhere in the world via the Internet [15]. The tower portion of the crane, shown in Fig. 3(a), is approximately 2 m tall with a 1 m jib arm. It is actuated by Siemens synchronous, AC servomotors. The jib is capable of 340°rotation about the tower. The trolley moves radially along the jib via a lead screw, and a hoisting motor controls the suspension cable length. Motor encoders are used for PD feedback control of trolley motion in the slewing and radial directions. A Siemens digital camera is mounted to the trolley and records the swing deflection of the hook at a sampling rate of 50 Hz [15].The measurement resolution of the camera depends on the suspension cable length. For the cable lengths used in this research, the resolution is approximately 0.08°. This is equivalent to a 1.4 mm hook displacement at a cable length of 1 m. In this work, the camera is not used for feedback control of the payload oscillation. The experimental results presented in this paper utilize encoder data to describe jib and trolley position and camera data to measure the deflection angles of the hook. Base mobility is provided by DC motors with omnidirectional wheels attached to each support leg, as shown in Fig. 3(b). The base is under PD control using two HiBot SH2-based microcontrollers, with feedback from motor-shaft-mounted encoders. The mobile base was kept stationary during all experiments presented in this paper. Therefore, the mobile tower crane operated as a standard tower crane.Table I summarizes the performance characteristics of the tower crane. It should be noted that most of these limits areenforced via software and are not the physical limitations of the system. These limitations are enforced to more closely match theoperational parameters of full-sized tower cranes.Fig. 3. Mobile, portable tower crane, (a) mobile tower crane, (b) mobile crane base.TABLE I MOBILE TOWER CRANE PERFORMANCE LIMITSFig. 4 Sketch of tower crane with a double-pendulum dynamics.III. TOWER CRANE MODELFig.4 shows a sketch of a tower crane with a double-pendulum payload configuration. The jib rotates by an angle around the vertical axis Z parallelto the tower column. The trolley moves radially along the jib; its position along the jib is described by r . The suspension cable length from the trolley to the hook is represented by an inflexible, massless cable of variable length 1l . The payload is connected to the hook via an inflexible, massless cable of length 2l . Both the hook and the payload are represented as point masses having masses h m and p m , respectively.The angles describing the position of the hook are shown in Fig. 5(a). The angle φrepresents a deflection in the radial direction, along the jib. The angle χ represents a tangential deflection, perpendicular to the jib. In Fig. 5(a), φ is in the plane of the page, and χ lies in a plane out of the page. The angles describing the payload position are shown in Fig. 5(b). Notice that these angles are defined relative to a line from the trolley to the hook. If there is no deflection of the hook, then the angleγ describes radial deflections, along the jib, and the angle α represents deflections perpendicular to the jib, in the tangential direction. The equations of motion for this model were derived using a commercial dynamics package, but they are too complex to show in their entirety here, as they are each over a page in length.To give some insight into the double-pendulum model, the position of the hook and payload within the Newtonian frame XYZ are written as —h q and —p q , respectivelyWhere -I , -J and -K are unit vectors in the X , Y , and Z directions. The Lagrangian may then be written asFig. 5. (a) Angles describing hook motion. (b) Angles describing payload motion.Fig. 6. Experimental and simulated responses of radial motion.(a) Hook responses (φ) for m 48.01=l ，(b) Hook responses for m 28.11=lThe motion of the trolley can be represented in terms of the system inputs. The position of the trolley —tr q in the Newtonian frame is described byThis position, or its derivatives, can be used as the input to any number of models of a spherical double-pendulum. More detailed discussion of the dynamics of spherical double pendulums can be found in [39]–[42].The addition of the second mass and resulting double-pendulum dramatically increases the complexity of the equations of motion beyond the more commonly used single-pendulum tower model [1], [16], [43]–[46]. This fact can been seen in the Lagrangian. In (3), the terms in the square brackets represent those that remain for the single-pendulum model; no —p q terms appear. This significantly reduces the complexity of the equations because —p q is a function of the inputs and all four angles shown in Fig. 5.It should be reiterated that such a complex dynamic model is not used to design the input-shaping controllers presented in later sections. The model was developed as a vehicle to evaluate the proposed control method over a variety of operating conditions and demonstrate its effectiveness. The controller is designed using a much simpler, planar model.A. Experimental V erification of the ModelThe full, nonlinear equations of motion were experimentally verified using several test cases. Fig.6 shows two cases involving only radial motion. The trolley was driven at maximum velocity for a distance of 0.30 m, with 2l =0.45m .The payload mass p m for both cases was 0.15 kg and the hook mass h m was approximately 0.105 kg. The two cases shown in Fig. 6 present extremes of suspension cable lengths 1l . In Fig. 6(a), 1l is 0.48 m , close to the minimum length that can be measured by the overhead camera. At this length, the double-pendulum effect is immediately noticeable. One can see that the experimental and simulated responses closely match. In Fig. 6(b), 1l is 1.28 m, the maximum length possible while keeping the payload from hitting the ground. At this length, the second mode of oscillation has much less effect on the response. The model closely matches the experimental response for this case as well. The responses for a linearized, planar model, which will be developed in Section III-B, are also shown in Fig. 6. The responses from this planar model closely match both the experimental results and the responses of the full, nonlinear model for both suspension cable lengths.Fig. 7. Hook responses to 20°jib rotation:(a) φ (radial) response;(b) χ (tangential) response.Fig. 8. Hook responses to 90°jib rotation:φ(radial) response;(b) χ(tangential) response.(a)If the trolley position is held constant and the jib is rotated, then the rotational and centripetal accelerations cause oscillation in both the radial and tangential directions. This can be seen in the simulation responses from the full nonlinear model in Figs. 7 and 8. In Fig. 7, the trolley is held at a fixed position of r = 0.75 m, while the jib is rotated 20°. This relatively small rotation only slightly excites oscillation in the radial direction, as shown in Fig. 7(a). The vibratory dynamics are dominated byoscillations in the tangential direction, χ, as shown in Fig. 7(b). If, however, a large angular displacement of the jib occurs, then significant oscillation will occur in both the radial and tangential directions, as shown in Fig. 8. In this case, the trolley was fixed at r = 0.75 m and the jib was rotated 90°. Figs. 7 and 8 show that the experimental responses closely match those predicted by the model for these rotational motions. Part of the deviation in Fig. 8(b) can be attributed to the unevenness of the floor on which the crane sits. After the 90°jib rotation the hook and payload oscillate about a slightly different equilibrium point, as measured by the overhead camera.Fig.9.Planardouble-pendulummodel.B.Dynamic AnalysisIf the motion of the tower crane is limited to trolley motion, like the responses shown in Fig. 6, then the model may be simplified to that shown in Fig. 9. This model simplifies the analysis of the system dynamics and provides simple estimates of the two natural frequencies of the double pendulum. These estimates will be used to develop input shapers for the double-pendulum tower crane.The crane is moved by applying a force )(t u to the trolley. A cable of length 1l hangs below the trolley and supports a hook, of mass h m , to which the payload is attached using rigging cables. The rigging and payload are modeled as a second cable, of length 2l and point mass p m . Assuming that the cable and rigging lengths do not change during the motion, the linearized equations of motion, assuming zero initial conditions, arewhere φ and γ describe the angles of the two pendulums, R is the ratio of the payload mass to the hook mass, and g is the acceleration due to gravity.The linearized frequencies of the double-pendulum dynamics modeled in (5) are [47]Where Note that the frequencies depend on the two cable lengths and the mass ratio.Fig. 10. Variation of first and second mode frequencies when m l l 8.121=+.。
中英文文献翻译-起重机介绍

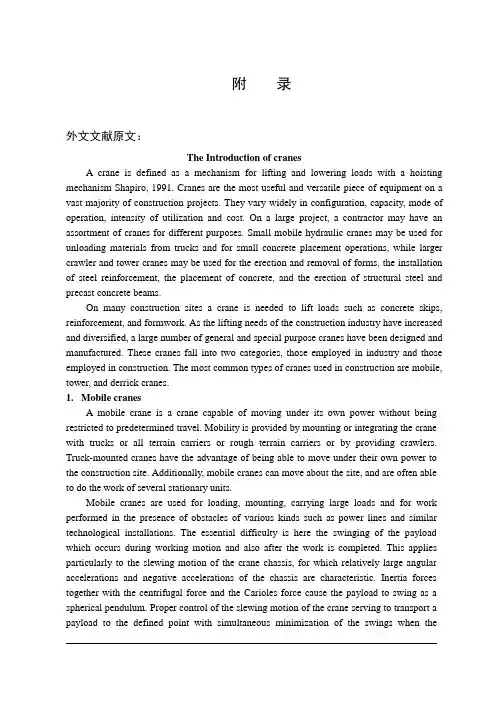

附录外文文献原文：The Introduction of cranesA crane is defined as a mechanism for lifting and lowering loads with a hoisting mechanism Shapiro, 1991. Cranes are the most useful and versatile piece of equipment on a vast majority of construction projects. They vary widely in configuration, capacity, mode of operation, intensity of utilization and cost. On a large project, a contractor may have an assortment of cranes for different purposes. Small mobile hydraulic cranes may be used for unloading materials from trucks and for small concrete placement operations, while larger crawler and tower cranes may be used for the erection and removal of forms, the installation of steel reinforcement, the placement of concrete, and the erection of structural steel and precast concrete beams.On many construction sites a crane is needed to lift loads such as concrete skips, reinforcement, and formwork. As the lifting needs of the construction industry have increased and diversified, a large number of general and special purpose cranes have been designed and manufactured. These cranes fall into two categories, those employed in industry and those employed in construction. The most common types of cranes used in construction are mobile, tower, and derrick cranes.1.Mobile cranesA mobile crane is a crane capable of moving under its own power without being restricted to predetermined travel. Mobility is provided by mounting or integrating the crane with trucks or all terrain carriers or rough terrain carriers or by providing crawlers. Truck-mounted cranes have the advantage of being able to move under their own power to the construction site. Additionally, mobile cranes can move about the site, and are often able to do the work of several stationary units.Mobile cranes are used for loading, mounting, carrying large loads and for work performed in the presence of obstacles of various kinds such as power lines and similar technological installations. The essential difficulty is here the swinging of the payload which occurs during working motion and also after the work is completed. This applies particularly to the slewing motion of the crane chassis, for which relatively large angular accelerations and negative accelerations of the chassis are characteristic. Inertia forces together with the centrifugal force and the Carioles force cause the payload to swing as a spherical pendulum. Proper control of the slewing motion of the crane serving to transport a payload to the defined point with simultaneous minimization of the swings when theworking motion is finished plays an important role in the model.Modern mobile cranes include the drive and the control systems. Control systems send the feedback signals from the mechanical structure to the drive systems. In general, they are closed chain mechanisms with flexible members [1].Rotation, load and boom hoisting are fundamental motions the mobile crane. During transfer of the load as well as at the end of the motion process, the motor drive forces, the structure inertia forces, the wind forces and the load inertia forces can result in substantial, undesired oscillations in crane. The structure inertia forces and the load inertia forces can be evaluated with numerical methods, such as the finite element method. However, the drive forces are difficult to describe. During start-up and breaking the output forces of the drive system significantly fluctuate. To reduce the speed variations during start-up and braking the controlled motor must produce torque other than constant [2,3], which in turn affects the performance of the crane.Modern mobile cranes that have been built till today have oft a maximal lifting capacity of 3000 tons and incorporate long booms. Crane structure and drive system must be safe, functionary and as light as possible. For economic and time reasons it is impossible to build prototypes for great cranes. Therefore, it is desirable to determinate the crane dynamic responses with the theoretical calculation.Several published articles on the dynamic responses of mobile crane are available in the open literature. In the mid-seventies Peeken et al. [4] have studied the dynamic forces of a mobile crane during rotation of the boom, using very few degrees of freedom for the dynamic equations and very simply spring-mass system for the crane structure. Later Maczynski et al. [5] studied the load swing of a mobile crane with a four mass-model for the crane structure. Posiadala et al. [6] have researched the lifted load motion with consideration for the change of rotating, booming and load hoisting. However, only the kinematics were studied. Later the influence of the flexibility of the support system on the load motion was investigated by the same author [7]. Recently, Kilicaslan et al. [1] have studied the characteristics of a mobile crane using a flexible multibody dynamics approach. Towarek [16] has concentrated the influence of flexible soil foundation on the dynamic stability of the boom crane. The drive forces, however, in all of those studies were presented by using so called the metho d of ……kinematics forcing‟‟ [6] with assumed velocities or accelerations. In practice this assumption could not comply with the motion during start-up and braking.A detailed and accurate model of a mobile crane can be achieved with the finite element method. Using non-linear finite element theory Gunthner and Kleeberger [9] studied the dynamic responses of lattice mobile cranes. About 2754 beam elements and 80 truss elements were used for modeling of the lattice-boom structure. On this basis a efficient software for mobile crane calculation––NODYA has been developed. However, the influences of the drive systems must be determined by measuring on hoisting of the load[10], or rotating of the crane [11]. This is neither efficient nor convenient for computer simulation of arbitrary crane motions.Studies on the problem of control for the dynamic response of rotary crane are also available. Sato et al. [14], derived a control law so that the transfer a load to a desired position will take place that at the end of the transfer of the swing of the load decays as soon as possible. Gustafsson [15] described a feedback control system for a rotary crane to move a cargo without oscillations and correctly align the cargo at the final position. However, only rigid bodies and elastic joint between the boom and the jib in those studies were considered. The dynamic response of the crane, for this reason, will be global.To improve this situation, a new method for dynamic calculation of mobile cranes will be presented in this paper. In this method, the flexible multibody model of the steel structure will be coupled with the model of the drive systems. In that way the elastic deformation, the rigid body motion of the structure and the dynamic behavior of the drive system can be determined with one integrated model. In this paper this method will be called ……complete dynamic calculation for driven “mechanism”.On the basis of flexible multibody theory and the Lagrangian equations, the system equations for complete dynamic calculation will be established. The drive- and control system will be described as differential equations. The complete system leads to a non-linear system of differential equations. The calculation method has been realized for a hydraulic mobile crane. In addition to the structural elements, the mathematical modeling of hydraulic drive- and control systems is decried. The simulations of crane rotations for arbitrary working conditions will be carried out. As result, a more exact representation of dynamic behavior not only for the crane structure, but also for the drive system will be achieved. Based on the results of these simulations the influences of the accelerations, velocities during start-up and braking of crane motions will be discussed.2.Tower cranesThe tower crane is a crane with a fixed vertical mast that is topped by a rotating boom and equipped with a winch for hoisting and lowering loads (Dickie, 990). Tower cranes are designed for situations which require operation in congested areas. Congestion may arise from the nature of the site or from the nature of the construction project. There is no limitation to the height of a high-rise building that can be constructed with a tower crane. The very high line speeds, up to 304.8 mrmin, available with some models yield good production rates at any height. They provide a considerable horizontal working radius, yet require a small work space on the ground (Chalabi, 1989). Some machines can also operate in winds of up to 72.4 km/h, which is far above mobile crane wind limits.The tower cranes are more economical only for longer term construction operations and higher lifting frequencies. This is because of the fairly extensive planning needed for installation, together with the transportation, erection and dismantling costs.3. Derrick cranesA derrick is a device for raising, lowering, and/or moving loads laterally. The simplest form of the derrick is called a Chicago boom and is usually installed by being mounted to building columns or frames during or after construction (Shapiro and Shapiro, 1991).This derrick arrangement. (i.e., Chicago boom) becomes a guy derrick when it is mounted to a mast and a stiff leg derrick when it is fixed to a frame.The selection of cranes is a central element of the life cycle of the project. Cranes must be selected to satisfy the requirements of the job. An appropriately selected crane contributes to the efficiency, timeliness, and profitability of the project. If the correct crane selection and configuration is not made, cost and safety implications might be created (Hanna, 1994). Decision to select a particular crane depends on many input parameters such as site conditions, cost, safety, and their variability. Many of these parameters are qualitative, and subjective judgments implicit in these terms cannot be directly incorporated into the classical decision making process. One way of selecting crane is achieved using fuzzy logic approach.Cranes are not merely the largest, the most conspicuous, and the most representative equipment of construction sites but also, at various stages of the project, a real “bottleneck” that slows the pace of the construction process. Although the crane can be found standing idle in many instances, yet once it is involved in a particular task ,it becomes an indispensable link in the activity chain, forcing at least two crews(in the loading and the unloading zones) to wait for the service. As analyzed in previous publications [6-8] it is feasible to automate (or, rather, semi-automate) crane navigation in order to achieve higher productivity, better economy, and safe operation. It is necessary to focus on the technical aspects of the conversion of existing crane into large semi-automatic manipulators. By mainly external devices mounted on the crane, it becomes capable of learning, memorizing, and autonomously navigation to reprogrammed targets or through prêt aught paths.The following sections describe various facets of crane automation:First, the necessary components and their technical characteristics are reviewed, along with some selection criteria. These are followed by installation and integration of the new components into an existing crane. Next, the Man –Machine –Interface (MMI) is presented with the different modes of operation it provides. Finally, the highlights of a set of controlled tests are reported followed by conclusions and recommendations.Manual versus automatic operation: The three major degrees of freedom of common tower cranes are illustrated in the picture. In some cases , the crane is mounted on tracks , which provide a fourth degree of freedom , while in other cases the tower is “telescope” or extendable , and /or the “jib” can be raised to a diagonal position. Since these additional degrees of freedom are not used routinely during normal operation but rather are fixed in a certain position for long periods (days or weeks), they are not included in the routineautomatic mode of operation, although their position must be “known” to the control system.外文文献中文翻译：起重机介绍起重机是用来举升机构、抬起或放下货物的器械。
