CMW500LTE测试方法1.准备工作：在开始测试之前，需要确保你已经连接了正确的测试设备和仪器。

首先，将CMW500和被测设备（如LTE手机）通过电缆连接起来。

然后，确保CMW500已经正确设置了测试参数，包括频率、带宽和信道等。

2.LTE基础测试：使用CMW500进行LTE基础测试，可以评估LTE网络和设备的性能。

基础测试通常包括以下几个方面：-帧同步测试：测试手机是否能够正确接收和解码LTE网络发送的帧。

-功率测试：测试手机发送和接收的功率水平是否在合理范围内。

-误码率测试：测试手机的误码率（BER）是否满足标准要求。

-灵敏度测试：测试手机在不同信道条件下的灵敏度，即能否接收到弱信号。

-容量测试：测试网络的容量和吞吐量，包括最大连接数和数据传输速率等。

3.LTE数据测试：使用CMW500进行LTE数据测试，可以评估LTE网络的实际数据传输性能。

数据测试通常包括以下几个方面：-速率测试：测试网络的数据传输速率，包括上行和下行速率。

-带宽测试：测试网络的可用带宽。

-延迟测试：测试网络的数据传输延迟，包括往返延迟和单程延迟等。

-QoS测试：测试网络的服务质量，包括最大延迟、最小带宽和数据包丢失率等。

4.LTE专项测试：除了基础测试和数据测试外，CMW500还可以进行一些专项测试，以评估LTE网络和设备的特定性能。

专项测试通常包括以下几个方面：-数据吞吐量测试：测试网络的最大数据吞吐量，包括流媒体、实时视频和大文件传输等。

- VoLTE测试：测试网络的VoLTE（Voice over LTE）功能，包括语音质量和呼叫可靠性等。

-LTE高级功能测试：测试LTE网络的高级功能，如载波聚合、MIMO和中继等。

总结：通过CMW500进行LTE测试，可以评估LTE网络和设备的性能和可靠性。

基础测试、数据测试和专项测试等方法可以全面地评估LTE网络的各个方面。

CMW500的可扩展性和灵活性，使其成为一款功能强大的LTE测试仪器。

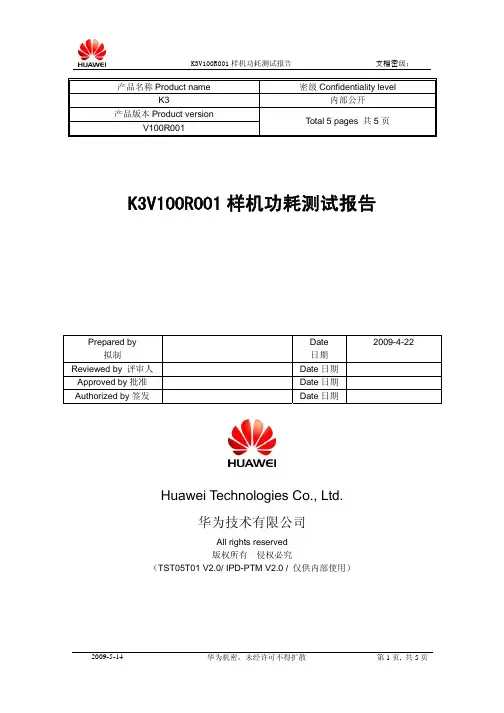

华为海思K3V100R001 样机功耗测试报告

Reviewed by 评审人 Approved by 批准 Authorized by 签发
Date 日期 Date 日期 Date 日期 Date 日期
2009-4-22
Huawei Technologies Co., Ltd.
华为技术有限公司
All rights reserved 版权所有侵权必究（TST05T01 V2.0/ IPD-PTM V2.0 / 仅供内部使用）
K3V100R001 样机功耗测试报告
文档密级：
产品名称 Product name K3
产品版本 Product version V100R001
密级 Confidentiality level 内部公开
Total 5 pages 共 5 页
K3V100R001 样机功耗测试报告
Prepared by 拟制
2.1 测试原理
本次使用直流稳压电源 KEITHLEY 2306 提供 3.70V 电压为手机供电（特殊情况专门说明），每 30 秒钟积分一次，测试手机在各个常用应用场景的平均电流。
测试过程中 SD 卡、SIM 卡在位，文件存放在 SD 卡中，其他设置均为出厂默认设置（有特殊要求的除外）。
2.2 测试需求
单板编号：020NXF1092000135
平均电流（mA） HiSilicon K3 HiSilicon Hi3611
4.20 45.88 83.33 146.06 134.81 39.54 0.65 136.07 96.10 0.10 112.39 109.34 160.11
2009-5-14
华为机密，未经许可不得扩散
本
节
1.00
initial 初稿完成

芯片功耗检测标准方法

芯片功耗检测标准方法
芯片功耗检测标准方法主要包括以下几种：
1. 电流测量法：使用专业的电流计或示波器测量芯片静态状态下的电流。

这种方法需要将芯片连接到测试仪器上，并记录稳定状态下的电流读数。

2. 功耗分析仪法：利用功耗分析仪测试芯片的功耗。

功耗分析仪是一种高精度的仪器，可以通过与芯片连接来监测芯片的功耗。

它通常包含曲线追踪和功耗示波器等功能，可以实时观察芯片不同模式下的功耗特征。

3. 电源电流传感器法：使用电源电流传感器来测量芯片的功耗。

这种方法通常适用于芯片供电电流不超过传感器测量范围的情况。

电源电流传感器将安装在芯片供电线路上，以非侵入的方式测量芯片的功耗。

4. 静态功耗测试：在芯片没有运行任何程序的情况下进行测试，主要是测量芯片在空闲状态下的功耗。

包括待机模式测试、关闭状态测试和电压测试。

以上方法仅供参考，具体检测方法还需要根据实际情况来选择，如需更多信息，建议咨询专业人士。

手机功耗测试用例-Battery Life Measurement and Current Consumption Technique test cases

APPENDIX BBattery Life Measurement Test ResultsGeneralRef.no Freq. Band Currentvalues/mAhCalc.oper.Times /hh:mmThroughputMbComments8509001800190085090018001900Stand-by Test SceneriosScenarios3.1GSM Idle Time3.2GSM/GPRS Idle TimeSW version Nominal Voltage End of life voltage Battery TypeBattery capacity (mAh)Model Name Marketing Name HW version Cable/Stereo Headset usedBluetooth Headset usedI II IV V VI VIII IX 8509001800190085090018001900I II IV V VI VIII IX measured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column Dmeasured bandPLEASE, add the product supported and measured bands in column DIdle Time3.43.3WCMDA GSM/WCMDA Idle TimeIdle Time3.6WCMDA/GSM-GPRS Dual ModeIdle Time3.5GSM-GPRS/WCMDA Dual ModeE-UTRA FDD Idle Timemeasured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column D85090018001900850Test Only, when both WiFi frequency bands are supported900Test Only, when both WiFi frequency bands are supported 1800Test Only, when both WiFi frequency bands are supported 1900Test Only, when both WiFi frequency bands are supported85090018001900850900GSM,Wi-Fi 5 GHZ enabled,no AP3.78.2Idle Time WMM/UAPSD offIdle TimeIdle TimeGSM,Wi-Fi 2.4 GHZ enabled,device connected toAPIdle Time WMM/UAPSD onFDDE-UTRA TDD Idle TimeGSM,Wi-Fi 2.4 GHZ enabled,no AP3.8.1180********Test Only, when both WiFi frequency bands are supported 900Test Only, when both WiFi frequency bands are supported 1800Test Only, when both WiFi frequency bands are supported 1900Test Only, when both WiFi frequency bands are supported850Test Only, when both WiFi frequency bands are supported 900Test Only, when both WiFi frequency bands are supported 1800Test Only, when both WiFi frequency bands are supported 1900Test Only, when both WiFi frequency bands are supportedGAN over WLAN (2.4GHZ),GSM coverage available Idle Time 900GAN over WLAN (5 GHZ),GSM coverage availableIdle Time 900Test Only, when both WiFi frequency bands are supportedIII IV V VI VIII IX ITest Only, when both WiFi frequency bands are supportedII Test Only, when both WiFi frequency bands are supported IV Test Only, when both WiFi frequency bands are supported V Test Only, when both WiFi frequency bands are supported VITest Only, when both WiFi frequency bands are supported3.8.3Idle TimeWCDMA,Wi-Fi 5 GHZ enabled,no APGSM,Wi-Fi 5 GHZ enabled,device connected toAPIdle Time WMM/UAPSD onIdle Time WMM/UAPSD off3.8.2Idle Time WMM/UAPSD offWi-Fi 2.4 GHZ enabled,device connected toAPIdle TimeWCDMA,Wi-Fi 2.4 GHZ enabled,no AP3.8.4VIII Test Only, when both WiFi frequency bands are supported IX Test Only, when both WiFi frequency bands are supportedI II IV V VI VIII IX I II IV V VI VIII IX I Test Only, when both WiFi frequency bands are supported II Test Only, when both WiFi frequency bands are supported IV Test Only, when both WiFi frequency bands are supported V Test Only, when both WiFi frequency bands are supported VI Test Only, when both WiFi frequency bands are supported VIII Test Only, when both WiFi frequency bands are supported IX Test Only, when both WiFi frequency bands are supported I Test Only, when both WiFi frequency bands are supported II Test Only, when both WiFi frequency bands are supported IV Test Only, when both WiFi frequency bands are supported V Test Only, when both WiFi frequency bands are supported VI Test Only, when both WiFi frequency bands are supported VIII Test Only, when both WiFi frequency bands are supported IX Test Only, when both WiFi frequency bands are supported measured bandPLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedWCDMA,Wi-Fi 5 GHZ enabled,device connected toAPIdle Time WMM/UAPSD onIdle Time WMM/UAPSD off3.8.5Idle Time WMM/UAPSD onIdle Time WMM/UAPSD offWi-Fi 5 GHZ enabled,no APWCDMA,Wi-Fi 2.4 GHZ enabled,device connected toAPStandby,Wi-Fi 2.4 GHZ enabled,measured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supported measured bandPLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedmeasured bandPLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedmeasured band PLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedmeasured band PLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedmeasured band PLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedmeasured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column Dmeasured band PLEASE, add the product supported and measured bands in column Dmeasured bandPLEASE, add the product supported and measured bands in column DIdle TimeE-UTRA Standby,Wi-Fi 5 GHZ enabled,no APIdle TimeIdle Time WMM/UAPSD onE-UTRA Standby,Wi-Fi 2.4 GHZ enabled,device connected to3.8.6E-UTRA Standby,Wi-Fi 2.4 GHZ enabled,no APmeasuredband PLEASE, add the product supported and measured bands in column Dmeasuredband PLEASE, add the product supported and measured bands in column Dmeasuredband PLEASE, add the product supported and measured bands in column Dmeasuredband PLEASE, add the product supported and measured bands in column Dmeasuredband PLEASE, add the product supported and measured bands in column Dmeasuredband PLEASE, add the product supported and measured bands in column Dmeasuredband PLEASE, add the product supported and measured bands in column Dmeasuredband PLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedmeasuredband PLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedmeasuredband PLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedmeasuredband PLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedmeasuredband PLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedmeasuredband PLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedmeasuredband PLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedmeasuredband PLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedE-UTRA Standby, Wi-Fi 5 GHZenabled,device connected toAPIdle Time WMM/UAPSD on WMM/UAPSD off3.8.7WMM/UAPSD onIdle TimeWMM/UAPSD off E-UTRAStandby,Wi-Fi 2.4 GHZenabled,deviceconnected toAPmeasured bandPLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedmeasured band PLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedmeasured band PLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedmeasured bandPLEASE, add the product supported and measured bands in column D. Test Only, when both WiFi frequency bands are supportedRef.noFreq. Band Currentvalues/mAhCalc.oper.Times /hh:mmThroughputMbComments850900180019008509001800190085090018001900device connected toAPIdle Time WMM/UAPSD offTalk Time Test SceneriosScenariosGSM4.1Talk time at maxTX power4.1GSMGSMTalk time at min TXpowerTalk time at PCL 1or 7 (band dependent)4.1I IIIV V VI VIIIIX I II IV V VI VIII IX 8509001800190085090018001900I II IV V VI VIII IX I II4.2WCDMATalk Time Tx level 10dBmTalk Time Power DistributionTx level4.3WLAN with GSM CoverageTalk Time WMM/UAPSD onTalk Time WMM/UAPSD off4.3WMM/UAPSD offWLAN with WCDMA CoverageTalk Time WMM/UAPSD onIV V VI VIII IX 4.3.1VoIP over WLAN No CS Talk Time-E-UTRA FDD/TDD File Transfer File Downloadmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band10 minPLEASE, add the product supported and measured bands in column DFile DownloadE-UTRA TDD File Download5.3E-UTRA FDD Talk Time WMM/UAPSD offWCDMA Coverageband10 minbands in column DFile Uploadmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band10 minPLEASE, add the product supported and measured bands in column DFile Up- & Downloadmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band10 minPLEASE, add the product supported and measured bands in column DE-UTRA TDD File Upload5.4E-UTRA FDD File Uploadband10 min bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band 10 min PLEASE, add the product supported and measured bands in column Dmeasured band10 minPLEASE, add the product supported and measured bands in column DApplication Test ScenariosBrowsingRef.no Freq. Band Currentvalues/mAhTest Executio n Time (Calc.oper.Times )Total DataTransferred(ThroughputMb)CommentsGSM/GPRS 5 minNote: Add used Freq. Band WCDMA5 minNote: Add used Freq. Band E-UTRA FDDFile Up & Download5.5E-UTRA TDDFile Up & DownloadScenarios6.1HTMLBrowsingGSM/GPRS 5 minNote: Add used Freq. BandWCDMA 5 min Note: Add used Freq. Band StreamingRef.no Freq. Band Currentvalues/mAhTestExecution Time(Calc.oper.Times )Total DataTransferred(ThroughputMb)CommentsWCMDA10 min Note: Add used Freq. BandHSDPA10 min Note: Add used Freq. BandE-UTRA10 min Note: Add used Freq. BandWCDMA10 min Note: Add used Freq. BandHSDPA10 min Note: Add used Freq. BandE-UTRA10 min Note: Add used Freq. Band ApplicationsRef.no Freq. Band Currentvalues/mAhTestExecution Time/Calc.oper.Times )ThroughputMbComments8.1Music Playback Used RAT (UTRAor EUTRA)5 minAdd used RAT and Freq.Band GSM 5 minWCDMA 5 min7.1Video Streaming7.2AudioStreamingVideo PlaybackScenariosScenarios6.2HTML Browsing with Full WebBrowser8.28.3Camera Operation Airplane Mode20 pics with 30s interval GSM 10 min WCDMA10 minVideo TelephonyRef.no Freq. Band Currentvalues/mAhTest Execution Time/Calc.oper.Times )ThroughputMbComments9.1Video TelephonyWCDMA?10 minBluetoothRef.no Freq. Band Currentvalues/mAhCalc.oper.Times /hh:mmThroughputMbComments85090018001900I II IVV VI VIII IXScenarios10.28.4GSMVideo RecordingBT Headset Talk TimeWCDMAScenarios10.3BT Headset Music PlayerUsed RAT (UTRAor EUTRA)5 minAdd used RAT and Freq.Band85090018001900I II IV V VI VIII IX 85090018001900I II IV V VI VIII IXFTP Download10.6GSMWCDMA10.5Device in BT discovery mode – IdleTimeGSMWCDMABT data transfer -Device in idlemodeRef.no Freq. Band Currentvalues/mAhTest Execution Time/Calc.oper.Times )ThroughputMbCommentsI10 min II 10 min IV 10 min V 10 min VI 10 min VIII 10 min IX 10 min I 10 min II10 min IV 10 min V 10 min VI 10 min VIII 10 min IX10 min 85010 min 90010 min 180010 min 190010 min 85010 min 90010 min 180010 min 190010 min WMM/UAPSD on -10 min WMM/UAPSD off-10 minNote (*) N/A if the charging cannot be disabled by an appropriate SW tool.11.1WLAN FTP Download11.311.2WCDMAFTP download viaBluetooth connectionScenariosFTP download via Cable connection(*)FTP download viaBluetooth connectionGSMFTP download via Cable connection(*)USB Data ModemRef.no Freq. Band Currentvalues/mAhCalc.oper.Times /hh:mmThroughputMbCommentsWCDMA FTPDownload?10 minGPRS FTPDownload?10 min GPS TrackingRef.no Freq. Band Currentvalues/mAhTestExecution Time/Calc.oper.Times )ThroughputMbComments12.1GPS Tracking Option 1: Satellitesimulator availableGSM10 min12.2GPS Tracking Option 2: Satellitesimulator notavailableGSM10 min11USB Data CardScenariosScenarios。

手机硬件测试介绍

内部资料仅供参考
8
射频性能_多径与干扰条件下的频率误差

定义

指移动台在存在多普勒频移、多径接收和干扰条件下的载频频率误差。

指标传播条件
RA250 郊区车速250Km/h HT100丘陵车速100km/h TU50 城区车速50Km/h
允许的频率误差
±300Hz ±175Hz ±135HZ
手机硬件测试介绍
内部资料仅供参考
18
射频性能_邻信道抑制

定义

邻信道抑制是指接收机在邻信道存在无用信号的情况下，接收一个有用调制信号时，其性能不低于给定指标的能力。

指标

200kHz邻频干扰信号高于有用信号9dB、400kHz干扰信号高于有用信号41dB时，各类信道测出的错误率应不超过表中给定的值。
手机硬件测试介绍
内部资料仅供参考
11
射频性能_发射峰值功率和脉冲包络
常规突发脉冲功率/时间包络
手机硬件测试介绍
内部资料仅供参考
12
射频性能_发射输出频谱

定义

调制谱：由连续调制和宽带噪声在标称载频的邻近频带上产生的频谱。开关谱:由于功率切换而在标称载频的邻近频带上产生的频谱。
调制谱在规定偏置处的最大电平(dB) 测量带宽100kHz
Tu3 城区车速 3Km/h
±95Hz
手机硬件测试介绍
内部资料仅供参考
9
射频性能_发射峰值功率和脉冲包络

定义

发射机峰值功率指发射机载频功率在一个突发脉冲的有用信息比特时间上的平均值。突发脉冲定时指移动台接收与发送间的时间间隔。目的是检验发射机的发射能力和功率控制能力。在正常和极限条件下，在每个频率的各个功率等级上的发射功率都在应符合规范要求。相同频率及相同测试条件下，两相邻功率控制级的TX载频峰值功率的差值应不少于0.5dB和3.5dB。正常和极限条件下，各功率等级控制下的功率/时间包络应落在规范规定的包络框架内。

1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

基带功耗测试
编号测试项目测试环境测试方法测试标准备注
1待机电流移动卡常温环境、高精度电源、电脑主机、特定程序"Measurement.exe"、连接线、测试卡（移动和联通）、万用表方法一：分别插入联通和移动测试卡，将万用表串接到待测手机和配套电池/普通电源之间,开启手机，进入待机状态，按下万用表的"Min/Max"的按钮选择A VG的档位后开始计时，测试时间为40分钟。

结果：记录平均值和最小值。

如图2所示。

方法二:分别插入中国移动和中国联通的SIM卡，如图1用可编程电源供电，电压设定为 3.8V，开机，合盖放置在网络信号较好的地方，在电脑上用特定的程序”Measurement.exe”测出待机电流的最小值以及平均值，测试时间要求在40分钟。

对于ADI 平台待机电流平均值≤7.0 mA,对于MTK平台待机电流平均值≤5.0 mA
联通卡
2关机漏电流常温环境、高精度电源、万用表方法一：接上高精度电源，将电源设置为3.8V，开机成功后再关机，等关机结束后，从电源的液晶屏上读出电流值。

方法二：将万用表串接到待测手机和配套电池或者普通电源（3.8V）,开机成功后再关机，等关机结束后，从万用表上读出电流值关机漏电流≤0.3mA
3充电电流常温环境、标配充电器、万用表将万用表串接在充电器和手机之间，看到电池充电图标蠕动后开始测试，测试5分钟，记录平均值和最大值最大充电电流≤500mA由于电池充电过程是个先恒流后恒压充电过程，电池电压必须在电池的标称值以下。

一般在3.8V 左右最好
4通话电流GSM常温环境、CMU200、高精度电源、电脑主机、特定程序"Measurement.exe"将手机和CMU200通过RF线连接起来，设置CMU为GSM900，PCL=5，Ch=1,打开特定程序"Measurement.exe",当键盘和LCD灯都熄灭后，开始计时，测试10分钟，记录平均值和最大值平均值,ADI平台≤350mA.MTK平台≤320mA
DCS将手机和CMU200通过RF线连接起来，设置CMU为DCS1800，PCL=0，Ch=512,打开特定程序"Measurement.exe",当键盘和LCD灯都熄灭后，开始计时，测试10分钟，记录平均值和最大值平均值，ADI平台≤250mA,MTK平台≤220mA
5背光电流常温环境、高精度电源、电脑主机、特定程序"Measurement.exe"、连接线用高精度电源给整机供电，电压设定为 3.8V，开机后调整背光灯到最大亮度，打开背光的测试模式，让屏和键盘一直亮，设置背光亮的时间为最长。

打开特定的程序"Measurement.exe"开始计时直到背光熄灭为止，来记录他的最大和平均值平均值≤230mA如果以后出现的大屏，会作进一步的调整。

6来电铃声常温环境、高精度电源、电脑主机、特定程序"Measurement.exe"、连接线将手机和综测仪CMU200之间建立连接，用CMU200呼叫被测手机，手机设置为来电响铃方式。

用高精度电源给整机供电，电压设定为 3.8V，当屏和键盘灭掉以后，用特定的程序Measurement.exe来记录在来电响铃过程中的最大和平均值。

平均值≤450mA由于使用不同
的铃声，电流值会有细小的差异，我们使用的是手机默认的来电铃声。

另外以后出现的双Speaker，我们会在后需添加进来，这只是单一Speaker的测试
7来电振动常温环境、高精度电源、电脑主机、特定程序"Measurement.exe"、连接线将手机和综测仪CMU200之间建立连接，用CMU200呼叫被测手机，手机设置为来电振动方式。

用高精度电源给整机供电，电压设定为 3.8V，当屏和键盘灭掉以后，用特定的程序Measurement.exe来记录在来电振动过程中的最大和平均值。

平均值≤350mA
8来电振动+铃声常温环境、高精度电源、电脑主机、特定程序"Measurement.exe"、连接线将手机和综测仪CMU200之间建立连接，用CMU200呼叫被测手机，手机设置为来电振动+铃声方式。

用高精度电源给整机供电，电压设定为3.8V，当屏和键盘灭掉以后，用特定的程序Measurement.exe来记录在来电振动+铃声过程中的最大和平均值。

平均值≤500mA
9游戏功耗常温环境、高精度电源、电脑主机、特定程序"Measurement.exe"、连接线用直流电源给整机供电，电压设定为 3.8V，开机后进入手机游戏试玩，用特定的程序"Measurement.exe"运行10分钟，来记录在游戏过程中的最大和平均值。

平均值≤250mA
10编辑短消息常温环境、高精度电源、电脑主机、特定程序"Measurement.exe"、连接线用直流电源给整机供电，电压设定为 3.8V，开机后进入手机编辑短消息，用特定的程序Measurement.exe来记录在编辑短消息过程中的最大和平均值平均值≤250mA
11播放MP3一般模式常温环境、高精度电源、电脑主机、特定程序"Measurement.exe"、连接线用直流电源给整机供电，电压设定为3.8V，开机后打开MP3播放器，播放《老鼠爱大米》，用特定的程序Measurement.exe来记录在播放MP3过程中的最大和平均值平均值≤250mA先以《老鼠爱大米》为标准MP3歌曲用来测试。

MP3歌曲以后会有所改变
耳机模式用直流电源给整机供电，电压设定为3.8V，开机后打开MP3播放器，接上耳机播放《老鼠爱大米》，用特定的程序Measurement.exe来记录在播放MP3过程中的最大和平均值平均值≤150mA
12播放MPG4一般模式常温环境、高精度电源、电脑主机、特定程序"Measurement.exe"、连接线用直流电源给整机供电，电压设定为3.8V，开机后打开MPG4播放器，播放《Kiss》，用特定的程序Measurement.exe来记录在播放MPG4短片过程中的最大和平均值平均值≤300mA目前以Kiss短片为标准MPG4播放短片用来测试，以后会有所改变
耳机模式用直流电源给整机供电，电压设定为3.8V，开机后打开MPG4播放器，接上耳机，播放《Kiss》，用特定的程序Measurement.exe来记录在播放MPG4短片过程中的最大和平均值平均值≤200mA
13拍照拍摄常温环境、高精度电源、电脑主机、特定程序"Measurement.exe"、连接线用直流电源给整机供电，电压设定为 3.8V，开机后进入数码相机模式，用特定的程序Measurement.exe进行计时，运行短片拍摄模式直到这个停止拍摄，记录其耗电流的最大和平均值平均值≤250mA
预览用直流电源给整机供电，电压设定为3.8V，开机后进入数码相机模式，打开预览进行选景，用特定的程序Measurement.exe进行计时，测试5分钟，记录其耗电流的最大和平均值平均值≤200mA。
