《汉英词典》机械类常用词汇，按笔画一画一字螺丝批slot type screwdriver一点透视 one-point perspective二画二合一黏合剂epoxy resin adhesive二合胶；混合胶 epoxy glue二维的；平面的 two-dimensional二进制 binary二极管；整流子 diode二号螺丝攻 second tap二路开关 two-way switch十进制的；公制的 metric人工制品 artefact人造板 man-made board人体工程学ergonomics; human engineering 人体尺寸 human dimension人体测量学 anthropometry; anthropometrics 刀片 blade刀身 blade刀具 tool刀具溜座 carriage刀柱 tool post刀架 tool rest刀架底座 tool rest bracket刀座帷；床鞍 apron刀座鞍；溜板座 saddle力 force力三角形 triangle of force力平行四边形parallelogram of force力多边形；多边形力学 polygon of force力的分解 force resolution力架；亮漆 lacquer力矩 moment力偶 couple力矩定律law of moment力-距离图表 force-distance graph力图 force diagram力线 line of force力点 effort十字榫cross halving joint十字螺丝Philip's head screw十字螺丝批Philip's type screwdriver丁字尺；T 尺 tee square三画三爪夹头 three-jaw chuck三角尺 set square三角形结构系杆 triangulation tie三角锉 triangular file三维的；立体的 three-dimensional三氯甲烷；哥罗芳 chloroform三聚氰 胺；蜜胺 melamine三点透视 three-point perspective上油漆 painting上釉 enamelling凡立水 varnish叉形顶尖 fork centre口罩 mask士力；虫漆 shellac士巴拿；扳手 spanner大芯夹板；宽条芯夹板blockboard; solid corestock-laminated board 大量制造 mass production子口刨；槽口刨；边刨 rebate plane小型平槽刨 miniature router plane小型线料弯曲器small wire bender小型弯折机 mini bender小型电路断路器；跳菲miniature circuit breaker (MCB)小齿轮 pinion山樟 San Cheong工件 workpiece工字梁 I beam工作面 working surface工作图；制作图 working drawing工作台bench; working table工具 tool工具贮存室 tool storage工具槽 well工具钢 tool steel工场 workshop工场安全 workshop safety工程字书写技巧 lettering工程系统 engineering system工程绘图 engineering drawing工业酒精；火酒 methylated spirit弓形手钻；手摇曲柄钻 brace弓形手钻嘴 brace bit弓锯bow saw; hacksaw弓锯片 hacksaw blade弓锯床 hacksawing machine四画不平衡 imbalance不含铁金属；非铁金属 non-ferrous metal不贯穿孔；闭孔；盲孔 blind hole不贯穿鸠尾榫lapped dovetail joint不对称 asymmetry不锈钢 stainless steel不稳定平衡 unstable equilibrium中心 centre中心线 centre line中心冲 centre punch中心钻 centre drill中心钻嘴 centre bit中央处理器central processing unit (CPU)中性 neutral中性平衡；随遇平衡 neutral equilibrium中性轴 neutral axis中密度纤维板medium density fibre board (MDF)中粗锉纹 second cut中碳钢medium carbon steel中线 neutral wire互补金属氧化物半导体complementary metal oxide semiconductors (CMOS) 介子；垫片 washer介指铁 ring mandrel介电常数；电容率 permittivity介稳态的；亚稳态的 metastable内力 internal force内卡尺 inside calipers内能 internal energy内涵性质 intensive properties内圆弯凿 scribing gouge内锁式配件 interlocking fitting内燃机 internal combustion engine内螺纹制造法 tapping内螺丝 internal thread内弯边 concave edge六角金属枝 hexagonal bar六角匙 Allen key六角头螺丝 hexagonal head screw公制的；十进制的 metric公差 tolerance冗余构件 redundant member分力 component force分子 molecule分子力 molecular force分切；分割；切断 parting off分贝 decibel分析 analysis分析及批判学analytical and critical studies 分析器 analyzer分流器 shunt分界面；界面；接口 interface分厘卡 micrometer分规 divider分割车刀架parting tool holder分解 decomposition分压器potential divider; voltage divider隔离开关 isolating switch切削工具 cutting tool切削液 cutting fluid切削深度depth of cut切屑；碎屑 chip切线锯法 tangential sawing切辊纹；滚纹 knurling切断；分切；分割 parting off切断工具 parting tool勾；勾脚 hook勾刀；胶片 刀 plastic cutter化胶水 tensol反向偏压 reverse biased反相放大器 inverting amplifier反相器 inverter反射 reflection反电动势 back e.m.f.反馈；回输 feedback天拿水；稀释剂 thinner天梯牙；齿条 gear rack天然木材 natural timber天然干燥法 air seasoning孔隙率 porosity尺寸 dimension尺寸线 dimension line尺身 blade引力；重力 gravitational force心形凸轮 heart-shaped cam心材 heartwood心轴 mandrel心销 core pin手工具 hand tool手工锯 junior hacksaw手削法 paring手持虎钳 hand vice手柄 handle手套 gloves手扫漆 brushing lacquer手推车 barrow手提式竖线锯 portable jigsaw手提电动工具 portable power tool手提电钻electric hand drill手进给 hand feed手摇曲柄钻；弓形手钻 brace手摇钻 hand drill手锉 hand file手锯；板锯 handsaw手锥 bradawl手辘轧机 hand rolling machine支柱；支撑物 strut支架；支座 support支点 fulcrum; pivot文字 text方向 direction方向针 pointing needle方枝 square bar方波形 square waveform方波产生器 squarer方型牙板 rectangular die方格纸；网格纸 grid paper方通 square tube方块图 block diagram方锉 square file方头钻嘴 square shank bit方螺帽 square nut方边凿；直边凿 firmer chisel木 wood木工 woodwork木工工作间 woodwork area木工工作台 woodworker's bench木工车床wood turning lathe; woodworking lathe 木工铅笔 carpenter's pencil木工刨床thicknessing and planning machine木牙螺丝；木螺钉 wood screw木材 timber木材车削 wood turning木材车削工具 wood turning tools木屑压合板；万花板 chipboard木条接榫corner strip joint木圆头槌 doming mallet木模；模型 patterns木线 wood strip木胶粉ureaformal dehyde resin glue木锉 rasp木螺钉；木牙螺丝 wood screw木槌 mallet止推轴承 thrust bearing止推垫圈 thrust washer比例 proportion比例尺 scale比例常数 proportionality constant比例极限 proportional limit比较器 comparator比热容量specific heat capacity水平投影面 horizontal plane水平仪；平水尺 spirit level水气掣；漏电断路掣earth leakage circuit breaker (ELCB) 水晶胶；聚酯树脂 polyester resin水晶胶的铸造成形 resin casting水磨砂纸silicon carbide paper火叉 firing fork火水；煤油 kerosene火牛；变压器 transformer火石轮 grinder火花电蚀法；放电极加工electrical discharge machining 火酒；工业酒精 methylated spirit火钳 tongs火线；活线 live wire火砖 fire brick爪扣；爪形离合器；犬齿式离合器 dog clutch牙板；丝模 die牙板扳手；丝模扳手die holder (stock)牙板螺帽 die nuts牛皮胶；动物胶 animal glue牛油纸 tracing paper牛顿运动定律Newton's laws of motion犬齿式离合器；爪扣；爪形离合器 dog clutch五画丙烯 丁二烯苯乙烯 acrylonitrile-butadiene-stryrene (ABS) 主轴；心轴 spindle主题 motif令(纸张的计数单位) ream凹座 recess凹模 hollowing block凸缘 flange凸缘联轴节 flange coupling凸轮 cam凸轮式配件 cam-action fitting凸轮传动 cam drive凸头螺丝 raised head screw加成作业；添加法 addition process加油 oiling加速器 accelerator功能；用途 function功率因子 power factor功率放大器 power amplifier功率板power amplifier board功率晶体管 power transistor包氏记号法 Bow's notation「包浩思」；「包豪斯」〈设计风格) Bauhaus半永固法；半永久接合 semi-permanent joining半接榫 halving joint半闭式槽榫stopped housing joint半圆(木)锉 half-round rasp半圆车刀 turning gouge半圆锉 half-round file半圆头铆钉 snap rivet半导体 semiconductor卡路里；卡(热量单位) calorie卡纸 card paper卡尺；测径器 calipers去角；倒角 chamfer可切削性 machinability可行性 feasibility可逆过程 reversible process可压缩性 compressibility可变电阻 variable resistor四分仪 quadrant四爪夹头four-jaw independent chuck四圆心法(绘图) four-centre method外卡尺 outside calipers外形塑造 shaping外形线；轮廓线 outline外推法 extrapolation外圆弯凿 firmer gouge外螺纹 external thread外螺纹制造法 threading外弯边 convex edge外观 appearance失真 distortion尼龙；聚醯胺 nylon; polyamide (PA)尼龙墨水针笔technical felt-tip pen左右调校杆lateral adjusting level市售尺寸；标准尺寸 stock size市电频率；电源频率 mains frequency平(木)锉 flat rasp平水尺；水平仪 spirit level平行投影 parallel projection平行车削 parallel turning平行虎钳 parallel vice平行钉法 parallel nailing平底弯刨flat faced spokeshave平底钻嘴 forstner bit平板结构 slab construction平流扼流圈；滤波扼流器 smoothing choke平流电容器；滤波电容器 smoothing capacitor 平流电路；滤汳电路 smoothing circuit平面板；正台 surface plate平面图；俯视图 plan平面锤 flatter平移 translation平搭榫corner halving joint平嘴钳 flat nose pliers平槽刨 router plane平衡 balance; equilibrium平衡力 equilibrant平衡条件 equilibrium condition平衡电桥 balanced bridge平头弧刀 square nose gouge幼纹 smooth cut打凹成形 hollowing打凸成形 raising打槽机 routing machine打线；打槽 routing打磨 fitting; polishing打磨机 polisher本生灯 Bunsen burner本征半导体 intrinsic semiconductor正反器；触发器；复振器 flip-flop正反馈；正回输 positive feedback正火 normalizing正向偏置 forward bias正投影 orthographic projection正投影图 orthographic drawing正弦波形 sinusoidal waveform正面投影 front projection正视图 elevation; front elevation正极；阳极 anode正齿轮 spur gear正台；平面板 surface plate永久性接合 permanent joining瓦通纸；瓦楞纸板 corrugated board生长层 cambium layer生产图 production drawing生胶浆 rubber cement生钢；铸钢 cast steel生铁；铸铁 cast iron用途；功能 function白杨木 poplar白胶浆PV A glue; white glue皮沙垫 leather sandbag皮革 leather皮革黏合剂 leather glue皮鞋 leather shoes目录 contents矢量；向量 vector石灰岩 limestone石英晶体振荡器quartz crystal oscillator 石棉 asbestos; asbestus石膏 Plaster of Paris示波器 oscilloscope立体图 pictorial drawing六画交流电流alternating current (a.c.)交流电压 a.c. voltage交联结构 cross-linked structure仿饰金 gilding metal伏特 volt光力架 clear lacquer光拉软钢bright drawn mild steel (B.D.M.S.)光敏电阻light dependent resistor (LDR)光测弹性学 photoelasticity光刨；滑刨 smoothing plane光电效应 photoelectric effect光泽 lustre全闭式槽榫 closed housing joint共面力 coplanar force共聚合作用 co-polymerization共聚物 copolymer共价键 covalent bond共振；共鸣；谐振 resonance印刷电路板printed circuit board (PCB)同素异形 allotropy同轴电缆 coaxial cable同温equality of temperature向量；矢量 vector向量和 vector sum104合力 resultant force合口扁钳close mouth tongs合成色；等和色 secondary colour合成品 composite合成粅料 composite material合金 alloy合金工具钢alloy tool steel合钉；定位销 dowel回火 tempering回复力 restoring force回复力偶 restoring couple回弹 resilience回输；反馈 feedback地线 earth wire多刃切削刀具 multi-point cutter多孔塑料；泡沫塑料；海绵状塑料 foam plastics 多方榫接合 pinned joint多媒体 multi-media多晶性 polycrystallinity多谐振动器；多谐振荡器 multivibrator多边形力学；力多边形 polygon of force字母冲 letter punch字板 letter stencil安全 safety安全守则 safety rule安全系数 safety factor安全措施 safety precaution105安全眼罩 safety goggle安全设备 safety equipment安全药箱 safety box安培 ampere安培计；电流表 ammeter尖脚 spur年轮 annual ring成本 cost成形 forming扣件；击固件 fastener扣钉 clout nail; cramp托架 bracket收缩 shrinkage曲柄 crank曲柄轴 crank shaft曲线规；云板；云尺 French curve有效的 efficient有效电流 effective current灰；灰末 ash百折胶；百折胶；聚丙烯 polypropylene (PP) 竹 bamboo羊角锤 claw hammer老化 ageing肋条 rib肌理；质感；质地 texture自由度degree of freedom自动控制 automatic control106自动进给 auto-feed自然干燥法 natural seasoning自感量 self-inductance自感应 self-induction色彩；颜色 colour色调 tone色环 colour wheel行星齿轮；周转齿轮 epicyclic gear七画肘节开关 toggle-switch串激电动机；串绕电动机 series-wound motor 位能；势能 potential energy位梯度；势梯度 potential gradient位移 displacement位错 dislocation伸长度 elongation作工硬化 work hardening作功 work done作图线 construction line低密聚乙烯low density polyethylene (LDPE) 低通滤波器 low-pass filter低电压 low voltage低碳钢low carbon steel布置 layout免油轴承 oil-less bearing冷加工；冷作工 cold working冷加工硬化cold work hardening冷色 cool colour冷轧压 cold rolling冷却系统 cooling system冷却效应 cooling effect冷却液流量 coolant rate冷凝胶；环氧树脂 epoxy resin108利口；「披」口；铁屑 burr刨平 planing刨花板；碎料板 particle board吹风机 air blower吹气模塑；吹模塑 blow moulding吹管 blow pipe含铁金属 ferrous metal含水量 moisture content坑凿 cross-cut chisel均方根值root mean square value均角投影图；等角投影图 isometric drawing 均速圆周运动uniform circular motion夹；夹钳 clamp夹 cramp夹卡 mounting board夹具 fixture; jig夹具及固定装置 jig and fixture夹板；胶合板 plywood夹持工具clamping device; holding tool夹背锯；榫锯 tenon saw夹头 chuck夹头开启匙；夹头扳手 chuck key夹叠黏合成形 lamination尾座 tailstock床身；床道 lathe bed床鞍；刀座帷 apron形心；面心 centroid109形状 shape形变 deformation「快把」板；硬质纤维板 hardboard快速移位 rapid traverse抗扭强度 torsional strength抗屈强度bending strength; yield strength 抗性分量；无功分量 reactive component 抗拉强度 tensile strength抗氧化剂 anti-oxidant抗剪强度 shearing strength抗磁性物料 diamagnetic material抗挠性 stiffness抗压强度 compressive strength抗断强度 breaking strength技术员；技师 technician扶架 steady扭力 torsion扭矩；转矩 torque扭转 torsion扭转角 angle of torsion把手 hand grip扼流圈 choke扳手 spanner; wrench投影 projection投影面 projection plane投影线 projection line攻丝 tap材料 material材料单；材料表 material list杜拉铝 duralumin杉木 spruce步进电动机 stepper motor步冲轮廓法 nibbling每分钟转数revolution per minute (r.p.m.) 系统组件 system component角托架 angle bracket角位移 angular displacement角板；直角板 angle plate角度 angle角榫corner angle joint; corner joint角铁 angle iron谷巴凡立水 cobal varnish车刀架 tool holder车床 lathe车床工具 lathe tools车床中心钻咀 lathe centre bit车床操作法 lathe operation车削；车旋lathe turning; turning车削工具 turning tools防火胶板 Formica防锈 rust prevention防声耳筒；护耳器 ear-protector防松螺帽 lock nut防护装置；保护罩；保护网 guard; safety guard八画注射成形法；喷射铸造法 injection moulding并激电动机；并绕电动机 shunt-wound motor乳酪胶 casein glue乳胶漆 emulsion paint亚加力；压克力；聚甲基丙烯酸甲脂acrylics; polymethyl methacrylate (PMMA) 亚稳态的；介稳态的 metastable来回摆动 oscillating两点透视 two-point perspective刻度；划线 ruling刺冲 dot punch刮刀 scraper刮擦 scraping制动鼓 drum brake制动碟 disc brake制动器 brake受迫振动 forced vibration受迫振荡 forced oscillation和谐 harmony周转齿轮；行星齿轮 epicyclic gear固定夹；台夹 bench holdfast固定负载 dead load定子 stator定位销；合钉 dowel定位螺丝 set screw定距轮 stitch marker屈片机 folding machine屈曲 bending屈服点；降服点 yield point屈圈法 loop forming屈卷法 scrolling屈接缝folded lap seam屈喉机 tube bender屈折 folding屈折线 folding line屈压接缝folded & grooved seam延性 ductility延性的 ductile弦锯法 plain sawing弧口凿；圆凿 gouge往复式运动 reciprocatory motion拉力 tensile force拉力计；张力计 tensiometer; tensometer拉钉blind rivet; pop rivet拉钉接合blind riveting; pop riveting拉钉钳blind riveting pliers; pop riveting pliers拉张 tension拉张应力 tensile stress拉张应变 tensile strain拉细 drawing-down拉制法 drawing拉线 wire drawing「披」口；利口；铁屑 burr拔钳 nippers拋光 buffing拋光机 buffing machine放大；扩大 enlargement放大尺 pantograph放大倍数 amplification factor放大器 amplifier放电极加工；火花电蚀法electrical discharge machining 易用万能尺 line setter易碎 fragile〈绘画的〉明暗运用；描影 shading枝；杆 rod杯形顶尖 cup centre杯头螺丝hexagonal socket head cap screw板锯 panel saw松木 pine松节水 turpentine法式磨光 French polishing法拉〈电容量单位〉 farad油石；磨刀石 oil stone油漆；涂料 paint泡沫塑料；多孔塑料；海绵状塑料 foam plastics 物理特性 physical property物理属性 physical attribute物理量 physical quantity盲孔；闭孔；不贯穿孔 blind hole直尺 ruler; straight rule直角叉榫 corner bridle joint直角尺 try square直角板；角板 angle plate直角杠杆bell crank lever直身钻嘴straight shank drill直车刀架 straight tool holder直流发电机 d.c. generator直流电流 direct current (d.c.)直流电动机；直流马达 d.c. motor直纹锯 rip saw直线切削 linear interpolation直线运动 rectilinear motion直边凿；方边凿 firmer chisel直铁剪 straight snips硅 silicon空行程 idle stroke空气动力学 aerodynamics空间 space空载 no load花纹凿 embossing stamp花梨木 rosewood花样；图案 pattern虎克定律 Hooke's Law虎钳 vice虎钳护罩 vice clamp初步意念 proposed solution表面 surface表面展开图 surface development表面张力 surface tension表面处理surface finishing; surface treatment表面硬化 case hardening表面硬化钢 case-hardened steel表达方式 presentation表达技巧；传意技巧 communication technique 表观膨胀；视膨胀 apparent expansion金工 metalwork金工工作间 metalwork area金工角尺 engineering square金工车床 metalwork lathe金工虎钳 engineer's vice金工锯床 power hacksaw金属包头；金属箍 ferrule金属配件 metal fittings金属线 wire金属压展机hand rolling mill金属擦光剂；磨光剂 metal polish金属薄片 sheet metal金属键 metallic bond长方通 rectangular tube长刨 trying plane长螺旋钻咀long auger bit长镗孔 long boring闸极 gate阻抗 impedance附件 attachment附录 appendices青铜 bronze非反相放大器 non-inverting amplifier非本征半导体 extrinsic semiconductor非破坏性试验 non-destructive testing非晶状固体 amorphous solid非顽磁性铁磁材料 non-retentive ferromagnetic material 非压缩性流体 incompressible fluid非稳态 unsteady state非铁金属；不含铁金属 non-ferrous metal九画亮漆；力架 lacquer信号 signal信号产生机 signal generator信号处理 signal processing保养；维修 maintenance保险丝 fuse保护罩；保护网；防护装置 guard; safety guard促凝剂 accelerator削屑 swarf垂直投影面 vertical plane型砧 swages〈书的〉封皮 binding封面 cover急回机构 quick return mechanism扁枝 bar扁头 cross-pein扁头法 upsetting扁头铆钉flat head rivet扁头螺丝flat head screw扁凿 flat chisel指示器 indicator指形榫 finger joint施力 effort染色 staining染色剂 stain架构 framework柄 stock柚木 teak柳安木 lauan流程图 flow chart洗漆水 paint remover活塞 piston活塞销 gudgeon pin活线；火线 live wire炮铜 gun metal玻璃砂纸 glass paper玻璃胶 silicon sealant玻璃纤维 glass fibre玻璃纤维席glass fibre mats界面；分界面；接口 interface相差 phase difference相对密度 relative density砂布 emery cloth砂磨 sanding砂磨纸 abrasive paper砂磨机 sander砂铸；砂铸模 sand casting研究探讨 research研磨；磨削 grinding研磨角 grinding angle科技 technology科技研习 technological studies科学知识 scientific knowledge科学瓷；聚氰胺毋醛树脂melamine-formaldehyde resin (MF) 红铜垫圈 copper washer美学 aesthetics耐火胶板 fire-resisted laminate耐火砖 refractory block耐冲击聚苯乙烯high impact polystyrene背 back胡桃木 walnut范德华引力 Van der Waals force英制惠氏标准螺纹British Standard Whitworth thread (B.S.W.) 苯乙烯丙烯 共聚物 styrene-acrylonitrile copolymer苯酚甲醛phenol formaldehyde (PF)计；规 gauge定时器 timer计划 planning计算器；计算机 computer计算器辅助工程computer-aided engineering (CAE)计算器辅助控制 computer-aided control计算器辅助设计 computer-aided design (CAD)计算器辅助制造computer-aided manufacturing (CAM)计算器数控computer numerical control (CNC)负反馈；负回输 negative feedback负极；阴极 cathode负载 load轨路式砂纸磨机 orbital sander重力；引力 gravitational force重心centre of gravity重量 weight重锉法 heavy filing限制开关；极限掣 limit switch限流器 current restrictor降服点；屈服点 yield point降压器step down transformer面 plane面心；形心 centroid面材 plane materiel面板 face plate面板车削法face plate turning面结型晶体管 junction transistor面罩 face mask音量 volume页边 margin风车锯；圆盘锯 circular saw风格 style风煤炉 forging hearth飞轮 flywheel飞机木；菠萨轻木 balsa首版；原型；雏形 prototype恒温器；温度调节器 thermostat十画俯视图；平面图 plan倒角；去角 chamfer倒模成形；模塑；铸模成形 moulding修边 trimming修边机 trimmer剖切面 cutting plane剖切面线 cutting plane line剖面；纵切面 section剖视图 sectional view剖线 hatching line刚性；刚度 rigidity刚性模量；刚性模数 modulus of rigidity刚强度；硬挺度 stiffness刚体 rigid body原子粒；晶体管 transistor原色 primary colour原型；雏形；首版 prototype原料 raw material哥罗芳；三氯甲烷 chloroform埋头直孔 counterbore埋头铆钉countersink head rivet埋头锥孔 countersink埋头螺栓countersink head bolt埋头螺丝 countersink head screw埋头钻 countersink drill埋头钻嘴countersink bit; rose countersink drill 套筒；套管 sleeve套锤 fullers家用的 domestic展性 malleability展性的 malleable展开图 development峰至峰值 peak-to-peak value峰值 peak value差动放大器；微分放大器 differential amplifier 徒手草图 freehand sketch径线锯法 radial sawing径锯法 quarter sawing振动 vibration振幅 amplitude振荡 oscillating振荡运动 oscillatory motion振荡器 oscillator效率 efficiency时效硬化 age hardening时间常数 time constant框架 frame气动的系统；气压的系统 pneumatic system气动控制 pneumatic control气阀 gas valve气焊 gas welding空气压缩 air compression氧乙炔焊接 oxy-acetylene welding氧化 oxidation; oxidize消失点 vanishing point消色差 achromatic colour浸涂 dip coating海绵状塑料；泡沫塑料；多孔塑料 foam plastics 浮力 buoyancy浮雕 relief特性 property珠光体 pearlite疲劳 fatigue真空成形；真空吸塑 vacuum forming真空成形机 vacuum former真空吸塑成形法 vacuum moulding真实形状 true shape矩波形 rectangular waveform纹理 grain级联系统 cascade system纸板 carton board脆弱的；易碎的 brittle脆性 brittleness脉冲 pulse能量守恒 conservation of energy能量守恒定律law of conservation of energy草图 sketch草图画纸 layout paper草稿 draft衰减 attenuation起化 magnetization起泡剂；发泡剂 foaming agent起动扭矩 starting torque起动器 starter起磁；磁化 magnetization退化 degradation退火 annealing配件 fitting钉合 nailing钉钳；铁钳 pincers钉冲 nail punch钉锤 cross-pein hammer针尖 point针叶 needle-point leaf针叶树 coniferous tree针锉；杂锦锉 needle files马氏体 martensite马达；电动机；摩打 motor马粪纸 straw board骨架结构 carcase construction容差；宽裕度 allowance高密度聚乙烯high density polyethylene (HDPE) 高通滤波器 high-pass filter高速钢high speed steel高电压 high voltage高碳钢high carbon steel十一画干燥法；干材法 seasoning偶合；耦合(电工) coupling侧面投影 side projection侧条芯夹板 laminboard侧视图；端视图end elevation; end view偏心凸轮 eccentric cam偏向 bias; deviation偏差 deviation偏压 bias偏离 drift剪刀 scissors剪力 shearing force剪切 shear剪床；闸床 guillotine对角剪钳diagonal cutting pliers动力工具 power tool动力学 dynamics动物胶；牛皮胶 animal glue动圈式电流计 moving coil galvanometer动态；运动 movement动态平衡 dynamic equilibrium动摩擦dynamic friction; kinetic friction匙孔锯key-hole saw; pad saw只读存贮器；只读存储器read only memory (ROM)国际标准组织The International Standard Organization (ISO) 基本设计原理 design fundamentals基极电流 base current基准边 true edge基尔霍夫定律；克希何夫定律 Kirchhoff's Law密度 density常规 conventions带式砂磨机 belt sander带式传动 belt drive带通滤波器 band-pass filter带锯；运锯 band-saw张力计；拉力计 tensiometer; tensometer强化 reinforcement强化塑料 reinforced plastics彩度 chroma控制系统 control system卷尺flexible rule; tape rule接口；界面；分界面 interface接合 joining接合工具 joining tool接地 earthing接缝 lapped seam; seam接触角 angle of contact扫上光油 varnishing推拔车削 taper turning推进器 propeller斜切车刀skew turning chisel斜投影 oblique projection斜角 mitre斜角；斜面 bevel斜角规 bevel; sliding bevel斜角榫 mitre joint斜身螺丝攻 taper tap斜格纸；等角投影纸 isometric grid paper〈织物的〉斜纹 bias斜钉法 dovetail nailing斜率 gradient斜视图 oblique drawing斜榫尺 mitre square斜榫规 mitre gauge斜槽位；鱼尾槽位 dovetail trench斜边凿 bevel edged chisel旋扭法 twisting旋钮；球形把手 knob旋制法 spinning旋转；转动 rotation旋转台 rotating platform旋转轴 rotating shaft旋转运动 rotary motion杆；枝 rod条线图；棒形图 bar chart梨形凸轮 pear-shaped cam液相 liquid phase液晶体显示liquid crystal display (LCD)液压 liquid compression液压控制 hydraulic control液压机 hydraulic press添加法；加成作业 addition process添加剂 additive清漆 varnish清胶 gel resin混合胶；二合胶 epoxy glue深拉制法 deep drawing深度计；深度规 depth gauge淬火 quench淬火液 quenching liquid淬硬 quench hardening焊接 welding焊枪 brazing torch焊剂 flux焊炉 brazing hearth球形把手；旋钮 knob球体 sphere瓷釉；搪瓷；珐琅 enamel瓷漆；磁漆 enamel paint产品设计规格product design specification (PDS) 眼罩 goggles硫化作用 vulcanization移印字dry rub on transfers第一角投影法 first angle projection第三角投影法third angle projection符号 symbol粗削 roughing粗纹 bastard cut粗刨 jack plane统一〈设计〉 unity组件 component; module组合角尺 combination square组合钳 combination pliers组合图；装配图 assembly drawing汇编语言；汇编语言 assembly language 组合逻辑 combinational logic组成物料 component material组织原理(设计) organisation脱碳 decarburization脱模剂 release agent脱模腊 mould release wax茎 stem蛋形木槌 bossing mallet规；计 gauge规身 stock规柄 stem规格 specification许可应力 permissible stress设计 design设计元素 design element设计作业；专题设计研习 design project 设计师 designer设计记录档案 design folder设计组织 design organization设计处境；设计环境 design situation设计规格 design specification设计提案 design proposal设计程序 design process设计概要；设计纲要 design brief设计解决方法 design solution贯穿鸠尾榫 through dovetail joint软木 softwood软板；绝缘板 soft board软胶；聚乙烯 polyethylene (PE)软焊 soft soldering软焊料 soft solder软钢 mild steel通用面板universal surface plate连接杆；连杆 linkage连结板 web连续插图 sequential drawing速度 velocity速度比 velocity ratio造形 form造型砂 moulding sand透明；通透 transparent透视投影 perspective projection透视法 perspective透视图 perspective drawing131闭孔；盲孔；不贯穿孔 blind hole闭合电路 closed circuit死循环控制 closed-loop control死循环控制系统closed control system 死循环增益 close loop gain阴极；负极 cathode陶瓷 ceramics陶瓷制品 ceramic product顶尖 centre顶面投影 top projection顶脱销 ejector pin鱼尾半接榫dovetailed tee halving joint 鱼尾榫；鸠尾榫；燕尾榫 dovetail joint 鱼尾槽位；斜槽位 dovetail trench麻花钻 twist drill梣木 ash焗炉 oven焓 enthalpy十二画家俬钉 panel nail家俬蜡 furniture wax伞齿轮 bevel gear最后方案 final solution割线规 cutting gauge喇叭；扬声器 speaker单元 module单板；薄木皮 veneer单板镶贴；薄皮镶合 veneering单相 single phase单脚规 odd-leg calipers单路开关 one-way switch单鸠尾榫single dovetail joint单碟离合器 single plate clutch单稳态 monostable喉管 tube围裙 apron循环车削 turning cycle循环过程 cyclic process惠斯登电桥 Wheatstone bridge惰轮 idler描影；(绘画的)明暗运用 shading插座 socket插头 plug换能器；转能器；传感器 transducer扬声器；喇叭 loud speaker; speaker晶粒 grain晶体 crystal晶体振荡器 crystal oscillator晶体结构 crystal structure晶体管；原子粒 transistor晶体点阵；晶体格构；晶格 crystal lattice棘轮和爪 ratchet and pawl棘齿 ratchet棘齿弓钻 ratchet brace壳型模塑 shell moulding光标卡尺 vernier calipers减除作业 reduction process涡流 eddy current涡轮机 turbine测径器 calipers测试工具 testing tool焦炭 coke无功分量；抗性分量 reactive component无彩色 achromatic colour无头螺丝 grub screw无压释放器 no-voltage release无稳态定时器 astable timer无稳态电路 astable circuit无稳态多谐振动器；无稳态多谐振荡器；无稳态复振器 astable multivibrator 然纳二极管；齐纳二极管 Zener diode珐琅；搪瓷；瓷釉 enamel画板；绘图板 drawing board画纸 drawing paper发光二极管light emitting diode (LED)发泡聚苯乙烯；发泡胶expanded polystyrene (EPS); styrofoam发泡剂；起泡剂 foaming agent发电机 generator发热管 heating tube发热线切割机 hot wire cutter发热线机hot wire machine; strip heater短路 short circuit硬化 hardening硬化剂curing agent; hardener; hardening agent硬木 hardwood硬件〈计算机〉 hardware硬度 hardness硬度测试 hardness test硬挺度；刚强度 stiffness硬焊 hard soldering硬模铸造；压力铸造；压铸 die casting硬胶；聚苯乙桸 polystyrene (PS)硬质纤维板；「快把」板 hardboard程序；程序 program稀释剂；天拿水 thinner等角投影 isometric projection等角投影纸；斜格纸 isometric grid paper等角投影图；均角投影图 isometric drawing 等角轴 isometric axis等角圆 isometric circle等和色；合成色 secondary colour等焓的过程 isentropic process筒夹；弹性夹头 collet筒形线圈；螺线管；电磁线圈 solenoid结构 structure结构力学 structural mechanics结构木材 structural timber绝缘 insulation绝缘板 insulation board绝缘体 insulator丝攻扳手 tap wrench丝模；牙板 die丝模扳手；牙板扳手die holder (stock)菠萨轻木；飞机木 balsa虚线；隐线 hidden line视查 visual inspection视膨胀；表观膨胀 apparent expansion评估 evaluation评鉴 criticism象限 quadrant超塑料 superplastic超载 overload超声波 ultrasonic wave超声波测试 ultrasonic test轴 shaft轴心车削法 turning between centres轴功 shaft work轴承 bearing轴接 coupling轴环；卡圈 collar周期 period进料螺杆 feed screw进给 feed进给速率 feed rate进给螺杆 feed screw量角器 protractor量度 measurement量度工具 measuring tool钝 blunt开口式槽榫through housing joint开口扁钳open mouth tongs开口销 cotter pin开孔凿 hole punch开材方法(木材) conversion开环控制系统open-loop control system阳极；正极 anode阳极氧化法；阳极处理 anodizing集成电路integrated circuit (IC)集电极电流 collector current云尺；云板；曲线规 French curve云母 mica韧皮部 bast韧性 toughness顺磁性 paramagnetic material黄金分割 golden section黄金比例 golden ratio黄铜 brass黑皮软钢black mild steel十三画传动系统 drive system传动螺杆 drive screw传意技巧；表达技巧 communication technique 传感器；换能器；转能器 transducer传热性 conductivity of heat传导 conduction传导性 conductivity倾角angle of inclination; rake angle倾斜面 inclined plane势能；位能 potential energy势梯度；位梯度 potential gradient汇编语言；汇编语言 assembly language圆口夹钳 round tongs圆形及椭圆形尺circle and ellipse guide圆形凸轮 circular cam圆形开口牙板circular split die圆咀钳round nose pliers圆底弯刨round faced spokeshave圆弧运动 circular motion圆枝 round rod圆规 compasses圆通；圆管 round tube圆折边 beaded edge圆盘锯；风车锯 circular saw圆锉 round file圆头弧刀round nose gouge圆头铆钉conical head rivet; round head rivet圆头螺丝 round head screw圆头铁锤ball pein hammer; raising hammer圆瓣图 pie chart圆铁砧 bick iron圆凿；弧口凿 gouge塞子 plug塞状螺丝攻 plug tap塑性 plasticity塑性形变 plastic deformation塑料 plastics塑料土；橡皮泥 plasticine塑料涂层 plastic coating塑料层积片；层叠塑料片laminated plastic sheet 涂料；油漆 paint涂层金属片coated metal sheet塔轮 cone pulley填角焊接 fillet weld填料；填剂 filler奥氏体 austenite微分放大器；差动放大器 differential amplifier 微电子学 microelectronics微调 fine-adjustment溜板座；刀座鞍 saddle详细图；零件详图 details drawing意念；构想 idea感温开关 temperature sensitive switch感应电路 sensor circuit感应器 sensor搪瓷；珐琅；瓷釉 enamel搪瓷炉；釉窑 enamelling kiln。
机械专业中英文对照翻译大全
机械专业英语词汇中英文对照翻译一览表陶瓷ceramics合成纤维synthetic fibre电化学腐蚀electrochemical corrosion车架automotive chassis悬架suspension转向器redirector变速器speed changer板料冲压sheet metal parts孔加工spot facing machining车间workshop工程技术人员engineer气动夹紧pneuma lock数学模型mathematical model画法几何descriptive geometry机械制图Mechanical drawing投影projection视图view剖视图profile chart标准件standard component零件图part drawing装配图assembly drawing尺寸标注size marking技术要求technical requirements刚度rigidity内力internal force位移displacement截面section疲劳极限fatigue limit断裂fracture塑性变形plastic distortion脆性材料brittleness material刚度准则rigidity criterion垫圈washer垫片spacer直齿圆柱齿轮straight toothed spur gear 斜齿圆柱齿轮helical-spur gear直齿锥齿轮straight bevel gear运动简图kinematic sketch齿轮齿条pinion and rack蜗杆蜗轮worm and worm gear虚约束passive constraint曲柄crank摇杆racker凸轮cams共轭曲线conjugate curve范成法generation method定义域definitional domain值域range导数\\微分differential coefficient求导derivation定积分definite integral不定积分indefinite integral曲率curvature偏微分partial differential毛坯rough游标卡尺slide caliper千分尺micrometer calipers攻丝tap二阶行列式second order determinant 逆矩阵inverse matrix线性方程组linear equations概率probability随机变量random variable排列组合permutation and combination 气体状态方程equation of state of gas动能kinetic energy势能potential energy机械能守恒conservation of mechanical energy动量momentum桁架truss轴线axes余子式cofactor逻辑电路logic circuit触发器flip-flop脉冲波形pulse shape数模digital analogy液压传动机构fluid drive mechanism机械零件mechanical parts淬火冷却quench淬火hardening回火tempering调质hardening and tempering磨粒abrasive grain结合剂bonding agent砂轮grinding wheel后角clearance angle龙门刨削planing主轴spindle主轴箱headstock卡盘chuck加工中心machining center 车刀lathe tool车床lathe钻削镗削bore车削turning磨床grinder基准benchmark钳工locksmith锻forge压模stamping焊weld拉床broaching machine拉孔broaching装配assembling铸造found流体动力学fluid dynamics流体力学fluid mechanics加工machining液压hydraulic pressure切线tangent机电一体化mechanotronics mechanical-electrical integration气压air pressure pneumatic pressure稳定性stability介质medium液压驱动泵fluid clutch液压泵hydraulic pump阀门valve失效invalidation强度intensity载荷load应力stress安全系数safty factor可靠性reliability螺纹thread螺旋helix键spline销pin滚动轴承rolling bearing滑动轴承sliding bearing弹簧spring制动器arrester brake十字结联轴节crosshead联轴器coupling链chain皮带strap精加工finish machining粗加工rough machining变速箱体gearbox casing腐蚀rust氧化oxidation磨损wear耐用度durability随机信号random signal离散信号discrete signal超声传感器ultrasonic sensor 集成电路integrate circuit挡板orifice plate残余应力residual stress套筒sleeve扭力torsion冷加工cold machining电动机electromotor汽缸cylinder过盈配合interference fit热加工hotwork摄像头CCD camera倒角rounding chamfer优化设计optimal design工业造型设计industrial moulding design有限元finite element滚齿hobbing插齿gear shaping伺服电机actuating motor铣床milling machine钻床drill machine镗床boring machine步进电机stepper motor丝杠screw rod导轨lead rail组件subassembly可编程序逻辑控制器Programmable Logic Controller PLC 电火花加工electric spark machining电火花线切割加工electrical discharge wire - cutting 相图phase diagram热处理heat treatment固态相变solid state phase changes有色金属nonferrous metal陶瓷ceramics合成纤维synthetic fibre电化学腐蚀electrochemical corrosion车架automotive chassis悬架suspension转向器redirector变速器speed changer板料冲压sheet metal parts孔加工spot facing machining车间workshop工程技术人员engineer气动夹紧pneuma lock数学模型mathematical model画法几何descriptive geometry机械制图Mechanical drawing投影projection视图view剖视图profile chart标准件standard component零件图part drawing装配图assembly drawing尺寸标注size marking技术要求technical requirements刚度rigidity内力internal force位移displacement截面section疲劳极限fatigue limit断裂fracture塑性变形plastic distortion脆性材料brittleness material刚度准则rigidity criterion垫圈washer垫片spacer直齿圆柱齿轮straight toothed spur gear 斜齿圆柱齿轮helical-spur gear直齿锥齿轮straight bevel gear运动简图kinematic sketch齿轮齿条pinion and rack蜗杆蜗轮worm and worm gear虚约束passive constraint曲柄crank摇杆racker凸轮cams共轭曲线conjugate curve范成法generation method定义域definitional domain值域range导数\\微分differential coefficient求导derivation定积分definite integral不定积分indefinite integral曲率curvature偏微分partial differential毛坯rough游标卡尺slide caliper千分尺micrometer calipers攻丝tap二阶行列式second order determinant 逆矩阵inverse matrix线性方程组linear equations概率probability随机变量random variable排列组合permutation and combination气体状态方程equation of state of gas动能kinetic energy势能potential energy机械能守恒conservation of mechanical energy 动量momentum桁架truss轴线axes余子式cofactor逻辑电路logic circuit触发器flip-flop脉冲波形pulse shape数模digital analogy液压传动机构fluid drive mechanism机械零件mechanical parts淬火冷却quench淬火hardening回火tempering调质hardening and tempering磨粒abrasive grain结合剂bonding agent砂轮grinding wheel Assembly line 组装线Layout 布置图Conveyer 流水线物料板Rivet table 拉钉机Rivet gun 拉钉枪Screw driver 起子Pneumatic screw driver 气动起子worktable 工作桌OOBA 开箱检查fit together 组装在一起fasten 锁紧(螺丝)fixture 夹具(治具)pallet 栈板barcode 条码barcode scanner 条码扫描器fuse together 熔合fuse machine热熔机repair修理operator作业员QC品管supervisor 课长ME 制造工程师MT 制造生技cosmetic inspect 外观检查inner parts inspect 内部检查thumb screw 大头螺丝lbs. inch 镑、英寸EMI gasket 导电条front plate 前板rear plate 后板chassis 基座bezel panel 面板power button 电源按键reset button 重置键Hi-pot test of SPS 高源高压测试Voltage switch of SPS 电源电压接拉键sheet metal parts 冲件plastic parts 塑胶件SOP 制造作业程序material check list 物料检查表work cell 工作间trolley 台车carton 纸箱sub-line 支线left fork 叉车personnel resource department 人力资源部production department生产部门planning department企划部QC Section品管科stamping factory冲压厂painting factory烤漆厂molding factory成型厂common equipment常用设备uncoiler and straightener整平机punching machine 冲床robot机械手hydraulic machine油压机lathe车床planer |plein|刨床miller铣床grinder磨床linear cutting线切割electrical sparkle电火花welder电焊机staker=reviting machine铆合机position职务president董事长general manager总经理special assistant manager特助factory director厂长department director部长deputy manager | =vice manager副理section supervisor课长deputy section supervisor =vice section superisor副课长group leader/supervisor组长line supervisor线长assistant manager助理to move, to carry, to handle搬运be put in storage入库pack packing包装to apply oil擦油to file burr 锉毛刺final inspection终检to connect material接料to reverse material 翻料wet station沾湿台Tiana天那水cleaning cloth抹布to load material上料to unload material卸料to return material/stock to退料scraped |\\'skr?pid|报废scrape ..v.刮;削deficient purchase来料不良manufacture procedure制程deficient manufacturing procedure制程不良oxidation |\\' ksi\\'dei?n|氧化scratch刮伤dents压痕defective upsiding down抽芽不良defective to staking铆合不良embedded lump镶块feeding is not in place送料不到位stamping-missing漏冲production capacity生产力education and training教育与训练proposal improvement提案改善spare parts=buffer备件forklift叉车trailer=long vehicle拖板车compound die合模die locker锁模器pressure plate=plate pinch压板bolt螺栓administration/general affairs dept总务部automatic screwdriver电动启子thickness gauge厚薄规gauge(or jig)治具power wire电源线buzzle蜂鸣器defective product label不良标签identifying sheet list标示单location地点present members出席人员subject主题conclusion结论decision items决议事项responsible department负责单位pre-fixed finishing date预定完成日approved by / checked by / prepared by核准/审核/承办PCE assembly production schedule sheet PCE组装厂生产排配表model机锺work order工令revision版次remark备注production control confirmation生产确认checked by初审approved by核准department部门stock age analysis sheet 库存货龄分析表on-hand inventory现有库存available material良品可使用obsolete material良品已呆滞to be inspected or reworked 待验或重工total合计cause description原因说明part number/ P/N 料号type形态item/group/class类别quality品质prepared by制表notes说明year-end physical inventory difference analysis sheet 年终盘点差异分析表physical inventory盘点数量physical count quantity帐面数量difference quantity差异量cause analysis原因分析raw materials原料materials物料finished product成品semi-finished product半成品packing materials包材good product/accepted goods/ accepted parts/good parts 良品defective product/non-good parts不良品disposed goods处理品warehouse/hub仓库on way location在途仓oversea location海外仓spare parts physical inventory list备品盘点清单spare molds location模具备品仓skid/pallet栈板tox machine自铆机wire EDM线割EDM放电机coil stock卷料sheet stock片料tolerance工差score=groove压线cam block滑块pilot导正筒trim剪外边pierce剪内边drag form压锻差pocket for the punch head挂钩槽slug hole废料孔feature die公母模expansion dwg展开图radius半径shim(wedge)楔子torch-flame cut火焰切割set screw止付螺丝form block折刀stop pin定位销round pierce punch=die button圆冲子shape punch=die insert异形子stock locater block定位块under cut=scrap chopper清角active plate活动板baffle plate挡块cover plate盖板male die公模female die母模groove punch压线冲子air-cushion eject-rod气垫顶杆spring-box eject-plate弹簧箱顶板bushing block衬套insert 入块club car高尔夫球车capability能力parameter参数factor系数phosphate皮膜化成viscosity涂料粘度alkalidipping脱脂main manifold主集流脉bezel斜视规blanking穿落模dejecting顶固模demagnetization去磁;消磁high-speed transmission高速传递heat dissipation热传rack上料degrease脱脂rinse水洗alkaline etch龄咬desmut剥黑膜D.I. rinse纯水次Chromate铬酸处理Anodize阳性处理seal封孔revision版次part number/P/N料号good products良品scraped products报放心品defective products不良品finished products成品disposed products处理品barcode条码flow chart流程表单assembly组装stamping冲压molding成型spare parts=buffer备品coordinate座标dismantle the die折模auxiliary fuction辅助功能poly-line多义线heater band 加热片thermocouple热电偶sand blasting喷沙grit 砂砾derusting machine除锈机degate打浇口dryer烘干机induction感应induction light感应光response=reaction=interaction感应ram连杆edge finder巡边器concave凸convex凹short射料不足nick缺口speck瑕??shine亮班splay 银纹gas mark焦痕delamination起鳞cold slug冷块blush 导色gouge沟槽;凿槽satin texture段面咬花witness line证示线patent专利grit沙砾granule=peuet=grain细粒grit maker抽粒机cushion缓冲magnalium镁铝合金magnesium镁金metal plate钣金lathe车mill锉plane刨grind磨drill铝boring镗blinster气泡fillet镶;嵌边through-hole form通孔形式voller pin formality滚针形式cam driver铡楔shank摸柄crank shaft曲柄轴augular offset角度偏差velocity速度production tempo生产进度现状torque扭矩spline=the multiple keys花键quenching淬火tempering回火annealing退火carbonization碳化tungsten high speed steel钨高速的moly high speed steel钼高速的organic solvent有机溶剂bracket小磁导liaison联络单volatile挥发性resistance电阻ion离子titrator滴定仪beacon警示灯coolant冷却液crusher破碎机阿基米德蜗杆Archimedes worm安全系数safety factor; factor of safety安全载荷safe load凹面、凹度concavity扳手wrench板簧flat leaf spring半圆键woodruff key变形deformation摆杆oscillating bar摆动从动件oscillating follower摆动从动件凸轮机构cam with oscillating follower 摆动导杆机构oscillating guide-bar mechanism 摆线齿轮cycloidal gear摆线齿形cycloidal tooth profile摆线运动规律cycloidal motion摆线针轮cycloidal-pin wheel包角angle of contact保持架cage背对背安装back-to-back arrangement背锥back cone ；normal cone背锥角back angle背锥距back cone distance比例尺scale比热容specific heat capacity闭式链closed kinematic chain闭链机构closed chain mechanism臂部arm变频器frequency converters变频调速frequency control of motor speed 变速speed change变速齿轮change gear change wheel变位齿轮modified gear变位系数modification coefficient标准齿轮standard gear标准直齿轮standard spur gear表面质量系数superficial mass factor表面传热系数surface coefficient of heat transfer 表面粗糙度surface roughness并联式组合combination in parallel并联机构parallel mechanism并联组合机构parallel combined mechanism并行工程concurrent engineering并行设计concurred design, CD不平衡相位phase angle of unbalance不平衡imbalance (or unbalance)不平衡量amount of unbalance不完全齿轮机构intermittent gearing波发生器wave generator波数number of waves补偿compensation参数化设计parameterization design, PD残余应力residual stress操纵及控制装置operation control device槽轮Geneva wheel槽轮机构Geneva mechanism ；Maltese cross 槽数Geneva numerate槽凸轮groove cam侧隙backlash差动轮系differential gear train差动螺旋机构differential screw mechanism差速器differential常用机构conventional mechanism; mechanism in common use车床lathe承载量系数bearing capacity factor承载能力bearing capacity成对安装paired mounting尺寸系列dimension series齿槽tooth space齿槽宽spacewidth齿侧间隙backlash齿顶高addendum齿顶圆addendum circle齿根高dedendum齿根圆dedendum circle齿厚tooth thickness齿距circular pitch齿宽face width齿廓tooth profile齿廓曲线tooth curve齿轮gear齿轮变速箱speed-changing gear boxes齿轮齿条机构pinion and rack齿轮插刀pinion cutter; pinion-shaped shaper cutter 齿轮滚刀hob ,hobbing cutter齿轮机构gear齿轮轮坯blank齿轮传动系pinion unit齿轮联轴器gear coupling齿条传动rack gear齿数tooth number齿数比gear ratio齿条rack齿条插刀rack cutter; rack-shaped shaper cutter齿形链、无声链silent chain齿形系数form factor齿式棘轮机构tooth ratchet mechanism插齿机gear shaper重合点coincident points重合度contact ratio冲床punch传动比transmission ratio, speed ratio传动装置gearing; transmission gear传动系统driven system传动角transmission angle传动轴transmission shaft串联式组合combination in series串联式组合机构series combined mechanism 串级调速cascade speed control创新innovation creation创新设计creation design垂直载荷、法向载荷normal load唇形橡胶密封lip rubber seal磁流体轴承magnetic fluid bearing从动带轮driven pulley从动件driven link, follower从动件平底宽度width of flat-face从动件停歇follower dwell从动件运动规律follower motion从动轮driven gear粗线bold line粗牙螺纹coarse thread大齿轮gear wheel打包机packer打滑slipping带传动belt driving带轮belt pulley带式制动器band brake单列轴承single row bearing单向推力轴承single-direction thrust bearing单万向联轴节single universal joint单位矢量unit vector当量齿轮equivalent spur gear; virtual gear当量齿数equivalent teeth number; virtual number of teeth 当量摩擦系数equivalent coefficient of friction当量载荷equivalent load刀具cutter导数derivative倒角chamfer导热性conduction of heat导程lead导程角lead angle等加等减速运动规律parabolic motion; constant acceleration and deceleration motion等速运动规律uniform motion; constant velocity motion等径凸轮conjugate yoke radial cam等宽凸轮constant-breadth cam等效构件equivalent link等效力equivalent force等效力矩equivalent moment of force等效量equivalent等效质量equivalent mass等效转动惯量equivalent moment of inertia等效动力学模型dynamically equivalent model底座chassis低副lower pair点划线chain dotted line（疲劳）点蚀pitting垫圈gasket垫片密封gasket seal碟形弹簧belleville spring顶隙bottom clearance定轴轮系ordinary gear train; gear train with fixed axes 动力学dynamics动密封kinematical seal动能dynamic energy动力粘度dynamic viscosity动力润滑dynamic lubrication动平衡dynamic balance动平衡机dynamic balancing machine动态特性dynamic characteristics动态分析设计dynamic analysis design动压力dynamic reaction动载荷dynamic load端面transverse plane端面参数transverse parameters端面齿距transverse circular pitch端面齿廓transverse tooth profile端面重合度transverse contact ratio端面模数transverse module端面压力角transverse pressure angle锻造forge对称循环应力symmetry circulating stress对心滚子从动件radial (or in-line ) roller follower对心直动从动件radial (or in-line ) translating follower对心移动从动件radial reciprocating follower对心曲柄滑块机构in-line slider-crank (or crank-slider) mechanism多列轴承multi-row bearing多楔带poly V-belt多项式运动规律polynomial motion多质量转子rotor with several masses惰轮idle gear额定寿命rating life额定载荷load ratingII 级杆组dyad发生线generating line发生面generating plane法面normal plane法面参数normal parameters法面齿距normal circular pitch法面模数normal module法面压力角normal pressure angle法向齿距normal pitch法向齿廓normal tooth profile法向直廓蜗杆straight sided normal worm法向力normal force反馈式组合feedback combining反向运动学inverse ( or backward) kinematics 反转法kinematic inversion反正切Arctan范成法generating cutting仿形法form cutting方案设计、概念设计concept design, CD防振装置shockproof device飞轮flywheel飞轮矩moment of flywheel非标准齿轮nonstandard gear非接触式密封non-contact seal非周期性速度波动aperiodic speed fluctuation非圆齿轮non-circular gear粉末合金powder metallurgy分度线reference line; standard pitch line分度圆reference circle; standard (cutting) pitch circle 分度圆柱导程角lead angle at reference cylinder分度圆柱螺旋角helix angle at reference cylinder分母denominator分子numerator分度圆锥reference cone; standard pitch cone分析法analytical method封闭差动轮系planetary differential复合铰链compound hinge复合式组合compound combining复合轮系compound (or combined) gear train 复合平带compound flat belt复合应力combined stress复式螺旋机构Compound screw mechanism复杂机构 complex mechanism杆组Assur group干涉interference刚度系数stiffness coefficient刚轮rigid circular spline钢丝软轴wire soft shaft刚体导引机构body guidance mechanism刚性冲击rigid impulse (shock)刚性转子rigid rotor刚性轴承rigid bearing刚性联轴器rigid coupling高度系列height series高速带high speed belt高副higher pair格拉晓夫定理Grashoff`s law根切undercutting公称直径nominal diameter高度系列height series功work工况系数application factor工艺设计technological design工作循环图working cycle diagram工作机构operation mechanism工作载荷external loads工作空间working space工作应力working stress工作阻力effective resistance工作阻力矩effective resistance moment 公法线common normal line公共约束general constraint公制齿轮metric gears功率power功能分析设计function analyses design 共轭齿廓conjugate profiles共轭凸轮conjugate cam构件link鼓风机blower固定构件fixed link; frame固体润滑剂solid lubricant关节型操作器jointed manipulator惯性力inertia force惯性力矩moment of inertia ,shaking moment 惯性力平衡balance of shaking force惯性力完全平衡full balance of shaking force惯性力部分平衡partial balance of shaking force 惯性主矩resultant moment of inertia惯性主失resultant vector of inertia冠轮crown gear广义机构generation mechanism广义坐标generalized coordinate轨迹生成path generation轨迹发生器path generator滚刀hob滚道raceway滚动体rolling element滚动轴承rolling bearing滚动轴承代号rolling bearing identification code 滚针needle roller滚针轴承needle roller bearing滚子roller滚子轴承roller bearing滚子半径radius of roller滚子从动件roller follower滚子链roller chain滚子链联轴器double roller chain coupling 滚珠丝杆ball screw滚柱式单向超越离合器roller clutch过度切割undercutting函数发生器function generator函数生成function generation含油轴承oil bearing耗油量oil consumption耗油量系数oil consumption factor赫兹公式H. Hertz equation合成弯矩resultant bending moment合力resultant force合力矩resultant moment of force黑箱black box横坐标abscissa互换性齿轮interchangeable gears花键spline滑键、导键feather key滑动轴承sliding bearing滑动率sliding ratio滑块slider环面蜗杆toroid helicoids worm环形弹簧annular spring缓冲装置shocks; shock-absorber灰铸铁grey cast iron回程return回转体平衡balance of rotors混合轮系 compound gear train积分integrate机电一体化系统设计mechanical-electrical integration system design机构mechanism机构分析analysis of mechanism机构平衡balance of mechanism机构学mechanism机构运动设计kinematic design of mechanism机构运动简图kinematic sketch of mechanism机构综合synthesis of mechanism机构组成constitution of mechanism机架frame, fixed link机架变换kinematic inversion机器machine机器人robot机器人操作器manipulator机器人学robotics技术过程technique process技术经济评价technical and economic evaluation 技术系统technique system机械machinery机械创新设计mechanical creation design, MCD 机械系统设计mechanical system design, MSD 机械动力分析dynamic analysis of machinery机械动力设计dynamic design of machinery机械动力学dynamics of machinery机械的现代设计modern machine design机械系统mechanical system机械利益mechanical advantage机械平衡balance of machinery机械手manipulator机械设计machine design; mechanical design机械特性mechanical behavior机械调速mechanical speed governors机械效率mechanical efficiency机械原理theory of machines and mechanisms机械运转不均匀系数coefficient of speed fluctuation机械无级变速mechanical stepless speed changes基础机构fundamental mechanism基本额定寿命basic rating life基于实例设计case-based design,CBD基圆base circle基圆半径radius of base circle基圆齿距base pitch基圆压力角pressure angle of base circle基圆柱base cylinder基圆锥base cone急回机构quick-return mechanism急回特性quick-return characteristics急回系数advance-to return-time ratio急回运动quick-return motion棘轮ratchet棘轮机构ratchet mechanism棘爪pawl极限位置extreme (or limiting) position极位夹角crank angle between extreme (or limiting) positions计算机辅助设计computer aided design, CAD计算机辅助制造computer aided manufacturing, CAM计算机集成制造系统computer integrated manufacturing system, CIMS计算力矩factored moment; calculation moment计算弯矩calculated bending moment加权系数weighting efficient加速度acceleration加速度分析acceleration analysis加速度曲线acceleration diagram尖点pointing; cusp尖底从动件knife-edge follower间隙backlash间歇运动机构intermittent motion mechanism减速比reduction ratio减速齿轮、减速装置reduction gear减速器speed reducer减摩性anti-friction quality渐开螺旋面involute helicoid渐开线involute渐开线齿廓involute profile渐开线齿轮involute gear渐开线发生线generating line of involute渐开线方程involute equation渐开线函数involute function渐开线蜗杆involute worm渐开线压力角pressure angle of involute渐开线花键involute spline简谐运动simple harmonic motion键key键槽keyway交变应力repeated stress交变载荷repeated fluctuating load交叉带传动cross-belt drive交错轴斜齿轮crossed helical gears胶合scoring角加速度angular acceleration角速度angular velocity角速比angular velocity ratio角接触球轴承angular contact ball bearing角接触推力轴承angular contact thrust bearing 角接触向心轴承angular contact radial bearing 角接触轴承angular contact bearing铰链、枢纽hinge校正平面correcting plane接触应力contact stress接触式密封contact seal阶梯轴multi-diameter shaft结构structure结构设计structural design截面section节点pitch point节距circular pitch; pitch of teeth节线pitch line节圆pitch circle节圆齿厚thickness on pitch circle节圆直径pitch diameter节圆锥pitch cone节圆锥角pitch cone angle解析设计analytical design紧边tight-side紧固件fastener径节diametral pitch径向radial direction径向当量动载荷dynamic equivalent radial load径向当量静载荷static equivalent radial load径向基本额定动载荷basic dynamic radial load rating径向基本额定静载荷basic static radial load tating径向接触轴承radial contact bearing径向平面radial plane径向游隙radial internal clearance径向载荷radial load径向载荷系数radial load factor径向间隙clearance静力static force静平衡static balance静载荷static load静密封static seal局部自由度passive degree of freedom矩阵matrix矩形螺纹square threaded form锯齿形螺纹buttress thread form矩形牙嵌式离合器square-jaw positive-contact clutch 绝对尺寸系数absolute dimensional factor绝对运动absolute motion绝对速度absolute velocity均衡装置load balancing mechanism抗压强度compression strength开口传动open-belt drive开式链open kinematic chain开链机构open chain mechanism可靠度degree of reliability可靠性reliability可靠性设计reliability design, RD空气弹簧air spring空间机构spatial mechanism空间连杆机构spatial linkage空间凸轮机构spatial cam空间运动副spatial kinematic pair空间运动链spatial kinematic chain 空转idle宽度系列width series框图block diagram雷诺方程Reynolds‘s equation离心力centrifugal force离心应力centrifugal stress离合器clutch离心密封centrifugal seal理论廓线pitch curve理论啮合线theoretical line of action 隶属度membership力force力多边形force polygon力封闭型凸轮机构force-drive (or force-closed) cam mechanism力矩moment力平衡equilibrium力偶couple力偶矩moment of couple连杆connecting rod, coupler连杆机构linkage连杆曲线coupler-curve连心线line of centers链chain链传动装置chain gearing链轮sprocket sprocket-wheel sprocket gear chain wheel联组V 带tight-up V belt联轴器coupling shaft coupling两维凸轮two-dimensional cam临界转速critical speed六杆机构six-bar linkage龙门刨床double Haas planer轮坯blank。
机械图纸中常用词汇英语缩写 汇总
机械图纸英语翻译以下是我在工作中常用的ALLWELDSCONTINUOUSUNLESSOTHERWISESTATED.未注焊缝均为连续焊ALLWELDS3mmFILLETUNLESSOTHERWISESTATED未注焊角高3mm.ALLUNSPECIFIEDRADI-R3未注圆角R3 REMOVEALLBURRSANDSHARPEDGES棱角倒钝CHANNEL槽钢RSA708角钢70X70X8M30X1.5pitchM30X1.5的锥螺纹Tackweld点焊OD1/4"outsidedimension1/4"的缩写外径直1/4"75CRS尺寸为75材质为冷轧钢板410OPENINGREF410开口参考尺寸40REF尺寸为40,参考值2.5"BSP2.5”圆锥管螺纹2.5"BSPTHEXAGON2.5”六角圆锥管螺纹(即对丝)30x2.5FLATBAR30X2.5扁钢TYP2POSNS2处11TOTALCOILSAPROX.9WORKINGCOILSAPROX.RIGHTHANDWOUNDONLY,ENDCOILSSQUARETOTOUCH.总圈数约11圈；工作圈数约9圈；右旋；弹簧的端部磨平以便于接触.(此为弹簧技术说明)FEMALE:内扣(母扣)MALE:外扣(公扣)偏心轴eccentricshaft销轴PIN开口销COTTERPIN螺杆screw紧定螺钉SETSCREW圆螺母ROUNDNUT内六角螺钉SOCKETHEADCAPSCREW六角螺钉HEXHDSETSCREW六角螺栓HEXHDBOLT挡圈closingring弹性挡圈circlip轴承隔套distancesleeveofaxletree轴承axletree深沟球轴承DEEPGROOVEBALLBEARING无扣长non-bucklelongth弹簧SPRING吊环螺钉LIFTINGEYEBOLT开槽盘头螺钉SLOTTEDPANHEADSCREW圆锥滚子轴承TAPEREDROLLERBEARING推力球轴承THRUSTBALLBEARING平键FLATKEY弹簧垫圈SINGLECOILSPRINGW ASHER平垫圈FLATW ASHER螺母FULLNYLOCKNUT圆螺母ROUNDNUT REMOVEALLBURRSANDSHARPEDGES所有尖角/棱角倒角并去毛刺40REF为测量的参考尺寸OD1/4’outsidedimension1/4"的缩写外径直1/4’------->应该为：外径值1/4"75CRS尺75材质为冷轧钢板------->应该为：尺寸75材质为冷轧钢板我见过18GA(.048")CRS、16GA(.060)CRS、14GA(.075)CRS，其中GA是表示厚度的，但与英寸的关系还没研究明白；照此推算75是相当薄的缩写全称翻译ACCESSAccessory附件ADJAdjustable,Adjust调整ADPTAdapter使适应ADV Advance提前ALAluminum铝ALLOWAllowance允许ALTAlternate改变ALYAlloy合金AMTAmout数量ANLAnneal锻炼ANSLAmerNatlStdsInstitute APPROXApproximate大约ASMEAmerSocietyofMechEngrs ASSEMAssemble装配ASSYAssembly装配AUTHAuthorized授权的AUTOAutomatic自动的AUXAuxiliary辅助的A VGAverage平均AWGAmericanWireGauge BCBoltCircle螺栓圆周BETBetween之间BEVBevel斜角BHNBrinellHardnessNumber布氏硬度值BLKBlank,Block空白B/NMBillofMaterial材料费BOTBottom底部BPorB/PBlueprint蓝图BRGBearing轴承BRKBreak破裂BRKTBracket支架BROBroach钻孔BRSBrass黄铜BRZBronze青铜B＆SBrown＆Shape棕色＆形状BSCBasic基本的BUSHBushing套管BWGBirminghamWireGauge CTOCCenter-to-Center中心到中心CADComputer-AidedDrafting电脑辅助设计CAMComputer-AidedMfgCAPCapacity容量CAPSCRCapScrew螺帽CARBCarburize使渗碳CBORECounterbore扩孔CCWCounterClockwise逆时针CDRILLCounerdrillCDSCold-DrawnSteel缩写全称翻译EFFEffective有效的ENCLEnclose,Enclosure附上ENGEngine引擎ENGREngineer工程师ENGRGEngineering工程学EQLSPEquallySpaced等距EQUIVEquivalent相等ESTEstimate估计EXExtra额外EXHExhaust消耗EXPExperimental实验性的EXTExension,External范围,外部FABFabricate伪造FAOFinishAllOver FDRYFoundry铸造FIGFigure数据FILFillet,fillister带子FIMFullIndicatorMovementFINFinishFLXFixture结构FLXFloor.Fluid,Flush基地,液体,冲洗FLEXFlexible易弯曲的FLGFlange边缘FORGForging锻炼FRFrame,Front边框FIGFitting装置FURNFurnish提供FWDForward向前GAGage,Gauge测量GALVGalvanized电镀GRGrade等级GRDGrind磨碎GRVGroove凹槽GSKTGasket垫圈H＆GHardenandGrind加硬和磨碎HDHead主要的HDLHandle处理HDLSHeadless无领导的HDNHarden使硬化HDWHardware硬件HEXHexagon六边形HGRHanger衣架HGTHeight高度HORHorizontal水平的HRSHot-RolledSteelHSGHousing外罩HTTRHeatTreal我见过18GA(.048")CRS、16GA(.060)CRS、14GA(.075)CRS，其中GA是表示厚度的，但与英寸的关系还没研究明白；照此推算75是相当薄的缩写全称翻译ACCESSAccessory附件ADJAdjustable,Adjust调整ADPTAdapter使适应ADV Advance提前ALAluminum铝ALLOWAllowance允许ALTAlternate改变ALYAlloy合金AMTAmout数量ANLAnneal锻炼ANSLAmerNatlStdsInstitute APPROXApproximate大约ASMEAmerSocietyofMechEngrs ASSEMAssemble装配ASSYAssembly装配AUTHAuthorized授权的AUTOAutomatic自动的AUXAuxiliary辅助的A VGAverage平均AWGAmericanWireGauge BCBoltCircle螺栓圆周BETBetween之间BEVBevel斜角BHNBrinellHardnessNumber布氏硬度值BLKBlank,Block空白B/NMBillofMaterial材料费BOTBottom底部BPorB/PBlueprint蓝图BRGBearing轴承BRKBreak破裂BRKTBracket支架BROBroach钻孔BRSBrass黄铜BRZBronze青铜B＆SBrown＆Shape棕色＆形状BSCBasic基本的BUSHBushing套管BWGBirminghamWireGauge CTOCCenter-to-Center中心到中心CADComputer-AidedDrafting电脑辅助设计CAMComputer-AidedMfgCAPCapacity容量CAPSCRCapScrew螺帽CARBCarburize使渗碳CBORECounterbore扩孔CCWCounterClockwise逆时针CDRILLCounerdrillCDSCold-DrawnSteel缩写全称翻译EFFEffective有效的ENCLEnclose,Enclosure附上ENGEngine引擎ENGREngineer工程师ENGRGEngineering工程学EQLSPEquallySpaced等距EQUIVEquivalent相等ESTEstimate估计EXExtra额外EXHExhaust消耗EXPExperimental实验性的EXTExension,External范围,外部FABFabricate伪造FAOFinishAllOver FDRYFoundry铸造FIGFigure数据FILFillet,fillister带子FIMFullIndicatorMovement FINFinishFLXFixture结构FLXFloor.Fluid,Flush基地,液体,冲洗FLEXFlexible易弯曲的FLGFlange边缘FORGForging锻炼FRFrame,Front边框FIGFitting装置FURNFurnish提供FWDForward向前GAGage,Gauge测量GALVGalvanized电镀GRGrade等级GRDGrind磨碎GRVGroove凹槽GSKTGasket垫圈H＆GHardenandGrind加硬和磨碎HDHead主要的HDLHandle处理HDLSHeadless无领导的HDNHarden使硬化HDWHardware硬件HEXHexagon六边形HGRHanger衣架HGTHeight高度HORHorizontal水平的HRSHot-RolledSteel HSGHousing外罩HTTRHeatTreal缩写全称翻译NTSNottoScaleOAOverAll所有OBSObsotetcOCOnCenter ODOutsideDiameter外直径OPPOpposite对立OPTLOptional可选择的OROutsideRadius外半径ORIGOriginal初始的PAT.Patent专利PATTPattern形式PCPiece,PitchCircle件，节距圆PCHPunch打孔PDPitchDiameterPERFPerforate打孔PERMPermanent永久的PERPPerpendicular垂直的PFDPreferred首选的PKGPackage,Packing包装PLPartingLine,Places,Plate PNEUPncumaticPNLPanel面板POLPolish磨光POSPosition,Postive位置PRPair对立PRIPrimary基本的PROCProcess程序PRODProduct,Production产品，产量PSIPoundsperSquareInchPTPart,Point零件，点QTRQuarter四份之一QTYQuantity数量QUALQuality质量RRadius半径RARockwellHarden,A-ScaleRBRockwellHarden,B-Scale RCRockwellHarden,C-Scale RECDReceived巳收到的RECTRectangle长方形REFReference相关的REINFReinforce增强RELRelease,Relief释放，缓解REMRemove移除REQDRequird有需要REERetainer,Return REVReverse,Revision,Revolution RFSRegardlessofFeatureSize RGHRough粗糙的RHRightHand右手RIVRivet起皱RMReam扩展RNDRound周围RPMRevolutionsperMinute RPWResistanceProjectionWeld SAESocietyofAutomotiveEngrs SCHSchedule进度表CFSCold-FinishedSteelCHCaseHardenCHAMChamfer斜面CHANChannel渠道CHGChange改变CHKCheck核查CICastIron铸铁CIRCircle,Circular圆周CIRCCircumference圆周CLCenterline中心线CLPClamp夹子CNCComputerNumericalControl电脑数值控制COMBCombination联合COMLCommercial商业的CONCConcentric同中心的CONNConnect,Connector连接器COVCover盖子CPLGCoupling联结CQCommercialQuality商业等级钢CRSColdStdsAssociation CRTCathodeRayTube阴级射线管CSCastSteel铸铁CSACanadianStdsAssociationCSKCountersink埋头孔CSTGCasting铸件CTRCenter中心CUCubic立方米CWClockwise顺时针CYLCylinder,Cylindrical柱面DBLDouble双倍DECDecimal小数DEGDegree摄氏度DETDetail详情DEVDevelop发展DFTDraft草稿DIADiameter直径DIMDimension尺寸DISTDistance距离DNDown向下DPDeep,DiametralPitch深度,径节DRDrill,DrillRod钻孔DSGNDesign设计DVTLDovetail吻合DWGDrawing图纸DWLDowel木钉DWNDrawn拔出EAEach每个ECCEccentric古怪缩写全称翻译HVYHeavy重量HYDHydraulic水压IDInsideDiameter内部直径IDENTIdentification鉴定ILLUSIllustration说明INInch英寸INCLInclude,Including包括INCRIncrease增加INFOInformation信息INSPInspect检查INSTLInstall安装INSTInstruct,Instrument指示,工具INTInterior,Internal,Intersect内部的,内在的,交叉IRInsideRadius内部半径ISOInternalStdsOrganization国际标准化组织JCTJunction连结JNTJournal杂志JTJoint连接KKey关键KNRLKnurl硬节KSTKeyseatKWYKeyway键沟LBPound英镑LBLLabel标签LGLength,Long长度LHLeftHand左手LMCLeastMaterialCondition LOCLocate位于LTLight光LTRLetter信LUBLubricate润滑MACHMachine机器MAINTMaintenance维护MATLMaterial材料MAXMaximum最大MECHMechanical,Mechanism机械MEDMedium媒介MFGManufacturing制造业MIMalleableIron可锻造的铁MINMinimum,Minute最小，秒MISCMiscellaneous混杂的MMMillimeter毫米MMCMaxMaterialCondition MSMachineSteelMTGMouting装备MULTMultiple倍数MWGMusicWireGagug NANotApplicable不可应用的NATLNational国内的NCNumericalControl数字电脑控制NEGNegative忽略的NO.Number号码NOMNominal名义上的NPSMNatlPipeStraightMech NPTNatlPipeTapered缩写全称翻译SCRScrew螺丝SECSecond秒SECTSection部分SEPSeparate独立SEQSequence顺序SERSerial,Series系列SERRSerrate锯齿状SFSpotfaceSFTShaft轴SGLSingle单个SHSheet纸SIIntlSystemofUnits SLSlide使滑动SLVSleeve袖子SOCSocket插座SPSpace,Spaced,Spare空间SPLSpecial特别SPECSpecification规格SPGSpring跳SPHERSpherical球体SPRKTSprocket链轮齿SQSquare平方SSTStainlessSteel纯铁STDStandard标准STKStock存货STLSteel铁STRStraight,Strip直的SUBSubstitute替代物SUPSupply,Support供应SURFSurface表面SYMSymmetrical对称的SYSSystem系统TTeeth,Tooth牙齿TECHTechnical技术TEMPTemplate,Temporary模板，暂时的THDThread线THKThick厚的TOLTolerance公差TOTTotal总计TPFTaperperFootTPITaperperIn,ThreadsperInch TPRTaper锥形TSToolSteelTYPTypical典型UNCUnifiedNatlCoarse UNEFUnifiedNatlExtraFine UNFUnifiedNatlFineUNIVUniversal普遍V ARVariable变量VERTVertical垂直的VOLV olume音量VSVersus与．．相对WWide,Width宽度W ASHWasher洗衣机WDFWoodruff车叶草WIWroughtIron熟铁WTWeight重量齿轮及齿轮加工中英文对照-A部分A.1.abrasivetoothwear齿面研磨磨损2.absolutetangentialvelocity绝对切向速度3.accelerometer加速表4.addendum齿顶高5.addendumangle齿顶角6.addendumcircle齿顶圆7.addendumsurface上齿面8.adhesivewear粘着磨损9.adjustability可调性10.adjustabilitycoefficients可调系数11.adjustingwedge圆盘端铣刀的可调型楔块12.allowablestress允许应力13.alternatebladecutter双面刀盘14.angularbacklash角侧隙15.angularbevelgears斜交锥齿轮16.angulardisplacement角移位17.angularpitch齿端距18.angulartestingmachine可调角度试验机19.approachaction啮入20.arbor心轴21.arbordistance心轴距22.arcofapproach啮入弧23.arcofrecess啮出弧24.attraction收紧25.averagecutterdiameter平均刀尖直径26.axialdisplacement轴向位移27.axialfactor轴向系数28.axiallocatingsurface轴向定位面29.axialpitch轴向齿距30.axialplane轴向平面31.axialrakeangle轴向前角32.axialthrust轴向推力33.axletestingmachine传动桥试验机07484473lhx0812发表于：07-03-1317:21[只看该作者] 第4楼Pipingwork:铺管工程Steamtrace:加热蒸汽管道Cutting:切割socketweld承插焊接filletweld角焊,填角焊branchconnection分支接续fabricationtolerance.制造容差localheattreatment局部热处理threadedpipe螺纹管sealwelding密封焊接flangejoint凸缘接头undercut底切feeder馈电线conduitoutlet电线引出口sealfitting密封接头,密封配件Screwthreadlubricant螺纹润滑剂Seal绝缘层weldreinforcement焊缝补强lockwasher锁紧[止动,防松]垫圈electricalpanel配电板,配电盘nipple螺纹接头zincplated镀锌的ringjoint环接,围缘接合bolt螺栓control控制器NationalElectricalCode全国电气规程masterschedule主要图表,综合图表,设计任务书,主要作业表torquewrench转矩扳手jobsite施工现场flangeconnection凸缘联接Hardhat安全帽Goggles护目镜Stockpile贮存packinglist装箱单crate柳条箱purchasedmateriallist原材料进货单back-feed反馈wirecoil线盘线卷NPTthread美国标准锥管螺纹cablegland电缆衬垫terminalblock线弧,接头排接线盒,接线板,线夹powerdrill机械钻connector接线器insulatedsleeve绝缘套管wireconnector接线器wireterminal电线接头controlwiring控制线路motorlead电动机引出线powerwiring电力布线tenderdocument提供证件orificeplate挡板nut螺母flangegasket法兰垫片dimensionalinspection尺寸检验burnthrough烧蚀pipingsystem管道系统reinforcementofweld加强焊缝械专业词汇表"机械(常用)""abrasion,abrasivewear","磨料磨损""activeforce,appliedforce","作用力" "actualsize","实际尺寸" "addendumangle","齿顶角""addendum","齿顶高" "addendummodification","径向变位" "addendummodification(forexternalgears)","径向变位量" "addendummodificationcoefficient","径向变位系数" "additive","添加剂""adhesionwear","黏着磨损" "adjustedratinglife","修正额定寿命" "aerodynamicbearing","气体静压滑动轴承" "airspring","空气弹簧""angledrive","角度传动" "angleofcontact","包角" "angleoftransmission","作用角" "angularbevelgear","斜交锥齿轮" "angularcontactbearing","角接触推力轴承" "angularcontactbearing","角接触轴承""anti-frictionbearingmaterial","减磨轴承材料""approach,engaging-in","啮入""archimedesspiral","阿基米德螺线""attitudeangle","偏位角""auto-controlledclutch","自控离合器" "axialloadfactor","轴向载荷系数" "axialmodification","齿向修形""axialmodule","轴向模数""axialpitch","轴向齿距""axialplane","轴平面""axialplaneofwormwheel","蜗轮轴平面" "axialprofile","轴向齿廓""backcone","背锥面""backconeangle","背锥角""backconedistance","中点锥距" "backconetoothprofile","背锥齿廓" "backtobackarrangement(rollingbearing)","背对背配置(滚动轴承)" "balancingmass","平衡质量""balloscillatingteeth","滚珠活齿""ballscrew","滚珠丝杠""ballscrew","滚珠丝杠""ballbearing","球轴承""bandbrake","带式制动器""basecircle","基圆""basehelix","基圆螺旋线" "basetangentlength","公法线长度" "basicprofile","基本牙型""basicrack","基本齿条" "basicracktoothprofile","基本齿廓" "basicratinglife","基本额定寿命" "basicsize","基本尺寸" "bathlubrication","油浴润滑" "bathtubcurve","浴盆曲线""bearing","轴承""bearingaxialload","轴承轴向载荷" "bearingborediameter","轴承内径" "bearingbush","轴套" "Bearingcharacteristicnumber","轴承特性系数" "bearingliner","轴承衬" "bearingloadcarryingcapacity","轴承承载能力" "bearingmeanspecificload","轴承压强" "bearingoutsidediameter","轴承外径" "bearingradialload","轴承径向载荷" "bearingring","轴承套圈""bearingseries(rollingbearing)","轴承系列(滚动轴承)""bearingwidth","轴承宽度" "bearingwithsolidlubricant","固体润滑滑动轴承" "bellevillespring","碟形弹簧""beltdrive","带传动""beltlength","带长""bendingvibration","弯曲振动""bevelgear","锥齿轮" "bevelgearwithaxesatrightangles","正交锥齿轮" "bevelgearwithcirculararctoothprofile","双重锥度齿锥齿轮" "bevelgearwithcirculararctoothprofile","圆弧齿廓锥齿轮" "bevelgearwithstandardtaoeredtoothprofile","正常锥度齿锥齿轮" "bevelgearwithstraighttoothprofile","直线齿廓锥齿轮" "bevelgearwuth90°faceangle","平顶齿轮" "blockbrake","块式制动器""blockchain","块链""bobedbearing","多油叶滑动轴承""bolt","螺栓""bottomclearance","顶隙""bottomland","齿槽底面""boundarydimension(rollingbearing)","外形尺寸(滚动轴承)" "boundarylubrication","边界摩擦""brake","制动器""brakedrum","制动鼓""brakelining","制动衬片""brakepiece","制动块""brakeshoe","制动蹄""brake-bandclutch","闸带离合器" "bushchain","套筒链""cage","保持架""cam","凸轮""camcontour,camprofile","凸轮工作轮廓" "camfollower","凸轮从动件" "campitchcurve","凸轮理论轮廓" "Cavitationwear","气蚀磨损" "centerdistance","中心距" "centerdistancemodificationcoefficient","中心距变动系数" "centergear","中心轮""centricslider-crankmechanism","对心曲柄滑块机构" "centrifugalclutch","离心离合器" "centrifugaltension","离心拉力" "centrifugalforce","离心力" "centrodemechanism","瞬心线机构" "Ceramicfrictionmaterial","金属陶瓷""chain","链条""chaincoupling","链条联轴器""chaintransmission","链传动""chainwheel,sprocket","链轮""chordalheight","弦齿高""circulararcprofile","圆弧齿廓""circularhelix","圆柱螺旋线""circular-arcgear","圆弧圆柱齿轮" "Circulatinglubrication","循环润滑" "circumferentialbacklash","圆周侧隙""classicalV-belt","普通V带""clearancefit","间隙配合""clevispinwithhead","销轴""clutch","离合器""coefficientoftravelspeedvariation,advance-to-returntimeratio","行程速度变化系数""combinedspring","组合弹簧""commonapex","公共锥顶""compensator(hydrostaticbearing)","补偿器(静压轴承〕" "compostbearingmaterial","复合轴承材料" "compoundplanetarygeartrain","组合行星齿轮系" "compoundhinges,multiplehinges","复合铰链" "concaveside","凹面""conepulley","锥轮""conicalpin,taperpin","圆锥销" "conicalspiral","圆锥螺旋线" "conicalspring","截锥螺旋弹簧" "conjugateflank","共轭齿面" "conjugateprofile","共轭齿廓" "connectinglink","联接链节" "Consistency","稠度" "constantloading","恒幅载荷" "constantrate(stiffness)spring","等刚度弹簧" "constantvelocitymotioncurve","等速运动轨迹" "contactfatigue","接触疲劳" "Contactfatigue","接触疲劳" "contactratio","重合度" "Continuouslubrication","连续润滑" "continuoussystem","连续系统" "contrategear","端面齿轮" "controlledclutch","操纵离合器" "conventionalbelt","普通平带" "convexside","凸面" "conveyorchain","输送链" "correspondingflanks","同侧齿面""cosineaccelerationmotioncurve","余弦加速度运动轨迹" "cotterpin,splitpin","开口销""cottonbelt","编织平带""counterpartrack","产形齿条""couple","力偶""coupledmodes","耦合振型""coupler,floatinglink","连杆""coupling","联轴器" "couplingwithcorrugatedpipe","波纹管联轴器" "couplingwithelasticspider","梅花形弹性联轴器" "couplingwithnon-metallicelasticelement","非金属弹性元件联轴器" "couplingwithrubberplates","橡胶板联轴器" "couplingwithrubbertypeelement","轮胎式联轴器" "crank","曲柄""crankedlinkchain","弯板链""crank-rockermechanism","曲柄摇杆机构""crest","齿顶""crewmechanism","螺旋机构" "crossrecessedcountersunkheadscrew","十字槽沉头螺钉" "crossrecessedpanheadscrew","十字槽盘头螺钉""cross-beltdrive","交叉传动" "crossedhelicalgearpair","交错轴斜齿轮副""crossedrollerbearing","交叉滚子轴承" "crossingpointofaxes","轴线交点" "crowngear","冠轮""crownedteeth","鼓形齿" "cumulativeerrorinpitch","螺距累积误差" "cumulativefatiguedamage","疲劳积累损伤" "curtatecycloid","短幅摆线" "curtateepicycloid","短幅外摆线" "curtateinvolute","缩短渐开线" "curvaturecorrectionfactor(spring)","曲度系数(弹簧)" "curvedtoothbevelgear","曲线齿锥齿轮""cycl,,icloading","循环载荷""cycloid","摆线" "cycloidaldrivewithsmallteethdifference","摆线少齿差传动" "cycloidalprofile","摆线齿廓""cycloidal-pingearspeedreducer","摆线针轮减速器" "cylindricalgear","圆柱齿轮" "cylindricalhelicalcompressionspring","圆柱螺旋压缩弹簧" "cylindricalhelicaltensionspring","圆柱螺旋拉伸弹簧" "cylindricalhelicaltorsionspring","圆柱螺旋扭转弹簧" "cylindricalpin,straightpin","圆柱销" "cylindricalrollerbearing","圆柱滚子轴承""cylindricalworm","单导程圆柱蜗杆" "cylindricalworm","圆柱蜗杆""damping","阻尼" "datumcircumference","基准圆周长" "datumdiameter","基准直径" "datumlinedifferential","基准线差" "datumplane","基准平面""datumwidth","基准宽度""dedendum","齿根高""dedendumanle","齿根角" "deepgrooveballbearing","深沟球轴承" "degreeoffreedom","自由度""deviation","尺寸偏差""deviationinpitch","螺距偏差""diameterseries(rollingbearing)","直径系列(滚动轴承)" "diametralpitch","径节" "diaphragmcoupling","膜片联轴器" "differentialmechanism","差动机构" "differentialscrewmechanism","差动螺旋机构" "dimensionseries(rollingbearing)","尺寸系列(滚动轴承)" "discretesystem","离散系统""disengagingtime(clutch)","分离时间(离合器)""distortion","畸变" "doubledirectionthrustbearing","双向推力轴承" "doublerowbearing","双列轴承""doubleV-belt","双面V带""double-circular-arcgear","双圆弧齿轮" "driven","从动件""drivengear","从动齿轮" "drivenpulley","从动带轮" "drivinggear","主动齿轮" "drivingpulley","主动带轮" "drivingforce","驱动力" "drivinglink","主动件" "dryfriction","干摩擦" "dualclutch","双作用离合器" "dualleadcylindricalworm","双导程圆柱蜗杆" "duplexrollerchain","双排滚子链" "dynamicload","动载荷" "dynamicbalanceofrotor","转子的动平衡" "dynamicload","动载荷" "dynamicsofmachinery","机械动力学" "eccentricelement","偏心元件" "eccentricmechanism","偏心轮机构""effectivecircumference","有效圆周长" "effectivecoilnumber","有效圈数" "effectivediameter","有效直径" "effectivelinedifferential","有效线差" "effectivestressconcentrationfactor","有效应力集中系数" "effectivetension","有效拉力" "effectivewidth","有效宽度" "effectiveresistance","工作阻力" "efficiency","效率""elasticpincoupling","弹性柱销齿式联轴器""elasto-hydrodynamiclubrication","弹性流体动力润滑" "electromagneticclutch","电磁离合器" "electromagneticwhirlpoolbrake","电磁涡流制动器" "electrostaticbearing","静电轴承" "ellipticbearing","椭圆滑动轴承" "embeddability","嵌入性""endrelief","齿端修薄""engagement","啮合""engagingtime(clutch)","接合时间(离合器)" "engaging(clutch)","接合过程(离合器)" "epicycloid","外摆线""epicycloidgear","摆线齿锥齿轮""equidistantcurveofcurtatehypocycloid","短幅外摆线的等距曲线" "equidistantcurveofepicycloid","内摆线的等距曲线" "equidistantcurveofepicycloid","外摆线的等距曲线" "equidistantcurveofprolateepicycloid","长幅外摆线的等距曲线" "equilibrium","力平衡" "Equivalentcoefficientoffriction","当量摩擦系数" "equivalentload","当量载荷""equivalentforce","等效力""equivalentlink","等效构件""equivalentmass","等效质量" "equivalentmoment","等效力矩""escapement","擒纵机构""externalthread","外螺纹""externalgear","外齿轮""externalpinwheel","外齿针齿轮" "externaltabwasher","外舌止动垫圈" "externalteethlockwasher","外齿锁紧垫圈""Extreme-pressurelubrication","极压润滑" "facetofacearrangement(rollingbearing)","面对面配置(滚动轴承)" "facewidth","齿宽""failure","失效""farthestdwellangle","远休止角""Fastener","紧固件" "fatiguelimit","疲劳极限" "fatiguestrength","疲劳强度" "fault","故障" "featherkey","滑键""featherkey,divekey","导向平键" "fillet","齿根过渡曲面" "filletradius","齿根圆角半径" "fillingslotballlbearing","装填槽球轴承" "finitelifedesign","有限寿命设计" "flangecoupling","凸缘联轴器" "flangedbearing","凸缘轴承" "flatbeltdrive","平带传动" "flatkey","平键" "flatspring","片弹簧" "flatspringcoupling","簧片联轴器" "flexibilityofspring","弹簧柔度" "flexiblegear,flexpline","柔性齿轮" "floatingbearing","浮环滑动轴承" "fluctuatingload","变载荷" "fluidfriction","流体摩擦" "fluidlubrication","液体润滑""flywheel","飞轮" "forcedvibration","受迫振动" "foundationbolt","地脚螺栓""four-barmechanism","四杆机构""four-pointcontactballbearing","四点接触轴承" "fracturemechanics","断裂力学" "freeheight(spring)","自由高度(弹簧)" "Frettingwear","微动磨损" "Friction","摩擦""frictionbrake","摩擦制动器" "frictionclutch","摩擦式离合器" "Frictionmaterial","摩擦材料" "frictionwheeldrive","摩擦轮传动" "Frictioncoefficient","摩擦系数" "frictionalconformability","摩擦顺应性" "frictionalconpatibility","摩擦相容性" "frontcone","前锥面" "fullcomplementbearing","装满滚动体的轴承" "gaswhirl","气膜振荡" "gaslubrication","气体润滑" "gear","齿轮""gearcoupling","齿式联轴器""geardrive","齿轮传动" "geardrivewithintersectingaxes","相交轴齿轮传动" "geardrivewithnon-parallelnon-intersectingaxes","交错轴齿轮传动" "geardrivewithparallelaxes","平行轴齿轮传动" "gearpairwithmodifiedcenterdistance","角变位齿轮副" "gearpairwithnegativemodifiedcenterdistance","负角变位齿轮副" "gearpairwithpositivemodifiedcenterdistance","正角变位齿轮副" "gearpairwithreferencecenterdistance","高变位齿轮副" "gearratio","齿数比""gearteeth","轮齿" "gearwithaddendummodification","变位齿轮" "generalflatkey","普通平键""generatingcylinder","发生圆柱面" "generatingdiameter","发生圆直径" "generatingflank","产形齿面" "genevamechanism","槽轮机构""gib-headtaperkey","钩头楔键""gorge","咽喉面""gorgecircle","喉圆""governor,speedregulator","调速器""groovedpin","槽销""guiderail","导轨""guidebar,guidelink","导杆""halfofthreadangle","牙型半角""handsofworm","蜗杆旋向""harmonicgeardrive","谐波齿轮传动" "harmonicgeardrivewithradialgearmeshng","径向谐波齿轮传动" "harmonicgeardrivewithtransversegearmeshng","端面谐波齿轮传动" "harmonicgearreducer","谐波齿轮减速器""heightseries(rollingbearing)","高度系列(滚动轴承)" "heightunderultimateload","极限高度""helicalgear","斜齿轮""helicalspring","螺旋弹簧" "helicalspringlockwasher","弹簧垫圈""Helix","螺旋线""helixangle","螺旋角""herringbonegear,doublehelicalgear","人字齿轮" "hexagonbolt","六角头螺栓""hexagonnut","六角螺母" "hexagonsocketheadcapheadscrew","内六角圆柱头螺钉" "hexagonsocketcountersunkheadcapheadscrew","内六角沉头螺钉" "high-cyclefatigue","高周疲劳""higherpair","高副""hingetypeflattopchain","平顶链"。
机械图纸中常见的符号及意义（中英文）

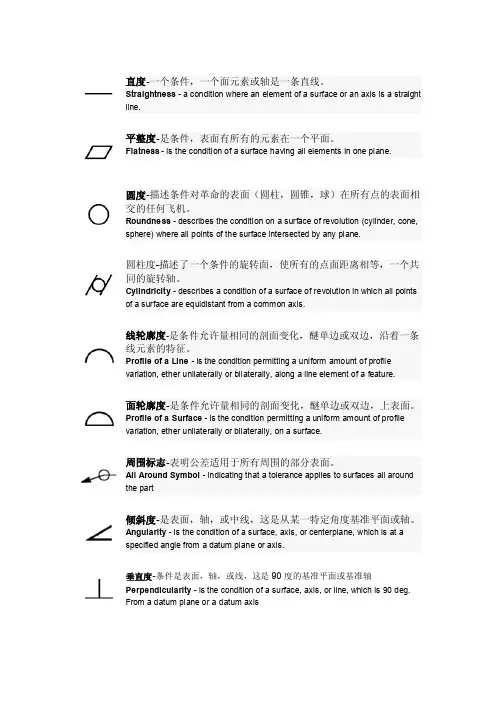

直度-一个条件，一个面元素或轴是一条直线。
Straightness - a condition where an element of a surface or an axis is a straight line. 平整度-是条件，表面有所有的元素在一个平面。
Flatness - is the condition of a surface having all elements in one plane.圆度-描述条件对革命的表面（圆柱，圆锥，球）在所有点的表面相交的任何飞机。
Roundne ss - describes the condition on a surface of revolution (cylinder, cone, sphere) where all points of the surface intersected by any plane.圆柱度-描述了一个条件的旋转面，使所有的点面距离相等，一个共同的旋转轴。
Cylindricity - describes a condition of a surface of revolution in which all points of a surface are equidistant from a common axis.线轮廓度-是条件允许量相同的剖面变化，醚单边或双边，沿着一条线元素的特征。
Profile of a Line - is the condition permitting a uniform amount of profilevariation, ether unilaterally or bilaterally, along a line element of a feature.面轮廓度-是条件允许量相同的剖面变化，醚单边或双边，上表面。
Profile of a Surface - is the condition permitting a uniform amount of profilevariation, ether unilaterally or bilaterally, on a surface.周围标志-表明公差适用于所有周围的部分表面。
机械制图专业英语词汇大全
机械制图英语词汇2D Solid 二维实体2D 实面2D Wireframe 二维线框3D Array 三维阵列3D 阵列3D Dynamic View 三维动态观察3D 动态检视3d objects 三维物体3D 物件3D Orbit 三维轨道3D 动态3D Orbit 三维动态观察3D 动态3D Studio 3D Studio 3D Studio3D Viewpoint 三维视点3D 检视点3dpoly 三维多段线3D 聚合线3dsin 3DS 输入3D 实体汇入3DSolid 三维实体3D 实体3dsout 3DS 输出3D 实体汇出abort 放弃中断abort 中断中断absolute coordinates 绝对坐标绝对座标abut 邻接相邻accelerator key 加速键快速键access 获取存取acisin ACIS 输入ACIS 汇入acisout ACIS 输出ACIS 汇出action 操作动作active 活动（的）作用中adaptive sampling 自适应采样最适取样add 添加加入Add a Printer 添加打印机新增印表机Add mode 添加模式Add Plot Style Table 添加打印样式表Add Plot Style Table 添加打印样式表Add Plotter 添加打印机Add Plotter 添加打印机Add to Favorites 添加到收藏夹加入我的最爱ADI ADI(Autodesk 设备接口) ADI (Autodesk 设备介面)adjacent 相邻相邻Adjust 调整调整Adjust Area fill 调整区域填充调整区域填满AdLM (Autodesk License Manager) AdLM（Autodesk 许可经管器）Administration dialog box 经管对话框经管对话方块Advanced Setup Wizard 高级设置向导进阶安装精灵Aerial View 鸟瞰视图鸟瞰视景affine calibration 仿射校准关系校正alert 警告警示alias 别名别名aliasing 走样锯齿化align 对齐对齐aligned dimension 对齐标注对齐式标注alignment 对齐(方式) 对齐allocate 分配配置Altitude 标高高度ambient color 环境色环境颜色ambient light 环境光环境光源angular dimension 角度标注角度标注angular unit 角度单位角度单位annotation 注释注解anonymous block 无名块匿名图块anti-aliasing 反走样消除锯齿aperture 靶框锁点框apparent intersections 外观交点外观交点append 附加附加Application key 授权申请号应用程式码appload 加载应用程序载入应用程式Apply 应用/申请套用approximation points 近似点近似点arc 圆弧弧Architectual Ticks 建筑标记建筑斜线area 区域,面积区域,面积Argument 参数引数Arrange icons 排列图标排列图示array 阵列阵列arrowhead 箭头箭头ASCII ASCII （美国规范信息交换码）ASCII aseadmin ASE 经管ASE 经管aseexport ASE 输出ASE 汇出aselinks ASE 链接ASE 连结aserows ASE 行ASE 列aseselect ASE 选择ASE 选取asesqled SQL 编辑ASE SQL 编辑器Aspect 纵横向间距纵横向间距aspect ratio 宽高比纵横比assign 指定指定Assist 助理辅助associative dimension 关联标注关联式标注associative hatches 关联填充关联式剖面线attach v.附着贴附attdef 属性定义属性定义attdisp 属性显示属性显示attedit 属性编辑属性编辑attenuation 衰减衰减attenuation of light 灯光衰减光源衰减attext 属性提取属性萃取attredef 属性重定义属性重新定义attribute definition 属性定义属性定义Attribute Display 属性显示属性显示attribute extraction file 属性提取文件属性萃取档attribute extraction template file 属性提取样板文件属性萃取样板档attribute prompt 属性提示属性提示attribute tag 属性标签属性标签attribute value 属性值属性值audit 核查检核authorization code 授权码授权码AutoCAD library search path AutoCAD 库搜索路径AutoCAD 资源库搜寻路径autocommit 自动提交自动确定AutoTrack 自动追踪自动追踪axis tripod 三轴架三向轴azimuth 方位角方位Back Clipping On 后向剪裁打开back view 后视图后视景background color 背景色背景颜色backup 备份备份Backward 反向左右反向bad 不正确的不正确base 基点基准,底端,底部base dimension 基准标注基线式标注base grips 基夹点基准掣点base point 基点基准点baseline 基线基准线基线式baseline dimension 基线标注基线式标注Basic color 基本色基本颜色batch plotting 批处理打印批次出图beam angles of spotlights 聚光灯光束角度点光源光线角度Beep on Error 出错报警错误时发出哔声bevel 倒角斜切bevel 倒角斜切beveling objects 斜角对象斜切物件Bezier curve Bezier 曲线Bezier 曲线Big Font 大字体大字体bind 绑定并入bitmap 位图点阵图blend 合成混成blipmode 点标记模式点记模式block 块图块block definition 块定义图块定义block reference 块参照图块参考block table 块表图块表格bmpout BMP 输出BMP 汇出body 体主体Boolean operation 布尔运算布林运算borders 边框图框bottom view 仰视图下视景boundary 边界边界boundary sets 边界集边界集bounding 边（框）边界框break (v.) 打断切断Bring Above Object 置于对象之上置于物件上方Bring to Top 顶置置于最上方brower 浏览器浏览器built-in 内置的内建bulge 凸度凸度bump map 凹凸贴图凸纹贴图button menu 按钮菜单按钮功能表BYBLOCK 随块BYBLOCKBYLAYER 随层BYLAYERbyte 字节位元组cabling 电缆布线配线cal 计算器校正calibrate 校准校正call 调用呼叫callback 回调(for LISP) 回覆callback 回叫回覆camera 相机照相机camera angle 相机角度相机角度Cancel 取消取消cap 封口封口cascade 层叠（的）重叠排列case （大小）写大小写cast 投射投射catalog 目录目录cell 单元储存格Center 圆心中心center mark 圆心标记中心点标记centerline 中心线中心线centroid 形心,质心矩心chamfer 倒角倒角change 修改变更character 字符字元Check 检查检查Check Box 复选框勾选框Check Spelling 拼写检查拼字检查child dimension style 下级标注样式子标注型式chord 弦翼弦chprop 修改特性变更性质circle 圆圆circular external reference 循环外部参照循环外部参考Circumference 圆周圆周class 类等级, 类别clause 子句子句Clean 清除清理Clean 清除清理clear 清除清除client 客户机用户端clip 剪裁截取Clipboard 剪贴板剪贴簿clipping boundaries 剪裁边界截取边界clipping planes 剪裁平面截取平面Close 闭合关闭(用于档案),闭合(用于边界,线,面域) cluster 组丛集code pages 代码页字码页color 颜色著色color depth 颜色深度颜色深度color map 色表颜色对映Color Wheel 颜色轮盘色轮color-dependent 颜色相关Color-Dependent Plot Style Table 颜色相关打印样式表dangle 不固定的悬挂Dark Color 暗色暗色dash 虚线虚线data integrity 数据完整性资料完整性database 数据库资料库datum 基准基准面datum axis 基准轴基准轴datum dimension 基准标注基准标注datum identifier 基准标识基准识别字datum reference frames 基准参考框架基准参考框datum reference letters 基准参考字母基准参考文字dbConnect 数据库连接资料库连结dbConnect Manager 数据库连接经管器dblist 数据库列表资料库列示DBMS drivers DBMS 驱动资料库经管系统(DBMS) ddattdef 属性定义对话框动态属性定义ddatte 属性编辑对话框动态属性编辑ddattext 属性提取对话框动态属性萃取ddcolor 颜色对话框动态颜色设定ddedit 文字编辑对话框编辑文字与属性定义ddgrips 夹点对话框动态掣点设定ddim 标注设置对话框标注设定ddinsert 插入对话框图块插入ddmodify 图元编辑对话框动态修改ddptype 点类型对话框点型式ddrename 重命名对话框动态更名ddrmodes 绘图模式对话框绘图设定ddselect 对象选择对话框动态选取设定dducs UCS 对话框动态UCS 设定dducsp UCS 方向对话框动态UCS 预设ddunits 单位对话框动态单位设定ddview 视图对话框动态视景ddvpoint 视点对话框动态检视点deactivate 释放停用dealer 经销商经销商decal effect 修剪效果除去杂质效果decimal dimensions 十进制标注十进位标注decurve 非曲线化直线化default 缺省预设值,预设default drawing 缺省图形预设图面default drawing 缺省图形预设图面definition point 定义点定义点Degenerate 退化退化delay 延迟延迟delete 删除删除DELta 增量差值demand loading 按需加载应要求载入dependent symbols 依赖符号deployment 展开布署Depth Map 深度贴图深度贴图derive 导出导出description 说明描述Design Center 设计中心设计中心detach 拆离分离Detection 检测侦测deviation 极限偏差偏差deviation tolerances 极限公差偏差公差device 设备设备device 设备设备Device and Default Selection 设备和默认选择设备和预设值选取Dia 直径直径diameter 直径（标注）直径dictionary 词典字典diffuse color 漫射色漫射颜色digitizer 数字化仪数位板digitizing puck 数字化仪游标数位化指向器digitizing puck 数字化仪游标数位化指向器dim 标注标注dimaligned 对齐标注对齐式标注dimangular 角度标注角度标注dimbaseline 标注基线基线式标注dimcenter 圆心标注中心点标注dimcontinue 连续标注连续式标注dimdiameter 直径标注直径标注dimedit 标注编辑标注编辑dimension 标注标注dimension definition points 标注定义点标注定义点dimension format 标注格式标注格式dimension geometry 构成要素标注几何dimension line arc 尺寸线圆弧标注线弧dimension properties 标注特性标注性质dimension scale 标注比例标注比例dimension style 标注样式标注型式dimension style families 标注样式族标注型式家族dimension style name 标注样式名标注型式名称dimension style overrides 标注样式替代标注型式取代dimension text 标注文字标注文字dimension units 标注单位标注单位dimension variables 标注变量标注变数dimlinear 线性标注线性标注dimordinate 坐标标注座标式标注dimoverride 标注替代标注取代dimradius 半径标注半径标注dimstyle 标注样式标注型式dimtedit 标注文字编辑标注文字编辑Direct Hatch 直接填充直接剖面Direction Control 方向控制方向控制Directory 目录目录Disable 禁用取消,停用discard 放弃舍弃Discontinued 停止使用的取消,停用dish 下半球面圆碟disk space 磁盘空间磁碟空间displacement point 位移点位移点display 显示显示器, 显示, 显示画面Display Order 显示次序显示顺序dist 距离距离distant light 平行光远光源distributing 分布分散式dithering 抖动递色diverge 分散的分散的Divide 等分等分divide 等分等分Division 等分分割,除法dock(undock) 固定（浮动）固定document 文档文件dome 上半球面圆顶donut 园环环Draft 草图草图drafting standards 绘图规范制图规范drafting techniques 绘图技术制图技巧drag and drop 拖放拖放draw 绘制/绘图(如果后面未接宾语) 绘图drawing 图形图面,图档Drawing Aids 绘图辅助工具绘图辅助drawing area 绘图区域绘图区drawing boundaries 图形边界图面边界drawing browser 图形浏览器图面浏览器drawing database 图形数据库图形资料库drawing environment 图形环境绘图环境drawing extents 图形范围图面实际范围drawing file 图形文件图档drawing limits 图形界限图面范围drawing order 图形次序绘图顺序drawing project 图形工程绘图专案drawing scale 图形比例图面比例drawing standard 图形规范图面规范drawing status 图形状态图面状态drawing time 绘图时间绘图时间drawing units 图形单位图面单位driver 驱动程序驱动程式Dropdown List 下拉列表下拉式列示dsviewer 鸟瞰视图鸟瞰视景dtext 动态文本动态文字dump 转储倾出duplicate 重复重复的duplicating 复制复制dview 动态观察动态检视dxbin DXB输入DXB 汇入dxfin DXF输入DXF 汇入dxfout DXF输出DXF 汇出Dynamic 动态动态Dynamic Dragging 动态拖动动态拖曳Dynamic Update 动态更新动态更新dynamic viewing 动态观察动态检视dynamic zooming 动态缩放动态缩放edge 边边缘Edge Surface 边界曲面边缘曲面edgesurf 边界曲面边缘曲面editor 编辑器编辑器EDUCATION VERSION 教案版教育版effect 效果效果Element 元素元素elev 标高高程elevation 标高高程ellipse 椭圆椭圆embed 内嵌，嵌入嵌入Encapsulated 封装See also "EPS" 压缩end 端点结束,终点end angle 端点角度结束角度end tangent 端点切向结束切点end width 端点宽度结束宽度Ending 终止端点English units 英制单位英制ENTER ENTER（输入）输入entity 图元元件. 图元entry 条目资料项environment 环境环境environment variable 环境变量环境变数equation 方程式方程式erase 删除删除existing 现有的既有的Exit 退出结束export 输出汇出expression 表达式表示式extend 扩展延伸extend 延伸，超出量（用于标注）延伸extension line 尺寸界线延伸线Extent(s) 范围实际范围external data 外部数据外部资料external database 外部数据库外部资料库External Reference 外部参照外部参考Extract 选集萃取extrude 拉伸挤出face 面面facet 镶嵌面产生刻面factor 因子(see Scale Factor) 系数fade 褪色度渐层falloff angle 收缩角衰退角度Fast Zoom mode 快速缩放模式快速缩放模式fatal 致命错误致命错误Favorites 收藏夹我的最爱Favorites 收藏夹我的最爱feature 功能/（几何）特征特征fence 栏选(See also Selection fence) 篱选field 字段栏位file 文件档案fill 填充填实Filled Text 填充文字文字填实(用于填实线条、实体或实面) Filmroll Filmroll 胶卷filter 过滤器过滤器find 查找寻找工具finish 完成修饰finish 修饰（for render only）修饰fit 自适应设置布满（用于预览时，布满视窗或图纸）fit points 拟合点拟合点flag 标志旗标Flat Shaded, Edges on 带边框平淡着色flat-shaded （平淡）着色floating viewports 浮动视口浮动视埠flood 布满大量Flyout Properties 弹出特性对话框图示列性质fog 雾雾fold 折叠折痕Follow 跟随自动平面视景font 字体字体font map file 字体映射文件字体对映档form tolerance 形状公差成型公差formatting text 设置文字格式格式化文字frame 框架画格frame 帧画格frame 边框画格free-form 自由形式（的）自由形式freehand line 徒手画线手绘线Freeplotting 自由绘图自由出图freeze 冻结冻结freezing layers 冻结图层冻结图层From 自自Front Clipping On 前向剪裁打开front view 主视图前视景Full Preview 全视口预览完整预览General 基本一般generate 生成产生geometric characteristic symbols 几何特性几何特性符号Geometric Tolerance 形位公差几何公差geometry 几何图形几何图形global 全局（的）整体Gouraud renderings Gouraud Gouraud 着色Gouraud 彩现Gradient 百分度渐层Grads 百分度分度graphic area 图形区图形区graphics cursor 图形光标图形游标graphics screen 图形屏图形萤幕graphics window 图形窗口图形视窗graphscr 图形屏图形萤幕gray 灰度灰阶grid 网格格点grid 网格,栅格格点grid mode 栅格模式格点模式grip 夹点掣点group 编组群组group code 组码群组码Haltftoning 半色调半色调handle 句柄处理码(用于性质对话方块) handshaking 握手信号交握Hardcopy 硬拷贝硬体复制,硬本hardware linetype 硬件线型硬体线型hardware lock 保密锁硬体锁hardware requirement 硬件需求硬体需求hatch 图案填充剖面线hatch areas 填充区域剖面区域hatch boundaries 填充边界剖面边界hatch pattern 填充图案剖面线样式hatch styles 填充样式剖面样式hatchedit 填充编辑剖面线编辑Heads-up Design 轻松设计抬头设计Height 高度高度help 帮助说明Hidden Line 隐藏线隐藏线hidden-line image 消隐图像隐藏线影像hide 隐藏(adj.) 隐藏hide 消隐(v.) 隐藏hideplot 消隐出图隐藏出图highlight 突出显示亮显highlight 亮光(for the color of 3D object) 亮显HIGHLIGHT 亮显亮显home page 主页首页home position 起始位置归位点hook line 钩线钩线hotspot 聚光角聚光点Hyperlink 超级链接超连结Icon 图标图示Identifier 标识符识别字IGES (International Graphics Exchange Specification) 初始图形交换规范基本图形交换规格Ignore 忽略忽略image 图像影像implement 实现实施import 输入汇入Imprint 压印盖印Imprint 压印盖印included angle 包含角夹角infinite lines 无限长线无限长直线information 信息资讯Inherit Properties 继承特性继承性质initial environment 初始环境初始环境Initialize 初始化起始设定in-place 在位现地inquiry 查询查询inscribed polygons 内接正多边形内接多边形insert 插入插入Insertion 插入点插入点insertobj 插入对象插入物件instance 引用实例Instruction 指示指示integer 整数整数IntelliMouse 智能鼠标智慧型滑鼠IntelliMouse 智能鼠标智慧型滑鼠Intensity 强度强度interactive 交互的互动式Interchange 互换交替interface 介面介面interfere 干涉干涉Interference 干涉干涉Interference 干涉干涉interlace 隔行交错internal 内部的内部Internet Utilities Internet应用程序网际网路公用程式interpolation points 插值点内插点intersect 交集交集interval 间距/间隔间隔时间Invalid 无效（的）无效inverse linear attenuation of light 线性衰减光线的线性反比衰减inverse square attenuation of light 平方衰减光线的平方反比衰减Invisible 不可见不可见invoke 调用呼叫island 孤岛孤立物件Island detection 孤岛检测侦测孤立物件ISO (International Standards Organization) ISO(国际规范化组织) ISO Isolation levels 隔离级别隔离层次isoline 素线等角线isometric 等轴测等角isometric snap style 等轴测捕捉样式等角锁点型式isometric view 等轴测视图等角视景isoplane 等轴测平面等角平面ISOPLANE 等轴测平面等角平面Italic 斜体斜体iterator 枚举器重述子join 合并结合joint 连接接合线Justification 对正对正方式justify 对正对正key 主键主键key n.名称主键knot vector 节点矢量要点向量label 标签标签landscape 横向横式Landscape 配景，风景,if used for "landscape object" etc. 横式Landscape Edit 编辑配景Landscape Library 配景库景物图库lateral tolerance symbol 尺寸公差符号侧向公差符号layer index 图层索引图层索引Layout 布局配置Layout from Template 来自样板的布局Layout from Template 来自样板的布局Layout Wizard 布局向导leader 引线引线Leading 前导前导Learning Assistance 学习助手学习助理Left View 左视图左视景legacy 传统旧式length 长度长度lengthen 拉长调整长度Lens Length 镜头长度镜头长度License Agreement 许可协议授权合约license key 许可证号授权码License Manager 许可经管器授权经管员License Server 许可服务器授权伺服器licenses 授权授权light 光源光源light color 浅色(for RAMT-wood ) 亮色Light Color 暖色亮色lighting 照明效果照明Lightness 亮度亮度limits 图形界限范围,图面范围line 行线line 直线线line font 线型线字体line object 线性对象线物件line segment 线段线段line width 线宽线宽Linear Dimension 线性标注线性标注linetype 线型线型Lineweight 线宽线宽link 链接连结list 表串列list 列表串列list box 列表框列示框List Files 文件列表load 加载载入locale 局部本地location 网址(for Internet) 位置location 位置(for file and directory) 位置locked 锁定锁护locked layer 锁定图层锁护图层logfileoff 关闭日志文件关闭记录档logfileon 打开日志文件开启记录档logical 逻辑逻辑的long file name 长文件名长档名loop 环回路ltscale 线型比例线型比例LTSCALE 线型比例线型比例Ltype 线型线型lump 块小块magnet 磁吸磁铁magnification （缩放）比例倍率magnifying glass 放大镜放大境main window 主窗口主视窗major axis 长轴长轴Make 新建制作Make 建立制作malformed 有缺陷畸形的Manipulate 操作经管Manipulate 操作经管Manufacture 制造商制造商mapper 贴图贴图mapping 贴图贴图,对映marble 大理石大理石mark 标记标记massprop 质量特性质量性质match 匹配相符material condition 包容条件材质条件material condition symbols 包容条件符号材质条件符号Materials 材质对话框材质Materials Library 材质库材质库matlib 材质库材质库measure 测量测量measure 等距等分（菜单内容）测量Measurement 测量单位测量结果MEASUREMENT 在图形中设置测量值测量结果member 成员成员memory 内存记忆体menu 菜单功能表menu bar 菜单栏功能表列menuload 加载菜单自订功能表Merge 合并合并message 信息讯息metafile 图元文件中继档Method 方法方法(用于物件导向程式观念)Middle 中央点中央Middle Center 正中点正中Midpoint 中点中点minsert 多重插入插入图块阵列mirror 镜像镜射mirror line 镜像射线镜射线mirror3d 三维镜像3 D 镜射Miscellaneous File Names 其他文件名其它档名Miter 斜接斜接mledit 多线编辑复线编辑mline 多线复线mlstyle 多线样式复线型式mode 模式模式model 型号模型model 型号模型model (v)建模，(n)模型模型model space 模型空间模型空间Modification 修改修改monitor resolution 显示器分辨率萤幕解读度monochrome 单色（的）单色mouse 鼠标滑鼠move 移动移动mslide 制作幻灯制作幻灯片mspace 模型空间模型空间mtext 多行文字多行文字Multiline 多线比例复线multiline scale 多线比例复线比例Multiline Style 多线样式复线型式mview 生成视口多重视埠mvsetup 设置图纸规格多重视埠设定named object 命名对象具名物件named plot style table 命名的打印样式表具名的出图型式表Named UCS 命名UCS 具名UCSnamed view 命名视图具名的视景NE Isometric 东北等轴测东北等角NE Isometric 东北等轴测东北等角Nearest 最近点最近点nested 嵌套巢状式nested blocks 嵌套块巢状式图块new 新建开新档案new 新的开新档案New Layout 新建布局New Layout 新建布局NURB surfaces NURBS（非一致有理B 样条曲线）NURBS 曲面NW Isometric 西北等轴测西北等角NW Isometric 西北等轴测西北等角object 对象物件Object Properties 对象特性物件性质Object Properties Manager 对象特性经管器物件性质经管员Object Snap 对象捕捉物件锁点object snap override 对象捕捉覆盖物件锁点取代Object Snap Setting 对象捕捉设置objects 对象物件Oblique 斜尺寸界线倾斜obsolete 废弃旧式ODBC database ODBC数据库ODBC 资料库offset 偏移偏移OLE OLE（对象链接和嵌入）物件连接与嵌入(OLE) olelinks OLE链接OLE 连结online help 联机帮助线上说明online manuals 联机手册线上手册oops 恢复取消删除opacity map 不透明贴图不透明贴图open 打开开启(大部分用于档案)open 打开(的) 开启(大部分用于档案)OPM(Object Property Manager) 对象特性经管器Optimization 优化最佳化option 选项选项Orbit 轨道动态, 动态检视Ordinate 坐标标注座标式orientation 方向方位origin 原点（对于坐标系）原点origin 原始位置(used for external Datebase) 原点origin 起点（对于尺寸界线和标注）原点ortho 正交正交Ortho mode 正交模式正交模式orthogonal 正交正交的orthographic 正交正投影osnap 对象捕捉物件锁点outside 外部的外侧(用于文字位置)overall dimension scale 全局比例整体标注比例overflow 溢出高溢(相对于underflow),溢位overlay 覆盖覆叠overline 上划线顶线override 忽略- For common sentences 取代override 替代- For dimension 取代overwrite 覆盖取代Palette 控制板选盘Palette 调色板选盘pan 平移平移pane 窗格窗格paper space 图纸空间图纸空间parameter 参数参数parent dimension style 上级标注样式父系标注型式parse 分析分析Partial 部分局部Partial Load 部分加载局部载入Partial Load 部分加载局部载入password 口令密码Paste Special 选择性粘贴选择性贴上pasteclip 粘贴贴上截取pastespec 选择性粘贴选择性贴上path 路径路径pattern 方式for "file search pattern" 样式pattern 图案for hatch pattern, line pattern, etc. 样式pedit 多段线编辑聚合线编辑pen plotters 笔式绘图仪笔式绘图机pen speed 笔速笔速pen width 笔宽笔宽Perfomance 性能效能perimeter 周长周长personalization 个人化个人化pface 复合面聚合面Phong shading Phong 着色描影Photo Raytrace renderer 照片级光线跟踪渲染光线追踪相片彩现Photo Real renderer 照片级真实感渲染真实相片彩现photo realistic rendering 照片级真实感渲染相片质感彩现pick button 拾取键点选钮pickbox 拾取框点选框PICKFIRST 选择优先先点选picture 图片图片pixel 像素像素placeholder 占位符定位器plan 平面图平面plan view 平面视图平面视景planar projection 平面投影平面投影pline 多段线聚合线plot 打印出图Plot Configuration 打印配置出图规划plot files 打印文件出图档plot rotation 打印旋转出图旋转plot spooling 打印假脱机出图伫列Plot Style Manager 打印样式经管器plot style table 打印样式表出图型式表plotter 绘图仪绘图机plotter linetype 绘图仪线型绘图机线型Plotter Manager 打印机经管器Point Filters 点过滤点过滤器point marker 点标记点标记Point Sample 点采样取样点Point Style 点样式点型式pointer 指针指标pointing device 定点设备指向设备polar array 环形阵列环形阵列polar coordinate 极坐标极座标polar tracking 极轴追踪极座标追踪polar tracking 极轴追踪极座标追踪polyface meshes 多面网格聚合面网面polygon 正多边形多边形polygon 多边形多边形polygon meshes 多边形网格多边形网面polygon window 多边形窗口多边形视窗polygonal clipping boundaries 多边形剪切边界多边形截取边界polyline 多段线聚合线polyline clipping boundaries 多段线裁剪边界聚合线截取边界polyline segments 多段线线段聚合线线段polymesh 多边形网格聚合网面popup 弹出弹出Popup List 弹出列表弹出列示port 端口埠Portrait 肖像直式Portrait 纵向，if used for paper layout 直式positional tolerances 位置公差位置公差precision 精度精确度predefine 预定义事先定义的preferences 系统配置环境设定Preferences dialog box 系统配置对话框「环境设定」对话方块preview 打印预览预览primitive 原型基本原件Priority 优先级优先权priviledge 特权专用权Procedural material 过程化材质程序材质process 处理程序Profile 配置/剖面(图) 轮廓program (v.) 编程程式Projected tolerance zone 投影公差带投影公差区Projected tolerances 投影公差投影公差prompt 提示提示Properties 特性内容Property painter 特性刷性质复制器Protocal 协议通讯协定prototype 原型原型proxy 代理代理proxy fonts 代理字体代理字型pull down menu 下拉菜单下拉功能表purge 清理清除pyramid 棱锥面三角锥体QDIM 快速标注快速标注qsave 快存快速存档qtext 快速文字快速文字Quadratic 二次二次quality 质量品质Quick Tour 快速指南快速导览radian 弧度弪度Radio Button 单选钮圆钮radius 半径半径raster file format 光栅文件格式网格档案格式Raster Image 光栅图像网格式影像raster image boundaries 光栅图像边界网格式影像边界ray 射线射线, 光线Ray Casting 射线法raytraced renderer 光线跟踪渲染光线追踪彩现raytraced shadows 光线跟踪阴影光线追踪阴影read 读取读取Realtime 实时即时模式recover 恢复修复recover 修复修复rectang 矩形矩形recursion 递归递回Redefine 重定义重新定义redo 重做重做redraw 重画重绘redrawall 全重画全部重绘reference 引用参考reference 参照参考reference angles 参考角参考角度reference point 参考点参考点refine 精度控制精细化reflection color 反射色反射色reflection mapping 反射贴图反射贴图refractive index 折射指数折射系数refresh 刷新更新regen 重生成重生regenall 全重生成全部重生regenauto 自动重生成自动重生regenerate 重生成重生regeneration 重生成重生region 面域面域registry 注册表登录reinit 重初始化重新起始设定reinstall 重新安装重新安装relative angles 相对角相对角度relative coordinates 相对坐标相对座标release 版本版本Reload 重载重新载入remove 删除移除rename 重命名更名rename 重命名更名render 渲染彩现renderer 渲染程序彩现程式Replace 替换取代replay 重放重播Requirement 需求需求reset 重置重设resizing 改变大小重新调整尺寸resolution 融入解读度resolution 分辨率解读度restore 恢复取回resume 恢复执行继续执行Retain 保留保留return button 回车键Enter 键revert 复原恢复原状revolve 旋转回转revsurf 旋转曲面回转曲面ridge 棱脊线Right-Angle 直角直角rmat 材质彩现材质rollback 回卷溯回root point 原点根点rotate 旋转旋转rotate3d 三维旋转旋转3ＤRotation 旋转旋转routine 例行程序常式Rows dialog box “行”对话框列对话方块rpref 渲染选项彩现环境设定rscript 重复执行重新执行脚本rubber-band line 拖引线伸缩线rulesurf 直纹曲面规则曲面Run Script 运行脚本执行脚本running object snap 执行对象捕捉常驻式「物件锁点」running override 整体替代整体取代runout 跳动偏转度sample 样例取样Saturation 饱和度饱和度save 保存储存Save back 存回回存saveas 另存为另存新档saveimg 保存图像储存影像scale 比例缩放，（缩放）比例if used as noun 调整比例, 比例scale factor 比例因子比例系数Scaled to Fit 按图纸空间缩放调整比例到布满scan 扫描扫描Scatter 散布图散量scene 场景场景schema 模式纲要schema 模式纲要screen 屏幕萤幕script 脚本脚本script files 脚本文件脚本档scroll bar 滚动条卷动轴SDI(MDI) 单文档界面(多文档界面)SE Isometric 东南等轴测东南等角SE Isometric 东南等轴测东南等角Search for Help on 搜索帮助寻找辅助说明主题section 区域，部分，节（相对于章节）剖面section 切割剖面section 截面剖面see 参见参阅segment 段，线段区段, 线段select 选择选取select all 全部选择全选Select object 对象选择选取物件selectable 可选择的可选取selection 选择集，选择选取,选项(作名词用)selection sets 选择集选集Separate 分割分隔,个别的Separate 分割分隔,个别的Serial number 序列号序号session 任务阶段作业set 设置(v)，集合(n) 设定setting 设置设定shade 着色，灰度(用于单色Gray ) 描影shader 着色程序描影程式shadow map 阴影贴图阴影贴图shape 形造型Sharpness 尖锐度鲜明度sheet 表，板(for ACIS only) 图纸Shell 抽壳薄壳shell SHELL 薄壳Shell 抽壳薄壳shortcut 快捷键快显show 显示展示Silhouette 轮廓剪影Single Face 单一表面单面single-pen plotter 单笔式绘图仪单笔绘图机size 数目尺寸sizing 调整大小调整尺寸sketch 徒手画徒手描绘slice 剖切面(as n.) 切割面slice 剖切切割面slide 幻灯片幻灯片slide libraries 幻灯库幻灯片库smooth shading 平滑着色平滑描影smoothing angle 平滑角度平滑角度snap 捕捉锁点snap angle 捕捉角度锁点角度snap grid 捕捉栅格锁点格点Snap mode 捕捉模式锁点模式snap resolution 捕捉分辨率锁点解读度SnapTips 捕捉提示锁点提示solid 填充实体, 2D 实面solid (二维)填充/(三维)实体实体, 2D 实面Solid Fill 实体填充实面填实solid modeler 实体建模实体模型器solids 实体实体, 3D 实体sorting 排序排序source applications 源文件source point 源点来源点space 空间空间spacing 间距间距Special Edit 特定编辑特殊编辑specific 指定（的）特定的specific 特有的特定的specify 指定指定。
机械图纸中常用词汇英语缩写 汇总
机械图纸英语翻译以下是我在工作中常用的ALLWELDSCONTINUOUSUNLESSOTHERWISESTATED.未注焊缝均为连续焊ALLWELDS3mmFILLETUNLESSOTHERWISESTATED未注焊角高3mm.ALLUNSPECIFIEDRADI-R3未注圆角R3 REMOVEALLBURRSANDSHARPEDGES棱角倒钝CHANNEL槽钢RSA708角钢70X70X8M30X1.5pitchM30X1.5的锥螺纹Tackweld点焊OD1/4"outsidedimension1/4"的缩写外径直1/4"75CRS尺寸为75材质为冷轧钢板410OPENINGREF410开口参考尺寸40REF尺寸为40,参考值2.5"BSP2.5”圆锥管螺纹2.5"BSPTHEXAGON2.5”六角圆锥管螺纹(即对丝)30x2.5FLATBAR30X2.5扁钢TYP2POSNS2处11TOTALCOILSAPROX.9WORKINGCOILSAPROX.RIGHTHANDWOUNDONLY,ENDCOILSSQUARETOTOUCH.总圈数约11圈；工作圈数约9圈；右旋；弹簧的端部磨平以便于接触.(此为弹簧技术说明)FEMALE:内扣(母扣)MALE:外扣(公扣)偏心轴eccentricshaft销轴PIN开口销COTTERPIN螺杆screw紧定螺钉SETSCREW圆螺母ROUNDNUT内六角螺钉SOCKETHEADCAPSCREW六角螺钉HEXHDSETSCREW六角螺栓HEXHDBOLT挡圈closingring弹性挡圈circlip轴承隔套distancesleeveofaxletree轴承axletree深沟球轴承DEEPGROOVEBALLBEARING无扣长non-bucklelongth弹簧SPRING吊环螺钉LIFTINGEYEBOLT开槽盘头螺钉SLOTTEDPANHEADSCREW圆锥滚子轴承TAPEREDROLLERBEARING推力球轴承THRUSTBALLBEARING平键FLATKEY弹簧垫圈SINGLECOILSPRINGW ASHER平垫圈FLATW ASHER螺母FULLNYLOCKNUT圆螺母ROUNDNUT REMOVEALLBURRSANDSHARPEDGES所有尖角/棱角倒角并去毛刺40REF为测量的参考尺寸OD1/4’outsidedimension1/4"的缩写外径直1/4’------->应该为：外径值1/4"75CRS尺75材质为冷轧钢板------->应该为：尺寸75材质为冷轧钢板我见过18GA(.048")CRS、16GA(.060)CRS、14GA(.075)CRS，其中GA是表示厚度的，但与英寸的关系还没研究明白；照此推算75是相当薄的缩写全称翻译ACCESSAccessory附件ADJAdjustable,Adjust调整ADPTAdapter使适应ADV Advance提前ALAluminum铝ALLOWAllowance允许ALTAlternate改变ALYAlloy合金AMTAmout数量ANLAnneal锻炼ANSLAmerNatlStdsInstitute APPROXApproximate大约ASMEAmerSocietyofMechEngrs ASSEMAssemble装配ASSYAssembly装配AUTHAuthorized授权的AUTOAutomatic自动的AUXAuxiliary辅助的A VGAverage平均AWGAmericanWireGauge BCBoltCircle螺栓圆周BETBetween之间BEVBevel斜角BHNBrinellHardnessNumber布氏硬度值BLKBlank,Block空白B/NMBillofMaterial材料费BOTBottom底部BPorB/PBlueprint蓝图BRGBearing轴承BRKBreak破裂BRKTBracket支架BROBroach钻孔BRSBrass黄铜BRZBronze青铜B＆SBrown＆Shape棕色＆形状BSCBasic基本的BUSHBushing套管BWGBirminghamWireGauge CTOCCenter-to-Center中心到中心CADComputer-AidedDrafting电脑辅助设计CAMComputer-AidedMfgCAPCapacity容量CAPSCRCapScrew螺帽CARBCarburize使渗碳CBORECounterbore扩孔CCWCounterClockwise逆时针CDRILLCounerdrillCDSCold-DrawnSteel缩写全称翻译EFFEffective有效的ENCLEnclose,Enclosure附上ENGEngine引擎ENGREngineer工程师ENGRGEngineering工程学EQLSPEquallySpaced等距EQUIVEquivalent相等ESTEstimate估计EXExtra额外EXHExhaust消耗EXPExperimental实验性的EXTExension,External范围,外部FABFabricate伪造FAOFinishAllOver FDRYFoundry铸造FIGFigure数据FILFillet,fillister带子FIMFullIndicatorMovementFINFinishFLXFixture结构FLXFloor.Fluid,Flush基地,液体,冲洗FLEXFlexible易弯曲的FLGFlange边缘FORGForging锻炼FRFrame,Front边框FIGFitting装置FURNFurnish提供FWDForward向前GAGage,Gauge测量GALVGalvanized电镀GRGrade等级GRDGrind磨碎GRVGroove凹槽GSKTGasket垫圈H＆GHardenandGrind加硬和磨碎HDHead主要的HDLHandle处理HDLSHeadless无领导的HDNHarden使硬化HDWHardware硬件HEXHexagon六边形HGRHanger衣架HGTHeight高度HORHorizontal水平的HRSHot-RolledSteelHSGHousing外罩HTTRHeatTreal我见过18GA(.048")CRS、16GA(.060)CRS、14GA(.075)CRS，其中GA是表示厚度的，但与英寸的关系还没研究明白；照此推算75是相当薄的缩写全称翻译ACCESSAccessory附件ADJAdjustable,Adjust调整ADPTAdapter使适应ADV Advance提前ALAluminum铝ALLOWAllowance允许ALTAlternate改变ALYAlloy合金AMTAmout数量ANLAnneal锻炼ANSLAmerNatlStdsInstitute APPROXApproximate大约ASMEAmerSocietyofMechEngrs ASSEMAssemble装配ASSYAssembly装配AUTHAuthorized授权的AUTOAutomatic自动的AUXAuxiliary辅助的A VGAverage平均AWGAmericanWireGauge BCBoltCircle螺栓圆周BETBetween之间BEVBevel斜角BHNBrinellHardnessNumber布氏硬度值BLKBlank,Block空白B/NMBillofMaterial材料费BOTBottom底部BPorB/PBlueprint蓝图BRGBearing轴承BRKBreak破裂BRKTBracket支架BROBroach钻孔BRSBrass黄铜BRZBronze青铜B＆SBrown＆Shape棕色＆形状BSCBasic基本的BUSHBushing套管BWGBirminghamWireGauge CTOCCenter-to-Center中心到中心CADComputer-AidedDrafting电脑辅助设计CAMComputer-AidedMfgCAPCapacity容量CAPSCRCapScrew螺帽CARBCarburize使渗碳CBORECounterbore扩孔CCWCounterClockwise逆时针CDRILLCounerdrillCDSCold-DrawnSteel缩写全称翻译EFFEffective有效的ENCLEnclose,Enclosure附上ENGEngine引擎ENGREngineer工程师ENGRGEngineering工程学EQLSPEquallySpaced等距EQUIVEquivalent相等ESTEstimate估计EXExtra额外EXHExhaust消耗EXPExperimental实验性的EXTExension,External范围,外部FABFabricate伪造FAOFinishAllOver FDRYFoundry铸造FIGFigure数据FILFillet,fillister带子FIMFullIndicatorMovement FINFinishFLXFixture结构FLXFloor.Fluid,Flush基地,液体,冲洗FLEXFlexible易弯曲的FLGFlange边缘FORGForging锻炼FRFrame,Front边框FIGFitting装置FURNFurnish提供FWDForward向前GAGage,Gauge测量GALVGalvanized电镀GRGrade等级GRDGrind磨碎GRVGroove凹槽GSKTGasket垫圈H＆GHardenandGrind加硬和磨碎HDHead主要的HDLHandle处理HDLSHeadless无领导的HDNHarden使硬化HDWHardware硬件HEXHexagon六边形HGRHanger衣架HGTHeight高度HORHorizontal水平的HRSHot-RolledSteel HSGHousing外罩HTTRHeatTreal缩写全称翻译NTSNottoScaleOAOverAll所有OBSObsotetcOCOnCenter ODOutsideDiameter外直径OPPOpposite对立OPTLOptional可选择的OROutsideRadius外半径ORIGOriginal初始的PAT.Patent专利PATTPattern形式PCPiece,PitchCircle件，节距圆PCHPunch打孔PDPitchDiameterPERFPerforate打孔PERMPermanent永久的PERPPerpendicular垂直的PFDPreferred首选的PKGPackage,Packing包装PLPartingLine,Places,Plate PNEUPncumaticPNLPanel面板POLPolish磨光POSPosition,Postive位置PRPair对立PRIPrimary基本的PROCProcess程序PRODProduct,Production产品，产量PSIPoundsperSquareInchPTPart,Point零件，点QTRQuarter四份之一QTYQuantity数量QUALQuality质量RRadius半径RARockwellHarden,A-ScaleRBRockwellHarden,B-Scale RCRockwellHarden,C-Scale RECDReceived巳收到的RECTRectangle长方形REFReference相关的REINFReinforce增强RELRelease,Relief释放，缓解REMRemove移除REQDRequird有需要REERetainer,Return REVReverse,Revision,Revolution RFSRegardlessofFeatureSize RGHRough粗糙的RHRightHand右手RIVRivet起皱RMReam扩展RNDRound周围RPMRevolutionsperMinute RPWResistanceProjectionWeld SAESocietyofAutomotiveEngrs SCHSchedule进度表CFSCold-FinishedSteelCHCaseHardenCHAMChamfer斜面CHANChannel渠道CHGChange改变CHKCheck核查CICastIron铸铁CIRCircle,Circular圆周CIRCCircumference圆周CLCenterline中心线CLPClamp夹子CNCComputerNumericalControl电脑数值控制COMBCombination联合COMLCommercial商业的CONCConcentric同中心的CONNConnect,Connector连接器COVCover盖子CPLGCoupling联结CQCommercialQuality商业等级钢CRSColdStdsAssociation CRTCathodeRayTube阴级射线管CSCastSteel铸铁CSACanadianStdsAssociationCSKCountersink埋头孔CSTGCasting铸件CTRCenter中心CUCubic立方米CWClockwise顺时针CYLCylinder,Cylindrical柱面DBLDouble双倍DECDecimal小数DEGDegree摄氏度DETDetail详情DEVDevelop发展DFTDraft草稿DIADiameter直径DIMDimension尺寸DISTDistance距离DNDown向下DPDeep,DiametralPitch深度,径节DRDrill,DrillRod钻孔DSGNDesign设计DVTLDovetail吻合DWGDrawing图纸DWLDowel木钉DWNDrawn拔出EAEach每个ECCEccentric古怪缩写全称翻译HVYHeavy重量HYDHydraulic水压IDInsideDiameter内部直径IDENTIdentification鉴定ILLUSIllustration说明INInch英寸INCLInclude,Including包括INCRIncrease增加INFOInformation信息INSPInspect检查INSTLInstall安装INSTInstruct,Instrument指示,工具INTInterior,Internal,Intersect内部的,内在的,交叉IRInsideRadius内部半径ISOInternalStdsOrganization国际标准化组织JCTJunction连结JNTJournal杂志JTJoint连接KKey关键KNRLKnurl硬节KSTKeyseatKWYKeyway键沟LBPound英镑LBLLabel标签LGLength,Long长度LHLeftHand左手LMCLeastMaterialCondition LOCLocate位于LTLight光LTRLetter信LUBLubricate润滑MACHMachine机器MAINTMaintenance维护MATLMaterial材料MAXMaximum最大MECHMechanical,Mechanism机械MEDMedium媒介MFGManufacturing制造业MIMalleableIron可锻造的铁MINMinimum,Minute最小，秒MISCMiscellaneous混杂的MMMillimeter毫米MMCMaxMaterialCondition MSMachineSteelMTGMouting装备MULTMultiple倍数MWGMusicWireGagug NANotApplicable不可应用的NATLNational国内的NCNumericalControl数字电脑控制NEGNegative忽略的NO.Number号码NOMNominal名义上的NPSMNatlPipeStraightMech NPTNatlPipeTapered缩写全称翻译SCRScrew螺丝SECSecond秒SECTSection部分SEPSeparate独立SEQSequence顺序SERSerial,Series系列SERRSerrate锯齿状SFSpotfaceSFTShaft轴SGLSingle单个SHSheet纸SIIntlSystemofUnits SLSlide使滑动SLVSleeve袖子SOCSocket插座SPSpace,Spaced,Spare空间SPLSpecial特别SPECSpecification规格SPGSpring跳SPHERSpherical球体SPRKTSprocket链轮齿SQSquare平方SSTStainlessSteel纯铁STDStandard标准STKStock存货STLSteel铁STRStraight,Strip直的SUBSubstitute替代物SUPSupply,Support供应SURFSurface表面SYMSymmetrical对称的SYSSystem系统TTeeth,Tooth牙齿TECHTechnical技术TEMPTemplate,Temporary模板，暂时的THDThread线THKThick厚的TOLTolerance公差TOTTotal总计TPFTaperperFootTPITaperperIn,ThreadsperInch TPRTaper锥形TSToolSteelTYPTypical典型UNCUnifiedNatlCoarse UNEFUnifiedNatlExtraFine UNFUnifiedNatlFineUNIVUniversal普遍V ARVariable变量VERTVertical垂直的VOLV olume音量VSVersus与．．相对WWide,Width宽度W ASHWasher洗衣机WDFWoodruff车叶草WIWroughtIron熟铁WTWeight重量齿轮及齿轮加工中英文对照-A部分A.1.abrasivetoothwear齿面研磨磨损2.absolutetangentialvelocity绝对切向速度3.accelerometer加速表4.addendum齿顶高5.addendumangle齿顶角6.addendumcircle齿顶圆7.addendumsurface上齿面8.adhesivewear粘着磨损9.adjustability可调性10.adjustabilitycoefficients可调系数11.adjustingwedge圆盘端铣刀的可调型楔块12.allowablestress允许应力13.alternatebladecutter双面刀盘14.angularbacklash角侧隙15.angularbevelgears斜交锥齿轮16.angulardisplacement角移位17.angularpitch齿端距18.angulartestingmachine可调角度试验机19.approachaction啮入20.arbor心轴21.arbordistance心轴距22.arcofapproach啮入弧23.arcofrecess啮出弧24.attraction收紧25.averagecutterdiameter平均刀尖直径26.axialdisplacement轴向位移27.axialfactor轴向系数28.axiallocatingsurface轴向定位面29.axialpitch轴向齿距30.axialplane轴向平面31.axialrakeangle轴向前角32.axialthrust轴向推力33.axletestingmachine传动桥试验机07484473lhx0812发表于：07-03-1317:21[只看该作者] 第4楼Pipingwork:铺管工程Steamtrace:加热蒸汽管道Cutting:切割socketweld承插焊接filletweld角焊,填角焊branchconnection分支接续fabricationtolerance.制造容差localheattreatment局部热处理threadedpipe螺纹管sealwelding密封焊接flangejoint凸缘接头undercut底切feeder馈电线conduitoutlet电线引出口sealfitting密封接头,密封配件Screwthreadlubricant螺纹润滑剂Seal绝缘层weldreinforcement焊缝补强lockwasher锁紧[止动,防松]垫圈electricalpanel配电板,配电盘nipple螺纹接头zincplated镀锌的ringjoint环接,围缘接合bolt螺栓control控制器NationalElectricalCode全国电气规程masterschedule主要图表,综合图表,设计任务书,主要作业表torquewrench转矩扳手jobsite施工现场flangeconnection凸缘联接Hardhat安全帽Goggles护目镜Stockpile贮存packinglist装箱单crate柳条箱purchasedmateriallist原材料进货单back-feed反馈wirecoil线盘线卷NPTthread美国标准锥管螺纹cablegland电缆衬垫terminalblock线弧,接头排接线盒,接线板,线夹powerdrill机械钻connector接线器insulatedsleeve绝缘套管wireconnector接线器wireterminal电线接头controlwiring控制线路motorlead电动机引出线powerwiring电力布线tenderdocument提供证件orificeplate挡板nut螺母flangegasket法兰垫片dimensionalinspection尺寸检验burnthrough烧蚀pipingsystem管道系统reinforcementofweld加强焊缝械专业词汇表"机械(常用)""abrasion,abrasivewear","磨料磨损""activeforce,appliedforce","作用力" "actualsize","实际尺寸" "addendumangle","齿顶角""addendum","齿顶高" "addendummodification","径向变位" "addendummodification(forexternalgears)","径向变位量" "addendummodificationcoefficient","径向变位系数" "additive","添加剂""adhesionwear","黏着磨损" "adjustedratinglife","修正额定寿命" "aerodynamicbearing","气体静压滑动轴承" "airspring","空气弹簧""angledrive","角度传动" "angleofcontact","包角" "angleoftransmission","作用角" "angularbevelgear","斜交锥齿轮" "angularcontactbearing","角接触推力轴承" "angularcontactbearing","角接触轴承""anti-frictionbearingmaterial","减磨轴承材料""approach,engaging-in","啮入""archimedesspiral","阿基米德螺线""attitudeangle","偏位角""auto-controlledclutch","自控离合器" "axialloadfactor","轴向载荷系数" "axialmodification","齿向修形""axialmodule","轴向模数""axialpitch","轴向齿距""axialplane","轴平面""axialplaneofwormwheel","蜗轮轴平面" "axialprofile","轴向齿廓""backcone","背锥面""backconeangle","背锥角""backconedistance","中点锥距" "backconetoothprofile","背锥齿廓" "backtobackarrangement(rollingbearing)","背对背配置(滚动轴承)" "balancingmass","平衡质量""balloscillatingteeth","滚珠活齿""ballscrew","滚珠丝杠""ballscrew","滚珠丝杠""ballbearing","球轴承""bandbrake","带式制动器""basecircle","基圆""basehelix","基圆螺旋线" "basetangentlength","公法线长度" "basicprofile","基本牙型""basicrack","基本齿条" "basicracktoothprofile","基本齿廓" "basicratinglife","基本额定寿命" "basicsize","基本尺寸" "bathlubrication","油浴润滑" "bathtubcurve","浴盆曲线""bearing","轴承""bearingaxialload","轴承轴向载荷" "bearingborediameter","轴承内径" "bearingbush","轴套" "Bearingcharacteristicnumber","轴承特性系数" "bearingliner","轴承衬" "bearingloadcarryingcapacity","轴承承载能力" "bearingmeanspecificload","轴承压强" "bearingoutsidediameter","轴承外径" "bearingradialload","轴承径向载荷" "bearingring","轴承套圈""bearingseries(rollingbearing)","轴承系列(滚动轴承)""bearingwidth","轴承宽度" "bearingwithsolidlubricant","固体润滑滑动轴承" "bellevillespring","碟形弹簧""beltdrive","带传动""beltlength","带长""bendingvibration","弯曲振动""bevelgear","锥齿轮" "bevelgearwithaxesatrightangles","正交锥齿轮" "bevelgearwithcirculararctoothprofile","双重锥度齿锥齿轮" "bevelgearwithcirculararctoothprofile","圆弧齿廓锥齿轮" "bevelgearwithstandardtaoeredtoothprofile","正常锥度齿锥齿轮" "bevelgearwithstraighttoothprofile","直线齿廓锥齿轮" "bevelgearwuth90°faceangle","平顶齿轮" "blockbrake","块式制动器""blockchain","块链""bobedbearing","多油叶滑动轴承""bolt","螺栓""bottomclearance","顶隙""bottomland","齿槽底面""boundarydimension(rollingbearing)","外形尺寸(滚动轴承)" "boundarylubrication","边界摩擦""brake","制动器""brakedrum","制动鼓""brakelining","制动衬片""brakepiece","制动块""brakeshoe","制动蹄""brake-bandclutch","闸带离合器" "bushchain","套筒链""cage","保持架""cam","凸轮""camcontour,camprofile","凸轮工作轮廓" "camfollower","凸轮从动件" "campitchcurve","凸轮理论轮廓" "Cavitationwear","气蚀磨损" "centerdistance","中心距" "centerdistancemodificationcoefficient","中心距变动系数" "centergear","中心轮""centricslider-crankmechanism","对心曲柄滑块机构" "centrifugalclutch","离心离合器" "centrifugaltension","离心拉力" "centrifugalforce","离心力" "centrodemechanism","瞬心线机构" "Ceramicfrictionmaterial","金属陶瓷""chain","链条""chaincoupling","链条联轴器""chaintransmission","链传动""chainwheel,sprocket","链轮""chordalheight","弦齿高""circulararcprofile","圆弧齿廓""circularhelix","圆柱螺旋线""circular-arcgear","圆弧圆柱齿轮" "Circulatinglubrication","循环润滑" "circumferentialbacklash","圆周侧隙""classicalV-belt","普通V带""clearancefit","间隙配合""clevispinwithhead","销轴""clutch","离合器""coefficientoftravelspeedvariation,advance-to-returntimeratio","行程速度变化系数""combinedspring","组合弹簧""commonapex","公共锥顶""compensator(hydrostaticbearing)","补偿器(静压轴承〕" "compostbearingmaterial","复合轴承材料" "compoundplanetarygeartrain","组合行星齿轮系" "compoundhinges,multiplehinges","复合铰链" "concaveside","凹面""conepulley","锥轮""conicalpin,taperpin","圆锥销" "conicalspiral","圆锥螺旋线" "conicalspring","截锥螺旋弹簧" "conjugateflank","共轭齿面" "conjugateprofile","共轭齿廓" "connectinglink","联接链节" "Consistency","稠度" "constantloading","恒幅载荷" "constantrate(stiffness)spring","等刚度弹簧" "constantvelocitymotioncurve","等速运动轨迹" "contactfatigue","接触疲劳" "Contactfatigue","接触疲劳" "contactratio","重合度" "Continuouslubrication","连续润滑" "continuoussystem","连续系统" "contrategear","端面齿轮" "controlledclutch","操纵离合器" "conventionalbelt","普通平带" "convexside","凸面" "conveyorchain","输送链" "correspondingflanks","同侧齿面""cosineaccelerationmotioncurve","余弦加速度运动轨迹" "cotterpin,splitpin","开口销""cottonbelt","编织平带""counterpartrack","产形齿条""couple","力偶""coupledmodes","耦合振型""coupler,floatinglink","连杆""coupling","联轴器" "couplingwithcorrugatedpipe","波纹管联轴器" "couplingwithelasticspider","梅花形弹性联轴器" "couplingwithnon-metallicelasticelement","非金属弹性元件联轴器" "couplingwithrubberplates","橡胶板联轴器" "couplingwithrubbertypeelement","轮胎式联轴器" "crank","曲柄""crankedlinkchain","弯板链""crank-rockermechanism","曲柄摇杆机构""crest","齿顶""crewmechanism","螺旋机构" "crossrecessedcountersunkheadscrew","十字槽沉头螺钉" "crossrecessedpanheadscrew","十字槽盘头螺钉""cross-beltdrive","交叉传动" "crossedhelicalgearpair","交错轴斜齿轮副""crossedrollerbearing","交叉滚子轴承" "crossingpointofaxes","轴线交点" "crowngear","冠轮""crownedteeth","鼓形齿" "cumulativeerrorinpitch","螺距累积误差" "cumulativefatiguedamage","疲劳积累损伤" "curtatecycloid","短幅摆线" "curtateepicycloid","短幅外摆线" "curtateinvolute","缩短渐开线" "curvaturecorrectionfactor(spring)","曲度系数(弹簧)" "curvedtoothbevelgear","曲线齿锥齿轮""cycl,,icloading","循环载荷""cycloid","摆线" "cycloidaldrivewithsmallteethdifference","摆线少齿差传动" "cycloidalprofile","摆线齿廓""cycloidal-pingearspeedreducer","摆线针轮减速器" "cylindricalgear","圆柱齿轮" "cylindricalhelicalcompressionspring","圆柱螺旋压缩弹簧" "cylindricalhelicaltensionspring","圆柱螺旋拉伸弹簧" "cylindricalhelicaltorsionspring","圆柱螺旋扭转弹簧" "cylindricalpin,straightpin","圆柱销" "cylindricalrollerbearing","圆柱滚子轴承""cylindricalworm","单导程圆柱蜗杆" "cylindricalworm","圆柱蜗杆""damping","阻尼" "datumcircumference","基准圆周长" "datumdiameter","基准直径" "datumlinedifferential","基准线差" "datumplane","基准平面""datumwidth","基准宽度""dedendum","齿根高""dedendumanle","齿根角" "deepgrooveballbearing","深沟球轴承" "degreeoffreedom","自由度""deviation","尺寸偏差""deviationinpitch","螺距偏差""diameterseries(rollingbearing)","直径系列(滚动轴承)" "diametralpitch","径节" "diaphragmcoupling","膜片联轴器" "differentialmechanism","差动机构" "differentialscrewmechanism","差动螺旋机构" "dimensionseries(rollingbearing)","尺寸系列(滚动轴承)" "discretesystem","离散系统""disengagingtime(clutch)","分离时间(离合器)""distortion","畸变" "doubledirectionthrustbearing","双向推力轴承" "doublerowbearing","双列轴承""doubleV-belt","双面V带""double-circular-arcgear","双圆弧齿轮" "driven","从动件""drivengear","从动齿轮" "drivenpulley","从动带轮" "drivinggear","主动齿轮" "drivingpulley","主动带轮" "drivingforce","驱动力" "drivinglink","主动件" "dryfriction","干摩擦" "dualclutch","双作用离合器" "dualleadcylindricalworm","双导程圆柱蜗杆" "duplexrollerchain","双排滚子链" "dynamicload","动载荷" "dynamicbalanceofrotor","转子的动平衡" "dynamicload","动载荷" "dynamicsofmachinery","机械动力学" "eccentricelement","偏心元件" "eccentricmechanism","偏心轮机构""effectivecircumference","有效圆周长" "effectivecoilnumber","有效圈数" "effectivediameter","有效直径" "effectivelinedifferential","有效线差" "effectivestressconcentrationfactor","有效应力集中系数" "effectivetension","有效拉力" "effectivewidth","有效宽度" "effectiveresistance","工作阻力" "efficiency","效率""elasticpincoupling","弹性柱销齿式联轴器""elasto-hydrodynamiclubrication","弹性流体动力润滑" "electromagneticclutch","电磁离合器" "electromagneticwhirlpoolbrake","电磁涡流制动器" "electrostaticbearing","静电轴承" "ellipticbearing","椭圆滑动轴承" "embeddability","嵌入性""endrelief","齿端修薄""engagement","啮合""engagingtime(clutch)","接合时间(离合器)" "engaging(clutch)","接合过程(离合器)" "epicycloid","外摆线""epicycloidgear","摆线齿锥齿轮""equidistantcurveofcurtatehypocycloid","短幅外摆线的等距曲线" "equidistantcurveofepicycloid","内摆线的等距曲线" "equidistantcurveofepicycloid","外摆线的等距曲线" "equidistantcurveofprolateepicycloid","长幅外摆线的等距曲线" "equilibrium","力平衡" "Equivalentcoefficientoffriction","当量摩擦系数" "equivalentload","当量载荷""equivalentforce","等效力""equivalentlink","等效构件""equivalentmass","等效质量" "equivalentmoment","等效力矩""escapement","擒纵机构""externalthread","外螺纹""externalgear","外齿轮""externalpinwheel","外齿针齿轮" "externaltabwasher","外舌止动垫圈" "externalteethlockwasher","外齿锁紧垫圈""Extreme-pressurelubrication","极压润滑" "facetofacearrangement(rollingbearing)","面对面配置(滚动轴承)" "facewidth","齿宽""failure","失效""farthestdwellangle","远休止角""Fastener","紧固件" "fatiguelimit","疲劳极限" "fatiguestrength","疲劳强度" "fault","故障" "featherkey","滑键""featherkey,divekey","导向平键" "fillet","齿根过渡曲面" "filletradius","齿根圆角半径" "fillingslotballlbearing","装填槽球轴承" "finitelifedesign","有限寿命设计" "flangecoupling","凸缘联轴器" "flangedbearing","凸缘轴承" "flatbeltdrive","平带传动" "flatkey","平键" "flatspring","片弹簧" "flatspringcoupling","簧片联轴器" "flexibilityofspring","弹簧柔度" "flexiblegear,flexpline","柔性齿轮" "floatingbearing","浮环滑动轴承" "fluctuatingload","变载荷" "fluidfriction","流体摩擦" "fluidlubrication","液体润滑""flywheel","飞轮" "forcedvibration","受迫振动" "foundationbolt","地脚螺栓""four-barmechanism","四杆机构""four-pointcontactballbearing","四点接触轴承" "fracturemechanics","断裂力学" "freeheight(spring)","自由高度(弹簧)" "Frettingwear","微动磨损" "Friction","摩擦""frictionbrake","摩擦制动器" "frictionclutch","摩擦式离合器" "Frictionmaterial","摩擦材料" "frictionwheeldrive","摩擦轮传动" "Frictioncoefficient","摩擦系数" "frictionalconformability","摩擦顺应性" "frictionalconpatibility","摩擦相容性" "frontcone","前锥面" "fullcomplementbearing","装满滚动体的轴承" "gaswhirl","气膜振荡" "gaslubrication","气体润滑" "gear","齿轮""gearcoupling","齿式联轴器""geardrive","齿轮传动" "geardrivewithintersectingaxes","相交轴齿轮传动" "geardrivewithnon-parallelnon-intersectingaxes","交错轴齿轮传动" "geardrivewithparallelaxes","平行轴齿轮传动" "gearpairwithmodifiedcenterdistance","角变位齿轮副" "gearpairwithnegativemodifiedcenterdistance","负角变位齿轮副" "gearpairwithpositivemodifiedcenterdistance","正角变位齿轮副" "gearpairwithreferencecenterdistance","高变位齿轮副" "gearratio","齿数比""gearteeth","轮齿" "gearwithaddendummodification","变位齿轮" "generalflatkey","普通平键""generatingcylinder","发生圆柱面" "generatingdiameter","发生圆直径" "generatingflank","产形齿面" "genevamechanism","槽轮机构""gib-headtaperkey","钩头楔键""gorge","咽喉面""gorgecircle","喉圆""governor,speedregulator","调速器""groovedpin","槽销""guiderail","导轨""guidebar,guidelink","导杆""halfofthreadangle","牙型半角""handsofworm","蜗杆旋向""harmonicgeardrive","谐波齿轮传动" "harmonicgeardrivewithradialgearmeshng","径向谐波齿轮传动" "harmonicgeardrivewithtransversegearmeshng","端面谐波齿轮传动" "harmonicgearreducer","谐波齿轮减速器""heightseries(rollingbearing)","高度系列(滚动轴承)" "heightunderultimateload","极限高度""helicalgear","斜齿轮""helicalspring","螺旋弹簧" "helicalspringlockwasher","弹簧垫圈""Helix","螺旋线""helixangle","螺旋角""herringbonegear,doublehelicalgear","人字齿轮" "hexagonbolt","六角头螺栓""hexagonnut","六角螺母" "hexagonsocketheadcapheadscrew","内六角圆柱头螺钉" "hexagonsocketcountersunkheadcapheadscrew","内六角沉头螺钉" "high-cyclefatigue","高周疲劳""higherpair","高副""hingetypeflattopchain","平顶链"。
史上最全机械图纸翻译大全，有她再也不用担心英文图纸！
史上最全机械图纸翻译大全，有她再也不用担心英文图纸！机械图纸英语翻译ALL WELDS CONTINUOUS UNLESS OTHERWISE STATED 未注焊缝均为连续焊ALL WELDS 3mm FILLET UNLESS OTHERWISE STATED未注焊角高3mm.ALL UNSPECIFIED RADI - R3未注圆角R3REMOVE ALL BURRS AND SHARP EDGES棱角倒钝CHANNEL 槽钢RSA 708 角钢 70X70X8M30X1.5 pitch M30X1.5的锥螺纹Tackweld 点焊OD 1/4' outside dimension 1/4'的缩写外径直1/4'75 CRS 尺寸为75 材质为冷轧钢板410 OPENING REF 410 开口参考尺寸40 REF 尺寸为40,参考值2.5' BSP 2.5” 圆锥管螺纹2.5' BSPT HEXAGON 2.5” 六角圆锥管螺纹(即对丝)30x2.5 FLAT BAR 30X2.5 扁钢TYP 2 POSNS 2处11 TOTAL COILS APROX.9 WORKING COILS APROX.RIGHT HAND WOUND ONLY,END COILS SQUARE TO TOUCH.总圈数约11圈；工作圈数约9圈；右旋；弹簧的端部磨平以便于接触.(此为弹簧技术说明)FEMALE: 内扣(母扣)MALE: 外扣(公扣)偏心轴 eccentric shaft销轴 PIN开口销 COTTER PIN螺杆 screw紧定螺钉 SET SCREW圆螺母 ROUND NUT内六角螺钉 SOCKET HEAD CAP SCREW六角螺钉 HEX HD SETSCREW六角螺栓 HEX HD BOLT挡圈 closing ring弹性挡圈 circlip轴承隔套 distance sleeve of axletree轴承 axletree深沟球轴承 DEEP GROOVE BALL BEARING无扣长 non-buckle longth弹簧 SPRING吊环螺钉 LIFTING EYE BOLT开槽盘头螺钉 SLOTTED PAN HEAD SCREW圆锥滚子轴承 TAPERED ROLLER BEARING推力球轴承THRUST BALL BEARING平键 FLAT KEY弹簧垫圈 SINGLE COIL SPRING WASHER平垫圈 FLAT WASHER螺母 FULL NYLOCK NUT圆螺母 ROUND NUTREMOVE ALL BURRS AND SHARP EDGES 所有尖角/棱角倒角并去毛刺40 REF 为测量的参考尺寸OD 1/4’ outside dimension 1/4'的缩写外径直1/4’------->应该为：外径值1/4'75 CRS 尺75 材质为冷轧钢板 ------->应该为：尺寸75 材质为冷轧钢板ACCESS Accessory 附件ADJ Adjustable,Adjust 调整ADPT Adapter 使适应ADV Advance 提前AL Aluminum 铝ALLOW Allowance 允许LT Alternate 改变ALY Alloy 合金AMT Amout 数量ANL Anneal 锻炼ANSL Amer Natl Stds InstituteAPPROX Approximate 大约ASME Amer Society of Mech EngrsASSEM Assemble 装配ASSY Assembly 装配AUTH Authorized 授权的AUTO Automatic 自动的AUX Auxiliary 辅助的AVG Average 平均AWG American Wire GaugeBC Bolt Circle 螺栓圆周BET Between 之间BEV Bevel 斜角BHN Brinell Hardness Number 布氏硬度值BLK Blank ,Block 空白B/NM Bill of Material 材料费BOT Bottom 底部BP or B/P Blueprint 蓝图BRG Bearing 轴承BRK Break 破裂BRKT Bracket 支架BRO Broach 钻孔BRS Brass 黄铜BRZ Bronze 青铜B＆S Brown＆Shape 棕色＆形状BSC Basic 基本的BUSH Bushing 套管BWG Birmingham Wire GaugeC TO C Center-to-Center 中心到中心CAD Computer-Aided Drafting 电脑辅助设计CAM Computer-Aided MfgCAP Capacity 容量CAP SCR Cap Screw 螺帽CARB Carburize 使渗碳CBORE Counterbore 扩孔CCW Counter Clockwise 逆时针CDRILL Counerdrill CDS Cold-Drawn Steel看英文图纸的一些资料英文工程图纸的右下边是标题栏（相当于我们的标题栏和部分技术要求），其中有图纸名称（TILE）设计者（DRAWN）审查者（CHECKED）材料（MATERIAL）日期（DATE）比例（SCALE）热处理（HEAT TREATMENT）和其它一些要求，如：1)TOLERANCES UNLESS OTHERWISE SPECIFIAL 未注公差2)DIMS IN mm UNLESS STATED 如不做特殊要求以毫米为单位3)ANGULAR TOLERANCE±1° 角度公差±1°4)DIMS TOLERANCE±0.1 未注尺寸公差±0.15)SURFACE FINISH 3.2 UNLESS STATED 未注粗糙度3.2常见尺寸的标注及要求2.1孔（HOLE）如：（1）毛坯孔：3'DIA+1CORE 芯子 3'0+1;（2）加工孔：1'DIA1';（3）锪孔：锪孔(注C＇BORE=COUNTER BORE锪底面孔);（4）铰孔：1'/4 DIA REAM铰孔1'/4;（5）螺纹孔的标注一般要表示出螺纹的直径，每英寸牙数（螺矩）螺纹种类精度等级钻深攻深，方向等如：例1.6 HOLES EQUI-SPACED ON 5'DIA (6孔均布在5'圆周上（EQUI-SPACED=EQUALLY SPACED均布）DRILL 1'DIA THRO＇钻1'通孔（THRO＇=THROUGH通）C/SINK22×6DEEP 沉孔22×6例2.TAP 7'/8-14 UNF-3B THRO＇攻统一标准细牙螺纹，每英寸14牙，精度等级3B级（注UNF=UNIFIED FINE THREAD美国标准细牙螺纹）1'DRILL 1'/4-20 UNC-3 THD7'/8 DEEP 4HOLES NOT BREAK THRO 钻1'孔，攻1'/4美国粗牙螺纹，每英寸20牙，攻深7'/8,4孔不准钻通（UNC=UCIFIED COARSE THREAD 美国标准粗牙螺纹）1'-14NS-2THRO 攻美国固定特种螺纹M1',每英寸牙数14,精度等级为二级（注NS=NATIONAL SPECIAL THREAD:美国固定特种标准）2.2倒角（CHAMFER）例1/8×45°BEV 倒角1/8×45°（注BEV=BEVEI，斜面）1.5×45°CHAM 倒角1.5×45°(注CHAM=CHAMFER倒角)2.3方(SQUARE)例5'SQUARE5'×5'方2.4剖视（SECTION）例SECTION A-AA-A剖面2.5圆角半径例1'RR1'RADIUS MUST BE SMOOTH AND BLEND INTO FACE圆弧必须光滑且与平面相切2.6加工余量例DOTTED LINES INDICATED MAX FINISH 1'/8，虚线表示最大加工余量1'/82.7零件标记例USE 5'/16 RAISED HAIRLINE LET-TERS MARKING ON ONE SIDE OF BODY用突起高为5'/16的细实线字母在本体一侧打标记关于铸锻件的技术要求例 1.FORGING MUST BE ANNEALED TO BE BELOW 203 BRINELL HARDNESS 锻件必须退火处理，布氏硬度<203>203>例2.NORMALIZE TO 163-207BHNMUST BE FREE OF SCALE & RUST锻件正火处理，布氏硬度163-207,锻件表面不得有氧化皮和锈蚀例3.FORGING TO BE SHOT OR SAND BLASTED锻件需经喷丸或喷砂处理例4.UNLESS OTHERWISE SPECIFIED DRAFT ANGLES 7°未注明锻造拔模斜度7°例5.CAST TO BE FREE OF EXCESSIVE FLASH 铸件不得有过多的毛边例6.DRAFT ANGLE 2° UNLESS OTHER-WISE SPECIFIED 未注明铸造拔模斜度2°总之，看英文机械工程图纸并不是高不可攀，只要坚持常看，熟记部分单词即可。
机械工程图常用英语词汇
机械工程图中常用的英语词汇Miter gear45°圆锥齿轮、等径圆锥齿轮O-ring gasket O型密封圈O-ring wear plate seal O型油封Clevice /clevis U形钩、U形夹Clevis pin U形夹销U-bolt U形螺栓Triangular thread V形(三角)螺纹V-threaded screw V形螺纹X axis X轴X-axis X轴Y axis Y轴Y-axis Y轴Z-axis Z轴Spiral of archimeder阿基米德涡线Safe valve安全阀Guard valve安全阀Factor of safety安全系数Fix安装、装配、调整、修理、固定Mounting安装、装配、座、支架Setting安装、装置Mounting plate安装板Mounting hole安装孔Assembly for installation安装图Installation diagram安装图Erection diagram安装图、装配图Button按钮Recess凹槽Cave凹槽、内腔Concave face凹面Babbitt巴氏合金Draft = draught拔模)斜度、草图、制图Incandescent lamp白炽灯White metal白合金(铅锑锡合金)Hard casting白口铁White iron白口铁Centesimal百分的、百分之一的Percent = per cent百分率Million百万、兆Balance wheel摆轮Cycloid摆线Cycloidal gear摆线齿轮Spanner扳手Wrench扳手Board板、(管理)局、厅Flat spring板弹簧Leaf spring板弹簧Blade spring板簧Office办公室、办事处Radius半径Half section半剖视Half section view半剖视图Semicircle半圆Woodruff key半圆键Pound磅Packing包装、填料、密封Keep-ring保持环Keeper保持器(片)、架、定位件卡箍Fuse保险丝、熔断器Back view背视图、后视图Back cone背锥Back cone radius背锥半径Pump泵Pump cylinder泵缸Housing of pump泵体Pumping plant泵站Pump seat泵座Proportion比例、比率Ratio比例、比率Scale比例尺Graduated scale比例尺、分度尺Compass of proportion比例规Pen笔Nib笔尖Flank边、侧面、齿侧、后面Rim边、缘、环Length of side边长Edge view边视图Edge weld边缘焊Numbering编号Flat bar扁钢Flat扁头、平面Transforming plant变电站Alteration变更、更改Diversion变更、转换Ratio of gear变速比、齿数比、传动比Variable-speed drive变速传动Deformation变形、扭曲Distortion变形、歪扭Transformer变压器Nominal标称的、额定的、公称的Symbol标记、符号Stamp标记、类型、冲压、图章Tally标签、铭牌Inscription标题Title block标题栏Title标题栏、名称、题目Sign标志、记号Standard标准、规格Standard stock标准材料Standard size标准尺寸Standard-sized标准尺寸(大小)的Master gauge标准规、校准规Standard specification标准规格Standardization标准化Master screw标准螺纹Standard derivation标准偏差Standard deviation标准偏差Standard section标准剖面Standard design标准设计Standard drawing标准图Standard drawing sheet sizes标准图纸尺寸Catalogue data表列数据Surface rating(roughness)表面粗糙度Case hardened表面淬火、硬化Face hardening表面硬化Hard surfacing表面硬化Development of surface表面展开图Glass玻璃Thin slab薄板Thin webs薄壁、薄肋Thin material薄材料Thin member薄材料Thin paper薄纸Views to be supplied补足视图Inaccuracy不精确、不准确Non-rusting不锈的Stainless steel不锈钢Rustless iron不锈铁Brinell figure (number)布氏硬度Brinell hardness布氏硬度Lay布置、安排、放置Arrangement布置、装置Arrangement diagram布置图Part end view部分端视图Part section部分剖视图Phantom view部分剖视图、假想视图Piece部件Subassembly drawing部件装配图Erasing shield擦图片ML = material list材料单Convention for materials材料的习惯表示法Reference参考、基准Reference standard参考标准Plane of reference参考面、基准面Guidebook参考手册、指南、入门Circle of reference参考圆Channel bar槽钢Groove pulley槽轮、三角带轮Groove cam槽凸轮Drawing free-head草图Skeleton drawing草图、结构图Sketch草图、设计图Diagrammatic drawing草图、示意图Outline drawing草图、外形图Layout design草图设计、方案设计Side view侧视图End view侧视图、端视图Measurement测定、尺寸、大小Layer层Illustration插图、实例Socket插座Dismount拆卸Diesel柴油机、内燃机Long radius长半径Length长度、距离Length gauge长度规Long break长断裂线Longitudinal key长方键Major axis长轴Copy抄本、样板Lathe车床Lathe-hand车工Work room车间Workshop车间、工厂Shop车间、工场Sunk screw沉头螺钉Pad衬垫、衬套、垫圈Padding衬垫、填料Liner衬套Bush衬套、轴瓦Dimension尺寸Dimension line尺寸线Spur齿(轮)Train of wheels齿)轮系Toe齿顶(高)Tip radius齿顶圆半径Addendum齿顶高Addendum angle齿顶角Gear addendum angle齿顶角Addendum line齿顶线Addendum circle齿顶圆Addendum circle齿顶圆Top circle齿顶圆Outside circle齿顶圆、外圆Depth of tooth齿高Root齿根、牙底Dedendum angle齿根角Gear dedendum angle齿根角(圆锥齿轮) Dedendum circle齿根圆Root diameter齿根直径Working depth of tooth齿工作高度Width齿宽Width if tooth齿宽Gear齿轮Line of contact齿轮)接触线Diameter pitch齿轮)径节Line of action齿轮)压力线Gear drive齿轮传动Mechanical reduction gear齿轮减速装置Diametral pitch齿轮径节Train of gears齿轮系Gear box(case)齿轮箱Gear housing齿轮箱Gear centre齿轮中心Gear shaft齿轮轴Spur rack齿条Rack-and-pinion齿条齿轮传动Punch冲床、穿孔Plunger chip冲头Punching冲压、穿孔Preliminary design初步设计Drive传动、驱动Transmission chain传动链Normal-running fit传动配合Transmission box传动箱Transmission case传动箱、变速箱Transmission shaft传动轴Series-parallel串并联Verticality垂直度Squareness垂直度、矩形Vertical line垂直线Vertical axis垂直轴Hammer锤子Glossary词汇(表)Magnetic iron磁铁Driven gear从动齿轮Driven shaft从动轴Roughness粗糙度Rough粗糙面、毛坯、粗(未)加工(状态) Uneven粗糙平面、不平的、不匀的Quenching淬火Harden淬火、硬化Hardened-steel淬火钢File锉刀、锉平Drive fit打入配合Size大小、尺寸Size dimension大小尺寸Capital大写字母Capital letter大写字母Major type of slotted nut大型锁母Large compasses大圆规Major diameter大直径、螺纹外径Full diameter大直径、主直径Belt带、皮带Belt drive带传动Cap screw带帽螺钉Philips screw带十字凹槽头螺钉Single auxiliary单辅视图Single thread单头螺纹Single-phase alternator单向(交流)发电机Unilateral tolerance单向公差Spring弹簧Lock washer弹簧垫圈Spring washer弹簧垫圈Collet chuck弹簧夹头Spring ring弹簧圈Spring seat弹簧座Elasticity弹性Elastic deformation弹性变形Retaining ring弹性挡圈Nitride氮化、渗氮Check ring挡圈Cutter刀、刀具Guide bar导杆Leading wheel导轮Face off倒角Chamfer倒角、倒棱、斜面Dimensioning of chamfer倒角的尺寸注法Lamp灯Grade等级、斜度Isometric diagram等轴测图Isometric drawing等轴测图Ingot iron低碳铁、工业纯铁Bottom board底板Basal part底板First coat底漆Bottom view底视图Detail paper底图纸、描图纸Underline底线Bottom case底座Seating底座、装置、设备Foot screw地脚螺钉Anchor bolt地脚螺栓Foundation bolt地脚螺栓Foundation bolt地脚螺栓3rd (third) angle projection第三角投影Point点Spot weld点焊Dash and dot line点划线Electric element电池Battery电池、蓄电池Solenoid valve电磁阀Magnetic-particle clutch电磁离合器Motor alternator电动(交流)发电机Motor电动机、马达Plating电镀、镀Electrodeposited coating电镀层Plated电镀的Butt-spot welding电焊Electric welding电焊Cable电缆Current电流Electric current电流Voltage电压Voltmeter(metre)电压表Resistor电阻器Packing piece垫片Spacer垫片Washer垫圈、衬垫Gasket垫圈、密封垫Regulating valve调节阀Adjusting bolt调整螺栓Plus minus screw调整螺丝Hardened and tempered调质的Laminated spring叠板簧Butterfly valve蝶形阀Butterfly nut蝶形螺母Castle nut蝶形螺母T-square丁字尺Nail钉Top end顶端Top view顶视图Localization定位\固定Location by dimension定位尺寸Location tolerance定位公差Bearing accuracy定位精度Locating pin定位销Location pin定位销Guide pin定位销、导向销Dowel thread定位销、圆柱销Definition定义Rule定则、法则、尺Power动力、功率Power plant动力站Running fit动配合Reading views读图Reader读者、校对人、审稿人Degree度、程度Coating镀、覆盖Chrome plating镀铬Chromizing镀铬处理Metallized镀金属的、喷涂金属的Surfacing镀面Nickel-plate镀镍Nickel plated镀镍Nickel plating镀镍Copper plated镀铜Tin plating镀锡Galvanize镀锌、电镀Sherardize镀锌、喷镀锌Short break短断裂线Dash短划线、虚线、破折号Minor axis短轴Turn off断开Broken out section断裂剖面Break line断裂线Broken dash断裂线Broken line断裂线Forge锻Forge steel锻钢Contrast对比、对照、比较Axis of symmetry对称轴线Butt welding对缝焊接Diagonal line对角线Butt joint对接焊Jam welding对接焊Butt weld对接焊、电阻对接焊Split nut对开螺母Logarithm对数Ton吨Blunt angle钝角Multi disk clutch多片式摩擦离合器Multiple threads多头螺纹Rated power额定功率Half二分之一、一部分Valve阀Valve ring阀簧Valve lock阀簧抵座销、气门制销Valve body阀体Clack seat阀座Valve seat阀座Valve seating阀座Flange connection法兰联接Flange法兰盘、凸缘Length of normal法线长Normal module法线方向Normal cross section法向弧线齿厚Normal pitch法向节矩Normal circular thickness法向节距Normal chordal addendum法向弦齿顶高Vaseline凡士林Reversal反向Range范围、排列Layout drawing方案草图Square jaw clutch方齿牙嵌离合器Method方法、规律Quadrant iron方钢Graph paper方格纸Square lined paper方格纸Coordinate paper方格纸、坐标纸Block diagram方框图Square head set screw方头螺丝Direction方位、方向Square key方形键Square thread方形螺纹Dust cover防尘罩Check nut防松螺母Lock nut防松螺母Plough (plow) bolt防松螺栓Room房间Splash lubrication飞溅润滑Flywheel飞轮Non-metal非金属Index plate分度盘Graduated circle分度圆Dividing head分规Graduated hardening分级淬火Classification分类Decimeter分米、公分Distribution分配、分布、配置Fraction分数、小数Treatment分析、处理Analyzable assembly分析装配图Power(ed) metal粉末合金Crest峰、尖、牙尖Seam welding缝焊Volt-ampere伏安Volt伏特Designation符号、标志Chart of symbols符号图表Load符合Web wheel辐板齿轮Auxiliary elevation辅助立面图Auxiliary surface辅助面Auxiliary section辅助剖视Auxiliary view辅助视图Auxiliary chart辅助图Auxiliary line辅助线Minus负的Compound section复合剖视(面)图Ditto machine复印机Printer复印机、晒图机Duplicating tracing复制描图Views to be changed改正视图Screw driver改锥、螺丝刀Cap盖、帽、罩Cover盖、罩Cover plate盖板Bar杆Rod杆、棒料Induction alternator感应(交流)发电机Rigidity刚度、刚性Steel钢Steel plate钢板Ink holder钢笔杆Steel products钢材Durometer钢轨)硬度计Steel grade钢号Steel sphere钢球Molten steel钢水Height高度Strong steel高强度钢High-speed steel高速钢High-carbon steel高碳钢Chromium铬Undercut根切、凹割、凹槽Root circle根圆Plant工厂、车间Factory工厂、制造厂Factory made工厂制造的Field工场、现场Engineer工程技术人员、工程师Engineering data工程数据Worksit工地Work piece工件Maximum admitted diameter of work工件最大许可直径Tool工具、刀具Tool room工具室Industry工业Industrial standard工业标准Industrial工业公司Industrial drawing工业制图Progress chart工艺程序表、工作进度表Process chart工艺程序图Processing department工艺科I-beam工字钢H-beam工字梁、H形梁Bench工作台Work bench工作台Operation platform工作台Principle of operation工作原理Common difference公差Tolerance zone公差范围、公差带Tolerance symbols公差符号Table of allowance公差录Tolerance system公差制Nominal dimension公称尺寸Specfied size公称尺寸Nominal roll diameter公称滚子直径Nominal pitch公称螺距Nominal diameter公称直径Metric ton公吨、千公斤Kilogram(me)公斤、千克Kilogram-meter公斤米、千克米Kilometer公里、千米Formula公式Company公司Metric scale公制尺、米尺Metric unit公制单位Metric公制的Metric measure公制计量Meter screw公制螺纹Metric thread公制螺纹Meter series公制系列Meter taper公制锥度Rating功率、参数、规格Supply供给、电源Feed-pump供油泵、供水泵Coaxial circle共轴圆Slot沟、槽Channel沟槽Shackle钩环、链、挂钩、卡子Taper key钩头楔键、楔(斜)键Gib-head taper key钩头斜键Hook bolt钩形螺栓Joint company股份公司Captive bolt固定螺栓Pipe管Tube管Union管接头、联轴器、(联)管节、管套节Pipe threads管螺纹Pipeline drawing管系图Convention惯例、常规、习惯Conventional method惯例、习用方法Inertia惯性Smooth turning光(削)车(削)Finish turning光车(削)、精车Surface gage光洁度样块Light beam光束Luminaire光源Polish光泽、研磨、磨光、抛光Smooth finish光制Bright blot光制螺栓Specification规格、说明Law规律、定律Knurl滚花、压花Knurled nut滚花螺母Milled nut滚花螺母Rolling circle滚圆、(齿轮的)基圆Needle bearing滚针轴承Multi-roll bearing滚针轴承Needle bearing滚针轴承Ball spline滚珠花键Roller bearing滚柱轴承Tapered roller bearing滚锥轴承Roll roller-type overrunning clutch滚子型超越离合器Boiler锅炉Transition fit过渡配合Transition fit过渡配合Run-out line过渡线Filter过滤器Admiralty metal含锡黄铜Weld bead焊缝Welding seam焊缝Seam焊缝、接缝Welder焊工、焊机Welded joint焊接Weld焊接Welding焊接Welding drawing焊接图Solder焊料Welding rod焊条Synthetic rubber合成橡胶Approval standard合格标准Alloy合金Alloy steel合金钢Cage盒、罩、箱Ferrous metal黑色金属Bench section横剖面Cross section横剖面、横断面Throat diameter喉圆直径Back elevation后视图Rear view后视图Rear axle后轴Thickness厚度Arc弧、圆弧Arc thickness弧长厚度(齿厚) Radian弧度Arc welding弧焊Circular thickness弧线(齿)厚度Circular pitch弧线节距Vice虎钳Vise虎钳、台钳Interchangeability互换性1 Interconnection互相连接Retainer护圈、挡圈Spline花键Castellated shaft花键轴Spline shaft花键轴Fahrenheit temperature华氏温度Slide gear滑动齿轮Slide fit滑动配合Plain bearing滑动轴承Sliding bearing滑动轴承Slide valve滑阀Feather key滑键Feather滑键、冒口Pulley滑轮、皮带轮Sheave滑轮、绳轮、三角皮带轮Grease滑脂Chemical treatment化学处理Scribing block划针盘Block in、block out画草图Ring环、圈Yellow metal黄金、黄色金属Brass黄铜、铜轴衬Temper回火Temper hardening回火硬度Axis of revolution回转轴线Drawing绘图、图样Drawing pen绘图笔Size description绘图尺寸Drawing machine绘图机Drawing pencil绘图铅笔Drawing office绘图室Curve plotter绘图仪Drawing instrument绘图仪器Draftsman绘图员Drawing board绘图纸Drafting paper绘图纸Elephant绘图纸(28X23英寸) Drawing desk绘图桌Whitworth (british)惠氏标准(英)Quill活动套筒、衬套Piston活塞、柱塞Plunger活塞、柱塞、滑阀Piston rod活塞杆Piston ring活塞环Train火车Spark plug火花塞Loco机车、火车头Machine shop机工车间Mechanical department机加工车间Rack机架、台、齿条Machine机器、切割Machine finish机器光制Robot机器人、自动机Body机体、机身Machine maker机械工厂(制造者) Mechanical engineering’s scale机械工程比例尺Machinist机械工人\机械师Machine finish机械加工Mechanism机械结构、机械装置Machine part机械零件Mechanical seal机械密封Transfer mechanism机械手Mechanical efficiency机械效率Mechanical properties机械性能Mechanical feature机械性能(特性)Machine drawing机械制图Mechanical drawing机械制图Machine building (manufacturing)机械制造Housing机座Basic size基本尺寸、公称尺寸、标称直径Base基础、底座、基线、基面、基准Basis基础、基准、基线Foundation基础、基座Base point基点Basic hole system基孔制Datum surface基面Base surface基面、底面Base plane基平面Base circle基圆Base circle基圆Base circular thickness基圆弧线齿厚Base helix angle基圆上的螺旋角Base cylinder基圆柱Base shaft system基轴制Datum基准(点、线、面)、资料Datum point基准点Reference point基准点Datum plane基准面Datum line基准线Reference line基准线、参考线Basic circle基准圆Maximal valve极大值Maximum极点、极限、最大量Limiting dimension极限尺寸Limit极限尺寸Ratchet gear棘轮Ratchet棘轮Pawl棘爪Detent棘爪、扳手、制动器Geometry几何学Layout计划、方案、草图Project计划、设计、投影Computer计算机Record记录Technical regulation(manual 、specification)技术规范Technical specification技术规格Engineering department技术科Engineering office技术科Technical design技术设计Relay继电器Turning加工、车削Manufacture加工、制造业Processing method加工方法Finish marks加工符号Machined surface加工面Machining allowance加工余量Gallon加仑Oiling system加油系统Clamp夹紧、夹板Clamping arrangement夹紧装置Collet夹头Value价值Phantom section假想剖面Imaginary line假想线Phantom line假想线Nibbed bolt尖头螺栓Spacing间隔、距离、位置Clearance fit间隙配合Clearance fit间隙配合Anti-friction bearing减摩轴承Reducer减速器Decelerator减速器、制动器、缓动装置Speed-reducer drive减速器传动Pressure reducing valve减压阀Shearer剪、剪床Inspector检查员Inspection检修、检查Inspection machine检修机器Diagrammatic(al) view简图Fabrication建造、制造Involute渐(伸)开线Involute gear渐开线齿轮Involute rack渐开线齿条Involute teeth渐开线齿形Involute profile渐开线齿形Involute spline渐开线花键Key diagram键、按钮Key way(seat、seating、slot)键槽Key-bolt键螺栓Key base键座Key seating键座Arrow箭头Arrowheads箭头A.C supply交流电源Alternator交流发电机Angles角Location by angle角度定位Angle valve角阀Angle bar角钢L-bar = L-beam角钢Angular deviation角偏差Edge iron角铁L-iron角铁Ream绞孔、扩孔Mixer搅拌机Step section阶梯剖视(面) Offset section阶梯视图Contact接触、接合、啮合Contact surface接触面Fastener接合件、紧固件Junction surface接合面Switch on接通Turn on接通Pitch point节点Pitch number节数Pitch line节线Pitch circle节圆Pitch radius节圆半径Diameter of pitch circle节圆直径Pitch cone节圆锥Pitch angle节锥半角Structural iron结构钢Structural steel结构钢Joint结合、连接、焊接Cutting plane截平面Metal金属Sheet metal金属板、薄钢板Lattin = Latten金属薄板、黄铜片Coat of metal金属镀层Cramping arrangement紧固装置Tight fit紧配合Method of approximation近似法Fine turning精车Degree of accuracy精度Accuracy精度、准确性Measure of precision精确度Precision measure精确度量Press精压、冲压、挤压Neck颈Net weight净重Bottom clearance径向间隙Radial section径向剖面Radial ball bearing径向球轴承Diameter run-out径向跳动Angular bearing径向止推轴承Journal bearing径向轴承Journal bearing径向轴承Interference fit静配合Interference fit静配合Broken view局部视图Local view局部视图Rectangle矩形、长方形Square矩形、丁字尺、直角尺Straight thread矩形螺纹Distance距离、路程Saw锯Buttress (screw) thread锯齿螺纹Insulating material绝缘材料Caliper卡尺、卡钳Gauge caliper卡规、量规Card卡片Switch开关Switch key开关Split bolt开口螺栓Cotter pin开口销Split cotter开口销Hidden outline看不见的轮廓线Shear(ing) strength抗剪强度Tensile strength抗拉强度Bending strength抗弯强度Compressive strength抗压强度Department科、处、系、车间Cowl壳、套、盖Dismountable可拆卸的Adjustable cam可调凸轮Malleable iron可锻铁、韧性铁Malleable cast iron可锻铸铁Visible outline可见轮廓线Visible line可见线、外形(轮廓)线Reversing valve可逆阀Developable surface可展曲面Gram克Degree scale刻度Air valve空气阀Hollow spindle空心轴Hole孔Diameter of aperture孔径Push button控制按钮Control valve控制阀Control switch控制开关Switch desk控制台Control cam控制凸轮Breadth宽度、厚度Broaching扩孔机、拉床、拉削Broacher拉床、绞孔机Pull rod拉杆Tension bar拉杆Tension bolt拉紧螺栓Tension spring拉力弹簧Tension stress拉应力Blue paper蓝晒纸Blue printing paper蓝晒纸Blue print drawing蓝图Blue print蓝图Blueprint蓝图、设计图Rib肋Accumulated error累积误差Hard drawn冷拔Cooler冷冻机Shrink fit冷缩配合Hard rolled冷轧的Cold-rolled steel冷轧钢Centimeter厘米、公分Millimeter = millimeter厘米、公厘Clutch离合器、联轴器Spun casting离心铸造Inner face里面Force力Moment of couple力)偶矩Strength力、强度Moment of force力矩Moment力矩、弯矩Moment curve力矩曲线、力矩图Cubic root立方根Cube立方形体、正六面体Vertical view立面视图Elevation view立视图、正视图Stanchion立柱Line assembly连杆装配图Link连接环、链节Fastening连接件、紧固件Binding bolt连接螺栓Continuous weld连续焊Connection联接Coupling联轴节Chain链Chain drive链传动Chain link链节Sprocket链轮Sprocket gear(wheel)链轮Chain wheel链轮Quantity量、数量Measure量度、大小、尺寸Gage = gauge量规Measuring device量具Measuring tools量具Zero零Unit零(部)件、组合件、单位Zero-line零基准线Part零件、部件Component零件、构件Dash number零件编号Name of part零件名称Job sheet零件图纸Hex nut六角螺母Hexagon jam nut六角锁紧螺母Hexagonal head bolt六角头螺栓Castle circular nut六角圆螺母Thermit welding铝热焊Wheel轮Hub轮 、中心、衬套Pitch of teeth轮)齿矩Spoke轮辐Delineation轮廓、草图Outline section轮廓剖视Skeleton line轮廓线Collar rim轮缘Mechanical bolt螺钉Nut bolt螺钉、带帽螺栓Screw connection螺钉联接Screw rod螺杆Threaded rod螺杆Screw pitch螺距Thread pitch螺距Pitch螺距、节距Screw eye螺孔Threaded hole螺孔Nut wrench螺帽扳手Nut螺母Thread bolt螺栓Bolt螺栓、插销Bolted joints螺栓连接Bolt joint螺栓连接Bolt-on connection螺栓联接Screw-thread螺丝Screw螺丝、螺旋Screw-die螺丝模Vanishing of thread螺尾Spiral burr螺纹Number of turns螺纹)圈数Number of stars螺纹)头数Thread螺纹、螺丝Width of thread螺纹齿宽Thread symbol螺纹符号Thread gage螺纹规Thread angle螺纹角Thread connection螺纹连接Depth of thread螺纹深度Thread diameter螺纹外径(直径)Root of thread螺纹牙底Pitch diameter of screw thread螺纹中径Spiral gear螺旋齿轮Helical gear螺旋齿轮、圆柱斜齿轮Screw drive螺旋传动Helical spring螺旋弹簧Screw-down stop valve螺旋阀Spiral angle螺旋角Jack-screw螺旋千斤顶Helical bevel gear螺旋伞齿轮Lead angle螺旋升角Spiral-tooth bevel gear螺旋圆锥齿轮Spiral bevel wheel螺旋圆锥齿轮Spiral movement螺旋运动Horse-power马力、功率yard码Countersunk head埋头Countersink埋头孔、沉孔Counterbore埋头孔、锥口孔Countersunk bolt埋头螺钉Full fillet weld满角焊接Full load满载(荷)、全负载(荷) Rivet铆钉Riveted joint铆钉连接Rivet connection铆钉联接Revolution per minute每分钟转数Thread per inch每英寸螺纹扣数Gate门、阀门Meter米、公尺Meter per second米/秒Meter-kilogram米-公斤Meter-kilogram-second米公斤秒Metric system米制、公制Seal密封、焊接Sealing ring密封环Packing gland密封压盖Sealing cement密封油膏(粘结剂) Crown gear冕状齿轮Surface面、表面Face面、正面、表面、端面Face plate面板Description描述、作图、绘制Trace描图Tracing machine描图机Tracer描图员Tracing paper描图纸Nomenclature名称、术语Nominal size名义尺寸Nominal inside diameter名义内径Designation strip铭牌Name plate铭牌Moulding board模板Die模具、扳牙Modulo模数、模量Module模数、系数Model模型、样板、仿造Mould模型、样板、曲线板Stamper模子、冲模Chafe摩擦、磨损Friction drive摩擦传动Sliding angle摩擦角Sheave of friction摩擦轮Adhesion wheel摩擦轮Mill磨、铣Grinding machine磨床Polishing磨光、擦亮Wear磨损Grind磨削、抛光Dusting cloth抹灰布、撒粉布End末端、头Ink墨水、油墨China ink墨汁Generation line母线Wooden former木模Eye sketch目测图Incenter内(切圆)心Fillet内)圆角、填角、嵌条Development inner port内表面展开图Interior view内部(的)视图Internal gear内齿轮Inside diameter内径Dial inside micrometer内径千分表Internal caliper内卡钳Hexagon socket head内六角头Female screw内螺纹、阴螺纹Internal combustion engine内燃机Internal fillet内圆角Fillet radius内圆角半径Wear bushing耐磨衬套Wear-resistant metal耐磨金属Bending挠曲Flexible gear-type coupling挠性齿轮联轴节Flexible disk coupling挠性盘形联轴节Flexible shaft挠性轴Nylon尼龙Counterclockwise逆时针方向Knob捏手、按钮Engagement啮合Mate啮合部分Meshing gear啮合齿轮Addendum of mating gear啮合齿轮的齿顶高Contact depth of tooth啮合高度Contact angle啮合角Depth of engagement啮合深度Nickel镍Nichrome镍铬合金Screw off拧开Screw on拧上Torsion spring扭力弹簧Torsion扭转、扭Nomogram诺模图、图算、图释Coil spring盘簧Disc seal盘形密封Politure抛光、光泽Burnishing抛光、磨光Fit配合Tolerance on fit配合公差Tolerance配合公差、容差Class of fit配合级别Mating member配合件Spray lacquer喷漆Spray喷射、喷涂Spray coating喷涂Nozzle喷嘴、喷口Approval批准、许可Cup packing皮碗密封Fatigue疲劳Match匹配、配合Plate片、板、钢板Leaf spring片簧Derivation偏差Deviation偏差、偏移Eccentricity偏心距Run out偏心率、径向跳动Eccentric shaft偏心轴Butt end平端、端面Square meter平方米Flat key平键Stock key平键Average deviation平均偏差Average平均数Average error平均误差Average value平均值Mean value平均值Flat surface平面Plane surface平面Face gear平面齿轮Rack circle平面齿轮、扇形齿轮Face cam平面凸轮Plan view平面图Platform平台Flat head screw平头螺钉Groove weld坡口焊接Split bearing剖分轴承Plane section剖面Profile剖面、侧面、侧面图Section剖面、截面、断面Hatch剖面线Section line剖面线Cutting plane symbols剖切(迹线)平面符号Section view剖视图Sectional view剖视图Cut-away view剖视图Sectional assembly剖视装配图Atarting起动、开动Starter起动器Crane起重机Air drive气动Gas welding气焊Autogenous welding气焊、乙炔焊Cylinder cover汽缸盖Cylinder base汽缸座Gasoline engine汽油(内燃)机Thousand千Dial gauge千分表Kilowatt千伏Hosting jack千斤顶Kilovolt千瓦Sweat钎焊、熔焊Pencil-work铅笔图Front view前视图、主视图Tong钳子、夹具Sunk key嵌入键Intensity强度Switch off切断Bronze青铜Bell metal青铜合金、种铜、铜锡合金Light running fit轻传动配合Underload轻负载Light alloy轻合金Light metal轻金属Light series轻系列Light-duty轻型Light press fit轻压配合Bevel倾斜的、斜角的、斜面Ball end球端Globe valve球阀、截止阀Ductile iron球墨铸铁Ball and socket bearing球窝轴承Sphere球形、球体Ball bearing球轴承Crank曲柄、曲轴Curvature曲率Curvature radius曲率半径Curve ruler曲线板French curve曲线板Bent axle曲轴Crankshaft曲轴Yield point屈服点Finish all over全部加工Overall length全长Overall dimension全尺寸Whole (tooth) depth全齿高、齿高Screw bolt全螺纹螺栓Overall全面的、全部的Full section全剖视Full section view全剖视图Heat–treatment热处理Heat treatment department热处理车间Hot-work热加工Hot-rolled steel热轧钢Angular gear斜齿轮Double helical spur gear人字正齿轮Herringbone gear人字齿轮Twin helical gear人字齿轮Double helical pinion人字小齿轮Malleable casting韧铸件Daylight lamp日光灯Date日期、年代Allowance容差、加工余量Vessel容器Tank容器、罐Allowance error容许误差Permissible error容许误差Allowable load容许载荷Mild steel软钢、冷轧钢Malleable steel软钢、展性钢Hose软管Flexible pipe软管Hose coupling软管接头Acute angle锐角Lubrication润滑Lubricator润滑器Lubricant pump润滑油泵Lubricating ring润滑油环Plug塞、栓Triangle三角(形、板、铁) Set square三角板Burr三角矬、毛刺、去毛刺Triangular scale三棱尺Three-view drawing三视图Three-way union三通管接头Triple thread三头螺纹Three-phase alternator三相(交流)发电机Bevel wheel伞齿轮、斜摩擦齿轮Miter wheel伞齿轮、圆锥齿轮Sand cloth砂布Glasscloth砂布、玻璃布Grinding wheel砂轮Moulding box砂箱Sand-box砂箱Sand casting砂型铸造Emery paper砂纸Sand paper砂纸Coil蛇形管、螺管、线圈Equipment设备Plot设计、绘图Design设计、计划Design layout设计草图、初步设计图Design activity设计机关(组织)Draft department设计科Design drawing设计图Designer设计员、制图者、设计师Design assembly设计装配图Centigrade temperature摄氏温度Depth深度、高度Depth dial gauge深度千分表Nitrogen case hardening渗氮硬化Carburizing渗碳Carburized layer渗碳层Lift升降机、电梯Production生产、制造Manucturing machine生产机械Rope绳、索Working drawing施工图、制造图、工作图Decimal scale十进位比例尺Decimal number十进位数Decimal fraction system十进小数制Decade十进制、十进位Decimal fraction十进制分数Cross head十字头Asbestos packing石棉填料True length实长Full line实线Actual line实线Continuous line实线Real line实线Solid line实线Laboratory实验室、研究室Useful load实用负载、有效负载Useful life使用期限、有效期Schematic drawing (drawing)示意图Diagram示意图、图解Pattern式样、模型View视图Arrangement of views视图的布置Test试验、检验Handle手柄Hand book手册Manual手册、说明书Pocketbook手册、袖珍本Guide手册、指南Handbook手册、指南Master making手工Hand-made手工制造的Manual control手控Hand-operated手控的Hand wheel手轮Book书、册Output power输出功率Input power输入功率Conveyer输送机、传送机Knobbled iron熟铁Wrought iron熟铁、锻铁Technical terms术语、技术名词Number数、号(码)、缩写No. Data数据、资料Magnitude数量、长度、大小Numeral数字Double dots line双点划线Double-screw bolt双头螺栓Double thread双头螺柱Stud双头螺柱Stud bolt双头螺柱Twin worm双头蜗杆Bilateral tolerance双向公差Water-pump水泵、抽水机Water pipe水管Water wheel水轮Horizontal datum plane水平基准面Level surface水平面Horizontal projection水平投影Horizontal projection plane水平投影面Horizontal line水平线Horizontal axis水平轴Water tank水箱Hydraulic press水压机Water-press水压机Clockwise顺时针方向Clockwise direction顺时针方向Instruction说明、指示Instruction book说明书Guide screw丝杠Quadrangle四边形、方形Quarter四分之一Loose fit松配合Bill of materials材料单Speed速度Velocity速度Speedmeter速度计Plastic material塑料Plastics塑料Contracted drawing缩图Abbreviation缩写Lock锁\阀Lock screw锁紧螺钉Station台Table台、图表、目录Table borer台式镗床Carbon steel碳素钢Borer镗床Boring machine镗床Boring mill镗床Boring spindle镗杆Boring镗孔Bore face machine镗孔 端面加工机床Sleeve套管、空心轴、轴(衬)套Clevis bolt套环(插销)螺栓Muff套筒、轴套Key wrench套筒扳手Extra fine(screw)特细牙螺纹Property特性、特征、性能Feature特征、特性、性能Trapezium梯形Trapezoid梯形Acme thread梯形螺纹(29°) Rendered drawing提供图样Volume体积Gasket material填料Stuffing填料Filler填料、垫片Packing ring填料环Loaded rubber填料橡胶Iron铁Plate iron铁板、钢板Molten iron铁水Stop停止Synchronous alternator同步(交流)发电机Concentricity同心度Copper铜Braze铜焊Brazing铜焊Monel metal铜镍合金Brazing metal铜锌合金Bearing brass铜轴衬Projection投影Plane of projection投影面Lens透镜、镜片Cam凸轮Cam wheel凸轮Cam design凸轮设计Cam shaft凸轮轴Drum cam凸轮轴Convex凸面Graph图(表、解、形)、曲线图Graphical chart图表Chart图表、计算图Changes on drawing图的更改Drawing pin图钉Thumb tack图钉Tack图钉、销钉Drawing number图号Diagram drawing图解图、结构图Legend图例、图表符号、代号、说明书Conventional sign图例、习惯符号Graphic图示、制图学Drawing control图样管理Drawing size图纸尺寸Free-hand sketch徒手草图Free hand drawing徒手图Push fit推入配合Dozer推土机Pusher-dozer推土机Run-out of thread退刀槽、螺尾Anneal退火Backstop托架、棘爪Bracket托架、支柱Tractor拖拉机Shoveling machine挖土机Watt瓦特Watt-hour瓦特一小时View and size外表和尺寸Exterior外表面External外部Coat外层、涂镀层External diameter外径Outside diameter外径Shell外壳、轴衬、罩Dimensions chart外廓尺寸图External thread外螺纹Outer face外面Outline外形、轮廓、略图、剖面Contour外形、轮廓线External dimension外形尺寸Outer dimension外形尺寸、轮廓尺寸Outline assembly drawing外形装配图Edge round外圆角External fillet外圆角Knee bend弯管Curve弯曲、曲线、曲线板Bender弯曲机Bending moment弯曲矩Bend弯头、接头Knee弯头、升降台Finish完工、加工、磨光Universal dividing head万能分度头Universal contact万能接头Cardan shaft万向轴Micrometer微米、千分卡尺Miniature bearing微型轴承Microinch微英寸Tail尾部、末端Tail end尾端Position位置、方位Alternate-position views位置改变的视图Positional tolerance位置偏差Temperature温度Turbine涡轮机、透平机Endless screw蜗杆Worm screw蜗杆Worm蜗杆、螺纹Worm and (worm) gear蜗杆与蜗轮Worm shaft蜗杆轴Worm gear蜗轮Worm wheel蜗轮Worm-wheel drive蜗轮传动Worm drive蜗轮传动Worm deduction gear蜗轮减速器Seamless flexible metallic tubing无缝弹性金属管Seamless pipe无缝钢管Seamless steel tube无缝钢管Object物体Material物质、材料Error误差Soldering锡焊、钎焊Conventional break习惯断裂画法Conventional diagram习惯画法Conventional practice习惯画法Conventional intersection习惯交线(画法)Milling铣削、研磨Series系列、串联System系统Fine thread series细螺纹级(系列)Detail细目、细节、详图、零件Serrated nut细牙螺母Lower limit下限Fibre material纤维材料Microfilm显微胶片Line线Weights of lines线的粗度Line weight线的粗细程度Line of thickness线型的粗度Limit switch限位开关Relative position相对位置Relative error相对误差Adjacent-part lines相邻零件线Similar views相似的视图Casing箱、盒、壳Case箱、盒、容器、表面Detail drawing详图、零件工作图Detail specification详细规格Angular contact ball bearing向心止推球轴承Quadrant designation象限名称Eraser橡皮Rubber橡皮、磨光机Rubber ring橡皮环Pin销Small size小尺寸Pinion小齿轮Pinion shaft小齿轮轴Eyelet = eyelet-hole小孔Hour小时Decimal小数的、十进位小数的Bevel pinion小圆锥齿轮Minor diameter小直径、螺纹内径Efficiency效率、性能Revision校订、修改Check test校核试验Check drawings校图Check校验、校核、制动装置。
