SF15系列柔性薄膜压力传感器规格书
First Sensor MLH系列金属压力传感器产品说明书
MLH SeriesAll Metal Pressure SensorsDESCRIPTIONMLH Series pressure sensors combine Application Specific Integrated Circuit (ASIC) technology with a media isolated, metal diaphragm design. This digitally compensated sensor offers value and performance, making it the ideal pressure sensing solution for demanding applications. Fully temperature compensated, calibrated and amplified, the MLH is available in 50 psi to 8,000 psi pressure ranges.MLH sensors deliver ±0.25% full scale accuracy Best Fit Straight Line (BFSL) and as low as 2% total error over a temperature range of -40 °C to 125 °C [-40 °F to 257 °F]. Industry standard connectors and process ports are offered for enhanced reliability and user flexibility.The MLH has seven standard output options:A. 0.5 Vdc to 4.5 Vdc ratiometric output from 5 Vdc excitationB. 4 mA to 20 mA current from 9.5 Vdc to 30 Vdc excitationC. 1.0 Vdc to 6.0 Vdc regulated output from 8 Vdc to30 Vdc excitationD. 0.25 Vdc to 10.25 Vdc regulated output from 14 Vdc to30 Vdc excitationE. 0.5 Vdc to 4.5 Vdc regulated output from 7 Vdc to30 Vdc excitationF. 0 mV to 50 mV from 5 Vdc excitationG. 1 Vdc to 5 Vdc output from 8 Vdc to 30 Vdc excitationFEATURES• All metal wetted parts for use in wide variety of fluidapplications• No internal elastomeric seals mean no o-ring compatibilityissues• Amplified outputs eliminate cost of external amplifiers • Input reverse voltage and output short circuit protectionsguard against mis-wiring• Less than 2 ms response time provides accurate, highspeed measurement• Rated IP65 or better for protection from harsh environmentsPOTENTIAL APPLICATIONS • Compressors• Refrigeration and HVAC/R • General industrial • General hydraulics• Multiple transportation applications including braking andalternate fuels • MedicalMLH Series2 /sensingTable 1. Pressure Range Specifications 1(At 25 °C [77 °F] and at rated excitation unless otherwise specified.)psiPressure 50 100 150 200 250 300 500 1000 2000 3000 5000 8000 Proof pressure 150 300 450 600 750 900 1500 2000 4000 6000 7500 12000 Burst pressure 500 1000 1500 2000 2500 3000 5000 10000 20000 30000 30000 30000barPressure 6 10 16 25 40 60 100 160 250 350 500 550 Proof pressure 18 30 48 75 80 120 200 320 500 700 750 825 Burst pressure60 100 160 250 400 600 1000 1600 2068 2068 2068 2068Note:1. Comparable metric units follow same proof and burst specifications.Table 2. Physical and Environmental SpecificationsParameter Characteristic Material in contact with media stainless steel 300 series and Haynes 214 alloy, Hastelloy C22 sensor available (contact factory) Housing material black plastic – Amodel AS-4133 HS – PPA Weight 57.0 g [2.0 oz] (typical for Packard MetriPak and 1/8 NPT port) Shock 100 g peak [11 ms] Vibration MIL-STD-810C, Figure 514.2-5, Curve AK, Table 514.2-V, Random Vibration Test [overall g rms =20.7 min.]Compensated, operating and storage temperature range-40 °C to 125 °C [-40 °F to 257 °F]Table 3. Electrical Specifications (At 25 °C [77 °F] and at rated excitation unless otherwise specified.) Parameter Ratiometric(A)1 Current (B) Regulated(C) Regulated(D) Regulated(E) mV (F) Regulated(G) Zero output 0.5 Vdc4.0 mA1.0 Vdc0.25 Vdc0.5 Vdc0 ±2.5 mV1.0 VdcFull scale span (FSS) 4.0 Vdc (0.5 to 4.5 Vdc) 16 mA (4 to 20 mA) 5.0 Vdc (1.0 to 6.0 Vdc) 10.0 Vdc (0.25 to 10.25 Vdc) 4.0 Vdc (0.5 to4.5 Vdc) 50 mV (0 to 50 mV) 4.0 Vdc (1.0 to 5.0 Vdc)Excitation 5 Vdc (6.0 Vdc max.) 9.5 Vdc to 30.0 Vdc 8.0 Vdc to 30.0 Vdc 14.0 Vdc to 30.0 Vdc 7.0 Vdc to 30.0 Vdc5.0 Vdc (6.0 Vdc max.)8.0 Vdc to 30.0 VdcSupply current 4.0 mA typical (8 mA max.)N/A 5.0 mA typical (17 mA max.)5.0 mA typical (17 mA max.)5.0 mA typical (17 mA max.) 8.0 mA typical (17 mA max.) 5.0 mA typical (17 mA max.)Source (nominal) 1.0 mA N/A 1.0 mA 1.0 mA 1.0 mA N/A 1.0 mA Sink(nominal) 1.0 mA at zero outputN/A 1.0 mA at zero output1.0 mA at zero output1.0 mA at zero outputN/A 1.0 mA at zero outputSupplyrejection ratio 90 db 90 db 90 db 90 db 90 db N/A90 dbOutput impedance25 Ω max.N/A25 Ω max.25 Ω max.25 Ω max.2000 Ω 25 Ω max.Note:1. Maintains ratiometricity at 5 ±0.25 Vdc excitation. Product can tolerate 6 Vdc excitation without damage.All Metal Pressure SensorsHoneywell Sensing and Control 3Table 4. Performance Specifications (At 25 °C [77 °F] and at rated excitation unless otherwise specified.)Parameter Characteristic Response time <2 msAccuracy 1:>100 psi<100 psi±0.25% FSS ±0.50% FSS Total error band 2:Gage:<300 psig>300 psigSeal gage:>300 psisSeal gage without L, M, P termination:100 psis to 299 psis (-40 °C to 85 °C [-40 °F to 185 °F])100 psis to 299 psis (>85 °C to 125 °C [>185 °F to 257 °F])>300 psis (-40 °C to 125 °C [-40 °F to 257 °F])Seal gage with L, M, P termination:100 psis to 299 psis (-40 °C to 65 °C [-40 °F to 149 °F])100 psis to 299 psis (>65 °C to 125 °C [>149 °F to 257 °F])>300 psis (-40 °C to 65 °C [-40 °F to 149 °F])>300 psis (>65 °C to 125 °C [>149 °F to 257 °F])±3% FSS ±2% FSS ±2% FSS ±3% FSS ±10% FSS ±2% FSS ±10% FSS ±15% FSS ±5% FSS ±15% FSS Notes:1. Includes pressure non-linearity (BFSL), pressure hysteresis and non-repeatability. Thermal errors are not included.2. Includes zero error, span error, thermal effect on zero, thermal effect on span, thermal hysteresis, pressure-non-linearity,pressure hysteresis and non-repeatability.1Sensing and Control Honeywell1985 Douglas Drive North Golden Valley, MN 55422 /sensing 008118-5-EN IL50 GLO Printed in USAJanuary 2009Copyright © 2009. Honeywell International Inc. All rights reserved.Figure 2. Mounting Dimensions (For reference only. mm/(in).)Pin and Wire Codes (Option B – Packard)Pin Voltage Current a + Excitation + Excitation b Output - Excitation c Common No ConnectionA variety of pressure ports and electricaltermination connection options are available. Refer to the “How to Order” on previous page for possible combinations. Contact your Honeywell representative for details.WARNINGMISUSE OF DOCUMENTATION• The information presented in this product sheet is forreference only. Do not use this document as a product installation guide.• Complete installation, operation, and maintenanceinformation is provided in the instructions supplied with each product.Failure to comply with these instructions could result in death or serious injury.WARRANTY/REMEDYHoneywell warrants goods of its manufacture as being free of defective materials and faulty workmanship. Honeywell’s standard product warranty applies unless agreed to otherwise by Honeywell in writing; please refer to your order acknowledgement or consult your local sales office for specific warranty details. If warranted goods are returned to Honeywell during the period of coverage, Honeywell will repair or replace, at its option, without charge those items it finds defective. Theforegoing is buyer’s sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. In no event shall Honeywell be liable for consequential, special, or indirect damages.While we provide application assistance personally,through our literature and the Honeywell web site, it is up to the customer to determine the suitability of the product in the application.Specifications may change without notice. Theinformation we supply is believed to be accurate and reliable as of this printing. However, we assume no responsibility for its use.WARNINGPERSONAL INJURYDO NOT USE these products as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.Failure to comply with these instructions could result in death or serious injury.SALES AND SERVICEHoneywell serves its customers through a worldwide network of sales offices, representatives and distributors. For application assistance, current specifications, pricing or name of the nearest Authorized Distributor, contact your local sales office or:E-mail:*********************Internet: /sensingPhone and Fax: Asia Pacific +65 6355-2828 +65 6445-3033 Fax Europe +44 (0) 1698 481481 +44 (0) 1698 481676 Fax Latin America +1-305-805-8188 +1-305-883-8257 F ax USA/Canada +1-800-537-6945 +1-815-235-6847 +1-815-235-6545 F ax。
fsr压力传感器技术手册
fsr压力传感器技术手册FSR 压力传感器（Force Sensing Resistor，力敏电阻）是一种具有出色性能和广泛应用的压力传感器。
它通过测量电阻值的变化来感应外界的压力变化，从而实现对压力的测量。
以下是一份FSR 压力传感器技术手册的大致内容：一、FSR 压力传感器简介1. 工作原理：FSR 压力传感器是一种基于压阻效应的传感器，当受到压力作用时，其电阻值会发生明显变化。
通过测量这种变化，可以获得压力的大小。
2. 特点：FSR 压力传感器具有高灵敏度、高线性度、良好的重复性和稳定性，适用于各种压力测量场景。
二、FSR 压力传感器的分类1. 按结构分类：FSR 压力传感器可分为薄膜型、硅膜型、陶瓷型等不同类型。
2. 按输出信号分类：FSR 压力传感器可分为模拟输出型和数字输出型。
三、FSR 压力传感器的主要性能指标1. 灵敏度：FSR 压力传感器的灵敏度指受压力变化引起的电阻变化率。
灵敏度越高，压力传感器的测量范围越大。
2. 线性度：FSR 压力传感器的线性度指传感器输出与输入压力之间的线性关系。
线性度越好，传感器的测量精度越高。
3. 精度：FSR 压力传感器的精度指传感器测量结果与真实值之间的偏差。
精度越高，传感器的可靠性越好。
4. 响应时间：FSR 压力传感器的响应时间指传感器输出信号达到90% 峰值的时间。
响应时间越短，传感器对压力变化的反应速度越快。
5. 工作温度范围：FSR 压力传感器的工作温度范围指传感器在正常工作条件下能稳定运行的温度范围。
工作温度范围越宽，传感器的适应性越强。
四、FSR 压力传感器的应用领域1. 电子设备：FSR 压力传感器广泛应用于电子设备中，如智能手机、平板电脑、笔记本等，实现对触摸屏、按键等部件的压力检测。
2. 汽车电子：FSR 压力传感器在汽车电子领域中的应用日益广泛，如汽车安全气囊、座椅调节器、车窗升降等系统。
3. 工业自动化：FSR 压力传感器在工业自动化领域中具有广泛应用，如压力控制系统、机器人抓取装置等。
FESTO SPAW压力传感器说明书
Pressure sensors SPAW with display2d Internet: /catalogue/...Subject to change – 2022/10Pressure sensors SPAW with displayKey featuresAt a glance[1] 9 pressure ranges from–1 … +1 bar to 0 … +100 bar [2] Protection class IP67[3] 320° rotatable display[4] 1% accuracy, 0.15% repetitionaccuracy[5] Temperature of medium–20 … 85°C [6] Materials in contact with media:CrNiMo: 316L, from a measuring range of 10 bar the membrane consists of 13-8-PH[7] 4-digit LED display, easy to read,robust [8] Display– bar – MPa – kPa – psi – kgf/cm²[9] Simple operation, protected byPIN code[10] 320° rotatable housing [11] Electrical connection M12[12] G1/4 female thread or G1/2 malethreadProduct descriptionMain applicationsThe SPAW is an extremely robust pressure sensor with display used for measuring media pressures in 9 measuring ranges from as small as –1 ... 1 bar up to 0 ... 100 bar. It can measure all media which do not react aggressively with the stainless steel measuring cell and stainless steel housing. The switching outputs can be set quickly and easily using three but-tons. The high-quality 14-segment LED display can be rotated 320° and theorientation of the text can be rotated 180°. This ensures that the display is easily readable in every installation position. Different standard designs are available, e.g.:• G1/4 female thread or G1/2 male thread• 2 x PNP or 2 x NPN • 4 ... 20 mA or 0 ... 10 VThe pressure sensor SPAW is suitable for standard pressure measurement at an increased mechanical load. It canbe used in high pressure pneumatic systems and to monitor the pressure of liquid media (e.g. coolant/cooling circuits, etc.)Pressure sensors SPAW with display Key features3 2022/10 – Subject to change d Internet: /catalogue/...Pressure sensors SPAW with displayPeripherals overview4d Internet: /catalogue/...Subject to change – 2022/10Pressure sensors SPAW with displayType codes52022/10 – Subject to change d Internet: /catalogue/...6d Internet: /catalogue/...Subject to change – 2022/10Pressure sensors SPAW with displayData sheetFunctione.g. switching output 2PVe.g. switching output 2NA• Pressure measuring range up to 100 bar• For liquid media •For gaseous media1)For information about the area of use, see the EC declaration of conformity at: /catalogue/SPAW d Support/Downloads.If the devices are subject to usage restrictions in residential, commercial or light-industrial environments, further measures for the reduction of the emitted interference may be necessary.2)Note media resistance of parts that come into contact with the mediaPressure sensors SPAW with display Data sheet7 2022/10 – Subject to change d Internet: /catalogue/...Pressure sensors SPAW with displayData sheet1)CrNiMo group: Measuring range up to 6 bar 316L, from a measuring range of 10 bar the membrane consists of 13-8-PH2)Corrosion resistance class CRC 4 to Festo standard FN 940070Particularly high corrosion stress. Outdoor exposure under extreme corrosive conditions. Parts exposed to aggressive media, e.g. in the chemical or food industries. Such applications may need to be safeguarded by means of special testing (d also FN 940082), using appropriate media.8d Internet: /catalogue/...Subject to change – 2022/10Pressure sensors SPAW with display Data sheet9 2022/10 – Subject to change d Internet: /catalogue/...Pressure sensors SPAW with displayData sheet10d Internet: /catalogue/...Subject to change – 2022/10Pressure sensors SPAW with display Data sheet11 2022/10 – Subject to change d Internet: /catalogue/...Pressure sensors SPAW with displayAccessories1)Temperature-dependent operating pressure –0.95 ... 14 bar12d Internet: /catalogue/...Subject to change – 2022/10。
杰尼斯尔压力传感器产品说明书
THIN FILM 4-20 MA OUTPUTTransducers are Shown with PS-4 Snubbers, sold separately15.75(.62)57.15(2.25)27.17(1.07)WIRING1 + RED2– BKPX205 Cable StylePX215 Connector StyleDimensions Shown in mm (in.)CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. Manchester, England0800-488-488GERMANY www.omega.deDeckenpfronn, Germany************FRANCE www.omega.frGuyancourt, France088-466-342BENELUX www.omega.nl Amstelveen, NL 0800-099-33-44UNITED STATES 1-800-TC-OMEGA Stamford, CT.CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic596-311-899TemperatureCalibrators, Connectors, General Test and MeasurementInstruments, Glass Bulb Thermometers, Handheld Instruments for Temperature Measurement, Ice Point References,Indicating Labels, Crayons, Cements and Lacquers, Infrared Temperature Measurement Instruments, Recorders Relative Humidity Measurement Instruments, RTD Probes, Elements and Assemblies, Temperature & Process Meters, Timers and Counters, Temperature and Process Controllers and Power Switching Devices, Thermistor Elements, Probes andAssemblies,Thermocouples Thermowells and Head and Well Assemblies, Transmitters, WirePressure, Strain and ForceDisplacement Transducers, Dynamic Measurement Force Sensors, Instrumentation for Pressure and Strain Measurements, Load Cells, Pressure Gauges, PressureReference Section, Pressure Switches, Pressure Transducers, Proximity Transducers, Regulators,Strain Gages, Torque Transducers, ValvespH and ConductivityConductivity Instrumentation, Dissolved OxygenInstrumentation, Environmental Instrumentation, pH Electrodes and Instruments, Water and Soil Analysis InstrumentationHeatersBand Heaters, Cartridge Heaters, Circulation Heaters, Comfort Heaters, Controllers, Meters and SwitchingDevices, Flexible Heaters, General Test and Measurement Instruments, Heater Hook-up Wire, Heating Cable Systems, Immersion Heaters, Process Air and Duct, Heaters, Radiant Heaters, Strip Heaters, Tubular HeatersFlow and LevelAir Velocity Indicators, Doppler Flowmeters, LevelMeasurement, Magnetic Flowmeters, Mass Flowmeters,Pitot Tubes, Pumps, Rotameters, Turbine and Paddle Wheel Flowmeters, Ultrasonic Flowmeters, Valves, Variable Area Flowmeters, Vortex Shedding FlowmetersData AcquisitionAuto-Dialers and Alarm Monitoring Systems, Communication Products and Converters, Data Acquisition and Analysis Software, Data LoggersPlug-in Cards, Signal Conditioners, USB, RS232, RS485 and Parallel Port Data Acquisition Systems, Wireless Transmitters and Receivers。
压力传感器SA-1001-002规格书说明书
Spec.No.规格书编号：S0568Rev.：1.0Page：1/5深圳市信威电子有限公司版次Rev.变更内容Revision History发出日期Issue Date 制作Issue by 复核Checked by批准Approved by 1.0首版Original release2022-4-20黄哲伦/严子光1.产品简介本压力传感器是基于MEMS 技术的硅压阻式传感器，由扩散硅充油芯片和高精度的信号调理芯片组成。
芯体由316L 不锈钢膜片及壳体和硅油密封，产品外壳采用304F 不锈钢材质，该结构使之能够测量所有与316L 和304不锈钢兼容的流体介质。
外界压力作用在充油芯体上，产生的信号经过两次校准（模拟补偿+信号调理芯片处理）后，以I2C 的形式输出。
Each product has been calibrated in plant to ensure the well accuracy in different environment 每个产品都已经在工厂里进行了标定，以确保产品在各种环境中的测量精度Spec.No.规格书编号：S0568Rev.：1.0Page：2/5深圳市信威电子有限公司3.输出接口及管脚定义注：1.产品的内部电路已经在I2C 总线上放置了4.7K 的上拉电阻2.所有管脚与产品的金属外壳之间是绝缘的4.产品外形结构（单位：mm ）5.功能描述5.1.工作模式传感器的默认工作模式为：产品上电后，进入到休眠状态，仅在接收到相应的I2C 命令后才会启动一次压力和温度的测量动作，之后再次自动进入休眠状态，以节省功耗。
5.2.上电启动及休眠唤醒当电源电压小于0.2V 时，传感器处于复位状态，在电源电压以最低10V/ms 的上升速率经过1ms 的延迟后，I2C 接口处于正常状态，可以接受主机命令，在经过2.5ms 的延迟后，传感器可以进行正常的压力和温度测量。
当传感器处于休眠状态时，在接收到主机命令后的0.5ms 时间内从休眠状态进入到工作模式，详细请参Spec.No.规格书编号：S0568Rev.：1.0Page：3/5深圳市信威电子有限公司照上电时序图6.I2C 接口6.1.I2C 接口电气特性在产品内部，I2C 总线的时钟信号线和数据线已经具有4.7k 的上拉电阻6.2.I2C 通讯速率本传感器的I2C 接口可工作于标准模式（100Kbit/s ）、快速模式(400Kbit/s)、和高速模式(3.4Mbit/s)。

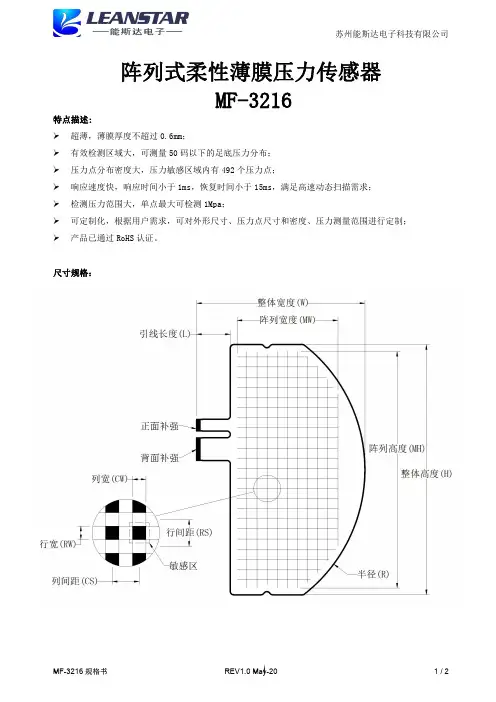

阵列式柔性薄膜压力传感器MF-3216
阵列式柔性薄膜压力传感器 SSSSSMF-3216 系列
特点描述: 超薄，薄膜厚度不超过 0.6mm； 有效检测区域大，可测量 50 码以下的足底压力分布； 压力点分布密度大，压力敏感区域内有 492 个压力点； 响应速度快，响应时间小于 1ms，恢复时间小于 15ms，满足高速动态扫描需求； 检测压力范围大，单点最大可检测 1Mpa； 可定制化，根据用户需求，可对外形尺寸、压力点尺寸和密度、压力测量范围进行定制； 产品已通过 RoHS 认证。
6 10 32 5 8.7 16 492
接口规格描述： 行接口 列接口
背面补强，接触电极在正面。间距 1.0mm，推荐采用 32P-1.0mm-上接 FFC/FPC 座。
正面补强，接触电极在背面。间距 1.0mm，推荐采用 16P-1.0mm-下接 FFC/FPC 座。
压力范围： 3216 规格书
REV1.0 May-20
1/2
苏州能斯达电子科技有限公司
整体尺寸
压力敏感区尺 寸
项目
整体宽度/W 整体高度/H 引线宽度/L
半径/R 阵列宽度/MW 阵列高度/MH
行宽/RW 行间距/RS
行数 列宽/CW 列间距/CS
列数 总压力点数
尺寸/mm
250 371 50 234.5 135.6 316
1Mpa 10Mpa
MF-3216 规格书
REV1.0 May-20
2/2
氛压传感器通用流体产品说明书
No.PS※※-OMT0006-BPressure Sensor for General FluidsPSE575/576/577Safety Instructions 2 Model Identification and How to Order 8 Names of Parts of Product and Handling Precautions 9 Mounting and Installation 10 Wiring 10 Troubleshooting 12 Specification 13 Specifications 13 Dimensions 15Safety InstructionsThese safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of "Caution", "Warning" or "Danger".They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC)*1), and other safety regulations*2).*1) ISO 4414: Pneumatic fluid power -- General rules relating to systems.ISO 4413: Hydraulic fluid power -- General rules relating to systems.IEC 60204-1: Safety of machinery -- Electrical equipment of machines .(Part 1: General requirements)ISO 10218: Manipulating industrial robots -Safety. etc.*2) High Pressure Gas Safety Law.Caution Caution indicates a hazard with a low level of risk which, if not avoided, couldresult in minor or moderate injury.Warning Warning indicates a hazard with a medium level of risk which, if not avoided,could result in death or serious injury.Danger Danger indicates a hazard with a high level of risk which, if not avoided, willresult in death or serious injury.Warning1. The compatibility of the product is the responsibility of the person who designs theequipment or decides its specifications.Since the product specified here is used under various operating conditions, its compatibility withspecific equipment must be decided by the person who designs the equipment or decides itsspecifications based on necessary analysis and test results.The expected performance and safety assurance of the equipment will be the responsibility of the person who has determined its compatibility with the product.This person should also continuously review all specifications of the product referring to its latestcatalog information, with a view to giving due consideration to any possibility of equipment failure when configuring the equipment.2. Only personnel with appropriate training should operate machinery and equipment.The product specified here may become unsafe if handled incorrectly.The assembly, operation and maintenance of machines or equipment including our products must be performed by an operator who is appropriately trained and experienced.3. Do not service or attempt to remove product and machinery/equipment until safety isconfirmed.1. The inspection and maintenance of machinery/equipment should only be performed after measuresto prevent falling or runaway of the driven objects have been confirmed.2. When the product is to be removed, confirm that the safety measures as mentioned above areimplemented and the power from any appropriate source is cut, and read and understand the specific product precautions of all relevant products carefully.3. Before machinery/equipment is restarted, take measures to prevent unexpected operation and malfunction.4. Contact SMC beforehand and take special consideration of safety measures if theproduct is to be used in any of the following conditions.1. Conditions and environments outside of the given specifications, or use outdoors or in a placeexposed to direct sunlight.2. Installation on equipment in conjunction with atomic energy, railways, air navigation, space, shipping,vehicles, military, medical treatment, combustion and recreation, or equipment in contact with food and beverages, emergency stop circuits, clutch and brake circuits in press applications, safety equipment or other applications unsuitable for the standard specifications described in the product catalog.3. An application which could have negative effects on people, property, or animals requiring specialsafety analysis.4. Use in an interlock circuit, which requires the provision of double interlock for possible failure byusing a mechanical protective function, and periodical checks to confirm proper operation.Safety InstructionsCaution1.The product is provided for use in manufacturing industries.The product herein described is basically provided for peaceful use in manufacturing industries.If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary.If anything is unclear, contact your nearest sales branch.Limited warranty and Disclaimer/Compliance Requirements The product used is subject to the following "Limited warranty and Disclaimer" and "Compliance Requirements".Read and accept them before using the product.Limited warranty and Disclaimer1. The warranty period of the product is 1 year in service or 1.5 years after the product isdelivered,whichever is first.*2)Also, the product may have specified durability, running distance or replacement parts.Please consult your nearest sales branch.2. For any failure or damage reported within the warranty period which is clearly ourresponsibility, a replacement product or necessary parts will be provided.This limited warranty applies only to our product independently, and not to any other damage incurred due to the failure of the product.3. Prior to using SMC products, please read and understand the warranty terms anddisclaimers noted in the specified catalog for the particular products.*2) Vacuum pads are excluded from this 1 year warranty.A vacuum pad is a consumable part, so it is warranted for a year after it is delivered.Also, even within the warranty period, the wear of a product due to the use of thevacuum pad or failure due to the deterioration of rubber material are not covered bythe limited warranty.Compliance Requirements1. The use of SMC products with production equipment for the manufacture of weapons ofmass destruction (WMD) or any other weapon is strictly prohibited.2. The exports of SMC products or technology from one country to another are governed bythe relevant security laws and regulation of the countries involved in the transaction. Prior to the shipment of a SMC product to another country, assure that all local rules governing that export are known and followed.CautionSMC products are not intended for use as instruments for legal metrology.Products that SMC manufactures or sells are not measurement instruments that are qualified by pattern approval tests relating to the measurement laws of each country.Therefore, SMC products cannot be used for business or certification ordained by the measurement laws of each country.Caution■After maintenance is complete, perform appropriate functional inspections and leak tests.Stop operation if the equipment does not function properly or there is a leakage of fluid.When leakage occurs from parts other than the piping, the product might be faulty.Disconnect the power supply and stop the fluid supply.Do not apply fluid under leaking conditions.Safety cannot be assured in the case of unexpected malfunction.■Use within the specified operating pressure.Otherwise it can cause damage to the Pressure Sensor or inability to measure correctly.If fluid is supplied at a pressure exceeding the proof pressure, the ceramic diaphragm will be damaged. A significantly damaged diaphragm will result in external leakage. In addition, the power supply is short circuited depending on the applied fluid. Please use a power supply which includes short circuit protection.■NOTE○Follow the instructions given below when designing, selecting and handling the product.●The instructions on design and selection (installation, wiring, environment, adjustment,operation, maintenance, etc.) described below must also be followed.*Product specifications∙Use the specified voltage.Otherwise failure or malfunction can result.∙Applicable fluid is a fluid that does not corrode C3604 + electroless nickel plated, AI203 (aluminum oxide) and FKM.Do not use a fluid containing chemicals, synthetic oils including organic solvent, salt and corrosive gases.Otherwise, damage to the product and malfunction can result.Check the details of the specifications before using.∙Reserve a space for maintenance.Allow sufficient space for maintenance when designing the system.∙A ceramic diaphragm type pressure sensor is used in this product. The ceramic diaphragm can be damaged by overpressure from hydraulic shock, which can be generated when condensate in the fluid collides with the sensor during pressure fluctuation. This is also known as "water hammer".To mitigate hydraulic shock, it is recommended to insert an orifice between the fluid and the sensor. A gas pocket also needs to be between the orifice and the sensor to cushion the shock pulse. The sensor would then need to be located above the orifice with the orifice mounted vertically so that no fluid gets between the orifice and sensor.Some recommended and NOT recommended examples are shown in the following figure. PartnumbersZS-31-X175 or X188 are applicable orifices (called throttles in product literature).●Product handling*Installation∙Follow the specified tightening torque.Excessive tightening torque can break the Pressure Sensor.Insufficient tightening torque can displace the Pressure Sensor from the original position or loosen the mounting∙When piping, apply a spanner vertically to the piping section for the sensor.Applying the wrench in other position can break the Pressure Sensor∙Be sure to ground terminal FG when using a commercially available switch-mode power supply.∙Do not drop, hit or apply shock to the Pressure Sensor.Otherwise damage to the internal parts can result, causing malfunction.∙Do not pull the lead wire forcefully, not lift the product by pulling the lead wire. (Tensile force 35N or less) Hold the body when handling to avoid the damage of the Pressure Sensor lead to cause the failure andmalfunction.∙For piping of the Pressure Sensor, hold the piping with a spanner on the metal part of the piping(Piping attachment).Holding other part with spanner leads to damage the Pressure Sensor.∙Eliminate any dust left in the piping by air blow before connecting the piping to the product.Otherwise it can cause damage or malfunction.∙Do not insert metal wires or other foreign matter into the pressure measurement port.It can damage the Pressure Sensor causing failure or malfunction.*Wiring∙Do not pull the lead wires.In particular, never lift a Pressure Sensor equipped with fitting and piping by holding the lead wires.∙Avoid repeatedly bending or stretching the lead wire, or placing heavy load on them.Repetitive bending stress or tensile stress can cause the sheath of the wire to peel off, or breakage of the wire.If the lead wire can move, fix it near the body of the product.The recommended bend radius of the lead wire is 6 times the outside diameter of the sheath, or 33 times the outside diameter of the insulation material, whichever is larger.Replace the damaged lead wire with a new one.∙Wire correctly.Incorrect wiring can break the Pressure Sensor.∙Do not perform wiring while the power is on.Otherwise damage to the internal parts can result, causing malfunction.∙Do not route wires and cables together with power or high voltage cables.Otherwise the product can malfunction due to interference of noise and surge voltage from power and highvoltage cables to the signal line. Route the wires (piping) of the product separately from power or high voltage cables.∙Confirm proper insulation of wiring.Poor insulation (interference from another circuit, poor insulation between terminals, etc.) can lead to excess voltage or current being applied to the product, causing damage.∙Keep wiring as short as possible to prevent interference from electromagnetic noise and surge voltage.Do not use a cable longer than 30 m.Wire the DC(-) line(blue) as close as possible to the power supply.∙Ensure that the FG terminal is connected to ground when using a commercially available switch-mode power supply. When a switch-mode power supply is connected to the product, switching noise will be superimposed and the product specification can no longer be met. This can be prevented by insertinga noise filter, such as a line noise filter and ferrite core, between the switch-mode power supply andthe product, or by using a series power supply instead of a switch-mode power supply.*Environment∙Do not use the product in area that is exposed to corrosive gases, chemicals, sea water, water or steam.Otherwise failure or malfunction can result.∙Do not use in a place where the product could be splashed by oil or chemicals.If the product is to be used in an environment containing oils or chemicals such as coolant or cleaning solvent, even for a short time, it may be adversely affected (damage, malfunction, or hardening of the lead wires).∙Do not use in an area where electrical surges are generated. (EMI or Electro Magnetic Interference) If there is equipment which generates a large amount of EMI (solenoid type lifter, high frequency induction furnace, motor, etc.) close to the Pressure Sensor, this may cause deterioration or breakage of the internal circuit of the Pressure Sensor. Avoid sources of surge generation and crossed lines.∙The product is CE marked, but not immune to lightning strikes. Take measures against lightning strikes in the system.∙Mount the product in a place that is not exposed to vibration or impact.Otherwise failure or malfunction can result.∙Prevent foreign matter such as remnant of wires from entering the Pressure Sensor.Take proper measures for the remnant not to enter the Pressure Sensor in order to prevent failure or malfunction. ∙Do not use the product in an environment that is exposed to temperature cycle.Heat cycles other than ordinary changes in temperature can adversely affect the inside of the product.∙Do not expose the product to direct sunlight.If using in a location directly exposed to sunlight, shade the product from the sunlight.Otherwise failure or malfunction can result.∙Keep within the specified fluid and ambient temperatures range.The fluid and ambient temperatures should be -10 to 60 °C. Operation under low temperature leads to cause damage or operation failure due to frozen moist in the fluid or air.Protection against freezing is necessary. Air dryer is recommended for elimination of drain and water.Avoid sudden temperature change even within specified temperature.∙Do not operate close to a heat source, or in a location exposed to radiant heat.Otherwise malfunction can result.*Adjustment and Operation∙Do not short-circuit the load.∙If using the product to detect very small pressure rates, warm up the product for 20 to 30 minutes first.There will be a drift on the analogue output of approximate ±1% immediately after the power supply is turned on, within 10 minutes.*Maintenance∙Turn off the power supply, stop the supplied air, exhaust the residual pressure and verify the release of air before performing maintenance.There is a risk of unexpected malfunction.∙Perform regular maintenance and inspections.There is a risk of unexpected malfunction.∙Perform drainage regularly.If condensate enters the secondary side, it can cause operating failure of pneumatic equipment.∙Do not use solvents such as benzene, thinner etc. to clean the Pressure Sensor.They could damage the surface of the body and erase the markings on the body.Use a soft cloth to remove stains. For heavy stains, use a cloth soaked with diluted neutral detergent and fully squeezed, then wipe up the stains again with a dry cloth.○Names of parts of product•Only fluids which are non-corrosive to C3604 + electroless nickel plated, AI203 (aluminum oxide) and FKM should be used.○Handling precautions■Wiring○Connector pin numbersWhen the lead wire and connector (ZS-37-A or ZS-37-B) designated for the PSE570 is used, the wire colours will apply as shown in the diagram.Connector pin numbers (on the lead wire)•ZS-37-A•ZS-37-B*: The unconnected terminals are used in SMC, so please do not connect them.○How to connect the body and the lead wire and connector∙Align the lead wire connector with the connector key groove, and insert vertically.∙Connection is complete when the knurled part is fully tightened. Check that the connection is not loose.○Internal circuit and wiring example∙Output specificationPSE57□-02Voltage output: 1 to 5 VOutput impedance: Approx. 1 kΩPSE57□-02-28Current output: 4 to 20 mAAllowable load impedance:500 Ω or less (at 24 VDC)100 Ω or less (at 12 VDC)*: The unconnected terminals are used in SMC, so please do not connect them.○Analogue outputModel Rated pressure range A BPSE575 0 to 2 MPa 0 2 MPaPSE576 0 to 5 MPa 0 5 MPaPSE577 0 to 10 MPa 0 10 MPa■Dimensions∙Lead wire and M12 connector ZS-37-AZS-37-B∙Adapter with throttleZS-31-X1754-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPANTel: + 81 3 5207 8249 Fax: +81 3 5298 5362URL Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.。
智能电子式压力传感器说明书
36智能电子式压力传感器说明书IP68模拟量输出RM-PA1140/50-PA41-CN-V1.147面板控制与显示功能特征Output 1滞后功能/N.O.(Hno)滞后功能/N.C.(Hnc)视窗功能/N.O.(Fno)视窗功能/N.C.(Fnc)Output 2模拟输出4~20 mA(I)模拟输出0~10 V(U)从压力传感器 探测到系统当前的压力,显示系统当前压力(bar ;Psi;kgf;MPa),同时根据设置输出状态,产生两个输出信号。
滞后作用如果系统压力与预设的差不多，那么滞后现象保持在输出平稳的状态。
当系统压力增大的时候，输出端能够达到打开开关的点(SP1)；当系统压力再一次减小时，输出端能够达到关闭开关的点(rP1)。
滞后调整的方法：首先打开开关的点确定好，然后根据不同的要求再重新确定。
压力 通过视窗的作用能监测到明确的可以被接受的值。
当系统在开(SP1) 和关 (rP1) 之间变化时,输出接通 (视窗作用/常开) 或不接通 (视窗作用/常闭)。
通过 SP1 和 rP1的不同可以设定视窗的宽度。
SP1为上限值，rP1为下限值。
Psp rPt滞后Hno Hnc视窗功能101049运行模式(正常工作模式)·当外部提供电压时，装置为工作模式,根据它所设置的参数来监控和开关输出。
·模拟信号的输出值与系统压力有关。
·数码管显示表明当前系统的压力，红色二极管发光表示晶体管输出时开关的状态。
()·MODE/ENTER MODE/E 键键显示模式显示参数和设置参数值当很快按下“”键时，装置为参数值可读的显示模式，装置内部的进程和输出仍然为工作模式。
·每按一下“NTER”，就会出现一个参数名称。
·当快速按“LEARN/SET”时，对应的参数值显示5秒，5秒以后装置回到工作模式。
设置模式(参数值的设定)选择确定一个参数值后(显示模式)，装置就会经过一个设置模式，一直按着“LEARN/SET”键直到显示的参数值改变， 装置的内部仍为工作模式。
- 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
- 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
- 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。
注意： 1、图表中曲线是在特定的条件下测得的数据绘制而成，曲线关系仅供参考，实际数据请根据具体应用情
况安装后测试； 2、SF系列其他型号传感器量程均为10kg，其特性曲线与图示SF15-130一致。
S15 系列规格书
REV2.2 May-19
2/3
参考电路
苏州能斯达电子科技有限公司
参考电路一： 采用分压方式测量。将不同大小的压力施加于传 感器上产生的电阻值的变化，转换为电压的变 化，Vout 为输出电压，可接到后端电路。 根据实际情况选择 R1，通常可取 47k Ω~1
-20℃ - 60℃
不产生
不敏感
SF15-600
W(宽)= 15 mm L(长)= 600 mm
力敏特性
以下为 SF15-130 柔性薄膜压力传感器的压力-电阻值变化曲线图。左侧图表显示了全部电阻范围内 的压力-电阻值关系；右侧图表为左侧图标的局部细节展示，显示了电阻值在 30 kΩ以下的压力-电阻关 系。
REV2.2 May-19
1/3
苏州能斯达电子科技有限公司
性能指标
型号 量程 厚度
外观尺寸
响应点 重复性 一致性 迟滞 耐久性 初始电阻 响应时间 恢复时间 测试电压 工作温度 电磁干扰EMI 静电释放ESD
SF15-54
W(宽)= 15 mm L(长)= 54 mm
SF15-130
SF15-150
MΩ； 无压。
参考电路二： 在分压测量的基础上，增加运算放大器电路，可 提高电压测量分辨率；增大驱动电流。 根据实际情况选择电路参数； 无压力时，传感器阻值在 10MΩ以上，近似
断路。
注意事项 传感器使用时尽量使所受负载均匀，避免尖锐物体直接接触传感器； 超量程使用会降低传感器性能甚至破坏传感器； 力敏特性曲线仅供参考； 传感器端子为铜镀锡材质，可根据需求自行焊接引线。需注意，焊接温度不宜太高，建议不超过 300℃， 接触时间不超过 1 秒，以免高温使薄膜衬底融化变形。
10 kg
< 0.5 mm
W(宽)= 15 mm L(长)= 130 mm
W(宽)= 15 mm L(长)= 150 mm 50 g
< ±9.7% (60%负载)
±10%（同一型号批次） +10% (RF+ - RF-)/RF+
＞100 万次
＞10MΩ (无负载)
< 1ms
< 15ms
典型值 DC 3.3 V
苏州能斯达电子科技有限公司
柔性薄膜压力传感器 SF15 系列
产品特点
超薄，厚度小于 0.3mm 耐弯折 响应速度快 寿命长，通过 100 万次以上
按压测试 输出信号易于检测 可定制产品长度尺寸、引脚
封装等 支持多点触控，单点检测
尺寸规格
产品描述
SF15 系列柔性薄膜压力传感器是苏州能斯达拥有自主知识产 权的柔性压力传感技术在柔韧轻薄衬底材料上印刷压力敏感柔性纳 米功能材料，可检测一定区域内的压力大小。具有耐弯折、抗老化， 灵敏度高等优势。
S15 系列规格书
REV2.2 May-19
3/3
柔性薄膜压力传感器是一种电阻式传感器，输出电阻随着施加 于传感器表面压力的增大而减小，通过特定的压力-电阻关系，可以 测量出压力大小。SF 系列传感器广泛应用在智能家居、汽车电子、 智能机器人等领域，特别适用于柔性曲面的压力检测和测量。
SF15 系列目前有 SF15-54、SF15-130、SF15-150、SF-600 等不同型号产品。
7.62
5.00
5.00 8.14
2.54
A B
C D
10.00 15.00
10.00 15.00
图样尺寸
产品型号 A
B
C
D
SF15-130 -
- 130 120
SF15-150 -
- 150 140
SF15-54 54 47 -
-
SF15-600 600 593 -
-
✓ 已通过 ROHS 认证
S15 系列规格书
