10吨中频炉技术参数英文翻译对照
10吨中频炉技术参数英文翻译对照
为我们节省电气电炉工程师们的时间和精力，现将中频炉技术参数翻译英文
希望查阅。
10吨中频炉
10吨/6000KW/350Hz中频炉(12脉中频炉）
10吨中频炉由功率为6000 kw的12脉中频电源1套配10吨中频感应加热炉两
台，其中一用一备。
用一台6300KVA专用整流变压器供6000KW中频电源使用，用
于铸钢熔炼炉熔炼。
此套中频炉符合GB5959.3《电热设备的安全第三部分对感
应和导电加热设备以及感应熔炼设备的特殊要求》、GB10067.3《电热设备基本技
术条件第三部分感应电热设备》和JB42《中频无芯感应炉》的要求。
10 ton intermediate frequency furnace
10 ton/6000KW/350Hz 24 pulse intermediate frequency furnace（12 pulse）
Our company designed 6000kW 12 pulse intermediate frequency power source supplied with two 10-ton intermediate frequency melting furnace，
one with a preparation。
The 6000KW intermediate frequency power is supplied with 6300KVA special rectifier transformer for melting。
The set
of intermediate frequency furnace conforms standards of GB5959.3-《Part
III of the safety of electrical equipment for induction and conduction heating and induction melting equipment under special requirements》，
GB10067.3-《Part III of electric equipment basic technical conditions for induction heating equipment》，and JB42- 《Intermediate frequency Coreless Induction Furnace》。
10吨/6000KW中频炉设备主要技术参数要求
序号项目参数备注
1 电源进线电压1000V ,50Hz 用户电网电压10KV
2 额定容量10T 6000KW功率熔炼及保温
3 额定功率6000KW（1000V×2进线）6相12脉中频电源
4 额定中频频率1000 Hz
5 额定温度1650℃
6 熔化率约10T/H 中频炉连续使用
7 单位电耗约620-650kwh/T 中频炉连续使用
8 电源冷却循环水耗量15T/H 中频炉连续使用炉体冷却循环水耗量10T/H 中频炉连续使用
9 液压站容量1000 L
10 变压器型号ZSS-6300 /10KV/800 一台专用整流变压器（供6300KW）
11 液压介质46号液压油
12 供水压力0.2-0.3 MPa 到电炉端口位置
13 液压站工作压力10.5 MPa 最高12 MPa
14 进水温度£35℃
15 出水温度£55℃
10 ton/10000KW intermediate frequency furnace main technical parameters NO. Item Index Notes
1 Line voltage 1000V ，50Hz Grid voltage 10KV
2 Rated capacity 10T 6000KW power of melting and holding
3 Rated power 6000KW（1000*2
inlet）
6 phase 12 pulse intermediate
frequency power source
4 Rated intermediate frequency
1000 Hz
5 Rated temperature 1650℃
6 Melting rate About 10T/H Continuous use
7 Unit energy
consumption
Power about
525-650kwh/T
Continuous use
8 Power source
cooling water
consumption
15T/H Continuous use Furnace cooling
water consumption
10T/H Continuous use
9 Capacity of
hydraulic station
1000 L
10 Transformer ZSS-6300 /10KV/800 Special rectifier transformer （supply 6300KW）
11 Hydraulic medium 46# Hydraulic oil
12 Water supply
pressure
0.2-0.3 MPa To electric port location
13 Working pressure of
hydraulic station
10.5 MPa Up to 12 MPa
14 Inlet water
temperature
35℃
15 Qotlet water
temperature
55℃
10吨/6000KW中频炉设备主要配置
序名称型号及备注数量价格
号
一）一套10吨中频炉成套供货范围及报价
1 中频电源柜6300KW配10吨一
拖二中频炉1套
2 电容器组
3 漏炉报警装置
4 炉体（包括：油钢、铁芯,支架、感应线圈等）10吨熔炼炉体
1套5 坩埚模
6 水冷电缆水冷电缆侧出线2套
7 液压站系统1套
8 倾炉操纵台力士乐系列元件1套
9 设备技术图纸1套
10 设备使用说明书1套
11 合格证及检验报告1套合计
10 ton/6000KW intermediate frequency furnace standard configuration
table
NO. Name Models and notes Numbe
r Pric e
A 10-ton intermediate frequency induction furnace set scope of supply and pricing
1 Intermediate -frequency power Cabinet 6000KW with 10
ton intermediate frequency melting furnace 1 set
2 Capacitor
3 Furnace leakage alarm
4 Furnace (includes: cylinder, core, support,
Induction coil, etc) 10T Melting
furnace 1 set
5 Crucible mould
6 Water cooled cables Water cooled
cable side
outlet
2 set
7 Hydraulic system 1 set
8 Tilting furnace Control Panel Rexroth series
components
1 set
9 Re-designing 1 set
10 Instructions for use 1 set
11 Certificates and test reports 1 set
合
计
Total price of a full set
1）采用6相12脉中频电源控制系统。
消除了5、7高次谐波，大大减少了电网的谐
波干扰。
2）采用全封闭式冷却塔可提高系统的冷却效果和设备的使用寿命，无须建水池。
1）6 phase 12 pulse intermediate frequency power source control system
can eliminate 5, 7high-order harmonic，and significantly reduces the power
grid harmonic interference。
2）Closed circuit cooling tower is used to improve the effect of the cooling system and equipment service life，without building the pool.
西安东新机电制造有限公司
作者:康忠波永鑫电炉城站长。
化工设备常用词汇和缩写中英文对照
化工设备常用词汇和缩写中英文对照缩写/ 英文/中文AB Anchor Bolt 地脚螺栓Abs Absolute 绝对的Abs Abstract 文摘、摘要A/C Account 帐、帐目AC Alternating Current 交流电Add Addendum 补充、补遗、附录ADL Acceptable Defect Level 允许的缺陷标准Adpt Adapter 连接器、接头AE Absolute Error 绝对误差AET Acoustic Emission Examination 声发射检验AISC American Institute of Steel Construction 美国钢结构学会AISI American Iron and Steel Institute 美国钢铁学会AL Aluminium 铝Alk Alkaline 碱的、强碱的ALM Alarm 报警Alt Alternate 交流、改变Amb Ambient 周围的Amt Amount 数量、金额Anh Anhydrous 无水的ANSI American National Standard Institute 美国国家标准学会API American Petroleum Institute 美国石油学会App Apparatus 设备App Appendix 附录、补遗Appl Applied 应用的Appl Applicable 适当的、合适的Approx Approximate 大约、近似Appx Appendix 附录、附件Arrgt Arrangement 布置AS Alloy steel 合金钢Asb Asbestos 石棉ASL Above Sea Level 海拔高度ASM American Society for Metals 美国金属学会ASME American Society of Mechanical Engineers 美国机械工程师学会Assem Assembly 装配ASTM American Society for Testing and Materials 美国材料试验学会Atm Atmosphere 大气atm Atmosphere pressure 大气压Auto Automatic 自动Aux Auxiliary 辅助设备、辅助的A vail A vailable 有效的、可用的A vg A verage 平均A W Arc welding 电弧焊A W Automatic Welding 自动焊A.W.G. American Wire Gauge 美国线规A WS(A WI) American Welding Society(Institute) 美国焊接学会BAB Babbitt Metal 巴氏合金Baf Baffle 折流板、缓冲板BB Ball Bearing 滚珠轴承BC Between Centers 中心距、轴间距BC Bolt circle 螺栓中心圆BD Blow down 放空、放料BEDD Basic engineering design data 基础工程设计数据Bet Between 在…之间Bev Bevel 斜角、坡口BF Back face 背面、反面BF Blind flange 法兰盖（盲法兰）BHN Brinell hardness number 布氏硬度值BL Battery Limit 界区BL Battery Line 界区线B/L Bill of Loading 载荷数据表Bld Blind 盲板Blk Black 黑色Blk Blank 空白BM Bench Mark 基准标志BM Bending Moment 弯矩B/M (BOM) Bill of Material 材料表Bot Bottom 底BP Back Pressure 背压BP Base plate 底板BR Basic Requirements 基本要求BRG Bearing 轴承BRKT Bracket 支架Brs Brass 黄铜BS Both Side 两边BS British Standard 英国标准BS Balance Sheet 平衡表Bskt Basket 筐BTU British Thermal Unit 英国热量单位BV Back View 后视图BV Butterfly V alve 碟阀BW Brine V ater 冷冻盐水BW Butt Welding 对焊BWG Birmingham Wire Gauge 伯明翰线规BWRA. British Welding Research Association 英国焊接研究协会C Centigrade(degree) 摄氏度数CA Chemical Analysis 化学分析CA Corrosion Allowance 腐蚀裕量Calc Calculate 计算Cap Capacity 能力、容量CAS Cast Alloy Steel 铸造合金钢Cat Catalyst 触媒、催化剂Catg Catalog 目录、样本C-C(C/C) Center to center 中心距cc carbon copy 复写（纸复制）本cc cubic centimeter 立方厘米CCW Counter clockwise 反时针方向CD Cold Drawn 冷拉的、冷拔的CE Covered Electrode 焊条Cent Centrifugal 离心的CF Centrifugal Force 离心力CFW Continuous Fillet Weld 连续角焊缝CG Center of Gravity 重心CH Case-Hardening 表面硬化Ch Chapter 章节Cham Chamfer 倒角、斜角、斜面Chan Channel 通道、沟槽、管箱、槽钢Chk Check 检查CI Cast Iron 铸铁CIF Cost，Insurance and Freight 到岸价格Circ Circumference 圆周、环向CL Class 等级、类别CL Center Line 中心线CL Clearance 间隙CLAS Cast Low Alloy Steel 低合金铸钢CM Center of Mass 质量中心Cnds Condensate 冷凝液CO Clean Out 清除Co Company 公司Coef Coefficient 系数Col Column 柱、塔Comb Combination 组合Comp Compare 比较Comp Compound 化合物、复合的Compn Composition 组分Conc Concrete 混凝土Conc Concentration 浓度Cond Conductor 导体Cond Condition 条件Conn Connection 联接、接口Const Constant 常数、恒定的Const Construction 结构Cont Control 控制Cont Contain 包含Cont Content 内容、含量Corp Corporation 公司Corr Corrosion 腐蚀CP Centipoise 厘泊CP Center of Pressure 压力中心Cpl Coupling 管箍Cplg Coupling 联轴节CR Chloroprene Rubber 氯丁橡胶CS Carbon Steel 碳钢CS Center Section 中心截面CSTG Casting 铸造、铸件Ctr Center 中心CW Cooling Water 冷却水CW Continuous Welding 连续焊Cy Cycle 循环Cyl Cylinder 气缸、圆筒D Density 密度Dbl Double 二倍、双DEDD Detail Engineering Design Data 详细工程设计数据Def Definition 定义Deg Degree 度、等级Dept Department 部门Des Design 设计Det Detail 详细Detn Determination 确定、决定Dev Deviation 偏差Dev Device 装置DF Design Formula 设计公式Df Deflection 偏斜Dia Diameter 直径Diag Diagram 图Dim Dimension 尺寸Dir Direction 方向Disch Discharge 排出、出口Distr Distribution 分布Div Division 部分、区分DL Dead load 静载荷、自重Doc Document 文件、资料DP Design Pressure 设计压力DP Differential Pressure 压差、分压Dr Drill 钻孔Dr Drive 驱动DW Dead weight 静重、自重DW Demineralized Water 脱盐水Dwg Drawing 图E East 东EC Elasticity Coefficient 弹性系数Ecc Eccentric 偏心EF Electric Furnace 电炉Eff Efficiency 效率eg exempli gratia 例如EHP Effective Horsepower 有效功率EJ Expansion joint 膨胀节EL Elevation 标高Elb Elbow 弯头Elec Electric 电的Elem Element 元素、元件Ellip Ellipsoidal 椭球的、椭圆的Emer、Emerg Emergency 事故、紧急Encl Enclosure 密封、封闭Engrg、Eng Engineering 工程、设计EP Explosion Proof 防爆Eq Equipment 设备Eq Equation 公式、方程式Eq Equivalent 当量ES Electrostatic 静电EST Estimate 估计ESW Electro-Slag Welding 电渣焊ET Eddy Current Examination 涡流检验etc et cetera (and so on) 等等Evap Evaporate 蒸发Ex Example 例如Ex Excess 过剩、超过Exam Examination 检验Exh Exhaust 废气、排气Exp Expansion 膨胀Exptl Experimental 实验的Ext External 外部Ext Extreme 极端的FAO Finish All Over 全部加工FAX Facsimile 传真FB Flat Bar 扁钢FCA W Flux Cored Arc Welding 熔剂芯弧焊（手工焊）Fdn Foundation 基础FDW Feed Water 给水FF Flat Face 平面F/F Field Fabricated 现场制造Fig Figure 图Fin Finish 加工、完成FL Full Load 满载Flex Flexible 挠性Flg Flange 法兰FOB Free On Board 离岸价格FOC Free Of Charge 免费Forg Forging 锻件FOS Factor Of Safety 安全系数FREQ Frequency 频率FST Forged Steel 锻钢Ft Feet 英尺Ftg Fitting 管件、装配F.V. Full V acuum 全真空FW Fresh Water 新鲜水FW Field Weld 现场焊接FW Fillet Weld 角焊缝GA General A verage 平均值Gal Gallon 加仑Gen General 一般、总的Genr Generator 发电机、发生器GF Groove Face 槽面Gl Glass 玻璃GL Ground Level 地面标高GMA W Gas Metal Arc Welding 气体保护金属极电弧焊Gnd Ground 接地、地面Govt Government 政府GP General Purpose 一般用途、通用Gr Grade 等级Gr Gravity 重力Grd Ground 地面Grp Group 分组、类Gr- wt Gross weight 总重、毛重HB Brinell Hardness 布氏硬度HC Hydrocarbon 烃类HC High Capacity 大容量HD Head 压头Hex Hexagon 六角HH Hand Hole 手孔Hor Horizontal 水平、卧式hp Horsepower 马力HP High Pressure 高压HR Rockwell Hardness 洛氏硬度HR(hr) Hour 小时HRC Rockwell C Hardness C级洛氏硬度HS High Pressure Steam 高压蒸汽HS Shore Scleroscope Hardness 肖氏硬度HSC High Pressure Condensate 高压蒸汽凝液HT High Temperature 高温HT Heat Treatment 热处理HT Hydrostatic Test 水压试验HV V ickers Hardness 维氏硬度Hvy Heavy 重的、重型的HW Hot Water 热水ICW Inter Cooling Water 中间冷却水ID Inside Diameter 内径IF Interface 交接面Illus Illustration 说明、图解IN Inlet 进口in Inch 英寸incl Including 包括Ind Indicate 指示Ins Insulation 保温INSP Inspection 检验Instl Installation 安装Int Internal 内部的Int Intermediate 中间的Intmt Intermittent 间歇的、间断的I/O Input/Output 输入/输出Jt Joint 连接、接头KG Kilogram 公斤KW(kw) Kilowatt 千瓦LAS Low Alloy Steel 低合金钢lb pound 磅LC Level Control 液位控制器Leng Length 长度LF Female Face 凹面Lg Long 长的LG Level Glass 液位计LH Left Hand 左手Lin Linear 线性的Liq Liquid 液体Lj Lap joint 搭接LJ Lapped Joint 松套LM Male Face 凸面LMTD Logarithmic Mean Temperature Difference 对数平均温差LN Liquid Nitrogen 液氮LN Level Normal 正常液位Lng Lining 衬里LNG Liquefied Natural Gas 液化天然气Lo Lubrication oil 润滑油Lo Low 低LOA Length Over-All 全长\总长LOC Location 位置Log Logarithm(to the base 10) 对数（以10为底）Long Longitudinal 纵向LP Low Pressure 低压LPG Liquefied Petroleum Gas 液化石油气LT Low Temperature 低温LT Leak Testing 气密试验Ltd Limited 有限Ltr Letter 字母、信Lub Lubricate 润滑LW Lap Welding 搭接焊LWN Long Welding Neck 对焊长颈LWS Longitudinal Welded Seam 纵向焊缝M(m) Meter 米、公尺Mach Machine 机器Maint Maintenance 维修Mat(Mat’l) Material 材料MAWP Maximum Allowable Working Pressure 最大允许工作压力Max Maximum 最大MDMT Min. Design Metallic Temperature 最低设计金属温度Mech Mechanical 机械的Mfd Manufactured 制造的Mfr Manufacturer 制造商MG(mg) Milligram 毫克MH Manhole 人孔MI Melt Index 熔融指数MIG Metal Inert Gas Arc Welding 熔化极惰性气体保护焊Min Minimum 最小MIN(min) Minute 分钟MJG Metallic Jacketed Gasket金属包复垫片Mk Mark 标志ml Milliliter 毫升mm Millimeter 毫米MP Medium Pressure 中压MPC Maximum Permissible Concentration 最大许用浓度MS Medium Pressure Steam 中压蒸汽MS Medium Steel 中碳钢MSL Mean Sea Level 平均海平面MT Magnetic Particle Examination 磁粉检测MTD Mean Temperature Difference 平均温差Mtd Mounted 安装、装配MTR Material Testing Report 材料试验报告MU Measurement Unit 测量单位MV Mean V alue 平均值MW Mineral Wool 矿渣棉N North 北NA Not Applicable 不适用的NA T Natural 天然的Natl National 国家的NC America National Coarse Thread 美制粗牙螺纹NDT Nondestructive Testing 无损检验Neg Negative 负NF American National Fine Thread 美国细牙螺纹Nip Nipple 螺纹管接头、短节Nom Nominal 名义Nor Normal 正常NOZ Nozzle 接管NPS American Standard Straight Pipe Thread 美国标准直管螺纹NPSHA Net Positive Suction Head A vailable 有效汽蚀裕量NPSHR Net Positive Suction Head Required 要求汽蚀裕量NPT American Standard Taper Pipe Thread 美国标准锥管螺纹NT Net Tonnage 净吨数NTP Normal Temperature and Pressure 标准温度和压力NTS Not To Scale不按比例Num Number 数、编号、号码Obj Object 目标、对象OC Operating Characteristic 操作特性OD Outside Diameter 外径OH Open Hearth 平炉Oper Operating 操作Opp Opposite 对面、相反OR Outside Radius 外半径OR Outside Ring 外环Orien Orientation 方位Ovhd Overhead 高架的、顶部的Oxyg Oxygen 氧P Page 页P Pressure 压力Par Parallel 平行Para Paragraph 节、段Pc Piece 件PE Polyethylene 聚乙烯PFD Process Flow Diagram 工艺流程图Perform Performance 性能PF Power Factor 功率因素PID Piping & Instruments Diagram 管道和仪表流程图Pl Plate 板Pneum Pneumatic 气、气动PO Purchase Order 订货单Port Portable 便携式、轻便Posit Positive 正Posit Position 位置ppb Parts per billion 十亿分之几ppm Parts per million 百万分之几Prod Product 产品Proj Project 项目、工程PS Polystyrene 聚苯乙烯psf Pounds per square feet 磅/平方英尺psi Pounds per square inch 磅/平方英寸PT Liquid Penetrants Examination 液体渗透检测PTFE Polytetrafluoroethylene 聚四氟乙烯PV A Polyvinyl Acetate 聚醋酸乙烯PV AL Polyvinyl Alcohol 聚乙烯醇PVC Polyvinyl Chloride 聚氯乙烯PWHT Post Weld Heat Treatment 焊后热处理QA Quality Assurance 质量保证QC Quality Control 质量控制Qty Quantity 数量Qual Quality 质量R Radius 半径Rad Radial 径向RC Rockwell Hardness 洛氏硬度Recip Reciprocate 往复式Recirc Recirculate 再循环Recom Recommended 建议、推荐Ref Reference 参照、基准Refract Refractory 耐火材料Reg Regulator 调节器Regen Regenerator 再生器、再生塔Reinf Reinforce 加强Rel Relative 相对Rep Report 报告Rep Repeat 重复Reqd Required 要求、需要的REV Revision 修改、版次Rev Review 评论、检查Rev Revolution 旋转、转数RF Raise face 突台面RH Relative Humidity相对湿度RH Right Hand 右手RMS Root Mean Square 均方根ROT Rotating 旋转rpm revolutions per minute 转/分rps revolutions per second 转/秒RT Radiographic Examination 射线照相检验S South 北SA W Submerged Arc Welding 埋弧焊Sc Scale 刻度、比例SC Standard Condition 标准状态（温度压力）SCH Schedule 表号、管厚号、进度Sec Second 秒Sec Section 剖面、节、段Seg Segment 节、段Sep Separator 分离器Seq Sequence 次序、顺序SG Specific Gravity 比重SHP Shaft Horsepower 轴马力SI Standard International 国际单位制Sig Signal 信号Sld Solid 固体SMA W Shield Metal Arc Welding 手工焊Smls Seamless 无缝的SO Slip on 平焊（法兰）Sol Solution 溶液SP Spare parts 备件Sp Special 特殊的、专门的SP Static pressure 静压力Spec Specification 说明、规定SpGr Specific Gravity 比重Sq Square 方形、平方SR Stress Relief 消除应力SS Stainless Steel 不锈钢Sta Station 站STD Standard 标准STDWT Standard Weight 标准重量STL Steel 钢STP Standard Temperature and Pressure 标准温度和压力Suc Suction 吸入Suppl Supplement 补充SW Shop Welding 车间焊接SW Spot Weld 点焊SW Socket Welding 承插焊（法兰）SWP Safety Working Pressure 安全工作压力SYM Symbol 符号、标志SYM Symmetry 对称SYS System 系统T Ton 吨TC Tungsten Carbide 碳化钨Tech Technique 技术TEMA Tubular Exchanger Manufacturers Association 管壳式换热器制造商协会（美国）Temp Temperature 温度Term Terminal 终端、接头Thk Thickness 厚度TIG Tungsten Inert Gas Arc Welding 钨极惰性气体保护焊TL Tangent line 切线Tol Tolerance 公差Tot Total 总Trans Transfer 输送器TW Total Weight 总重TW Tack Welding 定位焊Typ Typical 典型、标准UNC Unified National Coarse Thread 统一标准粗牙螺纹UNF Unified National Fine Thread 统一标准细牙螺纹US Undersize 尺寸过小UT Ultrasonic Examination 超声波探伤UTS Ultimate Tensile Strength 抗拉强度极限V ac V acuum 真空V ap V apor 蒸汽V ar V ariable 变化、变量V el V elocity 速度V ert V ertical 垂直V ol V olume 体积VT Visual Testing 宏观（目测）检查W Watt 瓦WL Welding Line 焊缝线WL Water Line 水线WPS Welding Procedure Specification 焊接工艺规程WP Working Pressure 工作压力WRC Welding Research Committee 焊接研究委员会（美国）WS Water Supply 供水WT Weight 重量W/V Wind V elocity 风速XR X-Ray X射线Yd Y ard 码YP Yield Point 屈服点Yr Year 年。
英文版3吨中频炉说明
英文说3吨中频炉3吨中频炉3-ton intermediate frequency furnace由标准配置或加强配置2500KW中频电源1套配3吨中频感应加热炉两台用于铸钢熔炼炉。
designed standard or enhanced set of2500KW intermediate frequency power source,with two3-ton intermediate frequency induction heating furnace for steel melting。
一、3吨中频炉技术参数设备配置(12脉中频炉）设备型号GWT-3/2500技术指标（加强配置）技术指标（标准配置）设备额定功率2500KW1500KW进相电压3*950V3*660V电炉额定电压3200V2500V额定容量3T3T额定温度1600℃1600℃成套配置快速12脉中频电源一套一套西安东新机电制造有限公司作者:康忠波永鑫电炉城站长单：补偿电容柜一套（电容16台）一套（电容12台）中频炉（炉壳Φ1600，感应圈铜管30*60*4）二台二台减速机二台二台水冷电缆四根两根坩埚膜一只一只说明书资料一份一份维修保修期1年1年备注：1）用6相12脉中频电源。
消除了5、7高次谐波，大大减少了电网的谐波干扰。
2）采用全封闭式冷却塔提可提高系统的冷却效果和设备的使用寿命，无须建水池。
3-ton intermediate frequency furnace technical parameters(12pulse)Model GWT-3/2500Index（Enhanced）Index（Standard）西安东新机电制造有限公司作者:康忠波永鑫电炉城站长Rated power2500KW1500KW Phase voltage3*950V3*660V Rated voltage3200V2500V Rated capacity3T3T Rated temperature1600℃1600℃Complete configuratio n：Fast12pulse intermediate frequencypower sourceA set A setCompensation capacitor A set(16Capacitance)A set(12Capacitance) Intermediate frequencyfurnace(furnace shellΦ1600,theInduction coil copper tube30*60*4)Two TwoReducer Two TwoWater cooled cables FOUR Two西安东新机电制造有限公司作者:康忠波永鑫电炉城站长Crucible film One OneInstructions for use One OneWarranty period1year1yearPrice1）6phase12pulse intermediate frequency power source.Eliminate5,7high-order harmonic，and significantly reduces the power grid harmonic interference。
化工设备常用词汇和缩写中英文对照
化工设备常用词汇和缩写中英文对照缩写/ 英文/中文AB Anchor Bolt 地脚螺栓Abs Absolute 绝对的Abs Abstract 文摘、摘要A/C Account 帐、帐目AC Alternating Current 交流电Add Addendum 补充、补遗、附录ADL Acceptable Defect Level 允许的缺陷标准Adpt Adapter 连接器、接头AE Absolute Error 绝对误差AET Acoustic Emission Examination 声发射检验AISC American Institute of Steel Construction 美国钢结构学会AISI American Iron and Steel Institute 美国钢铁学会AL Aluminium 铝Alk Alkaline 碱的、强碱的ALM Alarm 报警Alt Alternate 交流、改变Amb Ambient 周围的Amt Amount 数量、金额Anh Anhydrous 无水的ANSI American National Standard Institute 美国国家标准学会API American Petroleum Institute 美国石油学会App Apparatus 设备App Appendix 附录、补遗Appl Applied 应用的Appl Applicable 适当的、合适的Approx Approximate 大约、近似Appx Appendix 附录、附件Arrgt Arrangement 布置AS Alloy steel 合金钢Asb Asbestos 石棉ASL Above Sea Level 海拔高度ASM American Society for Metals 美国金属学会ASME American Society of Mechanical Engineers 美国机械工程师学会Assem Assembly 装配ASTM American Society for Testing and Materials 美国材料试验学会Atm Atmosphere 大气atm Atmosphere pressure 大气压Auto Automatic 自动Aux Auxiliary 辅助设备、辅助的Avail Available 有效的、可用的Avg Average 平均AW Arc welding 电弧焊AW Automatic Welding 自动焊A.W.G. American Wire Gauge 美国线规AWS(AWI) American Welding Society(Institute) 美国焊接学会BAB Babbitt Metal 巴氏合金Baf Baffle 折流板、缓冲板BB Ball Bearing 滚珠轴承BC Between Centers 中心距、轴间距BC Bolt circle 螺栓中心圆BD Blow down 放空、放料BEDD Basic engineering design data 基础工程设计数据Bet Between 在…之间Bev Bevel 斜角、坡口BF Back face 背面、反面BF Blind flange 法兰盖（盲法兰）BHN Brinell hardness number 布氏硬度值BL Battery Limit 界区BL Battery Line 界区线B/L Bill of Loading 载荷数据表Bld Blind 盲板Blk Black 黑色Blk Blank 空白BM Bench Mark 基准标志BM Bending Moment 弯矩B/M (BOM) Bill of Material 材料表Bot Bottom 底BP Back Pressure 背压BP Base plate 底板BR Basic Requirements 基本要求BRG Bearing 轴承BRKT Bracket 支架Brs Brass 黄铜BS Both Side 两边BS British Standard 英国标准BS Balance Sheet 平衡表Bskt Basket 筐BTU British Thermal Unit 英国热量单位BV Back View 后视图BV Butterfly Valve 碟阀BW Brine Vater 冷冻盐水BW Butt Welding 对焊BWG Birmingham Wire Gauge 伯明翰线规BWRA. British Welding Research Association 英国焊接研究协会C Centigrade(degree) 摄氏度数CA Chemical Analysis 化学分析CA Corrosion Allowance 腐蚀裕量Calc Calculate 计算Cap Capacity 能力、容量CAS Cast Alloy Steel 铸造合金钢Cat Catalyst 触媒、催化剂Catg Catalog 目录、样本C-C(C/C) Center to center 中心距cc carbon copy 复写（纸复制）本cc cubic centimeter 立方厘米CCW Counter clockwise 反时针方向CD Cold Drawn 冷拉的、冷拔的CE Covered Electrode 焊条Cent Centrifugal 离心的CF Centrifugal Force 离心力CFW Continuous Fillet Weld 连续角焊缝CG Center of Gravity 重心CH Case-Hardening 表面硬化Ch Chapter 章节Cham Chamfer 倒角、斜角、斜面Chan Channel 通道、沟槽、管箱、槽钢Chk Check 检查CI Cast Iron 铸铁CIF Cost，Insurance and Freight 到岸价格Circ Circumference 圆周、环向CL Class 等级、类别CL Center Line 中心线CL Clearance 间隙CLAS Cast Low Alloy Steel 低合金铸钢CM Center of Mass 质量中心Cnds Condensate 冷凝液CO Clean Out 清除Co Company 公司Coef Coefficient 系数Col Column 柱、塔Comb Combination 组合Comp Compare 比较Comp Compound 化合物、复合的Compn Composition 组分Conc Concrete 混凝土Conc Concentration 浓度Cond Conductor 导体Cond Condition 条件Conn Connection 联接、接口Const Constant 常数、恒定的Const Construction 结构Cont Control 控制Cont Contain 包含Cont Content 内容、含量Corp Corporation 公司Corr Corrosion 腐蚀CP Centipoise 厘泊CP Center of Pressure 压力中心Cpl Coupling 管箍Cplg Coupling 联轴节CR Chloroprene Rubber 氯丁橡胶CS Carbon Steel 碳钢CS Center Section 中心截面CSTG Casting 铸造、铸件Ctr Center 中心CW Cooling Water 冷却水CW Continuous Welding 连续焊Cy Cycle 循环Cyl Cylinder 气缸、圆筒D Density 密度Dbl Double 二倍、双DEDD Detail Engineering Design Data 详细工程设计数据Def Definition 定义Deg Degree 度、等级Dept Department 部门Des Design 设计Det Detail 详细Detn Determination 确定、决定Dev Deviation 偏差Dev Device 装置DF Design Formula 设计公式Df Deflection 偏斜Dia Diameter 直径Diag Diagram 图Dim Dimension 尺寸Dir Direction 方向Disch Discharge 排出、出口Distr Distribution 分布Div Division 部分、区分DL Dead load 静载荷、自重Doc Document 文件、资料DP Design Pressure 设计压力DP Differential Pressure 压差、分压Dr Drill 钻孔Dr Drive 驱动DW Dead weight 静重、自重DW Demineralized Water 脱盐水Dwg Drawing 图E East 东EC Elasticity Coefficient 弹性系数Ecc Eccentric 偏心EF Electric Furnace 电炉Eff Efficiency 效率eg exempli gratia 例如EHP Effective Horsepower 有效功率EJ Expansion joint 膨胀节EL Elevation 标高Elb Elbow 弯头Elec Electric 电的Elem Element 元素、元件Ellip Ellipsoidal 椭球的、椭圆的Emer、Emerg Emergency 事故、紧急Encl Enclosure 密封、封闭Engrg、Eng Engineering 工程、设计EP Explosion Proof 防爆Eq Equipment 设备Eq Equation 公式、方程式Eq Equivalent 当量ES Electrostatic 静电EST Estimate 估计ESW Electro-Slag Welding 电渣焊ET Eddy Current Examination 涡流检验etc et cetera (and so on) 等等Evap Evaporate 蒸发Ex Example 例如Ex Excess 过剩、超过Exam Examination 检验Exh Exhaust 废气、排气Exp Expansion 膨胀Exptl Experimental 实验的Ext External 外部Ext Extreme 极端的FAO Finish All Over 全部加工FAX Facsimile 传真FB Flat Bar 扁钢FCAW Flux Cored Arc Welding 熔剂芯弧焊（手工焊）Fdn Foundation 基础FDW Feed Water 给水FF Flat Face 平面F/F Field Fabricated 现场制造Fig Figure 图Fin Finish 加工、完成FL Full Load 满载Flex Flexible 挠性Flg Flange 法兰FOB Free On Board 离岸价格FOC Free Of Charge 免费Forg Forging 锻件FOS Factor Of Safety 安全系数FREQ Frequency 频率FST Forged Steel 锻钢Ft Feet 英尺Ftg Fitting 管件、装配F.V. Full Vacuum 全真空FW Fresh Water 新鲜水FW Field Weld 现场焊接FW Fillet Weld 角焊缝GA General Average 平均值Gal Gallon 加仑Gen General 一般、总的Genr Generator 发电机、发生器GF Groove Face 槽面Gl Glass 玻璃GL Ground Level 地面标高GMAW Gas Metal Arc Welding 气体保护金属极电弧焊Gnd Ground 接地、地面Govt Government 政府GP General Purpose 一般用途、通用Gr Grade 等级Gr Gravity 重力Grd Ground 地面Grp Group 分组、类Gr- wt Gross weight 总重、毛重HB Brinell Hardness 布氏硬度HC Hydrocarbon 烃类HC High Capacity 大容量HD Head 压头Hex Hexagon 六角HH Hand Hole 手孔Hor Horizontal 水平、卧式hp Horsepower 马力HP High Pressure 高压HR Rockwell Hardness 洛氏硬度HR(hr) Hour 小时HRC Rockwell C Hardness C级洛氏硬度HS High Pressure Steam 高压蒸汽HS Shore Scleroscope Hardness 肖氏硬度HSC High Pressure Condensate 高压蒸汽凝液HT High Temperature 高温HT Heat Treatment 热处理HT Hydrostatic Test 水压试验HV Vickers Hardness 维氏硬度Hvy Heavy 重的、重型的HW Hot Water 热水ICW Inter Cooling Water 中间冷却水ID Inside Diameter 内径IF Interface 交接面Illus Illustration 说明、图解IN Inlet 进口in Inch 英寸incl Including 包括Ind Indicate 指示Ins Insulation 保温INSP Inspection 检验Instl Installation 安装Int Internal 内部的Int Intermediate 中间的Intmt Intermittent 间歇的、间断的I/O Input/Output 输入/输出Jt Joint 连接、接头KG Kilogram 公斤KW(kw) Kilowatt 千瓦LAS Low Alloy Steel 低合金钢lb pound 磅LC Level Control 液位控制器Leng Length 长度LF Female Face 凹面Lg Long 长的LG Level Glass 液位计LH Left Hand 左手Lin Linear 线性的Liq Liquid 液体Lj Lap joint 搭接LJ Lapped Joint 松套LM Male Face 凸面LMTD Logarithmic Mean Temperature Difference 对数平均温差LN Liquid Nitrogen 液氮LN Level Normal 正常液位Lng Lining 衬里LNG Liquefied Natural Gas 液化天然气Lo Lubrication oil 润滑油Lo Low 低LOA Length Over-All 全长\总长LOC Location 位置Log Logarithm(to the base 10) 对数（以10为底）Long Longitudinal 纵向LP Low Pressure 低压LPG Liquefied Petroleum Gas 液化石油气LT Low Temperature 低温LT Leak Testing 气密试验Ltd Limited 有限Ltr Letter 字母、信Lub Lubricate 润滑LW Lap Welding 搭接焊LWN Long Welding Neck 对焊长颈LWS Longitudinal Welded Seam 纵向焊缝M(m) Meter 米、公尺Mach Machine 机器Maint Maintenance 维修Mat(Mat’l) Material 材料MAWP Maximum Allowable Working Pressure 最大允许工作压力Max Maximum 最大MDMT Min. Design Metallic Temperature 最低设计金属温度Mech Mechanical 机械的Mfd Manufactured 制造的Mfr Manufacturer 制造商MG(mg) Milligram 毫克MH Manhole 人孔MI Melt Index 熔融指数MIG Metal Inert Gas Arc Welding 熔化极惰性气体保护焊Min Minimum 最小MIN(min) Minute 分钟MJG Metallic Jacketed Gasket 金属包复垫片Mk Mark 标志ml Milliliter 毫升mm Millimeter 毫米MP Medium Pressure 中压MPC Maximum Permissible Concentration 最大许用浓度MS Medium Pressure Steam 中压蒸汽MS Medium Steel 中碳钢MSL Mean Sea Level 平均海平面MT Magnetic Particle Examination 磁粉检测MTD Mean Temperature Difference 平均温差Mtd Mounted 安装、装配MTR Material Testing Report 材料试验报告MU Measurement Unit 测量单位MV Mean Value 平均值MW Mineral Wool 矿渣棉N North 北NA Not Applicable 不适用的NAT Natural 天然的Natl National 国家的NC America National Coarse Thread 美制粗牙螺纹NDT Nondestructive Testing 无损检验Neg Negative 负NF American National Fine Thread 美国细牙螺纹Nip Nipple 螺纹管接头、短节Nom Nominal 名义Nor Normal 正常NOZ Nozzle 接管NPS American Standard Straight Pipe Thread 美国标准直管螺纹NPSHA Net Positive Suction Head Available 有效汽蚀裕量NPSHR Net Positive Suction Head Required 要求汽蚀裕量NPT American Standard Taper Pipe Thread 美国标准锥管螺纹NT Net Tonnage 净吨数NTP Normal Temperature and Pressure 标准温度和压力NTS Not To Scale 不按比例Num Number 数、编号、号码Obj Object 目标、对象OC Operating Characteristic 操作特性OD Outside Diameter 外径OH Open Hearth 平炉Oper Operating 操作Opp Opposite 对面、相反OR Outside Radius 外半径OR Outside Ring 外环Orien Orientation 方位Ovhd Overhead 高架的、顶部的Oxyg Oxygen 氧P Page 页P Pressure 压力Par Parallel 平行Para Paragraph 节、段Pc Piece 件PE Polyethylene 聚乙烯PFD Process Flow Diagram 工艺流程图Perform Performance 性能PF Power Factor 功率因素PID Piping & Instruments Diagram 管道和仪表流程图Pl Plate 板Pneum Pneumatic 气、气动PO Purchase Order 订货单Port Portable 便携式、轻便Posit Positive 正Posit Position 位置ppb Parts per billion 十亿分之几ppm Parts per million 百万分之几Prod Product 产品Proj Project 项目、工程PS Polystyrene 聚苯乙烯psf Pounds per square feet 磅/平方英尺psi Pounds per square inch 磅/平方英寸PT Liquid Penetrants Examination 液体渗透检测PTFE Polytetrafluoroethylene 聚四氟乙烯PV A Polyvinyl Acetate 聚醋酸乙烯PV AL Polyvinyl Alcohol 聚乙烯醇PVC Polyvinyl Chloride 聚氯乙烯PWHT Post Weld Heat Treatment 焊后热处理QA Quality Assurance 质量保证QC Quality Control 质量控制Qty Quantity 数量Qual Quality 质量R Radius 半径Rad Radial 径向RC Rockwell Hardness 洛氏硬度Recip Reciprocate 往复式Recirc Recirculate 再循环Recom Recommended 建议、推荐Ref Reference 参照、基准Refract Refractory 耐火材料Reg Regulator 调节器Regen Regenerator 再生器、再生塔Reinf Reinforce 加强Rel Relative 相对Rep Report 报告Rep Repeat 重复Reqd Required 要求、需要的REV Revision 修改、版次Rev Review 评论、检查Rev Revolution 旋转、转数RF Raise face 突台面RH Relative Humidity 相对湿度RH Right Hand 右手RMS Root Mean Square 均方根ROT Rotating 旋转rpm revolutions per minute 转/分rps revolutions per second 转/秒RT Radiographic Examination 射线照相检验S South 北SAW Submerged Arc Welding 埋弧焊Sc Scale 刻度、比例SC Standard Condition 标准状态（温度压力）SCH Schedule 表号、管厚号、进度Sec Second 秒Sec Section 剖面、节、段Seg Segment 节、段Sep Separator 分离器Seq Sequence 次序、顺序SG Specific Gravity 比重SHP Shaft Horsepower 轴马力SI Standard International 国际单位制Sig Signal 信号Sld Solid 固体SMAW Shield Metal Arc Welding 手工焊Smls Seamless 无缝的SO Slip on 平焊（法兰）Sol Solution 溶液SP Spare parts 备件Sp Special 特殊的、专门的SP Static pressure 静压力Spec Specification 说明、规定SpGr Specific Gravity 比重Sq Square 方形、平方SR Stress Relief 消除应力SS Stainless Steel 不锈钢Sta Station 站STD Standard 标准STDWT Standard Weight 标准重量STL Steel 钢STP Standard Temperature and Pressure 标准温度和压力Suc Suction 吸入Suppl Supplement 补充SW Shop Welding 车间焊接SW Spot Weld 点焊SW Socket Welding 承插焊（法兰）SWP Safety Working Pressure 安全工作压力SYM Symbol 符号、标志SYM Symmetry 对称SYS System 系统T Ton 吨TC Tungsten Carbide 碳化钨Tech Technique 技术TEMA Tubular Exchanger Manufacturers Association 管壳式换热器制造商协会（美国）Temp Temperature 温度Term Terminal 终端、接头Thk Thickness 厚度TIG Tungsten Inert Gas Arc Welding 钨极惰性气体保护焊TL Tangent line 切线Tol Tolerance 公差Tot Total 总Trans Transfer 输送器TW Total Weight 总重TW Tack Welding 定位焊Typ Typical 典型、标准UNC Unified National Coarse Thread 统一标准粗牙螺纹UNF Unified National Fine Thread 统一标准细牙螺纹US Undersize 尺寸过小UT Ultrasonic Examination 超声波探伤UTS Ultimate Tensile Strength 抗拉强度极限Vac Vacuum 真空Vap Vapor 蒸汽Var Variable 变化、变量Vel Velocity 速度Vert Vertical 垂直V ol Volume 体积VT Visual Testing 宏观（目测）检查W Watt 瓦WL Welding Line 焊缝线WL Water Line 水线WPS Welding Procedure Specification 焊接工艺规程WP Working Pressure 工作压力WRC Welding Research Committee 焊接研究委员会（美国）WS Water Supply 供水WT Weight 重量W/V Wind Velocity 风速XR X-Ray X射线Yd Yard 码YP Yield Point 屈服点Yr Year 年。

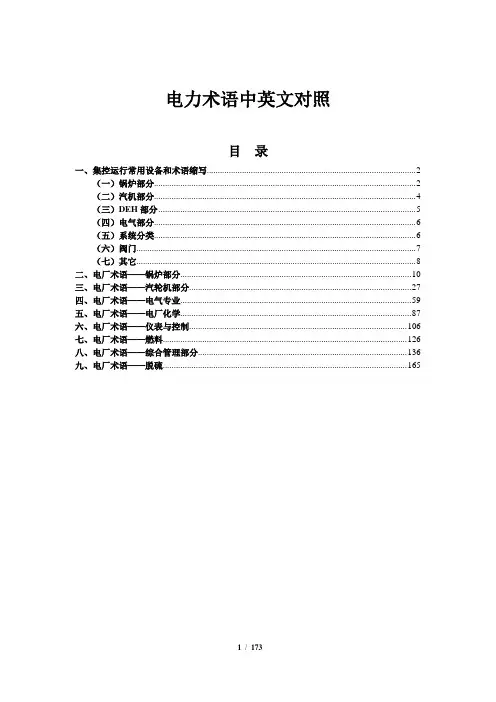

电厂常用术语中英文对照
