冰柜使用说明书
冰柜使用说明书
1、冰箱在搬运、放置过程中倾斜角不要超过45度。长途运输的冷柜
应放置2小时后方可通电使用，以防止系统压力过高而损坏。第一次使用
应当先让空柜运行1小时，当箱内温度下降后再放物品。
2、冰箱应选择远离热源、避免阳光直射、通风较好、较干燥的地方放
（1）应安放在远离热源，不受阳光直射的地方，因工作时需要与外界
进行热交换，既通过冷凝器向外界散热，外界环境温度越高，散热越慢，
会使冰箱工作时间越长，增大耗电量，制冷效果差。
（2）应安放在湿度小的地方，由于电冰箱、冰柜外壳，冷凝器和压缩
机等均是金属材料，如果空气湿度太大，会使这些部件生锈，缩短电冰箱
的使用寿命。同时潮湿过热环境，会造成电冰箱表面凝露，影响电器性能。
（3）应安放在通风良好的地方，如果电冰箱、冰柜周围堆满杂物，或
者靠墙太近，不利于散热会影响制冷效果。电冰箱背面和两侧面应留有至
少10CM的空间，以利散热。
（4）应安放在平坦坚实的地面上，并使压缩机保持水平。这不仅出于
安全的需要，而且可使压缩机平稳工作，减少震动和噪音。
（5）请勿损坏电源线绝缘层，不得重压电线，不得自行随意更改或加
长电源线。
（6）检查无误后，电冰箱、冰柜静置半小时，接通电源，仔细听压缩
机在启动和运行时的声音是否正常，是否有管路互相碰击的声音，如果噪
音过大，检查产品是否摆放平稳，各个管路是否接触，并做相应的调整。
若有较大的异常声音，应立即切断电源，与专业的修理人员联系。
江苏美百加冰柜使用说明
江苏美百加冰柜使用说明
一、控制面板介绍
buzzer报警蜂鸣停止键：使声音报警停止的按键。
报警测试的蜂鸣不能用此键消除。
set 设定键：用此键进入温度设定模式，按此键可调节的数字将会闪烁。
再按一次此键设定的更改被记录。
设定模式下90秒内部进行任何操作，此模式将自动解除。
数字选项变更键：在设定模式下按此键来进行设定项目的变更。
在温度显示模式下，按下此键5秒以上的时间可进行按键锁定的操作。
数值变更键：在设定模式下对对象进行数值的变更。
在温度显示模式下，用此键可选择按键锁定的开或者关。
按住此键5秒钟以上可以进入报警设置的模式。
数字温度显示器：显示当前箱内温度或设置温度。
alarm报警指示灯：在报警情况下会闪烁
alarm test报警测试按键：用来测试报警系统。
需要在打开电池开关的情况下使用。
door 门报警灯：当门打开后会亮起。
filter滤器指示灯：当灰尘堵塞了滤器后此灯会亮起。
battery电池指示灯：该灯亮时则表明需要更换电池。
status 状态检查指示灯：当出现不良外周环境时次灯会亮起。
提示检查操作环境。
status状态检查键：当状况检查指示灯亮起时，按此键会显示错误代码。
二、使用注意事项
1、温度可设定范围是-50℃—90℃。

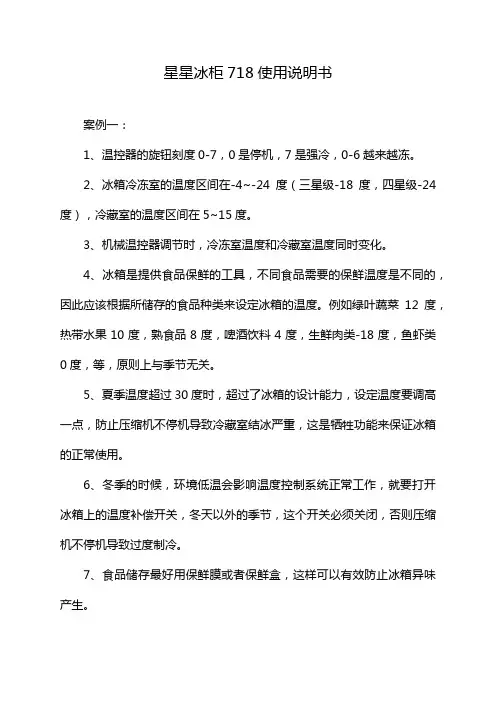

星星冰柜718使用说明书
星星冰柜718使用说明书案例一：1、温控器的旋钮刻度0-7，0是停机，7是强冷，0-6越来越冻。
2、冰箱冷冻室的温度区间在-4~-24度（三星级-18度，四星级-24度），冷藏室的温度区间在5~15度。
3、机械温控器调节时，冷冻室温度和冷藏室温度同时变化。
4、冰箱是提供食品保鲜的工具，不同食品需要的保鲜温度是不同的，因此应该根据所储存的食品种类来设定冰箱的温度。
例如绿叶蔬菜12度，热带水果10度，熟食品8度，啤酒饮料4度，生鲜肉类-18度，鱼虾类0度，等，原则上与季节无关。
5、夏季温度超过30度时，超过了冰箱的设计能力，设定温度要调高一点，防止压缩机不停机导致冷藏室结冰严重，这是牺牲功能来保证冰箱的正常使用。
6、冬季的时候，环境低温会影响温度控制系统正常工作，就要打开冰箱上的温度补偿开关，冬天以外的季节，这个开关必须关闭，否则压缩机不停机导致过度制冷。
7、食品储存最好用保鲜膜或者保鲜盒，这样可以有效防止冰箱异味产生。
8、瓶装液体食品不可以冷冻，液体结冰体积增大会撑破玻璃瓶。
案例二：1、冰箱在搬运、放置过程中倾斜角不要超过45度。
长途运输的冷柜应放置2小时后方可通电使用，以防止系统压力过高而损坏。
第一次使用应当先让空柜运行1小时，当箱内温度下降后再放物品。
2、冰箱应选择远离热源、避免阳光直射、通风较好、较干燥的地方放（1）应安放在远离热源，不受阳光直射的地方，因工作时需要与外界进行热交换，既通过冷凝器向外界散热，外界环境温度越高，散热越慢，会使冰箱工作时间越长，增大耗电量，制冷效果差。
（2）应安放在湿度小的地方，由于电冰箱、冰柜外壳，冷凝器和压缩机等均是金属材料，如果空气湿度太大，会使这些部件生锈，缩短电冰箱的使用寿命。
同时潮湿过热环境，会造成电冰箱表面凝露，影响电器性能。
（3）应安放在通风良好的地方，如果电冰箱、冰柜周围堆满杂物，或者靠墙太近，不利于散热会影响制冷效果...。
爱雪四门冰柜说明书
爱雪四门冰柜说明书
1、控制面板上有一个大按键（“选择”功能键）和三个小按键[从左到右：冷藏室温度设置键（升温）+；冷藏室温度设置键（降温）；消音键]。
2、“选择”功能键作用：
A。
即速冻模式/自动模式/自我设定模式间循环切换键，
B。
冷藏室温度显示屏左旁有对应图标指示，
C。
带“s”的图标亮代表启用速度功能，带“aoto”的图标亮则是启用自动模式功能，反之图标灭为退出。
D。
如速冻模式和自动模式功能图标均为灭时即是自我设定模式，3、按冷藏室温度设置键（升温）+或冷藏室温度设置键（降温）负可调节冷藏室温度，
A。
调节范围：2至8度。
B。
冷冻室温度不可调，与冷藏室匹配同步，即冷藏2度时冷冻是负21度，冷藏3度时冷冻是负20度，冷藏8度时是负15度。
4、设置好想要的温度5秒后会自动记忆。
A。
如启用自动模式，冷藏显示5度冷冻显示负18度，冷藏温度上下键不可调。
B。
如一次性冷冻大量食品时，建议启用速冻模式，否则不要使用该功能。
5、报警功能有：
A。
冷藏室门开3分钟后会发出“嘟。
嘟。
嘟”响，可按消音键来消音，但如3分钟后还没关门会再响的；
B。
冷冻室温度如超负6度（含负6度）显示屏数值会闪烁报警，直到降到负6度以下才不闪烁。
美菱冰柜 BC BD-201DTECX 使用说明书
全国统一服务热线: 4008 111 666 (连拨,请勿加区号)
4006 111 666
图形仅为示意以实物为准
型号 气候类型 防触电保护类型 冷冻星级 总容积(L) 冷冻室容积(L) 额定电压(V~) 额定频率(Hz) 额定电流(A) 额定输入功率(W)
BC/BD-201DTECX SN/N/ST/T Ⅰ类
201 201 220 50 1.0 120
标准耗电量
(冷藏/冷冻)
(kW·h/24h) (kW·h/a)
能源效率等级 重量(kg)
制冷剂/充注量 冷冻能力(kg/12h) 冷却能力(kg/12h) 发泡层材料 噪声(声功率级)(dB(A))
外形尺寸(宽x深x高mm)
BC/BD-201DTECX
1
11
2024年7月版
0. 20.0
环戊烷 38
823×556×860
3、 当 环 温 ≤1 0℃ 时 ， 空 箱 最 低 温 度 可 达- 4 0℃,实 际 使 用 时 根 据 存 储 物 品 及 使 用 环 境 差 异, 箱内最低温度可能会有偏差。 （备注：按GB/T 8059-2016标准之7.8.3条所述间室空气温度测量方法进行测温点布置）
喜莱盛双开门冰柜使用说明书
喜莱盛双开门冰柜使用说明书
在接通电源之前，先检查牌上规定的电压是否与家用电压相同，相同方可使用。
要为电冰箱安排单独的电源线路和使用专用插座，不能与其它电器合用同一插座，否则会造成不良事故。
安装好接地装置。
以上条件都符合后，给电冰箱通电。
电冰箱应摆放在远离火炉、暖气片等热源的地方，同时应避免阳光的直接照射。
这样有利于电冰箱的散热。
电冰箱应摆放在湿度较小的地方。
电冰箱应摆放在通风良好的地方。
冰箱背部应离墙10厘米以上，顶部应有30厘米以上的高度空间，四周不应放置过多的杂物。
电冰箱应摆放在地面平稳的地方。
否则当压缩机启动时会产生振动并发出很大的噪声，长期如此会缩短电冰箱的使用寿命。
电冰箱上不应摆放重物或过多的杂物，特别是不能摆放其他电器。
冰箱工作时应尽量减少开门次数，减少冷气的外溢。
电源电压波动大，如反复断电，应暂停电冰箱的使用，拔去电源插头，防止烧坏压缩机。
冰箱停机后不要马上再通电启动压缩机，应停2至5分钟后再行启动。
临时停电，应先将冰箱插头拔下；停电期间尽量减少开箱门的次数，在冰箱门紧闭情况下食品可以保鲜15至20小时。
在冰箱使用过程中，应注意它的制冷性能，进而选择一档最适合于自己家庭的冰箱温度。
转换温度控制器旋钮可改变冰箱内温度。
美的FP-20RWC096LMNV-T1系列冰柜使用说明书
111-212Meaning of safety warning symbols 313Electricity related warnings 314Related warnings for use415Warnings related to placing items 516517Warnings related to disposal521Names of components 622723Placement 824Start to use88827831 9329339WarnningWarnings for energy Temperature Control 2.5 The arrangement of bottle26Usage of temperature zones inside the Wine Cooler Disconnect the cooler Stop using the cooler Clean the cooler Energy saving tips1Safety warnings2Proper use of Wine Cooler3Maintenance of Wine Cooler4T ····· ·10DEAR CUSTOMER:Thank you for buying this Wine Cooler. To ensure that you get the best results from your new Wine Cooler,please take time to read through the simple instructions in this booklet.Please ensure that the11 Safety warnings1.1THISappliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.THIS IFthe supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.DOnot store explosive substances such as aerosol cans with a flammable propellant in thisappliance.THEappliance has to be unplugged after use and before carrying out user maintenance on theappliance.WARNING : Keep ventilation openings, in the appliance enclosure or in the built-in structure,clear of obstruction.WARNING : Do not use mechanical devices or other means to accelerate the defrostingprocess, other than those recommended by the manufacturer.WARNING : Do not damage the refrigerant circuit.WARNING : Do not use electrical appliances inside the food storage compartments of theappliance, unless they are of the type recommended by the manufacturer.WARNING: Please abandon the refrigerator according to local regulators for it use flammableblowing gas and refrigerant.WARNING : When positioning the appliance, ensure the supply cord is not trapped ordamaged.WARNING : Do not locate multiple portable socket-outlets or portable power supplies at therear of the appliance.DO not use extension cords or ungrounded （two prong ）adapters .DANGER : Risk of child entrapment .Before you throw away your old refrigerator or freezer:-Take off the doors . -Leave the shelves in place so that children may not easily climb inside .THErefrigerator must be disconnected from the source of electrical supply before attempting theinstallation of accessory .appliance is not intended for use by persons (including children) with reduced physical,sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)risk of fire / flammable materialsWarning :REFRIGERANT and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.CHILDREN should be supervised to ensure that they do not play with the appliance. FOR EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.TO avoid contamination of food，please respect the following instructions:– Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.–Clean regularly surfaces that can come in contact with food and accessible drainage systems.– Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. （note 1）– Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.– Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. （note 2）– One -, two -and three-star compartments are not suitable for the freezing of fresh food. （note 3）– If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.Note 1,2,3：Please confirm whether it is applicable according to your product compartment type. WARNING:To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.WARNING:Connect to potable water supply only. (Suitable for ice making machine)TO Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer (Or Refrigerator).″(Suitable for products with locks )231.2 Meaning of safety warning symbols1.3 Electricity related warningsTo ensure safety, it is not recommended that to place socket, regulators, rice cookers, microwave ovens and other appliances at the top of the Wine Cooler , those recommended by the manufacturer are not included. Do not use electrical appliances in the food pantry.Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the cooler and other electrical appliances considering that spark may cause a fire.The power cord should be firmly contacted with the socket or else fires might be caused. Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.Do not pull the power cord when pulling the power plug of the Wine Cooler . Please firmly grasp the plug and pull out it from the socket directly.Do not damage the power cord under any condition so as to ensure safety use,do not use when the power cord is damaged or the plug is worn.Worn or damaged power cord shall be replaced in manufacturer-authorized maintenance stations.4damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.Do not arbitrarily disassemble or reconstruct the Wine Cooler, norDo not spray or wash the cooler; do not put the cooler in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the cooler.Do not give package and other components to children to play. The bending board and plastic film may lead to suffocation! Do not allow children to enter or climb the cooler to prevent that children are sealed in the cooler or children are injured by the falling cooler.Please pull out of the plug in case of power failure or cleaning. Do not connect the cooler to power supply within five minutes to prevent damages to the compressor due to successive starts.Do not place heavy objects on the top of the cooler considering that objects may fall when open or close the door, and accidental injuries might be caused.Do not use cooler body, cooler door, etc. as pedal or support.The gaps between cooler door and cooler body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when close or open the cooler door to avoid falling articles.1.4 Related warnings for use5Do not put flammable, explosive, volatile and highly corrosive items in the cooler to prevent damages to the product or fire accidents.This product is for household refrigeration appliances, mainly used in the storage of beverage, not for other purposes, such as storage of blood, drugs and biological products.Do not place flammable items near the cooler to avoid fires.1.5 Warnings related to placing itemsmight not operate consistently when sited for an extended period of time below the cold end of the range of temperatures for which the appliance is designed.2)The need to not exceed the storage time(s) recommended by the manufacturers for any kind of beverage.3)The precautions necessary to prevent an undue rise in the temperature of the beverage while defrosting the Wine Cooler .4)The fact that a rise in temperature of the beverage during manual defrosting, maintenance or cleaning could shorten the storage life.5)The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the appliance, in order to prevent children from being locking inside.1)Wine Cooler cooler beverage cooler 1.6 Warnings for energyCorrect Disposal of this product ：This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human healthfrom uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.1.7 Warnings related to disposal2 Proper use of Wine Cooler2.1 Names of componentsTemperature controlGlass DoorWooden ShelfDuct mask assemblyAdjustable feet（The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor）The beverage cabinet has a storage temperature of 1~10 °C and is suitable for storage bottles or cans.It is not recommended to store other foods in the beverage cabinet to prevent contamination of the internal air or to affect the appearance.Please keep the inside of the beverage cabinet clean, please drink it during the Wooden Shelf life of the beverage.62.2 Temperature Control7Standby functionIn standby state,press the standby button until the buzzer rings, the Wine Cooler will exit standby state,and the display screen will display the set temperature;If not in standby state, long press standby button for 5 seconds until the buzzer rings, the Wine Cooler will enter in standby state, the display screen will turn off.Memory functionDisplay Controlwhen power-on the Wine Cooler , the display screen will display in full last for 3 seconds,and the start-up tone will ring, and then enter into the display of normal operation;Normal operation display: ① In case of no failure, set temperature is displayed; ② In case ofLighting modePress the lighting key until the buzzer rings to turn on/off the internal lamp .Switching of the Fahrenheit temperature and Celsius temperaturePress the Temperature-rise key and the Temperature-drop key to finish the switch of the Celsius temperature and Fahrenheit temperature; the display area will show the setting Fahrenheit temperature or Celsius temperature under the existing mode.continuously for 3 seconds Temperature settingPress the Temperature-rise key ,the temperature will increase 1℃ (or ). After locking, the cooler will operate according to the setting value;Press the "Temperature-drop key “, the temperature will decrease 1℃ (or ℉). After locking, the cooler will operate according to the setting value."" ℉The cooler has the power off memory function. After the power is on again, the cooler will work according to the setting before the power-off.Error code:Storing too many cans or bottles in the cooler may cause the temperature in the cooler to rise temporarily.If the failure happens, the display area will show corresponding error codes as shown as below table, the user shall contact a specialist for maintenance, so as to make sure the normal use of Wine Cooler .Error codeE 1E 4Fault of defrost temperature sensorDescriptionFault of temperature sensor（The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor ）E 7Temperature sensor fault in refrigerating chamber82.4 Start to useThe cooler shall stay for half an hour before connecting power when it is firstly started.Clean up the inner chamber before put into use for first time .Do not connect cooler to electronic energy saving plug and converter that can convert DC into AC (E.g.: solar energy system, ship grid).Water drop or frost will be generated on backside of Wine Cooler when compressor is running, which is decided by function of cooler. wiping out frost or water drop is notneeded as the back will wipe them out automatically. The defrosted water will be collected into drain tank, then inflow into water disposal pan above the compressor and vaporized.2.6 Usage of temperature zones inside the Wine Cooler2.7 Energy saving tipsDo not let bottle touch the cooler's back in order to maintain good air circulation in the cooler.The bottle number may be different from bottles in different shape and size.Oversized bottle may have impact on the number of bottle storage in the beverage cabinet.2.5 The arrangement of bottlehigher than the low area.heatsThe top space of the coolershall be greater than 30cm,and the distances from bothsides and backside shall be more than 10cm to facilitate heatdissipation.Avoid direct sunlight and heat sources sunch as stove,heating radiator,etc.If the cooler has to be put next to heat source,aapplied or keep the cooler away from heat source.The cooler is placed in awell-ventilated indoor place;the ground shall be flat,and sturdy (rotate left or right to adjust the wheel for levelling if unstable).The more refrigerant in the WineCooler , the larger the space in which the Wine Cooler should be placed. Every 8g of refrigerant must have at least 1m3 of heat dissipation space. The amount of refrigerantis indicated on the nameplate on the back of the Wine Cooler .3.2 Stop using the cooler3 Maintenance of Wine Cooler3.1Disconnect the coolerUnplug power plug to disconnect the cooler.If the cooler left unused for a long time, please:1.Unplug the cooler;2.Clean the cooler;3.Keep the cooler door open.3.3Clean the coolerDusts behind the cooler and on the ground shall be timely cleaned to improve the cooling effect and energy saving.Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.The interior of the cooler should be cleaned regularly to avoid odor.Please turn off the power before cleaning interior, remove all foods, drinks ,shelves, etc.Use a soft cloth or sponge to clean the inside of the cooler, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.For areas that are difficult to clean in the cooler (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, softbrush, etc. and when necessary,combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterials accumulation in these areas.Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the cooler or contaminated food.Clean the shelves with a soft cloth dampened with soapy water or diluted detergent. Then rinse with water and dry with a soft cloth or dry naturally.Wipe the outer surface of the cooler with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.Do not rub or scratch the surface of the glass door to prevent the door from being broken or scratched.Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the cooler surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.Notice :Do not use detergent and solvent with sand or acid.4 Trouble shootingTable 1Climate classes ClassSymbol Ambient temperature range℃Extended temperate SN +10 to 32 Temperate N 16 to 32 Subtropical ST 16 to 38 TropicalT16 to 43+++++++。
海容雪柜SD352G说明书
海容雪柜SD352G说明书
海容雪柜SD352G说明：
1、新冰柜搬到家后，和其他家用电器一样，首次使用是有些需要注意的地方。
2、首先，在开箱后就要检查设备及随机附件，可以对照装箱单检查冰柜附件是否齐全，另外还要重点注意生产日期。
3、如生产日期比较早，就要考虑到制冷系统有慢性泄漏的现象，需要通电后测试制冷剂是否充足，具体可以在冰柜内底部位洒几滴水珠，通电试机1-2小时左右。
看冰柜底部水珠是否冻结状态，否就说明需要添加制冷剂了。
4、其次，冰柜刚买回来时不能马上通电使用，一定要将冷柜静置半小时以上才可以通电，在静止期间可以用软布或者干净的海绵，蘸水或肥皂水来清洗，并且用干布擦干净。
5、第三在加电前要先检查家用冰柜的电源是否符合标准，如超出标准，必须加装1000W以上的自动稳压器配合使用，另外，必须使用单独专用的插座，并且要有可靠的接地线。
6、最后需要注意如果家用冰柜的电源线太短了，可以加长电源线，但是必须使用线径0.75平方毫米以上的电线才安全。
美菱冰柜 BC BD-300DTCLA 使用说明书
全国统一服务热线: (连拨,请勿加区号)4008 111 666
4006 111 666
图形仅为示意以实物为准
产品型号：
本表格依据SJ/T11364的规定编制。
: 表示该有害物质在该部件所有均质材料中的含量均在GB/T26572规定的限量要求以下。
: 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T26572规定的限量要求。
但对于显示 的项目，我公司按照欧盟RoHS采用了豁免指标符合欧盟RoHS标准的要求。
使用说明书及保修凭证BC /BD -300DTCLA
本产品已通过国推认证，绿色产品标识可扫描右侧二维码进行查询。
RoHS 扫一扫，查询RoHS认证
冰柜内胆底部有一个排水口，
拔开水管堵头,化霜水从此口流入，
并从放水管排出。
请您将购机发票贴在此页上,以免放置丢失或一时找不到,增加你在维修洽谈中的麻烦,这样一册在手,定会给您咨询和维修带来方便.
长虹美菱股份有限公司
2024年9月版。
瑞晶雪冰柜说明书
瑞晶雪冰柜说明书1. 产品概述瑞晶雪冰柜是一款高品质、高效能的家用冷藏设备。
它采用先进的制冷技术，能够提供稳定的低温环境，使食物和饮料保持新鲜和美味。
瑞晶雪冰柜具有多种功能和特点，可以满足不同消费者的需求。
2. 主要特点•高效能制冷系统：瑞晶雪冰柜采用先进的压缩制冷系统，具有快速降温和恒温功能。
它可以在短时间内将食物和饮料降至所需的低温，并保持恒定的温度。
•大容量设计：瑞晶雪冰柜拥有宽敞的内部空间，可以容纳大量食物和饮料。
它还配备了可调节的层架，方便用户根据需要进行灵活布局。
•节能环保：瑞晶雪冰柜采用先进的节能技术，具有较低的能耗。
它还使用环保制冷剂，对环境友好。
•智能控制：瑞晶雪冰柜配备了智能控制面板，用户可以轻松设置和调节温度。
它还具有温度报警功能，当温度异常时会及时提醒用户。
•静音运行：瑞晶雪冰柜采用静音设计，噪音非常低，不会对室内环境和用户的生活带来干扰。
3. 使用方法1.将瑞晶雪冰柜放置在通风良好的地方，并确保周围没有障碍物阻挡。
2.插入电源并打开电源开关。
3.打开冷藏室门，将食物和饮料放入冰柜内部。
注意不要过度装填，以免影响制冷效果。
4.使用智能控制面板设置所需的温度。
一般建议将温度设置为适合食物和饮料的标准冷藏温度（通常为0°C至5°C）。
5.关闭冷藏室门，并确保门密封良好。
6.定期清洁瑞晶雪冰柜以保持其性能和卫生。
4. 注意事项•在使用瑞晶雪冰柜之前，请仔细阅读本说明书，并按照说明进行操作。
•请勿将冰柜安装在阳光直射的地方，以免影响制冷效果。
•在清洁冰柜时，请先断开电源，并使用中性清洁剂擦拭内外表面。
不要使用腐蚀性或刺激性溶剂。
•当长时间不使用瑞晶雪冰柜时，请断开电源并清空内部食物和饮料，然后将门保持微开状态，以避免产生异味和细菌滋生。
•请勿在冰柜内存放易燃、易爆物品或药品等特殊物品。
5. 常见问题解答问：为什么瑞晶雪冰柜工作时发出噪音？答：瑞晶雪冰柜采用静音设计，噪音非常低。
冰柜keld温控器说明书
冰柜keld温控器说明书
1、开关机：把拨动开关拨动到ON位置，温控器开机；把开关拨动到OFF位置，温控器关机。
2、工作模式设定：把拨动开关拨动到COOL位置，温控器设定为制冷
模式；把拨动开关拨动到HEAF位置，温控器设定为制热模式。
3、温度设定：机械式温控器，采用旋钮式设定温度，把红点对着面
板标明的温度数据即可。
4、风速设定：把开关拨动到LOW位置；温控器设定为低档风速；把
开关拨动到WED位置，温控器设定为中档风速；把开关拨动到High位置，温控器设定为高档风速。
液晶温控器操作方法
1、为开关机键，按键选择系统的开机或关机状态。
2、M：模式键，按键选择系统的控制模式，是制冷还是制热，制冷就
是降低环境温度，反之既是制热了。
3、风速键，按键选择输出风的大小，风速可以分为三类：低档、中
档和高档，不同的叶片，从多到少依次代表高、中、低。
4、设定温度。
可以设定温度的高低，如果您需要制热，此时您所设
定温度应该高于室内温度，模式为制热，反之低于室内温度，模式为制冷。
