以太网端口配置命令
一 以太网端口配置命令 1.1．1 display interface 【命令】 display interface [ interface_type | interface_type interface_num | interface_name ]
【视图】 所有视图 【参数】 interface_type：端口类型。 interface_num：端口号。 interface_name：端口名，表示方法为interface_name=interface_type interface_num。
参数的具体说明请参见interface命令中的参数说明。 【描述】 display interface命令用来显示端口的配置信息。 在显示端口信息时，如果不指定端口类型和端口号，则显示交换机上所有的端口信息；如果仅指定端口类型，则显示该类型端口的所有端口信息；如果同时指定端口类型和端口号，则显示指定的端口信息。
【举例】 # 显示以太网端口Ethernet0/1的配置信息。 display interface ethernet0/1 Ethernet0/1 current state : UP IP Sending Frames' Format is PKTFMT_ETHNT_2, Hardware address is 00e0-fc00-0010 Description : aaa The Maximum Transmit Unit is 1500 Media type is twisted pair, loopback not set Port hardware type is 100_BASE_TX 100Mbps-speed mode, full-duplex mode Link speed type is autonegotiation, link duplex type is autonegotiation Flow-control is not supported The Maximum Frame Length is 1536 Broadcast MAX-ratio: 100% PVID: 1 Mdi type: auto Port link-type: access Tagged VLAN ID : none Untagged VLAN ID : 1 Last 5 minutes input: 0 packets/sec 0 bytes/sec Last 5 minutes output: 0 packets/sec 0 bytes/sec input(total): 0 packets, 0 bytes 0 broadcasts, 0 multicasts input(normal): - packets, - bytes - broadcasts, - multicasts input: 0 input errors, 0 runts, 0 giants, - throttles, 0 CRC 0 frame, - overruns, 0 aborts, 0 ignored, - parity errors Output(total): 0 packets, 0 bytes 0 broadcasts, 0 multicasts, 0 pauses Output(normal): - packets, - bytes - broadcasts, - multicasts, - pauses Output: 0 output errors, 0 underruns, - buffer failures - aborts, 0 deferred, 0 collisions, 0 late collisions - lost carrier, - no carrier
表1-1 端口配置信息描述表 域名 描述 Ethernet0/1 current state 以太网端口当前开启或关闭状态 IP Sending Frames' Format 以太网帧格式 Hardware address 端口硬件地址 Description 端口描述字符串 The Maximum Transmit Unit 最大传输单元 Media type 介质类型 loopback not set 端口环回测试状态 Port hardware type 端口硬件类型 100Mbps-speed mode, full-duplex mode
Link speed type is autonegotiation, link duplex type is autonegotiation
端口的双工状态和速率均设置为自协商状态，与对端协商的实际结果是100Mbit/s速率和全双工模式
Flow-control is not supported 端口流控状态 The Maximum Frame Length 端口允许通过的最大以太网帧长度 Broadcast MAX-ratio 端口广播风暴抑制比 PVID 端口缺省VLAN ID Mdi type 网线类型 Port link-type 端口链路类型
Tagged VLAN ID 标识在该端口有哪些VLAN的报文需要打Tag标记
Untagged VLAN ID 标识在该端口有哪些VLAN的报文不需要打Tag标记
Last 5 minutes output: 0 packets/sec 0 bytes/sec
Last 5 minutes input: 0 packets/sec 0 bytes/sec
端口最近五分钟输入和输出速率和报文数 表1-2 端口环回监测功能的开启情况信息描述表 域名 描述 Loopback-detection is running 端口环回监测功能处于开启状态 Detection interval time is 30 seconds 定时监测时间间隔为30秒 There is no port existing loopback link 目前没有端口被环回
1.1.3 display port 【命令】 display port { hybrid | trunk } 【视图】 所有视图 【参数】 hybrid：显示Hybrid端口。 Trunk：显示Trunk端口。 【描述】 display port命令用来显示当前系统是否有链路类型为Hybrid或者Trunk的端口，如果有，则显示出对应的端口名。
【举例】 # 显示当前系统存在的Hybrid端口。 display port hybrid Now, the following hybrid ports exist: Ethernet0/1 Ethernet0/2
以上信息表示当前系统有两个Hybrid端口，分别为Ethernet0/1和Ethernet0/2。
1.1.4 duplex 【命令】 duplex { auto | full | half } undo duplex
【视图】 以太网端口视图 【参数】 auto：端口处于自协商状态。 full：端口处于全双工状态。 half：端口处于半双工状态。 【描述】 duplex命令用来设置以太网端口的全双工/半双工属性，undo duplex命令用来将端口的双工状态恢复为缺省的自协商状态。
缺省情况下，端口处于自协商状态。 相关配置可参考命令speed。 【举例】 # 将以太网端口Ethernet0/1端口设置为自协商状态。 [Quidway-Ethernet0/1] duplex auto
1.1.5 interface 【命令】 interface { interface_type interface_num | interface_name } 【视图】 系统视图 【参数】 interface_type：端口类型，取值为Ethernet或GigabitEthernet。 interface_num：端口号，采用槽位编号/端口编号的格式。对于S3526、S3526E、S3526C以太网交换机，槽号取值范围为0～2：槽号取0表示交换机提供的固定以太网端口，端口号取值范围为1～24；槽号取1或2分别表示后面板上两个扩展模块提供的以太网端口，端口号只能取1。对于S3526 FM、S3526 FS、S3526E FM、S3526E FS以太网交换机，槽号取值范围为0～4：槽号取0表示交换机提供的固定以太网端口，端口号取值范围为1～12；槽号取1或2分别表示前面板上两个扩展模块提供的以太网端口，端口号取值范围均为1～6；槽号取3或4分别表示后面板上两个扩展模块提供的以太网端口，端口号只能取1。对于S3552G、S3552P以太网交换机，槽号取值范围为0、1：槽号取0表示交换机提供的百兆以太网端口，端口号取值范围为1～48；槽号取1表示交换机提供的千兆以太网端口，端口号取值范围为1～4。对于S3528G、S3528P以太网交换机，槽号取值范围为0、1：槽号取0表示交换机提供的百兆以太网端口，端口号取值范围为1～24；槽号取1表示交换机提供的千兆以太网端口，端口号取值范围为1～4。对于S3552F以太网交换机，槽号取值范围为1～7：槽号取1～6分别表示交换机前面板上6个模块提供的百兆以太网端口，端口号取值范围均为1～8；槽
01-02 以太网接口配置
l 自协商模式：支持
l 流量控制：支持
l 流量控制自协商：支持
文档版本 07 (2018-09-25)
版权所有 © 华为技术有限公司
9
E600 教育网系列交换机 配置指南-接口管理
2 以太网接口配置
接口类型 属性值
备注
GE光接 口
连接介质为GE光模块时：
l 支持的速率：100Mbit/s、 1000Mbit/s
l 双工模式：全双工
l 自协商模式：支持
l 流量控制：支持
l 流量控制自协商：速率为 1000Mbit/s时支持，速率为 100Mbit/s时不支持
连接介质为GE光电模块时：
l 支持的速率：10Mbit/s、 100Mbit/s、1000Mbit/s
l 双工模式：全双工/半双工， 速率为1000Mbit/s仅支持全双 工
Router Switch
端口隔离组
GE0/0/1
X
GE0/0/3
GE0/0/2
PC1
PC2
PC3
10.10.10.1/24 10.10.10.2/24 10.10.10.3/24
VLAN10
发送报文
现网中可能存在如下情况时，还可以配置端口单向隔离功能。接入同一个设备不同接 口的多台主机，若某台主机存在安全隐患，可能会向其他主机发送大量的广播报文。 用户可以通过配置接口间的单向隔离来实现其他主机对该主机报文的隔离。
l 配置永久端口组
a. 执行命令system-view，进入系统视图。 b. 执行命令port-group port-group-name，创建并进入永久端口组视图。 c. 执行命令group-member { interface-type interface-number1 [ to interface-type
华为-交换机命令介绍
交换机命令介绍VRP（Versatile Routing Platform，通用路由平台）是华为公司数据通信产品的通用网络操作系统平台1.1 视图1.2 用户管理用户管理包括用户登录验证方式的设置、用户登录后可以访问的命令级别的设置、从用户界面登录后可以访问的命令级别的设置以及命令级别的设置。
1. 设置用户登录验证方式可以使用以下命令设置用户登录时是否需要进行验证，以防止非法用户的侵入。
请在用户界面视图下进行下列配置。
表1-1设置用户登录验证方式缺省情况下，Console口用户登录不需要进行终端验证；而Telnet和Modem用户登录需要进行口令验证。
(1) 本地口令验证使用authentication-mode password命令，表示需要进行本地口令认证，此时需要使用以下命令配置口令后，才能成功登录。
请在用户界面视图下进行下列配置。
表1-2设置本地验证的口令# 设置用户从VTY 0用户界面登录时需要进行口令验证，且验证口令为huawei。
[Quidway] user-interface vty 0[Quidway-ui-vty0] authentication-mode password[Quidway-ui-vty0] set authentication password simple huawei(2) 本地或远端用户名和口令验证使用authentication-mode scheme命令，表示需要进行本地或远端用户名和口令认证。
究竟是采用本地认证还是远端认证视配置而定，详细内容请见“安全”模块的介绍。
下面仅以本地用户名和口令认证为例介绍配置过程。
# 设置用户从VTY 0用户界面登录时需要进行用户名和口令验证，且登录用户名和口令分别为zbr和huawei。
[Quidway-ui-vty0] authentication-mode scheme[Quidway-ui-vty0] quit[Quidway] local-user zbr[Quidway-user-zbr] password simple huawei(3) 不验证[Quidway-ui-vty0] authentication-mode none说明：Modem和Telnet用户登录时，缺省需要进行口令认证，如果没有配置口令而登录，则系统会提示“password required, but none set.”。
浪潮以太网交换机命令手册
浪潮以太网交换机命令手册系统分册前言.............................................................................................................................................................. 1配置基础命令......................................................................................................................................1.1访问命令行接口命令.............................................................................................................................................1.1.1clearscrn............................................................................................................................................................1.1.2telnet..................................................................................................................................................................1.1.3terminal length ...............................................................................................................................................1.1.4terminal monitor............................................................................................................................................1.2使用命令行接口命令.............................................................................................................................................1.2.1config.................................................................................................................................................................1.2.2exit ......................................................................................................................................................................1.2.3help.....................................................................................................................................................................1.2.4history................................................................................................................................................................1.2.5interface ............................................................................................................................................................1.3基本配置命令...........................................................................................................................................................1.3.1banner motd ...................................................................................................................................................1.3.2clock set ............................................................................................................................................................1.3.3timezone...........................................................................................................................................................1.3.4disable ...............................................................................................................................................................1.3.5enable................................................................................................................................................................1.3.6enable password............................................................................................................................................1.3.7hostname..........................................................................................................................................................1.3.8line ......................................................................................................................................................................1.3.9login ...................................................................................................................................................................【缺省情况】..................................................................................................................................................password...........................................................................................................................................................show privilege.................................................................................................................................................timeout..............................................................................................................................................................username privilege........................................................................................................................................who.....................................................................................................................................................................max-session..................................................................................................................................................... 2系统管理命令......................................................................................................................................2.1文件管理命令...........................................................................................................................................................2.1.1COPY..................................................................................................................................................................2.1.2delete.................................................................................................................................................................2.1.3dir........................................................................................................................................................................2.1.4erase...................................................................................................................................................................2.1.7rename ..............................................................................................................................................................2.1.8show running-config....................................................................................................................................2.1.9show startup-config .....................................................................................................................................verify...................................................................................................................................................................write....................................................................................................................................................................2.2系统维护命令...........................................................................................................................................................2.2.1debug ................................................................................................................................................................2.2.2logging..............................................................................................................................................................2.2.3logging buffered............................................................................................................................................2.2.4logging cli.........................................................................................................................................................2.2.5logging facility ................................................................................................................................................2.2.6logging filed ....................................................................................................................................................2.2.7logging monitor.............................................................................................................................................2.2.8logging on........................................................................................................................................................2.2.9logging rate-limit ..........................................................................................................................................logging trap.....................................................................................................................................................ping ....................................................................................................................................................................service sequence-numbers........................................................................................................................service timestamps........................................................................................................................................show debugging............................................................................................................................................show clock........................................................................................................................................................show logging...................................................................................................................................................show logging filed.........................................................................................................................................show memory .................................................................................................................................................show slab..........................................................................................................................................................show process...................................................................................................................................................show version....................................................................................................................................................show chassis....................................................................................................................................................traceroute.........................................................................................................................................................2.3SNMP命令................................................................................................................................................................2.3.1debug snmp ....................................................................................................................................................2.3.2set snmp access..............................................................................................................................................2.3.3set snmp context............................................................................................................................................2.3.4set snmp group..............................................................................................................................................2.3.5set snmp ip-filter enable.............................................................................................................................2.3.6set snmp ip-filter host..................................................................................................................................2.3.7set snmp notify enable ................................................................................................................................2.3.8set snmp notify trap......................................................................................................................................2.3.9set snmp sys-info ..........................................................................................................................................set snmp user..................................................................................................................................................set snmp view .................................................................................................................................................show snmp.......................................................................................................................................................show snmp access.........................................................................................................................................show snmp engineID....................................................................................................................................show snmp groups........................................................................................................................................show snmp ip-filter.......................................................................................................................................show snmp notify-target ............................................................................................................................show snmp sys-info......................................................................................................................................show snmp trap-target................................................................................................................................show snmp user .............................................................................................................................................show snmp view.............................................................................................................................................snmp-server community.............................................................................................................................snmp-server enable v1v2 ...........................................................................................................................snmp-server traps enable...........................................................................................................................snmp-server traps host ...............................................................................................................................snmp-server trap-source loopback........................................................................................................ 3接口命令..............................................................................................................................................3.1概述部分命令...........................................................................................................................................................3.1.1rate-limit...........................................................................................................................................................3.1.2clear counters..................................................................................................................................................3.1.3description .......................................................................................................................................................3.1.4show interfaces...............................................................................................................................................3.1.5show rate-limit ...............................................................................................................................................3.1.6shutdown..........................................................................................................................................................3.1.7flow-control.....................................................................................................................................................3.2以太网接口配置命令.............................................................................................................................................3.2.1duplex................................................................................................................................................................3.2.2medium.............................................................................................................................................................3.2.3speed .................................................................................................................................................................3.2.4auto-negotiation ...........................................................................................................................................3.3Loopback接口配置命令 ......................................................................................................................................3.3.1interface loopback......................................................................................................................................... 4IP寻址与服务命令.............................................................................................................................4.1IP基本配置命令......................................................................................................................................................4.1.1clear host..........................................................................................................................................................4.1.2ip address.........................................................................................................................................................4.1.3ip unnumbered...............................................................................................................................................4.1.4ip host................................................................................................................................................................4.1.5show hosts .......................................................................................................................................................4.1.6show ip route ..................................................................................................................................................4.1.7show ip route summary...............................................................................................................................4.1.8show ip-statistics ...........................................................................................................................................4.1.9show net-memory.........................................................................................................................................4.2ARP配置命令...........................................................................................................................................................4.2.3arpreq period time........................................................................................................................................4.2.4clear arp-cache...............................................................................................................................................4.2.5ip arp time-out...............................................................................................................................................4.2.6ip proxy-arp.....................................................................................................................................................4.2.7show arp ...........................................................................................................................................................4.2.8show ip arp ......................................................................................................................................................4.3DHCP配置命令.......................................................................................................................................................4.3.1DHCP服务端命令 .........................................................................................................................................4.3.2DHCP中继命令..............................................................................................................................................4.3.3DHCP其他命令..............................................................................................................................................4.4DNS命令 ...................................................................................................................................................................4.4.1ip dns server....................................................................................................................................................4.4.2ip dns transparent-proxy............................................................................................................................4.4.3ip dns transparent-proxy enable..............................................................................................................4.4.4ip domain lookup ..........................................................................................................................................4.4.5ip domain name.............................................................................................................................................4.4.6ip domain retry...............................................................................................................................................4.4.7ip domain timeout.........................................................................................................................................4.4.8ip name-server...............................................................................................................................................4.4.9show ip dns config ........................................................................................................................................show ip dns querying...................................................................................................................................show ip dns statistics....................................................................................................................................debug ipcls debug-level dns.....................................................................................................................4.5IP SLA配置命令.......................................................................................................................................................4.5.1IP SLA ENTRY的配置命令 ..........................................................................................................................4.5.2IP SLA RESPONDER的配置命令...............................................................................................................4.5.3IP SLA SCHEDULE的配置命令..................................................................................................................4.5.4IP SLA UDP-ECHO的配置命令.................................................................................................................4.5.5IP SLA UDP-JITTER的配置命令................................................................................................................4.5.6IP SLA其他命令 ............................................................................................................................................. 5IP路由协议命令.................................................................................................................................5.1静态路由命令...........................................................................................................................................................5.1.1ip default-network ........................................................................................................................................5.1.2ip route..............................................................................................................................................................5.1.3ip route vrf .......................................................................................................................................................5.2RIP路由协议命令 ...................................................................................................................................................5.2.1debug ip rip.....................................................................................................................................................5.2.2default-metric.................................................................................................................................................5.2.3ip rip poison-reverse....................................................................................................................................5.2.4ip rip authentication-key.............................................................................................................................5.2.5ip rip message-digest-key .........................................................................................................................5.2.6ip rip receive version.....................................................................................................................................5.2.9network .............................................................................................................................................................passive-interface............................................................................................................................................redistribute.......................................................................................................................................................router rip...........................................................................................................................................................show ip rip........................................................................................................................................................timer basic........................................................................................................................................................version...............................................................................................................................................................5.3OSPF路由协议命令...............................................................................................................................................5.3.1area authentication.......................................................................................................................................5.3.2area default-cost ...........................................................................................................................................5.3.3area filter-list prefix.......................................................................................................................................5.3.4area nssa...........................................................................................................................................................5.3.5area range........................................................................................................................................................5.3.6area sham-link................................................................................................................................................5.3.7area stub...........................................................................................................................................................5.3.8area virtual-link ..............................................................................................................................................5.3.9auto-cost reference-bandwidth...............................................................................................................clear ip ospf .....................................................................................................................................................debug ip ospf..................................................................................................................................................default-information ......................................................................................................................................default-metric.................................................................................................................................................distance.............................................................................................................................................................distance ospf ...................................................................................................................................................distribute-list...................................................................................................................................................domain-id ........................................................................................................................................................domain-tag......................................................................................................................................................fast-spf-calculate...........................................................................................................................................graceful-restart...............................................................................................................................................graceful-restart help.....................................................................................................................................ip ospf authentication ..................................................................................................................................ip ospf authentication-key .........................................................................................................................ip ospf cost.......................................................................................................................................................ip ospf database-filter..................................................................................................................................ip ospf demand-circuit................................................................................................................................ip ospf dead-interval....................................................................................................................................ip ospf hello-interval ....................................................................................................................................ip ospf message-digest-key......................................................................................................................ip ospf mtu-ignore........................................................................................................................................ip ospf priority.................................................................................................................................................ip ospf network...............................................................................................................................................ip ospf retransmit-interval..........................................................................................................................ip ospf transmit-delay..................................................................................................................................log-adjacency-changes...............................................................................................................................。
H3CNE实验指导书电子版手册
实验一、以太网交换机基本配置一、交换机常用命令配置模式Quidway交换机S3026主要有5种视图，每个视图下都有专属该视图的命令，在其他视图下不能使用，有些视图则可以在任何视图下使用。
视图之间的关系如下：注意事项：1. disp是display的缩写，在没有歧义时LANSWITCH会自动识别不完整词2. disp cur显示LAN交换机当前生效的配置参数3. disp和ping 命令在任何视图下都可执行，不必切换到系统视图4. 删除某条命令，一般的命令是undo xxx，另一种情况是用其他的参数代替现在的参数，如有时虽然xxx abc 无法使用undo删除，但是可以修改为xxx def2 配置参考（1）命令行在线帮助在任一命令视图下，键入“?”获取该命令视图下所有的命令及其简单描述。
<Quidway> ?键入一命令，后接以空格分隔的“?”，如果该位置为关键字，则列出全部关键字及其简单描述。
<Quidway> display ?键入一命令，后接以空格分隔的“?”，如果该位置为参数，则列出有关的参数描述。
（2）命令行错误信息（（4）基本配置命令二、通过telnet方式配置交换机的相关配置命令配置交换机的ip地址和PC的ip地址[Quidway]vlan 10[Quidway-vlan10]port access ethernet 0/1 to ethernet 0/5[Quidway-vlan10]quit[Quidway]interface vlan 10[Quidway-vlan10-interface]ip address 1.1.1.4 255.0.0.0配置完交换机的ip地址，你还需要配置PC的ip地址（比如1.1.1.2/8），PC机与交换机VLAN接口IP所属端口在同一个VLAN内。
配置Telnet方式登录时的密码：[Quidway] User-interface vty 0 4 （表示最多有5个telnet用户同时登录，用0-4表示）[Quidway-ui-vty0] authentication-mode password[Quidway-ui-vty0] set authentication password simple Huawei[Quidway-ui-vty0] user privilege level 3 （注：设置Telnet登录后具有最高3级权限）检测PC与交换机的连通性，使用ping命令检测，能否ping通交换机三、设置telnet访问交换机后缺省具有的权限1 配置参考（1）配置权限可以通过super password [ level user-level ] { simple | cipher } password 来设置不同级别的访问密码：[Quidway]super password level 1 cipher jack[Quidway]super password level 2 cipher black[Quidway]super password level 3 cipher brown在上面telnet方式登陆路由器时，我们使用命令[Quidway]user-interface vty 0 4[Quidway-ui-vty0] user privilege level 0 （设置用户的默认访问级别为0）当telnet到路由器的时候，可以使用命令：super [ level ] 来切换不同访问级别，不同的等级密码可以不同，可以实现对访问用户的权限管理。
交换机Telnet登陆配置端口配置实验
在Windows命令提示符下面键入： 问题：登陆到哪一个IP？
答案是：192.168.0.1 (交换机虚接口的ip地址)
第五步：远程登陆Telnet命令
输入密码：123456(密码不会显示出来)
telnet成功，此时用户级别是level0
提升级别到level3: 在telnet下输入super 3
端口镜像
交换机端口有两种模式，access和trunk。access口用于与计算机相连，而交换机之间的连接，应该是trunk。
01
端口聚合也叫做以太通道（ethernet channel），做汇聚的端口简称trunk，主要用于交换机之间连接。使用以太通道的话，交换机会把一组物理端口联合起来，做为一个逻辑的通道，也就是channel－group，这样交换机会认为这个逻辑通道为一个端口。
Receive Pair
Transmit Pair
MDI-II介质相关接口(平行模式介质相关接口 ).MDI-X介质非相关接口(交叉模式介质相关口 ); 华为3com交换机可以智能识别MDI/MDIX接口; 路由器和PC都属于MDI接口; 以太网交换机提供都是MDI-X接口.
直连网线
Transmit Pair
[Quidway]user-interface vty 0 4
[Quidway -ui-vty0-4] set authentication password simple 123456
01
登陆成功后用户的级别为level 0只能对交换机的用户界面进行查看，不能进行操作，提升到Level3最高级别(supervisor权限)。
Receive Pair
流量控制
01
网络的不同容易造成流量过大引起的端口阻塞。 缺省情况下所有端口都禁用了流量控制功能。

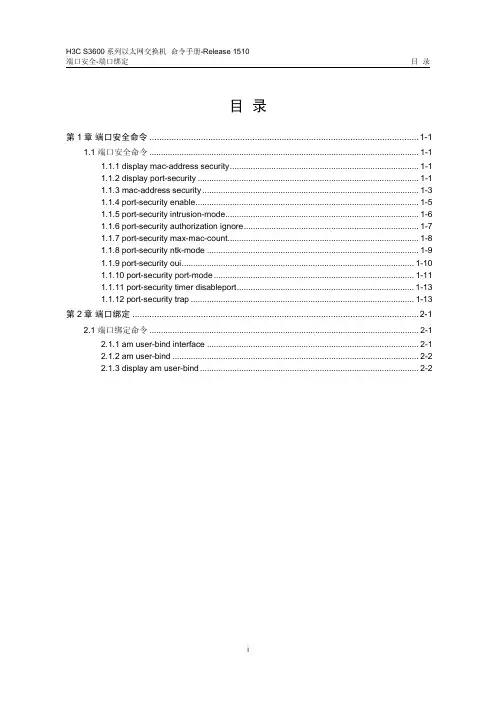

H3C3600交换机配置及说明文档--12-端口安全-端口绑定命令
1-1
H3C S3600 系列以太网交换机 命令手册-Release 1510 端口安全-端口绑定
第 1 章 端口安全命令
Байду номын сангаас
【视图】 任意视图
【参数】
interface-list：以太网端口列表，表示多个以太网端口，表示方式为 interface-list＝ { interface-type interface-number [ to interface-type interface-number ] } & <1-10>。 其中，interface-type 为端口类型，interface-number 为端口编号。& <1-10>表示前 面的参数最多可以输入 10 次。
【举例】 # 显示全局和所有端口的端口安全配置信息。
<H3C> display port-security Equipment port-security is enabled AddressLearn trap is Enabled Intrusion trap is Enabled Dot1x logon trap is Enabled Dot1x logoff trap is Enabled Dot1x logfailure trap is Enabled RALM logon trap is Enabled RALM logoff trap is Enabled RALM logfailure trap is Enabled Vlan id assigned is NULL Disableport Timeout: 20 s OUI value: Index is 5, OUI value is 00efec Ethernet1/0/1 is link-down Port mode is Userlogin NeedtoKnow mode is needtoknowonly Intrusion mode is disableport Max mac-address num is 100
H3C华为交换机配置命令大全
H3C交换机配置命令大全1、system-view 进入系统视图模式2、sysname 为设备命名3、display current-configuration 当前配置情况4、language-mode Chinese|English 中英文切换5、interface Ethernet 1/0/1 进入以太网端口视图6、port link-type Access|Trunk|Hybrid 设置端口访问模式7、undo shutdown 翻开以太网端口8、shutdown 关闭以太网端口9、quit 退出当前视图模式10、vlan 10 创立VLAN 10并进入VLAN 10的视图模式11、port access vlan 10 在端口模式下将当前端口参加到vlan 10中12、port E1/0/2 to E1/0/5 在VLAN模式下将指定端口参加到当前vlan中13、port trunk permit vlan all 允许所有的vlan通过H3C路由器1、system-view 进入系统视图模式2、sysname R1 为设备命名为R13、display ip routing-table 显示当前路由表4、language-mode Chinese|English 中英文切换5、interface Ethernet 0/0 进入以太网端口视图6、ip address 192.168.1.1 255.255.255.0 配置IP地址和子网掩码7、undo shutdown 翻开以太网端口8、shutdown 关闭以太网端口9、quit 退出当前视图模式10、ip route-static 192.168.2.0 255.255.255.0 192.168.12.2 description To.R2 配置静态路由11、ip route-static .0 0.0.0.0 192.168.12.2 description To.R2 配置默认的路由H3C S3100 SwitchH3C S3600 SwitchH3C MSR 20-20 Router1、调整超级终端的显示字号；2、捕获超级终端操作命令行，以备日后查对；3、language-mode Chinese|English 中英文切换；4、复制命令到超级终端命令行，粘贴到主机；5、交换机去除配置:<H3C>reset save ；<H3C>reboot ；6、路由器、交换机配置时不能掉电，连通测试前一定要检查网络的连通性，不要犯最低级的错误。
12-端口绑定命令
i
H3C S7500 系列以太网交换机 命令手册 端口绑定
第 1 章 端口绑定配置命令
第1章 端口绑定配置命令
1.1 端口绑定配置命令
1.1.1 am user-bind ace
【命令】 am user-bind { mac-addr mac-address | ip-addr ip-address }* interface-list undo am user-bind { mac-addr mac-address | ip-addr ip-address } interface-list
1.2.3.3
Ethernet3/0/2
000f-e20f -5102
2.3.2.3
Ethernet3/0/4
以上显示信息表示，系统当前总共有两条端口绑定的配置：
z MAC 地址 000f-e20f -5101、IP 地址 1.2.3.3 已经与端口 Ethernet3/0/2 进行了 绑定；
z MAC 地址 000f-e20f -5102、IP 地址 2.3.2.3 已经与端口 Ethernet3/0/4 进行了 绑定。
说明： 对于一个端口，最多可以绑定 100 个 MAC 地址和 IP 地址。
【举例】
# 将 MAC 地 址 为 000f-e20f-5600 ， IP 地 址 为 10.1.1.1 的 合 法 用 户 与 端 口 GigabitEthernet2/0/2 进行绑定。
<H3C> system-view System View: return to User View with Ctrl+Z. [H3C] interface GigabitEthernet2/0/2 [H3C-GigabitEthernet2/0/2] am user-bind mac-addr 000f-e20f-5600 ip-addr 10.1.1.1
华为6506端口配置
端口配置目录目录第1章以太网端口配置 ........................................................................................................... 1-11.1 以太网端口简介................................................................................................................. 1-11.2 以太网端口配置................................................................................................................. 1-21.2.1 以太网端口配置任务列表........................................................................................ 1-21.2.2 进入以太网端口配置模式........................................................................................ 1-21.2.3关闭/打开以太网端口 ............................................................................................. 1-31.2.4 设置以太网端口的描述字符串................................................................................. 1-31.2.5设置以太网端口的双工状态 .................................................................................... 1-41.2.6设置以太网端口的速率 ........................................................................................... 1-41.2.7 设置以太网端口的流量控制 .................................................................................... 1-51.2.8 禁止/允许长帧通过千兆以太网端口 ........................................................................ 1-51.2.9 禁止/允许以太网端口进行MAC地址学习 .............................................................. 1-61.2.10 设置以太网端口的链路环回检测功能.................................................................... 1-61.2.11设置以太网端口的优先级...................................................................................... 1-71.2.12将以太网端口设置为Trunk端口........................................................................... 1-71.2.13设置Trunk端口的属性 ......................................................................................... 1-81.2.14指定以太网端口所属的VLAN ............................................................................... 1-81.3 以太网端口的监控与维护 .................................................................................................. 1-91.4 以太网端口配置举例........................................................................................................ 1-101.4.1配置Trunk端口.................................................................................................... 1-101.5 以太网端口配置排错........................................................................................................ 1-11 第2章以太网端口汇聚配置 .................................................................................................... 2-12.1 以太网端口汇聚简介.......................................................................................................... 2-12.2 以太网端口汇聚配置.......................................................................................................... 2-12.2.1 以太网端口汇聚配置任务列表................................................................................. 2-12.2.2 将一组以太网端口设置为同一个汇聚组的成员 ....................................................... 2-12.3 以太网端口汇聚的监控与维护 ........................................................................................... 2-22.4 以太网端口汇聚典型配置举例 ........................................................................................... 2-22.4.1 配置参与汇聚的以太网端口 .................................................................................... 2-22.5 以太网端口汇聚故障的诊断与排除.................................................................................... 2-3第1章以太网端口配置1.1 以太网端口简介S6506以太网交换机在顶端交换路由处理板的面板上提供1个固定的10BASE-T以太网接口，用于配置交换机或升级交换机的主体软件；在机柜正面提供6个业务接口板插槽，每个插槽均可以插接以下五种业务接口板中的一种：●8端口GBIC千兆以太光口交换板；●8端口千兆以太电口交换板；●8端口10/100/1000BaseT千兆以太网业务板；●24端口百兆以太光口交换板；●48端口百兆以太电口交换板。
锐捷08-端口基本配置命令
目录
目录
第 1 章 端口基本配置命令 .......................................................................................................1-1
1.1 端口基本配置命令 .............................................................................................................. 1-1 1.1.1 broadcast-suppression ............................................................................................ 1-1 1.1.2 copy configuration ................................................................................................... 1-2 1.1.3 description ............................................................................................................... 1-4 1.1.4 display brief interface .............................................................................................. 1-5 1.1.5 display interface ...................................................................................................... 1-7 1.1.6 display link-delay ................................................................................................... 1-11 1.1.7 display loopback-detection .................................................................................... 1-11 1.1.8 display packet-drop ............................................................................................... 1-12 1.1.9 display storm-constrain ......................................................................................... 1-13 1.1.10 display unit .......................................................................................................... 1-14 1.1.11 duplex .................................................................................................................. 1-16 1.1.12 enable log updown .............................................................................................. 1-17 1.1.13 flow-control .......................................................................................................... 1-18 1.1.14 flow-interval ......................................................................................................... 1-18 1.1.15 giant-frame statistics enable ............................................................................... 1-19 1.1.16 interface............................................................................................................... 1-20 1.1.17 jumboframe enable ............................................................................................. 1-21 1.1.18 link-delay ............................................................................................................. 1-21 1.1.19 loopback .............................................................................................................. 1-22 1.1.20 loopback-detection control enable ...................................................................... 1-23 1.1.21 loopback-detection enable .................................................................................. 1-24 1.1.22 loopback-detection interval-time ......................................................................... 1-25 1.1.23 loopback-detection per-vlan enable .................................................................... 1-26 1.1.24 mdi....................................................................................................................... 1-27 1.1.25 multicast-suppression ......................................................................................... 1-27 1.1.26 reset counters interface....................................................................................... 1-28 1.1.27 reset packet-drop interface ................................................................................. 1-29 1.1.28 shutdown ............................................................................................................. 1-29 1.1.29 speed................................................................................................................... 1-31 1.1.30 speed auto........................................................................................................... 1-31 1.1.31 storm-constrain.................................................................................................... 1-32 1.1.32 storm-constrain control........................................................................................ 1-33 1.1.33 storm-constrain enable........................................................................................ 1-34 1.1.34 storm-constrain interval ....................................................................................... 1-35 1.1.35 unicast-suppression ............................................................................................ 1-35 1.1.36 virtual-cable-test .................................................................................................. 1-36
